AR1058 - Blender Arzum - Free user manual and instructions

Product Type	Multi Blender Set
Brand	Arzum
Model	AR1058
Power Rating	1500 W
Voltage / Frequency	220-240 V ~ 50/60 Hz
Work Bowl Capacity	1.5 L
Measuring Bowl Capacity	800 ml
Blade Material	Stainless steel (double-sided serrated)
Speed Control	Start button + Turbo button (pulse operation)
Turbo Function	Yes, for maximum power and pulse operation
Safety Lock	Bowl lid and motor part must be locked for operation
Included Accessories	Work bowl with lid, stainless steel double-sided blade, protective cover, carrier disc, slicing blade, grating blade, pusher, beater adapter and beaters, stainless steel blender shaft, serrated blade, measuring bowl
Hand Blender	Yes, detachable stainless steel shaft
Beater Function	Yes, with beater adapter and wire beaters
Slicing / Grating	Yes, with carrier disc and interchangeable blades
Chopping	Yes, with work bowl and stainless steel blade
Dishwasher Safe Parts	Chopper bowl, double-sided blade, beaters (upper rack)
Cleaning Motor Body	Wipe with damp cloth, never immerse in water
Maximum Operation Time	10 seconds per cycle, then 1 minute rest
Product Life	7 years
Intended Use	Household only
Guarantee	Covered by Arzum authorized service

Frequently Asked Questions - AR1058 Arzum

How do I safely assemble the blender for chopping?

Place the work bowl on a flat surface, insert the accessory holder on the centering spindle, then add the stainless steel blade. Place the transparent intermediate lid, then the locked work bowl lid and lock the latches until you hear a 'click'. Finally, attach the motor part and turn clockwise until it clicks. Do not operate if any part is not properly locked.

What is the Turbo button used for?

The Turbo button provides pulse operation and maximum power. It is ideal for tough ingredients like ice or hard foods. Press in short intervals for best results.

Can I wash the motor body in the dishwasher?

No, never immerse the motor body in water or other liquids. Clean the outside with a slightly damp cloth. The chopper bowl, stainless steel blade, and beaters can be washed in the upper rack of a dishwasher.

What should I do if the blender does not start?

Ensure the bowl lid is correctly locked (you hear a 'click') and the motor part is securely attached. The appliance will not operate if these parts are not properly placed. Check the power connection.

What is the maximum operation time for the blender?

The device is designed for a maximum of 10 seconds of continuous operation. After each cycle, let it cool for about 1 minute before using again.

How do I remove the work bowl lid after use?

First, remove the motor part by pressing the motor part locking button and turning. Then press the lid locking latches opening buttons to release the lid. Never try to remove the lid without opening the latches.

Is the blender safe for crushing ice?

Yes, the stainless steel serrated blade is designed to crush ice and hard foods. Use the Turbo function in short pulses for best results.

Can I use the hand blender without the measuring bowl?

Yes, you can use it in a deep pot or the provided measuring bowl (800 ml). Always operate in upright position and ensure the blender shaft is fully immersed.

What accessories are included with the AR1058?

The set includes: work bowl (1.5 L), stainless steel double-sided blade, protective cover, carrier disc, slicing blade, grating blade, pusher, beater adapter and beaters, stainless steel blender shaft, serrated blade, and measuring bowl (800 ml).

How do I store the chopping blade safely?

After washing and drying, store the double-sided metal blade in its protective case to prevent injury and maintain sharpness. Keep it out of reach of children.

USER MANUAL AR1058 Arzum

Black plastic cup with curved handle and spout, isolated on white background (no text or symbols)

Close-up of a metallic mechanical component with a central knob and spiral grooves (no visible text or symbols)

TuRBo DüĞMESİ

Close-up of a black door handle with a white button and a black arrow pointing to the left side (no text or symbols visible)

İŞLEM HAZNESİNDE PARÇALAMA

Close-up of a kitchen blender with handle and control panel (no visible text or symbols)

Circular black object with a small square cutout and a separate rectangular block on the right side (no text or symbols visible)

Black-and-white photo of a glass beaker containing a container filled with sliced ingredients, no visible text or symbols.

DİKKAT:

Laboratory glassware setup with two necks and a bulb (no text or symbols visible)

DİKKAT:

1- Motor (Main Body)
2- Start Button
3- Turbo button
4- Bowl with a capacity of 1,5 lt
5- Work bowl handle
6- Locked work bowl lid
7- Lid locking latches
8- Lid locking latches opening buttons
9- Motor part locking button
10- Transparent intermediate lid
11- Accessory holder

12- Stainless steel double-sided blade
13- Protective cover of metal blade
14- Carrier disc
15- Slicing blade
16- Grating blade
17- Pusher
18- Beater adapter and beaters
19- Stainless steel blender shaft
20- Serrated blade
21- Measuring bowl with a capacity of 800 ml

We thank you for having selected an Arzum brand Multi Blender Set. We wish this product to make life easier for you, as with other Arzum products offered to you.

In order to obtain utmost output from your appliance, please read carefully this user's manual and save it for further use.

IMPORTANT SAFEGUARDS

• Make sure that the voltage indicated on the Arzum Hestia Multi Blender Set corresponds with the mains voltage in your home. Our company shall not be held liable for any failures owing to any discrepancy and such failures shall not be covered by the guarantee.

- Your device is for household use only. It should not be used for commercial or industrial purposes. Otherwise, inconvenient uses shall not be covered by the guarantee.

- Keep the appliance away from and out of the reach of children.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Always disconnect the blender from the supply if it is left unattended and before assembling, disassembling or cleaning;

- Do not allow children to use the blender without supervision.

- To prevent harming your appliance do not use extension cords that supply insufficient current.

Do not place your appliance over or near direct heat sources such as hot gas, electric burner, or heating oven.

Do not let cord hang over edge of a table or counter, or touch any other appliances.

- NEVER operate your unit without putting foods inside of the bowl or on wet surfaces. Otherwise, this may result in damage to your appliance.

Do not put foods over the recommended amount; otherwise your appliance may be damaged.

- Be certain that work bowl lid is securely locked in place before operating your appliance. Do not deactivate the locking mechanism via other tools.

- When carrying or washing, take care to hold the mixing and cutting blades of your appliance from the correct side, as they are very sharp. Otherwise, they may cause serious injuries.

- When operating your unit NEVER use your fingers or forks, knives, spoons, etc. in order to move foods. Use only pusher accessory for such purpose.

- Avoid from touching any moving parts when in use. Do not keep your hands, hairs, clothes, or any tools closer

- NEVER attach to your appliance any accessories belonging to other appliances.

- Avoid actions that may harm or damage the cord or plug of your appliance. Do not carry your appliance by holding from the cord. To unplug, hold the plug and do not pull by the cord.

Do not operate the appliance with a damaged cord, plug or accessories, or after it has been dropped down or malfunctions in any manner. In such case, take it to the nearest Arzum Authorized Service for any necessary examinations and repair. The plug and cord must be replaced by the authorized service.
- NEVER use any parts on your appliance, which parts not produced or recommended by the manufacturer firm, since they may result in, fire, electrical shock or injury.
- Before dismantling any accessory from your appliance ensure that its engine is completely stopped.
- ALWAYS unplug from outlet when not in use, or before putting in or taking out accessories, or during maintenance and cleaning.
- NEVER operate your appliance an empty bowl or outdoors. This may cause damaging to your appliance.
Do not operate your appliance for long periods; use it for shorter periods rather.
• Use your appliance for its intended purposes as recommended.

Notes:

1- Your appliance could not operate for your personal safety reasons unless the bowl lid is properly fixed and locked on its place.
2- For removing the motor part firstly press the motor part locking button and then turn the motor part and remove it.
3- You cannot remove the work bowl lid unless the motor part is removed from its place. For removing the work bowl lid, firstly remove the motor part, then press the lid locking latches opening buttons and remove the lid. NEVER try to remove the lid if you do not open the latches.

SUGGESTIONS OF USE

Before using Arzum Hestia Multi Blender Set read "Cleaning and Care" part and rinse the accessories of your appliance which can be washed carefully with tepid water and dry them. NEVER immerse the main body into water or other liquids, wipe the outside with a slightly damp cloth for cleaning.
- Operate it with the shorter periods when in "Turbo" (operation with short and interrupted intervals) position when operating your appliance. The foods which you want to cut, mix or beat will be mixed better and cut in the same sizes.

WARNING: Your appliance is designed to operate for up to 10 sec. Ensure not to exceed this duration when preparing foods. Otherwise your unit may be damaged. Allow your appliance to cool down for about 1 minute per every operation of 10 seconds.

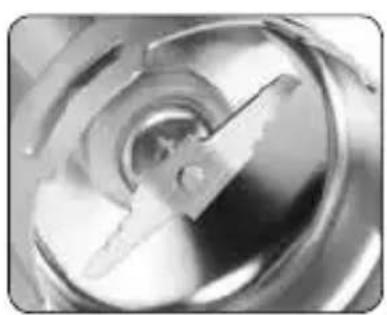

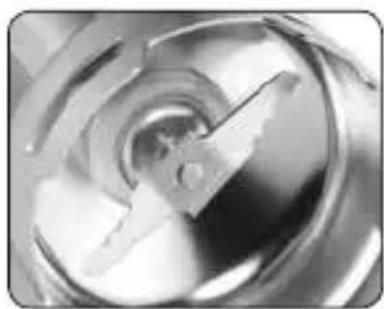

STAINLESS STEEL SERRATED BLADE

• Serrated stainless blade preserves sharpness longer than standard blades due to its special designed serrated shape and hardened steel.
• Serrated blade design, by comparison with standard 2 blade blenders, enables more efficient, practical and long usage even for challenging ice or harsh food breaking tasks.

TuRBo BuTToN

The TURBO button will provide the opportunity of pulse working and maximum power usage. You can obtain the desired result easier particularly in the beating process by means of the turbo function.
- Press the button with shorter intervals when using the turbo function.

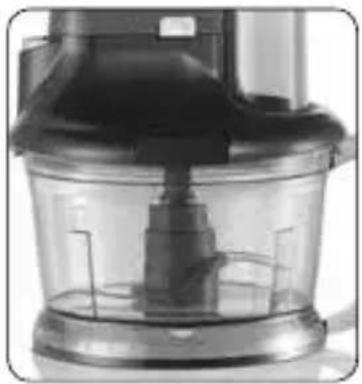

CHoPPING WITH WoRK BoWL

• After place the work bowl on a plate surface then fix the accessory holder on the centering spindle located in the bowl.
- Remove the zirconium blade for cutting from its case, and insert it on the accessory holder.
- Place the foods to be cut inside of the bowl ensuring that the foods will be of the equivalent level and without piling up. Do not put foods over

the recommended amount; otherwise your appliance may be damaged.

• Place the transparent intermediate lid on the work bowl. Then place the locked work bowl lid and lock the latches. You can hear a "click" sound if they are properly locked.
• Place the motor part on its place and turn it clockwise until it fits well in

Black plastic object with curved handle and spout, isolated on white background (no text or symbols)

Close-up of a metallic mechanical component with concentric circular features (no visible text or symbols)

Close-up of a black arrow pointing to a button on a white surface, no text or symbols visible

Close-up of a black and white kitchen blender with handle and control panel (no visible text or symbols)

its place, without tightening too much. You can hear a "click" sound if it is properly placed.

WARNING: Your appliance does not operate if the bowl lid and motor part are not placed properly.

• Connect the mains plug to the wall socket.
• You can start the operation by means of pressing the Turbo button which is located on the motor body or pressing the start button.
• "TURBO" button located in the side panel allows you to exercise a pulse operation and maximum power. By using this turbo function you can not only obtain good results in a respectively simple way especially in cutting processes, but also extend the life cycle of your appliance.
  Before operating your appliance, remove the seeds of those fruits such as peaches, apricots, plums, etc., and peel those dried fruits/nuts such as almonds, hazelnuts, walnuts, etc. Meat to be processed must be boneless, free from fats or sinews.

WARNING:

1- In case of controlling or finishing the work when operating your appliance, do not separate the main boy and the chopper adapter before stopping the motor completely and unplugging the appliance.
2- For remove the chopped foods, firstly remove the blade with accessory holder.

GRATING AND SLICING WITH THE WoRK BoWL

• After place the work bowl on a plate surface then fix the accessory holder on the centering spindle located in the bowl.
- For slicing or grating process, keep the holder disc in such position with the disc side facing upwards, and first place the protruding part of the selected grating or slicing blade and then

push on the other side slightly. (To remove grating or slicing blade from the disc, slightly push from downward.) If your blade is in alignment with the surface of the holder disc and does not move when pressed from upwards, it means that such blade is secured in its place.

Circular object with a small rectangular cutout and a separate rectangular block on the right side (no text or symbols visible)

• Place the beating and kneading disc onto the accessory holder.
• Place the transparent intermediate lid on the work bowl. Then place the locked work bowl lid and lock the latches. You can hear a "click" sound if

they are properly locked.

• Place the motor part on its place and turn it clockwise until it fits well in its place, without tightening too much. You can hear a "click" sound if it is properly placed.
• Connect the mains plug to the wall socket.
• You can start the operation by means of pressing the Turbo button which is located on the motor body or pressing the start button.
• For your personal safety push the foods into the bowl using its own pusher apparatus, and make sure that this apparatus must be in place during operation. Never use your fingers, or forks, spoons, etc.

MIXING AND CuTTING WITH HAND BLENDER:

- You can use your appliance as hand blender, mount the blender and motor part.

Mount the stainless steel blender accessories to the main body by turning until it fits well in its place, without tightening too much.

- Connect the mains plug to the wall socket.

- Use special measuring receptacle or a deep pot in order to obtain the best results from your hand blender and to prevent the material from spreading out.

- Cut the materials into small pieces and move such pieces up and down through depressing the start button of your hand blender in the material after setting the desired speed adjustment.

- By using stainless steel blender accessories of your appliance you can prepare sauces, milks, fruit juices, soups, cocktails, and milkshakes; make cooked vegetables, fruits, and mashed potatoes (for example, baby foods, etc.); mix such soft materials as butter, eggs, flours, and liquid oils (to make mayonnaise, omelets, dessert, and dough), and mix any foods being cooked in the oven.

Close-up of a glass beaker containing sliced ingredients, with a metal stand above it (no visible text or symbols)

As soon as after you have finished your work clean the stainless steel blender accessories and wipe dry with a damp cloth.

WARNING:

Turn on your appliance only after the ingredients are put into it, and NEVER take any materials out of the unit unless it completely stops.

BEATING AND MIXING WITH THE BEATER NoZZLES:

By means of using the beater accessories of your Arzum Hestia Multi

Blender Set you can easily make the preparations such as cake dough, omelet, crepe dough and mayonnaise.

- Mount the beater accessories firstly by pushing until it fits well in its place in order to use the beater accessories.

- Turn the beater adapter to the motor block to mount without tightening too much.

- Plunge your hand blender in upright position into a deep raw vessel in which you previously placed the materials, take the speed adjustment to the desired stage and connect it to the outlet. Press the start button and turn the materials with the up-down and circular movements.

- After every use, ALWAYS dismantle the beater wires from the beater adapter and wash with the detergent water. It will be enough for you to wipe the adapter with a damp cloth. Excessive water may enter in the appliance and may cause it to be damaged.

Laboratory glassware setup with two necks and a round base (no visible text or labels)

WARNING:

1- ALWAYS operate your hand blender in the upright position.
2- NEVER operate the appliance in an empty vessel or outdoors.
3- Do not press with your appliance on the material hardly.

CLEANING AND CARE

Before cleaning your appliance, make sure that the power cord is disconnected from outlet, and allow it to cool down.
- Wash any accessories coming in contact with foods after every use, and then wipe off them with a soft cloth and remove them.
Do not use such cleansers as abrasive detergents, steel wools, polishers, and aerosols, or other agents that may damage to the surfaces of any accessories.
- When not in use, never leave the appliance as plugged in the power outlet.
- Engine (Main body): NEVER immerse the engine (main body) into water

or other liquids. Wipe off and dry the external surface with a slightly damp cloth.

- Stainless steel blender: Rinse using tepid water and soap. When cleaning under running water, take care not to leak any water into the slot on which the motor is located. If water leaks into the slot, immediately turn upside down and shake it out, and then allow it to cool down with the blade in the upright position.

- You can wash the chopper bowl, double-sided stainless steel cutting blades, and beaters of your appliance by using water and soap, or in the upper section of a dishwasher.

Take due care when washing the chopping and slicing blades, in particular. These parts may result in serious injuries. After drying the chopping and mixing metal blade, store it in its protective case.

The values which are declared in markings on the product or on the papers which are given together with the product are the values which are obtained in the laboratory environment according to the related standards. These values can vary according to the usage and environment conditions of the product.

Product life 7 years Technical Specifications 220-240 V \~ 50/60 Hz 1500 W

HANDLING AND SHIPMENT

• During handling and shipment, your appliance must be kept in original package in order to prevent damages to its parts.
• Keep at normal position during shipment
• Do not drop the product when transporting and protect from impacts.
  • After delivery of the product, failures and damages that may occur while transporting are not covered by warranty.

The product is in compliance with the EEE Directives. WEEE

This product contains recyclable materials that compliance with the WEEE directives. Do not dispose this product as unsorted municipal waste. Please contact your local municipality for the nearest collection point.

Manufacturer / Importer:

Black plastic object with curved handle and pointed tip, possibly a mechanical or electronic component (no text or symbols visible)

Close-up of a metallic mechanical component with a central blade and circular base (no visible text or symbols)

TURBOTASTE

Close-up of a black button with a white arrow pointing to it, no visible text or symbols

ZERSCHNEIDEN / ZERSTÜCKELN

Close-up of a kitchen blender with a black handle and plastic casing (no visible text or symbols)

Close-up of a circular black object with a small rectangular cutout and a separate rectangular block on the right (no visible text or symbols)

Black-and-white photo of a glass beaker containing a bowl of food with sliced pieces, no visible text or symbols.

Laboratory glassware setup with two necks and a bulb (no text or symbols visible)

VORSICHT:
