USER MANUAL Sentinel X Rocker

Line drawing of a toy car seat with buttons and display panels (no text or symbols)

User Manual Item no: 5107501

Need Help? Email: [e-mail]

Phone: [phone] www.XRockerNation.co.uk

IMPORTANT: You must keep your original retail receipt as proof of purchase.

Thank you for purchasing this X Rocker gaming chair. You are now close to enhancing your favourite games with glorious audio!

To get started, please assemble the chair using the assembly instructions on the separate leaflet and then follow the instructions in this manual to get rocking!

Table of contents

3 Box contents and control panel overview
4 Wireless connection guide: PS4
5 Wireless connection guide: Xbox One
6 Wireless connection guide: TV (All systems)
7 Wired connection guide: TV (All consoles)
8 Wired connection guide: PS4 Controller only
9 Bluetooth connection guide
10 Troubleshooting tips
11 Health and safety information
12 Power supply safety information

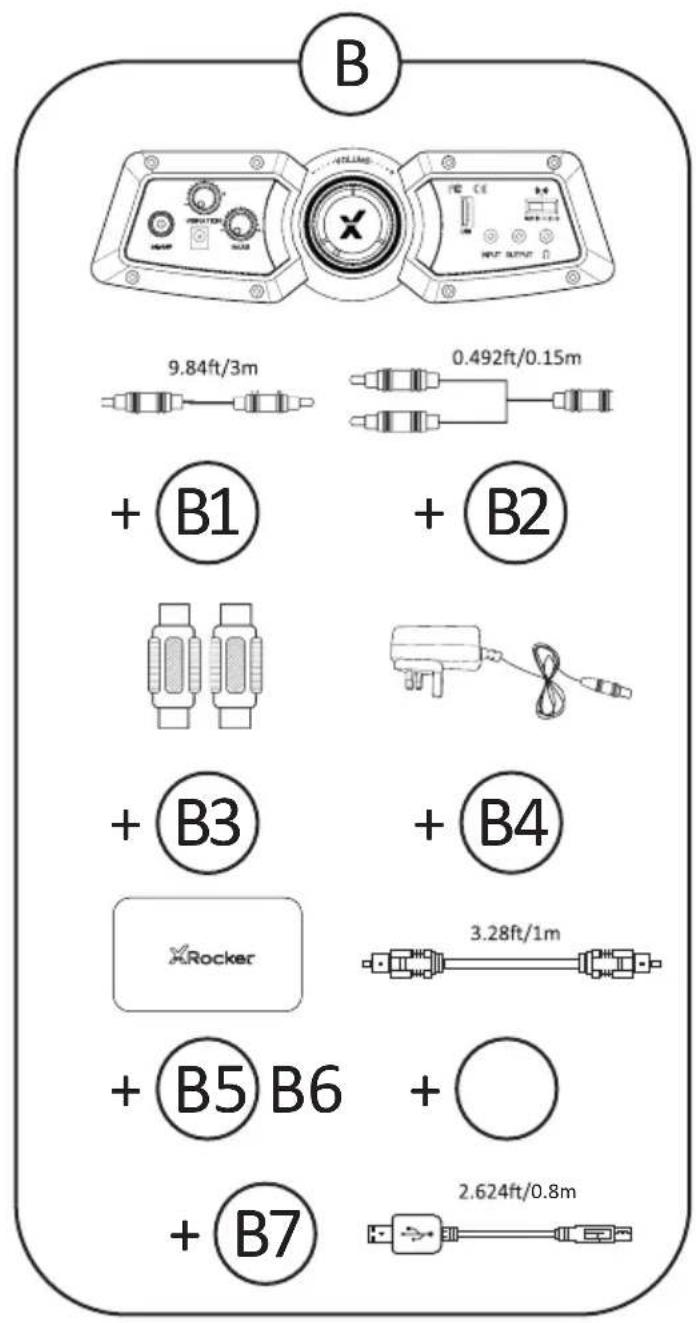

B 9.84ft/3m 0.492ft/0.15m +B1 +B2 +B3 +B4 ×Rocker 3.28ft/1m +B5 B6 + - + B7 2.624ft/0.8m

B1 - 3m 3.5mm to 3.5mm Audio cable
B2 - 15cm RCA to female 3.5mm audio cable
B3 - RCA female to female adapters
B4 - Power supply Cable
B5 - Wireless DAC Transmitter
B6 - 1m Optical Toslink Audio Cable
B7 - Micro USB Cable

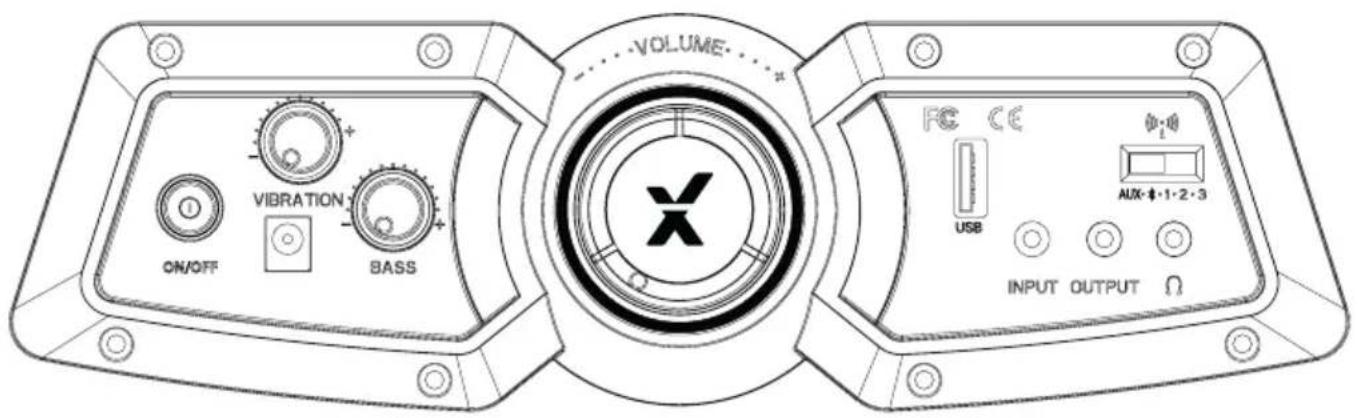

Control panel overview

ON/OFF VIBRATION BASS VOLUME FC CE USB AUX-Φ1-2-3 INPUT OUTPUT Ω

Wireless connection guide: PS4

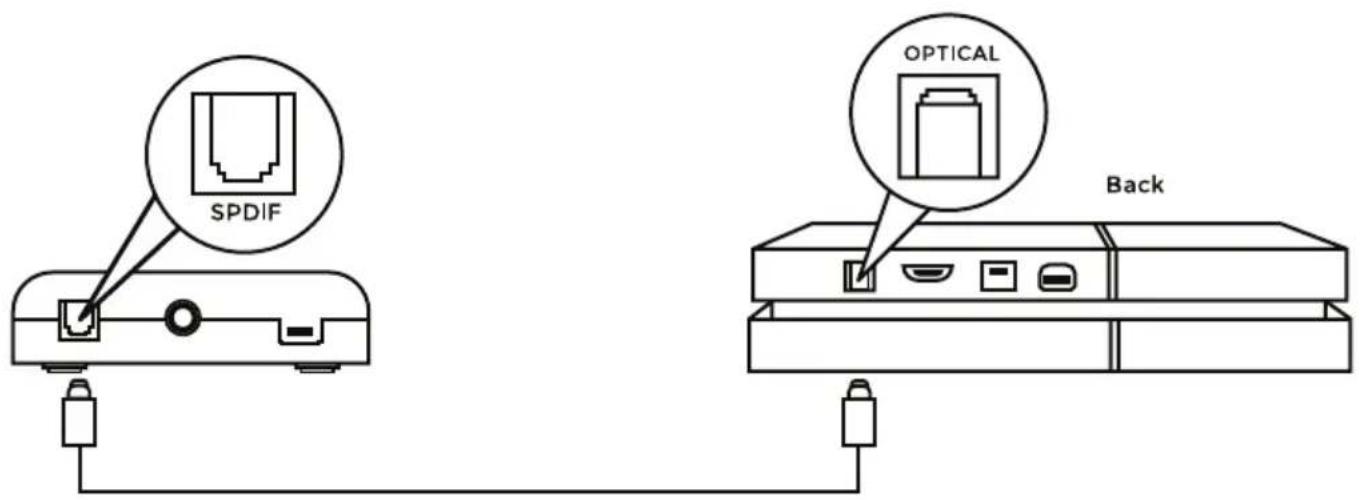

Step 1: Make sure that the PS4 ^™ system is switched OFF. Insert the micro USB cable into the X Rocker DAC converter and the other end into one of the front USB ports on the PS4 ^™ system. Remove the clear plastic covers from both ends of the optical cable. Input one end of the optical cable into the X Rocker Wireless DAC (Slot titled SPDIF) and the other into the Optical SPDIF connector on the PS4 ^™ system.

SPDIF OPTICAL Back

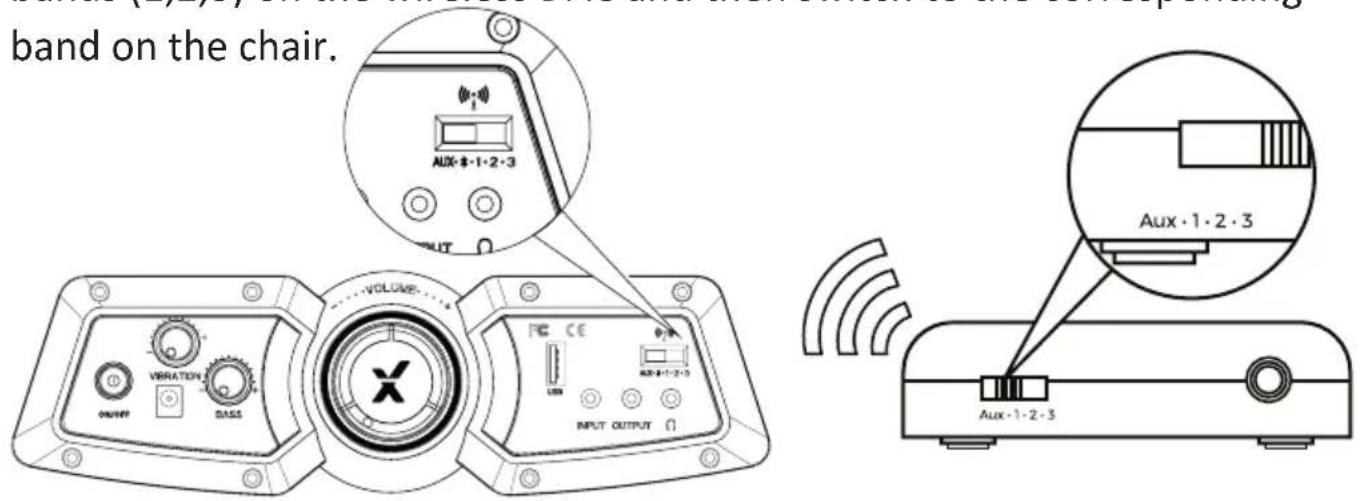

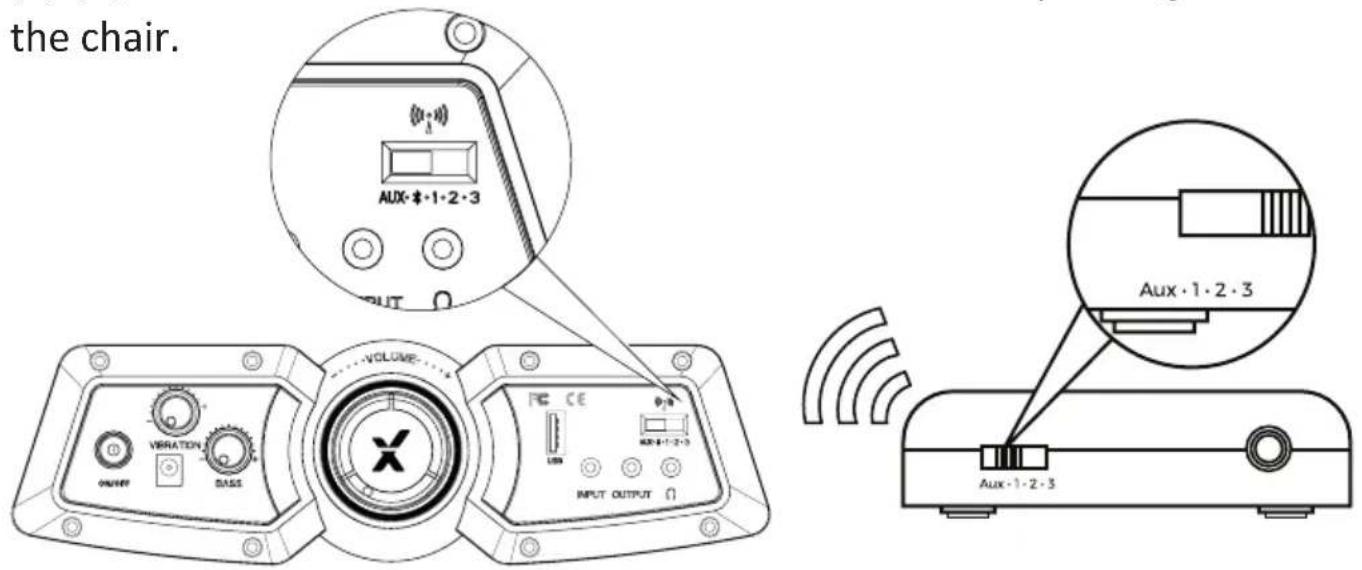

Step 2: Turn the PS4™ system back on. Select one of the wireless bands (1,2,3) on the wireless DAC and then switch to the corresponding band on the chair.

the chair. VOLUME VARIATION DANCE INPUT OUTPUT AUX·1·2·3 Aux·1·2·3 Aux·1·2·3

Step 3: On the main PS4™ menu screen Select (Settings) > [Sound and Screen] > [Audio Output Settings] > [Primary Output Port] Change this to [Digital Optical] > choose AAC.

Save, exit and enjoy!

Wireless connection guide: Xbox One

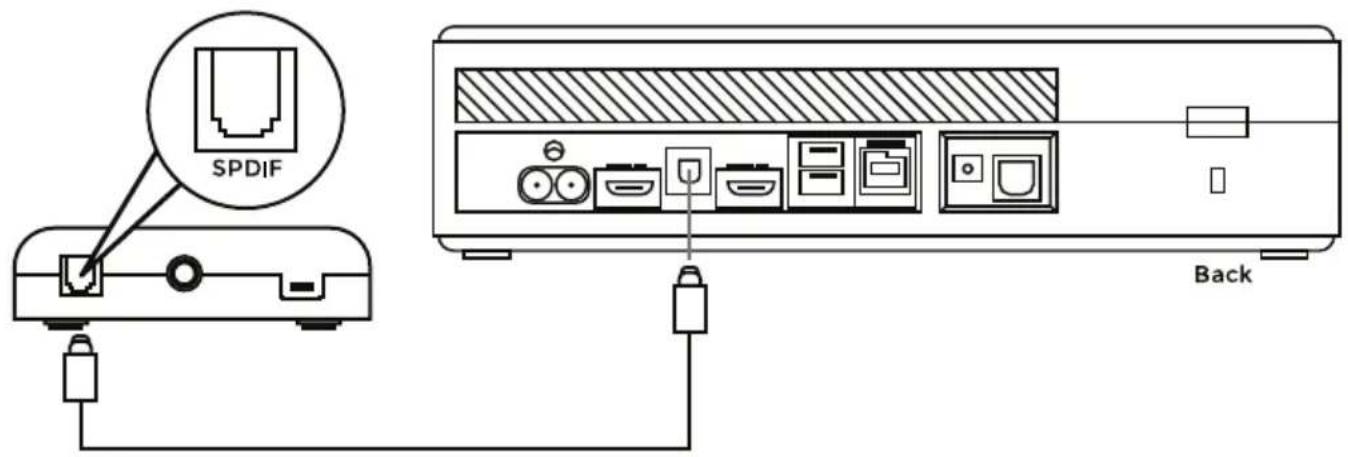

Step 1: Make sure that the Xbox One™ system is switched OFF. Insert the micro USB cable into the X Rocker DAC converter and the other end into one of the back USB ports on the Xbox One™ system. Remove the clear plastic covers from both ends of the optical cable. Input one end of the optical cable into the X Rocker Wireless DAC Slot (labelled SPDIF) and another into the Optical SPDIF connector on the Xbox One™ system.

SPDIF Back

Step 2: Turn the Xbox One™ system back on. Select one of the wireless bands (1,2,3) on the wireless DAC and then switch to the corresponding band on the chair.

band on the chair. VOLUME INPUT OUTPUT VARIATION OUTPUT AUX-8-1-2-3 Aux-1-2-3 Aux-1-2-3

Step 3: On the Xbox One™ menu screen, Select (Settings) > [All Settings] > [Display and Sound] > [Audio Output] > under [Digital Audio], select [Optical Audio] and set it to [Stero Uncompressed]

Save, exit and enjoy!

Wireless connection guide: TV (All systems)

Transmitter TV/SPDIF/Optical Socket B6 B7 TV USB socket

1. Connect B6 Optical Cable to the B5 Wirelesss DAC transmitter's SPDIF Port.
2. Connect other end of B6 Optical Cable to the TV Optical socket.
3. Connect Micro USB Cable to the transmitter and other end to an available USB socket on the TV.
4. Once connected to your TV, increase volume to 50% of the maximum for the best sound level.**

* N.B: If your TV does not feature an SPDIF or OPTICAL OUT Socket then you can instead use the 3.5mm audio connection to connect to a headphone socket.
** Depending on your TV you may need to enable the Optical output separately.

Wired connection guide: TV (All consoles)

VOLUME ON/OFF VIBRATION BASS FC CE USB AUDIO -1-2-3 INPUT OUTPUT TV/Mobile/Tablet B1

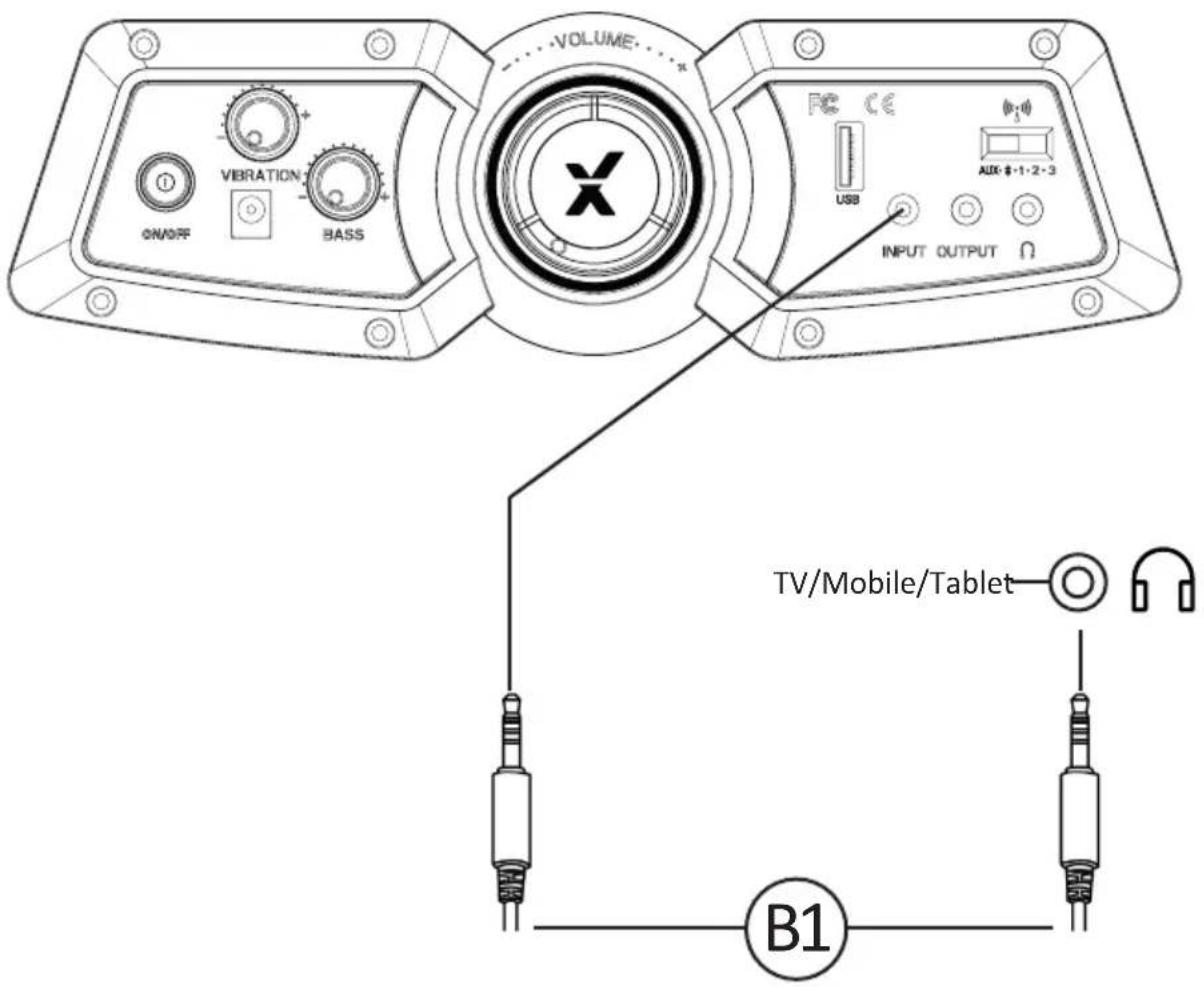

1. Connect B1 Cable to X Rocker control panel MP3 INPUT sockets.
2. Connect other end of B1 3.5mm end into the headphone socket of your television.
3. Once connected to your TV, increase volume to 50% of the maximum for the best sound level. **

** Depending on your TV you may need to increase the headphone volume separately in the TV sound settings.

Wired connection guide: PS4 Controller only

ON/OFF VIBRATION BASS VOLUME FC CE USB AUX: 4-1-2-3 INPUT OUTPUT Ω B1

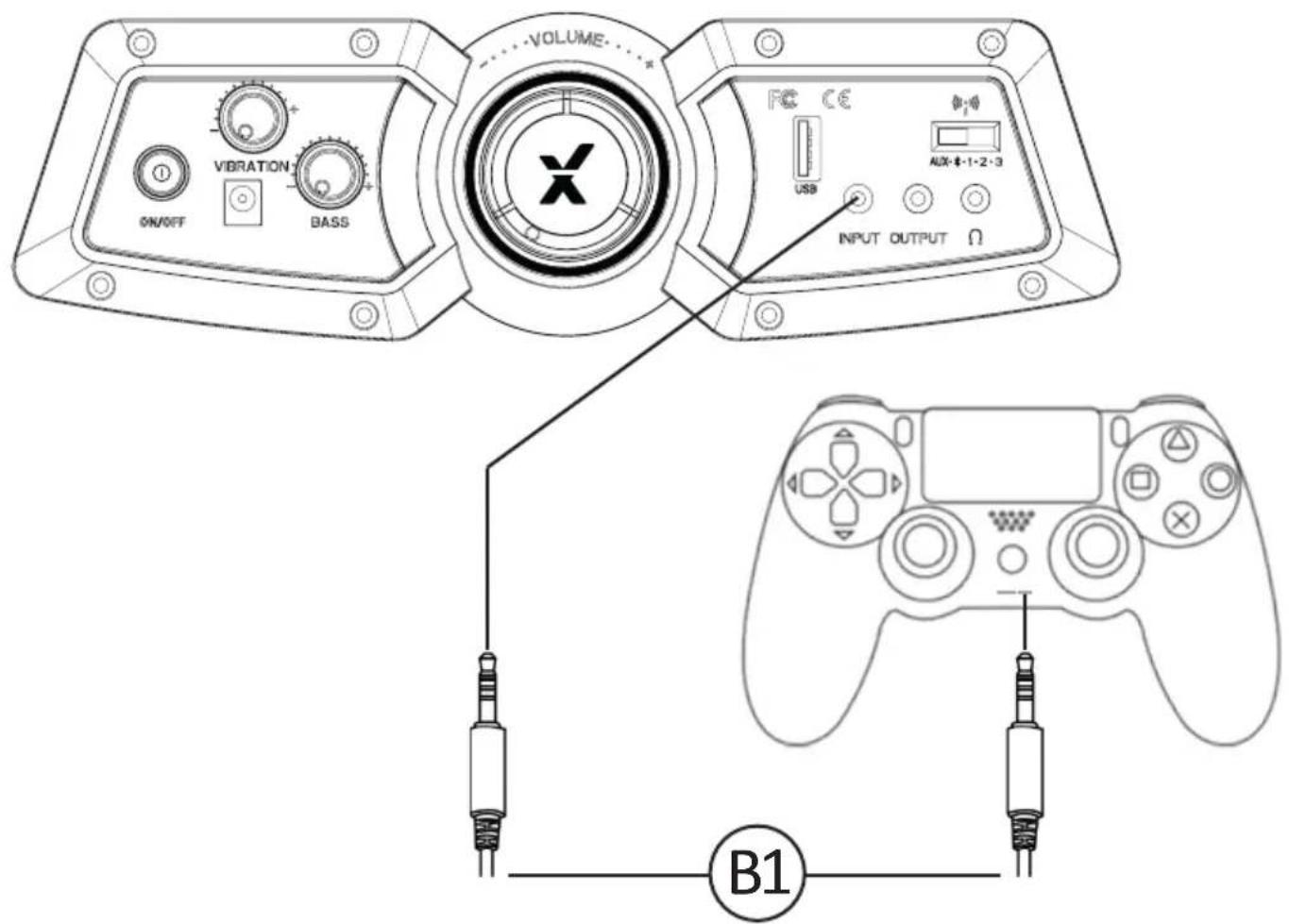

1. Connect the B1 cable to the bottom of the PS4 controller via the headset socket.

2. Connect the other end of the B1 cable to the chair via the green port.

3. With the PS4 turned on, go to the main menu (or locate the main menu screen). Press and hold the PS button on the PS4 controller until the quick menu appears on screen.

4. In this menu select [Adjust sound and devices]

5. Then select [output to headphones]

6. Change the setting from [Chat Only] to [All audio]

7. Make sure the volume in the previous menu is set to the maximum.

8. Set the control panel Wireless switch to the 'OFF' position.

Bluetooth connection guide

Step 1:

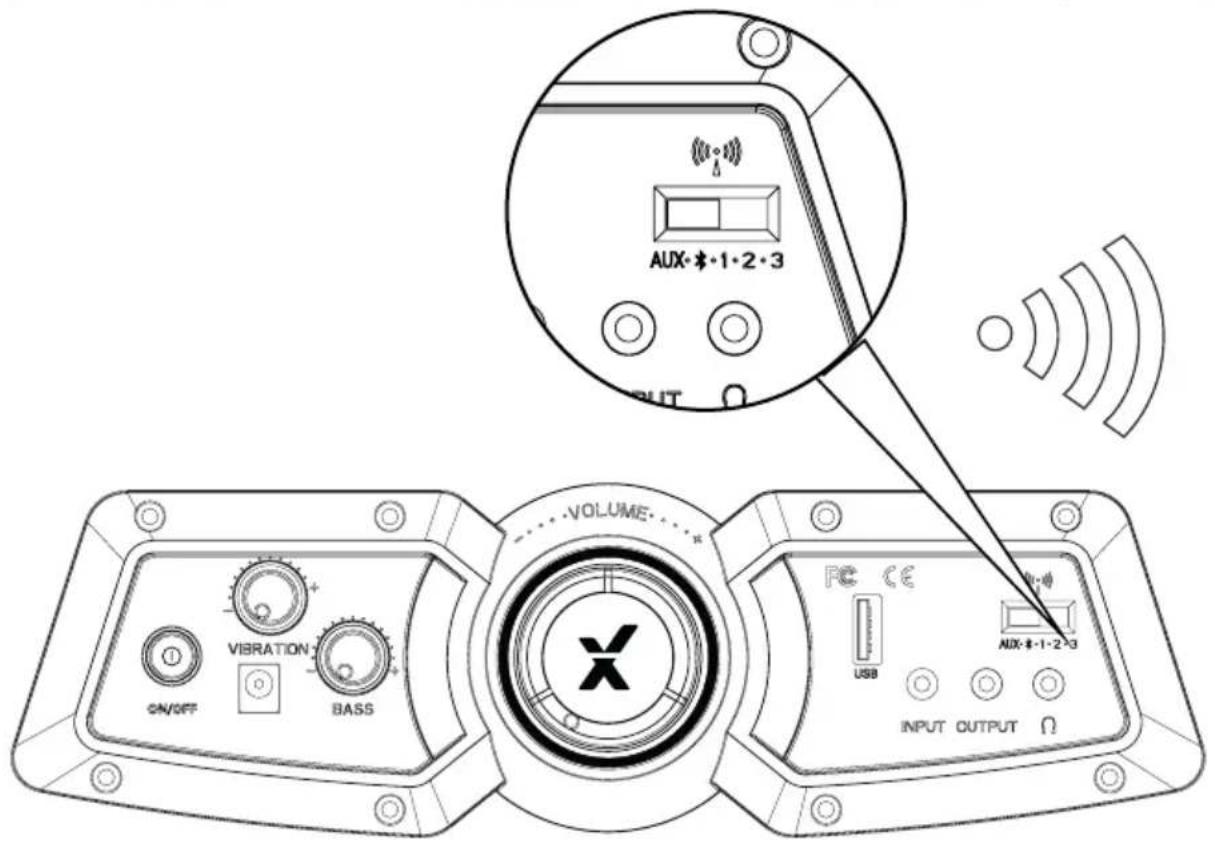

Switch the X Rocker Avanti's wireless switch to the Bluetooth position.

VIBRATION ON/OFF BASS VOLUME INPUT OUTPUT AUX-1-2-3 USB PC CC AUX-1-2-3

Step 2:

On the Audio output device go into its Bluetooth settings, turn Bluetooth on if it is not on already and search for

XROCKER. Upon finding this, select the XROCKERoption.

If a passcode is required the four digit code will be '0000'.

Settings Bluetooth Off

Settings Bluetooth XROCKER Connected

Troubleshooting tips

Issue Troubleshooting steps

No power going to control panel	Make sure that the power cable is connected correctly.Make sure that the power supply at the power source is working correctly.With the chair turned to the ON position, give the power cable a slight wiggle in the port. If any lights flicker (or not) then please contact support (details below).
No sound	Review the connection methods on the previous page and try alternative connection methods if possible.Confirm that the device/system is correctly configured as per previous connection guide.Make sure that the wireless channel switcher is in the corresponding position that suits your connection method.(1,2,3 for wireless and AUX for wired connections).
Wireless transmitter cuts out during gameplay/No vibration or subwoofer sound via analogue connection	Please make sure that the volume of the source device is at a higher level to strengthen the audio signal.
The cables connected to my X Rocker have been broken accidentally	Please contact X Rocker support ([e-mail]) regarding this issue.
Interference over wireless connection	In this case, try another of the three wireless bands to isolate the signal.

Health and safety information

• Avoid immersing or allowing the X Rocker to come into contact with liquids.
• Please consult X Rocker Support before unscrewing any of the electrical components on the chair.
• Please be mindful of any cabling laid out between the X Rocker and power source/audio device.
• Please be mindful of cabling attached when moving/swivelling the X Rocker.
• If the cables or electrical equipment are broken then this may present a choking risk, please contact Support for replacements and dispose of these parts safely.
• Do not stand on the X Rocker or exceed the 120kg weight limit via other means.
• Do not lean back on the chair to the point in which the pedestal would lift off the ground.
• X Rocker armrests are designed for support and comfort during gameplay, please do not use these as support for getting in/out of the chair.
• Playing audio for long periods at loud volumes may contribute to difficulties in hearing.
• Please be considerate to others when playing audio through the X Rocker speakers at higher volumes.

Power supply safety information

ATTENTION:

A. For Power Adapter, the apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus;
B. For Power Adapter, the MAINS plug is used as the disconnect device, the disconnect device shall remain readily operable;
C. Only use the attachments/accessories specified by manufacturer.

Power Supply unit trademark: BI;

Model name: BI36-120250-I;

Input: 100-240V\~, 50/60 Hz, 1.2 A;

Output: 12 VDC, 2.5A;
