Product Type	Cotton Candy Machine
Model	SBL-2804-UK
Brand	Clas Ohlson
Dimensions (Height x Diameter)	19 cm x 28 cm
Power Supply	230 V, 500 W
Maximum Continuous Operation	30 minutes
Required Cooling Time	At least 10 minutes after 30 minutes of use
Maximum Sugar per Batch	1 tablespoon (level scoop)
Preheating Time	5 minutes
Materials	Plastic parts (dishwasher safe), metal heating elements
Cleaning Method	Removable parts dishwasher safe; motor unit wiped with damp cloth; extractor head hand wash in warm soapy water
Safety Features	Overheating protection via mandatory cool-down; warning labels; child safety (use by children from 8 years with supervision)
Included Accessories	Measuring scoop
Intended Use	Household and similar environments (staff kitchens, farm houses, hotels, B&Bs)
Disposal	In accordance with local regulations
Country of Origin	Not specified

Frequently Asked Questions - SBL-2804-UK Clas Ohlson

How long can I use the cotton candy machine continuously?

The machine can be used for a maximum of 30 minutes at a time. After that, it must cool down for at least 10 minutes before reuse to prevent overheating.

How much sugar should I put in the extractor head?

Use the included measuring scoop to add a level scoopful of sugar, which is equivalent to 1 tablespoon maximum. Adding more can cause sugar residue on heating elements and pose a fire risk.

Can I wash the parts in the dishwasher?

Yes, all removable plastic parts (bowl, locking ring, protective rim, extractor head) are dishwasher safe. However, the motor unit must only be wiped with a soft damp cloth and never immersed in water.

What safety precautions should I take?

Always unplug the machine when not in use or before cleaning. Never touch hot surfaces. Keep children under 8 away from the machine. The machine may overheat if used more than 30 minutes, so follow the cool-down period. Inspect heating elements for sugar residue before each use.

Can children use this machine?

Children aged 8 and over may use the machine if they have been instructed on safe use and understand the risks. Cleaning and maintenance can be done by children 8+ only under adult supervision.

What type of sugar is recommended?

Standard granulated sugar works best. Do not use flavored or colored sugars as they may not melt properly and could damage the heating elements.

How do I assemble the machine after cleaning?

Place the bowl onto the motor unit, ensuring the plastic tabs lock onto the metal locking tabs. Attach the extractor head by aligning its groove with the pin on the spindle. Secure with the locking ring and protective rim.

Why does the machine stop producing floss?

This may be due to insufficient preheating (5 minutes needed), too much sugar, or overheating. Turn off and let cool, then clean any sugar residue from the heating elements. Ensure the extractor head is spinning freely.

Can I repair the machine myself?

Only use provided accessories. For any repairs, especially if the mains lead is damaged, contact the manufacturer, a qualified service facility, or a qualified technician to avoid electric shock or fire.

How should I dispose of the machine?

Follow local regulations for electronic waste. If unsure, contact your local authority for proper disposal instructions.

USER MANUAL SBL-2804-UK Clas Ohlson

Technical line drawing of a mechanical device with concentric circular components and a central hub (no text or symbols)

Art.no

18-4486

34-5068

Model

SBL-2804-UK

SBL-2804

Ver. 20150310

Candy Floss Machine

Art.no 18-4486 Model SBL-2804-UK

34-5068 SBL-2804

Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. If you have any questions regarding technical problems please contact our Customer Services.

Safety

• Incorrect handling of this machine could result in personal injury.
• The machine should always be disconnected from the mains when it is not in use, when it is to be assembled/disassembled and when it is to be cleaned.
• The machine may be used by children aged 8 or over provided they have been instructed in its safe use and can understand and are able to cope with any hazards or risks involved with the machine's use.
• Cleaning and maintenance may be carried out by children aged 8 or over, but only under adult supervision. Ensure that the machine and its mains lead are kept out of reach of children under the age of 8.
• Switch the machine off and disconnect it from the mains before removing any of the moving parts.
• The machine may be used by persons with reduced physical, sensory or mental capability, lack of experience or knowledge which could jeopardize their safety, provided they have been given supervision or instruction concerning the safe use of the machine and understand the hazards involved.
• Never let children play with the machine.

• Ensure that the machine is used with the correct voltage. Refer to the machine's rating plate.

• To prevent electric shocks, the machine and its mains lead should be kept dry.

• Never lay the mains lead over hot surfaces, sharp edges or corners.
• Always disconnect the machine from the power supply by holding and pulling the plug. Do not pull the mains lead.
• Make sure that all parts are correctly assembled and that the machine is switched off before it is connected to the power supply.
• Never use the machine close to heat sources.
• Only use the provided accessories.
• Never use the machine for anything other than its intended use.
• The mains lead should be checked regularly. Never use the machine if the mains lead or plug is damaged.
• The mains lead must be changed if damaged. This is to prevent the risk of electric shock or fire and should only be carried out by the manufacturer, qualified service facility or qualified technician.
• Do not touch any of the machine's hot surfaces, as burn injuries may result.
• Never touch any of the product's moving parts while in use.
• Never leave the product unattended during use.
• The appliances are not intended to be operated by means of an external timer or separate remote-control system.

• The product is subject to overheating if used more than 30 min at a time. Therefore, the product must be allowed to cool for at least 10 min for every 30 min of use. Use the cooling off period to clean out the bowl before reuse. Allowing the machine to overheat may pose a fire hazard.

• Inspect the heating elements during cleaning to ensure that they are free from any sugar residue before reusing. If there is any sugar residue left on the heating elements, pull out the plug and allow the product to cool. Then scrap any residue away with a wooden or plastic instrument. Any residue left on the heating elements may pose a fire risk.

• This appliances is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and others working environments; -farm houses; -by clients in hotels, motels and other residential type environments; -bed and breakfast type environments.

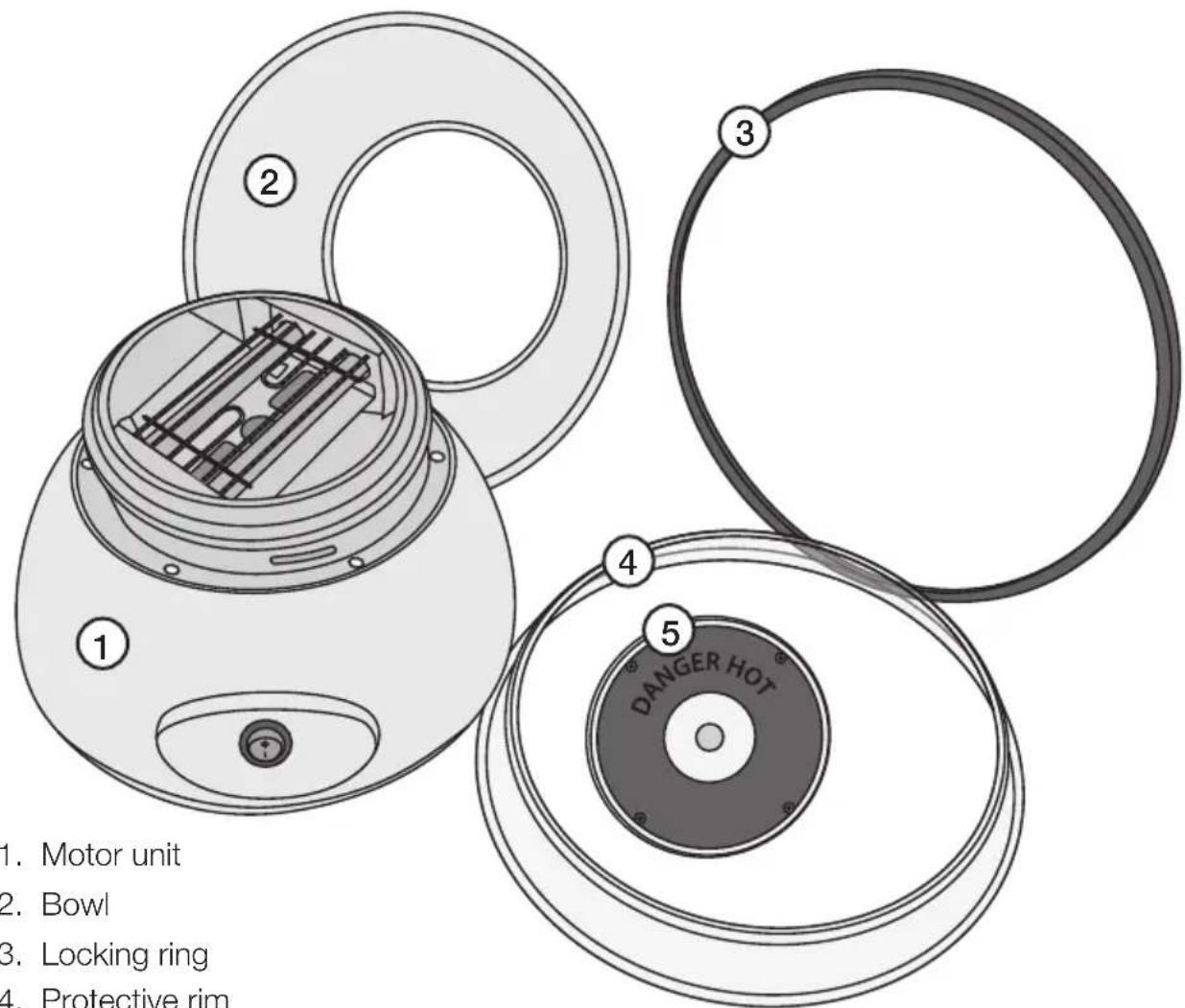

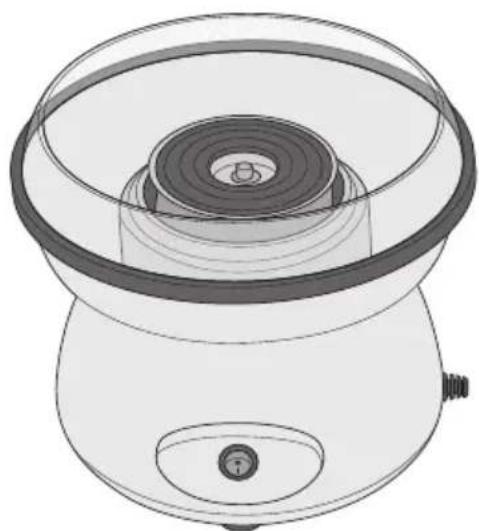

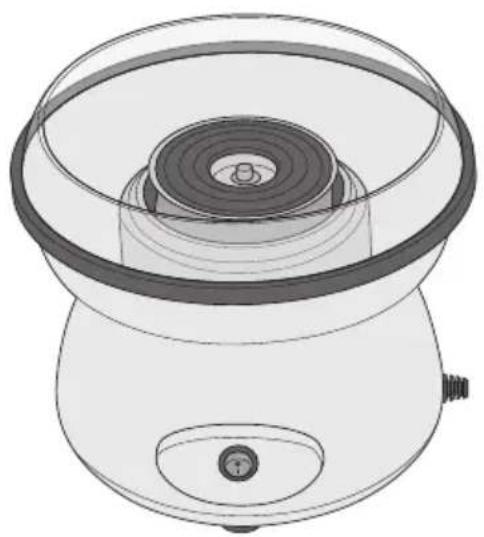

Buttons and functions

1. Motor unit
2. Bowl
3. Locking ring
4. Protective rim
5. Extractor head

Technical line drawing of a mechanical device with concentric rings and mounting base (no text or symbols)

Mechanical assembly diagram showing a rotating disk mounted on a circular base with internal components (no text or symbols)

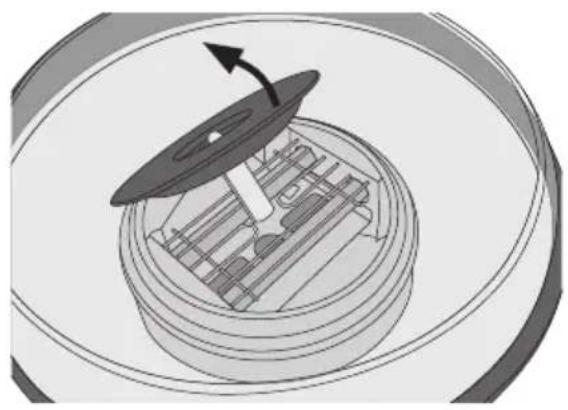

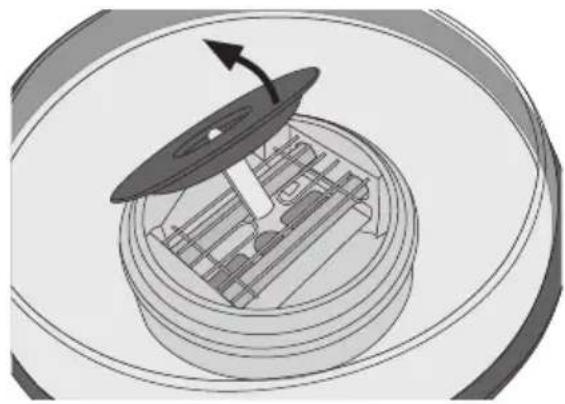

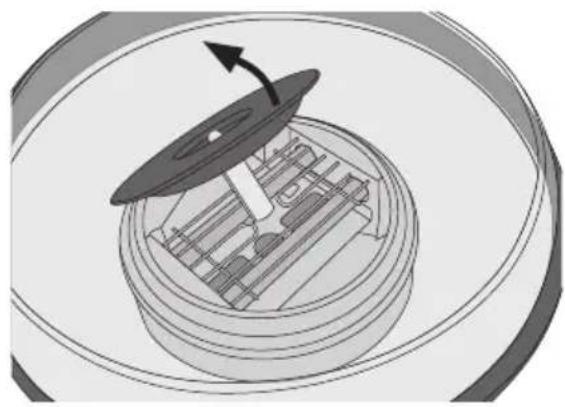

Remove the extractor head.

Circular mechanical component with concentric rings and central slot (no text or symbols)

Technical line drawing of a mechanical component with internal channels and mounting flanges (no text or symbols)

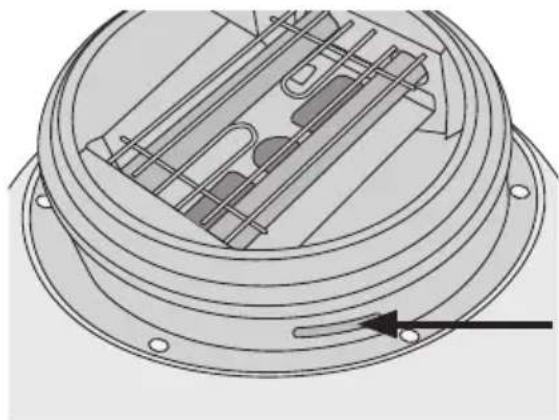

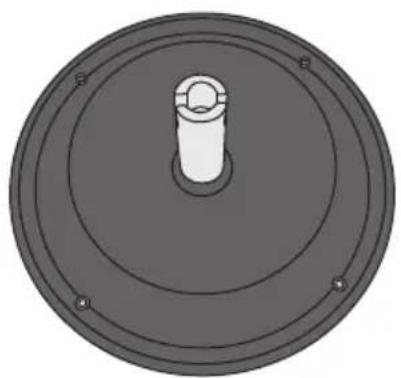

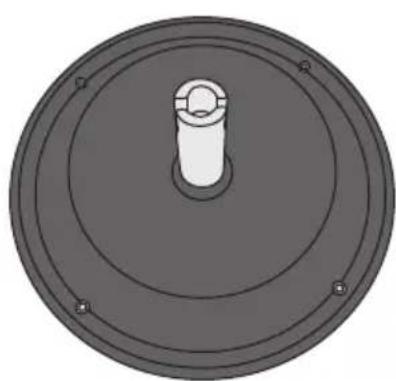

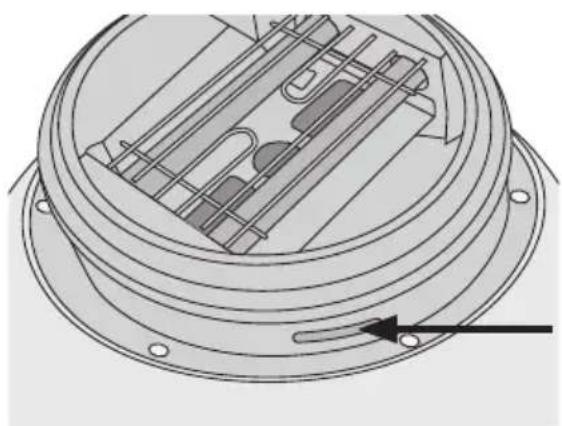

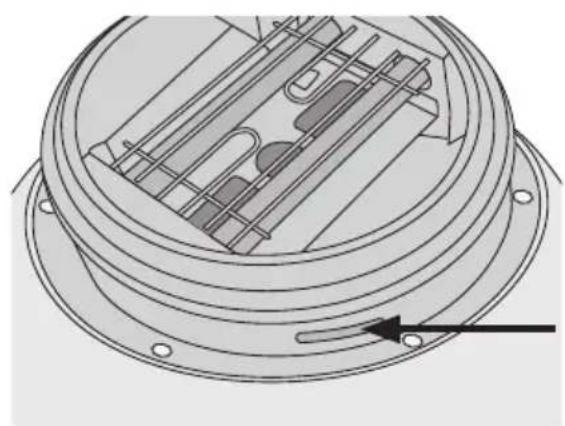

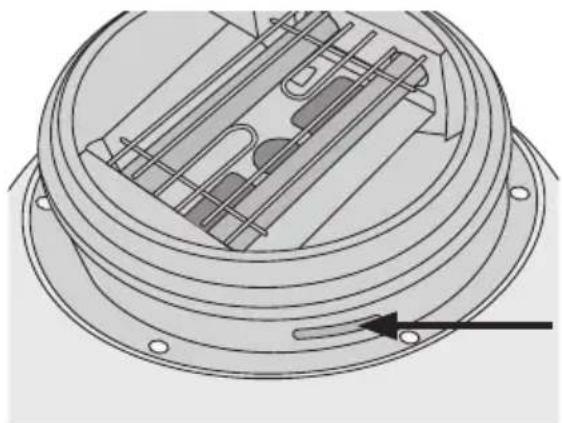

Metal locking tabThe extractor head fits over

the motor's spindle.

Operating instructions

The candy floss machine comes completely assembled. Before using it for the first time it must be disassembled and cleaned.

Disassembly

1. Remove the locking ring (3) and rim (4) by carefully removing the locking ring.
2. Remove the bowl (2) by rotating it until the plastic tabs disengage from the motor unit's metal locking tabs. Then remove the bowl by carefully pulling it upwards.
3. Remove the extractor head (5) by pulling it straight upwards.
4. Follow the instructions under Care and maintenance.

After cleaning, assemble the parts in reverse order to the directions described above. Be especially careful that the bowl is securely locked into position and that the bowl's plastic tabs lock onto the motor unit's metal locking tabs. Make sure that the groove in the extractor head is precisely aligned with the pin on the spindle of the motor unit when attaching it.

Use

1. Place the candy floss machine on a level surface and plug it into a power point.

2. Switch the machine ON and let it warm up for 5 minutes.

3. Place the power switch in the OFF position, and let the extractor head come to a complete stop.

Diagram of a spiral mechanical component with concentric rings and a central pin (no text or symbols)

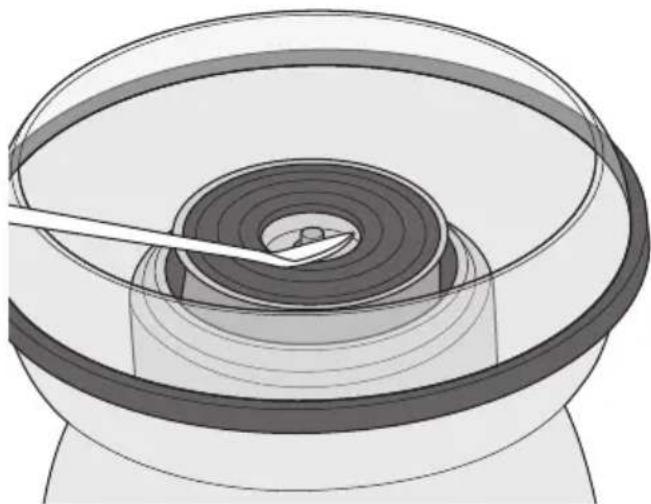

1. Use the included measuring scoop to measure a level scoopful of sugar and pour it into the centre of the extractor head.

Note: Never add more sugar than the amount the measure holds = max 1 tablespoon.

1. Set the switch to the ON position. The extractor head will begin spinning.

2. The candy floss machine will now start producing candy floss. Insert a stick into the bowl in a completely upright position. Then slowly rotate the stick between your fingers while simultaneously moving it in a one-way circular direction slightly above the bowl's rim.

Diagram of a mechanical component with concentric rings and a central shaft (no text or symbols)

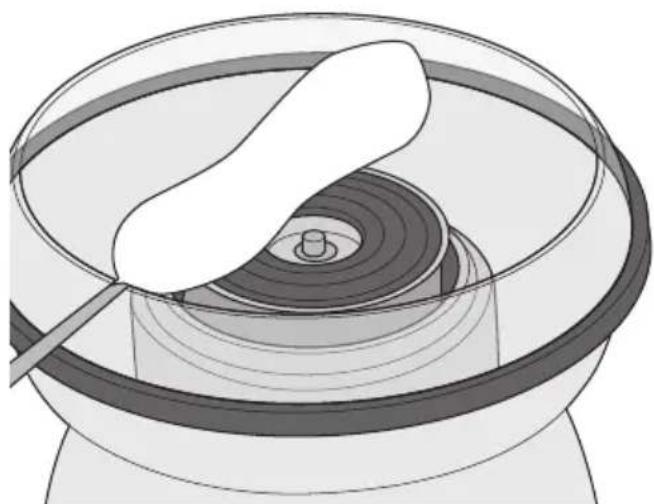

1. Once you have gathered a little floss, continue with the same procedure as described above, only this time begin angling the stick into the bowl to make it easier for the floss to build onto it.

2. When finished, set the power switch to the OFF position and unplug the machine.

Warning:

• The product is subject to overheating if used more than 30 min at a time. After this period the product must be allowed to cool for at least 10 min before reusing. Overheating the machine may pose a fire hazard.
• Switch off the machine and let the extractor head come to a complete stop before refilling. This is important so as to avoid spilling sugar onto the heating elements under the extractor head. Any residue left on the heating elements may pose a fire risk.

Care and maintenance

All removable plastic parts are dishwasher safe. Clean the motor unit by wiping it with a soft damp cloth. The extractor head can be hand washed in warm soapy water. Always unplug the machine and let it cool down completely before disassembling it for cleaning.

Note: Never immerse the motor unit in water.

Disposal

This product should be disposed of in accordance with local regulations. If you are unsure how to proceed, contact your local authority.

Specifications

Height 19 cm

Diameter 28 cm

Voltage 230 V/500 W

Sockervaddsmaskin

Art.nr 18-4486 Modell SBL-2804-UK 34-5068 SBL-2804

Line drawing of a mechanical device with a central circular component and base (no text or symbols)

Mechanical assembly diagram showing a rotating disk mounted on a housing (no text or symbols)

Circular mechanical component with concentric rings and central slot (no text or symbols)

Technical line drawing of a mechanical component with internal channels and mounting flanges (no text or symbols)

Diagram of a spiral mechanical component with concentric rings and a central shaft (no text or symbols)

Diagram of a mechanical component with concentric rings and a central shaft (no text or symbols)

Technical line drawing of a mechanical device with concentric rings and a base (no text or symbols)

Mechanical assembly diagram showing a rotating disk mounted on a housing (no text or symbols)

Circular mechanical component with concentric rings and central slot (no text or symbols)

Technical line drawing of a mechanical component with internal channels and mounting flanges (no text or symbols)

MetallåsehendelSukkerbeholderens aksel passer
i drivakselen på motoren.

Bruk

Diagram of a spiral-shaped mechanical component with concentric rings and a central shaft (no text or symbols)

Diagram of a mechanical component with concentric rings and a central shaft (no text or symbols)

Spenning 230 V/500 W

Hattarakone

Tuotenro 18-4486

34-5068

Malli SBL-2804-UK

SBL-2804

1. Moottoriosa
2. Kulho
3. Lukitusrengas
4. Suojareuna
5. Sokeriastia

Technical line drawing of a mechanical device with a central circular component and mounting base (no text or symbols)

Mechanical assembly diagram showing a rotating disk mounted on a circular base (no text or symbols)

Sokeriastian irrottaminen.

Circular mechanical component with concentric rings and central slot (no text or symbols)

Technical line drawing of a mechanical component with internal channels and mounting flanges (no text or symbols)

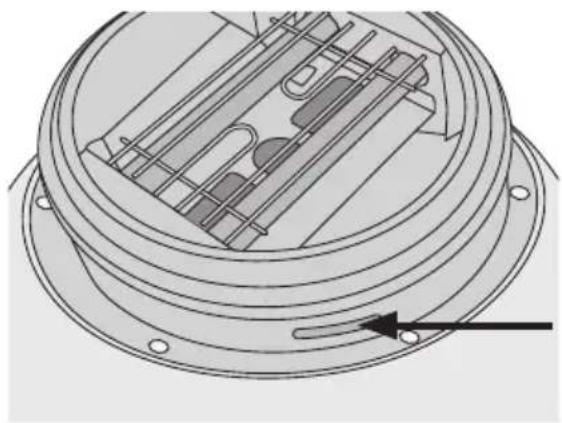

MetallilukkokielekeSokeriastian akseli, joka sopii

Diagram of a spiral-shaped mechanical component with concentric rings and a central shaft (no text or symbols)

Diagram of a mechanical component with concentric rings and a central shaft, no text or symbols present

Technical line drawing of a mechanical device with a central circular component and base (no text or symbols)

Mechanical assembly diagram showing a rotating disk mounted on a housing (no text or symbols)

Circular mechanical component with concentric rings and central slot (no text or symbols)

Technical line drawing of a mechanical component with internal channels and mounting flanges (no text or symbols)

Diagram of a spiral-shaped mechanical component with concentric rings and a central shaft (no text or symbols)

Diagram of a mechanical component with concentric rings and a central shaft (no text or symbols)
