Product Type	Candy Floss Machine (Cotton Candy Machine)
Brand	Clas Ohlson
Model	SBL-2804
Art. No.	18-4486, 34-5068
Voltage	230 V ~
Power Consumption	500 W
Dimensions (Height x Diameter)	19 x 28 cm
Maximum Continuous Operation	30 minutes
Required Cooling Time	At least 10 minutes after every 30 minutes of use
Sugar Capacity per Batch	1 tablespoon (max)
Motor Unit	Contains motor and heating element; not washable, wipe with damp cloth
Bowl	Removable, dishwasher safe
Locking Ring & Rim	Removable, dishwasher safe
Extractor Head	Removable, hand wash in warm soapy water
Detachable Parts	All parts except motor unit are detachable for cleaning
Safety Features	Overheat protection via timed use; cool-down period; automatic shut-off not present – manual switch-off required
Included Accessories	Measuring scoop, user manual
Not Included	Sticks (use standard candy floss sticks)
Recommended Use	Household and similar (e.g., staff kitchens, farm houses, B&Bs)
Material	Plastic (bowl, locking ring, rim) and metal (motor unit, extractor head spindle)

Frequently Asked Questions - SBL-2804 Clas Ohlson

How do I assemble the cotton candy machine before first use?

The machine comes pre-assembled but must be disassembled and cleaned first. Follow the manual: remove the locking ring, rim, bowl, and extractor head. Clean all removable parts, then reassemble in reverse order, ensuring the bowl locks securely onto the motor unit's metal tabs and the extractor head's groove aligns with the spindle pin.

What type of sugar should I use?

Use regular granulated sugar. Do not use icing sugar or sugar substitutes. A level measuring scoop (provided) holds about 1 tablespoon – do not exceed this amount to avoid spilling onto the heating elements.

How do I make cotton candy?

Place the machine on a level surface, plug in, and switch on to warm up for 5 minutes. Then switch off, wait for the extractor head to stop, add sugar into the centre, switch on again. Hold a stick upright in the bowl, slowly rotate it between your fingers while moving it in a one-way circular motion above the bowl's rim. Once floss gathers, angle the stick into the bowl to build more floss.

How long can I use the machine continuously?

Do not use for more than 30 minutes at a time. After 30 minutes, switch off and allow the machine to cool for at least 10 minutes before reusing. Overheating may pose a fire hazard.

Can I wash the motor unit in water?

No. The motor unit must never be immersed in water. Clean it by wiping with a soft, damp cloth. All other removable parts (bowl, locking ring, rim) are dishwasher safe. The extractor head should be hand washed in warm soapy water.

What happens if sugar spills onto the heating elements?

Sugar residue on the heating elements can cause a fire. Always switch off and let the machine cool before cleaning. Scrape off any residue with a wooden or plastic instrument, never metal. Ensure the heating elements are clean before each use.

Why does my cotton candy machine stop spinning during use?

The machine may have an internal thermal cut-off due to overheating. Let it cool for at least 10 minutes and then restart. If it persists, check that the bowl is properly locked and the extractor head is correctly seated. Also ensure you are not exceeding 30 minutes of continuous use.

Can children use this machine?

Children aged 8 years and over may use the machine only if supervised and instructed on safe use. Cleaning and maintenance by children aged 8+ must be under adult supervision. Keep the machine and its cord out of reach of children under 8.

How do I store the cotton candy machine?

After cleaning and drying all parts, reassemble the machine loosely or store parts separately. Keep in a dry place away from heat sources. Coil the cord loosely; do not wrap it around the machine.

Is the machine suitable for commercial use?

No, this machine is intended for household and similar applications such as staff kitchens, farm houses, hotel/motel rooms, and B&Bs. It is not designed for continuous commercial use.

USER MANUAL SBL-2804 Clas Ohlson

Technical line drawing of a mechanical device with concentric rings and a central hub (no text or symbols)

Art.no

18-4486

34-5068

Model

SBL-2804-UK

SBL-2804

Ver. 20150310

Candy Floss Machine

Art.no 18-4486 Model SBL-2804-UK

34-5068 SBL-2804

Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. If you have any questions regarding technical problems please contact our Customer Services.

Safety

• Incorrect handling of this machine could result in personal injury.
• The machine should always be disconnected from the mains when it is not in use, when it is to be assembled/disassembled and when it is to be cleaned.
• The machine may be used by children aged 8 or over provided they have been instructed in its safe use and can understand and are able to cope with any hazards or risks involved with the machine's use.
• Cleaning and maintenance may be carried out by children aged 8 or over, but only under adult supervision. Ensure that the machine and its mains lead are kept out of reach of children under the age of 8.
• Switch the machine off and disconnect it from the mains before removing any of the moving parts.
• The machine may be used by persons with reduced physical, sensory or mental capability, lack of experience or knowledge which could jeopardize their safety, provided they have been given supervision or instruction concerning the safe use of the machine and understand the hazards involved.
• Never let children play with the machine.

• Ensure that the machine is used with the correct voltage. Refer to the machine's rating plate.

• To prevent electric shocks, the machine and its mains lead should be kept dry.

• Never lay the mains lead over hot surfaces, sharp edges or corners.
• Always disconnect the machine from the power supply by holding and pulling the plug. Do not pull the mains lead.
• Make sure that all parts are correctly assembled and that the machine is switched off before it is connected to the power supply.
• Never use the machine close to heat sources.
• Only use the provided accessories.
• Never use the machine for anything other than its intended use.
• The mains lead should be checked regularly. Never use the machine if the mains lead or plug is damaged.
• The mains lead must be changed if damaged. This is to prevent the risk of electric shock or fire and should only be carried out by the manufacturer, qualified service facility or qualified technician.
• Do not touch any of the machine's hot surfaces, as burn injuries may result.
• Never touch any of the product's moving parts while in use.
• Never leave the product unattended during use.
• The appliances are not intended to be operated by means of an external timer or separate remote-control system.

• The product is subject to overheating if used more than 30 min at a time. Therefore, the product must be allowed to cool for at least 10 min for every 30 min of use. Use the cooling off period to clean out the bowl before reuse. Allowing the machine to overheat may pose a fire hazard.

• Inspect the heating elements during cleaning to ensure that they are free from any sugar residue before reusing. If there is any sugar residue left on the heating elements, pull out the plug and allow the product to cool. Then scrap any residue away with a wooden or plastic instrument. Any residue left on the heating elements may pose a fire risk.

• This appliances is intended to be used in household and similar applications such as: -staff kitchen areas in shops, offices and others working environments; -farm houses; -by clients in hotels, motels and other residential type environments; -bed and breakfast type environments.

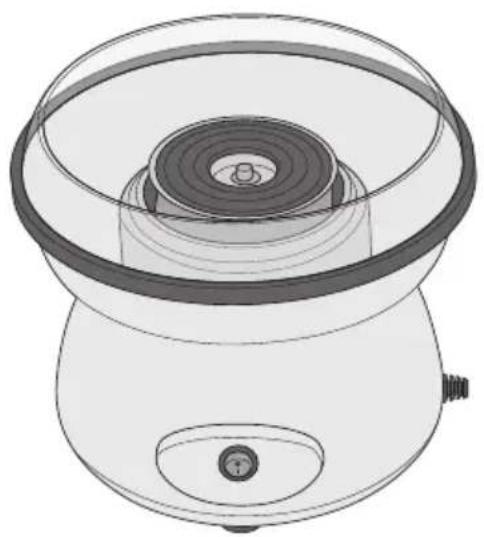

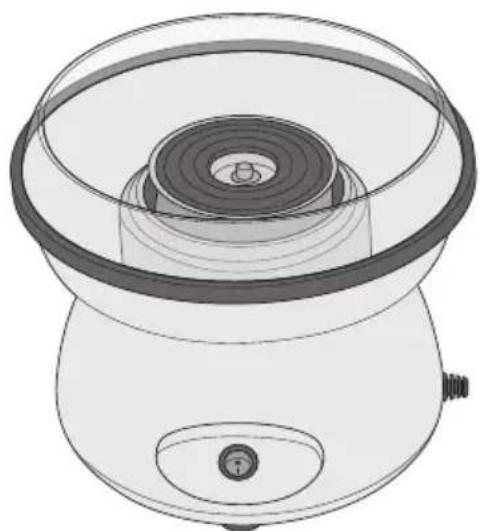

Buttons and functions

1. Motor unit
2. Bowl
3. Locking ring
4. Protective rim
5. Extractor head

Technical line drawing of a mechanical device with concentric rings and mounting base (no text or symbols)

Mechanical assembly diagram showing a rotating disk mounted on a circular base with internal components (no text or symbols)

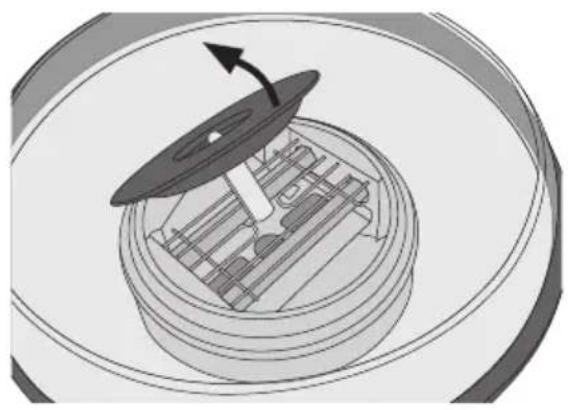

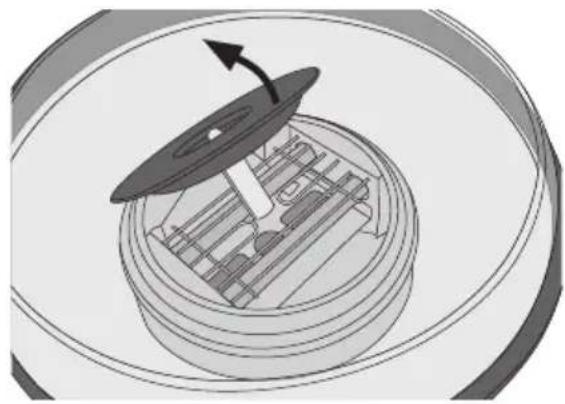

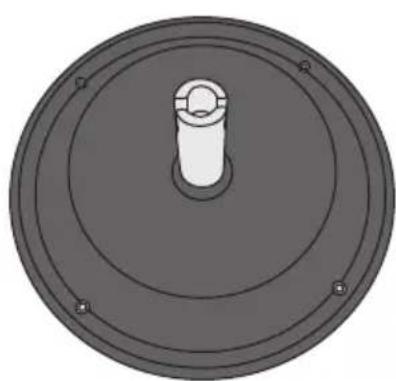

Remove the extractor head.

Circular mechanical component with concentric rings and central slot (no text or symbols)

Technical line drawing of a mechanical component with internal channels and mounting flanges (no text or symbols)

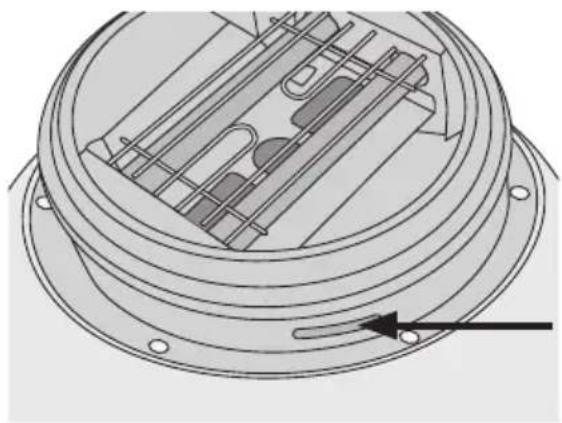

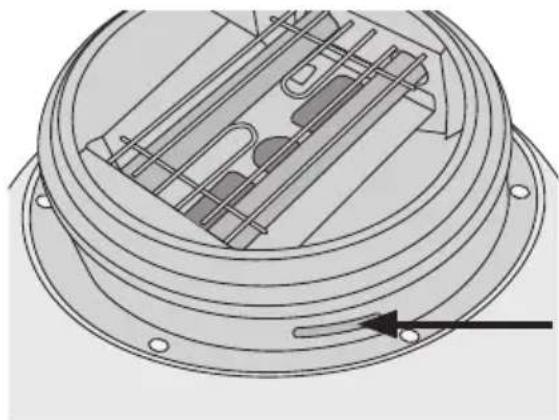

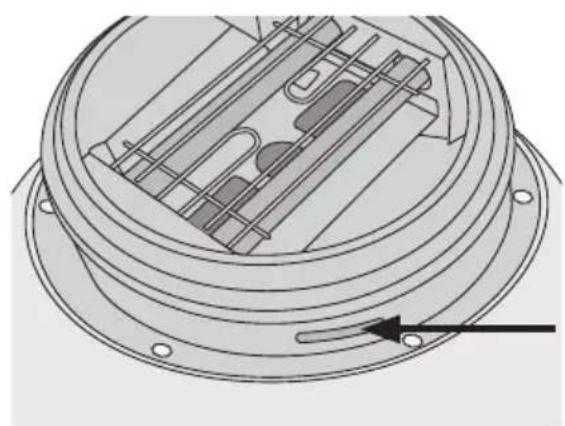

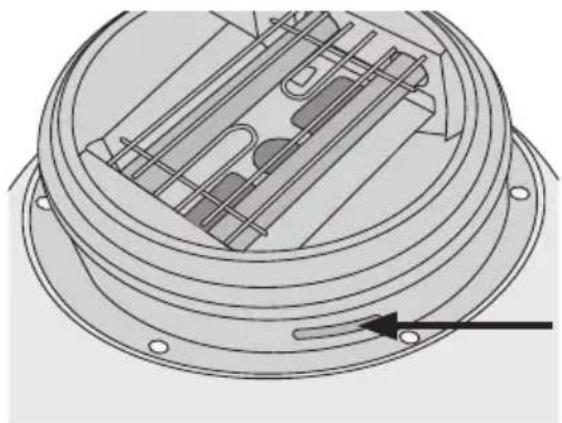

Metal locking tabThe extractor head fits over

the motor's spindle.

Operating instructions

The candy floss machine comes completely assembled. Before using it for the first time it must be disassembled and cleaned.

Disassembly

1. Remove the locking ring (3) and rim (4) by carefully removing the locking ring.
2. Remove the bowl (2) by rotating it until the plastic tabs disengage from the motor unit's metal locking tabs. Then remove the bowl by carefully pulling it upwards.
3. Remove the extractor head (5) by pulling it straight upwards.
4. Follow the instructions under Care and maintenance.

After cleaning, assemble the parts in reverse order to the directions described above. Be especially careful that the bowl is securely locked into position and that the bowl's plastic tabs lock onto the motor unit's metal locking tabs. Make sure that the groove in the extractor head is precisely aligned with the pin on the spindle of the motor unit when attaching it.

Use

1. Place the candy floss machine on a level surface and plug it into a power point.

2. Switch the machine ON and let it warm up for 5 minutes.

3. Place the power switch in the OFF position, and let the extractor head come to a complete stop.

Diagram of a spiral mechanical component with concentric rings and a central pin (no text or symbols)

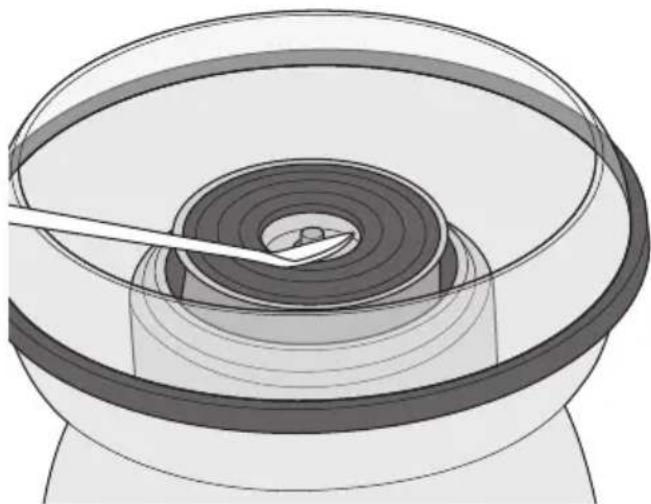

1. Use the included measuring scoop to measure a level scoopful of sugar and pour it into the centre of the extractor head.

Note: Never add more sugar than the amount the measure holds = max 1 tablespoon.

1. Set the switch to the ON position. The extractor head will begin spinning.

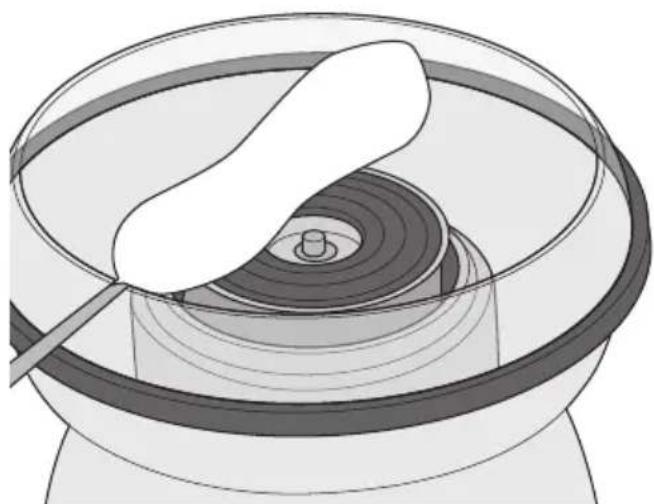

2. The candy floss machine will now start producing candy floss. Insert a stick into the bowl in a completely upright position. Then slowly rotate the stick between your fingers while simultaneously moving it in a one-way circular direction slightly above the bowl's rim.

Diagram of a mechanical component with concentric rings and a central shaft (no text or symbols)

1. Once you have gathered a little floss, continue with the same procedure as described above, only this time begin angling the stick into the bowl to make it easier for the floss to build onto it.

2. When finished, set the power switch to the OFF position and unplug the machine.

Warning:

• The product is subject to overheating if used more than 30 min at a time. After this period the product must be allowed to cool for at least 10 min before reusing. Overheating the machine may pose a fire hazard.
• Switch off the machine and let the extractor head come to a complete stop before refilling. This is important so as to avoid spilling sugar onto the heating elements under the extractor head. Any residue left on the heating elements may pose a fire risk.

Care and maintenance

All removable plastic parts are dishwasher safe. Clean the motor unit by wiping it with a soft damp cloth. The extractor head can be hand washed in warm soapy water. Always unplug the machine and let it cool down completely before disassembling it for cleaning.

Note: Never immerse the motor unit in water.

Disposal

This product should be disposed of in accordance with local regulations. If you are unsure how to proceed, contact your local authority.

Specifications

Height 19 cm

Diameter 28 cm

Voltage 230 V/500 W

Sockervaddsmaskin

Art.nr 18-4486 Modell SBL-2804-UK

34-5068

SBL-2804

Technical line drawing of a mechanical device with a central hub and mounting base (no text or symbols)

Mechanical assembly diagram showing a rotating disk mounted on a housing (no text or symbols)

Circular mechanical component with concentric rings and central slot (no text or symbols)

Technical line drawing of a mechanical component with internal channels and mounting flanges (no text or symbols)

Diagram of a spiral mechanical component with concentric rings and a central shaft (no text or symbols)

Diagram of a mechanical component with concentric rings and a central shaft (no text or symbols)

Technical line drawing of a mechanical device with concentric rings and a base (no text or symbols)

Mechanical assembly diagram showing a rotating disk mounted on a housing (no text or symbols)

Circular mechanical component with concentric rings and central slot (no text or symbols)

Technical line drawing of a mechanical component with internal channels and mounting flanges (no text or symbols)

MetallåsehendelSukkerbeholderens aksel passer
i drivakselen på motoren.

Bruk

Diagram of a spiral-shaped mechanical component with concentric rings and a central shaft (no text or symbols)

Diagram of a mechanical component with concentric rings and a central shaft (no text or symbols)

Spenning 230 V/500 W

Hattarakone

Tuotenro 18-4486

34-5068

Malli SBL-2804-UK

SBL-2804

1. Moottoriosa
2. Kulho
3. Lukitusrengas
4. Suojareuna
5. Sokeriastia

Technical line drawing of a mechanical device with a central circular component and mounting base (no text or symbols)

Mechanical assembly diagram showing a rotating disk mounted on a circular base (no text or symbols)

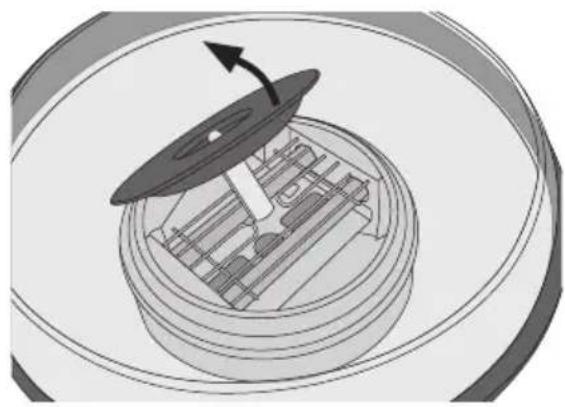

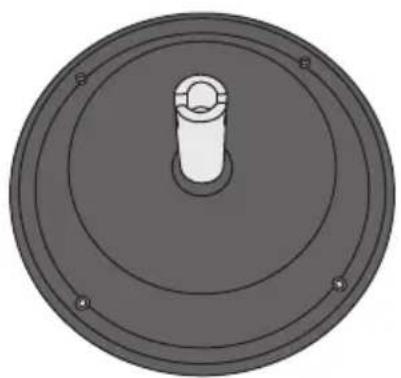

Sokeriastian irrottaminen.

Circular mechanical component with concentric rings and central slot (no text or symbols)

Technical line drawing of a mechanical component with internal channels and mounting flanges (no text or symbols)

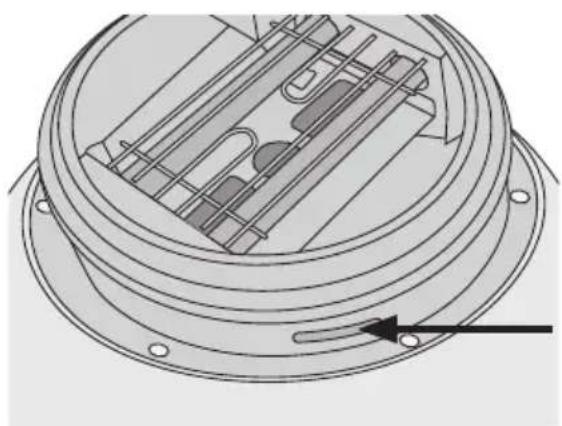

MetallilukkokielekeSokeriastian akseli, joka sopii

Diagram of a spiral-shaped mechanical component with concentric rings and a central shaft (no text or symbols)

Diagram of a mechanical component with concentric rings and a central shaft, no text or symbols present

Technical line drawing of a mechanical device with a central circular component and base (no text or symbols)

Mechanical assembly diagram showing a rotating disk mounted on a circular base with internal components (no text or symbols)

Circular mechanical component with concentric rings and central slot (no text or symbols)

Technical line drawing of a mechanical component with internal channels and mounting flanges (no text or symbols)

Diagram of a spiral-shaped mechanical component with concentric rings and a central shaft (no text or symbols)

Diagram of a mechanical component with concentric rings and a central shaft (no text or symbols)
