Product Type	Candy Floss Machine (Cotton Candy Machine)
Brand	Clas Ohlson
Model	SBL-2806
Dimensions (Height x Diameter)	17 cm x 28 cm
Power Supply	220–240 V AC, 50 Hz
Power Consumption	450 W
Main Components	Motor unit, bowl, locking ring, splash guard, spinner head
Maximum Sugar Capacity per Batch	1 tablespoon (level scoop)
Continuous Operation Limit	30 minutes (then 10 minutes cool-down)
Warm-Up Time	5 minutes
Bowl Material	Plastic (dishwasher safe)
Spinner Head Cleaning	Hand wash in warm soapy water
Motor Unit Cleaning	Wipe with damp cloth (do not immerse)
Safety Features	Automatic shut-off not specified; manual recommends supervision, cool-down periods, and keeping away from children
Accessories Included	Measuring scoop
Intended Use	Domestic use only; not for commercial or outdoor use
Waste Disposal	Do not dispose with household waste; recycle at local facility

Frequently Asked Questions - SBL-2806 Clas Ohlson

How do I assemble the cotton candy machine?

The machine comes assembled. To disassemble for cleaning, remove the locking ring, splash guard, bowl, and spinner head. Reassemble in reverse order, ensuring the bowl locks securely and the spinner head aligns with the motor spindle.

What type of sugar should I use?

Use regular granulated sugar. Do not use powdered sugar or sugar substitutes as they may not work properly.

Why is my cotton candy not forming?

Ensure the machine has warmed up for 5 minutes before adding sugar. Check that the spinner head is spinning freely and that you are using a level scoop of sugar. Also, avoid overfilling.

How long can I use the machine continuously?

Do not operate for more than 30 minutes continuously. After 30 minutes, turn off and let it cool for at least 10 minutes before using again.

How do I clean the cotton candy machine?

Unplug and let it cool completely. Removable plastic parts (bowl, splash guard, locking ring) are dishwasher safe. The spinner head can be hand washed in warm soapy water. Wipe the motor unit with a damp cloth; never immerse it in water.

Can I use the machine without the splash guard?

No, the splash guard is essential to contain the cotton candy and prevent injury. Always use it when operating the machine.

Is the cotton candy machine safe for children to use?

Children aged 8 and above can use it under adult supervision. Children under 8 should be kept away. Never leave the machine unattended while running.

What should I do if sugar spills on the heating elements?

Unplug the machine and let it cool. Scrape off any residue with a wooden or plastic implement. Sugar residue can cause a fire hazard if not removed.

Can I use the machine for other purposes, like making chocolate?

No, the machine is designed only for making cotton candy from granulated sugar. Using it for other substances may cause damage or safety hazards.

How can I get a replacement part?

Contact Clas Ohlson customer service or visit their website for spare parts. The model number is SBL-2806 (Art.no 18-4732 or 44-2254).

USER MANUAL SBL-2806 Clas Ohlson

Illustration of a ceramic bowl with a lid and base, showing its interior and top view (no text or symbols)

Art.no

18-4732

44-2254

Model

SBL-2806

SBL-2806

Ver. 20160615

Candy Floss Machine

Art.no 18-4732 Model SBL-2806

44-2254 SBL-2806

Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. If you have any questions regarding technical problems please contact our Customer Services.

Safety

• Incorrect handling of this product could result in personal injury.
• The product should always be disconnected from the mains when it is not in use, when it is to be assembled/disassembled and when it is to be cleaned.
• This product can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.
• Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Ensure that the product and its mains lead are kept out of reach of children under the age of 8.
• Switch the product off and disconnect it from the mains before changing accessories or handling any of the moving parts.
• The product may be used by persons with reduced physical, sensory or mental capability, lack of experience or knowledge which could jeopardise their safety, provided they have been given supervision or instruction concerning the safe use of the product and understand the hazards involved.
• Never let children play with the product.

• Ensure that the product is used with the correct voltage. Refer to the rating plate on the product.

• To prevent electric shocks, the product and its mains lead should be kept dry.

• Never lay the mains lead over hot surfaces, sharp edges or corners.
• Always disconnect the product from the power supply by holding and pulling the plug. Do not pull the mains lead.
• Make sure that all parts are correctly assembled and that the product is switched off before it is connected to the power supply.
• Never use the product close to heat sources.
• Only use the included accessories.
• Never use the product for anything other than its intended use.
• The mains lead should be checked regularly. Never use the product if the mains lead or plug is damaged.
• The mains lead must be changed if damaged. This is to prevent the risk of electric shock or fire and should only be carried out by the manufacturer, qualified service facility or qualified technician.
• Do not touch any hot machine parts, as burn injuries may result.
• Never touch any moving parts while the product is in operation.
• Never leave the product unattended during use.
• The product must never be used with a timer, remote control or other equipment which turns the power on automatically.
• The product is subject to overheating if used continuously for more than 30 minutes. Therefore, the product must be allowed to cool for at least 10 minutes for every 30 minutes of use. Use the cooling off period to clean out the bowl before reuse. Allowing the machine to overheat may pose a fire hazard.

- Inspect the heating elements during cleaning to ensure that they are free from any sugar residue before reusing. If there is any sugar residue left on the heating elements, pull out the plug and allow the product to cool. Then scrape any residue away with a wooden or plastic implement. Any residue left on the heating elements may pose a fire risk.

- The product is intended for normal domestic use or under similar conditions such as in staff canteens, offices, hotels and hostels.

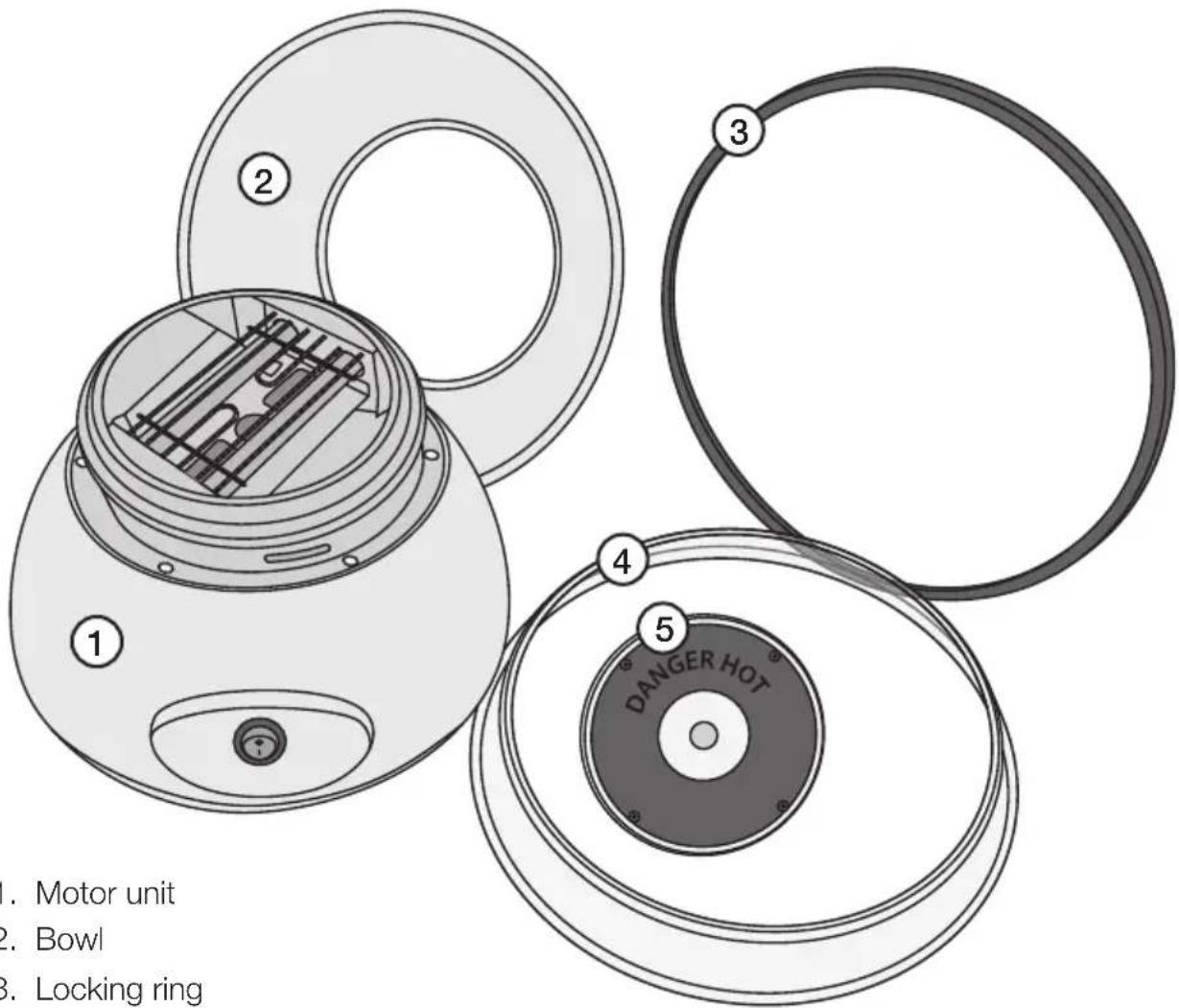

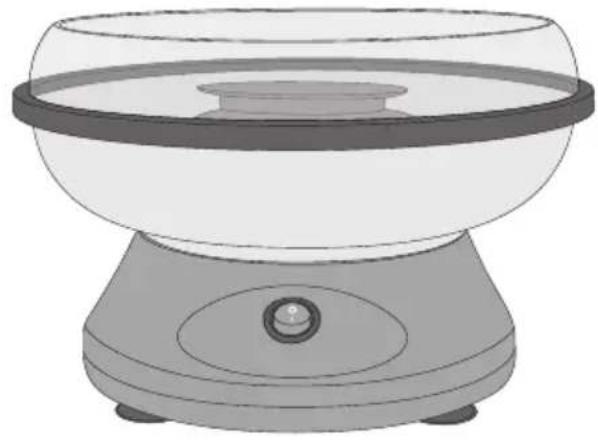

Buttons and functions

1. Motor unit
2. Bowl
3. Locking ring
4. Splash guard
5. Spinner head

Illustration of a small kitchen pot with a lid and base (no text or symbols)

Mechanical assembly diagram showing a rotating disk mounted on a circular base with internal components (no text or symbols)

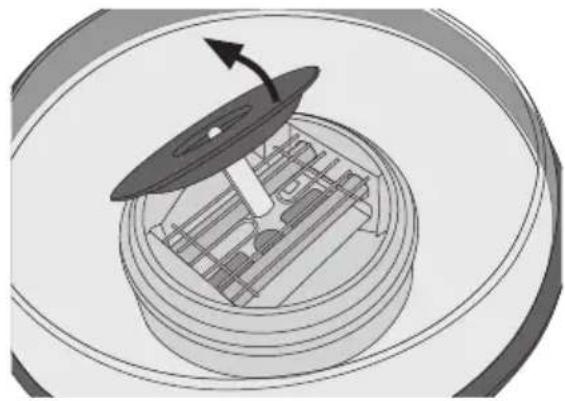

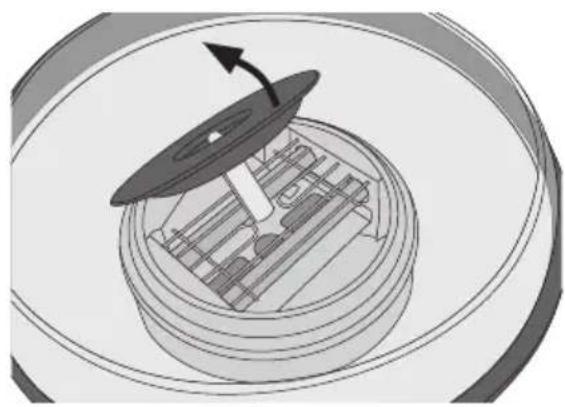

Remove the spinner head.

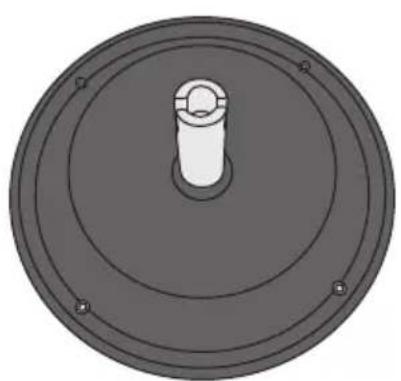

Circular mechanical component with concentric rings and central slot (no text or symbols)

Technical line drawing of a mechanical component with internal channels and mounting flanges (no text or symbols)

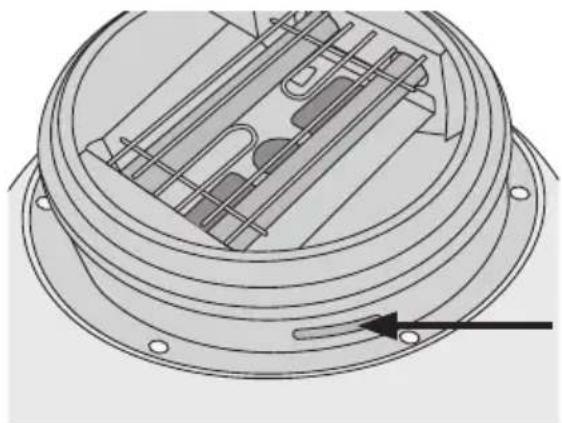

Metal locking tabThe spinner head fits over

the motor spindle.

Operating instructions

The candy floss machine comes completely assembled. Before using it for the first time it must be disassembled and cleaned.

Disassembly

1. Carefully remove the locking ring (3) and then the splash guard (4).

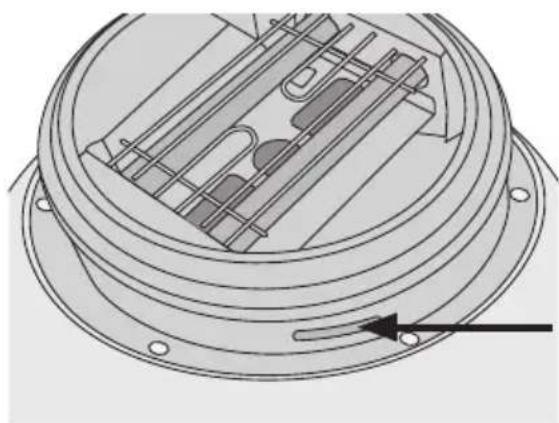

2. Release the bowl (2) by rotating it until the plastic tabs disengage from the metal locking tabs on the motor unit. Then remove the bowl by carefully lifting it upwards.
3. Remove the spinner head (5) by lifting it straight upwards.
4. Follow the instructions under Care and maintenance.

After cleaning, assemble the parts in reverse order to the directions described above. Be especially careful that the bowl is securely locked into position and that the plastic tabs on the bowl lock onto the metal tabs on the motor unit.

Make sure that the notch in the spinner head spindle is precisely aligned with the pin on the motor unit spindle when attaching.

Making candy floss

1. Place the candy floss machine on a level surface and plug it into a power point.
2. Switch the machine ON and let the machine warm up for 5 minutes.
3. Place the power switch in the OFF position and let the spinner head stop spinning completely.

Diagram of a spiral mechanical component with concentric rings and a central pin (no text or symbols)

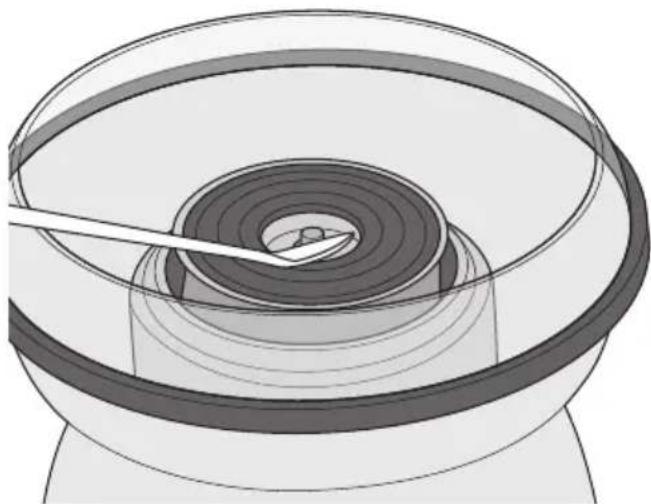

1. Use the included measuring scoop to measure a level scoopful of sugar and pour it into the centre of the spinner head.
   Note: Never add more sugar than the amount the measure holds = max 1 tablespoon.

2. Set the switch to the ON position. The spinner head will begin spinning.

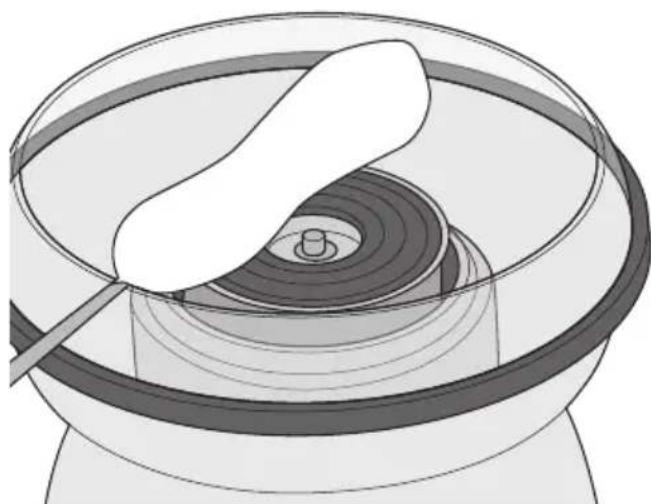

3. The candy floss machine will now start producing candy floss. Insert a stick into the bowl in a completely upright position. Then slowly rotate the stick between your fingers while simultaneously moving it in a one-way circular direction slightly above the bowl's rim.

Diagram of a mechanical component with concentric rings and a central hole, no text or symbols present

1. Once you have gathered a little floss, continue with the same procedure as described above, only this time begin angling the stick into the bowl to make it easier for the floss to build onto it.

2. When finished, set the power switch to the OFF position and unplug the machine.

Caution:

• The product must not be operated continuously for longer than 30 minutes. The machine should be allowed to cool for 10 minutes after every 30 minutes of use. Allowing the machine to overheat may pose a fire hazard.
• Switch off the machine and let the spinner head come to a complete stop before refilling. This is important so as to avoid spilling sugar onto the heating elements under the spinner head. Any residue left on the heating elements may pose a fire risk.

Care and maintenance

All removable plastic parts are dishwasher safe. Clean the motor unit by wiping it with a soft damp cloth. The spinner head can be hand washed in warm soapy water. Always unplug the machine and let it cool down completely before disassembling it for cleaning.

Note: Never immerse the motor unit in water.

Responsible disposal

This symbol indicates that this product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner.

When recycling your product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Symbol of a trash bin crossed out by two crossed lines, with no text or labels present.

Specifications

Height 17 cm

Diameter 28 cm

Voltage 220–240 V AC, 50 Hz, 450 W

Sockervaddsmaskin

Art.nr 18-4732 Modell SBL-2806 44-2254 SBL-2806

Illustration of a kitchen appliance with a glass bowl and a base (no text or symbols)

Mechanical assembly diagram showing a rotating disk mounted on a housing (no text or symbols)

Circular mechanical component with concentric rings and central slot (no text or symbols)

passar i motordelens drivaxel.

Technical line drawing of a mechanical component with internal channels and mounting flanges (no text or symbols)

Diagram of a spiral mechanical component with concentric rings and a central shaft (no text or symbols)

Diagram of a mechanical component with concentric rings and a central shaft (no text or symbols)

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no text or symbols present)

Specifikationer

Höjd 17 cm

Diameter 28 cm

Spänning 220–240 V AC, 50 Hz, 450 W

Sukkerspinnmaskin

Art. nr. 18-4732 Modell SBL-2806

44-2254

SBL-2806

Les brukerveiledningen grundig før produktet tas i bruk og ta vare på den for framtidig bruk. Vi reserverer oss mot ev. feil i tekst og bilde, samt forandringer av tekniske data.

Illustration of a kitchen appliance with a glass bowl and a central knob (no text or symbols)

Mechanical assembly diagram showing a rotating disk mounted on a housing (no text or symbols)

Circular mechanical component with concentric rings and central slot (no text or symbols)

Technical line drawing of a mechanical component with internal channels and mounting flanges (no text or symbols)

MetallåsehendelSukkerbeholderens aksel passer

Bruk

Diagram of a spiral-shaped mechanical component with concentric rings and a central shaft (no text or symbols)

Diagram of a mechanical component with concentric rings and a central shaft (no text or symbols)

Symbol of a trash bin crossed out by a diagonal line, with no text or labels present.

Spesifikasjoner

Høyde 17 cm

Diameter 28 cm

Spenning 220–240 V AC, 50 Hz, 450 W

Hattarakone

Tuotenro 18-4732

44-2254

Malli SBL-2806

SBL-2806

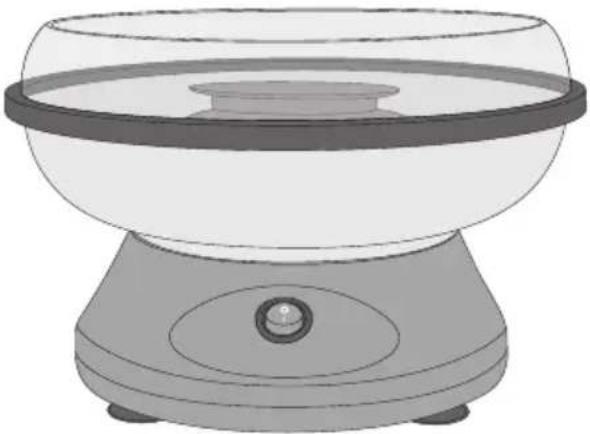

1. Moottoriosa
2. Kulho
3. Lukitusrengas
4. Suojareunus
5. Sokeriastia

Illustration of a small kitchen appliance with a glass bowl and central knob (no text or symbols)

Mechanical assembly diagram showing a rotating disk mounted on a circular base (no text or symbols)

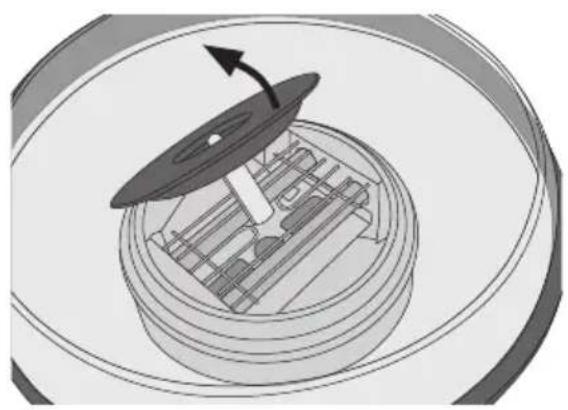

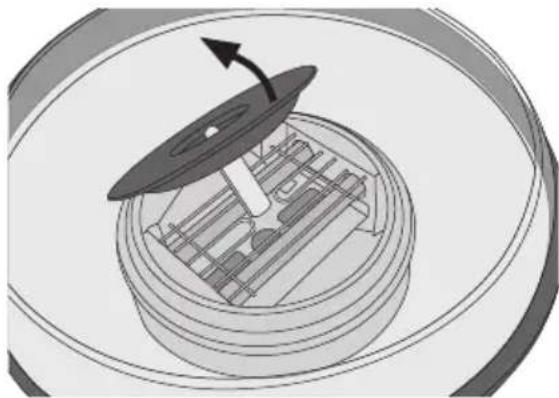

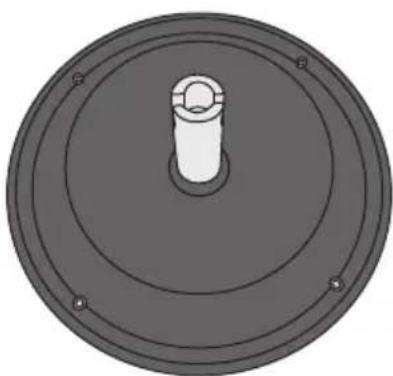

Sokeriastian irrottaminen.

Circular mechanical component with concentric rings and central hole (no text or symbols)

Technical line drawing of a mechanical component with internal channels and mounting holes (no text or symbols)

MetallikielekeSokeriastian akseli sopii

Käyttö

Diagram of a spiral-shaped mechanical component with concentric rings and a central shaft (no text or symbols)

Diagram of a mechanical component with concentric rings and a central shaft (no text or symbols)

Symbol of a trash bin crossed with no visible text or labels

Tekniset tiedot

Korkeus 17 cm

Halkaisija 28 cm

Jännite 220–240 V AC, 50 Hz, 450 W

Illustration of a small bowl with a central lid and a base, no text or symbols present.

Mechanical assembly diagram showing a rotating disk and housing with directional arrows (no text or labels)

Circular mechanical component with concentric rings and central slot (no text or symbols)

Technical line drawing of a mechanical component with internal channels and mounting flanges (no text or symbols)

Diagram of a spiral-shaped mechanical component with concentric rings and a central shaft (no text or symbols)

Diagram of a mechanical component with concentric rings and a central shaft (no text or symbols)

Symbol of a trash bin crossed with no visible text or labels

Technische Daten

Höhe 17 cm

Durchmesser 28 cm

Spannung 220–240 V AC, 50 Hz, 450 W
