Product Type	Convertible (Cabriolet)
Brand	BMW
Model	330Ci Convertible (2003)
Engine	3.0L Inline-6 (M54B30)
Horsepower	225 hp @ 5900 rpm
Torque	214 lb-ft @ 3500 rpm
Transmission	5-speed automatic or 5-speed manual
Drive Type	Rear-wheel drive (RWD)
Fuel Type	Premium unleaded (91 octane)
Fuel Tank Capacity	16.6 gallons (63 liters)
Fuel Economy (city/highway)	17 / 25 mpg (EPA estimated)
Length	176.7 inches (4488 mm)
Width (including mirrors)	69.2 inches (1758 mm)
Height	54.0 inches (1372 mm)
Wheelbase	107.4 inches (2728 mm)
Curb Weight	3472 lbs (1575 kg)
Seating Capacity	4 passengers (2+2)
Top Speed	147 mph (237 km/h) (electronically limited)
Acceleration 0-60 mph	6.8 seconds (manual)
Convertible Top	Power-operated soft top
Brakes	Ventilated disc brakes all around
Tire Size	205/55R16 (front and rear)
Maintenance Intervals	Oil change every 15,000 miles or 2 years; brake fluid every 2 years
Safety Features	ABS, DSC (Dynamic Stability Control), front airbags, side airbags

Frequently Asked Questions - 330Ci Convertible (2003) BMW

What type of engine oil does the 2003 BMW 330Ci Convertible require?

Use fully synthetic 5W-30 engine oil that meets BMW Longlife-01 specification. The capacity with filter is approximately 6.9 quarts.

How do I operate the convertible top manually?

If the power top fails, you can manually close or open it. Locate the manual release lever behind the rear seat backrest, turn it to unlock the top, then lift or lower the top by hand. Refer to the manual for detailed steps.

What is the recommended tire pressure for the 330Ci Convertible?

For normal driving, the recommended cold tire pressure is 32 psi front and 36 psi rear. For full load, increase rear to 42 psi.

How do I reset the oil service light on my BMW 330Ci?

Turn ignition to position 1 (key in, dash lights on). Press and hold the trip odometer reset button until the service display shows. Release and press again repeatedly until 'OIL SERVICE' appears. Hold the button for about 5 seconds until 'RESET?' appears. Press and hold again until 'OK' shows.

Why is my 330Ci Convertible's check engine light on?

Common causes include a faulty oxygen sensor, loose gas cap, or failing mass airflow sensor. Use an OBD-II scanner to retrieve the specific trouble code. The manual provides a list of common codes.

What type of coolant is recommended for the 330Ci?

Use BMW-approved phosphate-free, silicate-free coolant (blue/green) mixed 50/50 with distilled water. Genuine BMW coolant is preferred.

How do I jump start a 2003 BMW 330Ci?

Locate the battery in the trunk under the spare tire. Connect positive cable to the positive terminal, then to the donor car's positive. Connect negative cable to a metal ground on the dead car away from the battery. Start the donor car, then the 330Ci.

Can I replace the battery myself?

Yes. The battery is in the trunk. Disconnect the negative terminal first, then positive. Remove the hold-down clamp. When installing, connect positive first, then negative. You may need to register the battery using a diagnostic tool or follow a reset procedure.

How often should I replace the spark plugs?

Spark plugs should be replaced every 100,000 miles. Use NGK or Bosch plugs with electrode gap of 0.032 inches. Ensure proper tightening torque of 18-22 ft-lb.

What should I do if the convertible top leaks?

First, check the weather seals around the windows and top. Clean and condition the rubber seals with a silicone-based lubricant. If leakage persists, inspect the drain holes behind the front seats. Clear any debris to prevent water buildup.

USER MANUAL 330Ci Convertible (2003) BMW

Owner's Manual for Vehicle

Contents

A-Z

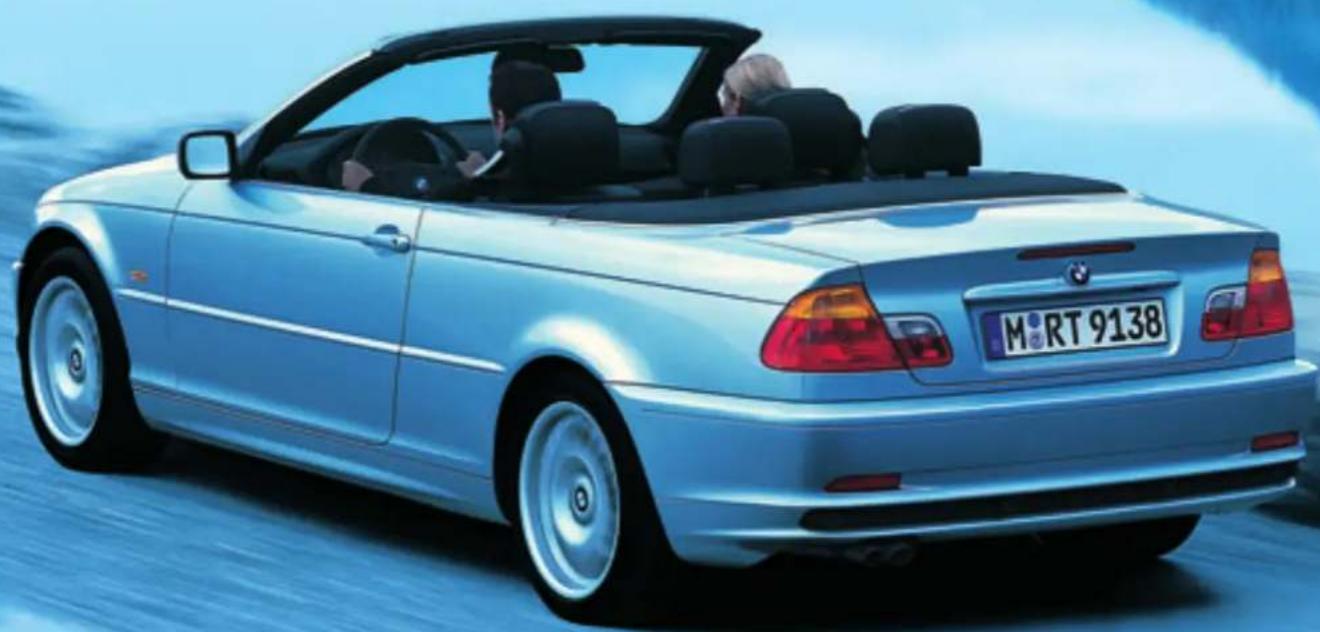

Side view of a light blue convertible car with open lid and license plate (M®RT 9138) on the side, driving on a road (no visible text or symbols on vehicle body)

Online Edition for Part-No. 01 41 0 156 806 - © 09/02 BMW AG

BMW recommends

Castrol

325Ci

330Ci

Online Edition for Part-No. 01 41 0 156 806 - © 09/02 BMW AG

Congratulations, and thank you for choosing a BMW.

Thorough familiarity with your vehicle will provide you with enhanced control and security when you drive it. Therefore we have one request:

Please take the time to read this Owner's Manual and familiarize yourself with the information that we have compiled for you before starting off in your new BMW. The manual contains important data and instructions intended to assist you in obtaining maximum satisfaction from your BMW's unique array of advanced technical features. It also contains information on vehicle maintenance designed to enhance operating safety while simultaneously helping you to maintain your BMW's value throughout an extended service life. For additional information refer to the supplemental manuals.

This Owner's Manual should be considered a permanent part of this vehicle. It should stay with the vehicle when sold to provide the next owner with important operating, safety and maintenance information.

We wish you an enjoyable driving experience.

BMW AG

4 Notes

About this Owner's Manual

We have made every effort to ensure that you are able to find what you need in this Owner's Manual as quickly as possible. The fastest way to find specific topics is by using the detailed index at the end. If you wish to gain an initial overview of your vehicle, you will find this in the first chapter.

Should you wish to sell your BMW at some time in the future, please remember to hand over this Owner's Manual to the new owner; it is an important part of the vehicle.

If you have any additional questions, your BMW center will be glad to advise you.

Reprinting, including excerpts, only with the

written consent of BMW AG, Munich.

Order No. 01 41 0 156 806

US English VIII/02

Printed in Germany

Printed on environmentally friendly paper –

bleached without chlorine, suitable for recycling.

Symbols used

Indicates precautions that must be followed precisely in order to avoid the possibility of personal injury and serious damage to the vehicle.

Contains information that will assist you in gaining the optimum benefit from your vehicle and enable you to care more effectively for your vehicle.

Refers to measures that can be taken to help protect the environment.

Marks the end of a specific item of information.

- Indicates special equipment, country-specific equipment and optional extras.

Identifies systems or components which can be activated or adapted to suit an individual driver's requirements – Vehicle Memory, Key Memory. Refer to page 69. Activation and adjustments on some of these systems can be performed at your BMW center.

Your individual vehicle

On purchasing your BMW, you have decided in favor of a model with individualized equipment and features. This Owner's Manual describes all models and equipment that BMW offers within the same group.

We hope you will understand that equipment and features are included that you might not have chosen for your vehicle. You can easily identify any differences with the aid of the asterisk ^* used to identify all optional equipment and accessories.

If your BMW features equipment which is not described in this Owner's Manual, such as a car radio or telephone, supplementary Owner's Manuals are enclosed. We ask you to read these manuals as well.

Notes

Status at time of printing

BMW pursues a policy of continuous, ongoing development conceived to ensure that our vehicles continue to embody the highest quality and safety standards combined with advanced, state-of-the-art technology. For this reason, the features described in this Owner's Manual could differ from those in your vehicle. Nor can errors and omissions be entirely ruled out. You are therefore asked to appreciate that no claims can be recognized on the basis of the data, illustrations or descriptions in this Owner's Manual.

For your own safety

Use unleaded gasoline only. Fuels containing up to and including 10% ethanol or other oxygenates with up to 2.8% oxygen by weight – that is, 15% MTBE or 3% methanol plus an equivalent amount of co-solvent – will not void the applicable warranties respecting defects in materials or workmanship. Field experience has indicated significant differences in fuel quality – volatility, composition, additives, etc. among gasolines offered for sale in the United States and Canada. The use of poor-quality fuels may result in driveability, starting and stalling problems, especially under certain environmental conditions, such as high ambient temperature and high altitude. Should you encounter driveability problems which you suspect could be related to the fuel you are using, we recommend that you respond by switching to a recognized high-quality brand. Failure to comply with these recommendations may result in unscheduled maintenance. Obey all applicable safety rules when handling gasoline.

Important safety information! For your own safety, use genuine parts and accessories approved by BMW. When you purchase accessories tested and approved by BMW and Original BMW Parts, you simultaneously acquire the assurance that they have been thoroughly tested by BMW to ensure optimum performance when installed on your vehicle. BMW warrants these parts to be free from defects in material and workmanship. BMW will not accept any liability for damage resulting from installation of parts and accessories not approved by BMW. BMW cannot test every product on the market to determine whether it can be used on a BMW safely and without risk to either the vehicle, its operation, or its occupants. Original BMW Parts, BMW Accessories and other products approved by BMW, together with professional advice on using these items, are available from all BMW centers. Installation and operation of non-BMW approved accessories such as alarms, radios, amplifiers, radar detectors, wheels, suspension components, brake

6 Notes

dust shields, telephones – including operation of any portable cellular phone from within the vehicle without using an externally mounted antenna – or transceiver equipment, such as a CB, walkie-talkie, ham radio or similar accessories, may cause extensive damage to the vehicle, compromise its safety, interfere with the vehicle's electrical system or affect the validity of the BMW Limited Warranty. Contact your BMW center for additional information. Do not use key or remote control to lock doors or luggage compartment with anyone inside the vehicle. Refer to the Owner's Manual for more details.

Maintenance, replacement, or repair of the emission control

devices and systems may be performed by any automotive repair establishment or individual using any certified automotive part.

Symbol on vehicle parts

Indicates that you should consult the relevant section of this

Owner's Manual for information on a particular part or assembly.

Service and warranty

This manual is supplemented by a Service and Warranty Information Booklet for US models or a Warranty and Service Guide Booklet for Canadian models.

We recommend that you read this publication thoroughly.

Your BMW is covered by the following warranties:

▷ New Vehicle Limited Warranty
▷ Rust Perforation Limited Warranty
▷ Federal Emissions System Defect Warranty
▷ Federal Emissions Performance Warranty
▷ California Emission Control System Limited Warranty.

Detailed information about these warranties is listed in the Service and Warranty Information Booklet for US models or in the Warranty and Service Guide Booklet for Canadian models.

Reporting safety defects

The following only applies to vehicles owned and operated in the US.

If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration NHTSA in addition to notifying BMW of North America, LLC, P.O. Box 1227, Westwood, New Jersey 07675-1227, Telephone toll-free 1-800-831-1117.

If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved in individual problems between you, your dealer, or BMW of North America, LLC.

To contact NHTSA, you may either call the Auto Safety Hotline toll-free at 1-800-424-9393 or 366-0123 in the Washington, D.C. area, or write to: NHTSA, U.S. Department of Transportation, Washington, D.C. 20590. You can also obtain other information about motor vehicle safety from the Hotline.

Contents

Notes

About this Owner's Manual 4

Symbols used 4

Your individual vehicle 4

Status at time of printing 5

For your own safety 5

Symbol on vehicle parts 6

Service and warranty 6

Reporting safety defects 6

Overview

Cockpit 14

Instrument cluster 16

Indicator and warning lamps 18

Steering wheel with multifunction buttons* 22

Hazard warning triangle* 23

First-aid kit* 23

Refueling 24

Fuel specifications 25

Tire inflation pressure 25

Controls and features

Opening and closing:

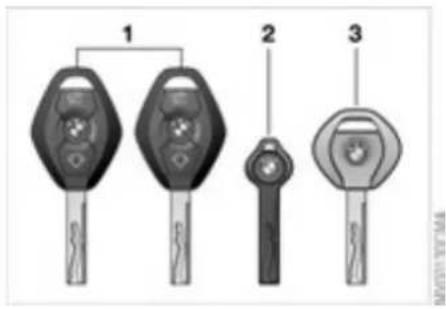

Keys 30

Central locking system 30

Opening and closing – via the remote control 31

Opening and closing – via the door lock 33

Opening and closing – from the inside 34

Luggage compartment lid 35

Luggage compartment 37

Alarm system* 38

Electric power windows 40

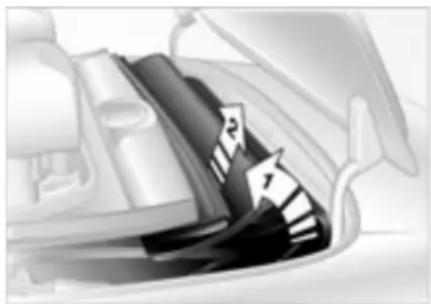

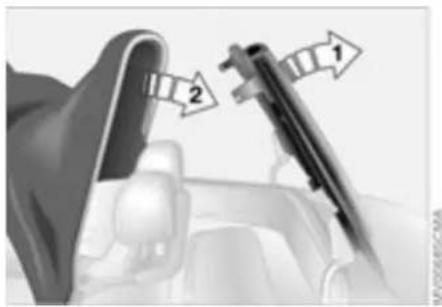

Manual convertible top 41

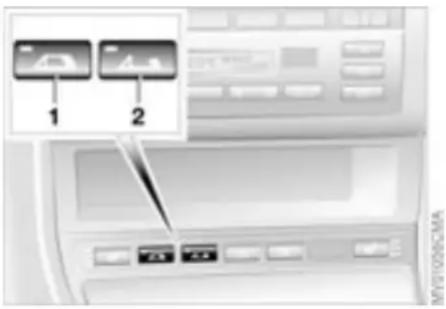

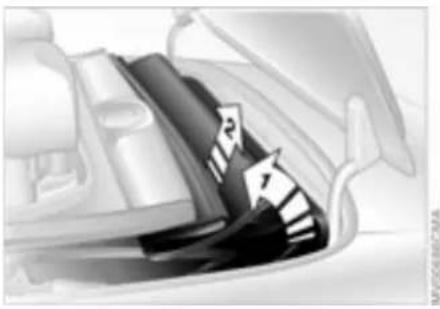

Fully-automatic convertible top* 46

Wind deflector* 50

To adjust:

Safe seating position 52

Seats 52

Adjusting electric power seats 53

Lumbar support* 53

Head restraints 54

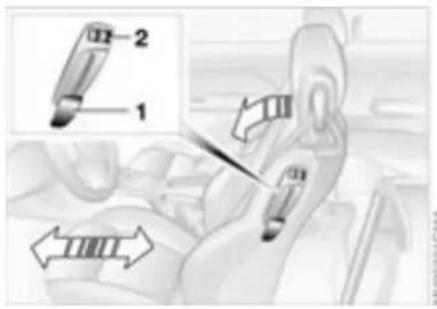

Entering the rear 55

Safety belts 56

Seat and mirror memory* 57

Seat heating* 58

Steering wheel 59

Mirrors 59

Contents

Passenger safety systems:

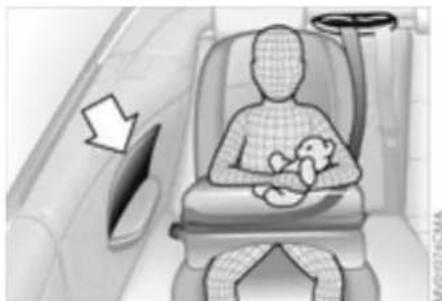

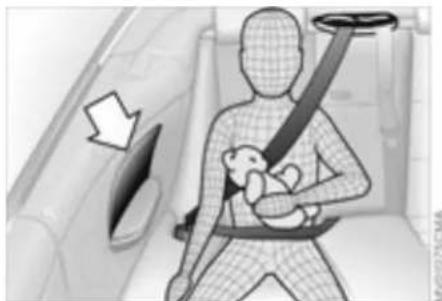

Airbags 61

Transporting children safely 63

Rollover protection system 67

Vehicle Memory, Key Memory 69

Driving:

Ignition lock 70

Starting the engine 70

Switching off the engine 72

Parking brake 72

Manual transmission 73

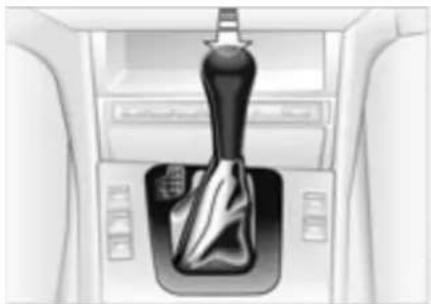

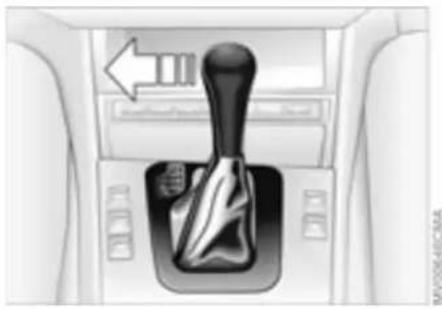

Automatic transmission with Steptronic* 74

Turn signal indicator/Headlamp flasher 77

Washer/wiper system/Rain sensor* 78

Cruise control* 79

Everything under control:

Odometer 81

Tachometer 81

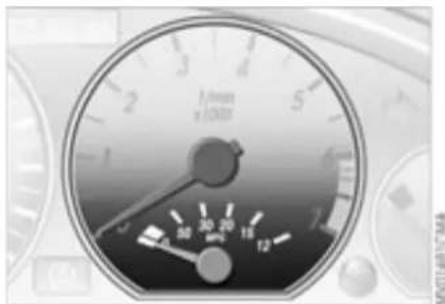

Energy control 81

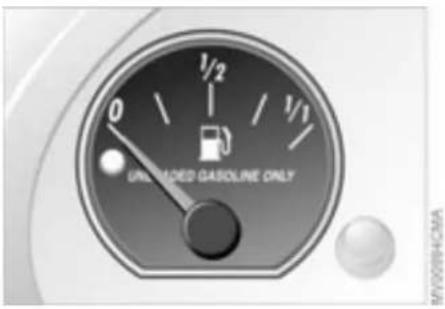

Fuel gauge 82

Engine coolant temperature gauge 82

Service interval display 83

Check Control 83

Clock 84

Computer 85

Technology for safety and driving convenience:

Park Distance Control (PDC)* 87

Automatic Stability Control plus Traction (ASC+T) ^* 88

Dynamic Stability Control (DSC)* 90

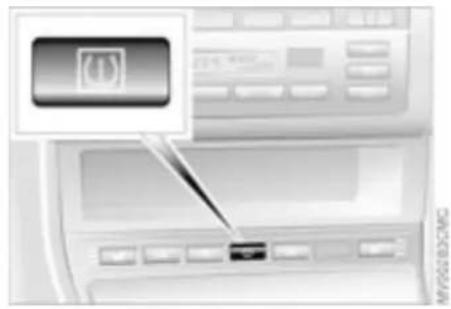

Tire Pressure Monitor (TPM)* 92

Flat Tire Monitor* 93

Lamps:

Parking lamps/Low beams 96

Instrument lighting 97

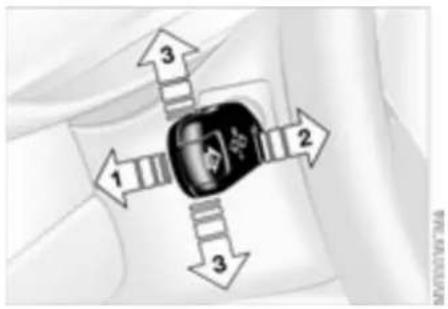

High beams/Standing lamps 97

Fog lamps* 98

Interior lamps 98

Controlling the climate for pleasant driving:

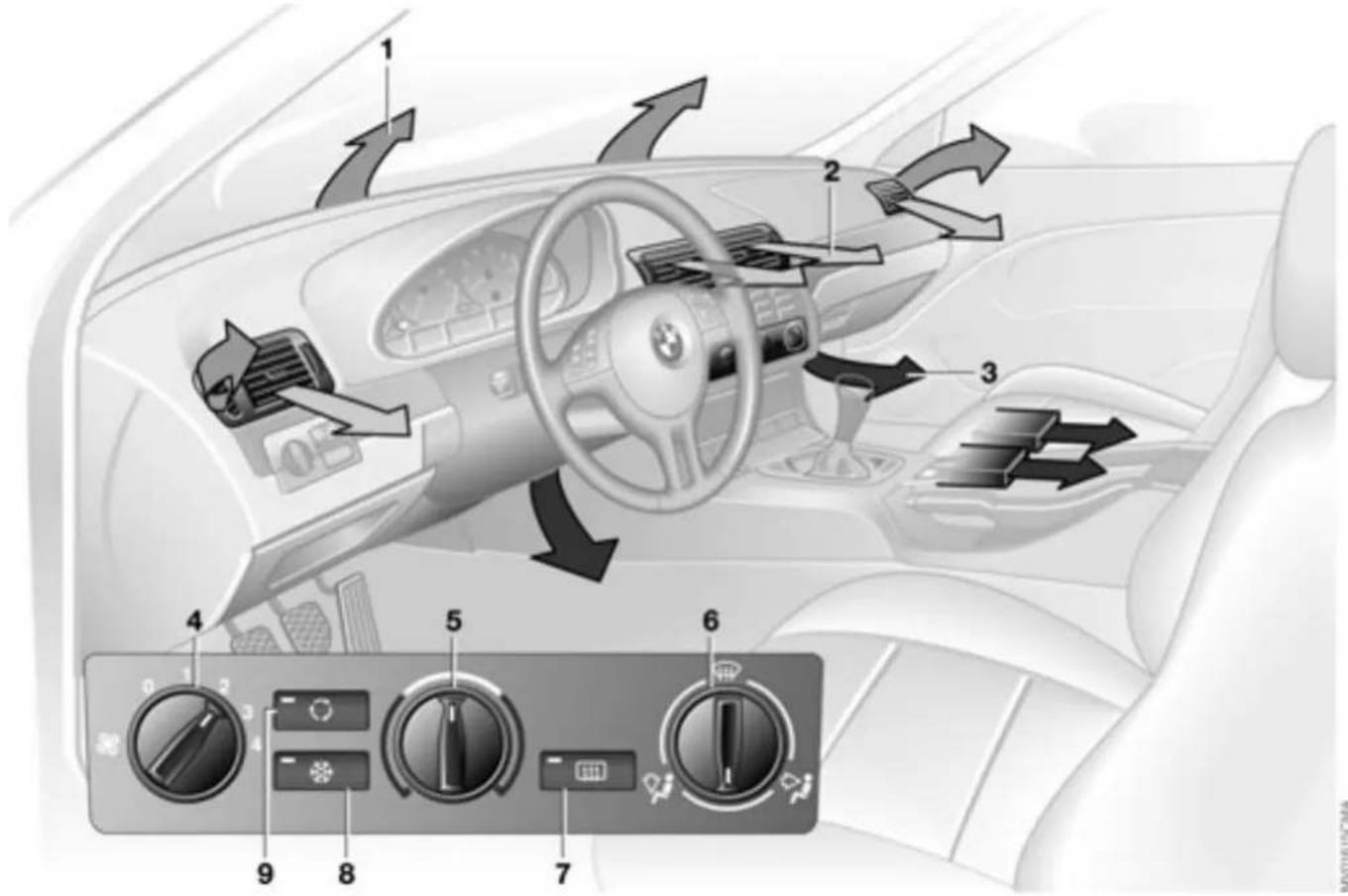

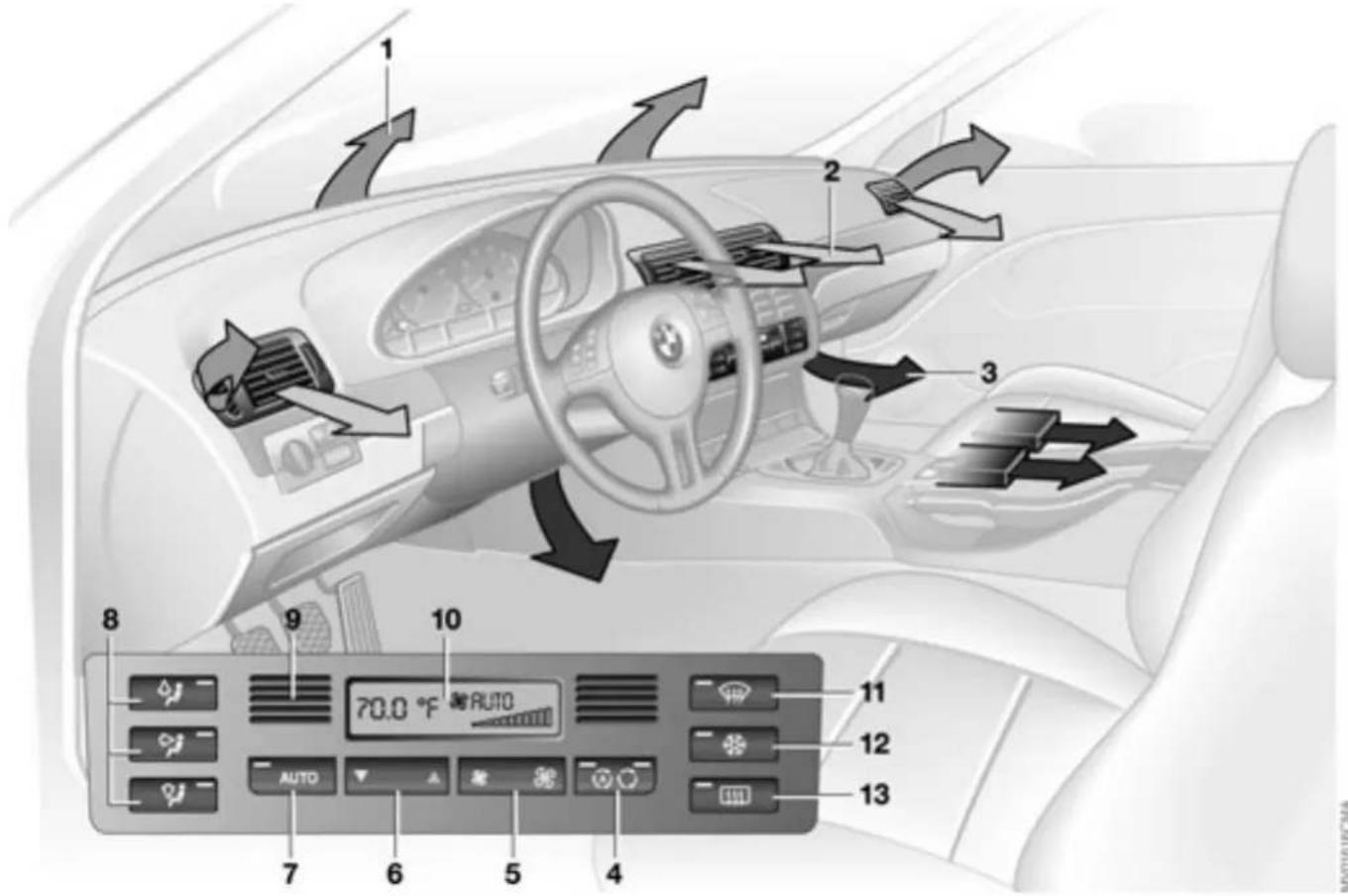

Air conditioning 100

Automatic climate control* 104

Interior conveniences:

Glove compartment 109

BMW Universal Transmitter* 110

Storage compartments 112

Cellular phone* 113

Ashtray, front* 113

Ashtray, rear* 114

Loading and transporting:

Ski bag* 115

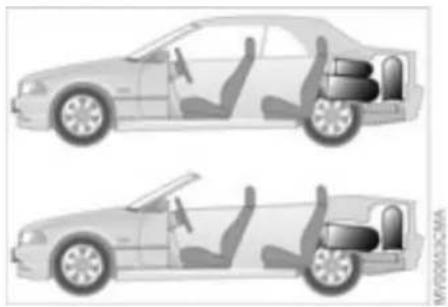

Cargo loading 116

Roof-mounted luggage rack for the hardtop* 118

Contents

Special operating instructions:

Break-in procedures 122

Driving notes 123

Antilock Brake System

(ABS) 123

Brake system 124

Hardtop* 125

Wheels and tires:

Tire inflation pressure 127

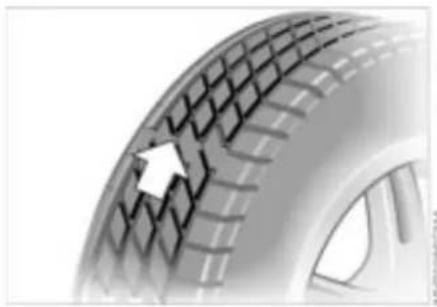

Tire condition 127

Tire replacement 128

Wheel and tire combinations 130

Winter tires 130

In the engine compartment:

Hood 132

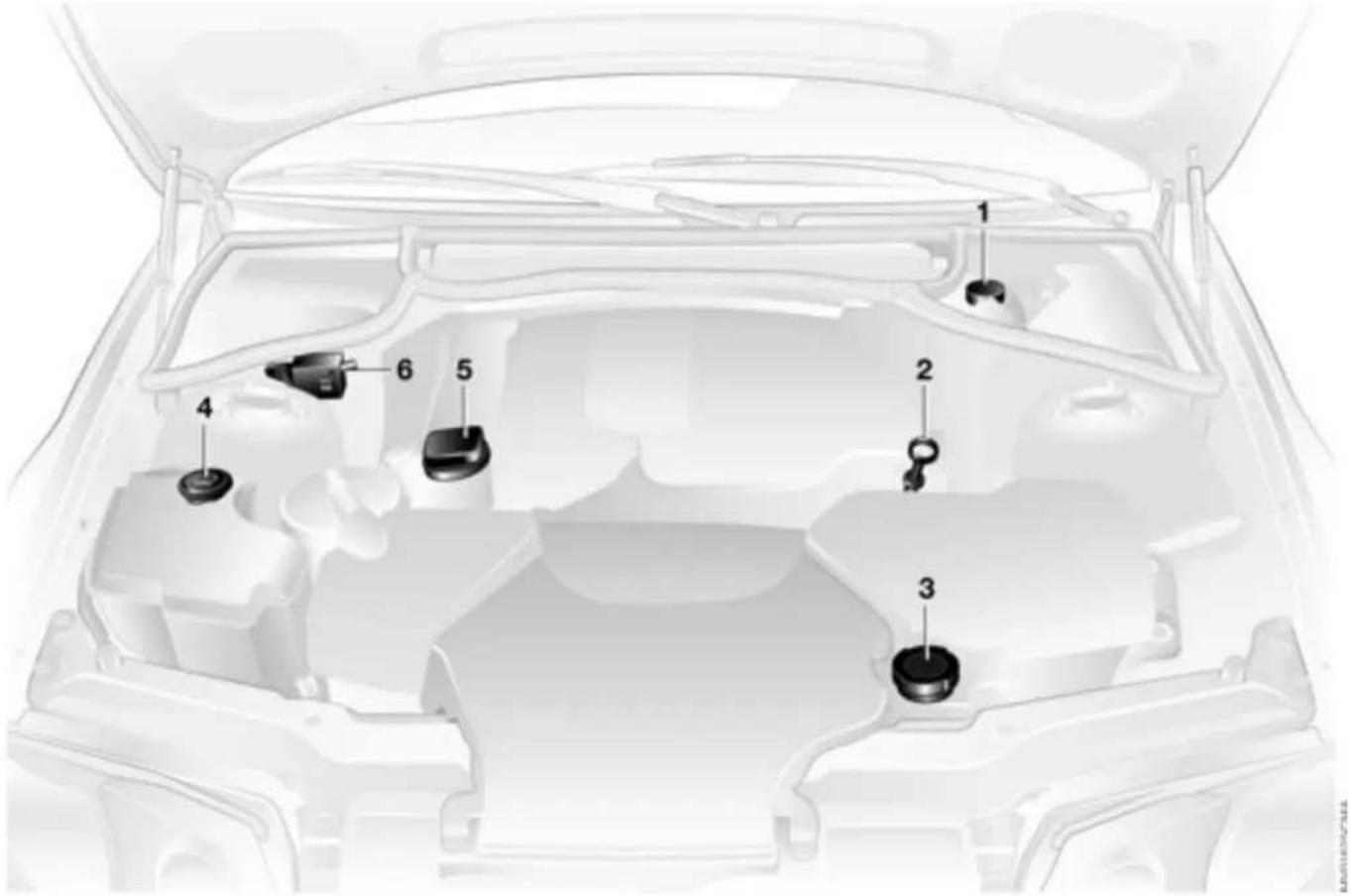

Engine compartment essentials 134

Washer fluid 136

Engine oil 136

Coolant 138

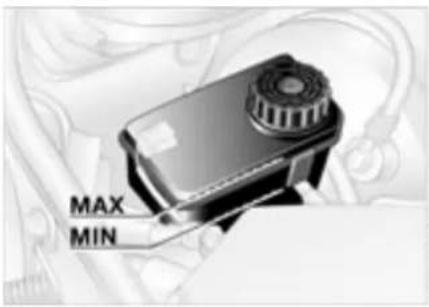

Brake fluid 139

Maintenance:

The BMW Maintenance System 140

Laws and regulations:

California Proposition 65 warning 141

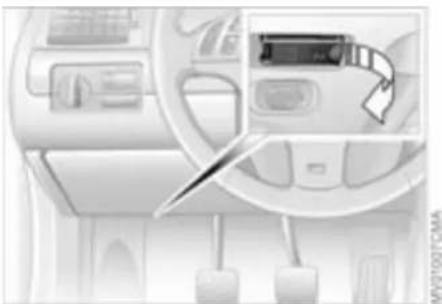

OBD interface socket 141

Replacement procedures:

Onboard tool kit 146

Windshield wiper blades 146

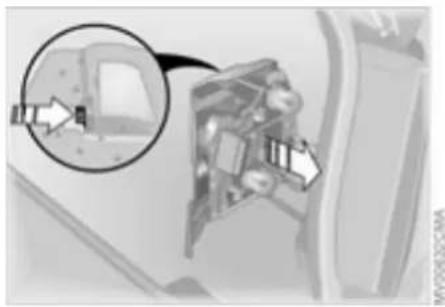

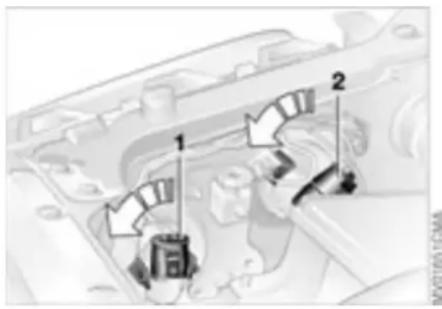

Lamps and bulbs 147

Changing a wheel 151

Run Flat tires* 155

Battery 156

Fuses 156

Giving and receiving

assistance:

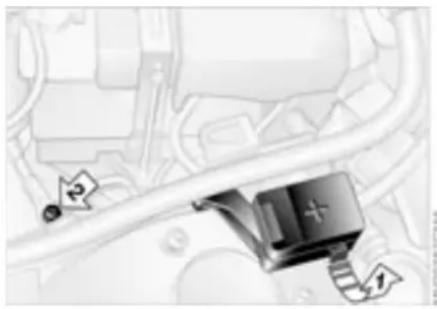

Jump-starting 157

Towing the vehicle 158

Engine data 162

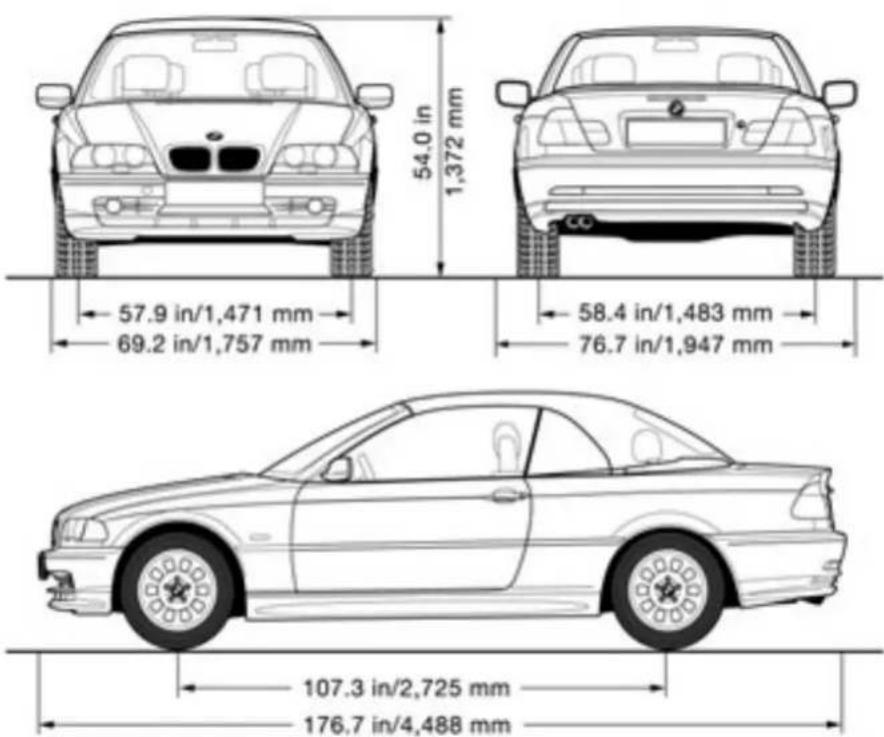

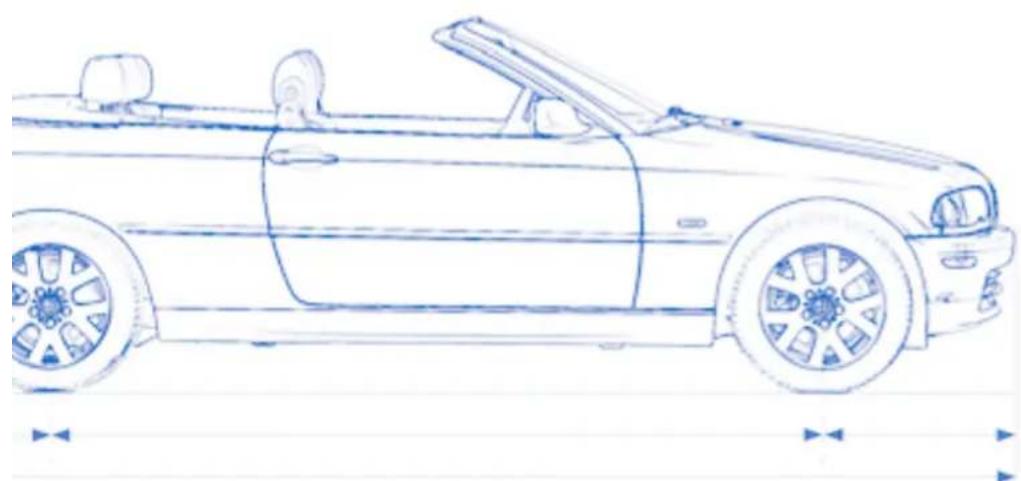

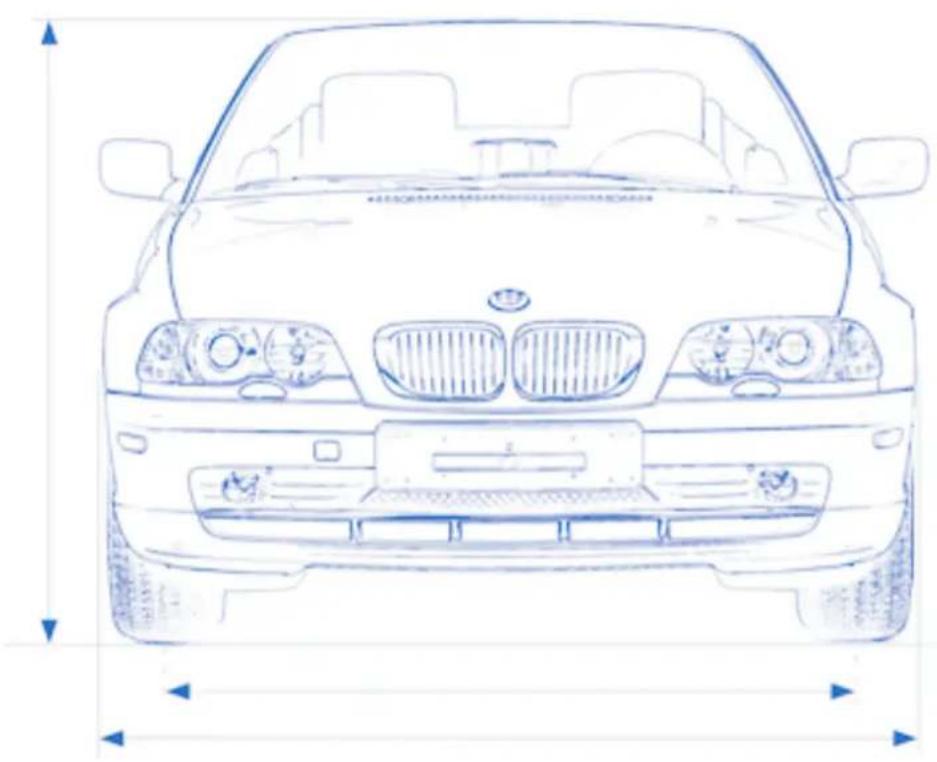

Dimensions 163

Weights 164

Capacities 165

Contents

Everything from A to Z 168

Top-down view of a BMW steering wheel and a circular gauge showing speed scale (no text or symbols on the dashboard)

Online Edition for Part-No. 01 41 0 156 806 - © 09/02 BMW AG

Close-up of a light blue analog clock face showing time near 10:30 (no text or symbols beyond clock numerals)

Overview

Controls and features

Operation, maintenance

Owner service procedures

Technical data

Index

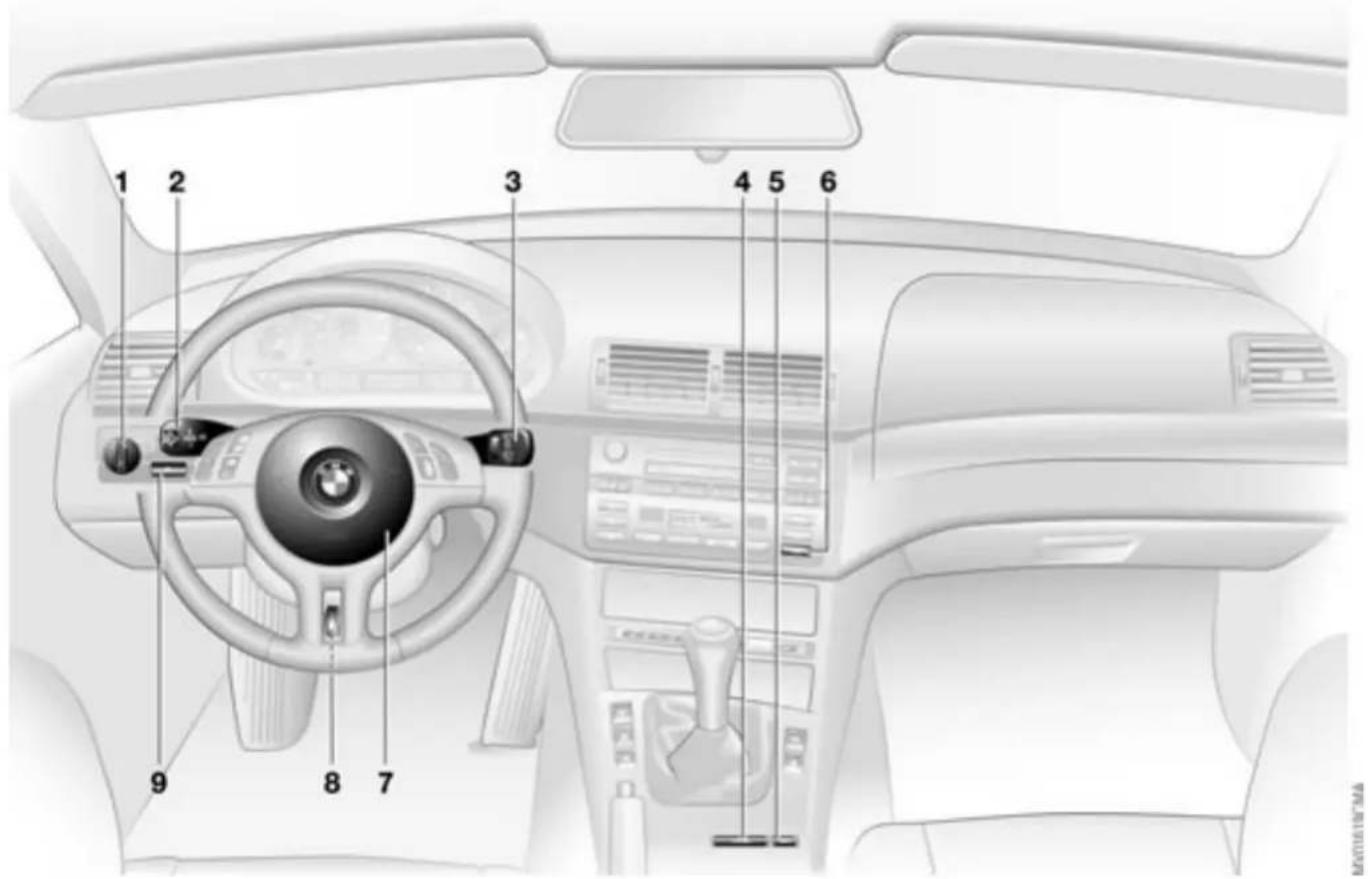

14 Cockpit

1 2 3 4 5 6 9 8 7

Online Edition for Part-No. 01 41 0 156 806 - © 09/02 BMW AG

Cockpit

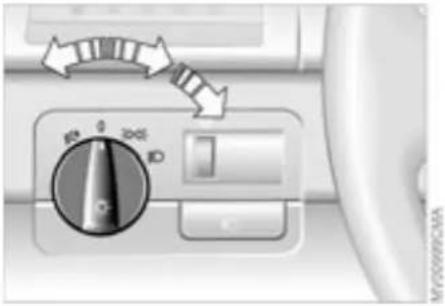

1 Parking lamps/Low beams 96
2 ▷ Turn signal indicators 77
▷ Standing lamps 97
▷ High beams 97
▷ Headlamp flasher 77
▷ Computer 85
3 Washer/wiper system/Rain sensor 78
4 Hazard warning flashers
5 Central locking system 30
6 Rear window defroster 102, 107
7 Horn: the entire surface
8 Adjusting the steering wheel 59
9 Fog lamps 98

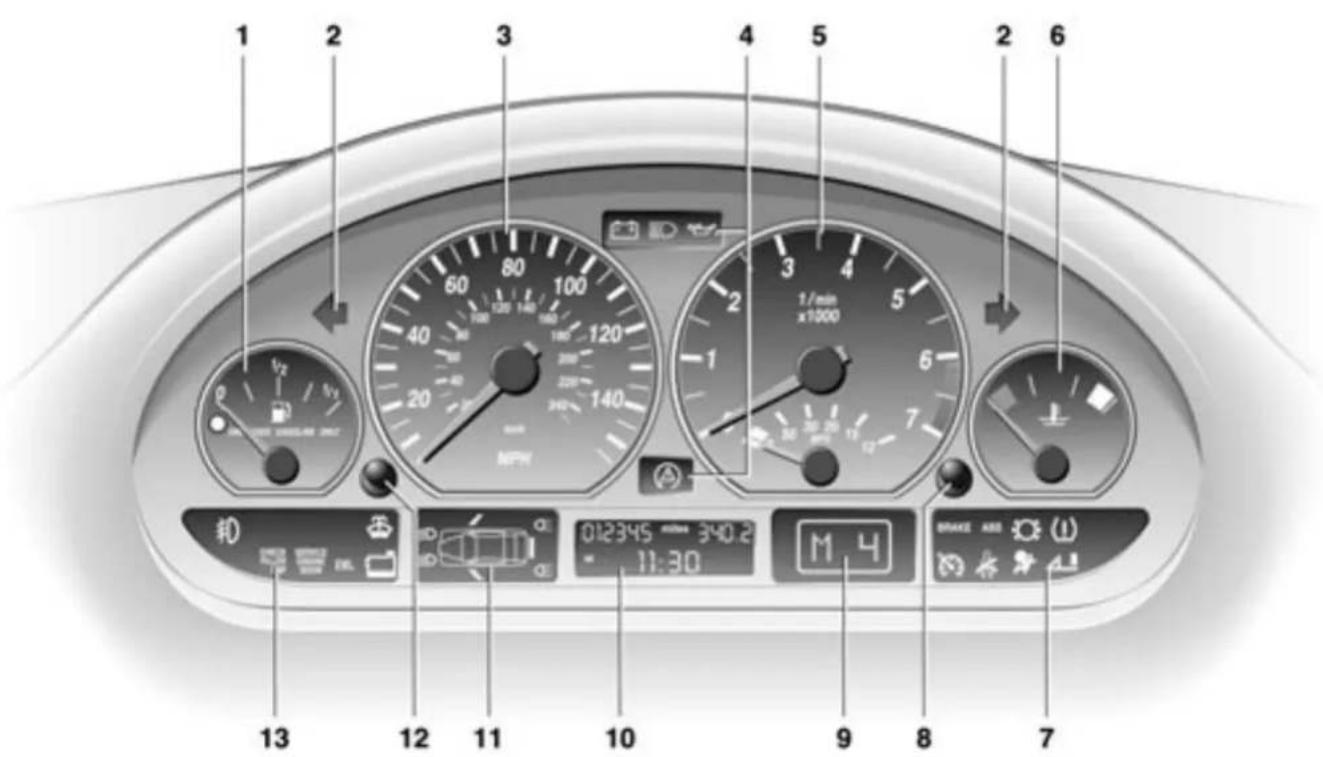

Instrument cluster

1 2 3 4 5 6 1/min x1000 1/2 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 360 370 380 390 400 410 420 430 440 450 460 470 480 490 500 510 520 530 540 550 560 570 580 590 600 610 620 630 640 650 660 670 680 690 700

M50160717684

Instrument cluster

1 Fuel gauge 82
2 Indicator lamp for turn signals 20
3 Speedometer
4 Indicator and warning lamps 18 to 21

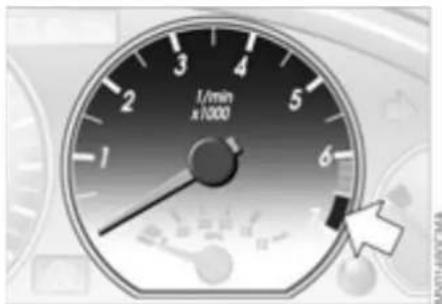

5 Tachometer and Energy Control 81
6 Engine coolant temperature gauge 82
7 Indicator and warning lamps 18 to 21
8 Control button for
▷ Clock 84
▷ Units of measure for exterior temperature display 85
9 Selector lever and program display for automatic transmission 19, 76
10 Display for
▷ Trip odometer/Odometer 81
▷ Clock 84
▷ Service interval 83
▷ Computer 85
11 Check Control 83
12 Trip odometer, reset to zero 81
13 Indicator and warning lamps 18 to 21

18 Indicator and warning lamps

Technology that monitors itself

Indicator and warning lamps that are identified by ● are tested for proper functioning whenever the ignition key is turned. They each light up once for different periods of time.

If a fault should occur in one of these systems, the corresponding lamp does not go out after the engine is started, or it lights up while the vehicle is moving. You will see how to react in the following section.

Red: stop immediately

Battery charge current

The battery is no longer being charged. Indicates a defective

alternator drive belt or a problem with the alternator's charge circuit. Please contact the nearest BMW center.

If the drive belt is defective, stop and switch off the engine immedi-

ately to prevent overheating and serious engine damage. If the drive belt is defective, increased steering effort is also required.

Engine oil pressure

Stop the vehicle immediately and switch off the engine.

Check the engine oil level; top off as required. If the oil level is correct: please contact the nearest BMW center.

Do not continue driving, as the engine could sustain serious dam-rom inadequate lubrication.

Tire Pressure Monitor (TPM)/Flat Tire Monitor

In addition, an acoustic signal is sounded: a tire failure has occurred. Reduce vehicle speed immediately and stop the vehicle. Avoid hard brake applications. As you steer the vehicle, use caution to avoid overcorrecting. For additional information: refer to pages 92, 93

Brake warning lamp

If the lamp comes on when the parking brake is not engaged:

check the brake fluid level. Before driving further, be sure to comply with the instructions on pages 124 and 139.

Parking brake warning lamp for Canadian models.

Red: an important reminder

Brake warning lamp

Comes on when the parking brake is engaged – an additional

acoustic signal sounds when you start off.

For additional information: refer to page 72

Parking brake warning lamp for Canadian models.

Lock backrest/Fasten safety belts

- Comes on together with an acoustic signal until the safety belts are fastened. Flashes if the backrest is not locked.

For additional information on safety belts: refer to page 56

Airbags

Please have the system inspected at your BMW center.

For additional information: refer to page 61

Indicator and warning lamps

Red and yellow: continue driving cautiously

The brake warning lamp comes on together with the yellow indicator lamps for ABS • and ASC+T/DSC:

The entire ABS, CBC, ASC+T/DSC and ADB control system has failed. Continue driving cautiously and defen-

sively. Avoid full brake applications. Please have the system checked by your BMW center as soon as possible. Additional information beginning on page 88

CBC, ABS, ASC+T/DSC and ADB/DBC indicator and warning lamps for Canadian models.

Orange: consult the nearest BMW center

Automatic transmission

The automatic transmission has responded to a malfunction by

reverting to operation in its emergency default program. Please consult the nearest BMW center.

For additional information: refer to page 74

Yellow: check as soon as possible

Engine oil level

If the lamp comes on during normal vehicle operation: the

engine oil level has fallen to the absolute minimum; refill as soon as possible. Do not drive more than approx.

30 miles/50 km before refilling. For additional information: refer to page 136

Engine oil level

Comes on after the engine has been switched off: add engine

oil at the earliest opportunity, such as the next time you stop to refuel.

For additional information: refer to page 136

Brake pads

Have the brake pads checked. For additional information: refer

to page 124

Tire Pressure Monitor (TPM)/Flat Tire Monitor

Check tire inflation pressures.

Refer to pages 25, 92, 93

Automatic Stability Control plus Traction (ASC+T)/Dynamic Stability Control (DSC)

Indicator lamp flashes:

The system is actively regulating drive torque and braking force.

The indicator lamp stays lit:

The ASC+T has been switched off via the button, ADB is operational; or DSC has been switched off using the button, DTC is operational.

Please contact a BMW center in case of a malfunction.

Additional information beginning on page 88

Indicator and warning lamps

Automatic Stability Control plus Traction (ASC+T)/Dynamic Stability Control (DSC) and brake warning lamp

The indicator lamps remain on: The ASC+T/ADB or DSC/DTC

have been switched off manually or there is a system malfunction.

Please consult the nearest BMW center.

Additional information beginning on page 88

DSC and ADB indicator and warning lamps for Canadian models.

Dynamic Brake Control (DBC) Malfunction in DBC system.

Conventional braking efficiency

is available and unrestricted.

Have the system repaired at your BMW center as soon as possible.

For additional information: refer to page 123

Dynamic Brake Control (DBC) warning lamp for Canadian models.

Add washer fluid

The washer fluid is too low. Top off the fluid at the earliest

opportunity.

For additional information: refer to page 136

SERVICE ENGINE SOON

If the indicator lamp comes on either continuously or intermit-

tently, this indicates a fault in the emissions-related electronic systems.

Although the vehicle remains operational, you should have the systems checked by your BMW center at the earliest possible opportunity.

For additional information: refer to page 141

SERVICE ENGINE SOON warning lamp for Canadian models.

Engine electronics

There is a fault in the electronic engine-management system.

You can continue to drive with reduced engine output or engine speed. Please have the system inspected at your BMW center.

Add coolant

The coolant level is too low. Add coolant at the earliest opportu-

nity.

For additional information: refer to page 138

CHECK FILLER CAP

This indicator lamp comes on when the fuel filler cap is loose

or missing.

Close the filler cap tightly: refer to page 24

Rollover protection system • The rollover protection system has been deactivated due to a

malfunction. Please have the system inspected by your BMW center at the earliest opportunity.

For additional information: refer to page 67

Green: for your information

Turn signal indicator

Flashes when the turn signal is operated.

Rapid flashing indicates a system malfunction.

For additional information: refer to page 77

Indicator and warning lamps

Cruise control

Lights up when the cruise control is activated: ready for oper-

ation via the steering wheel with multi-function buttons.

For additional information: refer to page 79

Front fog lamps

Lights up whenever you switch on the fog lamps.

For additional information: refer to page 98

Blue: for your information

High beams

Comes on when the high beams are on or the headlamp flasher

is actuated

For additional information: refer to pages 77, 97

22 Steering wheel with multifunction buttons\*

These buttons let you operate the following functions quickly and without being distracted from traffic conditions:

▷ Selected radio functions
▷ The cruise control
▷ Selected telephone functions.

The controls are active only when the corresponding systems and ssories are switched on.

Press briefly:

Receive a phone call, initiate dialing, terminate a call.

Switch between phone, radio, cassette and CD.

Forward:

▷ Radio

Press briefly: station scan in FM band Extended pressure: station search

CD

Press briefly: jump to next track Extended pressure: search function in track

▷ Cassette

Press briefly: jump to next track or stop fast forward

Extended pressure: fast forward

▷ Phone

Scan personal phone book.

Rewind/reverse: same functions as forward.

Volume.

Cruise control: select a stored setting.

Cruise control: store and accelerate + or decelerate and store -.

Cruise control: activate/interrupt/deactivate.

Hazard warning triangle\*

Illustration of a printer with a lid and paper filter (no text or symbols visible)

The hazard warning triangle is stored in the luggage compartment lid inside the container for the onboard tools.

To open the container, loosen the wing nut.

Always observe all legal regulations requiring a warning triangle

to be carried in the vehicle.

First-aid kit\*

23

Close-up of a hand holding a black clip with a white arrow pointing to a small object on the car interior (no text or symbols visible)

MAYOYUM

The first-aid kit is located under the passenger seat.

To open: pull the handle and fold the cover down.

To close: fold the cover up and press it until the tab engages.

Some of the articles in the first-aid kit have a limited period of use before expiration. For this reason, check the expiration dates of each of the items regularly and replace any whose expiration dates have passed. You can purchase replacements in any drugstore or pharmacy.

Always observe all legal regulations requiring a first-aid kit to be carried in the vehicle.

Refueling

Gray-scale icon of a directional arrow pointing left, on a textured surface (no text or symbols)

Always observe all safety precautions posted at the service station when handling fuel. Never carry spare fuel containers in your vehicle. Whether empty or full, these containers can leak, cause an explosion, or lead to fire in the event of a collision.

Close-up of a mechanical component with a knob and arrow, no visible text or symbols

Fuel filler door

Always switch off the engine before refueling, as it is not possi-

ble to add fuel with the engine running, and attempts may also trigger the SERVICE ENGINE SOON lamp.

Press on the rear edge of the fuel filler door to open and close it.

If an electrical malfunction occurs, you can unlock the fuel filler door manually:

1. Undo the trim panel on the right side of the luggage compartment
2. Pull the button with the fuel pump symbol.

Simple and environmentally friendly

Open the filler cap carefully to prevent fuel from spraying out.

Fuel spray may cause injury.

Keep the filler cap in the bracket – see arrow – attached to the fuel filler door.

When refueling, insert the filler nozzle completely into the filler pipe. Pulling the nozzle out of the pipe during refueling

▷ results in premature pump shutoff
▷ and will reduce the effectiveness of the vapor recovery system on the pump.

The fuel tank is full when the filler nozzle shuts off the first time.

Refueling

Close the fuel filler cap carefully after refueling until a click is

heard. While closing, be sure not to squeeze the strap which is fastened to the cap. A loose or missing cap will activate the CHECK FILLER CAP lamp.

Fuel tank capacity

▷ Approx. 16.6 gal./63 liters, of which
▷ approx. 2.1 gal./8 liters are reserve capacity.

Do not drive to the last drop of fuel. This can prevent the engine

from operating properly and result in damage.

Fuel specifications

The engine uses lead-free gasoline only.

Required fuel:

▷ Premium Unleaded Gasoline, min. 91 AKI.
AKI = Anti Knock Index

Never use leaded fuel, as it would cause permanent and irreversible damage to the oxygen sensor and the catalytic converter.

Tire inflation pressure

25

Close-up of a white mechanical component with a metallic clip inserted (no visible text or symbols)

MOTOMA

The specified inflation pressures are provided on a sticker attached to the B-pillar and are visible with the driver's door open.

Checking tire pressures

All pressures are specified in the standard units of pressure, psi and kilopascal, and apply to cold tires, that is tires at ambient temperature. Refer to tire pressure table at the end of this chapter.

Vehicles with Tire Pressure Monitor (TPM)/Flat Tire Monitor:

After correcting the inflation pressures, reinitialize the system, refer to pages 92, 93.

Tire inflation pressure

Another instruction plate regarding inflation pressures on the door pillar indicates which system your vehicle is equipped with.

Check the tire pressures on a regular basis – at least twice a month

- and before every extended journey.

Otherwise, incorrect tire pressure can lead to poor handling, to tire damage and accidents.

Remember to check the inflation pressure in the space-saver or standard spare tire.

Inflate the spare tire to the highest inflation pressure specified for your vehicle.

Comply with tire approval specifications

The inflation pressures in the table apply to BMW approved tire sizes and tire manufacturers. Your BMW center can provide you with more information about these. Higher pressures may be required for tires made by other manufacturers.

Your vehicle is equipped with tires that not only meet US standards, but also European standards. We recommend the exclusive use of BMW approved tires.

Tire inflation pressure

BMW Tires
	All pressure specifications in the table are indicatedin psi/kilopascal with cold tires -cold = ambient temperature
325Ci 205/55 R 16 91 H M+S	29/200 33/230 36/250 44/300
205/55 R 16 91 H
225/50 R 16 92 W
225/45 R 17 91 W
225/45 ZR 17	29/200	-	36/250	-
245/40 ZR 17	-	33/230	-	44/300
205/50 R 17 93 V M+S extra load	32/220 36/250 39/270 46/320
205/50 R 17 93 W extra load
205/55 R 16 91 Q M+S
225/50 R 16 92 Q M+S
205/50 R 17 93 Q M+S extra load
225/45 R 17 91 Q M+S
330Ci 225/45 R 17 91 W 29/200 33/230 36/250 44/300
225/45 ZR 17	29/200	-	36/250	-
245/40 ZR 17	-	33/230	-	44/300
225/40 R 18	32/220	-	39/270	-
255/35 R 18	-	36/250	-	46/320
205/50 R 17 93 V M+S extra load	32/220 36/250 39/270 46/320
205/50 R 17 93 W extra load
205/50 R 17 93 Q M+S extra load
225/45 R 17 91 Q M+S
All Space-saver spare tire 61/420

Two circular icons: a sun and a gear, both without any text or symbols.

Online Edition for Part-No. 01 41 0 156 806 - © 09/02 BMW AG

Exterior view of a modern office building (no signage)

Overview

Controls and features

Operation, maintenance

Owner service procedures

Technical data

Index

Keys

1 2 3

The key set

1 Master keys with remote control – determine the functions of the Key Memory, refer to page 69. You can mark the individual keys for subsequent identification by applying the colored decals that you received when accepting delivery of your vehicle

There is an extended-life battery in every master key that is

charged automatically in the ignition lock as you drive.

For this reason, if you have master keys that are not being used otherwise, use those keys approximately once a year while driving for an extended period to charge the battery.

2 Spare master key – for storage in a safe place, such as in your wallet. This key is not intended for constant use 3 Door and ignition key – the locks for the luggage compartment lid and the glove compartment cannot be operated with this key. This is useful for valet parking, for example

Central locking system

The concept

The central locking system engages and releases the following locks at the same time

doors
▷ luggage compartment lid
▷ fuel filler door
▷ glove compartment.

The central locking system is ready for operation whenever the driver's door is closed.

The central locking system can be operated

▷ from outside via the door lock as well as via the remote control

▷ from inside by pressing a button.

The fuel filler door is not locked when the central locking system is activated from the inside, refer to page 34.

When the system is actuated from the outside, the anti-theft system is also activated. This prevents the doors from being unlocked via the lock buttons or the release handle. The alarm system is also armed or disarmed.

The central locking system is automatically deactivated in the event of an accident. In addition, the hazard warning flashers and interior lamps come on.

Opening and closing – via the remote control

The concept

The remote control gives you an exceptionally convenient method for unlocking and locking your vehicle. Furthermore, it provides two additional functions:

To switch on interior lamps, refer to page 32.

With this function you can also search for the vehicle when parked in an underground garage, for instance

To open the luggage compartment lid, refer to page 32.

The luggage compartment lid will open slightly, regardless of whether it was previously locked or unlocked.

Whenever you unlock or lock the vehicle, you simultaneously deactivate/activate the anti-theft system, disarm/arm the alarm system and switch the interior lamps on/off.

You can have a signal set to confirm that the vehicle's locks have aged securely.

Master keys with remote control

Persons or animals inside the vehicle may be able to lock the doors from the inside. For this reason, you should always take the vehicle keys with you so that the vehicle can be opened again from the outside at any time.

If it is no longer possible to lock the vehicle via the remote control, the battery is discharged. Use this key while driving for an extended period in order to recharge the battery.

To prevent unauthorized use of the remote control, surrender only the spare key or the door and ignition key when leaving the vehicle for valet parking, for example.

In the event of a system malfunction, please contact your BMW center. You can also obtain replacement keys there.

Diagram of a car key with numbered parts and motion indicators

MMORATICMA

1 Unlock, disarm alarm system
2 Lock and secure, arm alarm system, activate interior lamps, disarm tilt alarm sensor and interior motion sensor
3 Open the luggage compartment lid, Panic mode - trigger alarm

To release

Press the button once to unlock the driver's door.

Press the button a second time to disengage all vehicle locks.

32 Opening and closing – via the remote control

To lock and secure

Press the button.

To switch on the interior lamps

With the vehicle locked, press the button.

To deactivate the tilt alarm\* and interior motion sensors\*

Press the button a second time immediately after locking.

For additional information, refer to page 39.

To open the luggage compartment

Press the button.

The luggage compartment lid will open slightly, regardless of whether it was previously locked or unlocked.

Before and after a trip, be sure that the luggage compartment lid has not been opened unintentionally.

Panic mode - trigger alarm

Provided that the alarm system is armed, you can respond to imminent danger by holding down the button for more than seconds.

To switch off the alarm:

Press the button.

External systems

The remote control system's operation may be affected by other units or equipment operating in the immediate vicinity of your vehicle.

If this should occur, you can still open and close the vehicle using the master key in either the door or luggage compartment lid locks.

For US owners only

The transmitter and receiver units comply with part 15 of the FCC Federal Communications Commission regulations. Operation is governed by the following:

FCC ID:

▷ LX8EWS

▷ LX8FZVS

▷ LX8FZVE.

Compliance statement:

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

▷ This device may not cause harmful interference

This device must accept any interference received, including interference that may cause undesired operation.

Any unauthorized modifications to these devices could void the user's authority to operate the equipment.

Opening and closing - via the door lock

Diagram of a car door handle with directional arrows indicating movement or force (no text or symbols)

Whenever closing the windows or sliding/tilt sunroof you should always monitor their path and progress to ensure that no one is injured. Releasing the key stops the operation.

Manual operation

In the event of electrical malfunction Turn the key to the extreme left or right to unlock/lock the driver's door.

One turn of the key in the driver's door lock unlocks the driver's door, the fuel filler door and the glove compartment. Turning the key a second time unlocks the passenger-side door and the luggage compartment lid.

You can have a signal set to confirm that the vehicle's locks have aged securely.

Convenience operation

You can also operate the power windows and the fully-automatic convertible top via the door lock.

To open: with the door closed, hold the key in the Unlock position
To close: with the door closed, hold the key in the Lock position.

Opening and closing – from the inside

Interior view of a car infotainment system showing a printer icon and gear shift (no text or symbols)

You can use this button to control the central locking system whenever the doors are closed. The doors and luggage compartment lid are unlocked or locked only. The anti-theft system is not activated.

If only the driver's door was unlocked from the outside and you press the button, then, with the driver's door still open, the passenger-side door, the luggage compartment lid, the fuel filler door and the glove compartment will unlock, too.

If the driver's door is closed, it will be locked.

If you desire, the central locking system can be activated automatically as soon as you begin to drive. This be adjusted to be key-specific.

To unlock and open the doors

Either unlock the doors together with the button for the central locking system and then pull each of the release handles above the armrests or
▷ pull the release handle for each door twice: the first pull unlocks the door, and the second one opens it.

To lock

Either use the central locking button to lock both doors at once or
▷ press down the individual door lock buttons. In this case, the fuel filler door will stay unlocked. To prevent the driver from being inadvertently locked out of the vehicle, the driver's door lock button will not engage as long as the door is open.

Persons or animals inside the vehicle may be able to lock the doors from the inside. You should always take the vehicle's keys with you so that you can open the vehicle again from the outside at any time.

Luggage compartment lid

Top-down view of a car's front dashboard with directional arrows indicating speed or speed (no text or symbols)

Close-up of a car's front panel with a globe icon and an upward arrow, no visible text or symbols

Close-up of a white mechanical component with a metallic clip and side panel (no visible text or symbols)

系

The lock

Only the master keys fit in the lock for the luggage compartment lid, refer to page 30.

To secure separately

Lock the glove compartment using the master key.

This locks the luggage compartment lid and disconnects it from the central locking system. This feature can be used to prevent unauthorized access to the luggage compartment when you surrender the door and ignition key only, refer to page 30. This can be advantageous for valet parking, for example.

To open from the outside

Press the button in the handle recess – see arrow: the luggage compartment lid opens slightly.

The luggage compartment is lit when the luggage compartment lid is opened.

Manual operation

In the event of electrical malfunction

Turn the master key all the way to the left – the luggage compartment lid will open slightly.

The luggage compartment is locked again as soon as you close the lid.

To open from the inside\*

If the luggage compartment lid has not been locked separately, you can open it with this button in the footwell on the driver's side when the vehicle is stationary.

Luggage compartment lid

Top-down view of a car's rearview showing two white arrows pointing to the side of the grille (no text or symbols present)

Should it be absolutely necessary to operate the vehicle with the luggage compartment lid open, with closed convertible top:

1. Close all windows
2. Greatly increase the quantity of air coming from the air conditioning or automatic climate control system, see page 100 or 104.

Warning symbol with a triangle and upward arrow inside, set against a dark gradient background (no text or numbers)

To close

The handle recesses in the interior trim panel of the luggage compartment lid - see arrows - make it easier to pull the lid down.

To avoid injuries, be sure that the travel path of the luggage com-

partment lid is clear when it is closed, following the same precautions as with all closing procedures.

Operate the vehicle only when the luggage compartment lid is

closed. Otherwise, exhaust fumes could penetrate the interior of the vehicle.

Emergency release

This lever releases the luggage compartment lid from inside the luggage compartment.

Luggage compartment

Close-up of a mechanical component with a striped handle and a triangular tool, no visible text or symbols

Close-up of a mechanical switch or lever mechanism with an arrow indicating direction (no text or symbols visible)

Interior view of a car showing the door handle and side panel with a black arrow pointing to it (no text or symbols visible)

To fold up and secure the floor panel

1. Pull up at the handle and fold the panel up

2. Press the button - see arrow - to release the hanger from the handle

3. Hook the handle into the rubber seal of the drip rail – see arrow.

Carefully replace the hanger in its holder when lowering the floor panel back down.

The fittings at the corners of the luggage compartment provide you with a convenient means of attaching luggage nets* and flexible straps for securing luggage.

Refer also to Cargo loading on page 116.

To enlarge the luggage compartment

With the convertible top closed, you can enlarge the luggage compartment. To do this, flip the handle outward and press it down and toward the front of the vehicle – see arrow. The convertible top compartment panel is now raised and secured.

To fold down the convertible top compartment panel

The convertible top compartment lid must be folded down to open the convertible top. Swing out the handle and pull toward the back of the vehicle.

Luggage compartment

Before lowering the convertible top, refer to page 41 or 46, always check to ensure that the luggage compartment panel has returned to its original position. Attempts to lower the top with the panel folded up can lead to vehicle damage.

Alarm system\*

The concept

The vehicle alarm system responds:

▷ When a door, the hood or the luggage compartment lid is opened
To movements inside the vehicle – interior motion sensor
To variations in the vehicle's tilt angle such as those occurring during attempts to steal the wheels or tow the vehicle – tilt alarm sensor
▷ To interruption of battery voltage.

The system responds to unauthorized vehicle entry and attempted theft by simultaneously activating the following:

The acoustic alarm sounds for 30 seconds
The hazard warning flashers are activated for approx. five minutes
The high beams flash on and off in rhythm with the hazard warning flashers.

To arm and disarm the alarm system

When the vehicle is locked or unlocked via the driver's door lock or with the remote control, the alarm system is also simultaneously armed or disarmed.

You can have different acknowledgment signals set to confirm and disarming.

You can open the luggage compartment lid when the system is armed by pressing the remote control button, refer to page 32. The lid is once again secured when it is closed.

Alarm system\*

Top-down view of a car dashboard and front panel (no text or symbols visible)

表

Indicator lamp displays

The indicator lamp below the interior rearview mirror flashes continuously: the system is armed
The indicator lamp flashes during arming: the door(s), the hood or the luggage compartment lid are not completely closed. Even if you do not close the alerted area(s), the remaining areas are secured, and the indicator lamp will flash continuously after 10 seconds. However, the interior motion sensor is not activated
The indicator lamp goes out when the system is disarmed: no manipulation or attempted intrusions have been detected in the period since the system was armed
The indicator lamp flashes for 10 seconds when the system is dis-

armed: an attempted entry has been detected in the period since the system was armed.

Following triggering of an alarm, the indicator lamp will flash continuously.

Avoiding unintentional alarms

The tilt alarm sensor and interior motion sensor may be switched off at the same time. You can do this to prevent a false alarm from being triggered in garages with elevator ramps, for instance, or when the vehicle is transported by train:

Lock the vehicle twice to arm the system. Press the button on the remote control twice in succession or lock the vehicle twice with the key.

The indicator lamp lights up briefly and then flashes continuously. The tilt alarm sensor and the interior motion sensor are deactivated as long as the system is armed.

Interior motion sensor\*

Deactivate the interior motion sensor – refer to Avoiding unintentional alarms – if persons or animals are to remain in the vehicle.

The system deactivates the tilt-alarm sensor and the interior motion sensor if the convenience closing of windows is interrupted in the first 10 seconds and then restarted. The alarm must then be disarmed and reactivated before it will resume operation.

Electric power windows

Interior view of a car gear shift control panel with no visible text or symbols

You can close the windows in the same manner by pulling the switch. The window on the passenger side and the rear windows do not close automatically.

The window on the passenger side closes automatically in ignition key position 2 only.

For convenience closing via the door lock, refer to page 33.

Interior view of a car air intake console with a lever handle (no visible text or symbols)

To open and close windows

When leaving the vehicle, always remove the ignition key from the

lock and remember to close the doors to prevent children from operating the power windows and injuring themselves, etc.

With the ignition key in position 1 or higher

▷ Press the switch until you feel resistance: the window retracts as long as you maintain pressure on the switch
▷ Press the switch briefly past the pressure point: the windows move automatically. Pressing the switch again stops the opening cycle.

To operate all the side windows

With the ignition key in position 1 or higher

▷ Press the switch until you feel resistance: the windows retract as long as you maintain pressure on the switch
▷ Press the switch briefly past the pressure point: the windows move automatically. Pressing the switch again stops the opening cycle.

You can close all windows in the same manner by pulling the switch. The windows cannot be closed automatically using this switch.

For convenience closing via the door lock refer to page 33.

Electric power windows

After the ignition has been switched off

You can still use the electric power windows for up to 15 minutes, as long as no one opens any of the doors.

Manual convertible top

41

The fabric top offers the perfect protection against weather and one person can open and close it easily and simply.

To gain maximum satisfaction from your convertible, please observe the following: We strongly recommend that you close the convertible top before leaving the vehicle parked. When closed, the top not only guards the passenger compartment from unforeseeable damage from the weather, but also affords a degree of protection against theft.

However, even when the top is closed valuables should always be stored in the locked luggage compartment.

Never attempt to mount any kind of roof rack or luggage carrier on the convertible top.

Closing the electric power windows: to help ensure that the win-

dows seal securely, you should either close the rear windows first or close all four windows at the same time.

42 Manual convertible top

To open the convertible top

Never attempt to open or close the convertible top unless the vehicle is completely stationary. To prevent vehicle damage the top compartment lid's lock will not disengage unless the luggage compartment lid is closed.

Diagram of a car door handle with a valve and circular component, no text or symbols present

Diagram of an ATM machine with a 4-bit display and control panel, showing interface elements and status bar.

1. Flip the locking handle out – refer to illustration – and turn it as far as the end stop will allow

2. Raise the convertible top a little bit, release the tension

3. To unlock, press the button with the ignition key in position 1 or higher. The top compartment lid's lock disengages and the lid itself rises a small distance. The side windows will lower slightly

If the indicator lamp lights up when the button is pressed, the lid cannot be unlocked because the top compartment panel is raised, refer to page 37. Lower the top compartment panel and close the tailgate.

Manual convertible top

Close-up of a car's roof with a white arrow pointing downward (no text or symbols visible)

Interior view of a car showing a steering wheel and attached gear (no visible text or symbols)

1. Raise the front of the top and pull it back for storage

Now finish pushing the convertible top all the way down into the convertible top compartment. This makes it easier to close the convertible top compartment lid, especially at lower temperatures.

1. Position the rear convertible top frame vertically and grip it firmly

You can make it easier to raise the rear convertible top frame by pressing the area indicated by the arrow.

1. Reach into the recess created when the convertible top compartment lid is lifted and pull it all the way by hand - see arrow 1
2. Lay the rear convertible top frame in the convertible top compartment – see arrow 2

Let go of the rear convertible top frame before laying the convertible top down, otherwise, the side trim panel could be damaged.

44 Manual convertible top

Close-up of a car's front wheel and side panel, showing a downward arrow (no text or symbols)

As soon as the convertible top compartment lid closes the central locking system will release the lock to allow renewed access to the luggage compartment.

To avoid fabric damage stemming from extended exposure to moisture, you should never retract the convertible top when it is wet, refer also to the Caring for your vehicle brochure.

Interior view of a car showing the wheel rim and seat area with directional arrows indicating flow or movement (no text or symbols)

1. Press down slightly on the convertible top compartment lid from above – see arrow. The closing process will then be carried out automatically
2. Either close the slightly lowered side windows or put them at the desired height.

Operate the convertible top compartment lid from above only in

order to avoid any pinching. An interlock device helps avoid damage to the vehicle by preventing the luggage compartment lid from opening unless the convertible top compartment lid is completely closed.

To close the convertible top

1. Turn the ignition key to position 1
2. Press the button to unlock it. The convertible top will be unlocked and the side windows will lower slightly
3. Open the convertible top compartment lid all the way
4. Lift the convertible top out by the lateral guide section – see arrow 1, and the front convertible top frame – see arrow 2, swinging it forward until you encounter perceptible resistance – until it stops

To avoid damaging the side trim, always fold the convertible top

forward before folding the rear frame brace up into its vertical position.

Manual convertible top

1. Either close the slightly lowered side windows or put them at the desired height
2. Press down slightly on the convertible top compartment lid from above. The top then closes automatically, refer to page 41

Operate the convertible top compartment lid from above only in or to avoid any pinching.

As soon as the convertible top compartment lid closes the central ring system will release the lock to a renewed access to the luggage compartment.

1. Holding on to the locking handle, pull the front part of the convertible top frame up onto the windshield frame, and lock the convertible top by turning the handle until you hear the convertible top engage and lock.

The system automatically presses the top's rear frame against the convertible top compartment lid, pretensioning it to ensure that it seals tightly.

At higher speeds, the ensuing vacuum in the passenger compartment can cause the convertible top to begin fluttering. Increase the air supply via the ventilation controls so that a vacuum does not occur in the vehicle.

Close-up of a car's front wheel and side arm (no visible text or symbols)

Position for cleaning

To be able to access the convertible top compartment, lean the rear frame of the convertible top against the cover of the convertible top compartment.

First, use the button for activating the convertible top to unlock the size of the convertible top compartment. Refer to page 42.

For additional information on car- ing for your vehicle, refer to the 19g for your vehicle brochure.

Fully-automatic convertible top\*

The fully-automatic convertible top combines the benefits of effective protection against the elements with simple and convenient operation.

To gain maximum satisfaction from your convertible, please observe the following:

We strongly recommend that you close the convertible top before leaving the vehicle parked. When closed, the top not only guards the passenger compartment from unforeseeable damage from the weather, but also affords a degree of protection against theft. However, even when the top is closed valuables should always be stored in the locked luggage compartment

▷ Never attempt to mount any kind of roof rack or luggage carrier on the convertible top
To avoid damaging the convertible top, do not activate it at temperatures below 14^ F/ -10^ C.

Never store the convertible top while it is wet to avoid permanent

damage from moisture.

Driving when the opening or closing process has not been completed can cause vehicle damage or personal injury.

To avoid possible legal violations, always remember that traffic regulations always take priority over these instructions.

Do not lay objects on the convertible top, as they could fall off when it moves, causing vehicle damage or personal injury.

Always keep your hands and fingers well away from the top's mechanism while it is opening and closing. Ensure that children remain at a safe distance from the top's travel range while it is in motion.

Try to make sure that the vehicle is completely stationary before using the fully-automatic convertible top. Otherwise the opening or closing procedure could be interrupted. If you set the convertible top in motion while the vehicle is stationary and then have to start suddenly – for instance, at a traffic light – you can still complete the procedure by driving as slowly as possible and again holding the corresponding button pressed. Before closing the top, always ensure that the windshield frame is clear of any obstructions that could prevent the top from closing correctly.

When closing the electric power windows while underway, always remember to either start by closing the rear windows or to close all of them at once. Failure to adhere to this sequence can prevent the windows from sealing tightly at high speeds.

At higher speeds, the ensuing vacuum in the passenger compartment can cause the convertible top to begin fluttering. Increase the air supply via the ventilation controls so that a vacuum does not occur in the vehicle.

Fully-automatic convertible top\*

1 2 MYV026CMA

1 To close
2 To open

Locks and security systems

With the ignition key in position 1 or higher, and with the vehicle stationary

To avoid placing unnecessary loads on the battery, you should avoid operating the top when the engine is switched off.

1. Read and comply with the preceding safety precautions
2. Before opening the convertible top, ensure that the convertible top compartment panel is back down into its original position, refer to page 37

3. Ensure that the luggage compartment lid is closed

4. Maintain pressure on the corresponding button for the convertible top operation.

The red indicator lamp flashes whenever the convertible top mechanism is in operation. It goes out when the opening or closing process has been completed.

If it continues flashing after the control button is released, the process has not completed opening or closing. You can resume operation in the desired direction by pressing the button again.

If the yellow indicator lamp lights up continuously with the button pressed, the convertible top compartment panel has been raised and the top cannot be moved, refer to step 2.

The convertible top stops moving immediately when the button is released. You can resume operation in the desired direction by pressing the button again.

While the convertible top is in motion, the rear window will move toward the passenger compartment. To avoid possible pinching, the area around the closing convertible top should be clear.

The side power windows are lowered a small distance whenever the top is set in motion by pressing the button and after the opening or closing process is completed, they will go back up, if you keep holding the button down for more than 2 seconds after the indicator lamp has gone out.

The luggage compartment lid cannot be opened while the convertible top is in motion.

Do not close the side power windows using the buttons if the convertible top operation has been interrupted.
After having been stored for an extended period of time in the convertible top compartment, e.g. during the winter months because the hardtop was being used, you may have to support the convertible top by hand when closing it for the first time: If the convertible top should halt just before

Fully-automatic convertible top\*

the closing phase is completed, press against the front section of the convertible top frame from the outside to help the closing process along. Continue pressing the switch while doing so until the top starts up again on its own.

Operate the convertible top manually in emergency situations only

to avoid causing damage due to incorrect operation.

If the opening or closing process has been interrupted, the convert-

ible top will remain in that position for 15 minutes. After that, the convertible top can be moved again and, if it is an emergency situation, you may need to help the top along manually.

This can also be done in ignition key position 0.

In certain cases, the luggage compartment lid cannot be opened if the opening or closing operation has been interrupted.

Convenience operation via the driver's door lock

Refer to page 33.

1 2 3

Manual closing in the event of an electrical malfunction

1 Emergency operation
2 Allen wrench
3 Recess

Only operate the convertible top manually when closing it. Never

open it manually since the convertible top compartment lid cannot be locked, and would open while you are driving.

The best way to close the convertible top manually is to stand outside the vehicle, keeping the driver's door open and the driver's seat flipped forward. No one is to be in the rear seat during this operation.

1. Remove the insert between the rear seats. Take the trim off of the guide rod and flip it forward. Press down hard on the emergency lock 1 – see arrow. After a brief pause, the mechanism for the convertible top compartment lid will be released
   If the mechanism for the convertible top compartment lid does not ck, then insert the Allen wrench 2
   into the recess 3 and turn clockwise to release it.
2. If the luggage compartment lid is closed, open the convertible top compartment lid up as far as the stop will allow

Fully-automatic convertible top\*

Close-up of a car interior showing dashboard and seatbelt (no visible text or symbols)

Diagram of a vehicle interior with a ladder and upward arrow, no text or symbols present

Please consult your BMW center to have the defect corrected.

1. Grasp the convertible top by the lateral guide section 1 and the front convertible top frame 2. Lift out the top and swing it forward until you encounter a perceptible resistance – until it stops. Position the rear convertible top frame vertically and close the convertible top compartment lid. Fold down the rear convertible top frame

To avoid damaging the side trim, always fold the convertible top

forward before placing the rear convertible frame into a vertical position.

1. Use a screwdriver to lift out the cover panel that is in the center of the front convertible top frame
2. Insert the Allen wrench 2 – refer to page 48 – into the recess – see arrow
3. Pull down on the front convertible top frame as far as possible. Complete the closing process by continuing to turn the wrench in a clockwise direction. Turn until the front convertible top frame has locked onto the windshield frame. The system automatically presses the top's rear frame against the convertible top compartment lid, pretensioning it to ensure that it seals tightly.

Always make sure the closing procedure is completed to prevent uncle damage or personal injury.

Fully-automatic convertible top\*

Close-up of a car's front wheel and side panel (no visible text or symbols)

Position for cleaning

To be able to access the convertible top compartment, lean the rear frame of the convertible top against the cover of the convertible top compartment.

First, use the button for activating the convertible top to unlock the

locks of the convertible top compartment. Refer to page 47.

For additional information on vehicle care, refer to the Caring for

your vehicle brochure.

Wind deflector\*

With the convertible top open, the wind deflector keeps air movement in the passenger compartment to a minimum, thus providing you with a pleasant drive, even at higher speeds. The wind deflector comes in a protective sleeve, and because of its slim dimensions, can be easily stored in the luggage compartment.

Installation

1. Remove wind deflector from the protective sleeve

Wind deflector\*

Diagram of a mechanical component with arrows indicating motion or force direction (no text or symbols)

Close-up of a white car window with a circular sensor or lens on the side panel (no visible text or symbols)

Operate the convertible top compartment lid from above only in order to avoid any pinching. With the wind deflector in place: to avoid damaging the wind deflector never push the front seats all the way back.

Removal

Follow the same procedure as when installing, just reverse the steps.

1. Flip out both sides and lock into place. It is essential for the two components marked in the illustration – see arrows – to mesh at this point

2. Hold the wind deflector so that the smaller half points toward the front and guide the mounting pin for the side piece into the proper opening

3. Pull back on the mounting pin for the other side piece by using a slide, so that the mounting pin can be guided into the opening provided
4. Unlock the convertible top compartment lid via the convertible top control button, refer to page 47, and open the convertible top compartment lid
5. Flip the back half of the wind deflector backward, so that the mounts are lying on the vehicle
6. Close the convertible top compartment lid via the convertible top control button. The wind deflector is now attached so that it is theft-proof.

Safe seating position

For relaxed and fatigue-free driving you should select a sitting position that reflects your personal requirements. In combination with the safety belts and airbags, the correct seating position plays an important role in enhancing occupant safety in the event of an accident. To ensure that the vehicle's safety systems provide you with optimal protection, we request that you direct your careful attention to the following section.

For supplementary information on transporting children, refer to page 63.

Sitting safely with airbags

Always maintain an adequate distance between yourself and the airbags. Always hold the steering wheel by the rim to keep any chance of injury to hands or arms to an absolute minimum should the airbag be deployed. Never allow any objects, individuals or animals to obstruct the areas between passengers and airbags. Never use the front airbag's cover as a storage tray or support for objects of any kind. Never allow front passengers to rest their feet or legs on the airbag cover.

For airbag locations and additional information on airbags, refer to page 61.

Sitting safely with safety belts

Never allow more than one person to wear a single safety belt. Never allow infants or small children to ride in a passenger's lap. Avoid twisting the belt while routing it firmly across the hips and shoulder, wear it as snugly against your body as possible. Do not allow the belt to rest against hard or fragile objects. Do not route the belt across your neck, or run it across sharp edges. Be sure that the belt does not become caught or jammed. Avoid wearing bulky clothing and pull on the lap belt periodically to retention it over your shoulders. In the event of a frontal impact, a loose lap belt could slide over your hips, leading to abdominal injury. In addition, the safety belt's restraint effectiveness is reduced if it is worn loosely. Expectant mothers should always wear their safety belts, taking care to position the lap belt against the lower hips, where it will not exert pressure against the abdominal area.

For information on using the safety belts, refer to page 56.

Seats

When adjusting your seat, always observe the following precautions

Never try to adjust your seat while operating the vehicle. The seat could respond with unexpected movement, and the ensuing loss of vehicle control could lead to an accident. Never ride with the backrest reclined to an extreme angle. This is especially important for the front passenger to remember. If you do so, there is a risk that you will slide under the safety belt in an accident, thus reducing the protection provided by the safety belt. With the wind deflector in place: To avoid damaging the wind deflector never push the front seats all the way back.

Seat adjustment

▷ Power seat adjustment, refer to page 53
▷ Head restraint, refer to page 54
▷ Entering the rear, refer to page 55.

Adjusting electric power seats

Lumbar support\*

1 2 3 4

Diagram of a car seatbelt with directional arrows indicating rotation (no text or symbols)

Close-up of a white electronic device with control buttons and a circular dial (no visible text or symbols)

Seat adjustment

1 Tilt angle
2 Backward/forward adjustment
3 Height
4 Backrest angle

Please refer to the adjustment instructions on page 52 to reduce the risk of personal injury.

With the BMW sports seat* you can also adjust the thigh support. To do so, pull the lever and adjust the position of the cushion for thigh support as desired.

To adjust

You can adjust the backrest's contour for additional support in the curvature of your spine's lumbar region.

The upper hips and spinal column receive supplementary support to help you maintain a relaxed, upright posture.

▷ Press the front/rear of the switch: increase/decrease curvature
▷ Press the upper/lower end of the switch: increase the upper/lower curvature.

Head restraints

Medical illustration showing a surgical instrument interacting with a patient's ear canal (no text or symbols present)

Front head restraints

1 Height

Head restraints reduce the risk of spinal injury in the event of an dent.

Adjust the head restraint so that its center is approximately at the height of your ears.

When moving the head restraints up or down, avoid placing hands and fingers between the head restraint and the upper edge of the backrest to avoid the possibility of injury.

Interior view of a car showing a seatbelt with arrows indicating direction (no text or symbols)

Tilt angle: position the head restraints manually in the preferred position.

Close-up of a white industrial machine with a black tool inserted, showing a small component on the surface (no visible text or symbols)

Rear head restraints

To avoid possible violation of traffic laws, never retract the head

restraints unless the rear seats are empty. Always ensure that the head restraints are raised before transporting passengers in the rear seat.

To completely lower the rear head restraints:

1. Press the button - see arrow - and hold it down

2. Push the head restraint down from above.

Raising the rear head restraints

Raise the head restraints until you hear them click into place.

Head restraints

Do not remove the rear head restraints, as this would damage

them.

For further information, please consult your BMW center.

Do not use the rear head restraints as storage shelves.

Always keep the travel path for the roll-over protection system free and clear. Never place protective covers or similar items on the head restraints. See also the labels on the head restraints.

Entering the rear

Medical illustration showing a hand holding a device with labeled parts and directional arrows indicating motion or movement.

The seat-integrated safety belt system SGS allows for easy access to the rear.

1. Lift lever 1 up and tilt the backrest forward
2. Press and hold button 2 in driving direction until the seat moves to the desired position
3. After entering the rear, fold back and lock the backrest
4. Press button 2 opposite the direction of travel and hold. The seat moves back into its previous position. If the button 2 is released beforehand, the seat stops in the respective position.

You can lock a backrest that has been tilted forward. This makes

sense when, for instance, someone is climbing into the rear on an incline. To

do this, press against the backrest until you hear it click into place. To move it back into place, you do not need to first unlock it by moving the lever 1.

Lock both backrests while driving, otherwise there is a danger of an expected movement causing an lent.

The indicator lamp in the instrument cluster will flash to alert you that the backrest is not locked in place, refer to page 18.

Safety belts

Interior view of a car seatbelt with a close-up inset showing the seatbelt buckle (no text or symbols visible)

Always wear your safety belt

Always fasten your safety belt before starting off. As supplemental restraint devices, the airbags are designed to enhance the effectiveness of the safety belts, and not to replace them.

Always detach the rear safety belts from their retainers before ing.

To avoid undesired movement at high speeds, always store the rear y belts in their retainers when they ot in use.

To close

Make sure you hear the lock engage in the belt buckle.

To release

1. Press the red button in the belt buckle
2. Hold the belt
3. Guide the belt back into its reel.

Adjusting the safety belt height

The front belt system automatically adjusts to your body size when the height of the head restraint is adjusted. Refer to page 54.

If the safety belt system has been subjected to the stresses involved in an accident or otherwise damaged: Have the entire safety belt mechanism replaced by your BMW center, including the safety belt tensioner. In addition, have your BMW center inspect the safety belt anchors. If a child-restraint system was in the vehicle during an accident, consult the manufacturer's instructions regarding replacement.

Seat and mirror memory\*

1 2 3 MEMORY

MILKAPYUM

You can store and recall three different driver's seat and exterior mirror positions.

The lumbar support settings are not stored in the memory.

To store

1. Ignition key position 1 or 2
2. Select the desired seat and exterior mirror positions
3. Press the MEMORY button: the indicator lamp in the button lights up
4. Press memory button 1, 2 or 3, as desired: the indicator lamp goes out.

To select a stored setting

Do not select a memory position while the vehicle is moving. If you do so, there is a risk of accident from unexpected seat movement.

Ignition key in position 1:

▶ Briefly press memory button 1, 2 or 3, as desired.

Movement stops immediately when one of the seat-adjustment or memory buttons is activated during the adjustment process.

The driver's door is closed and the ignition key is either removed or in position 0 or 2:

- Maintain pressure on the desired memory button - 1, 2 or 3 - until the adjustment process is completed.

If you press the MEMORY button accidentally: press the button again; the indicator lamp goes out.

You can have this feature programmed so that when you use the remote control from your personalized key to unlock your door, your seat and the exterior mirrors will move into your own preferred positions.

Before activating the programmed adjustment feature, ensure that the footwell behind the driver's seat is empty and unobstructed. If you fail to do so, persons, animals or objects could be injured or damaged if the seat should move backward.

Seat and mirror memory\*

Close-up of a car interior showing the side door and seatbelt (no text or symbols visible)

Passenger-side exterior mirror tilt function

Automatic curb monitor*

1. Move mirror selector switch 1 to the driver's mirror position
2. When shifting into Reverse, or placing the selector lever into position R, the passenger-side mirror tilts downward. This allows the driver to see the area directly adjacent to the vehicle during parking – curbs, etc.

How far the passenger mirror tilts can be set individually for each

ignition key.

You can deactivate this automatic feature by setting the mirror selection switch to the passenger side position.

Seat heating\*

Diagram of a computer interface with ports and connectors, no visible text or symbols

The seat cushion and backrest can be heated with the ignition key in position 2.

You can select different heating modes by repeatedly pressing the buttons.

You can also switch the higher heating modes off directly:

Press the button and hold it slightly longer.

Steering wheel

Mirrors

Diagram showing a vehicle's airflow direction with an arrow indicating upward motion (no text or symbols present)

1 2 MY2016CMA

objects reflected in the mirror are closer than they appear. This means that estimates of the distance to following traffic should not be regarded as precise.

Electric defrosting

Both mirrors are automatically heated when you turn the ignition key to position 2.

To adjust

Never attempt to adjust the steering wheel while driving the vehicle

- it could respond with unexpected movement, posing a potential accident hazard.

1. Push the locking lever downward
2. Adjust the steering column's rake and reach to suit your seat position
3. Pull the lever back up.

To adjust exterior mirrors

1 Switch for 4-way adjustment
2 Selection switch for changing between mirrors

To adjust manually

The mirrors can also be adjusted manually:

Press the edge of the lens.

For storing mirror settings, refer to Seat and mirror memory on page 57.

The mirror on the passenger's side is convex. When estimating

the distance between yourself and other traffic, bear in mind that the

Mirrors

Interior view of a car dashboard with a directional arrow pointing to the bottom panel (no text or symbols visible)

MV01057CMA

Interior view of a car showing the rearview mirror and dashboard (no text or symbols visible)

MY00063CMA

Interior rearview mirror

To reduce glare from vehicles behind you when you are driving at night, tilt the mirror by turning the button.

Vehicles without alarm system:

Tilt the small lever forward.

Interior rearview mirror with automatic dimming feature\*

This mirror automatically dims through an infinitely-variable range. It returns to its clear, undimmed mode whenever you engage Reverse.

To ensure that the mirror continues to operate efficiently, ensure that the photocells remain clear and unobstructed. One photocell is integrated in the mirror's lens – see arrow – while the other is located at an offset position on the rear of the mirror. Refrain from attaching stickers or other objects to the windshield in the area immediately behind the rearview mirror.

Airbags

Diagram of a car interior showing labeled components, including a wheel and two electronic devices with numbered labels.

MY0066CMA

1 Front airbags on the driver and passenger sides

2 Side airbags on the driver and passenger sides front and rear*

Protective effect

The front airbags supplement the safety belts by providing additional protection in the event of a severe frontal collision in which the protection afforded by the belts alone may no longer be sufficient. The side airbags help provide protection in the event of a collision from the side. Each of the side airbags is designed to help support the seat occupant's upper body.

For information on the correct sitting posture, refer to page 52.

The side airbags in the rear passenger area* of your vehicle may already have been deactivated either at the time of manufacture or by a BMW center. You may have them activated if you desire to do so. Please contact your BMW center for additional information.

The airbags do not deploy in response to minor collisions, rear impacts and certain kinds of vehicle rollover.

Do not apply adhesive materials to the cover panels of the airbags, cover them or modify them in any other way. Do not remove the airbag restraint system. In the event of a malfunction, deactivation or triggered activation – as a response to an accident – of the airbag restraint system, consult your BMW center for inspection, repair or disassembly. Do not modify or tamper with either the wiring or the individual components in the airbag system. These include the upholstered covers on the steering wheel, instrument panel, side trim panels of the doors and front roof pillars and on the sides of the headliner. Also, do not attempt to remove the steering wheel. Unprofessional

attempts to service the system could lead to failure in an emergency or undesired airbag activation, either of which could result in personal injury. Do not touch the individual components immediately after the system has been activated, as this could result in personal injury.

At all times, occupants should sit upright and be properly restrained – infants and small children in appropriate child-restraint systems; larger children and adults using the safety belts. Never let an occupant's head rest near or on a side airbag because the inflating airbag could cause a serious or fatal injury. Please note that the word Airbag imprinted on the door trim panel indicates the airbag's location. Accident research shows that the safest place for children in an automobile is in the rear seat. However, a child sitting in the rear seat and not properly restrained could place his or her head on or near the airbag, if so equipped. For example, a child – even though belted in – may fall asleep with his or her head against the side airbag. It may be difficult for a driver to ensure that children in the rear seat will remain properly positioned at all times and not

Airbags

place their heads on or near the side airbag. Therefore, we recommend that the rear-seat side airbags, if installed in the vehicle, be deactivated if children will travel in the rear seat.

The rear-seat side airbags may already have been deactivated, either at the time of manufacture or by a BMW center. Labels in the door opening should indicate the status of your rear-seat side airbags. If you are uncertain of their status, or wish to have the airbags activated or deactivated, please contact your BMW center.

Even when all these guidelines are followed, there is still a small residual risk of injuries to the face, hands and arms occurring from airbag deployment in isolated instances.

The ignition and inflation noise may induce a mild temporary hearing loss in sensitive individuals.

Corresponding airbag warning labels are located on both sun visors.

Interior view of a car seat with a person seated, showing a baby and a thought bubble (no text or symbols)

This is the right way a child should sit in a child-restraint when rear side airbags, see arrow, are provided.

Illustration of a person wearing a car seatbelt with a magnifying glass, showing a device and directional arrow (no text or symbols)

This is the right way a larger child should sit wearing the seat belt when rear side airbags, see arrow, are provided.

Indicator lamp

The indicator lamp indicates the operational status of the airbag system when the ignition key is

in position 1 or higher.

System operational:

The indicator lamp comes on briefly when you turn the ignition key to position 1 or higher.

System malfunction:

▷ Indicator lamp does not come on or ▷ indicator lamp lights up continuously.

Airbags

If there is a system malfunction, there is a risk that the airbags will not be triggered within their normal response range, even if the level of impact would normally have triggered them.

Have your BMW center inspect the system immediately.

Transporting children safely

To avoid undesired movement at high speeds, always store the rear safety belts in their retainers when they are not in use.

Commercially available child-restraint systems are designed to be secured with a lap belt or with the lap belt portion of a combination lap/shoulder belt. Improperly or inadequately installed restraint systems can increase the risk of injury to children. Always read and follow the instructions that come with the system.

Diagram of a car showing front and side views with directional arrows indicating movement (no text or symbols)

Child-restraint system with tether strap

If you use a child-restraint system with a tether strap, two additional tether anchorage points have been provided – refer to the arrows in the illustration.

Transporting children safely

tether strap attaching clip child restraint anchor fitting back of rear seat forward driving direction

Depending on the location selected for seating in the rear passenger area, attach the tether strap to the corresponding anchorage point to secure the child-restraint system, as shown in the illustration.

1. Open the convertible top compartment lid, refer to page 41 or 46
2. Lift the headrest and pass the tether strap between the headrest and the seat back. It is recommended that you return the headrest to its lowest possible position
3. Adjust the tether strap according to the child-restraint manufacturer's instructions
4. Close the convertible top compartment panel.

It is recommended to cover the child-restraint attaching clip with a soft material to prevent damage to the stored soft top.

Should a hard top be installed, the fitting of child harness tether strap/s – if child seat is required – is necessary before installation of the hard top.

Before installing any child-restraint device or child seat, please read the following: Never install a rear-facing child-restraint system in the front passenger seat of this vehicle.

Your vehicle is equipped with an airbag supplemental restraint system for the front passenger. Because the backrest on any rear-facing child-restraint system – of the kind designed for infants under 1 year and 20 lbs/9 kg – would be within the airbag's deployment range, you should never mount such a

device in the front passenger seat, since the impact of the airbag against the child-restraint's backrest could lead to serious or fatal injuries.

If it is necessary for a child – not an infant – to ride in the front seat, certain precautions should be taken. First, move the passenger seat as far away from the dashboard as possible. This important precaution is intended to maximize the distance between the airbag and the child. Older children should be tightly secured with the safety belt after they have outgrown a booster seat that is appropriate for their age, height, and weight. Younger chil-

Transporting children safely

dren should be secured in an appropriate forward-facing child-restraint system that has first been properly installed with a safety belt.

Never install a rear-facing child-restraint system in the front passenger seat.

We strongly urge you to carefully read and comply with the instructions for installation and use provided by the child-restraint's manufacturer whenever you use such a device.

Do not attempt to modify child-restraint systems. If you do this, the protection provided by these systems could be impaired.

Be sure that all occupants – of all ages – remain properly and securely restrained at all times.

All rear seating positions in your vehicle meet the recommendations of SAE J1819, an industry-recommended practice for securing child-restraint systems in motor vehicles.

Interior view of a car showing a car seat with driver seat and dashboard (no text or symbols visible)

The belt cannot be extracted further. Always observe the installation instructions provided by the manufacturer of the child-restraint system.

To unlock the safety belt

Release the safety belt, remove the child seat and retract the safety belt to its end position on the belt retractor.

Securing child-restraint system

All of the rear belt retractors and the front passenger's safety belt can be locked for mounting and securing child-restraint systems.

A label with the appropriate instructions is located in the immediate vicinity of the buckle of each safety belt.

To lock the safety belt

Extract the entire length of the belt from the inertia reel mechanism. Allow the reel to retract the belt somewhat and engage the buckle, then tighten the belt against the child-restraint system. The retraction mechanism is now locked.

Transporting children safely

Interior view of a car seatbelt with a circular warning sign indicating a person's seat (no text or symbols on the diagram itself)

Interior view of a vehicle showing structural components and airflow direction arrows (no text or symbols)

Interior view of a car seatbelt with a downward arrow indicating the seatbelt (no text or symbols present)

LATCH child-restraint mounting system

LATCH: Lower Anchors and Tethers for CHildren

Canadian models only:

The LATCH anchorage points are identified by buttons.

The left and right rear seats are both equipped with a LATCH child-restraint mounting system.

The anchorage points for the LATCH child-restraint system are located behind the upholstery at the positions indicated by the arrows.

Carefully slide the brackets through the gaps in the upholstery at the indicated locations.

Always follow all manufacturer's instructions and observe all safety precautions when installing the LATCH child-restraint mounting system. To avoid undesired movement at high speeds, always store the rear safety belts in their retainers when they are not in use.

Your BMW center can provide you with a special installation aid* that helps prevent damage to the upholstery.

Press the installation aid firmly in the crack between the seat and the back-rest upholstery until both funnels click onto the LATCH system bars in the seat.

The illustration is an example showing the anchorages for a LATCH child seat system on the right rear seat.

Rollover protection system

In the event of an accident or some other critical driving situation – extreme tilting in the longitudinal or transverse axis, loss of contact with the ground – the rollover protection system will be automatically activated. The protective bars located in the rear head restraints extend within fractions of a second.

In addition to the integrated rollover bar in the windshield frame, the rollover protection system affords all the vehicle occupants necessary headroom.

Always keep the travel path for the rollover protection system free and clear. Under no circumstances should you cover the head restraints. In the event of less serious accidents, the safety belt will protect you and, depending on the severity of the accident, so will the safety belt tensioner and the multi-stage airbag restraint system as well.

If, after being automatically triggered, its protective function is not needed, then the rollover protection system can be lowered back into place. No special tool is needed for this.

Close-up of a sewing machine needle and screw mechanism (no text or symbols visible)

1. Using a screwdriver from the onboard tool kit, remove the cover panel; to do this, position the screwdriver under the notch – see arrow

Close-up of a sewing machine needle stitching a small piece, with no visible text or symbols

1. Pull up on the lever – see arrow – toward the front of the vehicle and keep it in this position

Rollover protection system

Close-up of a mechanical component with two arrows indicating direction (no text or symbols)

1. Keep pressing down on the protective bar – see arrow 1 – from on top until you hear it click into place
2. Put the cover panel back in place and press down firmly
3. Push the back panel of the head restraint closed - see arrow 2.

Do the same for the second protective bar. If you are not familiar with any of the procedures, consult your BMW center.

Have the rollover protection system checked out by your BMW center after it has been inadvertently triggered.

Do not move the convertible top under any circumstances if the rollover protection system has extended.

Do not use the rear head restraints as storage shelves.

Absolutely no modifications are to be made to any of the rollover protection system's individual components or any of its wiring.

Only your BMW center is to carry out any work on the rollover protection system.

Work done on the system that is carried out improperly could lead to failure in an emergency or accidental activation. Regarding having the system checked to ensure long-term operation: be scrupulous in adhering to the Service interval display for maintenance intervals. Every 2 years at the latest, the rollover protection system must be inspected at a BMW center.

Vehicle Memory, Key Memory

Diagram showing a car key being processed into a series of stacked bowls (no text or symbols present)

请

How the system functions

No doubt you have reflected at one time or another on how great it would be if you could permanently configure your vehicle's various features and adjustments to mirror your own individual preferences. In engineering your vehicle, BMW has provided for a number of options for personal adjustment that can be programmed into your vehicle at your BMW center.

The available configuration data fall into two categories, according to whether their primary orientation is the vehicle – Vehicle Memory – or the individual – Key Memory. Provided that each person has a separate remote-control key, you can have your BMW center enter basic adjustment data for up to four individuals in the system.

The system then relies on a bilateral data exchange to identify the individual user and executes the selected settings whenever the remote control unit is used to disengage the door locks.

Color-coded decals have been provided to help you distinguish individual keys with different settings.

What the system can do

Your BMW center can provide you with details on the capabilities of the Vehicle Memory and Key Memory systems.

Examples for Vehicle Memory:

▷ Various signals as acknowledgment when locking or unlocking your vehicle, refer to pages 31, 33
▶ Activates/deactivates the "Follow me home" function, refer to page 96
▶ Activates/deactivates daytime driving lamps, refer to page 96
▷ Sets the units of measure for displaying time, outside temperature, distance traveled and fuel consumption in the instrument cluster

Indicates via an acoustic tone that PDC has been activated, refer to page 87
▷ Switches on rear window defroster automatically, refer to pages 102, 107
▷ After giving an ice warning, the display returns to the previous setting, refer to page 85.

Examples for Key Memory:

▷ Unlocks driver's door first, then the vehicle's remaining locks, refer to page 33
Locks the vehicle automatically after you start off, refer to page 34
▶ Automatically adjusts the driver's seat to the personal programmed settings when the vehicle is unlocked, refer to page 57
▶ Automatic tilting of the passenger-side mirror, refer to page 58.

You will see this symbol throughout the Owner's Manual. It is to remind you at appropriate places of the settings that are available to you.

Ignition lock

0 1 2 3

Ignition key positions

0 Steering locked
1 Steering unlocked
2 Ignition on
3 Start engine

Vehicles with automatic transmission:

Do not move the selector lever from position P until the engine is running, ignition key position 2.

To turn the key to position 0 or to remove it, first move the selector lever to position P - Interlock.

▶ Vehicles with manual transmission:

Step on the clutch when starting the vehicle. A lockout prevents the engine from starting if the clutch is not depressed.

Steering locked

The key can only be inserted and removed in this position.

After removing the key, turn the steering wheel slightly to the left or right until you hear the lock engage.

If the key is not removed, an acoustic signal sounds when the driver door is opened.

The sound system remains operational for approx. 20 minutes after you switch off the ignition, ignition key in position 0 or key removed. Simply switch it back on.

Steering unlocked

You will find that it is often easier to turn the ignition key from position 0 to position 1 when you move the steering wheel slightly to help disengage the lock.

Individual electrical accessories are ready for operation.

Starting the engine

Before starting

▷ Engage the parking brake
▷ Ensure that the gearshift lever is in neutral, or, with an automatic transmission, that the selector lever is in P
▷ Depress the clutch pedal at low temperatures.

Do not allow the engine to run in enclosed spaces. Otherwise,

breathing the exhaust fumes can lead to unconsciousness and death. The exhaust gases contain carbon monoxide, an odorless and colorless, but highly toxic gas. Do not leave the vehicle unattended with the engine running. An unattended vehicle with a running engine represents a safety hazard.

When driving, standing at idle, and parking the vehicle, take c

to avoid contact between the hot exhaust system and flammable materials – grass, hay, leaves, etc. Such contact could lead to a fire, resulting in serious personal injury and property damage.

Do not press the accelerator pedal while starting the engine.

Starting the engine

Do not actuate the starter for too short a time, but do not actuate it more than approx. 20 seconds. Release the ignition key immediately when the engine starts.

Do not allow the engine to warm up by leaving it running while the vehicle remains stationary. Instead, drive off immediately at a moderate engine speed.

If the engine does not start on the first attempt – if it is very hot or cold, for instance:

▷ Press the accelerator pedal halfway down while engaging the starter.
Cold starts at extremely low temperatures below approx. +5 °F/−15 °C and at altitudes over 3,300 ft/1,000 m:
On the first start attempt, it may be necessary to engage the starter for a longer period – but no longer than 20 seconds
▷ Press the accelerator pedal halfway down while engaging the starter.

Engine idle speed is controlled by the engine computer system. Increased speeds at start-up are normal and should decrease as the engine warms up. If engine speed does not decrease, service is required.

To prevent the battery from discharging, always deactivate electrical devices that are not in use. Switch the ignition off when the vehicle is not being driven.

Extended starting attempts, characterized by excessively frequent or long periods with the starter engaged, can damage the catalytic converter.

72 Switching off the engine

Turn the ignition key to position 1 or 0.

You should never remove the ignition key when the vehicle is in motion, as the steering lock could engage.

When you leave the vehicle, always remove the ignition key and engage the steering lock.

Vehicles with manual transmission:

Always engage the parking brake when parking on slopes and inclined surfaces. Placing the lever in gear may not provide adequate resistance to rolling. Vehicles with automatic transmission: place the selector lever in P.

Parking brake

Illustration of a stylized rocket launcher with a starburst arrow pointing to it, set against a textured background (no text or symbols)

The parking brake is primarily designed to prevent the vehicle from rolling while parked. It operates on the rear wheels.

To engage

The detent engages automatically and the indicator lamp in the instrument cluster comes on when the ignition key is in position 2, refer to page 18.

To release

Pull up slightly on the lever, press the button – see arrow – and lower the lever.

Parking brake

If exceptional circumstances make it necessary to engage the parking brake while the vehicle is in motion, do not pull it with excessive pressure. Keep your thumb pressed against the release button while carefully pulling the lever up.

Excessive pressure can lead to over-braking and loss of traction – fishtailing – at the rear axle.

The brake lamps do not come on when the parking brake is engaged.

Vehicles with manual transmission: Always engage the parking brake when parking on slopes and inclined surfaces. Placing the lever in gear may not provide adequate resistance to rolling. Vehicles with automatic transmission: place the selector lever in P.

To avoid corrosion and one-sided braking, apply the parking brake lightly from time to time when coasting to a standstill - at a traffic signal, for instance - provided that it is safe to do so.

Manual transmission

Circular button with a gear shift symbol (no text or numbers visible)

Do not hold the vehicle in place on slopes by slipping or "riding" the clutch. Use the parking brake instead. Riding the clutch leads to severe and premature clutch wear.

Reverse

Select only when the vehicle is stationary. Press the gearshift lever to the left to overcome the slight resistance.

When you select reverse the backup lamps will light up automatically when the ignition key is in position 2.

74 Automatic transmission with Steptronic\*

You can drive as with a normal automatic transmission. In addition, you can also shift manually.

When you move the selector lever from the D position to the left into the M/S range, the performance-oriented shift programs of the automatic transmission are engaged. Steptronic enters the manual selection mode and executes the desired shift whenever you tap the selector lever in the direction indicated by + or -. Whenever you want to use automatic again, just move the selector lever toward the right to position D.

Under normal operating conditions, fuel consumption is lowest when driving in position D.

Interior view of a car gear shift lever system (no text or symbols visible)

Selector lever positions

PRNDM/S + -

Starting the engine

The engine can only be started in selector lever positions P – for Park – or N – for Neutral.

Range selection

A detent prevents inadvertent shifts to the Reverse or Park selector lever positions. To disengage the detent, press the button on the front side of the selector lever button – see arrow.

While the vehicle is stationary and before shifting out of Park or Neutral, depress the footbrake in order to disengage the selector lever's lock mechanism – Shiftlock.

Hold the footbrake down until starting off. The vehicle will otherwise "creep" when a drive position is engaged.

To prevent the vehicle from starting off on its own, always move

the selector lever to position P and engage the parking brake before leaving your vehicle with the engine running.

Do not leave the vehicle unattended with the engine running. An unattended vehicle with a running engine represents a safety hazard.

P Park

Select only when the vehicle is stationary. Transmission locks to prevent rear wheels from turning.

R Reverse

Select only when the vehicle is stationary.

Automatic transmission with Steptronic\*

N Neutral

Select only when stopping for an extended period.

D Drive – automatic shift program

This position is designed for driving under all normal operating conditions. All forward gears are available.

Kickdown

In the kickdown mode, you achieve maximum acceleration and top speed in position D.

Depress the accelerator pedal past the increased resistance point at the full-throttle position.

Interior view of a car gear shift lever with directional arrow (no text or symbols)

M/S manual operation and Sport Program

Move the selector lever from D to M/S to activate the Sport Program; SD appears in the display panel. The M/S mode is recommended for performance-oriented driving.

Once in the M/S mode you can tap the selector lever to switch the automatic transmission from the Sport Program to its manual selection mode.

This mode allows you to execute upshifts manually by tapping the lever toward +, while downshifts are selected by tapping in the "-" direction. The displays M1 through M5 appear in the display panel to indicate your current gear selection.

The Adaptive Transmission Control (ATC) executes upshifts and downshifts only when the new gear will provide a suitable combination of engine and road speed, i.e., ATC will not execute downshifts if the engine speed is too high. The desired, then the actual gear, briefly appear in the instrument cluster.

To accelerate quickly in the manual mode for maneuvers such as passing another vehicle, shift down manually or employ the kickdown mode.

Shifting from M/S to the selector lever positions P, R and N is possible only by going through D.

Automatic transmission with Steptronic\*

Close-up of a digital analog stopwatch with no visible text or symbols on the face (pure technical diagram)

Available displays

P R N D SD M1 M2 M3 M4 M5

If the indicator lamp does not go out, you can place the selector lever in all positions. However, the vehicle will now only operate in 3rd and 4th gear.

If this happens, avoid extreme engine loads and consult the nearest authorized BMW center.

Never work in the engine compartment when a drive gear – for-or reverse – is engaged. If you do the vehicle could move.

For towing or jump-starting, refer to the information beginning on page 157.

Electronic transmission control module

If the indicator lamp comes on, there is a malfunction in the transmission system.

Bring the vehicle to a stop. Move the transmission selector lever to P. Set the parking brake and turn the engine off - ignition key to position 0.

Wait a few seconds, then start the engine.

If the indicator lamp goes out after a few seconds, normal transmission performance has been restored. You may continue to drive as usual.

Turn signal indicator/Headlamp flasher

1 2 3 3 MATERIALS

1 High beams - blue indicator lamp
2 Headlamp flasher – blue indicator lamp
3 Turn signal indicator – green indicator lamps accompanied by a periodic clicking sound from the relay

To signal briefly

Press the lever up to but not beyond the detent. It then returns to the center position when released.

If the flashing of the turn signal indicators and the clicking from

the relay are both faster than normal, one of the turn signal indicators has failed.

Washer/wiper system/Rain sensor\*

Diagram showing a car interior with numbered directional arrows and labeled parts, likely indicating movement or flow.

0 Wipers retracted
1 Intermittent mode or rain sensor
2 Normal wipe
3 Fast wipe
4 Brief wipe
5 Rotary dial for control of the wipe interval or the sensitivity of the rain sensor

Intermittent mode

Not on vehicles with rain sensor.

You can select any of four sweep intervals with rotary dial 5.

In addition, the wipe interval varies automatically depending on road speed.

Rain sensor\*

The rain sensor is located on the wind-shield directly behind the rearview mirror.

To activate the rain sensor:

With the ignition key in position 1 or higher, move the lever to position 1. The wipers will make at least one sweep across the windshield. You can leave the lever in position 1 at all times. With the ignition key in position 1 or higher, all you then need to do to activate the rain sensor is

▶ briefly turn the rotary dial 5, or ▶ clean windshield 1, refer to page 79.

To adjust the sensitivity of the rain sensor: turn rotary dial 5.

To switch off the rain sensor: Return lever to position 0.

Turn the rain sensor off in automatic car washes. Failure to do so could result in damage caused by undesired wiper activation.

Normal wiper speed

When the vehicle is stationary, the wipers switch automatically to intermittent wipe - not on vehicles with rain sensor.

Fast wiper speed

When the vehicle is stationary, the wipers operate at normal speed - not on vehicles with rain sensor.

Washer/wiper system/Rain sensor\*

Close-up of a car seatbelt switch with directional arrow (no text or symbols visible)

0 Wipers retracted

1 Clean windshield and headlamps

Clean windshield and headlamps\*

Do not use the washers if there is any danger that the fluid will

freeze on the windshield, as your vision could be obscured. Always use a windshield washer antifreeze in cold weather. Refer to page 136.

Do not use the washers when the reservoir is empty. This could cause damage to the washer pump.

The system sprays washer fluid against the windshield and activates the wipers for a brief period.

When the vehicle's lighting system is switched on, the headlamps will also be cleaned at reasonable intervals.

Windshield washer nozzles

The windshield washer nozzles are heated automatically* when the ignition key is in position 2.

Cruise control\*

You can store and automatically maintain any desired vehicle speed above approx. 20 mph / 30 km/h.

The cruise control is available whenever the engine is running and the system has been activated.

To activate the system

1/0

With the ignition key in position 2:

Press the button. The indicator lamp in the instrument cluster comes on, refer to page 20. You can now use the cruise control.

Do not use cruise control on twisting roads, when high traffic den-prevents driving at a constant

speed, or when the road surface is slick – snow, rain, ice – or loose – rocks or gravel, sand.

To deactivate the system

1/0

Press the button as often as needed until the indicator lamp in the instrument cluster goes out.

Cruise control is also deactivated when the ignition key is in position 0.

Cruise control\*

The speed stored in memory is deleted.

To store and maintain speed or to accelerate

Press button + briefly:

The system maintains and stores the current vehicle speed. Every time you tap the button, the speed increases by approx. 0.6 mph / 1 km/h.

Press and hold button +:

The vehicle accelerates without pressure on the accelerator pedal. When you release the button, the system maintains and stores the current speed.

If on a downhill gradient the engine braking effect is not suffi- , the controlled speed can be eded. Speed can drop on uphill es if the engine output is insuffi-

To decelerate

Press button "-" briefly:

If you are already driving with activated cruise control, the speed is decreased by approx. 0.6 mph / 1 km/h every time you tap the button.

Press and hold button "-"

With the cruise control active, the system automatically reduces the throttle opening to slow the vehicle. When you release the button, the system maintains and stores the current speed.

To interrupt the cruise control

1/0

When the system is activated, press the button. The indicator lamp stays on.

You can use the cruise control again whenever you want by calling up the speed that was stored last.

In addition, cruise control is interrupted automatically:

▷ When the brakes are applied
▷ When you apply pressure to the clutch pedal, or when you move the automatic transmission selector lever from D to N

▷ If you exceed or fall below the programmed speed for an extended period – by depressing the accelerator, for example.

To recall the stored setting

Press the button:

The vehicle accelerates to and maintains the last speed stored.

Odometer

012345 340.2 10:35

1 Odometer
2 Trip odometer

Odometer

You can activate the displays shown in the illustration with the ignition key in position 0 by pressing the left button, see arrow, in the instrument cluster.

Trip odometer

To reset the trip odometer to zero, press the left button - see arrow - with the ignition key in position 1 or higher.

Tachometer

1/min A/1000

Never allow the engine to operate with the needle in the red overspeed zone of the gauge – see arrow.

To protect the engine, the fuel supply is interrupted when you approach this sector.

Energy control

1/min v/10000 50 30 20 18 12

Indicates the current fuel consumption in mpg – in liters/100 km on Canadian models. This allows you to see whether your current driving style is conducive to fuel economy with minimum exhaust emissions.

When the vehicle is stationary, the display goes to Maximum - zero on Canadian models.

Fuel gauge

Engine coolant temperature gauge

0 1/2 1/1 UNBLINED GASOLINE ONLY WWW.CMA

Close-up of a circular gauge or indicator with icons for temperature, water, and symbols (no readable text)

Between the blue and red zones

Normal operating range. The needle may rise as far as the edge of the red sector during normal operation.

Once the indicator lamp stays on continuously, there are still approx.

2 gallons/8 liters of fuel in the fuel tank. Fuel tank capacity approx.

16.6 gallons/63 liters.

Certain operating conditions, such as those encountered in mountainous areas, may cause the needle to fluctuate slightly.

Fill the fuel tank before it is completely empty. Driving to the last drop of fuel can prevent the engine from operating properly and result in damage.

When you switch on the ignition, the indicator lamp lights up briefly as an operation check.

Blue

The engine is still cold. Drive at moderate engine and vehicle speeds.

Red

When you switch on the ignition, the warning lamp comes on briefly as an operation check.

If the lamp comes on during normal vehicle operation: the engine has overheated. Shut off the engine immediately and allow it to cool down.

To check coolant level, refer to page 138.

Service interval display

PH OIL SERVICE INSPECTION 14950

A flashing message and a "-" in front of the number mean that the service interval has already been exceeded by the distance shown on the display. Please contact your BMW center for an appointment.

Remaining distance to next service

The displays shown in the illustration appear for a few seconds when the ignition key is in position 1 or higher or after the engine is started.

The next service due appears with the message OIL SERVICE or INSPECTION, together with the distance remaining in miles – in kilometers in Canada – before the next scheduled service.

The computer bases its calculations of the remaining distance on the preceding driving style.

Check Control

1 2 3 4

Display

When the ignition key is in position 2 or higher, the following information and/or conditions are indicated using symbols until the condition has been corrected.

1 Check the low and high beams as well as the parking lamps
2 Door open
3 Luggage compartment lid open
4 Check tail or brake lamps

When you open the driver's door after parking, a signal sounds to remind you if the headlamps have not been switched off.

Clock

If you wish to have a permanent time display, you can make this setting in the radio display, refer to the Owner's Manual for Radio.

You can set the clock and the time display in the car radio as follows.

012345 - 340.2 - 10:35

In ignition key position 0: the time is displayed for a few seconds after you press the left button, refer to Odometer on page 81.

To adjust

With the ignition key in position 1 or higher and the time displayed in the instrument cluster.

To set ahead: turn the right button to the right.

To set back: turn the right button to the left.

The adjustment speed will increase the longer you continue to hold the right button.

To change the display mode: press the right button briefly.

Every time you press the button, the clock display alternates between the 12-hour and 24-hour mode.

Computer

Medical illustration showing a device with a highlighted section and arrow pointing to a patient silhouette (no text or symbols present)

012345 = 340.2 + 680 °F

setting.

After giving an ice warning, the display returns to the previous

temperatures above 37.5^ F/+3°C, on bridges or shaded road surfaces, for instance.

Mode selection

With the ignition key in position 1 or higher, you can call up information from the computer using the button in the turn signal lever. The information is displayed in the instrument cluster. Each time you press the button briefly toward the steering column, a new function is called up in the display.

The displays appear in the following order:

Time of day, outside temperature, average fuel consumption, cruising range, average vehicle speed.

When the ignition key is turned to position 1 or higher, the last active setting is displayed.

Outside temperature

You can change the units of measure, ^ C/ ^ F, for the outside temperature display by pressing the right-hand reset button in the instrument cluster while the temperature display is active. The units of measure, ^ C/ ^ F, in the temperature display of the automatic climate control change automatically, refer to page 104.

Ice warning

If the outside temperature drops to about 37.5^ F/+3°C, then the computer will automatically switch to a display of the outside temperature. In addition, a signal sounds as a warning and the display flashes for a brief period.

Computer

012345 340.2 205

Average fuel consumption

If you continue to press and hold the button on the turn signal lever, the average fuel consumption being displayed is recalculated from that point in time.

If you wish, you can have the average fuel consumption displayed in erent unit of measure.

Range

The computer bases its calculations for the cruising range on the operating conditions in the preceding period and on the remaining fuel in the tank.

It is important that you refuel when the cruising range falls below approx. 35 miles / 50 kilometers. Otherwise, the engine cannot be guaranteed to operate properly and damage may result.

Average speed

If you continue to press and hold the button on the turn signal lever, the average speed being displayed is recalculated from that point in time.

Any time spent when the vehicle is stationary and the engine is switched off is ignored for the calculation.

Park Distance Control (PDC)\*

The concept

PDC provides extra safety and convenience during parking maneuvers. Acoustic signals alert you to the momentary distance to an object behind your vehicle. The system features four ultrasonic sensors mounted in your rear bumper. The monitoring range for the two corner sensors extends outward roughly 2 ft/60 cm, while two centrally located sensors detect objects at distances of up to approx. 5 ft/1.50 m.

PDC is a parking aid that can identify objects if they are

approached slowly, as is generally the case when parking. Avoid driving towards objects rapidly; due to underlying physical principles, the system may otherwise alert you too late for you to take evasive steps.

The system starts to operate automatically approx. one second after you select Reverse or move the selector lever into the R position with the ignition key in position 2.

Let this short period elapse before driving backwards.

PDC is deactivated when you shift back out of Reverse.

You can have a signal set to confirm that the PDC has been acti-

Acoustic signals

The distance to the nearest object is indicated by a tone sounding at various intervals. As the distance between vehicle and object decreases, the intervals between the tones become shorter. A continuous tone indicates the presence of an object less than 1 ft/30 cm away.

The warning signal is canceled after approx. three seconds if the distance to the object remains constant during this time – if you are moving parallel to a wall, for instance.

System malfunctions will be indicated by a continuous high-pitched tone when the system is activated the first time. Please have the problem fixed by your BMW center.

PDC does not replace the driver's personal responsibility for evaluathe distance between the vehicle any objects. Always remember that

the sensors can neither detect nor provide warnings of obstacles located within their blind angles. This applies especially in those cases where the system approaches the physical limits of ultrasonic measurement, as occurs with tow bars and trailer couplings, and in the vicinity of thin or wedge-shaped objects. Moreover, low objects that have already been detected – such as a curb edge – can disappear out of the detection range of the sensors before a continuous tone sounds.

Loud sources of sound from outside or inside the vehicle could drown out the PDC signal tone.

Keep the sensors clean and free of ice or snow in order to ensure they will continue to operate effec-

Do not apply high pressure spray to the sensors for a prolonged period of time. Always maintain a distance of more than 4 in/10 cm.

Automatic Stability Control plus Traction (ASC+T)\*

The concept

ASC+T optimizes vehicle stability and traction, especially when you are starting off, accelerating or when going through curves.

ASC+T is ready each time you start the engine.

ASC+T contains the Automatic Differential Brake (ADB) and Cornering Brake Control (CBC) functions.

Additional information on ASC+T is found in the "Technology" brochure.

Indicator lamp

The indicator lamp in the instrument cluster goes out shortly after you switch on the ignition,

refer to page 19.

The indicator lamp flashes: ASC+T is actively controlling drive torque and braking intervention
The indicator lamp stays lit: ASC+T has been switched off with the button; ADB is operational. ADB control intervention is not indicated.

The indicator and the brake warning lamps will remain on continuously yellow:

The ASC+T and ADB have been switched off manually or there is

a system malfunction.

You can still drive the vehicle as normal without ASC+T.

In the event of a fault, please consult your BMW center.

Indicator and warning lamps for Canadian models.

ASC

Switching off the

ASC+T/activating the ADB

Press the ASC button briefly; the indicator lamp comes on and stays on.

ASC+T has been switched off; ADB is operational.

In the following rare situations, it may be effective to activate the ADB for a brief period:

▷ When rocking the vehicle or starting off in deep snow or on loose surfaces
▷ When driving with snow chains.

To maintain vehicle stability, always drive with the ASC+T acti-

vated whenever possible.

Automatic Stability Control plus Traction (ASC+T)\*

Deactivating the ASC+T and ADB

Press the ASC button for at least 3 seconds; the indicator lamps and the yellow brake warning lamp come on and stay on.

The systems for enhancing stability and traction are deactivated, and there is no active braking intervention or torque control.

To maintain vehicle stability, always drive with the ASC+T acti-d whenever possible.

Reactivating the ASC+T

Press the button again briefly; the indicator lamp or the indicator lamps will go out. ADB is deactivated.

The laws of physics cannot be repealed even with ASC+T. An appropriate driving style always gains the responsibility of the driver. Therefore urge you to avoid using additional safety margin of the sys- as an excuse for taking risks.

Dynamic Stability Control (DSC)\*

The concept

DSC maintains vehicle stability, even in critical driving situations.

DSC is operational every time you start the engine.

DSC contains the Dynamic Traction Control (DTC) and Cornering Brake Control (CBC) functions.

Additional information on DSC is found in the "Technology" brochure.

The vehicle will remain completely operational, however, without DSC. In the event of a fault, please consult your BMW center.

Indicator and warning lamps for Canadian models.

DSC

Indicator lamp

The indicator lamp in the instrument cluster goes out shortly after you switch on the ignition,

refer to page 19.

The indicator lamp flashes: DSC is actively controlling drive torque and braking intervention

The indicator lamp stays lit: DSC has been switched off with the button; DTC and DBC are operational. DTC control intervention is not indicated.

The indicator and the brake warning lamps will remain on continuously yellow:

The DSC, DTC and DBC have been switched off manually or

there is a system malfunction.

Deactivating the DSC/activating the DTC

Press the DSC button briefly; the indicator lamp comes on and stays on.

DSC is deactivated; DTC is operational. In the following rare situations, it may prove useful to activate the DTC for a brief period:

▷ When rocking the vehicle or starting off in deep snow or on loose surfaces
▷ When driving with snow chains
When driving on snow-covered grades, in deep snow, or on a snow-covered surface that has been packed down from being driven on.

Dynamic Stability Control (DSC)\*

Under these special circumstances traction is increased by deactivating the control systems that enhance traction under normal conditions.

To switch DSC and ADB off

Hold the DSC button down for at least 3 seconds. The indicator lamp and the yellow brake warning lamps light up and remain on continuously.

The systems for enhancing stability and traction are deactivated, and there is no active braking intervention or torque control.

The laws of physics cannot be repealed even with DSC. An appropriate driving style always remains the responsibility of the driver. We therefore urge you to avoid using the additional safety margin of the system as an excuse for taking risks. Whenever the DTC is activated, the DSC is switched off and performs minor stabilizing intervention. Do not make any modifications to the DSC system. Allow only authorized technicians to perform service procedures on the DSC.

To maintain vehicle stability, always drive with the DSC acti-d whenever possible.

Reactivating the DSC

Press the button again; the indicator lamp or the indicator lamps will go out. DTC is deactivated.

Tire Pressure Monitor (TPM)\*

The concept

TPM monitors the tire pressures at all four tires even while the vehicle is moving. The system provides an alert whenever the inflation pressure drops significantly below the specified pressure in one or more tires.

This indicator lamp in the instrument cluster informs you when the tire pressure deviates from

the target values.

Close-up of a computer interface with a button and a pointer, no visible text or symbols

Initializing the system

Initializing is necessary to familiarize the system with the correct inflation pressures.

Repeat this process after tire replacement, tire rotation or any changes in tire inflation pressure.

1. Check the tire inflation pressures in all the tires, comparing them with the inflation pressure chart on page 25, and adjust them if necessary
2. Turn the ignition key to position 2, do not start the engine

3. Press the button long enough for the yellow indicator lamp in the instrument cluster to light up for a few seconds

4. After a few minutes' driving time, TPM adopts the current inflation pressures in the tires as the reference values to be monitored.

In the event of loss in inflation pressure

If the inflation pressure has dropped significantly over a long period of time, which is normal for any tire, the yellow indicator lamp will come on.

This alerts you to have the tires inflated to the specified pressures as soon as possible.

If you are prompted to check the tire pressure shortly after a correction has been made, this indicates that the corrected values were not valid. Please check the inflation pressure again and make corrections according to the inflation pressure table. Then reinitialize the system.

Flat tire

If there is a tire failure with loss of pressure, the red warning lamp will come on. This visual alert is accompanied by an acoustic warning signal.

Tire Pressure Monitor (TPM)\*

If this occurs, reduce vehicle speed immediately and stop the vehicle in a safe location. Avoid hard brake applications. Do not oversteer. Replace the defective tire, refer to page 151.

The space-saver spare tire is provided for temporary use only in the of a tire failure. It does not have TPM electronics and is not monitored. The spare tire that has the same dimensions as the tires already mounted on the vehicle is equipped with the necessary TPM electronics and will also be monitored once the tire has been mounted and the system initialized.

The TPM cannot alert you to severe and sudden tire damage caused by external factors.

Have the tires changed by your BMW center. Your BMW center has the information needed for working with TPM and is equipped with the necessary special tools.

System interference

Local devices using the same radio frequency can interfere with the TPM.

The yellow indicator lamp will come on during the malfunction.

The indicator lamp also comes on

▷ in the event of a system fault
▷ if a wheel is mounted without the appropriate TPM electronics
▷ if, in addition to the spare tire, additional wheels with TPM electronics are being carried on board.

Please refer the problem to your BMW center.

Flat Tire Monitor\*

93

The concept

As you drive, the Flat Tire Monitor keeps track of pressure levels in all four tires in order to detect and warn of any substantial pressure loss.

The system actually detects pressure loss by monitoring differences in the relative speeds of the four wheels. It interprets variations outside specified limits as severe pressure loss, and then responds by generating a warning.

Flat Tire Monitor\*

Close-up of a computer interface with a black button and a magnified view of the screen (no readable text or symbols)

Initializing the system

Initializing is necessary to familiarize the system with the correct inflation pressures.

Repeat this process after any changes in tire inflation pressure, tire rotation or replacement. Do not carry out further system initialization after adjusting the inflation pressure and letting the system "learn" the correct pressures.

1. Check the tire inflation pressures in all the tires, comparing them with the inflation pressure chart on page 25 and adjusting their pressure if necessary

2. Turn the ignition key to position 2

3. Press the button until the yellow indicator lamp in the instrument cluster lights up. After a little while, the indicator lamp will go out by itself

4. After a few minutes' driving time, the Flat Tire Monitor adopts the current pressure levels as the reference and from that point on, can detect and report a flat tire.

Close-up of a computer interface with a button and a close-up of the button (no visible text or symbols)

To activate/deactivate the system

The Flat Tire Monitor automatically assumes operation whenever you turn the ignition key to position 2. Unless manually deactivated, it is always on during normal vehicle operation.

To deactivate the system: press the button, the yellow indicator lamp comes on.

To activate the system: press the button again, the indicator lamp goes out. You should deactivate the system before driving with snow chains, as the chains can generate spurious warnings and/or prevent the system from detecting actual pressure loss.

Flat Tire Monitor\*

Flat tire

The red warning lamp in the instrument cluster lights up to warn of pressure loss and tire failure. This visual alert is accompanied by an acoustic warning signal. Reduce your speed immediately, and steer and brake gently as you bring the vehicle to a stop.

To reset the warning lamp: after replacing the damaged tire you will need to reset the red warning lamp manually: maintain pressure on the Flat Tire Monitor button until the warning lamp goes out. Then reinitialize the system.

The Flat Tire Monitor cannot provide you with advance warning of len and severe tire damage caused external factors.

The system also does not detect the gradual and minor loss of pressure that all tires display over extended periods of time.

Check tire inflation pressures on a regular basis, correcting them as ssary, refer to page 25.

The system may respond to operation on slippery or snow-covered road surfaces with false warnings or delays in detecting actual pressure loss.

Performance-oriented driving, slip at the drive wheels and high rates of lateral acceleration can also increase the time that the Flat Tire Monitor requires to detect a flat.

System malfunctions

The yellow indicator lamp in the instrument cluster lights up and remains on until the problem is corrected.

Please refer the problem to your BMW center.

Parking lamps/Low beams

0 300 ID

Parking lamps

The front, rear and side vehicle lighting is switched on. You can use the parking lamps to signal

the position of the vehicle when it is parked. For lighting on one side for parking as an additional feature, refer to page 97.

Low beams

When the ignition is switched off while the low beams are on, the headlamps go out and only the

parking lamps remain on.

Follow me home lamps

When you activate the headlamp flasher after parking the vehicle with the lamps turned off, the low-beam head-lamps will come on for a short time.

You can also have this function deactivated.

LIGHTS ON warning

When you open the driver's door after having turned the ignition key to position 0, you will hear an acoustic signal for a few seconds to remind you that the lamps have not been switched off.

Daytime driving lamps\*

If you desire, the light switch can be left in the second position: When the ignition is switched off, the external lighting is also switched off.

You can have the activation settings for the daytime driving lamps rammed on your vehicle.

Automatic headlamp control\*

When the switch is set to this position the system automatically activates and cancels the low beams in response to changes in ambient light – in tunnels, at dusk, etc. – and in the event of rain and snow.

The vehicle's external lights remain on constantly when you touch on the front fog lamps after the ellamps have come on automati-

Automatic headlamp control cannot serve as a substitute for the user's judgement in determining when vehicle lights should be switched. For example, the sensors are not to detect fog. To avoid safety risks, should respond to these kinds of visibility situations by switching the lamps on manually.

You can have the sensitivity of your vehicle's automatic head-control adjusted.

Instrument lighting

Close-up of a car dashboard control panel with directional arrows indicating movement or adjustment (no text or symbols visible)

Turn the rotary dial with the parking/low beam lamps on to adjust the illumination intensity.

High beams/Standing lamps

1 2 3 3 PIL SALADIAN

1 High beams - blue indicator lamp
2 Headlamp flasher – blue indicator lamp
3 Standing lamps

Standing lamps, left or right

As an additional feature, you can illuminate your vehicle on either side for parking:

With the ignition key in position 0, engage the lever in the appropriate turn-signal position.

Fog lamps\*

Close-up of a white industrial control panel with a rotary knob and push button (no text or symbols visible)

Interior lamps

2 1 2

Close-up of a white plastic container with a slot, no visible text or symbols

Front fog lamps

The green indicator lamp in the instrument cluster lights up to indicate that the front fog lamps

are on.

If the automatic headlamp control is on, the low beams will come on matically whenever you activate front fog lamps.

The interior lamps operate automatically.

To switch the interior lamps on and off manually

Press button 1 briefly:

If you want the interior lamps to remain off all the time, press and hold the button for approx. 3 seconds.

Press the button briefly to revert to normal operation.

Front reading lamps\*

Switch on and off with the button 2 adjacent to each lamp.

Rear reading lamps\*

Rear reading lamps are also provided for rear seat passengers when the hardtop is installed, refer to page 125. Switch on and off with the button adjacent to each lamp.

In order to prevent battery discharge, all of the lamps in the cle are automatically switched off ox. 15 minutes after you turn the on key to position 0.

Air conditioning

Diagram of car interior with numbered directional arrows and a control panel showing switches and icons

Online Edition for Part-No. 01 41 0 156 806 - © 09/02 BMW AG

Air conditioning

1 Air onto the windshield and the side windows
2 Air for the upper body area 103
3 Air to the footwell
4 Air supply/Blower 102
5 Temperature 102
6 Air distribution 102
7 Rear window defroster 102
8 Air conditioning 102
9 Outside air/Recirculated-air mode 102

Air conditioning

Air supply/Blower

You can select blower speeds from 1 to 4. The heating and ventilation become more and more effective as the air supply settings are increased. In position 0, the blower and the heater are switched off. The outside air supply is blocked in position 0.

Temperature

In order to increase the temperature of the passenger compartment, turn to the right toward the red zone. The temperature of the incoming air is kept constant.

Air distribution

You can direct air to flow onto the windows, toward your upper body or into the footwell. All intermediate settings are possible. In the setting, there is a low flow of air onto the windows to keep them free of condensation.

Rear window defroster

When the rear window defroster is activated, the indicator lamp on. The rear window defroster es off automatically.

You can have your vehicle programmed in such a way that the window defroster switches on matically. This occurs within 5 min after starting the engine when out-temperatures are below approx. /+4°C.

Air conditioning

The air is cooled and dehumidified and - depending on the temperature setting – rewarmed.

Depending on the weather, the wind-shield may fog over briefly when the engine is started. Air conditioning helps prevent the windows from fogging up.

Condensation forms during operation of the air conditioning system, then exits under the vehicle. It is not unusual for a small puddle to under the car while the system is being.

Outside air/Recirculated-air mode

You can respond to unpleasant external odors by temporarily blocking the supply of outside air. The system then recirculates the air currently within the vehicle.

If the windows should fog over in the recirculated-air mode, switch this mode off and increase the air supply as required.

Air conditioning

1 2 3 2 1 MAYEET MA

Microfilter

The built-in microfilter removes dust and pollen from the incoming air. Your BMW center will replace it during routine maintenance. A substantial reduction in airflow indicates that the filter needs to be replaced before scheduled maintenance.

Front view of a gray industrial control panel with three rotary buttons and indicator lights (no visible text or symbols)

MOTATO

Draft-free ventilation

You can adjust the blower controls for the upper body area to obtain the optimum airflow rates and directions for your personal requirements:

1 Rotary dials for infinitely variable opening and closing of the vent outlets
2 Levers for airflow direction
3 Rotary dial 3 allows you to control the temperature of the airflow from these outlets as desired

To defrost windows and remove condensation

1. Set the blower speed control for the airflow rate to position 4
2. Turn the rotary temperature control completely to the right, toward the red zone
3. Turn to the rotary control for air distribution to position
4. Switch on the rear window defroster to defrost the rear window.

104 Automatic climate control*

1 2 3 8 9 10 70.0 °F AUTO AUTO 5 4 11 12 13

Online Edition for Part-No. 01 41 0 156 806 - © 09/02 BMW AG

Automatic climate control\*

1 Air onto the windshield and the side windows
2 Air for the upper body area 107
3 Air to the footwell
4 Outside air/Automatic recirculated-air control (AUC)/Recirculated air 107
5 Air supply/Blower 106
6 Temperature 106
7 Automatic air distribution and supply 106
8 Individual air distribution 106
9 Air grill for interior temperature sensor – please keep clear and unobstructed
10 Temperature display 106, air supply 106
11 To defrost windows and remove condensation 106
12 Air conditioning 106
13 Rear window defroster 107

Automatic climate control\*

Tips for pleasant driving

Use the automatic mode – switch on with AUTO button 7. Select the desired interior temperature.

Detailed setting options are described for you in the following section.

You can make the settings of your vehicle in such a manner that,

when you unlock the vehicle with the remote control of your personal key, your own personalized setting for the automatic climate control is initiated.

Automatic air distribution and supply

The AUTO program adjusts the air distribution and the air supply for you and in addition adapts the temperature to external influences – summer, winter – to meet preferences you can specify.

Individual air distribution

You can cancel the AUTO program by selecting specific distribution patterns to suit your own individual requirements.

While the AUTO program is then deactivated, the automatic airflow control remains in operation. Air flows onto

the windows ↗ toward the upper body ↗ and into the footwell . You can reactivate the automatic air distribution mode by selecting the AUTO button.

Temperature

The interior temperature that appears in the display panel is a general figure intended for reference purposes. We recommend 72^ F/ +22^ C as a comfortable setting, even if the air conditioning is on. When you start the vehicle, the system ensures that the selected temperature is achieved as quickly as possible. It then maintains this temperature, regardless of the season.

To select the units of measure ^ C/ ^ F of the display, refer to page 85.

Air supply/Blower

By pressing the left or right half of the button, you can vary the air supply. This deactivates the automatic control of the air supply, AUTO disappears from the display panel. Nevertheless, the automatic air distribution remains unchanged. You can reactivate the automatic air distribution mode by selecting the AUTO button.

When the lowest blower speed is set and you press the left half of the button, all of the displays are canceled: the blower, heating and air conditioning are switched off. The outside air supply is blocked. You can reactivate the system by pressing any button for the automatic climate control.

To defrost windows and remove condensation

This program quickly removes ice and condensation from the

windshield and the side windows.

Air conditioning

The air is cooled and dehumidified and – depending on the temperature setting – rewarmed.

Depending on the weather, the wind-shield may fog over briefly when the engine is started. Air conditioning helps prevent the windows from fogging up.

Condensation forms during operation of the air conditioning system, which then exits under the vehicle. It is thus not unusual for a small puddle to form under the car while the system is running.

Automatic climate control\*

Outside air/Automatic recirculated-air control (AUC)/Recirculated air

You can respond to unpleasant external odors or pollutants by

temporarily stopping the flow of outside air. The system then recirculates the air currently within the vehicle.

Press the button repeatedly to select one of three different operating modes.

▷ Indicator lamps off: outside airflow is on
Left indicator lamp on - automatic mode: the system recognizes pollutants in the outside air and blocks the flow of air when necessary. The system then recirculates the air currently within the vehicle. Depending on the air quality, the automatic system then switches back and forth between outside air supply and recirculation of the air within the vehicle
Right indicator lamp on: the flow of outside air into the vehicle is permanently blocked. The system then recirculates the air currently within the vehicle.

If the windows should fog over in the recirculated-air mode, switch this mode off and increase the air supply as required.

Rear window defroster

With the convertible top closed or with the hardtop* mounted, press the button. The indicator lamp comes on. The rear window defroster switches off automatically.

You can have your vehicle programmed in such a way that the rear window defroster switches on automatically. This occurs within 5 minutes after starting the engine when outside temperatures are below approx. 39^ F/+4°C.

1 2 3 2 1

Draft-free ventilation

You can adjust the blower controls for the upper body area to obtain the optimum airflow rates and directions for your personal requirements:

1 Rotary dials for infinitely variable opening and closing of the vent outlets
2 Levers for airflow direction
3 Use the rotary dial to control the temperature of the airflow:

Rotate toward blue - colder
▷ Rotate toward red – warmer.

Automatic climate control\*

Microfilter/activated-charcoal filter

The built-in microfilter removes dust and pollen from the incoming air. The activated-charcoal filter provides additional protection by filtering gaseous pollutants from the outside air. Your BMW center replaces this combined filter as a standard part of your scheduled maintenance. A substantial reduction in airflow indicates that the filter needs to be replaced before scheduled maintenance.

Glove compartment

Close-up of a car interior showing a curved door and a staircase, with an arrow pointing to the staircase (no text or symbols visible)

If – for example for valet parking – you turn over only your door and ignition key, refer to page 30, then access to the glove compartment and luggage compartment is not possible.

To open

Pull the handle. The lamp in the glove compartment comes on.

To close

Fold the cover back up.

To prevent injury in the event of an accident, close the glove comment immediately after use.

To lock

Lock with one of the master keys. A master key will also be required to unlock the glove compartment.

Rechargeable flashlight

The flashlight is located on the left-hand side of the glove compartment. It features integral overload-protection, so it can be left in its holder continuously.

To avoid completely discharging and possibly damaging the lamp, you ensure that it is switched off to inserting it in the socket.

110 BMW Universal Transmitter\*

The concept

The BMW Universal Transmitter replaces up to three hand-held transmitters of different devices such as garage-door openers, alarm systems, or door locking systems. The BMW Universal Transmitter recognizes and learns the transmitted signal of each of the original hand-held transmitters.

The signal of an original hand-held transmitter can be programmed on one of the three channel keys. Following that, each of the devices can be actuated with the appropriately-programmed channel key. The indicator lamp flashes to confirm transmission of the signal.

If the vehicle is sold, the memory of the channel keys should be cleared as described on page 112.

During programming and before every remote actuation of a programmed device by the BMW Universal Transmitter, check to be sure that there are no persons, animals or objects within the actuation range of the device in order to prevent possible injuries or damage. Also, comply with the safety precautions of the original hand-held transmitter.

To Canadian residents: During programming, your hand-held transmitter may automatically stop transmitting after two seconds. This may not be long enough to program the BMW Universal Transmitter. If you are programming from one of these handheld transmitters, the Universal Transmitter's light may begin to flash in a series of double-blinks. If this occurs, continue to hold the key of the Universal Transmitter while you reactivate your hand-held transmitter. You may have to repeat this function several times while programming.

Before programming, read the User information section on page 112.

Original hand-held transmitter

If this symbol is present on the packaging or in the instructions of the original hand-held transmitter, it may be assumed that this hand-held transmitter is compatible with the BMW Universal Transmitter.

Checking for the conversion code

To determine whether the original hand-held transmitter is provided with a conversion-code system, you may either read the instructions for the original hand-held transmitter or program a channel key as described on the next page, left-hand column under Programming.

Then press and hold the programmed channel key of the BMW Universal Transmitter. If the indicator lamp of the BMW Universal Transmitter flashes for two seconds and then comes on steadily, the original hand-held transmitter is provided with a conversion-code system. With a conversion-code system, program the channel keys as described on the next page, right-hand column under Programming a hand-held transmitter with conversion code.

If you have additional questions, please consult your BMW center or call toll-free 1-800-355-3515. You can also visit the website www.bmwusa.com.

BMW Universal Transmitter\*

2 1

1 2 M010826MA

Programming

1 Channel keys
2 Indicator lamp

Read and comply with the safety precautions on the previous

page.

1. Turn the ignition key to position 2

2. For initial use: press and hold both outside keys 1 until the indicator lamp 2 flashes, and then release them. The three channel keys are cleared

3. Hold the original hand-held transmitter up to the receiver integrated into the mirror, i.e., right near the keys, a maximum of 2 in/5 cm away

4. Press the transmission key of the original hand-held transmitter, see arrow 2, and the desired channel key of the Integrated Universal Remote Control, see arrow 1, simultaneously. Release both keys as soon as the indicator lamp flashes rapidly
5. To program other original hand-held transmitters, repeat steps 3 and 4.

The corresponding channel key is now programmed with the signal of the original hand-held transmitter.

Programming a hand-held transmitter with conversion code

Read and comply with the safety precautions on the previous

page.

When programming the BMW Universal Transmitter, consult the instructions for the specific device. For using the BMW Universal Transmitter with a conversion-code system, note the following supplemental programming instructions:

A second person facilitates programming of the BMW Universal

Transmitter.

1. Program the BMW Universal Transmitter as described previously under Programming
2. Press and hold the programming key on the receiver of the device for approx. two seconds until the programming lamp on the device comes on
3. Press the desired channel key of the BMW Universal Transmitter three times.

112 BMW Universal Transmitter\*

If you have additional questions, please consult your BMW cen-

Clearing the channel keys

Read and comply with the safety precautions on page 110.

The memory of individual channel keys cannot be deleted. However, the three channel keys can be cleared together as follows:

▷ Press and hold both outside keys of the BMW Universal Transmitter until the indicator lamp flashes, and then release them.

All of the channel keys are cleared.

User information

Do not use this BMW Universal Transmitter with any garage door opener that lacks safety stop and reverse features as required by federal safety standards, this includes any garage door opener model manufactured before April 1, 1982.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: as defined in the regulations, this device may not

cause harmful interference, and must accept any interference received, including interference that may cause undesired operation.

Storage compartments

Close-up of a car seatbelt buckle being inserted into the dashboard (no text or symbols visible)

Front center armrest

To open: press the button – see arrow – and lift upward.

Additional compartments and nets\*

You will find additional storage compartments in the front doors and in the center console. Storage nets are on the front seat backrests.

Storage compartments

Cellular phone\*

Ashtray, front\*

Illustration of a person holding a medical device with a pen, no visible text or symbols

Top-down view of a medical or cleaning appliance with a digital display and a square sink (no text or symbols visible)

Interior view of a car dashboard with a directional arrow and labeled component (no text or symbols beyond label)

Beverage holder, coin box

A coin box and two beverage holders are provided in the center console.

Hands-free system

On vehicles that are wired for a telephone* or equipped with a communication package*, the cover for the hands-free microphone is located in the headliner near the interior lamp.

For further information on using your cellular phone, refer to the separate Owner's Manual.

To empty

Press on the edge of the open cover – see arrow: the ashtray moves up and can be removed.

Cigarette lighter

Hold or touch the hot cigarette lighter by the knob only. Holding or touching it in other areas could result in burns.

The cigarette lighter remains operational when the ignition key has been removed. For this reason, children should never be left in the vehicle unattended.

Press the lighter 1 in. You can remove the lighter from its socket for use as soon as it springs back out.

114 Ashtray, front\*

Cigarette lighter socket

Suitable for attaching power supplies for flashlights, car vacuum cleaners, etc., up to a rating of approx. 200 watts at 12 volts. Avoid damage to the socket caused by inserting plugs of different shapes or sizes.

Ashtray, rear\*

Interior view of a car gear shift lever with a downward arrow indicating left motion (no text or symbols)

To empty

Press on the edge of the raised cover in the opening direction - see arrow: the ashtray moves up and can be removed.

Ski bag\*

The ski bag allows the safe and clean transport of up to 4 pairs of standard skis or up to two snowboards.

The length of the ski bag and the additional space provided in the luggage compartment make it possible to carry skis up to 6 ft 10 in / 2.10 m long. Because of the tapered shape of the bag, only two pairs of skis longer than 6 ft 10 in / 2.10 m can be carried.

Interior view of a room with a cylindrical container and a ladder, no visible text or symbols

Top-down view of a circular fan or vent with a mesh pattern, no visible text or symbols

Loading

1. Take the safety belts out of their holders
2. Press button downward – see arrow – and remove the filler piece by pulling it forward

3. Extend the ski bag between the front seats. The zipper provides convenient access to stored items. It may be opened to allow the ski bag to dry

4. Press the release button in the luggage compartment – see arrow

5. Use the magnetic holder to fasten the cover panel to the back wall.
   To store the ski bag, perform the above steps in reverse sequence.

Securing cargo

Secure skis and any other objects stored in the bag by tightening the wing strap at the buckle.

Be sure that your skis are clean before loading them into the bag. And damage from sharp edges during the ring.

Ski bag\*

Mechanical assembly diagram showing a sliding mechanism with pulleys and a valve (no text or symbols)

When reattaching the cover, guide both bars into the guide and press the cover back into place. Secure the safety belts in their holders again.

Cargo loading

Always position and secure loads correctly. If you do not, the load can endanger the passengers during braking or evasive maneuvers. Do not exceed the approved gross weight or the approved maximum axle loads, refer to page 164, otherwise the vehicle's operating safety is no longer assured and you are in violation of the law. Do not stow heavy or hard objects in the passenger compartment without securing them. Otherwise they could be thrown around during braking and evasive maneuvers and could endanger the passengers.

Two grayscale illustrations of a car showing front and side views of the engine compartment (no text or symbols)

Stowing cargo

- Load heavy cargo as far forward as possible – directly behind the luggage compartment partition – and as low as possible - Cover sharp edges and corners.

Cargo loading

With the convertible top closed, you can increase the space in the age compartment – refer to page 37 - by folding back the convertible top compartment panel.

We recommend that you always fold the convertible top compartment panel down as soon as you have removed your cargo from the luggage compartment. This way, you can be sure that you can always operate your convertible top at any time.

At the same time, when the top is raised you should fold the convertible top compartment panel back up before stowing large objects in the luggage compartment; this precaution will help reduce the likelihood of damage to either the convertible top compartment or your luggage.

Close-up of a white air conditioner unit with a white arrow pointing to the button (no visible text or symbols)

Securing cargo

For small, light items, use the rubber-lined, non-skid side of the floor mat or secure using the luggage compartment net* or elastic straps
For large, heavy pieces, see your BMW center for load-securing devices*. Anchorages located in the luggage compartment can be used for fastening the load-securing devices; see arrow.

Read and comply with the information enclosed with the load-securing devices.

Roof-mounted luggage rack for the hardtop\*

Close-up of a car wheel rim with a black plastic clip and an arrow pointing to the edge (no text or symbols visible)

A special roof-rack system is available as an optional extra for your BMW. Please observe the precautions included with the installation instructions.

Anchorage

Access to the anchorages:

To fold up the covers – see arrow – please use the tool which is provided with the roof-rack system.

Loading and driving notes

Roof-mounted luggage racks raise the center of gravity of the vehicle when they are loaded. For this reason, they exercise a major effect on the vehicle's handling and steering response.

You should therefore always remember not to exceed the approved roof load capacity, the approved gross vehicle weight or the maximum axle loads when loading the rack. These weights are listed under Technical data on page 164.

Make sure that the load is not too bulky, and attempt to distribute it evenly.

Always load the heaviest pieces first so that they are at the bottom. Make sure that no objects will be in the way when the luggage compartment lid is opening or closing.

Secure the roof-mounted luggage correctly and securely to prevent it from shifting or being lost during driving.

Drive smoothly and avoid sudden acceleration or braking. Do not corner at high speeds.

The roof-mounted luggage rack and the roof load increase the aerodynamic resistance: increased fuel consumption and additional stress on the vehicle's body are the result.

Close-up of a car wheel with chain links, no visible text or symbols on the wheel itself.

Online Edition for Part-No. 01 41 0 156 806 - © 09/02 BMW AG

Oriental Bure A Intensiv- Schreiben- reiniger 500 ml €

Overview

Controls and features

Operation, maintenance

Owner service procedures

Technical data

Index

Break-in procedures

To ensure that your vehicle continues to provide maximum economy throughout an extended service life, we request that you devote careful attention to the following instructions.

Engine and differential

The first 1,250 miles/2,000 km:

Attempt to constantly vary both vehicle and engine speeds during these initial miles while remembering to avoid engine speeds in excess of 4,500 rpm and/or vehicle speeds of over 100 mph / 160 km/h:

Always obey all official speed limits.

Refrain from using full throttle and avoid pressing the accelerator beyond the kickdown point.

You can then proceed to increase both engine and vehicle speeds once the initial 1,250 miles/2,000 km have elapsed.

Please remember to observe the same break-in procedures if either the engine or the differential should have to be replaced later in the course of the vehicle's service life.

Tires

Owing to technical factors associated with their manufacture, tires do not achieve their full traction potential until an initial break-in period has elapsed. We thus ask you to drive with extra care during the first 200 miles/300 km.

Always obey all official speed limits.

When the vehicle is operated on wet or slushy roads, a wedge of water may form between the tire and the road surface. This phenomenon is referred to as hydroplaning, and can lead to partial or complete loss of traction, vehicle control and braking effectiveness. Reduce your speed on wet roads.

Brake system

Approx. 300 miles/500 km must elapse before the brake pads and rotors achieve the optimal pad-surface and wear patterns required for trouble-free operation and an extended service life later on.

To break in the separate parking brake drums, apply the parking brake lightly when coasting to a standstill – at a traffic signal, for instance; use caution to avoid posing a danger to other road users.

You can prevent corrosion in the drums by periodically repeating this procedure.

The brake lamps do not come on when the parking brake is set.

Vacuum for the brake system servo unit on your BMW is available only when the engine is running. When you move the vehicle with the engine off – when towing, for example – substantially higher levels of pedal force will be required to brake the vehicle.

Clutch

Approx. 300 miles/500 km must elapse before the clutch starts to operate at optimum efficiency. Remember to engage the clutch carefully during this initial period.

Driving notes

Antilock Brake System (ABS)

Brakes: do not drive with your foot resting on the brake pedal. Even light but consistent pedal pressure can lead to high temperatures, brake wear and possibly even brake failure. Hydroplaning: when driving on wet or slushy roads, reduce vehicle speed. If you do not, a wedge of water may form between the tires and the road surface. This phenomenon can lead to partial or complete loss of contact between the tires and road surface, as well as loss of vehicle control and braking ability. Driving through water: do not drive through water on the road if it is deeper than 1 ft/30 cm, and then only at walking speed. Otherwise, the vehicle's engine, the electrical systems and the transmission may be damaged.

Clothes hooks, with hardtop: when hanging clothing from the hooks, be sure that they will not obstruct the driver's vision. Do not hang heavy objects on the hooks. If you do so, they could cause personal injury during braking or evasive maneuvers.

The concept

ABS keeps the wheels from locking during braking, thereby enhancing active driving safety.

Braking with ABS

If you are in a situation that requires full braking, you will exploit the full benefits of ABS system if you apply maximum pedal pressure – panic stop.

Since the vehicle maintains steering responsiveness, you can avoid possible obstacles with a minimum of steering effort, despite the full brake application.

Pulsation at the brake pedal combined with sounds from the hydraulic circuits indicates to the driver that ABS is in its active mode.

Dynamic Brake Control (DBC)

DBC is included in the DSC, refer to page 90. The system responds to sudden, high-intensity applications of force to the brake pedal by automatically braking the vehicle with maximum boost to achieve the shortest possible braking distances during panic stops.

This system also exploits the benefits of ABS. Do not reduce the pressure

exerted against the brake pedal until the braking maneuver has been completed. DBC is deactivated when you release the brake pedal.

Cornering Brake Control (CBC)

CBC is an advanced engineering development of ABS. When braking during cornering with high lateral acceleration, or when braking during a lane change, vehicle stability is improved and the steering response is enhanced.

Brake system

Brake fluid level

If the brake fluid level is too low and brake pedal travel has become longer, there may be a defect in one of the brake system's hydraulic circuits.

Proceed to the nearest authorized BMW center. It may be necessary to apply higher levels of pressure to the pedal when stopping and braking distances may also be longer. Please remember to adapt your driving style accordingly.

Disc brakes

Limited vehicle use, extended periods with the vehicle parked or in storage, and operating conditions in which braking is restricted to gentle, low-pressure applications will all increase the tendency for corrosion to form on the rotors; this is often accompanied by a simultaneous accumulation of contamination on the brake pads. The pads must exert a certain minimal level of pressure against the rotors for the disc brakes' inherent self-cleaning effect to remain effective.

If the brake rotors are corroded, they will tend to respond to braking with a pulsating effect that even extended brake applications will fail to cure.

When driving in heavy rain and on wet roads it is useful to apply light pressure to the brake pedal every few miles. Monitor traffic conditions to ensure that this maneuver does not pose a hazard to you or to other road users. The heat generated in this process helps dry the pads and rotors to ensure that your brake system will respond with undiminished efficiency when you need it.

When descending steep hills and extended grades, downshift to a gear that will allow you to continue safely with only a minimal amount of braking. By minimizing the loads placed on the brake system, this strategy helps ensure that optimal brake system response will remain available at all times. Use care to avoid exceeding the approved engine-speed range, refer to page 81.

Do not coast with the clutch depressed or with the transmis-

sion or selector lever in Neutral. Do not coast with the engine shut off. The

engine provides no braking effect when the clutch is depressed and there is no power-assist for braking or steering when the engine is not running. Never allow floor mats, carpets or any other objects to protrude into the area around the accelerator, clutch and brake pedals and obstruct their movement.

Brake pads

For your own safety: use only brake pads that BMW has

released for your particular vehicle model. BMW cannot evaluate non-approved brake pads to determine if they are suitable for use, and therefore cannot ensure the operating safety of the vehicle if they are installed.

Hardtop\*

It is not necessary to remove the fabric top even in the winter, when the hard-top is generally in constant use. But you can also remove it easily at any time. Before the fabric top is stored in the convertible top compartment, it must be absolutely dry in order to avoid water spots and mildew from forming.

The hardtop offers reading lamps and clothes hooks that can be used just by pressing. It is also possible to mount a luggage rack on the roof. Please consult your BMW center.

When hanging clothing from the hooks, be sure that they will not tract the driver's vision. Do not hang by objects on the hooks. If you do they could cause personal injury, being braking or evasive maneuvers.

Two people are required for installation or removal. Work with extreme caution in order to avoid paint damage and damage to the body or hardtop.

To facilitate hardtop installation or removal, you can obtain a specially designed hardtop lift* or hardtop rack* at your BMW center.

3D illustration of a curved surface with a metallic arrow pointing upward, no text or symbols present

Storage

Storing the hardtop on the floor: slide the styrofoam block that came with the hardtop onto its center. The arrow on top of the styrofoam block has to be pointing upward when you are doing this.

Close-up of a car interior with a black belt and arrow pointing to a vehicle (no text or symbols visible)

Installation

1. Lower the side windows completely and flip the sun blinds down. If necessary, remove the antenna rod to avoid any damage
2. On vehicles with manual convertible top operation, first release the convertible top compartment lid, and, if necessary, open it somewhat. On vehicles with fully-automatic convertible top operation, open the convertible top compartment lid slightly by pressing the button for the operation of the convertible top
3. Remove the trim pieces on both sides by pulling them off toward the back – see arrow – and reclose the convertible top compartment lid

Hardtop\*

Close-up of a mechanical component with an arrow pointing to a small component (no visible text or symbols)

MV0154CMA

Diagram showing two 3D mechanical parts inside a transparent container, with arrows indicating motion direction (no text or symbols)

(5)011517MA

1. Open the two locking levers at the front. Press on the buttons to do so – see arrow. The levers will release slightly. Open the lever as far as possible

2. Before installing, first flip the cover panels that are located underneath the left and right interior lamps down. To do this, press on the slight bump on the cover panel. There is a holder in the cover panel to securely store the trim pieces that have been removed - see arrow 1

3. Open the red release levers as far as the stop will allow - see arrow 2

4. Position the hardtop onto the supports with the help of a second person. Be sure to put the mountings exactly into the proper brackets

Lift the hardtop carefully. Be extremely careful not to shift the seals. Seals that have been shifted out of place or actually pulled out cause leaks.

1. In the back, close the red locking levers by turning to the inside as far as the stop located behind the trim will allow. Flip the cover panels back into place
2. To lock the hardtop in the front, keep pressing on the front locking levers until you hear them engage
3. Check the rubber weather-stripping between the windshield frame and the top on both the left and right sides. If it is folded or bent out of place you should smooth it back into position by hand to ensure secure and reliable sealing.

Removal

Follow the same procedure as when installing, just reverse the steps.

Tire inflation pressure

Tire condition

Information for your safety

The factory-approved tires are matched to your vehicle and have been selected to provide optimum safety and driving comfort when used properly.

It is not merely the tire's service life, but also driving comfort and – above all else – driving safety that depend on the condition of the tires and the maintenance of the specified tire inflation pressure.

Incorrect tire inflation pressure is a frequent cause of tire damage.

Tire pressure also has a major effect on your BMW's handling response. Be sure to check the tire inflation pressure, including the space-saver spare tire or the spare tire, on a regular basis, at least twice a month and before every extended journey, refer to page 25. Otherwise, incorrect tire pressure can lead to poor handling, to tire damage and accidents.

Close-up of a car tire with visible tread pattern and a white arrow pointing to a specific area (no text or symbols)

Tire tread - tire damage

Inspect your tires frequently for tread wear, signs of damage and for foreign objects lodged in the tread. Check the tread depth.

Tread depth should not be allowed to go below 1/8 in / 3 mm, even though the legally specified minimum tread depth is 1/16 in / 1.6 mm.

Below 1/8 in / 3 mm tread depth, there is a great risk of hydroplaning, even at relatively moderate speeds and with only small amounts of water on the road. Tread wear indicators in the tread-groove base – see arrow – are distributed around the wheel circumference and are labeled on the tire side-

wall with TWI - Tread Wear Indicator. At a tread depth of 1/16 in / 1.6 mm, the indicators signal that the legally permissible wear limit has been reached.

Do not drive on a deflated - flat - tire. A flat tire greatly impairs

steering and braking response, and can lead to complete loss of control over the vehicle. Avoid overloading the vehicle so that the permitted load on the tires is not exceeded. Overloading can lead to overheating and internal tire damage.

The ultimate result can assume the form of a sudden air loss.

Unusual vibrations encountered during normal vehicle operation can indicate a flat tire or some other vehicle malfunction. This type of problem can be caused by contact with curbs, etc. This is also true for irregularities in the vehicle's handling characteristics, such as a pronounced tendency to pull to the left or right. Should this occur, respond by immediately reducing your speed. Pro-

Tire condition

ceed carefully to the nearest BMW center or professional tire center, or have the vehicle towed in to have it, its wheels or its tires inspected. Tire damage up to and including sudden and complete air loss can endanger the lives of both the vehicle occupants and other road users.

Tire replacement

To maintain good handling and vehicle response, use only tires of a single tread configuration from a single manufacturer.

DOT quality grades

Tread wear

Traction AA A B C

Temperature A B C

All passenger car tires must conform to Federal Safety Requires in addition to these grades.

Tread wear

The tread wear grade is a comparative rating based on the wear rate of the tire when tested under controlled conditions on a specified government test course.

For example, a tire graded 150 would wear one and one-half - 1 12 - times as well on the government course as a tire graded 100. The relative performance of tires depends upon the actual conditions of their use, however, and may depart significantly from the norm due to variations in driving habits, service practices and differences in road characteristics and climate.

Traction

The traction grades, from highest to lowest, are AA, A, B and C.

Those grades represent the tire's ability to stop on wet pavement as measured under controlled conditions on specified government test surfaces of asphalt and concrete. A tire marked C may have poor traction performance.

The traction grade assigned to this tire is based on straight- and braking traction tests, and does include acceleration, cornering, opplaning, or peak traction characteristics.

Temperature

The temperature grades are A – the highest – B and C, representing the tire's resistance to the generation of heat and its ability to dissipate heat when tested under controlled conditions on a specified indoor laboratory test wheel.

Sustained high temperature can cause the material of the tire to degenerate and reduce tire life, and excessive temperature can lead to sudden tire failure. The grade C corresponds to a level of performance which all passenger car

Tire replacement

tires must meet under the Federal Motor Vehicle Safety Standard No. 109. Grades B and A represent higher levels of performance on the laboratory test wheel than the minimum required by law.

The temperature grade for this tire is established for a tire that is properly inflated and not overloaded. Excessive speed, underinflation, or excessive loading, either separately or in combination, can cause heat buildup and possible tire failure.

Uniform Tire Quality Grading

Quality grades can be found where applicable on the tire sidewall between tread shoulder and maximum section width. For example:

Tread wear 200

Traction AA

Temperature A

BMW advises against using retreaded tires, since driving safety may be impaired. This is due to the possible variations in casing structures and, in some cases, to their extreme age, which can lead to a decrease in their durability.

Tire age

The date on which the tire was manufactured is indicated by the code on the sidewall:

DOT... 3502 indicates that the tire was manufactured in week 35 of the year 2002.

BMW recommends the replacement of all tires – including the spare tire* – when the tires are no more than 6 years old, even if a tire life of 10 years is possible.

Run Flat tires\*

Run Flat tires consist of self-supporting tires and special rims. The tire reinforcement ensures that the tire retains some residual safety in the event of pressure drop and driving remains possible to a restricted degree. The vehicle is equipped with a Tire Pressure Monitor (TPM) or Flat Tire Monitor, which indicate a flat tire.

For additional information on Tire Pressure Monitor (TPM) or Flat Tire Monitor refer to pages 92, 93.

Run Flat tires are only possible in conjunction with the Tire Pressure Monitor (TPM) or Flat Tire Monitor.

Wheel and tire combinations

The right choice

BMW recommends using only wheels and tires that have been approved by BMW for your particular vehicle model, as otherwise body contact and serious accidents can result despite the use of the same nominal size, e.g. due to manufacturing tolerances. BMW cannot evaluate all tires and wheels on the market, and is thus unable to guarantee that the vehicle will continue to perform safely if unapproved tires and/or wheels are mounted.

For each tire size, BMW has assessed the safe performance of specific tire brands and approved them for use. Consult any BMW center for details. Comply with any local/national regulations, for example by recording the tire type in the vehicle documents.

The correct wheel and tire combination affects various systems that would otherwise be impaired, for example ABS, ASC+T/DSC and ADB/DBC.

For this reason, use only tires of the same manufacture and tread configuration. In the event of a flat tire, for example, remount the approved wheel and tire combination as soon as possible.

Storage

Store tires in a cool, dry place, protecting them against light whenever possible. Protect the tires against contact with oil, grease and fuel.

Winter tires

Choosing the right tire

BMW recommends winter tires – M+S tires – for operation under inclement winter driving conditions. While all-season tires – M+S designation – provide better winter traction than the corresponding summer tires, they generally do not achieve the performance of winter tires.

In the interest of safe tracking and steering response, install winter tires made by the same manufacturer and with the same tread configuration on all four wheels.

Never exceed the maximum speed for which the winter tires are rated.

Unprofessional attempts by laymen to service tires can lead to damage and accidents.

Have this work performed by trained professionals only. Any BMW center has the required technical knowledge and the proper equipment and will be happy to assist you.

Winter tires

Tire condition, tire pressure

245/40 R 17

At tread depths below approx. 3/16 in/4 mm, winter tires display a perceptible decrease in their ability to cope with winter driving conditions, and should be replaced in the interest of safety.

255/35 R 18

Comply with the specified tire inflation pressures – and be sure to have the wheel and tire assembly balanced every time you change a tire or wheel.

Snow chains\*

Only certain snow chains have been tested by BMW and determined and approved as roadworthy. Consult any BMW center for details. BMW recommends using only these approved fine-link snow chains. Use them in pairs on either summer or winter tires, but only on both rear wheels.

Comply with all manufacturer's safety precautions when mounting the chains. Do not exceed a speed of 30 mph / 50 km/h when using snow chains.

You cannot mount snow chains with the following tires:

225/50 R 16

225/45 R 17

225/40 R 18

Hood

Close-up of a curved mechanical component with a black arrow pointing to a section, no visible text or symbols.

To release

Pull the lever located under the left-hand side of the instrument panel.

Do not attempt to service your vehicle if you do not have the required technical background. Failure to work in an informed, professional manner when servicing components and materials constitutes a safety hazard for vehicle occupants and other road users. If you are not familiar with the guidelines, please have the operations performed at your BMW center.

Close-up of a car grille and dashboard with BMW logo (no visible text or symbols)

To open

Pull the release handle and open the hood.

Front view of a car's head with a downward arrow pointing to the grille (no visible text or symbols)

To close

Allow the hood to fall from a height of about 1 ft/30 cm so that it audibly engages.

To avoid injuries, be sure that the travel path of the hood is clear when it is closed, following the same safety precautions used in all closing procedures.

If you notice while driving that the hood is not completely closed, stop immediately and close it securely.

Engine compartment essentials

Diagram of a car interior with numbered parts for identification

Online Edition for Part-No. 01 41 0 156 806 - © 09/02 BMW AG

Engine compartment essentials

1 Brake fluid reservoir 139
2 Engine oil dipstick 136
3 Coolant expansion tank 138
4 Reservoir for the headlamp and wind-shield washer system 136
5 Engine oil filler neck 137
6 Auxiliary terminal for jump-starting 157

Washer fluid

Engine oil

Close-up of a car dashboard with a circular emblem and upward arrow, no visible text or symbols

Medical illustration showing a needle inserted into a car's seat with an inset image highlighting the needle tip and magnified view.

The oil volume between the two marks on the dipstick corresponds to approx. 1.1 US quarts/1 liter. Do not fill beyond the upper mark on the dipstick. Excess oil will damage the engine.

Headlamp\* and windshield washer system

Approximate capacity is 5.6 US quarts/5.3 liters.

Fill with water and - if required - with a washer antifreeze additive according to manufacturer's recommendations.

We recommend that you mix the washer fluid before adding it to

the reservoir.

Antifreeze agents for the washer fluid are highly flammable. For this

reason, keep them away from sources of flame and store them only in original containers, inaccessible to children. Comply with the instructions on the containers.

Checking the oil level

1. Park the vehicle on a level surface
2. Switch the engine off after it has reached normal operating temperature
3. After approx. 5 minutes, pull the dipstick out and wipe it off with a clean lint-free cloth, paper towel, or similar material
4. Carefully push the dipstick all the way into the guide tube and pull it out again
5. The oil level should be between the two marks on the dipstick.

As with fuel economy, oil consumption is directly influenced by your driving style and vehicle operating conditions.

Engine oil

Interior view of a car dashboard with a smartwatch and scroll icon (no text or symbols)

Adding engine oil

Wait until the level has dropped to just above the lower mark before adding oil. However, you should never let the oil drop below the lower mark.

BMW engines are designed to operate without oil additives; the use of additives could lead to damage in some cases. This also applies to the manual transmission, the automatic transmission, the differential, and the power steering system.

Recommendation: have the oil changed at your BMW center.

Continuous exposure to used oil has caused cancer in laboratory testing. For this reason, any skin areas that come into contact with oil should be thoroughly washed with soap and water.

Always store oil, grease, etc., out of reach of children. Comply with all warning labels and information on lubricant containers.

Comply with the applicable environmental laws regulating the disposal of used oil.

Specified engine oils

The quality of the engine oil is extremely important for the operation and service life of an engine. Based on extensive testing, BMW has approved only certain grades of engine oil.

Use only approved BMW High Performance Synthetic Oil.

If an approved BMW High Performance Synthetic Oil should be unavailable, you may use small amounts of other synthetic oils for topping up between oil changes. Use only oils with the specification API SH or higher.

Ask your BMW center for details concerning the specific BMW High Performance Synthetic Oil or synthetic oils that have been approved.

You can also call BMW of North America toll-free at 1-800-831-1117 or visit this website: www.bmwusa.com to obtain this information.

Viscosity ratings

Viscosity is the oilflow rating as established in SAE classes.

The selection of the correct SAE class depends on the climatic conditions in the area where you drive your BMW.

Approved oils are in SAE classes 5W-40 and 5W-30.

These kinds of oil may be used for driving in all ambient temperatures.

Coolant

Do not add coolant to the cooling system when the engine is hot. If you attempt to do so, escaping coolant can cause burns.

Antifreeze and anti-corrosion agents are hazardous to health. You should always store them in their closed original containers and in a location which is out of reach of children. Antifreeze and anti-corrosion agents are inflammable. For this reason, do not spill them on hot engine parts. They could ignite and cause serious burns. Comply with the instructions on the containers.

Mechanical component with two cylindrical parts and a directional arrow (no visible text or symbols)

Comply with the applicable environmental laws regulating the dis- al of antifreeze with corrosion inhib-

Checking the coolant level and adding coolant

Check the coolant level when the engine is cold, approx. 68^ F/+20°C.

1. Open the cap for the expansion tank by turning it slightly counterclockwise to allow accumulated pressure to escape, then open
2. The coolant level is correct when the upper end of the red float rod - see arrow - is at least even with the upper edge of the filler neck, but no more than 3/4 in / 2 cm above - that is, up to the second mark on the float rod
3. If necessary, add coolant. If the coolant is low, slowly add coolant until the correct level is reached – do not overfill.

Brake fluid

MAX MIN

Indicator lamp

BRAKE

The brake warning lamp comes on when the parking brake is not engaged: the brake fluid

level is

too low, refer to page 18.

Parking brake warning lamp for Canadian models.

Adding brake fluid

For adding brake fluid or for determining and correcting the cause of brake fluid loss, consult your BMW center. Your BMW center is familiar with the specifications for factory-approved brake fluids - DOT 4.

Brake fluid loss results in extended pedal travel. Refer to the information on page 124.

Brake fluid is hygroscopic, that is, it absorbs moisture from the air over time.

In order to ensure the brake system's safety and reliability, have the brake fluid changed every two years by a BMW center. Refer also to page 83 and to the Service and Warranty Information Booklet for US models or the Warranty and Service Guide Booklet Booklet for Canadian models.

Brake fluid is toxic and damages the vehicle's paint. You should always store it in its original container and in a location which is out of reach of children. Do not spill the brake fluid and do not fill the brake fluid reservoir beyond the MAX mark. The brake fluid could ignite upon contact with hot engine parts and cause serious burns.

Comply with the applicable environmental laws regulating the disposal of brake fluid.

The BMW Maintenance System

PH OIL SERVICE INSPECTION 14950

The BMW Maintenance System has been designed as a reliable means of providing maximum driving and operating safety – and as cost-effectively for you as possible.

Please keep in mind that regular maintenance is not only necessary for the safety of your vehicle, but also plays a significant role in maintaining its resale value.

Service interval display

While conventional systems rely on milage alone to determine when service is due, the BMW Maintenance System reflects the actual conditions under which the vehicle is operated: some miles are more strenuous than others. From a maintenance point of view, 62,000 miles/100,000 km accumulated in short-distance urban driving are not the equivalent of the same distance covered at moderate cruising speeds in long-distance highway travel.

The BMW Maintenance System includes the Engine Oil Service and Inspections I and II.

This service strategy accurately reflects your own vehicle's specific needs by defining maintenance intervals according to individual operating conditions. Minimal use drivers – significantly fewer than 6,200 miles/10,000 km annually – should have the engine oil changed at least every 2 years since oil deteriorates over time, regardless of use.

Service and Warranty Information Booklet for US models/Warranty and Service Guide Booklet for Canadian models

For additional information on required maintenance intervals and procedures, please refer to the Service and Warranty Information Booklet for US models or the Warranty and Service Guide Booklet for Canadian models. As a precaution against corrosion, if your vehicle is exposed to potential damage from unimproved road surfaces we suggest that you have the body checked for damage from stone chips and gravel at the same time.

Have your BMW center perform maintenance and repair.

Be sure that all maintenance work is recorded in the Service and Warranty Information Booklet for US models, or in the Warranty and Service Guide Booklet for Canadian models. These entries confirm that your vehicle has benefitted from regular maintenance, and are also required for warranty claims.

Care

You can find everything you need to know on this topic by consulting the separate Caring for your vehicle brochure.

California Proposition 65 warning

California laws require us to state the following warning:

Engine exhaust, some of its constituents, and certain vehicle components contain or emit chemicals known to the State of California to cause cancer and birth defects and reproductive harm. In addition, certain fluids contained in vehicles and certain products of component wear contain or emit chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Battery posts, terminals and related accessories contain lead and lead compounds. Wash your hands after handling.

Used engine oil contains chemicals that have caused cancer in laboratory animals. Always protect your skin by washing thoroughly with soap and water.

OBD interface socket

141

Interior view of a car dashboard with control panel and infotainment device (no visible text or symbols)

The interface socket for onboard diagnostics is located on the left-hand side of the driver's side, behind a specially marked cover located beneath the instrument panel. The cover has the letters OBD on it.

This interface makes it possible to access data on emissions-related components using special equipment.

An illuminated indicator informs you of the need for service, not that you need to stop the vehicle. However, the systems should be checked by your BMW center at the next opportunity.

If the indicator blinks or flashes, this indicates a high level of engine misfire. Reduce speed and contact the nearest BMW center immediately. Severe

142 OBD interface socket

engine misfiring for even a short period of time can seriously damage emission control system components, especially the catalytic converter.

SERVICE ENGINE SOON warning lamp for Canadian models.

If the fuel filler cap is not on tight enough, the OBD system can

detect leaking vapor and the indicator will light up. If the fuel filler cap is then tightened, the indicator will usually go out after a short period of time.

Medical medical device components including a stethoscope and syringe, shown in transparent lenses (no text or symbols visible)

Online Edition for Part-No. 01 41 0 156 806 - © 09/02 BMW AG

Two different types of pliers shown against a plain background (no text or symbols visible)

Overview

Controls and features

Operation, maintenance

Owner service procedures

Technical data

Index

Onboard tool kit

Windshield wiper blades

Close-up of a medical scanner with open lid and internal tools (no visible text or symbols)

The onboard tool kit is located in the luggage compartment lid.

Loosen the wingnut to open.

Close-up of a curved mechanical component with a triangular feature and an arrow indicating direction (no text or symbols)

1. Switch off the engine
2. Fold the wiper arm completely out from the windshield
3. Position the wiper blade at an angle and pull the release spring – see arrow
4. Fold the wiper blade down and unhook it toward the windshield
5. Pull the wiper blade past the wiper arm toward the top
6. Insert a new wiper blade and apply pressure until you hear it engage.

Lamps and bulbs

The lamps and bulbs make essential contributions to the safety of your vehicle. Therefore, comply fully with the following instructions during bulb replacement. If you are not familiar with any of the procedures, consult your BMW center.

Do not touch the glass portion of a new bulb with your bare hands since even small amounts of impurities burn in to the surface and reduce the service life of the bulb. Use a clean cloth, paper napkin, or a similar material, or hold the bulb by its metallic base.

A replacement bulb set is available from your BMW center.

Before working on the electrical system, switch off the electrical accessory you are working on or disconnect the cable from the negative terminal of the battery. Failure to observe this precaution could result in short circuits.

To prevent injuries and damage, comply with any instructions provided by the bulb manufacturer.

Technical diagram of a vehicle engine compartment with numbered components and directional arrows indicating flow or movement.

Low beams and high beams

H7 bulb, 55 watts

Engine compartment, left side

1 Low beams

2 High beams

The H7 bulb is pressurized. Therefore, wear safety glasses and protective gloves. Failure to comply with this precaution could lead to injury if the bulb is damaged.

1. Turn the two release catches at the front to the left - see arrow - to remove the bulb holder

2. Remove and replace the bulb.

When cleaning the headlamps, please follow the instructions in caring for your vehicle brochure.

Xenon lamps\*

The service life of these bulbs is very long and the probability of a failure is very low, provided that they are not switched on and off an unusual number of times. If one of these bulbs should nevertheless fail, it is possible to continue driving with great caution using the fog lamps, provided local traffic laws do not prohibit this.

Because of the extremely high voltages involved, any work on the n lighting system, including bulb- ging, should be carried out by nically qualified personnel only. Otherwise, there is a risk of fatal injury.

Lamps and bulbs

Interior view of a vehicle showing engine compartment with a directional arrow pointing to a component (no text or symbols visible)

Close-up of a car's dashboard and steering wheel (no visible text or symbols)

Close-up of a car interior showing a curved mechanical component and a dashed line indicating alignment or force (no text or symbols)

Parking lamps

5 watt bulb

Engine compartment, left side:

1. Turn the bulb holder to the left - see arrow - and remove
2. Remove and replace the bulb.

Front turn signal indicators

21 watt bulb

1. Extend a long screwdriver through the upper opening and loosen the internal clamp
2. Extract the lamp by removing it from the front

3. Applying light pressure, turn the bulb to the left. Remove and replace the bulb

4. Align the lamp assembly's two ridges and the centering pin with the guides on the vehicle when installing

5. Slide in the lamp, applying gentle pressure until you hear it snap into place.

Lamps and bulbs

Close-up of a car's side panel with a black clip and directional arrow (no text or symbols)

1 2 4 3

MYOBCMA

Close-up of a car interior showing a door panel and dashboard with an arrow pointing to a component (no visible text or symbols)

Side turn signal indicators

5 watt bulb

1. Use finger pressure against the rear end of the lamp – see arrow – to press it forward for removal
2. Apply gentle pressure to the bulb while turning it to the left to remove.

Tail lamps

1 Turn signal indicator
2 Backup lamp
3 Tail lamp
4 Tail lamp/brake lamp

Tail lamps 4: 21/4 watt bulb

Remaining bulbs: 21 watts

The illustration shows the right-hand side of the luggage compartment.

Bulbs in the fender:

All of the bulbs are integrated in a central bulb holder.

1. Unscrew the bulb holder – see arrow in close-up view – to remove
2. Unplug the power supply plug. Set the bulb holder aside – on the luggage compartment floor, for example
3. Applying light pressure, turn the bulb to the left. Remove and exchange the bulb
4. Plug in the power supply fitting
5. Screw the bulb holder back on - see arrow in close-up view.

Lamps and bulbs

Interior view of a vehicle door with a black-and-white icon on the lid (no text or symbols visible)

Bulbs in the luggage compartment lid: 1. Using a screwdriver, loosen the clip

Diagram of a car door with directional arrows indicating traffic flow (no text or symbols)

1. Swing trim panel down – see arrow 1. Unlock bulb holder – see arrow 2 – and remove
2. Applying light pressure, turn the bulb to the left. Remove and exchange the bulb
3. Press the bulb holder into place continuing until you hear it engage
4. Reinstall the trim panel with the clip.

Close-up of a white electronic device with a lid and base, no visible text or symbols

Center high-mount brake lamp

LED strip on the rear window.

Please contact your BMW center in case of a malfunction.

Lamps and bulbs

Changing a wheel

Close-up of a car rearview door with a curved arrow indicating rotation or change (no text or symbols visible)

Safety precautions in the event of a flat tire or wheel change: Stop the vehicle as far as possible from passing traffic. Park on a firm, flat, surface. Switch on the hazard warning flashers. Turn the steering wheel to the straight-ahead position and engage the

License plate lamps

5 watt bulb

1. Place a screwdriver in the slot and press toward the left – see arrow – to release the lens
2. Replace the bulb.

Safety precautions in the event of a flat tire or wheel change: Stop the vehicle as far as possible from passing traffic. Park on a firm, flat, surface. Switch on the hazard warning flashers. Turn the steering wheel to the straight-ahead position and engage the

steering lock. Shift into 1st or Reverse, or if you have an automatic transmission position the selector lever in Park, and engage the parking brake.

All passengers should be outside the vehicle and well away from your immediate working area – behind a guardrail, for example.

If a warning triangle or portable hazard warning lamp is available, set it up on the roadside at an appropriate distance from the rear of the vehicle. Comply with all safety guidelines and regulations.

Change the wheel only on a level, firm surface which is not slippery. Avoid jacking the vehicle on a soft or slippery support surface – snow, ice, loose gravel, etc. – as either the vehicle or the jack could slip sideways.

Position the jack on a firm support surface.

Do not place wooden blocks or similar objects under the jack. They could prevent the jack from extending to its full height and reduce its support capacity. Do not lie under the vehicle or start the engine when the vehicle is supported by the jack. There is otherwise a risk of fatal injury.

Changing a wheel

Your BMW is equipped with a space-saver spare tire designed for temporary use in maintaining the vehicle's mobility in an emergency.

To remove the space-saver spare tire, lift the floor panel in the lug-compartment completely out, to page 37.

1 2

Close-up of a mechanical device with a black knob inserted, showing internal components and a white arrow pointing to a component (no text or symbols visible)

What you will need

In order to avoid rattling noises later, note the position of the tools when you remove them and return them to their original position when you are through using them.

▷ Jack 1

Raise the floor panel in the luggage compartment, refer to page 37, and undo the jack – see arrow.

When you have completed work, fold the handle back and insert it in its holder

▷ Chock 2

Located behind the jack on the wall in the luggage compartment. Loosen the wingnut to remove it

Space-saver spare tire – next to jack Loosen the wing nut – see arrow – by hand, remove the storage shelf and take the wheel out
Lug wrench – in the onboard tool kit on the underside of the luggage compartment lid, refer to page 146.

Procedure

1. Read and comply with the safety precautions provided on the previous page
2. Secure the vehicle to prevent it from rolling: Place the chock against the rear surface of the front tire on the side opposite the side being raised. If the vehicle is parked on a downward slope, place the chock securely in front of the tire. If the

Changing a wheel

wheel must be changed on a surface with a more severe slope, take additional precautions to secure the vehicle from rolling

1. Wheels with full wheel covers*: reach into the ventilation openings and pull the cover off
2. Loosen the lug bolts by rotating half a turn

Side view of a car with two arrows pointing to the front side (no text or symbols visible)

Close-up of a car's front wheel assembly with a close-up inset showing a component detail (no text or symbols visible)

单位：元

1. Position the jack at the jacking point – see arrows – closest to the flat tire with the jack base vertically below the jacking point and the entire surface of the head of the jack moves into the square recess of the jacking point when the jack is cranked – refer to the detail in the next illustration
2. Continue raising the vehicle up until the wheel you are changing is raised from the ground

3. Unscrew the lug bolts and remove the wheel

4. Remove accumulations of mud and dirt from the mounting surfaces of the wheel and hub. Clean the lug bolts

5. Position the new wheel or the space saver spare tire on the hub and screw at least two lug bolts finger-tight into opposite bolt holes
6. Screw in the remaining lug bolts. Screw in all the bolts in a diagonal pattern
7. Lower the jack and remove it from beneath the vehicle
8. Tighten the lug bolts securely in a diagonal pattern

Changing a wheel

Circular mechanical component with radial slots and a central hub, no visible text or symbols

1. Wheels with full wheel covers*: place the wheel cover with the valve opening - see arrow - over the valve. Use both hands to press the cover securely onto the rim
2. Check and correct the tire inflation pressure at the earliest opportunity. Vehicles with Tire Pressure Monitor (TPM)/Flat Tire Monitor: After mounting the spare tire or correcting the tire inflation pressure, reinitialize the system, refer to page 92.

Protect valve stems and valves from dirt using screw-on valve stem caps. Dirty valve stems frequently lead to slow pressure loss.

Do not place the full wheel cover on the space-saver spare tire, since this could damage the cover.

The vehicle jack is designed for changing wheels only. Do not attempt to raise another vehicle model with it or to raise any other type of load. To do so could cause accidents and personal injury.

To ensure continued safety, have the tightness of the torque bolts checked with a calibrated lug wrench – torque specification: 88.5 lb ft/120 Nm – at the earliest opportunity.

When storing a wheel in the spare tire recess, take care to avoid bending the threaded rod.

If light-alloy wheels other than original BMW light-alloy wheels have been mounted, it may be necessary to use different lug bolts for those wheels.

Replace the defective tire as soon as possible and have the new wheel/tire balanced.

Driving with the space-saver spare tire

Drive cautiously. Do not exceed a speed of 50 mph / 80 km/h.

Be aware that vehicle handling may be altered. Anticipate, e.g., reduced tracking during braking, longer braking distances and changed steering characteristics when approaching limit conditions. These handling characteristics will be even more pronounced if winter tires are mounted.

Only one space-saver spare tire may be mounted at one time.

Mount a wheel and tire of the original size at the earliest possible opportunity.

Run Flat tires\*

Close-up of a car tire with visible tread pattern and a circular logo labeled 'RSC' (no text or symbols on the tire itself)

单位：元

Run Flat tires are labeled on the sidewall with a circular symbol containing the letters RSC. Run Flat tires consist of self-supporting tires and special rims. The tire reinforcement ensures that the tire retains some residual safety in the event of pressure drop and driving remains possible to a restricted degree. The vehicle is equipped with a Tire Pressure Monitor (TPM) or Flat Tire Monitor, which indicate a flat tire.

Because the sides of Run Flat tires are reinforced, a drop in infla-

tion pressure usually cannot be detected from the outside.

Flat tire

If there is a tire failure, the red warning lamp symbol lights up. This visual alert is accompanied by an acoustic warning signal.

Additional information on the Tire Pressure Monitor (TPM) or Flat Tire Monitor is found beginning on page 92.

Reduce vehicle speed carefully to under 50 mph / 80 km/h, avoiding hard brake applications and steering maneuvers.

If it cannot be determined immediately from the outside which wheel is defective, check the tire inflation pressure at all four wheels.

Have Run Flat tires replaced by your BMW center. In the interest of safety, Run Flat tires should not be repaired. Your BMW center has the information needed for working with Run Flat tires and is equipped with the necessary special tools.

If appropriate, please consult your BMW center to reequip your vehicle from summer to winter tires – or vice versa.

Driving with a damaged tire

Run Flat tires allow you to continue driving to a restricted degree at a maximum speed of 50 mph / 80 km/h depending on the cargo load and the extent of tire damage. You can determine the distance you may continue driving on the basis of the following values:

▷ Tire inflation pressure of 0 psi/0 kilopascal (kPa): approx. 100 miles/150 km
▷ Tire inflation pressure of approx. 7-15 psi/50-100 kPa: approx. 300 miles/500 km
▷ Tire inflation pressure greater than 15 psi/100 kPa: approx. 600 miles/1,000 km.

Drive cautiously. Do not exceed a speed of 50 mph / 80 km/h. Be aware that vehicle handling will be altered when there is a loss in inflation pressure. Anticipate, e.g., reduced tracking during braking, longer braking distances and changed steering characteristics.

Battery

Maintenance

The battery is maintenance-free, that is, the original electrolyte will normally last for the service life of the battery under moderate climatic conditions.

Please consult your BMW center whenever you have any questions learning the battery. The battery is completely maintenance-free; the following section is provided for your information only.

Never disconnect the battery when the engine is running; the voltage surge would seriously engage the vehicle's onboard electric systems.

Charging the battery

When charging the battery in the vehicle, leave the engine off at all times. Connect the charge cables to the terminals in the engine compartment. For terminal locations, refer to Jump-starting on page 157.

Return used batteries to a recycling point or your BMW center. Maintain the battery in an upright position or transport and storage. Secure battery against tilting during trans-

Fuses

Close-up of a mechanical component with internal channels and mounting bracket (no visible text or symbols)

You will find the fuses and information on their respective allocation in the glove compartment behind a panel with two snap clips.

Do not attempt to repair a blown fuse or replace it with a fuse having a different color or amperage rating. To do this could cause a fire in the vehicle resulting from a circuit overload.

Jump-starting

When your battery is discharged you can use two jumper cables to start your vehicle with power from the battery in a second vehicle. You can also use the same method to help start another vehicle. Only use jumper cables with fully insulated handles on the terminal clamps.

Do not touch high-voltage wiring and cables on a running engine.

Contact with components carrying high voltage can be harmful or fatal. Carefully observe the following instructions to avoid personal injury and/or damage to one or both vehicles.

1. The battery in the support vehicle must also be rated at 12 volts. This information is provided on the battery label
2. Stop the engine of the support vehicle and switch off all electrical components in both vehicles – except for the hazard warning flashers of the support vehicle
3. Make absolutely certain that there is no contact between the bodywork of the two vehicles – short circuit hazard

Diagram of a vehicle interior with road markings and a sensor device (no readable text or symbols)

1. The auxiliary jump-starting terminal located in your BMW's engine compartment acts as the positive battery terminal. The cover of this auxiliary terminal is marked with a + sign. Remove by pulling the tab – see arrow 1. Start by connecting the jumper cable from the positive terminal of the discharged battery to the positive terminal of the support battery
2. Then connect the negative terminals with the other jumper cable. First connect one end to the negative battery terminal or to a suitable ground

on the support vehicle. Then connect the other end to the negative battery terminal or a suitable ground on the vehicle being started.

Your BMW is equipped with a special nut for this purpose – see arrow 2

Always adhere to this sequence when connecting jumper cables;

failure to observe this procedure can lead to sparks at the battery terminals and pose an injury hazard.

1. Start the engine of the support vehicle and let it run for several minutes at a slightly elevated engine idle speed
2. Start the engine of the other vehicle as usual. If the first start attempt is not successful, wait a few minutes before another attempt in order to allow the discharged battery to recharge
3. Before disconnecting the jumper cables, let the engines run for a few minutes
4. Then disconnect the jumper cables in reverse sequence.

Depending on the cause of the fault, have the battery checked and recharged by your BMW center.

Jump-starting

Do not use spray starter fluids to start the engine.

Towing the vehicle

Close-up of a car's front grille with a key inserted, showing no text or symbols

Close-up of a white car door handle with a small black clip attached (no visible text or symbols)

Towing eyelet

The screw-in towing eyelet is stored in the onboard tool kit; be sure that it remains in the vehicle at all times. It is designed for installation in the tow sockets located at the front and rear of the vehicle, and is intended for towing on paved road surfaces only. The towing eyelet should not be used to pull a vehicle out of deep snow, mud, sand, etc. Always observe all applicable towing laws and regulations.

Rear:

Press out the cover panel with a screw-driver inserted in the recess at the top.

Make sure the towing eyelet is firmly screwed all the way in, otherwise the thread could be damaged. Never attach tie-down hooks, chains, straps, or tow hooks to tie rods, control arms, or any other part of the vehicle suspension, as severe damage to these components will occur, possibly leading to accidents.

Access to tow sockets

Front:

Press out the cover panel with a screw-driver inserted in the recess at the top.

Towing the vehicle

Three line-drawn illustrations of vintage trucks with no visible text or symbols

Towing with a commercial tow truck

Do not tow with sling-type equipment
▷ Use wheel-lift or flatbed equipment
▷ Please comply with applicable state towing laws.

Never allow passengers to ride in a towed vehicle for any reason.

Never attach tie-down hooks, chains, straps, or tow hooks to tie rods, control arms, or any other part of the vehicle suspension, as severe damage to these components will occur, possibly leading to accidents.

Side profile line drawing of a convertible car (no text or symbols)

Front view line drawing of a car (no text or symbols)

Front view line drawing of a BMW car (no text or symbols present)

Overview

Controls and features

Operation, maintenance

Owner service procedures

Technical data

Index

Engine data

		BMW 325Ci BMW 330Ci
Displacement	cu in/cm3 152.2/2,494		181.8/2,979
Number of cylinders		6	6
Maximum power output	hp/kW	184/135	225/165
at engine speed	rpm	6,000	5,900
Maximum torque	lb ft/Nm	175/237	214/290
at engine speed	rpm	3,500	3,500
Compression ratio ε 10.5 10.2
Stroke	in/mm	2.95/75	3.53/89.6
Bore	in/mm	3.31/84	3.31/84
Fuel-injection system Digital electronic engine-management system (DME)

Dimensions

Minimum turning circle dia.: 34.4 feet/10.5 m.

Weights

		BMW 325Ci BMW 330Ci
Curb weight
with manual transmission	lbs/kg	3,560/1,615	3,616/1,640
with automatic transmission	lbs/kg	3,627/1,645	3,704/1,675
Approved gross vehicle weight
with manual transmission	lbs/kg	4,442/2,015	4,497/2,040
with automatic transmission	lbs/kg	4,509/2,045	4,575/2,075
Approved front axle loads lbs/kg 2,083/945 2,094/950
Approved rear axle loads lbs/kg 2,546/1,155 2,579/1,170
Approved maximum roof load for the hardtop lbs/kg 165/75 165/75
Luggage compartment capacity	cu ft/l	9.2/260	9.2/260
with the convertible top compartment raised	cu ft/l	10.6/300	10.6/300

Never exceed either the approved axle loads or the approved gross vehicle weight.

Capacities

			Notes
Fuel tank	gal./liters	approx. 16.6/63	Fuel quality, refer to page 25
Reserve	gal./liters	approx. 2.1/8
Windshield/Headlamp washer reservoir quarts/liters approx. 5.6/5.3			For details, refer to page 136
Cooling system including heating circuit quarts/liters approx. 8.9/8.4 For details, refer to page 138
Engine oil and filter change quarts/liters approx. 6.9/6.5 BMW High Performance			Synthetic Oil Specifications, refer to page 136
Manual and automatic transmission and differential – Lifetime lubricant, no oil change required

166 A B C

RQR Online Edition for Part-No. 01 41 0 156 806 - © 09/02

Online Edition for Part-No. 01 41 0 156 806 - © 09/02 BMW AG

Abstract geometric shapes in translucent blue and white, no text or symbols present

Overview

Controls and features

Operation, maintenance

Owner service procedures

Technical data

Index

Everything from A to Z

A

ABS Antilock Brake System 123 indicator lamp 19

Accessories 5

Activated-charcoal filter 108

ADB Automatic Differential Braking 88

Adding brake fluid 134, 139

Air conditioning 100, 102, 106

Air distribution 102 automatic 106 individual 106

Air nozzles 100, 104

Air outlets 100, 104

Air pressure 127 check 25

Air supply 102, 106

Air supply/Blower recirculated-air mode 107

Airbags 61 warning lamp 18

Alarm system 38 avoiding false alarm 39 indicator lamp 39 interior protection 38 tilt alarm sensor 38

Antifreeze 138

Antilock Brake System (ABS) 123 indicator lamp 19

Anti-theft system 30, 38

Armrest 112

ASC+T Automatic Stability Control plus Traction 88 indicator lamp 19

Ashtray front 113 rear 114

AUC Automatic recircu- lated-air control 107

Automatic car wash, refer to the Caring for your vehicle brochure

Automatic climate control 104

Automatic cruise control 79

Automatic curb monitor 58

Automatic Differential Braking (ADB) 88

Automatic dimming, interior rearview mirror 60

Automatic headlamp control 96

Automatic recirculated-air control (AUC) 107

Automatic Stability Control plus Traction (ASC+T) 88 indicator lamp 19

Automatic transmission with Steptronic 74 indicator lamps 19

Auxiliary terminal for jump-starting 134, 157

Average fuel consumption 86

Average speed 86

Avoiding unintentional alarms 39

Axle loads 164

B

Backrest unlock 55

Backup lamps 73 replacing bulb 149

Battery 156 charge 156 charge current 18 charge indicator lamp 18

Belts 56

Beverage holder 113 Blower 100, 102, 106

BMW High Performance Synthetic Oils 137

BMW Maintenance System 140

BMW Universal Transmitter 110

Bore 162

Bottle holder, see Beverage holder 113

Brake warning lamp 18

Brake fluid level 124 warning lamp 18, 139

Brake hydraulics warning lamp 18

Brake lamps replacing bulb 149

Brake pads 124 indicator lamp 19

Brakes driving notes 123 malfunctions 124 parking brake 72

Break-in procedures 122

Bulb, replacing 147

C

California Proposition 65 warning 141

Can holder, see Beverage holder 113

Capacities 165

Car care, refer to Caring for your vehicle brochure

Car radio refer to the Owner's Manual for Radio

Car telephone refer to the separate Owner's Manual

Car vacuum cleaner, connecting 114

Everything from A to Z

Car wash, refer to the Caring for your vehicle brochure

Cargo loading 116

Cassette player operation, refer to the Owner's Manual for Radio

CBC Cornering Brake Control 123 indicator lamp 19

CD player operation, refer to the Owner's Manual for Radio

Cellular phone 113

Center armrest 112

Center high-mount brake lamp 150

Central locking system 30 button 34

Changing a wheel 151

Check Control 83

Check Filler Cap indicator lamp 19

Checking coolant level 138

Checking oil level 136

Child seats 63 integrated 61

Child-restraint mounting system (LATCH) 66

Child-restraint system 63

Cigarette lighter 113

Clean headlamps 79

Cleaning position, convertible top 45, 50

Cleaning windshield 79

Clock 84 setting 84

Cockpit 14

Code, refer to the Owner's Manual for Radio

Coin box 113

Compartments 112

Compression ratio 162

Computer 85

Condensation removing from windows 103, 106

Consumption display 82 fuel 86

Convertible top cleaning position 45, 50 closing in an emergency 48 electrical fault 48

Convertible top activation fully automatic top 46 manual top 41

Convertible top compartment panel, folding down 37

Coolant 134, 138, 165 indicator lamp 19

Cooling system 165

Copyright 4

Cornering Brake Control (CBC) 123 indicator lamp 19

Cruise control 79 indicator lamp 20

Cup holder, see Beverage holder 113

Curb weight 164

Cushion height 163

D

Data

dimensions 163 engine 162

technical 162 weights 164

Daytime driving lamps 96

DBC Dynamic Brake Control 123 warning lamp 19

Defrost position 103, 106

Defrosting rear window 102, 107

Defrosting windows 103, 106

Digital clock 84

Dimensions 163

Dipstick, engine oil 136

Disc brakes 124

Displacement 162

Display lighting 97

Displays 16

Distance warning PDC 87

Door key 30

Door lock buttons 34

Doors

emergency operation 33 manual operation 33 remote control 31 unlocking and locking 31, 33

Driving notes braking 123

disc brakes 124

general information 123 hydroplaning 123

DSC Dynamic Stability Control 90

indicator lamp 19

DTC Dynamic Traction Control 90

Dynamic Brake Control (DBC) 123 warning lamps 19

Dynamic Stability Control (DSC) 90 indicator lamp 19

Dynamic Traction Control (DTC) 90

E

Electric power windows 40

Everything from A to Z

Electrical accessories, failure 156

Electrical malfunction convertible top 48 doors 33 fuel filler door 24

Emergency operation closing the convertible top 48 doors 33 fuel filler door 24

Emergency release luggage compartment lid 36

Emissions, minimum, refer to Energy control 81

Energy control 81

Engine displacement 162 power output 162 starting 70 switching off 72 torque 162

Engine compartment 134

Engine coolant 165 adding 138 temperature gauge 82

Engine data 162

Engine electronics warning lamp 19

Engine oil adding 134, 136 capacity 165 consumption 136 quality 137

viscosity 137 Engine oil level check 134 indicator lamp 19 warning lamp 18

Engine oil pressure warning lamp 18

Engine oil types 137

Engine speed 162

Entering the rear rear entry aid 55

Environmentally-friendly driving, refer to Energy control 81

Exterior mirrors 59

Eyelet, towing 158

F

False alarm, avoiding 39

Fault displays 83

First-aid kit 23

Flashlight 109

Flat tire 127, 151

Flat Tire Monitor 93 indicator lamp 18, 19

Fog lamps 98

Follow me home lamps 96

Footbrake 124 see Driving notes 123

Front fog lamps 98 indicator lamp 20

Front seat adjustment 52

Frost protection radiator 138

Fuel 25

Fuel consumption 86 display 82

Fuel economy, refer to Energy control 81

Fuel filler door 24 release following an elec- trical malfunction 24

Fuel gauge 82

Fuel specifications 25

Fuel tank capacity 165 display 82 gauge 82

Fuel-injection system 162

Fully automatic convertible top 46 activation 46 opening, closing 47

Fuses 156 replacing 156

G

Garage-door opener 110

Gasoline 25 gauge 82

Glove compartment 109

Grills 100, 104

Gross vehicle weight 164

H

Hands-free system 113

Hardtop 125

Hazard warning flashers 14

Hazard warning triangle 23

Head restraints 54

Headlamp flasher 97

Headlamp washer reservoir 134

Headlamp washer system 136, 165

Headlamps 96 automatic control 96

Heated mirrors 59

Heated seats 58

Heavy loads 116

High beams 77, 97 indicator lamp 21 replacing bulb 147

Holder for beverages 113

Hood release 132

Horn 14

Hydraulic Brake assistant, see DBC

Hydroplaning 123, 127

Everything from A to Z

|

Ice warning 85

Ignition key 30 positions 70

Ignition lock 70

Imprint 4

Indicator lamps 18

Individual settings Vehicle Memory, Key Memory 69

Inflation pressure 25, 127 monitoring 92

INSPECTION 83

Instrument cluster 16

Instrument lighting 97

Instrument panel 14, 16

Interface socket for onboard diagnostics (OBD) 141

Interior lamps 32, 98 remote control 32

Interior motion sensor 38 remote control 32 switching off 32, 39

Interior rearview mirror 60 automatic dimming feature 60

Interior temperature, adjustment 106

Interlock 70

Intermittent mode 78

J

Jack 151

Jump-starting 157

K

Key Memory 69

Keys 30

L

Labels, tires 130

Lamps

daytime driving lamps 96

fog lamps 98

interior lamps 98

panel lighting 97

parking lamps 96

reading lamps 98

replacing 147

standing lamps 97

Lashing fittings 117

LATCH child-restraint mounting system 66

Length 163

License plate lamp replacing bulb 151

Light switch 96

Lighter 113

Lighting, see Lamps

LIGHTS ON warning 96

Load-securing devices 116

Lock, steering wheel 70

Low beams 96

replacing bulb 147

Lug wrench 151

Luggage compartment 35 capacity 164

enlarge volume 37

floor panel 37

folding down convertible

top compartment panel 37

opening from the inside 35

Luggage compartment lid 35

emergency release 36

manual operation 35

remote control 32

securing separately 35

Luggage compartment lighting 35

Luggage rack 118

Lumbar support 53

M

M+S tires 130

Maintenance 83, 140

Malfunction displays 83

Manual convertible top 41 closing 44

opening 42

operation 41

Manual operation of convertible top during electrical fault 48

Manual transmission 73

Master keys 30

MC operation, refer to the Owner's Manual for Radio

MD operation, refer to the Owner's Manual for Radio

Memory 57, 69 Vehicle Memory, Key Memory 69

Microfilter 103, 108

Microphone 113

Mirror

exterior 59

interior 60

Mirror defrosting 59

Mirror memory 57

Mirrors 59

Modifications, technical 5

Multifunction switch 77

N

Navigation System, refer to the separate Owner's Manual

Neckrest 54

0

OBD interface socket 141

Odometer 81

Oil

capacity 165

quality 137

viscosity 137

Everything from A to Z

Oil additives 137

Oil change intervals, refer to the Service and Warranty Information Booklet for US models/Warranty and Service Guide Booklet for Canadian models

Oil consumption 136

Oil dipstick 136

Oil filter change 165

Oil level

checking 136

indicator lamp 19

warning lamp 18

Oil pressure

warning lamp 18

OIL SERVICE 83

Oil types 137

Onboard computer, refer to the Owner's Manual for Onboard Computer

Onboard tool kit 146

Opening and closing from the inside 34 via the door lock 33 via the remote control 31

Operating elements 14

Outlets, ventilation 104

Outside temperature display 85

P

Panic mode, trigger alarm 32

Park Distance Control (PDC) 87

Parking aid 87

Parking brake 72

Parking lamps 96 replacing bulb 148

PDC Park Distance Control 87

Pocket flashlight 109

Pollen 103, 108

Power output 162

Power seat 53

Pressure, tires 25, 92, 127 monitoring 92

R

Radiator 165

Radio, refer to the Owner's Manual for Radio

Rain sensor 78

Range 86

Reading lamps front 98 rear 98

Rear lamps 149

Rear window defroster 102, 107

Rearview mirror 59

Recirculated-air mode 102, 107

Refueling 24

Remote control 31

Remote control keys 30

Replacement key 30, 31

Reporting safety defects 6

Reserve indicator lamp 82

Restraint system 63

Reverse 73

Rims 130

Rollover protection system 67

indicator lamp 19 lowering 67

Roof load capacity 164

Roof-mounted luggage rack 118, 125

Run Flat tires 129, 155

S

Safe seating position 52

Safety belts 56 seat-integrated safety belt system (SGS) 55

Seat

rear entry aid 55

Seat adjustment 52 lumbar support 53

thigh support 53

Seat heating 58

Seat memory 57

Securing cargo 116

Securing child-restraint system 65

Securing devices 117

Selector lever, automatic transmission 74

Service and Warranty Information Booklet 140

Service Engine Soon warning lamp 19

Service interval display 83, 140

Setting

clock 84

Shiftlock 74

Side airbags 61

Side turn signal indicators replacing bulb 149

Size 163

Ski bag 115

Snow chains 131

Socket 114

Spare key 30

Spare tire 151

Speedometer 16

Standing lamps 97

Starting problems 70

Starting the engine 70

Steering wheel lock 70

Steering wheel with multi-function buttons 22

Steering wheel, adjusting 59

Everything from A to Z

Steptronic 74

Storage compartments 112

Stroke 162

Summer tires 130

Switching off the engine 72

Symbols 4

Synthetic oils 137

T

Tachometer 16, 81

Tail lamp assembly replacing bulb 149

Tail lamps 149 replacing bulb 149

Tank capacity 165

Technical data 162

Technical modifications 5

Telephone hookup 113

Telephone, refer to the separate Owner's Manual

Temperature adjustment 102, 106

Temperature display engine coolant 82 interior temperature 106 outside temperature 85

Temperature layering 103, 107

Thigh support area, adjusting 53

Third brake lamp 150

Tilt alarm sensor

remote control 32

switching off 32, 39

Time 84

Tire damage 127

Tire inflation pressure 25, 127

pressure specifications 25

Tire Pressure Monitor (TPM) 92

indicator lamp 19

warning lamp 18

Tire replacement 128

Tire tread 127

Tires

labels 130

Tools 146

Torque 162

Towing eyelet 158

Towing the vehicle 158

TPM Tire Pressure

Monitor 92

indicator lamp 19

Track 163

Transmission 73

Transporting children safely 63

Tread depth, tires 127

Tread wear indicator 127

Trip odometer 81

Trunk, see Luggage compartment 35, 164

Trunk lid, see Luggage compartment lid 35

Turn signal indicator 77

indicator lamp 20

replacing bulb 148

Turning circle 163

U

Uniform Tire Quality

Grading 129

Universal Transmitter 110

Used batteries 156

V

Vacuum cleaner, connecting 114

Vehicle

break-in procedures 122

starting 70

switching off 72

Vehicle battery 156

Vehicle Memory 69

Vehicle weight 164

Ventilation 100, 104

draft-free 103, 107

W

Warning lamp "Fasten safety belts" 18

Warning lamps 18

Warning messages 83

Warranty and Service Guide 140

Warranty, refer also to separate booklet 6

Washer fluid

adding 136, 165

indicator lamp 19

Washer reservoir filling 165

Washer/wiper system 78

Water on roadways deep water 123

Wear indicator for tires 127

Weights 164

Wheel slip control, see DSC 90

Wheel, changing 151

Wheelbase 163

Wheels and tires 130

Width 163

Wind deflector 50

Window condensation removing 103, 106

Windows

convenience operation 33

defrosting 103, 106

Windshield washer reservoir filling 136, 165

Windshield wipers 78

Winter tires 130

Wiper blades, replacing 146

Everything from A to Z

Work in the engine compartment 132

X Xenon lamps 147

Online Edition for Part-No. 01 41 0 156 806 - © 09/02 BMW AG

To ensure that you always have convenient access to all essential information when you stop for fuel, we recommend that you fill out the adjoining chart by entering the data that apply to your vehicle. Consult the index for individual specifications.

Refueling

BMW recommends

Castrol

Fuel

Designation

Please enter your preferred fuel here.

Engine oil

Quality

The oil volume between the two marks on the dipstick corresponds to approx. 1.1 US quarts/1 liter.

Tire inflation pressure

	Summer tires Winter tires
	Front Rear	Front Rear
Up to 2 persons
4 persons plus luggage
