178.883 PDE-15A Mp3 - Pregnant Power Dynamics - Free user manual and instructions

Product Type	Active PA Speaker
Brand	Power Dynamics
Model	178.883 PDE-15A Mp3
Woofer Size	15 inches
Output Power (RMS)	300 W
Output Power (Music)	600 W
Sensitivity	126 dB
Frequency Range	40 - 18,000 Hz
Inputs	1x Line (RCA/Jack), 2x Mic (balanced combo), USB, SD Card
MP3 Player	Yes, with USB/SD card playback and remote control
Graphic Equalizer	Yes, 7-band (estimated)
Microphone Effects	Yes, with dedicated volume and effect controls
Enclosure Material	ABS (co-polymer)
Grille	Heavy-duty perforated metal
Handle	Ergonomically designed balanced handle
Pole Mount	35 mm receptacle with securing thumb screw
Mounting Points	For wall or ceiling brackets
Power Supply	230 V AC, 50 Hz (earthed)
Protection	Internal overload and short-circuit protection
Dimensions (W x H x D)	700 x 450 x 345 mm
Weight	20 kg
Color	Black
Recommended Use	Indoor PA, events, and mobile DJ

Frequently Asked Questions - 178.883 PDE-15A Mp3 Power Dynamics

How do I connect a microphone to the speaker?

Use the balanced Mic input (combo XLR/6.3mm Jack). Adjust the Mic volume and Mic effect controls separately.

Can I use this speaker outdoors?

The speaker is designed for indoor use only. If used outdoors, ensure it is protected from rain and humidity to prevent damage.

How do I play music from a USB stick or SD card?

Insert your USB stick or SD card into the corresponding slot. Use the USB/SD switch to select the source. Press PLAY/PAUSE to start playback. Use PREV/NEXT to skip tracks.

What is the maximum sound pressure level?

The maximum SPL is 126 dB. Prolonged exposure to levels above 90 dB can cause permanent hearing damage.

Can I stack multiple speakers together?

Yes, the speakers can be stacked. However, do not place more than 60 kg weight on the top speaker. Ensure the surface is stable.

No sound from the speaker. What should I check?

First, check all cable connections and ensure the speaker is powered on. Verify the master volume is turned up. Reseat all connectors and inspect cables for damage.

How do I clean and maintain the speaker?

Use a dry cloth to clean the enclosure. Do not use liquids or solvents. Protect the speaker from dust and moisture when not in use.

What are the power requirements?

The speaker requires a 230 V AC, 50 Hz earthed mains outlet. Unplug the unit during thunderstorms or if unused for long periods.

Can I mount the speaker on a wall or ceiling?

Yes, the speaker has attachment points for wall or ceiling brackets. Use only approved and strong mounting hardware. Ensure no one is below during installation.

Does the speaker have a warranty?

The warranty does not cover damage from misuse, modifications, or unauthorized repairs. Refer to the warranty terms in the manual. Tronios is not liable for personal injury from improper use.

USER MANUAL 178.883 PDE-15A Mp3 Power Dynamics

Power Dynamics Professional Audio

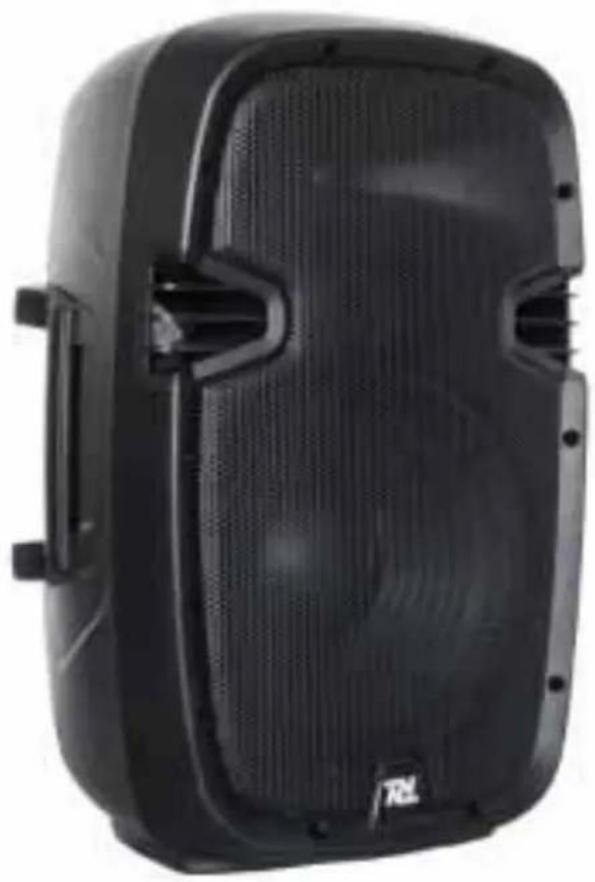

Black rectangular electronic device with ventilation grilles and ventilation slots (no visible text or symbols)

Active Speakers

178.880 PDE-12A MP3/USB/SD 12Inch

178.883 PDE-15A MP3/USB/SD 15Inch

HANDLEIDING

IINSTRUCTION MANUAL

MODE D'EMPLOI

BEDIENUNGSANLEITUNG

Constante brom, lawaai of zoem

ABS ACTIVE PA SPEAKERS

Congratulations on the purchase of this Power Dynamics active speaker box. Please read this manual carefully prior to using the unit.

TO ENSURE MANY YEARS OF TROUBLEFREE USE, PLEASE OBSERVE THE FOLLOWING

- Hearing damage: Loudspeakers are easily capable of generating high sound pressure levels (SPL) sufficient to cause permanent hearing damage to performers, production crew and audience members. Caution should be taken to avoid prolonged exposure to SPL in excess of 90 dB.

- Do not overload the box to avoid damage to the speakers.

- Do not place an open fire (candle, etc.) on top or next to the box - FIRE HAZARD

- Only connect to an earthed mains outlet of 230Vac/50Hz.

- For indoor use only. If the box is used outdoors, you need to make sure that no humidity can enter the box.

- When not in use, unplug the unit from the mains.

- Unplug the unit from the mains prior to checking or replacing the fuse.

- Make sure that the box is placed on a stable, strong surface.

- The boxes can be stacked but do not put more than 60kg weight on the box.

- The boxes can be hung. Use only strong and approved mounting material. During the mounting, make sure that nobody is standing below the mounting area.

- Place the stand always on a flat, level, and stable surface and that the legs do not present a trip hazard.

- Use only stands which are designed to support the weight of the speaker. Do not attempt to place more than one speaker on a stand designed for a single speaker.

- Route cables so that peoples will not trip over them pulling the speaker over.

- Do not place liquids on the box and protect it against humidity. Humidity can shorten the life time considerably.

- Only use suitable means of transportation if you want to move the box – BEWARE OF YOUR BACK !!

- If the unit is damaged to an extent that you can see internal parts, do not plug the unit in a mains outlet. In this case, please contact Tronios.

• Always unplug the unit during a thunderstorm or when it is not in use.

- If the unit has not been used for a longer period of time, condensation can occur inside the housing. Please let the unit reach room temperature prior to use.

- Never try to repair the unit yourself. It does not contain any user serviceable parts.

- Run the mains lead in such a way that nobody can fall over it and nothing can be put on it.

- Only use the supplied mains lead or another lead recommended by Power Dynamics.

- Set the unit to the lowest volume prior to switching it on

- Keep the unit out of the reach of children.

CAUTION: Risk of electric shock. Do not open LET OP: Niet openen. Gevaar voor elektrische schok ATTENTION : Risque d'électrocution. Ne pas ouvrir ACHTUNG: Stromschlaggefahr. Nicht Öffnen ADVARSEL: Må ikke åbnes. Risiko for elektrisk chok Do not expose to rain / moisture Niet in vochtige ruimtes gebruiken Tenir à l'abri de la pluie et de l'humidité Vor Regen und Feuchtigkeit schützen Må ikke anvendes i våde/fugtige omgivelser

PRODUCT FEATURES

General

• Professional & sturdy ABS enclosure;
• Enclosure and baffle are molded of tough and durable co-polymer material. This range of speakers is able to withstand high powered impacts;
• A heavy-duty, perforated metal grill protects the woofer;
• Ergonomically designed balanced handle and lightweight enclosure for easy and comfortable carrying;
• Attachment points for wall or ceiling mount brackets;
• Integral 35mm pole mount receptacle with securing thumb screw.

INPUT PANEL

1. Balanced MIC input (combo or separate XLR / 6.3mm Jack connector)
2. Volume control for microphone effect
3. Volume control for microphone
4. Line input for audio input source e.g. mixer, CD player, etc.
5. Switch for line input or MP3 player
6. Volume control for Line Input
7. Microphone effect controls
8. Master volume control
9. Graphic equalizer

MP3 Control

A. DISPLAY
Shows MP3 information
B. STOP
Track stop playing
C. PLAY/PAUSE
Track play or pause mode
D. PREV
Play previous track
E. NEXT
Play next track
F. USB/SD CARD SWITCH
Use switch for playing from USB stick or SD card
G. USB CONNECTION
For connection of a USB stick with MP3 files
H. SD CARD CONNECTION
For connection of a SD CARD with MP3 files

TROUBLESHOOTING

One certain method of determining if a speaker is faulty is to substitute a speaker that is known to work correctly for the suspected problem speaker. If the “normally correct speaker” is experiencing the same difficulties or problems as the suspected problem speaker, use the information below to isolate the problem.

No output

Possible cause Action

Speaker cables Reseat all connectors

Inspect cable for damage

Inspect wire or connector for stray strand that m

Intermittent

Possible cause Action

Poor connections While it is possible for a faulty speaker to exhibit intermittent output, it's more likely that an output cable/connector is the problem. Reseat all connectors

Constant noise, buzzing and/or humming

Possible cause Action

Faulty electronic Any constant noise originates in the amplifier, mixer, signal processing, source device in the signal devices, or line-level wiring. Check and correct system grounding as required. Chain check for noisy sources or electronic components. Check wiring for shielding.

SPECIFICATIONS

Item	PDE-12A	USB/SD/MP3	PDE
Output power 250W 300W
Output power (music) 500W 600W
Sensitivity	123dB	126dB
Frequency Range 50-18.000Hz		40-18.000Hz
Input(s) 1x Line + 2x Mic + USB + SD card		1x Line + 2x Mic + USB + SD card
Woofer (inch)	12”	15”
Dimensions	575 x 365 x 290 mm	700 x 450 x 345 mm
Weight	14kg	20kg
Ref. Nr.	178.880	178.883

-15A USB/SD

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the unit. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Tronios cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

D

ABS AKTIVBOXEN

Blue glossy circular logo with stylized white 't' shape (no text or symbols)

tronios

Sound & Light

CE - ROTTE Declaration of Conformity

Importer:

TRONIOS BV

Product Description: Active PA Speaker

Regulatory Requirement: EN 60065

EN 55013

EN 55020

EN 61000-3-2 / -3-3

The product meets the requirements stated in the above mentioned Standards.

05-03-2012

S i g n a t u r e :

Handwritten signature or scribble on white background, possibly a signature or artistic mark

Specifications and design are subject to change without prior notice..

www.tronios.com

Copyright © 2012 by TRONIOS the Netherlands
