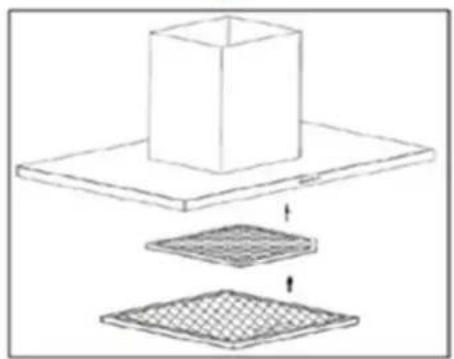

Montage der Haube

HAUBE HAUBE

Abb. 3

Close-up of a metallic industrial fan or vent component mounted on a blue surface, with no visible text or symbols.

Cylindrical metallic wire wrapped in coiled material, mounted on a blue industrial machine (no visible text or symbols)

Hand holding a small electronic component on a metallic panel (no visible text or symbols)

Diagram showing a 3D cube placed on a flat base with two separate mesh grids below (no text or symbols)

4

Close-up of a metallic electronic device with a central rectangular component and control buttons (no visible text or symbols)

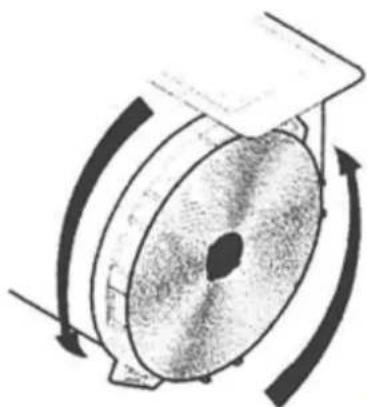

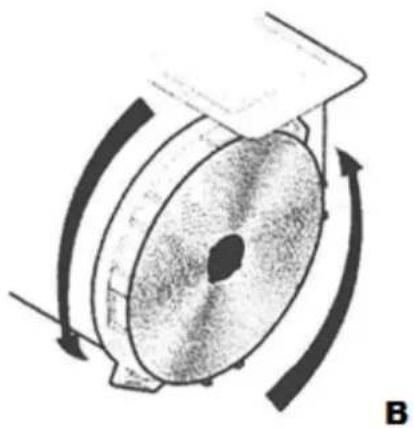

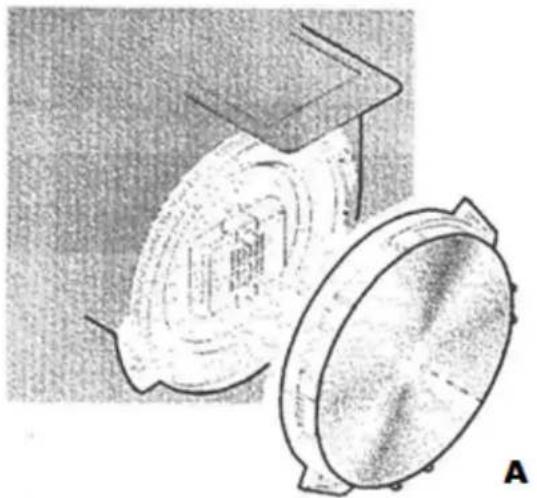

Kohlefilter

Technical line drawing of a mechanical component with two circular parts, one mounted on a bracket and the other showing internal features (no text or symbols)

Diagram of a rotating mechanical component with curved arrows indicating rotational motion (no text or symbols)

B

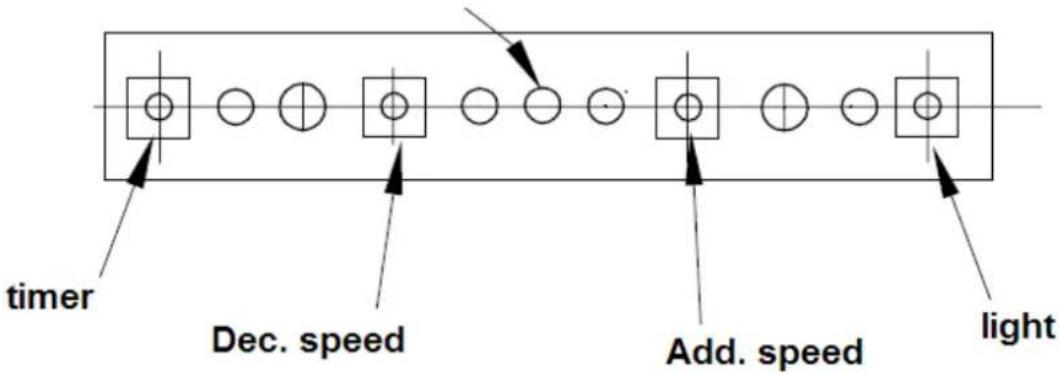

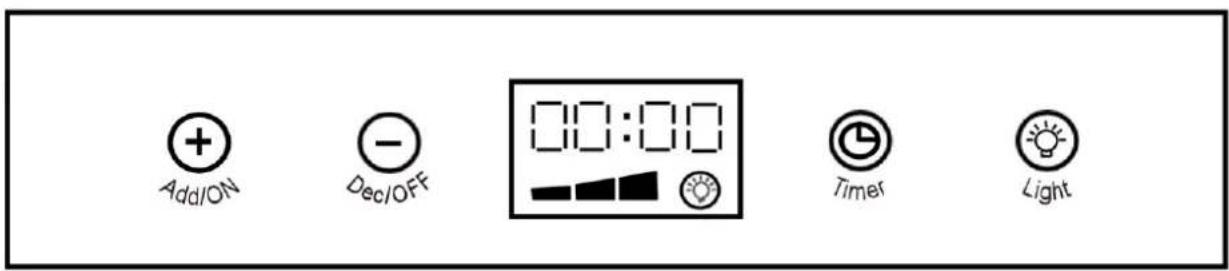

Add/ON Dec/OFF 00:00 Timer Light

Diagram showing three electrical or control symbols: a clock, a light bulb, and a fan with power button.

Timer

Licht an/aus

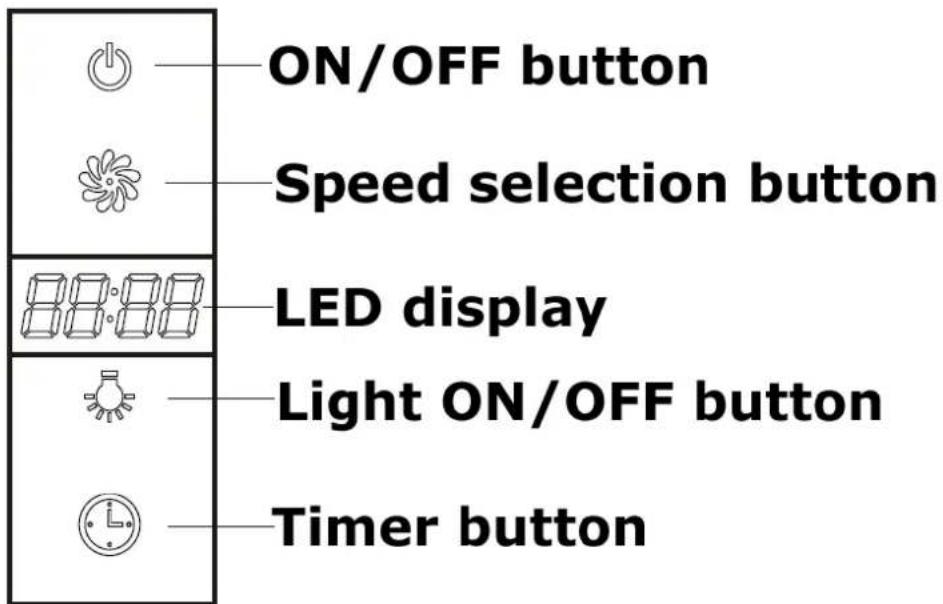

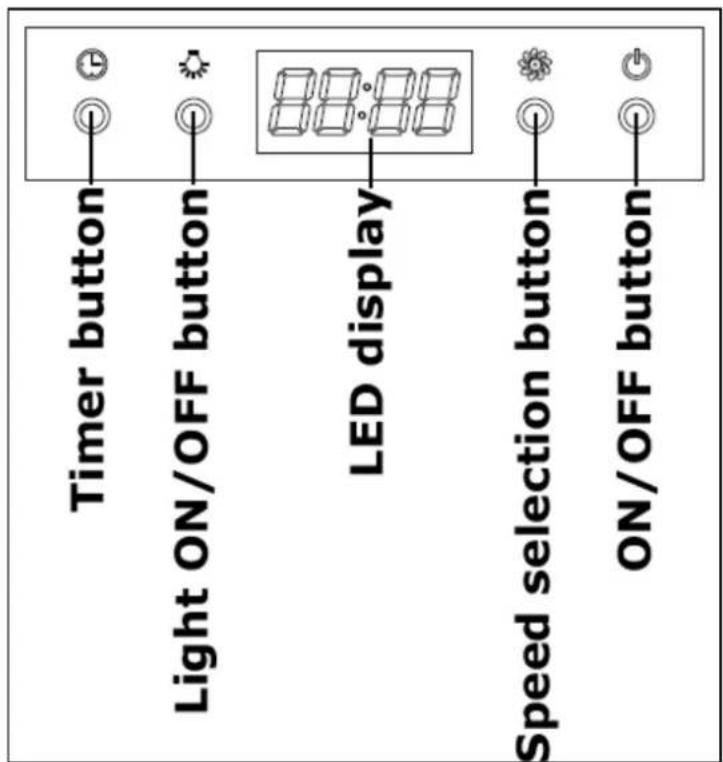

LED Display

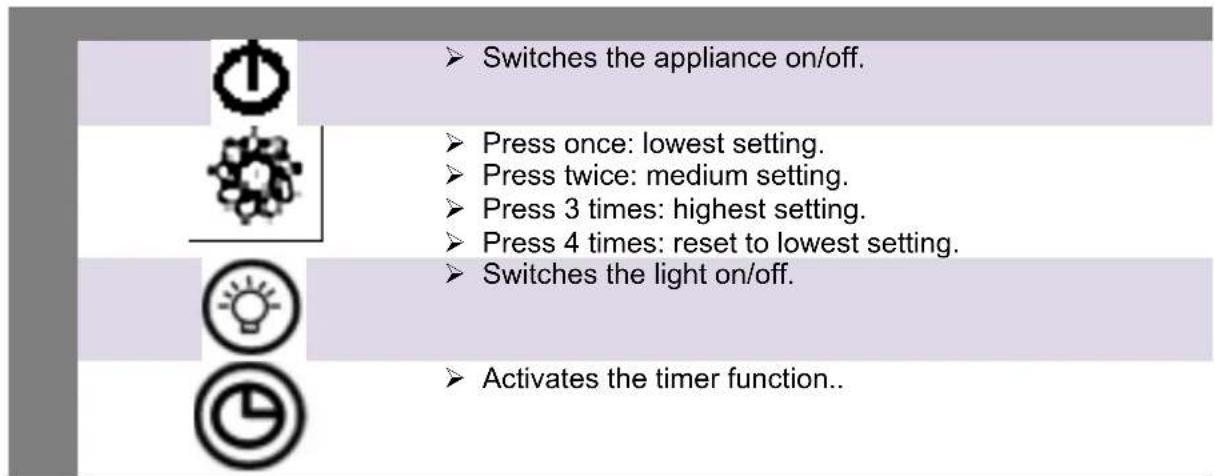

+ Add - Dec Timer Light

Close-up of a metallic cylindrical device with five purple dots on its body, mounted on a flat surface (no text or symbols visible)

Leuchtanzeige

PE< = Polyethylen
PS<= Styropor
PP< = Polypropylen

CHAPTER	SUBJECT	PAGE
1	Preface	56
2	Explanation of the warning notice	57
3	Basic advice	58
4	Safety instructions and warnings	59
5	Installation	62
6	Control panel	79
7	Cleaning and maintenance	87
8	Trouble shooting	89
9	Waste management	90
10	Technical data	92
11	Guarantee conditions	103
12	Notes	104

Technical modifications as well as misprints shall remain reserved.

Please read this manual carefully before you use or install the appliance.

Order consumable parts such as carbon filters at

(Tel. [phone], Fax 21950)

1. PREFACE

Dear customer

We would like to thank you for purchasing a Extractor Hood type 6000 - 9000. When you are familiar with this instruction manual operating the appliance will not cause you any problems.

Before your appliance was allowed to leave manufacturer's works, it was carefully checked according to its safety and operating standards.

If your appliance is visibly damaged do not connect it to the power supply. Contact the shop you purchased the appliance at.

Please, read this instruction manual carefully so you will be able to use all functions and options of your appliance at their best performance.

Please, adhere to the safety instructions so you will enjoy your appliance for a long period of time.

Please dispose of the packing with respect to your current local and municipal regulations.

Any modifications, which do not influence the functions of the appliance. shall remain reserved by the manufacturer.

Your PKM-Team

EU - Conformity Declaration (extract)

(according to EN ISO/IEC 17050-1:2004) for the products:

PKM Extractor Hoods

PKM 6003H with halogen-light; PKM 6004/6004H with halogen-light; PKM 6005 with halogen-light; PKM 6088 with halogen-light; PKM 6090H with halogen-light; PKM 6091H with halogen-light; PKM 8888H with halogen-light; PKM 80908H with halogen-light; PKM 9001 with halogen-light; PKM 9004 with halogen-light; PKM 9090H with halogen-light; PKM 9099 with halogen-light; PKM 9999 with halogen-light

The product named above corresponds to the essential protection requirements which are determined by the council for the alignment of the different legislation of the member states according to electro-magnetic compatibility (2004 / 108 / EG and 2006 / 95 / EC).

2. EXPLANATION OF THE WARNING NOTICE

Strictly observe the below mentioned warning notice. Please note the meaning of each warning notice.

DANGER!	DANGER indicates a hazardous situation which, if ignored, will result in death or serious injury.
WARNING!	WARNING indicates a hazardous situation which, if ignored, could result in death or serious injury.
CAUTION!	CAUTION indicates a hazardous situation which, if not avoided, may result in minor or moderate injury.
NOTICE!	NOTICE indicates possible damage to the appliance.
	RISK OF FIRE indicates a possible risk of fire when you do not observe the corresponding information and/or warning.
	RISK OF ELECTRIC SHOCK indicates a possible risk of electric shock when you do not observe the corresponding information and/or warning.

This symbol indicates, that you are not allowed to dispose of the appliance with your domestic waste

3. BASIC ADCIVE

Dear client

Please read this manual carefully before using the appliance for the first time. You will avoid malfunctions by thoroughly following the advice.

Please store this instruction manual in a safe place so you can use it whenever it is needed.

The instructions and descriptions this manual contains are designed for various types of cooker hoods. So the manual may contain some descriptions of functions or accessories which are not part of your current appliance.

You should only run the appliance when you are familiar with the subject matter of this manual.
Only use this appliance in a private household.

Modifications of the appliance which do not influence its main functions shall remain reserved by the manufacturer.

Important addendum

Please pay attention to the following safety-advice before you connect or operate the appliance.

Check the technical periphery of the appliance! Do all wires and connections to the appliance work properly? Or may they be time-worn and do not match the efficiency of the appliance? A check-up of existing and newly-made connections must be done by an authorized professional.
All connections and energy-leading components (also wires inside a wall) must be checked by an authorized professional.

WARNING!

Do not connect your appliance to the electric supply unless all packaging and transit protectors have been removed.

4. SAFETY INSTRUCTIONS AND WARNINGS

NOTICE!

Strictly observe the following safety instructions to avoid any damage to your appliance.

Transport and handling

1. The appliance must be transported by at least two persons.
2. The supply cord must not be caught behind the appliance while or after moving it.
3. When you unpack the appliance, you should take note of the position of every part of the interior accessories in case you have to repack and transport it at a later time.

General safety instructions

DANGER!

Do not use the appliance unless you have read this instruction manual. The appliance is designed for private household use only.

Strictly observe the following instructions. Do not allow anybody, who is not familiar with this instruction manual, to use the appliance.

Energy supply

1. Remove the plug from the socket before you start to clean or maintain the appliance.
2. Always connect the appliance to a dedicated socket.
3. All modifications to the electrical mains to enable the installation of the appliance must be performed by a qualified professional.
4. Do not use an extension cord. Please check, that the appliance does not hinder the power cord, when the installation is completed.
5. Do not carry out any modifications to your appliance.

6. If the power cord is damaged, it must be replaced by the manufacturer or its service agent or a similar qualified person in order to avoid any kind of hazard.

7. Do not attempt to repair the appliance alone. Repairs carried out by unauthorized persons can cause serious damage. Contact the shop you purchased the appliance at and use original spare parts only.

Fire prevention

1. If gas is set free in your home:

▶ Open all windows.
Do not unplug the appliance and do not use the thermostat knob.
Do not touch the appliance until the gas has gone.
- Otherwise sparks can be generated which will ignite the gas.

1. Do not cook any a la flambé dishes below the extractor hood. The flames may destroy your appliance and/or cause fire.
2. Do not use the gas jets of a gas hob without cookware. The flames may destroy your appliance and/or cause fire.
3. If you fry, permanently keep an eye on the oil, as it can catch fire. The risk of auto-ignition rises after using the oil many times.
4. Do not perform any other activities using naked light or fire. The flames may destroy your appliance and/or cause fire.
5. The exhaust hose must not be made of flammable materials or contain any flammable materials.
6. Keep all components of the appliance away from fire and other sources of ignition before you dispose of the appliance.

CAUTION!

Accessible parts may become hot when used with cooking appliances.

Measures

for safe use

1. The extracted air must not be conducted by an exhaust pipe of a heater or similar, not electrically-operated appliances.
2. Run the appliance with inserted grease filters only. Otherwise recirculating-transported fat will deposit in the appliance and the exhaust system.
3. Constant cleaning and maintenance grants perfect function and best performance of your appliance.
4. Whenever you use extractor hoods in combination with non electrically-operated appliances (gas and oil-fired appliances), the negative pressure of the corresponding room must not be more than 4 Pa (4 * 10bar). In this particular case we recommend you install a window control switch or an air pressure control device.
5. The relevant room must be well-ventilated.
6. Clean the appliance regularly.
7. Clean or replace the grease filters regularly.

Special measures extraction mode

1. The extracted air is conducted by an exhaust hose. You need an exhaust duct or an exhaust pipe, which conduct the extracted air outside your home.
2. Whenever the hood is run in company with chimney-conducted firing (e.g. coal furnace), ensure there is sufficient air supply to the room where the appliance is installed.
3. Regulations concerning the discharge of air have to be fulfilled.
4. If there is not a stationary exhaust pipe or an exhaust duct, you must convert your appliance to recirculating mode.

Always consult your local chimney-sweep master.

Special measures recirculating mode

1. The extracted air runs through a carbon filter (also named active carbon filter) back into the room. The carbon filter extracts the odours produced by cooking.
2. The fresh air is leaded back by air outlets on the sides or on the back of the appliance.
3. When you run the appliance in the recirculating mode, you can simultaneously run room-air dependent fireplaces.

Final safety instructions

1. This appliance is designed for the use by adults only. Children must neither play around nor play with the appliance.
2. Do not use the appliance for camping.
3. Do not use the appliance in public transport.
4. The appliance is designed for indoor use only.

WARNING!

Strictly observe the following safety instructions if you decommission and dispose of your old appliance.

1. Remove the plug out of the socket.
2. Cut off the power cord directly at the appliance.
   This appliance is not intended to be run by persons (including children) with reduced physical, sensory and mental capabilities or lack of experience or knowledge, unless they are supervised or instructed concerning the use of the appliance by a person who is responsible for their safety. Children must be supervised to ensure that they do not play with the appliance.

5. INSTALLATION

Unpacking and positioning

WARNING!

While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children.

1. Unpack the appliance carefully. Dispose of the packaging as described in the chapter waste management.
2. Completely remove the transport-protection. Be very careful and do not use any aggressive or abrasive detergents to remove residuals of the transport-protection.
3. Check before installation if the power cord or the appliance itself are not damaged.
4. The appliance must be connected to the mains with a properly grounded socket only.
5. Do not install the appliance in an area where it may come in contact with water or rain in order that the insulation of the electrical components would not be damaged.
6. The appliance is designed for indoor use only.
7. The appliance must be correctly connected to the mains.

General information

Strictly observe the minimum distance between hood and hob.

Minimum distance hood to

Glass-ceramic and cooking ring 65 cm

Gas jet 70 cm

Coal / oil / stove wood firing 85 cm

1. Strictly observe the consecutive numbering of the installation steps and the additional instructions.
2. Models which lead the exhaust outwards: the exhaust is conducted by an exhaust hose which is connected with a connecting ring.
3. The diameter of the exhaust hose has to meet the diameter of the connecting ring.
4. When a one-way valve is used, check after installation of the hose if the valve works properly.

5. Depending on the model the hood is equipped with one (top) or two (top, back) outlets.

6. The extractor hood is normally preset for the use of the top outlet as well as for extraction mode.

7. The idle outlet is covered by a plastic cap. You can remove this cap by turning it anticlockwise. Use the cap to cover the idle outlet.
8. If your appliance is equipped with a carbon filter, remove the carbon filter before you run the appliance in the extraction mode. The carbon filter should be used in the recirculating mode only.

General instructions air duct

1. The air duct should be as short and straight as possible.
2. Extractor mode: installation with ventilation stack or air duct outwards only, wall penetration = 150 mm diameter, drilling about 160 mm diameter.
3. The diameter of the exhaust hose should be at least 150 mm. Otherwise you have to expect increased noise and decreased capacity of your appliance.
4. Ensure that the diameter is met if you need bends. Otherwise the capacity of your appliance will be decreased.
5. Use smooth tubes or flexible, non-inflammable exhaust hoses only.
6. If the air duct is connected horizontally, a minimum falling gradient of 1 ~cm / m or an inclination of 2^ is required. Otherwise condensate will get into the motor of the hood (look at figure 1).
7. When an exhaust duct is used the ending of the exhaust hose must be adjusted to the direction of flow.
8. If the air duct passes through cool areas (e.g. an attic), a temperature gradient may occur in the different parts of the air duct so condensate will be generated. Proper insulation of the corresponding parts of the air duct will then be needed.
9. Equip such an air duct with a condensate trap if need be.

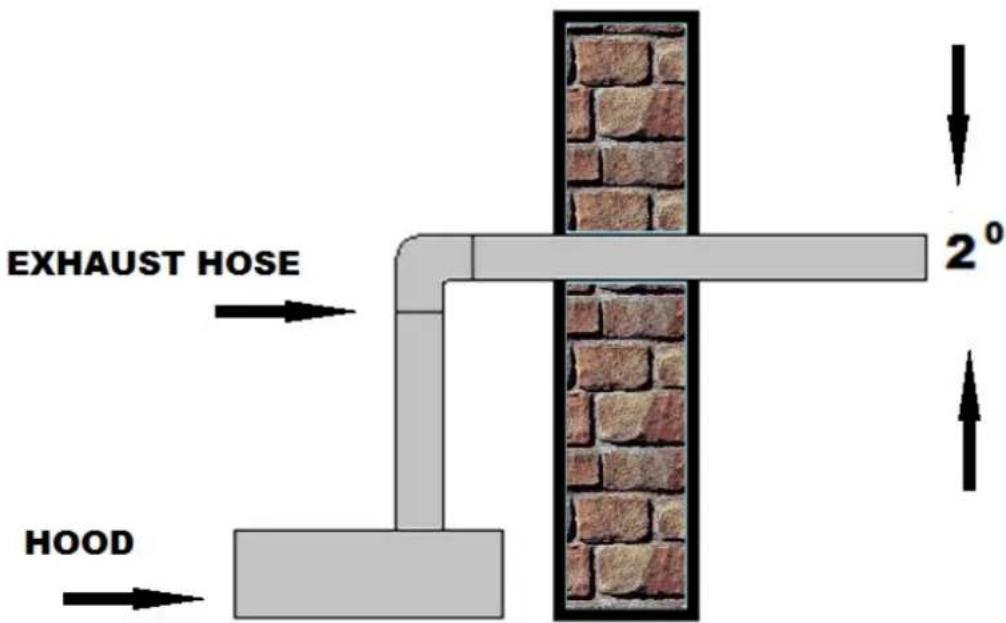

EXHAUST HOSE HOOD 2°

fig. 1

NOTICE!

The manufacturer is not liable for any damage or malfunction which may occur in consequence of disregarding the instructions and information in this manual.

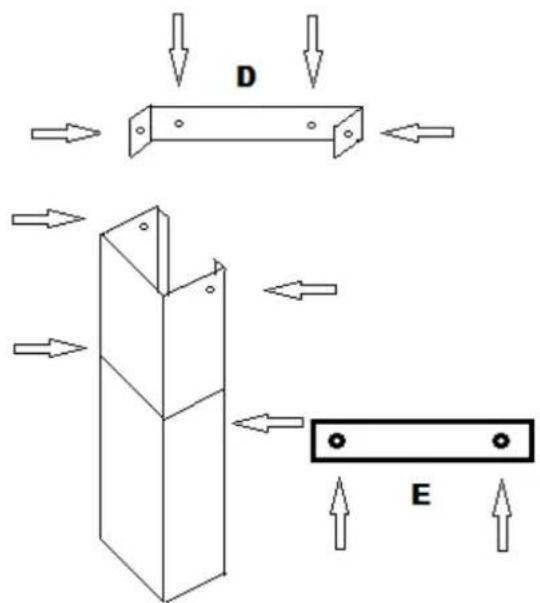

Extractor hoods components

C B A 65 -75 cm F

D E

A hood

B Base chimney

C Telescopic chimney

D Mounting rail

E Flat bar

F Hob

All instructions concerning air conduction are not valid for the use of the recirculating mode.

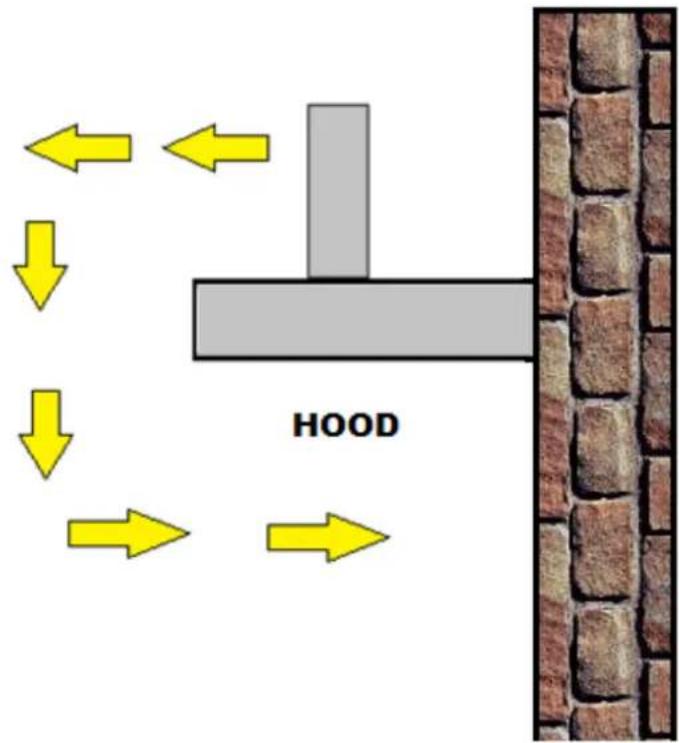

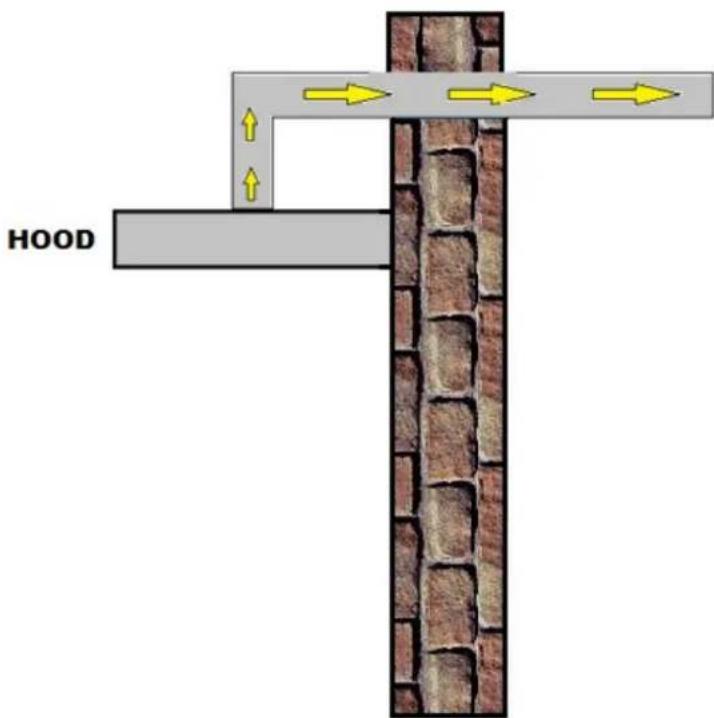

Airflow extractor mode

HOOD

Airflow recirculating mode via chimney

HOOD

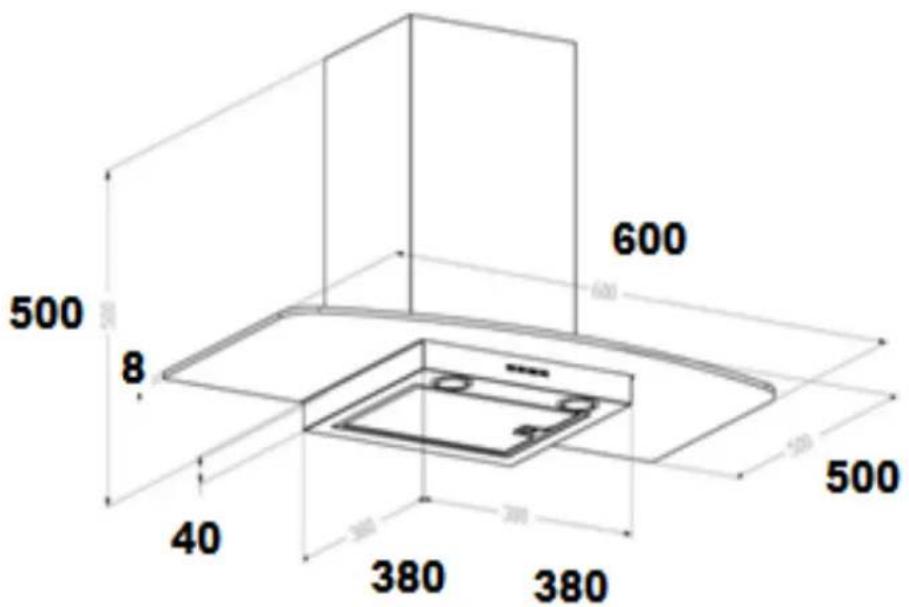

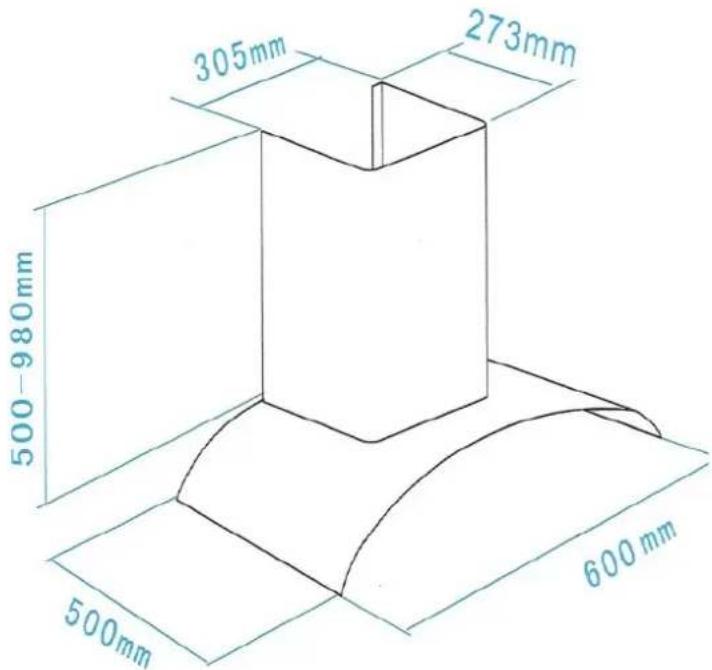

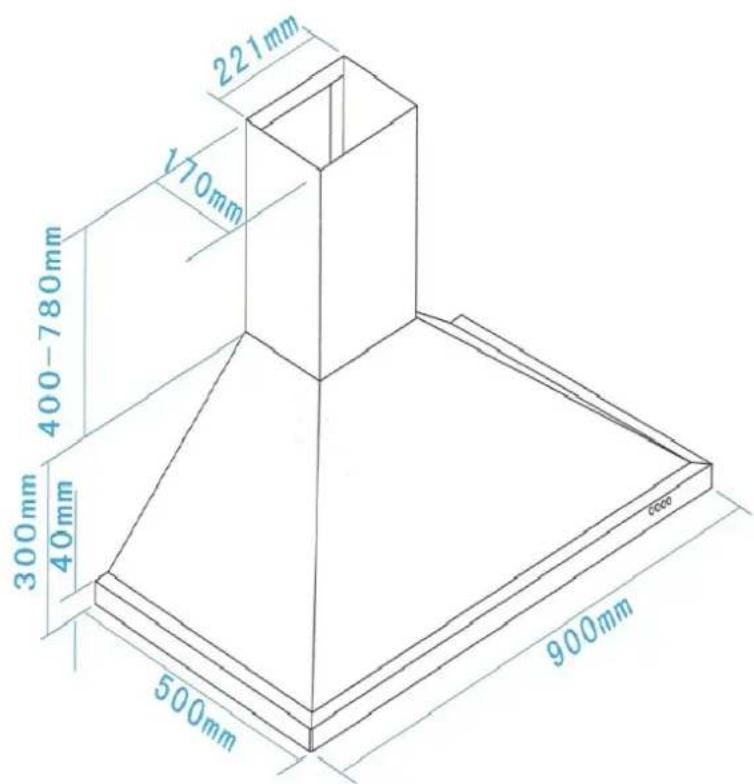

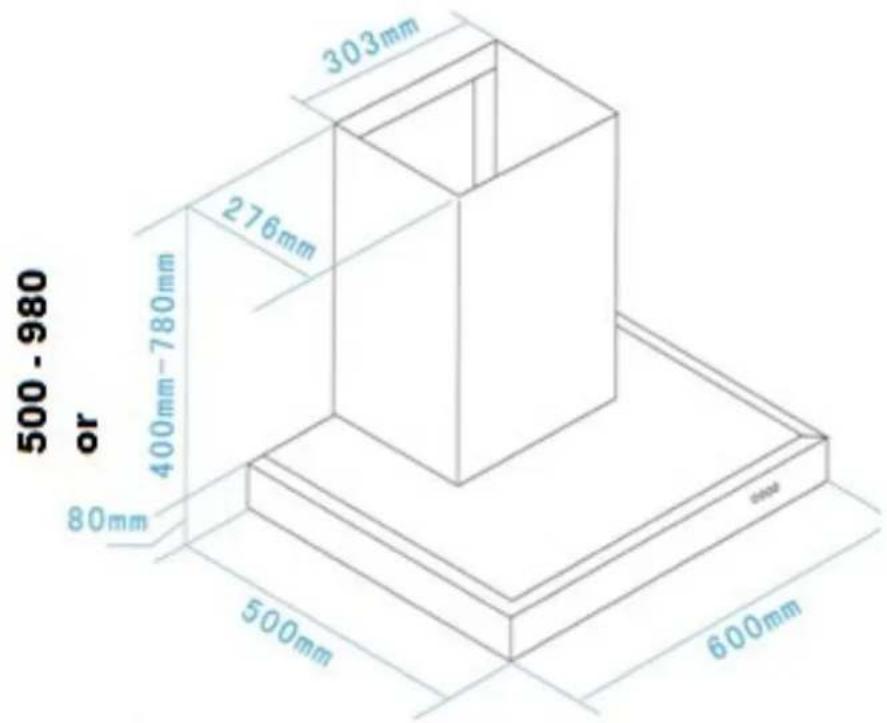

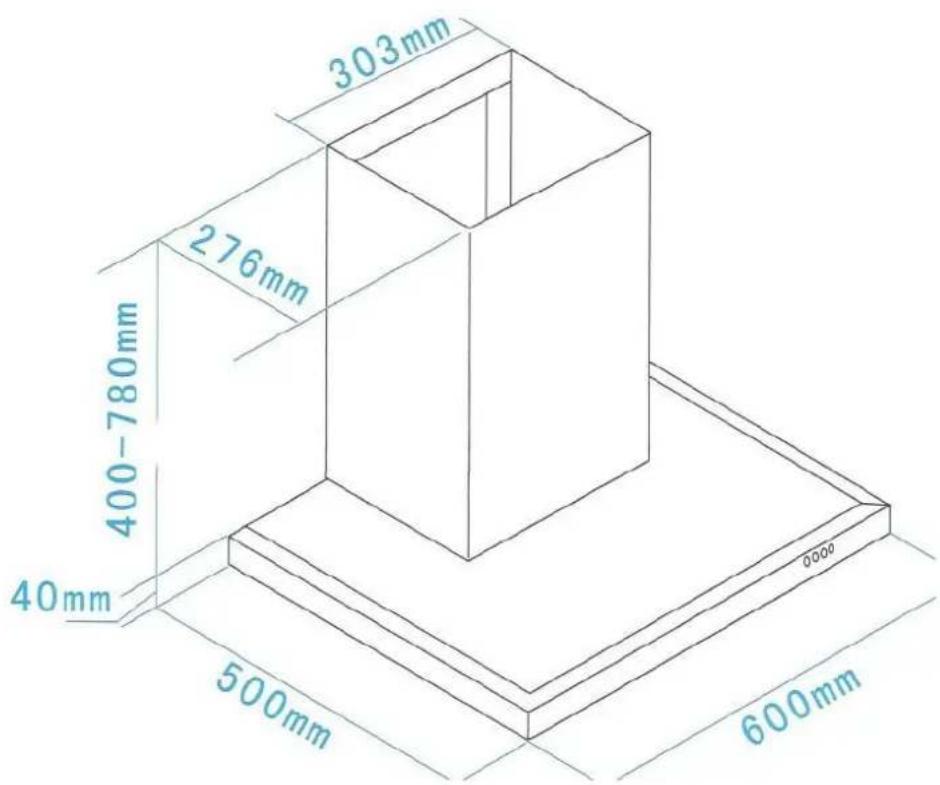

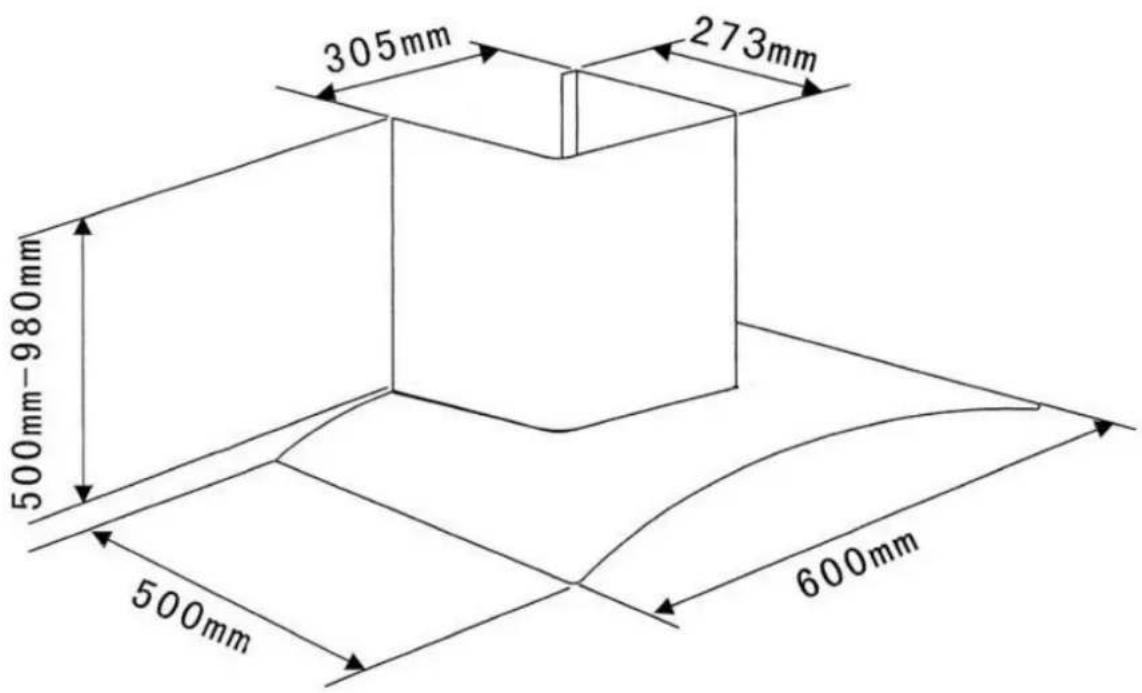

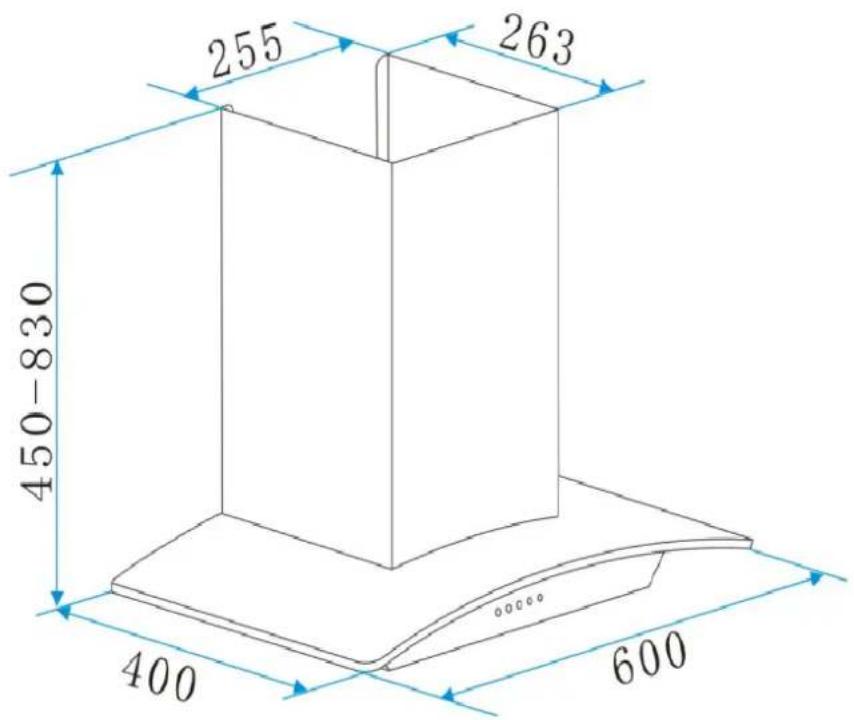

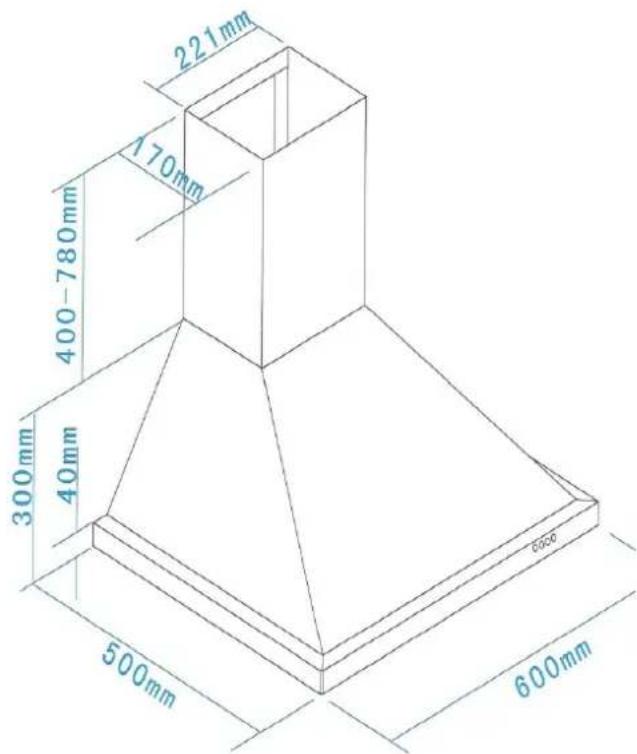

Fitting dimensions

PKM 6004 / 6004 H

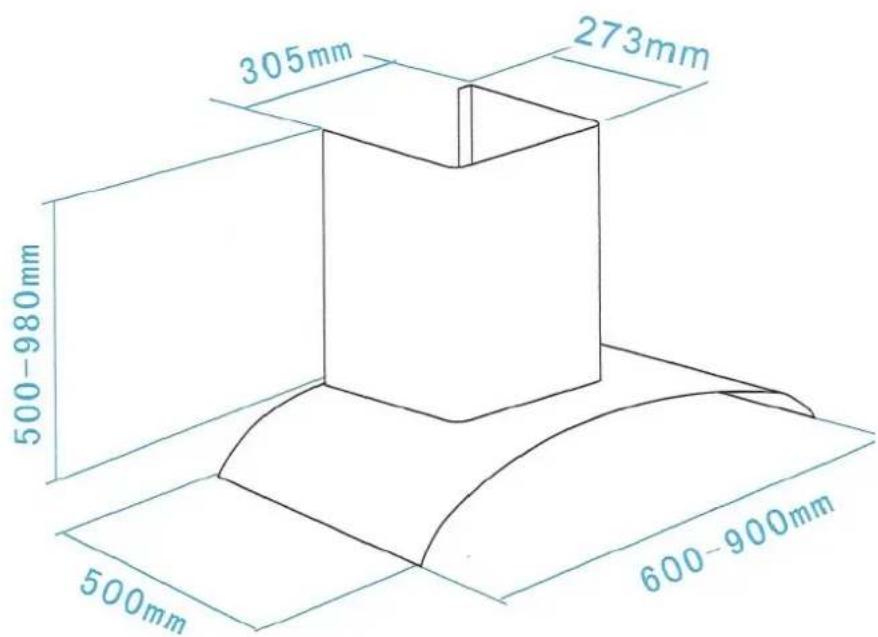

500 - 980 or 303mm 276mm 400mm-780mm 80mm 500mm 600mm

PKM 6005

500 8 40 380 380 600 500 380

PKM 6088

305mm 273mm 500-980mm 500mm 600 mm

PKM 6090 H

221mm 170mm 400-780mm 300mm 40mm 500mm 600mm

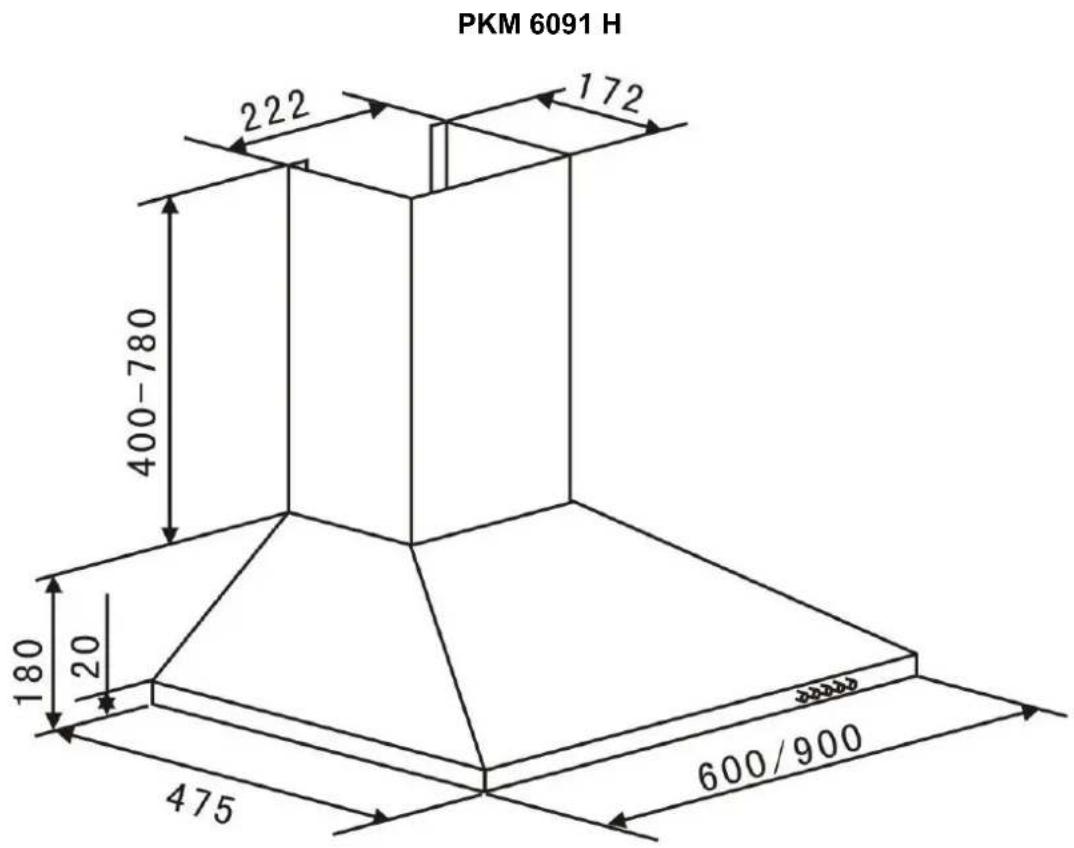

PKM 6091 H 222 172 400-780 180 20 475 600/900

PKM 8090 H

303mm 276mm 400-780mm 40mm 500mm 600mm

PKM 8888 H

255 263 450-830 400 600

PKM 9001

305mm 273mm 500-980mm 500mm 600-900mm

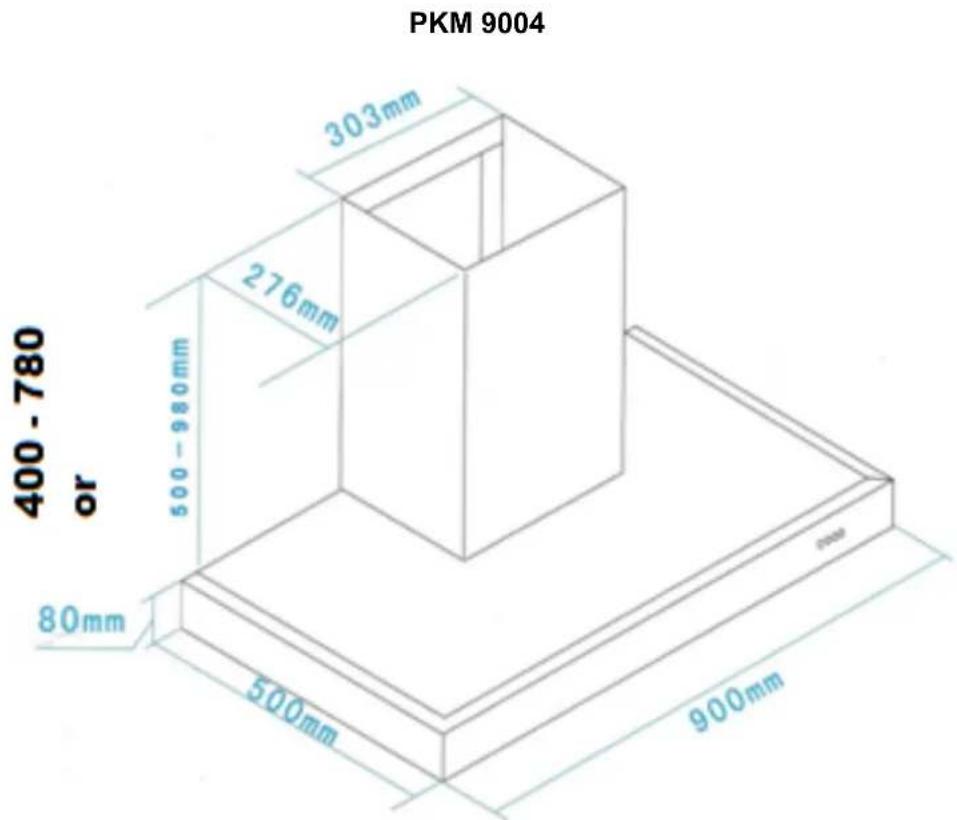

PKM 9004 400 - 780 or 303mm 276mm 500 - 980mm 80mm 500mm 900mm

PKM 9090 H

221mm 170mm 400-780mm 300mm 40mm 500mm 900mm

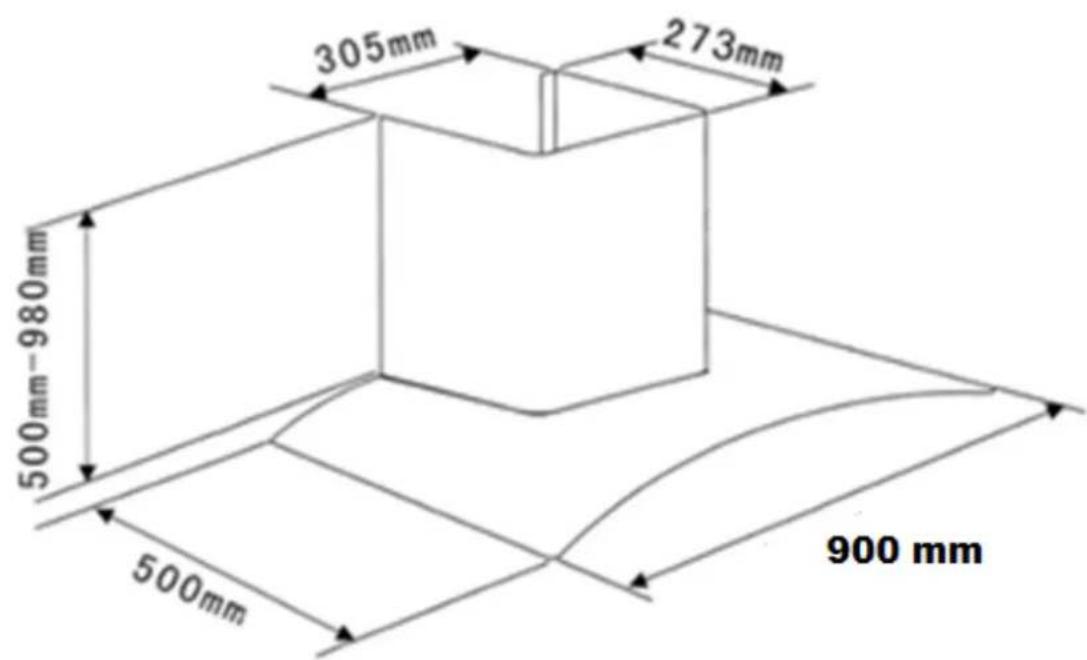

PKM 9099

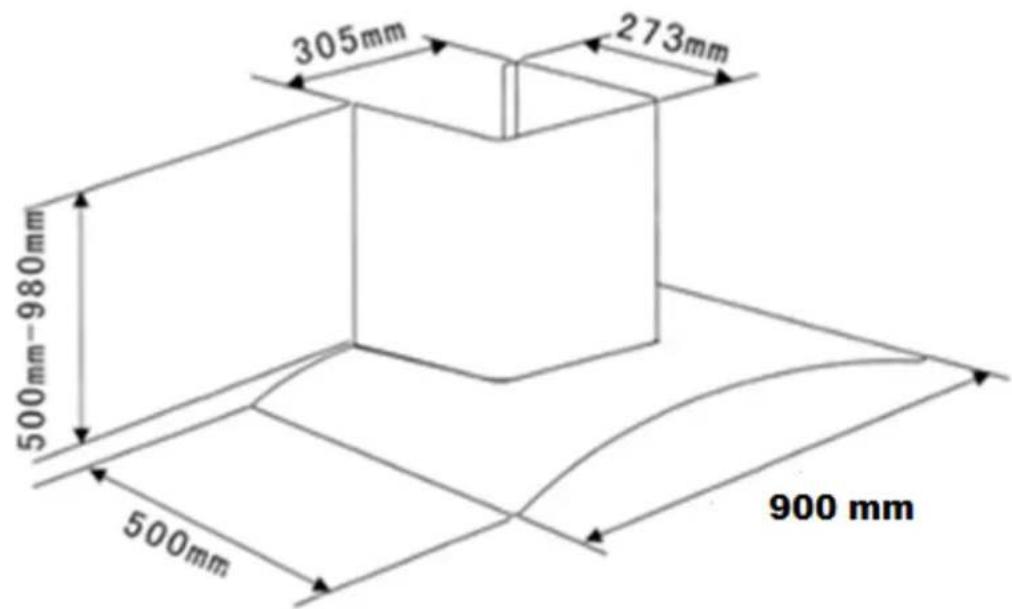

305mm 273mm 500mm-980mm 500mm 900 mm

PKM 9999

305mm 273mm 500mm-980mm 500mm 600mm

Installation of the hood

1. Strictly observe the minimum distance between hood and hob.
2. Clean the surrounding of the installation area before you install the appliance so the appliance will not extract any dust or construction waste.
3. The exhaust hose must not run in the same air duct as gas tubes, hot air tubes et cetera.
4. Lead away the exhaust hose from the hood as straight as possible.
5. The proper maximum bending angle outwards is 120^ .

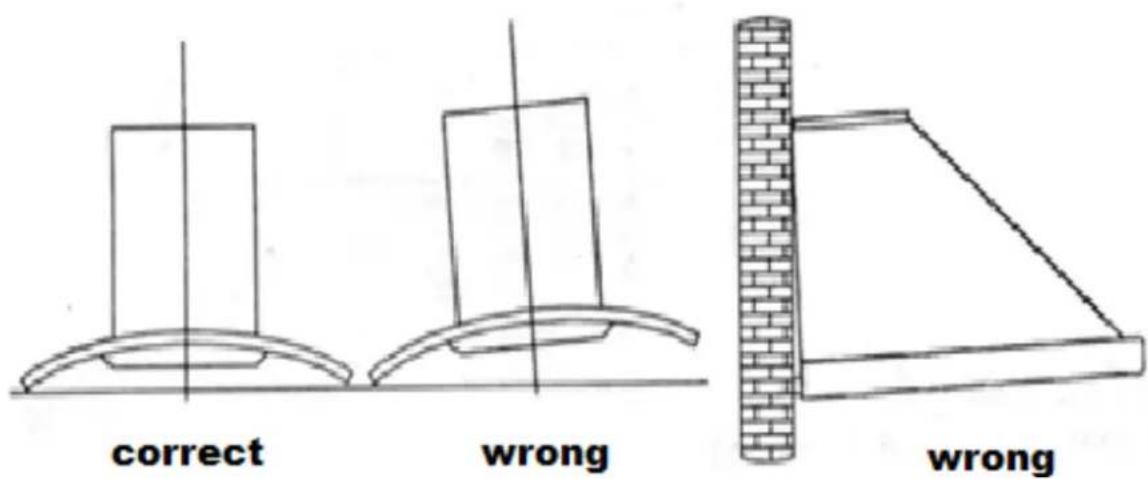

6. Check with a level if the appliance is horizontally positioned while installing and after having installed it.

NOTICE!

Use carbon filters in recirculating mode only.

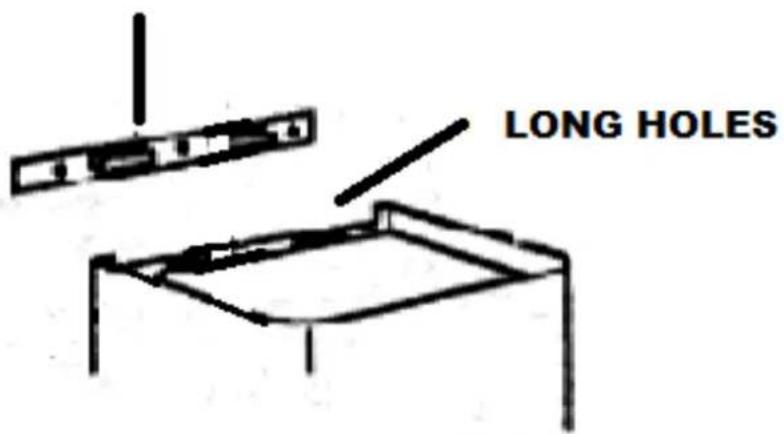

MOUNTING BAR

LONG HOLES

fig. 2

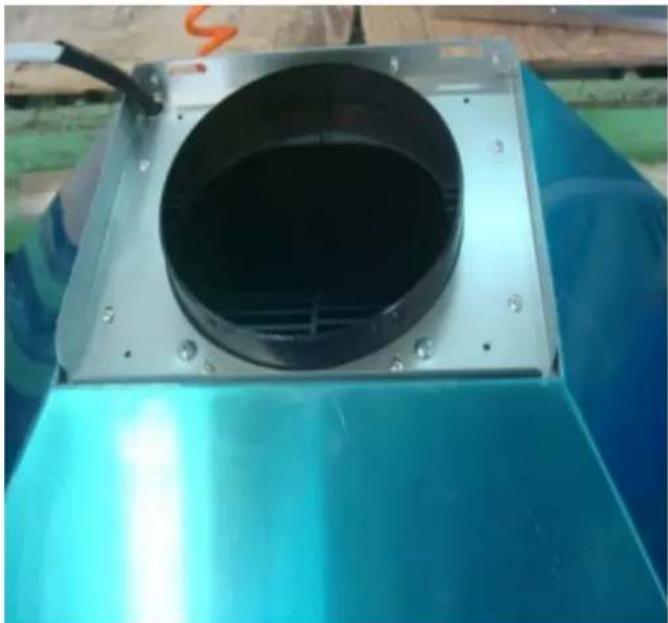

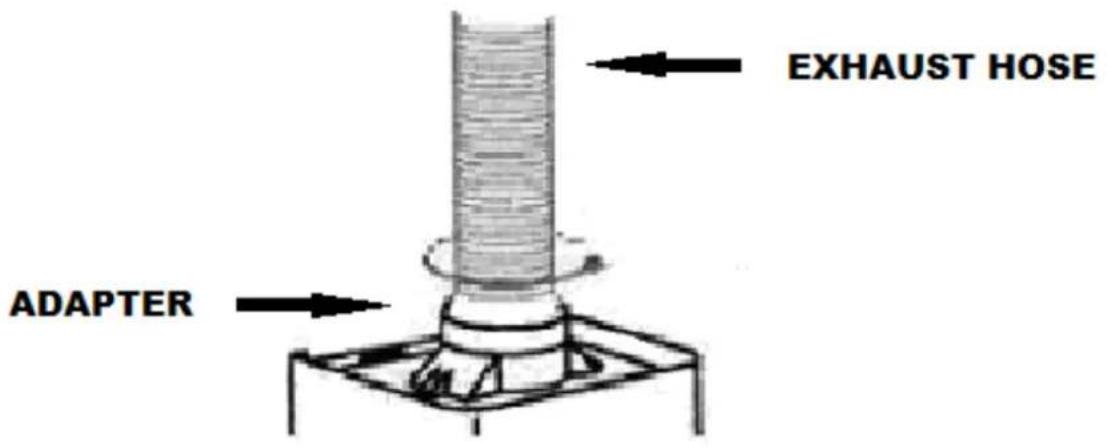

EXHAUST HOSE ADAPTER

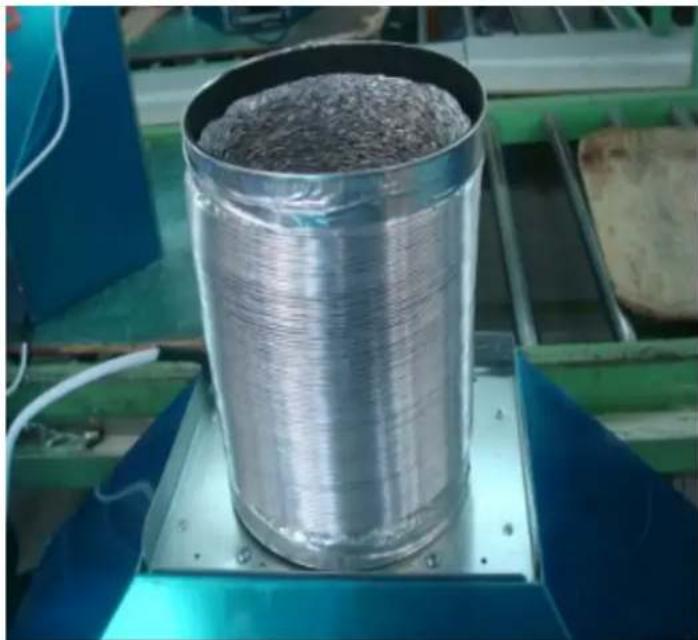

You can fix an exhaust hose with an adapter (depending on model if included in delivery) on the appliance. Fix the adapter with four screws above the opening on the top of the appliance and insert the exhaust hose. The exhaust hose must horizontally lead away from the appliance respectively must not been bent more than 120^0 . Otherwise the appliance does not properly work.

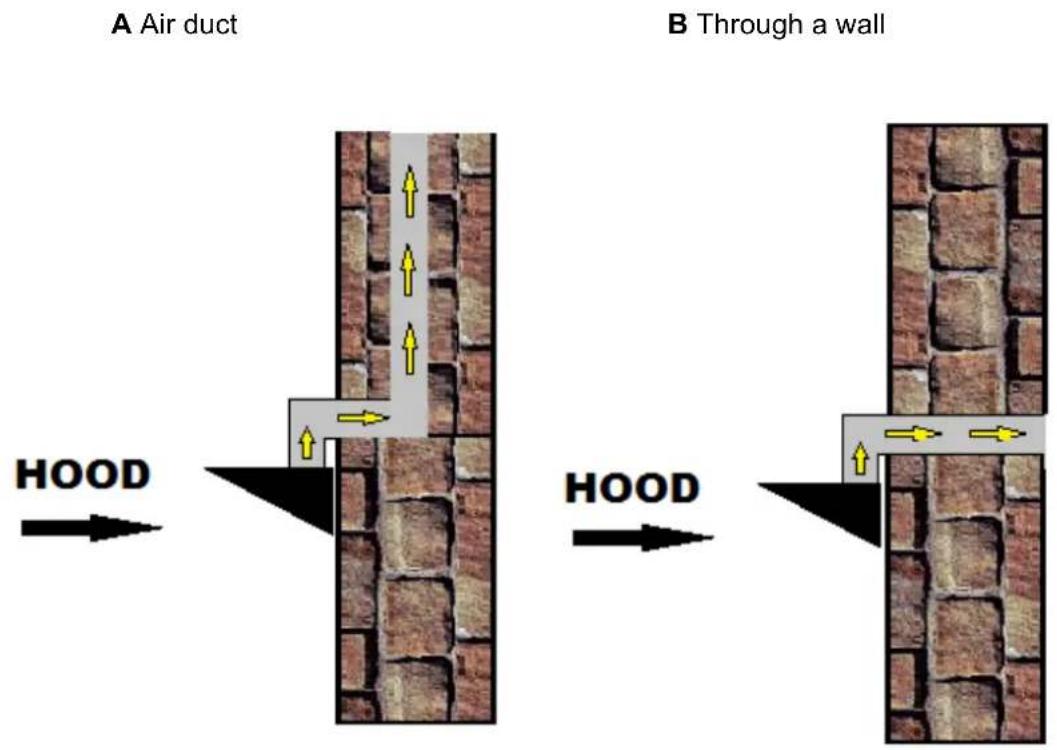

A Air duct B Through a wall HOOD HOOD

fig. 3

Installation of the hood wall

1. Position the suspension device on the wall. Choose a proper position which meets the dimensions of the chimney.

2. Mark the position of the holes with a pencil.

3. Now drill the holes and fix the suspension device with the screws and dowels/plugs.

4. Suspend the hood. (fig. 2)

5. Now connect the exhaust hose to the corresponding outlet of the hood.

6. Install the exhaust hose to the corresponding outlet ( look at figure 3 - A/B ).

7. Now fix the chimney back brace onto the chimney.

8. Now fix the complete chimney onto the hood.

9. Fix the chimney mounting rail into the desired position on the wall with the screws and dowels.

10. Pull the telescopic part to the mounting rail and fix it on the rail.

11. Put in the plug and insert the grease filters.

correct wrong wrong

Check the correct position of the hood from front and side perspective. Otherwise the appliance will not properly work.

Fixing of the exhaust hose Models with preassembled air outlet

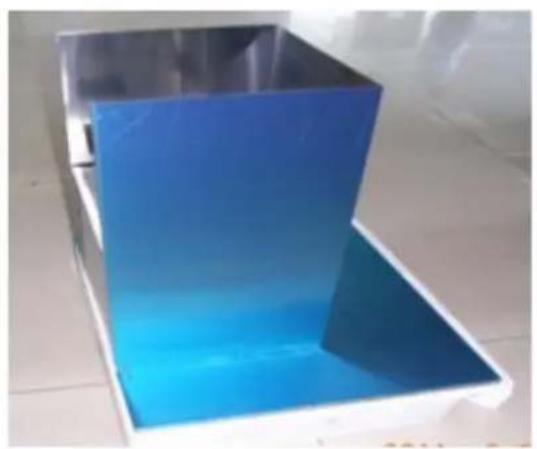

Close-up of a metallic industrial fan or vent component mounted on a blue metal base, with no visible text or symbols.

Preassembled air outlet for fixing the exhaust hose.

You must install the crescent-shaped protective covers, when you run the appliance in extraction mode. The covers protect the motor from the outdoor air and draught.

Cylindrical metal wire wrapped in plastic film, mounted on a blue industrial platform (no visible text or symbols)

View of segment of an exhaust hose

Exterior view of a modern office building (no signage)

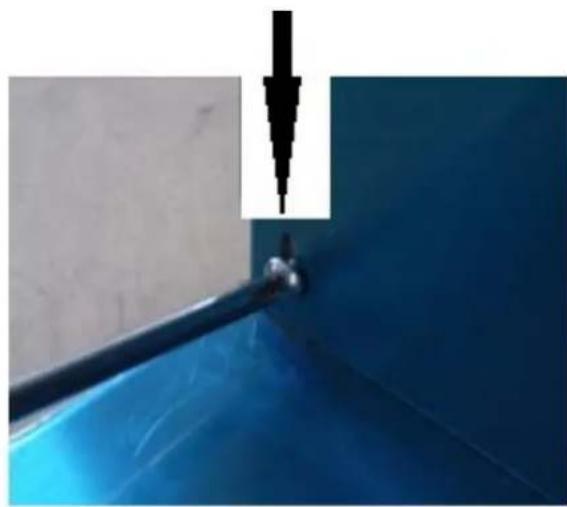

Close-up of a blue industrial pipe with a black arrow pointing to a component (no text or symbols visible)

Depending on model the lower chimney can be fixed with screws.

Electrical connection

An electrical supply of 220-240V AC / 50 Hz is required. Only use a suitable and properly grounded socket near the appliance.
For your personal safety, the appliance must be grounded. The appliance is equipped with a 3-phase grounding plug. Use a suitable socket to minimize the risk of an electric shock.
Before you switch your appliance on, check if the voltage of your energy supplier meets the values on the model plate.
Do not connect the appliance to the mains if the values of the model plate do not meet the values of your energy supplier.
If the appliance is not equipped with a plug, you must install a 2-pole plug which meets all legal requirements with a contact opening of at least 3 mm. The installation must be performed by an authorized professional.

WARNING!

Do not use a socket board or a multi socket when using 220 V – 240 V/50 Hz alternate current (AC). All electrical connections which may be damaged must be repaired by a qualified professional.

All repairs should be performed by a qualified professional.

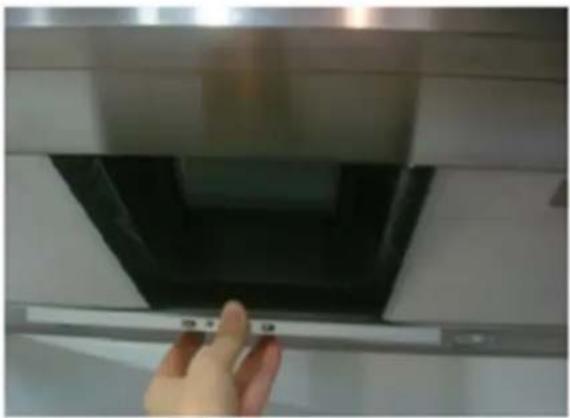

Changing the filters Models with acrylic filters

1

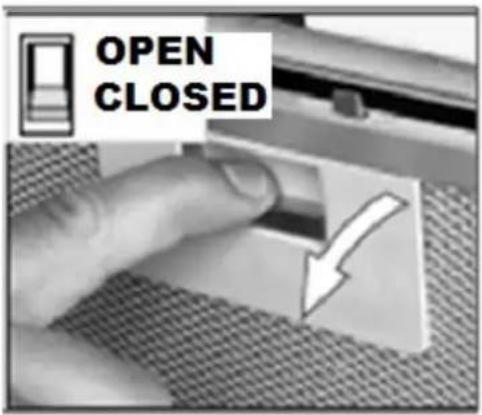

OPEN CLOSED

3

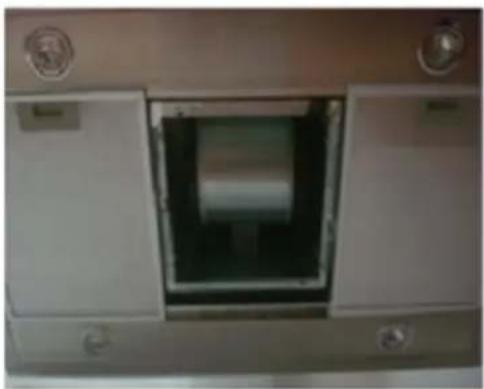

Interior view of a stainless steel industrial machine with control panel and door (no visible text or symbols)

2

Hand pressing a button on a kitchen appliance panel (no visible text or symbols)

4

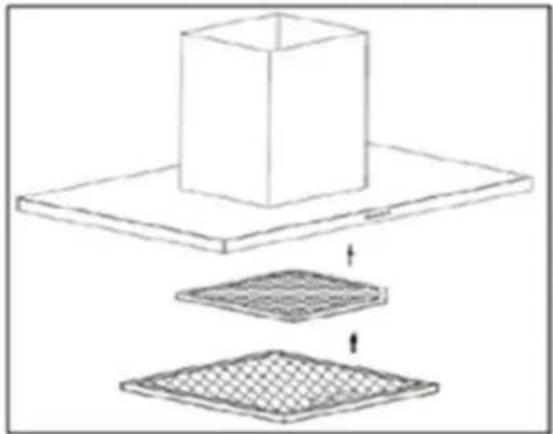

Diagram showing a 3D cube placed on a flat base with two separate grid-patterned plates below (no text or symbols)

Carbon filter

1. Before you install any carbon filters: switch the appliance off and disconnect it from the mains.
2. Remove the grease filters.
3. Insert the carbon filters on both sides of the motor (A) and fix them (B).
4. Replace the grease filters.

Technical line drawing of a mechanical component with two views (top and side), no visible text or symbols

Diagram of a rotating mechanical component with curved arrows indicating rotation direction (no text or symbols)

Appliances with carbon filter type CF 120

The carbon filter type CF 120 is rectangular. Please insert the carbon filter into the relevant slot on both sides of the motor.

(Activated)Carbon filters

Order consumable parts such as carbon filters at

(Tel. [phone], Fax 21950)

6. CONTROL PANEL

General Information

The functions represent a specific capacity of your appliance.
The corresponding values are described in chapter 10, data sheets.
The corresponding code numbers of the panels are described in chapter 10, data sheets.
The operating noise of the appliance depends on the setting.
The appliance you have purchased may be an enhanced version of the unit this manual was printed for. Nevertheless, the functions and operating conditions are identical. This manual is therefore still valid.

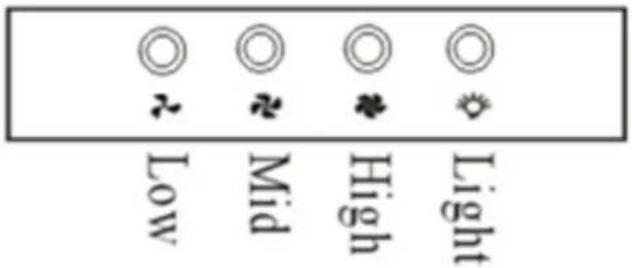

AYD001/002/003/004

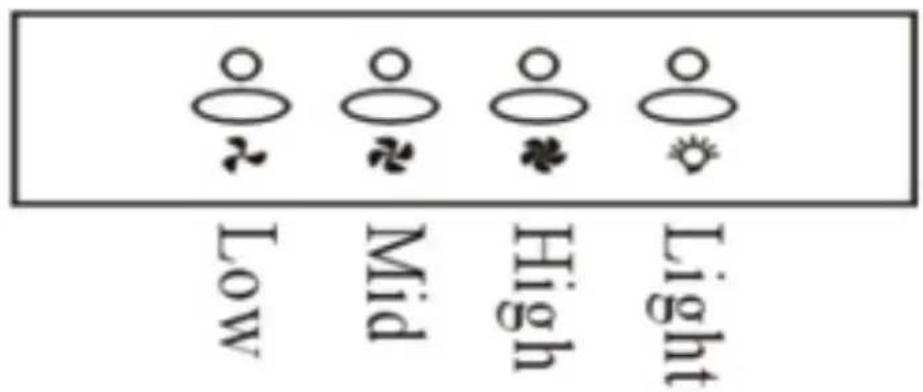

○○ ◆ ○○ ◆ ○○ ◆ ○○ Light Low Mid High Light

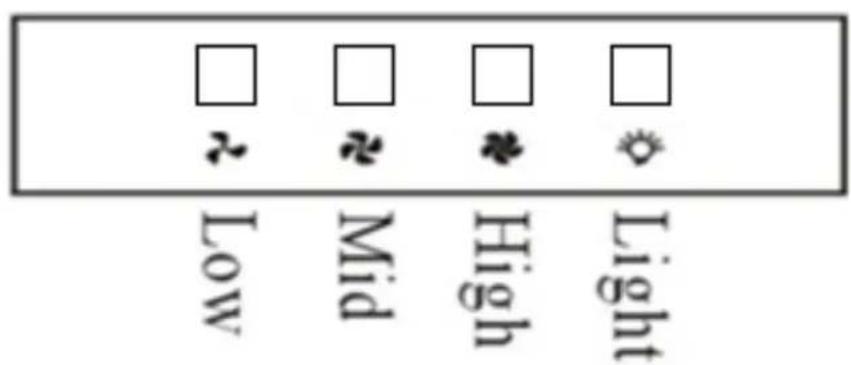

□ □ □ □ ↓ ↗ ↘ ↙ ↕ Low Mid High Light

Never press more than one key at the same time. Never press another key 1-3 while the appliance is running.

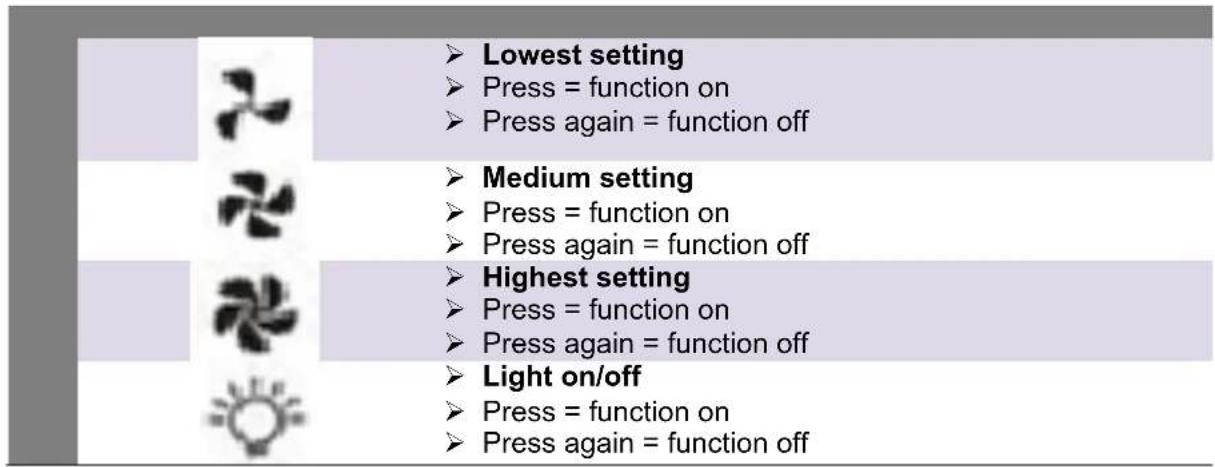

Lowest setting Press = function on Press again = function off Medium setting Press = function on Press again = function off Highest setting Press = function on Press again = function off Light on/off Press = function on Press again = function off

The indicator light indicates the current setting.

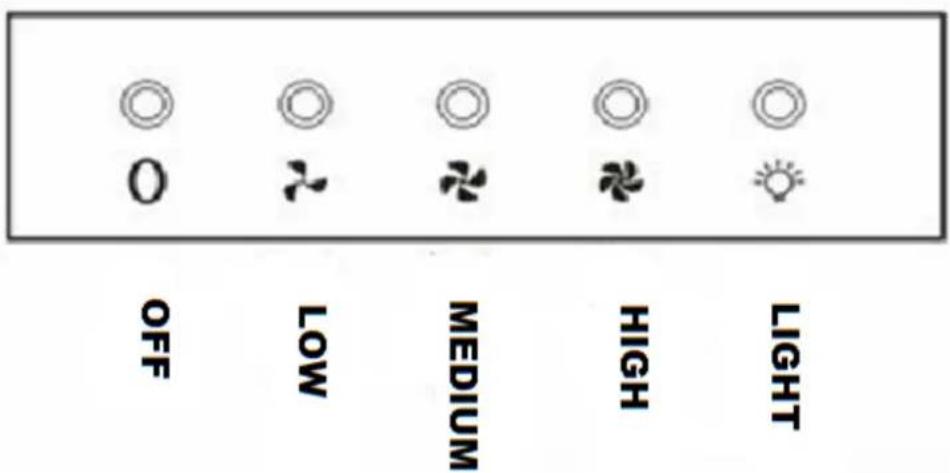

AYD 008

OFF LOW MEDIUM HIGH LIGHT

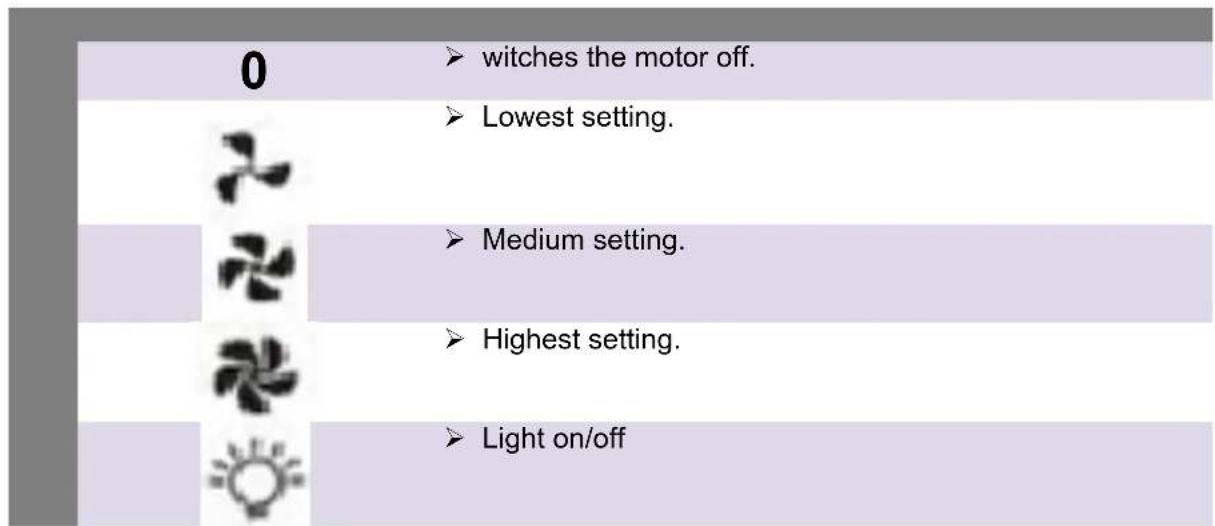

0 witches the motor off. Lowest setting. Medium setting. Highest setting. Light on/off

AYD 009

Add/ON Dec/OFF 00:00 Timer Light

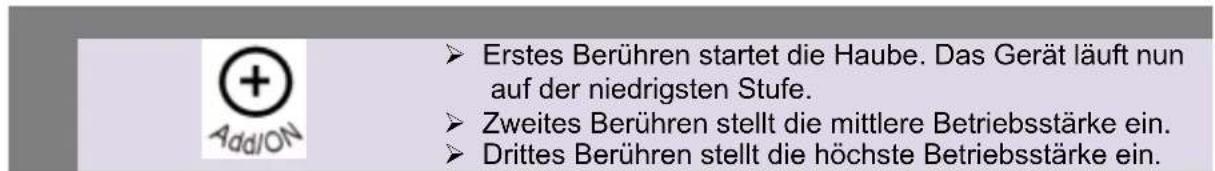

Add/ON	First touch starts the appliance. The appliance runs in the lowest setting. Second touch: the appliance runs in the medium setting. Third touch: the appliance runs in the highest setting.
Dec/OFF	Each touch decreases the setting by factor 1. If the appliance is running in the lowest setting, another touch switches it off.
Light	Touch to switch the light on or off. You can switch on the light even the appliance is not running.
	Displays the setting the appliance is runnig in.
Timer	Touch to start the timer function.

Setting the time of day

1. Press and hold the timer sensor, until the first two digits of the display start to flash.
2. Release the timer sensor, then use the Add/ON sensor and Dec/OFF sensor to set the hour time.
3. Press the timer sensor again and the last two digits of the display will start to flash.
4. Use the Add/ON sensor and Dec/OFF sensor to set the minute time.
5. When the time of day is shown on the display correctly, press the timer sensor again to confirm the setting.

The timer function

You can use the timer sensor to set a particular period of time. After this time the appliance will stop operating.
You can choose one of the settings below.

No. of touches	Countdown period
1	5 minutes
2	15 minutes
3	30 minutes
4	Cancel timer function

Once you have set a countdown period, the appliance will start to countdown. The display shows the time remaining until the appliance stops operating.
When the countdown time has been reached, 00:00 will appear and the appliance will stop running.

AYD 011 / AYD 013 / AYD 018

Timer button Light ON/OFF button LED display Speed selection button ON/OFF button

ON/OFF button Speed selection button LED display Light ON/OFF button Timer button

Switches the appliance on/off. Press once: lowest setting. Press twice: medium setting. Press 3 times: highest setting. Press 4 times: reset to lowest setting. Switches the light on/off. Activates the timer function..

When you next switch the hood on, it will remember the speed it was running at when it was last used.

Setting the time of day

1. After the cooker hood is connected to the power supply, the time of day should be set. However it is only possible to set the time when the light is not switched on and the cooker hood fan is not running.
2. Press and hold the timer button until the hour digits of the LED display flash.
3. Use the speed selection button to increase the hour number shown on the LED display or the light ON/OFF button to decrease the hour number shown on the LED display.
4. If "23" appears on the LED display, the speed selection will no longer operate and if "00" appears on the LED display, the light ON/OFF button will no longer operate.
5. When the correct hour digits appear on the LED display, press and hold the timer button until the minute digits of the LED display flash.

6. Use the speed selection button to increase the minute number shown on the LED display or the light ON/OFF button to decrease the minute number shown on the LED display.

7. If "59" appears on the LED display, the speed selection will no longer operate and if "00" appears on the LED display, the light ON/OFF button will no longer operate.

8. When the correct minute digits appear on the LED display, press the timer button a third time to confirm the time of day.

The timer function

1. When the hood is not operating you can set a particular working time. You can programme the timer from 5 to 60 minutes. The appliance will automatically stop running when the programmed period of time has been elapsed.

2. To programme a working time press the timer button once. The LED display will show "05.00".

3. Press the speed button repeatedly to increase the working time by one minute. To reduce the working time by one minute, press the light on/off button.

4. Once the desired working time has been selected, press the timer button once to confirm the setting. The LED display will begin the countdown and will show the remaining working time.

5. Once the desired time has been elapsed, the appliance will automatically stop working and the time of day will be displayed.

6. The next time you use the cooker hood and press the timer button once, the timer will automatically programme the last set working time.

AYD 015 / AYD 016

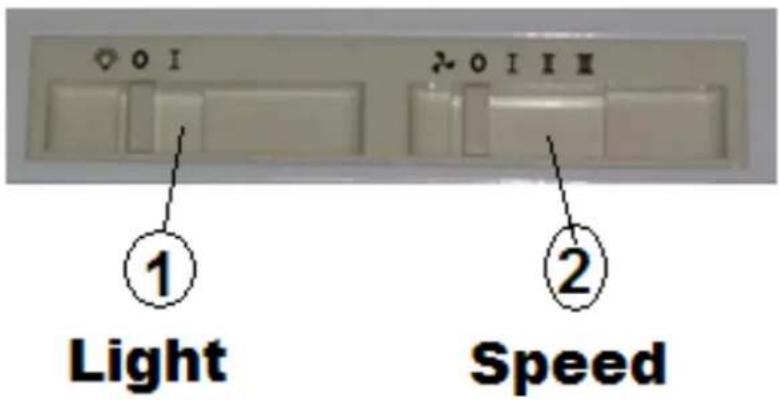

3 2 1 0 ② ① 1 0

Speed

Light

Light Speed

1 Light	0: light off
	1: light on
2 Speed	0: off
	1: lowest setting
	2: medium setting
	3: highest setting

AYD-020

+ Add - Dec Timer Light

Power on: Connect the power, and then the machine enters standby status.

Add/ON	First touch starts the appliance. The appliance runs in the lowest setting. Second touch: the appliance runs in the medium setting. Third touch: the appliance runs in the highest setting.
Dec/OFF	Each touch decreases the setting by factor 1. If the appliance is running in the lowest setting, another touch switches it off.
Light	Touch to switch the light on or off.
Timer	When the motor or light is still on, press the Timer key, and the hood will run 10 minutes, then stop and enter standby status.

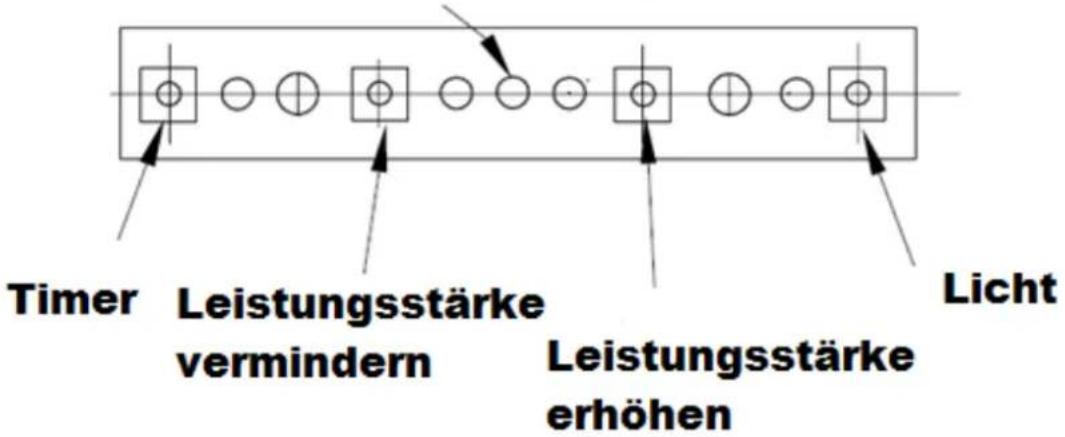

AYD 035

Close-up of a metallic cylindrical device with four purple dots on its body, mounted on a flat surface (no text or symbols visible)

Indicator light

timer Dec. speed Add. speed light

Power on: Connect the power, and then the machine enters standby status.

Timer	When the motor or light is still on, press the Timer key, and the hood will run 10 minutes, then stop and enter standby status.
Dec. speed	Each touch decreases the setting by factor 1.If the appliance is running in the lowest setting, another touch switches it off.
Add. speed	First touch: the appliance runs in the lowest setting.Second touch: the appliance runs in the medium setting.Third touch: the appliance runs in the highest setting.
Light	Touch to switch the light on or off.

The indicator light indicates the current setting.

7. CLEANING AND MAINTENANCE

WARNING!

Disconnect the appliance from the mains before you clean or maintain it.

Cleaning appliance

1. Never use any alcohol-containing detergents to clean matt black painted appliances as these detergents cause changes in colour.
2. Clean or replace the grease filters regularly. Fat-saturated filters will easily catch fire and cause unpleasant odours.
3. Contaminated grease filters increase the capacity of the appliance.
4. Clean the surfaces with warm water and a mild, non-acrid detergent.
5. When you clean or replace the grease filters or the carbon filters also clean all visible components on the bottom of the appliance with a mild, non-acrid and fat-dissolving detergent.
6. The motor and electric components of the appliance must not come in contact with water.
7. Do not clean the control panel with a wet cloth. Use a damp cloth; otherwise water will get into the panel and damage the electric components.
8. Do not use a steam cleaner.
9. Do not use any abrasive detergents.

Cleaning Appliances with stainless steel housing

1. Use a non-abrasive detergent for stainless steel which is available at your supermarket.
2. Use a maintenance product for stainless steel. Use such a product carefully and economically.
3. Do not clean the control panel with a detergent for stainless steel. Use a damp cloth.
4. When you clean or replace the grease filters or the carbon filters also clean all visible components on the bottom of the appliance with a mild, non-acrid and fat-dissolving detergent.
5. Do not damage the grid of metal-made grease filters. The colour of the metal surface may change due to frequent cleaning as well as the use of aggressive detergents.
6. Such changes do not influence the capacity of the appliance and are no reason for complaint.

WARNING!

Disregarding the cleaning and maintenance instructions will cause an increased risk of fire.

Changing the grease filter

You must replace the grease filters periodically. Follow the instructions given below.

Type of filter	Replacement
Acrylic grease filter	Once or twice a month depending on frequency of use
Metal	You do not need to replace metal filters. Clean them once a month by hand or in a dishwasher ( 30^0 ). Do not use any acrid or corrosive detergents. Do not put the filter in the dishwasher together with tableware Filters which are blocked with food debris do not carry a guarantee. Dry the filters properly before you reinstall them.

Do not use any abrasive detergents! Do not use any alkaline dishwasher-detergents! ( ph more than 7 ).

Carbon filter

Conventional carbon and active carbon filters cannot be cleaned. The capacity of these filters is limited. You can use such filters for about 3-6 months. Replace a depleted filter. You can get further information on the filter packaging.

Changing the illuminant - halogen

Do not touch the illuminant with your hands. The sweat on your fingers will reduce the operating time of your new illuminant. Use a thin cloth or a thin glove.

1. Disconnect the appliance from the energy supply.
2. The Illuminant should have cooled down before you remove it.
3. Remove the old illuminant.
4. Replace it with a new one of the same kind and power.

Attention! The illuminants as well as all kinds of filters do not carry a guarantee!

Replacing of the power cord

DANGER!

The power cord must be replaced by a qualified and authorized professional only.

8. TROUBLE SHOOTING

MALFUNKTION
POSSIBLE CAUSE
MEASURE

The appliance does not work at all.	The plug of the appliance is not connected to the socket.The plug has become loose.The socket is not supplied with energy.The fuse is switched off.	Check the corresponding socket by connecting it with another appliance.Check the fuse.The voltage is too low. Compare the data on the model plate with the data of your energy supplier.
Light is on but motor does not work	ventilation damper blockedcondenser defectivemotor mounting defective	remove blockagereplace condenserreplace motor
The motor smells doubtful	motor defective	replace motor
Appliance judders	motor not properly fixedhood not properly fixed	fix motor properlyfix hood properly
Insufficient extracting capacity	too much distance hood-hobtoo much draught because of open doors and/or windows	lower position of hoodclose the doors/windows
Light does not work	illuminate is defective	Replace illuminate.
Appliance is unstable	mounting rail is not firmly fixedscrews are not firmly screwed down	fix mounting railproperlytighten the screws

If the hood does not work properly and/or you can hear increased operating noise, check the schedule given below:

▶ incorrect dimension of the air duct.
▶ obstruction in the air duct.

the diameter of the air duct from hood to wall-box inclusive should be 120-150 mm ^14 ; otherwise the capacity of the motor may be decreased.
➢ if you have installed a fly screen on the wall-box, the air vent may be obstructed. Check by removing the fly screen.
➢ if the cover panel of the wall box is equipped with firm and slanted slats, the air vent may be obstructed. Check by removing the cover panel.
➢ install a cover panel with moveable slats, which do not obstruct the air vent.
check condition and cleanliness of the filters.
check if the air which is extracted by the hood is replaced to avoid negative pressure.
when you run your appliance in recirculating mode, check if the carbon filter has been replaced on time (min. every 6 months).

DANGER!

If your appliance does not seem to run correctly, please contact the shop you purchased the appliance at.

DO NOT ATTEMPT TO REPAIR THE APPLIANCE YOURSELF

9. WASTE MANAGEMENT

➢ Old appliances should not simply be disposed of with normal household waste, but should be delivered to a collection and recycling centre for electric and electronic waste.
Materials used inside the appliance are recyclable and are labelled with information concerning this. By recycling materials or other parts from used devices you make a significant contribution to the protection of our environment.

Packaging

The packaging is recyclable. The recommended modus operandi is:

➢ Dispose of any paper and cardboard into the corresponding containers.
➢ Dispose of any plastics into the corresponding containers.
If such a suitable container is not available at your residential area, you can dispose of these materials with your domestic waste; but to bring it to a corresponding facility for waste recycling would be best.

WARNING!

During unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children.

Materials with this symbol on are recyclable.

PE< = Polyethylene
PS<= Styrofoam
PP< = Polypropylene

These materials can be recycled when you depose them of in a suitable collecting container of your local facilities.

Appliance

Do not dispose of the appliance with your domestic waste.
Waste separation is essential so that the single components of the appliance will be recycled according to their appropriate use.
Do not dispose of electric appliances as unsorted domestic waste. Use the local or municipal facilities for waste separation.
If electric appliances are disposed of at landfills, substances which are dangerous to one's health can get into the ground water. Such substances will become part of the food chain and cause damage to your health.
➢ Please contact your local authorities to receive detailed information in view of waste separation.

Environmental issue

Please help our environment! Dispose of old appliances and their packings with respect to your national, local and municipal regulations in view of waste management.
➢ Old appliances are not unusable waste. A lot of valuable resources can be gained by a serious waste management.
Before you dispose of an old appliance, render it inoperative.

1. Always remove the plug from the socket.
2. Afterwards cut off the power cord directly at the appliance. Dispose of the power cord with the plug immediately.

The above mentioned materials are environmental-friendly and recyclable.
Receive more detailed information from your retailer or your local and municipal facilities.

10. TECHNICAL DATA

Nota bene : all data sheets

Whether your appliance is equipped with carbon filters or not depends on the model you purchased.

PKM 6004 Stainless steel 520m ^3 - 2*50 Chimney - Halogen

DATA SHEET 1

Model		Extractor hood
Material		Stainless steel
Maximum extracting capacity / extractor mode		520 m^3/h
Width		60 cm
Installation wall / substructure / ceiling	yes	-	-
Push buttons AYD 008		5
Telescopic chimney from - to		50-95 cm
Total height with telescopic chimney		106,00 cm
Extractor mode		yes
Recirculating mode^15		yes
Capacity in m^3/h	407	473	520
Current consumption in W	80	86	100
Operating noise in db/A	51	53	56
Grease filter amount / material / dishwasher-proof	2	Aluminium	yes
Light amount / Watt / type	2	2*20 Watt	Halogen
Power rating		140 Watt
Voltage		220 - 240 V/50Hz
required amount carbon filters / type		2 * CF110
Supplied accessories:
Flap valve		yes
Exhaust hose		yes
Fixing material		yes
Instruction manual		yes
Carbon filter		Depending on model
Dimensions appliance H/W/D in cm	58,00-106,00	60,00	50,00
Dimensions packaging H/W/D in cm	57,00	66,00	40,00
Weight net / gross in kg	13,50		15,50
Labels		CE / GS

PKM 6004 H Stainless steel 520m ^3 - 2\*40 Chimney - Halogen

Modification of DATA SHEET 1

DATA SHEET 1a
Telescopic chimney from - to		40-78 cm-
Total height with telescopic chimney		86,00 cm
Light amount / Watt / type	2	2*28 Watt	Halogen
Dimensions appliance H/W/D in cm	48,00-86,00	60,00	50,00

PKM 6005 Stainless steel 520m ^3 - 2\*50 Chimney - Halogen

DATA SHEET 2
Model		Extractor hood
Material		Stainless steel
Maximum extracting capacity / extractor mode		520 m^3/h
Width		60 cm
Installation wall / substructure / ceiling	yes	-	-
Electronic keys AYD 001		4
Telescopic chimney from - to		50-98 cm
Total height with telescopic chimney		102,00 cm
Extractor mode		yes
Recirculating mode ^16		yes
Capacity in m^3/h	407	473	520
Current consumption in W	80	86	100
Operating noise in db/A	51	53	56
Grease filter amount / material / dishwasher-proof	1	Aluminium	yes
Light amount / Watt / type	2	2*20 Watt	Halogen
Power rating		140 Watt
Voltage		220 - 240 V/50Hz
required amount carbon filters / type		2 * CF110
Supplied accessories:
Flap valve		yes
Exhaust hose		yes
Fixing material		yes
Instruction manual		yes
Carbon filter		Depending on model
Dimensions appliance H/W/D in cm	54,00-102,00	60,00	50,00
Dimensions packaging H/W/D in cm	66,00	46,00	57,00
Weight net / gross in kg	16,00		18,00
Labels		CE / GS

PKM 6088 Stainless steel 520m ^3 - 2\*50 Chimney - Halogen

DATA SHEET 3

Model		Extractor hood
Material		Stainless steel
Maximum extracting capacity / extractor mode		520 m^3/h
Width		60 cm
Installation wall / substructure / ceiling	yes	-	-
Electronic keys AYD 001		4
Telescopic chimney from - to		50-98 cm
Total height with telescopic chimney		106,00 cm
Extractor mode		yes
Recirculating mode^1/		yes
Capacity in m^3/h	407	473	520
Current consumption in W	80	86	100
Operating noise in db/A	51	53	56
Grease filter amount / material / dishwasher-proof	2	Aluminium	yes
Light amount / Watt / type	2	2*20 Watt	Halogen
Power rating		140 Watt
Voltage		220 - 240 V/50Hz
required amount carbon filters / type		2 * CF160
Supplied accessories:
Flap valve		yes
Exhaust hose		yes
Fixing material		yes
Instruction manual		yes
Carbon filter		Depending on model
Dimensions appliance H/W/D in cm	58,00-106,00	60,00	50,00
Dimensions packaging H/W/D in cm	57,00	66,00	48,00
Weight net / gross in kg	17,00		21,00
Labels		CE / GS

PKM 6090 H Stainless steel 520m ^3 - 2\*40 Chimney - Halogen

DATA SHEET 4

Model		Extractor hood
Material		Stainless steel
Maximum extracting capacity / extractor mode		520 m^3/h
Width		60 cm
Installation wall / substructure / ceiling	yes	-	-
Push buttons AYD 008		5
Telescopic chimney from - to		40-78 cm
Total height with telescopic chimney		108,00 cm
Extractor mode		yes
Recirculating mode^18		yes
Capacity in m^3/h	407	473	520
Current consumption in W	80	86	100
Operating noise in db/A	51	53	56
Grease filter amount / material / dishwasher-proof	2	Aluminium	yes
Light amount / Watt / type	2	2*28 Watt	Halogen
Power rating		156 Watt
Voltage		220 - 240 V/50Hz
required amount carbon filters / type		2 * CF110
Supplied accessories:
Flap valve		yes
Exhaust hose		yes
Fixing material		yes
Instruction manual		yes
Carbon filter		Depending on model
Dimensions appliance H/W/D in cm	70,00-108,00	60,00	50,00
Dimensions packaging H/W/D in cm	56,00	65,00	53,00
Weight net / gross in kg	10,00		12,00
Labels		CE / GS

PKM 6091 H Stainless steel 350m ^3 - 2\*40 Chimney - Halogen

DATA SHEET 5

Model		Extractor hood
Material		Stainless steel
Maximum extracting capacity / extractor mode		520 m^3/h
Width		60/90 cm
Installation wall / substructure / ceiling	yes	-	-
Push buttons AYD 008		5
Telescopic chimney from - to		39-76 cm
Total height with telescopic chimney		93,30 cm
Extractor mode		yes
Recirculating mode^19		yes
Capacity in m^3/h	199	280	350
Current consumption in W	45	54	65
Operating noise in db/A	45	48	53
Grease filter amount / material / dishwasher-proof	2	Aluminium	yes
Light amount / Watt / type	2	2*28 Watt	Halogen
Power rating		121 Watt
Voltage		220 - 240 V/50Hz
required amount carbon filters / type		2 * CF130
Supplied accessories:
Flap valve		-
Exhaust hose		yes
Fixing material		yes
Instruction manual		yes
Carbon filter		Depending on model
Dimensions appliance H/W/D in cm	56,30-93,30	60,00	47,50
Dimensions packaging H/W/D in cm	55,00	65,00	33,00
Weight net / gross in kg	10,00		12,00
Labels		CE / GS

PKM 8888 H Stainless steel 350m ^3 - 2\*40 Chimney - Halogen

DATA SHEET 6

Model		Extractor hood
Material		Stainless steel
Maximum extracting capacity / extractor mode		350 m^3/h
Width		60 cm
Installation wall / substructure / ceiling	yes	-	-
Push buttons AYD 008		5
Telescopic chimney from - to		40-79 cm
Total height with telescopic chimney		83,00 cm
Extractor mode		yes
Recirculating mode^20		yes
Capacity in m^3/h	199	280	350
Current consumption in W	45	54	65
Operating noise in db/A	45	48	53
Grease filter amount / material / dishwasher-proof	1	Aluminium	yes
Light amount / Watt / type	2	2*28 Watt	Halogen
Power rating		121 Watt
Voltage		220 - 240 V/50Hz
required amount carbon filters / type		2 * CF130
Supplied accessories:
Flap valve		yes
Exhaust hose		yes
Fixing material		yes
Instruction manual		yes
Carbon filter		Depending on model
Dimensions appliance H/W/D in cm	45,00-83,00	60,00	40,00
Dimensions packaging H/W/D in cm	27,50	66,00	46,00
Weight net / gross in kg	17,00		19,50
Labels		CE / GS

PKM 8090 H Stainless steel 500m ^3 - 2\*40 Chimney - Halogen

DATA SHEET 7

Model		Extractor hood
Material		Stainless steel
Maximum extracting capacity / extractor mode		500 m^3/h
Width		60 cm
Installation wall / substructure / ceiling	yes	-	-
Push buttons AYD 008		5
Telescopic chimney from - to		40-78 cm
Total height with telescopic chimney		82,00 cm
Extractor mode		yes
Recirculating mode^21		yes
Capacity in m^3/h	326	409	500
Current consumption in W	58	72	100
Operating noise in db/A	61	63	66
Grease filter amount / material / dishwasher-proof	2	Aluminium	yes
Light amount / Watt / type	2	2*28 Watt	Halogen
Power rating		156 Watt
Voltage		220 - 240 V/50Hz
required amount carbon filters / type		2 * CF110
Supplied accessories:
Flap valve		yes
Exhaust hose		yes
Fixing material		yes
Instruction manual		yes
Carbon filter		Depending on model
Dimensions appliance H/W/D in cm	44,00-82,00	60,00	50,00
Dimensions packaging H/W/D in cm	56,00	66,00	38,00
Weight net / gross in kg	10,50		12,50
Labels		CE / GS

PKM 9001 Stainless steel 700m ^3 - 2\*50 Chimney - Halogen

DATA SHEET 8

Model		Extractor hood
Material		Stainless steel
Maximum extracting capacity / extractor mode		700 m^3/h
Width		90 cm
Installation wall / substructure / ceiling	yes	-	-
Push buttons AYD 008		5
Telescopic chimney from - to		50-98 cm
Total height with telescopic chimney		106,00 cm
Extractor mode		yes
Recirculating mode^22		yes
Capacity in m^3/h	560	630	700
Current consumption in W	140	166	190
Operating noise in db/A	64	67	70
Grease filter amount / material / dishwasher-proof	2	Aluminium	yes
Light amount / Watt / type	2 k	2*20 Watt	Halogen
Power rating		230 Watt
Voltage		220 - 240 V/50Hz
required amount carbon filters / type		2 * CF160
Supplied accessories:
Flap valve		yes
Exhaust hose		yes
Fixing material		yes
Instruction manual		yes
Carbon filter		Depending on model
Dimensions appliance H/W/D in cm	58,00-106,00	90,00	50,00
Dimensions packaging H/W/D in cm	95,00	46,00	57,00
Weight net / gross in kg	21,00		23,00
Labels		CE / GS

PKM 9004 Stainless steel 520m ^3 - 2\*40 Chimney - Halogen

DATA SHEET 9

Model		Extractor hood
Material		Stainless steel
Maximum extracting capacity / extractor mode		700 m^3/h
Width		90 cm
Installation wall / substructure / ceiling	yes	-	-
Push buttons AYD 008		5
Telescopic chimney from - to		40-78 cm
Total height with telescopic chimney		86,00 cm
Extractor mode		yes
Recirculating mode^23		yes
Capacity in m^3/h	407	473	520
Current consumption in W	80	86	100
Operating noise in db/A	51	53	56
Grease filter amount / material / dishwasher-proof	3	Aluminium	yes
Light amount / Watt / type	2	2*20 Watt	Halogen
Power rating		140 Watt
Voltage		220 - 240 V/50Hz
required amount carbon filters / type		2 * CF110
Supplied accessories:
Flap valve		yes
Exhaust hose		yes
Fixing material		yes
Instruction manual		yes
Carbon filter		Depending on model
Dimensions appliance H/W/D in cm	48,00-86,00	90,00	50,00
Dimensions packaging H/W/D in cm	95,50	40,50	57,00
Weight net / gross in kg	17,00		19,00
Labels		CE / GS

PKM 9004 Stainless steel 520m ^3 - 2\*50 Chimney - Halogen

Modification of DATA SHEET 9

DATA SHEET 9a

Telescopic chimney from - to	50-98 cm-
Total height with telescopic chimney	106,00 cm
Dimensions appliance H/W/D in cm	58,00-106,00	90,00	50,00

PKM 9090 H Stainless steel 520m ^3 - 2\*40 Chimney - Halogen

DATA SHEET 10

Model		Extractor hood
Material		Stainless steel
Maximum extracting capacity / extractor mode		520 m^3/h
Width		90 cm
Installation wall / substructure / ceiling	yes	-	-
Push buttons AYD 008		5
Telescopic chimney from - to		40-78 cm
Total height with telescopic chimney		108,00 cm
Extractor mode		yes
Recirculating mode^24		yes
Capacity in m^3/h	407	473	520
Current consumption in W	80	86	100
Operating noise in db/A	51	53	56
Grease filter amount / material / dishwasher-proof	2	Aluminium	yes
Light amount / Watt / type	2	2*28 Watt	Halogen
Power rating		156 Watt
Voltage		220 - 240 V/50Hz
required amount carbon filters / type		2 * CF110
Supplied accessories:
Flap valve		yes
Exhaust hose		yes
Fixing material		yes
Instruction manual		yes
Carbon filter		Depending on model
Dimensions appliance H/W/D in cm	70,00-108,00	90,00	50,00
Dimensions packaging H/W/D in cm	57,00	95,00	37,00
Weight net / gross in kg	12,50		15,00
Labels		CE / GS

PKM 9999 Stainless steel 520m ^3 - 2\*50 Chimney - Halogen

DATA SHEET 11

Model		Extractor hood
Material		Stainless steel
Maximum extracting capacity / extractor mode		520 m^3/h
Width		60 cm
Installation wall / substructure / ceiling	yes	-	-
Push buttons AYD 008		5
Telescopic chimney from - to		50-98 cm
Total height with telescopic chimney		103,00 cm
Extractor mode		yes
Recirculating mode^25		yes
Capacity in m^3/h	407	473	520
Current consumption in W	80	86	100
Operating noise in db/A	51	53	56
Grease filter amount / material / dishwasher-proof	1	Aluminium	yes
Light amount / Watt / type	2	2*20 Watt	Halogen
Power rating		140 Watt
Voltage		220 - 240 V/50Hz
required amount carbon filters / type		2 * CF110
Supplied accessories:
Flap valve		yes
Exhaust hose		yes
Fixing material		yes
Instruction manual		yes
Carbon filter		Depending on model
Dimensions appliance H/W/D in cm	55,00-103,00	60,00	50,00
Dimensions packaging H/W/D in cm	57,00	66,00	49,00
Weight net / gross in kg	15,20		17,70
Labels		CE / GS

11. GUARANTEE CONDITIONS

Guarantee conditions for large electric appliances PKM GmbH & Co. KG, Neuer Wall 2, 47441 Moers

This appliance was made and checked according to the most modern production methods. This appliance includes a 24-month guarantee for the consumer given by the manufacturer, dated from the day of purchase, referring to its flawless material-components and its faultless fabrication.

The consumer is accredited with both the dues of the guarantee given by the manufacturer and the vendor's guarantees. These are not restricted to the manufacturer's guarantee. The guarantee is valid without prejudice to stringent legal liability regulations, e.g. the product liability law, in the case of malice and of wanton negligence in view of harm of life, body or health by PKM or its agents.

The right on the guarantee is not granted, when the purchase is made in the course of a commercial activity.

The guarantee claim has to be verified by the vendee by submitting a proof of purchase including the date of purchase and/or the date of delivery. This has to be reported to us or in the Federal Republic of Germany to the shop you purchased the hood at. This report has to be made immediately after the detection and within 24 months after the delivery to the first ultimate vendee.

The guarantee for our appliances is valid under the following conditions:

Defects of the appliance which are verifiably caused by material or fabrication deficiency will be rectified free of charge by the shop you purchased the hood at. When the defect appears within 6 months we suppose that there is a material or fabrication deficiency.

Within the guarantee we will repair deficient components free of charge using components of our own choice or they will be replaced by flawless components. Appliances, which can, due to their dimensions, be reasonably transported by an automobile, should be given over or submitted to the shop you purchased the hood at.

If the repair work is refused by us or if the repair work finally fails, the old appliance, if requested, will be replaced by an appliance of the same kind, quality and type within the period of guarantee. If the old appliance is no longer produced at the time the defect occurred, PKM will be entitled to deliver a similar appliance.

The exchange of the appliance principally takes place in the shop the first vendee bought the appliance in unless the appliance is too large to be transported by the vendee.

The guarantee does not establish any entitlement to withdraw from the purchase contract or for a price reduction.

Replaced components or exchanged appliances demise to us as our property.

The guarantee claim does not cover:

1. fragile components as plastic, glass or bulbs;
2. minor modifications of the PKM-products concerning their authorized condition if they

do not influence the utility value of the product;

1. damage caused by handling errors or false operation;
2. damage caused by aggressive environmental conditions, chemicals, detergents;
3. damage caused by non-professional installation and haulage;
4. damage caused by non common household use;
5. damages which have been caused outside the appliance by a PKM-product unless a liability is forced by legal regulations.

The validity of the guarantee will be terminated if:

1. the prescriptions of the installation and operation of the appliance are not observed.
2. the appliance is repaired by a non-professional.
3. the appliance is damaged by the vendor, the installer or a third party.
4. the installation or the start-up is performed inappropriately.
5. the maintenance is inadequately or incorrectly performed.
6. the appliance is not used for its intended purpose.
7. the appliance is damaged by force majeur or natural disasters, including, but with not being limited to fires or explosions.

The guarantee claims neither extend the guarantee period nor initiate a new guarantee period. The guarantee period for installed replacement parts ends with the guarantee.

Provided that a product-related malfunction is not covered by this guarantee the vendee has to bear the cost, when the appliance is checked, including any labour costs that may arise.

If the holder of the guarantee has requested repair work, then the holder of the guarantee must be informed about the non-intervention of the guarantee and possible costs, that may arise, and thereafter he must bear all costs for spare parts and wages.

The geographical scope of the guarantee is limited with respect to appliances, which are purchased and used in Germany, Austria, Belgium, Luxembourg and the Netherlands.

August 2012

Attention! The illuminants as well as all kinds of filters do not carry a guarantee!

12. NOTIZEN / NOTES

PKM

Order carbon filters at PKM Tel. [phone] Fax 21950

www.pkm-online.de

CE

Stand:28.01.2013

Updated: 01/28/2013
