USER MANUAL Prestige 1900 FAKIR

1800 2100 Blue Line Prestige 1800 Prestige 1900

Instructions for use Vacuum cleaner

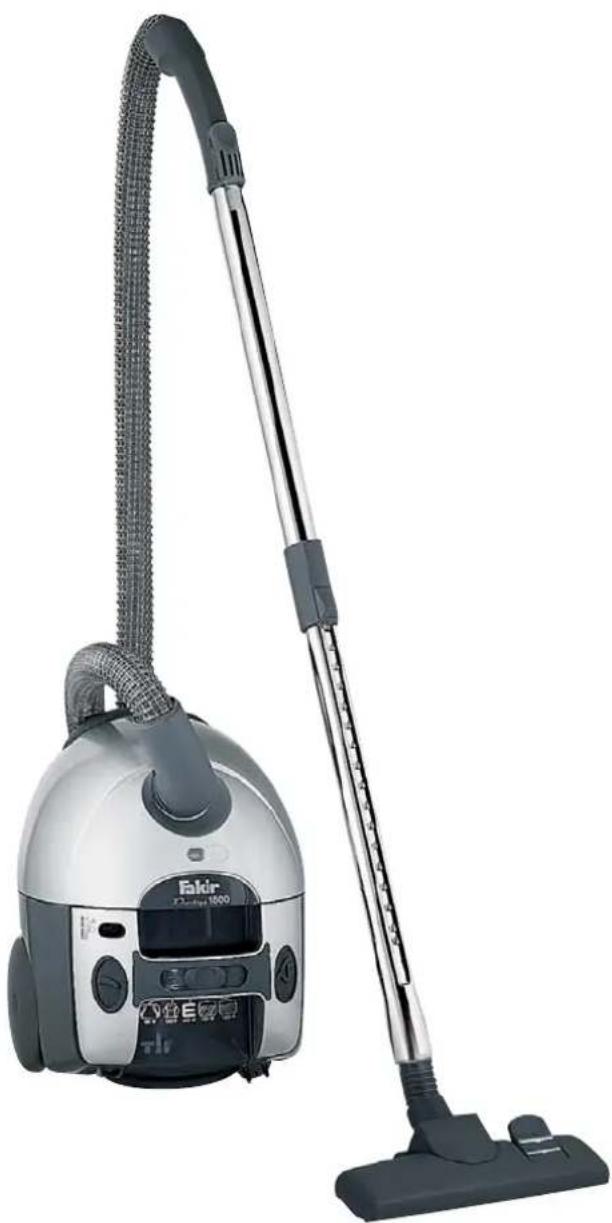

Exterior view of a black and silver Fakir vacuum cleaner (no text or symbols visible on body)

D

Inhaltsverzeichnis

GB Table of contents

Table of contents ......24

General 25

Safety 26

Overview....30

Assembly....32

Accessories....33

Operating....34

After use ....37

Troubleshooting....39

Disposal....41

Warranty – only valid for the German market ......42

Notiz 43

E D C B A J F G H I

K

L

Close-up of a black plastic electronic component with a cable (no visible text or symbols)

Close-up of a black vacuum cleaner with a handle and lever (no visible text or symbols)

Modell: Fakir Fakir Fakir Prestige Prestige

Simple line drawing of an open box with a black upward arrow indicating upward motion (no text or symbols)

Montieren

Close-up of a hand holding a rubber hose with a white arrow pointing to the nozzle (no text or symbols visible)

Close-up of a hand holding a car tire with arrows pointing upward (no text or symbols visible)

Close-up of a flexible cable with a black arrow pointing to its tip (no text or symbols visible)

Close-up of a black vacuum cleaner's head and lever with an arrow indicating motion (no text or symbols visible)

Close-up of a medical or laboratory device with two black arrows pointing to internal components (no visible text or symbols)

Close-up of a black vacuum cleaner component with a black arrow pointing to a small part (no text or symbols visible)

ACHTUNG!

Close-up of a black vacuum cleaner with a handle and lever (no text or symbols visible)

Three different types of hair clips, including a brush and a clip, shown against a white background (no text or symbols visible)

HINWEIS!

Two black industrial vacuum cleaner components with visible wiring and mounting brackets (no text or symbols)

Close-up of a hand holding a screwdriver next to a car interior (no visible text or symbols)

Fakir 1900 D B A

min max

WARNUNG!

Close-up of a hand inserting a device into a black arrow, showing internal components (no text or symbols visible)

Close-up of a black vacuum cleaner with attached circuit board (no visible text or symbols)

Close-up of a hand holding a screwdriver next to a helmet (no visible text or symbols)

Close-up of a hand pressing down on a device component, with arrows indicating motion (no text or symbols visible)

ACHTUNG!

Close-up of hands using a tool to clean or residue white material in a container (no text or symbols visible)

Close-up of a hand holding a plastic bag over a container, with arrows pointing to the part (no visible text or symbols)

HINWEIS!

Close-up of a hand holding a plastic component with a black arrow pointing to a slot (no text or symbols visible)

Close-up of a hand holding a black vacuum cleaner's helmet, no visible text or symbols

Close-up of hands operating a robotic device with a grid and directional arrows (no visible text or symbols)

Close-up of a hand holding a grid-patterned device next to a small electronic component (no visible text or symbols)

Symbol of a waste bin with no text or labels

Table of contents ......24

General

Information about the operating instructions....25

Liability....25

Notices in the operating instructions....25

Safety

CE Declaration of Conformity 26

Intended use 26

Unauthorized use....26

Children 26

Electric current....28

In case of danger 28

In case of defects....29

Dispatch....29

Overview

Product description and scope of delivery 30

Optional accessories ....31

Technical data....31

Assembly

Unpacking....32

Assembling 32

Accessories

Floor suction nozzle, hard floor nozzle, crevice nozzle .....33

upholstery nozzle, furniture brush....33

turbo suction brush, electric suction brush 33

Operating

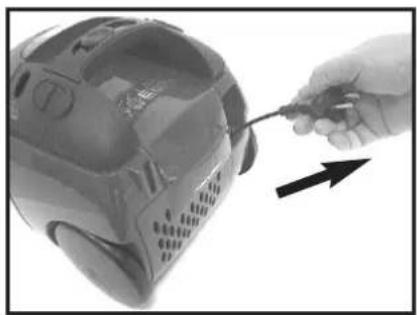

Vacuum cleaning....34

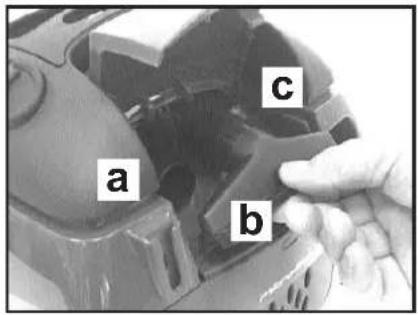

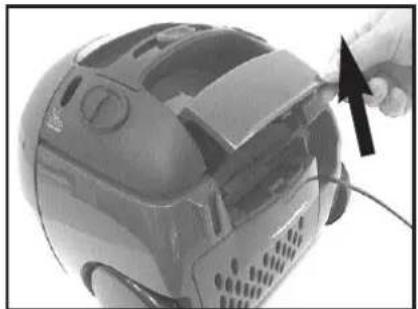

Accessory compartment 35

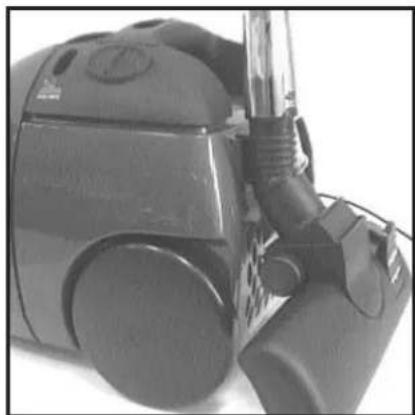

Work breaks....35

After vacuuming 36

After use

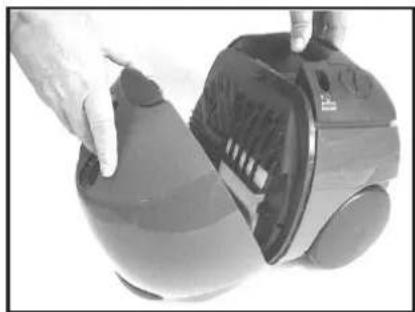

Maintenance and Cleaning 37

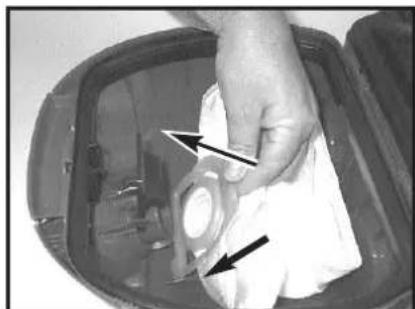

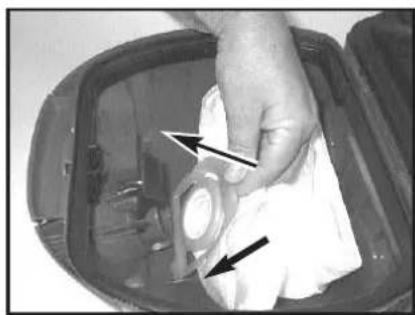

Changing the dust bag 37

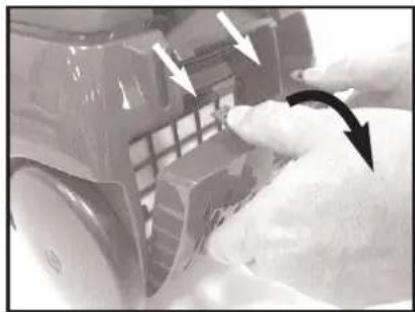

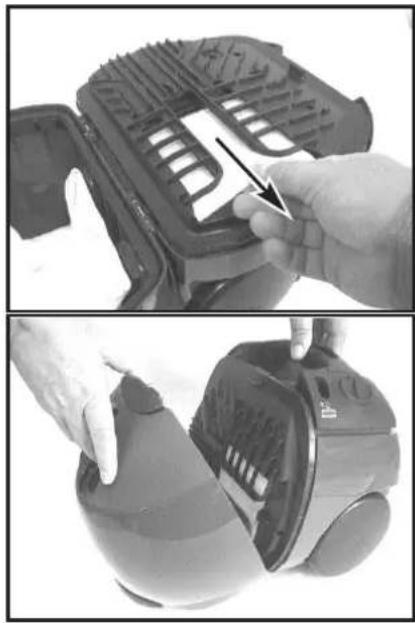

Changing the motor protection filter 38

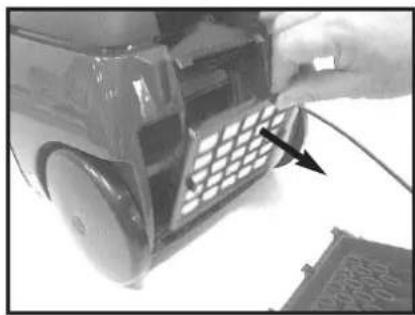

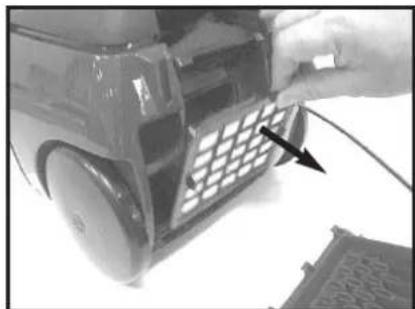

Changing the HEPA filter 38

Troubleshooting....39

Disposal....41

Warranty – only valid for the German market .....42

Notiz 43

GENERAL

Information about the operating instructions

These operating instructions are intended to enable the safe and proper handling and operation of the appliance.

Read these operating instructions carefully before using the appliance for the first time.

Keep the operating instructions in a safe place. Include these operating instructions when passing the appliance on to another user.

Liability

We will accept no liability for damages resulting from failure to comply with the operating instructions.

We cannot assume any liability in case the appliance is used for other purposes than its intended use or handled, repaired or serviced improperly.

Notices in the operating instructions

WARNING!

Indicates notices which, if ignored, can result in risk of injury or death.

ATTENTION!

Indicates notices of risks that can result in damage to the appliance.

NOTICE!

Emphasizes tips and other useful information in the operating instructions.

CE Declaration of Conformity

This appliance fulfils the requirements of the Appliance and Product Safety Law (GPSG) and the EU Directives 2004/108/EC “Electromagnetic Compatibility” and 2006/95/EC “Low-Voltage Directive.”

The appliance bears the CE mark on the rating plate.

Intended use

The appliance may only be used in households. It is not suitable for commercial use.

It may be used only for dry cleaning hard floors and textile coverings, carpets, upholstery furniture, mattresses, furniture, radiators and curtains.

Check if all filters have been inserted properly before using the appliance. The appliance must not be used without filters.

Use only original Fakir filters and accessories.

Any other use is considered unauthorized and is prohibited.

Unauthorized use

- This appliance is not designed to be used by persons (including children) with limited physical, sensory or mental capacities or by persons lacking in experience and/or knowledge, unless they are supervised by someone who is responsible for their safety or have received instructions on how to use the appliance. Children should be supervised to ensure that they do not play with the appliance.

Children

- Children should be supervised to ensure that they do not play with the appliance. Electric appliances are not toys for children! Therefore, use and store the appliance away from the reach of children. Children do not recognize the danger involved with handling an electric appliance. Do not let the power cord dangle from the appliance.

- Keep packaging films away from children - danger of suffocation!

WARNING!

Danger of injury from vacuuming:

• Never vacuum articles of clothing, hair, eyes, fingers or other parts of the body.
• Nozzles and tube ends must never be brought close to the eyes or ears.
• Never use the appliance to vacuum human beings or animals. The manufacturer is not responsible for any damages caused by unauthorized use or improper operation.
• Danger of injury! Never reach into the rotating brush roller when working with the turbo / electrical suction brush.

Health hazard!

- Never vacuum hazardous materials, such as toner used in laser printers or copiers.

Danger of fire and explosion!

• Never vacuum hot ashes or burning objects, such as cigarettes or matches.
• Never use the appliance in the vicinity of explosive or flammable materials.
• Never vacuum any solvents, explosive gases or liquids.

ATTENTION!

• Risk of short circuits! Never vacuum water and other liquids, such as damp carpet cleaning solutions..
• Destruction of filters! Never vacuum sharp or pointed objects, such as glass splinters, nails, etc. Materials that harden when dry, such as plaster or cement, can also destroy the filter.
• Damage to appliance from rain and dir!: Never use or store the appliance outdoors.
• Danger from overheating! Always keep the openings in the appliance free.

Electric current

ATTENTION!

• Incorrect voltage can destroy the appliance. Operate the appliance only if the voltage specified on the rating plate corresponds to the voltage in your household.
• The socket must be protected with a 16 A automatic circuit breaker.
• Use only extension cords designed for the power input of the appliance.

WARNING: Danger of electric shock!

• Never touch the plug with wet hands.
• When unplugging the appliance, always pull directly on the plug and never on the power cord.
• Do not kink, pinch or run over the power cord and do not expose it to heat sources.
• If the power cord of this appliance is damaged, it must be replaced by the manufacturer or the manufacturer's customer service department or a person with similar qualifications to prevent any hazards.
• Do not put the appliance in operation if you detect any visible damage on the housing, if the power cord is defective or if you suspect a defect (e.g. after a fall).
• Do not use any damaged extension cords.

In case of danger

In case of danger or accident, unplug the appliance immediately.

In case of defects

WARNING!

Never operate a defective appliance or an appliance with a defective power cord. There is a danger of electric shock.

Before contacting our service department, check to see if you can eliminate the problem yourself. Refer to the chapter "Troubleshooting".

If you were not able to eliminate the problem yourself, please contact an authorized Fakir service center or a trained technician in your country.

(within Germany our)

Service-Hotline

01805 325474

14 Cent / minute

from the wire-line network of the Deutsche Telekom

Before calling, have the article no. and appliance/model name at hand. This information can be found on the rating plate of the appliance.

- Repairs and maintenance may be performed only by trained technicians (e.g. Fakir customer service). Only original Fakir replacement parts may be used. Improperly repaired or serviced appliances may pose a danger to the user.

Dispatch

Send the appliance in the original package or a similar, well-padded package to prevent damage to the appliance.

F G E D C B A J H I

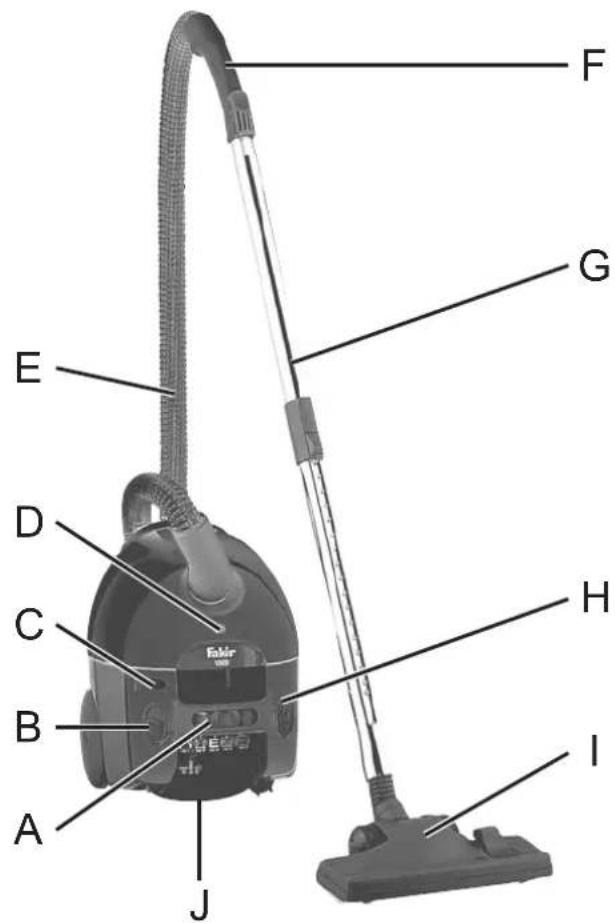

Product description and scope of delivery

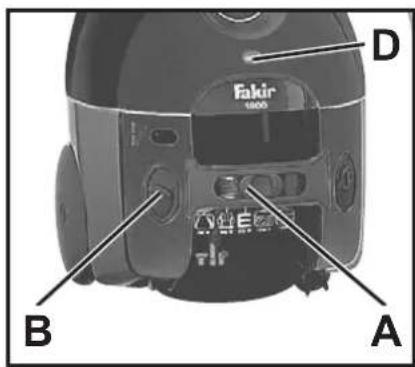

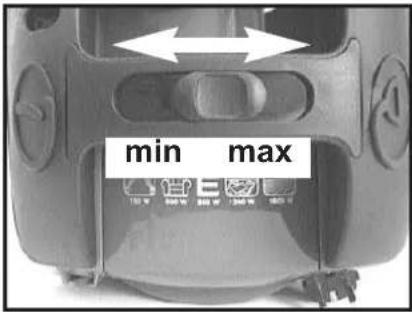

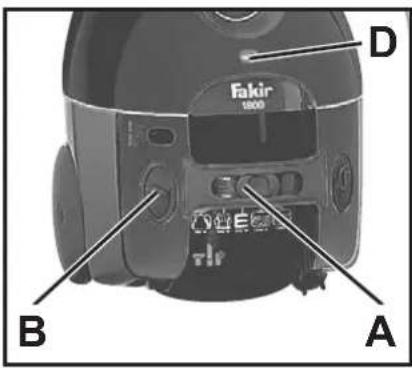

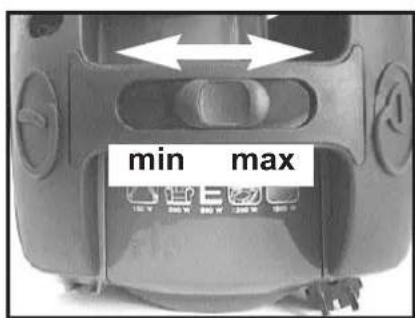

A Suction control

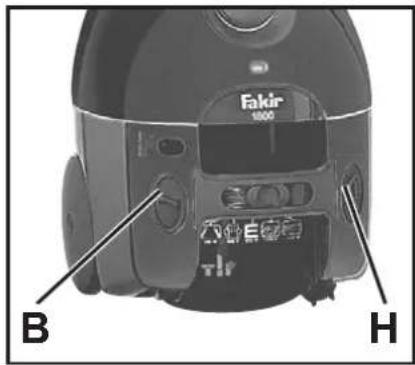

B Pedal button ON-OFF

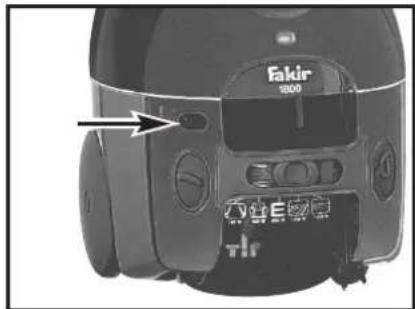

C Utensil socket for connection of electric suction brush
D Dust bag / HEPA filter Filter exchange indicator
E Suction hose
F Handle with suction control
G Telescopic suction tube
H Pedal button for cable rewind
I Floor suction nozzle
J HEPA filter + accessory compartment
K Furniture brush (stored in the accessory compartment)
L Crevice nozzle (stored in the accessory compartment)
M Upholstery nozzle (stored in the accessory compartment)
N Hard floor nozzle
O Turbo suction brush *
P Electric suction brush * Dust bag (not illustrated) Instructions for use
* = Optional accessory

K

L

Close-up of a black plastic component with a handle and textured body (no visible text or symbols)

Close-up of a black vacuum cleaner with a metallic clip (no visible text or symbols)

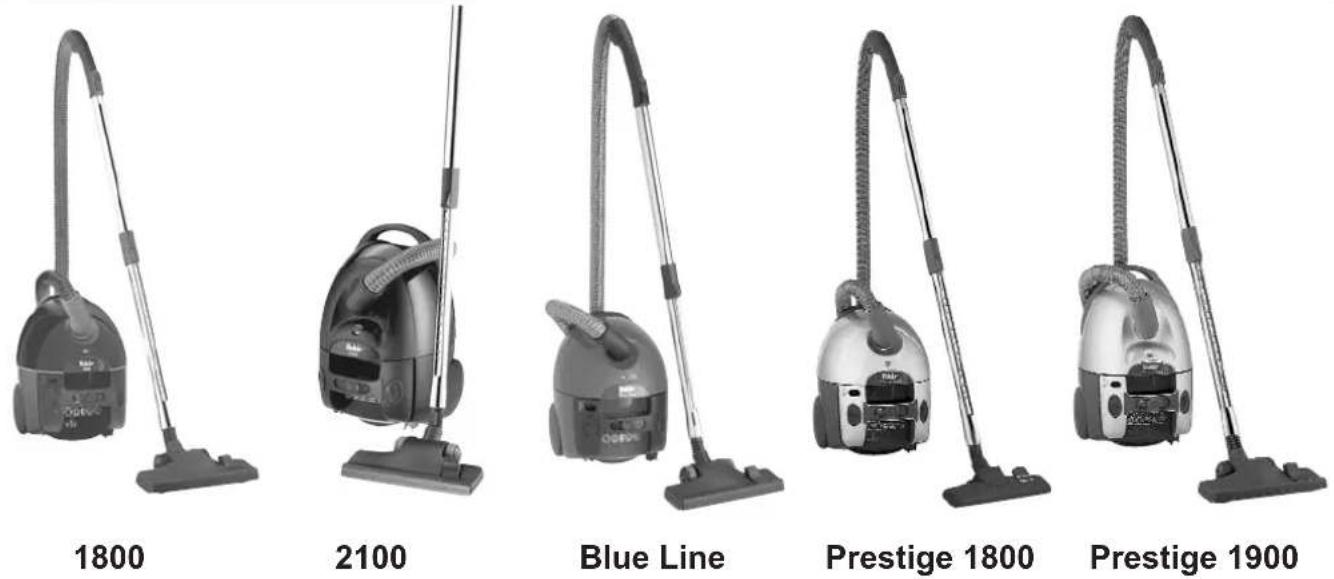

Model: Fakir Fakir Fakir Prestige Prestige

1800 2100 Blue Line 1800 1900

Reference.: 2018003 2025003 2059003 2019003 2020003

Optional accessory

Turbo suction brush	ref. 2018920	X	-	-			X		X
Electric suction brush	ref. 2019810	X X X		X		X
HEPA filter	ref. 2018085	X	--		--		--	X

Package dust bags =

Micro nonwoven filter

ref.: 2019805 X X X X

X = optional accessory

-- = standard accessory

Technical data

Mains voltage	230 V	230 V	230 V	230 V	230 V
Nominal frequency	50 Hz	50 Hz	50 Hz	50 Hz	50 Hz
Power IEC.	1550 W	1850 W	1550 W	1550 W	1650 W
Power max.	1800 W	2100 W	1800 W	1800 W	1900 W
Electric suction brush max.	100 W	100 W	100 W	100 W	100 W
Depression max.	28 kPa	29 kPa	28 kPa	28 kPa	29 kPa
Air flow max.	39 l/s 40 l/s	39 l/s 39 l/s	40 l/s
Weight approx.	7 kg	7,2 kg	7 kg	7 kg	7,2 kg
Dimensions (H) approx.	30 cm	30 cm	30 cm	30 cm	30 cm
(W) approx.	29 cm	29 cm	29 cm	29 cm	29 cm
(D) approx.	37 cm	45 cm	37 cm	37 cm	45 cm
Colour (housing)	black	black	blue	silver	silver
Dust bag:
max. filling volume	4,0 l	4,0 l	4,0 l	4,0 l	4,0 l
max. usable filling volume	3,2 l	3,5 l	3,2 l	3,2 l	3,5 l

Unpacking

Simple line drawing of an open box with a black upward arrow indicating compression or lifting (no text or symbols)

Assembling

Close-up of a hand holding a black object with a white arrow pointing downward (no text or symbols visible)

Close-up of a hand holding a car tire with arrows pointing upward (no text or symbols visible)

Close-up of a flexible hose with a black arrow pointing to the cable (no text or symbols visible)

Close-up of a vacuum cleaner's head and lever mechanism, showing a black arrow pointing to the lever (no text or symbols visible)

Close-up of a metallic cylindrical object with two black arrows pointing left, no visible text or symbols

Unpack the appliance and check the contents for completeness (see "scope of delivery").

Sort the packaging material and recycle accordingly.

If you notice any transportation damage, please contact your dealer immediately.

WARNING!

Never use a defective appliance.

WARNING!

Prior to assembly, make sure that the mains plug is unplugged. If the mains plug is plugged in, the appliance could accidentally be switched on, resulting in injuries.

- Suction hose

Press the connecting piece at the end of the suction hose into the air intake opening of the vacuum cleaner.

NOTICE!

To release the suction hose squeeze both locking parts.

• Suction hose / Telescopic suction tube

Insert the handle of the suction hose into the telescopic tube.

- Nozzles / Hand tube resp. Telescopic suction tube

Insert the required nozzle with a slight turn onto the handle of the suction hose, or onto the telescopic suction tube.

- Setting the length of the suction tube

Use your thumb to press the slide element in the direction of the arrow.

Pull or push the suction tube to the required length.

The vacuum cleaner is now ready for use.

ATTENTION!

Always switch off the appliance before changing the nozzle.

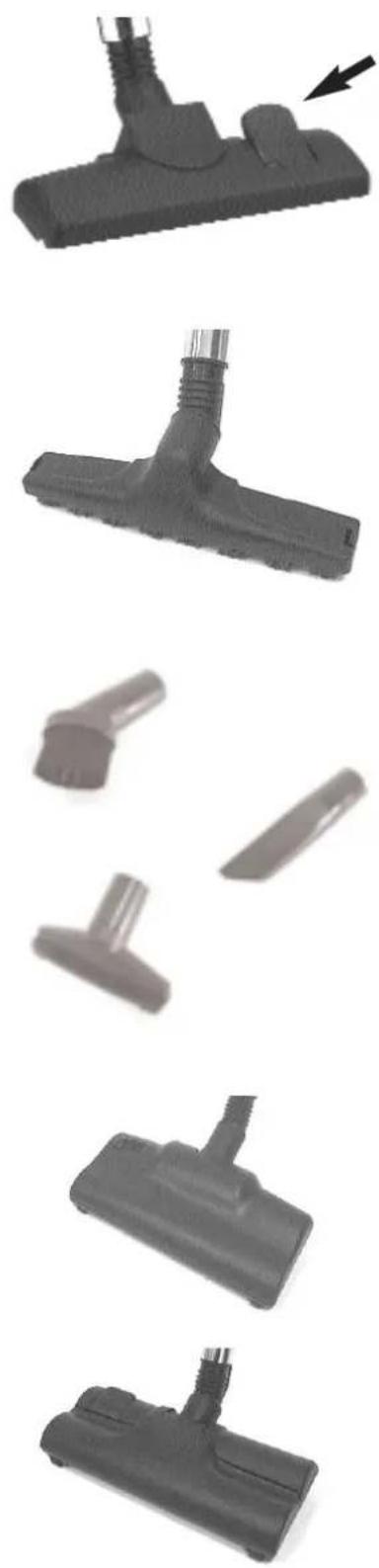

- The floor suction nozzle has a switch (see arrow) which sets the nozzle for cleaning of either carpets or hard flooring. You can activate this switch with your foot.

Vacuum-cleaning hard floors:

• the brush element is extended.

Carpeting:

• the brush element is retracted.

NOTICE!

Set suction capacity medium to high.

The hard floor nozzle is used for cleaning hard floors such as tiles, parquet or PVC etc.

NOTICE!

Set suction capacity medium to high.

The crevice nozzle serves to clean hard-to-access places, such as deep cracks, corners, recesses, etc.

With the upholstery nozzle you can vacuum off curtains, upholstered furniture, etc.

With the furniture brush you can vacuum off dust from furniture, pictures, window sills, books, etc.

NOTICE!

Set suction capacity low to medium.

The turbo brush can clean deep down into carpets and rugs to remove stubborn fluff and animal hairs thanks to the suctioning air flow driven by the rotating roller brush.

(optional accessory)

With the motor-driven, powerful electric suction brush, even the deepest entrenched dirt is removed from the pile of textile floors of every type. (optional accessory)

NOTICE!

Set suction capacity medium to high.

Vacuum cleaning

Close-up of a hand holding a screwdriver next to a car interior (no visible text or symbols)

D Fakir 1800 B A

min max

WARNING!

Always check the appliance and the power cable before use. Faulty appliances may cause injury and should not be used.

• Attach the required nozzle.
• Pull out the power supply cable by tugging on the plug until the required length is reached.

A yellow mark on the cable shows you that the maximum cable length has almost been reached. The maximum cable length is shown by a red mark on the cable. Never pull the cable out of the appliance beyond the red mark.

• To switch the vacuum cleaner on, the ON-OFF pedal button " [A]"
• Set the required suction level using the suction power regulator (A):

MIN. = push to the left MAX. = push to the right

NOTICE! Dust bag

In case of full dust bag, as well as with clogged up accessories (hose, tube, nozzles), the filter exchange indicator [E] lights up. In this case, replace the dust bag and/or the clogged filters or remove the stoppage.

min max

Adjustment of suction level

by means of the suction control on the handle of the suction hose:

Suction level max. = vent closed

Suction level min. = vent open

Accessory department

Close-up of a hand inserting a component into a device with a black arrow pointing to the component (no visible text or symbols)

Open the accessory compartment lid.

The accessory compartment is containing:

• crevice nozzle [A]
• upholstery nozzle [B]
• furniture brush [C]

a b c

Utensil socket

Fakir 1800 T1R

for connection of electric suction brush.

(optional accessory)

Work breaks

Close-up of a black vacuum cleaner with attached circuit board (no visible text or symbols)

Suction pipe park position with automatic suction cut-off. (Optional, not available on all models, Only delivered on selected models.)

Use the park holder to hold the suction tube safely in position when the cleaner is not being used. To do this, insert the park holder of the floor nozzle in to the nozzle holder on the reverse of the appliance; the motor is automatically switched off.

After vacuuming

WARNING!

Follow the steps below as soon as you stop vacuum cleaning. Never leave the appliances unattended.

Fakir 1800 B H

- Press the pedal button ON-OFF [B] to switch off the vacuum cleaner.

- Remove the plug from the mains socket.

- Press the pedal button "cable rewind" [H] to reel in the cable. Gently guide the cable with your hand until the cable has been completely wound in and the plug rests snugly against the opening.

Close-up of a hand holding a screwdriver next to a helmet (no text or symbols visible)

- Store the vacuum cleaner in a place that is out of the reach of children.

ATTENTION!

Never place the appliance next to heat sources and avoid direct sunlight, as the heat may damage the vacuum cleaner.

Maintenance and cleaning

WARNING!

Before conducting any maintenance or cleaning, switch off and unplug the appliance. If the mains plug is plugged in, the appliance could accidentally be switched on, resulting in injuries.

Changing the dust bag

ATTENTION!

Do not use any cleaning agents, abrasives or alcohol. These damage the housing.

Close-up of a hand pressing down on a device component, labeled 'd', with no visible text or symbols beyond the label.

Only clean the appliance using a dry or damp cloth.

If necessary, you can also clean the dust compartment with a damp cloth.

Close-up of hands cleaning a white cloth on a trash bin with arrows indicating direction (no text or symbols)

• Pull out the suction hose

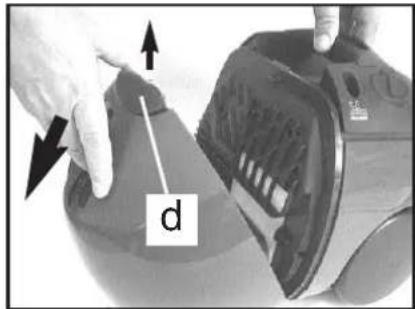

- Open the dust (filter) compartment:

Lift up the release lever [d/e] and open both housing parts.

Close-up of a hand placing a white plastic bag onto a dark plastic container with arrows pointing to it (no text or symbols visible)

- Changing dust bag:

1. Remove the full dust bag and dispose it.
2. Insert the new dust bag into the dust bag holder.

NOTICE!

Always ensure that all filters are inserted properly before using the appliance.

Changing the motor protection filter

Two-step black-and-white photo showing hands installing or adjusting a vacuum cleaner's cover (no text or symbols visible)

Changing the HEPA-filter

Close-up of a hand pressing down on a mechanical component with arrows indicating motion (no visible text or symbols)

Close-up of a hand holding a small electronic device with a grid-patterned panel, next to a circuit board (no visible text or symbols)

1. Open the dust compartment lid.
2. Remove the contaminated filter and put in the new one perfectly.
3. Close the dust compartment lid (both housing parts) until it clicks into place.

NOTICE!

Change the motor protection filter after the consumption of approx. 5 dust bags.

1. Open the accessory compartment lid.
2. Press the flaps down and remove the exhaust air grid backwards.
3. Remove the contaminated HEPA filter and dispose it.
4. First put in the new HEPA filter and then insert the exhaust air grid so that it fits precisely.
5. Close the accessory compartment lid.

NOTICE!

Change the HEPA filter after approx. 6 months. Change the micro exhaust air filter after the consumption of approx. 5 dust bags.

The HEPA* filter is a high efficiency submicron air filter which not only collects household dust but also pollen and other micro-small particles – a boon for people with sensitive respiratory organs or those suffering from allergies.

* HEPA = H IGH EFFICIENCY PARTICULATE AIR FILTER

Troubleshooting

Fault	Possible cause	Solution
Appliance does not work.	Rug is not inserted or the appliance is not switched on.	Insert de plug into a mains socket and switch on the appliance.
	Power outlet does not carry any power.	Test the appliance at another socket which you are sure can be current.
	Power cord is damaged.	Have the power cord replaced by an authorised Fakir service centre.
Appliance suddenly stops vacuuming.	Overheat protection has tripped (possibly due to dogged suction channels, dirty filters, etc.)	Switch off and unplug the appliance. Eliminate the cause of overheating (e.g. clogged suction channels, dirty filters, etc.). Wait 45 minutes and let the appliance cool down. Then switch on the appliance again.
Vacuum cleaning is unsatisfactory.	Dust bag is full.	Change dust bag.
	Filter is dirty or clogged.	Clean or change the corresponding filter.
	Nozzle, telescopic suction tube or suction hose are dogged up.	Eliminate clogging. If necessary, use a wooden stick (e.g. a broomstick) to do this.
	Suction regulator is open.	Close suction regulator.
	The power setting does not suit the flooring.	Set the power to the setting suggested for the flooring.
	The attached nozzle does not fit the flooring.	Attach the correct nozzle.
	The "carpethard floor" switch is in the wrong position for the particular type of floor.	Set the "carpethard floor" switch to the correct position for the type of floor.
Appliance runs unusually loud.	Sucked-in particles have become jammed.	Remove particles. If necessary, use a long wooden stick (e.g. a broomstick).

Dear customer,

Our products undergo stringent quality controls. If this appliance should nevertheless fail to function properly, this is a matter of regret for us. Before contacting our service department, check to see if you can eliminate the problem yourself.

WARNING!

Switch off and unplug the appliance before beginning troubleshooting. This will prevent the appliance from accidentally being switched on.

If you were not able to eliminate the problem yourself, please contact an authorized Fakir service center or a trained technician in your country.

NOTICE!

Before calling, have the article no. and appliance/model name at hand. This information can be found on the rating plate of the appliance.

(within Germany our)

Service-Hotline

01805 325474

14 Cent / minute

from the wire-line network of the Deutsche Telekom

Symbol of a waste bin with crossed lines indicating no waste or restriction (no text or labels)

When the appliance has reached the end of its service life, in particular when malfunctions start occurring render the appliance unserviceable by pulling the mains plug out of the socket and cutting off the mains lead.

Dispose of the appliance in accordance with the applicable environmental regulations for your country.

Do not dispose of electrical equipment with the household refuse. Take the appliance to a central recycling facility.

The packaging of the appliance is made of recyclable materials. Sort the packaging material and recycle accordingly.

For information about recycling, please contact your local authorities or your retail dealer.

You can dispose used dust bags and filters in the household waste system.

Valid in the Federal Republic of Germany.

We provide a warranty for the appliance subject to the following conditions:

1. The Customer's main place of residence is in Germany and the appliance was bought from a dealer located in Germany.
2. We undertake to repair the appliance free of charge, including free shipping, if it becomes defective due to a material or assembly error within 24 months (within 12 months if used commercially or used for self-employed professional purposes) and if notification of the defect is given within the warranty period.
   A pre-condition of our warranty is that the appliance always treated properly. The warranty terms start on the date of purchase.
3. Parts subject to natural wear (e.g. drive belts, chargeable batteries, brushes, filters) do not fall under the terms of the warranty.
4. The warranty will lapse if the appliance is modified or repaired by persons we have not authorised. Also, no third party spare parts or accessories may be used.
5. The main focus of the warranty is on performing repairs or exchanging defective parts. Repairs on site can only be demanded for large stationary appliances. When making a warranty claim, the invoice or purchase receipt from the dealer stating the date of purchase must be presented.
6. If the repair fails and the damage or defect cannot be rectified even after a second attempt, the appliance will be replaced with one of the same value. If neither repair nor replacement is possible, the customer is entitled to return the appliance and demand reimbursement of the purchase price. In the event that the appliance is exchanged or the purchase price reimbursed, a usage fee may be raised for the period that the appliance was in use.
7. Warranty work does not extend the warranty period or mark the start of a new warranty period. The warranty term for installed spare parts ends at the same time as the warranty period for the whole appliance.
8. The contractual and/or statutory regulations relating to the correction of faults is not affected by the provisions of the warranty.

Valid from 1st April 2008
