Product Type	Upright Vacuum Cleaner
Brand	Fakir
Model	SC Oko Power
Power Supply	Mains powered, 230 V ~ 50 Hz
Power Consumption	1200 W
Suction Power	Adjustable, max 300 air watts
Dust Capacity	Bagless, 1.5 L container
Filtration System	HEPA 12 washable filter
Cord Length	7 m
Weight	5.5 kg
Dimensions (L x W x H)	400 x 280 x 250 mm
Noise Level	75 dB(A)
Operating Radius	9 m
Accessories Included	Crevice tool, upholstery brush, combination brush
Floor Type	Hard floors and carpets
Maintenance	Empty dust container after each use; wash filter monthly
Safety Features	Overheat protection, motor thermostat
Spare Parts Availability	Filters, brushes, dust container available from Fakir service
Repairability	Modular design; user-replaceable parts
Warranty	2 years
Country of Origin	Germany

Frequently Asked Questions - SC Oko Power FAKIR

How do I empty the dust container?

Press the release button on the dust container and pull it out. Empty into a trash bin. Rinse the container with water and let it dry completely before reinserting.

Can I wash the HEPA filter?

Yes, the HEPA 12 filter is washable. Rinse under cold water, let it air dry for 24 hours, then reinstall. Do not use detergent or a washing machine.

The vacuum loses suction. What should I do?

Check if the dust container is full. Also inspect the filters for blockage and clean them. Ensure the hose and brush are not clogged. Reset the overheat protection if needed.

Is the Fakir SC Oko Power suitable for pet hair?

Yes, it comes with a combination brush and upholstery tool that works well on pet hair. The strong suction and HEPA filter help capture allergens.

How do I change the brush roll?

Turn off the vacuum and unplug it. Turn the bottom side up, press the brush roll release tab, and slide out the old brush. Insert the new brush until it clicks.

What does the 'Oko Power' feature mean?

The Oko Power indicates energy-efficient operation. It automatically adjusts suction power based on floor type to save electricity while maintaining performance.

Can I use the vacuum without a bag?

Yes, the SC Oko Power is bagless. It uses a transparent dust container that you empty directly. No need to buy bags.

The vacuum stops suddenly during use. Why?

This is likely due to the overheat protection activating. Turn off the vacuum, unplug it, and let it cool down for 30 minutes. Check for blockages before restarting.

Where can I find spare parts for my Fakir vacuum?

Spare parts such as filters, brushes, and dust containers are available through the Fakir service center or authorized dealers. Visit the Fakir website or contact customer support.

How do I store the vacuum cleaner?

Wrap the cord around the cord hooks. Store the vacuum upright in a dry place. The accessories can be clipped onto the handle or stored on the crevice tool holder.

USER MANUAL SC Oko Power FAKIR

Black and white photo of a foldable air purifier with coiled tube, no visible text or symbols on the device itself.

GB Instructions for use Vacuum cleaner

Table of contents ....30

General 31

Safety....32

Overview....40

Assembly....43

Nozzles 44

Operating....47

After use 50

If at once you don't succeed... 54

Warranty 55

Allgemeines

Gerätebeschreibung

Four identical black-and-white photos of a vacuum cleaner with adjustable arm and base, arranged in a row (no text or symbols visible)

Simple line drawing of an open box with a black upward arrow indicating compression or lifting (no text or symbols)

WARNUNG!

Close-up of a black mechanical component with labeled parts E and B, showing no visible text or symbols beyond labels.

Close-up of a mechanical component with arrows indicating direction (no visible text or symbols)

WARNUNG!

Three black plastic mechanical components labeled 10, 11, and 12, shown against a white background (no text or symbols on the objects themselves)

Fugendüse [10]

Close-up of a mechanical component with a numbered annotation '17' pointing to a feature (no readable text or symbols beyond the number)

Close-up of a black mechanical component with a cylindrical shaft and a labeled section '18' (no other text or symbols visible)

Close-up of a mechanical component with a numbered arrow pointing to a specific part (no text or symbols visible)

Close-up of a mechanical component with a numbered arrow pointing to a specific part (no readable text or symbols)

Close-up of a vacuum cleaner with a numbered label pointing to the handle (no text or symbols on the device itself)

Close-up of a hand using a screwdriver to adjust a black electronic device (no text or symbols visible)

Front view of a car's head with visible grille and wheels (no text or symbols)

Close-up of a circular object with a pointed tip, possibly a lens or aperture, against a dark background (no text or symbols visible)

Close-up of a mechanical component with a numbered annotation '23' and directional arrows, no readable text or symbols present.

Close-up of a mechanical component with a numbered annotation '25' pointing to a specific part (no readable text or symbols beyond the label)

Front view of a car's head with visible grille and side-mounted wheels (no text or symbols)

WARNUNG!

Close-up of a mechanical component with threaded tube and circular base (no visible text or symbols)

Close-up of a mechanical component with a numbered label '29' pointing to a feature (no readable text or symbols beyond the number)

Aufbewahrung

Close-up of a car interior showing the engine compartment with a circular component and a numbered label (31), no readable text or symbols beyond the number.

Close-up of a hand holding a small object with a black arrow pointing to it, no visible text or symbols

Interior view of a vehicle showing a parking lot, dashboard, and overhead camera (no visible text or symbols)

WARNUNG!

Close-up of a hand placing a white substance into a container with an arrow and label 'a' (no readable text or symbols)

Close-up of hands installing or adjusting a mechanical component with a grid pattern (no visible text or symbols)

Close-up of hands holding a grid-based device with a tool, no visible text or symbols

Information about the operating instructions ....31

Liability....31

Notices in the operating instructions 32

Safety

CE Declaration of Conformity....33

Intended use....33

Unauthorized use 34

Children 34

Electric current....36

In case of danger....37

In case of defects 38

Dispatch....39

Overview

Device description 40

Scope of delivery....41

Technical data....41

Unpacking....41

The filter system 42

Assembly

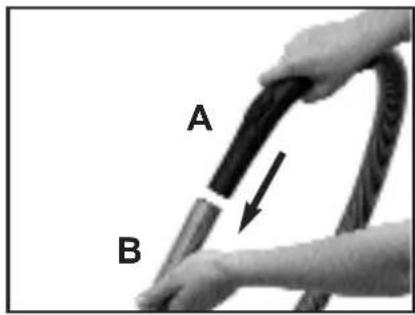

Assembling 43

Setting the length of the suction tube....43

Nozzles

Accessories compartment 44

Utilization 44

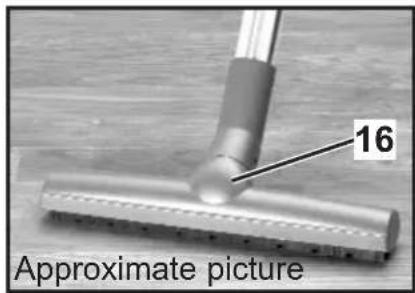

Floor suction nozzle, Hard florr nozzle, Textile nozzle .....45

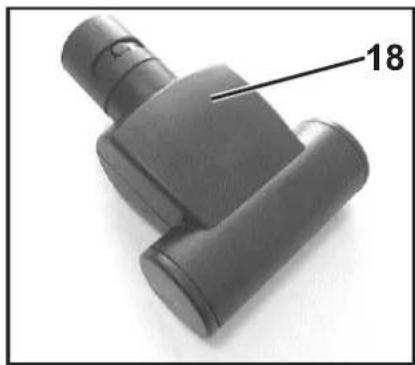

Manual turbo brush, Turbo suction brush....46

Operation

Vacuum cleaning 47

Filter change indication......48

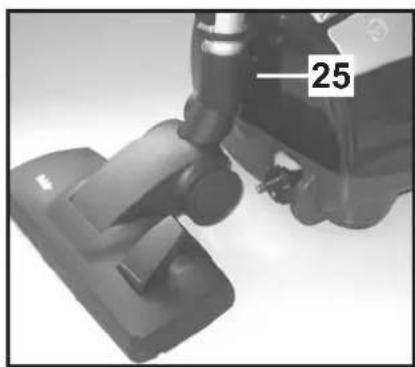

Work breaks 48

After vacuuming....48

After use

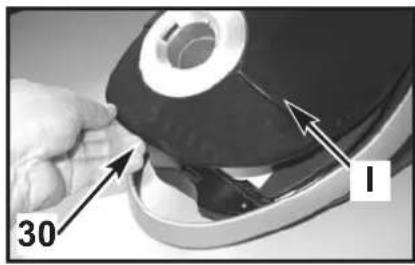

Changing dust bug 50

Filter enclosure cover close-off ....50

Changing main micro filter....51

Changing HEPA-filter....51

Changing exhaust air filter....52

Cleaning....52

Waste disposal 53

If at once you don't succeed....54

Warranty 55

Thank you for purchasing a floor vacuum cleaner of the Fakir SC series. It was developed and manufactured to work reliably for many years.

Information about the operating instructions

These operating instructions are intended to enable the safe and proper handling and operation of the appliance.

Read these operating instructions carefully before using the appliance for the first time.

Keep the operating instructions in a safe place. Include these operating instructions when passing the appliance on to another user.

Liability

We will accept no liability for damages resulting from failure to comply with the operating instructions.

We cannot assume any liability in case the appliance is used for other purposes than its intended use or handled, repaired or serviced improperly.

Notices in the operating instructions

WARNING!

Indicates notices which, if ignored, can result in risk of injury or death.

ATTENTION!

Indicates notices of risks that can result in damage to the appliance.

NOTICE!

Emphasizes tips and other useful information in the operating instructions.

CE Declaration of Conformity

This appliance fulfills the requirements of the Appliance and Product Safety Law (GPSG) and the EU Directives 2004/108/EC “Electromagnetic Compatibility” and 2006/95/EC “Low-Voltage Directive.”

The appliance bears the CE mark on the rating plate.

Intended use

The appliance may only be used in private homes and auxiliary rooms to vacuum clean dry dust material.

It may be used only for cleaning hard floors and textile floor coverings, carpets, upholstered furniture, mattresses, furniture, heating radiators and curtains.

Check if all filters have been inserted properly before using the appliance. The appliance must not be used without filters.

Use only original Fakir filters and accessories.

Any other use is considered unauthorized and is prohibited.

Unauthorized use

The examples of unauthorized use listed here can result in malfunctions, damage to the appliance or personal injury:

These devices can be of children aged 8 and over, and persons with reduced physical, sensory or mental abilities or lack of experience or knowledge can be used if they are supervised, or concerning the safe use of the device have been instructed and the resulting risks have understood.

Children should not play with the device.

Cleaning and user maintenance must not come through Children are carried out without supervision.

Keep packaging films away from children - danger of suffocation!

WARNING!

Danger of injury from vacuuming:

Never vacuum articles of clothing, hair, eyes, fingers or other parts of the body.

Nozzles and tube ends must never be brought close to the eyes or ears.

Never use the appliance to vacuum human beings or animals. The manufacturer is not r responsible for any damages caused by unauthorized use or improper operation.

Danger of injury! Never reach into the rotating brush roller when working with the turbo / electrical suction brush.

Health hazard!

Never vacuum hazardous materials, such as toner used in laser printers or copiers.

Danger of fire and explosion!

Never vacuum hot ashes or burning objects, such as cigarettes or matches

Never use the appliance in the vicinity of explosive or flammable materials.

Never vacuum any solvents, explosive gases or liquids.

ATTENTION!

Risk of short circuits! Never vacuum water and other liquids, such as damp carpet cleaning solutions..

Destruction of filters! Never vacuum sharp or pointed objects, such as glass splinters, nails, etc. Materials that harden when dry, such as plaster or cement, can also destroy the filter.

Damage to appliance from rain and dir!: Never use or store the appliance outdoors.

Danger from overheating! Always keep the openings in the appliance free.

Electric current

ATTENTION!

Incorrect voltage can destroy the appliance. Operate the appliance only if the voltage specified on the rating plate corresponds to the voltage in your household.

The socket must be protected with a 16 A automatic circuit breaker.

Use only extension cords designed for the power input of the appliance.

WARNING: Danger of electric shock!

Never touch the plug with wet hands.

When unplugging the appliance, always pull directly on the plug and never on the power cord.

Do not kink, pinch or run over the power cord and do not expose it to heat sources.

If the power cord of this appliance is damaged, it must be replaced by the manufacturer or the manufacturer's customer service department or a person with similar qualifications to prevent any hazards.

Do not put the appliance in operation if you detect any visible damage on the housing, if the power cord is defective or if you suspect a defect (e.g. after a fall).

Do not use any damaged extension cords.

In case of danger

In case of danger or accident, unplug the appliance immediately.

In case of defects

WARNING!

Never operate a defective appliance or an appliance with a defective power cord. There is a danger of electric shock.

Before contacting our service department, check to see if you can eliminate the problem yourself. Refer to the chapter "Troubleshooting".

If you were not able to eliminate the problem yourself, please contact our:

Service-Hotline

01805 325474

14 cent / minute

from the wire-line network of the Deutsche Telekom

Before calling, have the article no. and appliance/model name at hand. This information can be found on the rating plate of the appliance.

WARNING!

Repairs and maintenance may by performed only by trained technicians (e.g. Fakir customer service). Only original Fakir replacement parts may be used. Improperly repaired or serviced appliances may pose a danger to the user.

Dispatch

The appliance in the original package or a similar, well-padded package to prevent damage to the appliance.

Device description

A Handle with suction controller

B Telescopic suction tube

C Handle

D Foot button cable rewind

E Floor suction nozzle, adjustable for hard floors and textile-covered floors

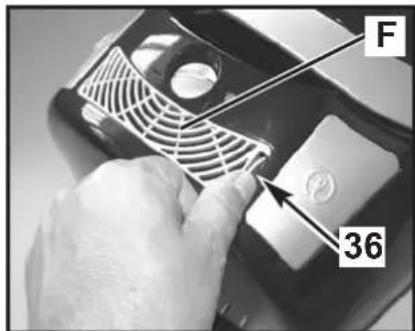

F Exhaust air grating

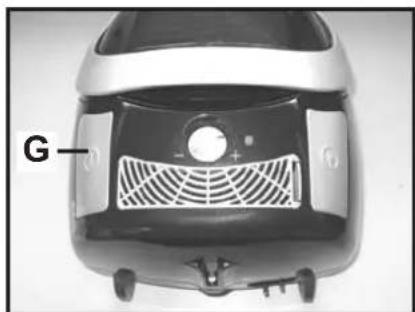

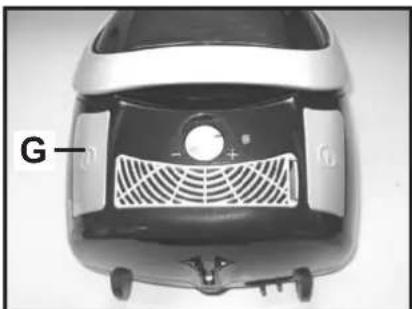

G Foot button ON-OFF

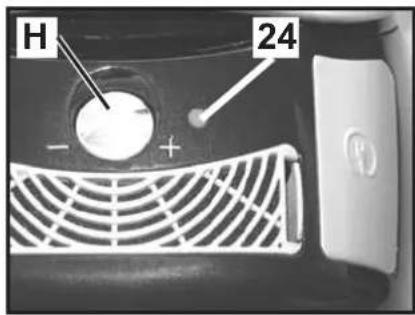

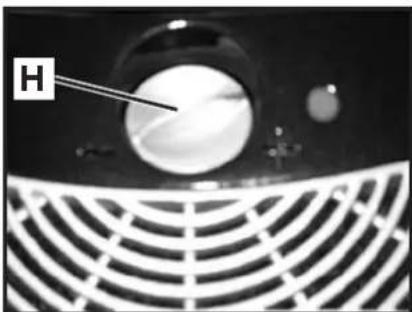

H Suction power control

I Filter enclosure cover with accessories compartment

J Suction hose

Four identical black-and-white photos of a vacuum cleaner with adjustable arm and base, arranged in a row (no text or symbols visible)

SC 190 SC 210 SC 210 SC Öko Power

red

nero

metallic

crema

Floor suction nozzle, adjustable ..... 1 1 1
Hard-floor nozzle 1 1 1
Suction hose with handle....1 1 1
Telescopic suction tube ..... 1 1 1
Upholstery nozzle
(in accessories compartment) ..... 1 1 1
Crevice nozzle
(in the accessories compartment) .... 1 1 1
Crevice nozzle 62 cm ..... - 1 -
Turbo suction brush .... - - -
HEPA-Filter (in filter enclosure) ..... 1 1 1
Main micro-filter (in filter enclosure) .. 1 1 1
Exhaust air micro-filter
(under the exhaust air grating) ..... 1 1 1
Dust bag (one in the filter enclosure) . 2 2 2
Operating manual 111

Technical data

Mains voltage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230 V~	230 V~	230 V~	230 V~
Nominal frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50 Hz	50 Hz	50 Hz	50 Hz
Power IEC / max. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1700 / 1900 W	1900 / 2100 W	1200 / 1400 W
Acoustic pressure level max. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70 dB(A)	70 dB(A)	70 dB(A)	70 dB(A)
Low air pressure max. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28 kPa	30 kPa	30 kPa
Airflow throughput max. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 l/s	38 l/s	38 l/s
Dimensions L×B×H approx. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47,5x30,5x25 cm	47,5x30,5x25 cm	47,5x30,5x25 cm	47,5x30,5x25 cm
Weight approx. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6,5 kg	6,5 kg	6,5 kg

Unpacking Unpack the device and check the content of the packaging

for completeness (see scope of supply). Should you note any damage incurred during transit, please contact your dealer immediately.

Simple line drawing of an open box with a black upward arrow indicating compression or lifting (no text or symbols)

WARNING!

Never use a defective appliance.

NOTICE!

Keep the packaging for storage and future transports (e.g. for moves, service).

The filter system

The Fakir Vario-Filter-System allows you to adjust the quality of the dust filtration to meet your needs. The vacuum cleaner will only display its filter properties that are so important to allergy sufferers when all the filters are used.

Almost all pollen, mites and fine dust from a size of 0.1 m will be filtered out. The filtering process is so good that the waste air coming from the appliance has a lower dust value than that of the ambient air.

The air is cleaned as follows:

a) The air with the dirt particles is suctioned in via the suction hose.
b) The dirt is retained in the dust bag, which closes on removal, in a 5-layer fleece filter.
c) The micro main filter serves as a pre-filter and protective element for the following filter inserts.

d) The particulate (HEPA*) filter almost completely filters out the finest particles (particulate) from a size of 0,1μm.

* HEPA = HIGH EFFICIENCY PARTICULATE AIR FILTER

e) The air is suctioned in by means of the motor. As all particulate has been previously filtered out, no deposits of dust can form here.

f) The clean air is released back into the room via the waste air filter.

Assembly

Assembling

WARNING!

Please ensure that the mains plug is disconnected before assembling the parts otherwise the appliance might start up unintentionally and cause injury.

- Insert the end of the suction hose into the suction pipe [5]. You will hear the two locking parts [6] on the left and right click into place.

NOTICE!

To release the suction hose, squeeze both locking parts [6].

- Insert the handle [A] of the suction hose and twist slightly to make sure it sits tightly in the telescopic suction tube [B].

Close-up of a black mechanical component with labeled parts E and B, no readable text or symbols beyond labels

- Insert the telescopic suction tube [B] and twist slightly to ensure it sits tightly in the floor suction nozzle [E].

Setting the length of the suction tube

- Use your thumb to press the slide element [7] in the direction of the arrow.

- Hold the lower part of the pipe [G] in your other hand. Now pull or push the suction tube to the required length.

- The vacuum cleaner is now ready for use.

Accessories compartment

Close-up of a mechanical component with arrows indicating direction (no visible text or symbols)

WARNING!

Switch off the device before changing the nozzles.

Crevice nozzle, furniture brush and upholstery nozzle are stored in the accessories compartment.

• Press the release button [8] to open the accessories compartment. The cover [9] opens and you can take out the required nozzle.
• Then press down the cover [9] again until it engages.
• Insert the corresponding nozzle securely with a slight turn onto the handle of the suction hose, or onto the telescopic suction tube.

Utilization

Three black plastic tool pieces labeled 10, 11, and 12, shown against a white background (no text or symbols on the objects themselves)

Crevice nozzle [10]

The crevice nozzle allows dirt from deep cracks in upholstered furniture, corners, skirting boards etc. to be suctioned off.

Upholstery nozzle [11]

The upholstery nozzle can be used to vacuum clean curtains, upholstered furniture etc. It has a thread pick-up to collect fluff and threads from textiles.

Crevice nozzle, flexible [12] > Optional accessory

Order No. 2491851

With the approx. 60 cm long flexible crevice nozzle, you can remove dirt even from the most difficult to access cracks, corners etc.

NOTICE!

Set suction capacity low to medium.

Floor suction nozzle [E]

You can adjust the floor suction nozzle with a working width of approx. 28 cm by using the change-over switch [14] for the vacuuming of carpets (bristle collar retracted), or hard floors (bristle collar extended).

The two thread receptacles [15] remove threads, hairs, fluff etc. from the carpet. If required, they can be replaced without problem since they are only inserted into the base plate to the left and right of the suction opening in each case.

NOTICE!

Set suction capacity medium to high.

Hard-floor nozzle [16]

Used especially for hard-floors such as tiles, parquet or laminate. Soft brush hairs allow the nozzle to glide easily over the floor and it picks up even the finest dirt free of residue.

NOTICE!

Set suction capacity low to medium.

Close-up of a mechanical component with a labeled arrow pointing to a feature (no text or symbols on the object itself)

Textile nozzle [17] > Optional accessory

Order No. 2725810

Used especially for upholstered furniture, curtains or garments. Perfect dust removal through extra-large lint and thread receptacle, which removes statically-clinging lint and hair.

NOTICE!

Set suction capacity medium to high.

Close-up of a black mechanical component with a cylindrical shaft and a labeled section '18' (no other text or symbols visible)

Close-up of a mechanical component with a circular cutout and an arrow pointing to a numbered feature (no text or symbols visible)

Close-up of a mechanical component with a numbered arrow pointing to a specific part (no readable text or symbols)

Manual turbo brush [18] > Optional accessory

Order No. 2411820

The manual turbo brush has a high-performance brush roller which is driven by the air stream of the vacuum cleaner.

Use this for thorough cleaning of mattresses, upholstered furniture or automobile seats.

If long threads, hair or similar should have become wound around the brush roller, you can remove these after opening the manual turbo brush:

- Adjust the rotating nozzle setting to the middle marker [19].

- Press stop knob [20] and pull out the nozzle.

- Fold up the housing part [21].

After cleaning of brush-roller, turbine wheel and belt, close the turbo brush again in reverse order.

Turbo suction brush [22] > Optional accessory

Order No. 2725820

The turbo suction brush has a high-performance brush roller which is driven by the air stream of the vacuum cleaner. It brushes up the dirt from the carpet pile and simultaneously vacuums it off.

If the brush roller is blocked by coarse dirt, this must be cleaned.

NOTICE!

Set suction capacity low to high.

Close-up of a vacuum cleaner with a numbered label pointing to the handle (no text or symbols on the device itself)

WARNING! Danger of injury! Never reach into the rotating brush roller when working with the turbo suction brush.

Operation

Vacuum cleaning

Close-up of a hand using a screwdriver to adjust or install a black plastic component (no text or symbols visible)

Before use, ensure that all filters and the right dust bag have been inserted and that these are not damaged. The optimum filtering level, which is so important for allergy sufferers, is only reached when intact filters are used that are inserted correctly.

WARNING!

Check the appliance and the power cable before use. Faulty appliances may cause injury and should not be used.

Front view of a car's head with visible grille and wheels (no text or symbols)

- Attach the required nozzle.

- Pull out the power supply cable by means of the plug until the required length is reached and insert the plug into a mains socket.

- Press the foot button "On/Off" [G] to switch on the vacuum cleaner.

Close-up of a circular object with a labeled point 'H' and concentric rings, possibly part of a scientific or technical diagram (no readable text or symbols)

- Set the required suction level [H]:

Close-up of a mechanical component with a numbered annotation '23' and directional arrows, no readable text or symbols present.

You can also regulate the suction level by means of the suction control [23] on the handle of the suction hose. Use this control (slide valve) to reduce the suction level for brief periods of time. During normal vacuum cleaning, this slide valve should remain closed.

Use the section level control [H] for permanent reduction of the suction level to save energy.

Filter change indicator

When the dust bag or filters are full or if the accessories are blocked (hose, pipe, nozzle), the filter change indicator will shine [24]. To ensure correct analysis, the maximum suction level [H] needs to be set and the floor nozzle lifted from the floor.

In this case, change the dust bag or blocked filter or remedy the blockage.

NOTICE!

When using the turbo mattress brush or the crevice nozzle, it is possible that the filter change indicator may shine before the dust bag or filter is full. This is due to technical reasons and does not mean that the appliance is faulty.

Work breaks

Close-up of a mechanical component with a numbered annotation '25' pointing to a specific part (no readable text or symbols beyond the label)

Suction pipe park position with automatic suction cut-off

Use the park holder to hold the suction tube safely in position when the cleaner is not being used. To do this, insert the park holder [25] of the floor nozzle into the nozzle holder on the reverse of the appliance; the motor is automatically switched off.

After vacuum cleaning

Front view of a car's head with visible grille and wheels (no text or symbols)

WARNING!

Follow the steps below as soon as you stop vacuum cleaning. Never leave the appliance unattended.

• Press the foot button "On/Off" [G] to switch off the vacuum cleaner.
• Remove the plug from the mains socket.

- Press the foot button "cable rewind" [D] to reel in the cable. Gently guide the cable with your hand until the cable has been completely wound in and the plug rests snugly against the opening.

After vacuum cleaning

Close-up of a mechanical component with threaded tube and circular base (no visible text or symbols)

- Ergonomically shaped carrying handle [C] for safe transportation of the appliance with all accessories such as suction hose, telescopic pipe and nozzles.

Close-up of a mechanical device with a numbered label '29' pointing to a component (no readable text or symbols beyond the number)

Storage

• Insert the park holder [29] of the floor nozzle into the nozzle holder on the underneath of the appliance.
• Store the vacuum cleaner in a place that is out of the reach of children.

ATTENTION!

Never place the appliance next to heat sources and avoid direct sunlight, as the heat may damage the vacuum cleaner.

Changing the dust bag

Close-up of a hand holding a black object with arrows pointing to features, labeled '30' and '1' (no readable text or symbols beyond labels)

Close-up of a car interior showing a circular component with internal slots and a numbered label '31' (no readable text or symbols beyond the number)

Close-up of a medical device with a black arrow pointing to a component (no visible text or symbols)

Interior view of a vehicle showing dashboard, rearview mirror, and close-up of dashboard display (no visible text or symbols)

Filter enclosure cover close-off

WARNING!

Before servicing or cleaning, switch off the appliance and remove the mains plug otherwise the appliance could be accidentally switched on and cause injury.

NOTICE!

Only use original Fakir filters.

This is the only way to ensure that the excellent filter properties of the vacuum cleaner are utilised.

• Lift the catch [30] of the filter chamber lid [I] and open the lid – you will hear it click into place.
• Lift the dust bag holder [31] and remove the dust bag by means of the hygiene closure part (pull out in the direction shown by the arrow) – the opening on the bag is automatically closed.
• Insert the new bag in fully and close the filter chamber.
• Then fold the dust bag holder [31] together with the dust bag back down again.
• Press down the filter chamber lid [I] again until it clicks into place.

Alternatively, the dust bag holder can also be removed to change the filter. This is only inserted in the two hinges [S] on the left and right.

NOTICE!

The filter enclosure cover-off [32] ensures that the appliance cannot be used (vacuum cleaning) when there is no dust bag or when the dust bag is inserted incorrectly.

After use

Change the micro main filter

Open the filter chamber as described in the section "Changing the dust bag".

• Remove the filter cassette MICRO VARIO:
  a) first tilt slightly to the front and then
  b) lift out
• Lift up the grille [33] of the filter cassette.
• Replace the micro main filter [34] and then press the grille down again firmly.
• Put the filter cassette back in and close the filter chamber.

NOTICE!

Change the micro main filter at the latest after 5 dust bags have been used.

Change the HEPA filter

Close-up of hands holding a grid-patterned device with a knife inserted, no visible text or symbols

Open the filter chamber and remove the filter cassette MICRO VARIO as described above.

• Remove the old HEPA-filter [35] from the filter cassette and put in the new one.
• Re-insert the filter cassette MICRO VARIO together with the HEPA filter and close the filter chamber.

NOTICE!

Change the HEPA filter every 12 - 18 months.

Alternatively, you can also use the following filters that are available as accessories:

Micro Vario Combifilter

(= HEPA + odour filter) Order No. 2414860

Active odour filter Order No. 2414840

After use

Change the exhaust-air filter

1. Squeeze the side locking part [36] and open the filter lid [F].
2. Remove the waste air filter below and insert a new one.
3. Put back the filter lid [F] in the right position and close until it clicks into place.

NOTICE!

Regularly clean or replace the washable waste air filter.

Cleaning

WARNING!

Switch off the vacuum cleaner and disconnect the plug from the mains socket before cleaning the appliance. This ensures that the appliance is not switched on unintentionally.

ATTENTION!

Do not use cleaning detergents, abrasive agents or alcohol as these will damage the casing.

Only dry-wipe the appliance or clean with a damp cloth.

You can also clean the filter chamber with a damp cloth if necessary.

Suction accessories such as the hose, pipes or nozzles should be regularly checked for blockages, cleaned and, washed and dried.

Waste disposal

If the service life of the device has ended, in particular if functional disturbances occur, make the worn-out device unusable by cutting through the power cable.

Dispose of the device according to the environmental regulations applicable in your country.

Electrical waste must not be disposed of together with household waste. Bring the worn-out device to a collection center.

The packaging of the device consists of recycling-capable materials. Place these, sorted out according to material, in the collectors provided, so that recycling can be carried out on them.

For advice on recycling, refer to your local authority or your dealer

Dispose of used dust bag and filters in domestic waste.

If at once you don't succeed ...

Dear customer,

Our products are subject to strict quality control. If this device should not function trouble-free in spite of that, we regret this very much.

Before you contact our Customer Service, check whether you can correct the fault yourself.

WARNING!

Switch off the device and pull the power plug before you begin with any fault location. This prevents the device being switched on by mistake.

Fault Possible cause	Remedy
Device does not run.	Plug is not inserted. Insert plug.Device is not switched on. Switch on device.Power outlet does not carry any power. Use another power outletPower cable is damaged. Bring device in for repair.
Device does not Dust vacuum clogged.	bag / filter are full and/or Change dust bag / filtersHose, pipes, nozzles are Eliminate clogging.clogged up.
Device runs Sucked in unusually loud. become jammed.	particles have Remove particles.

If you cannot correct the fault yourself, please refer to our

Service-Hotline

01805 325474

14 cent / minute

from the landline network of Deutsche Telekom

Before the call, it is absolutely necessary that Article No. and Equipment / Model Designation are held ready. You can find these specifications on the rating plate of the device.

Valid in the Federal Republic of Germany.

We provide a warranty for the appliance subject to the following conditions:

1. The Customer's main place of residence is in Germany and the appliance was bought from a dealer located in Germany.
2. We undertake to repair the appliance free-of-charge, including free shipping) if it becomes defective due to a material or assembly error within 48 months (if used commercially or used for self-employed professional purposes) and if notification of the defect is given within the warranty period.
   We grant a 5-year warranty on the motor of the appliance (subject to the regulations in section 3) for purchases for private use.
   A pre-condition of our warranty is that the appliance is always treated properly. The warranty terms start on the date of purchase.
3. Parts subject to natural wear (e.g. drive belts, chargeable batteries, brushes, filters), do not fall under the terms of the warranty.
4. The warranty will lapse if the appliance is modified or repaired by persons we have not authorised. Also, no third party spare parts or accessories may be used.
5. The main focus of the warranty is on performing repairs or exchanging defective parts. Repairs on site can only be demanded for large stationary appliances.
   When making a warranty claim, the invoice or purchase receipt from the dealer stating the date of purchase must be presented.
6. If a repair fails and the damage or defect cannot be rectified even after a second attempt, the appliance will be replaced with one of the same value. If neither repair nor replacement is possible, the customer is entitled to return the device and demand reimbursement of the purchase price. In the event that the appliance is exchanged or the purchase price reimbursed, a usage fee may be raised for the period that the appliance was in use.
7. Warranty work does not extend the warranty period or mark the start of a new warranty period. The warranty term for installed spare parts ends at the same time as the warranty period for the whole appliance.
8. The contractual and/or statutory regulations relating to the correction of faults is not affected by the provisions of the warranty.

Valid from 1st April 2008
