USER MANUAL Outdoor Patio Heater Just Fire

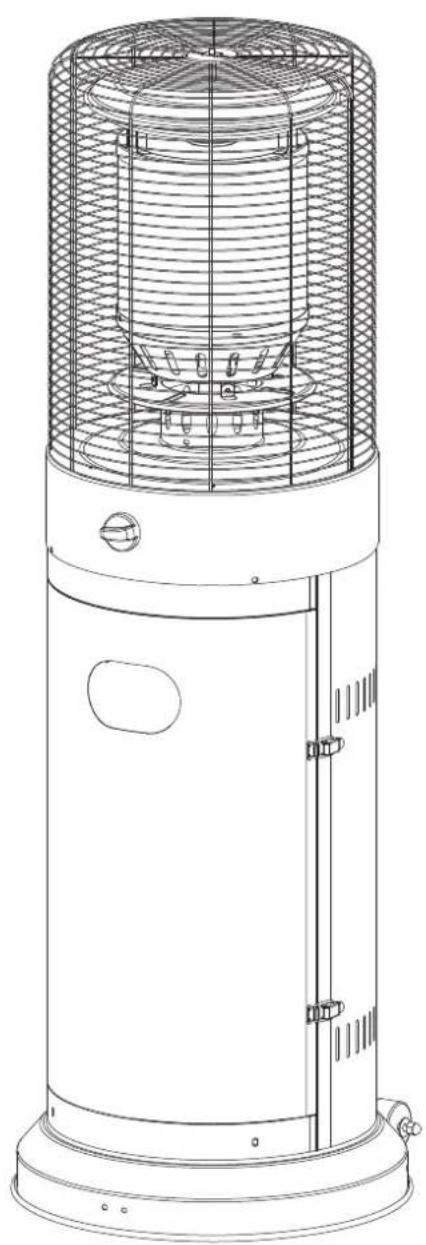

OUTDOOR PATIO HEATER

Line drawing of a portable air conditioner unit with mesh insulation and control panel (no text or symbols)

WARNING SAFETY RULES

PLEASE READ THE FOLLOWING SAFETY RULES PRIOR TO OPERATION OF THE HEATER

FOR YOUR SAFETY

If you smell gas:

1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, immediately call your gas supplier or your fire Department.

FOR YOUR SAFETY

1. Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
2. An LP cylinder not connected for use shall not be stored in the vicinity of this or any other appliance.

WARNING

1) For use outdoors or in amply ventilated areas.
2) An amply ventilated area must have a minimum of 25 % of the surface area open.
3) The surface area is the sum of the walls surface.

Simple line drawing of a lamp inside a transparent cube (no text or symbols)

WARNING: Improper installation, adjustment, alteration, service or maintenance Can cause injury or property damage. Read the installation, operating and maintenance instructions thoroughly before installing or servicing this equipment.

warning

Read the instructions before installation and use.

-This appliance must be installed and the gas cylinder stored in accordance with the regulations in force;
-Do not obstruct the ventilation holes of the cylinder housing;
-Do not move the appliance when in operation;
-Shut off the valve at the gas cylinder or the regulator before moving the appliance;
-The tubing or the flexible hose must be changed within the prescribed intervals;
-Use only the type of gas and the type of cylinder specified by the manufacturer;
The LP tank used with your patio heater must meet the following requirements:
Purchase LP tanks only with these required measurements:
(30.5cm) (diameter) x 57.1 cm) (tall) with 23kg capacity maximum.
-In case of violent wind particular attention must be taken against tilting of the appliance;

TABLE OF CONTENTS

Caution 1

Heater Stand and Location 2

Gas Requirements 2

Leakage Test 2

Operation and Storage 3

Cleaning and Care 4

Parts and Specifications .... 4

Assembly Parts and Procedures 6

Problems Check List 11

CAUTION

PLEASE READ CAREFULLY THE FOLLOWING SAFETY GUIDELINES BEFORE OPERATION.

• Do not use the patio heater for indoors, as it may cause personal injury or property damage.
  ● This outdoor heater is not intended to be installed on recreational vehicles and/or boats.
  ● Installation and repair should be done by a qualified service person.
• Improper installation, adjustment, alteration can cause personal injury or property damage.
• Do not attempt to alter the unit in any manner.
  ● Never replace or substitute the regulator with any regulator other than the factory-suggested replacement.
• Do not store or use gasoline or other flammable vapors or liquids in the heater unit.
• The whole gas system, hose, regulator, pilot or burner should be inspected for leaks or damage before use, and at least annually by a qualified service person.
  ● All leak tests should be done with a soap solution. Never use an open flame to check for leaks.
• Do not use the heater until all connections have been leak tested.
• Turn off the gas valve immediately if smell of gas is detected. Turn Cylinder Valve OFF. If leak is at Hose/Regulator connection: tighten connection and perform another leak test. If bubbles continue appearing should be returned to hose's place of purchase. If leak is at Regulator/Cylinder Valve connection: disconnect, reconnect, and perform another leak check. If you continue to see bubbles after several attempts, cylinder valve is defective and should be returned to cylinder's place of purchase.
• Do not transport heater while it's operating.
• Do not move the heater after it has been turned off until the temperature has cooled down.
• Keep the ventilation opening of the cylinder enclosure free and clear of debris.
• Do not paint the radiant screen, control panel or top canopy reflector.
• Control compartment, burner and circulation air passageways of the heater must be kept clean. Frequent cleaning may be required as necessary.
  ● The LP tank should be turned off when the heater is not in use.
• Check the heater immediately if any of the following occurs:

- The heater does not reach temperature.

• The burner makes popping noise during use (a slight noise is normal when the burner is extinguished).

• Smell of gas in conjunction with extreme yellow tipping of the burner flames.

• The LP regulator/hose assembly must be located out of pathways where people may trip over it or in area where the hose will not be subject to accidental damage.
  ● Any guard or other protective device removed for servicing the heater must be replaced before operating the heater.
  ● Adults and children should stay away from high temperature surface to avoid burns or clothing ignition.
  ● Children should be carefully supervised when they are in the area of the heater.
  ● Clothing or other flammable materials should not be hung on the heater or placed on or near the heater.

• To change the gas cylinder in a amply ventilated area, away from any ignition source (candle, cigarettes, other flame producing appliances, ...);
• To check that the regulator seal is correctly fitted and able to fulfill its function showed as photo right;
• To not obstruct the ventilation holes of the cylinder housing;
  ● To close the gas supply at the valve of the gas cylinder or the regulator after use;
• In the event of gas leakage, the appliance shall not be used or if alight, the gas supply shall be shut off and the appliance shall be investigated and rectified before it is used a
• To check the hose at least once per month, each time the cylinder is changed, or each time before long time no use. If it shows signs of cracking, splitting or other deterioration it shall be exchanged for new hose of the same length and of the equivalent quality;
  ● The use of this appliance in enclosed areas can be dangerous and is PROHIBITED;
• Read the instructions before using this appliance. The appliance must be installed in accordance with the instructions and local regulations.
• For connection of hose and regulator, and connection of regulator and hose, please refer to photo showed above.

seal hose regulator cylinder

Hose/ Regulator connection and Regulator / Cylinder connection

HEATER STAND AND LOCATION

• The heater is primarily for outdoor use only. Always ensure that adequate fresh air ventilation is provided.

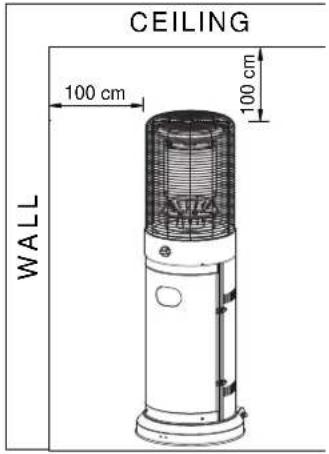

  ● Always maintain proper clearance to non protected combustible materials i.e. top 100 cm and sides 100 cm minimum.
  ● Heater must be placed on level firm ground.
• Never operate heater in an explosive atmosphere like in areas where gasoline or other flammable liquids or vapors are stored.
• To protect heater from strong wind, anchor the base securely to the ground with screws.

CEILING 100 cm 100 cm WALL

GAS REQUIREMENTS

• Use propane, butane or their mixtures gas only.
  ● The pressure regulator and hose assembly to be used must conform to local standard codes.
• The installation must conform to local codes, or in the absence of local codes, with the standard for the storage and handling of liquid petroleum gases.
• A dented, rusted or damaged tank may be hazardous and should be checked by your tank supplier. Never use a tank with a damaged valve connection.
  ● The tank must be arranged to provide for vapor withdrawal from the operating cylinder.
  ● Never connect an unregulated tank to the heater.

LEAKAGE TEST

Gas connections on the heater are leak tested at the factory prior to shipment. A complete gas tightness check must be performed at the installation site due to possible mishandling in shipment or excessive pressure being applied to the heater.

• Make a soap solution of one part liquid detergent and one part water. The soap solution can be applied with a spray bottle, brush or rag. Soap bubbles will appear in case of a leak.
  ● The heater must be checked with a full cylinder.
  ● Make sure the safety control valve is in the OFF position.
• Turn the gas supply ON.
• In case of a leak, turn off the gas supply. Tighten any leaking fittings, then turn the gas supply on and re-check.
  ● Never leak test while smoking.

1. Depress and turn control knob clockwise to OFF position.
2. Fully open gas valve.
3. Depress control knob and turn knob counter-clockwise to IGNITE position, then to PILOT position (you will hear 2 clicks).
4. With the pilot light lit, keep control knob depressed for 30 seconds.

NOTE: If the pilot light has not ignited, turn heater control knob to OFF position, fully close gas valve, wait 5 minutes, then repeat steps 2–4 of the Lighting Instructions.

NOTE: If the pilot light ignites but does not stay lit, turn heater control knob to OFF position, fully close propane gas valve, wait 5 minutes, then repeat steps 2–3. Now, using a lighter, ignite the pilot light through the ignition hole on the emitter screen. Once the pilot light is lit, depress control knob for 30 seconds.

1. After depressing the control knob for 30 seconds, turn control knob to LOW. To increase the temperature, turn towards HIGH.

Warning: check that no broken on the glass is found before operation.

TO TURN OFF THE HEATER

1. Fully close gas valve.
2. Turn control knob clockwise to OFF position.

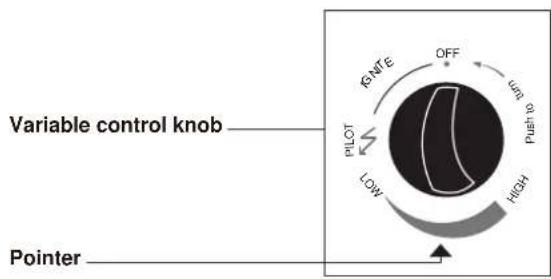

Variable control knob Pointer PLOT OFF PLOT Low High Push to OFF

Off: the heater stop work

Hi: maximum temperature position

Lo: minimum temperature position

Storage

1. Always close the gas valve of the gas cylinder after use or in case of a disturbance.
2. Remove the pressure regulator and the hose.
3. Check the tightness of the gas valve and for damage. If you suspect a damage, have it changed by your gas dealer.
4. Never store liquid gas cylinder in a sub-terrain, or at places without adequate air ventilation.

CLEANING AND CARE

• Wipe off powder coated surfaces with soft, moist rag. Do not clean heater with cleaners that are combustible or corrosive.
• Remove debris from the burner to keep it clean and safe for use.
• Cover the burner unit with the optional protective cover when the heater is not in use.

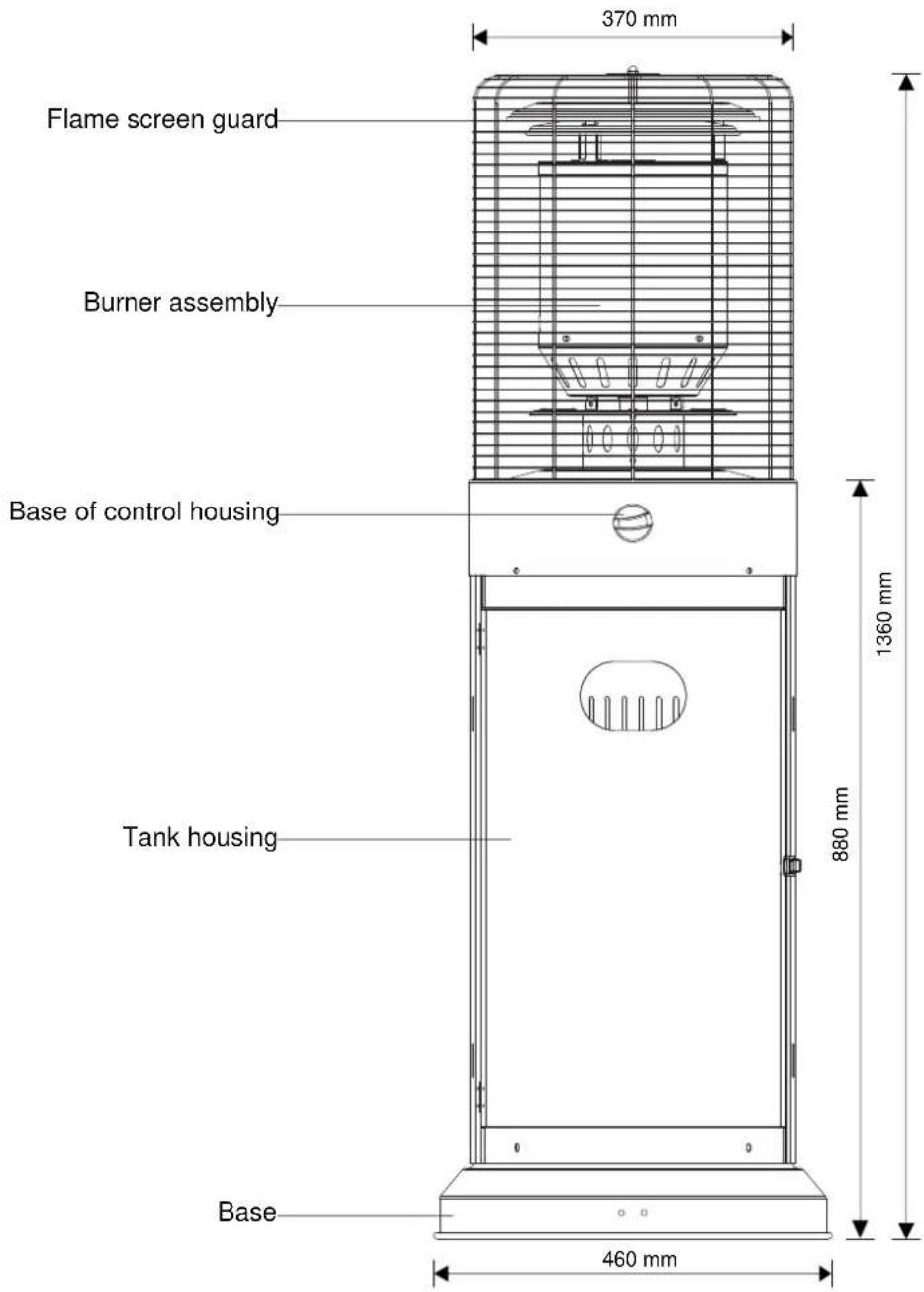

PARTS AND SPECIFICATIONS

Flame screen guard Burner assembly Base of control housing Tank housing Base 460 mm 370 mm 1360 mm 880 mm

A. Construction and characteristics

• Transportable terrace/garden heater with tank housing.
  ● Casing in steel with powder-coating or in stainless steel.
  Gas hose connections with metal clamp (screw caps for Germany).
  • Heat emission from reflector.

B. Specifications

• Use propane, butane or their mixtures gas only.
  • Max. wattage: 12000 watts
  • Min. wattage: 5000 watts
  Consumption:

APPLIANCE CATEGORY:	I_3+(28-30/37)		I_3B/P(30)	I_3B/P(50)	I_3B/P(37)
TYPES OF GAS:	Butane	Propane	Butane, propane or their mixtures	Butane, propane or their mixtures	Butane, propane or their mixtures
GAS PRESSURE:	28-30mbar	37 mbar	30 mbar	50mbar	37mbar
OUTLET PRESSURE OF REGULATOR:	30mbar	30 mbar	30 mbar	50mbar	37mbar

- Using the proper regulator according to outlet pressure of regulator as showed in the table above.

C. Table of injector

APPLIANCE CATEGORY:	I_3+(28-30/37)		I_3B/P(30)	I_3B/P(50)	I_3B/P(37)
TYPES OF GAS:	Butane	Propane	Butane, propane or their mixtures	Butane, propane or their mixtures	Butane, propane or their mixtures
GAS PRESSURE:	28-30mbar	37 mbar	30 mbar	50mbar	37mbar
TOTAL HEAT INPUT (Hs): (Qn)	11kW (800g/h) 12kW (870g/h)
INJECTOR SIZE:	1.51 mm for main burner0.22 mm for pilot burner			1.38 mm for main burner0.22 mm for pilot burner	1.50 mm for main burner0.22 mm for pilot burner
The marking, for example, 1.51 on the injector, indicates that the size of injector is 1.51mm

● The hose and regulator assembly must conform to local standard codes.
● Regulator outlet pressure should meet the corresponding appliance category in B. Specification.
● The appliance requires approved hose in 0.6m length.

ASSEMBLY PARTS

Tools needed:

• Philips screwdriver w/ medium blade
● Spray bottle of soap solution for leakage test

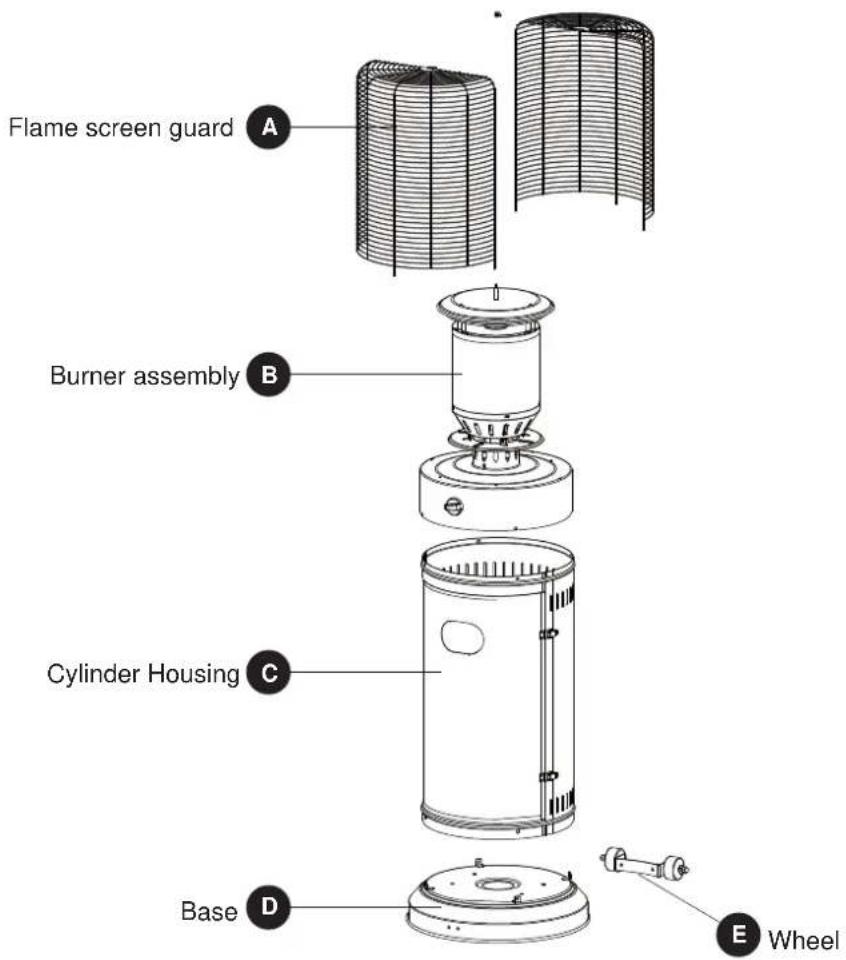

Parts List:

Flame screen guard Burner assembly Cylinder Housing Base Wheel

NOITF
A	Flame screen guard	1
B	Bürner assembly
C	Cylinder Housing	1
D	Base	1
E	Wheel	1

ASSEMBLY PARTS

HARDWARE CONTENTS (shown actual size)

M8

Flange

nut

Qty. 2

Bolt M8 X 15

Qty. 2

Screw M5 X 8

Qty. 8

M6 Dome Nut

Qty. 1

Philips

screwdriver

Qty. 1

Wrench

Qty. 1

ASSEMBLY PROCEDURES

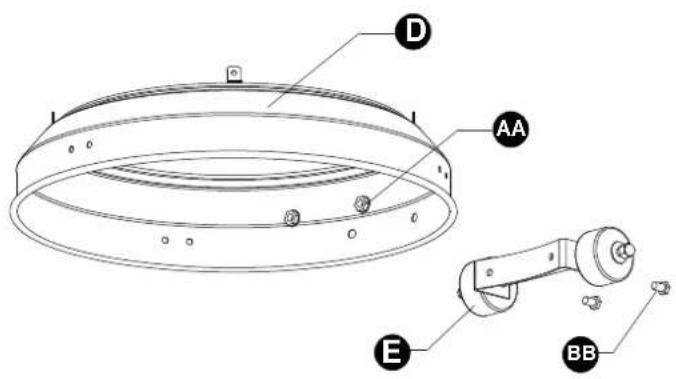

1. Use 2pcs M8X15mm bolts and M8 nuts to connect bracket with wheel to the base.

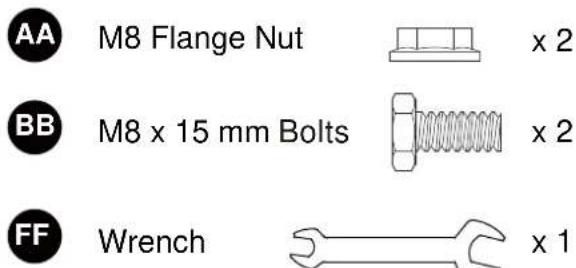

Hardware Used

AA M8 Flange Nut x 2 BB M8 x 15 mm Bolts x 2 FF Wrench x 1

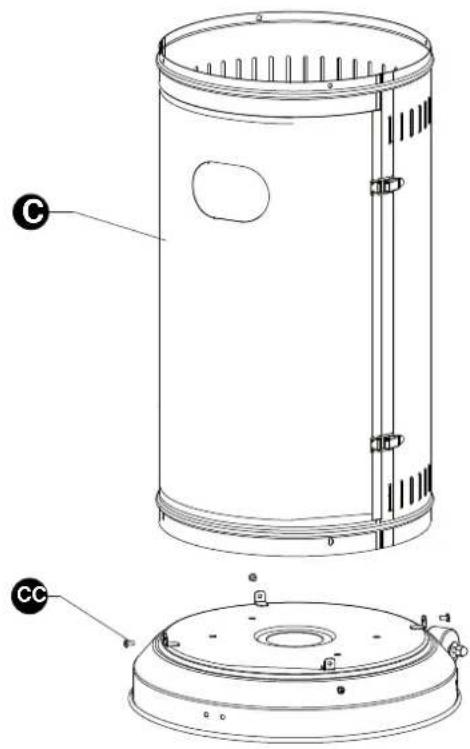

1. Use 4pcs M5X8 screw to join the tank housing base and stand.

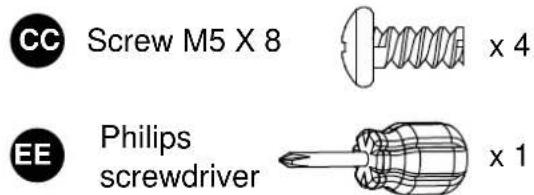

Hardware Used

CC Screw M5 X 8 x 4 EE Philips screwdriver x 1

1

D AA E BB

2

Technical diagram of a cylindrical device with labeled components, including a base plate and internal structure.

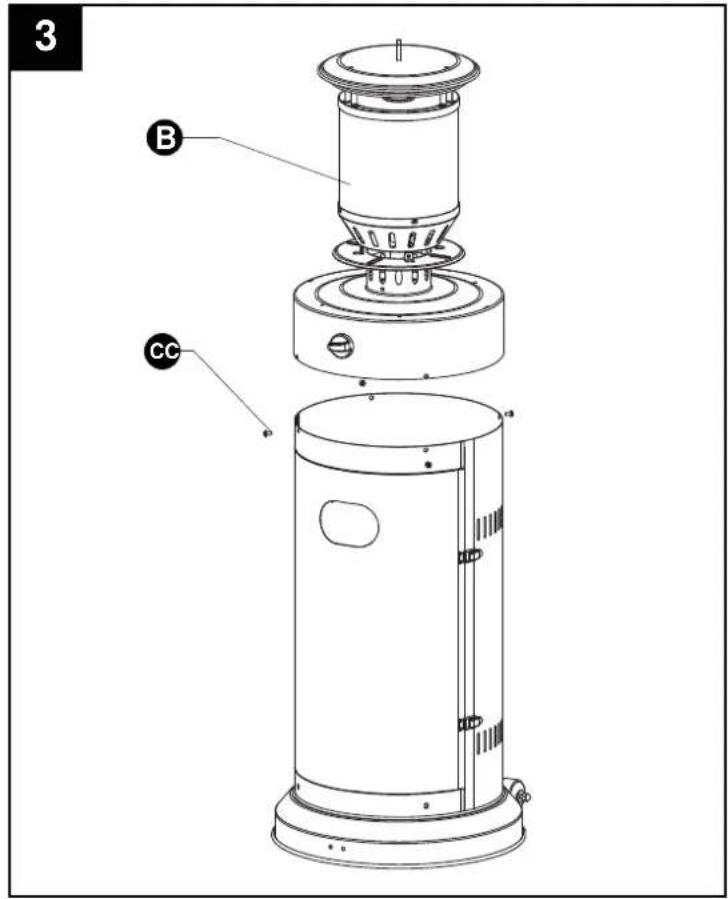

1. Use 4pcs M5X8 screw join the burner head and tank housing body.

Hardware Used

Screw M5 X 8

× 4

Philips screwdriver

x 1

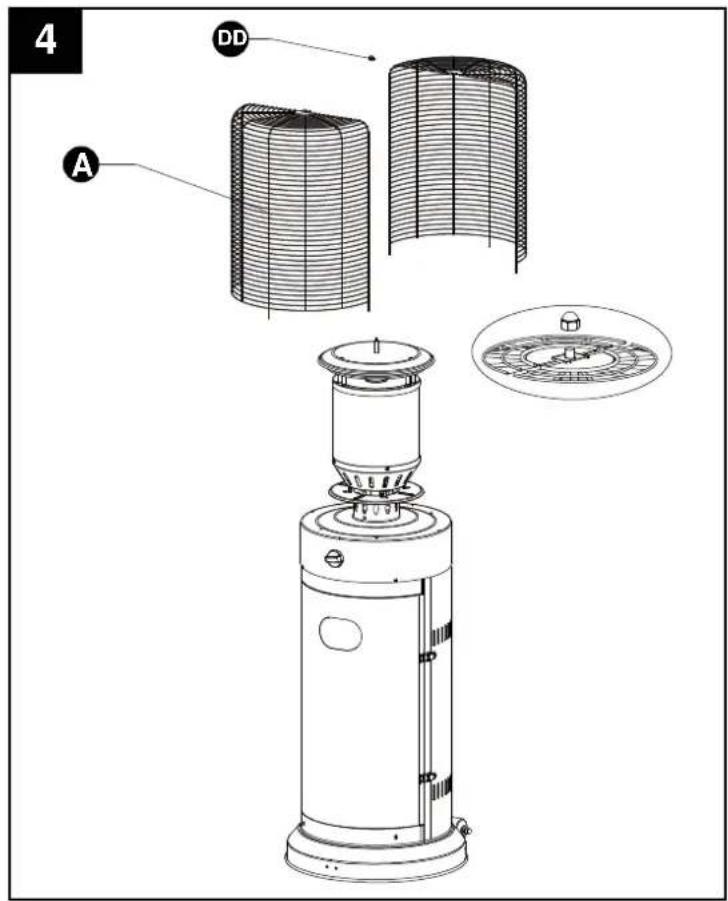

1. Use the M6 Dome Nut connect the two half safety guards to burner head.

Hardware Used

M6 Dome Nut

x 1

3 B CC

4 A DD

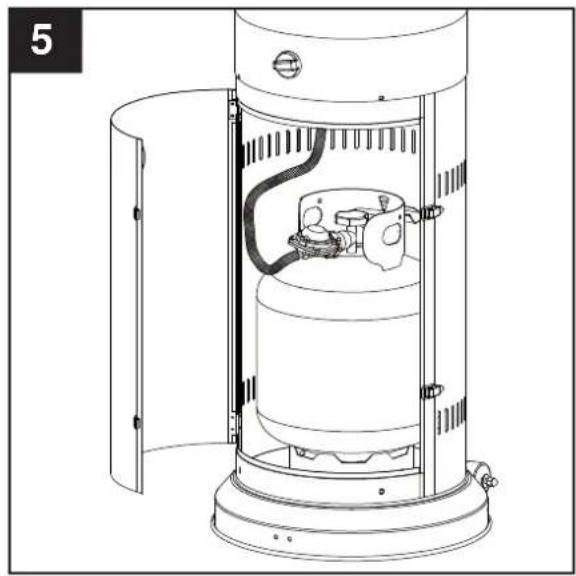

1. Propane Only-Proper Hose Connection.

WARNING! Ensure the hose does not contact any high temperature surfaces, or it may melt and leak causing a fire.

After the cylinder is placed inside the heater, secure the cylinder with block belt tightly.

The heater must be fixed on a stable and strong table with a minimum height of 40cm from the floor level.

Technical line drawing of a cylindrical industrial device with internal components and no visible text or symbols

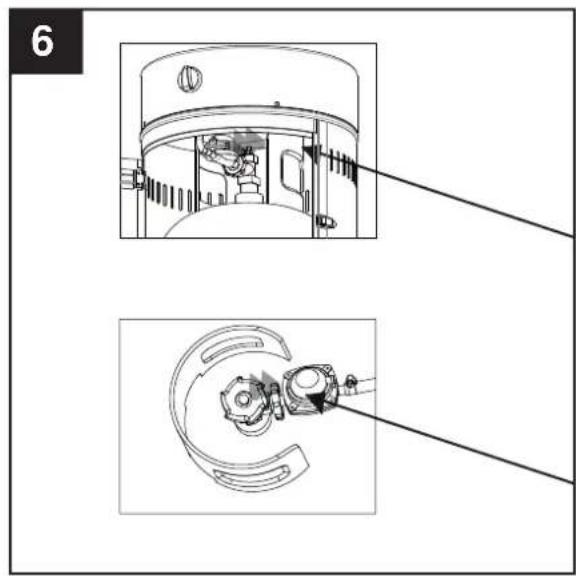

6. Leak Check.

! ! STOP

WARNING! A leak test must be performed annually and each time a cylinder is hooked up or if a part of the gas system is replaced.

WARNING! Never use an open flame to check for gas leaks. Be certain no sparks or open flames are in the area while you check for leaks. Sparks or open flames will result in a fire or explosion, damage to property, serious bodily injury, or death.

Leak testing: This must be done before initial use, annually, and whenever any gas Components are replaced or serviced. Do not smoke while performing this test, and remove all sources of ignition. See Leak Testing Diagram for areas to check. Turn all burner controls to the off position. Turn gas supply valve on.

Brush a half-and-half solution of liquid soap and water onto all joints and connections of the regulator, hose, manifolds and valves.

Bubbles will indicate a gas leak. Either tighten the loose joint or have the part replaced with one recommended by the Customer Care department and have the patio heater inspected by a certified gas installer.

If the leak cannot be stopped, immediately shut off the gas supply, disconnect it, and have the patio heater inspected by a certified gas installer or dealer. Do not use the patio heater until the leak has been corrected.

Technical line drawing of a mechanical component with no visible text or symbols

Hose / Regulator connection

Technical line drawing of a mechanical assembly with no visible text or symbols

Regulator / Cylinder connection

6

PROBLEMS CHECK LIST

PROBLEM PROBABLE CAUSE SOLUTION

Pilot will not light	Gas valve may be OFF	Turn the gas valve ON
	Tank fuel empty Refill LPG tank
	Opening blocked Clean or replace opening
	Air in supply system Purge air from lines
	Loose connections Check all fittings
Pilot will not stay on	Debris around pilot	Clean dirty area
	Loose connections Tighten connections
	Thermocouple bad Replace thermocouple
	Gas leak in line	Check connections
	Lack of fuel pressure	Tank near empty. Refill LPG tank.
Burner will not light	Pressure is low	Tank near empty. Refill LPG tank.
	Opening blocked	Remove and clean
	Control not ON	Turn valve to ON
	Thermocouple bad Replace thermocouple
	Pilot light assembly bent	Place pilot properly
	Not in correct location	Position properly and retry

If the appliance is in case of any defaults or problems of assembly or use, please don't try to modify it by yourself, contact your supplier or distributor to solve it.
