WU335 - Projector OPTOMA - Free user manual and instructions

Product Type	DLP Projector
Native Resolution	WUXGA (1920 x 1200)
Brightness	3500 lumens ANSI
Contrast Ratio	10,000:1
Lamp Life	Up to 5000 hours (Normal mode) / 8000 hours (Eco mode)
Keystone Correction	Vertical and horizontal ±30°
Zoom	1.2x manual
Lens Shift	Vertical +15% / -15%
Projection Distance	1.0 - 10.0 m
Image Size	27 - 300 inches
Video Inputs	2x HDMI 1.4a, 1x VGA, 1x Composite, 1x S-Video
Audio Outputs	1x 3.5mm headphone jack, built-in 10W speaker
Control Ports	1x RS-232, 1x USB-A (1.5A power)
Power Consumption	265W (Normal mode) / 0.5W (standby)
Power Supply	100-240 V AC, 50/60 Hz
Dimensions (W x D x H)	315 x 224 x 108 mm
Weight	2.8 kg
Noise Level	32 dB (Normal mode) / 27 dB (Eco mode)
Maintenance and Cleaning	Clean the air filter every 500 hours. Use a soft, dry cloth for the lens.
Security	Standby indicator, Kensington lock, password security.
Spare Parts and Repairability	Replacement lamp (model: Optoma BL-FU200A). Authorized service center.

Frequently Asked Questions - WU335 OPTOMA

How to replace the lamp of the Optoma WU335 projector?

Turn off the projector and unplug it. Let it cool for 30 minutes. Unscrew the lamp cover, remove the old lamp, insert the new one (model BL-FU200A) and screw back. Reset the lamp counter in the menu.

What is the maximum resolution supported by the WU335?

The native resolution is WUXGA (1920x1200). It can accept signals up to 1080p via HDMI.

How to connect a computer to the projector?

Use a VGA or HDMI cable depending on your source. Connect one end to the corresponding port on the projector and the other to the computer. Select the appropriate input using the Source button on the remote.

The projector displays a 'High Temperature' message. What to do?

Turn off the projector and let it cool. Check that the air filters are not blocked. Clean the filters if necessary. Make sure the device is in a well-ventilated area.

Can I use the projector on the ceiling?

Yes, the projector is designed for ceiling installation. Use a compatible mounting kit. In the menu, set the image orientation to 'Ceiling Front'.

How to adjust the image sharpness?

Use the focus ring on the lens. Turn it until the image is sharp. Adjust the zoom as needed.

The projector does not turn on, the indicator blinks red. What to do?

A red blinking indicates a lamp or temperature problem. Check that the lamp is properly installed and the filters are clean. If the problem persists, contact customer service.

Which cable to use for an audio connection?

The projector has a 3.5mm audio output. Connect speakers or headphones. You can also use the built-in 10W speaker.

How to clean the air filter?

Turn off the projector and unplug it. Remove the filter, gently vacuum it or wash it with warm soapy water. Dry it completely before reinstalling. Replace it every 500 hours of use.

Can I use the projector with a mobile device?

Yes, if your device supports HDMI (or MHL) output. Use an appropriate adapter (e.g., USB-C to HDMI). The projector does not have built-in wireless connectivity.

USER MANUAL WU335 OPTOMA

Line drawing of a projector with a circular lens and control panel (no text or symbols)

INHALTSVERZEICHNIS

SICHERHEIT 4

Illustration of a projector with a lens and screen, labeled 'Projektor Netzka' below (no other text or symbols)

Illustration of a coiled cable with connectors (no text or symbols)

Line drawing of a Tragetasche device with two bags and cables (no text or symbols on the diagram itself)

Diagram of VGA-Kabel cable connector (no text or symbols on diagram)

Simple line drawing of a circular object with internal curved lines, labeled 'Objektivabdeckung' below (no other text or symbols)

EINFÜHRUNG

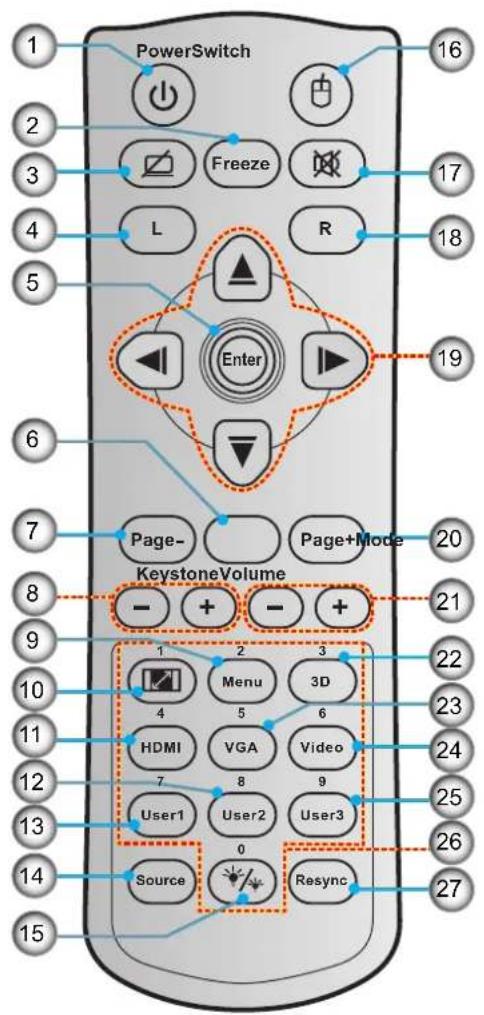

Fernbedienung 2

Illustration of hands using a pliers to adjust cable or connector (no text or symbols)

PROJEKTOR VERWENDEN

PROJEKTOR VERWENDEN

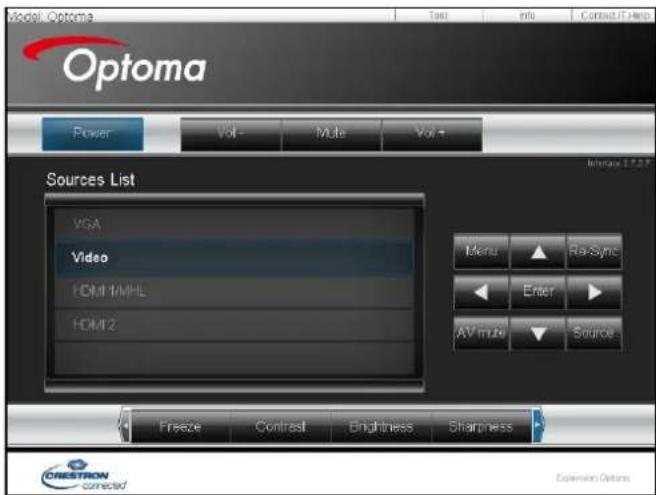

Haupt-Seite

PROJEKTOR VERWENDEN

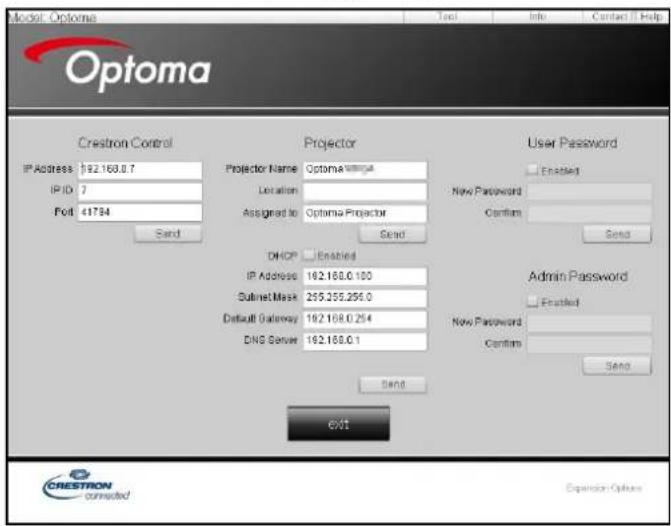

Werkzeuge-Seite

IT-Helpdesk kontaktieren

PROJEKTOR VERWENDEN

Illustration of a projector with internal components and a blue arrow indicating the blade (no text or symbols present)

ZUSÄTZLICHE INFORMATIONEN
