3 Shelf Floor Lamp 51032 - Floor lamp Easy Home - Free user manual and instructions

Product Type	Floor lamp with 3 shelves
Model Number	51032
Brand	Easy Home
Overall Height	Approx. 70.5 inches (179 cm)
Shelves Dimensions	Each shelf: 15.75 x 11.8 inches (40 x 30 cm)
Base Diameter	12.6 inches (32 cm)
Material	Metal frame with wooden shelves
Light Socket Type	E26 (standard medium base)
Max Bulb Wattage	60W incandescent or equivalent LED
Bulb Included	No
Power Cord Length	6 ft (1.8 m)
Switch Type	On/Off foot switch
Assembly Required	Yes (tools included)
Weight	Approx. 8.8 lbs (4 kg)
Recommended Bulb Type	LED or CFL for energy efficiency
Cleaning Instructions	Wipe with dry cloth; avoid abrasive cleaners
Safety Rating	UL/ETL certified (typical)
Warranty	1 year limited

Frequently Asked Questions - 3 Shelf Floor Lamp 51032 Easy Home

How do I assemble the floor lamp?

Follow the included instruction manual. Typically, you attach the base, then insert the pole sections, attach the shelves in order, and finally install the lampshade and bulb. Use the provided hex key to tighten screws.

What type of bulb does this lamp use?

It uses a standard E26 base bulb (medium screw). Maximum wattage is 60W incandescent or equivalent LED/CFL. An LED bulb is recommended for energy savings.

Can I use a dimmer switch with this lamp?

No, this lamp has a simple on/off foot switch and does not support dimming. Use a non-dimmable bulb.

Is the lamp stable on carpet?

The base is designed to provide stability on most surfaces, including carpet. However, ensure the lamp is placed on a level surface and not at risk of tipping.

How do I clean the lamp and shelves?

Wipe the metal frame and wooden shelves with a dry, soft cloth. For stubborn dust, use a slightly damp cloth and dry immediately. Avoid harsh chemicals or abrasive cleaners that may damage the finish.

Can I replace the shelves with different ones?

The shelves are specifically sized for this model (15.75 x 11.8 inches). Replacement shelves are not sold separately; contact Easy Home customer service for assistance.

What is the weight capacity of each shelf?

Each shelf can hold up to 5 lbs (2.3 kg) evenly distributed. Avoid placing heavy items that could cause instability.

Does the lamp come with a bulb?

No, the lamp does not include a bulb. You need to purchase one separately with an E26 base and max 60W.

The lamp wobbles after assembly. What can I do?

Check that all screws and connections are tightened securely. Ensure the base is flat on the floor. If the floor is uneven, adjust the lamp's position or use a shim under the base.

Can I use this lamp outdoors?

No, this lamp is designed for indoor use only. Exposure to moisture or extreme temperatures may damage the electrical components and pose a safety hazard.

USER MANUAL 3 Shelf Floor Lamp 51032 Easy Home

English... 3

Español...9

Contents

Tools 4

Contents......4

Assembly....5

Safety 8

Warranty card....15

Warranty information....16

TOOLS YOU WILL NEED:

1- Phillips head screwdriver

CONTENTS:

Screw (8)	[ABC]Threaded pipe (12)	Socket board (1)
Thick board (1)	Thin board (2)	Plastic frame (1)
Cushions (4)	Long poles (12)	Short poles (4)
Plastic covers (4)	Clips (3)	Shade panels (4)
Light bulb (1)

ASSEMBLY INSTRUCTIONS:

Remove all packing from around the lamp and identify each part to make sure you have everything ready for installation. Lay out each part on a clean, flat surface, such as a table or carpet.

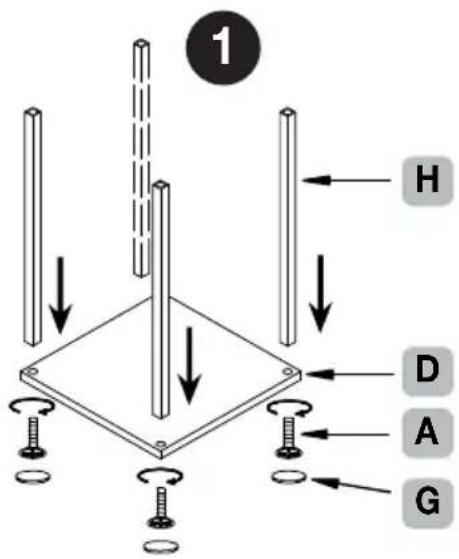

1. Begin assembling the lamp at the bottom and then proceed upward towards the lamp shade. First, install 4 long poles (H) onto the corners of the thick board (D) using 4 screws (A). Tighten each screw using a Phillips head screwdriver and make sure the long poles are aligned correctly to each corner of the thick board after you are done tightening. Next, cover the screw holes on the bottom of the thick board using the 4 cushions provided (G). Diagram (1)

1. Screw threaded pipe (B) halfway into the top of each long pole. Place one of the thin boards (E) through the threaded pipe on top of the long poles that you just attached to the thick board. Then tighten another 4 long poles on top of the thin board and make sure the corners of the poles are aligned with the corners of the thin board after tightening. Then place another thin board through the threaded pipes (B) on top of the second set of long poles. Diagram (2)

1. To install the light bulb socket, take socket board (C) and tighten the light bulb socket securely using the washer and butterfly nut. Then drop the pull chain directly through the hole provided. Screw in the light bulb provided (M) into the light bulb socket. Tighten the 4 short poles (I) on socket board (C), making sure all the corners are correctly aligned after tightening. Diagram (3)

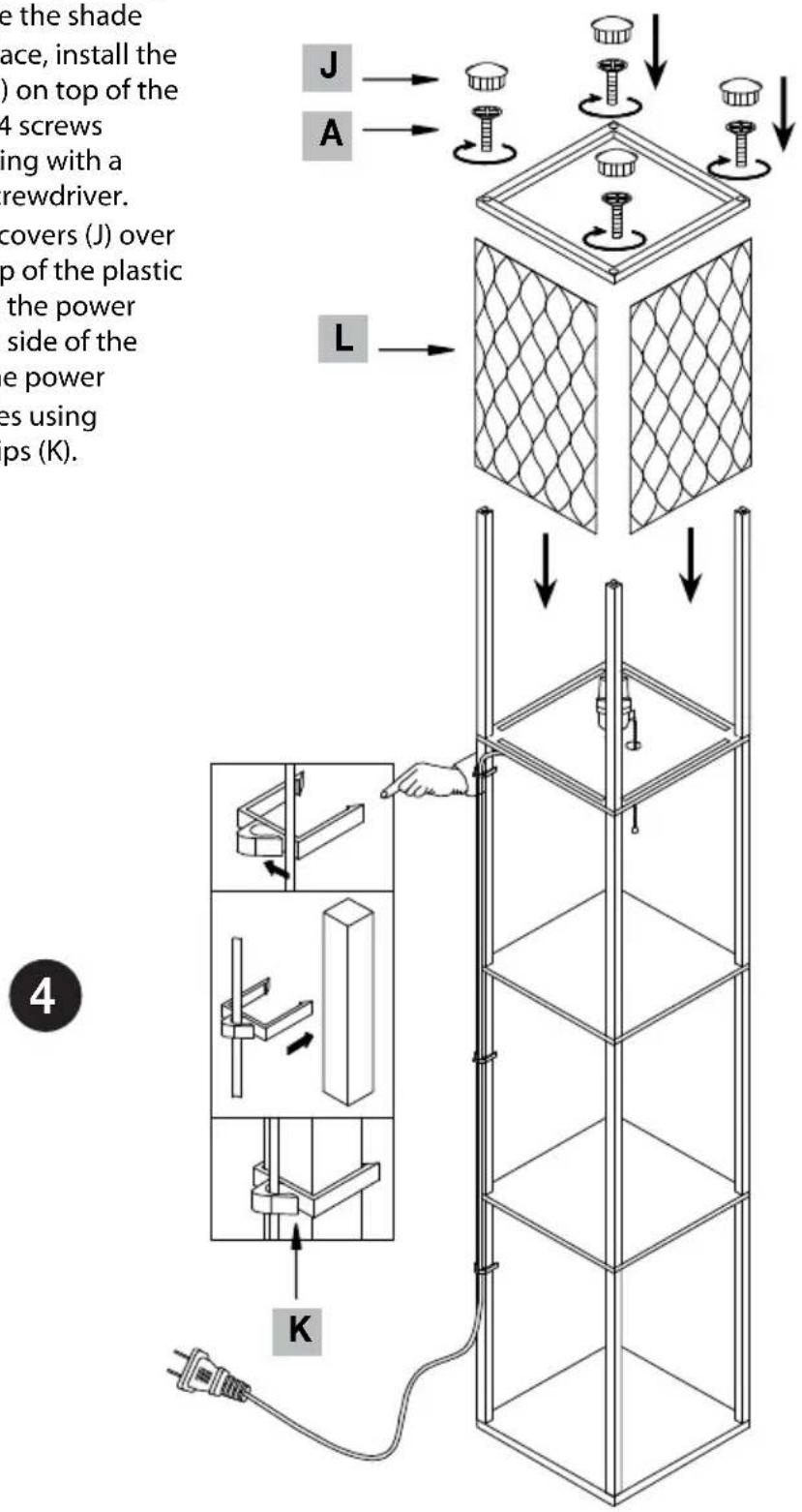

2. Insert the 4 shade panels (L) into place. Once the shade panels are in place, install the plastic frame (F) on top of the (I) poles, using 4 screws (A) and tightening with a Phillips head screwdriver. Insert 4 plastic covers (J) over the holes on top of the plastic frame (F). Align the power cord down one side of the lamp. Attach the power cord to the poles using the included clips (K). Diagram (4)

SAFETY:

This portable lamp has a polarized plug (one blade is wider than the other) as a safety feature to reduce the risk of electric shock. This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Never use with an extension cord unless plug can be fully inserted. Do not alter the plug.

Contenido

Herramientas.... 10

Contenido.... 10

Ensamblaje....11

Seguridad 14

CONTENIDO:

ABC Tornillo (8)	Tubo roscado (12)	Tablero de conexión (1)
DEF Tablero grueso (1)	Tablero fino (2)	Marco plástico (1)
GHI Cojines (4)	Postes largos (12)	Postes cortos (4)
Cubiertas de plástico (4)	Ganchos (3)	Pantallas (4)
Bombillas (1)

INSTRUCCIONES DE ENSAMBLAJE:

Date of purchase* ____

* We recommend you keep your receipt with this warranty card

Location of purchase*

Description of malfunction:

If you have a malfunction please contact our Customer Service department and send this completed warranty card with receipt to:

EuroCentra, Inc.

801 Circle Ave.

Forest Park, IL

60130

[e-mail]

AFTER SALES SUPPORT		51032
	USA 866 558 [e-mail]
		09/2017

Hotline:

866-558-8096

Operating hours:

Monday - Friday,

10am - 6pm EST

YEAR WARRANTY

ALDI INC. FULL WARRANTY CONDITIONS

Dear Customer,

The ALDI warranty is a full warranty offering you the following benefits:

Warranty period: 2 years from date of purchase.

Costs: Free replacement product or refund at EuroCentra's discretion.

ADVICE:

Please contact our service hotline by phone or e-mail should you need to make a claim or if you have a question regarding this product.

In order to make a claim under the warranty, please send us:

- The original receipt and the properly completed warranty card.

The warranty does not cover damage caused by:

Accident or unanticipated events (such as lightning, water, fire etc.).

Improper use or transport.

Disregard of safety and maintenance instructions.

Other improper treatment or modification.

Commercial use.

The warranty is non-transferable and applies only to the original purchase and does not apply to subsequent owners of the product. In no event shall liability exceed the purchase price paid by the purchaser of the product. Under no circumstances shall there be liability for any loss, loss of profits, direct, indirect, special or consequential damage arising out of, or in connection with use of this product.

This warranty is only valid in the United States. This warranty gives you specific legal rights. However, you may have other rights that vary from state to state. Some states do not allow limitation on implied warranties or exclusion of consequential damages therefor these restrictions may not apply to you. Due to constant product development and market changes, EuroCentra, Inc. can only guarantee that replacements will be available within the two-year warranty period.

TARJETA DE GARANTÍA

LÁMPARA DE PISO CON 3 REPISAS

Sus datos:

Nombre:

Dirección:

Correo electrónico:

Fecha de la compra*

10 a.m. a 6 p.m. EST

CONDICIONES DE LA GARANTÍA

Estimado cliente:
