5 Head Adjustable Floor Lamp - Floor lamp Easy Home - Free user manual and instructions

Product Type	Floor Lamp with 5 Adjustable Heads
Brand	Easy Home
Model	5 Head Adjustable Floor Lamp
Height (Approx.)	160 cm (63 inches)
Base Diameter (Approx.)	35 cm (13.8 inches)
Weight (Approx.)	3.5 kg (7.7 lbs)
Bulb Type Required	E26/E27 Base, up to 60W equivalent LED recommended
Number of Lights	5
Material	Metal base and arms, fabric shades
Adjustability	Each head independently adjustable for direction
Switch Type	On/Off switch on pole, each head individually switchable
Power Source	90-240V AC, 50/60Hz
Care Instructions	Wipe clean with a dry cloth; do not use abrasive cleaners
Safety Features	Anti-tip base; bulbs should not exceed recommended wattage
Assembly Required	Yes, simple tool-free assembly
Spare Parts Availability	Contact Easy Home customer service for replacement parts
Warranty	1 year limited warranty
Intended Use	Indoor lighting only

Frequently Asked Questions - 5 Head Adjustable Floor Lamp Easy Home

What type of bulbs does the Easy Home 5 Head Floor Lamp use?

The lamp uses standard E26/E27 base bulbs. It is recommended to use LED bulbs up to 60W equivalent to avoid overheating.

Can I adjust each head individually?

Yes, each of the five heads can be independently adjusted to direct light where you need it.

Is assembly required?

Yes, some simple assembly is required. Instructions are included in the manual, and no tools are needed.

What is the height of the lamp?

The lamp is approximately 160 cm (63 inches) tall.

Does the lamp have an anti-tip feature?

Yes, the base is designed to be stable and includes anti-tip protection for safety.

Can I use dimmable bulbs with this lamp?

Yes, you can use dimmable bulbs, but the lamp itself does not have a dimmer switch; dimming depends on your bulb and external dimmer.

How do I clean the lamp shades?

Wipe the shades and metal parts with a soft, dry cloth. Do not use water or harsh chemicals.

What is the maximum wattage per bulb?

Do not exceed 60W per bulb or the equivalent for LED bulbs to prevent fire risk.

Where can I find replacement parts?

Contact Easy Home customer service for replacement parts or visit their official website.

Is this lamp suitable for outdoor use?

No, this lamp is designed for indoor use only. Exposure to moisture may damage the electrical components.

USER MANUAL 5 Head Adjustable Floor Lamp Easy Home

8.5" X 11" FOLDED BOOKLET

BACK

FRONT

User Manual

Manual del usuario

EASY HOME

5-HEAD ADJUSTABLE FLOOR LAMP

LÁMPARA AJUSTABLE DE PISO CON 5 LUCES

DISTRIBUTED BY / DISTRIBUIDO POR:

ALDI INC. BATAVIA, IL 60510

WWW.ALDIUS

AFTER SALES SUPPORT

SERVICIO POSVENTA 52920

1800 685 5053

support:productconcem.com

07/2017

2

YEAR WARRANTY

ETL US

Intertek

English .... 01

Español ..... 06

CONTENTS

Contents

General Information 1

Safety Instructions 2

Assembly 3

Cleaning and Maintenance 5

Storage 5

Environmental Protection 5

General Information

General Information

Please read and understand all instructions. Failure to follow all instructions listed below may result in electric shock, fire or serious personal injury. The warnings, cautions, and instructions discussed in this instruction manual cannot cover all possible conditions and situations that may occur. It must be understood by the operator that common sense and caution are a factor that cannot be built into this product, but must be supplied by the operator.

THIS PRODUCT IS INTENDED FOR HOUSEHOLD USE ONLY. SAVE THESE INSTRUCTIONS.

DO NOT ALTER PLUG.

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Safety Instructions

Important Safeguards

To ensure that your lamp operates efficiently, please observe the following safety instructions.

1. Before connecting the floor lamp, ensure that the voltage indicated on the rating label corresponds to the main voltage in your home.
2. Change the bulb only after unplugging the lamp from the power supply and after cooling down.
3. Do not use the lamp outdoors.
4. If there is any doubt, please consult an electrician.
5. Do not plug or unplug with wet hands.

IMPORTANT SAFETY INSTRUCTIONS

This portable lamp has a polarized plug (one blade is wider than the other) as a safety feature to reduce the risk of electric shock. This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. Never use with an extension cord. Do not alter the plug.

Caution

A short power supply card is provided to reduce the risk of personal injury resulting from becoming entangled in or tripping over a longer cord.
- To avoid a circuit overload when using this lamp, do not operate another high-waitings product on the same electrical circuit.
- Avoid the use of an extension cord. The extension cord may overheat and cause a risk of fire.
- The power supply cord must be arranged so that it will not drape over a countertop, tabletop, or walkway where it can be pulled on or tripped over by children or adults accidentally.

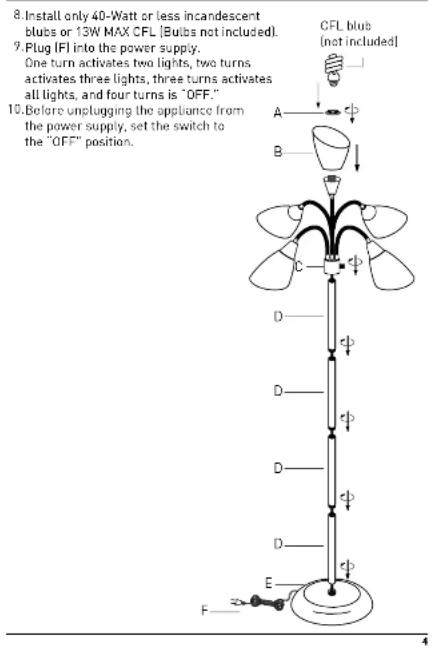

How to Assemble the 5-Head Floor Lamp

Before beginning assembly, make sure you have all the parts listed below. If any parts are missing or damaged, do not attempt to assemble, install or operate the product.

Packaging Content

A. Nut

Assembly - Installation Instructions

Please read and save these assembly instructions: ☐
1. Remove the plastic wrap before assembling.
2. Screw bottom tube [D] clockwise onto base [E] until tight.
3. Screw middle tube (D) clockwise anta bottom tube until light.
4. Repeat for top tube and neck base |C|
5. While screwing in tubes (D) and top (C) it may be necessary to pull cord (F) from base to reduce slack.
6. Take off shade nut [A] from socket.
7. Place shade (B) into cup of neck and screw shade nut (A) clockwise until tight. Repeat for all remaining heads. F—

Elub (not included)

3

Assembly

Cleaning, Maintenance, Storage, and Environmental Protection

Cleaning and Maintenance:

CAUTION: Always be sure that the Floor Lamp is switched OFF and unplugged before cleaning or attempting to store.

• Use a dry dust cloth to periodically clean the lamp and shade.
• If necessary you may use a soft damp cloth to wipe the lamp poles and shades. Make sure the lamp is turned off and unplugged before wiping it down with a damp cloth.
• All moisture should be properly wiped away and dried prior to restoring power.

Storage

Store the Floor Lamp in a dry location. Do not place heavy items on top of the lamp during storage as this may result in possible damage to the lamp.

Environmental Protection

Should the appliance no longer work, please make sure to dispose of it in an environmentally friendly way. Check your local regulations regarding the disposal or recycling of the lamp and light bulbs. It is recommended that consumers take advantage of available local options for recycling rather than disposing of the item in regular household trash. Your area may require recycling of light bulbs.
