Type de produit	Car Audio Amplifier
Marque	ESX
Modèle	SE1000C
Dimensions (L x P x H)	Approx. 200 x 120 x 50 mm
Poids	1.5 kg
Alimentation	12V DC (negative ground)
Puissance de sortie (RMS)	500W x 1 @ 4 ohms
Puissance de sortie (max)	1000W
Classe d'amplification	Class D
Réponse en fréquence	20 Hz - 20 kHz
Filtre passe-bas	Adjustable 50-250 Hz
Entrées	RCA line input (2 channels)
Sorties	Speaker output (mono, 2-8 ohms)
Protection	Overheat, short circuit, DC offset
Entretien et nettoyage	Clean with dry cloth; do not use liquids
Sécurité	Install by qualified personnel; disconnect battery before installation
Pièces détachées et réparabilité	Fuses are replaceable; contact ESX service for parts
Informations générales	For car audio subwoofer amplification; remote turn-on wire required

Frequently Asked Questions - SE1000C ESX

How do I connect the SE1000C amplifier to my car battery?

Use a 4 AWG power cable with an in-line fuse (80A) and connect to the positive terminal. Connect the ground wire to a clean chassis point. Ensure the remote turn-on wire is connected to the head unit's remote output.

What impedance can this amplifier handle?

The SE1000C is stable down to 2 ohms. For a single subwoofer, use a 2 or 4 ohm load. Do not run it below 2 ohms to avoid damage.

How do I set the gain and crossover?

Set the gain using a multimeter or by ear, starting low. Adjust the low-pass filter (50-250 Hz) to match your subwoofer. For sealed enclosures, set around 80 Hz; for ported, around 60 Hz.

Can I bridge two SE1000C amplifiers?

No, this is a monoblock amplifier. To run multiple subs, use one amplifier per sub or a higher power monoblock.

What is the power output at 2 ohms?

The amplifier delivers approximately 800W RMS at 2 ohms, and 500W RMS at 4 ohms.

Why does my amplifier shut off after a few minutes?

This is likely due to overheating or low battery voltage. Ensure the amplifier has adequate ventilation and check your vehicle's alternator and battery health. Also verify that the impedance is not too low.

How do I adjust the bass boost?

The SE1000C may have a bass boost control (0-12 dB at 45 Hz). Use sparingly to avoid distortion and damage.

What size fuse should I use?

Use a 80A fuse on the power wire near the battery. The amplifier itself may have internal fuses; replace only with same rating.

Can I use this amplifier with a factory radio?

Yes, but you will need a line output converter (LOC) to convert speaker level signals to RCA. Some factory radios have remote turn-on; otherwise use a signal-sensing remote adapter.

What is the recommended speaker wire gauge?

For runs up to 10 feet, use 12 AWG wire. For longer runs, use 10 AWG to minimize resistance.

USER MANUAL SE1000C ESX

Abstract geometric logo design with stylized letter 'S' and intersecting lines (no text or symbols)

CAR AUDIO SYSTEMS

SE1000C

1.0 FARAD POWER CAPACITOR

BEDIENUNGSANLEITUNG

MONTAGE

Safety Instructions 11

Installation 12

Initial Charging Process 12

Wiring Diagram 13

Functional Descriptions 14

Discharging Process 15

Voltmeter Adjustment 15

SPECIFICATIONS

Rated Capacity: 1.0 Farad

Continuous Voltage: 12 \~ 16V DC

Maximum Voltage: 18V DC max.

Operation temperature: -20 +60^ C

Dimensions (without Mounting Brackets): 260 x ø74 mm

KIT INCLUDED

1 Power Capacitor

2 Mounting Brackets (top and bottom)

1 Charging/discharging light bulb

1 Owner's Manual

Installation Hardware

All specifications are subject to change without notice!

APPLICATIONS

The power capacitor is used in vehicles for stabilizing the 12 Volt supply and support for car audio amplifiers, if fast and temporary high currents are required. The power capacitor can compensate short-term power peaks on the on-board electrical system for low and powerful bass operations.

The use of the power capacitors results in a considerably improved power expansion of the amplifier.

Car audio amplifiers require very high current peaks for a proper operation. Conventional car batteriesy are not designed to deliver additional power to car audio amplifiers.

Another feature of this power capacitor is to filter car AC voltage included by the amplifier's power supply. This can cause audible interferences in the audio signal.

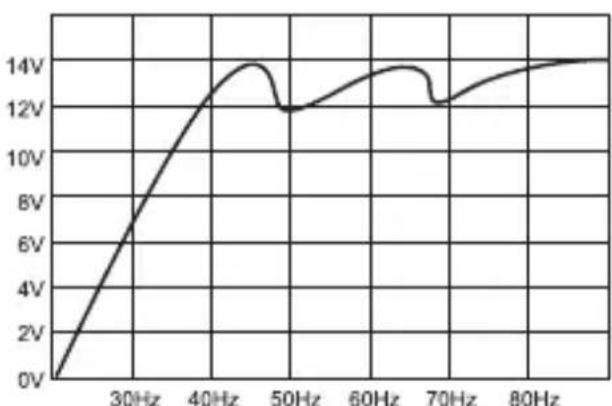

Bassperformance at 50Hz and 70Hz without capacitor

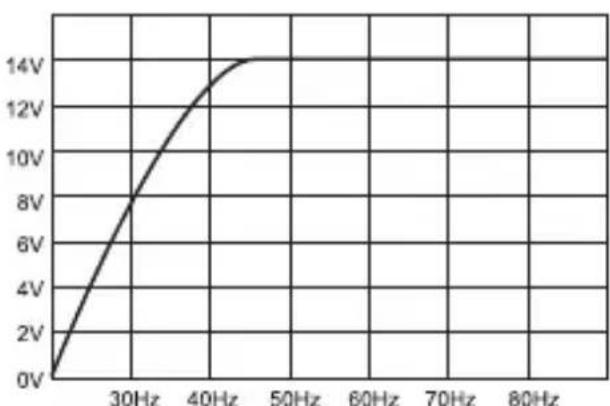

Bassperformance at 50Hz and 70Hz with capacitor

SAFETY INSTRUCTIONS

Before you begin with the installation, please attend the following advices in this manual. Otherwise the risk of injury or a damage of the device consists.

The power capacitor is equivalent to common directives to be operated in vehicles inside the European Union and owns a a CE-mark.

The capacitor should be installed by qualified and skilled personnel only. Special carefulness is essential, because in case of short circuits hazardous high currents could occur.

The power capacitor stores an extremely large amount of electricity and may explode or cause serious injury. If the device is used for other purposes than originally intended or if not proper used or installed, personal injury or material damage could occur.

The capacitor should be mounted at a mechanically stable position in the vehicle. The device should be fixed properly and professional.

At no time the power capacitor should be exposed to voltages higher than specified (max. 18 Volts) or its terminals shorted directly.

Protect the capacitor against humidity and heat.

For cleaning use a dry and soft cleaning tissue, by no means any chemicals or water.

WARNING! ELECTRICAL HAZARD

INSTALLATION

For achieving the best results the capacitor should be located close-by the amplifier. The cables between capacitor and amplifier should be short as possible and should have large cross section. While installing the cables or the operation, ensure not to damage the insulation of the cables.

1.) Tightly screw the device with the supplied brackets and screws as close as possible to the amplifier on a mechanically stable position. By no means install the capacitor on any kind of speaker enclosure or on high vibrating positions.
2.) The correct wiring is displayed on the next page. To avoid any interferences, connect the capacitor's ground connection at the same ground terminal like the amplifier.

INITIAL CHARGING PROCESS

For the first initial charging use by any means the supplied light bulb, to limit the charge current and to avoid connecting sparks. Connect the “—” ground wire with the “—” terminal of the capacitor.

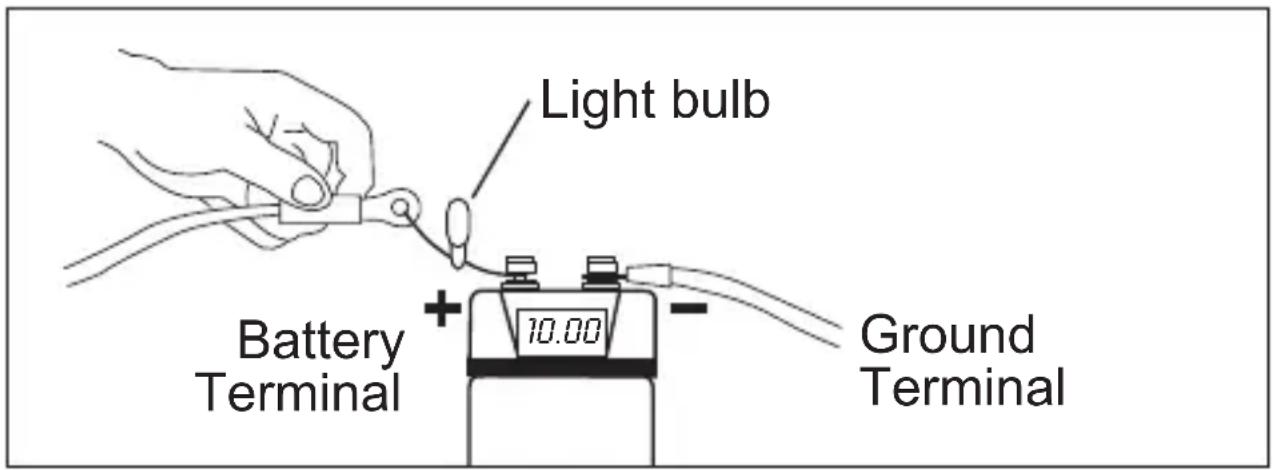

Then clamp the supplied light bulb to the "+" terminal of the capacitor and hold the "+" wire of the battery or distribution block at the other end of the light bulb.

The light bulb can be disconnected after approx. one minute or if the capacitor reached a load of 10 volts. Then connect the “+” terminal of the battery with the “+” terminal of the capacitor to complete the charging process until 12\~14 volts are achieved.

During the charging process (5 \~ 10 Volt) the display starts flashing! The light bulb may get very hot during the charging process. Please avoid any short circuit on the terminals.

WIRING DIAGRAM

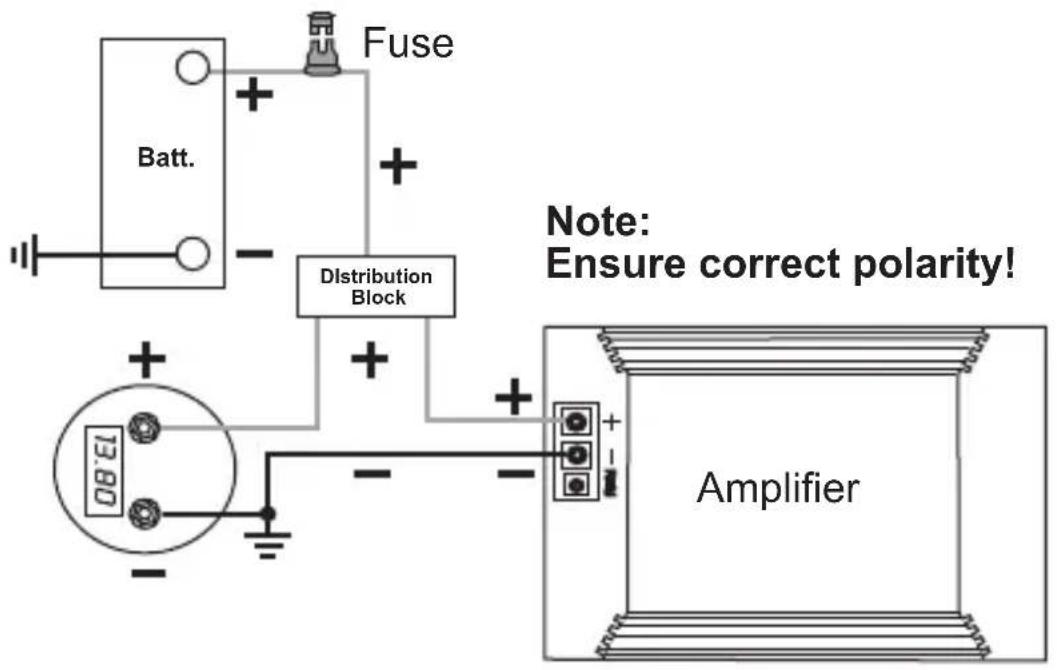

Wiring with Distribution Block (recommended)

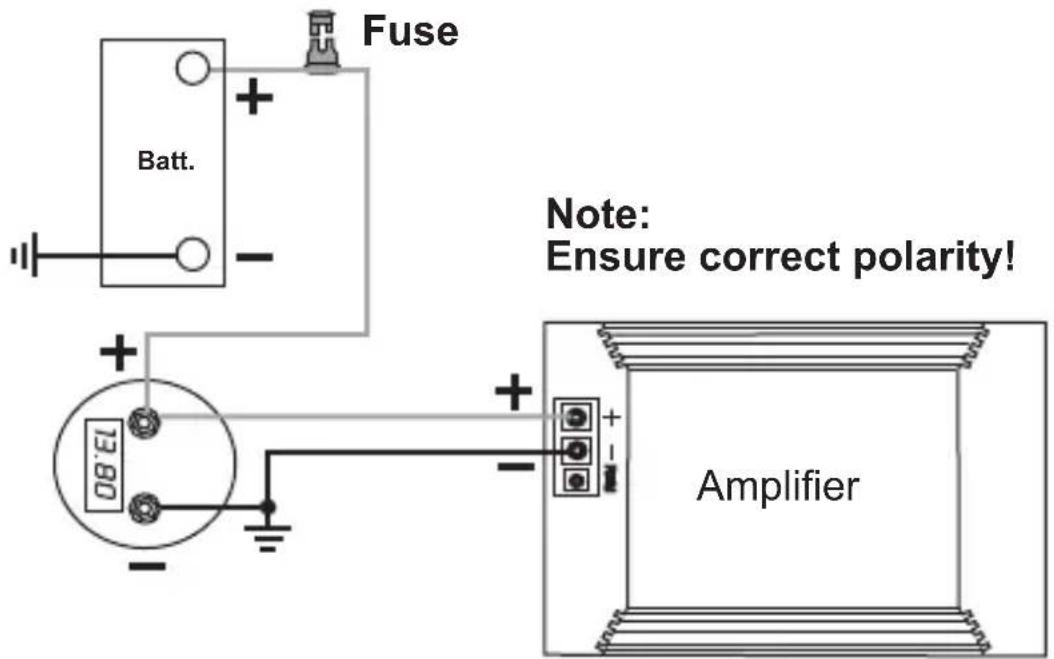

Wiring without Distribution Block

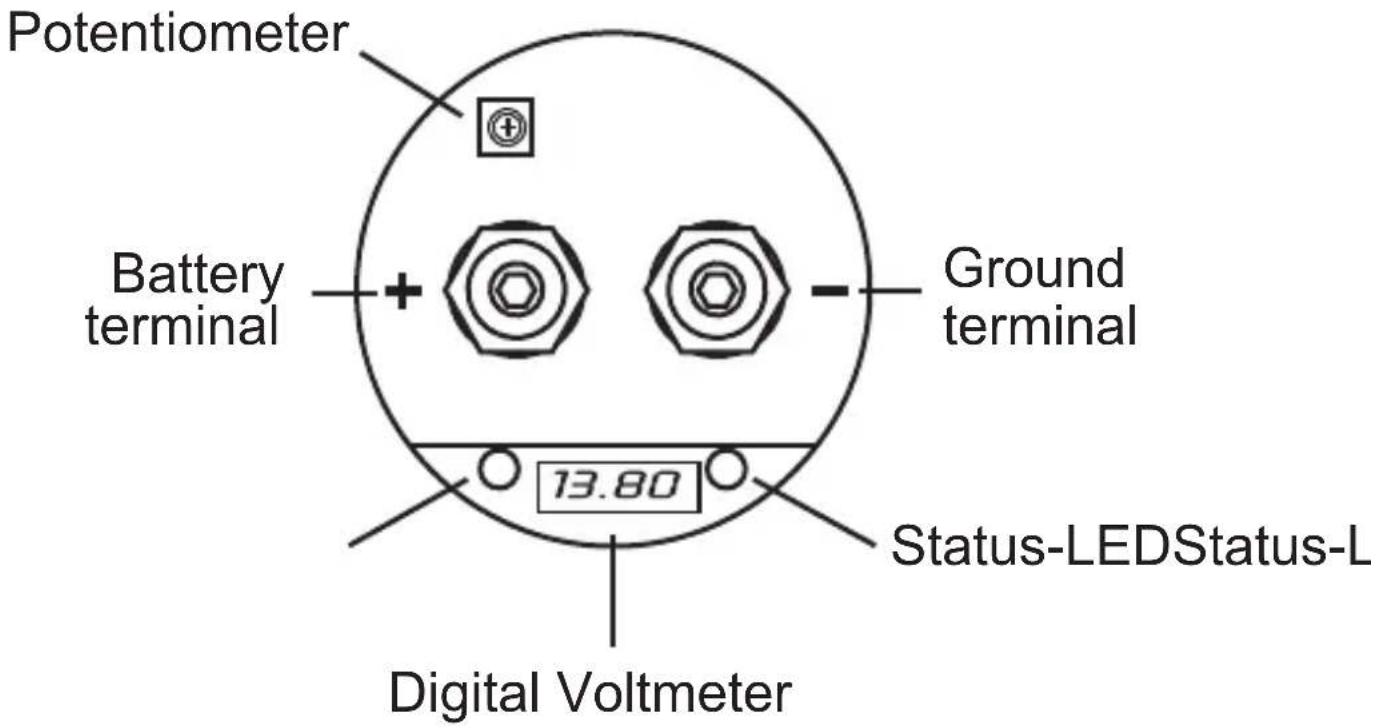

FUNCTIONAL DESCRIPTIONS

Digital Voltmeter

This display indicates the actual operating voltage and is one of the most important features to display the status of the car's power supply.

During the charging process (5 \~ 10 Volts) or if the voltage drops below 10 Volts, the display starts flashing.

The both Status-LEDs start to glow as soon as the display is on, beyond that they have no other function.

Audio Warning

If a interchange of the poles is occurred, an audio warning is hearable.

In this case disconnect all connections directly. Danger of Explosion!

Potentiometer

This controller allows to adjust the voltmeter.

Attend the information on Page 15.

Autoremote

The powercap is equipped with an autoremote function. If the powercap detects any fluctuation of the connected voltage, it turns automatically on. The powercap turns off after approx. two minutes, when no fluctuation or activity is detected.

DISCHARGING PROCESS

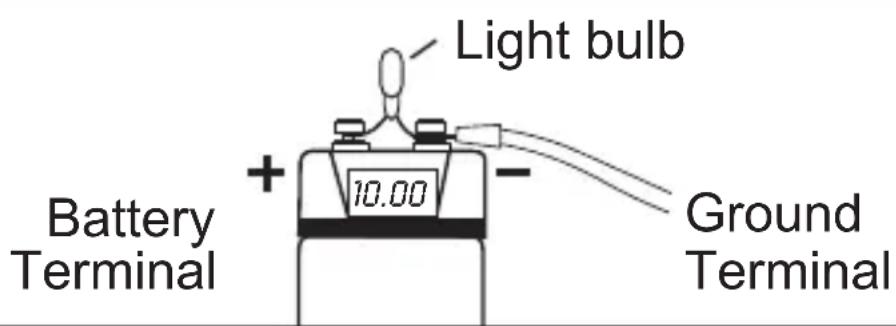

If the capacitor will be de-installated you need to discharge it completely. To discharge the capacitor, remove the wire at the "+" terminal of the capacitor. Keep the ground terminal "-" connected. Then bridgeover the "-"pole and "+"pole of the capacitor with the supplied light bulb.

The discharging process could last some minutes.

It is recommended to use a gripper during this procedure, because the light bulb may get very hot.

The Display is flashing and shows "0.00" during the discharging when the voltage drops below 10 Volts. If the light bulb stops flashing, the discharging process is accomplished.

Never discharge the capacitor without the supplied light bulb.

Never discharge the capacitor with bypassing the terminals (short circuit). The capacitor may get damaged or explode.

VOLTMETER ADJUSTMENT

The adjustment is already done by the factory, but can be redone if necessary. By using additional capacitors, various indicated values could be occurred. This can be adjusted by the potentiometer.

Follow these instructions:

1.) Measure the actual operating voltage on the "+" und "-"pole of the capacitor by using an appropriate multimeter.
2.) Remove the acrylic-cover of the capacitor and adjust the value with the potentiometer (little blue box) by using a appropriate screwdriver to the same value, you have measured before.
3.) Ensure while removing the cover, not to short the terminals.
4.) Or assign your car audio retailer.

Abstract geometric logo design with stylized letter 'S' and diagonal line (no text or symbols)

CAR AUDIO SYSTEMS

Audio Design GmbH

Am Breilingsweg 3, D-76709 Kronau/Germany

Tel. [phone], Fax [phone]

www.esxaudio.de
