| Product Type | Hand Dryer |
| Brand | Dimplex |
| Model | HD 601 AM |
| Dimensions (W x H x D) | 255 x 302 x 140 mm |
| Weight | 4.4 kg |
| Operating Voltage | 220-240 V~ 50/60 Hz |
| Rated Power | 1640 W |
| Enclosure Protection Level | IP21 |
| Class of Protection | II, double insulated |
| Type of Connection | Fixed connection |
| Type of Mounting | Wall mounting |
| Operation | Proximity switch (automatic on/off) |
| Time Delay | Approx. 2 seconds run-on |
| Airflow Rate | 280 m³/h |
| Noise Level | 60 dB (at 2 m) |
| Supplied Accessories | Drilling template, special spanner, mounting hardware |
| Maintenance | Clean exterior with damp cloth; vacuum air outlet; clean sensor lens |
| Safety Features | Double insulated; isolating switch required; thermal cut-out |
| Installation | Only by competent electrician; indoor use; minimum 40 cm clearance |
Frequently Asked Questions - HD 601 AM DIMPLEX
User questions about HD 601 AM DIMPLEX
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Hand dryers in PDF format for free! Find your manual HD 601 AM - DIMPLEX and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. HD 601 AM by DIMPLEX.
USER MANUAL HD 601 AM DIMPLEX
L Phase
M Motor
N Nullleiter STR 1
P1, P2 Netz Elektronik
These installation and operating instructions should be read carefully and retained for future reference.
Ensure that these installation and operating instructions are passed on to any new owner.
Description of Hand Dryer
The sole purpose of the hand dryer is to dry hands. The hands are dried in a stream of warm air that flows out of the air outlet grille. The hands can be rubbed together to accelerate drying.
The hand dryer is operated by a proximity switch which starts the unit automatically when hands are placed under the air outlet grille. When the hands are removed from the airflow, the proximity switch automatically stops the dryer after a run-on delay of approximately 2 seconds.
The hand dryer is designed to be mounted indoors only.
It must be mounted on a vertical wall with the air outlet opening pointing downwards. The appliance should only be connected to the fixed wiring of the premises.
The installation and electrical connection of the hand dryer may only be performed by a competent electrician!
All safety measures taken must conform to the applicable national regulations effective in the relevant country! The electrical supply circuit to the dryer must incorporate an isolating switch with at least 3mm contact clearance on each pole!
Technical Specifications
| Type HD 501 AK HD 601 AM | ||
| Operating voltage 220-240 | V~ 50/60 Hz | 220-240 V~ 50/60 Hz |
| Rated power 1640 W 1640 | W | |
| Enclosure protection level | IP 21 IP 21 | |
| Class of protection II, double insulated II, double insulated | ||
| Type of connection | Fixed connection | Fixed connection |
| Type of mounting | Wall mounting | Wall mounting |
| Operation | Proximity switch | Proximity switch |
| Time delay | 2 seconds | 2 seconds |
| Airflow rate | 280 m^3/h | 280 m^3/h |
| Noise level | 60 dB (2 m) | 60 dB (2 m) |
| Dimensions W x H x D | 253 x 302 x 149 mm | 255 x 302 x 140 mm |
| Weight | 3.0 kg | 4.4 kg |
Subject to change without notice
Materials supplied with hand dryer
The hand dryer comes complete with a drilling template, special spanner and mounting hardware.
Installation
Recommended mounting height from the floor level to the bottom of the hand dryer: Adults: 120 cm; wheelchair users, children 100 cm.
There must be a minimum clearance of 40 cm, in the direction of air discharge, from wall shelves, wash-basins, etc!
Avoid reflecting surfaces within the detection range of the sensor lens!
When choosing the installation location, make sure that the safety distances in accordance with the relevant regulations are complied with!

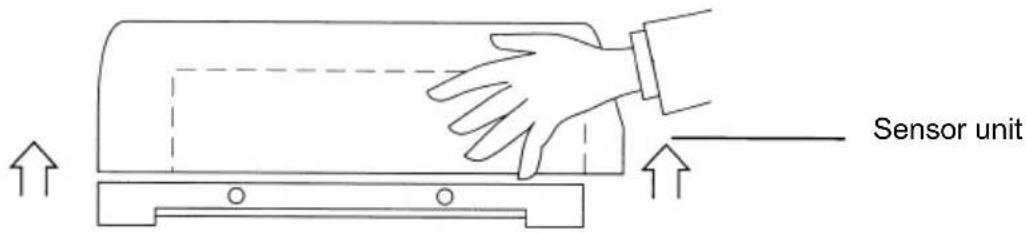

The casing screws are supplied loose (in a parts bag). Remove casing cover by lifting it straight upward. Be careful not to damage the sensor unit of the proximity switch.
The packing box contains a drilling template with the dimensions of the mounting base.

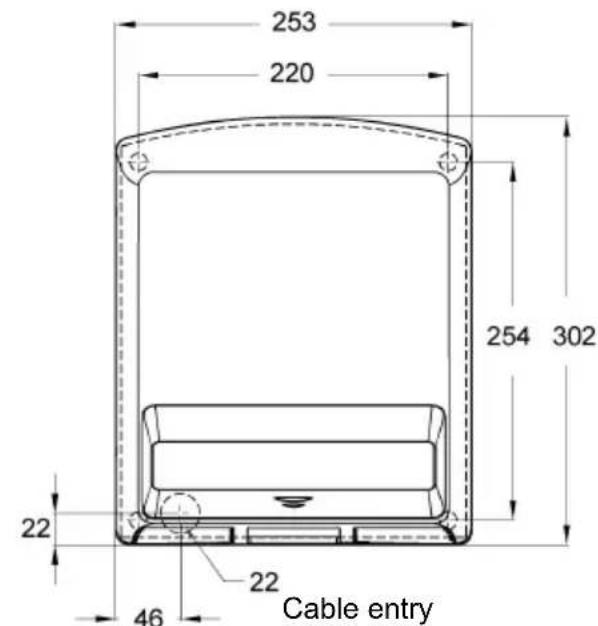

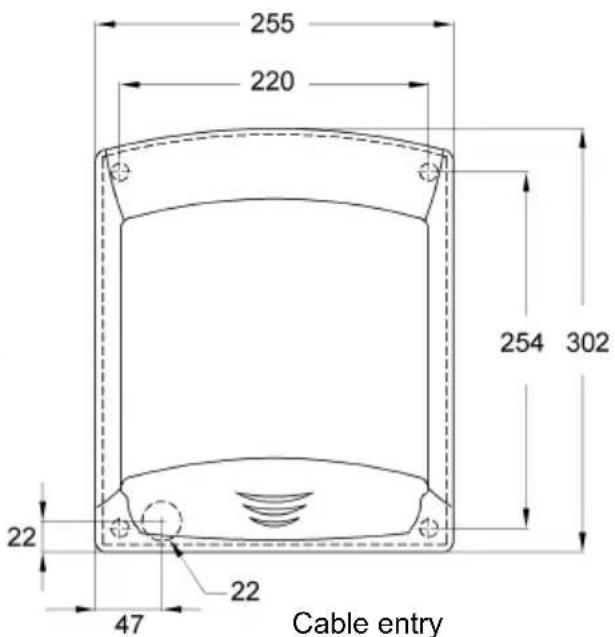

Mount the hand dryer on a vertical wall with the air outlet opening pointing downwards, bearing in mind the mounting dimensions detailed below.
HD 501 AK HD 601 AM
Dimensions in mm
Mark the location of the four mounting holes 220 mm x 254 mm (see illustration above).
Disconnect the relevant electrical circuit (remove fuse) before continuing with the mounting work!
When inserting the rawlplugs, be careful of existing electrical cables in the wall! Risk of electric shock!
However, special mounting materials may need to be used according to the construction of the wall (e.g. lightweight partition walls). Seek specialist advice.
Drill ∅ 8 mm holes for the rawlplugs and insert the plugs.
Strip the power supply cable and feed it through the opening in the back panel of the device. Secure the back panel of the unit to the wall using the screws supplied.
Electrical Connection
Lift transparent cover and connect electrical supply wire to the terminal strip. Pay attention to terminal markings (L,N). Replace transparent cover.
The appliance is double insulated, no protective conductor is required.
Final Assembly
Replace casing cover. On either side of the appliance casing insert two screws each and tighten.
Operation
When in use, the air outlet grille gets hot. Do not touch or cover!
The hand dryer has a proximity switch which switches the dryer on automatically when hands are placed under the air outlet grille and switches off when the hands are removed from the hot airflow. There is a run-on delay of approximately 2 seconds.
The sensitivity of the proximity switch can be adjusted by changing the jumper position on the electronic circuit board. This must be carried out by a competent electrician.
Please refer to the "Circuit Diagram" section overleaf for details.
Cleaning
Allow appliance to cool before carrying out any cleaning work!
Wipe the outside of the unit and the sensor lens (at the bottom of the unit) with a damp cloth and dry. No not use any caustic or abrasive cleaning agents. The appliance should not be subjected to water spray.
Hold a vacuum cleaner against the air outlet opening to remove any dust that may have accumulated inside the unit.
The hand dryer casing may only be opened by a competent electrician!
Troubleshooting
| Problem Possible cause Remedy | ||
| Household fuse tripped. Check fuse | ||
| No hot airflowSensor lens excessively dirty Clean sensor lens | cool sufficiently. | |
| Sensor lens of proximity switch has been deliberately covered (e.g. by chewing gum, adhesive tape, etc.). | ||
| Remove foreign matter from sensor lens, clean sensor lens of proximity switch. | ||
| Insufficient distance from shelf. | Distance from shelf must be min. 400 mm. | |
| Device switches on accidentally | Objects with reflecting surface within range of sensor. | Remove objects. |
| Sensitivity of proximity switch set too high. | To be carried out by a competent electrician: Reduce sensitivity (see section "Circuit Diagram"). | |
If the problem cannot be remedied using the methods described above, remove the fuse and consult a competent electrician, or contact the After Sales Service detailed overleaf.
Repairs to the hand dryer should only be carried out by a competent electrician!

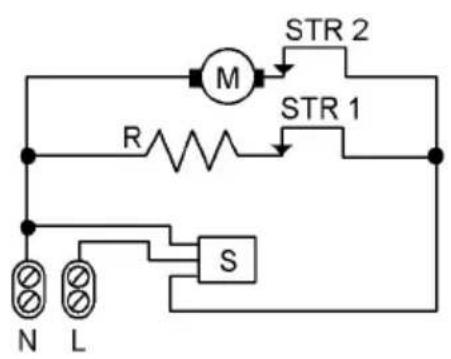

Circuit Diagram
Jumper Proximity Switch
Potentiometer
Sensitivity
Electronic Connections
L Phase
M Motor
R
S
Heating
Proximity
element
switch
N Neutral conductor STR 1 Safety cut-out, heating element
P1, P2 Power supply, electronic items STR 2 Safety cut-out, motor
Guarantee
This product is guaranteed for two years in accordance with our guarantee terms.
Disposal
The appliance must not be disposed of with household waste.
