Product Type	Portable AM/FM Stereo Radio
Brand	Brigmton
Model	BT-224
Frequency Bands	AM, FM
Power Source	2 x AAA batteries (not included)
Controls	ON/OFF switch, Volume knob, AM/FM selector, Tuning dial
Headphone Jack	3.5 mm stereo
FM Antenna	Headphone cable acts as antenna
AM Antenna	Built-in ferrite bar (rotate unit for best reception)
Dimensions (approx.)	4.5 x 2.5 x 0.8 inches (114 x 64 x 20 mm)
Weight (approx.)	3.2 oz (90 g) including batteries
Material	Plastic
Color	White/Black (depending on variant)
Audio Output	Stereo via headphones (no built-in speaker)
Volume Adjustment	Continuous rotary knob
Tuning Type	Analog scale dial
Battery Life (approx.)	20-30 hours (depends on volume and battery quality)
Protection	Avoid extreme temperatures, direct sunlight, moisture, dust, shock
Certification	CE, RoHS
Manufacturer	Ferson Electrónica, S.A., Spain

Frequently Asked Questions - BT-224 BRIGMTON

What type of batteries does the Brigmton BT-224 require?

The radio requires two AAA batteries (not included). Insert them with correct polarity.

How can I improve FM reception?

Extend the headphone cable fully, as it serves as the FM antenna. Ensure it is not coiled.

Does the BT-224 have a built-in speaker?

No, the BT-224 is designed for headphone use only. You must connect a headset to the headphone jack to hear audio.

How do I turn the radio on?

Slide the ON/OFF switch to the ON position. The radio will start playing on the selected band.

What is the AM antenna?

The AM antenna is built into the unit. For best reception, rotate the entire radio horizontally.

Why is the sound distorted or unstable?

Distorted sound usually indicates low battery power. Replace the batteries with fresh ones.

Can I use rechargeable batteries?

Yes, you can use rechargeable AAA batteries. However, note that their voltage is slightly lower, which may affect volume and battery life.

How should I clean the radio?

Wipe the exterior with a soft, dry cloth. Do not use water, solvents, or abrasive cleaners. Remove batteries before cleaning.

What should I do if there is no sound?

Check that headphones are fully inserted into the jack, the radio is turned ON, volume is turned up, and batteries are fresh. Also ensure the headphone cable is not damaged.

Is it safe to leave batteries in the radio when not in use?

It is recommended to remove the batteries if the radio will not be used for an extended period to prevent leakage and corrosion.

USER MANUAL BT-224 BRIGMTON

Abstract white curved shape on white background, no text or symbols present

BRIGMTON

surfing technology

Abstract curved white shape on white background, no text or symbols present

BRIGMTON

surfing technology

INSTRUCTION MANUAL

BT-224-B-N-A-R

AM/FM RADIO STEREO

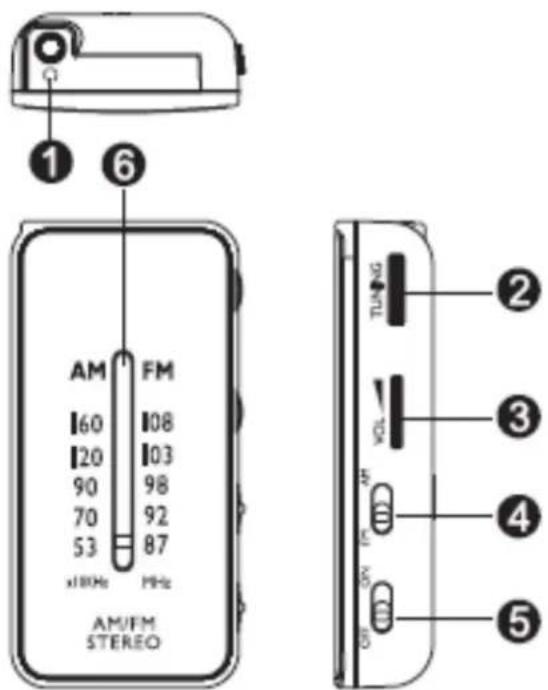

CONTROLS

1. Headphone jack
2. Set Stations
3. Volume Adjustment
   AM / FM 4. Selector
4. Power button
5. Scale Dial

Before using the unit, please read this manual and keep it for future reference.

PRECAUTIONS

Avoid exposure to extreme temperatures, direct sunlight, moisture, sand, dust or mechanical shock, never leave the unit in a car parked in the sun.

In vehicles or buildings, radio reception may be difficult or noisy, Try using it near a window.

If lightning occurs while using this unit, take off the headphones immediately.

To prevent possible hearing damage, do not listen at high volume levels for long periods of time, set the volume to a safe level.

Listen at reasonable volumes for reasonable periods of time.

Do not turn up the volume so high that you can not hear what is happening around them.

You should use caution or temporarily discontinue use in potentially hazardous situations.

Excessive sound pressure from earphones and headphones can cause hearing loss.

FUNCTION

1. Insert 2 "AAA" batteries in the compartment with the correct direction of the electrodes.

1. Connect the headset to the headphone jack.

1. Place the ON / OFF switch to ON to turn the unit.

1. Select band AM / FM.

2. Tune to the desired station.

1. Adjust the volume.

2. To turn off the unit set the ON / OFF switch to OFF.

To improve reception:

FM: Extend the cable fully headphones and function as an FM antenna. AM: The antenna is built into the unit, turn the unit horizontally for optimum reception.

Notes:

When the sound is distorted or unstable, replace the batteries.

To prevent leakage and corrosion, remove the battery when not using the device for an extended period.

"Features can change without notice"

BRIGMTON

surfing technology

IMPORTED

FERSON ELECTRÓNICA, S.A.

CIF: A-41111881

SANTA CLARA DE CUBA 12

SEVILLA

ESPAÑA

DECLARATION OF CONFORMITY

Ferson Electrónica, S.A. declares under our responsibility that the equipment meets the requirements indicated in the following directives:

DIRECTIVAS EMC

EN55013: 2013

EN55020:2007+A11:2011

Description of apparatus:

Model BRIGMTON BT-224

Portable radio
