Product Type	Steam Iron
Model	Lillie
Brand	Fakir
Power	2600 W
Voltage	220-240 V
Frequency	50/60 Hz
Soleplate Material	Not specified (estimated stainless steel or ceramic)
Water Tank Capacity	Approx. 300 ml (typical for steam irons)
Weight	Approx. 1.2 kg
Dimensions (H x W x D)	Approx. 15 x 12 x 30 cm (typical)
Cord Length	Not specified (estimated 2 m)
Steam Output	Continuous steam and shot of steam
Spray Function	Yes
Self-Clean Function	Yes
Temperature Settings	Adjustable for different fabrics (Nylon, Wool, Cotton, Linen)
Auto Shut-Off	Not specified
Anti-Drip System	Not specified (likely present for steam irons)
Usage Life	7 Years (as per manual)
Safety Features	Automatic shut-off when left unattended (if applicable), heat-resistant handle, cord guard
Included Accessories	Not specified (typical: measuring cup)
Warranty	Not specified (refer to manufacturer)
Repairability	Authorized service center required for repairs

Frequently Asked Questions - Lillie FAKIR

Why does the iron smoke when first used?

The iron may emit smoke on first use due to light grease on internal parts. This is normal and will stop after a few minutes. Let the iron heat for about 10 minutes on a high setting in a well-ventilated area.

How do I fill the water tank?

Unplug the iron, set the steam knob to dry ironing (no steam), then pour water into the filling hole. Use distilled or demineralized water if you have hard water to prevent scale buildup. Do not use chemically de-limed or perfumed water.

Why is water leaking from the soleplate?

Leaking typically occurs when the temperature is too low to produce steam. Set the temperature control to a higher setting (steam zone) and wait for the pilot light to go out before using steam. Also ensure the steam knob is not set to dry ironing when steaming.

How do I use the burst of steam function?

Set the temperature to 'max' and wait for the pilot light to go out. Hold the iron horizontally and press the burst of steam button. Wait a few seconds between bursts. Do not use more than three successive bursts to maintain temperature.

Can I use tap water in the iron?

Yes, but if your tap water is hard, it is advisable to use distilled or demineralized water to reduce mineral buildup. Avoid chemically de-limed or perfumed water as they may damage the iron.

What fabrics can I iron with this iron?

The iron has adjustable temperature settings for nylon/acetate (low), wool/silk/mixtures (medium), and cotton/linen (high). Always check the garment label first. For mixed fabrics, select the temperature suitable for the most delicate fiber.

How do I clean the soleplate?

Allow the iron to cool completely. Wipe the soleplate with a soft damp cloth. Do not use abrasive cleaners or metal objects that could scratch the surface. The self-clean function can be used to flush out mineral deposits (refer to manual).

What should I do if the iron does not heat?

Ensure the iron is plugged into a 220-240V AC outlet and the temperature dial is set above 'min'. Check that the mains cord is not damaged. If it still does not heat, contact an authorized service center.

Is the iron safe to leave unattended?

No. Always unplug the iron when not in use, even for a short period. Do not leave the iron connected to the mains or on an ironing board unattended. Place it upright on a stable surface.

How do I store the iron after use?

Empty the water tank, allow the iron to cool completely, and store it upright in a dry place. Do not store with water in the tank. Wind the cord loosely around the cord wrap, if provided.

USER MANUAL Lillie FAKIR

Exterior view of a modern electric iron with visible steamers and branding (no text or symbols on the device itself)

INHALTSVERZEICHNIS

Sicherheit 4

Simple line drawing of a symmetrical abstract shape with no text or symbols

(.2)

Line drawing of a steam iron with handle and spout (no text or symbols)

(.3)

Illustration of a cartoon animal flying with a triangular shape nearby (no text or symbols)

Important Safeguards ....14

Important Precautions ....15

Suggestions before using the iron for the first time 15

Operating 16

Product Description....16

Technical Specifications....16

Selecting the temperature 17

How to fill the water tank 17

Steam Ironing 18

Spray 18

Shot of Steam....19

Self Clean....19

Troubleshooting....20

Liability....21

Unauthorized Use....21

Usage Area....21

CE Declaration of Conformity....22

Waste Disposal....22

Dispatch....22

Thank you for purchasing Fakir LILLIE Steam Iron which has been designed and manufactured to give you many years of trouble-free service.

You may already be familiar with using a similar product, but do please take time to read these instructions – they have been written to ensure you get the very best from your purchase.

Important safeguards

When using your iron, basic safety precautions should always be followed, including the following:

1. Use the iron only for its intended use.
2. To protect against the risk of electric shock, do not immerse the iron in water or other liquids.
3. The iron should always be turned to "min" before plugging or unplugging from the mains outlet. Never pull the cord to disconnect from the mains: instead, grasp plug and pull to disconnect.
4. Do not allow the cord to touch hot surfaces. Allow the iron to cool completely before putting away.
5. Always disconnect the iron from the electrical outlet when filling with water or emptying and when not in use
6. Do not operate the iron with a damaged cord or if the iron has been dropped or damaged. To avoid the risk of electric shock, do not disassemble the iron .take it to a qualified service agent for examination and repair. Incorrect re-assembly, can cause a risk of electric shock when the iron is used.
7. Close supervision is necessary for any appliance being used by or near children. Do not leave the iron unattended when connected to the mains or on an ironing board.
8. Burns can occur from torching hot metal parts, hot water or steam, use caution when you turn a steam iron upside down-there may be hot water in the reservoir.
9. If the iron is not operating normally, disconnect from the power supply. And contact the nearest authorized service agent.
10. Your iron is designed to rest on the heel. Do not leave the iron unattended when switched on. Do not place the iron on an unprotected surface even if it is on its heel rest.

WARNING!

Do not attempt to replace a defective mains lead. The appliance has to be returned to an authorized service centre for repair.

Important precautions

To make good use of your appliance, please read these instructions carefully and look at the illustrations before using it.

1. Check that the voltage on the product rating plate coincides with your mains voltage.
2. The iron shall not be used if there are visible signs of damage or if the iron in leaking. The iron shall be sent to the manufacturer or his qualified service agent before further use.
3. Completely unwind the mains cable.
4. Always unplug the iron when not in use, even if only for a short period of time. Unplug it from the mains and leave it standing on its rear base.
5. Make sure that children can not touch the hot iron and that they can not pull on the mains wire.
6. Always unplug the iron before filling the water or when removing the excess water form it.
7. Never submerge the iron in water.
8. The iron shall be used on a stable ironing board.
9. The iron must be used and rested on a stable surface.
10. When placing the iron on its stand, ensure that the surface on which the stand is placed is stable.

Technical instructions

1. 220-240V 50/60Hz 2600W
2. To avoid overloads, do not plug any other high-power appliance into the same electricity line.

Suggestions before using the iron for the first time

1. Certain parts of the iron have been lightly greased therefore the iron could give off a little smoke when plugged in for the first time. This will cease after a short while.
2. Before using the iron for the first time, remove the plastic protector from the base(if it has one) clean the base with a soft cloth.
3. Keep the base very smooth. Do not run it over metal objects (such as against the ironing board, buttons, zips, etc.)

While assembling your product; you can realise that some water drop might be on the water tank and the product body. This is caused by our quality tests which confirm the 100 % workability of the product. The product did not be used before and it is produced to give you many years of trouble-free service.

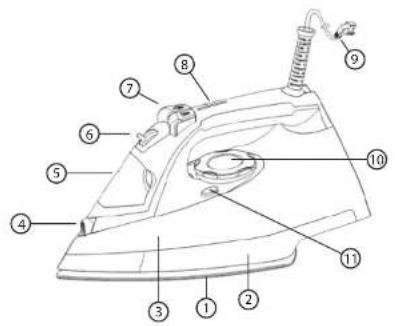

Product Description

1. Soleplate
2. Skirt
3. Water tank
4. Spray nozzle
5. Water filler
6. Steam knob
7. Spray and burst button
8. Pilot light
9. Power cord
10. Temperature knob
11. Selfclean knob

Technical Specifications

2600 Watt

220-240 V

50/60 Hz

Usage Life: 7 Years

Selecting the temperature

1. Check the ironing instructions on the garment to be ironed.
2. If the garment does not have any ironing instructions but you know the kind of fabric in question, use the chart below.
3. Fabrics that have some kind of finish(polishing . wrinkles , contrasts....)can be ironed at the lowest temperatures.
4. If the fabric contains several kinds of fibres, always select the temperature applicable, if an article contains 60% polyester and 40% cotton, you must always choose the temperature corresponding to polyester and without steam.
5. First classify the articles to be ironed according to the most suitable ironing temperature : wool with wool, cotton with cotton, etc. as the iron heats up as fast as it cools , start by ironing the articles requiring the lowest temperature such as those made of synthetic fibres . Progress towards those that require the highest temperatures.
6. Turn the temperature control until it is in front of the appropriate signal according to the following:
   • position for nylon and acetate
   … position for wool ,silk or mixures
   … position for cotton or linen (steam).

How to fill the water tank

1. Unplug the iron.
2. Set the steam button to dry ironing .(fig.1)
3. Fill the tank through the filling hole.(fig.2) -If you have hard water, it is advisable to use only distilled or demineralized water. -do not use chemically de-limed water or perfumed
4. Do not store the iron with water in the tank.

(Fig. 1)

Diagram of a human head with visible anatomical structures (no text or labels)

(Fig. 2)

Line drawing of a steam iron with handle and spout (no text or symbols)

(Fig. 3)

Simple line drawing of a steam iron with a triangular pointer (no text or symbols)

Steam ironing

1. Fill the iron as described in the section "how to fill the water tank".
2. Plug the iron into the mains.
3. Steam ironing is only possible when the highest temperatures shown on the temperature control are selected. Otherwise, water may escape through the soleplate.
4. Wait until the pilot light goes out, which indicates that the selected temperature has been reached.
5. Turn the steam button to the required position.
6. When the ironing is finished and during breaks in ironing, place the iron in its upright position.
7. Disconnect the iron from the mains supply. Pour of any remaining water and leave the iron to cool off.

Spray

1. The spray can be used in any position, either in dry or steam ironing, as long as the water tank is filled with water.
2. Press the spray button for this function

This button has to be pressed repetitively to start this function for the first time.

Shot of steam

Shot of steam give extra steam for removing persistent wrinkles.

1. Place the temperature selector at the "max"(fig.3)position and wait until the pilot light goes out
2. Press the shot of steam button for this function
3. Wait for a few seconds for the steam to penetrate the fibre before pressing again.

For the best steam quality, do not use more than three successive bursts each time. Several pumping actions are needed to start this function.

Excessive use of this feature will cause the iron to cool, ensure that the pilot light is out, before operating the shot of steam control.

Troubleshooting

Fault	Possible cause	Solution
Iron emits an odor or smoke	Iron gives off an odor when turned on for the first time.	Oils used during manufacture need to be burnt off allow ten minutes for odor to disappear.
Iron does not heat	The temperature dial did not set at the desired temperature.	The iron should be plugged into a 230 Volt, AC electrical outlet only. The temperature dial must be set at the desired temperature.
Iron does not steam	The water tank many be empty.	Turn the steam valve to “” and add water .Allow the iron to heat, and then set the steam dial to the steam setting.
Burst of steam feature does not work	The water tank can be empty and temperature button set to shouldn’t steam.	The water tank must be at least 1/4 full. Temperature must be set to steam position. Iron should be in the horizontal position. Prime pump briefly. Allow a short pause between shots. Be sure to fully depress the burst of steam button.
Spry mist feature does not work	The water tank must be at least 1/4 full.	Fill the iron as described in the section “how to fill the water tank”.
Iron is leaking	Temperature should be set to low level.	The variable steam dial must be set on“,until the iron is hot. The temperature setting is too low to produce steam. Shot of steam used too much, allow iron to re-heat.

Liability

Fakir Elektrikli Ev Aletleri Dış. Tic. A.Ş. will accept no liability for damages resulting from failure to comply with the operating instructions. Fakir Elektrikli Ev Aletleri Dış. Tic. A.Ş. cannot assume any liability in case the appliance is used for other purposes than its intended use or handled, repaired or serviced improperly.

Unauthorized use

The examples of unauthorized use listed here can result in malfunctions, damage to the appliance or personal injury:

This appliance is not designed to be used by persons (including children) with limited physical, sensory or mental capacities or by persons lacking in experience and/or knowledge, unless they are supervised by someone who is responsible for their safety or have received instructions on how to use the appliance. Children should be supervised to ensure that they do not play with the appliance. Children should be supervised to ensure that they do not play with the appliance. Electric appliances are not toys for children! Therefore, use and store the appliance away from the reach of children. Children do not recognize the danger involved with handling an electric appliance. Do not let the power cord dangle from the appliance.

Keep packaging films away from children - danger of suffocation!

Usage Area

This appliance is suitable for places; home. Do not use appliance for other than intended use and never use this appliance outdoors.

CE Declaration of Conformity

This appliance fulfills the requirements of the Appliance and Product Safety Law (GPSG) and the EU Directives 2004/108/EC “Electromagnetic Compatibility” and 2006/95/EC “Low-Voltage Directive.” The appliance bears the CE mark on the rating plate.

If the service life of the device has ended, in particular if functional disturbances occur, make the worn-out device unusable by cutting through the power cable.

Dispose of the device according to the environmental regulations applicable in your country.

Electrical waste must not be disposed of together with household waste.

Bring the worn-out device to a collection center. The packaging of the device consists of recycling-capable materials. Place these, sorted out according to material, in the collectors provided, so that recycling can be carried out on them.

For advice on recycling, refer to your local authority or your

dealer.

Dispose of used dust bag and filters in domestic waste.

Dispatch:

Carry the appliance in the original package or a similar, wellpadded package to prevent damage to the appliance.

This product is produced on behalf of Fakir Elektrikli Ev Aletleri Dış Ticaret A.Ş. by NINGBO KAIBO GROUP CO. LTD., The Northern Industrial Park of Zhouxiang Cixi 315324 Ningbo China, Tel: [phone]
