USER MANUAL 2560 WAGAN

Sport Fridge™ with AM/FM radio

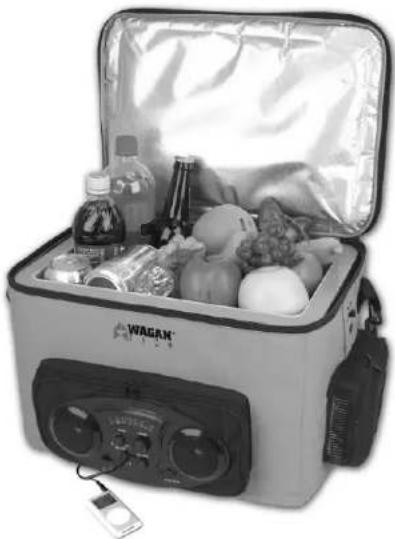

Open WAGAN portable food kit with open lid, containing various items like fruits, water bottles, and a battery (no visible text or symbols)

User's Manual

18 Liter Sport Fridge with AM/FM Radio By Wagan Tech

Thank you for purchasing the 18 Liter Sport Fridge with AM/FM Radio by Wagan Tech. With normal care and proper treatment it will provide years of reliable use. Please read all operating instructions carefully before use.

INTRODUCTION:

The 18 Liter Sport Fridge with AM/FM Radio is the next step in temperature control. Drinks are kept refreshingly cool in the hot summer without any more needless ice purchases. Unit operates without the harmful CFC's that is often used in other refrigerants, and which can damage the ozone. As a result, the Sport Fridge is an ecologically friendly solution that never needs recharging or is in danger of toxic leaks and spills.

FEATURES:

* Cooling power = 10 pound block of ice
* Superior foam insulation
* Energy efficient
* Low maintenance
* Environmentally safe
* No dangerous gases
* ON/OFF switch with green LED indicator light
* AM/FM Radio with built-in speakers and audio input jack
* iPod/MP3 holder
* Shoulder strap

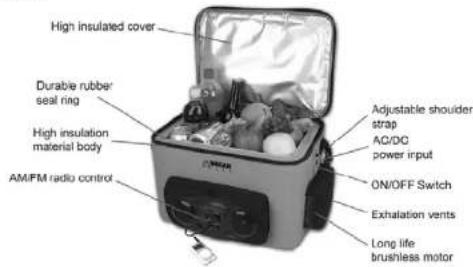

High insulated cover Durable rubber seal ring High insulation material body AM/FM radio control Adjustable shoulder strap AC/DC power input ON/OFF Switch Exhalation vents Long life brushless motor

HOW THIS UNIT WORKS:

• The Sport Fridge uses 12 Volt Direct Current power source. This system allows for easy power access from almost any Automotive or Marine vehicle.
• The Sport Fridge is also equipped with an adapter that operates via the vehicle's cigarette lighter.
• Simply plug the male adapter into the 12 Volt socket, and the female end of the cord into the two-prong socket on the Fridge.

OPERATION:

1. Check to make sure the cooler power switch is in the OFF position.
2. Plug the cigarette lighter plug into the cigarette lighter socket in your vehicle or other 12 volt DC power supply (minimum 5 Amps).
3. Move the switch into the on position.
4. The green LED indicator light will illuminate to show that the unit is working.

5. Place items inside the storage compartment and close the lid.

6. The Sport Fridge uses low battery power and operates up to three hours on a normal car battery.

7. For any extended time beyond that, it is suggested that the unit be used with a running engine, or else the battery levels may become too low to start the engine.

Volume control ON/OFF switch Radio bands display Tuning control Stereo speaker Headphone jack iPod/MP3 audio input jack AM/FM switch Radio power input (Radio can be powered with 1F battery +0.025V ammeter)

AM-FM RADIO:

- The Radio can receive frequencies in the standard AM and FM broadcast bands: AM-520 to 1710 kHz; FM 88 to 108 MHz.

3

© 2007 Wagan Corporation.

All Rights Reserved.

Wagan and Wagan.com are trademarks used by Wagan Corporation.

18 Liter Sport Fridge with AM/FM Radio By Wagan Tech

• All Radio controls are conveniently located in one area. The controls are: ON/OFF Volume, AM-FM Selection Switch, a Tuning Dial and an Audio Input Jack for external audio devices such as MP3s or CD players (Required 3.5mm mini audio cable-not included).
  • The Radio can be powered with a 9V battery or AC/DC adapter.

NOTE: All AM band radios are subject to receiving noise interference from electronic devices, static lightning strikes and some motorized equipment. If you are operating the Sport Fridge and noise is being received on the AM band, either turn OFF the fridge or change the radio to receive the FM band.

USING THE AM-FM RADIO:

1. Select either AM or FM band.
2. Turn on the Radio by turning the ON/OFF Volume knob clockwise.
3. Rotate the Tuning Dial to the desired frequency.
4. Adjust the Volume control to desired loudness.
5. After use, Turn OFF the Radio by rotating the ON/OFF Volume knob counterclockwise until the knob "clicks".

HOW TO CARRY IT:

On the shoulder

WAGAN® TECH

www.wagan.com

4

ACCESSORIES:

DC 12V Cigarette lighter plug

TROUBLESHOOTING:

If the unit seems to not be working properly:

• First check to see if the adapter is firmly secured within the lighter socket before proceeding.
• Make sure the two-prong socket is firmly attached to the cooling unit. If both adapters are securely plugged in, make sure that the battery source has enough power to charge the unit.
• Try plugging the unit into another power source, and checking to see if the unit can work with this new power source.

Some parts of the 12V adaptor may come loose after prolonged use, and may dislodge them. If this is the case, simply retighten the adapter top by screwing in crisscrossed top until tight.

SAFETY AND MAINTENANCE:

• To maintain optimum working efficiency, periodically clean the unit with a damp, cotton cloth. Avoid harsh cleaning agents as they can damage the unit's electrical wiring.
• Please keep the unit out of temperature extremes, as excessive heat or cold can cause the exterior shell to become hard and brittle and will increase the likelihood of fractures.

5

© 2007 Wagan Corporation.

All Rights Reserved.

Wagan and Wagan.com are trademarks used by Wagan Corporation.

18 Liter Sport Fridge with AM/FM Radio By Wagan Tech

• Due to the electrical nature of the unit please be careful while handling liquids around the exterior of the unit.
• Do not operate unit for long extended periods of time as it may drain the battery source.
• Do not use ice in your Sport Fridge. Never fill your unit with liquid which is not in a container. Liquid can corrode the fan and motor parts, impairing performance.
• Air intake and fan areas should never be blocked. Never operate your unit in a car trunk or enclosed area.
• Always unplug your unit before cleaning.
• Avoid all contact with enclosed or metal parts while your unit is in use. Electrical shock or burn may result.
• Keep your Sport Fridge in a clean environment with good airflow. Pet hair, dust and dirt may impair your unit's operation and void its warranty.

SPECIFICATIONS:

Name	Description
Capacity 18 Liters (Approx.	30 12oz Cans)
Cools to 40°F to 45°F below room temperature
Power consumption 54W
Brushless motor 30,000 hrs
Input power 5 Amps, DC 12V
Temperature	Thermostatically
Insulation material Polyurethane foam
Audio Input Jack 3.5mm diameter (1/8 in)
Power cord Approx. 6.5ft

WAGAN Corp. Limited Warranty Registration Form

All WAGAN Corporation products are warranted to the original purchaser of this product.

Warranty Duration: This product is warranted to the original purchaser for a period of one (1) Year from the original purchase date, to be free of defects in material and workmanship. WAGAN Corporation disclaims any liability for consequential damages. In no event will WAGAN Corporation be responsible for any amount of damages beyond the amount paid for the product at retail. In the event of a defective item, please ship the item, prepaid, with a complete explanation of the problem, your name, address and daytime phone number. WAGAN Corporation will, at its option, replaces or repair the defective part. This warranty is void if the product has been damaged by accident, in shipment, unreasonable use, misuse, neglect, improper service, commercial use, repairs by unauthorized personnel or other causes not arising out of defects in materials or workmanship. This warranty is effective only if the product is purchased and operated in the USA and Canada and does not extend to any units which have been used in violation of written instructions furnished.

Warranty Disclaimers: This warranty is in-lieu of all warranties expressed or implied and no representative or person is authorized to assume any other liability in connection with the sale of our products. There shall be no claims for defects or failure of performance or product failure under any theory of tort, contract or commercial law including, but not limited to negligence, gross negligence, strict liability, breach of warranty and breach of contract.

Warranty Performance: During the above one (1) Year warranty period, a product with a defect will be replaced with a comparable model when the product is returned to WAGAN Corporation with an original store receipt. The replacement product will be in warranty for the balance of the one (1) Year warranty period.

• Please activate my limited warranty for WAGAN Corp.

• Enclosed copy of original sales receipt.

Name
Mail Address
Add'l Address
City
Item Purchased
Store Name
Date of Purchase
Signature

All WAGAN Corporation Products must be registered within (30) days of purchased to activate this warranty.

Mail the complete registration form, along with a copy of the original receipt to:

Attn: Customer Service

WAGAN Corporation

3589 Yale Way, Fremont, CA 94538

Email: [e-mail]

Phone: (Toll Free) 1-800-231-5806 (Local) 1-510-490-9221

Hours of Operation: Monday through Friday 8:00 A.M. - 5:00 P.M. (P.S.T.)

State

Zip

Code

Date
