Product Type	Baby Monitor
Brand	Medifit
Model	MD-609
Frequency Band	2.4 GHz
Range (Outdoor)	Up to 300 meters
Range (Indoor)	Up to 50 meters
Display Size (Parent Unit)	2.4 inch color LCD
Night Vision	Yes, infrared LEDs
Two-Way Communication	Yes
Temperature Monitoring	Yes
Sound Activation (VOX)	Yes
Lullabies	Yes, built-in
Power Supply (Parent Unit)	Rechargeable Li-ion 3.7V 1000mAh
Power Supply (Baby Unit)	AC adapter 5V 1A
Battery Life (Parent Unit)	Up to 8 hours
Dimensions (Parent Unit)	12 x 7 x 3 cm
Dimensions (Baby Unit)	10 x 6 x 4 cm
Weight (Parent Unit)	150 g
Weight (Baby Unit)	100 g
Cleaning	Wipe with a dry, soft cloth
Safety Features	Low battery indicator, out-of-range alarm
Spare Parts Availability	Contact Medifit customer support
Certifications	CE, FCC

Frequently Asked Questions - MD-609 Medifit

What is the range of the Medifit MD-609 baby monitor?

The outdoor range is up to 300 meters, and the indoor range is up to 50 meters, depending on walls and interference.

Can I use multiple cameras with one parent unit?

The MD-609 supports one baby unit per parent unit. For multiple cameras, you may need additional systems.

How do I charge the parent unit?

Connect the included USB cable to the parent unit and a power source. The built-in Li-ion battery charges fully in about 3 hours.

Does the baby monitor have night vision?

Yes, the baby unit features infrared LEDs for clear night vision, automatically activating in low light.

How do I clean the baby monitor?

Wipe the units with a dry, soft cloth. Do not use water or cleaning chemicals. Avoid getting moisture into any openings.

What should I do if the connection is lost?

The parent unit will display an out-of-range alarm. Move the parent unit closer to the baby unit, or check for interference from other devices.

Can I adjust the volume on the parent unit?

Yes, the parent unit has volume control buttons to adjust the audio level. You can also set it to vibration mode.

How do I pair the baby unit and parent unit?

The units are pre-paired out of the box. If pairing is needed, press the PAIR button on both units simultaneously.

What is the battery life of the parent unit?

The rechargeable battery lasts up to 8 hours under normal use, depending on screen brightness and audio volume.

Does the monitor have a temperature sensor?

Yes, the baby unit includes a temperature sensor that displays the room temperature on the parent unit screen.

USER MANUAL MD-609 Medifit

1) Diffusore luce
2) Lampadina
3) Sostegno lampadina

COME UTILIZZARE IL PRODOTTO

Congratulations on having purchased the Medifit Baby Monitor MD-609. Thanks to this nice product, you can always monitor your baby; the product is also provided with night light that will make your baby sleepy. Before starting using this appliance, it is advisable to read carefully this instruction manual. It is also advisable to save this manual for a future use.

IMPORTANT SAFETY INSTRUCTIONS

The baby monitor doesn't replace the adult supervision over children

ATTENTION: the product is not a toy and should be kept out of the children's reach. Make sure the baby unit and adapter cable are always out of reach of the baby, at least one metre away. Never place the baby unit inside the baby's bed or playpen. Use this appliance only for the purposes shown in this instruction manual. Any other purpose should be consider dangerous. Before connecting the appliance, check that the voltage shown on the rating label of the adapter corresponds to the local mains voltage. Before starting using the appliance, please check that the product is in perfect condition, without damages. In case of doubts, please address to a specialised centre. Unplug always the appliance when the product is not in use, before cleaning it and whenever a disturbance occurs. Switch always the product off before unplugging it. Check regularly both the product and the cable: in case of damages, do not use the appliance. Do not insert objects into any openings. Do not block air inlets. In case the product is not used for a long period, it is advisable to remove batteries. Never sit or stand on the massager heavily. Never use the appliance while you are having a bath or a shower. Never store the appliance in places from where it can easily fall into a basin or a tub. Should the appliance becomemoist or wet, remove themains plug from the socket immediately. NEVER TRY TO REACH THE PRODUCT INTO WATER!

Always place and store the product away from heating sources, sun light, dampness and sharp objects. When you store the products, never wrap the cable around it. Never try to unplug the product pulling it from the cable or from the product itself but pull always from the plug. In case of damages to the correct product functioning always address to specialised centre. Never try to repair the product by yourself, otherwise the warranty will be not valid anymore.

Do no place the appliance under blankets or pillows, as excessive heating may occur thus causing fire, electric shocks or other injuries to the user. This product is for indoor use only.

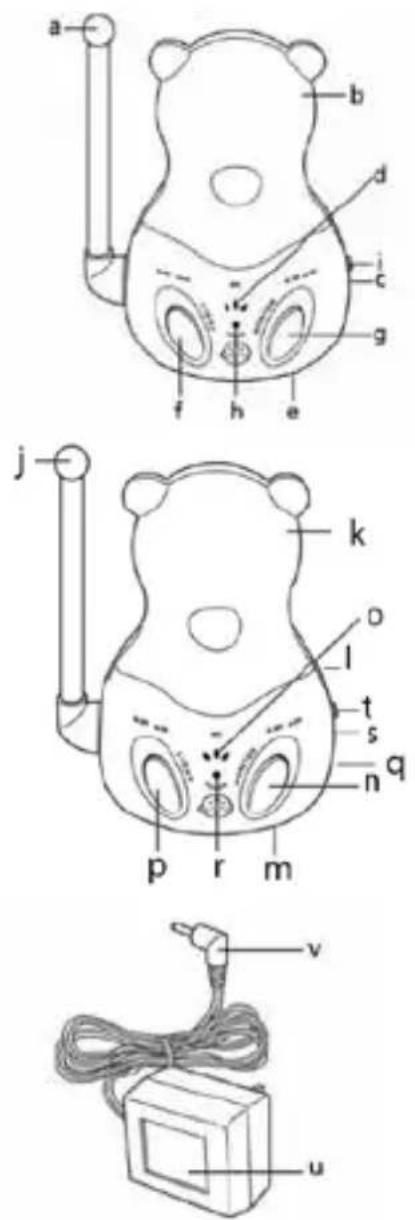

COMPONENTI

BABY UNIT

a) Rotary antenna
b) Character diffuser
c) DC Jack
d) Build-in microphone
e) Battery compartment (child-proof security lock)
f ) Night light on/off power switch
g) ON/OFF switch
h) LED power indicator
i) Channel switch

PARENT UNIT (MUMMY)

j) Rotary Antenna
k) Upper part
I) DC j ack
m) Battery compartment
n) ON/OFF switch
o) LED power indicator
p) Channels switch
q) Channels indicator
r) Signal receive indicator
s) Volume Knob
t) Speaker

ADAPTER

u ) Mains adaptor (2 pcs)

v) DC plug

1) Character diffuser
2) Light bulb
3) Light bulb holder

ATTENTION: the rounded loop type antenna on the parent unit (j), should not be used to carry the unitself; this will cause weak or no reception and reduce product performance.

Baby Unit

Place the baby unit on a flat and stable place, within 3 metres from the baby. Baby unit can be fed both by AC/DC adapter (supplied with the product) and by batteries not incl. To operate the product by the mains adapter, plug the adapter into a convenient wall power socket and the DC plug (v) to the DC jack (c). Switch the product on pressing the on/off button (g); now the LED light (h) is on. Select the transmission channel between A and B, using the special button (i).

ATTENTION: channel switch on both parent and baby unit must be in the same position, otherwise the product would not function in the correct way (A-A or B-B channel)

Light button

Pressing the night light button (f) it is possible to switch the light on and off.

Parent unit

This unit too can be fed both by AC/DC adapter (supplied with the product) and by batteries not incl. To operate the product by the mains adapter, plug the adapter into a convenient wall power socket and the DC plug (v) to the DC jack (1). Switch the product on pressing the on/off button (m); now the led (o) is on, in order to show the product is working. Check the selected channel is the same as the baby unit.

LIGHT BULB REPLACEMENT

ATTENTION: light bulb replacement should be carry out by an adult only and following the instructions here-below: switch the baby unit off (in case the unit is connected to a wall power socket, please unplug it). Remover the screws placed at the back of the product. Then remove the character diffuse (b) pulling it upwards. Unscrew the bulb, turning it clockwise. Now you can replace the old bulb with a new one (T-10 DC 6.3V 0.15 A type), turning it counter clockwise.

Cover the light bulb holder by inserting the character light diffuser and screw to fix the diffuser with the base.

POWER BATTERY SUPPLY

Warning:

• When you insert batteries both in the parent and in the baby unit, please pay attention in respecting the polarity shown on the battery compartment.
• Never use batteries that shows signs of leaking or cracking.
• In order to avoid product damaging, it is advisable not to match batteries of different type, brand, age or charge.
• Keep the batteries away from children reach
• NEVER USE RECHARGEABLE BATTERIES

BATTERIES INSTALLATION

Baby unit

Open the battery compartment, at the base of the product, using a cross screw driver. Insert the 4 batteries type "AA" (not incl.), paying a particular attention to battery polarity, shown on the compartment itself. Close the battery compartment turning the three screws clockwise.

Parent unit

Open the battery compartment, at the back side of the product, using a cross screw driver. Insert the 4 batteries type "AAA" (not incl.), paying a particular attention to battery polarity, shown on the compartment itself. Close the battery compartment turning the three screws clockwise. Lithium batteries are advisable.

TECHNICAL FEATURE

Code	MD-609
Description	Baby Monitor
Transmission channel	NR 2
Transmission frequency	40 MHz
Transmission range	100 metres*
Baby unit power supply	Adapter DC 6V 300mA (incl) Batteries: 4 x 'AA' (not incl.)
Parent unit power supply	Adapter DC 6V 300mA (incl) Batteries: 4 x 'AAA' (not incl.)
Battery life	Baby unit (night light on): 20 hours of continuous use, (night light off) 30 hours of continuous useParent unit: 15 hours of continuous use
Light bulb (baby unit)	T-10 DC 6.3V 0.15 A

* the real transmission range, 100 metres, can be effected by environmental building and material (for instance metal)

AVVERTENZE

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

If the supply cord is damaged, it must be changed by manufacturer or by its service agent or by a qualified person in order to avoid an hazard.

If the item is used in bathroom, unplug it after use since the proximity of water presents an hazard even when the item is switched off.

This item is made in conformity with all the applicable European directives

DISPOSAL

The device (including its removable parts and accessories) must not be disposed of together with municipal waste at the end of its life, but in compliance with Europea Directive 2002/96/EC. Since it must be handled separately from household waste, either carry it to a separately collected waste disposal centre for electrical and electronic appliances or give it back to the retailer on purchasing a new device with the same purpose. Any infringement will be severely prosecuted.

Specifications and designs are based on the latest information available at the time of printing and subject to change without notice.

TROUBLE SHOOTING

Problem	Cause	Solution
Night light does not work	1) Flat batteries2) Wrong battery polarity3) Light bulb blow off4) AC/DC adaptor not connected properly	1) Fit new batteries2) Fit battery again, respecting the polarity shown in the compartment3) Replace the light bulb4) Connect propely the adapter.
No sound from the parent unit	1) Exhaust battery2) The correct polarity has not been respected3) Channel switches are not in the same setting4) AC/DC adaptor not connected properly	1) Fit new batteries2) Insert battery again, respecting the polarity shown in the compartment3) Change the channel setting4) Check the fitting of mains adaptor
Sound level meter lights does not work	Power has not switched on	Check adaptor, batteries and volume/on/off switch
Weak reception	1) The two units are out of range2) Flat batteries3) Antenna is not upwards	1) Move the two unit closer to each other2) Replace batteries3) Move the antenna upwards
Buzzing, interferences, etc	It could me caused to another baby monitor functioning or environmental interferences	Change the channel both on the baby and on the parent unit
Static or other noises	1) interferences caused by other home appliances2) the two units are out of range	1) If possible switch the appliance causing interferences off2) Move the two unit closer to each other
High pitched sounds	1) Units are too close to each other2) Volume is too high	1) Move the two units further apart2) Reduce volume
