Product Type	DVB-S/S2 Digital Satellite Receiver
Brand	Xoro
Model	HRS 8555
Power Supply	External DC 12V, 1A
Power Consumption	<6W (working), <0.5W (standby)
Dimensions (W x H x D)	168 x 40 x 118 mm
Frequency Range	950 - 2150 MHz
Input Impedance	75 Ohm
LNB Voltage	13/18V, max 350 mA
Modulation	QPSK, 8PSK
Video Decoding	MPEG2 MP@ML, MPEG4 AVC/H.264 HP
Max Video Resolution	1920 x 1080p
Audio Decoding	MPEG1 Layer I/II, AAC, Dolby Digital (AC3)
Audio Sample Rate	32, 44.1, 48 kHz
Channel Memory	200 satellites, 3000 transponders, 4000 programs
Connectors	HDMI (up to 1080p), SCART (RGB/CVBS), S/PDIF coax, LNB IN/OUT, USB 2.0
USB Media Support	Up to 1024 GB, FAT32/NTFS; MP3, WAV, JPEG, BMP, MPEG1/2/4, AVI, MKV, MP4
Dolby Digital Decoder	Yes
PVR / Timeshift	Not supported
Accessories Included	Remote control, user manual, DC power adaptor

Frequently Asked Questions - HRS 8555 XORO

How do I perform the initial installation?

On first power-on, the Installation Guide appears. Select OSD language, country, and choose to load the pre-installed channel list for ASTRA 19.2° or proceed with manual dish setup. Confirm with OK.

What should I do if there is no picture or no signal?

Check the antenna cable connection to LNB IN, ensure the dish is correctly aligned, and verify the LNB type and settings in Dish Setup. Perform a Channel Search with 'Blind Scan' mode.

How can I connect the receiver to my TV?

Use an HDMI cable for best quality, connecting the receiver's HDMI output to a free HDMI input on your TV. Alternatively, use a SCART cable to the AV input. Select the correct input source on your TV.

Why is there no sound from my TV or Hi-Fi system?

Press MUTE to unmute and increase volume with VOL+. Ensure audio connections are secure. For Dolby Digital programs, set Digital Audio to PCM if your system does not decode AC3. Press AUDIO to select an available audio track.

How do I scan for new channels?

Go to Menu > Channel Search > Dish Setup. Select your satellite and adjust parameters (LNB type, DiSEqC, etc.). Press the BLUE button to open Channel Search, choose Blind Scan and FTA (free channels), then press OK to start.

What should I do if the remote control does not work?

Replace the batteries (ensure correct polarity). Operate within 5 meters and a 60° angle from the front panel. Avoid bright light directly on the IR sensor. If still not working, check for obstructions.

How can I reset the receiver to factory settings?

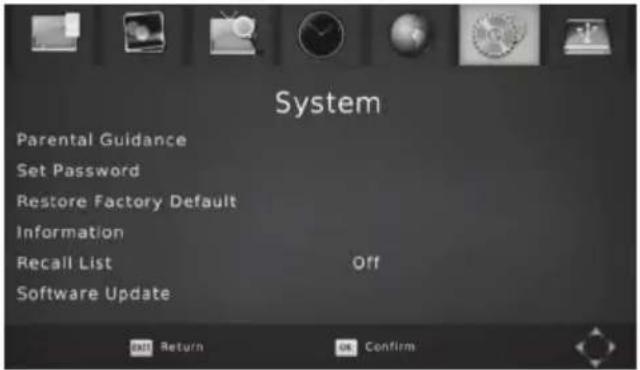

Go to Menu > System > Restore Factory Default. Enter the password (default: 000000) and confirm. All settings and channel lists will be erased, requiring a fresh installation.

Can I use my USB drive to play media files?

Yes, connect a USB drive (max 1024 GB, FAT32/NTFS) to the front USB port. Press MENU, select USB > Multimedia, then choose Music, Photo, or Movie. Supported formats: MP3, WAV, JPEG, BMP, MPEG, AVI, MKV, MP4.

How do I set up subtitles?

Press the SUB-T button during a program. Select the desired subtitle language with ▲/▼ and confirm with OK. If no subtitles are available, only 'Off' will appear. For media files, use SUB-T during playback to choose external subtitles.

Why do some channels appear scrambled or missing?

The receiver can only display free-to-air (FTA) channels; encrypted Pay TV channels cannot be decoded. In channel search, select FTA to list only free channels. Also ensure your dish alignment and LNB settings are correct for the satellite.

USER MANUAL HRS 8555 XORO

FREE TO CHOOSE INNOVATIONS

DVB-S/S2 Receiver

HR5 2600

HR 8555

HR 8556

Bedienungsanleitung

User Manual

Symbol of a trash bin crossed with no visible text or labels

Recycling symbol with four arrows forming a triangle (no text or labels)

Circular icon with two opposing curved arrows, no text or symbols present.

Batterien

Konformität

Diagram of a battery charging mechanism showing battery discharge and battery discharging (no text or symbols)

Tastenbeschreibung

Bereich 1

Technically unlimited

M A S

Elektronik AG

FREE TO CHOOSE INNOVATIONS

DVB-S/S2 Receiver

HR5 2600

HR 8555

HR 8556

Safety information

5

Notes

Recycling Information

Accessories

Features

9

10

10

Control Elements

Front Panel

Rear Panel

1 1

11

12

Remote Control

Insert battery and operation 13

Buttons

1 3

14

Connection

Connecting to the TV 15

Connection to satellite dish 16

Connection to a Hi-Fi system 16

Connecting to USB storage 16

1 5

Initial Installation

Initial Installation

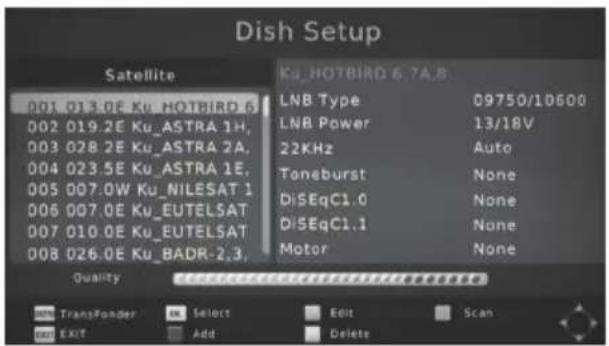

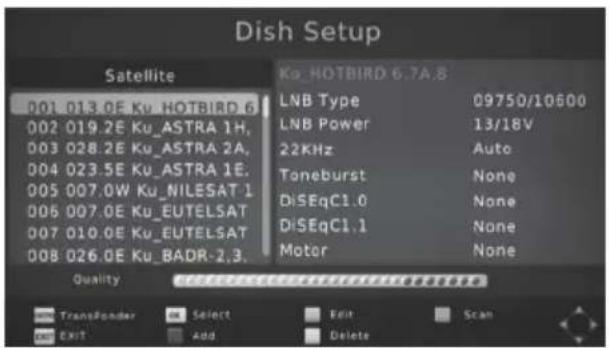

Dish Setup-preparation

Dish Setup-Procedure

Dish Setup-explanation of the parameters 20

Channel Search

1 7

17

19

21

Daily Use

Switch Channel

Channel List

Favourite

Subtitles

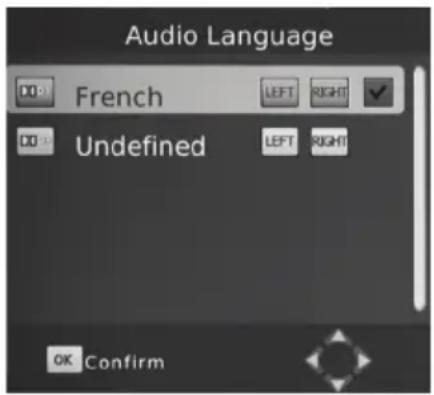

Audio settings of TV programs 23

T e l e te x t

M u t e

Change Volume

Information

Aspect Ratio

E P G

Timer Programming on EPG 24

2 2

22

22

22

23

23

23

2 3

2 4

2

Table of Content

USB Media Player				2	5
Supported		file	formats			25
Supported		Media			25

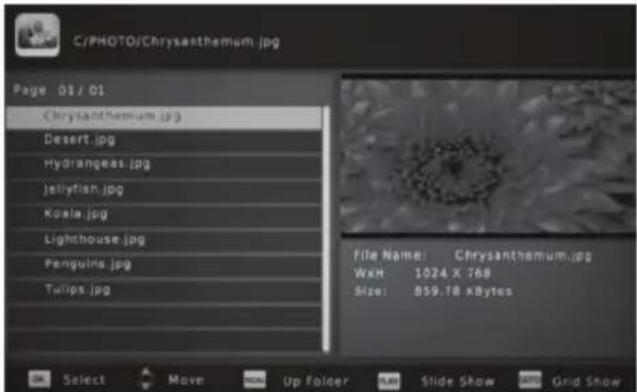

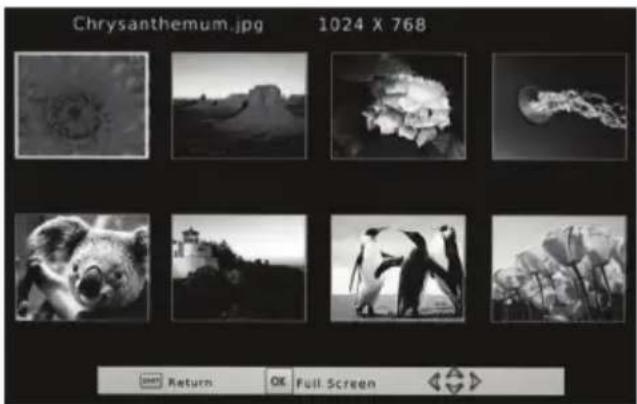

Photos					26

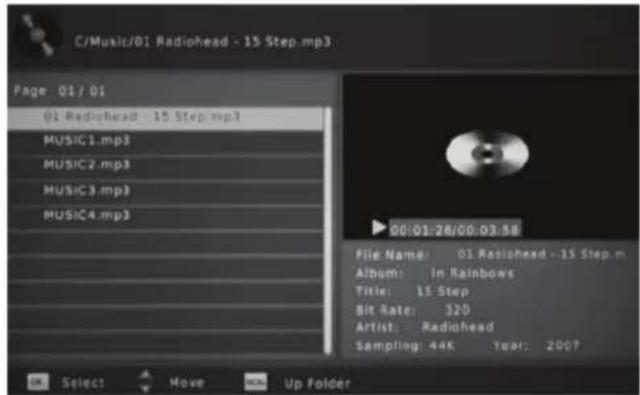

M	u	s	i	c					2	7
Movie					27
Supported		Formats				29
Settings				3	0
Main		Menu				30

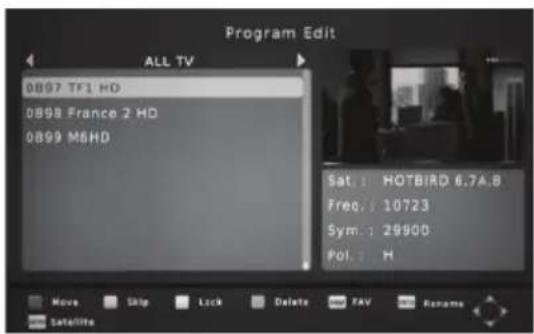

Program				30

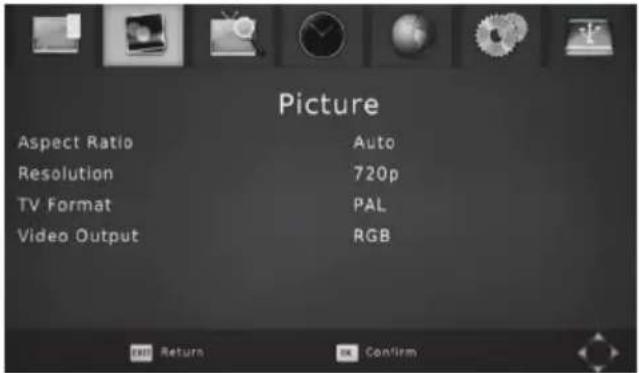

Picture					32
Channel		Search			33

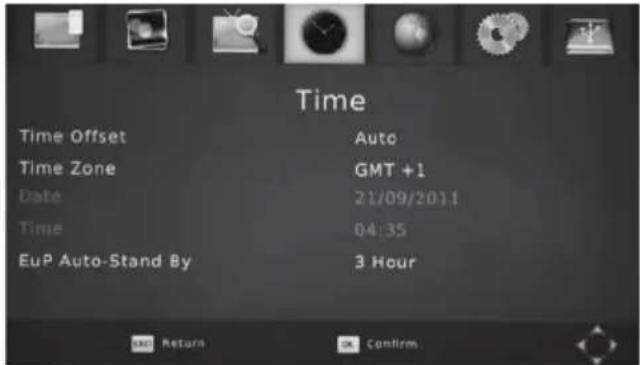

T	i	m	e					3	3
Option					34
System					35

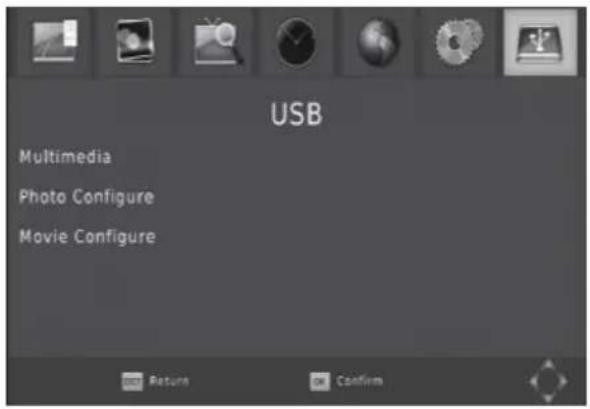

U	S	B					3	6
Troubleshooting				3	7
Specifications					3	8
Warranty				3	9

The lightning flash with an arrowhead symbol within an equilateral triangle is intended to alert the user of the presence of un-insulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user of the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED. INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

User Manual

1. All the safety and operating instructions should be read before the product is operated.
2. Retain Instructions - The safety and operating instructions should be retained for future reference.
3. All operating and use instructions should be followed.

Satellite dish

XORO DVB Receiver is designed for the connection to a regular satellite dish.

• Please have the satellite dish installed by a technician to insure a perfect function and avoid damage.
• The Satellite dish will have to be grounded.
• If the dish fails to take the precise position, it will cause signal disturbance or other problems. Please have the antenna measured by a technician.
• Please employ high quality antenna cable.
• If the LNB is too old, it might not be suitable for receiving current satellite program. Please choose a LNB which fits all programs. (These LNBs bear often the label “Digital” or “Universal”).

Please get informed of the correct dish position and program list from the web page of the satellite operators or from specialized stores.

Power Supply

1. Never touch the plug with wet hands.
2. Do not stand vases etc. on the appliance. Water could seep into the appliance.

3. Keep the appliance away from rain and any moisture.

4. If you want to pull the plug out of the plug socket, always pull directly on the plug. Never pull on the cable as it could tear.

5. Make sure that the power cable is not bent, caught or run over and that it does not come into contact with heat sources.

6. Make sure that the power cable is not wound around the device while in operation.

7. Never place the machine on the power cable while it is being operated.

8. Only use extension cables that are designed for the power consumption level of the machine.

9. Only operate the machine if the electrical voltage stated on the type plate beneath the machine agrees with the voltage on your plug socket. The wrong voltage can destroy the machine.

10. Do not open the appliance.

11. Pull out the mains plug if the appliance is not to be used over a longer period of time.

12. Take care that nobody can trip over the power supply cable.

USB port

Due to legal requirements of CE-conformity, the customer is asked to only connect USB Sticks to the USB port.

Please refer to further details on USB on the page 16.

Position

1. Do not connect accessories on the player which are not defined by the manufacture.
2. Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the

Illustration showing a person holding a monitor, a prohibition symbol, and a TV with a speaker at a desk (no text or symbols present)

manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer's instructions, and should use a mounting accessory recommended by the manufacturer.

1. A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

2. The device is able to show a still image on the TV screen or monitor over an unlimited period of time. This can cause damage to the screen. It is therefore advisable to activate the screen saver. Or switch the player off, if the device is not in use.

3. Do not uses the device permanent in the 4:3 mode. This can cause damage to the TV screen.

4. Do not increase the volume when the player is just playing very quiet sections. This cold damage the speaker if very loud passages starts all of a sudden after the quiet section.

5. Switch the player off by the Off/On switch if it is not going to used for a longer period of time.

6. Disconnect the main plug during thunderstorms.

7. Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered.

8. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface.

9. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer's instructions have been adhered to.

10. Protect the device against weather influences, moistures and high temperature.

11. Never spill liquid of any kind on the product.

12. Do not expose the device and the remote control to direct sunlight.

Operation

1. Reception of digital broadcast in SD or HD by satellite.

2. Playback of supported video, audio and picture files from USB storage.

The device is designed for private household.

1. Servicing - Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Please turn to qualified service personnel.
2. Damage Requiring Service - Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally by following the operating instructions.

Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.

e. If the product has been dropped or damaged in any way, and

1. When the product exhibits a distinct change in performance this indicates a need for service.
2. When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.
3. Nicotine can damage the electronic components. In case of service regarding too much nicotine, than the warranty/guarantee expired.

Contact of the XORO customer service

Phone: [phone] (Mo-Fr, 11.00am - 5.00pm)

It is our pleasure to help you in case of questions on utilization or functional problems. Please also take note of the trouble shooting at the end of this manual.

Cartoon illustration of a person sitting at a desk with a TV, holding a pointer (no text or symbols present)

Recycling of electronic devices

This product is designed and manufactured with high quality materials and components which can be recycled and reused.

This symbol means that electrical and electronic equipment, at their end-of-life, should

be disposed of separately from your household waste.

Please, dispose of this equipment at your local community waste collection/recycling centre. In the European Union there are separate collection systems for used electrical and electronic product. Please, help us to conserve the environment we live in!

Symbol of a trash bin crossed with two crossed lines, no text or labels present

Recycling of paper and carton

The material recycling symbol on the carton and user manual denotes that they are recyclable. Dispose them not with the normal household waste.

Green recycling symbol with four chasing arrows forming a triangle (no text or labels)

Recycling of plastic parts

The material recycling symbol on the plastic parts denotes that they are recyclable. Dispose them not with the normal household waste.

"Grüner Punkt Germany"

The "Grüne Punkt" denotes that the MAS Elektronik AG pays a duty to the "Society for Waste Prevention and Secondary Resource Generation".

Circular logo with a green and yellow spiral design, no text or symbols present.

Batteries

Every consumer is legally obliged to dispose the used batteries at the local collection centres or stores or an environmentally sound disposal. Please do not dispose the used batteries in house hold waste.

Accessoires

Please make sure that the following accessories are included:

• XORO DVB-S/S2 Receiver (HRS 2600, HRS 8555 or HRS 8556)
- Remote Control
- User Manual
- DC power adaptor (Only for Models with external power supply unit)

Notes:

• Please employ only the original accessories.
• Shall any item be damaged or missing, please contact directly the shop where you bought this product.

Features

Model	LED-Display, Panel Keys	Dolby Digital-Decoder	Power Supply	PVR & Timeshift
HRS 2600 No	No	External		No
HRS 8555 No	Yes	External		No
HRS 8556 Yes	Yes	Build	in	No

1. USB 2.0 port
2. IR receiver
3. LED Display: Shows the program number, clock or status information
4. CH-key: switch to previous channel
5. CH+ key: switch to next channel
6. Power button
7. LED indicator (Green: Power On, Red: Standby)

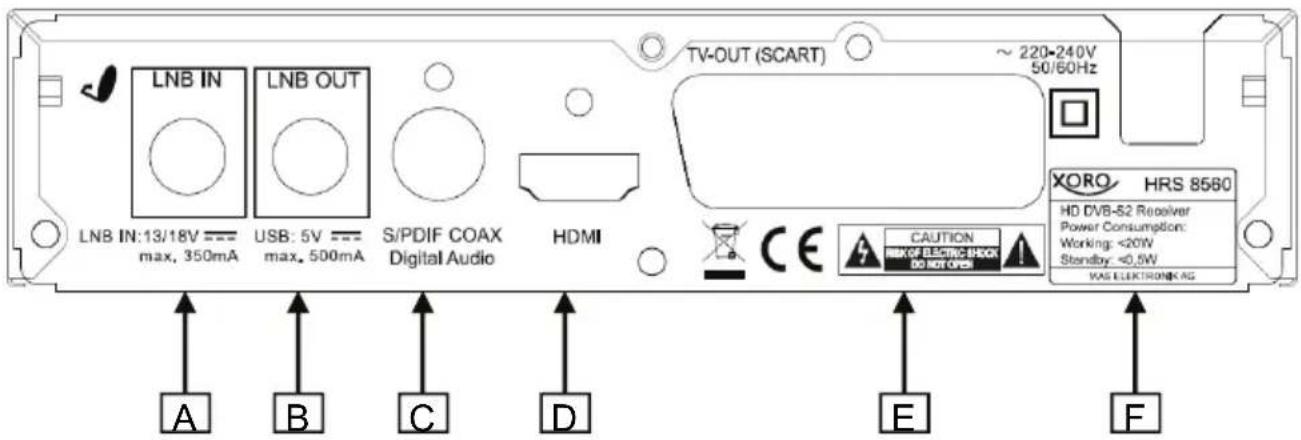

Rear Panel

HRS 2600 / HRS 8555:

HRS 8556:

A) Aerial Input (LNB IN)

B) Aerial Output (LNB OUT)

C) Digital audio output (S/PDIF coaxial)

D) HDMI output

E) SCART output

F) AC power cord

G) DC power in

Insert batteries and operationradius

• Insert the battery into the receptacle of the remote.
• For the best results, aim the remote towards at the player. Stay within 5 meter and angles of 60 degrees or less.
• Remove battery during storage or when you are not using the device for a long time.

Diagram of a battery pack with an open lid and internal battery, showing no text or symbols

Notes:

1. Remove and exchange old batteries. Leaking out battery acid can damage your health and the remote control.
2. Clean leaking out battery acid with a cloth
3. In case of skin contact immediately wash the affected area.
4. Please contact a medic after swallowing the battery or battery acid immediately
5. Seek medical advice if battery acid has been swallowed. In case of contact with your eyes wash out the eyes and seek medical advice.

Buttons

Buttons of the remote control

Power (on/off)

GOTO (start play back from a certain point defined by time)

PAGE (page up/down)

TTX (videotext)

REPEAT (Repeat)

MENU (to access main menu)

CH+/CH-(change channel, select menu up/down)

EXIT (quit menu, to the higher menu)

VOL+/VOL-(change volume, select menu right/left)

FAV (to access favorite list)

TV/RADIO ( switch between TV and Radio)

OK (confirming selection, to access program list)

0-9 (Numerical buttons)

RECALL (to previous program or higher directory)

i

INFO (to access information page)

◀◀ ▶▶ (fast rewind/fast forward)

⇒◀◀ ▶▶⇒ (previous/next file)

▶(start play back)

|| (Pause)

■ (Stop playback, access Media player)

V-FORMAT (change HDMI solution, green button)

ASPECT (change aspect ratio, yellow button)

TIMER (display timer list, blue button)

Notes:

Some buttons function only as described above in the corresponding mode. For example: the GOTO button and the Repeat button function only in media player mode. Please take note of further descriptions in the manual and the notice on the screen.

Connecting to the TV

General information

1. Assure that the device is switched off and unplugged.
2. Read the manual of your TV and attend to the safety instructions.
3. Connect the power cable at last with a electronic socket.

The DVB-S/S2 receiver could be connected either through HDMI or AV to TV. Please connect the receiver through HDMI if possible. The TV could only display the signal in high definition quality through HDMI output.

HDMI:

Connect the HDMI output of Receiver to a free HDMI input of the TV. Please read the manual of your TV to select the HDMI input. Generally the TV does not switch automatically to the HDMI input upon connection. A HDMI cable is necessary for this connection.

SCART:

Connect the TV SCART output of Receiver to a AV input of the TV. Please read the manual of the TV to select the SCART input. Generally the TV does not switch automatically to the SCART input upon connection. A SCART cable is necessary for this connection. It is not included in the delivery of the receiver.

Notes:

• The Receiver is designed for TV with 16:9 as aspect ratio. Please refer to the page 32 how to set a TV with aspect ratio 4:3 to fit the receiver. It is also described there how to change the HDMI resolution and signal type under the SCART connection.
• Please employ high quality cables. Low quality cables (especially up 1,5 m length) might cause picture failure or make an image transmission impossible. Poorly shielded cables might result in “double image” or disturbing sound.

Connection to satellite dish

Connect the cable of your satellite dish to the Antenna input LNB IN of the Receiver.

Notes:

• Screw the so-called F plug together with the LNB IN.
• Please make sure to avoid short circuit at the F plug.
• Employ only high quality antenna cables. Low quality antenna cables might cause disturbance

Two simple circular shapes: one with a small black icon, the other empty (no text or symbols)

LNB IN LNB OUT

13/18V---

Max. 300mA

You can connect further satellite receivers onto the LNB out. We recommend it only to technically experienced users, for the receivers connected this way affect each other and do not share the complete program accessible to both receives.

Connection to a Hi- Fi system

A coaxial cable is necessary for the S/PDIF signals for the digital connection to a Hi-Fi system. This cable is not included in the delivery of this receiver. Connect the S/PDIF out put with the S/PDIF input of your Hi-Fi system. Please refer to the manual of the Hi-Fi system to select the audio input.

Notes:

The Receiver could output digital signals in PCM-(Stereo) or AC3-Bitstream (Dolby Digital). If your Hi-Fi system provides no sound for programs with Dolby Digital sound track, please refer to page 34 to change the out put format of the S/PDIF out put.

Connecting to USB storage

The USB port is on the front side of the Receiver. It takes the receiver under circumstances some time to recognize the USB and get ready for further operation.

Please remove the USB storage only after playback processes are completed.

Following USB devices will be supported:

• USB storage
  • Max. capacity 1024GB
• File system: FAT32, NTFS

Notes:

• There are a variety of USB storages on the market. Not all of them conform the specification of USB storage. If your USB storage could not be read by the Receiver, please try another USB storage.
• If a USB device could not be read any more, please carry out a data storage medium analysis with your computer or format the storage again.
• USB storages requiring higher electric current than 500mA (0,5A) do not conform the specification of USB storage. These USB storages could possibly not work smoothly together with Receiver.
• USB Storage up to 1024GB will be supported. USB storage of larger capacity could also be used. However the compatibility of these USB storages with the Receiver could not be guaranteed.
• Please always save all data on the USB before connection to the Receiver.

Initial Installation

The XORO installation menu will be displayed by initial operation of the DVB Receiver. This menu contains four options:

1. OSD Language
2. Country
3. Channel search
4. Load the pre-inst.

Navigate with the arrow keys CH+ and CH− to high light the option and make the selection with the VOL− and VOL+ buttons.

OSD Language

Choose the menu language.

Country

Select the country where you use the DVB Receiver.

Channel Search

Please select "Channel Search/Satellite Setting" to define further parameters for a scanning, if your satellite receiving system fulfill following criteria:

• System with rotatable antenna
• System with more than one antenna or LNB (DiSEqC)
- System with nonstandard components
Most of the customers could complete the installation by selecting "load the pre-inst.".

Load the Pre-inst.

A program list of the satellite ASTRA 19.2° is saved in the factory firmware. German TV programs top this list.

In most cases, the installation is completed with loading the program list.

Select the OSD language and country and decide whether to load the pre installed program list. Press OK to confirm.

- The first TV program will be shown on the screen after loading the pre programmed list. If there is no TV program to be seen, please check the cable connection, Antenna Set up and carry out the channel scanning.

- If you have chosen not to take the pre installed list, there appears a "Dish Setup" menu on the screen.

For the case there appears no "Installation Guide" menu after connection and power on, please read the page 35 to reset the device.

Dish Setup-preparation

Preparation:

You will have to be informed of following points to make a successful channel scanning.

• Towards which satellite does your antenna orient?
• If you have more than one antenna or one antenna with more than one LNB, you will have to know which type of switch (Toneburst or DISEqC) is employed and to which port is each Antenna LNB connected.
• For a Unicable/SCR EN50494, you will have to know which IF-Channel is available and its corresponding Frequency.

Please ask the installer, if any of the parameter is not known. If you live in a rental house or apartment, please ask the renter.

Example for Germany:

The most satellite antennas orient satellite ASTRA 19.2° and have a “universal” or “Digital” LNB. We recommend the pre installed list in the case.

If you would not like to use the pre-programmed list, the common setup for ASTRA 19.2° is as following:

Satellite: 019.2E Astra 1H.

LNB Type: 09750/10600

LNB voltage: 13/18V

22KHz: AUTO

Toneburst: None

DiSEqC 1.0/1.1: None

Motor: None

Dish Setup-Procedure

On the left side of the screen there is a list of satellites for which the DVB Receiver is preprogrammed. Settings of the chosen satellite is displayed on the right side.

Process:

• Select the first satellite to be set up with CH+/CH
• Press the OK button. The chosen satellite is marked with a hook, confirming this satellite will be considered in the coming channel scan.
• Press the button VOL+ to access to right side.
• Select the option with CH+/- and change the parameter with VOL+/-
• Press Menu after defining all parameters for this satellite to get back to the left side.
• If your satellite system can receive signals from a number of satellites, select a further satellite with CH + / - . Press OK and define the parameter on the right side.
• Repeat this procedure for all satellites available for your receiver.

Notes:

- After a correct setting, an approximate value of the signal quality will be shown on the lower part of the menu.

- If a satellite is missing on the list, press the RED button. A dialogue winter appears, input the value for longitude, East/West and frequency, and choose "Blind Scan" in the coming channel scan. If you add a satellite to the list, there will be no display of the signal quality for this satellite, in spite of correct setting. Signal quality could only be displayed for satellites with pre installed transponder lists.

- Press GOTO to display the Transponder of the chosen satellite. Add new transponder with the RED button and mark the transponder for channel scan with OK.

Dish Setup-explanation of the parameters

LNB Typ: define the oscillator frequency for your LNB. Please take the correct value from the manual of your LNB (standard:09750/10600)

If you have a Unicalbe/SCR EN50494, select LNB type Unicable (A or B, A is generally the correct choice by a Unicable system for satellite reception). Choose a free channel (IF channel) and the corresponding frequency. Please refer to the manual of your Unicable system. Ask your renter for the free channel, if the connection is provided in the rental house.

LNB Voltage: This parameter defines the voltage of the antenna, this voltage decides signal from horizontal or vertical polarized transponder will be received. The setting will only have to be changed in very rare cases. A false setting will result in missing program or no signal reception at all. (standard:13/18V)

22KHz: The receiver can switch the LNB with 22 KHz signals for the reception of another frequency band. The setting will only have to be changed in very rare cases. A false setting will result in missing program or no signal reception at all. (standard: Auto)

Toneburst: Tone burst switcher has two input ports, enabling the connection of 2 antennas or LNB to the receiver. If you have a Tone burst switcher, you will have to select one of the both connections (A or B) for the satellite chosen on the left side.

DiSEqC: DiSEqC switcher has up to 16 input ports enabling the connection of multiple antennas or LNB to the receiver. If you have a DiSEqC switcher, you will have to select one of connections for the satellite chosen on the left side. Please check which version (1.0, 1.1) could be supported in the manual of your switcher.

Motor: Rotatable Antennas require extended configurations. We recommend professional installation from a technician. Please set up according to your antenna. You can open further set up windows with the RED and the GREEN button.

After the set up has been done for all reachable satellites, please press the BLUE button to open the menu for channel scan.

Channel Search

There appears a window showing "Channel Search" upon pressing the BLUE button on the menu of the Satellite Setting.

On this Window you can make three entries to affect the scan result.

Search Mode:

• Standard: The receiver scans channels according to a pre-programmed list. This search process goes quickly but without being able to find programs on new transponders.
• Blind search: The receiver scans every possible frequency. It takes a little bit more time than standard scan. However it is possible to find programs from unknown transponders.
• Network: The receiver scans channels according to a pre-programmed list. The frequency of a new transponder could be found out through analysis of the known transponders. The scan process is shorter than “blind scan”, but there might be possibly missing programs.

Please employ "Blind Scan". It takes a little bit longer, but will result in a complete program list. If you have added a new satellite on the menu of Satellite Setting, please employ "Blind scan", for there is no transponder list available for the newly added satellite. There is no "Blind scan" option in case of UniCable system.

Encrypted:

• All programs: both free and encrypted programs (Pay TV) will be added to the program list during the channel scan.
• FTA (free): The channel scan saves only free programs.

The XORO DVB Receiver can not decrypt Pay-TV programs. Please select "FTA" (free programs), so that you will get a shorter program list and save some time in sorting the programs.

Service Type:

• All: The channel scan saves both TV and Radio programs.
• DTV: The channel scan saves only TV programs.
• Radio: The channel scan saves only Radio program.

Press the OK button to start the Channel scan.

After the channel scan is completed, live picture of the first found channel will be shown on the screen.

Important keys and their functions

Switch Channel

To switch program please press the CH+/CH- buttons or input the number of the wished program with the numerical buttons 0-9 on the remote control.

Channel List

Access the Channel List by pressing OK

▲/▼

Next/previous program

OK Activating the chosen program

PAGE+/- Next/previous page

TV/Radio switch between Radio- and TV channel list

RED Button search a channel after the name

GOTO Choose a satellite/show all programs

EXIT Exit the program list

Favourite

If you have defined favourite groups, you can access this list by pressing the FAV button. The operation on the favourite list is as following:

FAV display favourite list

◀/▶ Next/previous favourite list

▲/▼ Next/previous program

OK Starting the chosen TV program

EXIT Exit favourite list

Subtitles

Press SUB-T to enable subtitles. Select a language for the subtitle with ▲/▼ and confirm it with OK. If the program contains no subtitle, there will be only one option: OUT.

To quit the "Subtitle language", press EXIT.

Important keys and their functions

Audio settings of TV programs

Access the audio settings by pressing AUDIO.

Select a language and a audio track with ▲/▼. To confirm, press OK.

Press EXIT to exit this menu.

Note: The XORO HRS 2600 does not support decoding of Dolby Digital Audio. Please select another Audio Track or connect a device with Dolby Digital Decoder by HDMI or S/PDIF.

Teletext

The teletext is activated via the TTX button. You may use the numerical buttons 0-9 on the remote control for a direct entry of the wished page.

To quit the teletext page press EXIT.

Mute

Press the MUTE button to switch off the tone. Press the MUTE button once more, the tone will be turned on again.

If you output Dolby Digital or other surround sound formats as Bitstream through HDMI, the volume is not regulated by the receiver.

Information

You will have the access to various of information by pressing the i button once or a multiple of times.

Aspect Ratio

During a live program you may change the Aspect ratio without opening the main menu. Press the ASPECT button and the Aspect Ratio will be changed with each pressing. (See also Page 32)

Important keys and their functions

EPG

Press the EPG button to display the program guide.

OK the marked program will be taken over in the Timer programming

INFO display the Timer list

▲/▼ select a TV program

◀/▶ switch program

EXIT quit EPG

Timer Programming on EPG

Select the program to be viewed with the ▲/▼ buttons and press OK. The program number, time of begin and end will be taken over in the window "Timer New".

The option Repeat defines whether the program will be viewed once or regularly. Press OK to save the setting. The programmed broadcast appears now on the timer list. Press EXIT to close a dialogue window. Press EXIT repeatedly to quit EPG window.

Event Add
Channel Type	TV
Channel No.	0897
Channel Name	TF1 HD
Start Date(D/M/Y)	10/08/2010
Start Time	15:35
End Time	16:25
Repeat	Once

USB Media Player

The USB media player plays back movie, photos, and music files. There are two ways of accessing the media player.

• Open the main menu with the MENU button. Press ◀/▶ repeatedly until USB menu is shown on the screen. Press ▲/▼ to choose Multimedia and confirm with OK.
• Press the STOP button during live broadcast.

The media play is started. You have these four options:

• Music
• Photo
• Movie

Supported file formats

Pictures (JPEG, BMP), Music (MP3, WAV) or video files (MPEG-1, MPEG-2, MPEG-4) and more.

Note

Due to the legal requirements of CE-conformity, the customer is asked to only connect USB Sticks to the USB port.

If you want to play music, videos or pictures von USB media connect the USB media, press MENU and choose USB with ◀/▶. Enter the USB menu with OK.

Now choose Multimedia with ▲/▼ and enter with OK.

Photos

After initializing the USB media the directory structure is shown. Choose the directory with ▲/▼ and enter with OK.

If there are pictures in this directory, they are listed in the file browser and the preview of the first picture is shown on the right.

▲/▼ Next/Previous folder or file

OK display a photo or open a folder

Play (▶) Start slide show (all pictures in the directory)

←go to higher directory

GOTO Show pictures in small previews

EXIT back to multimedia menu

Preview Window

▲/▼ Next/Previous picture

◄/► Next/Previous picture

OK Start Slide show

EXIT quit the preview window

Display Photos

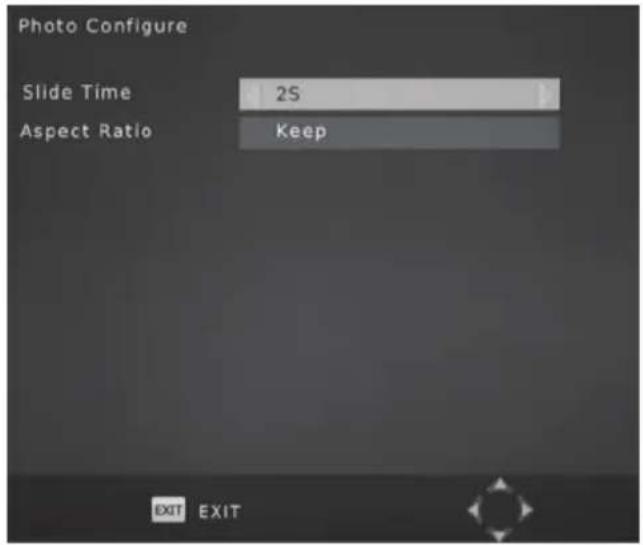

Start the slide show with PLAY or OK. The slide show will proceed according to the settings in the USB menu.

▶▶I Next picture

Previous picture

RED Zoom picture

Green Rotate picture 90° in counter clock wise direction

YELLOW Rotate picture 90° in clockwise direction

i Show information of the picture like file name, resolution and file size

Exit photo display

EXIT Exit photo display

Grid of grayscale nature photos including chrysanthemum, desert landscape, jellyfish, and animals (no text or symbols)

Music playback during the photo display

It is possible to play music while browsing in the pictures. Choose a music file before you go to the picture browser.

Supported formats

The supported picture formats are: JPEG, BMP.

Notes: Displaying photos in the maximal resolution might take much time.

Music

After initialising the USB media the directory structure is shown. Choose the directory with ▲/▼ and enter with OK.

If there are music files in this directory, they are listed in the file browser.

OK / PLAY Playback a music file

STOP Stop the playback

Next track

Previous track

|| Pause

▲/▼ choose a folder or a file

REPEAT Repeating single track or directory

EXIT back to multimedia menu

Supported formats

Format: MP3

Sampling Frequency: 32 - 48 kHz

• The maximal resolution of the movie file is 1920 x 1080 pixel.
• The file name should not contain more than 15 letters.
• If a character is not recognized correctly (for example special characters), there appears at the place of this character an underline “”.
• Following video containers are supported: AVI, MKV, MP4, MPG, VOB, MOV etc.
• Various codecs are supported. They will have to be created according to the established standards. For MPEG-2 applies ISO/IEC13818 and for MPEG-4 applies ISO/IEC 14496. Other wise there might be error at the playback.

Please take note of the supported formats on Page 29.

There exist a variety of video codecs, audio codecs, video containers and PC programs generating these files. it is possible that some video files are not supported.

Movies

After initializing the USB media, the directory structure is shown. Choose the directory with ▲/▼ and enter with OK.

▲/▼	Next/Previous	folder/file
OK	Playback a file / Open a directory
RED	Full screen display
	to a higher directory
EXIT	back to multimedia menu

If you have selected a movie and started the playback with OK, the movie is shown in the preview window on the right. You can switch to full screen with RED. You can alternatively press PLAY to playback the movie directly in full screen.

OK	Playback in preview window
PLAY	Playback in full screen
RED	Switch preview / full screen
i	Access information such as play back time/duration, file name, file size, resolution, picture frequency
AUDIO	Switch audio track
SUB-T	1x display subtitle alternatives, 2x change subtitle setting
MENU	back to file browser (the movie continues in preview window) back to file browser (the movie continues in preview window)
GOTO	Jump to a certain (self defined) time
◀◀/▶▶	Fast forward/backward
I◀◀	Previous movie
▶▶I	Next movie
||	Pause
STOP	Stop the play back
REPEAT	Repeating modes (Single track or all files in a directory)

Resume play back

By some file formats the receiver can save the position where the previous play back is stopped. If the receiver has saved the position, there will appear by restart on the upper edge of the screen the alternatives: Continue/[EXIT]: break

• Continue: the play back starts from the saved position
• [EXIT]:break: the play back starts from the very beginning of the file

You can choose one of the options with the ▲/▼ buttons. Confirm the selection with OK.

Supported Formats

Extension	Container	Video Codec	Maximal Resolution	Audio Codec	Profile
MPG, MPEG	MPG, MPEG	Mpeg 1,2	1920x 1080/30P MP2,MP3 Main
TS	MPEG2-TS, H264-TS	MPEG2, H.264	1920x 1080/30P MP2,MP3 Main
MP4	AVI,	MP4Xvid 1.00,Xvid 1.01,Xvid 1.02,Xvid 1.03,Xvid 1.10-beta 1/2,H.264	1920x1080/30P MP3 H264: Main Profile and High Profile @Level 4.0MPEG4: Simple Profile and Advanced Simple Profile @Level 5
MKV	MKV	H.264,MPEG 1,2,4	1920x1080/30P MP2,MP3 H264: Main Profile and High Profile @ Level 4.0MPEG4: Simple Profile and Advanced Simple Profile @Level 5
AVI	AVI (1.0,2.0), DMF0,1,2	MPEG2, MPEG4 Xvid 1.00,Xvid 1.01,Xvid 1.02,Xvid 1.03,Xvid 1.10-beta 1/2 H.264	1920x1080/30P MP2,MP3 MPE	G2: Main Profile MPEG4: Simple Profile and Advanced Simple Profile @Level 5

Notes: GMC will not be supported. Maximal Bitrate: 20 Mbit/sec. Aspect Ratio: 4/3, 16/9.

Specifications subject to mistakes and changes.

Main Menu

Press MENU for the main menu. The submenu are:

• Program
• Picture
• Channel Search
• Time
• Option
• System
• USB

Program

Notes:

The standard password is 000000.

Program Edit

You can sort, edit, delete, rename the program and build favourite groups here.

Move the program with ▲/▼

• Select a program with ▲/▼ to be moved
• Press the RED button to mark the program
- Choose a position for the marked program with ▲/▼
- Press OK to move the program to the chosen place
Notes: You can mark multiple programs with the RED button.

Move the program through input of new program number

• Select a program with ▲/▼ to be moved.
• Press the RED button.
• Input the new position with the numerical button 0-9.
• Press ok to move the program to the given place.

Delete

• Choose a program to be deleted with ▲/▼.
  • Press BLUE. A security query appears.
• Press OK to confirm deleting the program.

Program

Lock channels

The receiver will ask for the password before display a locked program.

• Select a program with ▲/▼ to be locked.
- Press the YELLOW button. The chosen channel is highlighted with a lock symbol.
- Press the YELLOW button again to unlock the channel.

Skip Channels

Programs marked with the Skip symbol will be skipped in channel switch with the CH+/- buttons. They could only be accessed through entry of program number with the numerical buttons 0-9.

• Select a program with ▲/▼ to be "skipped".
• Press GREEN. The chosen channel is marked with "SKIP".
  • Press GREEN again to withdraw.

Favourites

The receiver has four pre defined favourite groups (movie, news, sport, music). You can categorize a channel as any favourite group and a channel may belong to multiple groups.

• Select a program with ▲/▼ to be categorized
• Press FAV to access the favourite menu.
• Select a favourite group with ▲/▼
- Press OK. The channel is marked with a "Star" symbol.
- Press EXIT once to close the Favourite window

- You can choose multiple favourite groups here. Power off at this time leaves the configuration of favourite groups unsaved.

Rename Channels

Choose a channel to be renamed with ▲/▼ and press RECALL. There appears a key board. Input letters of the new name with ◀/▶▲/▼ confirm each letter with the OK button. After completion of the entry navigate to the OK field and confirm with the OK button.

Notes:

• To switch between TV and Radio, press the TV/Radio button.
- Press GOTO to list programs of all satellites or one certain satellite.
- Quit the Program edit menu with EXIT. The configuration will be saved.

Program

Sort Channels

This option sorts the channels on the channel list according to criteria as encryption, Frequency, etc. The previous sort is replaced.


Aspect Ratio

This setting defines the picture format of your TV and how the content with different Aspect Ratio be adapted for your TV.

- Auto (for 16/9 TV. 4:3 or wide screen content will be full screen displayed with the picture distorted. Further adaption will be done by the TV.)

- 4:3 Pan Scan (for 4:3 TV. Content with different Aspect Ratio will be possibly full-screen displayed, without distortion but with information lost.)

• 4:3 Letterbox (for 4:3 TV. Content with different Aspect Ratio will be displayed without distortion but with "black bar".)
• 16:9 Pillar box ( for 16/9 TV, Content with different Aspect Ratio will be displayed without distortion but with "black bar".)
• 16:9 Pan scan (for 16/9 TV. 16/9 Broadcast will be full-screen displayed without distortion. 4/3 Broadcast will be displayed without distortion but with the picture enlarged. This setting is especially suitable for 4/3 Letter box programs to reduce the "black bar".)

You can switch among these alternatives with the ASPECT button during live program.

Resolution

Define the HDMI output resolution

• 576i (PAL) / 480i (NTSC)
• 576p (PAL) / 480p (NTSC)
- 720p
• 1080i
• 1080p

Note:

Please note the manual of your TV and the correction resolution.

TV Format

Define the colour system for the AV output (PAL or NTSC) and frame rate for the HDMI output (50 Hz or 60 Hz).

Video Output

You can define the signal type at the SCART port. Generally RGB offers the best picture quality.

Please note the manual of your TV.

Channel Search

Dish Setup

See page 18

Save/load channel list

With this option you can save the channel list on a USB (export) or load the channel list from the USB storage (import).

Import: The receiver lists all available data. Choose the file to be installed and confirm with OK. The message "load Database successfully" shows that the program list has been installed correctly.

Export: Save the current program list on the USB storage. The file contains following name: HB_DATABASE_X_Y.DBM. "X" suggests the month. "Y" suggests the date.

Time

The receiver sets the time automatically, as soon as a satellite program is received. The Time Zone will have to be set correctly so that the receiver could calculate the local time properly.

Time Zone setting

Auto The receiver set the Time Zone automatically

Manual You can define the Time Zone.

Time Zone

You can define the Time Zone as long as the Time Offset is given as "Manual". For Germany it is MGZ+1, and it is MGZ+2 during the European Summer Time.

EuP Auto-Stand By

To save energy according the the EU Regulation (EuP), the receiver switches off after a certain time without user interaction (such as pressing the buttons etc.).

Option

OSD / Subtitle Language

Define the OSD / subtitle language.

Note: Many broadcasts do not contain subtitle information.

Audio Language

Define the language to be spoken.

Digital Audio

You can define here the format of audio signals at SPDIF (COAX) and /or HDMI output.

PCM: Digital audio output (HDMI and SPDIF COAX)

RAW: If a broadcast or a video file contains a Dolby Digital sound track, the tone format will be outputted through SPDIF(COAX) and HDMI. If you get no tone, please choose "PCM".

Attention: The receiver could only decode Dolby Digital* surround sound and out put it as analogue or PCM stereo. Other surround sound could be outputted under circumstances as Bitsteam (RAW) though SPDIF or HDMI. In this case the analogue and PCM stereo tone are not available.

Please use the AUDIO button to choose the Dolby Digital Sound track of a program, if it is available. If you output the Dolby Digital or other surround sound formats as Bitstream (RAW) through HDMI, the receiver could not regulate the volume. The volume of the SPDIF (Coaxial) output could not be changed with the VOL-/VOL+ buttons.

* XORO HRS 2600 does not support decoding of Dolby Digital Audio.

System

Parental Guidance

You can define here whether a program will only be displayed after a correct entry of the password. Note: Information on the age limit of a DVB program is not broadcasted in Germany.

Set Password

You can change your password here. At first you have to confirm the old password (standard 0 0 0 0 0 0). After confirming the old password type in the new password and repeat it. If all data was correct the new password is active.

Note: For the case the password is forgotten, you can use the super password to set a new password.

Super Password: 8 8 8 8 8 8

You can cancel all settings and changes by restoring the factory default. Choose this option and input the password.

Note: All settings will be cancelled. You will have to go through the channel scan once more.

Information

Access information on software and hardware.

Recall List

You can change the function of the RECALL button. If "off" is given, the receiver displays the last program upon pressing the RECALL button. IF it is set "on", a list of programs seen at last will be displayed upon pressing RECALL.

Software update

USB upgrade

If an update is necessary, the update software and the update instruction are to be found on www.xoro.de. Please install only the suitable XORO firmware. Installation of a false firmware may make the receiver unusable and void your claim on warranty.

USB

USB Media Player

Opens the multimedia Player (see page 25).

Photo Configure

Configure the playback and Slideshow of picture files

Slide Time

Define the duration for every picture in the slide mode.

Aspect Ratio

• Keep (display without distortion)
• Discard (full screen display with distortion)

Subtitle Set up

This setting concerns only the display of an external subtitle.

The options are:

Subtitle Specific

Define the size of subtitle in media player.

Subtitle Background

Define the background of the subtitle in media player.

Subtitle Letters

Define the colour of subtitle letters

Troubleshooting

Check the following guide for the possible cause of a problem before contacting service. Technical Support of Xoro/MAS:

Symptom	Correction
No DVB-S reception /serious distortion bymosaics or artefacts/freeze pictures	No DVB-S reception in your region.Realign the dish. Please pay attention to the direction of the satellite.Please use a bigger dish.Retry the Auto Scan.
No power	Plug the power cord into the outlet tightly and turn on the power.
Can not scan programs	Adjust the dishRefer settings for searching
No picture / no coloured pictures	Control the connection to the TV set.Control the video output mode in the setup.TV channel or program is scrambled
Remote control does not work	Change the batteries.Operate within normal range (max. 5 meters, 30°)The sensor is pointed to by bright light.
No sound	Cancel Mute. PressMUTEbuttonIncrease volume. PressVOL+buttonPay attention to connection to TV set or amplifier.The XORO HRS 2600 does not support decoding of Dolby Digital Audio. Please select another sound track or connect a device with Dolby Digital Decoder by HDMI or S/PDIF.
Audio / Subtitle without function or can no choose	Change audio track (pressAUDIObutton)Change subtitle track (pressSUBTITLEbutton)Other audio track is not supportedSubtitles are not supported by broadcaster
PVR Recording and Timeshift do not work	HRS 2600/8555/8556 do not support PVR-Recording and Timeshift

Specifications

General HRS 2600	HRS 8555	HRS 8556
Power Supply Voltage:	DC12V 1A *Power Consumption:< 6W (Working)**< 0.5W (Standby)	Build-in Power Supply Unit*Power Consumption:< 6W (Working)**< 0.5W (Standby)
Size (mm) 155x34x90 168x40x118
Conditions of Operation Temperature of Operation: 0 - 40° CHumidity: 5 - 90% (non condensing)
Receiver	Frequency 950 - 2150 MHzImpedance 75OhmLNB-Voltage 13/18V*Modulation QPSK, 8PSKSearch Mode TP-Scan, NetMemory 200 Satellite, 3000Transponder, 4000Program
Video	Video Decoding(MP@ML), MPEG4AVC/H.264 HPVideo-Resolution up to 1920 x 1080pAspect Ratio 4:3, 16:9
Audio	Audio Decoding ISO/IEC 11172Layer I & II, AAC, AC3***Sampling Frequency 32, 44.1, 48 KHz
Connectors	Video HDMI (up to 1080p), SCART (RGB/CVB Audio S/PDIF (Coaxial)Antenna LNB IN/OUTUSB 2.0

* Please note the information printed to the rating label of the Receiver and Power Supply Unit
** Depend on LNB and USB device.
*** Only HRS 8555/8556, HRS 2600 does not support AC3 Decoding.

(F-Typ)

Warranty

In case the products delivered are not free from defects in material or workmanship, MAS Elektronik AG has the right to either repair or replace the defective product at its choice. MAS Elektronik AG manufactures and repairs goods using components which are new or equivalent to new in accordance with industry standards and practice. The warranty for wearing parts (e.g. rechargeable batteries) is limited to 6 months.

In case the device is equipped with internal data storage (e.g. hard disc drive, Flash drive), the customer is responsible to backup his data before sending the device. MAS Elektronik AG is not liable for any data loss on returned devices. MAS Elektronik AG reserves the right to reset returned devices to factory defaults. Please note your personal settings for this reason.

MAS Elektronik AG is not liable for any accessories not belonging to original package content such as DVDs, hard disc drives, Flash storage devices, batteries, etc.

This limited warranty covers the warranty requirements set by authorities in your country. This limited warranty only is valid in the country the product was purchased.

This limited warranty does not cover finishes, accessories or batteries, nor does it cover damage resulting from accident, misuse, abuse, dirt, water, battery leakage, tampering, servicing performed or attempted by unauthorized service agencies. This limited warranty does not cover damages resulting from firmware upgrades. Only in case of firmware upgrades needed to add functions promised at time of purchase, such damages are covered by this limited warranty. For a correct and frictionless completion of warranty or repairs you need a RMA No. You may obtain a RMA on the internet at www.xoro.de or by telephone.

Please send the device in its original packing material, all standard accessories and a copy of the invoice, a description of defect and the RMA No. to following address. Please note the RMA number clear and in large numbers on the outer package.

MAS Elektronik AG

Weidegrund 3

21614 Buxtehude

Germany

Support

e-mail: [e-mail]

Hotline: [phone]

Fax: [phone]

FREE TO CHOOSE INNOVATIONS

XORO by MAS Elektronik AG

Recycling symbol with three arrows forming a triangle (no text or labels)

HRS2600/8555/8556

DE: V1

ENG: V2

FS: 12598
