Brand	Xoro
Model	HRS 8590 LAN
Product Type	Satellite Receiver
Tuner Type	DVB-S2/S2X
Video Output	Full HD 1080p via HDMI
LAN Connection	Ethernet 10/100 for IPTV and streaming
USB Ports	1x USB 2.0 for media playback and recording
PVR Function	USB recording and timeshift (external drive required)
DiSEqC Support	1.0, 1.2, and USALS
Channel Memory	Up to 5000 channels
Power Supply	12V DC, 1A (external adapter)
Power Consumption	Approx. 12W (max)
Dimensions (W x D x H)	280 x 180 x 40 mm
Weight	1.2 kg
Operating Temperature	0°C to 45°C
Remote Control	Infrared, included
Audio Output	HDMI, digital optical (S/PDIF)
Languages Supported	English, German, French, Spanish, Italian, and more
Maintenance	Clean with a soft, dry cloth. Do not use liquids.
Safety	Keep away from moisture and heat sources. Use only included power adapter.
Spare Parts Availability	Remote control and power adapter available from Xoro support.

Frequently Asked Questions - HRS 8590 LAN XORO

How do I connect the receiver to my satellite dish?

Connect a coaxial cable from your satellite dish LNB to the LNB IN port on the back of the receiver. Ensure the dish is properly aligned.

Can I use this receiver for IPTV?

Yes, the HRS 8590 LAN has an Ethernet port for IPTV streaming. Connect it to your router and configure the network settings in the menu.

How do I record a program?

Insert a USB flash drive or external HDD (formatted to FAT32 or NTFS) into the USB port. Press the REC button on the remote to start recording.

What should I do if there is no signal?

Check the satellite dish alignment, LNB settings, and cable connections. Use the Signal Strength meter in the installation menu to adjust the dish.

Can I watch one channel while recording another?

No, this receiver has a single tuner, so you can only watch the same channel you are recording.

How do I update the firmware?

Download the latest firmware from the Xoro website onto a USB stick. Insert it into the receiver, go to Settings > Upgrade, and follow the on-screen instructions.

What video formats are supported via USB?

It supports common formats like MPEG-2, MPEG-4, H.264, and audio formats like MP3 and AAC. See the manual for a full list.

Does the receiver support 4K resolution?

No, the HRS 8590 LAN outputs up to Full HD 1080p. It does not support 4K.

How do I reset the receiver to factory settings?

Go to Settings > Factory Reset and confirm. This will erase all channels and personal settings.

Why is the remote control not working?

Check the batteries and ensure there are no obstructions between the remote and the receiver’s IR sensor. Try replacing the batteries first.

USER MANUAL HRS 8590 LAN XORO

FREE TO CHOOSE INNOVATIONS

XORO®

HR5 8590 LAΩ

Bedienungsanleitung

User's Manual

Audio S/PDIF (Koaxial)

Antenne LNB IN/OUT (F-Stecker)

FREE TO CHOOSE INNOVATIONS

XORO®

HR5 8590 LAΩ

User's Manual

Content

Safety Precaution ....3

1. Reference 4

1.1 General Features....4
1.2 Accessories 4

2. Product Overview .... 5

2.1 Front Panel....5
2.2 Rear Panel 6
2.3 Remote Control Unit (RCU)....6

3. Installation....7

3.1 Powering On....8
3.2 Antenna Settings 8
3.3 Factory Default....9
3.4 USALS Setup 10

4. Channel Manager .... 10

4.1 Edit Channel....10
4.2 Edit Favorite/Radio Favours.... 11
4.3 Sort Channels....12
4.4 User Channel List....12

5. Settings....12

5.1 System Settings....12
5.2 OSD Setup 13
5.3 Parental control 14
5.4 Color Settings....14

6. Date & Time....14

6.1 Time Settings.... 14
6.2 Event Timer 14
6.3 Sleep Timer 15
6.4 Standby Time....15
6.5 APD Setting 15

X

1. Network & Games....15

7.1 Games....15
7.2 USB....16
7.3 Connecting to the Network 17
7.4 Network Apps .... 18

1. Hard- & Softwareinfo....18
2. Basic Operation ...... 19
3. Recording and Timeshift .... 19
4. Trouble Shooting 20

Safety Precaution

This STB has been designed and manufactured to satisfy the international safety standards. Please read the following safety precautions carefully before operating this receiver.

Main Supply:

Before operating, please check the units operating voltage is 100\~240V AC 50/60Hz.

Overload:

Do not overload a wall outlet, extension cord or adapter, neither use damaged power cord or touch it with wet hand as this may result in electric shock.

Liquid:

The receiver shall not be exposed to dripping or splashing water, and that no objects filled with liquids, such as base, shall be placed on the apparatus.

Ventilation:

Keep the slots on top of the receiver uncovered to allow sufficient airflow to the unit. Do not put the receiver on soft furnishings or carpets. Do not expose the receiver to direct light or do not place it near a heater or in humid conditions. Do not stack other electronic equipments on top of the receiver.

Cleaning:

Plug out the receiver from the wall outlet before cleaning. Clean the receiver by a soft cloth or mild solution of washing-up liquid (no solvents).

Connection:

Disconnect the receiver from the mains when you connect it to satellite LNB or disconnect it from LNB. Failure would possibly cause damage to the LNB.

Location:

Put the receiver indoor in order to avoid lightening, raining or sunlight.

Uncover:

Do not remove the cover, to reduce the risk of electric shock. Contact qualified and licensed service personnel to repair the receiver, or contact your dealer.

1. Reference

1.1 General Features

• DVB-S/DVB-S2 Satellite Compliant (MPEG-II/ MPEG-IV/ H.264)
• SCPC & MCPC receivable from Ku and C band satellites
• Universal, Single, Single S & C Band Wideband LNB
- Sensitive Tuner with Loop-Through
- Unicable supported
- Blind search supported
- Storing memory: 100 satellite, 4000 transponders and 6000 channels
- 8 favorite group and parental lock supported
- Multi-language menu supported
• Multi-language audio supported
- Multi-language DVB Subtitle output
• 7 days Electronic Program Guide (EPG)
- Teletext
- USB 2.0 Interface

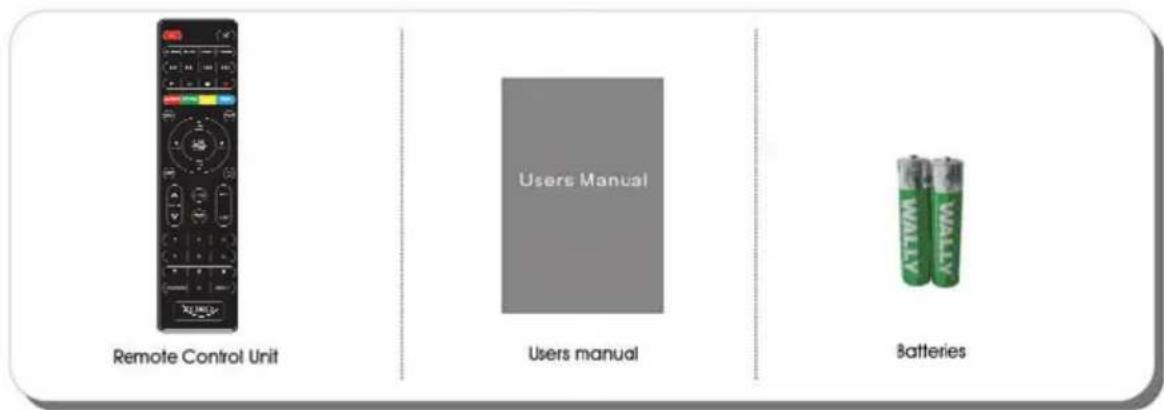

1.2 Accessories

• Users manual
• Remote Control Unit
• Batteries

Figure 1.Accessories

2. Product Overview

2.1 Front Panel

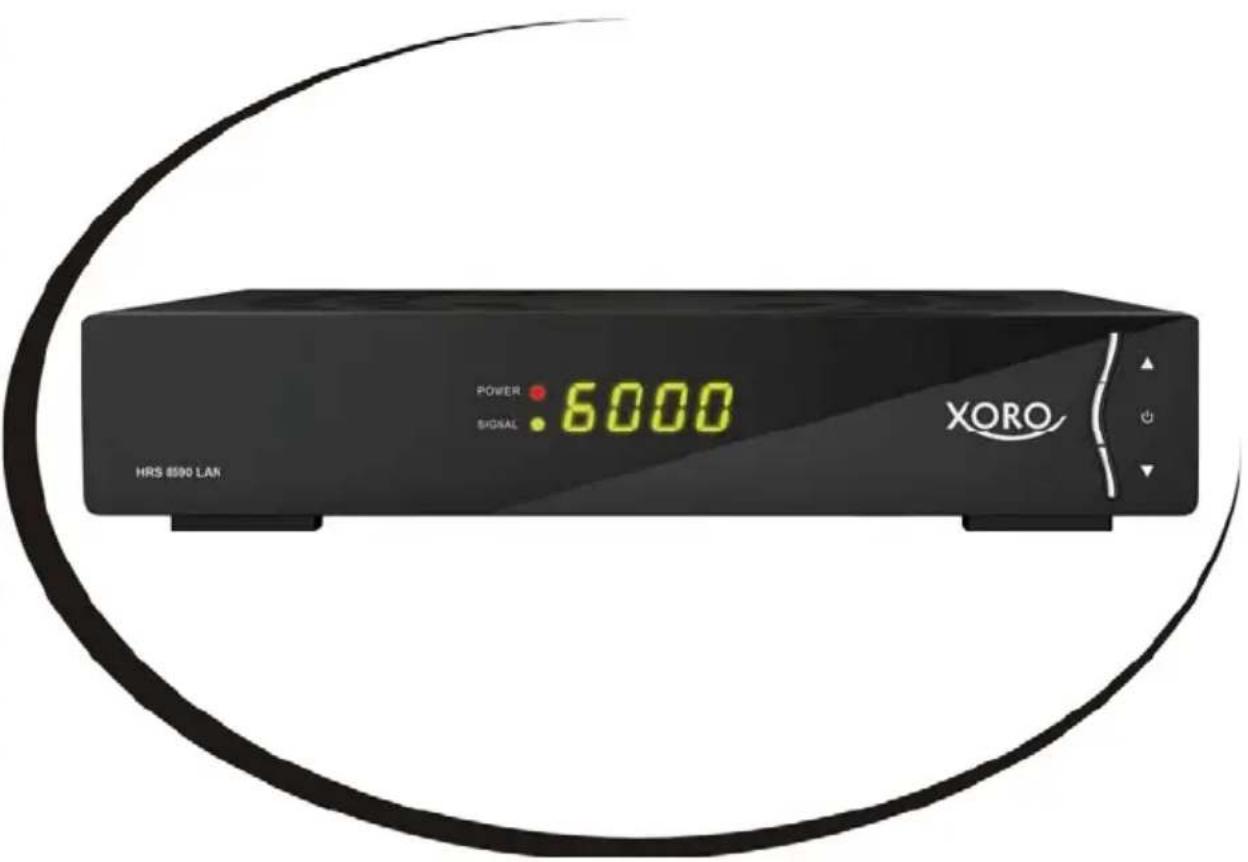

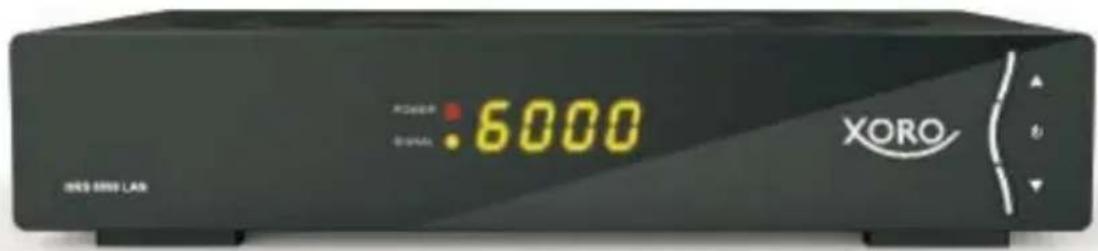

Figure 2. Front Panel

1. Power LED

Power indicator.

1. Signal LED

Signal indicator.

1. Display

Displays channel information. In standby mode it can display the local time.

1. CH+/CH-

Change channel in viewing mode and move the cursor up/down in menu mode.

5.Power button

Switch between operation and standby modes.

2.2 Rear Panel

Figure 3. Rear Panel

1. Tuner IN

Connect the satellite antenna cable.

2. LOOP OUT

Connect another receiver.

3. USB2.0

Two USB 2.0 Host Ports.

4. SPDIF

Digital Audio output (S/PDIF COAXIAL).

5. HDMI

Connect to the TV using an HDMI cable.

7. TV-Scart

Connect to the TV using a scart cable.

8. LAN

Connect to the internet using an Ethernet cable.

9. ON/OFF

Power on/off.

2.3 Remote Control Unit (RCU)

1. POWER: ⏻ Switch between operation and standby modes.
2. MUTE: Mute audio.
3. SLEEP: Set the sleep timer.
4. HDMI: Set the HDMI mode.
5. ASPECT: Sets the display format.

1. TIMER: Setup event timer.

2. ◀◀/▶▶: Fast rewind/Fast forward.

3. I ◀ ◀/▶ ▶ I: Previous/Next.

4. ▶: Play/Open PVR List.

5. I I: Pause/Start Time Shift

6. ■: Stop recording and playing.

7. ●: Record.

8. AUDIO: Display the audio list.

9. ZOOM: Picture Zooming function.

10. INFO: Display the programme information.

11. FIND: Quickly find channels which you want.

12. MENU: Activate main menu or exit to live channel.

13. EXIT: Exit current menu step by step.

14. CH+/CH-: Changes program.

15. VOL+/VOL-: Change volume in viewing mode.

16. OK LIST: Confirm the selected operation or display the channel list while watching TV.

17. USB: Enter USB menu.

18. RECALL: Move to the previous viewed channel.

19. P▲/P▼: Page up/down on menu.

20. EPG (Electronic Program Guide): Display the program guide.

21. TXT: Display the Teletext.

22. SAT: Show the scanned satellite list.

23. FAV: Display favorite channel list you set before.

24. NUMERIC KEY (0\~9): Enter a TV/Radio channel number or menu option number.

25. TV/RADIO: Switch between TV and RADIO.

26. SUB-T: Display the subtitle language list.

3. Installation

You should install the receiver when powering on your product for the first time after

purchase.

Tip: The default password is 0000. If you have forgotten your password, please contact your local product distributor.

3.1 Powering On

1. Connect the power cord of the product to a wall outlet.
2. Ensure the ON/OFF switch at the rear of the product is switched to ON.
3. Power on by pressing the STANDBY button on the remote control or the STANDBY button at the front of the product.

3.2 Antenna Settings

Antenna Settings allows you to configure the antenna setting parameters.

Menu->INTALLATION->Antenna

Settings

1. Satellite: Highlight the satellite you want to search.
2. Transponder (TP for short): Press the VOL+/VOL- button to change the TP.
3. LNB Type: Press the VOL+/VOL-button to change the LNB frequency.

1. LNB Power: Press the VOL+/VOL- button to select the required LNB power.

2. 22KHz: Press the VOL+/VOL- button to select ON, OFF or Auto.

3. DiSEqC 1.0: Press the VOL+/VOL- button to select the required DiSEqC1.0 input.

4. DiSEqC 1.1: Press the VOL+/VOL- button to select the required DiSEqC1.1 input.

5. Motor: Press the VOL+/VOL- button to select DiSEqC1.2 or USALS.

6. Scan Mode: Press the VOL+/VOL- button to select scan mode.

7. Start search: Press the VOL+/VOL- button to select Satellite, Multi-Sat, Blind

scan, Transponder or Multi-Transponder which you want to start search.

3.2.1 Antenna Settings for Satellite

Press the VOL+/VOL- or OK button you can see the pre-stored Satellite list, in this menu, you can execute Select, Add, Move, Delete, Rename Satellites.

3.2.2 Antenna Settings for Transponder

If you change the satellite, the transponder will be changed automatically. You will find the transponder list of selected satellite here. In this menu, Press the VOL+/VOL- or OK button you can see the pre-stored Transponder list, and you can execute Select, Add, Delete, Edit, Delete All Transponders.

3.2.3 Search Channels from Satellite

You can search the channels by many search ways. It includes the Satellite Search, Multi Satellites search, Blind Search, TP Search and Multi TP Search. You can highlight the Start Search and select the search way that you want, then press the OK button to confirm.

3.2.4 Antenna Settings for Motor

Menu->INTALLATION ->Antenna Settings->Motor

Tip: Before you use USALS, you should go to Main Menu->SETTINGS->USALS Setup to set your local position firstly.

3.3 Factory Default

You can restore the product to the factory default and you can also setup it according to the wizard. It includes All, Channel List Only, Radio Channel Only, Scramble Channel Only, TP Channel Only and SAT Channel Only options.

Warning: Please note that once you perform Factory Default all, all data and settings will be deleted.

3.4 USALS Setup

Menu-> INSTALLTION ->USALS Setup

If you set the Motor Mode to USALS, you need set the longitude and the latitude in USALS Setup.

4. Channel Manager

Tip: You can press the Sat button to choose different satellite according to the help information, press OK to confirm, then all the channels of this sat will be display.

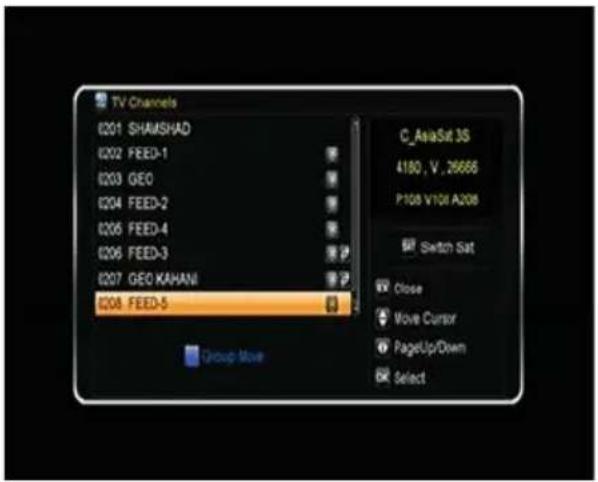

4.1 Edit Channel

Menu->EDIT CHANNEL->TV/Radio

Channels

Edit Channels enables you to move,

rename, delete and lock/unlock the

channels in the channel list conveniently.

Tip: Radio Channels operation similar to the TV Channels.

1. Move Channels

1) Highlight the channel you want to move and press OK button to select the channel.
2) Press the ▲/▼ button or press the NUMERIC KEY (0\~9) button to the destination in the channel list and press the OK button.

1.1 Move Group Channels

1) Highlight the channel you want to group move. Then press the BLUE button to sign the channel.
2) Press the ▲/▼ or ◀/► button to highlight other channels you want to group move. Then press the BLUE button to sign the channel one by one.

3) Press the ▲/▼ button to the destination in the channel list and press OK to confirm.

2. Delete Channels

1) After selecting the channels you're going to delete, press the EXIT button, here, select Yes will delete the chosen channels.

3. Lock/unlock Channels

1) Input the password to lock the channel. If you want to lock another channel, you will not be asked to Input the password again until you press EXIT.

4. Rename Channels

1) Enter a channel name directly using the keyboard displayed on the screen and press the BLUE button to complete.

Note: If the highlighted channel is locked, press the OK button is switched into Unlock.

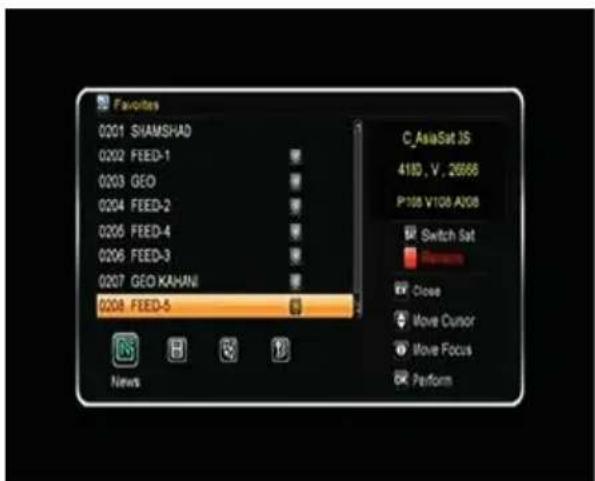

4.2 Edit Favorite/Radio Favours

Menu->EDIT CHANNEL-> Favorites

You can add or remove channels from the favorite groups.

1. Highlight the channels you want to add or remove from the favorite channel list.
2. Press the ◀/▶ button to change the favorite group and Press the OK button directly to add the channel to the corresponding favorite group.
3. Press RED key to rename favorite group.
4. Press the EXIT button to exit the menu and save it.

Tip: Radio Channels operation similar to the TV Channels.

4.3 Sort Channels

You can sort the channels list.

Menu-> EDIT CHANNEL ->Sort Channels

Highlight the option you want and press the OK button to sort the channel list. You can sort by Alphabet, Transponder, FTAToCAS, Favor, Default,

/FTAToCAS+Alphabet, Provider and Service ID.

4.4 User Channel List

User Channel List allows you to save or load all the data and settings.

1. Menu->EDIT CHANNEL->User Channel List->Save User Data
2. Menu->EDIT CHANNEL->User Channel List->Load User Data

5. Settings

5.1 System Settings

Menu->SETTINGS->System Settings

Tip: You can set all the settings here by pressing VOL+/VOL- button.

1. Menu Language: Set the menu language.
2. Audio1: Set the preferred audio language.
3. Audio2: Set the a second audio language.
4. Subtitle Language: Set the subtitle language.
5. Subtitle Control: Set the subtitle off or on.
6. EPG Language: Set the EPG language.

1. TXT Language: Set the TXT language.
2. Auto Channel Selection: If you set ON, in the channel list will play automatically when you highlight the channel. If you set OFF, in the channel list when you highlight the channel, you should press the OK button to play it.

3. Auto Exit CH List: If you set ON, the channel list will disappear when you press OK on a Highlighted channel. If you set OFF, the channel list will disappear when you press OK on a playing channel.

4. Recall List: You can turn Recall List on or off. If you set ON, when you press Recall button of RCU you can get the recall list. If you set OFF, when you press recall button you can go back to the last program you have selected.

5. Front Panel Light: Set the brightness of the LED.

6. Eco-Standby: You can turn Low Power Standby on or off.

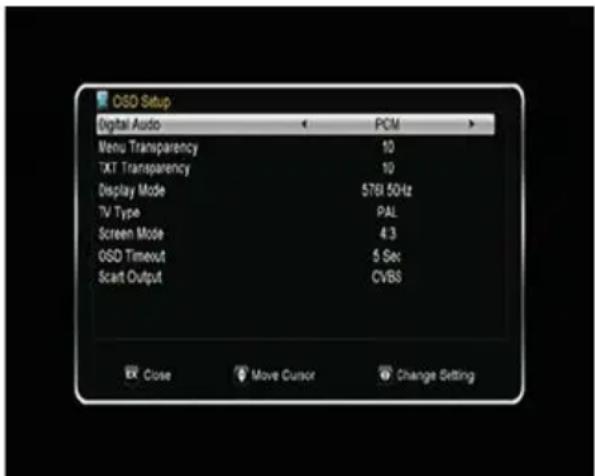

5.2 OSD Setup

Menu->SETTINGS->OSD Setup

1. Digital Audio: If a channel has AC3 and PCM audio language at the same time, when you select RAW it will set AC3 audio language as default output and when you select PCM it will set PCM audio language as default output.
2. Menu Transparency: Set the transparency of all menus.
3. TXT Transparency: Set the transparency of Teletext.
4. Display Mode: Set the HDMI format.
5. TV Type: Set the TV Type on PAL/NTSC state.
6. Screen Mode: Set the display format according to the screen ratio.
7. OSD Timeout: Set the display time of the program information.
8. Scart Output: While the HDMI Mode is set to 576i or 480i mode, you can change the Scart output mode between CVBS and RGB mode.

5.3 Parental control

Menu-> SETTINGS ->Parental Control

Parental Control allows you to set limits for each program or change your previous password. You can also lock the changes you have made using Installation Lock, Edit Channel Lock and Settings Lock. And you can change Age Rating.

5.4 Color Settings

Color Settings can set the Brightness, Contrast and Saturation.

6. Date & Time

6.1 Time Settings

Menu->TIMES->Time Settings

Time Settings will set the time mode, time zone and summer time.

6.2 Event Timer

The Event Timer will play the program automatically according to the timer event list that you set.

1. Menu->TIMES-> Event Timer or

press the TIMER button directly.

1. Press the RED button to add a timer, and press the OK button to save the timer after setup.

Channel

Select the Channel from Channel List.

Date

Input start date of the timer.

Start/Stop

Set Start and Stop time of the timer.

Repeat

• <1X> only one time.
• Repeat every day.
• < Weekly> Repeat the Timer every week.
• <1-5> Repeat the Timer from Monday to Friday.
• <6-7> Repeat the Timer from Saturday to Sunday.

Standby when Stop

If set YES, the receiver will go to standby mode after the timer, if set NO it won't be standby.

1. In Event Timer menu, highlight one event, press the YELLOW button will cancel this timer and press the GREEN button can go to edit this timer.

6.3 Sleep Timer

Menu->TIMES->Sleep Timer

SLEEP Timer can set the automatic turn off time.

6.4 Standby Time

Menu->TIMES->Standby Time

Standby hour can set the time display on front panel when standby.

6.5 APD Setting

APD Setting: The Receiver will switch to Stand By after the set Time.

7. Network & Games

7.1 Games

Menu->EXPANSION-> Games

Games offer 9 funny games you can play.

7.2 USB

Menu->EXPANSION->USB or press the USB button directly

USB can play many kinds of media files and you can do various operations when using USB HDD or USB disk.

Note: It supports FAT, FAT32 and NTFS format USB disk or USB HDD.

7.2.1 Basic Operations

1. Tool

In USB menu, you can press the RED button to select Rename/Delete/Move

To/Copy To/Lock/Unlock File/Sort the folders and files. And also can create the new folders and format the disk.

2. Upload

You can press the YELLOW button to upload data/channel/all to USB.

7.2.2 Setting

1. Play Mode

> Loop

Set the Loop state on Normal, Reverse, Random, Single or Off.

▶ Slide Show Interval

Set the Slide Show Interval from 2S-10S.

➢ Photo View Mode

Set the Photo View Mode state on Full Screen, 2x2 Thumbnail or 2x3 Thumbnail.

7.2.3 Play Files

1. Music

1) Press the VOL+/VOL- to highlight the Music.
2) Press the CH+/CH- to change the folder or file and press the OK button to open the folder or play the music file.

2. Picture

1) Press the VOL+/VOL- to highlight the Picture.
2) Press the CH+/CH- to change the folder or file and press the OK button to open the folder or play the picture.

Tip: You can press the Green button to go to Play Mode Set the Photo View Mode state on Full Screen, 2x2 Thumbnail or 2x3 Thumbnail in the USB menu. The picture followed is 2x2 Thumbnail mode.

3. Movie

1) Press the VOL+/VOL- to highlight the Movie.
2) Press the CH+/CH- to change the folder or file and press the OK button to open the folder or play the movie file.

4. Play List

You can play the movie/photo/music in the Play List.

In the USB Menu, you can press the GREEN button to enter the Play List, then you can press the FAV button to add the files to the Play List, you will see the files included in play list.

7.3 Connecting to the Network

You can visit the internet through the Ethernet cable.

7.3.1 IP Setting

Menu->NETWORK->IP Setting

First you must connect the Ethernet cable to the LAN port. Then in this menu, you can set IP address manually, also you can get IP address automatically. If the Ethernet cable is connected fine, it will display "Connected".

8.3.2 WI-FI (Wireless LAN)

Menu->Network->WIFI.

Plug in the wireless USB dongle to the USB port. Then in this menu select the network name of your WI-FI access point from the list and input the right password. If the Network is connected, it should get the correct IP in IP Setting menu. You also can press YELLOW button to disable/enable the WI-FI.

7.4 Network Apps

7.4.1 RSS

Menu-> EXPANSION ->Network Apps->RSS

You can press the RED button to add the RSS websites and then you can read content of the websites. And also you can press the YELLOW button to delete the RSS websites. press the GREEN button to edit the RSS websites

7.4.2 DLNA DMP/DMR

This functions allow to playback file stores on a DLNA Compliant Media Server/Controller.

Visit www.xoro.de/downloads to download the Mobile App for your Set Top Box.

8. Hard- & Softwareinfo

Hard- & Softwareinfo can get the information about the STB, such as product name, software & hardware version, and serial number and so on. When you need

service from the dealer you need to submit this information in order go get the correct and fast after sales service.

9. Basic Operation

Audio: You can select the language you prefer in Audio if the current program is available in multiple audio languages.

Satellite List: You can press the SAT button to select or hide the satellite that you want.

EPG: You can Press the EPG button view the EPG information of all channels in time and date order. In EPG menu, Press the GREEN button to switch EPG mode between Weekly EPG and Day EPG.

Subtitle: You can press the SUB to select the language for the subtitle if the program provides subtitle information.

Teletext: You can press the TXT button to view the teletext information of this program.

FIND: You can find the channels you want quickly just by pressing the FIND button directly

INFO: You can view the program information by pressing the INFO button while watching a program. And press the INFO button twice to view detailed EPG information.

10. Recording and Timeshift

1. Start Recording

1) You can press the • button to start recording while watching program.
2) If you have set the timer, and set the Time Record on, it will start recording automatically according to the start time of the timer.

2. Stop Recording

1) You can press the ■ button to stop recording. If you don't press the ■ button, it will stop recording according to the record duration.

2) If you have set the timer, it will stop recording automatically according to the stop time of the timer.
3) If the free space on the USB HDD or USB disk is insufficient, recording will stop.

3. Timeshift

Timeshift allows you to pause a live broadcast and return to it later and continue where you left off.

Press the || button can pause the program and press the ▶ button to play the program, press the ◀◀/▶▶ button can fast rewind or fast forward.

3. Playback

Press the ▶ button to display the PVR-List. Select one recording and press OK to start the playback. Note: While Recording a Program, press SAT to display the PVR-List.

11. Trouble Shooting

Before contacting your local service centre, please read the tips below carefully. If the problem persists after completing the following procedure, please contact your local product distributor or service centre for further instructions.

1. No message displayed on the front display. (The product will not switch on.)

2. Check the main power cable and make sure it is plugged into a suitable power outlet.

3. Check that the mains supply is switched on.
4. Connect the power cable to a different power outlet.
5. Check that the power switch is on at the rear of the product.

2. No picture

• Make sure that the product is powered on and in operation mode. (Press the STANDBY button)
• Make sure that the AV/HDMI/SCART cable is firmly connected to the TV.
• Make sure that the antenna cable is properly connected to the product.
• Be sure to activate channel search.
• Check the brightness level of the TV.
• Check if the channel is currently on air. Contact the broadcaster to ensure that the channel is running.

3. Poor picture/sound quality

• Make sure there is no mobile phone or microwave oven near the product.
• Adjust the antenna direction to get a better picture.

4. No or poor sound

• Check that your AV/HDMI cable is connected correctly.
• Check the volume levels of your TV set and the product.
• Check if the product or TV is on mute.
• Check audio type or soundtrack option (Where applicable).

5. Remote control does not operate.

• To control the product, the top end of the remote control should point directly towards the receiving part of the product.
• Remove and reinsert the batteries in the remote control.
• Replace the batteries in the remote control for a new set.

Limited Warranty

In case the products delivered are not free from defects in material or workmanship, MAS Elektronik AG has the right to either repair or replace the defective product at its choice. MAS Elektronik AG manufactures and repairs goods using components which are new or equivalent to new in accordance with industry standards and practice. The warranty for wearing parts (e.g. rechargeable batteries) is limited to 6 months.

In case the device is equipped with internal data storage (e.g. hard disc drive, Flash drive), the customer is responsible to backup his data before sending the device. MAS Elektronik AG is not liable for any data loss on returned devices. MAS Elektronik AG reserves the right to reset returned devices to factory defaults. Please note your personal settings for this reason.

MAS Elektronik AG is not liable for any accessories not belonging to original package content such as DVDs, hard disc drives, Flash storage devices, batteries, etc.

This limited warranty covers the warranty requirements set by authorities in your country.

This limited warranty only is valid in the country the product was purchased. This limited warranty does not cover finishes, accessories or batteries, nor does it cover damage resulting from accident, misuse, abuse, dirt, water, battery leakage, tampering, servicing performed or attempted by unauthorized service agencies. This limited warranty does not cover damages resulting from firmware upgrades. Only in case of firmware upgrades needed to add functions promised at time of purchase, such damages are covered by this limited warranty. For a correct and frictionless completion of warranty or repairs you need a RMA No. You may obtain a RMA on the internet at www.mas.de/FAQ or by telephone.

Please send the device in its original packing material, all standard accessories and a copy of the invoice, a description of defect and the RMA No. to following address. Please note the RMA number clear and in large numbers on the outer package.

MAS Elektronik AG

Weidegrund 3

21614 Buxtehude

Germany

Support

e-mail: [e-mail]

Hotline: [phone]

FREE TO CHOOSE INNOVATIONS

XORO by MAS Elektronik AG

Weidegrund 3

21614 Buxtehude

Deutschland

Telefon: [phone]

HRS 8590 LAN

DE: V1

ENG: V1 OEM

FS: 12551
