USER MANUAL WEM750 WEEWELL

Digital baby bottle with digital display showing 4.2 g of mass, no visible text or symbols on the device itself.

WEM750

Digital Bottle-Food Warmer & Sterilizer Dijital Biberon-Mama Isitici & Sterilizatör

BİBERON ISITICILARI/BİBERON STERİLİZATÖRLERİ

USER MANUAL

EN

KULLANIM KILAVUZU

TR

CONTENTS

CONGRATULATIONS! 3

CONTENTS 4

IMPORTANCE OF BOTTLE WARMER......5

Scientific Research 5

Infant Health Expert ....5

SPECIFICATION......5

SAFETY INFORMATION......5

FUNCTION 7

USER INSTRUCTIONS......8

Normal Mode 8

Cold Mode....9

Sterilize Mode....9

MAINTENANCE 10

HOW TO CLEAN THE OUTSIDE, GIRD AND BOTTLE CONTAINER......10

CONGRATULATIONS!

Congratulations! You have just purchased a qualified digital bottle – food warmer & sterilizer.

Please read this user manual thoroughly, before using the hygrothermometer and keep it for future reference.

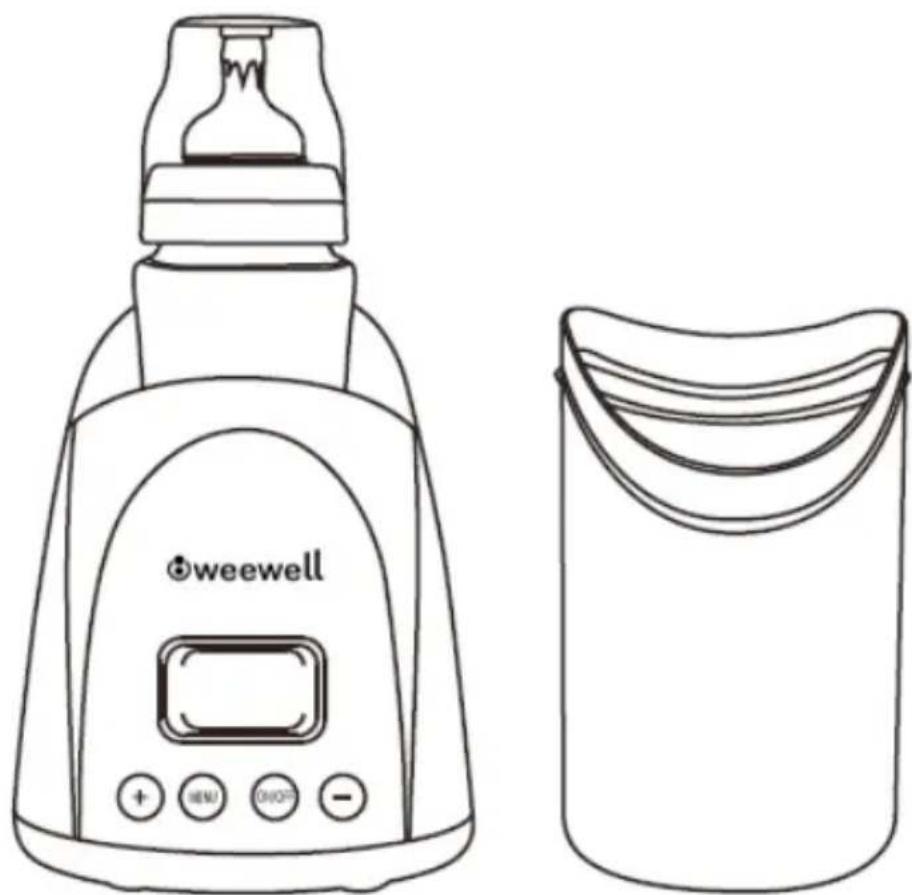

Line drawing of a weewell baby cleaning device and its empty storage container (no text or symbols)

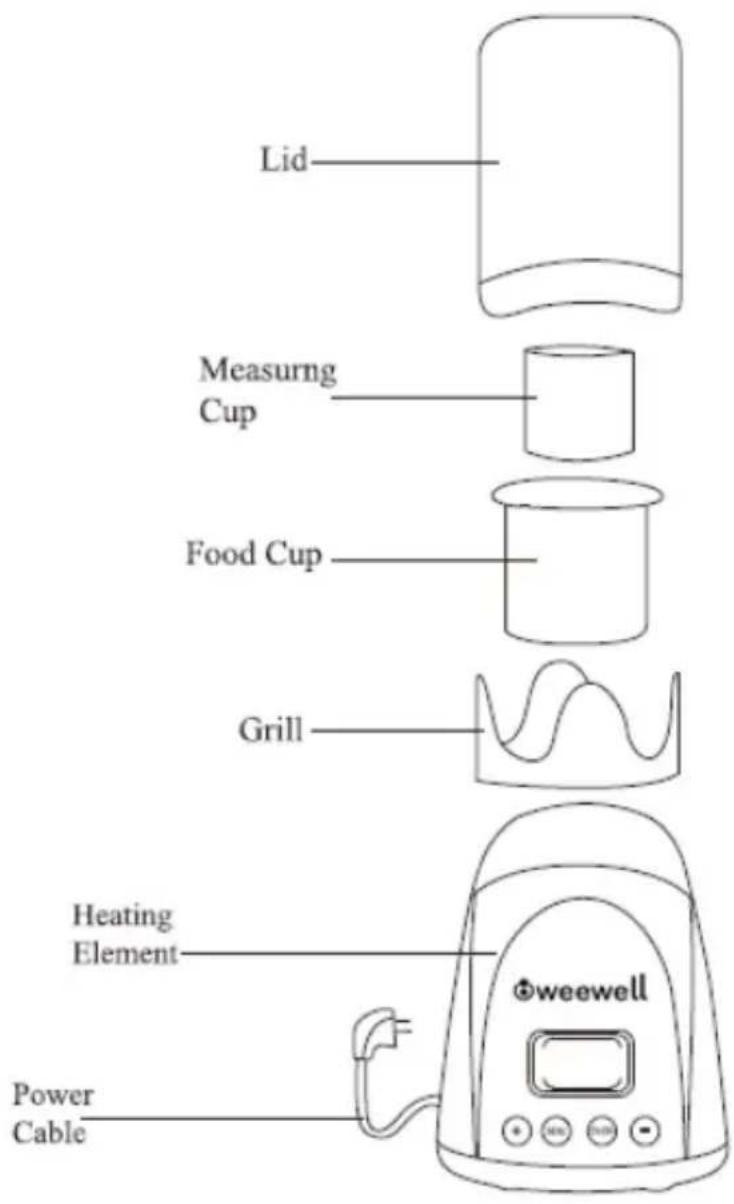

CONTENTS

Lid Measuring Cup Food Cup Grill Heating Element Power Cable weewell

ATTENTION: Please put the grill into the bottle warmer before using

IMPORTANCE OF BOTTLE WARMER

Scientific Research

Most favorable temperature for baby is 42^ C

Infant Health Expert

Overheated or over cooled food cause stomach disease or belly trouble, effecting postnatal growth.

SPECIFICATION

Rated Voltage : 220-240V\~

Rated Frequency : 50Hz

Rated Power : 150W

Heating element : PTC

SAFETY INFORMATION

1. If the bottle warmer could not work, please do not disassemble the unit by yourself. Please contact with your distributor for replacement.
2. Keep away the product from direck sun light, heat source or any device radiating heat. It will cause to be out of warranty.
3. Do not touch the cable with wet hands.
4. Keep the device and the cable out of reach of children.
5. Always use on a flat safe and heat resistant worktop.
6. Never immerse the bottle warmer in water.
7. Never use lower than 50 ml of tap water in the bottle warmer.
8. When in use the bottle warmer will contain hot water. Do not cause it

to fall down to avoid burning.

1. Always unplug the warmer from the electricity supply when not in use.

2. Never warm baby foods more than once, discard any food or milk that is not eaten.

3. Ideal milk temperature for babies is 42^ C. Always check baby food before commencing feeding to baby.

4. If repairs are needed, please send the appliance to one of our customer service centers. The address may be found by calling the Weewell Customer Line.

5. This appliance is not intended for use by persons (including children) with reduced physical, sensor your mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.

6. The device is intended for use in the domestic /private environment only, not in commercial situations.

7. Children do not recognize the dangers that may occur while operating electrical appliances. Therefore keep children away from such appliances.

8. Do not allow the appliance to operate without supervision.

9. Caution: The heating base reaches high temperatures during operation. In order to avoid burning, don't open the lid while in use. When opening after use be careful as the appliance may still be hot.

10. This appliance is to be used only for sterilizing bottle. Do not put any

other fabric or material into the sterilizer.

1. Always remove the plug from the wall socket after use, in case of any malfunction, before cleaning the appliance.

2. Always pour the remaining water after use. Do not keep water in it for a long time.

3. When removing the plug from the wall socket, never pull on the power cord to come into contact with any hot parts of the appliance.

4. There may be lime remains on heating base depending on usage. Clean the heating base regularly with citric acid or wine one a week.

FUNCTION

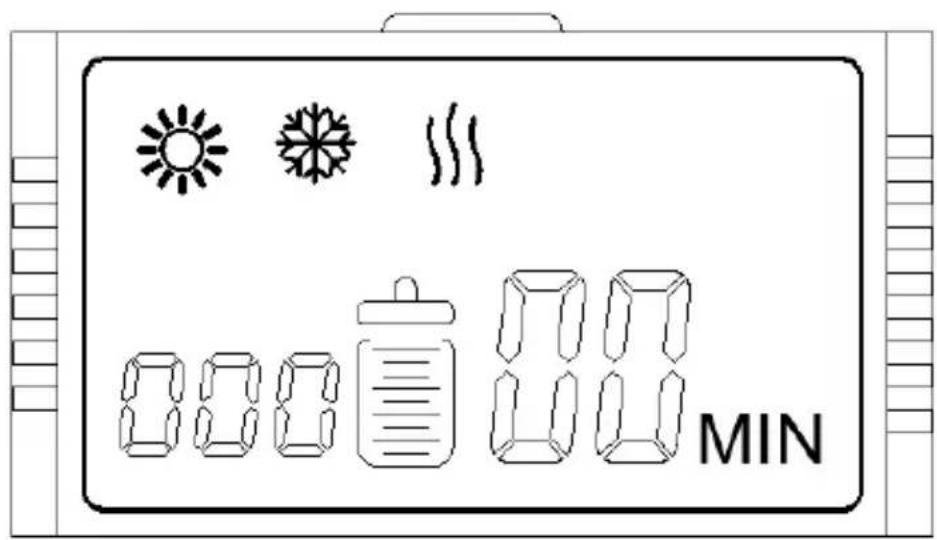

Plug the power cable into the mains socket. The appliance will beep when it is connected correctly (1 beep). The screen lights up and get into stand-by.

000 MIN

NOTE. After 20 minutes of inactivity or after the end of the “warm-up” cycle, the appliance will switch to “shutdown” mode. To restart the appliance when it is in “shutdown” mode, briefly press the “ON/OFF” button.

NOTE. To switch the bottle warmer off, at any time necessary, press the "ON/OFF" button.

USER INSTRUCTIONS

Normal Mode

This mode is suitable for the starting temperature of the milk is ambient temperature (approx. 20^ C )

1. Pour 50ml water into the appliance.
2. Select the type/capacity of the container to be warmed up by pressing the "normal" button until you positioned on the desired choice: 120 ml 150 ml 180 ml 240 ml
3. The appliance will automatic start. The warm-up cycle countdown time can be seen on the display. At the end of this cycle, a visual signal will appear on the display (OK). In addition, the appliance will beep 3 times to indicate the milk is ready.
4. On removing the bottle from the bottle warmer, dry them carefully before feeding your baby.
5. Press the ON/OFF button to switch the bottle warmer OFF. Disconnect the plug from the mains.

Cold Mode

This mode is suitable for the starting temperature of the milk is average fridge temperature (approx. 4°C)

1. Pour 50 ml water into the appliance.
2. Select the type/capacity of the container to be warmed up by pressing the "cold" button until you positioned on the desired choice: 120ml 150 ml 180 ml 240 ml
3. The appliance will automatic start. The warm-up cycle countdown time can be seen on the display. At the end of this cycle, a visual signal will appear on the display (OK). In addition, the appliance will beep 3 times to indicate the milk is ready.
4. On removing the bottle from the bottle warmer, dry them carefully before feeding your baby.
5. Press the ON/OFF button to switch the bottle warmer OFF. Disconnect the plug from the mains.

Sterilize Mode

1. Pour 70 ml water into the appliance.
2. Select the time for sterilize by pressing the "sterilize" button until you positioned on the desired choice: 12 min 15 min 20 min 25 min
3. The appliance will automatic start. The warm-up cycle countdown time can be seen on the display. At the end of this cycle, a visual signal will appear on the display (OK). In addition, the appliance will beep 3 times to indicate the sterilize mode is finished.

- The warm-up times can vary quite considerably for feeding bottles of a different type/size/material.

MAINTENANCE

IMPORTANT:

• PLEASE CLEAN THE HEATING ELEMENT REGULARLY
  • Unplug the unit from mains supply before cleaning.
  • The Base Unit must not be immersed in water.
• Do not use abrasive materials or chemicals on any part of the sterilizer.

HOW TO CLEAN THE OUTSIDE, GIRD AND BOTTLE CONTAINER

1. Take out the bottle container, gird after unplugging the unit.
2. The inner face of the unit and bottle container, gird can be cleaned by warm soapy water or white vinegar and then washed by clean water
3. The outside surface can be wiped with a soft, damp, non-abrasive cloth.

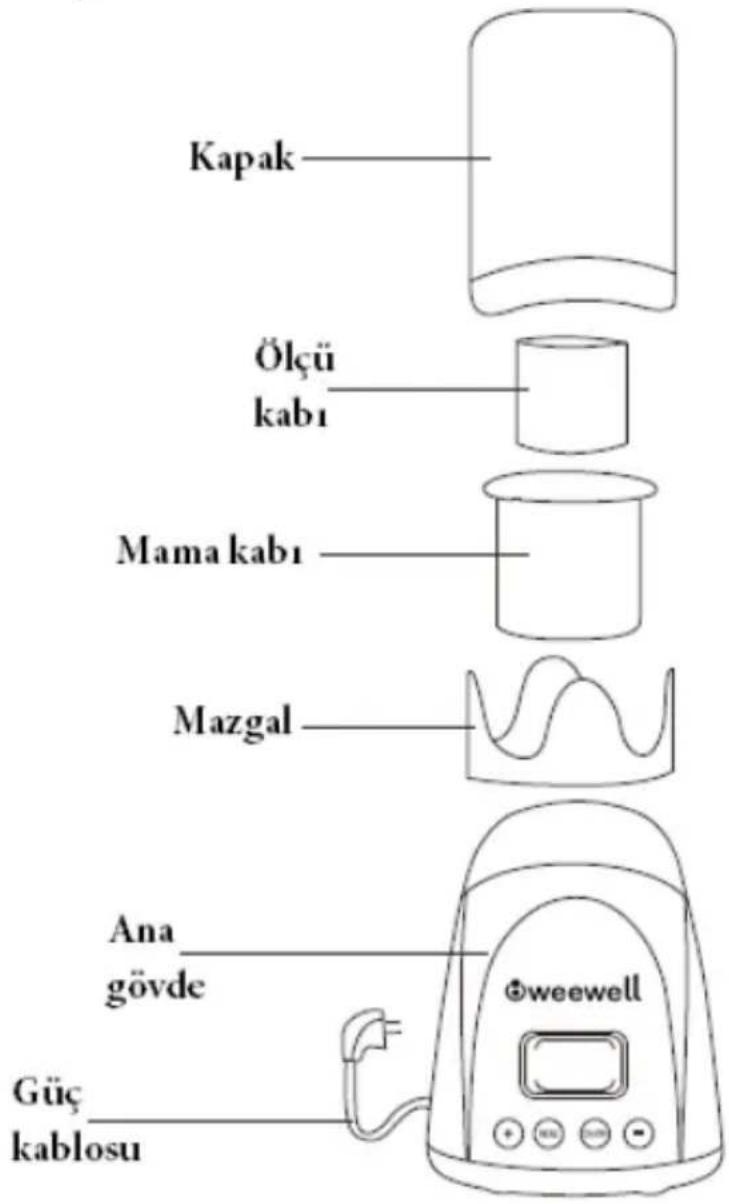

iÇİNDEKİLER

TEBRIKLER!......2

PARÇALAR 3

ÜRÜNÜN ÖNEMİ: 4

Line drawing of a weewell baby cleaning device and its empty storage bag (no text or symbols)

PARÇALAR

ADDRESS: No:18, Xinlan Road, Chencun, Shunde, Foshan, Guangdong, P.R.C.

TEL NO..+86-757-23812376

FAX NO.+86-757-23812306

EC Declaration of Conformity

We, MyCarol Electric Technologies CO., LTD, No:18, Xinlan Road, Chencun, Shunde, Foshan, Guangdong, P.R.C.

Declare under our sole responsibility that the product(s):

Description

: Feeding Bottle Warmer

Brand Name : WEEWELL

Model Number : WEM750

To which this declaration relates is in conformity with the essential requirements and other relevant requirements of EMC Directive (2004/108/EC) and Low Voltage Directive 2006/95/EC. The product is in conformity with the following standards and/or other normative documents:

EN 55014-1:2006+A1:2009+A2:2011

EN 55014-2:1997+A1:2001+A2:2008

EN 61000-3-2:2006+A1:2009+A2:2009

EN 61000-3-3:2013

EN 61335-1:2012

EN 61335-2:15:2002+A1:2005+A2:2008+A11:2012

EN62233:2008

Manufacturer Name & Address:

MyCarol Electric Technologies CO.,LTD

ADDRESS: No:18, Xinlan Road, Chencun, Shunde, Foshan, Guangdong, P.R.C.

TEL NO..+86-757-23812376

FAX NO.+86-757-23812306

CE Marking Date:14

Date:28.04.2015

Name: Mandy

Title: Sales&Marketing Manager

Signature:

MyCarol Electric Technologies CO.,LTD

ADDRESS: No:18, Xinlan Road, Chencun, Shunde, Foshan, Guangdong, P.R.C.

TEL NO..+86-757-23812376

FAX NO.+86-757-23812306

AT Uygunluk Beyani
