Download the instructions for your Chauffe-eau instantané et chaudière in PDF format for free! Find your manual RDE1821415 - BOSCH and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. RDE1821415 by BOSCH.

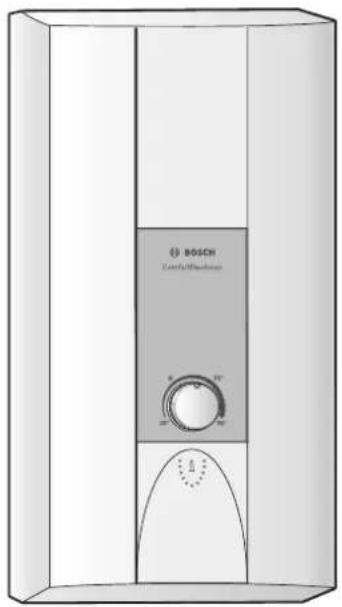

USER MANUAL RDE1821415 BOSCH
RDE 1821415
BOSCH
en Installation and operating instructions
Montaj Kılavuzu
[Non-Text]
A
B
IV
B
C
Installation instructions
Install the continuous-flow heater as described in the illustrated section. Observe the instructions in the text.

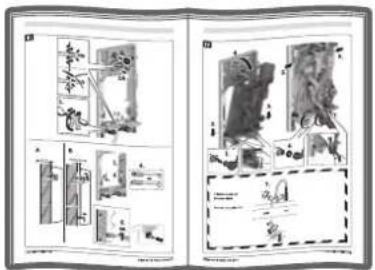

The illustrations can be found in the centre of the instruction manual.
Safety information
Risk of electric shock!
Switch off the mains voltage supply immediately if a fault occurs.
We do not accept liability for damage resulting from failure to heed these instructions.
The continuous-flow heater may only be connected and put into operation by a qualified professional.
Never open the appliance without disconnecting the power supply beforehand.
The statutory regulations of the respective country, as well as those of the local electricity and water suppliers, must be adhered to.
The continuous-flow heater is a Class I appliance and must be connected to the protective earth.
The appliance must be permanently connected to installed pipes. The conductor cross-section must comply with the installed appliance power.
Caution: Earthed water pipes may give the appearance of a connected protective earth.
To guarantee compliance to relevant safety regulations, an all-pole separator must be fitted during installation. The contact opening must be at least 3 mm.
The continuous-flow heater is only suitable for closed (pressurized) operation.
The tap and outlet fittings must be approved for operation with closed (pressurized) continuous-flow heater systems.
The continuous-flow heater can be operated with cold or pre-warmed water (for example, from a solar energy unit water supply). Observe the technical data and the special accessories for this purpose.
The continuous-flow heater is only suitable for connection to DVGW (German Technical and Scientific Association for Gas and Water) approved plastic pipes.
The continuous-flow heater may only be installed in a frost-free room.
Disconnect the electrical connection cable from the supply and shut off the water supply before connecting the appliance!
Connect the water supply and then connect the electrical supply.
Only make the openings which are required for installation on the rear of the appliance. If the appliance is reinstalled, the unused openings must be provided with watertight sealing.
Do not touch electrically live parts after installation.
Installation

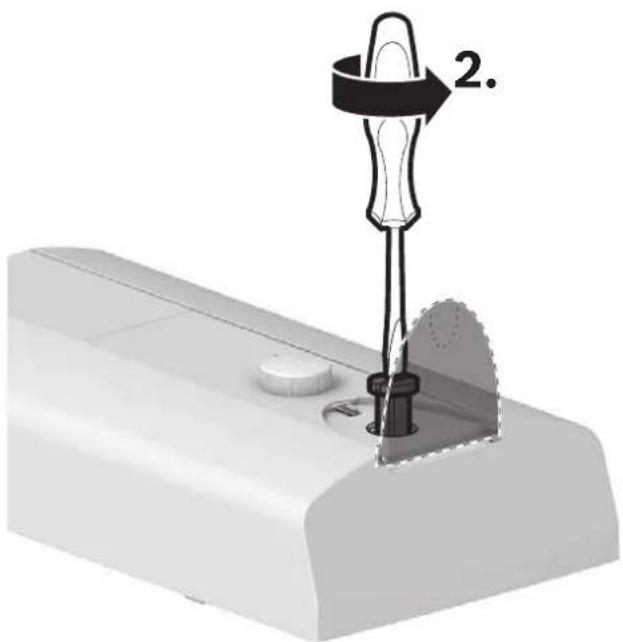

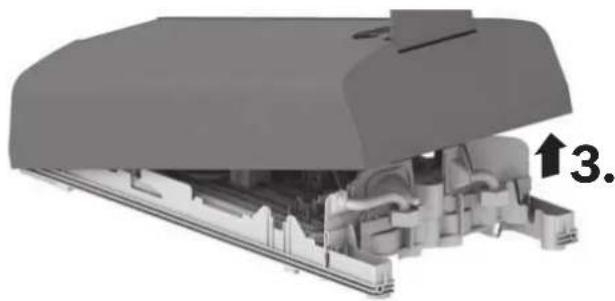

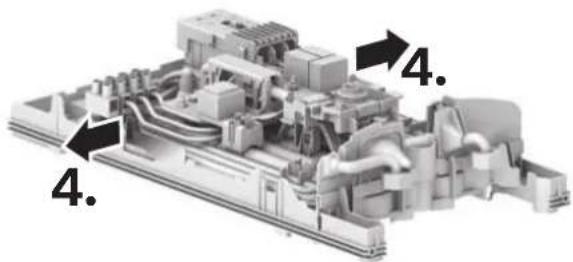

Unpacking/Removing the cover (Figure I)
▶Unpack the appliance and check for transport-related damage.
▶Please dispose of the packaging, and if applicable, the old appliance in an environmentally-friendly manner.

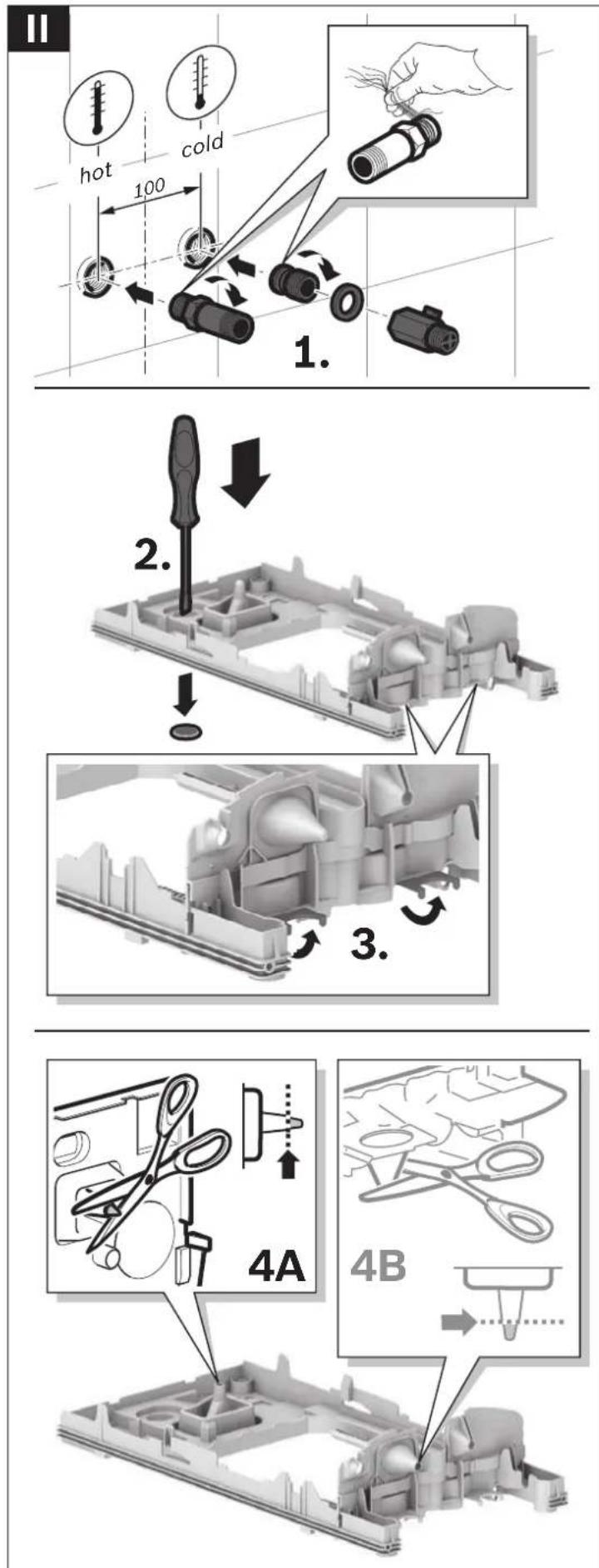

Preparations for installation (Figure II)

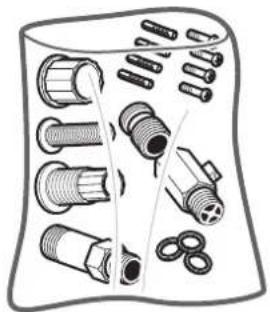

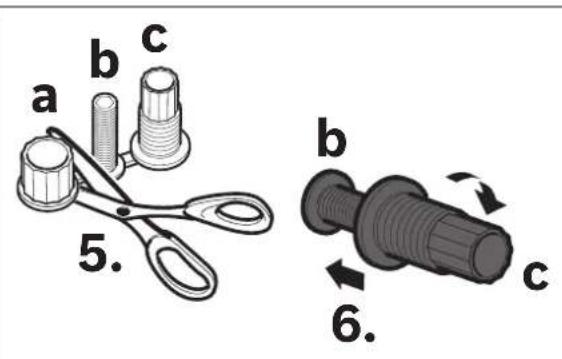

Important: Only use the supplied installation set. The supplied water connection nozzles must be installed!
▶Shut off water supply. The electrical connection (connection cable) must be disconnected from the power supply. Unscrew the fuse or switch off the circuit breaker.

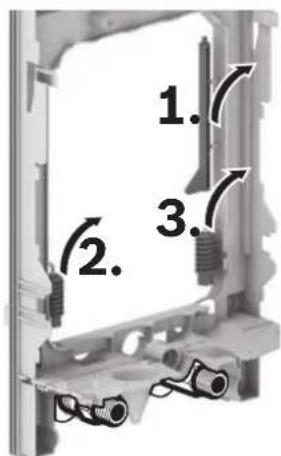

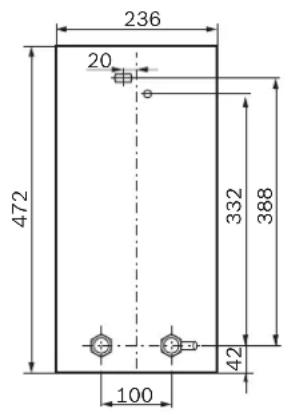

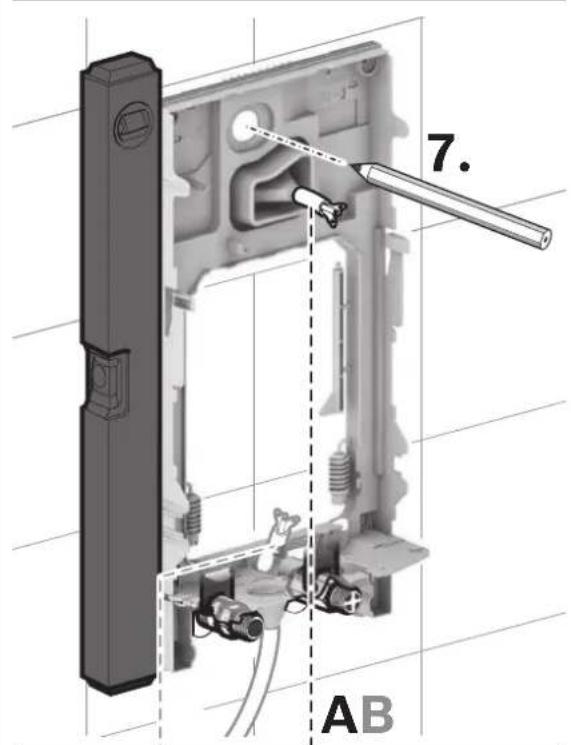

Wall mounting (Figure III)
The continuous-flow heater must be mounted on the wall. Attach it if necessary on the lower adjustable screws.

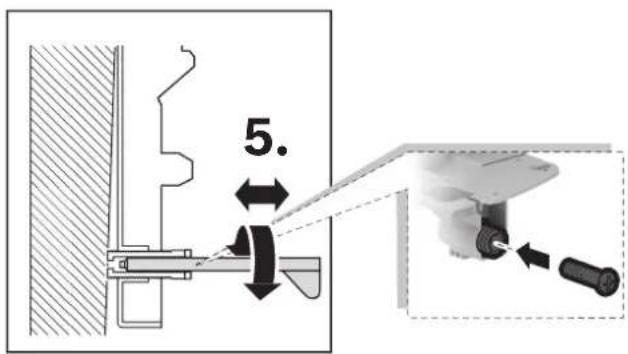

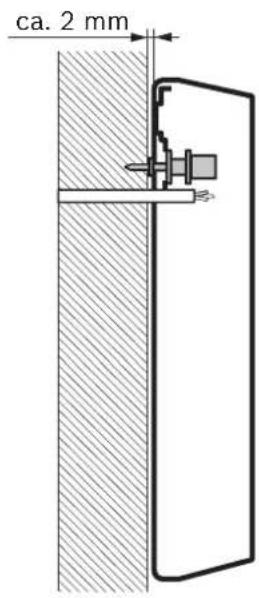

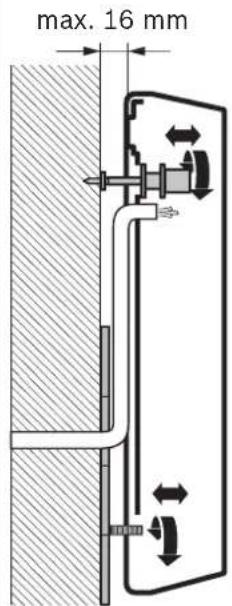

The distance to the wall is variable. You can compensate for any unevenness of the wall's surface.

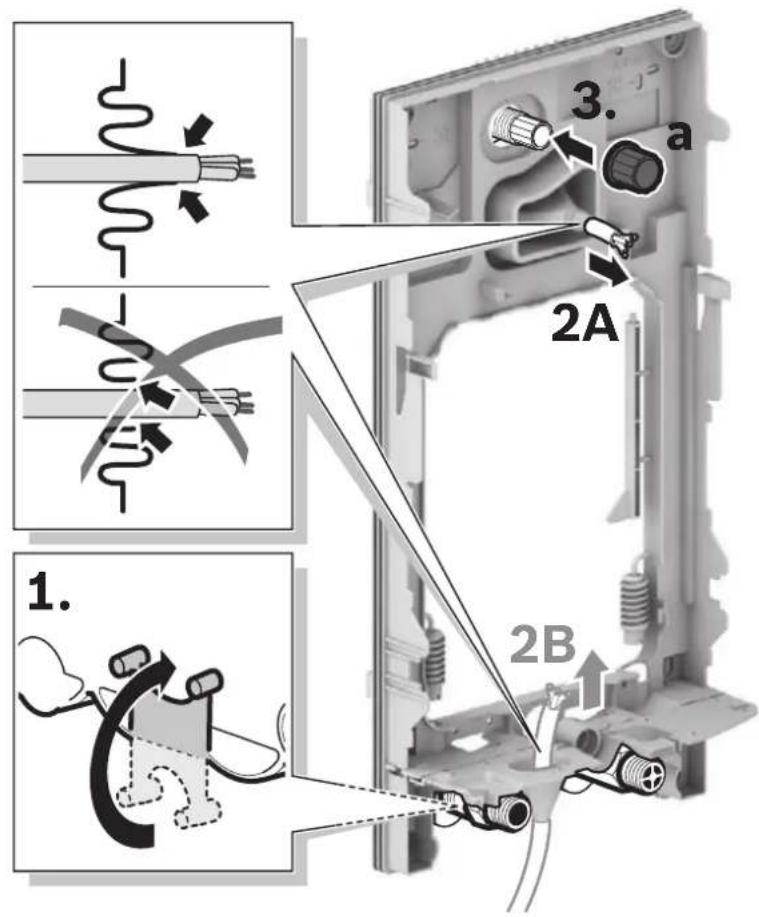

The grommet must tightly surround the connection cable. If it is damaged during mounting, the openings must be provided with watertight sealing.

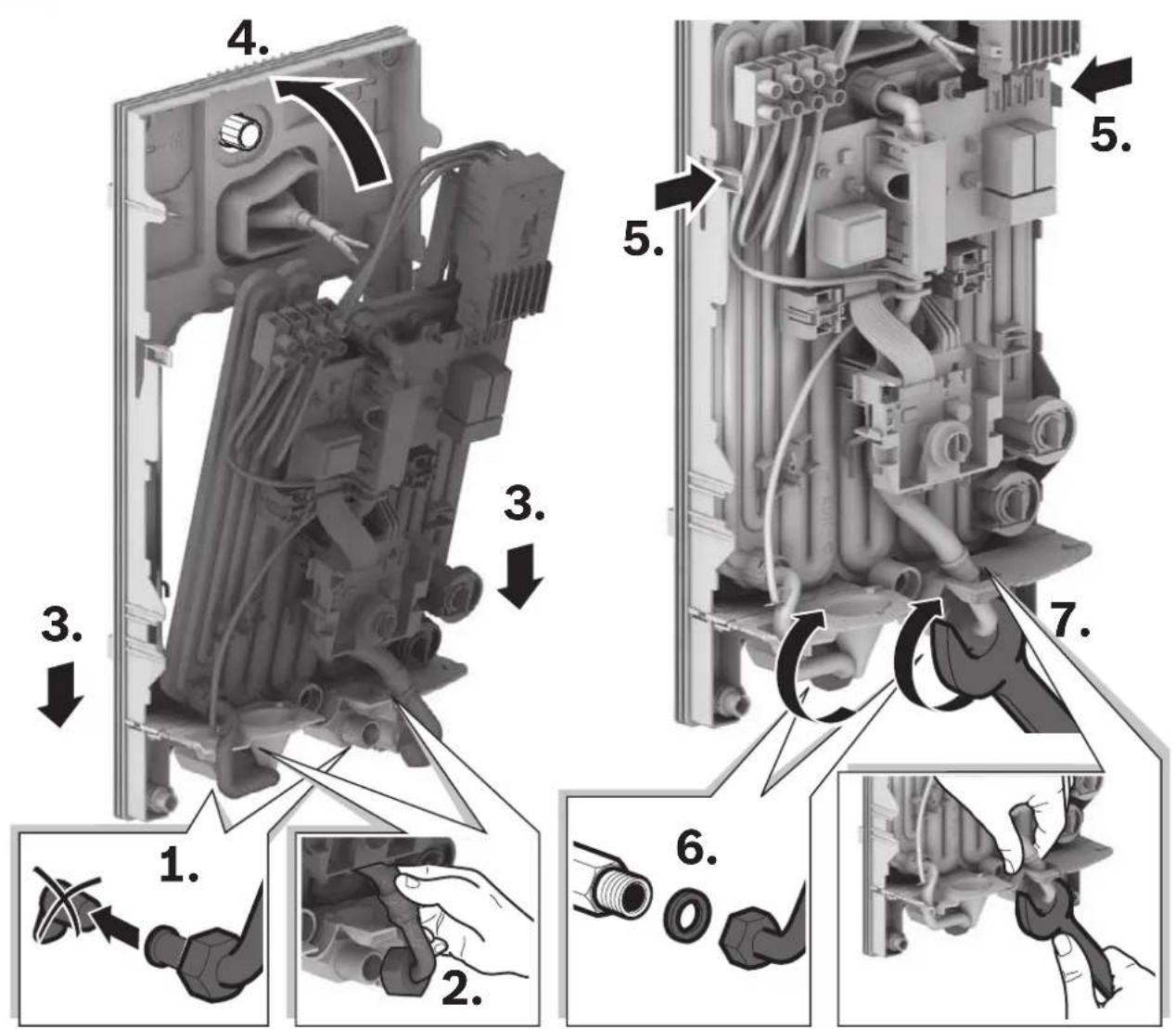

Water connection (Figure IV)
The continuous-flow heater must be vented. The warm water tap must be opened and the appliance must be flushed out thoroughly for 1 minute with at least 6 litres of water.

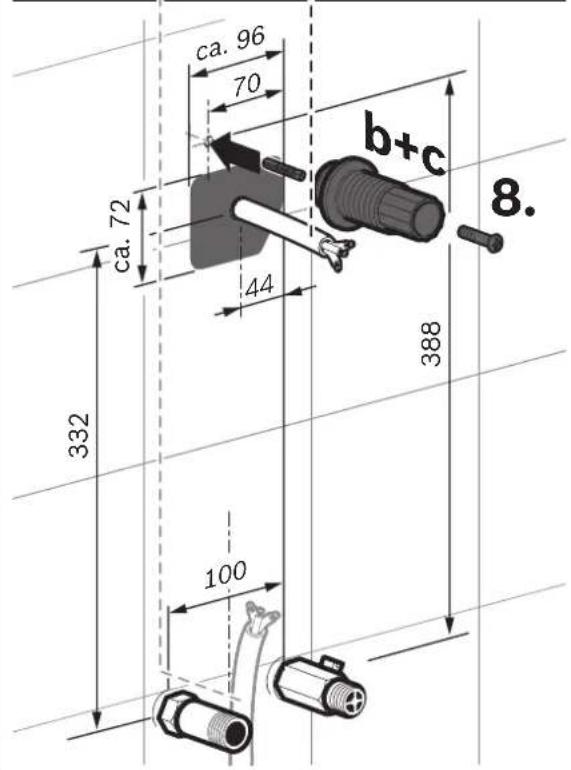

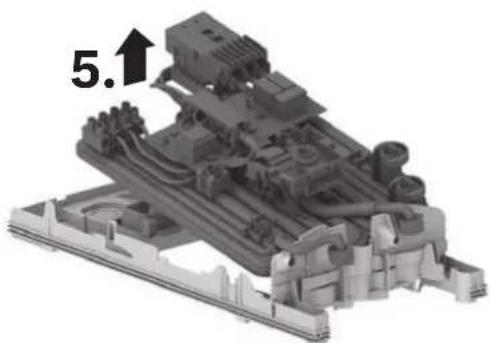

Electrical connection/Mounting (Figure V)
The electrical supply terminal can be fitted at the top or bottom. The sheath of the connection cable must extend for at least 40 mm into the appliance.
Set the power using the power selector switch before connecting the wires to the mains connection terminal:
▶Set RDE 1821415 to 18 kW (down) or 21 kW (up).
The set power must be marked on the ratings plate.
Now screw the wires tightly into the mains connection terminal.
Startup/additional information (Figure VI)
The device is compliant to IEC 61000-3-12.
First start-up
Switch on the fuses.
Setting the temperature.
Starts rinsing: Open the warm water tap and allow water to flow for at least 1 minute (flow-rate at least 6 litres per minute). Only then (for safety reasons) will the appliance begin to heat.
Tip: Should the appliance not start because of a reduced flow-rate, remove the perlator, shower head or similar before start and repeat the process.

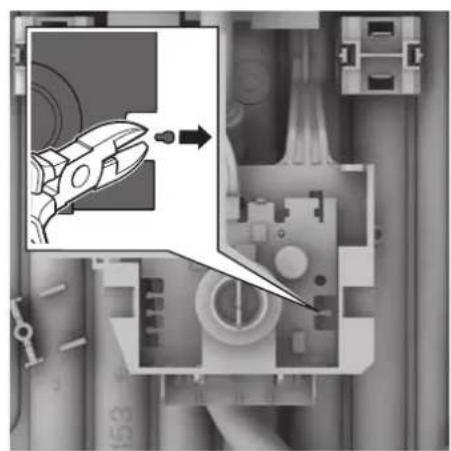

Remove the flow-rate limiter (Figure A) with low water pressure.
Explain the operation of the continuous-flow heater to the user.
If the continuous-flow heater does not have sufficient water flow due to low water line pressure in your domestic plumbing system, remove the flow-rate limiter (Figure A).
Technical data
| RDE 1821415 | ||
| Rated output | kW | 1821 |
| Rated voltage | V 400 | |
| Fuse protection | A | 32 |
| Minimum conductor cross-section | mm2 | 4 |
| Warm water flow at rated outputwith temperature increase from | ||
| 12 °C to 38 °C | l/min | 9.911.6 |
| 12 °C to 60 °C | l/min | 5.46.3 |
| Start-up flow | l/min | 2.6 |
| Start-up flow pressure * | MPa (bar) | 0.025 (0.25) |
| Application area in waterspecific electric resistance at 15 °C | Ωcm | ≥1300 |
| Rated pressure | MPa (bar) | 1.0 (10.0) |
| Maximum permissible supply temperature | °C | 55 |
| Maximum mains impedance at connection point | Ω | ≤0.244 |
| * The pressure loss on the mixer must also be added | ||

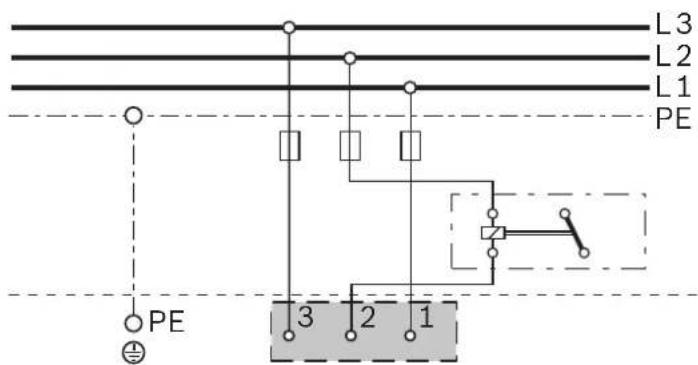

Priority circuit for the combination with electrical storage heaters (Figure B):
For operation with a priority circuit, a special load shedding relay BZ 45L20 (special accessory) is required. Other existing load shedding relays, with the exception of electronic load shedding relays, may malfunction.
The control electronics must be coded when operated with a load shedding relay (Figure C).

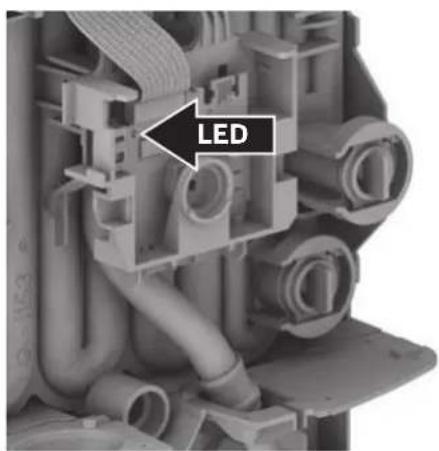

Status display on the appliance (Figure D)
LED Appliance status
| Off Off |
| Lights up Ready |
| Slow flash (1/s) Appliance is heating |
| Fast flash (4/s) Desired water temperature is not reached (water flow too high for appliance rating). |
Operation with prewarmed water (solar heated)
The continuous-flow heater can only heat prewarmed water to a max. of 60 °C . If the cold water supply exceeds a temperature of 55 °C , the water will not be warmed any further.
Important: The cold water supply temperature must not be higher than 55 °C!
If the cold water supply exceeds a temperature of 60 °C , a circuit breaker will trigger and shut the appliance off. Therefore, the residential plumbing must be equipped with a thermostatic premixer (e.g. special accessory BZ 45T20) that will limit the cold water supply temperature to a max. of 55 °C by appropriately mixing in cold water.
Special accessories
▶Pipe kit BZ 45U20: for use of the continuous-flow heater as an under sink appliance
▶Priority switch (load shedding relay) BZ 45L20: for operation with a priority circuit
Mounting kit BZ 45K23: for surface mount installation
▶Thermostatic premixer BZ 45T20: for installation in the domestic plumbing when using preheated water
Operating instructions
Please read the operating instructions carefully before you use the appliance!
Safety information
This appliance is intended for domestic use or for household-based non-commercial applications. Household-based applications include, e.g. usage in employees catering facilities for shops, offices, agricultural and other commercial operations, as well as usage by guests of guest houses, small hotels and similar residential establishments.
Risk of electric shock!
Switch off the mains voltage supply immediately if a fault occurs.
We do not accept liability for damage resulting from failure to heed these instructions.
The continuous-flow heater may only be connected and put into operation by a qualified professional.
Repairs may only be undertaken by a suitably qualified specialist to avoid potential sources of danger.
The continuous-flow heater may only be installed in a frost-free room.
▶Persons (including children) with diminished bodily, sensory or mental perception, or those who lack knowledge or experience should not operate the appliance, unless they are monitored or have received instruction concerning use of the appliance by persons responsible for their safety.
Keep children away from the appliance. Please monitor children to ensure that they do not play with the appliance.
The mixer and the warm water pipe may be hot.
Please switch off all fuses immediately if a malfunction occurs. Immediately shut off the cold water supply to the appliance should it leak. The malfunction can only be repaired by a specialist or an authorised service agent.
Your new appliance
The electronic continuous-flow heater "ComfortElectronic" is intended exclusively for heating water which flows through the appliance.
The continuous-flow heater switches on and heats the water when the warm water tap is opened. It switches off as soon as the tap is closed.
Operating the continuous-flow heater

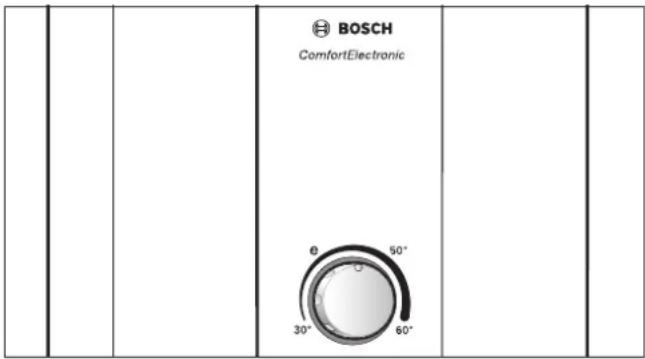

Selecting shower temperature
You can select the desired temperature by turning the continuously variable rotary knob, which can be adjusted from 30 °C to 60 °C.
Conserving energy and water
Mixing in of cold water in the fitting requires unnecessary water and energy. You should therefore set the desired temperature directly on the continuous-flow heater and then open the water tap.
In “e” position the appliance is operated economically.
Using the appliance after switching off the water supply
▶Switch off the appliance (unscrew the fuse in the house electrical installation).
▶Open the warm water tap and keep it open until the air has been completely forced out of the water pipe.
▶Switch the fuse back on again.
The appliance is now ready to operate.
Cleaning
▶Only wipe off the appliance using a moist cloth. Do not use acidic or abrasive cleaning materials.
▶Do not use a steam cleaner.
Customer Service
We ask you to always provide the E-No. and the FD-No. of your appliance when calling in a customer service engineer.
You will find the numbers on the inner side of the fold up operating panel on the continuous-flow heater.
ROBERT BOSCH HAUSGERÄTE GMBH
| E-Nr. | FD |
A fault, what to do?
If your appliance does not operate as required, it is often due to a very minor problem. Please check whether you can remedy the fault yourself by using the following guidelines. You will save yourself the costs of an unnecessary visit by customer service personnel.
Fault Cause Solution Who
| Water flow-rate is too low. The filter in either the water tap or the showerhead is clogged | Remove the filter and either clean it or descale it. | Customer |
| The filter in the corner regulating valve is clogged. | Get a servicing expert to clean the filter. | Servicing expert |
| The desired water temperature is not reached. | The continuous-flow heater is connected to a thermostatically-controlled water tap. | Set the temperature on the continuous-flow heater to “60°”. |
| The power limit has been reached. Water flow-rate is too high and/or the cold water supply temperature is too low. | Reduce the flow-rate at the water tap supply. | |
| By a qualified professional: use the angle valve to regulate the flow-rate.Check the flow-rate limiter or replace it with a smaller one. | ||
| The water is not sufficiently warm. | The fuse in the house electrical installation has tripped/blown. | Check the fuse in the house electrical installation. |
| The appliance's automatic circuit breaker has been tripped. | Get the appliance's automatic circuit breaker checked by an electrician. Check the permissible supply temperature. | |
| The power limit has been reached. Water flow-rate is too high and/or the cold water supply temperature is too low. | By a qualified professional: use the angle valve to regulate the flow-rate.Check the flow-rate limiter or replace it with a smaller one. | |
| The power selector switch is set incorrectly. | Set the power selector switch to suit the appliance. | |
| From time to time, cold water flows out. | The air sensor in the appliance detects air in the water and momentarily switches the heating element off. | After a few seconds, the continuous-flow heater automatically goes back into operation. |
| Winter operation: The desired water temperature leaving the tap is no longer reached. | The supply temperature has reduced. | Reduce the water flow on the taps until the desired water temperature is reached. |
| The appliance does not start (heat), no water flows | Power failure or initial start-up. | Starts rinsing:Open the warm water tap and allow water to flow for at least 1 minute (flow-rate at least 6 litres per minute). Only then (for safety reasons) will the appliance begin to heat.Should the appliance not start because of a reduced flow-rate, remove the perlator, shower head or similar before start and repeat the process. |
If the fault could not be eliminated, please call customer service.
Disposal
This appliance is labelled in accordance with European Directive 2012/19/EG concerning used electrical and electronic appliances (waste electrical and electronic equipment – WEEE).
The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.
Please ask your specialist retailer about current disposal facilities.
Guarantee
The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold.
Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.
Subject to change without notice.
Kundendienst – Customer Service
Jebel Ali Free Zone – Dubai
Tel.: 04 881 4401
mailto:service-ua@bshg.com
www.bosch-home.com
AL Republika e Shqiperise, Albania
AERTECH SH.P.K.
Rr. Sami Frasheri
Pallati i Aviacionit te vjetar
Shkalla 1, Hyrja 2
Tirana
Tel.: 067 337 4106
Fax:071 733 222
mailto:volina@ovi.com
European Trade Center Building,
5th floor
1784 Sofia
Tel.: 02 892 90 47
Fax: 02 878 79 72
mailto:informacia.servis-bg@
bshg.com
www.bosch.home.bg
20/F, CN International Mansion
No. 129 Zhongshan Road
210005 Nanjing, Jiangsu Province
Service Tel.: 400 885 5888
Careline Tel.: 800 828 0088
Fax:02584701672
mailto:careline.china@bshg.com
www.bosch-home.cn
Central Branch Service 17 km E.O.
Athinon-Lamias & Potamou 20
14564 Kifisia
Unit 1 & 2, 3rd Floor
North Block, Skyway House
3 Sham Mong Road
Tai Kok Tsui, Kowloon
Hong Kong
Tel.: 2565 6151
Fax: 2565 6681
mailto:bshhkg.service@
bshg.com
HR Hrvatska, Croatia
BSH kućni uređaji d.o.o.
Kneza Branimira 22
10000 Zagreb
Tel.: 01 640 36 09
Fax: 01 640 36 03
mailto:informacije.servis-hr@
bsha.com
www.bosch-home.com/hr
LU Luxembourg
TH Prathet Thai, Thailand
BSH Home Appliances Limited
TPS Building
1023, 1st floor, Pattanakarn Road
Suan Luang
Bangkok 10250
Tel.: 02 769 7970
Fax: 02 769 7971
TR Türkiye, Turkey
www.bosch-home.com/tr
UA Ukraine, Україна
