20200 - Kettle KORONA - Free user manual and instructions

Product Type	Electric Kettle
Brand	Korona
Model	20200
Capacity	1.7 liters
Power	2200 W
Voltage	220-240 V ~ 50/60 Hz
Housing Material	Stainless steel
Heating Element	Concealed, rapid boil
Auto Shut-Off	Yes, after boiling
Boil-Dry Protection	Yes
Base Type	360° cordless swivel base
Water Level Indicator	Yes, with markings
Filter	Removable limescale filter
Lid Opening	One-button, wide mouth
Dimensions (HxWxD)	22.5 x 22.0 x 16.5 cm
Weight	1.2 kg
Cable Length	70 cm
Warranty	2 years

Frequently Asked Questions - 20200 KORONA

What is the capacity of the Korona 20200 kettle?

The kettle has a capacity of 1.7 liters, perfect for boiling water for several cups of tea or coffee.

Does the kettle have automatic shut-off?

Yes, the kettle features automatic shut-off when the water reaches boiling point, ensuring safety and energy efficiency.

How do I clean the limescale filter?

The removable limescale filter can be rinsed under running water or cleaned with a soft brush. For heavy buildup, soak in a descaling solution.

Can I boil less than the minimum water level?

No, boiling less than the minimum indicated level may damage the kettle due to boil-dry protection not engaging fully. Always fill at least to the minimum mark.

Is the kettle made of stainless steel or plastic?

The Korona 20200 has a stainless steel housing, which is durable and easy to clean.

What type of base does it have?

It features a 360° cordless swivel base, allowing easy placement and lifting from any angle.

How do I descale the kettle?

Use a commercial descaling agent or a mixture of white vinegar and water. Boil the solution, let it sit for 15 minutes, then rinse thoroughly.

Why does the kettle turn off before boiling?

This may be due to boil-dry protection if there is insufficient water, or a buildup of limescale on the heating element. Descaling often resolves this.

Can I use the kettle to reheat cold water?

Yes, you can add cold water to already boiled water, but it is more efficient to start with fresh cold water each time.

What is the warranty period?

The Korona 20200 kettle comes with a 2-year warranty against manufacturing defects. Keep your receipt for proof of purchase.

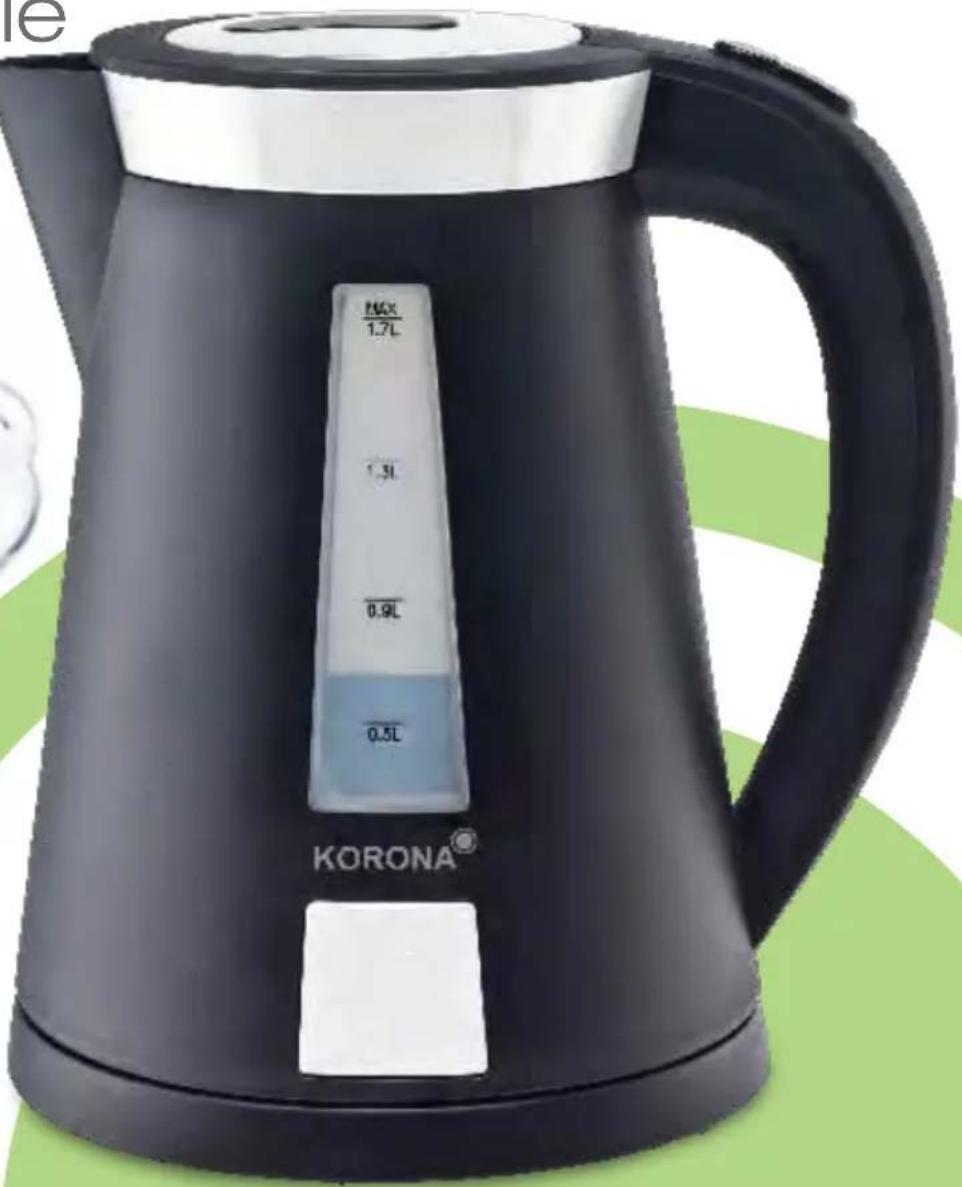

USER MANUAL 20200 KORONA

Glass teacup filled with amber tea, placed on a saucer with a green leaf beside it (no text or symbols visible)

CE

Wasserkocher

20200

Produktbeschreibung

1. Spout with filter
2. Lid
3. Lid opening button
4. On/Off button
5. Water level indicator
6. Indicator light
7. Base
8. Power cord and plug
9. Cable guide (rear side)
10. Cable storage (rear side)

Intended Use

Before use, please read these instructions carefully and keep them in a safe place for future reference. When passing on the appliance to a third party, make sure to include these instructions for use.

This appliance is only intended for boiling water. Never attempt to heat any other liquids in it. This appliance is only intended for private household use!

Safety:

This symbol identifies hazards which may cause injuries!

This symbol warns of hot surfaces. Risk of burns!

This symbol identifies electric shock hazards!

This symbol warns of evaporating steam!

General Safety Instructions

• Manufacturer takes no responsibility for any damage caused by incorrect use.
- Incorrect or improper use can damage the appliance and cause injuries to the user.
- Before connecting this appliance to the mains, make sure your local matches the technical data of the appliance. Otherwise the appliance may overheat and get damaged.

Caution! Danger of electric shock!

• Never put the appliance, cord or plug into water or any other liquid.
• Do not use the appliance near a sink or wash basin.
• Do not use the appliance with wet hands.
• Do not use the appliance outdoors.

An electric appliance is not a toy!

• Never leave the appliance unattended during use.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Always unplug your appliance when it is not in use, and before cleaning.
• Always pull the plug - not the cord.
- Keep the appliance and the cord well away from any hot surfaces to avoid any damage to the appliance.
- Make sure the cord may not inadvertently be pulled or cause anyone to trip when in use. Do not allow the cord to hang over sharp edges.
- Do not bend the cord or wind it round the appliance.

Do not use the appliance,

• if the cord is damaged.
• in case of malfunction.
- if the appliance was dropped or is damaged otherwise.

Have it checked and, if necessary, repaired by a qualified person/Customer Service.

Never attempt to make any modifications to or repair the appliance yourself.

• Only use accessories evaluated for use with this appliance.
  • Never attempt to drive any objects into the appliance.
  • Never attempt to open the housing yourself!
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Special Safety Instructions

Warning! To avoid the possibility of injury/damage to the appliance, electric shock, and risk of burns.

• Your kettle is only intended for boiling water. Never attempt to heat any other liquids in it.
• Place the appliance on a even and heat-resistant surface.
• Do not place the kettle near any inflammable objects.
• Never exceed the maximum filling level (1.7L) to avoid any boiling water from spilling from the kettle. Danger of serious burns!
  • Never open the lid during operation.
  • Always remove the kettle from the power base when filling it with water.
• To prevent the kettle from boiling dry, make sure the water level is never below minimum filling (0.5 L).
• The automatic switch-off function will automatically switch off the appliance as soon as the boiling temperature has been reached, provided that you have thoroughly closed the lid. Otherwise boiling water could spill.
• Your kettle also features a boil-dry cut-out, which will switch off the kettle, should it accidentally be operated without water. In the event of such a safety cut-out unplug the appliance immediately and let it cool down for approx. 10 minutes. Afterwards, your kettle is ready for use again.
• Only use the appliance with the base provided.

Before First Use

• Remove all packaging material and check whether the appliance is complete.

• Fully unwind the power cord and make sure that the power cord underneath the appliance is clamped in the cable guide (9).

• Place the appliance on an even and heat resistant surface. Do not place it on top of a metal surface.

• Connect the appliance to a properly installed wall socket and boil 4-5 kettles of water using fresh water with each boiling cycle. Do not use this water but pour it away.

Warning: Plastic bags are a danger to toddlers and babies, therefore keep them away to avoid suffocation.

Operation

Your appliance is fitted (inside the spout) with a removable scale filter that prevents scale particles ending up in your beverage.

1. Open the lid (2) by pressing the lid opening button (3) and hold the kettle in an upright position to fill it with water. Make sure to fill in the MIN amount of water (0.5L) to avoid overheating.
   Info: The kettle can also be filled with water when the lid is closed by filling it through the spout (1).
2. Close the lid (2) and make sure it is properly closed.
3. Place the kettle onto the base (7) and make sure it properly fits onto the contact unit.
4. Connect it to the mains and switch on the water kettle by pressing the On/Off button (4) which is located underneath the lid opening button (3). The indicator light (6) inside the appliance lights up.
5. As soon as the water boils the appliance switches off automatically provided that you have thoroughly closed the lid (2). Otherwise boiling water could spill. The indicator light (6) switches off as well.
6. Lift the kettle off the base (7). The water is now ready for use.

You can stop the boiling process any time by pushing the On/Off button (4).

Attention: The boiling process is not stopped by only removing the unit from the power base. The unit must properly be switched off (0-position). Otherwise, once put back onto the base (7) the unit will resume the boiling process as the switch is still set to On-position.

Water left over from a previous boiling cycle can be re-used in the next boiling cycle. However, always make sure that the water level is not too low.

Always unplug the appliance after use.

Dry-boil cut-out

Your kettle is equipped with a boil-dry cut-out, which will switch off the automatically, should it accidentally be operated without water or by not observing the Minimum water level. In the event of such a safety cut-out unplug the appliance immediately and let it cool down for approx. 10 minutes. Afterwards, your kettle is ready for use again.

Cleaning and Care

⚠️ Before cleaning, always switch off the appliance and disconnect it from the mains and let it completely cool down.

Never immerse the appliance in water. Danger! Electric Shock!

Clean the body of the appliance with a moistened soft cloth.

Do not use any aggressive cleaning agents and/or other hard objects to clean the appliance.

Open the lid (2) and remove the filter. Clean it under running tap water, if necessary, with a soft nylon brush. Dry it afterwards and reinsert the filter into the spout.

DESCALING

Descale your appliance in regular intervals (approx. every 3 - 6 months), depending on the frequency of use and the local water quality.

Never use any sharp, pointed or metal objects to remove limescale built up in the kettle.

To remove limescale, use a common gentle descaler, which is suitable for your appliance.

After descaling, always boil 4-5 kettles of water, which you do not use but pour away.

Use fresh water with each boiling cycle. This procedure is necessary to remove any descaler residues in the kettle.

Note: Descaler mixtures should not be poured down enamel coated sinks.

Storage

After use and after the appliance has completely cooled down wind the power cable (8) around the cord storage (10).

Keep it away from children and store it in a clean and dry place.

Disposal Instructions

Waste electrical devices marked with this sign must not be disposed of with your household waste, but - according to the EU directive on Waste Electric And Electronic Equipment of 24th March 2005 - are to be collected separately. Therefore, please return this device at the end of its life cycle to special collection points for disposal or your local dealer.

Your Water Kettle 20200 is packed in a retail box. Such boxes are recyclable waste, i.e. they are reusable or recyclable.

Technical Data:

Voltage: 220 - 240V \~ 50 Hz

Rated Power: 1850 - 2200 W

Capacity: 1.7 Litre

Protection Class: I

Technical data subject to change!

Guarantee:

This product is guaranteed against defects in materials and workmanship for a period of 2 years.

This guarantee is not valid:

• if the appliance has not been used in accordance to the instructions
• for damages due to wear and tear (batteries, etc.)
• for damages that known by customer at time of purchase
  • for damages caused by owner

This guarantee does not affect your statutory right, nor any legal right you may have as a costumer under applicable national legislation governing the purchase of goods. In order to assert his/her right in a guarantee case during the guaranteed period, the customer must provide evidence of the date of purchase (receipt).

The guarantee is to be asserted against

KORONA electric GmbH, Sundern/Germany

Service Adress:

KORONA Service, Am Steinbach 9, 59872 Meschede, Germany

Telefon Hotline:

Mail:

web:

[phone]

[e-mail]

www.korona-electric.de

within 2 years after the date of purchase. In case of guarantee the customer is given the right to get the appliance repaired at our own or at an authorized shop. Further rights (due to guarantee case) are not given to the customer.
