BIC7 GK IX-3 - Cooker PKM - Free user manual and instructions

Product Type	Built-in electric cooker (oven and ceramic hob)
Brand	PKM
Model	BIC7 GK IX-3
Oven Dimensions (H x W x D)	59.5 x 59.5 x 57.5 cm
Hob Dimensions (H x W x D)	5.5 x 58.0 x 50.0 cm
Oven Net Weight	29.8 kg
Hob Net Weight	9.0 kg
Voltage / Frequency	220-240 V ~ 50 Hz
Maximum Power	9.00 kW
Energy Efficiency Class	A
Oven Usable Volume	70 L
Hob Material	Ceramic glass
Cooking Zones (BIC7 GK-IX3)	2x Ø165 mm (1200 W), 2x Ø200 mm (1800 W)
Residual Heat Indicator	Yes
Oven Functions	Bottom heat, top and bottom heat, defrost, grill, grill + fan, top heat + grill + fan, top + bottom heat + fan
Oven Door	Black glass, 2 panes
Body Cooling System	Yes
Oven Light Bulb	230 V, 25 W, E14, heat-proof (300°C)
Cleaning Recommendation	Mild detergents, no abrasives, no steam cleaner
Spare Parts Availability	Original parts via aftersales service

Frequently Asked Questions - BIC7 GK IX-3 PKM

How do I clean the ceramic hob?

Use a damp cloth with mild detergent. For stubborn residues, use a special ceramic glass cleaner. Avoid abrasive or organic detergents (lemon juice, vinegar). Always keep the hob clean for optimal heat transfer.

What should I do before first use?

Remove all packaging and clean the oven interior with warm water and washing-up liquid. Heat the empty oven at 250°C for 30 minutes to burn off protective substances. Some smoke and odor are normal during this process.

How do I replace the oven light bulb?

Disconnect the appliance from the mains. Remove the bulb cover, clean it, and replace the bulb with a heat-proof 230V/25W E14 oven bulb (300°C). Reinstall the cover.

Why is my oven not heating?

Check the main fuse and ensure the appliance is properly connected. Verify that the oven function and temperature knobs are set correctly. If the problem persists, contact the aftersales service.

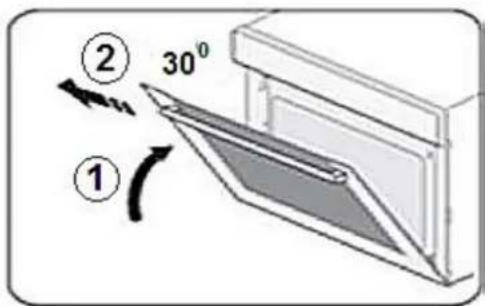

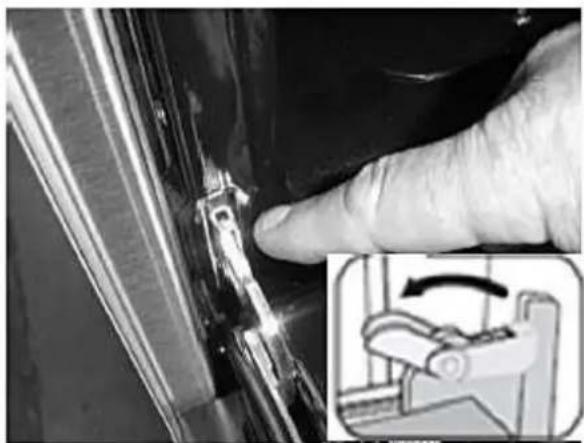

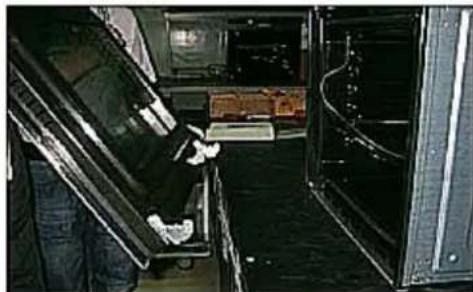

How can I remove the oven door?

Open the door fully. Pull the hinge locks forward until they stop. Close the door to a 30° angle, lift it off the hinges. Be careful of injury from exposed hinges.

What is the maximum weight on the hob?

Do not place cookware heavier than 25 kg on the hob. The oven door can support a maximum of 15 kg.

How do I save energy when using the oven?

Use proper cookware with thick flat bases. Cover pots when cooking. Switch off the oven 5-10 minutes before the end of cooking to use residual heat. Avoid opening the door frequently.

Can I use aluminum foil in the oven?

Do not use aluminum foil for grilling or line the oven base with it, as it reflects heat and may damage the appliance. Only use foil in baking trays if recommended.

What are the electrical connection requirements?

The appliance requires a 220-240V~50Hz supply. Connection must be performed by a qualified professional. An all-pole disconnecting device (switch or fuse) with at least 3 mm contact gap is required.

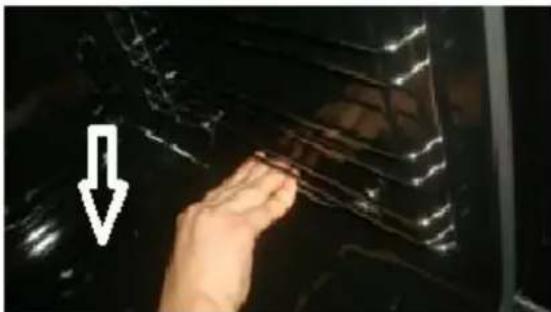

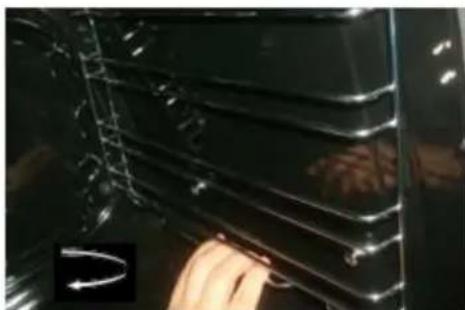

How do I remove the guide rails?

Press the bottom of the guide rail until it unlocks. Hold it vertically and lift it out of the oven. Clean the rails with warm water and mild detergent.

USER MANUAL BIC7 GK IX-3 PKM

Front view of a stainless steel oven with multiple rotary knobs and a closed door (no visible text or symbols)

BIC7 GK-IX3

Four circular red objects on a dark background, resembling stylized ovens or screens (no text or symbols visible)

BIC7-2KB GK-IX3

Four circular red objects on a dark background, possibly electoral or electrical components (no text or symbols visible)

Deutsch

English

Seite 2

Page 28

Technical diagram of a microwave oven with labeled parts, showing internal components and mounting points.

Four circular diagrams labeled A, B, and C on a dark background, with no visible text or symbols.

nur BIC7-2KB GK-IX3

A/B

Diagram of a circular device with labeled buttons and indicators around it, including F, I, U, and control symbols.

Close-up of a hand pressing a small mechanical component, with an inset showing a hand operating a device (no visible text or symbols)

Interior view of a vehicle showing a person operating the cab, with no visible text or symbols

Abb. 2

Transparent rectangular device with internal components and a small red object on top (no visible text or symbols)

Close-up of a black car with visible headlights and side brackets (no text or symbols)

Person opening a black appliance with a red arrow pointing to the lid (no visible text or symbols)

Interior view of a 3D printer with open lid and green screen (no visible text or symbols)

Close-up of a mechanical assembly with metal components and a tool, no visible text or symbols

Close-up of a hand using a tool to apply material on a dark surface, with no visible text or symbols.

Close-up of a hand holding a black electronic device with two red-circled annotations (no visible text or symbols)

Close-up of a hand holding a transparent plastic sheet, with a white arrow pointing downward (no text or symbols)

Close-up of a hand interacting with stacked black plastic panels, no visible text or symbols

Close-up of hands holding a small electronic component or tool, no visible text or symbols

Dear customer! We would like to thank you for purchasing a product from our wide range of domestic appliances. Read the complete instruction manual before you operate the appliance for the first time. Retain this instruction manual in a safe place for future reference. If you transfer the appliance to a third party, also hand over this instruction manual.

Index

1. Safety instructions.... 30
2. Installation....33

2.1 Unpacking and positioning....33
2.2 Installation/hob 34
2.3 Installation/oven.... 36
2.4 Electrical connection....37

1. Main components....40

2. Operation.... 41

4.1 Before the first use 41
4.2 Control panel.... 41
4.3 Extra cooking zones.... 42
4.4 Oven....42
4.5 Helpful hints.... 43
4.6 How to save energy 44

1. Cleaning and maintenance 45

5.1 Replacing of the illuminant 45
5.2 Removing of the door....46
5.3 Removing of the glass panel 47
5.4 Removing of the guide rails 48
5.5 Trouble shooting....49

1. Technical data....50
2. Waste management.... 51
3. Guarantee conditions....52

EU - Declaration of Conformity

★ The products, which are described in this instruction manual, comply with the harmonized regulations.
★ The relevant documents can be requested from the final retailer by the competent authorities.

The figures in this instruction manual may differ in some details from the current design of your appliance. Nevertheless follow the instructions in such a case. Delivery without content.

i Any modifications, which do not influence the functions of the appliance. shall remain reserved by the manufacturer. Please dispose of the packing with respect to your current local and municipal regulations.
The appliance you have purchased may be an enhanced version of the unit this manual was printed for. Nevertheless, the functions and operating conditions are identical. This manual is therefore still valid. Technical modifications as well as misprints shall remain reserved.

1. Safety instructions

Read the safety instructions carefully before you operate the appliance for the first time. All information included in those pages serve for the protection of the operator. If you ignore the safety instructions, you will endanger your health and life.

⚠️ DANGER indicates a hazardous situation which, if ignored, will result in death or serious injury.

⚠ WARNING! indicates a hazardous situation which, if ignored, could result in death or serious injury.

CAUTION! indicates a hazardous situation which, if not avoided, may result in minor or moderate injury.

NOTICE! indicates possible damage to the appliance.

Store this manual in a safe place so you can use it whenever it is needed. Strictly observe the instructions to avoid damage to persons and property.
Check the technical periphery of the appliance! Do all wires and connections to the appliance work properly? Or are they time-worn and do not match the technical requirements of the appliance? A check-up of existing and newly-made connections must be done by an authorized professional. All connections and energy-leading components (incl. wires inside a wall) must be checked by a qualified professional. All modifications to the electrical mains to enable the installation of the appliance must be performed by a qualified professional.
i The appliance is intended for private use only.
The appliance is intended for cooking in a private household only.
i The appliance is intended for indoor-use only.
i The appliance is not intended to be operated for commercial purposes, during camping and in public transport.
i Operate the appliance in accordance with its intended use only.
Do not allow anybody who is not familiar with this instruction manual to operate the appliance.

This appliance may be operated by children aged from 8 years and above as well as by persons with reduced physical, sensory and mental capabilities or lack of experience and knowledge if they are supervised or have been instructed concerning the safe use of the appliance and do comprehend the hazard involved. Children must not play with the appliance. Cleaning and user-maintenance must not be carried out by children unless they are supervised.

DANGER!

1. The appliance must be connected to the mains by a qualified professional, who is familiar with and adheres to the local requirements and supplementary regulations of your electricity supplier
2. All electrical work must be carried out by a qualified professional. Do not modify the energy supply. The connection must be carried out in accordance with the current local and legal regulations
3. Do not connect the appliance to the mains if the appliance itself or the power cord or the plug are visibly damaged.
4. Never try to repair the appliance yourself. If the appliance does not operate properly, please contact the aftersales service. Original spare parts should be used only.
5. When the power cord is damaged, it must be replaced by the manufacturer or an authorized aftersales service or a qualified professional only.

WARNING!

1. Disconnect the appliance from the mains before you clean or maintain it.
2. The appliance must always be grounded and protected corresponding to the requirements of your local energy supplier. The main current circuit must be equipped with a safety shut-down device.
3. All modifications to the electrical mains to enable the installation of the appliance must be performed by a qualified professional.
4. In case of an event caused by a technical malfunction, disconnect the appliance from the mains. Report the malfunction to your service centre so it can be repaired.
5. If the cooking zones are cracked or damaged in any way, switch off the appliance immediately and disconnect it from the mains (fuse box). Risk of electric shock.
6. Do not carry out any modifications to your appliance.
7. Do not repair the appliance yourself. Repairs carried out by unauthorized persons can cause serious damage. Always contact the nearest service centre. Only original spare-parts should be used for repairs.

8. Unattended cooking with fat or oil can be dangerous and may result in fire. NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket

9. The room the appliance is installed in must be dry and well-ventilated. When the appliance is installed, an easy access to all control elements is required.

10. The vencering of cabinets has to be fixed with a heat-resistant glue, that is able to withstand a temperature of 100^ C.
11. Adjacent furniture or housing and all materials used for installation must be able to resist a temperature of min. 85 C above the ambient temperature of the room the appliance is installed in during operation.
12. Do not install the appliance in rooms or at areas which contain flammable substances as petrol, gas or paint. This warning also refers to the vapour these substances release.
13. Cooker-hoods should be installed according to their manufacturers' instructions.
14. Do not heat your rooms or dry your washing by use of the appliance.
15. Do not install the appliance near to curtains or upholstered furniture. RISK OF FIRE!
16. Do not store any objects in the oven. RISK OF FIRE!
17. Household equipment and connection leads must not touch the hot oven or the hob as the insulation material is usually not heat-resistant.
18. Never use a steam cleaner to clean the appliance. The steam will cause serious damage to the electric components of the appliance. Risk of electrical shock!
19. The accessible parts of the oven become hot during operation, so keep children away from the operating appliance. Touching the appliance while it is operating can cause serious burns.
20. Children must not play with the appliance. Always supervise children if they are near the appliance.
21. Only use hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.

CAUTION!

1. The appliance becomes hot while operating. Do not touch the hot components inside the oven.
2. Do not use any aggressive, abrasive and acrid detergents or sharp-edged items to clean the door of the oven. Otherwise you may scratch the surface and damage the glass.
3. Do not put any cookware or backing trays directly on the base inside the oven. Do not cover the base inside the oven with aluminium foil.
4. The hob should be clean at every time. Soiled cooking zones do not transfer the heat correctly.
5. Protect the hob against corrosion.
6. Switch off soiled cooking zones.

7. Switch off the complete hob if any damage or malfunction occurs.

8. Do not leave pans with prepared dishes based on fats and oils unattended on a operating cooking zone; hot fat can spontaneously catch fire.

9. Keep the door of the oven always closed if you use one of the oven-functions.
10. Do not put any cookware directly on the base inside the oven. Use the trays.
11. The interior parts of the oven become extremely hot. Do not touch any parts inside the oven if you handle your cookware.
12. Be careful if you open the door. Do not get in contact with the hot parts of the oven or the steam, which will escape the oven.
13. Always use oven-gloves.
14. This appliance complies with the current European safety legislation. We do wish to emphasize that this compliance does not negate the fact that the surfaces of the appliance will become hot while operating and will retain and emit heat even if it has stopped operating.

NOTICE

1. When you move the appliance, hold it at its base and lift it carefully. Keep the appliance in an upright position.
2. Never use the door for moving the appliance as you will damage the hinges.
3. The appliance must be transported and installed by at least two persons.
4. When you unpack the appliance, you should take note of the position of every part of the interior accessories in case you have to repack and transport it at a later point of time.
5. Do not operate the appliance unless all components are installed properly.
6. Do not stand or lean on the base, the drawers, the doors etc of the appliance.
7. The air vents of the appliance or its built-in structure (if the appliance is suitable for being built-in) must be completely open, unblocked and free of any kind of dirt.
8. Do not put any cookware with a weight of more than 25 kg on the hob.
9. Do not put any heavy items onto the open door of the oven. Do not put any cookware with a weight of more than 15 kg on the door of the oven. Do not lean against the open door of the oven as you will damage the hinges.

2. Installation

2.1 Unpacking and positioning

1. Unpack the appliance carefully. Dispose of the packaging as described in chapter waste management.

2. Completely remove the transport-protection. Be very careful and do not use any aggressive or abrasive detergents to remove residuals of the transport-protection.

3. Check that the appliance and the power cord are not visible damaged.
4. Do not install the appliance in a place where it may come in contact with water or rain; otherwise the insulation of the electrical system will be damaged.
5. Install the appliance on a level, dry and solid floor. Check the correct installation with a bubble level.
6. The nameplate is situated inside the appliance or at the back.

2.2 Installation/hob

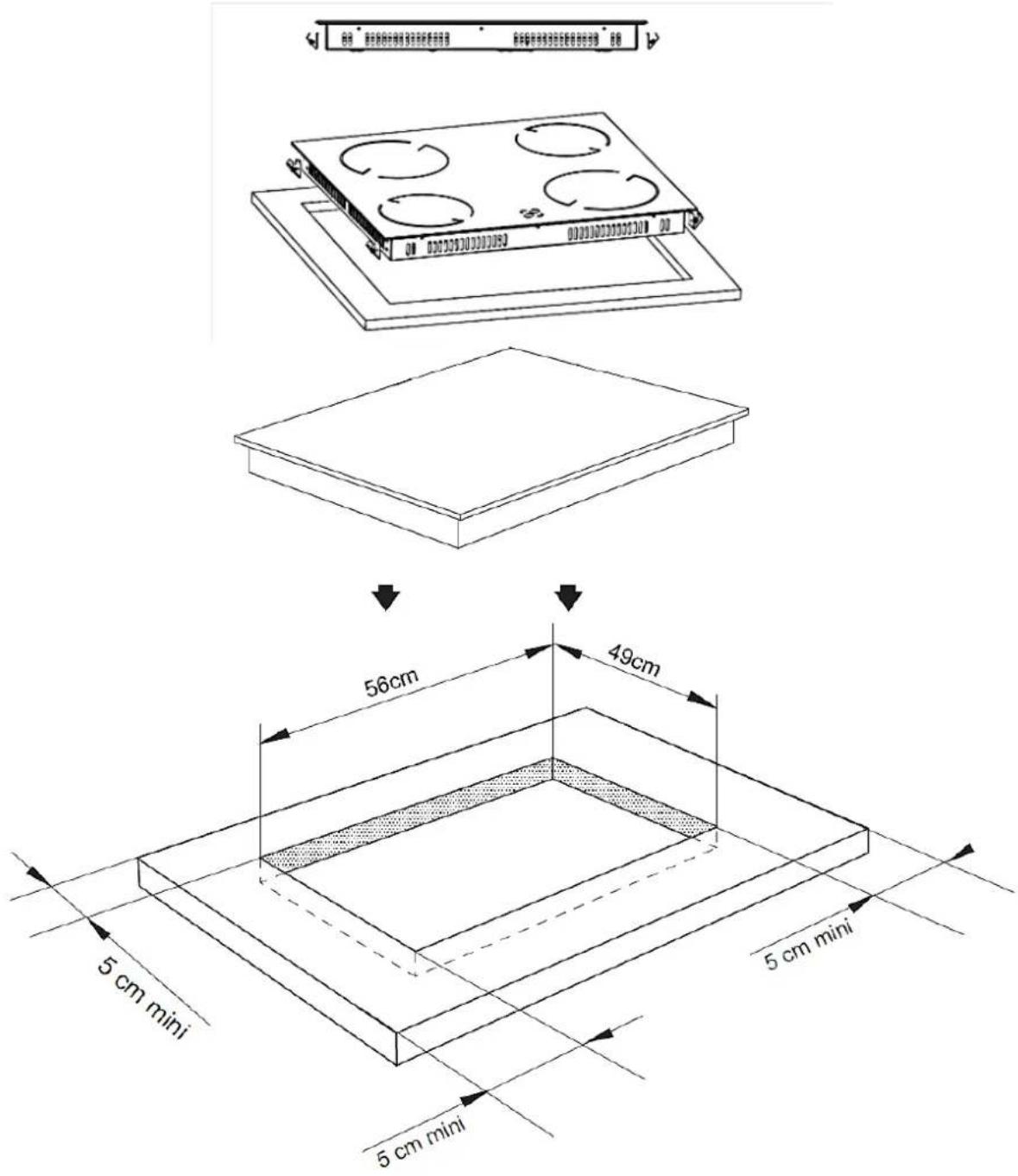

1. Make an installation-opening with the dimensions given on the drawing below).
2. Fix the supplied scaling tape on the corresponding place of the hob.
3. Check the seal for perfect fit and overall cover. Insert the electric hob in the opening and align it correctly.
4. Using a standard screwdriver, tighten the tension clamps evenly starting at the centre and moving diagonal, until the built-in rim is tight on the worktop.
5. The hob must be vented properly. Air inlet and air outlet must not be blocked.

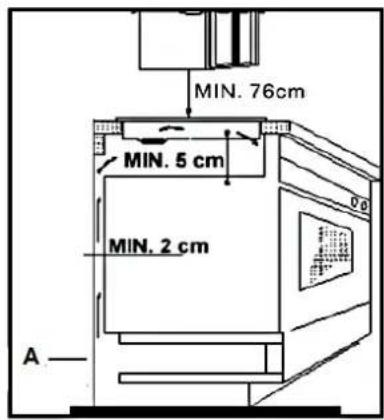

Min. safety distance between hob and a cupboard above = 76 cm.

A: Air inlet

MIN. 76cm MIN. 5 cm MIN. 2 cm A

2.3 Installation/oven

DANGER!

The appliance must be connected to the mains by a qualified professional, who is familiar with and adheres to the local requirements and supplementary regulations of your electricity supplier.

All electrical work must be carried out by a qualified professional. Do not modify the energy supply. The connection must be carried out in accordance with the current local and legal regulations

1. Turn off the energy supply ( fuse box).

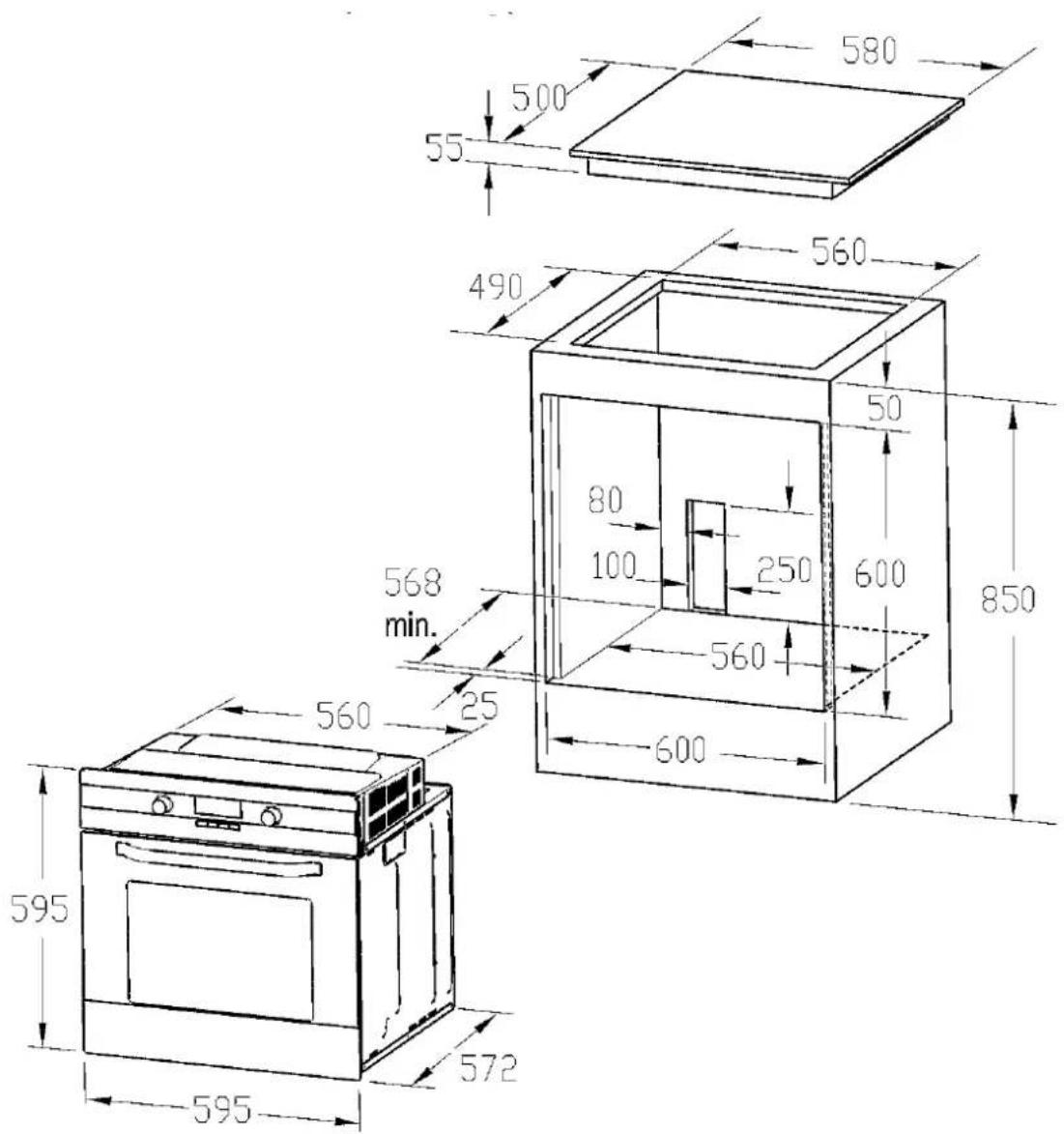

2. Provide an opening meeting the dimensions on the drawing below.
3. Place the hob in the built-in opening.
4. Place the oven near the built-in opening.
5. Connect the oven to the mains.
6. Partially insert the oven into the opening and connect the oven to the hob. The connectors at the end of the group of wires coming out of the hob should be inserted into the appropriate sockets of the control panel of the oven according to their colour, i.e. a black connector should be inserted into a socket marked with the same colour.
7. The grounding wire of the hob must be connected with the ground clamp of the oven.
8. Complete the installation of the appliance and fix the oven with 4 screws.

580 500 55 490 560 50 80 100 250 600 568 min. 560 25 600 850 595 572 595

2.4 Electrical connection

Instructions for the installer (qualified professional)

The cooker is manufactured to work with three-phase alternating current (400V3N\~50Hz). Remember that the connection wire should match the connection type and the power rating of the cooker. The connection cable must be secured in a strain-relief clamp. The ground wire must be connected to the marked clamp of the terminal. The electric supply of the appliance must be equipped with an emergency switch with a distance between the contacts of at least 3 mm which disconnects the entire appliance from the mains in a case of emergency. Read the information on the rating label and the connection diagram before connecting the appliance to the mains.

When the socket is not accessible for the user or a fixed electrical connection of the appliance is required, an all-pole disconnecting device must be incorporated during installation. Disconnecting devices are switches with a contact opening distance of at least 3 mm. These include LS-switches, fuses and protectors (EN 30335).

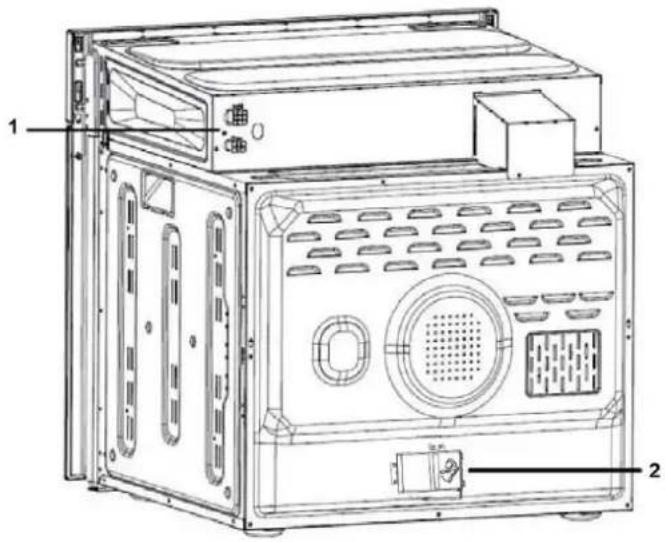

Technical diagram of a microwave oven with labeled parts 1 and 2

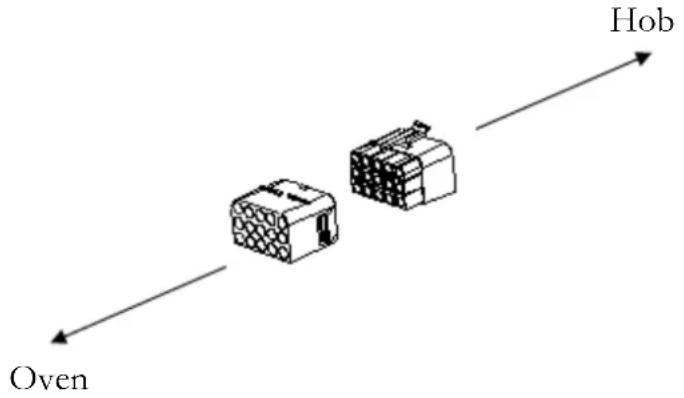

1 Hob connector; protective conductor
2 Mains socket

→ Connection diagram

Voltage heating elements 230V. Any kind of connection: the safety wire must be connected to the ⏻ PE terminal.

1 For 230 V earthed one-phase connection, bridges connect 1-2-3 terminals and 4-5 terminals Protective ground to
2 For 400/230V earthed two-phase connection, bridges connect 2-3 terminals and 4-5 terminals Protective ground to

1 2 3 4 5 6

Recommended type of connection lead.

H05VV-F3G6,0

H05VV-F4G4,0

3 For 400-230V earthed three-phase connection, bridges connect 4-5 terminals, phases in succession 1,2 and 3, Neutral to 4-5

Protective ground to

L1=R, L2=S, L3=T

H05VV-F5G2,5

N= Earth

PE= earth wire terminal

1. Check that the technical data of your energy supply meet the values on the nameplate.
2. Your domestic circuit must be equipped with an automatic circuit breaker.
3. Do not attempt to repair the appliance yourself. Repairs carried out by unauthorized persons can cause serious damage. Always contact the nearest service centre. Original spare parts should be used only..

Electrical connection - hob

The hop works with a voltage of 230V AC. The electrical connection gets the power from the oven. Carry out the connection properly and as described on the drawing below.

Hob Oven

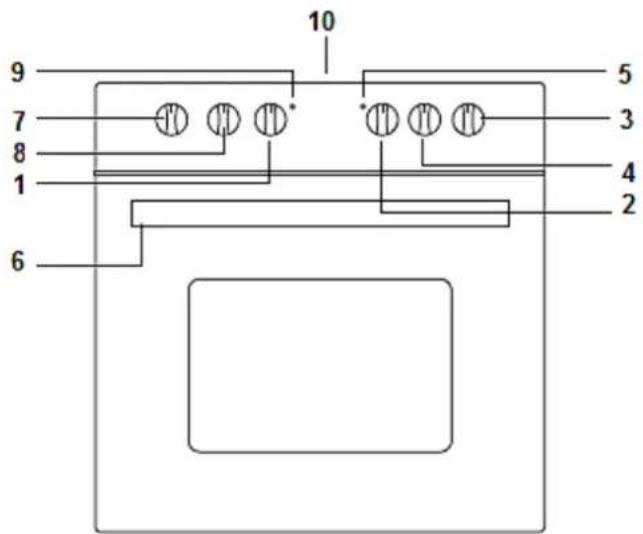

9 7 8 1 6 10 5 3 4 2

1 Oven-function selection knob
2 Oven-temperature control knob
3 Cooking zone control knob /front right
4 Cooking zone control knob /back right
5 Oven operation indicator lamp/orange
6 Oven door handle
7 Cooking zone control knob /front left
8 Cooking zone control knob /back right
9 Hob operation indicator lamp /red
10 High temperature indicator lamp /on the glass-ceramic panel

BIC7 GK-IX3

1 2 3 4

1 ∅ 165 mm; 1200W

2 ∅ 200 mm; 1800W

3 ∅ 165 mm; 1200W

4 ∅ 200 mm; 1800W

BIC7-2KB GK-IX3

2 1 3 4

1 ∅ 165/270 mm; 1100/2000W

2 ∅ 165 mm; 1200W

3 ∅ 140/220 mm; 1000/2200W

4 ∅ 165 mm; 1200W

4.1 Before the first use

1. Remove all packaging material.
2. Clean the oven inside from all protective agents.
3. Take out the supplied accessories and clean them with warm water and washing-up liquid.
4. Switch on the room ventilation or open a window.
5. Let the oven operate (250 ^0 C) for 30 minutes. Now a little bit of smoke and odour may be generated for approx. 15 minutes. This is normal. They are generated by the substance, that protects your appliance against damage caused by the shipment from the manufacturer's works.
6. NOTICE! Clean the oven with warm water and washing-up liquid only.

4.2 Control panel

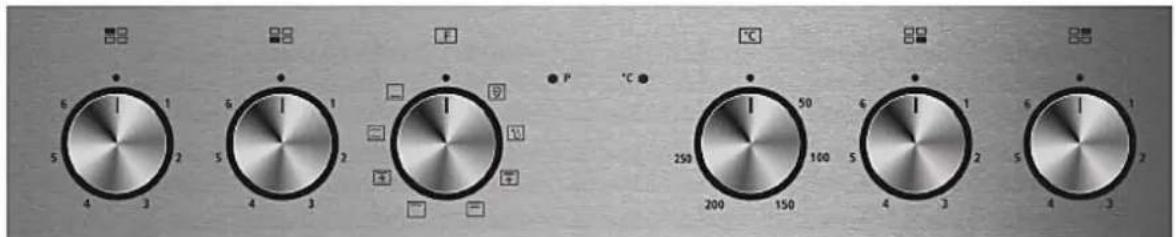

6 1 5 2 4 3 F 9 P °C 50 250 100 200 150 6 1 5 2 4 3 1 6 1 5 2

A Cooking zone back/left. Turn clockwise/anticlockwise to switch on.
B Cooking zone front/left. Turn clockwise/anticlockwise to switch on.
C Oven functions.
D Temperature control/oven from 50° to 250° C.
E Cooking zone front/right. Turn clockwise/anticlockwise to switch on.
F Cooking zone back/right. Turn clockwise/anticlockwise to switch on.

◆ Always keep the cooking zones clean; otherwise the energy is not transferred completely.
◆ Protect the hob from corrosion.
❖ Switch off the cooking zones immediately after operation.

4.3 Extra cooking zones

Four circular diagrams labeled A, B, and C on a dark background, with no visible text or symbols.

BIC7-2KB GK-IX3 only

A/B

Turn the knob clockwise to the symbol Ⓞ to activate the oval (A) or dual (B) cooking zone After activation turn the knob clockwise or anticlockwise to set the power level.

6 1 5 2 4 3

4.4 Oven

The oven can be warmed up using the bottom and top heaters. The operation of the oven is controlled by the oven function knob. To set a function you should turn the knob to the desired position.

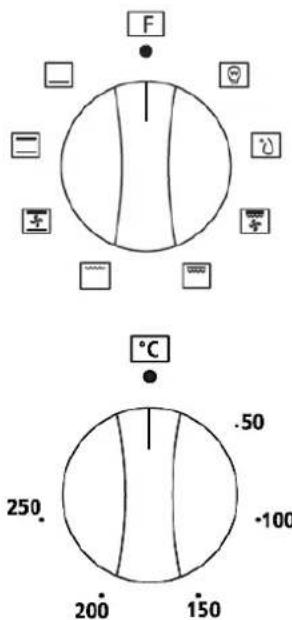

F 250° -50 -100 200 150 °C

To select a temperature, use the temperature regulator knob to set the desired temperature. You can set the temperature within a range of 50-250°C. The oven can be switched off by setting both of these knobs to position "0".

Two signal lights (red and orange) indicate that the oven is operating.

The red light indicates that the oven is heating.
When the red light goes off the oven has reached the temperature you preset.
If a recipe recommends to place dishes in a warmed-up oven, place the dishes in the oven after the red light has gone off for the first time.
While the oven is used, the red light will go off and on temporarily to maintain the preset temperature.

◆ The green light indicates that the oven is operating.
The green light is also on, when the interior light of the oven is switched on.

Functions of the oven

50-250 ^0 C You can select a temperature from 50-250 ^0 C.

Switches on the internal light, e.g. when cleaning the oven.

Bottom and top heat.

Bottom and top heat and fan. When the temperature control is set to 0, just the fan operates and you can cool down food or the inside of the oven.

Grill and top heat. All grill components are on. Top heat is on.

Defrost. You can defrost frozen food. Defrosting time depends on size and weight of the food.

Grill and fan and top heat.. Accelerates grilling.

Grill and fan. Suitable four chicken or roasts.

Bottom heat only. Suitable for additional baking.

Grilling

1. Select a function marked with the grilling-pictogram.
2. Temperature for Grilling and Intensive-Grilling: 250^ C; temperature for Grill and fan: 200^ C.
3. When you grill your food on a grillage, also insert a drip tray to keep the appliance clean.
4. Always keep the door of the oven closed while grilling.
5. Turn your food over after half of the grilling-time.
6. Spread your food with a little bit of oil before grilling.
7. NOTICE! Do not use aluminium foil for grilling. Do not wrap your food in aluminium foil and do not cover the grillage with aluminium foil. The aluminium foil will reflect the heat of the grill so the appliance may be damaged.

4.5 Helpful hints

We recommend to use the supplied baking tray provided with your appliance.

It is also possible to bake in cake tins and trays bought somewhere else. For baking it is better to use black trays which conduct heat better and shorten the baking time.

◆ Shapes and trays with bright or shiny surfaces are not recommended when using the conventional heating method (top and bottom heaters). The use of such tins can result in under-cooking the base of cakes.
Before you take a cake out of the oven, check that it is ready using a wooden stick (when the cake is ready the stick should come out dry and clean after having been inserted in the cake).
When switching off the oven leave the cake inside for about 5 minutes.
- Cook meat with a weight of more than 1 kg in the oven. Cook smaller pieces of food on the hob.
Use oven-proof cookware only. Check that their handles also are oven-proof.
When you cook meat on a grillage, insert a drip tray with a small amount of water in the oven (minimum rack height).
◆ Turn over meat at least once.
❖ Never pour cold water on the meat.

4.6 How to save energy

Use proper cookware for cooking. Cookware with thick, flat bases can save up to 1/3 of electric energy. Remember to cover your cookware if possible; otherwise you will use four times as much energy!
❖ Match the size of the cookware to the surface of the heating plate.
A cookware should never be smaller than a heating plate.
- Ensure that the heating plates and the cookware are clean.
Soils prevent heat-transfer. Repeatedly burnt-on spillages can often be removed by products, which will damage the environment, only.
Do not uncover the cookware too often (a watched pot-content will never boil!).
Do not open the oven door unnecessarily often.
❖ Switch off the oven in good time and make use of the residual heat.
For long cooking times, switch off the heating zones 5 to 10 minutes before you will finish cooking. This saves up to 20% of energy.
❖ Only use the oven when cooking larger dishes.
✿ Meat of up to 1kg can be cooked more economically in a pan on the hob.
◆ Make use of the residual heat of the oven.
If the cooking time takes longer than 40 minutes switch off the oven 10 minutes before.
❖ Make sure the oven door is closed properly.
- Heat can escape through spillages on the door seals. Clean up any spillages immediately.
Do not install the cooker near of refrigerators/freezers. Otherwise the energy consumption increases unnecessarily.

WARNING!

Switch off the appliance and let it cool down before cleaning. Disconnect the appliance from the mains before maintenance.

Hob

➢ Use a damp cloth and a mild detergent.
Remove fat with warm water or a special detergent for ceramic glass.
Do not use any abrasive detergents.
Do not use any organic detergents (lemon juice, vinegar etc.)

Detergent

Do not use any abrasive detergents! Do not use any organic detergents! ^2
Do not use essential oils!
▶ Never use solvents.

Oven

▶ Clean the oven after use.
▶ Switch on the internal light while cleaning.
Clean the interior with warm water and a little bit of washing-liquid. Use a sponge or a soft cloth. Never use abrasive or aggressive detergents.
▶ Dry after cleaning.
Clean the outside of the oven with warm soapy water. Use a sponge or a soft cloth. Never use abrasive or aggressive detergents.
If you use a special oven-detergent, check that the detergent is suitable for your appliance (instructions on the packaging of the detergent).
Any damage that is caused to the appliance by a cleaning product will not be fixed free of charge, even if the guarantee period of the appliance is still valid.

Never use a steam cleaner.

Oven-door

Clean the door very carefully. Do not use any abrasive detergents; otherwise you may damage or brake the glass. Use wash-up liquid and warm water.

5.1 Replacing of the illuminant

1. ⚠️ WARNING! Switch off the appliance and disconnect it from the mains
2. Remove the cover. Clean the cover and wipe it dry.

3. Remove the illuminant and replace it by a new one of the same kind and power: ➢ Heat-proof illuminant for ovens (300°C), 230V/25W, E 14 thread.

4. Install the cover.

According to the EU regulation No. 244/2009, your appliance is classified as a household appliance in accordance with the ecodesign requirements for non-directional household lamps. This means that bulbs, which are used in household appliances, must not be used to illuminate domestic establishments.

5.2 Removing of the door

1. Open the oven door completely.
2. Pull the hinge locks forwards on both sides until they stop(fig. 1).
3. Close the door until it has reached an 30^ angle to the front side of the appliance. Hold the door on both sides. Lift the door and remove it (fig. 2).
4. There is RISK OF INJURY if you reach into the hinges while removing the door.

Close-up of a finger pressing a small component, with an inset showing a hand operating a mechanical device (no text or symbols visible)

hinge lock/fig. 1

② 30° ①

Interior view of a vehicle showing a person operating an escalator with open doors (no visible text or symbols)

fig. 2

5.3 Removing of the glass panel

1. Remove the door and put it on a suitable base.

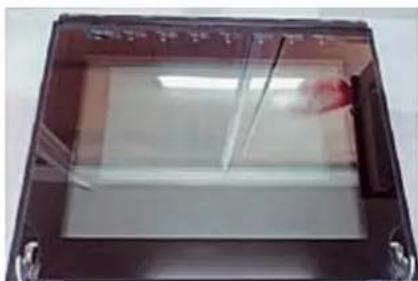

Transparent rectangular container with internal glass and metal bands, no visible text or symbols

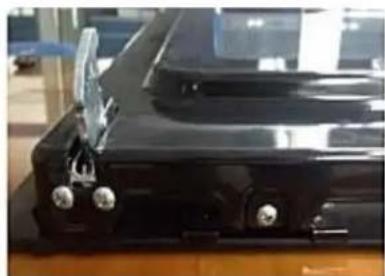

1. Remove the two screws in the middle bottom of the door.

Close-up of a black car with visible headlights and side brackets (no text or symbols)

1. Hold the bottom of the door on both sides. Lift until the bottom edge of the door liners releases from the bracket. Push the door front until it releases from the bracket.

Person placing a black oven with red directional arrows indicating motion (no text or symbols visible)

Interior view of a transparent plastic enclosure with a red cylindrical object inserted, no visible text or symbols

Close-up of a mechanical component with visible internal structure and mounting base (no text or symbols)

1. Remove the screws of the handle and remove the handle.

Close-up of a hand using a tool to press or install a dark metal component (no visible text or symbols)

1. Remove the screws of the hinge and remove the hinge.

Close-up of a hand holding a black electronic component with two red-circled annotations (no visible text or symbols)

1. Do not use any hard objects to forcibly remove the hinge. RISK OF GLASS BREAKAGE!

5.4 Removing of the guide rails

1. Press the bottom of the guide until it turns unlocked.

Close-up of a hand holding a transparent plastic bag, with a white arrow pointing downward (no text or symbols visible)

Close-up of a hand cleaning a car's side panel with visible mesh lines and a small inset image showing a curved arrow (no text or symbols)

1. Hold the guide vertically to remove it from the oven.

Close-up of hands installing or adjusting a mechanical component with wires (no visible text or symbols)

5.5 Trouble shooting

Periodical controls:

1. Carry out periodic inspections of the control elements and cooking units of the cooker. After the guarantee has expired you should provide a technical inspection of the cooker carried out at a service centre at least once every two years.
2. All malfunctions should be repaired immediately.

Emergency measures:

1. Switch off the entire appliance.
2. Disconnect the appliance from the mains (fuse box of your household power supply).
3. Contact your aftersales service.

Check the schedule below before you contact your aftersales service.

MALFUNCTION POSSIBLE CAUSES MEASURES

Appliance does not work at all.

The appliance is not supplied with energy.

➢ Check the relevant fuse in the fuse box of your household power supply.

Internal light does not work.

The illuminant is loose or damaged.

▶ Tighten or replace the illuminant.

Model	Built-in oven and hob
Control panel	Stainless steel
Material hob	Ceramic glass
Diameter/power cooking zonesBIC7 GK-IX3	2*165mm (1200W), 2*200mm (1800W)
Diameter/power cooking zonesBIC7-2KB GK-IX3	1*165/270 mm (1100/2000W)1*140/220 mm (1000/2200W)2*165 mm (1200W)
Residual heat indicator	yes
Oven functions	Bottom heat, Top and bottom heat,Defrost, Grill, Grill and fan, Top heatand grill and fan, Top heat and bottomheat and fan
Oven door/ Glass sheets	black glass / 2
Body cooling	yes
Handle/buttons	Aluminium
Energy efficiency category	A
Noise emission	< 58 dB(A)
Max. power BIC7 GK-IX3	9.00 kW
Max. power BIC7-2KB GK-IX3	9.60 kW
Voltage/ Frequency	220-240V/50Hz
Energy consumption /conventional operation	0.89 kW/h
Energy consumption / fan	0.99 kW/h
Net volume oven	70.00 Litres
Racks	1
Drip tray/ grillage	1/1
Power cord in cm	-
Dimensions oven H * W * D	59.50*59.50*57.50 cm
Weight oven net/gross	29.80 kg/33.00 kg
Dimensions hob H * W * D	5.50*58.00*50.00 cm
Weight hob net/gross	9.00 kg/10.70 kg

1. While unpacking, the packaging materials (polythene bags, polystyrene pieces, etc.) should be kept away from children. CHOKING HAZARD!
2. Old and unused appliances must be send for disposal to the responsible recycling centre. Never expose to open flames.
3. Before you dispose of an old appliance, render it inoperative. Unplug the appliance and cut off the entire power cord. Dispose of the power cord and the plug immediately. Remove the door completely so children are not able to get into the appliance as this endangers their lives!
4. Dispose of any paper and cardboard into the corresponding containers.
5. Dispose of any plastics into the corresponding containers.
6. If suitable containers are not available at your residential area, dispose of these materials at a suitable municipal collection point for waste-recycling.
7. Receive more detailed information from your retailer or your municipal facilities.

Materials marked with this symbol are Please contact your local authorities to recyclable. receive further information.

For large electric appliances; PKM GmbH & Co. KG, Neuer Wall 2, 47441 Moers

This appliance includes a 24-month guarantee for the consumer given by the manufacturer, dated from the day of purchase, referring to its flawless material-components and its faultless fabrication.

The consumer is accredited with both the dues of the guarantee given by the manufacturer and the vendor's guarantees. These are not restricted to the manufacturer's guarantee.

Any guarantee claim has to be made immediately after the detection and within 24 months after the delivery to the first ultimate vendee.

The guarantee does not establish any entitlement to withdraw from the purchase contract or for a price reduction. Replaced components or exchanged appliances demise to us as our property.

The guarantee claim does not cover:

1. fragile components as plastic, glass or bulbs;
2. minor modifications of the PKM-products concerning their authorized condition if they do not influence the utility value of the product;
3. damage caused by handling errors or false operation;
4. damage caused by aggressive environmental conditions, chemicals, detergents;
5. damage caused by non-professional installation and haulage;
6. damage caused by non common household use;
7. damages which have been caused outside the appliance by a PKM-product unless a liability is forced by legal regulations.

The validity of the guarantee will be terminated if:

1. the prescriptions of the installation and operation of the appliance are not observed.
2. the appliance is repaired by a non-professional.
3. the appliance is damaged by the vendor, the installer or a third party.
4. the installation or the start-up is performed inappropriately.
5. the maintenance is inadequately or incorrectly performed.
6. the appliance is not used for its intended purpose.
7. the appliance is damaged by force majeur or natural disasters, including, but with not being limited to fires or explosions.

The guarantee claims neither extend the guarantee period nor initiate a new guarantee period.

The geographical scope of the guarantee is limited with respect to appliances, which are purchased and used in Germany, Austria, Belgium, Luxembourg and the Netherlands.

PKM August 2014

Aftersales service information on the leaflet inside this instruction manual.

Subject to alterations

Updated 09/28/2015

© PKM GmbH & Co. KG, Neucr Wall 2, 47441 Mocrs
