Operating instructions

Rechargeable vacuum cleaner

en - EN

Contents

General....3

Information about the operating instructions...... 3

Liability 3

Notices in the instructions....3

Safety 4

CE Declaration of Conformity 4

Intended use....4

Unauthorized use 4

Children 4

Electric current....6

In case of danger....6

In case of defects 6

Dispatch 6

Overview....7

Scope of delivery and functions....7

Assembly 8

Unpacking 8

Mounting of table/wall charging station 8

Charging the battery....10

Information on charging the battery 10

Operation....11

Removal from the charging station.... 11

Power-on/off 11

After vacuuming.... 11

Nozzles/accessories 12

Inserting furniture brush and crevice nozzle ..... 12

Cleaning and care 13

Cleaning 13

Cleaning the dust container and filter 13

Troubleshooting....14

Service Hotline 14

Disposal 15

Warranty....16

General

Thank you for purchasing the AS Premium WH Racing Edition rechargeable vacuum cleaner. It was designed and constructed for many years of trouble-free operation.

Information about the operating instructions

These operating instructions enable the safe and proper handling and operation of the appliance.

Read these operating instructions carefully before using the appliance for the first time.

Keep the operating instructions in a safe place. Include these operating instructions when passing the vacuum cleaner on to another user.

Liability

We will accept no liability for damages resulting from failure to comply with the operating instructions.

We cannot assume any liability for damages resulting from use other than as intended, or from incorrect operation or unauthorized repairs or maintenance.

Notices in the instructions

WARNING!

Indicates notices which, if ignored, will result in risk of injury or death.

ATTENTION!

Indicates notices of risks that can result in damage to the appliance.

NOTICE!

Emphasizes tips and other useful information in the operating instructions.

Safety

CE Declaration of Con-formity

The appliance fulfill s the basic requirements of the following laws, EU-directives / regulations, as well as further relevant standards:

Product safety law – ProdSG, 2014/30/EU, 2014/35/EU, 2001/95/EG, 2011/65/EU, 2015/863/EU, 2009/125/EG, EU/2019/1782.

The appliance bears the CE-mark on the rating plate.

Intended use

The current CE-declaration of conformity can be found on the internet at www.fakir.de.

Fakir reserves the right to change the desi gn and equipme nt.

The AS Premium WH Racing Edition rechargeable vac-uum cleaner is intended primarily for dry vacuuming of indoor areas of buildings.

rechargeable vacuum cleaner may be used only for household purposes and is designed for light cleaning.

The rechargeable vacuum cleaner is not suitable for com-merci al use.

Prior to operation, check to make sure that all filters are inserted correctly. Never operate the appliance without filters.

Use only original Fakir- filters and accessories.

Any other use is considered unauthorized and is proibit-ed.

Unauthorized use

The examples of unauthorized use listed here can result in malfunctions, damage to the appliance or personal injury.

Children

These appliance can be used by children aged 8 and above and by persons with limited physical, sensory or mental capacities or by persons lacking in experience and/or knowledge, if they are supervised or have been instructed in the safe use of the appliances and the resulting dangers.

Children must never play with the appliance.

Cleaning and user maintenance may be performed by children only under supervision.

Keep plastic packaging foils away from children.

- Danger of suffocation!

WARNING!

Danger of injury from vacuuming:

• Never vacuum articles of clothing, hair, eyes, fingers or other parts of the body.
• Always keep nozzles and tubes away from eyes and ears.
• Never use the appliance to vacuum people and animals. The manufacturer is not responsible for any damages caused by unauthorized use.

Health hazard!

- Never vacuum hazardous or toxic substances, such as toner for laser printers or copiers.

Danger of fire and explosion!

• Never vacuum hot ashes or burning objects, such as cigarettes or matches.
• Never use the appliance in the vicinity of explosive or flammable materials.
  • Never vacuum solvents or explosive gases.

ATTENTION!

• Danger of short circuit! Never vacuum liquids, such as carpet cleaning solutions.
• Never immerse the vacuum cleaner or charger in water or other liquids.
• Destruction of filters! Never vacuum sharp or pointed objects, such as glass splinters, nails, etc. Materials that harden when dry, such as plaster or cement, can also destroy the filter.
• Damage to appliance from rain and dirt! Never use or store the appliance and the charger outdoors.
• Danger from overheating! Always keep the openings in the appliance free. Do not use the appliance if the suction opening and/or ventilation slots are blocked.

EN

Safety

Electric current

Attention

• Incorrect voltage can destroy the charger. Operate the appliance only if the voltage specified on the rating plate corresponds to the voltage in your household.
• Always unplug the charger from the electrical outlet when you are not using it to charge the appliance. This saves electricity.

WARNING! Danger of electric shock

• Never touch the plug of the charger with wet hands.
• When unplugging the charger, always pull directly on the charger and never on the power cord.
• Do not bend, squeeze or run over the charger power cord and do not expose it to heat sources, sharp edges or oil.
  • Never attempt to open the charger.

In case of danger

WARNING!

In case of danger or accident, unplug the charger immediately.

In case of defects

WARNING!

Never operate a defective appliance or an appliance with a defective power cord. Otherwise there is a danger of electric shock.

Before contacting the authorized Fakir-service center, check to see if you can eliminate the problem yourself. See "Troubleshooting" on page 15.

WARNING!

Repairs may be performed only by trained technicians. Only original Fakir replacement parts may be used. Incorrect repairs pose a danger for the user.

Dispatch

Send the appliance in the original package or a similar, well-padded package to prevent damage to the appliance.

Overview

Scope of delivery and functions

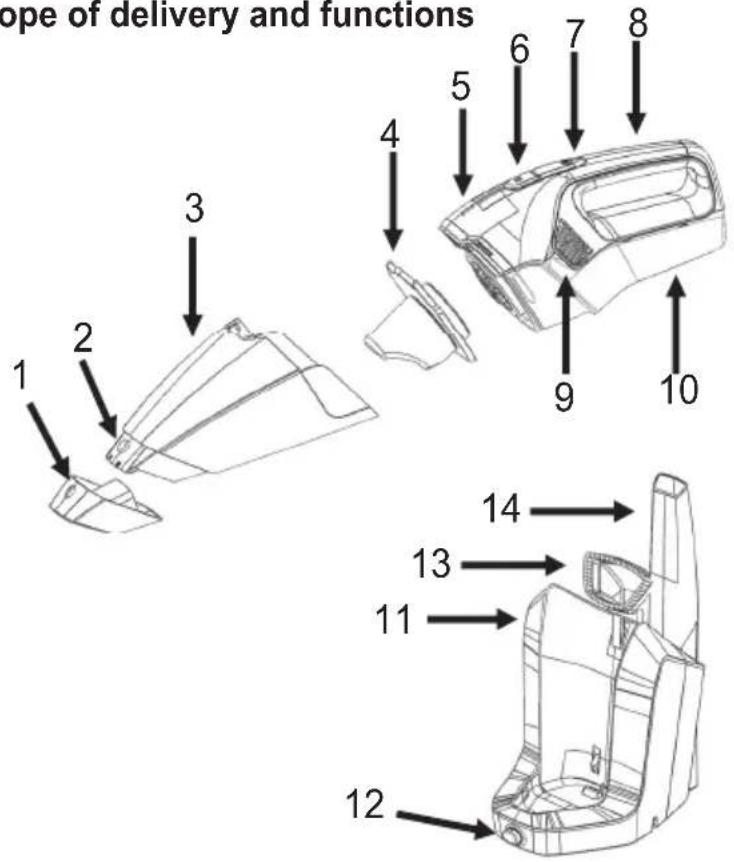

cope of delivery and functions 1 2 3 4 5 6 7 8 9 10 11 12 13 14

Technical data

Description AS Premium 1800 T-
Rated voltage for charger	100-240 V AC / 50/60 Hz24 V DC; 0.3 A
Battery voltage	18.5 V; 2 Ah
Battery charging time	15 h
Weight 1070 g

1 Suction nozzle for easy emptying of dirt
2 Release button for suction nozzle
3 Dust container
4 Dust filter
5 LED charge state and charge control indicator
6 Release button for dust container
7 Push-button switch
8 Handle
9 Air outlet slots
10 Battery housing

Accessories

11 Table/wall charging station with integrated accessory depot
12 Release button for removal of rechargeable vacuum cleaner from the station.
13 Furniture brush
14 Crevice nozzle
15 Charger (not shown)

Assembly

Unpacking

Unpack the appliance and check the contents for completeness (see “Scope of delivery and functions” in table of contents).

Sort the packaging material and recycle accordingly.

If you detect damage from transport, contact your retail dealer immediately.

WARNING!

Never use a defective appliance.

Mounting of table/wall charging station

WARNING!

In case of wall mounting, the charging station must be mounted firmly on an indoor wall for safe use.

Choose a mounting location that is not exposed to direct sunlight and that is not in the vicinity of other heat sources.

Make sure the charger is unplugged before mounting the charging station. Otherwise there is a danger of electric shock.

You can also mount the table/wall charging station of the rechargeable vacuum cleaner in living spaces, optionally on the wall or as a table charging station, e.g. on a shelf.

Assembly

Fig. 1

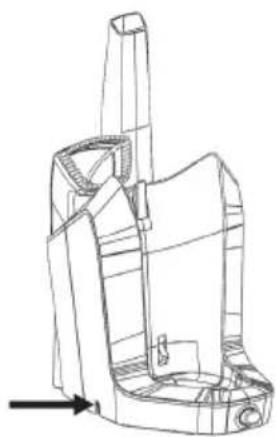

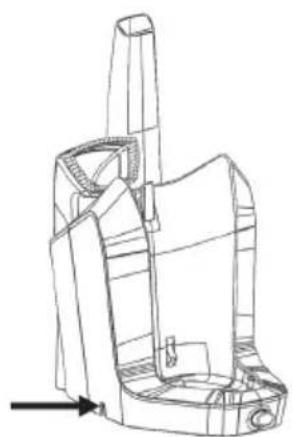

Technical line drawing of a mechanical bracket or housing component with an arrow indicating downward motion (no text or symbols present)

Fig. 2

Simple diagram of a container with two identical ports, each with an arrow pointing to it (no text or symbols)

Fig. 3

Technical line drawing of a mechanical component with no visible text or symbols

1. Separate the back part of the charging station from the front part by pushing it downward. (Fig. 1)
2. Find a suitable location on an indoor wall, near an electrical outlet. Bear in mind the warnings described above.
3. Hold the back part on the wall as shown in Fig. 2, mark the position of the mounting screws and then drill the holes for the screws.

WARNING!

Before drilling the holes, make sure that no electrical wires or pipes will be damaged.

1. Use the included anchors and screws to mount the charging station. Insert the anchors in the holes and then screw the screws into the anchors to a clearance of about 3 mm to the wall. Now hang the back part on the screws and tighten the screws. Then connect the front part with the back part.
2. Plug the small plug of the charger into the left jack on the charging station. (Fig. 3)

Charging the battery

Information on charging the battery

ATTENTION!

The battery must be charged for 15 hours before using the appliance for the first time.

The battery should be completely discharged before the initial charging.

Check this by switching on the appliance (see "Operation" in the table of contents). Leave the appliance switched on until the motor runs only very slowly.

ATTENTION!

The battery will be charged only if the vacuum cleaner is switched off.

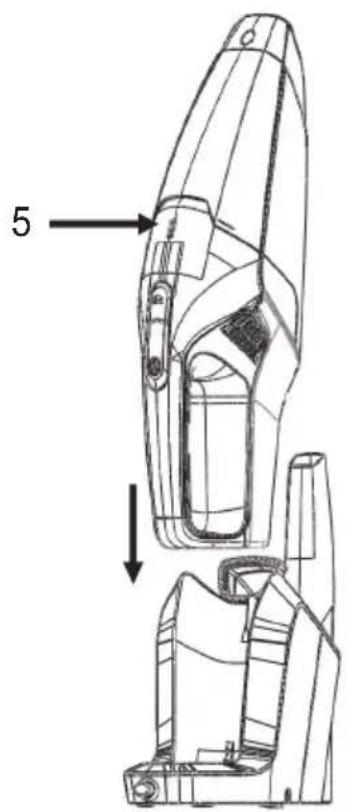

Fig. 4

5

NOTICE!

New batteries or batteries that have not been discharged for an extended period possibly will not be fully charged. The battery will be fully charged after several charging and discharging cycles.

1. Place the vacuum cleaner in the charging station.
2. Now plug the charger station vehicle plug into the electrical outlet.
3. Check whether the 3-blue LED charging display on the appliance (5) lights up. If so, the battery is charging.
   First LED flashes: 0-40 % charge second LED flashes: 40-70 % charge (first lights up) third LED flashes: 70-99 % charge (two LED light up) The battery is fully charged when all LEDs light up.
4. While charging, the appliance and the charger become somewhat warm. This is normal and is not an indication of a problem.
5. After the battery is charged the LED turn off after a few minutes.

Operation

Make sure that the filter is properly inserted and that the dust container is empty before using the vacuum cleaner.

NOTICE!

When the battery is completely charged you can use the vacuum cleaner for about 25 minutes.

Removal from the charging station

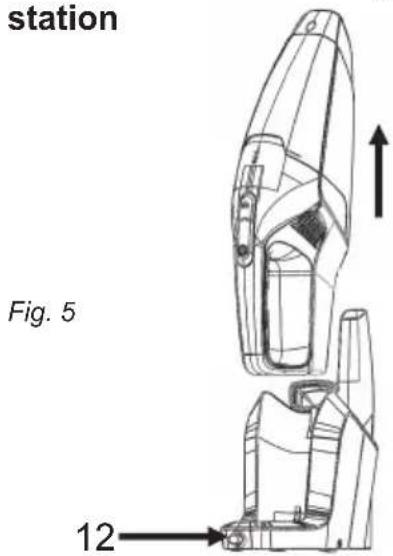

station Fig. 5 12

To remove the appliance from the table/wall charging station press the release button (12) and remove the appliance by pulling it vertically up and out of the charging station. (Fig. 5)

Power-on/off

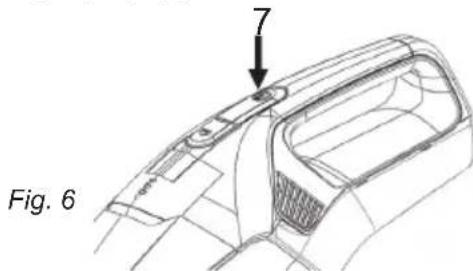

7 Fig. 6

To power the appliance on and off, press the push-button switch (7) on the handle. The rechargeable vacuum cleaner has 2 power levels:

Press 1 time: low power

Press 2 times: high power

Press 3 times: switches appliance off

After vacuuming

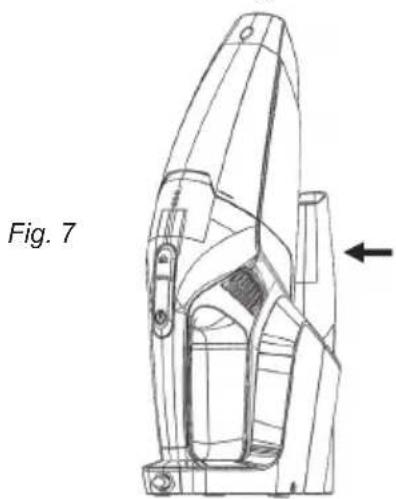

Technical line drawing of a mechanical component, labeled Fig. 7, with no visible text or symbols beyond the label.

After vacuuming, switch the appliance off and place it in the table/wall holder.

You can use the table/wall charging station to store the furniture brush (13) and the crevice nozzle (14).

Nozzles/accessories

Inserting furniture brush and crevice nozzle

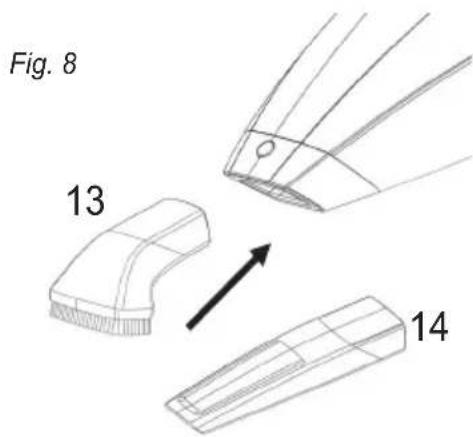

Fig. 8 13 14

ATTENTION!

The appliance must be switched off whenever you attach or remove a nozzle.

Insert the furniture brush and crevice nozzle into the removable suction nozzle on the dust container of the rechargeable vacuum cleaner.

Crevice nozzle

The crevice nozzle (14) can be used to vacuum dirt out of deep crevices in car seats, upholstered furniture, corners, trim, etc.

Upholstery nozzle

You can use the upholstery nozzle (13) to vacuum car seats, upholstered furniture, curtains, etc.

Cleaning and care

WARNING!

Switch the rechargeable vacuum cleaner off prior to cleaning and care.

NOTICE!

The suction power of the appliance depends on how full the dust container is and how dirty the filter is. We recommend emptying the dust container and cleaning the filter after each use.

Cleaning

ATTENTION!

Do not use cleaning solutions, abrasive cleaners or alcohol. This would damage the housing.

Cleaning the dust container and filter

Clean the appliance only with a dry or moist cloth. If necessary, you can also clean the dust container with a damp cloth.

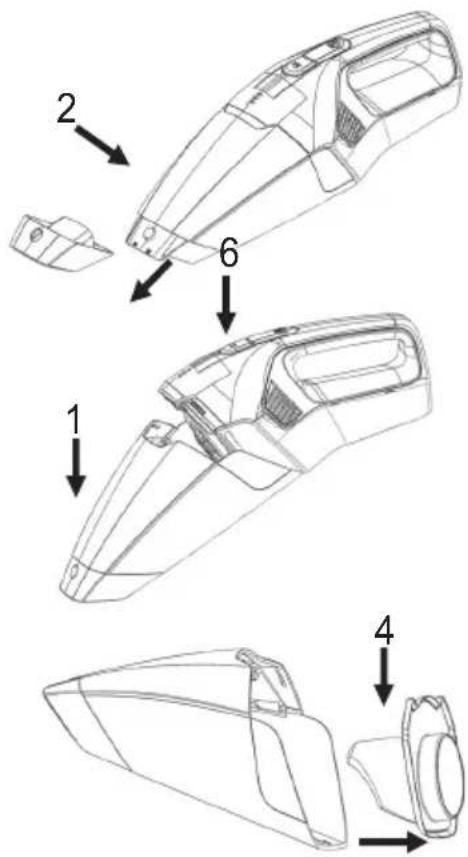

Technical diagram showing a hand-drawn assembly of a vacuum cleaner with numbered steps from initiation to final shipment.

1. To empty the dust container, press the release button (2) and remove the suction nozzle. Then you can easily empty the container into the household trash. If the vacuum power decreases, you should clean the dust filter (4).
2. To open the dust container, press the release button (6) and remove the dust container by swinging it downward and away from the motor housing.
3. Wash the filter with warm soapy water.
4. Clean the inside of the dust container with a damp cloth.
5. Before you insert the filter in the dust container, make sure that the filter and dust container are completely dry. Dry the filter and dust container with using heat, for example with a hair dryer.
6. Now connect the dust container (with the filter inserted) with the motor housing.

Troubleshooting

Before contacting the authorized Fakir-service center, check to see if you can eliminate the problem yourself with the help of the operating instructions.

WARNING!

Switch off and unplug the rechargeable vacuum cleaner before beginning troubleshooting.

Malfunctions Possible cause Remedy
Appliance does not operate, or appliance does not charge	Battery is empty Charge battery
	Appliance is switched off Switch	on appliance
	No electricity at wall socket Use	other wall socket
Appliance does not vacuum Dust	container is full Empty dust container
	Filter is dirty Clean filter by washing it out
Appliance is unusually loud Vacuum	med particles are stuck Remove particles

Service Hotline

NOTICE!

If you were not able to eliminate the problem yourself or if you plan to return the appliance, please call our Service hotline in advance.

Service hotline [phone]

or

[e-mail].

Before calling, make sure to have the following information:

Appliance / model designation including 7-digit article number, e.g. art. no.: 30 85 003 and date of manufacture, e.g. 2021-04

(This information can be found on the rating plate of the appliance).

ATTENTION!

Repairs and maintenance may be performed only by trained technicians (e.g. Fakir customer service). Only Fakir original replacement parts may be used. Unauthorized repairs and maintenance pose a danger for the user.

Disposal

Symbol of a waste bin with crossed x-line and no text or numbers present

• When the appliance has reached the end of its service life, especially in the event of malfunctions, render the appliance unserviceable.
• Discharge the battery completely by letting the appliance run until the motor stops.
• Remove the battery from the appliance by un-screwing the 6 screws, then open the housing and remove the battery block.
  Attention! Insulate the bare cable ends of the battery with adhesive tape, to be on the safe side.
• Empty the suction nozzle in the household trash before disposing of the appliance.
• Unserviceable electrical and electronic appliances and rechargeable batteries often contain valuable materials. But they also contain hazardous materials, which are necessary for the correct function and safety of the appliances. In household refuse, or if handled incorrectly, these substances are hazardous to human health and the environment.
• Never dispose of unserviceable appliances and the rechargeable battery with the household refuse!
• Make use of your local recycling facilities for recycling of electrical and electronic appliances and rechargeable batteries.
• Dispose of rechargeable batteries separately!
• Check with the local authorities or your retailer.
• Store the unserviceable appliance and the rechargeable battery safely out of the reach until disposal!

This appliance complies with the Directive 2012/19/EG-WEEE-Directive

We offer a warranty under the following conditions for this appliance:

1. Your reseller's residential address / company address shall be located in the EU or the appliance shall be purchased from an authorized reseller in Germany.
2. We guarantee to ensure that you may send the appliance to us free of charge and to repair the faults which have been reported within 24 months due to material or assembly errors that occur within 24 months (12 months for industrial and professional uses).
   Proper use of the appliance is a pre-requisite for fulfilling the warranty obligation. The warranty period begins with the date of sale.
3. Parts included in natural wear parts (drive belt, batteries, brushes, filters) are not covered under warranty.
4. Warranty claims shall be void in case of intervention or repair by persons who are not authorized us. In addition, aftermarket spare parts or accessories shall not be installed.
5. Warranty service consists of repair or replacement of defective parts. On-site repairs may only be requested for fixed large appliances. In order to document warranty claims, it is necessary to present the invoice or voucher with the date of purchase.
6. If the repair operation fails and the fault or defect can not be remedied after service, the appliance shall be replaced with an equivalent appliance. If a repair or replacement is not possible, you are entitled the right to return the appliance and to demand a refund of the sales value of the appliance. A fee may be requested for the period of use in case of a request for an exchange or refund of the sales value.
7. Warranty services do not cause an extension of the warranty period or start of a new warranty period. The warranty period for the parts installed inside the appliance ends with the end of the total warranty period of the appliance.
8. Contractual or statutory clauses for repair of faults remain in effect regardless of warranty terms.

Applies as of July 1st, 2017

Fakir customer service: Technik Service Profi GmbH

Ahltener Str. 4-8

D-31275 Lehrte

Germany

Tel.: +49 51 32 / 88 73 858

Fax: +49 51 32 / 58 87 23

[e-mail]

QR code image containing encoded data, no visible human-readable text

CE
