Product Type	DLP Video Projector
Brand	BenQ
Model	W1300
Display Technology	Single-chip DLP™
Native Resolution	1920 × 1080 (Full HD)
Lens	F = 2.42 to 2.97, f = 20.7 to 31.88 mm
Zoom Ratio	Approx. 1.5× manual zoom
Lens Shift	Vertical lens shift (manual)
Lamp	240W lamp
Power Supply	AC 100–240V, 3.5A, 50/60 Hz
Power Consumption	Max 300W; Standby < 0.5W
Weight	Approx. 3.4 kg (7.5 lbs)
Dimensions (W × H × D)	330 × 128 × 257 mm
Built-in Speaker	10W mono
Inputs	2× HDMI, 1× Component (RCA), 1× Composite (RCA), 1× VGA, 1× Audio L/R, 1× Audio mini jack, 1× USB Mini B, 1× RS-232
Outputs	1× Audio mini jack, 1× 12V trigger
Keystone Correction	Vertical manual keystone correction
3D Compatibility	HDMI 3D (Frame Sequential, Frame Packing, Top-Bottom, Side-by-Side)
ISF Calibration	ISF Night and ISF Day modes
Energy Saving Features	SmartEco™, Economic mode, ECO BLANK
Security	Kensington lock slot, password protection
Operating Temperature	0°C to 40°C (32°F to 104°F)
Cleaning	Lens: soft cloth; Ventilation: vacuum or soft brush
Lamp Replacement	User-replaceable; allow 45 min cooling

Frequently Asked Questions - W1300 BENQ

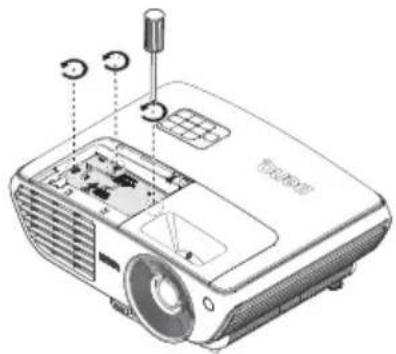

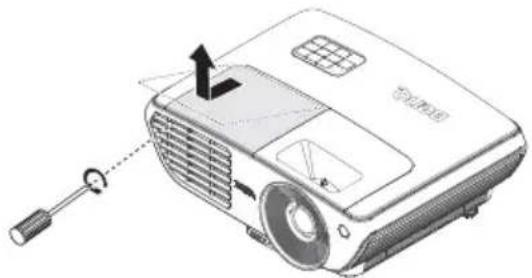

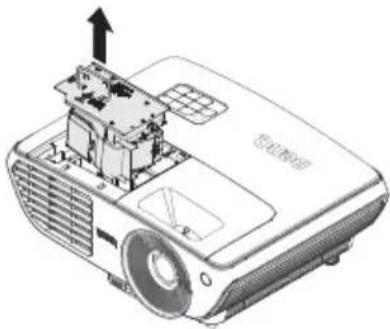

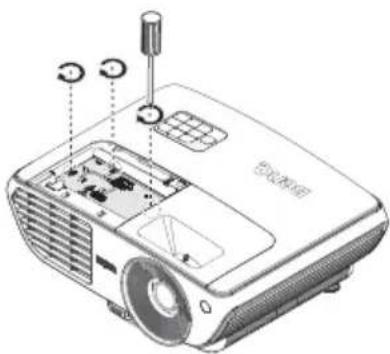

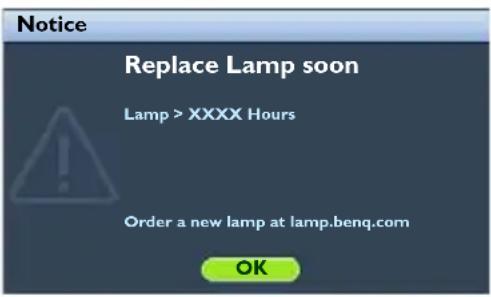

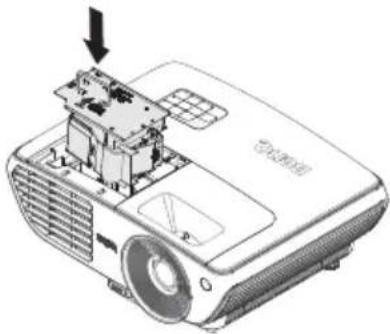

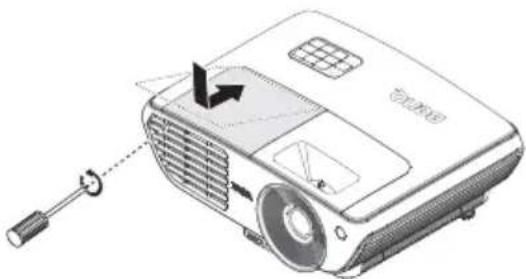

How do I change the lamp on the BenQ W1300?

Turn off the projector and unplug it. Wait at least 45 minutes for the lamp to cool. Loosen the screws on the lamp compartment cover, remove it, then loosen the three captive screws securing the lamp. Pull the lamp out by the handle. Insert the new lamp, tighten the screws, replace the cover, and reset the lamp timer in the System Setup: Advanced > Lamp Settings menu.

What should I do if the projector doesn't turn on?

First, ensure the power cord is firmly connected to the projector and the wall outlet. Check that the wall outlet is switched on. If the projector is still hot from previous use, wait for the cooling fan to stop. If the POWER indicator is orange, press the POWER button. If it still does not turn on, try replacing the power cord or contact BenQ support.

How do I connect external speakers to the W1300?

You can connect amplified speakers to the AUDIO OUT jack on the projector. Use a standard audio cable with a 3.5mm plug. The built-in speaker will be muted when AUDIO OUT is connected. Note that the projector outputs mixed mono audio.

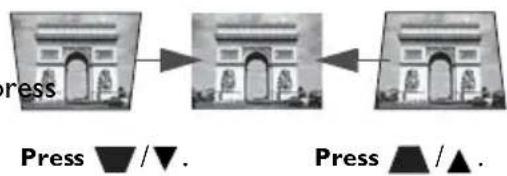

How do I correct a keystone (trapezoid) image?

Press the MENU/EXIT button, navigate to the Display menu, and select Keystone. Use the arrow keys (▲/▼) to adjust the top or bottom width of the image until it is rectangular. You can also use the remote control's keystone buttons (◄/► or ▲/▼).

Can I use 3D movies with this projector?

Yes, the BenQ W1300 supports 3D content via HDMI. Enable 3D in the Display menu under 3D Mode. Compatible formats include Frame Sequential, Frame Packing, Top-Bottom, and Side-by-Side. You need 3D glasses (sold separately) and a 3D source device. Note that brightness is reduced by about 55% in 3D mode.

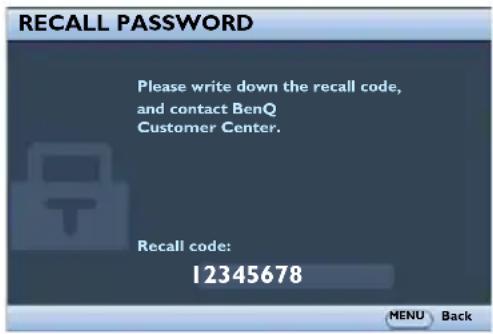

How can I reset the password if I forget it?

Press and hold the AUTO button on the projector or remote control for 3 seconds. A coded number will appear on the screen. Write it down, turn off the projector, and contact the local BenQ service center with the coded number and proof of purchase to retrieve the password.

What is SmartEco mode and how do I activate it?

SmartEco mode dynamically reduces lamp power consumption by up to 70% based on the content brightness, extending lamp life. To activate, go to Picture > Lamp Settings > Lamp Power and select SmartEco. You can also choose Economic to save 30% power.

How do I clean the projector lens?

Use a soft, dry cloth (like a lens cleaning cloth) to gently wipe the lens. Do not use abrasive cleaners or liquids. For stubborn dirt, moisten the cloth slightly with water or a mild lens cleaner and wipe gently. Always turn off the projector and let it cool before cleaning.

What should I do if the projected image is blurry?

Adjust the focus ring on the projector lens until the image sharpens. Also ensure the projector is positioned at the correct distance from the screen. If still blurry, check that the lens is clean and that the input resolution matches the native 1080p. Use the AUTO button for automatic adjustment if using a PC signal.

How can I hide the image temporarily during a presentation?

Press the ECO BLANK button on the projector or remote control to hide the image. The screen will go blank. Press any key to restore the image. This also saves lamp power. Alternatively, you can use the FREEZE button to freeze the image without hiding it.

USER MANUAL W1300 BENQ

Important safety instructions .... 3

Projector features...... 7

Shipping contents 8

Projector exterior view......9

Controls and functions ..... I

Positioning your projector .... 16

Choosing a location....16

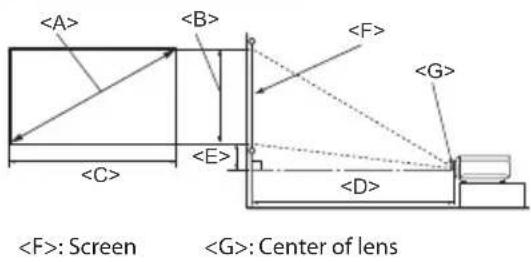

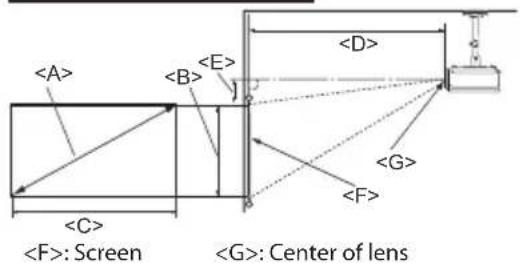

Obtaining a preferred projected image size....17

How to determine the position of the projector for a given screen size.....17

How to determine the recommended screen size for a given distance .....17

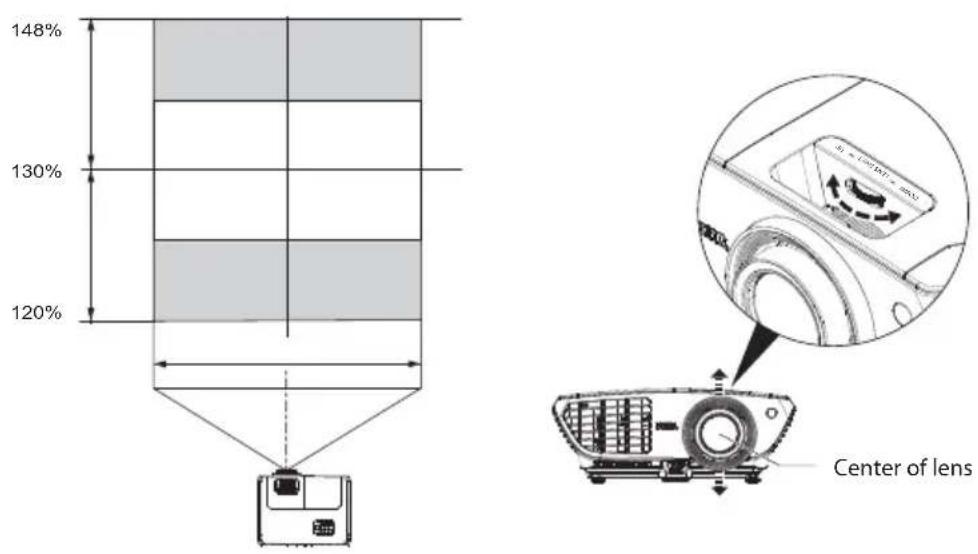

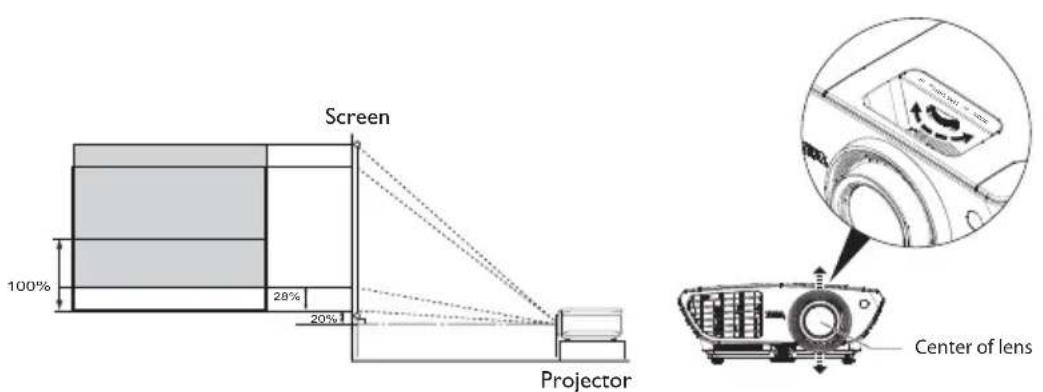

Shifting the projection lens .....21

Connection ...... 22

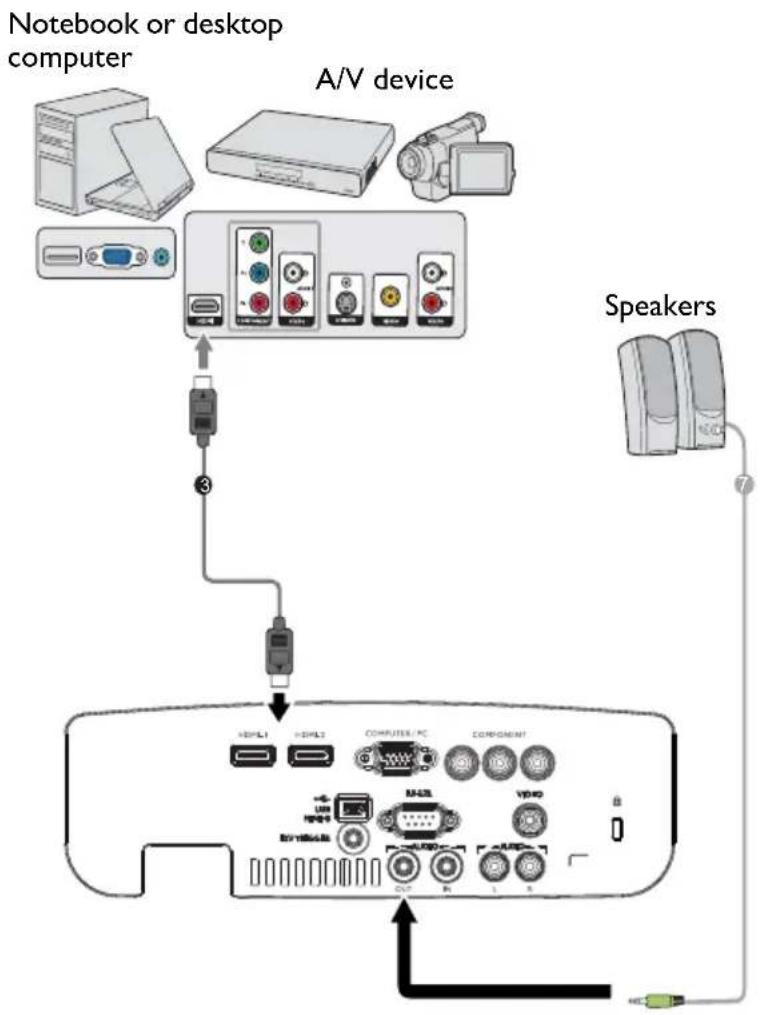

HDMI connection 22

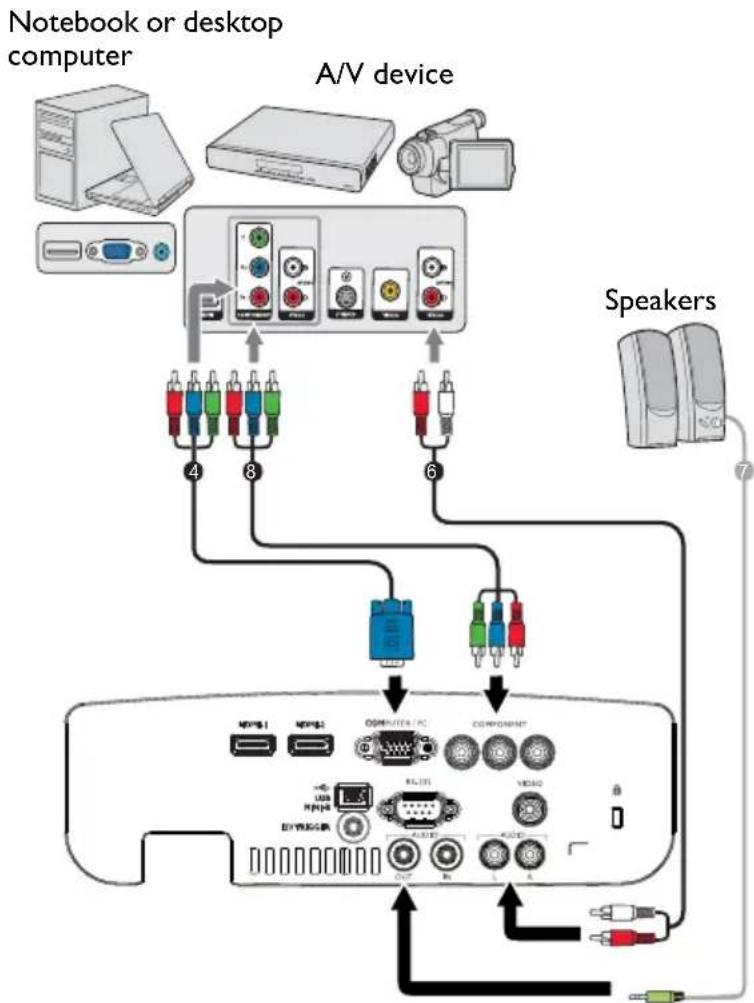

Component Video connection .....23

Video connection 24

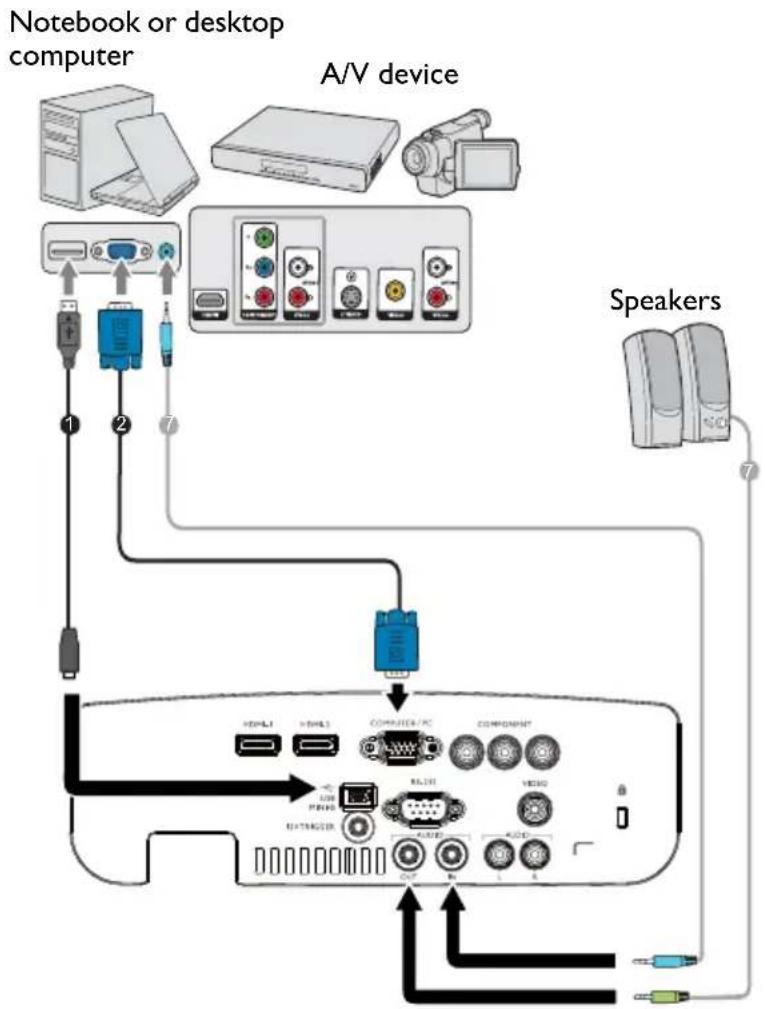

Computer/PC connection......25

Connecting video source devices......26

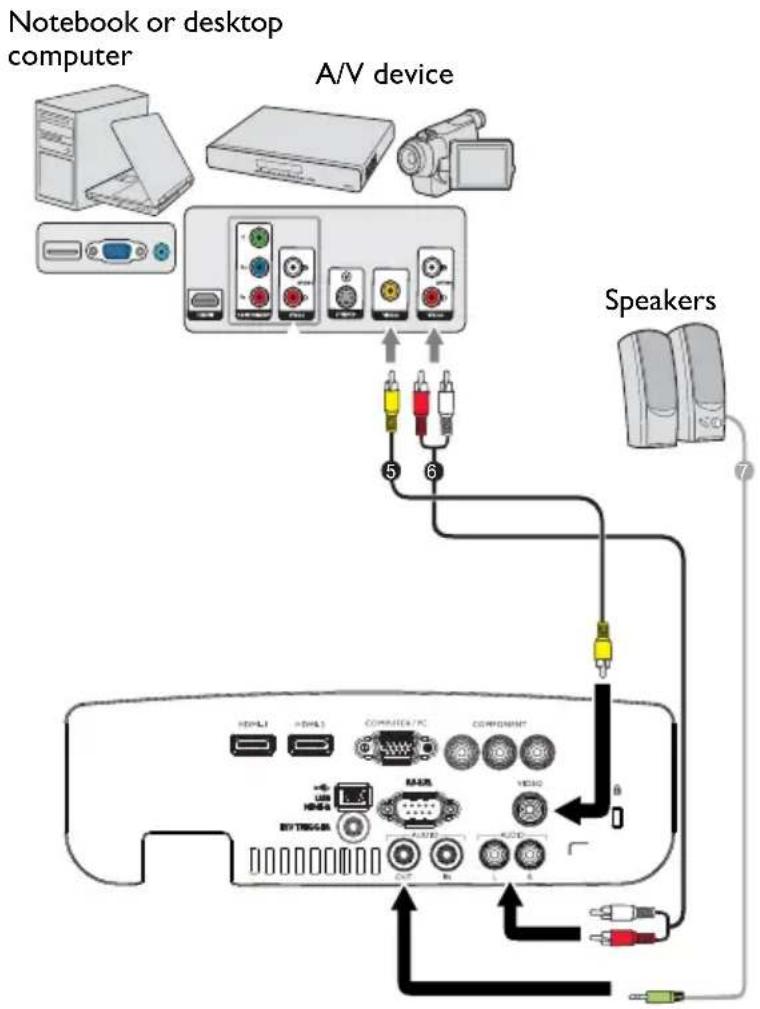

Playing sound through the projector ....27

Operation 28

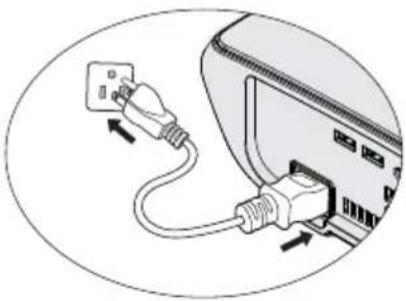

Starting up the projector ....28

Adjusting the projected image .....29

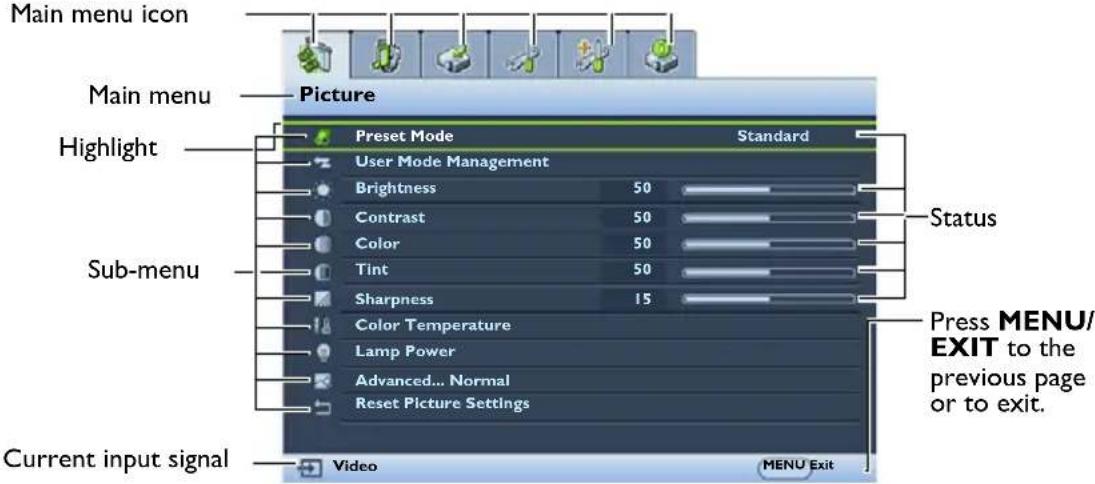

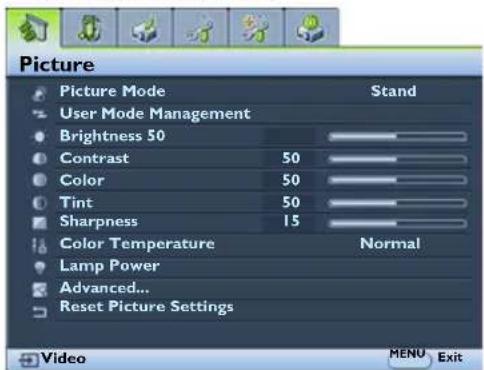

Using the menus....31

Securing the projector....32

Utilizing the password function .....32

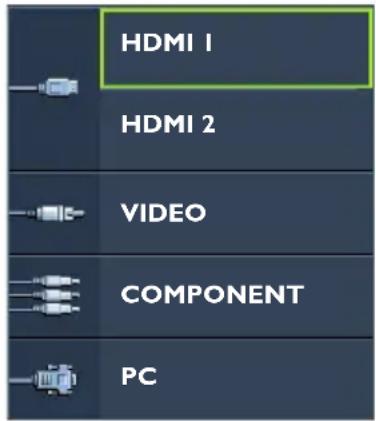

Switching input signal.... 35

Using the preset and user modes...... 36

Advanced picture quality controls..... 39

Adjusting the sound 42

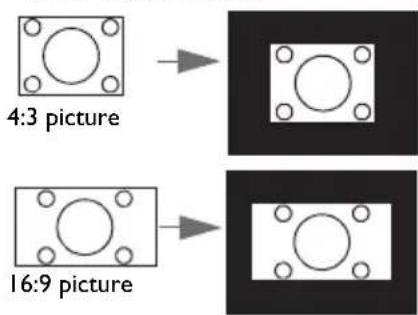

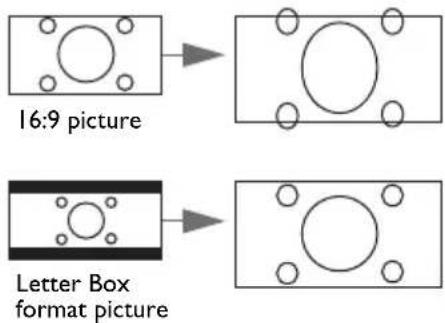

Selecting the aspect ratio...... 43

Magnifying and searching for details... 45

Playing 3D function 45

Personalizing the projector menu display.... 45

Operating in a high altitude environment.... 46

Locking control keys...... 46

Hiding the image 47

Freezing the image.... 47

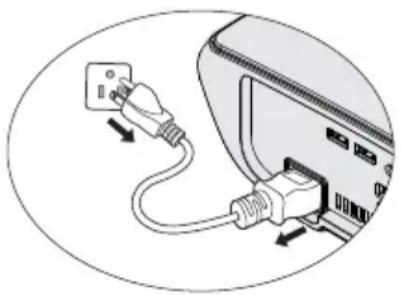

Shutting down the projector 47

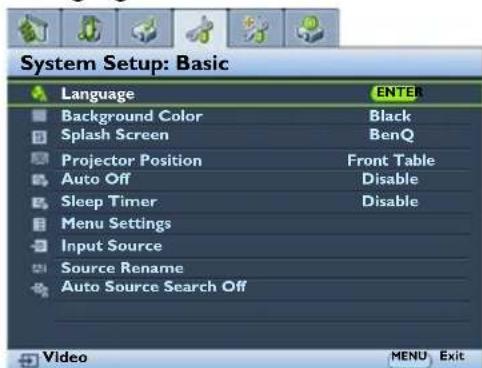

Menu operation 48

Maintenance 58

Care of the projector.... 58

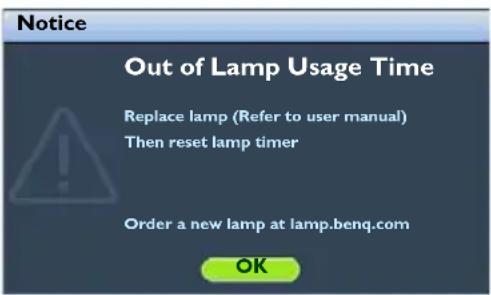

Lamp information 59

Troubleshooting...... 65

Specifications...... 66

Projector specifications.... 66

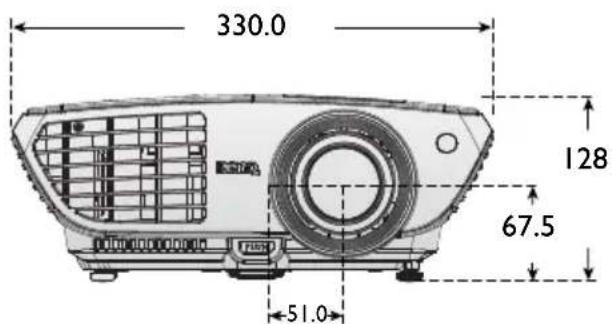

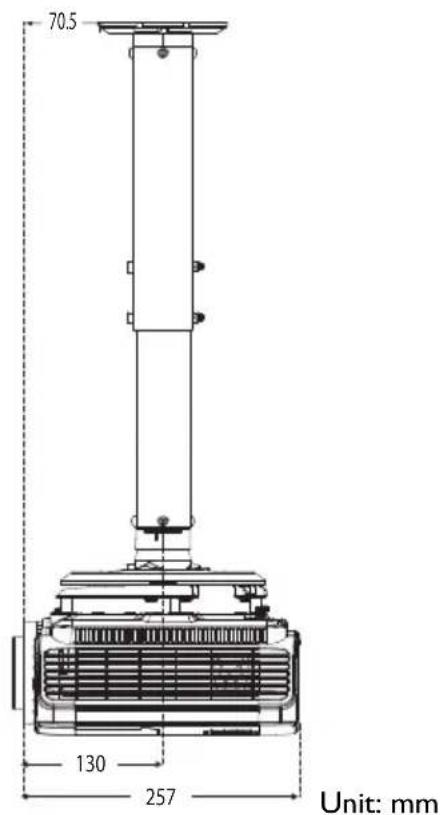

Dimensions 67

Timing chart.... 68

Warranty and Copyright information73

Important safety instructions

Your projector is designed and tested to meet the latest standards for safety of information technology equipment. However, to ensure safe use of this product, it is important that you follow the instructions mentioned in this manual and marked on the product.

Safety Instructions

I. Please read this manual before you operate your projector. Save it for future reference.

Cartoon illustration of a projector with a smiling face and handle, no text or symbols present

1. Do not look straight at the projector lens during operation. The intense light beam may damage your eyes.

Cartoon illustration of a person reacting to a projector screen with a surprised face (no text or symbols)

1. Refer servicing to qualified service personnel.

Cartoon illustration of a projector with a cap and smiling face, giving thumbs up (no text or symbols)

1. Always open the lens shutter or remove the lens cap when the projector lamp is on.

Cartoon illustration of a projector with large eyes and a small lens (no text or symbols)

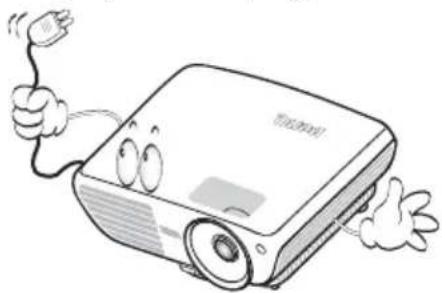

1. In some countries, the line voltage is NOT stable. This projector is designed to operate safely within a mains voltage between 100 to 240 volts AC, but could fail if power cuts or surges of ±10 volts occur. In areas where the mains voltage may fluctuate or cut out, it is recommended that you connect your projector through a power stabilizer, surge protector or uninterruptible power supply (UPS).

Cartoon illustration of a projector with a smiling face and connected to a cable (no text or symbols)

1. Do not block the projection lens with any objects when the projector is under operation as this could cause the objects to become heated and deformed or even cause a fire. To temporarily turn off the lamp, press BLANK on the projector or remote control.

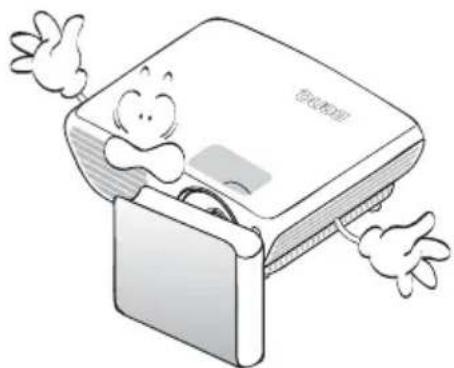

Cartoon illustration of a smiling book character emerging from a closed folder, with arms and legs bent (no text or symbols)

Safety Instructions (Continued)

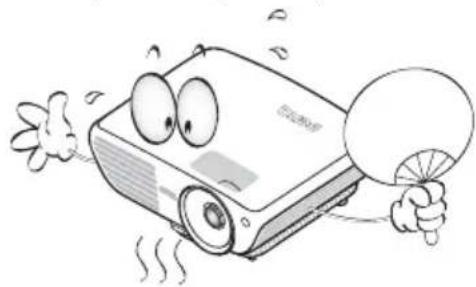

1. The lamp becomes extremely hot during operation. Allow the projector to cool for approximately 45 minutes prior to removing the lamp assembly for replacement.

Cartoon illustration of a projector with a fan, emitting exhaust smoke (no text or symbols)

1. Do not operate lamps beyond the rated lamp life. Excessive operation of lamps beyond the rated life could cause them to break on rare occasions.

Cartoon illustration of a projector with hands and three circular buttons, no text or symbols present

1. Never replace the lamp assembly or any electronic components unless the projector is unplugged.

Cartoon illustration of a projector with arms and legs, waving (no text or symbols)

1. Do not place this product on an unstable cart, stand, or table. The product may fall, sustaining serious damage.

Cartoon illustration of a projector with motion lines and foam, no text or symbols present

1. Do not attempt to disassemble this projector. There are dangerous high voltages inside which may cause death if you should come into contact with live parts. The only user serviceable part is the lamp which has its own removable cover. Under no circumstances should you ever undo or remove any other covers. Refer servicing only to suitably qualified professional service personnel.

Cartoon illustration of a projector with arms and legs, showing motion around it (no text or symbols)

1. When the projector is under operation, you may sense some heated air and odor from its ventilation grill. It is a normal phenomenon and not a product defect.

Safety Instructions (Continued)

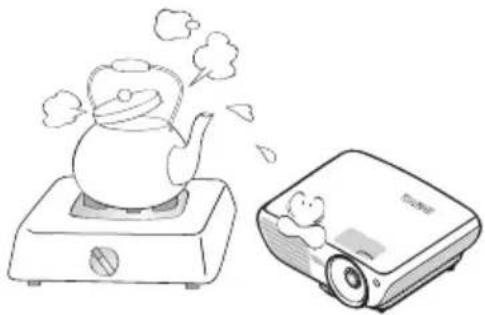

1. Do not place this projector in any of the following environments.

2. Space that is poorly ventilated or confined. Allow at least 50 cm clearance from walls and free flow of air around the projector.

3. Locations where temperatures may become excessively high, such as the inside of a car with all windows rolled up.
4. Locations where excessive humidity, dust, or cigarette smoke may contaminate optical components, shortening the projector's life span and darkening the image.

Illustration of a steaming hot pot on a gas stove next to a projector (no text or symbols)

• Locations near fire alarms
• Locations with an ambient temperature above 40^ C / 104^ F

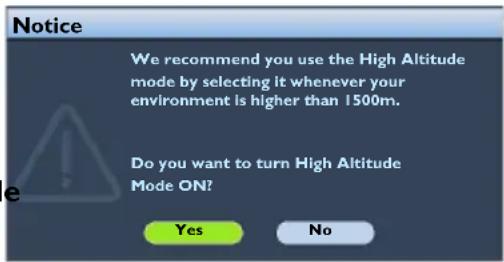

• Locations where the altitudes are higher than 3000 m (10000 feet).

3000 m (10000 feet)
0 m (0 feet)

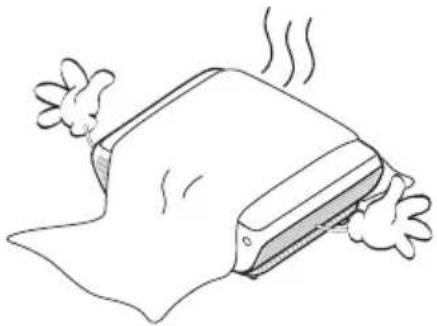

1. Do not block the ventilation holes.

2. Do not place this projector on a blanket, bedding or any other soft surface.

3. Do not cover this projector with a cloth or any other item.
4. Do not place inflammables near the projector.

Simple line drawing of a damaged airbag with steam rising (no text or symbols)

If the ventilation holes are seriously obstructed, overheating inside the projector may result in a fire.

1. Always place the projector on a level, horizontal surface during operation.

- Do not use if tilted at an angle of more than 10 degrees left to right, nor at angle of more than 15 degrees front to back. Using the projector when it is not fully horizontal may cause a malfunction of, or damage to, the lamp.

Illustration of a digital camera with two stacked books beside it (no text or symbols visible)

1. Do not stand the projector on end vertically. Doing so may cause the projector to fall over, causing injury or resulting in damage to the projector.

Line drawing of a portable electronic device on a stand, no text or symbols present

Safety Instructions (Continued)

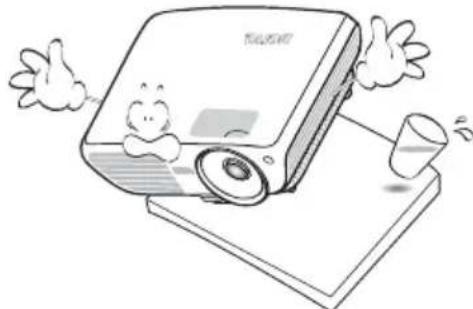

1. Do not step on the projector or place any objects upon it. Besides probable physical damage to the projector, doing so may result in accidents and possible injury.

Illustration of a cartoon airplane with wings and a dog, emitting steam (no text or symbols)

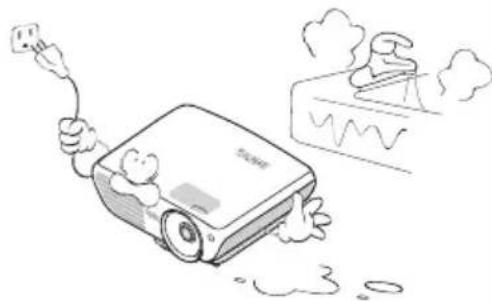

1. Do not place liquids near or on the projector. Liquids spilled into the projector may cause it to fail. If the projector does become wet, disconnect it from the power supply's wall socket and call BenQ to have the projector serviced.

Cartoon illustration of a projector with a plug and smoke, emitting exhaust smoke (no text or symbols)

1. This product is capable of displaying inverted images for ceiling mount installation.

Use only BenQ's Ceiling Mount Kit for mounting the projector and ensure it is securely installed.

Cartoon illustration of a smiling digital camera with arms and legs, surrounded by flying birds (no text or symbols)

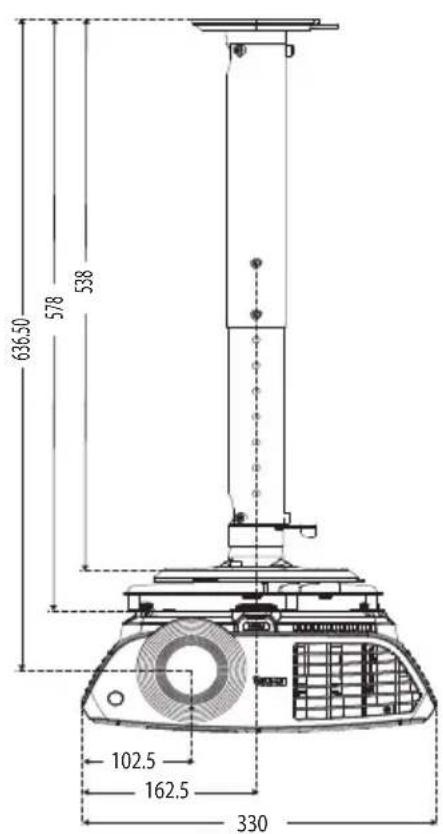

Ceiling mounting the projector

We want you to have a pleasant experience using your BenQ projector, so we need to bring this safety matter to your attention to prevent possible damage to person and property.

If you intend to mount your projector on the ceiling, we strongly recommend that you use a proper fitting BenQ projector ceiling mount kit and that you ensure it is securely and safely installed.

If you use a non-BenQ brand projector ceiling mount kit, there is a safety risk that the projector may fall from the ceiling due to an improper attachment through the use of the wrong gauge or length screws.

You can purchase a BenQ projector ceiling mount kit from the place you purchased your BenQ projector.

BenQ recommends that you also purchase a separate Kensington lock compatible security cable and attach it securely to both the Kensington lock slot on the projector and the base of the ceiling mount bracket. This will perform the secondary role of restraining the projector should its attachment to the mounting bracket become loose.

Hg - Lamp contains mercury. Manage in accordance with local disposal laws. See www.lamprecycle.org.

Projector features

- Full HD compatible

The projector is compatible with Standard Definition TV (SDTV) 480i, 576i, Enhanced Definition television (EDTV) 480p, 576p and High Definition TV (HDTV) 720p, 1080i/p 60Hz formats, with the 1080p format providing a true I:I image reproduction.

• High picture quality

The projector provides excellent picture quality due to its high resolution, excellent home theater brightness, high contrast ratio, vivid color and rich gray-scale reproduction.

- High brightness

The projector features super high brightness to achieve excellent picture quality in ambient light conditions, outperforming ordinary projectors.

• Vivid color reproduction

The projector features a 6-segment color wheel to produce realistic color depth and range unattainable with lesser segment color wheels.

- Rich gray-scale

When viewed in a darkened environment, the automatic gamma control provides excellent gray-scale display which reveals details in shadows and in night or darkened scenes.

- Wide variety of inputs and video formats

The projector supports a wide variety of inputs for connection to your video and PC equipment, including component video, S-Video, and composite video, as well as dual HDMI, PC, and an output trigger for connection to automated screen and environment lighting systems.

• ISF certified calibration control

To reach a higher standard of performance, the projector incorporates ISF NIGHT and ISF DAY mode settings in its OSD menus, which requires professional calibration service from authorized ISF installers.

- 3D function

To enjoy the 3D movies, videos, and sporting events in a more realistic way by presenting the depth of the images through HDMI.

• Built-in speaker(s)

Built-in speaker(s) providing mixed mono audio when an audio input is connected.

- Intuitive lens shift

The intuitive control over lens shift lever provides flexibility in setting-up your projector.

- SmartEco

SmartEco ^™ technology saves lamp power consumption up to 70% depending on the content brightness level when SmartEco mode is selected.

- SmartEco™ starts your dynamic power saving

The SmartEco ^™ technology offers a new way of operating the projector lamp system and saves lamp power depending on the content brightness level.

- Longest lamp life with SmartEco™ technology

The SmartEco ^TM technology lowers the power consumption and increases the lamp life.

• ECO BLANK saves the lamp power

By pressing the ECO BLANK button to hide the image and immediately lower the lamp power at the same time.

Shipping contents

Carefully unpack and verify that you have all of the items shown below. If any of these items are missing, please contact your place of purchase.

Standard accessories

The supplied accessories will be suitable for your region, and may differ from those illustrated.

*The warranty card is only supplied in some specific regions. Please consult your dealer for detailed information.

Europe sku doesn't have VGA cable in standard accessories.

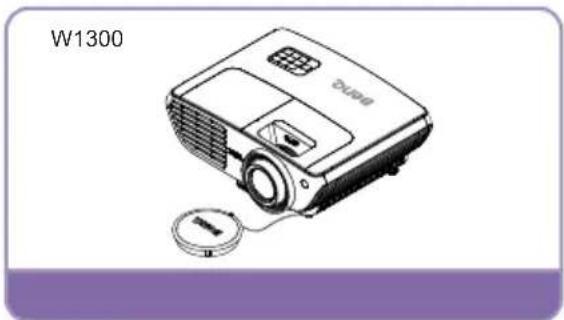

Illustration of a projector with a small circular device attached (no text or symbols on the device itself)

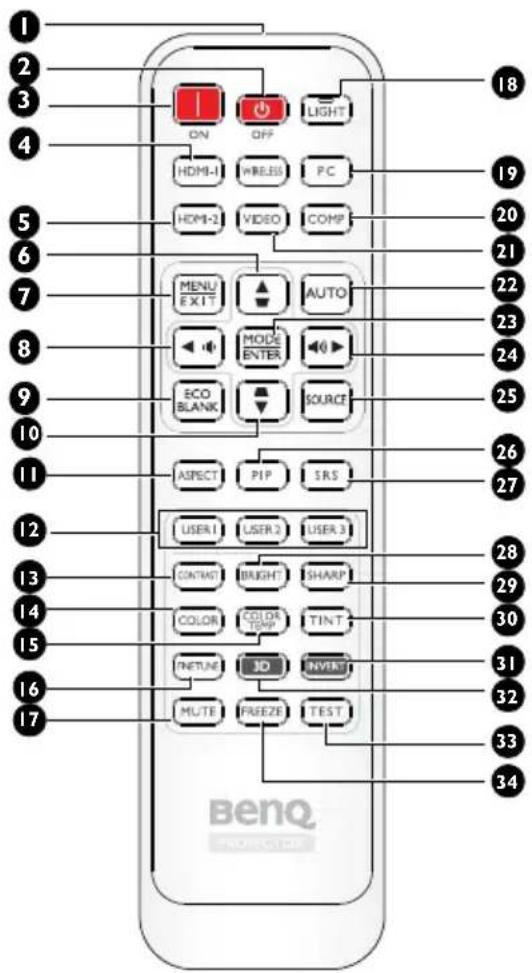

Remote Control Project remote control device with control buttons and a beige case (no text or symbols on the device itself)

Illustration of a power cord with two plug connectors (no text or symbols on the cable itself)

Coiled VGA cable with two connectors, labeled 'VGA cable 3D Glass' below (no other text or symbols)

Line drawing of a pair of eyeglasses (no text or symbols)

Optional accessories

I. Spare lamp kit

1. Ceiling mount kit

2. 3D Glasses

3. Carry bag

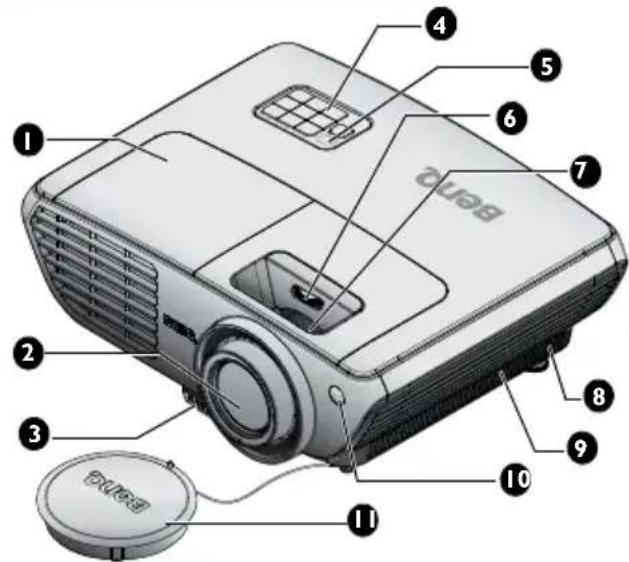

Projector exterior view

Front/upper side

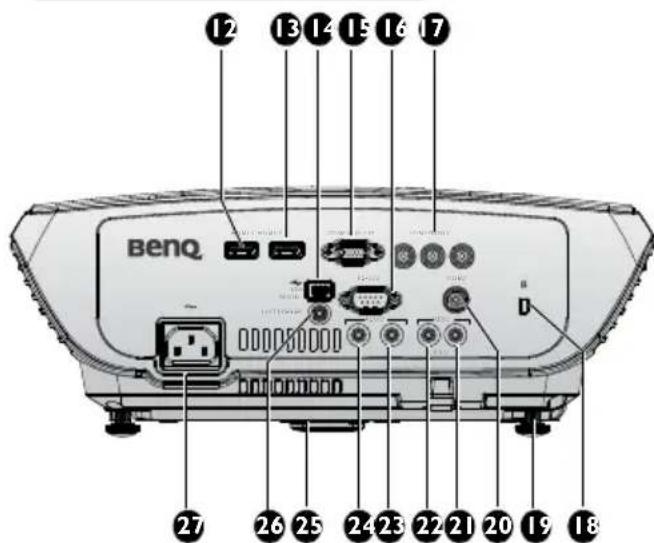

Rear/lower side

I. Lamp compartment cover
2. Projection lens
3. Quick-release button
4. External control panel (See "Projector" on page 11 for details.)
5. Top IR remote sensor
6. Lens Shift
7. Focus ring and Zoom ring
8. Audio speaker
9. Vent (cool air intake)
10. Front IR remote sensor
II. Lens cap & string

1. HDMI I input jack
2. HDMI 2 input jack
3. USB Mini B input jack
4. COMPUTER PC input jack
5. RS-232 control port
6. COMPONENT input jacks
7. Kensington anti-theft lock slot
8. Rear adjuster foot
9. VIDEO input jack
10. AUDIO input jack (R)
11. AUDIO input jack (L)
12. AUDIO input jack
13. AUDIO output jack
14. Quick-release foot
15. 12 V TRIGGER out jack
16. AC power cord inlet

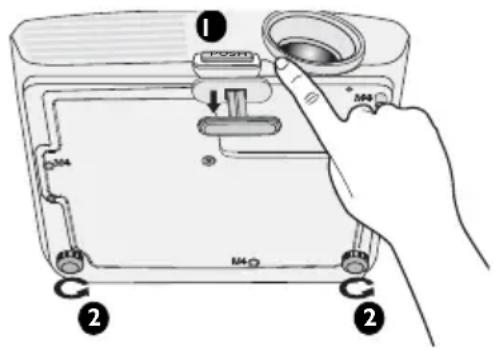

Bottom side

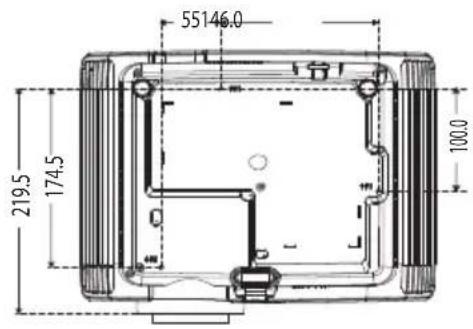

1. Ceiling mount holes
2. Front adjuster foot
3. Rear adjuster foot

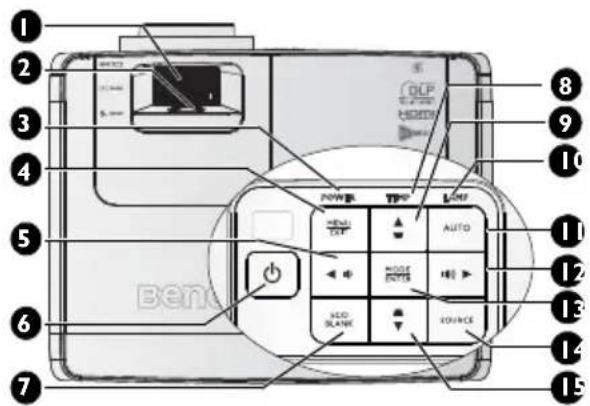

Controls and functions

Projector

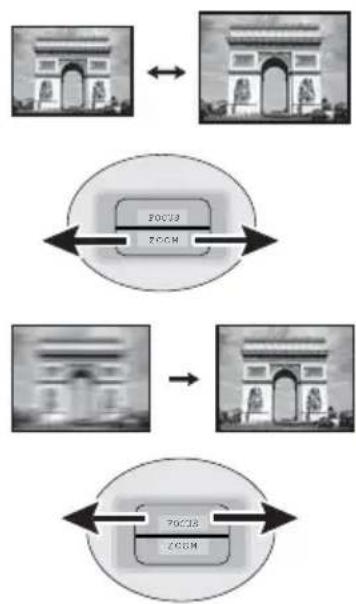

I. FOCUS/ZOOM Ring

Used to adjust the projected image appearance. See "Fine-tuning the image size and clarity" on page 30 for details.

2. LENS SHIFT adjuster

Used to adjust the projector len up or down. See "Shifting the projection lens" on page 21 for details.

3. POWER indicator light

Lights up or flashes when the projector is under operation. See "Indicators" on page 64 for details.

4. MENU/EXIT

Turns on the On-Screen Display (OSD) menu. Goes back to previous OSD menu, exits and saves menu settings. See "Using the menus" on page 31 for details.

5. Left Decrease volume level

Decreases volume. See "Adjusting the sound level" on page 42 for details.

6. POWER

Toggles the projector between standby mode and on. See "Starting up the projector" on page 28 and "Shutting down the projector" on page 47 for details.

7. ECO BLANK

Used to hide the screen picture.

8. TEMPerature indicator light

Lights up red if the projector's temperature becomes too high. See "Indicators" on page 64 for details.

9. Keystone/Arrow keys (/ Up) ▲

Manually corrects distorted images resulting from an angled projection. See "Correcting keystone" on page 30 for details.

10. LAMP indicator light

Indicates the status of the lamp. Lights up or flashes when the lamp has developed a problem. See "Indicators" on page 64 for details.

II. AUTO

Automatically determines the best picture timings for the displayed image. See "Auto-adjusting the image" on page 29 for details.

12. Right/ Increase volume level

Increases volume. See "Adjusting the sound level" on page 42 for details. When the On-Screen Display (OSD) menu is activated, the #5, #9, #12, and #15 keys are used as directional arrows to select the desired menu items and to make adjustments. See "Using the menus" on page 31 for details.

13. MODE/ENTER

Selects an available picture setup mode. Enacts the selected On-Screen Display (OSD) menu item. See "Using the menus" on page 31 for details.

14. SOURCE

Displays the source selection bar. See "Switching input signal" on page 35 for details.

15. Keystone/Arrow keys (/Down)

Manually corrects distorted images resulting from an angled projection. See "Correcting keystone" on page 30 for details.

Remote control

I. IR transmitter

Transmits signal to projector.

2. POWER OFF

Turns off the projector. See "Shutting down the projector" on page 47 for details.

3. POWER ON

Turns on the projector. See "Starting up the projector" on page 28 for details.

4. HDMI I

Displays the HDMI I source selection. See "Switching input signal" on page 35 for details.

5. HDMI 2

Displays the HDMI 2 source selection. See "Switching input signal" on page 35 for details.

6. Up cursor/Keystone (/)

▲: Navigates and changes settings in the OSD. See "Using the menus" on page 31 for details.

: Manually corrects distorted images resulting from an angled projection. See "Correcting keystone" on page 30 for details.

7. MENU/ EXIT

MENU: Turns on the On-Screen Display (OSD) menu.

EXIT: Goes back to previous OSD menu, exits and saves menu settings.

See "Using the menus" on page 31 for details.

8. Left cursor/Decrease volume level

: Navigates and changes settings in the OSD. See "Using the menus" on page 31 for details.

: Decreases volume.

9. ECO BLANK

Hides the screen picture.

10. Down cursor/Keystone ( / )

▼: Navigates and changes settings in the OSD. See "Using the menus" on page 31 for details.

■: Manually corrects distorted images resulting from an angled projection. See "Correcting keystone" on page 30 for details.

II. ASPECT

Select the display aspect ratios. See "Selecting the aspect ratio" on page 43 for details.

12. USER 1/ User 2/ User 3

Select the User memory settings.

Note: User 3 not supported for this model.

13. CONTRAST

Displays the CONTRAST setting bar. See "Adjusting Contrast" on page 38 for details.

14. COLOR

Displays the COLOR setting bar. See "Adjusting Color" on page 38 for details.

15. COLOR TEMP

Displays the Color Temperature setting bar. See "Selecting a Color Temperature" on page 39 for details.

16. FINE TUNE

Displays the Color Temperature Fine Tune setting bar. See "Setting a preferred color temperature" on page 40 for details.

17. MUTE

Mutes the built-in speaker.

18. LIGHT

Turns on or off the remote control backlight for about 10 seconds. Pressing any other key while the backlight is on keeps the backlight on for a further 10 seconds.

19. PC

Displays the PC source selection. See "Switching input signal" on page 35 for details.

20. COMP

Displays the COMPONENT source selection. See "Switching input signal" on page 35 for details.

21. VIDEO

Displays the VIDEO source selection. See "Switching input signal" on page 35 for details.

22. AUTO

Automatically determines the best picture timings for the displayed image.

23. MODE/ ENTER

MODE: Choose a suitable preset mode for usage environment.

ENTER: Enter key for OSD menu.

24. Right cursor/Increase volume level

▶: Navigates and changes settings in the OSD. See "Using the menus" on page 31 for details.

: Increase Volume.

25. SOURCE

Displays the source selection bar.

26. PIP

Enables the PIP function. Use the ▲/▼

◀/▶keys to adjust the position of the PIP window

27. SRS

Turns on/off the SRS (Sound Retrieval System) surround sound effects.

28. BRIGHT

Displays the Brightness setting bar. See "Adjusting Brightness" on page 38 for details.

29. SHARP

Displays the Sharpness setting bar. See "Adjusting Sharpness" on page 38 for details.

30. TINT

Displays the Tint setting bar. See "Adjusting Tint" on page 38 for details.

31. INVERT

Set 3D Sync Invert to Disable or Invert.

32.3D

Displays the 3D setting bar.

33. TEST

Displays the test pattern.

34. FREEZE

Freeze/unfreezes the on-screen picture. See "Freezing the image" on page 47 for details.

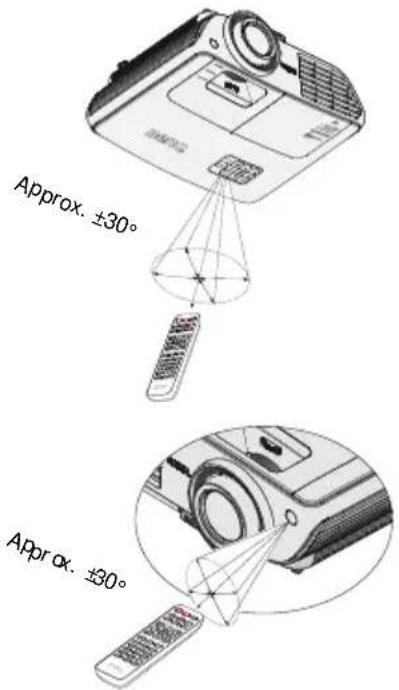

Remote control effective range

Infra-Red (IR) remote control sensor is located on the front and the top of the projector. The remote control must be held at an angle within 60 degrees perpendicular to the projector's IR remote control sensor to function correctly. The distance between the remote control and the sensor should not exceed 8 meters (\~ 26 feet).

Make sure that there are no obstacles between the remote control and the IR sensor on the projector that might obstruct the infra-red beam.

Replacing the remote control battery

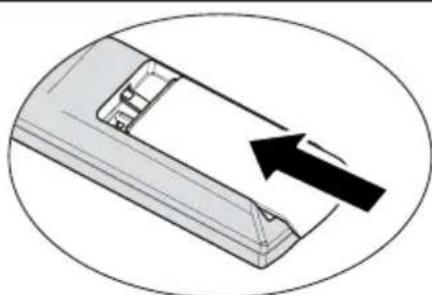

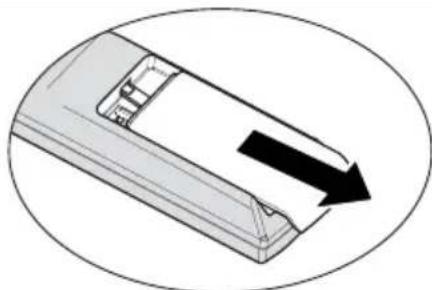

I. Remove the battery compartment cover by sliding the cover in the direction of the arrow.

Diagram of a mechanical component with an arrow indicating direction (no text or symbols present)

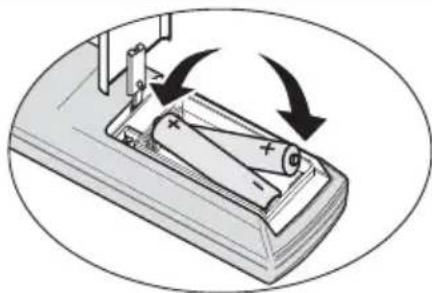

1. Insert the supplied batteries taking note of the polarity (+/-) as shown here.

Diagram of a battery being inserted into a slot, showing charge movement (no text or symbols)

1. Replace the cover.

Diagram of a mechanical component with an arrow indicating direction (no text or symbols present)

• Avoid excessive heat and humidity.
• There may be battery damage if the battery is incorrectly replaced.
• Replace only with the same or equivalent type recommended by the battery manufacturer.
• Dispose of the used battery according to the battery manufacturer's instructions.
• Never throw a battery into a fire. There may be danger of an explosion.
• If the battery is dead or if you will not be using the remote control for a long time, remove the battery to prevent damage to the remote control from possible battery leakage.

Positioning your projector

Choosing a location

Your projector is designed to be installed in one of four possible installation locations.

Your room layout or personal preference will dictate which installation location you select. Take into consideration the size and position of your screen, the location of a suitable power outlet, as well as the location and distance between the projector and the rest of your equipment.

I. Front

Select this location with the projector placed on a table in front of the screen. This is the most common way to position the projector for quick setup and portability.

Simple line drawing of a pendulum setup with a person standing beside a table and a hanging object (no text or symbols)

3. Front Ceiling

Select this location with the projector suspended upside-down from the ceiling in front of the screen.

Purchase the BenQ Projector Ceiling Mounting Kit from your dealer to mount your projector on the ceiling.

*Set Front Ceiling after you turn the projector on.

Simple line drawing of a pendulum with a hanging weight and a human silhouette (no text or symbols)

2. Rear

Select this location with the projector placed on a table behind the screen.

Note that a special rear projection screen is required.

*Set Rear after you turn the projector on.

Simple line drawing of a person observing a simple pendulum setup with a scale and pointer (no text or symbols)

4. Rear Ceiling

Select this location with the projector suspended upside-down from the ceiling behind the screen.

Note that a special rear projection screen and the BenQ Projector Ceiling Mounting Kit are required for this installation location.

*Set Rear Ceiling after you turn the projector on.

Simple line drawing of a mechanical setup with a hanging weight and a human silhouette (no text or symbols)

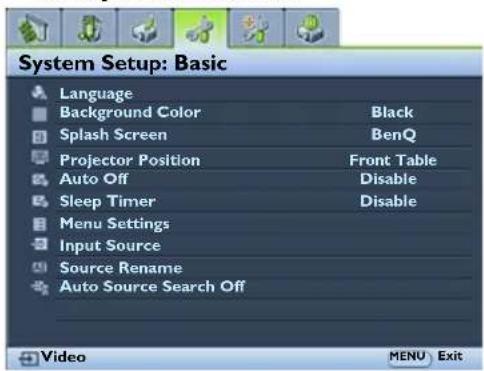

\*To set the projector position:

I. Press MENU/EXIT on thr projector or remote control and then press ◀ /▶ until the system System Setup: Basic menu is highlighted.
2. Press ▲ /▼ to highlight Projector and press ◀ /► until the correct position is selected.

Obtaining a preferred projected image size

The distance from the projector lens to the screen, the zoom setting (if available), and the video format each factors in the projected image size.

The projector should always be placed horizontally level (like flat on a table), and positioned directly perpendicular ( 90^ right-angle square) to the horizontal center of the screen. This prevents image distortion caused by angled projections (or projecting onto angled surfaces).

If the projector is mounted on a ceiling, it must be mounted upside-down so that it projects at a slightly downward angle.

If the projector is positioned further away from the screen, the projected image size increases, and the vertical offset also increases proportionately.

When determining the position of the screen and projector, you will need to account for both the projected image size and the vertical offset dimension, which are directly proportional to the projection distance.

How to determine the position of the projector for a given screen size

I. Refer to the table and find the closest match to your screen size in the left columns labelled "Screen dimensions" on page 19. Using this value, look across this row to the right to find the corresponding average distance from screen value in the column labelled "avg" on page 19. This is the projection distance.

1. Decide the exact position of your projector according to the position of your screen and the adjustable lens shift range.

How to determine the recommended screen size for a given distance

This method can be used for situations where you have purchased this projector and would like to know what screen size will fit in your room.

The maximum screen size is limited by the physical space available in your room.

I. Measure the distance between the projector and where you want to position the screen. This is the projection distance.
2. Refer to the table and find the closest match to your measurement in the average distance from screen column labelled "avg" on page 19. Check that your measured distance is between the min and max distances listed on either side of the average distance value.
3. Using this value, look across that row to the left to find the corresponding screen diagonal listed in that row. That is the projected image size of the projector at that projection distance.

For example,

if your have a 16:9 aspect ratio screen and your measured projection distance was 5.0 m (5000 mm), the closest match in the "avg" on page 19 column is 5008 mm. Looking across this row shows that a 130-inch screen is required.

Checking the min. projection distance in the columns of "Projection distance [mm]" on page 19 indicates that the 5000 mm measured projection distance will also fit the 110 and 160-inch size screens. The projector can be adjusted (using the zoom control) to display on these different screen sizes at the projection distance. Be aware that these different screens have different vertical offset values.

If you place the projector in a different position (to that recommended). you will have to tilt it down or up to center the image on the screen. In these situations, some image distortion will occur. Use the Keystone function to correct the distortion. See "Correcting keystone" on page 30 for details.

Projection dimensions

Refer to "Dimensions" on page 67 for the center of lens dimensions of this projector before calculating the appropriate position.

Floor Installation

Ceiling Installation

Screen dimensions				Projection distance[mm]			Lowest/Highest lens position[mm]
Diagonal[inch (mm)]		Heitht[mm]	Width[mm]	Min distance(with max zoom)	avg	Min distance(with min zoom)
							(min.)	(max.)
26 (659) 323 574 - - 1200 32 78
30 (762) 374 664 923 1156 1388 37 90
40 (1016) 498 886 1231 1541 1851 50				120
50	(1270)	623	1107	1539	1926	2313	62	149
60	(1524)	747	1328	1846	2311	2776	75	179
70	(1778)	872	1550	2154	2696	3239	87	209
80 (2032) 996		1771	2462	3082 3701 100 239
90	(2286)	1121	1992	2769	3467	4164	112	269
100	(2540)	1245	2214	3077	3852	4627	125	299
110	(2794)	1370	2435	3385	4237	5090	137	329
120	(3048)	1494	2657	3693	4622	5552	149	359
130	(3302)	1619	2878	4000	5008	6015	162	389
140	(3556)	1743	3099	4308	5393	6478	174	418
150	(3810)	1868	3321	4616	5778	6940	187	448
160	(4064)	1992	3542	4923	6163	7403	199	478
170	(4318)	2117	3763	5231	6548	7866	212	508
180	(4572)	2241	3985	5539	6934	8328	224	538
190	(4826)	2366	4206	5847	7319	8791	237	568
200	(5080)	2491	4428	6154	7704	9254	249	598

Screen dimensions			Projection distance[mm]			Lowest/Highest lens position[mm]
Diagonal[inch (mm)]	Heitht[mm]	Width[mm]	Min distance(with max zoom)	avg	Min distance(with min zoom)	(min.)	(max.)
250 (6350) 3113 5535 7693 9630 11567 311 747300 (7620) 3736 6641 9232 11556 13881 374 897325 (8254) 4047 7194 10000 - - 405 971

There is 5% tolerance among these numbers due to optical component variations. BenQ recommends that if you intend to permanently install the projector, you should physically test the projection size and distance using the actual projector before you permanently install it, so as to make allowance for this projector's optical characteristics. This will help you determine the exact mounting position so that it best suits your installation location.

Shifting the projection lens

The lens shift control provides flexibility for installing your projector. It allows the projector to be positioned off the center of the screen.

The lens shift is expressed as a percentage of the projected image half height. It is measured as an offset from the projected image's vertical center. You can shift the projection lens within the allowable range depending on your desired image position.

• When the screen position is fixed


• When the projector position is fixed

Lens shift adjustment will not result in a degraded picture quality. In the unlikely event that the image distortion is produced, see "Correcting keystone" on page 30 for details.

Connection

When connecting a signal source to the projector, be sure to:

I. Turn all equipment off before making any connections.
2. Use the correct signal cables for each source.
3. Ensure the cables are firmly inserted.

- In the connections shown below, some cables may not be included with the projector (see "Shipping contents" on page 8). They are commercially available from electronics stores.

- The connection illustrations below are for reference only. The rear connecting jacks available on the projector vary with each projector model.

HDMI connection

Component Video connection

1. Component Video to VGA (D-Sub)

adapter cable

1. Audio L/R cable

2. Audio cable

3. Component Video to Component cable

Video connection

1. Video cable

2. Audio L/R cable

3. Audio cable

Computer/PC connection

I. USB cable
2. VGA cable

1. Audio cable

- Many notebooks do not turn on their external video ports when connected to a projector. Usually a key combo like FN + F3 or CRT/LCD key turns the external display on/off. Locate a function key labeled CRT/LCD or a function key with a monitor symbol on the notebook. Press FN and the labeled function key simultaneously. Refer to your notebook's documentation to find your notebook's key combination.

Connecting video source devices

You need only connect the projector to a video source device using just one of the connecting methods, however each provides a different level of video quality. The method you choose will most likely depend upon the availability of matching terminals on both the projector and the video source device as described below:

Terminal name	Terminal appearance	Picture quality
HDMI Best
Component Video Better
PC Better
Video Normal	[C522]

Connecting audio

The projector has one built-in mono speaker which are designed to provide basic audio functionality accompanying data presentations for business purposes only. They are not designed for, nor intended for stereo audio reproduction use as might be expected in home theater or home cinema applications. Any stereo audio input (if provided), is mixed into a common mono audio output through the projector speaker.

The built-in speaker will be muted when the AUDIO OUT jack is connected.

- The projector is only capable of playing mixed mono audio, even if a stereo audio input is connected. See "Connecting audio" on page 26 for details.

- If the selected video image is not displayed after the projector is turned on and the correct video source has been selected, check that the video source device is turned on and operating correctly. Also check that the signal cables have been connected correctly.

Playing sound through the projector

You can make use of the projector (mixed mono) speaker in your presentations, and also connect separate amplified speakers to the AUDIO OUT socket of the projector.

If you have a separate sound system, you will most likely want to connect the audio output of your Video source device to that sound system, instead of to the mono audio projector.

Once connected, the audio can be controlled by the projector On-Screen Display (OSD) menus.

The table below describes the connection methods for different devices, and where the sound is from.

Device Computer/PC Component/Video HDMI 1/2
Audio input port AUDIO IN (mini jack) AUDIO (L/R) HDMI
The projector can play the sound from...	AUDIO IN (mini jack)	AUDIO (L/R) HDMI
Audio output port AUDIO OUT AUDIO OUT
The selected input signal determines which sound will be played by the projector speaker, and which sound will be output from the projector when AUDIO OUT is connected. If you select the COMPUTER/PC signal, the projector can play the sound received from AUDIO IN mini jack. If you select the COMPONENT/VIDEO signal, the projector can play the sound received from AUDIO (L/R).

Operation

Starting up the projector

I. Plug the power cord into the projector and into a wall socket. Turn on the wall socket switch (where fitted). Check that the POWER indicator light on the projector lights orange after power has been applied.

Please use the original accessories (e.g. power cable) only with the device to avoid possible dangers such as electric shock and fire.

Diagram showing a cable being inserted into a device, with no visible text or symbols

1. Press POWER on the projector ⏻ or remote control 📁 to start the projector and a start up tone sounds. The POWER indicator light flashes green and stays green when the projector is on.

The start up procedure takes about 30 seconds. In the later stage of start up, a startup logo is projected.

(If necessary) Rotate the focus ring to adjust the image clearness.

To turn off the ring tone, see "Turning off the Power on/off ring tone" on page 43 for details.

If the projector is still hot from previous activity, it will run the cooling fan for approximately 90 seconds before energizing the lamp.

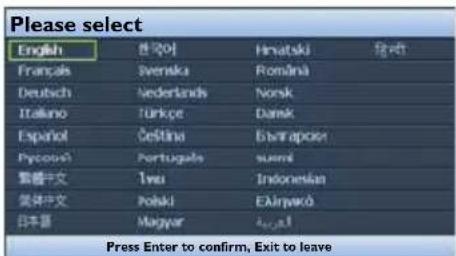

1. To use the OSD menus, please set them to your familiar language first. See "Personalizing the projector menu display" on page 45 for details.
2. If you are prompted for a password, press the arrow keys to enter a five digit password. See "Utilizing the password function" on page 32 for details.
3. Switch all of the connected equipment on.
4. The projector will start to search for input signals. The current input signal being scanned displays in the upper left corner of the screen. If the projector doesn't detect a valid signal, the message 'No Signal' will continue displaying until an input signal is found.

You can also press SOURCE on the projector or remote control to select your desired input signal. See "Switching input signal" on page 35 for details.

If the frequency/resolution of the input signal exceeds the projector's operating range, you will see the message 'Out of Range' displayed on a blank screen. Please change to an input signal which is compatible with the projector's resolution or set the input signal to a lower setting. See "Timing chart" on page 68 for details.

Adjusting the projected image

Adjusting the projection angle

The projector is equipped with 1 quick-release adjuster foot and 2 rear adjuster foot. These adjusters change the image height and projection angle. To adjust the projector:

I. Press the quick-release button and lift the front of the projector. Once the image is positioned where you want it, release the quick-release button to lock the foot in position.
2. Screw the rear adjuster foot to fine tune the horizontal angle.

To retract the foot, hold up the projector while pressing the quick-release button, then slowly lower the projector. Screw the rear adjuster foot in a reverse direction.

If the projector is not placed on a flat surface or the screen and the projector are not perpendicular to each other, the projected image becomes trapezoidal. To correct this situation, see "Correcting keystone" on page 30 for details.

• Do not look into the lens while the lamp is on. The strong light from the lamp may cause damage to your eyes.
• Be careful when you press the adjuster button as it is close to the exhaust vent where hot air comes from.

Auto-adjusting the image

In some cases, you may need to optimize the picture quality. To do this, press AUTO on the projector or remote control. Within 3 seconds, the built-in Intelligent Auto Adjustment function will re-adjust the values of Frequency and Clock to provide the best picture quality.

The current source information will be displayed in the upper left corner of the screen for 3 seconds.

• The screen will be blank while AUTO is functioning.
• This function is only available when PC signal (analog RGB) is selected.

Fine-tuning the image size and clarity

I. Adjust the projected image to the size that you need using the ZOOM ring.

1. Then sharpen the image by rotating the FOCUS ring.

Correcting keystone

Keystoning refers to the situation where the projected image is noticeably wider at either the top or bottom. It occurs when the projector is not perpendicular to the screen.

To correct this, besides adjusting the height of the projector, you can use Keystone manually correct it following one of these steps.

I. Press MENU/EXIT and then press / ◀ ▶ until the Display menu is highlighted.

1. Press ▼ to highlight Keystone and press MODE/ENTER. The Keystone correction page displays.

2. Press to correct keystoning at the top of the image or press to correct keystoning at the bottom of the image.

Using the menus

The projector is equipped with On-Screen Display (OSD) menus for making various adjustments and settings.

Below is the overview of the OSD menu.

To use the OSD menus, please set them to your familiar language first.

I. Press MODE/ENTER on the projector or remote control to turn the OSD menu on.

1. Use / to highlight the System Setup: Basic menu.

1. Press to highlight Language and press to select a preferred language.

1. Press MODE/ENTER twice* on the projector or remote control to leave and save the settings.

*The first press leads you back to the main menu and the second press closes the OSD menu.

Securing the projector

Using a security cable lock

The projector has to be installed in a safe place to prevent theft. Otherwise, purchase a lock, such as a Kensington lock, to secure the projector. You can locate a Kensington lock slot on the left side of the projector. See "Kensington anti-theft lock slot" on page 9 for details.

A Kensington security cable lock is usually a combination of key(s) and a lock. Refer to the lock's documentation for finding out how to use it.

Utilizing the password function

For security purposes and to help prevent unauthorized use, the projector includes an option for setting up password security. The password can be set through the On-Screen Display (OSD) menu. For details of the OSD menu operation, please refer to "Using the menus" on page 31.

You will be inconvenienced if you activate the power-on lock functionality and subsequently forget the password. Print out this manual (if necessary) and write the password you used in this manual, and keep the manual in a safe place for later recall.

Setting a password

Once a password has been set, the projector cannot be used unless the correct password is entered every time the projector is started.

I. Open the OSD menu and go to the System Setup: Advanced > Password menu. Press MODE/ENTER. The Password page displays.

1. Highlight Power on Lock and select On by pressing ◀/▶.

2. As pictured to the right, the four arrow keys (▲, ▼) respectively represent 4 digits (1, 2, 3, 4). According to the password you desire to set, press the arrow keys to enter five digits for the password.

3. Confirm the new password by re-entering the new password.

Once the password is set, the OSD menu returns to the Password page.

1. To activate the Power on Lock function, press ▲/▼ to highlight Power on Lock and press ◀t▶select On.

The digits being input will display as asterisks on-screen. Write your selected password down here in this manual in advance or right after the password is entered so that it is available to you should you ever forget it.

Password: ____ ____ ____

Keep this manual in a safe place.

1. To leave the OSD menu, press MENU/EXIT.

If you forget the password

If the password function is activated, you will be asked to enter the five-digit password every time you turn on the projector. If you enter the wrong password, the password error message as pictured to the right displays lasting for three seconds, and the message 'INPUT PASSWORD' follows. You can retry by entering another five-digit password, or if you did not

record the password in this manual, and you absolutely do not remember it, you can use the password recall procedure. See "Entering the password recall procedure" on page 33 for details.

If you enter an incorrect password 5 times in succession, the projector will automatically shut down in a short time.

Entering the password recall procedure

I. Press and hold AUTO on the projector or remote control for 3 seconds. The projector will display a coded number on the screen.
2. Write down the number and turn off your projector.
3. Seek help from the local BenQ service center to decode the number. You may be required to provide proof of purchase documentation to verify that you are an authorized user of the projector.

Changing the password

1. Open the OSD menu and go to the System Setup: Advanced > Password > Change password menu.
2. Press MODE/ENTER. The message 'INPUT CURRENT PASSWORD' displays.

3. Enter the old password.

4. If the password is correct, another message 'INPUT NEW PASSWORD' displays.

5. If the password is incorrect, the password error message displays lasting for three seconds, and the message 'INPUT CURRENT PASSWORD' displays for your retry. You can press MENU/EXIT to cancel the change or try another password.

6. Enter a new password.

The digits being input will display as asterisks on-screen. Write your selected password down here in this manual in advance or right after the password is entered so that it is available to you should you ever forget it.

Password: ____ ____

Keep this manual in a safe place.

1. Confirm the new password by re-entering the new password.

2. You have successfully assigned a new password to the projector. Remember to enter the new password next time the projector is started.

3. To leave the OSD menu, press MENU/EXIT.

Disabling the password function

To disable password protection, go back to the System Setup: Advanced > Password > Power on Lock menu after opening the OSD menu system. Select Off by pressing ◀/ ▶ . The message 'INPUT PASSWORD' displays. Enter the current password.

i. If the password is correct, the OSD menu returns to the Password page with Off show in the row of Power on Lock. You will not have to enter the password next time you turn on the projector.
ii. If the password is incorrect, the password error message displays lasting for three seconds, and the message 'INPUT PASSWORD' displays for your retry. You can press MENU/EXIT to cancel the change or try another password.

Though the password function is disabled, you need to keep the old password in hand should you ever need to re-activate the password function by entering the old password.

Switching input signal

The projector can be connected to multiple devices at the same time. However, it can only display one full screen at a time.

You can also manually cycle through the available input signals.

I. Press SOURCE on the projector or press input source directly from the remote control. A source selection bar displays.

1. Press / until your desired signal is selected and press MODE/ENTER. Once detected, the selected source information will display on the screen for seconds. If there is multiple equipment connected to the projector, repeat steps 1-2 to search for another signal.

- The brightness level of the projected image will change accordingly when you switch between different input signals. Data (graphic) "PC" presentations using mostly static images are generally brighter than "Video" using mostly moving images (movies).

- The native display resolution of this projector is in a 16:9 aspect ratio. For best display picture results, you should select and use an input signal which outputs at this resolution. Any other resolutions will be scaled by the projector depending upon the 'aspect ratio' setting, which may cause some image distortion or loss of picture clarity. See "Selecting the aspect ratio" on page 43 for details.

You can also rename the source:

I. Press MENU/EXIT and then press ◀/▶ until the System Setup: Basic menu is highlighted.

1. Press ▼ to highlight Source Rename and press MODE/ENTER. The Source Rename page displays.

2. Press // ▲ until you desired character is selected and press MODE/ENTER.

- If you want the projector to automatically search for the signals, select On in the System Setup: Basic > Auto Source Search menu.

Using the preset and user modes

Selecting a preset mode

The projector is preset with several pre-defined picture modes so that you can choose one to suit your operating environment and input source picture type.

To select a preset mode that suits your need:

I. Press MENU/EXIT and then press ◀/▶ until the Picture menu is highlighted.
2. Press ▼ to highlight Preset Mode.
3. Press / until your desired mode is selected.

These modes consist of preset values suitable for various projection situations as described below:

• Cinema: With well-balanced color saturation and contrast with a low brightness level, this is most suitable for enjoying movies in a totally dark environment (as you would find in a commercial cinema).
• Dynamic: Maximizes the brightness of the projected image. This mode is suitable for environments where extra-high brightness is required, such as using the projector in well lit rooms.
• Standard: It is slightly brighter than Cinema mode, and suitable for use in rooms where there is a small amount of ambient light.
  • 3D: It is optimized to bring up 3D effects when watching 3D contents.

This mode is only available when 3D function is enabled.

- User 1/User 2/User 3: Recalls the customized settings. See "Setting the User 1/User 2/User 3 mode" on page 37 for details.

User 3 is only available when 3D mode is enabled.

Fine-tuning the selected picture mode

The pre-defined picture mode settings can be altered via the available items shown in the Picture menus.

To fine-tune the picture mode:

I. Press MENU/EXIT and then press ◀/▶ until the Picture menu is highlighted.
2. Press to highlight the item you want to adjust and press / to set your desired value. Your selection is automatically stored in the projector and associated with that input source. See "Fine-tuning the selected picture mode" on page 36 and "Advanced picture quality controls" on page 39 for details.

Each time you change the picture mode, the projector also changes the setting to the one which was last set for that particular picture mode on that particular input. If you change the input source, the most recently used picture mode and settings for that input and resolution will be restored.

Setting the User 1/User 2/User 3 mode

There are three user-definable modes if the current available picture modes are not suitable for your need. You can use one of the picture modes (except the selected User mode) as a starting point and customize the settings.

1. In the Picture menu, highlight Preset Mode and press ◀/▶ to select User 1, User 2, or User 3 mode.
2. Press ▼ to highlight User Mode Management.

This function is only available when User 1, User 2, or User 3 mode is selected up in the Preset Mode sub-menu item.

1. Press MODE/ENTER to display the User Mode Management page.
2. Press ▼ to highlight Reference Mode and press MODE/ENTER.
3. Press to highlight a picture mode that is closest to your need and press MODE/ENTER and MENU/EXIT to go back to the User Mode Management page.
4. Here you can rename the User 1, User 2, or User 3 mode by press to highlight Rename User Mode and press MODE/ENTER. The Rename User Mode page displays.
5. Press // ▲ until you desired character is selected and press MODE/ENTER.
6. Press MENU/EXIT to go back to the main menu once you are done.
7. Press to select a sub-menu item to be changed and adjust the value with /. See "Fine-tuning the selected picture mode" on page 36 and "Advanced picture quality controls" on page 39 for details.
8. When all settings have been done, press MENU/EXIT to save and leave the settings.

Resetting the picture mode

All of the adjustments you've done in the Picture menus can be returned to the factory preset values with a key press on the highlight of Reset.

To reset the picture mode to the preset factory values:

1. In the Picture menu, highlight Preset Mode and press ◀/▶ to select the picture mode (including User 1, User 2, or User 3) you want to reset.
2. Press ▼ to highlight Reset Picture Settings and press MODE/ENTER. The confirmation message displays.
3. Press ◀/▶ to highlight Reset and press MODE/ENTER. The picture mode will return to the factory preset settings.
4. Repeat steps 1-3 if you want to reset other picture modes.

Do not to be confused with the Reset Picture Settings function here with the Reset All Settings in the System Setup : Advanced menu. The Reset All Settings function returns most of the settings to the factory preset values system wide. See "Reset All Settings" on page 56 for details.

Fine-tuning the image quality in user modes

According to the detected signal type, there are some user-definable functions available when User 1 or User 2 mode is selected. You can make adjustments to these functions based on your needs.

Adjusting Brightness

Highlight Brightness in the Picture menu and adjust the values by pressing ◀/▶ on the projector or remote control.

The higher the value, the brighter the image. And lower the setting, darker the image. Adjust this control so the black areas of the image appear just as black and that detail in the dark areas is visible.

Three black-and-white photos of the Arc de Triomphe, showing architectural details with no visible text or symbols.

Adjusting Contrast

Highlight Contrast in the Picture menu and adjust the values by pressing ◀/▶ on the projector or remote control.

The higher the value, the greater the contrast. Use this to set the peak white level after you have previously adjusted the Brightness setting to suit your selected input and viewing environment.

Three grayscale images of the Arc de Triomphe, showing architectural details with no visible text or symbols.

Adjusting Color

Highlight Color in the Picture menu and adjust the values by pressing ◀/▶ on the projector or remote control.

Lower setting produces less saturated colors. If the setting is too high, colors on the image will be overpowering, which makes the image unrealistic.

Adjusting Tint

Highlight Tint in the Picture menu and adjust the values by pressing ◀/▶ on the projector or remote control.

The higher the value, the more reddish the picture becomes. The lower the value, the more greenish the picture becomes.

Adjusting Sharpness

Highlight Sharpness in the Picture menu and adjust the values by pressing ◀ / ▶ on the projector or remote control.

The higher the value, the sharper the picture becomes. The lower the value, the softer the picture becomes.

Selecting a Color Temperature

Highlight Color Temperature in the Picture menu and adjust the values by pressing ▶/▶ on the projector or remote control.

The options available for color temperature* settings vary according to the signal type selected.

I. Normal: Maintains normal colorings for white.
2. Cool: Makes images appear bluish white.
3. Lamp Native: With the lamp's original color temperature and higher brightness. This setting is suitable for environment where high brightness is required, such as projecting pictures in well lit room.
4. Warm: Makes images appear reddish white.

\*About color temperatures:

There are many different shades that are considered to be "white" for various purposes. One of the common methods of representing white color is known as the "color temperature". A white color with a low color temperature appears to be reddish white. A white color with a high color temperature appears to have more blue in it.

Advanced picture quality controls

There are more advanced functions in the Picture > Advanced... and Display menus to be adjusted to your preference. To save the settings, just press MENU/EXIT to leave the OSD menu.

Setting Black Level

Highlight Black Level in the Picture > Advanced... menu and press ◀ /▶ on the projector or remote control to select 0 IRE or 7.5 IRE.

The grayscale video signal is measured in IRE units. In some areas which use NTSC TV standard, the grayscale is measured from 7.5 IRE (black) to 100 IRE (white); however, in other areas where PAL equipment or Japanese NTSC standards are used, the grayscale is measured from 0 IRE (black) to 100 IRE (white). We suggest that you check the input source to see if it is with 0 IRE or 7.5 IRE, then select accordingly.

Controlling image clarity

You may have static or noisy projected pictures.

To achieve better picture clarity:

I. Highlight Clarity Control in the Picture > Advanced... menu and press MODE/ENTER on the projector or remote control to display the Clarity Control page.
2. Press ▼ to select Noise Reduction and press ◀/▶ to set the desired value.

- Noise Reduction: Reduces electrical image noise caused by different media players. The higher the setting, the less the noise.

Setting a preferred color temperature

To set a preferred color temperature:

I. Highlight Color Temperature Fine Tuning in the Picture > Advanced... menu and press MODE/ENTER. The Color Temperature Fine Tuning page displays.
2. Press / t▲ highlight the item you want to change and adjust the values by pressing ◀ /▶ .

• Red Gain/Green Gain/Blue Gain: Adjusts the contrast levels of Red, Green, and Blue.

• Red Offset/Green Offset/Blue Offset: Adjusts the brightness levels of Red, Green, and Blue.

• To save and leave the settings, press MENU/EXIT.

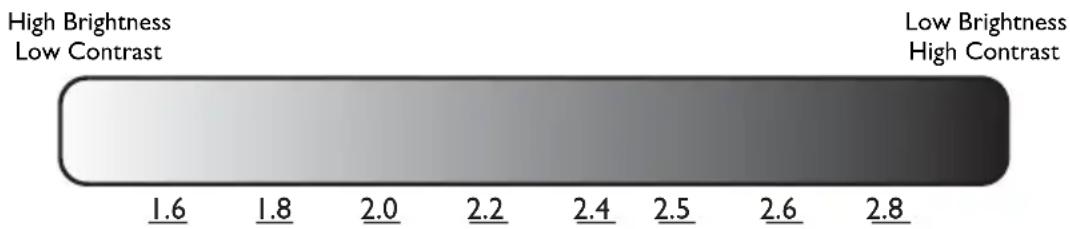

Selecting a Gamma setting

Highlight Gamma Selection in the Picture > Advanced... menu and select a preferred setting by pressing 🔊 on the projector or remote control.

Gamma refers to the relationship between input source and picture brightness.

• Gamma 1.6/1.8/2.0/BenQ

Select these values according to your preference.

- Gamma 2.2

Increases the average brightness of the picture. Best for a lit environment, meeting room or family room.

- Gamma 2.4/2.5

Best for viewing movies in a darkened environment.

- Gamma 2.6/2.8

Best for viewing movies which are mostly composed of dark scenes.

Brilliant Color

Highlight Brilliant Color in the Picture > Advanced... menu and select by pressing ◀/▶ on the projector or remote control.

This feature utilizes a new color-processing algorithm and system level enhancements to enable higher brightness while providing truer, more vibrant colors in picture. It enables a greater than 50% brightness increase in mid-tone images, which are common in video and natural scenes, so the projector reproduces images in realistic and true colors. If you prefer images with that quality, select On. If you don't need it, select Off.

Color Management

In most installation situations, color management will not be necessary, such as in classroom, meeting room, or lounge room situations where lights remain on, or where building external windows allow daylight into the room.

Only in permanent installations with controlled lighting levels such as boardrooms, lecture theaters, or home theaters, should color management be considered. Color management provides fine color control adjustment to allow for more accurate color reproduction, should you require it.

Proper color management can only be achieved under controlled and reproducible viewing conditions. You will need to use a colorimeter (color light meter), and provide a set of suitable source images to measure color reproduction. These tools are not provided with the projector, however, your projector supplier should be able to provide you with suitable guidance, or even an experienced professional installer.

The Color Management provides six sets (RGBCMY) of colors to be adjusted. When you select each color, you can independently adjust its range and saturation according to your preference.

If you have purchased a test disc which contains various color test patterns and can be used to test the color presentation on monitors, TVs, projectors, etc. You can project any image from the disc on the screen and enter the Color Management menu to make adjustments.

To adjust the settings:

I. Go to the Picture > Advanced... menu and highlight Color Management.
2. Press MODE/ENTER and the Color Management page displays.
3. Highlight Primary color and press ◀/▶ to select a color from among Red, Green, Blue, Cyan, Magenta and Yellow.
4. Press ▼ to highlight Hue and press ◀/▶ to select its range. Increase in the range will include colors consisted of more proportions of its two adjacent colors.

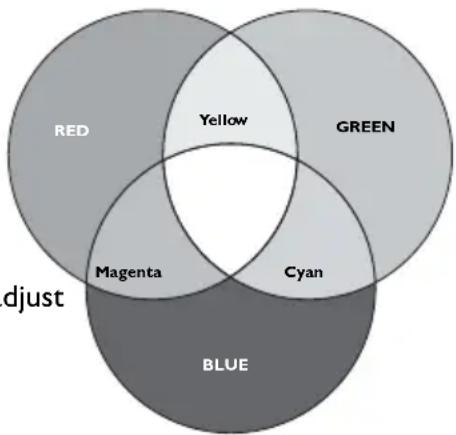

Please refer to the illustration to the right for how the colors relate to each other.

For example, if you select Red and set its range at 0, only pure red in the projected picture will be selected. Increasing its range will include red close to yellow and red close to magenta.

1. Press ▼ to highlight Saturation and adjust

its values to your preference by pressing

▶. Every adjustment made will reflect to the image immediately.

For example, if you select Red and set its value at 0, only the saturation of pure red will be affected.

1. Press ▼ to highlight Gain and adjust its values to your preference by pressing

◀/▶The contrast level of the primary color you select will be affected. Every adjustment made will reflect to the image immediately.

1. Repeat steps 3 to 6 for other color adjustments.
2. Make sure you have made all of the desired adjustments.
3. Press MENU/EXIT to exit and save the settings.

Saturation is the amount of that color in a video picture. Lower settings produce less saturated colors; a setting of "0" removes that color from the image entirely. If the saturation is too high, that color will be overpowering and unrealistic.

Setting Film Mode

Highlight Film Mode in the Display menu and select On by pressing ◀ /▶ on the projector or remote control.

This feature helps improve picture quality when projecting composite or S-video image from a filmsourced DVD or Blu-ray Disc.

Setting 3D Comb Filter

Highlight 3D Comb Filter in the Display menu and select On by pressing ◀ /▶ on the projector or remote control.

This feature separates composite signal to Y (brightness) signal and C (color) signal, and can help produce clearer and sharper images with correct colors in place.

This function is only available when a composite or S-video signal is selected.

Adjusting the sound

The sound adjustments made as below will have an effect on the projector speakers. Be sure you have made a correct connection to the projector audio input. See "Connection" on page 22 for how the audio input is connected.

Muting the sound

To temporarily turn off the sound,

• Using the remote control

Press MUTE to temporarily turn off the sound. While the sound is off, the screen will display in the upper right corner of the screen.

To restore the sound, press MUTE again.

• Using the OSD menu

I. Press MENU/EXIT and then press ◀ /▶ until the System Setup: Advanced menu is highlighted.
2. Press ▼ to highlight Audio Settings and press ENTER. The Audio Settings page displays.
3. Highlight Mute and press ◀ /▶ to select On.
4. To restore the sound, repeat steps 1-3 and press ◀/▶ to select Off.

Adjusting the sound level

To adjust the sound level,

• Using the remote control

Press or to select a desired sound level.

• Using the OSD menu

I. Repeat steps 1-2 above.

1. Press ▼ to highlight Volume and press ◀/▶ to select a desired sound level.

Turning off the Power on/off ring tone

I. Repeat steps 1-2 above.
2. Press ▼ to highlight Power on/off ring tone and press ◀ /▶ to select Off.

The only way to change Power on/off ring tone is setting On or Off here. Setting the sound mute or changing the sound level will not affect the Power on/off ring tone.

Selecting the aspect ratio

The 'aspect ratio' is the ratio of the image width to the image height. Most analog TV and computers are in 4:3 ratio, and digital TV and DVDs are usually in 16:9 ratio.

With the advent of digital signal processing, digital display devices like this projector can dynamically stretch and scale the image output to a different aspect than that of the image input signal.

To change the projected image ratio (no matter what aspect the source is):

I. Press MENU/EXIT and then press ◀ /▶ until the Display menu is highlighted.
2. Press ▼ to highlight Aspect Ratio.
3. Press / to select an aspect ratio to suit the format of the video signal and your display requirements.

About the aspect ratio

In the pictures below, the black portions are inactive areas and the white portions are active areas. OSD menus can be displayed on those unused black areas.

I. Auto: Scales an image

proportionally to fit the projector's native resolution in its horizontal width. This is suitable for the incoming image which is neither in 4:3 nor 16:9 and you want to make most use of the screen without altering the image's aspect ratio.

1. 16:9: Scales an image so that it is displayed in the center of the screen with a 16:9 aspect ratio. This is most suitable for images which are already in a 16:9 aspect, like high definition TV, as it displays them without aspect alteration.

1. Real: The image is projected as its original resolution, and resized to fit within the display area. For input signals with lower resolutions, the projected image will display smaller than if resized to full screen. You could adjust the zoom setting or move the projector away from the screen to increase the image size if necessary. You may also need to refocus the projector after making these adjustments.

1. 4:3: Scales an image so that it is displayed in the center of the screen with a 4:3 aspect ratio. This is most suitable for 4:3 images like computer monitors, standard definition TV and 4:3 images aspect DVD movies, as it displays them without aspect alteration.

1. Wide: Stretches the picture horizontally in a non-linear manner, that is, the edges of the picture are stretched more than the center of the picture to prevent distortion of the central part of the picture. This is suitable for occasions where you want to stretch the width of a 4:3 aspect picture to the width of a 16:9 aspect screen. It does not alter the height. Some widescreen movies have been produced with their width squashed down to the width of a 4:3 aspect, and are best viewed when restretched back to their original width using this setting..

1. Letter Box: Scales a picture to fit the projector's native resolution in its horizontal width and resize the picture's height to the 3/4 of the projection width. This may produce a picture greater in height than can be displayed, so part of the picture is lost (not displayed) along the top and bottom edges of the projection. This is suitable for the display of movies which are presented in letter box format (with black bars on the top and bottom).

- The black portions are inactive areas and the white portions are active areas.

- OSD menus can be displayed on those unused black areas.

Magnifying and searching for details

If you need to find the details on the projected picture, magnify the picture. Use the direction arrow keys for navigating the picture.

I. Press MENU/EXIT and then press ◀ /▶ until the Display menu is highlighted.

1. Press ▼ to highlight Digital Zoom and press MODE/ENTER. The Zoom bar displays.

2. Press on the projector repeatedly to magnify the picture to a desired size.

3. To navigate the picture, press MODE/ENTER to switch to the paning mode and press the directional arrows (▲, ▼) to navigate the picture.

4. To reduce size of the picture, press MODE/ENTER to switch back to the zoom in/out functionality, and press AUTO to restore the picture to its original size. You can also press ▼ repeatedly until it is restored to the original size.

The picture can only be navigated after the picture is magnified. You can further magnify the picture while searching for details.

Playing 3D function

I. To enter the special preset mode, press MENU/EXIT and then press ◀/▶ until the Display menu is highlighted, and press ◀/▶ to enable or disable 3D. When the 3D Auto is enabled, the current picture mode adjustment will be disabled.

1. To invert the image, press MENU/EXIT and then press ◀ /▶ until the Display menu is highlighted, and press ◀ /▶ to enable or disable 3D Sync Invert.

2. 3D Requirement:

- PC: PC with graphic card with stereo capability (Quad buffer feature) and can run at 120Hz/60Hz refresh rate.

• Video: standard NTSC/PAL DVD player to output 60Hz/50Hz movie.

- 55% of the brightness will loss.

To enjoy the 3D function, first enable the Play Movie in 3D setting found in your DVD devices under the 3D Disc Menu.

Personalizing the projector menu display

The On-Screen Display (OSD) menus can be set according to your preferences. The following settings do not affect the projection settings, operation, or performance.

- Menu display time in the System Setup: Basic > Menu Settings menu sets the length of time the OSD will remain active after your last key press. The time length ranges from 5 to 30 seconds in 5-second increments. Use 🔊 to select a suitable time frame.

- Menu position in the System Setup: Basic > Menu Settings menu sets the OSD position in five locations. Use ↕ to select a preferred position.

- Language in the System Setup: Basic menu sets your familiar language for the OSD menus. Use /to select your language.

- Splash Screen in the System Setup: Basic menu sets a preferred logo screen to be displayed during projector start-up. Use 🔔 to select a screen.

Operating in a high altitude environment

We recommend you use the High Altitude Mode when your environment is between 1500 m –3000 m above sea level, and temperature is between 0°C–30°C.

Do not use the High Altitude Mode if your altitude is between 0 m and 1500 m and temperature is between 0°C and 35°C. The projector will be over cooled, if you turn the mode on under such a condition.

To activate the High Altitude Mode:

I. Press MENU/EXIT and then press

◀ /▶ until the System Setup:

Advanced menu is highlighted.

1. Press ▼ to highlight High Altitude

Mode and press ◀/▶ to select On. A confirmation message displays.

1. Highlight Yes and press MODE/ENTER.

Operation under "High Altitude Mode" may cause a higher decibel operating noise level because of increased fan speed necessary to improve overall system cooling and performance.

If you use this projector under other extreme conditions excluding the above, it may display auto shut-down symptoms, which is designed to protect your projector from overheating. In cases like this, you should switch to High Altitude mode to solve these symptoms. However, this is not to state that this projector can operate under any and all harsh or extreme conditions.

Locking control keys

With the control keys on the remote control and projector locked, you can prevent your projector settings from being changed accidentally (by children, for example). When Key Lock is on, no control keys on the remote control and projector will operate except POWER and ▶

To lock the keys:

I. Press MENU/EXIT and then press ◀/▶ until the System Setup: Advanced menu is highlighted.

1. Press ▼ to highlight Key Lock, and press ◀/▶ to select On. A warning message appears. Select Yes and press MODE/ENTER. The control keys lock.

To unlock the keys, press ▶ and hold on the projector or remote control for 3 seconds.

Hiding the image

In order to draw the audience's full attention to the presenter, you can use ECO BLANK on the projector or remote control to hide the screen image. Press any key on the projector or remote control to restore the image. The word 'BLANK' appears at the lower right corner of the screen while the image is hidden.

- Do not block the projection lens from projecting as this could cause the blocking object to become heated and deformed or even cause a fire.

Freezing the image

Press FREEZE on the remote control to freeze the image. The word 'FREEZE' will display in the upper left corner of the screen. To release the function, press any key on the projector or remote control.

Even if an image is frozen on the screen, the pictures are running on the video or other device. If the connected devices have active audio output, you will still hear the audio even though the image is frozen on screen.

Shutting down the projector

1. To turn the projector off, press POWER OFF on the remote control to turn projector off directly. Or you can press ⬇POWER on the projector and a warning message appears.

Press ⏻

POWER again.

1. Once the cooling process finishes, the POWER indicator light is a steady orange and fans stop.

Diagram showing a cable being inserted into a device, with no visible text or symbols

1. Disconnect the power cord from the wall socket if the projector will not be used in an extended period of time.

- To protect the lamp, the projector will not respond to any commands during the cooling process.

• To shorten the cooling time, you can also activate the Quick Cooling function. See "Quick Cooling" on page 56 for details.
• If the projector is not properly shut down, to protect the lamp, when you attempt to re-start the projector, the fans will run for a few minutes to cool down. Press POWER again to start the projector after the fans stop and the POWER indicator light turns orange.
• Lamp life results will vary depending on environmental conditions, and usage.

Menu operation

Menu system

Please note that the on-screen display (OSD) menus vary according to the signal type selected.

Main menu Sub-menu Options
	Preset Mode		ISF Disabled: Dynamic/Standard/Cinema/User 1/User 2ISF Enabled: Dynamic/Standard/Cinema/User 1/User 2/ISF Night/ISF Day3D Enabled: 3D/User3
	User Mode Management	Reference Mode	ISF Disabled: Dynamic/Standard/Cinema/User 1/User 2ISF Enabled: Dynamic/Standard/Cinema/User 1/User 2/ISF Night /ISF Day3D Enabled: 3D/User3
		Rename User Mode	Keyboard popup
	Brightness
	Contrast
	Color
	Tint
	Sharpness
	Color Temperature		Normal/Cool/Lamp Native/Warm
	Lamp Power Normal Normal/Economic/SmartEco
	Advanced...	Black Level
		Clarity Control Noise Reduction:0-31
		Color Temperature Fine Tuning	Red Gain/Green Gain/Blue Gain/Red Offset/Green Offset/Blue Offset
		Gamma Selection	1.6/1.8/2.0/2.2/2.4/2.5/2.6/2.8/BenQ
		Brilliant Color On/Off
		Color Management	Primary Color (Red/Green/Blue/Cyan/Magenta/Yellow)/Hue/Gain/Saturation
	Reset Picture Settings		Reset/Cancel
2. Audio Setup	Mute
	Volume
	Power On/Off Ring Tone

Main menu Sub-menu Options

3. Display	Aspect Ratio		Auto/Real/16:9/4:3/Wide/Ltter Box
	Keystone
	Position
	Overscan Adjustment
	PC & Component YPbPr Tuning		H. Size/Phase/Auto (Only for RGBHD PC Timing)
	Digital Zoom
	Film Mode On/Off
	3D Comb Filter On/Off
	3D	3D Mode	Auto (as signal has inforframe)/Off/Frame Sequential/Frame Packing/Top-Bottom/Side-by-Side
		3D Sync Invert
4. System Setup: Basic	Language		ENGLISH/ FRANÇAIS/DEUTSCH/ITALIANO/ESPAÑOL/PYCCKII/繁體中文/简体中文/日本語/한국어/Svenska/Nederlands/Türkçe/Čeština/Português/Юггггн/ Polski/Magyar/Hrvatski/ Română/Norsk/Dansk/български/Suomi/Еллгнікá/Bahasa Indonesia
	Background Color		Black/Blue/Purple
	Splash Screen BenQ/Black/Blue
	Projector Position		Front Table/Rear Table/?Rear Ceiling/Front Ceiling
	Auto Off		Disable/5 min/10 min/15 min/20 min/25 min/30 min
	Sleep Timer		Disable/30 min/1 hr/2 hr/3 hr/4 hr/8 hr/12 hr
	Menu Settings	Menu Display Time	Always On/5 sec/10 sec/15 sec/20 sec/25 sec/30 sec
		Menu Position	Center/Top-Left/Top-Right/Bottom-Right/Bottom-Left
		Blank Reminder Message	On/Off
	Input Source
	Source Rename Keyboard popup
	Auto Source Search
Main menu Sub-menu			Options
	Lamp Settings	Reset LampTimer
		Equivalent LampHour
	HDMI Settings HDMI Format		Auto/PC Signal/Video SignalPC Signal 0~255 levelVideo Signal 16~235 level
	Baud Rate		2400/4800/9600/14400/19200/38400/57600/115200
5. System Setup: Advanced	Test Pattern On/Off
	Closed Caption	Closed Caption Enable	On/Off
		Caption Version CCI/CC2/CC3/CC4
	Quick Cooling On/Off
	High Altitude Mode		On/Off
	Password	Change Password
		Power On Lock On/Off
	Key Lock On/Off
	Reset All Settings
	ISF Input password
6. Information	Current System Status		SourcePreset ModeResolutionColor SystemEquivalent Lamp Hour3 D FormatFirmware Version

Note that the menu items are available when the projector detects at least one valid signal. If there is no equipment connected to the projector or no signal detected, limited menu items are accessible.

Description of each menu

FUNCTION DESCRIPTION

I. Picture menu	Preset Mode	Pre-defined picture modes are provided so you can optimize your projector image set-up to suit your program type.See "Fine-tuning the selected picture mode" on page 36 for details.
	User Mode Management	Selects a preset mode that most suits your need for the picture quality and further fine tune the picture based on the selects list below.See "Setting the User 1/User 2/User 3 mode" on page 37 for detail.
	Brightness	Adjusts the brightness of the image.See "Adjusting Brightness" on page 38 for details.
	Contrast	Adjusts the degree of difference between dark and light in the image.See "Adjusting Contrast" on page 38 for details.
	Color	Adjusts the color saturation level -- the amount of each color in a video image. See "Adjusting Color" on page 38 for details.The function is only available when Video or S-Video with NTSC system is selected.
	Tint	Adjusts the red and green color tones of the image.See "Adjusting Tint" on page 38 for details.The function is only available when Video or S-Video with NTSC system is selected.
	Sharpness	Adjusts the image to make it look sharper or softer.See "Adjusting Sharpness" on page 38 for details.The function is only available when Video or S-Video with NTSC system is selected.
	Color Temperature	See "Selecting a Color Temperature" on page 39 for details.
	Lamp Power	Selects the projector lamp power between Normal, Economic and SmartEco modes.

FUNCTION DESCRIPTION

1. Picture menu	Advanced...	Black LevelSets the picture grayscale as 0 IRE or 7.5 IRE. See "Setting Black Level" on page 39 for details.Clarity ControlSee "Controlling image clarity" on page 39 for details.Color Temperature Fine TuningSee "Setting a preferred color temperature" on page 40 for details.Gamma SelectionSee "Selecting a Gamma setting" on page 40 for details.Brilliant ColorAdjusts white peaking while maintaining correct color presentation.See "Brilliant Color" on page 40 for details.Color ManagementSee "Color Management" on page 41 for details.
	Reset Picture Settings	Returns all settings in the Picture menu to the factory preset values.See "Resetting the picture mode" on page 37 for details.
2. Audio Setup menu	Mute	See "Muting the sound" on page 42 for details.
	Volume	See "Adjusting the sound level" on page 42 for details.
	Power On/Off ring tone	See "Turning off the Power on/off ring tone" on page 43 for details.

FUNCTION DESCRIPTION

Aspect Ratio	There are several options to set the image's aspect ratio depending on your input signal source. See "Selecting the aspect ratio" on page 43 for details.
Keystone	Corrects any keystoning of the image manually. See "Correcting keystone" on page 30 for details.
Position	Displays the position adjustment page. To move the projected image, use the directional arrow keys. The values shown on the lower position of the page change with every key press you made until they reach their maximum or minimum.This function is only available when a PC signal (analog RGB) is selected.
Overscan Adjustment	Conceals the poor picture quality in the four edges. You can also manually press ▶to▼decide how much to be concealed. Setting 0 means the picture is 100% displayed. The greater the value, the more portion of the picture is concealed while the screen remains filled and geometrically accurate.
PC & Component YPbPr Tuning	H. SizeAdjusts the horizontal width of the picture.This function is only available when the PC signal (analog RGB) is selected.PhaseAdjusts the clock phase to reduce picture distortion.This function is only available when the PC signal (analog RGB) is selected.Auto (Only for RGBHD PC Timing)Adjusts the phase, and frequency automatically.This function is only available when the PC signal is selected.
Digital Zoom	Magnifies or reduces the projected image. See "Magnifying and searching for details" on page 45 for details.

FUNCTION DESCRIPTION

	Film Mode	See "Setting Film Mode" on page 42 for details.
	3D Comb Filter	See "Setting 3D Comb Filter" on page 42for details.
3. Display menu	3D	3D ModeThis projector features a 3D function which enables you to enjoy the 3D movies, videos, and sporting events in a more realistic way by pressing the depth of the images. You need to wear a pair of 3D glasses to view the 3D images.When the 3D mode function is enabled:The brightness level of the projected image will decrease.The Preset Mode cannot be adjusted.The Keystone can only be adjusted within limited degrees.3D Sync InvertWhen your 3D image is distorted, you can enabled this function to switch between the image for the left eye and the right eye for the more comfortable 3D viewing experience.
4. System Setup: Basic menu	Language	Sets the language for the On-Screen Display (OSD) menus.See "Using the menus" on page 31 for details.
	Background Color	Sets the background color for the projector. See "Personalizing the projector menu display" on page 45 for details.
	Splash Screen	Allows you to select which logo screen will display during projector start-up. Three options are available: BenQ logo, Black screen, or Blue screen.
	Projector Position	The projector can be installed on a ceiling or behind a screen, or with one or more mirrors.See "Choosing a location" on page 16 for details.
	Auto Off	Allows the projector to turn off automatically if no input signal is detected after a set period of time.See "Setting Auto Off" on page 59 for details.
	Sleep Timer	Sets the auto-shutdown timer. The timer can be set to a value between 30 minutes and 12 hours.

FUNCTION DESCRIPTION

4. System Setup: Basic menu	Menu Settings	Menu Display TimeSets the length of time the OSD will remain active after your last key press. The range is from 5 to 30 seconds in 5-second increments.Menu PositionSets the On-Screen Display (OSD) menu position.Blank Reminder MessageSelecting On allows the projector to show you to blank reminder message.
	Input Source	Select an input source to be projected.See "Switching input signal" on page 35 for details.
	Source Rename	Rename the source to your desired name.See "Switching input signal" on page 35 for details.
	Auto Source Search	Set whether the projector searches automatically for input sources. If the sources scan is On, the projector will scan for input sources until it acquires a signal. If the function is not activated, the projector selects the last used input source.
5. System Setup: Advanced menu	Lamp Settings	Reset Lamp TimerSee "Resetting the lamp timer" on page 63 for details.Equivalent Lamp HourSee "Getting to know the lamp hour" on page 59 for details on how the total lamp hour is calculated.
	HDMI Settings	HDMI FormatSelects an input source type for the HDMI signal. You can also manually select the source type. The different source types carry different standards for the brightness level.HDMI Format is only available when the HDMI signal is selected.
	Baud Rate	Selects a baud rate that is identical with your computer's so that you can connect the projector using a suitable RS-232 cable and update or download the projector's firmware. This function is intended for qualified service personnel.
	Test Pattern	Selecting On enables the function and the projector displays the grid test pattern. It helps you adjust the image size and focus and check that the projected image is free from distortion.

FUNCTION DESCRIPTION

Closed Caption	Closed Caption EnableSelecting On enables the function. The closed captioning text is displayed if available.Close Caption will disable when aspect change to 16:9, 16:10 or real.Caption VersionSelects a preferred closed captioning mode. To view captions, select CCI, CC2, CC3, or CC4 (CCI displays captions in the primary language in your area).
Quick Cooling	Enables or disables the Quick Cooling function. Selecting On enables the function and projector cooling time will be shortened from a normal 90-second duration to approximately 30 seconds.
High Altitude Mode	A mode for operation in high altitude areas.See "Operating in a high altitude environment" on page 46 for details.
Password	Change PasswordYou will be asked to enter the current password before changing to a new one. See "Utilizing the password function" on page 32 for details.Power On LockLimits use of the projector to only those who know the correct password. See "Utilizing the password function" on page 32 for details.
Key Lock	See "Locking control keys" on page 46 for details.
Reset All Settings	Returns all settings to the factory preset values.The following settings will still remain: Keystone, Language, Projector Position, High Altitude Mode, Password, Key Lock, and ISF.
ISF	The ISF calibration menu is password protected and only accessible by authorized ISF calibrators. The ISF (Imaging Science Foundation) has developed carefully crafted, industry-recognized standards for optimal video performance and has implemented a training program for technicians and installers to use these standards to obtain optimal picture quality from BenQ video display devices. Accordingly, we recommend that setup and calibration be performed by an ISF certified installation technician.For more information, please go to www.imagingscience.com or contact the place you purchased the projector.

FUNCTION DESCRIPTION

6. Information menu

Current System Status

SourceShows the current signal source.Preset ModeShows the selected mode in the Preset menu.ResolutionShows the native resolution of the input signal.Color SystemShows input system format, NTSC, PAL, SECAM or RGB.Equivalent Lamp HourDisplays the number of hours the lamp has been used.3D FormatShows the current 3D mode.3D Format is only available when 3D Mode is enabled.Firmware VersionDisplays the firmware version of the projector.

The Information menu shows you the current operating status of the projector.

Maintenance

Care of the projector

Your projector needs little maintenance. The only thing you need to do on a regular basis is to keep the lens clean.

Never remove any parts of the projector except the lamp. Contact your dealer if other parts need replacing.

Cleaning the lens

Clean the lens whenever you notice dirt or dust on the surface.

• Use a canister of compressed air to remove dust.
• If there is dirt or smears, use lens-cleaning paper or moisten a soft cloth with lens cleaner and gently wipe the lens surface.

Never use any type of abrasive pad, alkaline/acid cleaner, scouring powder, or volatile solvent, such as alcohol, benzene, thinner or insecticide. Using such materials or maintaining prolonged contact with rubber or vinyl materials may result in damage to the projector surface and cabinet material.

Cleaning the projector case

Before you clean the case, turn the projector off using the proper shutdown procedure as described in "Shutting down the projector" on page 47 and unplug the power cord.

• To remove dirt or dust, wipe the case with a soft, lint-free cloth.
• To remove stubborn dirt or stains, moisten a soft cloth with water and a neutral pH detergent. Then wipe the case.

Never use wax, alcohol, benzene, thinner or other chemical detergents. These can damage the case.

Storing the projector

If you need to store the projector for an extended time, please follow the instructions below:

• Make sure the temperature and humidity of the storage area are within the recommended range for the projector. Please refer to "Specifications" on page 66 or consult your dealer about the range.
• Retract the adjuster feet.
• Remove the battery from the remote control.
• Pack the projector in its original packing or equivalent.

Transporting the projector

It is recommended that you ship the projector with its original packing or equivalent.

When you carry the projector yourself, please use the original box or a suitable soft carry case.

Lamp information

Getting to know the lamp hour

When the projector is in operation, the duration (in hours) of lamp usage is automatically calculated by the built-in timer. The method of calculating the equivalent lamp hour is as follows:

See "Setting Lamp mode as Economic or SmartEco" below for more information on Economic mode.

To obtain the lamp hour information:

I. Press MENU/EXIT and then press ◀/▶ until the System Setup: Advanced menu is highlighted.
2. Press ▼ to highlight Lamp Settings and press MODE/ENTER. The Lamp Settings page displays.
3. You will see the Equivalent lamp hour information displaying on the menu.
4. To leave the menu, press MENU/EXIT.

You can also get the lamp hour information on the Information menu.

Extending lamp life

The projection lamp is a consumable item. To keep the lamp life as long as possible, you can do the following settings via the OSD menu.

Setting Lamp mode as Economic or SmartEco

Using Economic mode reduces system noise and power consumption by 30%. Using SmartEco mode reduces system noise and lamp power consumption by up to 70%. If the Economic or SmartEco mode is selected, the light output will be reduced and result in darker projected pictures

Setting the projector in Economic or SmartEco mode also extends the lamp life. To set Economic or SmartEco mode, go to the Picture > Lamp Settings > Lamp Power menu, and press MODE/ENTER. The Lamp Power page displays. Then press ▲ /▼ repeatedly until your desired mode is selected and press MODE/ENTER.

Lamp mode Description
Normal	100% lamp brightness
Economic	Saves 30% lamp power consumption
SmartEco	Saves up to 70% lamp power consumption depending on the content brightness level

Setting Auto Off

This function allows the projector to turn off automatically if no input source is detected after a set period of time to prevent unnecessary waste of lamp life.

To set Auto Off, go into the System Setup: Basic > Auto Off menu and press ◀/▶. The time period can be set from 5 to 30 minutes in 5-minute increments. If the preset time lengths are not suitable for your presentation, select Disable. The projector will not automatically shut down in a certain time period.

Timing of replacing the lamp

When the Lamp indicator lights up red or a message appears suggesting it is time to replace the lamp, please install a new lamp or consult your dealer. An old lamp may cause a malfunction in the projector and in some instances the lamp may explode.

Go to http://lamp.benq.com for a replacement lamp.

The Lamp indicator light and Temperature warning light will light up if the lamp becomes too hot. See "Indicators" on page 64 for details.

The following lamp warning displays will remind you to change the lamp.

The warning messages below are for reference only. Please follow the actual on-screen instructions to prepare and replace the lamp.

Status Message

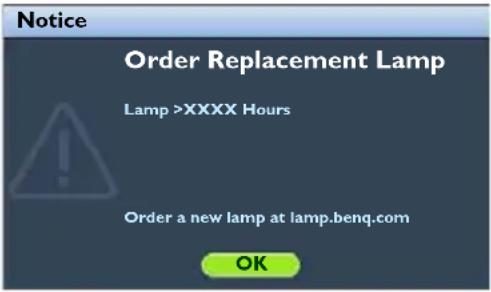

Install a new lamp for optimal performance. If the projector is normally run with Economic selected (See "Setting Lamp mode as Economic or SmartEco" on page 59), you may continue to operate the projector until the next lamp warning appears.
A new lamp should be fitted to avoid the inconvenience when the projector runs out of lamp time.

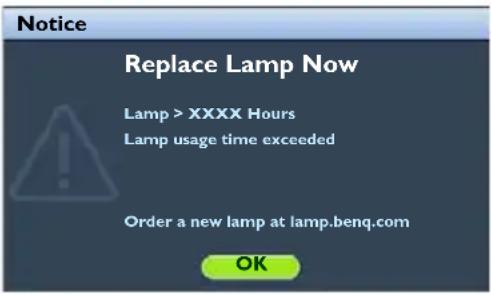

It is strongly recommended that you replace the lamp at this age. The lamp is a consumable item. The lamp brightness diminishes with use. This is normal lamp behavior. You can replace the lamp whenever you notice that the brightness level has significantly diminished.
The lamp MUST be replaced before the projector will operate normally.

Replacing the lamp

- If lamp replacement is performed while the projector is suspended upside-down from the ceiling, make sure that no one is underneath the lamp socket to avoid any possible injury or damage to the human eyes caused by fractured lamp.

- To reduce the risk of electrical shock, always turn the projector off and disconnect the power cord before changing the lamp.

- To reduce the risk of severe burns, allow the projector to cool for at least 45 minutes before replacing the lamp.

- To reduce the risk of injuries to fingers and damage to internal components, use caution when removing lamp glass that has shattered into sharp pieces.

- To reduce the risk of injuries to fingers and/or compromising image quality by touching the lens, do not touch the empty lamp compartment when the lamp is removed.

- This lamp contains mercury. Consult your local hazardous waste regulations to dispose of this lamp in a proper manner.

• To assure optimal performance from the projector, it is recommended that you purchase a BenQ projector lamp for lamp replacement.

- Ensure good ventilation when handling broken lamps. We recommend that you use respirators, safety glasses, goggles or face shield and wear protective clothing such as gloves.

1. Turn the power off and disconnect the projector from the wall socket. If the lamp is hot, avoid burns by waiting for approximately 45 minutes until the lamp has cooled.

2. Loosen the captive screw from the front.

3. Remove the lamp compartment cover as shown.

Diagram of a projector with a screwdriver inserted, showing internal components and a directional arrow (no text or symbols)

1. Loosen the three captive screws that secure the lamp.

- Do not turn the power on with the lamp cover removed.

- Do not insert your fingers between the lamp and the projector. The sharp edges inside the projector may cause injuries.

1. Lift the handle so that it stands up. Use the handle to slowly pull the lamp out of the projector.

• Pulling it too quickly may cause the lamp to break and scatter broken glass in the projector.
• Do not place the lamp in locations where water might splash on it, children can reach it, or near flammable materials.
• Do not insert your hands into the projector after the lamp is removed. If you touch the optical components inside, it could cause color unevenness and distortion of the projected images.

• Insert the new lamp into the lamp compartment and make sure it fits in the projector.

• Ensure the connectors are aligned.

• If you experience resistance, lift the lamp and start again.

1. Tighten the screws that secure the lamp.
2. Ensure the handle is fully laid flat and locked in place.

• Loose screw may cause a bad connection, which could result in malfunction.

• Do not over tighten the screw.

• Replace the lamp compartment cover on the projector and tighten the captive screw.

Diagram of a projector with an internal component and an upward arrow indicating motion (no text or symbols)

Diagram of a projector with an internal circuit board and a downward arrow indicating action (no text or symbols present)

Diagram of a projector with a screwdriver inserted, showing internal components and a directional arrow (no text or symbols)

1. Restart the projector.

Do not turn the power on with the lamp cover removed.

Resetting the lamp timer

1. After the startup logo, open the On-Screen Display (OSD) menu. Go to the System Setup: Advanced > Lamp Settings menu. Press MODE/ENTER. The Lamp Settings page displays. Press ▼ to highlight Reset lamp timer and press MODE/ENTER. A warning message displays asking if you want to reset the lamp timer. Highlight Reset and press MODE/ENTER. The lamp time will be reset to '0'.

Do not reset if the lamp is not new or replaced as this could cause damage.

Indicators

Light Status & Description
Power TempLamp
Power events
Orange Off Off			Stand-by mode
Green Flashing	Off Off		Powering up
Green Off Off			Normal operation
Orange Flashing	Off Off		Projector is cooling.
Lamp events
Off Off		Orange Flashing	The lamp is not lit up.
Off Off	Red		1. The projector needs 90 seconds to cool down.Or2. Please contact your dealer for assistance.
Thermal events
Red Red Red			The fans are not working.	The projector has shutdown automatically. If you try to re-start the projector, it will shutdown again. Please contact your dealer for assistance.
Red Red Off
Red Red Orange
Green Orange Off			The internal temperature is too high.The intake ventilation or the exhaust ventilation is blocked.The projector may be in a poorly ventilated location.The ambient temperature may be too high.
Green Orange Red
Green Orange Orange
Green Orange Green
Green Red Red
System events
Green Off Red			The projector has shutdown automatically. If you try to re-start the projector, it will shutdown again. Please contact your dealer for assistance.
Red Flashing	Off Off
Red Off Red
Off Green Red			Lamp door is open. Please check if the lamp door is open or not closed properly.

Troubleshooting

⑦ The projector does not turn on.

Cause Remedy
There is no power from the power cable.	Plug the power cord into the AC inlet on the projector, and plug the power cord into the power outlet. If the power outlet has a switch, make sure that it is switched on.
Attempting to turn the projector on again during the cooling process.	Wait until the cooling down process has completed.

⑦ No picture

Cause Remedy
The video source is not turned on or connected correctly.	Turn the video source on and check that the signal cable is connected correctly.
The projector is not correctly connected to the input signal device.	Check the connection.
The input signal has not been correctly selected.	Select the correct input signal with the SOURCE key on the projector or remote control.

⑦ Blurred image

Cause Remedy
The projection lens is not correctly focused.	Adjust the focus of the lens using the focus ring.
The projector and the screen are not aligned properly.	Adjust the projection angle and direction as well as the height of the unit if necessary.

⑦ Remote control does not work

Cause Remedy
The battery is out of power. Replace the battery with new one.
There is an obstacle between the remote control and the projector.	Remove the obstacle.
You are too far away from the projector.	Stand within 7 meters (23 feet) of the projector.

? The password is incorrect

Cause Remedy
You do not remember the password.	Please see "Entering the password recall procedure" on page 33 for details.

Specifications

Projector specifications

All specifications are subject to change without notice.

Optical

Resolution

1080p

Display system

Single-chip DLP ^TM system

Lens F/Number

F = 2.42 to 2.97 , f = 20.7 to 31.88

mm

Lamp

240W lamp

Electrical

Power supply

AC100-240V, 3.5A

50-60 Hz (Automatic)

Power consumption

300W (Max); < 0.5W (Standby)

Mechanical

Weight

7.5 lbs (3.4 Kg)

Output terminals

Speaker

(Mono) 10 watt x 1

Audio signal output

PC audio jack x 1

Control

USB

Mini B Type

RS-232 serial control

9 pin x 1

IR receiver x 2

12V TRIGGER

12VDC (Max. 0.5 A) x 1

Input terminals

Computer input

RGB input

D-Sub 15-pin (female) x 1

Video signal input

VIDEO

RCA jack x 1

SD/HDTV signal input

Analog - Component RCA jack x 3

Digital - HDMI x 2

Audio signal input

Audio in

PC audio jack x 1

RCA audio jack (L/R) x 1

Environmental Requirements

Operating temperature

0^-40^ at sea level

Operating relative humidity

10%–90% (without condensation)

Operating altitude

0–1499 m at 0°C–35°C

1500–3000 m at 0°C–30°C (with

High Altitude Mode on)

Dimensions

Ceiling Mount Installation

*Ceiling Mount Screws:
M4 (Max. L=25, Min. L=20)

Timing chart

Supported timing for PC input

Resolution Format	Refresh rate (Hz)	H- frequency (kHz)	Pixel Frequency (MHz)
720 × 400 720 × 400_70 70.087 31.469 28.3221
640 × 480	VGA_60* 59.94 31.469 25.175
	VGA_72 72.809 37.861 31.5
	VGA_75 75 37.5 31.5
	VGA_85 85.008 43.269	36
800 × 600	SVGA_60* 60.317 37.879	40
	SVGA_72	72.188 48.077	50
	SVGA_75	75	46.875 49.5
	SVGA_85	85.061 53.674	56.25
	SVGA_120**(Reduce Blanking)	119.854	77.425	83
1024 × 768	XGA_60*	60.004 48.363	65
	XGA_70 70.069 56.476	75
	XGA_75 75.029 60.023	78.75
	XGA_85 84.997 68.667 94.5
	XGA_120**(Reduce Blanking)	119.989	97.551	115.5
1152 × 864	1152 × 864_75	75 67.5	108
1024 × 576	BenQ Notebook Timing	60	35.82	46.966
1024 × 600	BenQ Notebook Timing	64.995 41.467 51.419
1280 × 720	1280 × 720_60*	60	45	74.25
1280 × 768	1280 × 768_60* 59.87	47.776 79.5
1280 × 800	WXGA_60* 59.81 49.702 83.5
	WXGA_75	74.934 62.795	106.5
	WXGA_85	84.88 71.554	22.5
	WXGA_120**(Reduce Blanking)	119.909	101.563	146.25
1280 × 1024	SXGA_60*** 60.02 63.981	108
	SXGA_75	75.025 79.976	135
	SXGA_85	85.024 91.146	157.5
Resolution Format		Refresh rate (Hz)	H- frequency (kHz)	Pixel Frequency (MHz)
1280 x 960	1280 x 960_60*** 60	60 108
	1280 x 960_85 85.002	85.938 148.5
1360 x 768 1360 x 768_60*** 60.015 47.7	12 85.5
1440 x 900 WXGA+_60*** 59.887 55.935	106.5
1400 x 1050 SXGA+_60*** 59.978 65.317		121.75
1600 x 1200 UXGA***		60 75 162
1680 x 1050 1680 x 1050_60***	59.954	65.29 146.25
640 x 480@67Hz	MAC13	66.667	35	30.24
832 x 624@75Hz	MAC16	74.546 49.722	57.28
1024 x 768@75Hz	MAC19	74.93	60.241	80
1152 x 870@75Hz	MAC21	75.06	68.68	100

* Supported timing for 3D signal with Frame Sequential, Top-Bottom and Side-by-Side format.
** Supported timing for 3D signal with Frame Sequential format.
*** Supported timing for 3D signal with Top-Bottom and Side-by-Side format.
- The timings showing above may not be supported due to EDID file and VGA graphic card limitations. It is possible that some timings cannot be chosen.

Support timing for Component - YPbPr input

Format Resolution		Refresh rate (Hz)	H- frequency (kHz)	Pixel Frequency (MHz)
480i*	720 × 480	59.94	15.73	13.5
480p*	720 × 480	59.94	31.47	27
576i	720 × 576	50	15.63	13.5
576p 720 × 576	50	31.25	27
720/50p	1280 × 720	50	37.5	74.25
720/60p*	1280 × 720	60 45	74.25
1080/50i 1920 × 1080	50	28.13	74.25
1080/60i 1920 × 1080	60	33.75	74.25
1080/24p	1920 × 1080	24 27	74.25
1080/25p	1920 × 1080	25	28.13 74.25
1080/30p	1920 × 1080	30	33.75 74.25
1080/50p	1920 × 1080	50	56.25 148.5
1080/60p	1920 × 1080	60	67.5	148.5

* Supported timing for 3D signal with Frame Sequential format.

Support timing for Video input

Format Resolution	Refresh rate (Hz)	H- frequency (kHz)	Pixel Frequency (MHz)
NTSC* - 60 | 5.73 3.58
PAL - 50 | 5.63 4.43
SECAM - 50 | 5.63 4.25 or 4.41
PAL-M - 60 | 5.73 3.58
PAL-N - 50 | 5.63 3.58
PAL-60 - 60 | 5.73 4.43
NTSC4.43 - 60 | 5.73 4.43

* Supported timing for 3D signal with Frame Sequential format.

Support timing for HDMI (HDCP) input

Resolution Format		Refresh rate (Hz)	H- frequency (kHz)	Pixel Frequency (MHz)
640 x 480	VGA_60* 59.94 31.469	25.175
	VGA_72 72.809	37.861	31.5
	VGA_75	75	37.5 31.5
	VGA_85 85.008	43.269	36
720 x 400	720 x 400_70	70.087	31.469	28.3221
800 x 600	SVGA_60*	60.317	37.879	40
	SVGA_72 72.188	48.077	50
	SVGA_75	75 46.875	49.5
	SVGA_85 85.061	53.674	56.25
	SVGA_120** (Reduce Blanking)	119.854	77.425 83
1024 x 768	XGA_60*	60.004	48.363	65
	XGA_70 70.069	56.476	75
	XGA_75 75.029	60.023	78.75
	XGA_85 84.997	68.667	94.5
	XGA_120** (Reduce Blanking)	119.989	97.551	115.5
1152 x 864	1152 x 864_75	75	67.5 108
1024 x 576	BenQ Notebook Timing	60 35.82	46.996
1024 x 600	BenQ Notebook Timing	64.995	41.467	51.419
1280 x 720	1280 x 720_60* 60	45 74.25
Resolution	Format	Refresh rate (Hz)	H- frequency (kHz)	Pixel Frequency (MHz)
1280 x 768 1280 x	768_60* 59.87 47.776	79.5
1280 x 800	WXGA_60* 59.81 49.702 83.5
	WXGA_75 74.934 62.795 106.5
	WXGA_85 84.88 71.554 122.5
	WXGA_120** (Reduce Blanking)	119.909 101.563 146.25
1280 x 1024	SXGA_60***	60.02 63.981		108
	SXGA_75	75.025 79.976		135
	SXGA_85	85.024 91.146 157.5
1280 x 960	1280 x 960_60***	60	60	108
	1280 x 960_85	85.002 85.938 148.5
1360 x 768 1360 x	768_60*** 60.015 47.712 85.5
1440 x 900 WXGA+60*** 59.887 55.935		106.5
1400 x 1050	SXGA+_60***	59.978 65.3	7 121.75
1600 x 1200	UXGA***	60	75	162
1680 x 1050	1680 x 1050_60***	59.954 65.29	146.25
640 x 480 @67Hz	MAC13	66.667	35	30.24
832 x 624 @75Hz	MAC16	74.546 49.722 57.28
1024 x 768@75Hz	MAC19	75.02 60.241		80
1152 x 870@75Hz	MAC21	75.06	68.68	100

* Supported timing for 3D signal with Frame Sequential, Top-Bottom and Side-by-Side format.
** Supported timing for 3D signal with Frame Sequential format.
*** Supported timing for 3D signal with Top-Bottom and Side-by-Side format.
- The timings showing above may not be supported due to EDID file and VGA graphic card limitations. It is possible that some timings cannot be chosen.

Supporting timing for HDMI Video input

Format Resolution		Refresh rate (Hz)	H- frequency (kHz)	Pixel Frequency (MHz)
480i*** 720 (1	440) × 480 59.94 15.73	27
480p*** 720 x	480 59.94 31.47 27
576i 720 (14	40) × 576 50 15.63 27
576p 720 x 5	76 50 31.25 27
720/50p** 1280	× 720	50	37.5	74.25
720/60p*	1280 × 720	60	45 74.25
1080/24p**	1920 × 1080 24	27	74.25
1080/25p	1920 × 1080 25 2	8.13	74.25
1080/30p	1920 × 1080 30 3	3.75	74.25
1080/50i****	1920 × 1080 50 2	8.13	74.25
1080/60i****	1920 × 1080 60 3	3.75	74.25
1080/50p*****	1920 × 1080 50 5	6.25	148.5
1080/60p*****	1920 × 1080	60	67.5	148.5

* Supported timing for 3D signal with Frame Sequential, Frame Packing, Top-Bottom and Side-by-Side format.
** Supported timing for 3D signal with Frame Packing, Top-Bottom and Side-by-Side format.
*** Supported timing for 3D signal with Frame Sequential format.
**** Supported timing for 3D signal with Side-by-Side format.
***** Supported timing for 3D signal with Top-Bottom.

Warranty and Copyright information

Limited warranty

BenQ warrants this product against any defects in material and workmanship, under normal usage and storage.

Proof of purchase date will be required with any warranty claim. In the event this product is found to be defective within the warranty period, BenQ's only obligation and your exclusive remedy shall be replacement of any defective parts (labor included). To obtain warranty service, immediately notify the dealer from which you purchased the product of any defects.

Important: The above warranty shall be void if the customer fails to operate the product in accordance with BenQ's written instructions, especially the ambient humidity must be in-between 10% and 85%, temperature in-between 5°C and 28°C, altitude lower than 4920 feet, and avoiding to operate the projector in a dusty environment. This warranty gives you specific legal rights, and you may have other rights which vary from country to country.

For other information, please visit www.BenQ.com.

Copyright

Copyright 2011 by BenQ Corporation. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of BenQ Corporation.

Disclaimer

BenQ Corporation makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Further, BenQ Corporation reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation to notify any person of such revision or changes.

*DLP, Digital Micromirror Device and DMD are trademarks of Texas Instruments. Others are copyrights of their respective companies or organizations.
