USER MANUAL ES5002E Home Electric

Electric juice maker with black and silver casing, accompanied by a glass of yellow juice (no visible text or symbols)

Bedienungsanleitung

User Manual

INHALTSVERZEICHNIS

Technical line drawing of a three-step industrial device with internal components and directional arrows (no text or symbols)

IMPORTANT SAFETY INSTRUCTIONS 12-13

CONTROL ELEMENTS....14

OPERATING INSTRUCTIONS 15-16

CLEANING AND CARE, TECHNICAL DATA....17

WARRANTY 18-19

Proper disposal of this product.

This label indicates that, in the EU, electronic devices cannot be disposed of with regular household waste.

Please use the return or collections systems of your municipality or contact the seller where you purchased this product.

IMPORTANT SAFETY INSTRUCTIONS

General

• Read this manual before first use thoroughly. It contains important information for your safety as well as for the use and maintenance of the equipment. Keep these instructions for future reference and pass it on with the device.
• Pay particular attention to the warnings on the device and in this instruction manual.
  • Use the device only for its intended purpose. Improper use may lead to hazards.
  • This device is designed for household use only. It is not suitable for commercial use.
• In the event of improper use or wrong operation, we do not accept any liability for resulting damages.
• The use of accessories and components not expressly recommended by the manufacturer may result in injuries or damages and voids the warranty.
• This device is not intended to be used by persons (including children) with reduced physical, sensory or mental abilities or lack of experience and / or lack of knowledge unless they are supervised by a person responsible for their safety or have received instructions on how to use the device.
  • Children should be supervised to ensure that they do not play with the device.
  • Never leave the device unsupervised while it is switched on.
• Do not place heavy objects on top of the device.
• Never immerse electrical parts of the device in water during cleaning or operation. Never hold the device under running water.

Power supply

• The mains voltage must match the information on the rating label of the device.
- The power plug is used as the disconnect device. Please be sure that the power plug is in operable condition.
- Only removing the power plug can separate the device completely from the mains supply.
- Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.
• Make sure, the device, including power cord and power plug are not exposed to hot surfaces.
- Only unplug from the power outlet by the plug itself. Do not pull on the cord.
- Disconnect the power plug when the device is not in use, in case of malfunctions, prior to attaching accessories and prior to each cleaning.
- If the power cord or the casing of the device is damaged or if the device is dropped, the device may not be used before it is examined by a professional electrician.
- A damaged power cord may only be replaced by the manufacturer or a workshop commissioned by the manufacturer or by a similarly qualified person in order to avoid hazards.

IMPORTANT SAFETY INSTRUCTIONS

Installation location

• Place the device on a flat, sturdy and slip-resistant surface.
  • Use this device in dry indoor areas only and never outdoors.
• Warning: Do not use this device near water or heavy moisture; e.g. in a damp basement or beside a swimming poor or bathtub.
• Keep this device away from all heat sources like for example, ovens, hot plates and other heat-producing devices/objects.
• Protect this device from extreme heat (over 35^ C) and cold (under 5^ C) as well as from direct sunlight and dust.

Specific safety instructions

• Remove the strainer with the grater from the device once the motor has come to a complete stop and the plug has been pulled.
  • Make sure that the motor unit and power cable do not become wet.
• Do not operate the device when it is empty in order to prevent damages.
• Caution: Do not touch any moving parts while the device is still in operation.
• Caution: Be careful when handling the strainer. It has sharp edges.
• Use the filling slider only for putting ingredients into the device. Never use your fingers or other objects.
  • Do not operate this device if the strainer is damaged.
• This device may only be used if all original parts such as the strainer base, strainer with grater, collection cup, cover with filling opening and filling slider are used together and are not damaged. Do not try to replace one part with another. If you have to replace a part, please contact your customer service.
• Clean the device and other accessories after each use. Refer to the Chapter CLEANING AND CARE.

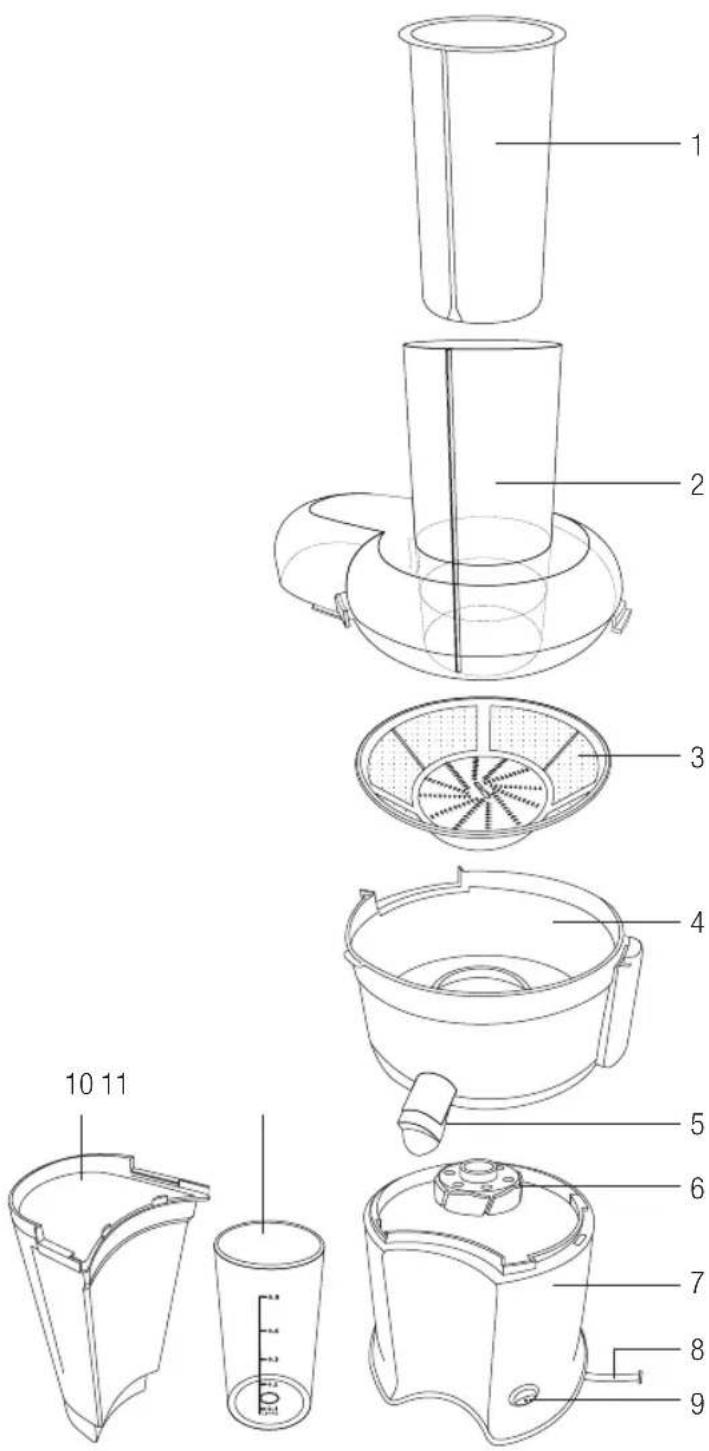

1 Filling slider
2 Cover with filling opening
3 Strainer with grater
4 Strainer base
5 Spout
6 Motor screw
7 Motor unit
8 Power cord with plug
9 Power switch I/O
10 Juice container
11 Collection cup

Technical diagram of a food blender with numbered parts for identification

OPERATING INSTRUCTIONS

Intended use

- This device is suitable for juicing fruit and vegetables only. Any other use may result in damage to the device or injuries.

Unpacking and checking

• Carefully take the device and its accessories out of the packaging. Retain the packaging in case you would like to store the device away or transport it at a later date. If you choose to dispose of the packaging, then please do so according to the applicable legal regulations.
• Check the packaging contents for completeness and damages. Should the contents in the packaging not be complete or be damaged, do not use the device. Return it to your retail outlet immediately.

Device assembly

• Clean the device and all accessories before the first use. Refer to the chapter CLEANING AND CARE.
• Set the motor unit (7) on a flat, stable and slip-resistant surface. Press the motor unit when setting up slightly onto the surface so the suction feet below the device find a good hold.
• Put the strainer base (4) onto the motor unit (7) so that the spout (5) points slightly to the left. Turn the strainer base to the right until it locks into the guide rail. (Fig. 1)
• Connect the strainer with grater (3) to the motor screw (6). Make sure that the strainer is securely connected to the motor screw to prevent damage during operation of the device.
• Put the cover (2) on the strainer base (4) so that the sealing device of the cover is on the left of the strainer base closure device. Turn the cover counter-clockwise until it locks into the guide rail (Fig. 2).
• Position the collection cup (11) on the designated cover holder (2) and slide it until it stops (Fig. 3).
  • Note: Putting a small trash bag into the collection cup (11) simplifies subsequent cleaning.
  • Put the juice container (10) under the spout (5).

Diagram of a mechanical device with a magnified inset showing a rotating component (no text or symbols)

Technical line drawing of a mechanical device with an inset close-up showing a detail (no text or symbols)

Line drawing of a blender with a side panel and handle, showing internal components and a directional arrow (no text or symbols)

OPERATING INSTRUCTIONS

Using juice extractor

• Prepare the fruit / vegetables before processing. Refer to the General tips section
- Connect the power cord (8) to a suitable outlet. Move the power switch (9) to position I, to turn it on. The juice extractor is now ready.
- Slowly put the fruit / vegetables into the filling opening.
- Use the filling slider (1) to push the ingredients down slightly. Observe the notches of the slider when pushing. Keep the filling slider in the filling opening whenever possible in order to avoid splashing.
- Continue putting fruit / vegetables in until the collection cup (11) or juice container (10) is full.
- Caution: Only use the filling slider (1) to push the ingredients downwards. Never use your fingers or other objects.
- The freshly-pressed juice runs into the juice container (10). The waste is pushed into the collection cup (11).
• Make sure that the collection cup (11) does not become overfilled during the juicing process.
- If the collection cup (11) or juice container (10) becomes full, switch the device off using the power switch (9) (Position 0). Empty each container before continuing with juicing.
- Switch the device off by using the power switch (9) after juicing (Position 0) and pull the plug (8). Clean your juice extractor immediately after each use.

Duration of operation

• The device is designed to process normal household quantities.
- Extreme stress on the device may cause an overload of the motor. In this case, the motor needs a cooling down phase to room temperature.
- The device must not be in continuous use for longer than 7 minutes. Let it then cool to room temperature before you bring it back into operation.
- If the device becomes noticeably warm, switch it off immediately and unplug the power cord.
- Allow the unit to cool completely before you bring it back into operation.

General tips

• Use fresh fruit and vegetables because they contain more juice. Pineapple, celery, apples, cucumbers, carrots, melons, tomatoes and citrus fruit in general are particularly suitable for juicing.
• Wash the fruit / vegetables before processing.
• In general, skins and small seeds must not be removed before juicing. Peel fruit with a hard or inedible skin such as bananas, pineapple, oranges or melons.
• Some fruits, such as plums, apricots and peaches contain large pits. Remove the pits before processing so as not to damage the device.
• Cut large fruits and vegetables into smaller pieces that fit into the filling opening.
• Apple juice will quickly change into a brown colour in the fresh air. Serve apple juice immediately after juicing, or add some lemon juice to it.
• Figs, avocados, eggplant, raspberries, blackberries, currants, elderberries, rhubarb, blueberries, cranberries, beets, papaya, mango are unsuitable for juicing.
• Add bananas only as flavouring because they provide very little juice.
• Serve the juices freshly squeezed because they lose flavour and important nutrients in the air.

CLEANING AND CARE, TECHNICAL DATA

• Unplug the power cord (8) and allow the device to cool completely before cleaning.
- Remove all removable parts of the device and clean them immediately after each use. Cleaning is difficult once fruit and vegetable residue dries.
- Clean the strainer (3) under warm running water with a soft plastic brush and a mild dishwashing detergent. Dry it off. Caution: The strainer has sharp cutting edges.
- Clean all the other removable parts of device and accessories under warm running water with a sponge and mild dishwashing detergent. Then dry all parts completely.
- Clean the exterior surfaces of the device with a damp cloth and then dry them completely.
• Make sure that no water gets into the motor.
- Never immerse electrical parts of the device in water during cleaning or operation. Never hold the device under running water.
- Never use solvents and abrasives, hard brushes, metallic or sharp objects for cleaning. Solvents are harmful to health and attack the plastic parts. Abrasive cleaners and tools scratch the surface.

Technical data

Power supply 230 V\~, 50 Hz

Power consumption 700 W

Short time operation 7 min.

Manufactured for JGC-Company GmbH

Heckhofweg 146

50739 Köln

Customer Service E2 Servicecenter GmbH

Max-Planck-Strasse 13

50858 Köln-Marsdorf

Telephone

01805-22 17 84

Monday-Friday, 10:00 - 18:00

(Euro 0.14/min from German landline; other charges may apply from mobile phone)

Please enter the serial number of your device here:

Customer Info Manufacturer's Warranty

HOME ELECTRIC

Thank you for your purchase of one of our products. We hope you will enjoy using our high-quality product. Our strict production control ensures the high quality of our devices. However, in the event that you wish to submit a qualified claim, we grant a

3 years

warranty as of the date of purchase, subject to the following conditions:

This warranty does not affect your statutory warranty claims as consumer toward the seller of the device. These rights are not affected by our manufacturer's warranty. The warranty granted by us is valid only for domestic use of the device and is limited to the area of the Federal Republic of Germany.

The warranty term is 3 years as of the date of purchase.

It is within HOME ELECTRIC's discretion to fulfil the warranty by repair or replacement of the device or defect component. Other claims are excluded. In case of questions regarding HOME ELECTRIC products you no longer need to take the time to go to the seller but may call our service hotline or service center directly. A team of highly qualified product consultants and technicians is available from Monday through Friday from 10:00 a.m. to 6:00 p.m.

Service Hotline: 01805 / 22 17 84 (€ 0.14 per min)

When mailing your device, please also include a short description of the problem as this will facilitate handling. Please mail your device, without exception, only to our authorised service partner and use only the enclosed return coupon. If the return coupon is missing please contact the above service hotline.

ATTENTION: Mailings that are not pre-paid will not be accepted!

Customer Info Manufacturer's Warranty

HOME ELECTRIC

Our service partner requires proof of purchase, either as original receipt or cash receipt printed by the seller to perform warranty repairs. The serial number on the device must also be readable. We are unable to perform warranty services free of charge without proof of purchase. We recommend keeping the original packaging in order to ensure safe transport of the device in case of a warranty claim.

Warranty repairs may be performed exclusively by E2 Servicecenter GmbH or contractual partners authorised by it. Repairs performed by the customer or other shops void the warranty; a claim for cost reimbursement does not exist. The warranty is void or does not cover:

⇒ in case of improper use
⇒ in case of mechanical damages to the device from outside forces
⇒ in case of transportation damages
⇒ for wear parts
⇒ in case of operating errors and misuse
⇒ when placing the device in wet rooms or outdoors
in case of damages resulting from force, war, water, lightning, excess voltage, and other reasons not within the scope of HOME ELECTRIC's responsibility.
⇒ in case of excessive use, in particular in case of non-domestic use
⇒ in case of disregard of the user instructions and installation errors
⇒ if the device does not have a technical defect
⇒ for transport and travel costs as well as costs incurred by installing and uninstalling the device

The warranty does not include any subsequent liability on our part, in particular no liability for damages to the device itself or incurred by the loss of the device until the time of repair (e.g. travel costs, handling costs, etc.). However, this does not limit or exclude our statutory warranty, in particular pursuant to the Product Liability Act.

Any warranty services provided by us do not extend the warranty term of 3 years as of the date of purchase, also not in terms of possibly exchanged components.

We wish you much joy with your new device and hope that your next one will be another HOME ELECTRIC product.
