Product Type	Electric Party Pan / Cooking Appliance
Brand	Home Electric
Model	PP5002
Power Supply	220-240V~, 50Hz
Power Consumption	1400W
Heating Surface Diameter	40 cm
Heating Surface Coating	Non-stick
Lid Material	Glass with plastic handle
Temperature Control	Dial with OFF, MIN, 1-5 settings (max approx. 240°C)
Indicator Light	Red, illuminates during heating
Thermostat	Detachable with socket and contacts
Accessories Included	Lid handle (to mount), thermostat with power cord
Safety Features	Cool-touch handles, lid handle, caution against hot surfaces and steam
Cleaning Instructions	Wipe heating surface with damp cloth; do not immerse; thermostat dry only
Warranty	3 years (domestic use in Germany)
Intended Use	Household food preparation only
Minimum Clearance	15 cm around device from flammable materials
Installation Location	Dry indoor areas, flat heat-resistant surface
Not Suitable For	Commercial use, outdoor use, near water

Frequently Asked Questions - PP5002 Home Electric

How do I attach the lid handle?

Mount the supplied lid handle onto the glass lid as shown in the diagram on page 14 of the manual. Ensure it is securely fastened before use.

What should I do before first use?

Clean the glass lid and heating surface with a damp cloth, dry thoroughly. Then rub a thin layer of cooking oil onto the non-stick surface and preheat for 5-10 minutes.

How do I select the right temperature?

Use the temperature dial: MIN for keeping warm, setting 2 (100-150°C) for frying, 3-4 (150-200°C) for eggs or pancakes, 5 (240°C) for pizza. Refer to the table in the manual.

Can I use metal utensils on the cooking surface?

No, metal utensils can damage the non-stick coating. Use heat-resistant plastic or wooden utensils instead.

Is the appliance dishwasher safe?

No, never immerse any part of the appliance in water. Clean the heating surface with a damp cloth and the lid with a damp sponge; the thermostat must only be wiped with a dry cloth.

What does the red indicator light mean?

The red light indicates the heating element is active. It goes out when the set temperature is reached and cycles on and off to maintain the temperature.

Can I cook with the lid on?

Yes, use the glass lid to steam food. Be careful when lifting it as hot steam may escape; lift slowly and keep your face away.

How should I store the appliance?

Allow it to cool completely, then clean and disconnect the thermostat. Store in a dry place out of reach of children, away from heat sources and direct sunlight.

What is the warranty period and how do I claim?

The warranty is 3 years from purchase date for domestic use in Germany. Contact the service hotline at 01805/22 17 84 (€0.14/min) or mail the device with proof of purchase and problem description to the authorized service partner.

Can I use an extension cord with this appliance?

The manual does not recommend extension cords. Always plug directly into a suitable power outlet to avoid hazards.

USER MANUAL PP5002 Home Electric

Electrical Party Pan

PP5002

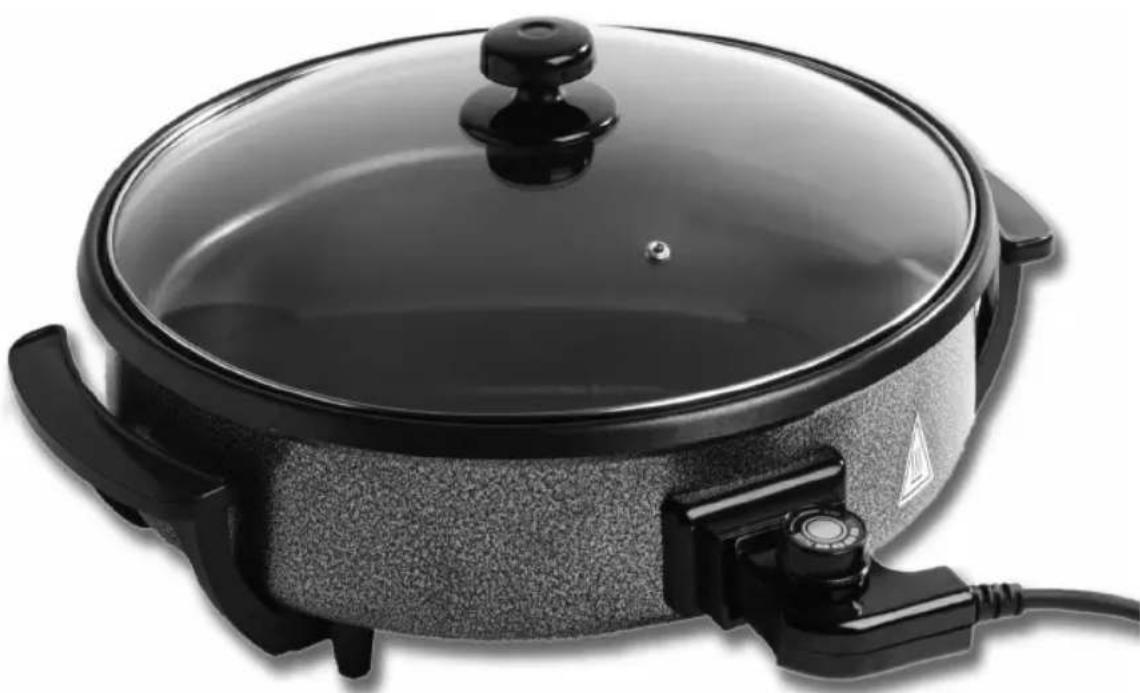

Black and white photo of a standard open-plan electric cooker with a glass lid and control panel (no visible text or symbols)

Bedienungsanleitung

User Manual

INHALTSVERZEICHNIS

Technical diagram of a kitchen appliance with numbered parts and an inset close-up view of the lid component.

1 Deckelgriff 8 Temperaturfühler

IMPORTANT SAFETY INSTRUCTIONS 12-13

CONTROL ELEMENTS....14

OPERATING INSTRUCTIONS 15-16

CLEANING AND CARE, TECHNICAL DATA....17

WARRANTY 18-19

Proper disposal of this product.

This label indicates that, in the EU, electronic devices cannot be disposed of with regular household waste.

Please use the return or collections systems of your municipality or contact the seller where you purchased this product.

IMPORTANT SAFETY INSTRUCTIONS

General

• Read this manual before first use thoroughly. It contains important information for your safety as well as for the use and maintenance of the equipment. Keep these instructions for future reference and pass it on with the device.
• Pay particular attention to the warnings on the device and in this instruction manual.
  • Use the device only for its intended purpose. Improper use may lead to hazards.
  • This device is designed for household use only. It is not suitable for commercial use.
• In the event of improper use or wrong operation, we do not accept any liability for resulting damages.
• The use of accessories and components not expressly recommended by the manufacturer may result in injuries or damages and voids the warranty.
• This device is not intended to be used by persons (including children) with reduced physical, sensory or mental abilities or lack of experience and / or lack of knowledge unless they are supervised by a person responsible for their safety or have received instructions on how to use the device.
  • Children should be supervised to ensure that they do not play with the device.
  • Never leave the device unsupervised while it is switched on.
• This device should not be operated with an external clock timer or separate remote control system.
• Do not place heavy objects on top of the device.
• Never immerse electrical parts of the device in water during cleaning or operation. Never hold the device under running water.

Power supply

• The mains voltage must match the information on the rating label of the device.
- The power plug is used as the disconnect device. Please be sure that the power plug is in operable condition.
- Only removing the power plug can separate the device completely from the mains supply.
- Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.
• Make sure, the device, including power cord and power plug are not exposed to hot surfaces.
• Only unplug from the power outlet by the plug itself. Do not pull on the cord.
- Disconnect the power plug when the device is not in use, in case of malfunctions, prior to attaching accessories and prior to each cleaning.
- If the power cord or the casing of the device is damaged or if the device is dropped, the device may not be used before it is examined by a professional electrician.
- A damaged power cord may only be replaced by the manufacturer or a workshop commissioned by the manufacturer or by a similarly qualified person in order to avoid hazards.

IMPORTANT SAFETY INSTRUCTIONS

Installation location

• Place the device on a flat, sturdy and heat resistant surface.
• Use this device in well-ventilated areas. Keep a minimum free distance of 15cm around the device.
• Do not let the device come into contact with or become covered by easily flammable materials (e.g. curtains, textiles, walls). Please make sure that the device is always kept a safe distance away from flammable materials.
  • Use this device in dry indoor areas only and never outdoors.
• Warning: Do not use this device near water or heavy moisture; e.g. in a damp basement or beside a swimming poor or bathtub.
• Keep this device away from all heat sources like for example, ovens, hot plates and other heat-producing devices/objects.
• Protect this device from extreme heat (over 35^ C) and cold (under 5^ C) as well as from direct sunlight and dust.

Specific safety instructions

• Warning: During operation, accessible parts of the device could become very hot. Therefore only hold the device by the handles or the lid handle. Also use pot holders.
• Caution: When lifting the lid off of the pan, hot steam could be emitted. Keep your hands and face at a safe distance.
• Only use heat-resistant plastic or wooden utensils to put food on or to remove food from the device in order to avoid damages to the non-stick coating of the heating surface. Make sure that the utensils do not have any pointy or sharp edges.
• Do not move or transport this device if it is filled with hot oil or another liquid. There is a risk of getting burnt by the splashing liquids.
• The heating surface and some parts of the device become very hot during operation. Let the device cool down completely before you clean it or store it away.
• Clean the device after every use. Please read chapter CLEANING AND CARE.
  • This device may be used only with the supplied thermostat. Never use another thermostat.
• Before inserting or removing the thermostat, make sure that the temperature control dial is turned to OFF to avoid overheating or a malfunction.
• Always connect the thermostat to the device first before plugging the power plug into a suitable power outlet.
• When inserting the thermostat, make sure that it is properly connected to the device. The temperature control dial should be facing upwards.
• Only pull on the plug of the thermostat to remove it, not on the cable.
• Keep the temperature sensor and the contacts of the socket clean.

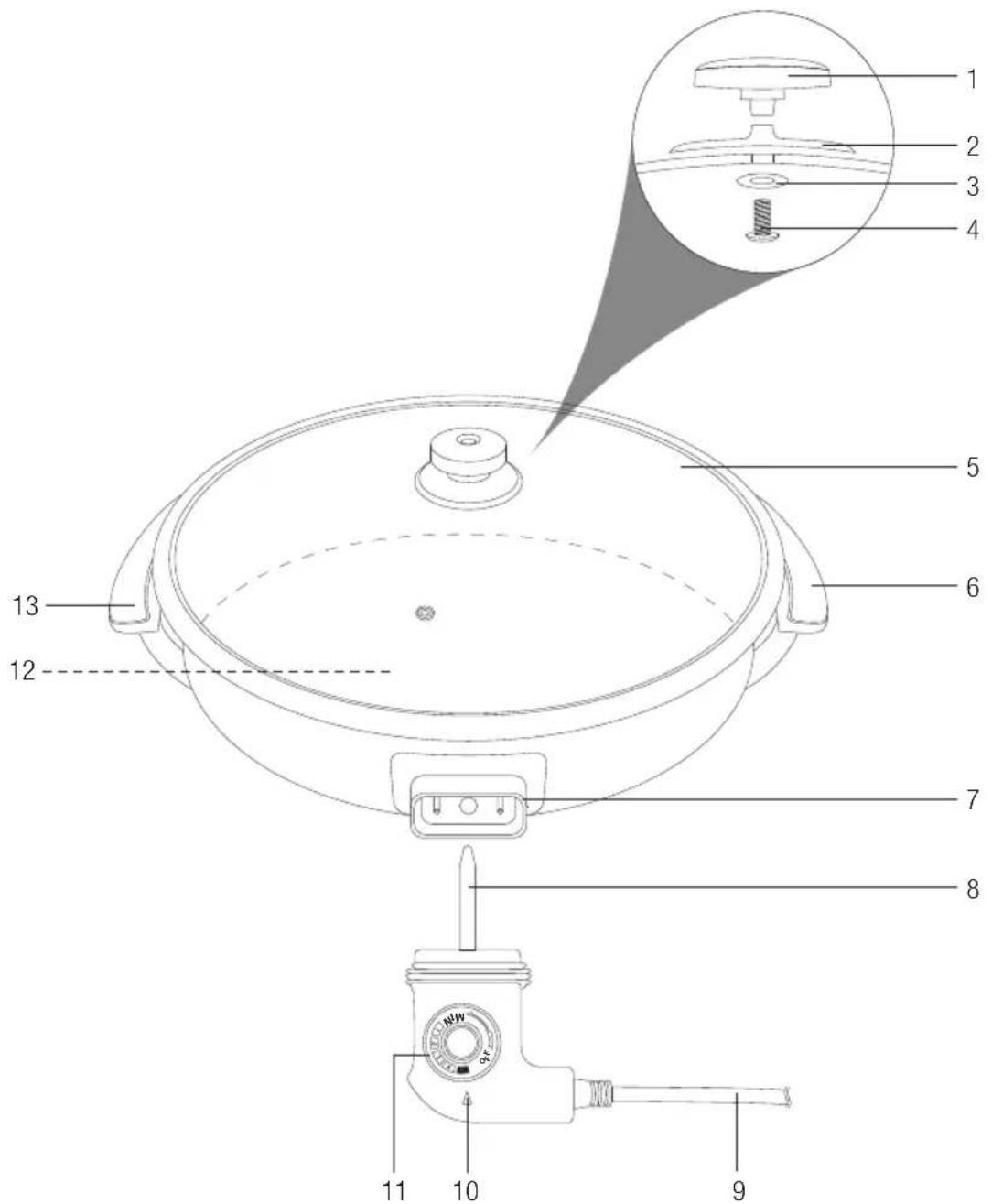

Technical diagram of a kitchen appliance with numbered parts and an inset close-up view of the lid component.

1 Lid handle 8 Temperature sensor
2 Lid holder 9 Power cord with power plug
3 Washer 10 Indicator light
4 Screw 11 Temperature control dial
5 Glass lid 12 Heating surface
6 Handle (right) 13 Handle (left)
7 Socket (with contacts for thermostat)

OPERATING INSTRUCTIONS

Intended use

- The device is intended only for the preparation of food. Any other use can lead to damages of the device or injuries.

Prior to first use

• Carefully take the device and its accessories out of the packaging. Retain the packaging in case you would like to store the device away or transport it at a later date. If you choose to dispose of the packaging, then please do so according to the applicable legal regulations.
• Check the packaging contents for completeness and damages. Should the contents in the packaging not be complete or be damaged, do not use the device. Return it to your retail outlet immediately.
• Mount the supplied lid handle (1) onto the glass lid (5) as portrayed in the figure on page 14.
• Prior to first use, clean the glass lid (5) and the heating surface (12) with a damp cloth. Then dry off all parts thoroughly.
• Place this device on a solid, even and heat resistant surface. There should be a minimum distance of at least 15 cm all around the device. Keep easily flammable materials (e.g. curtains, textiles, walls) away from this device.

Turning on the device

• Before inserting the thermostat, make sure that the temperature control dial (11) is on OFF. Then connect the thermostat to the socket (7).
• When inserting the thermostat, make sure that it is properly connected to the device. The temperature control dial (11) should be facing upwards. An incorrectly inserted thermostat can result in personal injury or damages to the device.
• Connect the power plug (9) to a suitable power outlet.
• Set the temperature control dial (11) to the desired temperature. Use the following table to select the appropriate temperature.

Setting Temperature Use
MIN, 1 lowest temperature Keep food warm
2 approx. 100-150°C Fry food
3, 4 approx. 150-200°C e.g. scrambled eggs, pancakes,	ham, smoked meat
5 approx. 240°C Pizza
OFF Heating function is turned off -

OPERATING INSTRUCTIONS

• Warning: Even when the temperature control dial (11) is on OFF, the pan could still remain very hot for a longer period of time. Always let the device cool down completely after use.
  • The device is pre-heated when the red indicator light (10) on the thermostat goes out.
• As soon as the temperature of the device is lower than the selected temperature, the thermostat turns on automatically and the red indicator light (10) goes on again. That way the temperature will be held constant. During operation, the indicator light (10) will periodically go on and off.

Operating the device

• Rub a little cooking oil onto the non-stick coated heating surface (12) before using it. Only put a thin layer of cooking oil on the heating surface.
• Pre-heat the pan for approx. 5-10 minutes. When the indicator light (10) goes out, then the pan is ready for use. While the pan is heating up, you can prepare the ingredients.
• The cooking time is dependent on the type of food, the amount as well as on your personal taste.
• Caution! Danger of burning: This device becomes very hot during use. In order to prevent hand burns caused by accidentally touching the hot surfaces, using pot holders or something similar is recommended.
• Once the food is cooked, it can also be kept hot. To do this, turn the temperature control dial (11) to MIN.
• Note: If noises (from the heating spiral/heating surface) can be heard during use, this is no reason for concern and does not mean the pan is defective.
  • Use the glass lid (5) to steam food.
• Caution: When lifting the glass lid (5) off of the pan, hot steam could be emitted. Therefore always lift the lid (5) slowly and carefully. Keep your hands and face at a safe distance.
• The heating surface (12) is non-stick coated and should thus never come into contact with metal cooking utensils. Metal utensils could damage the non-stick coating. Use utensils made of heat-resistant plastic or wood to turn and mix the food.
• After using the pan, turn the temperature control dial (11) to OFF and pull the power plug (9) out of the power outlet.
• Let the device cool down sufficiently in a location that is safely out of reach of children.
• Wait until the pan is completely cooled down before disconnecting the thermostat from the socket (7).
• Then clean the pan as described in the section CLEANING AND CARE.

CLEANING AND CARE, TECHNICAL DATA

• Prior to cleaning, pull the power plug (9) out of the power outlet. Wait until the device has completely cooled off. After the device has cooled down, disconnect the thermostat from the socket (7).
• So it does not get damaged, never use solvents and abrasives, nylon or metal brushes and metal or sharp objects to clean the non-stick coated heating surface.
• Never submerge the device into water or other liquids. Make sure that no water gets inside the device during cleaning.
• Only wipe off the pan's exterior with a damp cloth. Make sure that no liquids, oil or fat get inside the contacts or inside the interior of the pan itself.

Heating surface

• Wipe off the heating surface (12) with paper towel or with a soft, damp cloth. Should some food remains be difficult to remove, add a little cooking oil to the heating surface and remove the food remains after letting the oil soak in for approx. 5 minutes.
  • Dry off the heating surface (12) thoroughly before you use it again.

Lid

- Clean the glass lid (5) with a damp sponge and a little dishwashing liquid.

Thermostat

• Only clean the thermostat with a soft paper towel or a dry, soft towel.
- Caution: Never clean the thermostat with a damp cloth or with water. Otherwise it could lead to a fire or electric shock.

Technical Data

Power supply 220-240V\~, 50Hz

Power consumption 1400W

Diameter 40cm

Manufactured for JGC-Company GmbH

Heckhofweg 146

50739 Köln

Customer Service E2 Servicecenter GmbH

Max-Planck-Strasse 13

50858 Köln-Marsdorf

Telephone

01805-22 17 84

Monday-Friday,10:00 - 18:00

(Euro 0.14/min from German landline; other charges may apply from mobile phone)

Please enter the serial number of your device here:

Customer Info Manufacturer's Warranty

HOME ELECTRIC

Thank you for your purchase of one of our products. We hope you will enjoy using our high-quality product. Our strict production control ensures the high quality of our devices. However, in the event that you wish to submit a qualified claim, we grant a

3 years

warranty as of the date of purchase, subject to the following conditions:

This warranty does not affect your statutory warranty claims as consumer toward the seller of the device. These rights are not affected by our manufacturer's warranty. The warranty granted by us is valid only for domestic use of the device and is limited to the area of the Federal Republic of Germany.

The warranty term is 3 years as of the date of purchase.

It is within HOME ELECTRIC's discretion to fulfil the warranty by repair or replacement of the device or defect component. Other claims are excluded. In case of questions regarding HOME ELECTRIC products you no longer need to take the time to go to the seller but may call our service hotline or service center directly. A team of highly qualified product consultants and technicians is available from Monday through Friday from 10:00 a.m. to 6:00 p.m.

Service Hotline: 01805 / 22 17 84 (€ 0.14 per min)

When mailing your device, please also include a short description of the problem as this will facilitate handling. Please mail your device, without exception, only to our authorised service partner and use only the enclosed return coupon. If the return coupon is missing please contact the above service hotline.

ATTENTION: Mailings that are not pre-paid will not be accepted!

Customer Info Manufacturer's Warranty

HOME ELECTRIC

Our service partner requires proof of purchase, either as original receipt or cash receipt printed by the seller to perform warranty repairs. The serial number on the device must also be readable. We are unable to perform warranty services free of charge without proof of purchase. We recommend keeping the original packaging in order to ensure safe transport of the device in case of a warranty claim.

Warranty repairs may be performed exclusively by E2 Servicecenter GmbH or contractual partners authorised by it. Repairs performed by the customer or other shops void the warranty; a claim for cost reimbursement does not exist. The warranty is void or does not cover:

⇒ in case of improper use
⇒ in case of mechanical damages to the device from outside forces
⇒ in case of transportation damages
⇒ for wear parts
→ in case of operating errors and misuse
⇒ when placing the device in wet rooms or outdoors
in case of damages resulting from force, war, water, lightning, excess voltage, and other reasons not within the scope of HOME ELECTRIC's responsibility.
⇒ in case of excessive use, in particular in case of non-domestic use
⇒ in case of disregard of the user instructions and installation errors
⇒ if the device does not have a technical defect
⇒ for transport and travel costs as well as costs incurred by installing and uninstalling the device

The warranty does not include any subsequent liability on our part, in particular no liability for damages to the device itself or incurred by the loss of the device until the time of repair (e.g. travel costs, handling costs, etc.). However, this does not limit or exclude our statutory warranty, in particular pursuant to the Product Liability Act.

Any warranty services provided by us do not extend the warranty term of 3 years as of the date of purchase, also not in terms of possibly exchanged components.

We wish you much joy with your new device and hope that your next one will be another HOME ELECTRIC product.
