HM3002 - Blender Home Electric - Free user manual and instructions

Product Type	Hand mixer
Brand	Home Electric
Model	HM3002
Voltage	AC 230 V
Power Consumption	250 W
Frequency	50 Hz
Maximum Continuous Operation	5 minutes
Required Rest Time Between Cycles	10 minutes
Speed Settings	5 (plus turbo boost)
Turbo Function	Yes (increases speed by 15%)
Ejection Button	Yes (for removing beaters/dough hooks)
Included Accessories	2 beaters, 2 dough hooks (one with washer)
Beater Material	Metal
Dough Hook Material	Metal
Cleaning Method for Head	Wipe with damp cloth, dry with soft cloth
Cleaning Method for Beaters/Hooks	Wash in warm soapy water or dishwasher
Water Resistance	Do not immerse in water or other liquid
Intended Use	Household only

Frequently Asked Questions - HM3002 Home Electric

How do I assemble the beaters or dough hooks?

Insert the beaters into either socket as they are identical. For dough hooks, insert the one with the washer into the large socket, and the other into the small socket. Ensure the speed selector is at 0 before plugging in.

How does the turbo button work?

Pressing the turbo button while the mixer is running increases the speed by approximately 15%. Note that both left and right turbo buttons function the same, but they cannot be pressed simultaneously.

What is the maximum operating time?

The mixer should not be used continuously for more than 5 minutes. After each use, allow a rest period of at least 10 minutes before the next cycle.

How should I clean the mixer?

Unplug and let the mixer cool completely. Wipe the outside of the head with a damp cloth and polish with a soft dry cloth. Wash the beaters and dough hooks in warm soapy water or in the dishwasher. Do not immerse the mixer head in water or any liquid.

Can I use metal utensils in the bowl while mixing?

No. Do not insert knives, metal spoons, forks, or similar objects into the bowl while the mixer is operating to avoid damage or injury.

How do I remove the beaters or dough hooks?

Turn the speed selector to 0 and unplug the cord. Hold the beaters/hooks with one hand and press the ejection button firmly with the other hand to release them.

What is the voltage and power of the HM3002?

The mixer operates at AC 230 V, 50 Hz, and has a power consumption of 250 W.

Can the beaters and dough hooks be washed in the dishwasher?

Yes, the beaters and dough hooks are dishwasher safe. However, the mixer head must never be placed in the dishwasher or submerged in water.

Why is there a washer on one of the dough hooks?

The dough hook with a washer is designed to fit only into the big socket of the mixer. The other dough hook fits into the small socket. This ensures correct installation for proper dough kneading.

How should I store the mixer?

Store the mixer in a dry place out of reach of children. Make sure the speed selector is at 0 and the cord is unplugged. Keep the beaters and dough hooks with the unit.

USER MANUAL HM3002 Home Electric

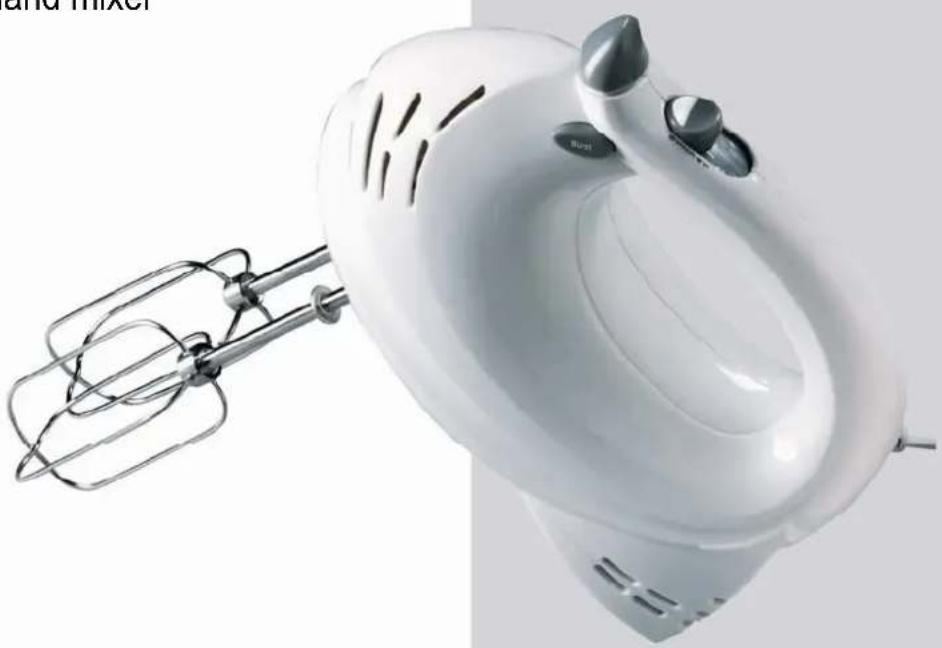

Handmixer hand mixer

White kitchen mixer with a metal hand mixer, no visible text or symbols

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)

When using an electrical appliance, basic precaution should always be followed, including the following:

IMPORTANT: This appliance is intended for household use only

• Read all instructions before using the appliance.
- Before using the appliance, check that the specifications on the rating plate agree with the type of current and voltage in your household.
•IMPORTANT: Only use the appliance when it is completely assembled.
- Remove the mains plug when the appliance is not in use or when you are cleaning it.
• Do not leave the appliance unattended while it is plugged in.
••To reduce the risk of electric shock, do not use outdoors.
• Do not use this appliance with corrosive liquids.
•This appliance is in contact with food. Keep it clean!
- This appliance is not a toy. Children are unable to recognize the dangers associated with the incorrect use of electrical equipment. Ensure that this appliance is used and stored out of reach of children..
• Use only as described in this manual.
• Do not use with damaged cord or plug.
- Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
•Turn all controls off before unplugging.
•Do not use an inadmissible extension cord with this appliance.
- Keep end of hose, wands and other openings away from your face and body. Keep your hands, feet, hair and clothing away from moving parts.
- Never attempt to repair the appliance yourself. In case of defect, send the appliance to an authorized service centre for maintenance.
- If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

SAVE THESE INSTRUCTIONS

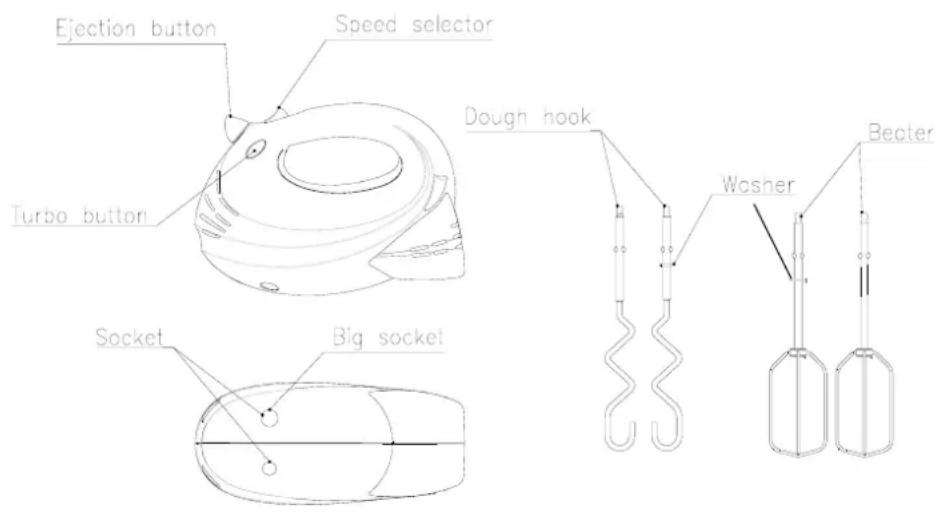

KNOW YOUR MIXER

USING YOUR MIXER

1. For the first use, cleaning the dough hooks and beaters.
2. Assemble proper beaters or dough hooks into mixer. Dough hooks are only used for mixing dough and beaters are only used for beating eggs or similar food. Note: Beaters can be inserted in either socket, as the beaters are identical. For dough hooks, the one with washer can only be inserted into the big socket and the other one can only be inserted into small socket. The two dough hooks can not be inserted in reverse.
3. Ensure that the unit is at the 0 setting, then plug in the power source.
4. Turn the speed selector to your desired setting, There is 5 settings. the appliance will start working and the speed will increase 15% if the Turbo Button depressed at any time (the left is the same as the right, but can not depress at the same time).

Warning: Do not stick knife, metal spoons, fork and so on into bowl when operating.

1. The max operation time per time shall not exceed 5 minutes and minimum 10 minutes rest time must be maintained between two consecutive cycles. When kneading yeast dough, suggest the speed selector first use a low speed and then use high speed to achieve best results.
2. When mixing is completed, turn the speed selector to 0 setting, unplug the cord from power outlet.
3. If necessary you can scrape the excess food particles from the beaters or dough hooks by rubber or wooden spatula.
4. Hold the beaters/dough hooks with one hand and press the ejection button firmly down with the other hand, remove the beater/dough hooks.

Note: Remove the beaters/dough hooks only at the 0 setting.

Cleaning and Maintenance

1. Unplug the appliance and wait it completely cool down before clean.
2. Wipe over the outside surface of the head with a dampened cloth and polish with a soft dry cloth.
3. Wipe any excess food particles from the power cord.
4. Wash the beaters and dough hooks in warm soapy water and wipe dry. The beaters and dough hooks may be washed in the dishwasher.

Caution: The mixer can not be immersed in water or other liquid.

COOKERY TIPS

1. Refrigerated ingredients, ie. butter and eggs should be at room temperature before mixing begins. Set these ingredients out ahead of time.
2. To eliminate the possibility of shells or deteriorated-off eggs in your recipe, break eggs into separate container first, then add to the mixture.
3. Do not over-beat. Be careful that you only mix/blend mixtures until recommended in your recipe. Fold into dry ingredients only until just combined. Always use the low speed.
4. Climatic conditions Seasonal temperature changes, temperature of ingredients and their texture variation from area to area all play a part in the required mixing time and the results achieved.
5. Always start mixing at slow speeds. Gradually increase to the recommended speed as stated in the recipe.

8. Technical specifications

Voltage: AC 230V

Power consumption: 250W

Frequency: 50Hz

Short Time Operation KB 5 min.

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE

Disposal

Symbol of a trash bin crossed with two crossed lines, representing waste sorting or disposal (no text or labels)

Dispose of the packaging in the proper manner.

If at any time in the future you should need to dispose of this product please note that Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.

(Waste Electrical and Electronic Equipment Directive)

If this product should be defective, despite our high standard quality control, please contact the service & support hotline.

The hotline is available Monday through Friday from 10am to 6pm at this number:

0180 5 - 22 17 84 (€ 0,14 / Min. Germany only)

If the product needs to be send to the servicecenter, please call service & support.

HOME

ELECTRIC

Home Electric

HM3002

VERSION FN/ER05-2008 REV A

HE-HM3002-DE-A5.PDF (C) 2008
