USER MANUAL SM5002W Home Electric

White electric shaver with a metallic handle and spout, no visible text or symbols on the device itself.

Bedienungsanleitung

User Manual

INHALTSVERZEICHNIS

IMPORTANT SAFETY INSTRUCTIONS 12-13

CONTROL ELEMENTS....14

OPERATING INSTRUCTIONS 15-16

CLEANING AND CARE, TECHNICAL DATA....17

WARRANTY 18-19

Proper disposal of this product:

This label indicates that, in the EU, electronic devices cannot be disposed of with regular household waste.

Please use the return or collections systems of your municipality or contact the seller where you purchased this product.

IMPORTANT SAFETY INSTRUCTIONS

General

• Read this manual before first use thoroughly. It contains important information for your safety as well as for the use and maintenance of the equipment. Keep these instructions for future reference and pass it on with the device.
• Pay particular attention to the warnings on the device and in this instruction manual.
  • Use the device only for its intended purpose. Improper use may lead to hazards.
  • This device is designed for household use only. It is not suitable for commercial use.
• In the event of improper use or wrong operation, we do not accept any liability for resulting damages.
• The use of accessories and components not expressly recommended by the manufacturer may result in injuries or damages and voids the warranty.
• Do not allow children to use the device without supervision.
• This device is not intended to be used by persons (including children) with reduced physical, sensory or mental abilities or lack of experience and / or lack of knowledge unless they are supervised by a person responsible for their safety or have received instructions on how to use the device.
  • Children should be supervised to ensure that they do not play with the device.
  • Never leave the device unsupervised while it is switched on.
• Never immerse electrical parts of the device in water during cleaning or operation. Never hold the device under running water.

Power supply

• The mains voltage must match the information on the rating label of the device.
- The power plug is used as the disconnect device. Please be sure that the power plug is in operable condition.
• Only removing the power plug can separate the device completely from the mains supply.
- Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.
• Make sure, the device, including power cord and power plug are not exposed to hot surfaces.
- Only unplug from the power outlet by the plug itself. Do not pull on the cord.
- Disconnect the power plug when the device is not in use, in case of malfunctions, prior to attaching or removing accessories and prior to each cleaning.
- If the power cord or the casing of the device is damaged or if the device is dropped, the device may not be used before it is examined by a professional electrician.
- A damaged power cord may only be replaced by the manufacturer or a workshop commissioned by the manufacturer or by a similarly qualified person in order to avoid hazards.

Installation location

• Use this device in dry indoor areas only and never outdoors.
- Warning! Do not use this device near water or heavy moisture; e.g. in a damp basement or beside a swimming pool or bathtub.
- Keep this device away from all heat sources like for example, ovens, hot plates and other heat-producing devices/objects.
- Protect this device from extreme heat (over 35^ C) and cold (under 5^ C) as well as from direct sunlight and dust.

Specific safety instructions

• Caution! Risk of injury! The cutting blades are very sharp. During operation keep finger, hair, clothing, hanging jewellery and utensils away from the cutting blades to avoid injuries and damage of the device.
• Never touch the blades while the device is in operation.
• Turn the device on only once the blender wand is located deeply into the mixing bowl.
• Caution! Never use the device for mixing hot foods, liquids or hot oil.
• Only remove blender wand from the motor unit, if the cutting blades have come to a complete standstill and the mains plug has been disconnected.
  • Make sure the motor unit and the power cable do not get wet.
• The device must always be switched off and disconnected from the mains, before changing accessories or additional parts.
• Do not cover or store a heated device. Pull the power plug and let it cool down completely.
• Clean the device and other accessories after each use. Refer to the Chapter CLEANING AND CARE.

8

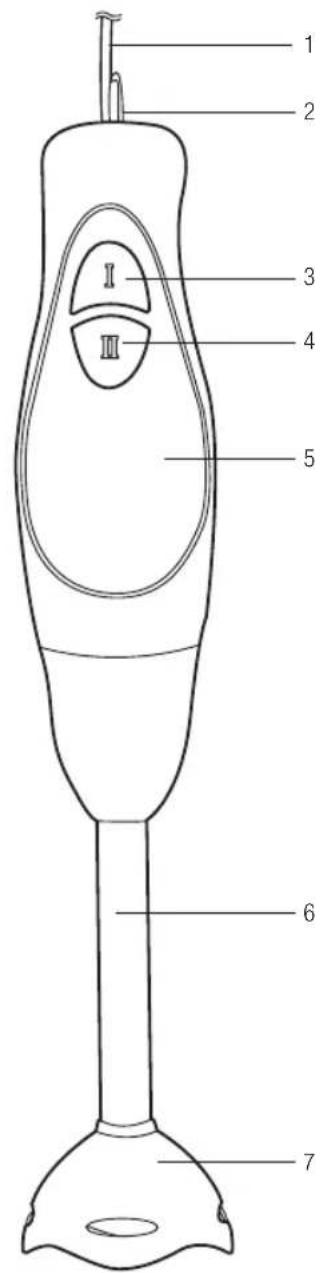

1 2 3 4 5 6 7

1 Power cord with power plug 6 Blender wand (detachable)

2 Hanging loop 7 Cutting blades

3 Speed button I (slow blending)

4 Speed button II (fast blending)

5 Motor unit 10 Rawl plug (2x)

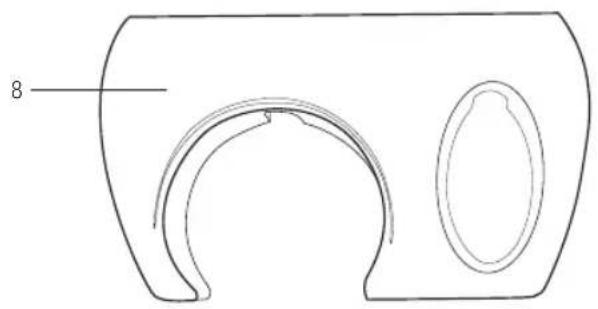

8 Wall bracket

9 Screw (2x)

Intended use

- This device is suitable only for simply blending liquid and solid foodstuffs. Any other use can lead to damage to the device or to injury.

Unpacking and checking

• Carefully take the device and its accessories out of the packaging. Retain the packaging in case you would like to store the device away or transport it at a later date. If you choose to dispose of the packaging, then please do so according to the applicable legal regulations.
• Check the packaging contents for completeness and damages. Should the contents in the packaging not be complete or be damaged, do not use the device. Return it to your retail outlet immediately.

Mounting the wall bracket

• The wall bracket (8) for the stick blender may only be mounted on a suitable wall by experts.
• Please ensure that there are no power or supply lines running inside the wall, before you drill the mounting holes. In the event that there are power or supply lines in the wall, choose another location to mount the bracket.
• Hold the wall bracket at the desired location and mark the drilling holes with a ballpoint pen. Drill 2 holes and use a hammer to bang the rawl plugs (10) into the holes. Tighten the screws (9) in the rawl plugs.

Preparation

• Before using the device for the first time, clean all parts that will come in contact with foodstuffs. Follow the directions in the chapter entitled CLEANING AND CARE.
• Assemble the device properly, before you connect the power plug (1) to a power socket.
• Attach the blender wand (6) to the motor unit (5) and turn it until it locks in place. The blender wand is firmly locked, if the marking on the blender wand and the lock symbol 📄 are aligned.

Operate the stick blender

• This stick blender is suitable for the preparation of baby food, soups, sauces, milkshakes, mixed drinks and mayonnaise.
• Use the stick blender only in a suitable bowl, measuring beaker, pot or in another suitable container.
• To avoid splashing, immerse the stick blender in the bowl with the ingredients first and then turn it on.
• Press on speed button I (3) to switch the stick blender on and to blend at a low speed. Press on speed button II (4) for a faster blending speed.
• If you use an up and down motion while operating the stick blender, the ingredients will be processed most effectively. Make sure that the mixture does not reach as far as the connection between the motor unit and the blender wand.
• If the stick blender gets stuck, disconnect the power plug (1) from the power socket. Only then, remove any lodged food particles from the blender wand.

OPERATING INSTRUCTIONS

• Caution! Do not use the device during the cooking process or when liquids are boiling.
• Pull the power plug (1) out of the power socket, after using the device. Clean the device immediately after using it each time. Follow the directions in the chapter entitled CLEANING AND CARE.

Operating time

• The device is designed to be used for processing typical household amounts and soft or pre-cooked food. Subjecting the device to severe strain such as using it to chop raw vegetables (carrots etc.) may lead to overloading the motor. If this occurs, the motor will need to cool down to room temperature.
• It is recommended that you use the device for no longer than 10 seconds to process uncooked, hard foods. Then, allow the device to cool down for 1 minute. Afterwards, you can operate the device again for 10 seconds, followed by a rest of 1 minute, etc.
• If the device heats up perceptibly, switch it off immediately and pull the power plug (1). Allow the device to cool down completely (at least 30 minutes), before operating it again.

Tips

• Always start blending at a low speed. Increase the speed gradually as stated in the recipe.
- Refrigerated ingredients, such as butter and eggs are easier to blend, if they have been allowed to reach room temperature in advance.
- Weather conditions, seasonal fluctuations in temperature, the temperature of the ingredients and their properties vary from region to region and affect the blending time and the results achieved.

CLEANING AND CARE, TECHNICAL DATA

• Disconnect the power plug (1) and allow the device to cool down completely, before cleaning it.
• Remove the blender wand (6) from the motor unit (5). To do so, turn the blender wand until the marking on the blender wand and the open lock symbol 📋 the motor unit are aligned.
• Clean the blender wand and the cutting blades immediately after use with warm water and some washing up liquid. Dry the blender wand well, before using it again.
• Caution! Risk of injury! The cutting blades of the blender wand are very sharp! Proceed with caution when you are handling them.
• Never immerse the motor unit in water or other liquids, when you are cleaning them. Never hold these parts under running water.
• Clean the outside surfaces of the motor unit with a slightly moist cloth and rub them dry.
• Some foods, e.g. carrots, may stain the plastic. Use a cloth dipped in vegetable oil to partially remove the colour residue on the affected area.
• Never use solvents and scouring powder, hard brushes and metallic or sharp objects to clean the device. Solvents are dangerous to our health and have an adverse effect on plastic parts. Abrasive cleaners and materials scratch the surface.

Technical data

Power supply 220-240V\~, 50Hz

Power consumption 500 W

Operating time Short time operation: 10 seconds operation / 1 minute pause

Manufactured for JGC-Company GmbH

Heckhofweg 146

50739 Köln

Customer Service E2 Servicecenter GmbH

Max-Planck-Strasse 13

50858 Köln-Marsdorf

Telephone

01805-22 17 84

Monday-Friday, 10:00 - 18:00

(Euro 0.14/min from German landline; other charges may apply from mobile phone)

Please enter the serial number of your device here:

Customer Info Manufacturer's Warranty

HOME ELECTRIC

Thank you for your purchase of one of our products. We hope you will enjoy using our high-quality product. Our strict production control ensures the high quality of our devices. However, in the event that you wish to submit a qualified claim, we grant a

3 years

warranty as of the date of purchase, subject to the following conditions:

This warranty does not affect your statutory warranty claims as consumer toward the seller of the device. These rights are not affected by our manufacturer's warranty. The warranty granted by us is valid only for domestic use of the device and is limited to the area of the Federal Republic of Germany.

The warranty term is 3 years as of the date of purchase.

It is within HOME ELECTRIC's discretion to fulfil the warranty by repair or replacement of the device or defect component. Other claims are excluded. In case of questions regarding HOME ELECTRIC products you no longer need to take the time to go to the seller but may call our service hotline or service center directly. A team of highly qualified product consultants and technicians is available from Monday through Friday from 10:00 a.m. to 6:00 p.m.

Service Hotline:

01805 / 22 17 84 (€ 0.14 per min)

When mailing your device, please also include a short description of the problem as this will facilitate handling. Please mail your device, without exception, only to our authorised service partner and use only the enclosed return coupon. If the return coupon is missing please contact the above service hotline.

ATTENTION: Mailings that are not pre-paid will not be accepted!

Customer Info Manufacturer's Warranty

HOME ELECTRIC

Our service partner requires proof of purchase, either as original receipt or cash receipt printed by the seller to perform warranty repairs. The serial number on the device must also be readable. We are unable to perform warranty services free of charge without proof of purchase. We recommend keeping the original packaging in order to ensure safe transport of the device in case of a warranty claim.

Warranty repairs may be performed exclusively by E2 Servicecenter GmbH or contractual partners authorised by it. Repairs performed by the customer or other shops void the warranty; a claim for cost reimbursement does not exist.

The warranty is void or does not cover:

⇒ in case of improper use
⇒ in case of mechanical damages to the device from outside forces
⇒ in case of transportation damages
⇒ for wear parts
in case of operating errors and misuse
⇒ when placing the device in wet rooms or outdoors
in case of damages resulting from force, war, water, lightning, excess voltage, and other reasons not within the scope of HOME ELECTRIC's responsibility.
⇒ in case of excessive use, in particular in case of non-domestic use
⇒ in case of disregard of the user instructions and installation errors
if the device does not have a technical defect
⇒ for transport and travel costs as well as costs incurred by installing and uninstalling the device

The warranty does not include any subsequent liability on our part, in particular no liability for damages to the device itself or incurred by the loss of the device until the time of repair (e.g. travel costs, handling costs, etc.). However, this does not limit or exclude our statutory warranty, in particular pursuant to the Product Liability Act.

Any warranty services provided by us do not extend the warranty term of 3 years as of the date of purchase, also not in terms of possibly exchanged components.

We wish you much joy with your new device and hope that your next one will be another HOME ELECTRIC product.
