USER MANUAL SWM5002W Home Electric

Sandwich Toaster 3 in 1

SWM5002W

Exterior view of a white and black electric guitar grill with open lid (no text or symbols visible)

Bedienungsanleitung

User Manual

INHALTSVERZEICHNIS

Technical line drawing of a grid-based electronic component with no visible text or symbols

Line drawing of two rectangular compartments with horizontal lines and a label '12' pointing to the top section (no text or symbols on the compartments themselves)

IMPORTANT SAFETY INSTRUCTIONS 13-14

CONTROL ELEMENTS....15

OPERATING INSTRUCTIONS 16-18

CLEANING AND CARE, TECHNICAL DATA....19

WARRANTY 20-21

Proper disposal of this product.

This label indicates that, in the EU, electronic devices cannot be disposed of with regular household waste.

Please use the return or collections systems of your municipality or contact the seller where you purchased this product.

IMPORTANT SAFETY INSTRUCTIONS

General

• Read this manual before first use thoroughly. It contains important information for your safety as well as for the use and maintenance of the equipment. Keep these instructions for future reference and pass it on with the device.
• Pay particular attention to the warnings on the device and in this instruction manual.
• Use the device only for its intended purpose. Improper use may lead to hazards.
• This device is designed for household use only. It is not suitable for commercial use.
• In the event of improper use or wrong operation, we do not accept any liability for resulting damages.
• The use of accessories and components not expressly recommended by the manufacturer may result in injuries or damages and voids the warranty.
• This device is not intended to be used by persons (including children) with reduced physical, sensory or mental abilities or lack of experience and / or lack of knowledge unless they are supervised by a person responsible for their safety or have received instructions on how to use the device.
• Children should be supervised to ensure that they do not play with the device.
• Never leave the device unsupervised while it is switched on.
• Do not place heavy objects on top of the device.
• Never immerse electrical parts of the device in water during cleaning or operation. Never hold the device under running water.
• Do not under any circumstances attempt to repair the device yourself. For servicing and repairs, please consult an authorised dealer or qualified customer service centre.
• This device should not be operated with an external clock timer or separate remote control system.

Power supply

• The mains voltage must match the information on the rating label of the device.
• The power plug is used as the disconnect device. Please be sure that the power plug is in operable condition.
• Only removing the power plug can separate the device completely from the mains supply.
• Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.
• Make sure, the device, including power cord and power plug are not exposed to hot surfaces.
• Only unplug from the power outlet by the plug itself. Do not pull on the cord.
• Disconnect the power plug when the device is not in use, in case of malfunctions, prior to attaching or removing accessories and prior to each cleaning.
• If the power cord or the casing of the device is damaged or if the device is dropped, the device may not be used before it is examined by a professional electrician.
• A damaged power cord may only be replaced by the manufacturer or a workshop commissioned by the manufacturer or by a similarly qualified person in order to avoid hazards.

IMPORTANT SAFETY INSTRUCTIONS

Installation location

• Place the device on a flat, straight and non-slip surface so that the handle is facing you.
• Bread can burn. Therefore, do not use this device near or below flammable materials such as curtains. Please be sure to keep a sufficient safe distance from flammable materials.
• Use this device in dry indoor areas only and never outdoors.
• Warning! Do not use this device near water or heavy moisture; e.g. in a damp basement or beside a swimming pool or bathtub.
• In order to reduce the risk of fire and electric shock, do not expose the device to fire (fireplace, grill, candles, cigarettes and so on) or water (water drops, water splashes, vases, tubs, ponds and so on).
• Keep this device away from all heat sources like for example, ovens, hot plates and other heat-producing devices/objects.
• Protect this device from extreme heat (over 35^ C) and cold (under 5^ C) as well as from direct sunlight and dust.

• Caution! Risk of burnings! When using the device as intended the hotplates and the housing can get very hot. Therefore, use the provided handles only when opening or closing the hotplates. Eventually use an oven cloth.
• Use only hotplates intended for the use with this device.
• Parts of the device become very hot. Unplug the power cord and allow the device to cool sufficiently before inserting or removing accessories, and before cleaning or storing.
• Do never cover the device, while it is hot.
• Clean the hotplates and other surfaces after every use. Please read chapter CLEANING AND CARE.

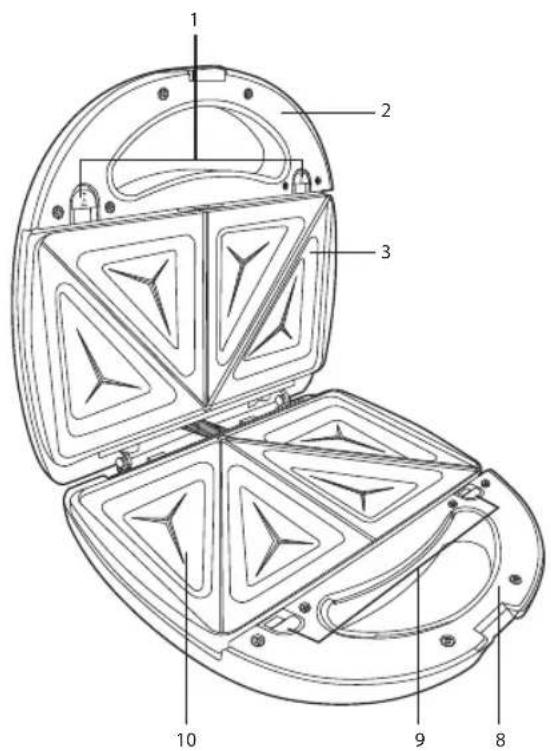

1 2 3 10 9 8

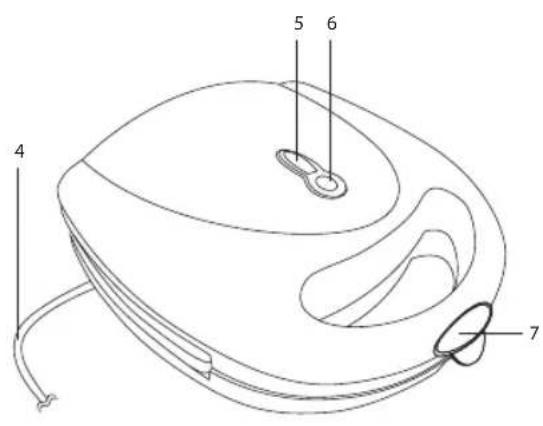

4 5 6 7

Technical line drawing of a grid-based electronic component with no visible text or symbols

Line drawing of two rectangular compartments with horizontal lines and a label '12' pointing to the top section (no text or symbols on the compartments themselves)

1 Top lock release sliders 7 Closure tab
2 Top handle 8 Bottom handle
3 Top hotplate (sandwich plate) 9 Bottom lock release sliders
4 Power cord with plug 10 Bottom hotplate (sandwich plate)
5 Green control light: heating 11

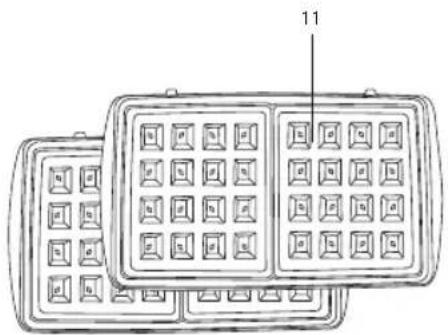

Waffle plate (2x)
6 Red operating light: mains operation 12

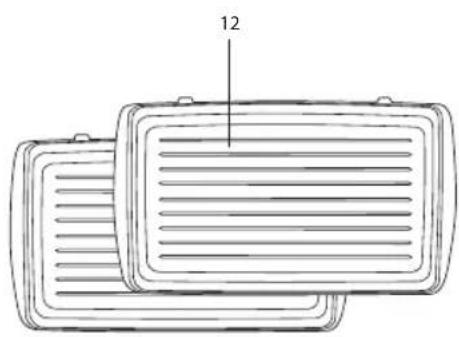

Grill plate (2x)

OPERATING INSTRUCTIONS

Intended use

- The device is intended only for the preparation of food. Any other use can lead to damages of the device or injuries.

Unpacking and control

• Carefully take the device and its accessories out of the packaging. Retain the packaging in case you would like to store the device away or transport it at a later date. If you choose to dispose of the packaging, then please do so according to the applicable legal regulations.
• Check the packaging contents for completeness and damages. Should the contents in the packaging not be complete or be damaged, do not use the device. Return it to your retail outlet immediately.
• Replace each of the hotplates once to check their correct fit.

Preparation

• Clean all hotplates (3, 10, 11, 12) with a damp cloth. Following wipe dry again.
• To remove production residues, operate the device without food for about 10 minutes. Please ensure sufficient ventilation, as this may lead to slight smell and smoke, but this is normal and will disappear after a short time.
• Following, clean the device as described in chapter CLEANING AND CARE.

Replacing the hotplates

• You can insert the hotplates according to your personal taste. Proceed as follows.
• Allow the device to cool off completely before replacing the hotplates.
• Slide the upper and lower lock release slider (1, 9) downwards or forwards in order to remove the hotplates. You can now lift the hotplates out of the guidance and insert the desired one. Press down the hotplates and ensure the snap closure locks into position.
• Attention: Always insert the hotplates only in pairs.

OPERATING INSTRUCTIONS

Making a sandwich

• Insert the sandwich plates (3, 10) (see also chapter Replacing the hotplates).
• Before you begin baking, grease the non-stick coated hotplates with a small amount of fat.
• Connect the device to the mains supply. The red operating light (6) and the green control light (5) light up and indicate that the device is connected to the mains supply and heats up. As soon as the temperature is reached, the green control light (5) turns off. During the baking process the control light (5) turns on and off alternately. This indicates that the temperature is kept constant.
• While the device heats up, you can butter the toast and prepare the fillings. We recommend using only slices of toast, which have the same shape as the hotplates of the device.
• Put the slices of toast on the hotplates with the buttered side to prevent sticking when removing them and to achieve a golden-brown outer edge.
• Now add the filling according to your taste and make sure that the filling does not extend beyond the edge of toast. At last, add the top toast slices.
• Now open the pre-heated device with the two handles (2, 8) and lay the filled slices of toast carefully on the lower hotplates.
• Close the device by pressing the lid down firmly and locking it.
• Never close the device with force; eventually reduce the amount of filling a little bit. Make sure not to burn yourself. Hot steam can escape.
• After about 3-4 minutes, the slices of toast are ready (depending on the filling and type of toast). Begin with short baking times and increase it until you have found the desired time.
• Unlock the closure and open the lid carefully by using the handles (2, 8).
• Use a heat-resistant plastic or wooden spatula to take out the finished sandwich. Do not use sharp or hard objects, as these may damage the non-stick coating. Do not use your fingers, there is risk of burnings.
• Wipe the plates with a paper towel if necessary (and a little bit of cooking oil).
• Close the device if you want to prepare more sandwiches, in order to keep the temperature constant.
• While the first toast slices are baking, prepare more slices.
• Pull the plug out of the socket once you are done, or leave the room for a short time.
• Allow the device to cool off before cleaning it.
• Following, clean the device as described in chapter CLEANING AND CARE.

Contact grill

• Insert the grill plates (12) (see also chapter Replacing the hotplates).
• Although the heating plates have an anti-adhesive coating, you can also use oil, grease, butter, lard or margarine. Please note, that margarine "light" and various plant oils (cold-pressed olive oil, thistle-, linseed-, wheat germ-, corn-, sesame-, walnut-, hazelnut oil) are unsuitable for frying. Use these oils only for cold food.

OPERATING INSTRUCTIONS

• Connect the device to the mains supply. The red operating light (6) and the green control light (5) light up and indicate that the device is connected to the mains supply and heats up. As soon as the temperature is reached, the green control light (5) turns off. During the baking process the control light (5) turns on and off alternately. This indicates that the temperature is kept constant.
• Open the device and place the grill-food on the lower grill plate. Only use precooked meat. The device is not suitable for grilling raw meat.
• Now close the lid.
• Check the grill-food after about 2 minutes. Grill your food, until it has reached the desired degree of browning.
  • Note: If your grill-food starts smoking, use a different oil or fat.

Baking waffles

• Insert the waffle plates (11) (see chapter Replacing hotplates).
• Grease the waffle plate slightly with butter, margarine or edible oil.
• Connect the device to the mains supply. The red operating light (6) and the green control light (5) light up and indicate that the device is connected to the mains supply and heats up. As soon as the temperature is reached, the green control light (5) turns off. During the baking process the control light (5) turns on and off alternately. This indicates that the temperature is kept constant.
• Open the device and then spread the batter evenly across the bottom-baking surface. To determine the correct amount of dough, fill in the dough until it just touches the edges of the waffle plates. If necessary, increase the amount of dough for the next waffle. Make certain that the batter does not run over the edge of the baking surface. Now close the lid.
• At the earliest after 2 minutes you can open the lid to check the baking result. Opening the lid early will only tear the waffle.
• Continue baking the waffle until it has reached the desired degree of browning. The degree of browning is adjustable through the baking time. In this way, the waffles can be baked to a golden yellow or a crispy brown.
• When removing the waffles, be sure not to accidentally damage the coating of the baking surfaces. Always remove the finished waffle with help of a flat wooden or plastic spatula. Never use metal or other sharp objects (e.g. knives, metal spatula, fork, etc) as it can damage the non-stick coating. If this happens, in future it will be more difficult to remove the waffles from the baking surface.
  • After baking the last waffle, pull the power plug out of the socket and allow the device to cool with the lid up.

Hints for better results

• Grease the hotplates. Spread the waffle dough quickly, to ensure the waffle top and bottom is evenly brown.
• Place the finished waffles on a grid, this way they stay crispy. Stacked waffles soften quickly.

CLEANING AND CARE, TECHNICAL DATA

• Pull the plug out of the power socket.
• Wait until the device has cooled off completely. Clean the device from the outside only with a damp cloth. Make sure that no liquid, oil or grease gets into the interior of the device.
• Wipe the hotplates with paper towels or a soft damp cloth. If there are difficult to remove food residues, pour a little bit of edible oil on the hotplates and remove the residues after 5 minutes of exposure time.
• After removing the hotplates, they can also be washed in mild soapsuds. Dry them thoroughly before inserting them again.
• Never immerse electrical parts of the device in water during cleaning or operation. Never hold the device under running water.
• Under no circumstances use petrol or solvents for cleaning, also no abrasive cleaners or auxiliary agents.
• You can store the device in vertical position.

Technical data

Power supply 220-240V\~, 50Hz

Power consumption 640-760 W

Manufactured for JGC-Company GmbH

Heckhofweg 146

50739 Köln

Customer Service E2 Servicecenter GmbH

Max-Planck-Strasse 13

50858 Köln-Marsdorf

Telephone

01805-22 17 84

Monday - Friday 10:00 – 18:00

(€ 0.14/min. from German landline;

max. € 0.42/min. from German mobile networks)

Please enter the serial number of your device here:

Customer Info Manufacturer's Warranty

HOME ELECTRIC

Thank you for your purchase of one of our products. We hope you will enjoy using our high-quality product. Our strict production control ensures the high quality of our devices. However, in the event that you wish to submit a qualified claim, we grant a

3 years

warranty as of the date of purchase, subject to the following conditions:

This warranty does not affect your statutory warranty claims as consumer toward the seller of the device. These rights are not affected by our manufacturer's warranty. The warranty granted by us is valid only for domestic use of the device and is limited to the area of the Federal Republic of Germany.

The warranty term is 3 years as of the date of purchase.

It is within HOME ELECTRIC's discretion to fulfil the warranty by repair or replacement of the device or defect component. Other claims are excluded. In case of questions regarding HOME ELECTRIC products you no longer need to take the time to go to the seller but may call our service hotline or service center directly. A team of highly qualified product consultants and technicians is available from Monday through Friday from 10:00 a.m. to 6:00 p.m.

Service Hotline: 01805 / 22 17 84

(€ 0.14/min. from German landline;

max. € 0.42/min. from German mobile networks)

When mailing your device, please also include a short description of the problem as this will facilitate handling. Please mail your device, without exception, only to our authorised service partner and use only the enclosed return coupon. If the return coupon is missing please contact the above service hotline.

ATTENTION: Mailings that are not pre-paid will not be accepted!

Customer Info Manufacturer's Warranty

HOME ELECTRIC

Our service partner requires proof of purchase, either as original receipt or cash receipt printed by the seller to perform warranty repairs. The serial number on the device must also be readable. We are unable to perform warranty services free of charge without proof of purchase. We recommend keeping the original packaging in order to ensure safe transport of the device in case of a warranty claim.

Warranty repairs may be performed exclusively by E2 Servicecenter GmbH or contractual partners authorised by it. Repairs performed by the customer or other shops void the warranty; a claim for cost reimbursement does not exist. The warranty is void or does not cover:

⇒ in case of improper use
⇒ in case of mechanical damages to the device from outside forces
⇒ in case of transportation damages
⇒ for wear parts
→ in case of operating errors and misuse
⇒ when placing the device in wet rooms or outdoors
in case of damages resulting from force, war, water, lightning, excess voltage, and other reasons not within the scope of HOME ELECTRIC's responsibility.
⇒ in case of excessive use, in particular in case of non-domestic use
⇒ in case of disregard of the user instructions and installation errors
⇒ if the device does not have a technical defect
⇒ for transport and travel costs as well as costs incurred by installing and uninstalling the device

The warranty does not include any subsequent liability on our part, in particular no liability for damages to the device itself or incurred by the loss of the device until the time of repair (e.g. travel costs, handling costs, etc.). However, this does not limit or exclude our statutory warranty, in particular pursuant to the Product Liability Act.

Any warranty services provided by us do not extend the warranty term of 3 years as of the date of purchase, also not in terms of possibly exchanged components.

We wish you much joy with your new device and hope that your next one will be another HOME ELECTRIC product.
