USER MANUAL WK5002A Home Electric

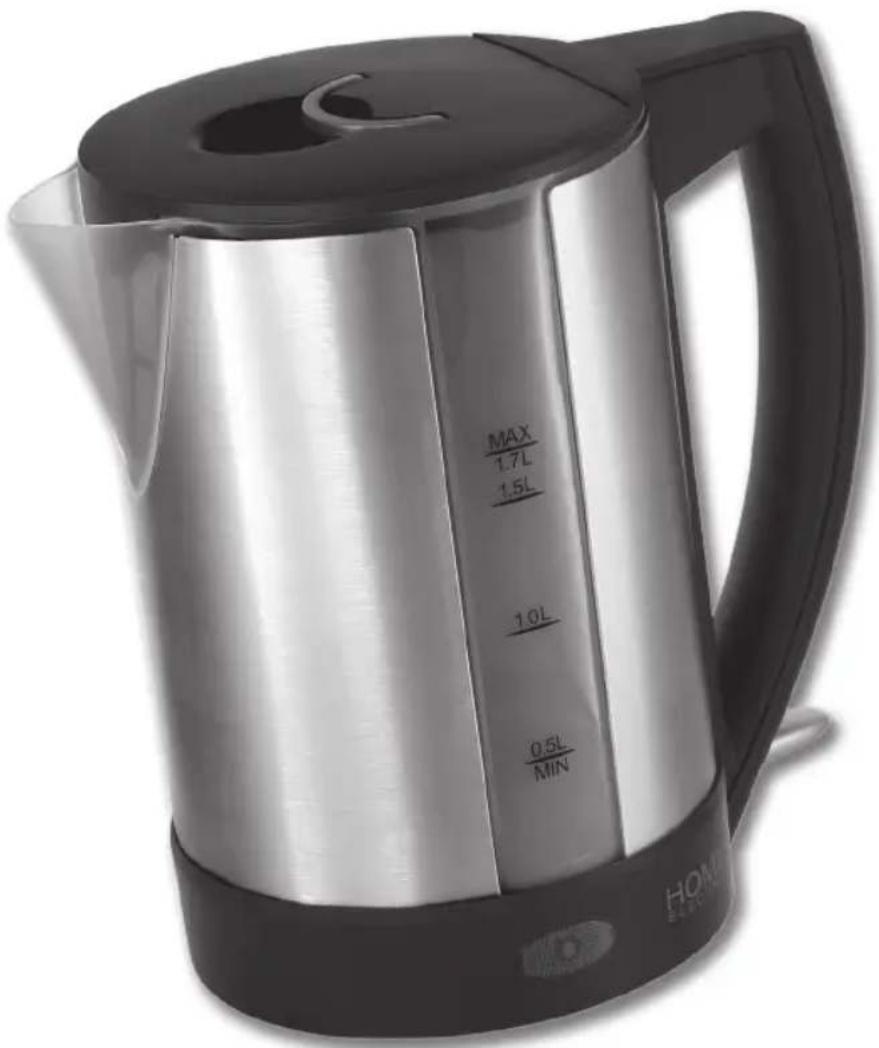

Aluminium Water Kettle

WK5002A

MAX 1.7L 1.5L 10L 0.5L MIN HONDAI

Bedienungsanleitung

User Manual

IMPORTANT SAFETY INSTRUCTIONS....11-12

CONTROL ELEMENTS....13

OPERATING INSTRUCTIONS....14

CLEANING AND CARE....15

WARRANTY 16-17

Proper disposal of this product.

This label indicates that, in the EU, electronic devices cannot be disposed of with regular household waste.

Please use the return or collections systems of your municipality or contact the seller where you purchased this product.

Technical data

Power supply 230V\~, 50Hz

Power consumption 2200W

Capacity 1.7 l

Manufactured for JGC-Company GmbH

Heckhofweg 146

50739 Köln

Customer Service E2 Servicecenter GmbH

Max-Planck-Strasse 13

50858 Köln-Marsdorf

Telephone

01805-22 17 84

Monday-Friday,10:00 - 18:00

(Euro 0.14/min from German landline; other charges may apply from mobile phone)

Please enter the serial number of your device here:

General

• Read this manual before first use thoroughly. It contains important information for your safety as well as for the use and maintenance of the equipment. Keep these instructions for future reference and pass it on with the device.
• Pay particular attention to the warnings on the device and in this instruction manual.
• Use the device only for its intended purpose. Improper use may lead to hazards.
• This device is not suitable for commercial use. It is designed for household and other similar uses only such as:

- in employee kitchens, in shops, offices and other business areas;

- for hotel guests, motels and other residential facilities;

- in bed and breakfast establishments;

- in farmhouses.

In the event of improper use or wrong operation, we do not accept any liability for resulting damages.
- The use of accessories and components not expressly recommended by the manufacturer may result in injuries or damages and voids the warranty.
- This device is not intended to be used by persons (including children) with reduced physical, sensory or mental abilities or lack of experience and / or lack of knowledge unless they are supervised by a person responsible for their safety or have received instructions on how to use the device.
• Children should be supervised to ensure that they do not play with the device.
- Never leave the device unsupervised while it is switched on.
- Do not place heavy objects on top of the device.
- Never immerse electrical parts of the device in water during cleaning or operation. Never hold the device under running water.
- Do not under any circumstances attempt to repair the device yourself. For servicing and repairs, please consult an authorised dealer or qualified customer service centre.

Power supply

• The mains voltage must match the information on the rating label of the device.
• The power plug is used as the disconnect device. Please be sure that the power plug is in operable condition.
• Only removing the power plug can separate the device completely from the mains supply.
• Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.
  • Make sure, the device, including power cord and power plug are not exposed to hot surfaces.
• Only unplug from the power outlet by the plug itself. Do not pull on the cord.
• Disconnect the power plug when the device is not in use, in case of malfunctions, prior to attaching or removing accessories and prior to each cleaning.
• If the power cord or the casing of the device is damaged or if the device is dropped, the device may not be used before it is examined by a professional electrician.
• A damaged power cord may only be replaced by the manufacturer or a workshop commissioned by the manufacturer or by a similarly qualified person in order to avoid hazards.

IMPORTANT SAFETY INSTRUCTIONS

Installation location

• Place the device on a flat, sturdy and slip-resistant surface.
  • Use this device in dry indoor areas only and never outdoors.
• Warning! Do not use this device near water or heavy moisture; e.g. in a damp basement or beside a swimming pool or bathtub.
• In order to reduce the risk of fire and electric shock, do not expose the device to fire (fireplace, grill, candles, cigarettes and so on) or water (water drops, water splashes, vases, tubs, ponds and so on).
• Keep this device away from all heat sources like for example, ovens, hot plates and other heat-producing devices/objects.
• Protect this device from extreme heat (over 35^ C) and cold (under 5^ C) as well as from direct sunlight and dust.

Specific safety instructions

• Do not fill water past the upper mark. Boiling water may splash out.
  • Warning! Never open the lid while the water is boiling.
• When boiling turn the spout so that it points away from you.
• Danger of burns! Avoid contact with hot surfaces as well as any released steam. Touch the device only on the handle.
  • Always leave sufficient distance around the device. Boiling water may cause severe injuries.
• Do not move or transport this device during operation or if it is filled with hot water. There is a risk of getting burnt by the splashing water.
• Operate the device only when it is filled with water. The boil-dry protection prevents fires in case of use with empty container but makes the device permanently unusable.
  • This device may be used only with the enclosed base.
• Close the lid when boiling. The temperature limiter works only if the lid is closed.
• Parts of this device become very hot. Pull the plug and let the device cool off sufficiently before inserting or removing accessories and before cleaning or stowing.
• Clean the device and other accessories after each use. Refer to the Chapter CLEANING AND CARE.

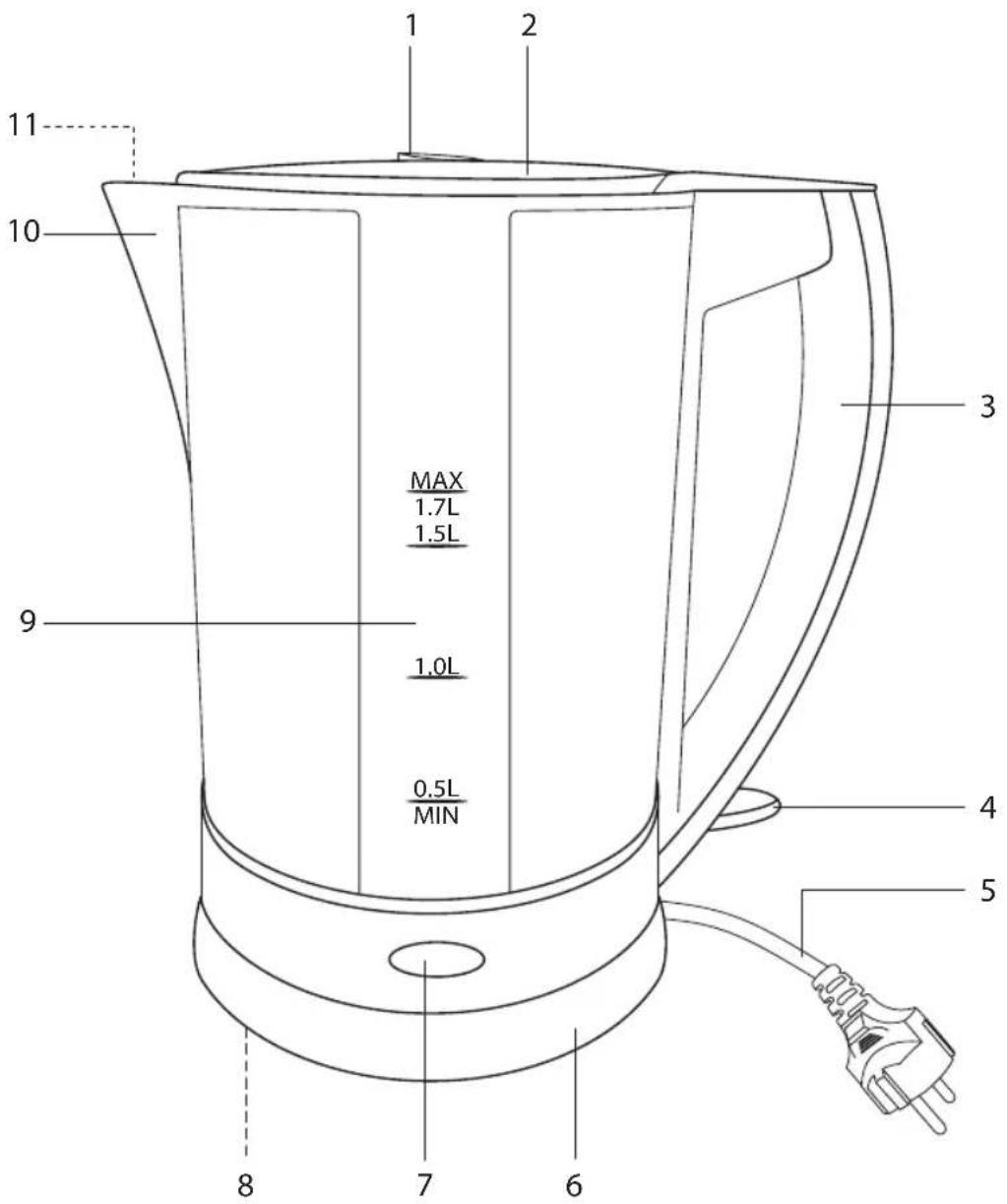

1 2 11 10 MAX 1.7L 1.5L 3 9 1.0L 0.5L MIN 4 5 8 7 6

1 Lid opening lug 7 Operation indicator

2 Lid 8 Power cord receptacle

3 Handle 9 Water level indicator

4 On / Off switch 0/I 10 Spout

5 Power cord with plug 11 Filter

6 Base

OPERATING INSTRUCTIONS

Intended use

- This device is suitable for heating water only. Any other use can lead to damages to the device or personal injury.

Unpacking and checking

- Carefully take the device and its accessories out of the packaging. Retain the packaging in case you would like to store the device away or transport it at a later date. If you choose to dispose of the packaging, then please do so according to the applicable legal regulations.

- Check the packaging contents for completeness and damages. Should the contents in the packaging not be complete or be damaged, do not use the device. Return it to your retail outlet immediately.

Preparation

- Clean the water kettle before the first use in order to remove production-related residues.

- Fill the water kettle with cold water up to the MAX 1.7L marking. Always take the water kettle from the base (6) before filling kettle with water.

- Set the kettle on the base and connect the plug (5) to a suitable power outlet.

- Put the On / Off switch (4) to position I. The operation indicator (7) lights up red. Let the water boil once.

- The water kettle automatically switches off as soon as the water boils. The On / Off switch moves back to position 0. The operation indicator is then extinguished.

- Then pour out the water. Repeat the procedure and always let the device cool off in between.

Operation

• Boil the water as described in the chapter Preparation.

- Attention! Never open the lid (2) during the boiling procedure. Also, do not take the water kettle from the base (6) during the boiling procedure.

- The water level must be between the upper (MAX 1.7L) and lower (MIN 0.5L) marking. Do not fill the water beyond the upper limit. Boiling water may spurt out.

- You can manually interrupt the boiling procedure at any time. For this, move the On / Off switch (4) to position 0.

- The water kettle is equipped with a filter which separates limescale and other residues from the water while the water is being poured.

Notes:

- Let the device cool off for approximately 5 minutes before initiating another boiling procedure.

• Danger of burns! Pour the water out carefully.

Boil-Dry Protection

• If there is not enough water in the kettle, the device switches off automatically. Always make sure that there is enough water in the kettle since the automatic switch-off shortens the lifetime of the water kettle.
• Let the device cool off before filling it with water again.

Cleaning and care

• Prior to cleaning, pull the power plug (5) out of the power outlet. Wait until the device has completely cooled off.
• Never immerse electrical parts of the device in water during cleaning or operation. Never hold the device under running water.
• Clean the exterior surfaces of the housing with a slightly damp cloth and then rub dry.
• Ensure that no water enters into the interior of the device (around the switch) and on the base.
• Never use solvents and abrasives, hard brushes, metallic or sharp objects for cleaning. Solvents are harmful to health and attack the plastic parts. Abrasive cleaners and tools do scratch the surface.
• Clean the filter (11) with water regularly. It can be removed from the spout (10) for cleaning. Re-insert the filter. Do not operate the water kettle without first having inserted the filter.

Decalcification

• Limescale reduces the performance of the water kettle. Therefore, decalcify the water kettle at regular intervals, at least twice per year.
• Use a commercial limescale remover and follow the directions on the package.
  • Alternatively, you can decalcify your device with a vinegar solution.
• Put 30 ml of white wine vinegar into the water kettle and fill it half-full with water.
• Let the mixture boil and then let it act for one minute. Repeat the procedure three times.
  • Pour out the mixture and rinse out the water container with water.
• Fill with fresh, clean water. Heat the water and then pour it out. Repeat this procedure several times in order to remove the vinegar odour.

Customer Info Manufacturer's Warranty

HOME ELECTRIC

Thank you for your purchase of one of our products. We hope you will enjoy using our high-quality product. Our strict production control ensures the high quality of our devices. However, in the event that you wish to submit a qualified claim, we grant a

3 years

warranty as of the date of purchase, subject to the following conditions:

This warranty does not affect your statutory warranty claims as consumer toward the seller of the device. These rights are not affected by our manufacturer's warranty. The warranty granted by us is valid only for domestic use of the device and is limited to the area of the Federal Republic of Germany.

The warranty term is 3 years as of the date of purchase.

It is within HOME ELECTRIC's discretion to fulfil the warranty by repair or replacement of the device or defect component. Other claims are excluded. In case of questions regarding HOME ELECTRIC products you no longer need to take the time to go to the seller but may call our service hotline or service center directly. A team of highly qualified product consultants and technicians is available from Monday through Friday from 10:00 a.m. to 6:00 p.m.

Service Hotline:

01805 / 22 17 84 (€ 0.14 per min)

When mailing your device, please also include a short description of the problem as this will facilitate handling. Please mail your device, without exception, only to our authorised service partner and use only the enclosed return coupon. If the return coupon is missing please contact the above service hotline.

ATTENTION: Mailings that are not pre-paid will not be accepted!

Customer Info Manufacturer's Warranty

HOME ELECTRIC

Our service partner requires proof of purchase, either as original receipt or cash receipt printed by the seller to perform warranty repairs. The serial number on the device must also be readable. We are unable to perform warranty services free of charge without proof of purchase. We recommend keeping the original packaging in order to ensure safe transport of the device in case of a warranty claim.

Warranty repairs may be performed exclusively by E2 Servicecenter GmbH or contractual partners authorised by it. Repairs performed by the customer or other shops void the warranty; a claim for cost reimbursement does not exist.

The warranty is void or does not cover:

⇒ in case of improper use
⇒ in case of mechanical damages to the device from outside forces
⇒ in case of transportation damages
⇒ for wear parts
in case of operating errors and misuse
⇒ when placing the device in wet rooms or outdoors
in case of damages resulting from force, war, water, lightning, excess voltage, and other reasons not within the scope of HOME ELECTRIC's responsibility.
⇒ in case of excessive use, in particular in case of non-domestic use
⇒ in case of disregard of the user instructions and installation errors
if the device does not have a technical defect
⇒ for transport and travel costs as well as costs incurred by installing and uninstalling the device

The warranty does not include any subsequent liability on our part, in particular no liability for damages to the device itself or incurred by the loss of the device until the time of repair (e.g. travel costs, handling costs, etc.). However, this does not limit or exclude our statutory warranty, in particular pursuant to the Product Liability Act.

Any warranty services provided by us do not extend the warranty term of 3 years as of the date of purchase, also not in terms of possibly exchanged components.

We wish you much joy with your new device and hope that your next one will be another HOME ELECTRIC product.
