Product Type	Smartphone
Brand	Allview
Model	P6 Plus
Display Size	5.5 inches
Resolution	1280 x 720 pixels (HD)
Operating System	Android
Processor	Quad-core 1.3 GHz
RAM	2 GB
Internal Storage	16 GB
Battery Capacity	3000 mAh
Dimensions	155 x 77 x 8.9 mm
Weight	190 g
Main Functions	Phone calls, messaging, internet, camera, GPS, media playback
Camera (Rear)	13 MP
Camera (Front)	5 MP
Connectivity	4G LTE, Wi-Fi 802.11 b/g/n, Bluetooth 4.0, GPS
Power Supply	Rechargeable lithium-ion battery, 5V/2A charger
Care and Cleaning	Wipe with a soft dry cloth; avoid liquids and abrasive cleaners
Safety	Do not disassemble, expose to heat, or use damaged charger
Spare Parts & Repairability	Battery, screen, and charging port replaceable by authorized service
General Information	User manual available in PDF format for free download

Frequently Asked Questions - P6 Plus Allview

How to insert the SIM card in Allview P6 Plus?

Locate the SIM tray on the side of the phone. Use the provided ejector tool (or a paperclip) to gently push into the small hole next to the tray until it pops out. Place the nano-SIM card with the gold contacts facing down, then reinsert the tray firmly.

How do I perform a factory reset on Allview P6 Plus?

Go to Settings > Backup & reset > Factory data reset. Read the warning and tap Reset phone. Alternatively, turn off the phone, press Volume Up + Power simultaneously to enter recovery mode, then choose Wipe data/factory reset.

Why is my Allview P6 Plus battery draining quickly?

Common causes include high screen brightness, background apps, poor network signal, or old battery. Reduce brightness, close unused apps, disable unnecessary location services, and consider battery replacement if the battery is aged (3000 mAh capacity).

How to take a screenshot on Allview P6 Plus?

Press and hold the Power and Volume Down buttons simultaneously for about 2 seconds until you see a flash or hear a shutter sound. The screenshot will be saved in the Gallery app.

What to do if the Allview P6 Plus touchscreen is unresponsive?

First, try restarting the phone. If that fails, check for screen protector or dirt. Perform a soft reset by removing the battery (if possible) or holding Power for 10 seconds. If still unresponsive, contact support for screen replacement.

How to expand storage on Allview P6 Plus?

The Allview P6 Plus supports a microSD card up to 32 GB. Insert the card into the dedicated slot (often shared with SIM 2 tray) with gold contacts facing down. Then go to Settings > Storage to format or manage the card.

Does the Allview P6 Plus support fast charging?

No, the P6 Plus does not support fast charging. It uses a standard 5V/2A charger. Charging from 0 to 100% typically takes about 2-3 hours.

How to update the Android version on Allview P6 Plus?

Go to Settings > About phone > System updates and tap Check for updates. If available, download and install. Note that older devices may not receive further updates beyond their original Android version.

Can I use the Allview P6 Plus while charging?

Yes, you can use the phone while charging, but it may charge slower and the device might heat up. For optimal battery health, avoid intensive tasks (like gaming) during charging.

How to fix a broken screen on Allview P6 Plus?

If the screen is cracked or unresponsive, contact an authorized service center for screen replacement. Avoid using the phone with broken glass to prevent injury and further damage. The repair cost is typically around $50-$100 depending on availability.

USER MANUAL P6 Plus Allview

Front view of a black smartphone with blank screen (no text or symbols visible)

ALLVIEW®

P6 Plus

EN USER MANUAL....4
BG РЪКОВОДСТВО ЗА УПОТРЕБА....15
DE BETRIEBSANLEITUNG......24
ES MANUAL DE USUARIO....36
HU HASZNÁLATI UTASÍTÁS .....46
PL INSTRUKCJA OBSŁUGI....53
RO MANUAL DE UTILIZARE....65
RU РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ.....77

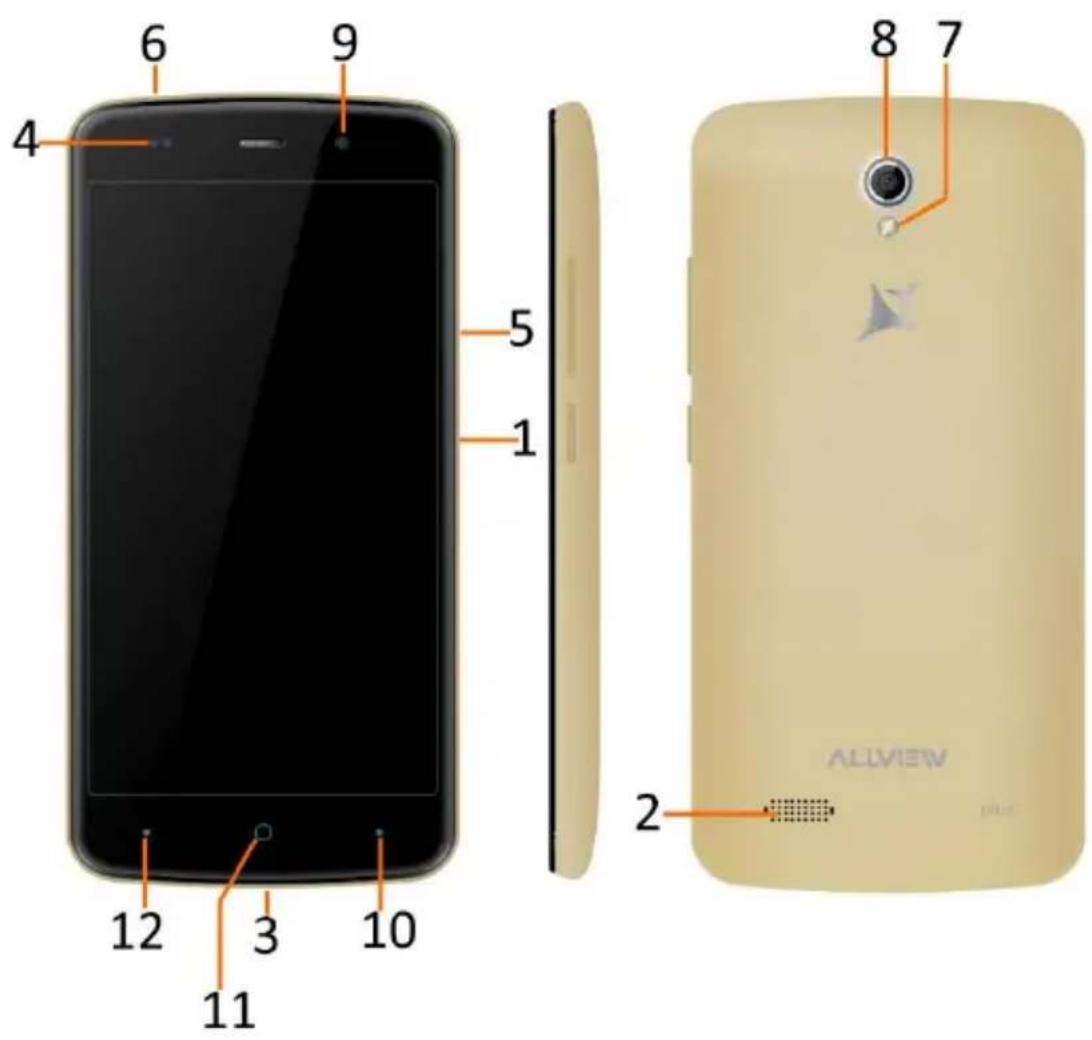

EN	BG	DE	ES	HU
	Бутоньт за
1 Power button	1 захранване	1 Power-Taste	1 Botón de encendido	1 Bekapcsoló gomb
2 Speaker	2 говорител	2 Lautsprecher	2 Altavoz	2 Hangszóró
3 Micro USB plug	3 Micro USB щепсел	3 Micro-USB Licht	3 Enchufe micro USB	3 Micro USB
4 Light-Proximity sensor	4 Light-Censor за близост	4 Näherungssens or	4 Sensor de luz-proximidad	4 Light-FényreKözelségérzékelő
5 Volume buttons	5 сила на звука	5 Lautstärketasten Kopfhörerbuchs	5 Volumen	5 Hangerő gombok
6 Earphones jack	6 слушалки жак	6 e	6 Enchufe auriculares	6 Fülhallgató jack
7 Led Flash	7 Led Flash	7 LED-Blitz	7 LED Flash	7 LED vaku
8 Main camera	8 Назад камера	8 Zurück Kamera	8 Cámara trasera	8 Hátulsó kamera
9 Front camera	9 Предна камера	9 Zweite Kamera	9 Cámara frontal	9 Elülső kamera
10 Back	10 обратно	10 Zurück	10 Espalda	10 Hát
11 Home	11 дом	11 Zuhause	11 Casa	11 Otthon
	Скорошни		Aplicaciones recientes
12 Recent apps	12 приложения	12 Neue Apps	12	12 Legutóbbi alkalmazások

PL

Notices for the use of phone

CAUTION! Please read carefully this instructions and follow them, in the case of dagerous situations. Driving safety: It is recommended not to use the phone while driving. If you use it however, turn on the Handsfree mode.

Turn off your phone while in an aircraft.

Interference caused by mobile phones affects aviation safety, and thus is illegal to use it on the plane.

Please make sure that your mobile phone is turned off when you are on the plane.

In hospital: When using the phone in a hospital must submit to the relevant rules specified by the hospital. Any interference caused by wireless devices may affect the performance of the phone.

Approved service: Only approved repair shops can repair mobile phones. If you open the phone and try to fix it yourself you will void the warranty of the product.

Accesories and batteries: Only accessories and batteries approved by the producer can be used.

Emergency calls: Make sure the phone is turned on and enabled if you wish to make an emergency call, press the call key and confirm the location, explain what happened and do not close the call.

The battery and charging the battery: It is recommended to fully charge before first use of the device. Do not expose the battery to temperatures above 40^ C. Do not dispose the battery in fire or drop anywhere. Return defective batteries in special centers or to the supplier center.

Warning: We take no responsibility for situations where the phone is used other than as provided in the manual.

Our company reserves the right to make changes in the content of the manual without making this public. These changes will be posted on the company website to the product it amends.

The contents of this manual may be different from that in the product. In this last case will be considered. To avoid the problems that might occur with the service shops approved by S.C. Visual Fan S.R.L. (because Visual Fan reserves the right to stop the collaboration with any service shop which was

previously approved and mentioned in the warranty card on the date on which the product batch was sold on the market), before taking a product to the service shop, please check the updated list of approved service shps on Allview website at the section: "Support&Service – Approved service".

For more product details visit www.allviewmobile.com. Do not cover the antenna with your hand or other objects Failure to comply resulting in connectivity issues and rapid discharge of the battery.

All applications provided by third parties and installed in this device, may be modified and/or stopped at any moment. S.C. Visual Fan S.R.L. will not be responsible in any way for modifications of the services or content of these applications. Any request or question regarding third party applications may be addressed to owners of these applications.

Device power on/off and standby

After inserting the SIM card, memory card and battery, start the phone by holding down the Power button for 3 seconds. To power off, press and hold the same button and confirm. If you press the Power button you will set phone in standby mode, to return shortly press the same button.

Unlocking, idle screen and applications menu

To unlock the screen when resuming from standby, slide your finger from the bottom to the top of the screen. The main screen will be displayed

Home screen pages can be customized with shortcuts and widgets. At the top of the screen is placed the notification bar that contains information about the mobile network signal, WiFi, Bluetooth, battery level, time and events.

To display the applications menu, touch the Menu icon from the bottom of the main screen. Slide the screen to left to scroll main menu. Touch the desired application icon to access it. Use the Back button to return to the main screen.

6 En

Dialing

To call a number, from the main screen open the dialer, dial the number and press the call key. To answer a call drag the icon to the right, and to reject the call drag the icon to the left. You can call numbers directly from Call log, touch the dial symbol from the right side of the desired number.

Messaging

To create and send an SMS, proceed as follows:

• Open the applications menu;
• Open the Messaging application;
• From the bottom-right side of the screen touch Compose new message symbol;
• Write the message;

Note: You create an MMS by touching the attach symbol and adding media content: images, sound or movies.

• In the top text box add the number or the name of the recipient;
• Tap the arrow -> symbol from the right side of the text box to send the message.

Contacts

Access the Contacts from menu applications.

Add new contact:

- Open Contacts from main menu;

• Tap the + symbol from the bottom-right side of the screen;
• Select the memory where you will store: account or phone entry;
• Enter contact information;
• Finally, tap Save.

Add new contact from call log:

• From the applications menu, open the Dialer;
• Tap the phone number you want to save;
• Tap New contact button;
• Select the memory where you will store: account or phone entry;
• Enter contact information;
• Finally, tap Save.

Import/export contacts

You can import or export contacts between memories and accounts available, as follows:

• Open Contacts;
• Press the Options button and select Import / Export;
• Choose memory from which to copy contacts;
• Choose in which memory to copy the contacts;
• Select contacts to copy;
• Press the Copy button;

Synchronize contacts with an account

Note: If you don't have an account, you can create one which is also necessary for the Google Play™ store.

You can synchronize the contacts of an account by following the next steps:

- Open the applications menu -> Settings -> Applications -> ACCOUNTS;

• Touch the desired account; if you don't have allready set, you can add a new one by touching the button Add new account;
• Tick the option Sync contact;

Customize contacts with photo

Note: The contacts from SIM card cannot be customized with photo.

To add a photo to one contacts follow the steps:

• Open Contacts;
• Touch the desired contact name;
• On the top-right of the screen touch the contact editing symbol;
• In the left corner of the screen touch the symbol to add image;
• Select the input method of image: photo shoot or from gallery.

Google Play store

Google Play store provides a multitude of applications from various categories: games, business, communication, shopping, travel, entertainment, books, education, finance, photography, tools, media, social, sports, news.

The first time you open the Google Play store, you will be prompted to authenticate. If you already have a Google™ account, enter the data. If not, click the Create button to create a new account and follow the steps on the screen.

Settings

Your service provider may default some device settings, so you may not be able to change these settings.

WLAN

Touch Wi-Fi switch to activate. Open Wi-Fi to search for available networks automatically. Networks without password can be used directly, for others you need to enter the password first.

Bluetooth

Touch Bluetooth switch to activate. Touch Bluetooth to enter the device searching screen. You can modify settings by pressing the Menu button.

Data usage

Here you can activate or deactivate the data connection and see a chart of data usage status. You can also set the data mobile limit for each SIM.

More

Airplane mode

Virtual Private Networks(VPN) Settings.

Tethering & portable hotspot

Wifi Direct

Mobile network

3G service: here you can enable/disable the 3G service.

Preffered networks

Access point names: add or modify the access points.

Network operators.

Sounds

This option allows you to set audio tones for incoming calls, e-mail alerts and SMS notifications. Settings include: Vibration, Volume, Tone Audio, Reviews

Select General / Silent / Meeting / Outdoor profile by touching the right side circle.

Power Saving

You can choose one of the three power schemes:

-Closed

-Normal: calling and messaging are available; data connection remains the same state

-Super-long standby: calling and messaging services remains in the same state.

Display

a. Brightness: adjust the brightness

b. Wallpaper: change the wallpaper picture for idle screen, lock screen and main menu

c. Auto rotating screen: rotate phone to change direction

d. Alert missed call & sms: blink screen backlight on missed call or unread sms. You will also receive notifications about missed calls and unread messages in the form of animated icons in the lock screen;

e. Sleep: adjust the delay before the screen automatically locks

f. Font size

Storage

1) View SD Card and Phone Memory.

2) Uninstall or Format SD Card.

Battery

Displays information about the charging status and usage of the battery.

Applications

Shows the list of the installed and downloaded applications, which of them are installed on SD CARD.

Location

Access to my location: enable applications to use your location information.

GPS satellites: switch on/off the GPS receiver.

Google Location Service™: let applications to use the WiFi or mobile network connection to get localization.

Security

1) Set up screen locks: you can choose slide, pattern, PIN or password to unlock the screen.
2) Set up SIM card lock: enter 4-8numbers PIN to set the lock of SIM.
If you enter 10 times wrong PUK code, the SIM card will be permanently locked.
3) Password visible: password visible when enter it
4) Select device administration: add or delete device manager.
5) Unknown sources: install apps from unknown sources
6) Trusted credentials: show the trusted credentials
7) Install from SD card: install the encrypted certificate from SD card.

Languages and input

1) Selecting Language: include all the languages on the phone and totally amount of 12 kinds.
2) Spell checker
3) Personal Dictionary: add words to custom dictionary or delete.
4) Input method : you can select Android™ keyboard or MultiLing keyboard input method.
5) Text to speech settings
6) Pointer speed

Reset to factory settings

Backup my data: backup my settings and data of other applications.

Factory data reset: clear all data stored on the phone.

Accounts

Add, manage and change synchronization options for the used accounts.

Date and Time

1) Automatic date & time: use date and time provided by network or by GPS
2) Automatic time zone: check to use network-provided time zone
3) Set Date / Set time: touch to set date / time.
4) Selecting time zone Select Time Zone according to where you are.
4) Use 24 hour time format : ON/OFF
5) Select date format.

Schedule power on/off

You can set time of boot or shutdown the phone.

Schedule airplane on/off

You can set the time of activating or deactivating the plane mode.

Accessibility

1. Power button end call
2. Touch and hold delay
3. Install web scripts

Developer options

Set options dedicated to the Android software developers

About phone

You can check the information about: phone status, legal informations, software version.

DECLARATION OF CONFORMITY

No. 1445

We, S.C. Visual Fan S.R.L, with the social headquarters in Brasov, 61st Brazilor Street, post code 500313 Romania, registered at the Register of Commerce Brasov under nr. J08/818/2002, CUI RO14724950, as importer, ensure, guarantee and declare on own responsibility according to Art. 4 HG nr.1.022/2002 regarding the products and services regime, which could put in danger the life and health, security and labour protection, that the ALLVIEW product P6 Plus does not put in danger the life, safety of labour, does cause adverse environmental impacts and is according to:

-The 2011/65/UE Directive regarding the usage restrictions of some dangerous substances ]n the electronic and electrical equipments.

-The Directive regarding the radio and telecommunications equipments R&TTE 1999/5/CEE (HG 88/2003)

-The Directive regarding the assurance of low voltage equipment users 73/32/CEE, modified by the 93/68/CEE (HG457/2003) Directive.

-The Directive regarding the electromagnetic compatibility 89/336/CEE, modified by the 92/31/CEE si 93/68/CEE (HG982/2007); RoHS Directive: EN50581:2012

-The safety requirements of the European Directive 2001/95/EC and of the EN 60065:2002/A12:2011 si EN 60950-1:2006/A1:2010/A11:2009/A12:2011 standards, regarding the decibel level limit of the commercialized devices. The product had been evaluated according to the following standards:

-Health: EN 50360:2001, EN 50361; EN 62209-1 : 2006

-Safety: EN 60950-1:2001+A11:2004; EMC EN 301 489-01 V1.6.1 (09-2005)

EN 301 489-07 V1.3.1 (11-2005); EN 301 489-17 V1.2.1 (08-2002)

-Radio spectrum: EN 301 511 V9.0.2 (03-2003);EN 300 328 V1.7.1 (10-2006)

The conformity assessment procedure was done according to the 1999/5/CEE Directive (of the Annex II of HG nr. 88/2003) the documentation being at S.C. Visual Fan S.R.L., Brasov, 61st Brazilor Street, post code 500313, Romania at it will be put at disposal on demand. The products conformity assessment procedure was fulfilled with the participation of the following institutions: Phoenix Testlab GmbH.

The product has the CE mark applied. The conformity declaration is available at www.allviewmobile.com.

CE0700

SAR: 0.438W/kg

Brasov

15.09.2016

Director

COTUNA GHEORGHE

Android, Google, Google Play and other marks are trademarks of Google Inc.

Bulgarian (bg)
