USER MANUAL TTHD-7 TecLime

Front view of a white disposable water heater with a circular vent and fan (no visible text or symbols)

Manual

TTHD-7

Torktumlare

Tumble dryer

SE ANVÄNDARHANDBOK

GB USER MANUAL

EU-Information....14

Directions for Use (GB) 15

1. Specification.... 15

2. Safety information.... 15

3. Design 17

Quick start....18

1. Installation....18

2. Attention &Advice....19

3. Operation....20

Control Panel....20

1. Cleaning and maintenance....22

2. Troubleshooting....23

3. Warranty Provisions ...... 24

4. Environmental Protection....24

5. Program table 25

EU Information....26

GB The features described in this manual are published with reservation to modifications.

Bruksanvisning (SE)

Ory	Normal	Not tumble dry normal	Oo not dry
Line dry / hangj o dry	Crip dry	Cryftak	In the shade
Ory clean	Oo not dry clean	Dry clean normal cycle with any solvent	Dry clean normal cycle petroleum solvent only

Two technical line drawings of mechanical components: a curved bracket and a conical hopper (no text or symbols)

Technical line drawing of a mechanical or electrical component with an inset close-up view (no text or symbols)

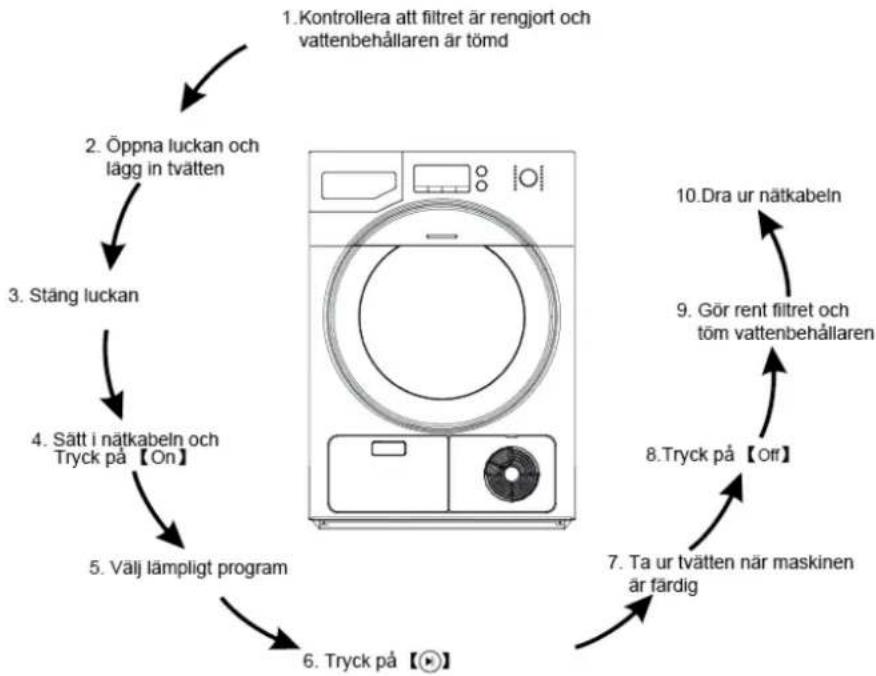

Snabbstart

Three technical diagrams showing a washing machine on a surface, with no visible text or symbols.

1. Nivåjustering

	Blended Coats{about 800g}		Jackets (about800g in cotton)		Jeans Trousers{about 800g}		Towel Quits{about 900g in cotton}
	Single Sheets{about 600g in cotton}		Work Clothes(upper and lower){about 1120g in cotton}		Pajamas{about 200g}		Shirts (about 300g in cotton)
	Undershirts{about 180g in cotton}		Underpants{about 70g in cotton}		Socks (about 30g in blended material)

6. Användning

Kontrollpanel

Two technical diagrams showing hand positioning and cleaning steps of a mechanical device (no text or symbols present)

Rengör Luckiltret

Hand placing a white object into a microwave oven with arrows indicating direction (no text or symbols)

8. Felsökning

Problem	Solution
●Display does not light up	●Check if the main plug is inserted.●Check if the programme is selected.●Check the main power supply.
●Dryer does not start	●Check if the start button is pushed.●Check if the door is entirely closed.
●Door is open by itself	●Press door until it “clicks” into position.●Check if the clothes is over load.
●Degree of dryness is not reached or drying time too long	●Clean the filter door and filter base.●Use the appropriate programme.●keep the Air inlet clear.

Felkoder

Please read the instructions carefully before using the product and keep it for future reference.

1. Specicaon

Modell nr.	TTHD-7
Description	Tumble Dryer
Voltage / Frequency	230V~/50Hz
Power	1050W
Capacity	7,0 kg
Weight	53kg
Size (WxDxH mm)	595x622x846
Refrigerant	R134a

2. Safety informaon

Dry care symbols

Please pay attention to use the drying machine if the materials of your clothes cannot be dried by it or contain the symbols as follows:

Ory	Normal	Not tumble dry normal	Oo not dry
Line dry / hang j o dry	Crip dry	Cry flat	In the shade
Ory clean	Oo not dry clean	Dry clean normal cycle with any solvent	Dry clean normal cycle petroleum solvent only

Safety notes

To prevent any damages to your and others' life or property, you have to follow the safety notes.

1. This product belongs to Category I electrical appliances, and only for drying textiles which have been washed with water in the household. Please pay attention to the safety of power use during the operation!
2. The power source with reliable earthing must be used. Its earth wire must be buried under the ground and shall not be connected with the public utilities such as city water pipe or gas pipe etc. The earth wire and null wire shall be distinguished and shall not be connected together.
3. The power wire shall be met national standard and must be able to withstand the current above 10A. To ensure your and your family's safety, please make improvement immediately if any power use at your home does not comply with the abovementioned requirements.
4. The maximum mass of dry textile material in kilograms to be used in the appliance.
5. The tumble dryer is not to be used if industrial chemicals have been used for cleaning.
6. Do not dry unwashed items in the tumble dryer.

7. Items that have been soiled with substance such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and wax removers should be washed in hot water with a extra amount of detergent before being dried in the tumble dryer.

8. Items such as foam rubber (latex form), shower caps, waterproof textiles, and rubber backed articles and clothes or pillows itted with foam rubber pads should not be dried in the tumble dryer.

9. Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.
10. The inal part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that the items are left at a temperature that ensures that the items will not be damaged.
11. The lint trap has to be cleaned frequently.
12. Lint must not to be allowed to accumulate around the tumble dryer.
13. Adequate ventilation has to be provided to avoid the back low of gases into the room from appliance burning other fuels, including open ires.
14. WARNING: never stop a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.
15. The exhaust air must not be discharged into a lue, which is used for exhausting fumes from appliance burning gas or other fuels.
16. The appliance must not be install behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the tumble dryer. In such a way that a full opening of the tumble dryer door is restricted.
17. Keep pets away from this appliance.
18. Oil-affected items can ignite spontaneously, especially when exposed to heat sources such as in a tumble dryer. The items become warm, causing an oxidation reaction in the oil. Oxidation creates heat. If the heat cannot escape, the items can become hot enough to catch ire. Piling, stacking or storing oil-affected items can prevent heat from escaping and so create a ire hazard.
19. If it is unavoidable that fabrics that contain vegetable or cooking oil or have been contaminated by hair care products be placed in a tumble dryer they should irst be washed in hot water with extra detergent-this will reduce, but not eliminate, the hazard
20. The appliance should not be overturned during normal use or maintenance.
21. Remove all objects from pockets such as lighters and matches.
22. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
23. If the power cable is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
24. This appliance is for indoor use only.
25. The openings must not be obstructed by a carpet or similar.
26. Children of less than 3 years should be kept away unless continuously supervised.

Electric shock hazard

1. Do not draw the power cord forcefully to pull out the mains plug.
2. Please do not plug/draw the mains plug with wet hands.
3. Do not damage the power cord and the power plug.

Injury danger

1. Do not disassemble and install the dryer under no instruction or supervision.
2. Do not stack this dryer on washing machine without stacking kits.
3. Do not lean on the opened door of the dryer.
4. Do not put any pyrotoxin on the dryer, such as candles, electric cooker.

Damage danger

1. Do not dry over the rated capacity.
2. Do not operate the dryer without the filter door and ilter base.
3. Do not dry the clothes before being spun.

4. Do not expose the dryer directly under the sun, and indoor use only.

5. Do not install the dryer in the humid and drenching environment.

6. At the cleaning and maintenance, please do remember to pull out the power plug and do not directly wash the dryer with water.

Explosion danger

Please do not dry the clothes with some lammable substances such as the coal oil alcohol or there will be the explosion.

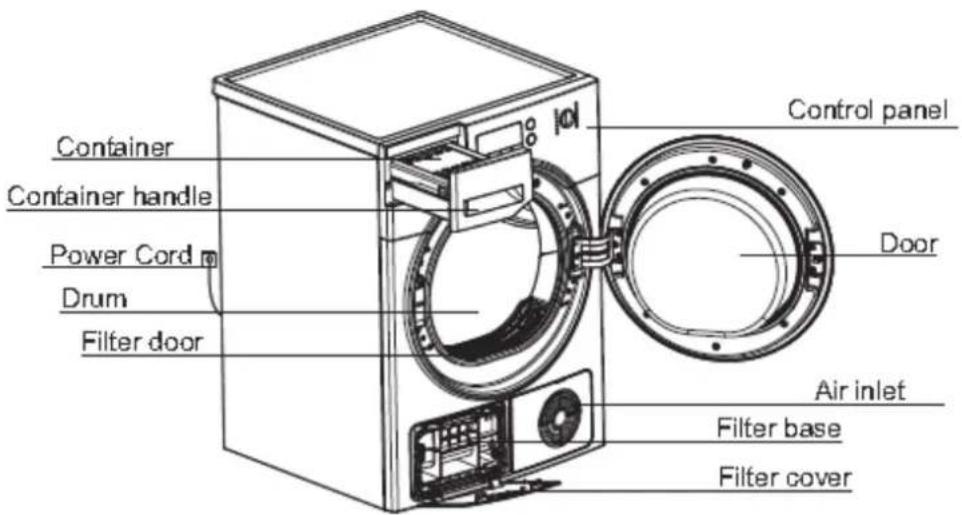

3. Design

Container Container handle Power Cord m Drum Filter door Control panel Door Air inlet Filter base Filter cover

Accessories

The following parts are optional for specific models. If your dryer has following parts, please install them following the instruction below.

Condensing drain hose (optional)

Two technical line drawings of mechanical parts: a curved bracket with a circular end and a conical flange (no text or symbols)

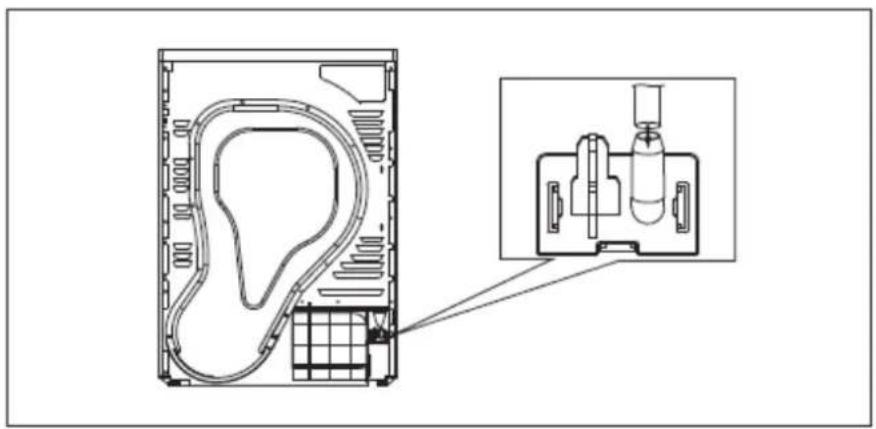

Hose holder (optional)

Technical line drawing of a mechanical or electrical component layout, showing internal components and an inset view (no text or symbols)

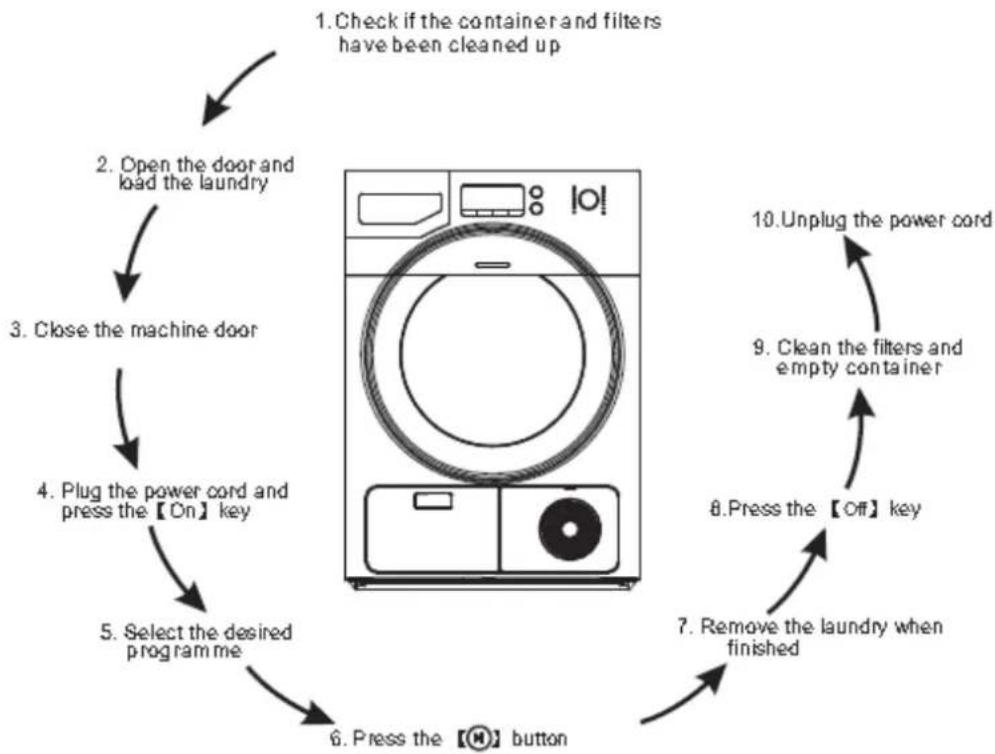

Quick start

4. Installaon

Transport

Move cautiously. Do not grasp any salient parts of machine. The machine door cannot be used as the handle for delivery. The dryer shall be transported standing.

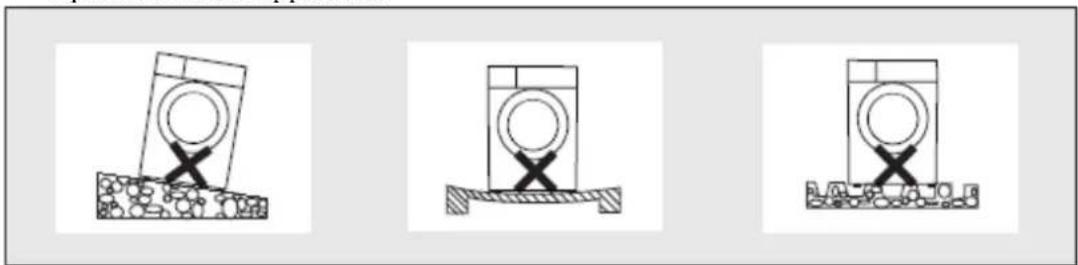

Installation position

1. It is recommended that, for your convenience, the machine is positioned close to your washing machine.
2. The tumble dryer must be installed in a clean place, where dirt does not build up. Air must be able to circulate freely all-round the appliance. Do not obstruct the front air inlet or the air intake grilles at the back of the machine.
3. To keep vibration and noise to a minimum when the dryer is in use, it should be placed on airm and level surface.
4. The feet must never be removed. Do not restrict the loor clearance through deep pile carpets, strips of wood or similar. This might cause heat built-up which would interfere with the operation of the appliance.

Three technical diagrams showing a washing machine on a surface, with no visible text or symbols.

Level adjusting

Once in its permanent operating position, check that the dryer is absolutely level with the aid of a spirit level. If it is not, adjust the feet with a tool.

level with

Power supply connection

1. Make sure that the voltage of the power supply is the same as the electric specification of the dryer.
2. Please do not connect it with the power connection board, the universal plug or socket

5. Aenon &Advice

Attention

Leave it to stand for 2 hours after transporting. Before irst use, please use the soft fabric to clean the inside drum.

a) Put some clean rags into the drum.
b) Plug the power.
c) Select the 【Time】 Program, press 【】 button.
d) After finishing this program, please follow the "cleaning and routine maintenance" to clean the ilter door.

During drying, the compressor and the water pump generate some noise, which is entirely normal.

Advice

1. Before drying, thoroughly spin the laundry in washing machine. High spin speed can reduce the drying time and save energy consumption.
2. For uniform drying result, sort the laundry according to fabric type and drying program.
3. Before drying, please close zips, hooks and eyelets, button up, tie fabric belts, etc.
4. Do not over dry the clothes, because over dried clothes can easily get creases or shrinkage.
5. Do not dry the articles containing rubber or similar elastic materials such as raincoats, bicycle covers and feather products.
6. The door can be opened only after the program of the drying machine is completed. Do not open the door before the program inished, as the skin may be scalded by steam or hot surface.
7. Clean the lint ilter and empty container after each use to avoid extension of drying time and energy consumption.
8. Do not dry these clothes after dry-clean process
9. The weight references as follows:

	Blended Coats (about 800g)		Jackets (about 800g in cotton)		Jeans Trousers (about 800g)		Towel Quits (about 900g in cotton)
	Single Sheets (about 600g in cotton)		Work Clothes (upper and lower) (about 1120g in cotton)		Pajamas (about 200g)		Shirts (about 300g in cotton)
	Undershirts (about 180g in cotton)	[GBKY]	Underpants (about 70g in cotton)		Socks (about 30g in blended material)

6. Operaon

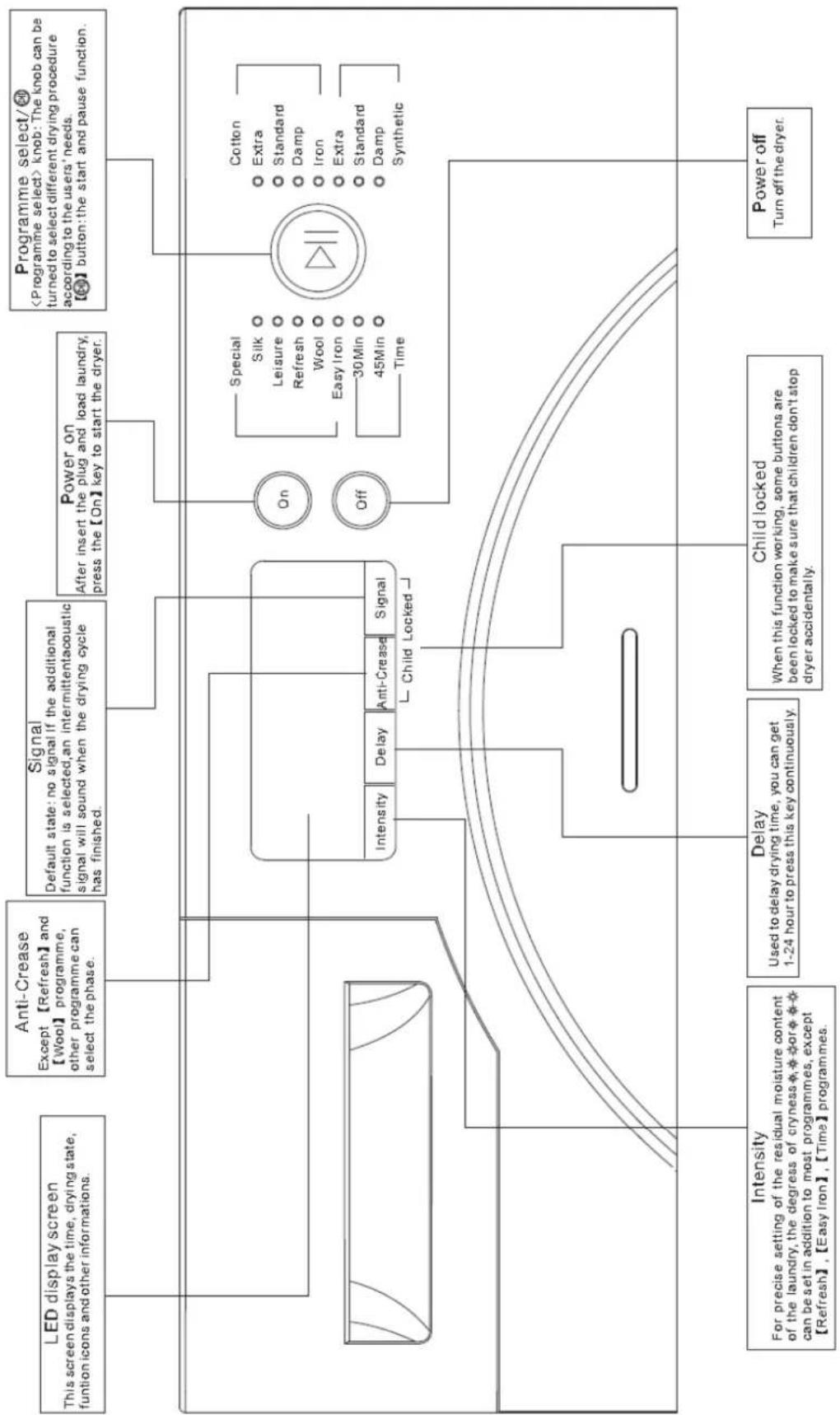

Control Panel

Program selector

1. Press the On】key, when the LED display screen brighten up, rotate the program knob to select the desired program.
2. Select 【Delay】,【Anti-Crease】,【Intensity】 or 【Signal】 functions for additional option.
3. Press the 【】 key.

Program start

The drum will keep rotating after the program start, the state light in the display area will lash in sequence, the remaining time displayed will change automatically.

Note:

Occasionally, the drum might suspend about 40 seconds during the drying procedure, but the screen displays normal. The dryer is automatically adjusting in this time and will continue operation.

Program end

1. The drum will stop running after the program ends, the display will show "000", the state light of "End" and related light will illuminate. The dryer will start Anti-crease function if user does not remove the load in time. Please press OFF key to cut off power and pull the plug out.
2. Deal with the problem according to "Troubleshooting", if there is a unexpected stop during the drying procedure and the dryer show information.

Special drying functions

1. Intensity

For precise setting of the residual moisture content of the laundry, the degrees of dryness, and can be set in addition to most programs. Laundry becomes dryer from ☐to ☐☐

1. The intensity function can be selected only before the dryer program starts.
2. Press the intensity button repeatedly until the light for the residual moisture required is lit.
3. Intensity cannot be set with the programs: 【refresh】, 【Easy Iron】 and 【Time】.

2. Delay drying procedure

This function is used to delay the start of drying within 24 hours. By pressing this key continuously, you can delay the start from 1 to 24 hours. The delay time means drying procedure will start in xxH hours.

The LED display will show delay time after the delay function start. 30 sec later, the dryer will begin to time, the display will show 【Delay】. Touch the Delay again, the display will show the time of the program which user choose before. Several seconds later, the display will show remaining time of delay.

Steps in details

1. Load your laundry and make sure the machine door is closed.
2. Turn the program selector knob and select a desired program
3. You can select the 【Anti-Crease】 【Intensity】 or 【Signal】 functions according to your need;
4. Press the 【Delay】 key;
5. Continue to press the 【Delay】 to select the delay time;
6. After the Ⓞ button is pushed, the dryer is under the state of running. The drying procedure will automatically be performed when the delay time is over.
7. If you push the ⏻ button again, the delay function will be paused.
8. If you want to cancel the 【Delay】 function, please press the key 【Off】 and reselect the program.

3. Child safety feature

1. This machine incorporates a special child safety lock, which can prevent children from carelessly pressing keys or making the faulty operation.

2. When the dryer is at the operation state, press the 【Anti-Crease】 and 【Signal】 buttons at the same time for over 3 seconds to start child lock function. When child lock function is set, the display will light “Child Lock” icon and no key can effect to the dryer except 【On/Off】 button. Under the start state of the child lock button, the 【Anti-Crease】 and 【Signal】 buttons shall be pressed at the same time for over 3 seconds to release the child lock function.

4. Anti-Crease function

At the end of the drying cycle, the anti-crease phase time is 30 minutes (default) or 120 minutes (selected). The [icon] icon shall illuminate when the anti-crease function is selected. This function prevents the laundry from creases. The laundry can be removed during the anti-crease phase.

5. Audio signal

Set up the buzzer on or off. In general condition, the buzzer is off. Please touch it if needed. When the buzzer is on:

1. The [con]light.
2. The dryer will give the leading sound if press the extra function buttons.
3. If, when the dryer is running, the function-choosing knob is rotated, the buzzer will remind the operator it is an invalid choose.
4. When the drying program is done, the buzzer will also remind the user.

7. Cleaning and maintenance

Empty the water container

1. Hold and pull out the water container with two hands:
2. Pull out the drain tube:
3. Tilt the water container, pour out the condensed water:
4. Push the drain tube back and insert the container.

Warning

1. Empty the water container after each use, the program will be paused and the "Empty Water" icon will lash if the water container is full during the drying process. After the container emptied, the dryer can be restarted by pushing 【】 button.

2. Do not drink the condensed water.

3. Do not use the dryer without

1. Open the door.
2. Take out the ilter, (above and below).
3. Clean the ilter: wipe off the scrap threads accumulated on the ilter.
4. Reinstall the lint ilter door.

Line drawing of a hand holding a mechanical component (no text or symbols)

Simple line drawing of a kitchen appliance with a drain and handle (no text or symbols)

Technical line drawing of a mechanical component with curved and straight sections (no text or symbols)

Filter door

Clean the ilter base

1. Open the ilter cover.
2. Unscrew both locking levers towards each other.
3. Clean the ilter base completely.
4. Re-insert the ilter base!
5. Screw both locking levers.
6. Close the ilter cover lap until it locks into position.

NOTE!

1. The luff accumulated on the ilter will block the air circulation, which will cause the extension of drying time and energy use; therefore, the scrap thread ilter shall be cleaned after each use.
2. Do disconnect the power cord before cleaning!
3. Do not operate the dryer without the lint ilter!
4. Clean the ilter after each use to prevent lint accumulation inside the dryer.

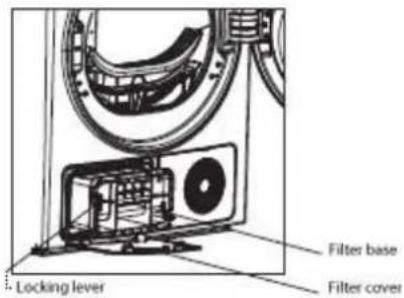

Locking lever Filter base Filter cover

Clean the heat exchanger

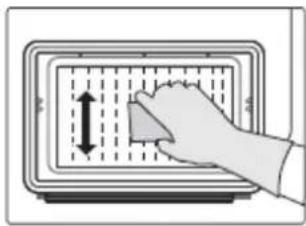

As necessary, approx. once every 6 months, remove the luff from the heat exchanger using the sponge or soft brush. When doing this, please use rubber gloves.

Note: The luff can be removed more easily if it is irst dampened e. g. with a laundry dampener.

Hand pressing down on a device with arrows indicating motion (no text or symbols)

8. Troubleshoong

Only authorized technicians can carry out repairs. You can easily solve many common problems and save the cost of a possible service. Try the suggestions below to see if you can solve any problem before calling for service.

Problem	Solution
●Display does not light up	●Check if the main plug is inserted.●Check if the programme is selected.●Check the main power supply.
●Dryer does not start	●Check if the start button is pushed.●Check if the door is entirely closed.
●Door is open by itself	●Press door until it “clicks” into position.●Check if the clothes is over load .
●Degree of dryness is not reached or drying time too long	●Clean the filter door and filter base.●Use the appropriate programme.●keep the Air inlet clear.

If you cannot deal with the fault by yourself and need help:

1. Press the 【On/Off】 button.
2. Pull out the mains plug and call the service.

Error codes

Dispiay	Reason	Solutions
Empty Water	Container is full	Empty container
	Drain pump failure or water level sensor failure	Please contact your local service center if the problem persists
“E32”	Humidity sensor failure
“E33”	Temperature sensor failure
Clean Filter door Clean Filter base	Filter door is plug up or environment temperature is too high	Clean filter door and confirm the ambient temperature
		Please contact your local service center if the problem persists

9. Warranty Provisions

This product comes with a 12-month warranty starting on the date of purchase. Within this period any defects in material or workmanship will be repaired without any charge. The following provisions shall apply regarding this warranty:

1. We expressly dismiss all other claims for damage, including consequential damages;
2. Any repairs or replacements of components within the term of the warranty will not result in an extension of the term of the warranty;
3. The warranty will no longer apply if the product has been modified, non-original parts have been used, or if it has been repaired by third parties;
4. The warranty will only apply, when you present the original, dated proof of purchase, provided no changes have been made to it;
5. The warranty will not apply to damage caused by actions not in compliance with the Directions for Use, neglect, vandalism;
6. Transportation costs and the risk involved during the transportation of the product or its components will always be the responsibility of the purchaser.

In order to avoid unnecessary costs, we recommend that you always read the Directions for Use carefully irst. If they offer no solution, please take the product to your dealer for repair.

10. Environmental Protecon

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice.

1. Program table

Programme

Weight (max)

T-Shit

Shirts

Shirts/ dresses

Thousers

Sportswear

Work clothes

Anorals

Towdling bathrobe

Bed linch

Socks

Underwear

Table linen

Tiny towels

Tea towels/ hand towels

Cotton

For cottons and coloureds made of cotton or linen.

Extra

7.0kg

✓

✓

✓

✓

✓

Standard

✓

✓

✓

✓

✓

✓

Damp

✓

✓

✓

✓

✓

✓

✓

Iron

✓

✓

✓

✓

✓

✓

Synthetics

For non-iron washing made of synthetic and blended fabrics,cotton.

Extra

3.0kg

✓

✓

✓

Standard

✓

✓

Damp

✓

✓

✓

✓

✓

Special

Silk

1.0kg

For drying silk using warm air and gentle movement.

Leisure

7.0kg

For leisure clothing,such as jeans,sweatshirts,etc,of different material thicknesses(e.g.at the neck,cuffs and seams).

Refresh

1.0kg

For refreshing or gently cleaning textiles with commercially available dry cleaning products.

Wool

For a fuffy and fresh woo coth ng(Can not be used for dry ng of woo coth ng), After the procedure, Please take out the coth ng at once, et t dry n the a r.

Easy iron

1.0kg

Used for a sma amount of cothes, p ease take tout mmed ate y after the programme ends and hung t to prevent crease.

Time

30min

——

The dryer shall continue running 30 or 45 minutes.

45min

Note: the above procedure is on y recommended for use, the user can accord ng to persona has is to choose the right program.

EU Informaon

Brand: TecLime

Model: TTHD-7

Rated capacity: 7kg

Dryer Type: Condenser

Energy efficiency class: A+

Energy consumption 271.0kWh per year, based on 160 drying cycles of the standard cotton program at full and partial load, and the consumption of the low-power modes. Actual energy consumption per cycle will depend on how the appliance is used.

Automatic or non-automatic: Automatic

EU Ecolabel: N/A

Energy consumption of the standard cotton program at full load: 2.29 kWh

Energy consumption of the standard cotton program at partial load: 1.25 kWh

Power consumption of the off-mode (Po): 0.03 W

Power consumption of the left-on mode (Pl): 0.8 W

Duration of the "left-on" mode: 10 min

The 'standard cotton program' used at full and partial load is the standard drying program to which the information in the label and the iche relates, that this program is suitable for drying normal wet cotton laundry and that it is the most efficient program in terms of energy consumption for cotton.

Weighted program time of the standard cotton program at full and partial load: 122 min

Program time of the standard cotton program at full load: 160 min

Program time of the standard cotton program at partial load: 94 min

Condensation efficiency class B on a scale from G (least efficient) to A (most efficient).

Average condensation efficiency of the standard cotton program at full load: 81.1%

Average condensation efficiency of the standard cotton program at partial load: 81.8%

Weighted condensation efficiency for the standard cotton program at full and partial load: 81.5%

Sound power level for the standard cotton program at full load: 69dB
