Product Type	High-Pressure Cleaner
Model	YLQ20S-100
Voltage	220-240 V ~ 50 Hz
Power	1200 W
Protection Class	II
Protection Degree	IP25
Rated Pressure	6 MPa (60 bar)
Maximum Pressure	10 MPa (100 bar)
Rated Flow Rate	6 L/min
Max. Water Supply Temperature	60°C
Max. Inlet Pressure	0.15 - 0.7 MPa
Weight	4.3 kg
High-Pressure Hose Length	3 m
Power Cord Length	5 m
Sound Pressure Level	79 dB(A)
Sound Power Level	91 dB(A)
Vibration Level	2.022 m/s²
Nozzle Adjustment	Adjustable (direct jet / V-spray)
Safety Features	Overheating protection, lock-off trigger
Water Connection	Standard garden hose with filter
Accessories Included	Spray gun, lance, high-pressure hose, water inlet filter
Compliance	CE, LVD, EMC, Noise Directive

Frequently Asked Questions - YLQ20S-100 Westfalia

Can I use detergent with this pressure washer?

Yes, you can use suitable liquid detergents. Attach the detergent nozzle (not included, order article 34 27 25) to the lance. Only use detergents recommended by the manufacturer to avoid damage to the unit or cleaned surfaces.

Is it safe to wash my car with this pressure washer?

Yes, but maintain a minimum distance of 30 cm from the surface to avoid damage. Do not direct the jet at tires, electronic components, or the engine's sensitive parts. Use a wide spray pattern for delicate paint.

How do I connect the high-pressure hose?

Insert the hose coupling into the spray gun opening while pressing the lock lever, then push firmly until it clicks. Screw the other end onto the cleaner's outlet connector hand-tight. Ensure all connections are sealed before switching on.

Why won't the pressure washer start?

Check that the power cord is plugged in and the socket is live. Ensure the water tap is fully open and the unit is switched on (I=on). If the thermal protector has tripped, wait a few minutes for it to cool down. Verify the inlet filter is not clogged.

Can I use an extension cord?

Yes, but use only a water-safe extension cord approved for outdoor use. Recommended: type H07 RN-F, 3x1.5 mm², with a residual current device (RCD) rated at <30 mA.

How should I store the pressure washer after use?

Turn off the unit, unplug, and shut off the water supply. Disconnect all hoses and tilt the cleaner to drain residual water. Store in a dry, frost-free place. Keep connections clean and dry; lightly lubricate if necessary.

What does the lock-off button do?

The lock-off button (10) on the spray gun prevents accidental triggering. Press it outward to lock the trigger, inward to release. It does not lock during use; it only secures the trigger when not operating.

Is the rotating nozzle included?

No, the rotating nozzle (article no. 34 27 25) is sold separately. It screws onto the nozzle (7) for a powerful rotating jet. Only hand-tighten.

Can I use hot water in this pressure washer?

Yes, but the water temperature must not exceed 60°C. Higher temperatures can damage the pump. Do not use boiling water.

What should I do if the pressure drops during use?

Check that the nozzle is not clogged and ensure the water supply is adequate. Clean the inlet filter regularly. The nozzle setting may need adjustment to a narrower jet for higher pressure.

USER MANUAL YLQ20S-100 Westfalia

Yellow electric power supply with black hose and cable, no visible text or symbols

Instruction Manual

High-pressure Cleaner

YLQ20S-100

Article No. 81 37 41

Please familiarize yourself with the proper usage of the device by reading and following each chapter of this manual, in the order presented. Keep these operating instructions for further reference.

This operating instruction contains important details for handling the device. Please pass it on along with the unit if it is handed over to a third party!

Please read all safety instructions!

These instructions will make it easier for you to handle the device and help prevent misunderstandings and possible damages or injuries.

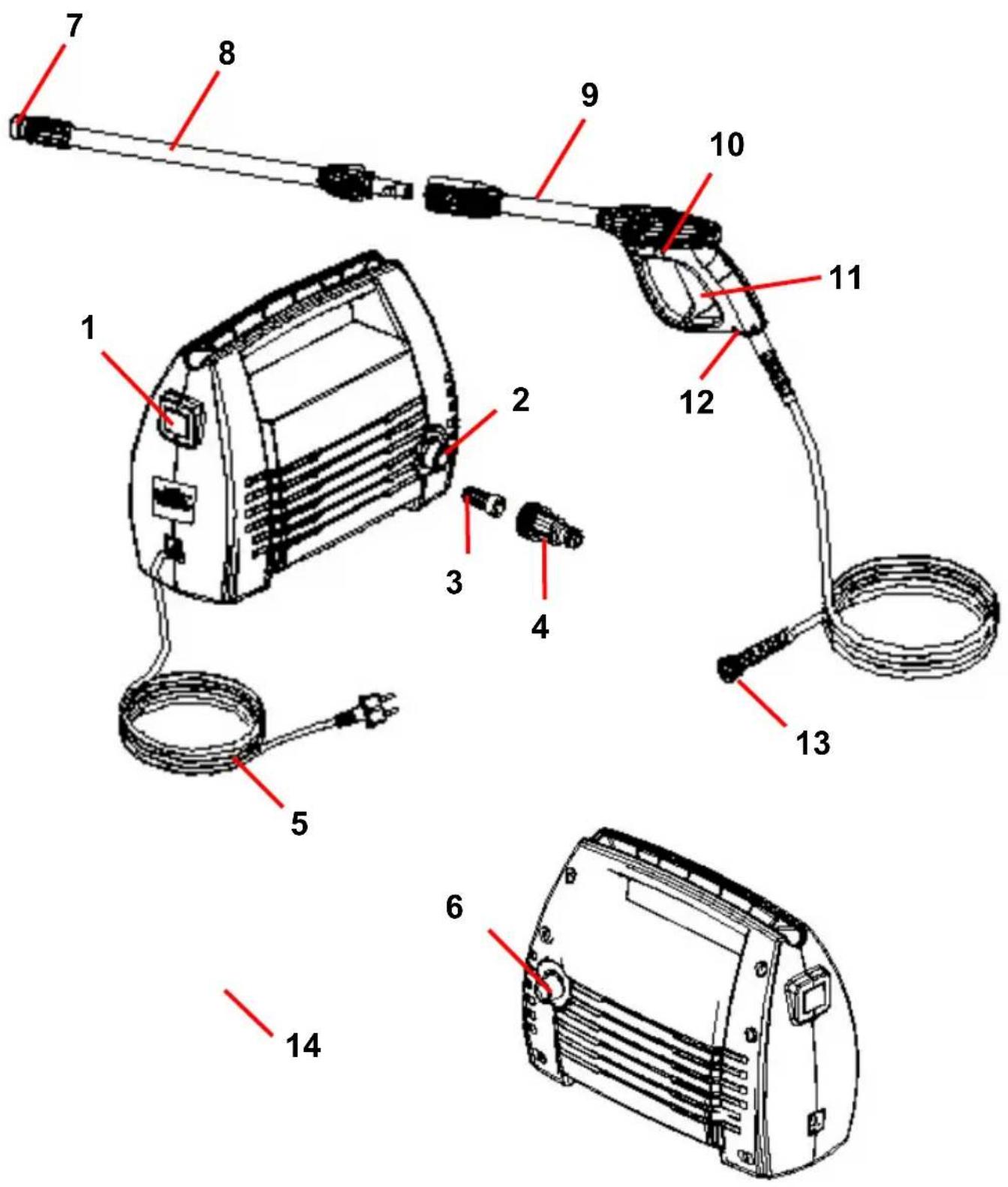

Technical diagram of a mechanical device with numbered parts for identification and assembly reference.

Before first Use......Page 11

Assembling....Page 11

Operating......Page 12

Cleaning and Storing......Page 14

Technical Data ...... Page 15

Sicherheitshinweise

Mechanical assembly diagram showing gear and motor components with motion arrows (no text or labels)

Technical illustration of mechanical components with an arrow indicating assembly or connection (no text or symbols present)

Inbetriebnahme

Empty white square with black border (no text or symbols)

Inbetriebnahme

Diagram of two mechanical components with curved arrows indicating motion, no text or symbols present

Please note the following safety notes to avoid malfunctions, damage or physical injury:

• Make sure the voltage corresponds to the type label on the unit.
• Use the high-pressure cleaner only as indicated in this manual for cleaning surfaces and objects outdoors. The appliance is not designed for continuous, professional use.
• Persons with limited physical, sensorial or mental abilities are not allowed to use the unit, unless they are supervised for their safety by a qualified person or are briefed by the responsible person how to use the unit.
• Never leave the vised when in use. Keep out of reach of children or persons in need of supervision.
• Never direct the people, animals or plants. Do not point the high-pressure cleaner towards equipment containing electronic components. Do not clean the high-pressure cleaner itself with the water jet.
• When using extension cable water-safe. Only use extension cables which are approved for outdoor operation. Use approvable extension cable with a cable quality of H07 RN-F; 3x1.5 mm ^2 . Ask your electrician.
• For using the unit, we recommend the use of an RCD with a residual current < 30mA . In Switzerland the utilisation of an RCD is obligatory.
• Only use the high-pressure cleaner with the included accessory. Before using hoses, check for damages and do not use damaged hoses. Use only original spare parts which can be requested by Westfalia.
• First turn on water supply and make sure that the tap is open enough to supply enough water, before switching on the high-pressure cleaner.
• Observe the local and national codes when operating the unit in dangerous areas. Do not use the high-pressure cleaner in potentially explosive location. Vehicle engines may only be cleaned at location with appropriate oil separators.
• Clean very sensitive surfaces only from a minimum distance of 30 cm to avoid damages.
  r e

h i g h - p h i g h - p

e s

Safety Notes

• Do not spray on materials that contain hazardous substances (e.g. asbestos).
• Only use cleaning agent recommended by the manufacturer. Unsuitable detergents may damage the high-pressure cleaner and the object to be cleaned.
  ■ Always wear safety shoes and, if necessary protective clothing when operating the high-pressure cleaner.
  ■ Always hold the gun and the lance firmly with both hands because the water jet produces recoil to the gun. There is risk of injury!
• Do not upturn or tilt the high-pressure cleaner to the side when operating.
• Operate the high-pressure cleaner in an ambient temperature of 0°C to 40°C. The max. water supply temperature should not exceed 60°C in order to avoid damaging the unit.
• Do not use the high-pressure cleaner with water containing impurities.
• Never immerse the high-pressure cleaner in water or any other liquid and do not grasp the socket with wet hands.
• Please switch OFF the high-pressure cleaner and unplug from the power supply before cleaning, maintaining or when not in use.
• Do not jam the cord or pull cord around edges. Do not pinch the power cord in any way and keep it away from hot surfaces.
  ■ Make sure the cord does
• Should the appliance become damaged do not use it and have it repaired by a professional or contact our customer support department. Do not disassemble the appliance or try repairing it yourself.

Before first Use

Remove the unit and the accessory out of the packaging. Keep packaging materials out of reach of children. There is risk of suffocation!

Clean all parts of the unit before using for the first time, as described in the chapter "Cleaning" on page 14.

According to factory-made functional tests, residual humidity can remain in the pump. Residual humidity in a new article in not a fault.

According to BS EN 1717 it is not permitted to connect a high-pressure cleaner directly to mains drinking water supply. Short-term connection is permissible, if a backflow preventer valve is installed in the supply hose. Respect the requirements of the local water supply company when using high-pressure cleaners.

The high-pressure cleaner is provided with overheating protec overheating protection protects the motor against overheating and damaging. If the thermal sensor is activates wait some minutes. Wait until the thermal sensor has cooled down and switch on the cleaner again.

Assembling

1. Place the high-pressure cleaner on a solid, level ground. Do not operate the high-pressure cleaner tilted bun only in upright position.

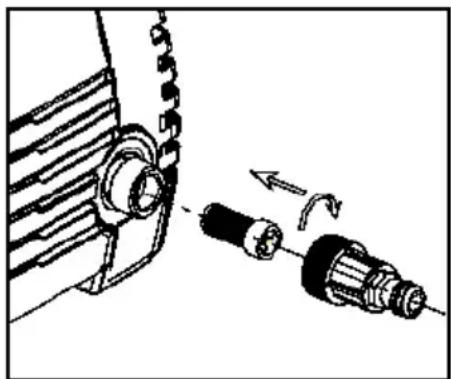

2. Insert the filter (3) into the water inlet connector (4) and screw the water inlet connector with pliers using less pressure on the coupling for the water inlet connector (2).

The inlet filter must always be fitted in the water inlet hose to filter out sand, limestone and other impurities as these will damage the pump.

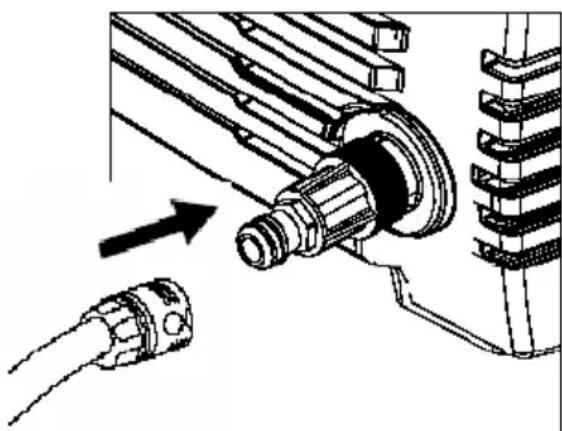

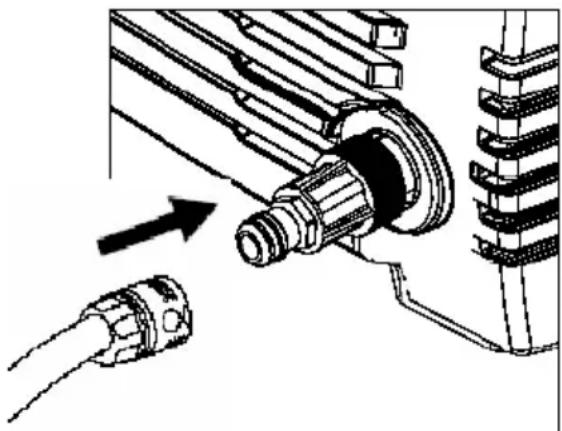

1. Connect the water hose with the coupling and water supply.

Mechanical assembly diagram showing gear and connector components with motion arrows (no text or labels)

Mechanical assembly diagram showing a connector inserted into a housing with an arrow indicating direction (no text or symbols present)

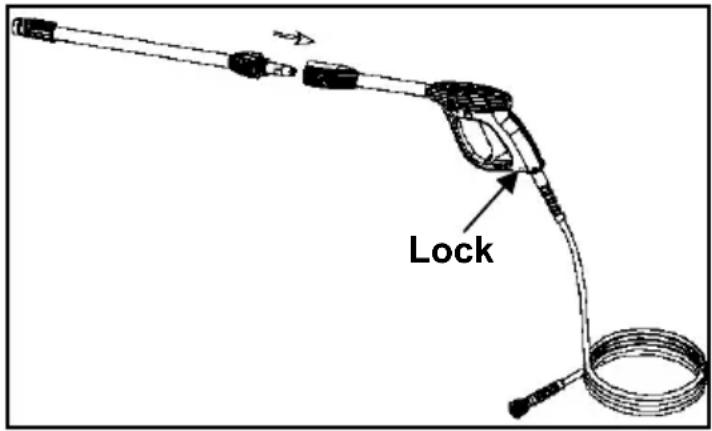

1. Mount the lance (8) and the spray gun (9) together by inserting the lance into the gun opening and turning in clockwise direction. The lance and the spray gun are equipped with a bayonet lock. To remove the lance, press and turn the lance counter clockwise and pull out of the spray gun.

Lock

1. Connect the high pressure hose (13) with the spray gun. For inserting the hose into the opening, first hold the lock lever (12) pressed and insert the coupling of the hose as far as it will go into the provided opening.
2. Screw the other end of the high-pressure hose firmly on the provided coupling for the hose (6).

Make sure all hose connections are correctly and properly sealed before operating the high-pressure cleaner. Only hand-tighten the connections and do not use any tool to avoid damaging the coupling.

Empty white square with black border (no text or symbols)

Operating

1. If all connections are firmly tightened, turn on the water tap and connect the plug to a socket. The max. water temperature should not exceed 60^ C. Never switch on the high-pressure cleaner if water supply is not turned on in order not to damage the pump.
2. Switch on the high-pressure cleaner with the ON/OFF button (1). The high-pressure cleaner is on in the position 1 and off in the position 0.

Operating

1. Press the lock-off button (10) outwards in order to lock the trigger (11). The lock-off button on the gun does not lock the trigger during use. The button only prevents the trigger from opening unintentionally. Press lock-off button (10) inwards in order to release the trigger.
2. Firmly hold the trigger (11) with one hand and the lance (8) with the other hand. Press the trigger and direct the lance to the object or surface to be cleaned.

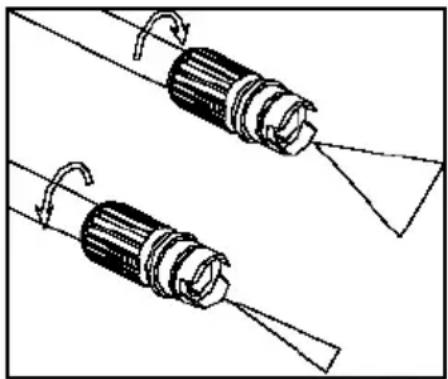

3. You can select two types of water jet. Turn the nozzle on the lance (7) clockwise or counter clockwise to achieve direct power jet, V-spray. The created working pressure in the high-pressure cleaner depends on the nozzle setting. The smaller the nozzle opening is, the higher the dynamic pressure will be.

Do not let the high-pressure cleaner working needlessly.

Diagram of two mechanical components with curved arrows indicating motion, no text or symbols present

1. To finish operation, first switch off the high-pressure cleaner. Turn off the water tap and pull the plug to unplug.
2. Press the lock-off button in order to lock the trigger.
3. Unscrew the high-pressure hose from the high-pressure cleaner. Rinse the filter under tap water after each use.

Rotating Nozzle (not included in delivery)

The powerful rotating nozzle can be ordered from Westfalia under the article no. 34 27 25.

Screw the rotating nozzle on the nozzle (7). Only hand-tight the rotating nozzle.

High-pressure Cleaner (not included in delivery)

The high-pressure cleaner can be ordered from Westfalia under the article no. 33 90 28.

Only use suitable and liquid detergents in order not to damage the object to be cleaned.

Cleaning and Storing the high-pressure Cleaner

■ Before cleaning or main a mains. Do not pull the cord to unplug from the wall socket but grasp the plug itself to unplug.
- Clean the nozzles with the insert any other object into the nozzles.
- Do not clean the high-pressure cleaner with sharp detergents or aggressive chemicals in order not to damage the surfaces.
- A l w a y s s t o r e t h e h i g h - p r e Remaining water in the high-pressure cleaner can cause damages to the unit. Disconnect all hoses and tilt the high-pressure cleaner and pour out remaining water.
■ Always keep the connections clean and dry. If necessary, lightly lubricate the connections.
■ Never clean the high-pressure cleaner with the water jet.

Type YLQ20S-100

Nominal Voltage 220-240 V 50Hz

Nominal Power 1200 W

Protection Class II

Protection Degree IP25

Rated Pressure 6 MPa (60 Bar)

Max. Pressure 10 MPa (100 Bar)

Rated Flow 6 l/min

Rated Temperature 0 – 60°C

Max. Inlet Pressure 0.15 – 0.7 MPa

Sound Pressure Level 79 dB(A)

Power Pressure Level 91 dB(A)

Vibration 2.022 m/s ^2

Water Supply temperature max. 60°C

Weight 4.3 kg

High-pressure Hose Length 3 m

Power Cord Length 5 m

EC-Declaration of Conformity

We, the Westfalia Werkzeugcompany,

W

e

r

declare by our own responsibility that the product

High-pressure Cleaner, YIQ20S-100

Article No. 81 37 41

is according to the basic requirements, which are defined in the European Directives

2006/95/EC Low Voltage (LVD)

2004/108/EC Electromagnetic Compatibility (EMC)

2000/14/EEC Noise emission: guaranteed 100 dB L

WA

and their amendments.

For the evaluation of conformity, the following harmonized standards were consulted:

EN 50366:2003, EN 60335-1:2002+A1+A11+A12, EN 60335-2-79:2004

EN 55014-1:2000+A1+A2, EN 55014-2:1997+A1

EN 61000-3-2:2000+A2, EN 61000-3-3:1995+A1

Hagen, December 5 ^th , 2008

Jhomo Jilingsheil

(Thomas Klingbeil, QA Representative)

Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

Werter Kunde,

Please help avoid waste materials.

If you at some point intend to dispose of this article, then please keep in mind that many of its components consist of valuable materials, which can be recycled.

Please do not discharge it in the rubbish bin, but check with your local council for recycling facilities in your area.
