Duo Power MID903 - Tablet Manta - Free user manual and instructions

Product Type	Tablet
Brand	Manta
Model	Duo Power MID903
Display Size	9 inches
Display Type	Capacitive touch panel
Battery Type	Built-in polymer battery
Charging Input	DC 5.0-5.5V / 2A
Charging Time	Approximately 4-6 hours
Audio Jack	3.5 mm standard
Micro USB Port	For data transfer and USB OTG
Memory Card Slot	MicroSD (TF card)
Buttons	Power, Volume +, Volume -
Power On/Off	Long press power button to turn on/off; short press to lock/unlock
Software Reset	Use only if unable to shut down normally
Operating Temperature	Avoid high temperature, moisture, and dust
Safety Precaution	Do not disassemble; use only standard charger
Cleaning	Do not use alcohol, thinner, or benzene
EU Compliance	R&TTE Directive 1999/5/EC, SAR limit 2.0 W/kg

Frequently Asked Questions - Duo Power MID903 Manta

Why won't my tablet turn on?

Check the battery power. Connect the charger and try again. If still not working, contact the supplier.

How do I charge the tablet for the first time?

Charge for about 6 hours for the first two times. After that, 4 hours is sufficient. Use the standard adapter (DC 5.0-5.5V/2A).

How do I connect the tablet to my computer?

Use a micro USB cable. After connecting, drag down the status bar, select 'USB connected', then press 'Turn on USB storage'.

Can I use a USB flash drive with this tablet?

Yes, via the micro USB port using an OTG adapter. The tablet supports external USB connection.

Why is there no sound from the headphones?

Check if the volume is set to zero. Also verify that the music file is not damaged. Try playing another file.

How do I insert a memory card?

Insert a MicroSD card into the TF card slot located on the device.

The tablet shuts down shortly after turning on. What should I do?

This is usually due to low battery. Charge the device fully before use.

How do I lock the screen?

Short press the Power button to lock or unlock the screen.

How do I move or delete app icons?

Long press an icon for 3 seconds until it enlarges, then drag it to the desired position or to the Recycle Bin to delete.

What should I do if the battery drains quickly?

To prolong battery life, fully discharge the battery before charging. If not using the tablet for a long time, charge/discharge once a month.

USER MANUAL Duo Power MID903 Manta

Abstract black-and-white circular logo with interlocking curved shapes (no text or symbols)

MANTA

Tablet DUO POWER

MID903

Instrukcja obsługi

User's Manual

Bedienungsanleitung

Használati útmutató

Návod k obsluze

Vartotojo instrukcija

INSTRUKCJA OBSŁUGI

Krok 2:

INSTRUKCJA OBSŁUGI

This handbook contains important security measures and the correct use of the product information, in order to avoid accidents. Pls make sure to reading the manual carefully before use the device.

Please don't be in high temperature, moisture or very dust place – Please don't be in high temperature, Especially in summer don't put – the device in the car when Windows closed.

-Avoid fall or Violent collision of the device, don't make the TFT display screen were violent tremor. This could cause TFT display screen abnormal or damage.

Please choose the appropriate volume, Use headphones shoulds not – be too big volume, If feel tinnitus, Lower the volume or stop using it please charge In the following condition,

A. The battery power ICONS shows have no power
B. The system automatically shut off, startup after power off soon
C. Operation buttons no response

When the device in the format or ongoing upload and download file, – please don't suddenly disconnect, This could cause application error.

-For those who because of damage to the product, repair, or other causes of erased the memory, The company shall not be liable for any responsibility, please follow the user manual for the standardized operation to use the device.
-Don't disassemble the product, don't use alcohol. Thinner or benzene to scrubbing products
- Don't use the device one of the place of prohibit to use electronic equipment in regional (such as the plane)
- Please don't using the Tablet PC when you in driving or walking down the street, USB just only be used for data transmission

USER'S MANUAL

The company reserves the right to improve product, products specification and design have any change. The information is subject to changes without prior notice. (This tablet is no waterproof function)

Remark! All pictures in this manual is just for your reference. products specification and design have any change, The information is subject to changes without prior notice.

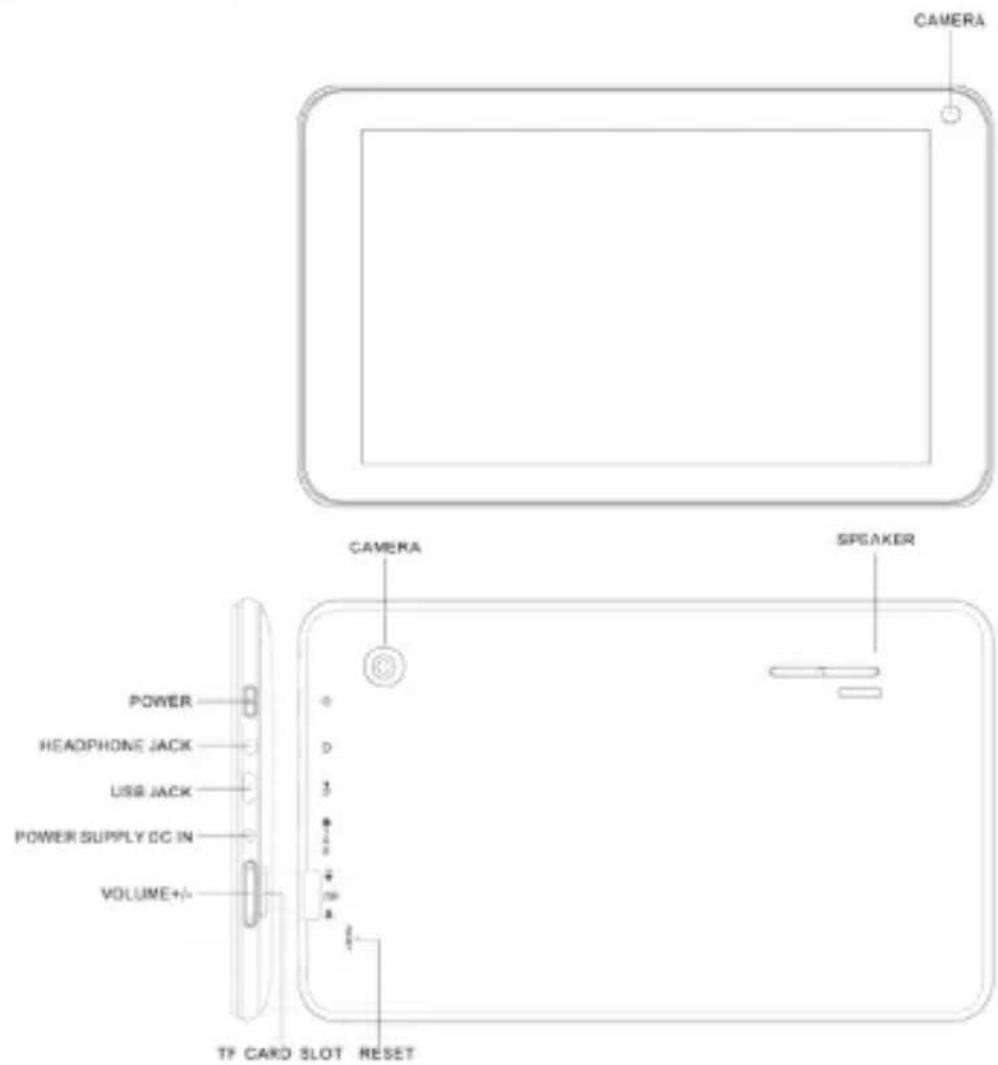

Appearance and button

USER'S MANUAL

Touch panel

9" Capacitive touch panel: In The Operation, to click dragging on the touch panel

POWER

Startup: Long Press and hold the power button, the system will enter the main interface

Shutdown: In the main menu interface, Press the power button about 5 second to shutdown, The system can hint "power off" option, Clike" ok". you can safely shut down.

Lock screen: Short press Power button to lock screen or unlock screen.

Remark!

1. When power is empty, system will shut down automatically.

2. Illegal turn off the device, restart will scan and restore the disk, it may take longer time to enter into system

Volume +, Volume-

The buttons on top Volume +, Volume-achieve changes in the volume.

Earphone jack

3.5 mm standard earphone jack

TF card - Slot for MicroSD card

Micro USB – you can use it to connect the computer for data transmission and external connection USB flash drive

Remark!

Unless unable to shutdown, otherwise don't use the reset, suggest you to shutdown by normal, if no will easy to damage the machine system.

USER'S MANUAL

First use

Battery management and charge

Before first use, please set the device's battery is fully charged

Just need to connect the adaptor or USB interface, then you can charge

The first two times charging please keep about 6 hours, after that you just need 4 hours to charge.

Remark:

This tablet using Built-in type polymer battery, Charge must be to choose standard adaptor (Input: AC110\~240V 50/60Hz Max: 180MA. Output: DC5.0\~5.5V/2A).

During the charging, the battery icon will scroll

When finished charging, battery icon will become green and stop rolling

In order to prolong the service life of the machine, suggest use out battery power before charge it

Remark:

1. If you long time don't to use this Tablet, in order to avoid power consumption caused damage, pls charge/ play the battery once a month.
2. After low battery shut down, connect DC adaptor, device will remind low battery, charging, need to wait some time until the battery is enough power to enter into main menu.
3. Device charging should be in standby status for reach normal charging time.

Because with device and screen consumption, it may cause longer charging time.

USER'S MANUAL

Connection with PC

USB connection

Using USB to connect the MID and PC, the default connection mode is a synchronous mode. You can see this USB icon and then drag the status bar to drop, appeared the following interface:

Step 1:

Step 2:

USER'S MANUAL

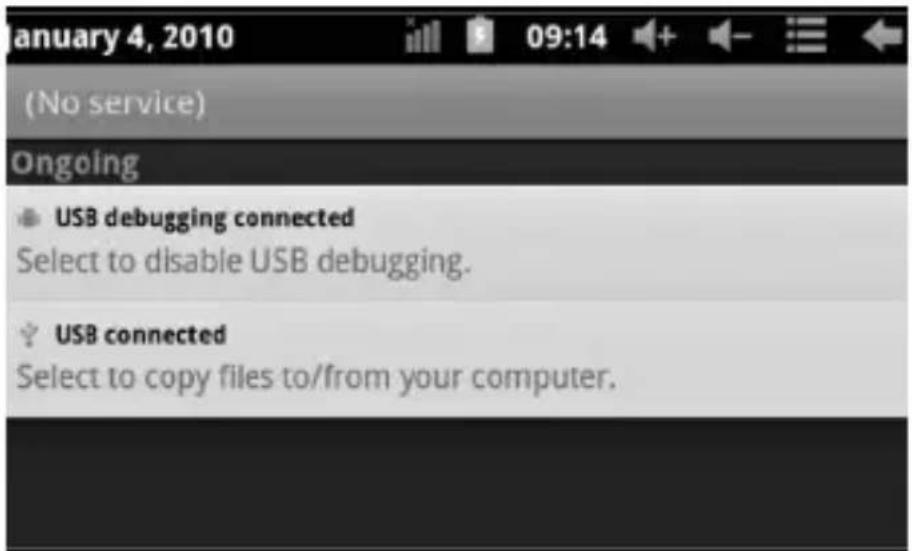

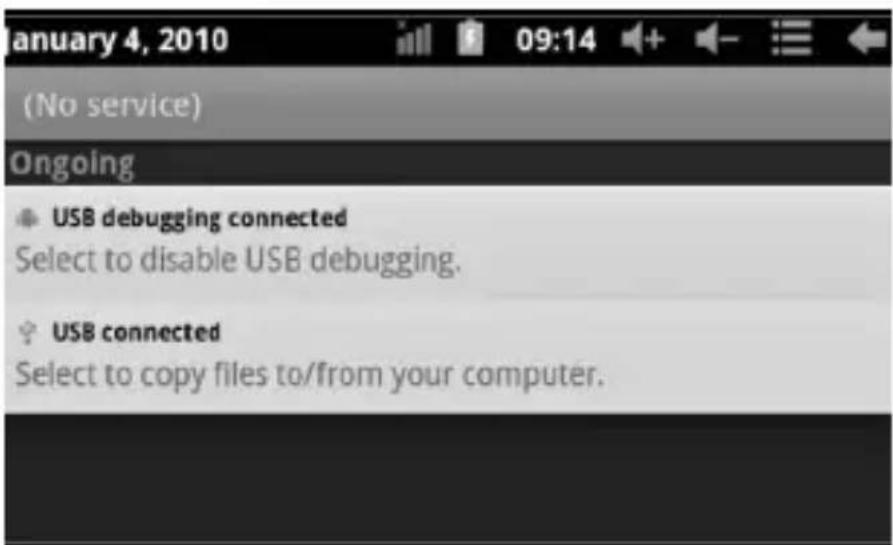

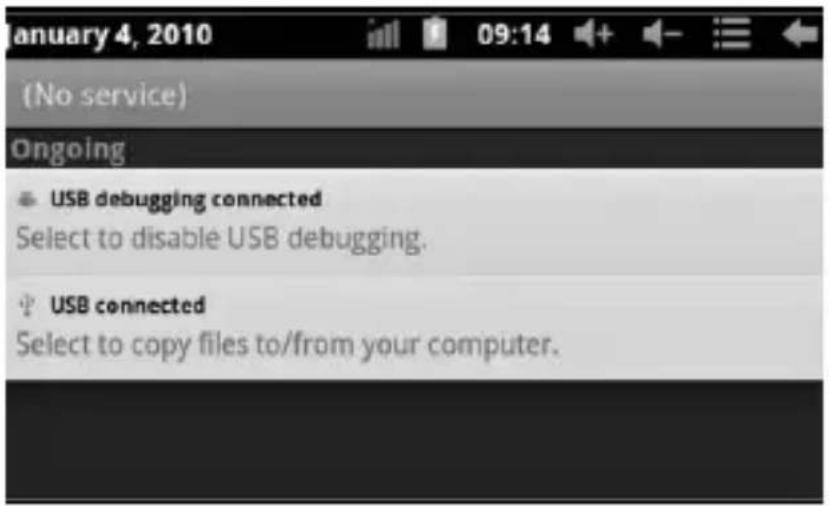

Step 3: According to the above photo, please choose USB connected. Then you can see the following interface:

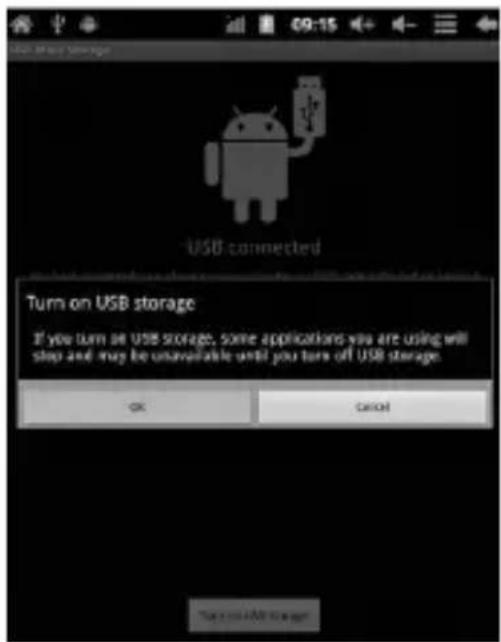

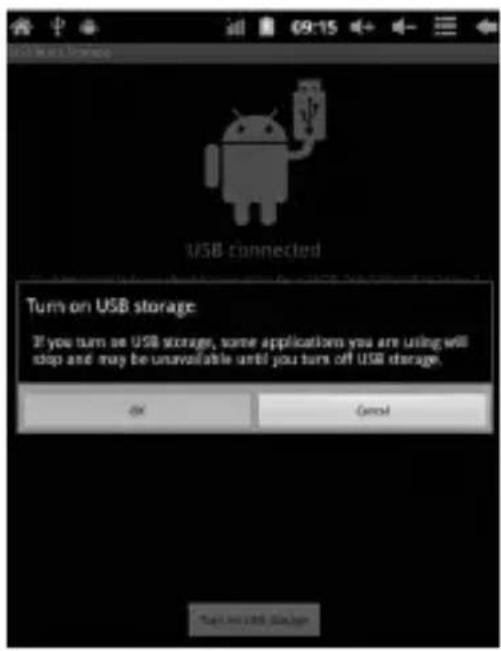

Step 4: Please press "turn on USB storage". Then you will find the following photos:

Please choose "OK". Then USB is connected. "USB is connected": means external memory (SD) loading is completed, and you can see the corresponding letter in the PC terminal.

Use USB cable to connect device to PC, device will pop up the USB connection window, click Turn on USB storage to connect to PC

USER'S MANUAL

Equipment operation interface

Main interface describe

After startup will enter the main interface

In the main interface, you can:

USER'S MANUAL

Management main interface software ICONS: long press the icons 3 second, after the icons will bigger, then you can drag anywhere in the interface.

Delete icons: long press the icons 3 second, drag the icons to the Recycle Bin icon, once it become red, Loosen your hand, after that you can delete icon

Status bar describe

The status bar below of the screen

From left: BACK, HOME, recent applications. From Right: battery status, time, other icons.

Use touch panel

Device equipped with a 9" touch screen. Following the main touch screen area is described, and describes some of the tips for how to use the touch screen.

No matter which interface you are on the screen, can go back to main screen through pressing the soft key 📋 on the bottom right corner of the main screen.

Attention! In different applications, by tapping the back soft key on the bottom right corner on the touch screen, you can return to its interface on the upfloor

In different applications, by tapping the menu key ■ on the upper right corner of touch screen, the screen will appear the operation setting interface as follows,

Remark: In the main interface, you can touch the icon to open the APPs

In different browser(file, music, video, pictures), You shift and drag the scroll bar, so that the file list can up or down to roll.

USER'S MANUAL

Problem solution

Device can't to open

1) Check the battery power
2) Connect adaptor first, then check again
3) After charging then can't to open, pls contact with the supplier

After startup the screen or the opening picture has been appeared, the device appear shutdown

1) Power is not enough, please charge

Headset can't hear the voice

1) Pls check the volume whether set to 0
2) Check the music file whether damaged. Try playing other music, if the file have damaged may lead to serious noise or hop sounds.

Can copy file or paly music and so on

1) Pls check between computer and device is correct connection
2) Check the memory storage space is already full
3) Check the USB cable is good or not
4) USB connection is disconnected

Bedienungsanleitung

Hinweis

BEDIENUNGSANLEITUNG

Schritt 2:

HASZNÁLATI ÚTMUTATÓ

2. lépés:

HASZNÁLATI ÚTMUTATÓ

NÁVOD K OBSLUZE

Krok 2:

NÁVOD K OBSLUZE

VARTOTOJO INSTRUKCIJA

2 žingsnis:

VARTOTOJO INSTRUKCIJA

NÁVOD NA OBSLUHU

Krok 2:

NÁVOD NA OBSLUHU

NÁVOD NA OBSLUHU

Крок 2:

European Community Compliance Statement

This equipment is marked with the 0678 symbol and can be used throughout the European community.

This indicates compliance with the R&T TE Directive 1999/5/EC and meets the relevant parts of following technical specifications:

EN 300 328 – Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband Transmission Systems; Data transport equipment operating in the 2.4 GHz ISM band and using wide band modulation techniques; Harmonized EN covering essential requirements under article 3.2 of the R&TTE Directive

EN 301 489-1 – Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for ra dio equipment and services; Part 1: Common technical requirements

COMPLIANCE WITH INTERNATIONAL STANDARDS

ETSI EN 301 489-7 – Electromagnetic compatibility and Radio spec trum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 7: Specific conditions for mobile and portable radio and ancillary equipment of digital cellular radio telecom munications systems (GSM and DCS)

EN 301 489-17 – Electromagnetic compatibility and Radio spectrum Matters (ERM); EMC standard for radio equipment and services; Part 17: Specific conditions for 2.4 GHz wideband transmission systems and 5 GHz high performance RLAN equipment

ETSI EN 301 489-24 – Electromagnetic compatibility and Radio spectrum Matters (ERM); ElectroMagnetic Compatibility (EMC) standard for radio equipment and services; Part 24: Specific conditions for IMT-2000 CDMA Direct Spread (UTRA) for Mobile and portable (UE) radio and ancillary equipment

ETSI EN 301 511 – Global System for Mobile communications (GSM); Harmonized EN for mobile stations in the GSM 900 and GSM 1 800 bands covering essential requirements under article 3.2 of the R&TTE directive (1999/5/EC)

ETSIEN 301 908-1 – Electromagnetic compatibility and Radio spectrum Matters (ERM); Base Stations (BS), Repeaters and User Equipment (UE) for IMT-2000 Third-Generation cellular networks; Part 1: Harmonized EN for IMT-2000, introduction and common requirements, covering essential requirements of article 3.2 of the R&TTE Directive

EN 60950-1– Information technology equipment - Safety - Part 1: General requirements

EN 62311:2008 – Assessment of electronic and electrical equipment related to human exposure restrictions for electromagnetic fields (0 Hz-300 GHz) COMPLIANCE WITH INTERNATIONAL STANDARDS

EN

Marking by the symbol indicates that usage restrictions apply.

France - 2.4GHz for Metropolitan France:

In all Metropolitan departments, wireless LAN frequencies can be used under the following conditions, either for public or private use:

Indoor use: maximum power (EIRP*) of 100 mW for the entire 2400-2483.5 MHz frequency band

Outdoor use: maximum power (EIRP*) of 100 mW for the 2400-2454 MHz band and with maximum power (EIRP*) of 10 mW for the 2454-2483 MHz band

Certification information (SAR) The device meets guidelines for ex posure to radio waves

Your device is a radio transmitter and receiver. It is designed not to exceed the limits for exposure to radio waves recommended by international guidelines. These guidelines were developed by the in dependent scientific organization ICNIRP and include safety margins designed to assure the protection of all persons, regardless of age and health.

The exposure guidelines for devices employ a unit of measurement known as the Specific Absorption Rate or SAR. The SAR limit stated in the ICNIRP guidelines is 2.0 watts/ kilogram (W/kg) averaged over 10 grams of tissue. Tests for SAR are conducted using standard operating positions with the device transmitting at its highest certified power level in all tested frequency bands.

This equipment complies with the European Council Recommendation of 12 July 1999 on the Limitation of Exposure of the General Public to Electromagnetic Fields [1999/519/EC].
