Product Type	Tablet
Brand	Manta
Model	Duo Power MID712
Display	7-inch Capacitive Touch Panel
Processor	Not specified, estimated 1 GHz single-core
Operating System	Android 2.x (estimated)
Memory (RAM)	256 MB (estimated)
Storage	Internal (size not specified) + MicroSD (TF card) support
Battery	Built-in polymer battery, DC 5.0-5.5V/1.5A charging
Charging Time	First 2 charges: about 6 hours; thereafter about 4 hours
Ports	Micro USB, 3.5mm headphone jack, TF card slot
Buttons	Power, Volume +/-, Reset (via pinhole)
Camera	Front (estimated, based on manual camera icon)
Connectivity	Wi-Fi (802.11 b/g/n estimated), USB 2.0 for data transfer
Dimensions	Approximately 190 x 120 x 10 mm (estimated)
Weight	Approximately 300 g (estimated)
Main Functions	Web browsing, media playback, apps, file management, USB mass storage
Maintenance	Clean with soft dry cloth; avoid alcohol, thinner, benzene; charge monthly if unused
Safety	Avoid high temperature, moisture, dust; do not disassemble; use standard charger
Spare Parts & Repairability	No user-serviceable parts; contact supplier for repairs
General Information	Complies with EU R&TTE directives; SAR limit 2.0 W/kg

Frequently Asked Questions - Duo Power MID712 Manta

How do I charge the device?

Connect the standard adaptor (AC110~240V, DC5.0~5.5V/1.5A) to the DC power port. The first two charges should last about 6 hours; subsequent charges take about 4 hours. When charging, the battery icon scrolls; when full, it turns green.

How do I connect the tablet to a PC for file transfer?

Use the USB cable to connect the tablet to the PC. On the tablet, drag down the status bar and tap 'USB connected', then 'Turn on USB storage'. Confirm by tapping 'OK'. A removable drive will appear on your PC.

What type of memory card does the tablet support?

The tablet has a TF card slot (MicroSD). Insert a compatible MicroSD card to expand storage for files, music, and videos.

How do I turn the device on and off?

To turn on, press and hold the Power button until the screen lights up. To turn off, press and hold the Power button for about 5 seconds, then tap 'OK' when the power off option appears.

How do I lock and unlock the screen?

Briefly press the Power button to lock the screen. Press it again to wake the screen; then slide or enter your unlock pattern (if set) to access the device.

Why won't the device turn on?

Check the battery level. If empty, connect the charger and wait a few minutes. If it still doesn't turn on, try a reset by inserting a pin into the reset hole (if available) or contact your supplier.

How do I adjust the volume?

Use the Volume+ and Volume- buttons located on the top edge of the tablet. These control the overall system volume, including media and notifications.

Can I use headphones with the tablet?

Yes, plug a standard 3.5mm headphone into the earphone jack. Be careful not to set the volume too high to avoid hearing damage.

How do I manage apps on the home screen?

On the home screen, long-press an app icon for 3 seconds until it enlarges, then drag it to a new position. To delete, drag it to the recycle bin icon that appears at the bottom until it turns red, then release.

What should I do if the tablet freezes or becomes unresponsive?

Try a force shutdown by pressing and holding the Power button for 10-15 seconds. If that fails, use a paperclip to press the reset button (small hole). Avoid frequent resets as it may damage the system.

USER MANUAL Duo Power MID712 Manta

Abstract black-and-white circular logo with interlocking curved shapes (no text or symbols)

MANTA

Tablet DUO POWER

MID712

Instrukcja obsługi

User's Manual

Bedienungsanleitung

Használati útmutató

Návod k obsluze

Vartotojo instrukcija

USB Mass Storage USB connected You have connected to your computer via USB. Touch the button below if you want to copy files between your computer and your Android's SD card. Turn on USB storage 2:58

INSTRUKCJA OBSŁUGI

Krok 2:

January 4, 2010 (No service) Ongoing USB debugging connected Select to disable USB debugging. USB connected Select to copy files to/from your computer.

USB connected nou have connected your phones to your computer via USB. Click the button below if you need to copy Film between your computer and your Androids SD card. Turn on unit manage

USB connected Turn on USB storage If you turn on USB storage, some applications you are using will stop and may be unavailable until you turn off USB storage. OK Cancel Cancel

INSTRUKCJA OBSŁUGI

APPS WIDGETS SHOP Adobe Final Addira Browser Calculator Calendar Camera Clock Documents Downloads Email File Manage Gmail Hi-0-MPS-F Latitude Maps Market Music Navigation Places Search Settings Sound Rev: Super-HO! Talk

Camera status bar showing time and duration icons with a value of 2:58

This handbook contains important security measures and the correct use of the product information, in order to avoid accidents. Pls make sure to reading the manual carefully before use the device.

Please don't be in high temperature, moisture or very dust place – Please don't be in high temperature, Especially in summer don't put – the device in the car when Windows closed.

-Avoid fall or Violent collision of the device, don't make the TFT display screen were violent tremor. This could cause TFT display screen abnormal or damage.

Please choose the appropriate volume, Use headphones shoulds not – be too big volume, If feel tinnitus, Lower the volume or stop using it please charge In the following condition,

A. The battery power ICONS shows have no power
B. The system automatically shut off, startup after power off soon
C. Operation buttons no response

When the device in the format or ongoing upload and download file, – please don't suddenly disconnect, This could cause application error.

-For those who because of damage to the product, repair, or other causes of erased the memory, The company shall not be liable for any responsibility, please follow the user manual for the standardized operation to use the device.
-Don't disassemble the product, don't use alcohol. Thinner or benzene to scrubbing products
- Don't use the device one of the place of prohibit to use electronic equipment in regional (such as the plane)
- Please don't using the Tablet PC when you in driving or walking down the street, USB just only be used for data transmission

USER'S MANUAL

The company reserves the right to improve product, products specification and design have any change. The information is subject to changes without prior notice. (This tablet is no waterproof function)

Remark! All pictures in this manual is just for your reference. products specification and design have any change, The information is subject to changes without prior notice.

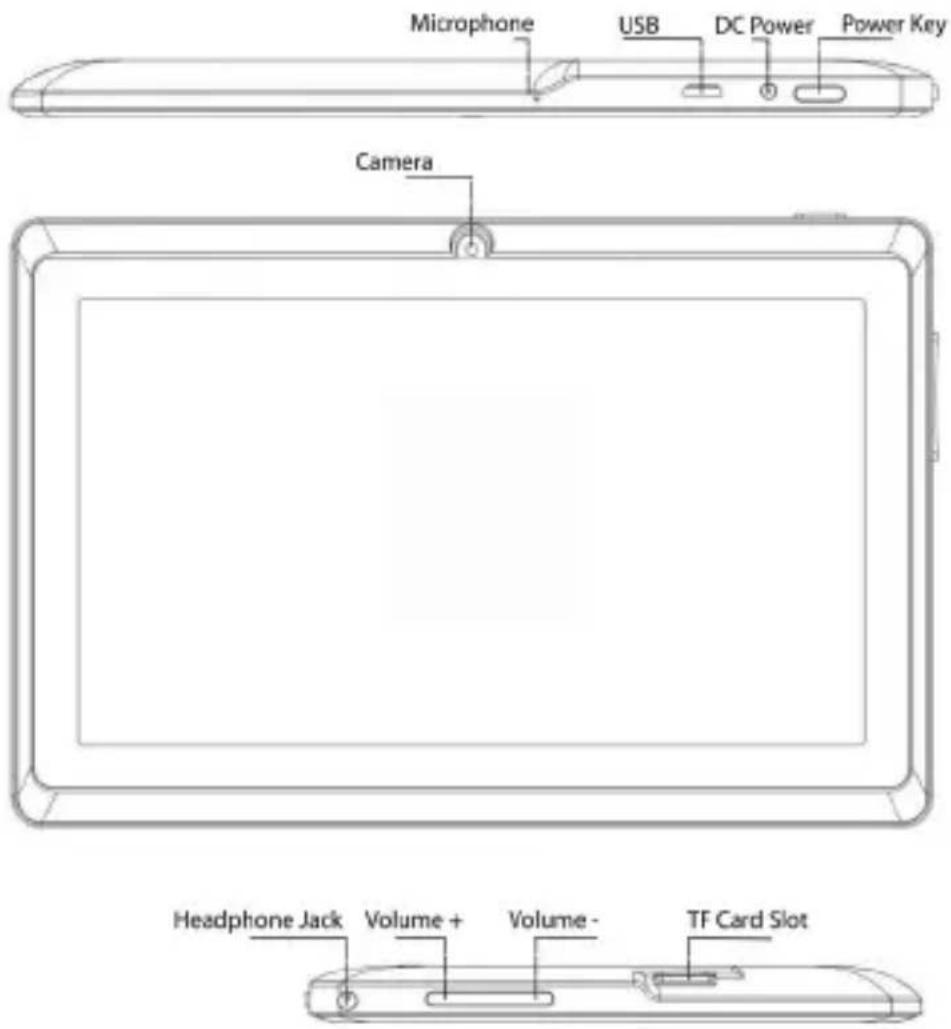

Appearance and button

Microphone USB DC Power Power Key Camera Headphone Jack Volume + Volume - TF Card Slot

USER'S MANUAL

Touch panel

7" Capacitive touch panel: In The Operation, to click dragging on the touch panel

POWER

Startup: Long Press and hold the power button, the system will enter the main interface

Shutdown: In the main menu interface, Press the power button about 5 second to shutdown, The system can hint "power off" option, Clike" ok". you can safely shut down.

Lock screen: Short press Power button to lock screen or unlock screen.

Remark!

1. When power is empty, system will shut down automatically.
2. Illegal turn off the device, restart will scan and restore the disk, it may take longer time to enter into system

Volume +, Volume-

The buttons on top Volume +, Volume-achieve changes in the volume.

Earphone jack

3.5 mm standard earphone jack

TF card – Slot for MicroSD card

Micro USB – you can use it to connect the computer for data transmission and external connection USB flash drive

Remark!

Unless unable to shutdown, otherwise don't use the reset, suggest you to shutdown by normal, if no will easy to damage the machine system.

USER'S MANUAL

First use

Battery management and charge

Before first use, please set the device's battery is fully charged

Just need to connect the adaptor or USB interface, then you can charge

The first two times charging please keep about 6 hours, after that you just need 4 hours to charge.

Remark:

This tablet using Built-in type polymer battery, Charge must be to choose standard adaptor (Input: AC110\~240V 50/60Hz Max: 180MA. Output: DC5.0\~5.5V/1.5A).

During the charging, the battery icon will scroll

When finished charging, battery icon will become green and stop rolling

In order to prolong the service life of the machine, suggest use out battery power before charge it

Remark:

1. If you long time don't to use this Tablet, in order to avoid power consumption caused damage, pls charge/ play the battery once a month.
2. After low battery shut down, connect DC adaptor, device will remind low battery, charging, need to wait some time until the battery is enough power to enter into main menu.
3. Device charging should be in standby status for reach normal charging time.

Because with device and screen consumption, it may cause longer charging time.

USER'S MANUAL

Connection with PC

USB connection

Using USB to connect the MID and PC, the default connection mode is a synchronous mode. You can see this USB icon and then drag the status bar to drop, appeared the following interface:

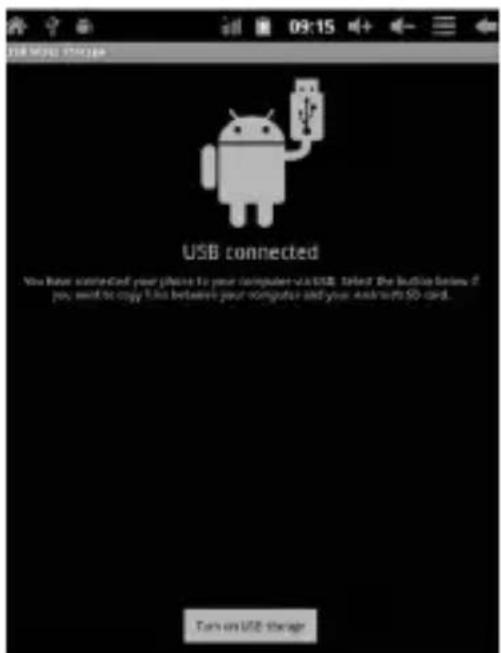

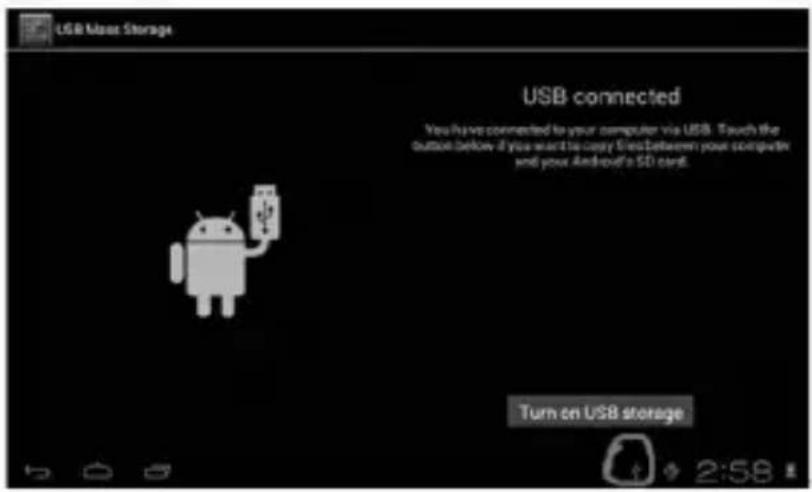

Step 1:

USB User Storage USB connected You have connected to your computer via USB. Touch the button below if you want to copy files between your computer and your Android's SD card. Turn on USB storage

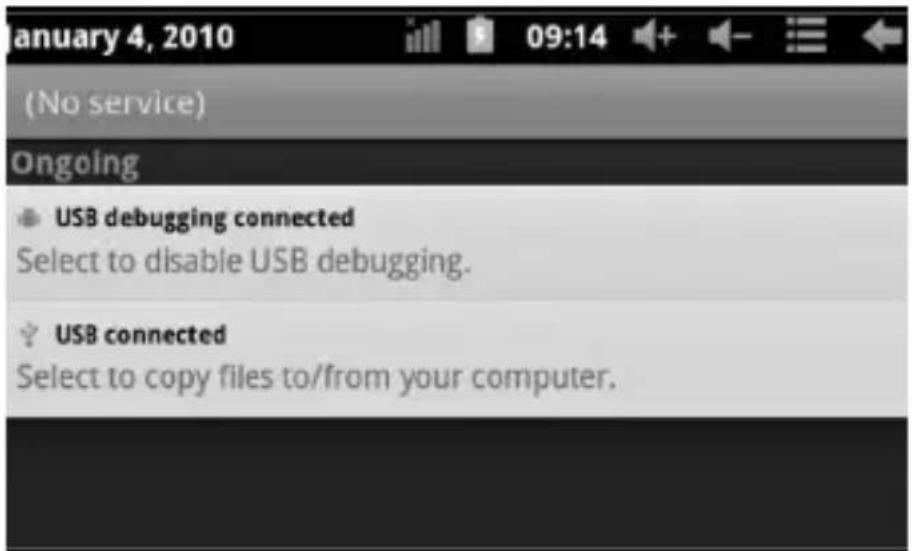

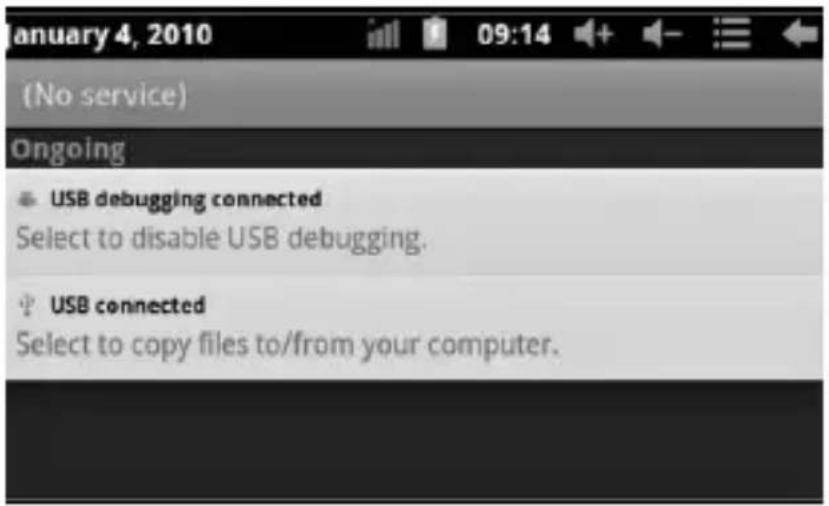

Step 2:

(No service) Ongoing USB debugging connected Select to disable USB debugging. USB connected Select to copy files to/from your computer.

USER'S MANUAL

Step 3: According to the above photo, please choose USB connected. Then you can see the following interface:

USB connected You have installed your iPhone to your computer via USB. Select the button lists if pay, send to copy files between your computer and your android 50 card. Turn on USB storage

USB connected Turn on USB storage If you turn on USB storage, some applications you are using will stop and may be unavailable until you turn off USB storage. OK Cancel

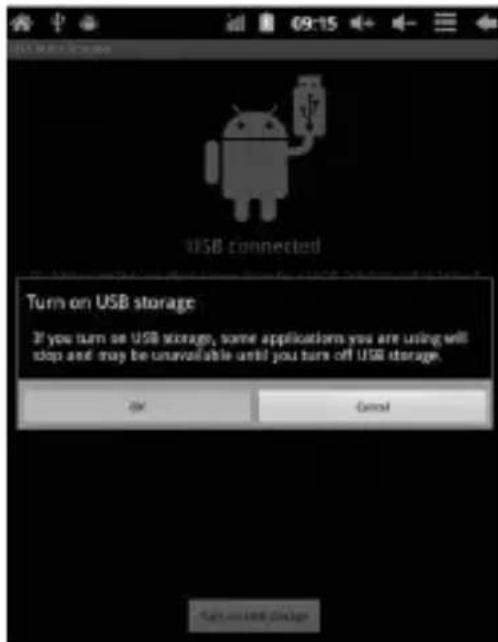

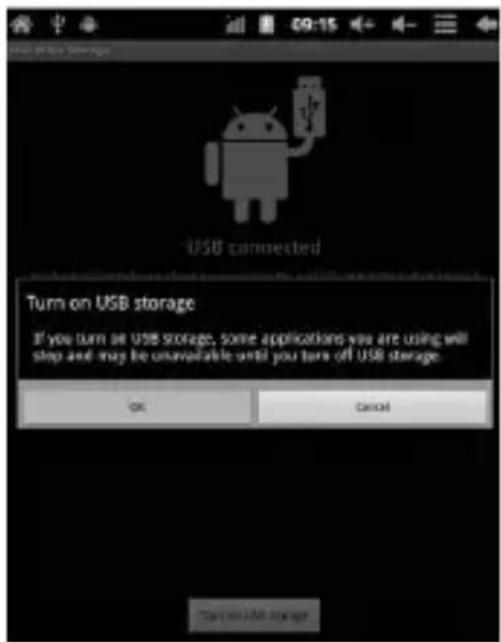

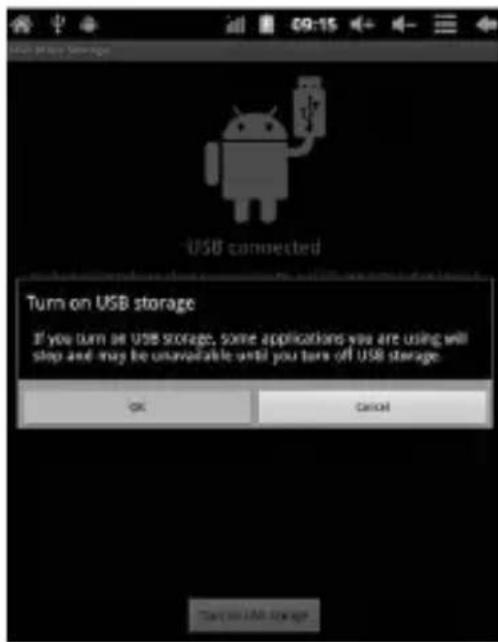

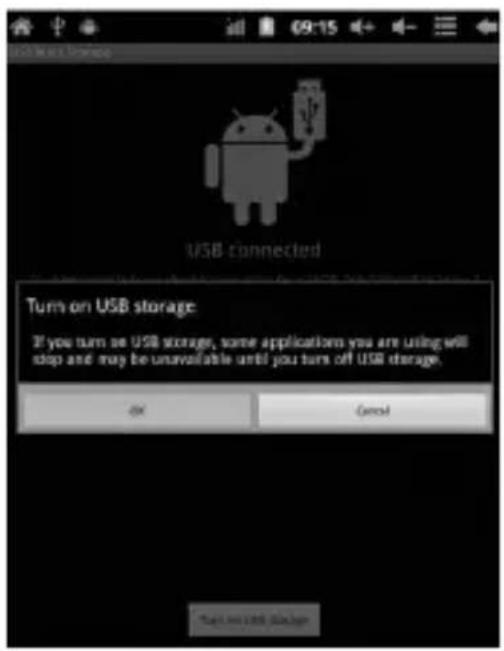

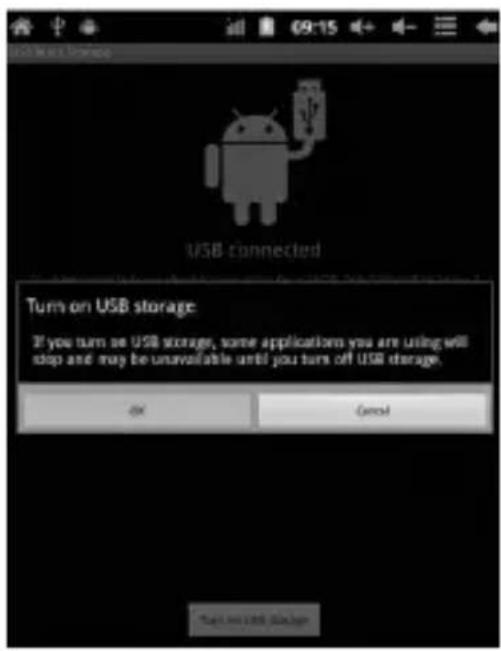

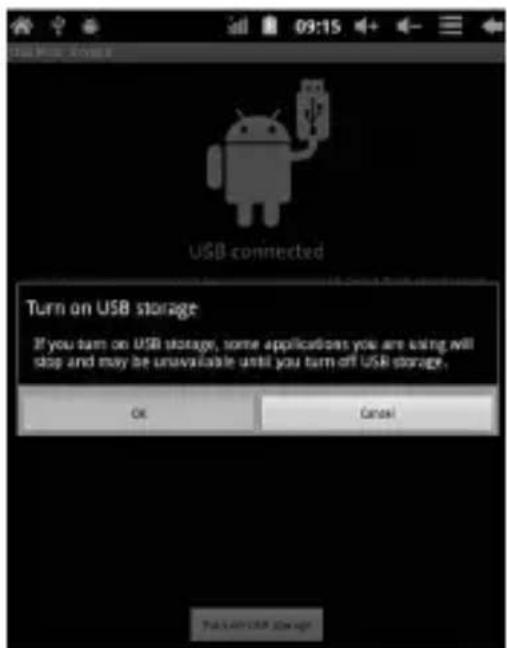

Step 4: Please press "turn on USB storage". Then you will find the following photos:

Please choose "OK". Then USB is connected. "USB is connected": means external memory (SD) loading is completed, and you can see the corresponding letter in the PC terminal.

Use USB cable to connect device to PC, device will pop up the USB connection window, click Turn on USB storage to connect to PC

USER'S MANUAL

Equipment operation interface

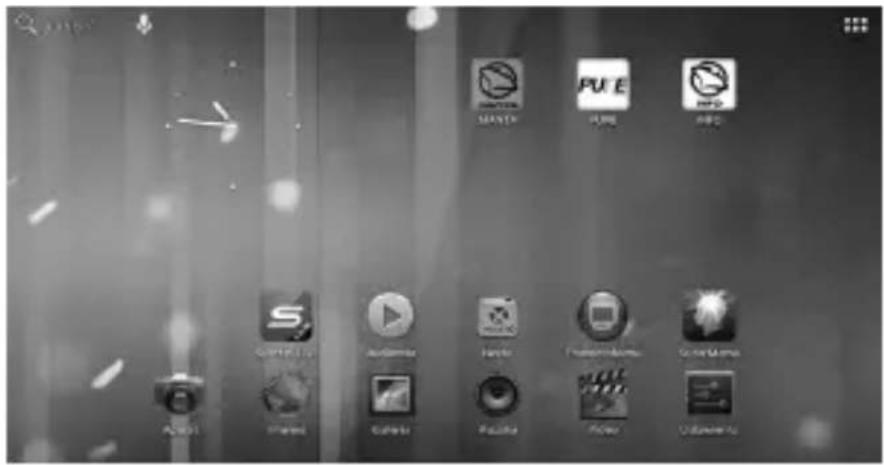

Main interface describe

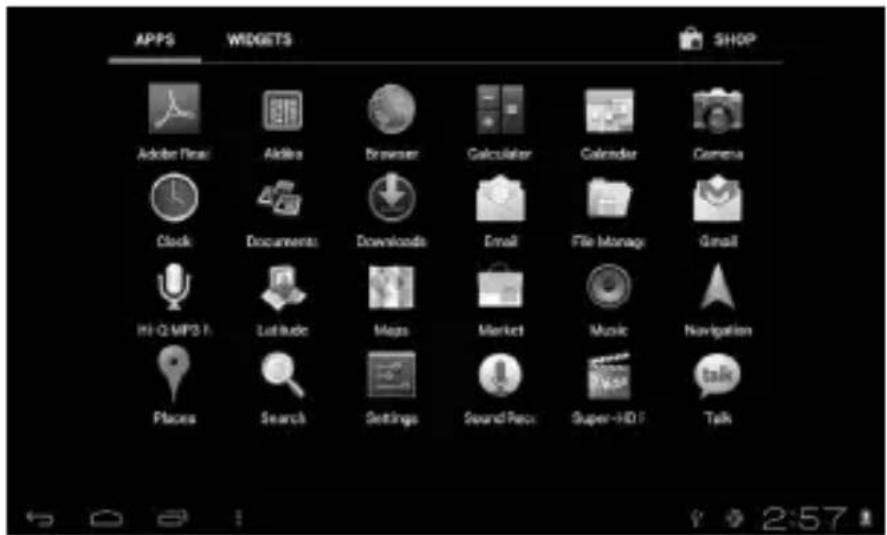

After startup will enter the main interface

Screenshot of a macOS desktop with multiple app icons including Master, Puzzle, and Audio, arranged in a grid.

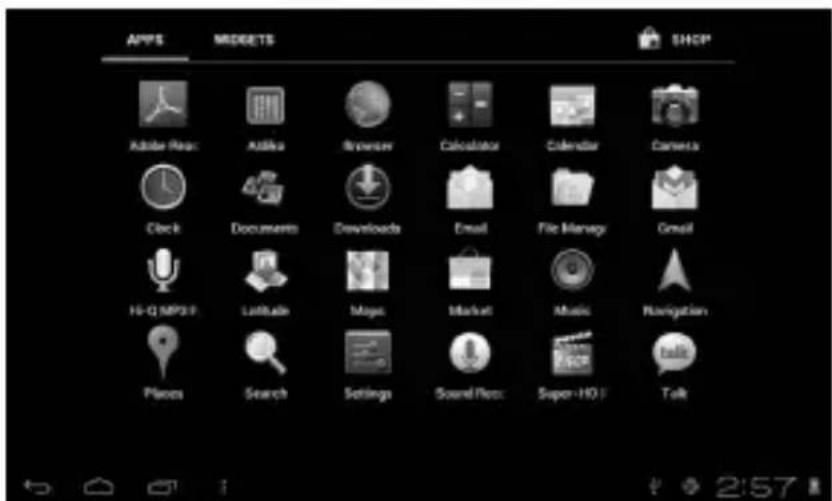

In the main interface, you can:

APPS MORETS SHOP Adobe Repos Adobe Browser Calculator Calendar Camera Clock Documents Developeds Email File Memory Gmail Hi-Q MP3F Latitude Maps Market Music Navigation Planes Search Settings Sound/Res: Super-HO F Talk

USER'S MANUAL

Management main interface software ICONS: long press the icons 3 second, after the icons will bigger, then you can drag anywhere in the interface.

Delete icons: long press the icons 3 second, drag the icons to the Recycle Bin icon, once it become red, Loosen your hand, after that you can delete icon

Status bar describe

The status bar below of the screen

Digital status bar showing navigation icons and time display showing 2:58

From left: BACK, HOME, recent applications. From Right: battery status, time, other icons.

Use touch panel

Device equipped with a 7"touch screen. Following the main touch screen area is described, and describes some of the tips for how to use the touch screen.

No matter which interface you are on the screen, can go back to main screen through pressing the soft key on the bottom right corner of the main screen.

Attention! In different applications, by tapping the back soft key ← on the bottom right corner on the touch screen, you can return to its interface on the upfloor

In different applications, by tapping the menu key on the upper right corner of touch screen, the screen will appear the operation setting interface as follows,

Remark: In the main interface, you can touch the icon to open the APPs

In different browser(file, music, video, pictures), You shift and drag the scroll bar, so that the file list can up or down to roll.

USER'S MANUAL

Problem solution

Device can't to open

1) Check the battery power
2) Connect adaptor first, then check again
3) After charging then can't to open, pls contact with the supplier

After startup the screen or the opening picture has been appeared, the device appear shutdown

1) Power is not enough, please charge

Headset can't hear the voice

1) Pls check the volume whether set to 0
2) Check the music file whether damaged. Try playing other music, if the file have damaged may lead to serious noise or hop sounds.

Can copy file or paly music and so on

1) Pls check between computer and device is correct connection
2) Check the memory storage space is already full
3) Check the USB cable is good or not
4) USB connection is disconnected
