NISZCZARKI WALLNER JP 510C/ 516C/ 520C/ 526C

UWAGA!

• read the manual carefully before starting to work
- check whether the voltage and frequency given in the table at the bottom of the equipment are the same as in your socket
• do not use the machine if the waste basket is not installed
• do not use the machine if the waste basket is full
• pull the plug from the socket:
a) before emptying the waste basket
b) before any servicing or preservation actions are taken
c) before opening the equipment in case of repair
• take note of the warning plate on the top of the machine to avoid serious injury when your jewellery, tie or hand are too close to the machine
• the machine may not be operated by children

IMPORTANT SAFETY NOTES

		The machine can not be operated by more than one person at any given time! The machine was designed for safe operation by „one person only”.
		During the shredding process no other work may be performed on the machine(for example cleaning, etc).
		Keep children away from the machine. This machine's design and safety concept are based on adult dimensions to ensure that it can be operated safely by adults only.
		Repairs must be executed by a qualified service personnel.
		Keep all loose articles of clothing, ties, jewelry, long hair or other loose objects away from opening, injury may result!
[GXT]		Never insert fingers into opening. Serious injury may result!
		In case of danger unplug the machine.
		Always unplug the machine from the main power supply before opening the machine.
		When the machine is equipped with a plug with grounding, then it has to be connected to a socket with grounding!
		Do not use canned air on shredder. Never use aerosol, petroleum based or other flammable products on or near shredder.

© ARGO S.A. www.argo.pl

INSTALLATION:

• Unpack and set machine upright.
• Take the machine by the holdings on each side and put it onto the horizontal surface.
- Plug in the machine. See „TECHNICAL DATA" for necessary precautions.
• The socket-outlet shall be installed near the equipment and shall be easily accessible.

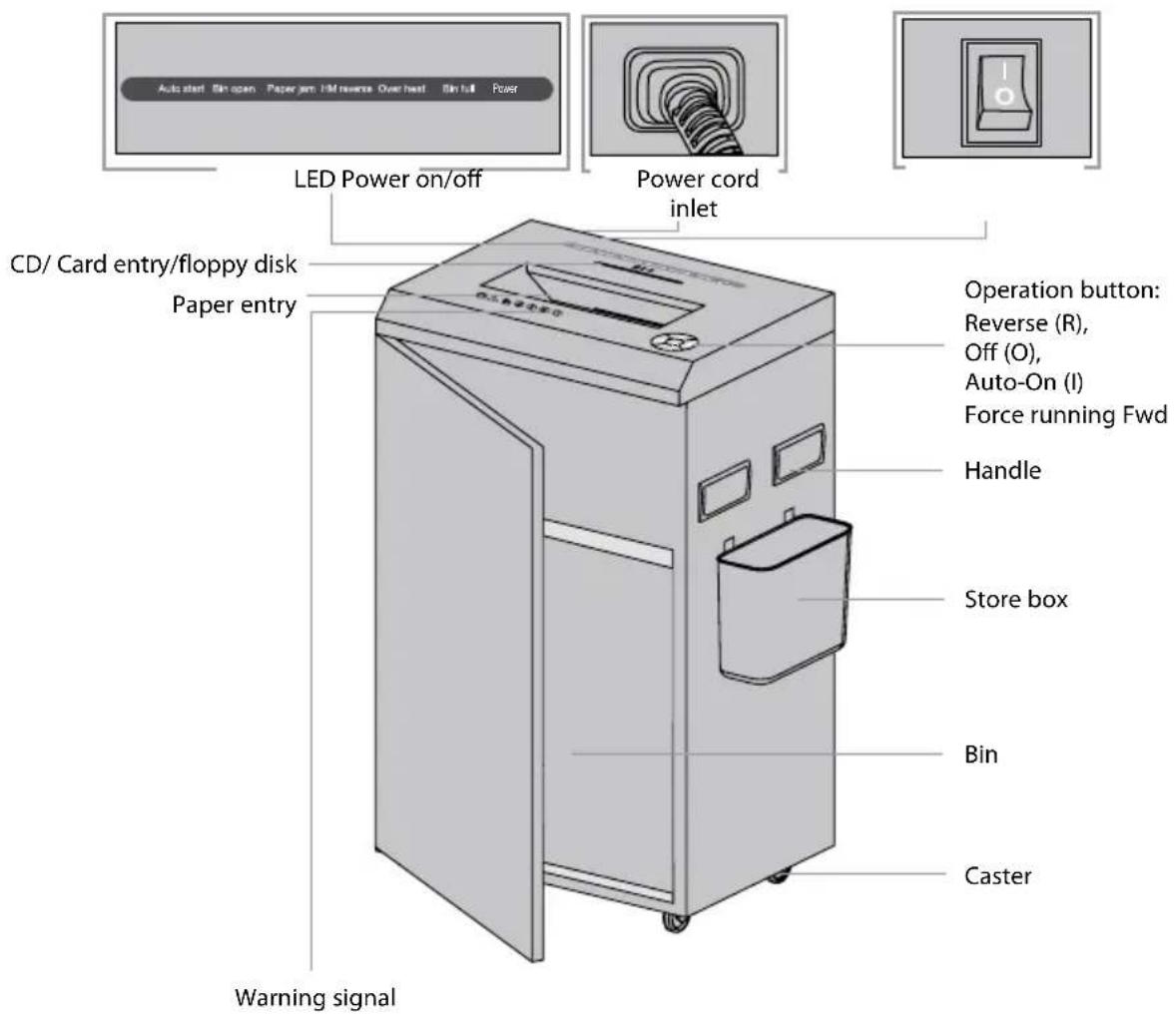

PARTS AND FUNCTION

Auto start Bin open Paper jmm 15M reverse Over heat Bin full Power LED Power on/off Power cord inlet CD/ Card entry/floppy disk Paper entry Operation button: Reverse (R), Off (O), Auto-On (I) Force running Fwd Handle Store box Bin Caster Warning signal

OPERATION

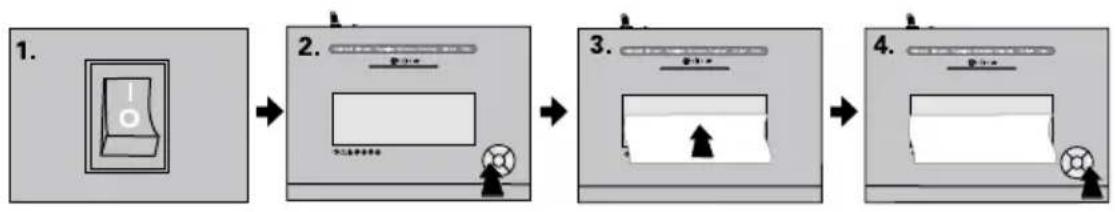

FEEDING THE PAPER

1. Please check the voltage of your shredders carefully before using and then plug in and press the switch.
2. Set to "I" and "Auto Start" displays on screen, the shredder is going to standby.
3. Feed the paper into entry.
4. If you want to stop shredding the paper, please set to „R“. the machine will reverse automatically and turn back the papers. Set to „I“, now the shredder is going to stanby again.

CAUTION:

It is forbidden to place more sheets of paper then the maximum amount indicated by the producer. If the machine will be overloaded, then please proceed according to the information given in the "paper jam" section.

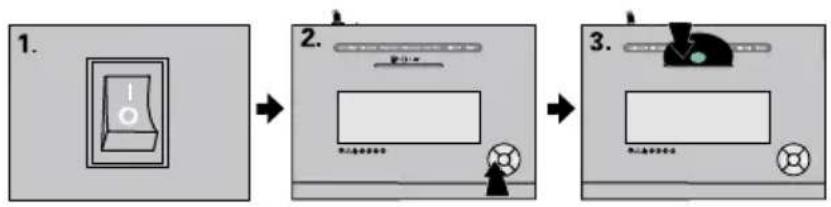

FEEDING CREDIT CARDS/CDS/FLOPPY DISKS

1. Please check the voltage of your shredders carefully before using and then plug in and press the switch.
2. Set to "I" and "Auto Start" displays on screen, the shredder is going to standby.
3. Feed the credit card/ CD / floppy disk into the proper entry and the machine will start automatically.

CAUTION:

Never attempt to shred more than one credit card/CD/floppy disk at a time or the shredder will jam. Never attempt to shred BOTH paper and credit cards/CDs/floppy disks at the same time. Doing so will damage the shredder.

FORCE RUNNING

When jammed, please set to Fwd, the shredder will be forced to shred.

When the wording „Machine overheat." is shown on LCD, unplug the machine from the main power source. Allow the motor to cool down to room temperature before resuming operation.

CUTTER OILING INSTRUCTIONS

To ensure proper operation and function, periodic oiling of the cutting system is required. Failure to oil your cutting system could result in reduced sheet capacity performance, excess noise, paper jams and possibly machine failure. Oil your cutters every 5th or 6th time you empty the basket, if excess squeaking and rubbing noise is coming from the machine or if the shredders sheet capacity has diminished.

Squeeze the lubricant across the full width of the cutters. Insert paper into sensor (fig.2) to activate the cutting system forward for 3 seconds. Then press „REV“ to make shredder reverse for 3 seconds. Alternate between forward and reverse at least three times or until all paper clears the cutters.

⚠️ CAUTION: Never use flammable synthetic oil, petroleum based or aerosol lubricants to oil your cutting system. Use only a vegetable oil based lubricant in a non-aerosol container with extension nozzle:

BASIC EXPLOITATION RULES

It is not advised to cut as many sheets as indicated as the maximum capacity of the shredder. By exploiting the machine at it's top capacity we significantly reduce it's vitality. Therefore, to maintain a durable and faultless work of the shredder, it is advised to place no more than 70% of the maximum amount of sheets to be shred at one time indicated for each model by the producer. The maximum amount of sheet should be used only occasionally.

It is forbidden to shred more sheets then the maximum amount of sheets to be shred at one time indicated by the producer. It may cause the blockade of the machine and massive engine overloading, which will diminish shredder's durability or even damage it. Also you should not shred soft objects such as foil, paper towels, toilet paper or fabrics. Nor paper with self-adhesive tape should be placed into the shredder. Those materials wrap around and jam the knives.

IMPORTANT RECOMMENDATIONS / WARNINGS

For your own safety please maintain particular care while installing and using the machine.

GENERAL

• Keep hands, long hair, loose articles of clothing, jewellery and ties away from device to avoid serious injury.
  • Unstable surfaces may cause the fall of the device, which can result in body injuries.
• Please avoid fast stopping, use of additional force or surface unevenness while transporting the device on trolley, casters or table.
• Do not remove mechanical and electrical securities such as locks, covers or others. It is forbidden to use objects not dedicated to do so or liquids.

ELECTRICAL

• The machine should be plugged to the electric circuit only as presented in the manual.
- The socket must be in close vicinity with easy access to the device. While moving the machine, pull the plug from the socket.
- To turn off the appliance unplug it from the socket. Socket should be in close vicinity with easy access to device.
- Do not use the machine when the wire or plug are damaged or after noticing symptoms of machine's damage. Please contact seller to obtain help.
- When the device is equipped with a plug with grounding, then it has to be connected to a socket with grounding!

SERVICE

Proceed only with routine actions according to the manual. Do not repair or service machines on your own. Unplug the machine from the circuit and contact seller when one or more of the following faults occur:

• liquid gets into the machine
• machine malfunctions as a result of improper use
• machine does not work accordingly to the manual

PROBLEM SOLVING

problems checklists solutions
No operation The power plug	is properly inserted to main supply?	Fully put the power plug to the outlet.
	Switch is set at „I” position? Set switch to „I” position for operation.
	Switch at „I” position but power light off.	Check basket is out of stand.Put basket back to stand.
	Basket at stand but power light off.	Basket should be put into stand to trigger the safety interlock switch for operation.
	No operation when insert paper?	Paper should be inserted to trigger the sensor at center.
	Checked above but no operation and no power light.	Send back to your local service for repair.
No operation after long time operation	Power lamp is on? Unplug the machine from main supply. Allow to cool down to room temperature and resuming operation.
Stop at shredding Machine is continuously shredding for a long time?		Unplug the machine from main supply. Allow to cool down to room temperature and resuming operation.
Excess squeaking and rubbing noise	Without oiling to the cutting system periodically.- Squeaking and rubbing noise at shredding.	Perform the cutter oiling instruction to lubricate the cutting system.
Paper jam - Exceeding the shredding capacity- The paper is not fed squarely into the feed opening.		Set switch to „R” for reverse running and frees excess paper. Then set to „I” for cutting the remainder of paper left in the cutting system. If serious jim occurred, send back to local service for repair.

If any faults should appear, please pass the machine along with the warranty card to the seller or closest authorised dealer. The machine might be passed further, thus the user should maintain the original and complete packaging. In cases when the machine is passed for repair in a not original or incomplete package, the risks of further damages that might arise in transportation are on the user's side. Thus, in such a case, it is in the user's best interest to make the best possible replacement packaging.

TECHNICAL DATA

model: JP 510C JP 5160C	JP 520C JP 526C
Shred type shreds shreds shreds
Shred size (mm) 4x30 2x15 4x40 2x10
Security level DIN 32757 3 4 3 4
Entry Width (mm) 310 310 270 270
Shred Capacity	32	22	25	18
Automatic on/off	+	+	+	+
Reverse function	+	+	+	+
Accepts credit card	+	+	+	+
Accepts CD	+	+	+	+
Accepts Floppy Discs	+	+	+	+
Basket Volume (l)	80	80	53	53
Machine Size (mm)	520x385x895	520x385x895	460x335x795	460x335x795
Power (V)	230-240 V ~50 Hz	230-240 V ~50 Hz	230-240 V ~50 Hz	230-240 V ~50 Hz

NOTE ON ENVIRONMENTAL PROTECTION

After the implementation of the European Directive 2002/96/EU in the national legal system, the following applies: Electrical and electronic devices may not be disposed of with domestic waste.

Consumers are obliged by law to return electrical and electronic devices at the end of their service lives to the public collecting points set up for this purpose or

point of sale. Details to this are defined by the national law of the respective country. This symbol on the product, the instruction manual or the package indicates that a product is subject to these regulations. By recycling, reusing the materials or other forms of utilising old devices, you are making an important contribution to protecting our environment.
