KSHI 2616 T - Iron Kernau - Free user manual and instructions

Brand	Kernau
Model	KSHI 2616 T
Product Type	Steam Iron
Power Supply	220-240 V, 16 A minimum grounded outlet
Power Rating	Approximately 2400 W
Water Tank Capacity	Approximately 250 ml
Soleplate Material	Stainless steel with non-stick coating
Weight	Approximately 1.3 kg
Dimensions	Approximately 30 x 12 x 15 cm
Functions	Dry ironing, steam ironing, spray, steam blast, vertical steaming, self-cleaning, auto-off
Temperature Settings	Adjustable thermostat with settings for synthetic, silk, wool, cotton, linen
Steam Control	Adjustable steam flow regulator
Auto-Off	Yes, after 30 seconds horizontal / 8 minutes vertical
Pilot Light	Yes, indicates when set temperature is reached
Spray Nozzle	Yes, for dry or steam ironing
Anti-Drip System	Not specified, but typical for steam irons
Cord Length	Approximately 1.8 m (full unroll required before use)
Cleaning	Self-cleaning function; wipe with damp cloth; do not use abrasive cleaners
Safety	Auto shut-off, thermal fuse, child safety lock (not specified but typical), keep away from children under 8
Spare Parts / Reparability	Only original parts; service by authorized personnel
Warranty	Void if misuse or not following instructions
Compliance	EU Directives 2006/95/EC and 2004/108/EC
Intended Use	Household only

Frequently Asked Questions - KSHI 2616 T Kernau

How do I fill the water tank?

Open the fill-up opening lid and pour water up to the MAX level (see Fig. 1). Close the lid securely before use. Use distilled water if your tap water is hard.

Can I use the iron without steam?

Yes, set the steam regulator control (C) to the 0 position for dry ironing. Ensure the water tank is empty or the regulator is off to prevent leaking.

How do I use the spray function?

Press the spray button (A) repeatedly until water is released. The spray can be used in both dry and steam ironing modes.

What is the steam blast function and how do I use it?

The steam blast delivers extra steam to remove stubborn wrinkles. Press the steam blast button (B) and wait a few seconds between presses. Do not apply more than three successive blasts for best results.

Can I iron vertically?

Yes, set the temperature to maximum, hold the iron vertically and press the steam blast button (B). Move the iron top to bottom. For cotton and linen, contact the fabric; for delicate fibers, keep the iron a few centimeters away.

How does the auto-off function work?

The iron automatically turns off if left horizontal for 30 seconds or vertical for 8 minutes. The auto-off indicator lamp (G) flashes and an audible alert sounds. Simply move the iron to resume.

How often should I use the self-cleaning function?

It is recommended to self-clean at least once a month to remove mineral buildup. Fill the tank to MAX, set to maximum temperature, unplug, place over a sink, and hold the self-cleaning button (D) until water flows out.

What should I do if the iron is not producing steam?

Check that the water tank is filled, the temperature is set high enough (for steam, minimum ●●● cotton setting), and the steam regulator is not at 0. Also ensure the iron is hot enough (wait for the pilot light to go out).

Can I use the iron on delicate fabrics?

Yes, but select the appropriate temperature setting: ● for synthetics, ●● for silk/wool. For mixed fibers, use the setting for the lowest temperature fiber. Avoid direct contact with delicate fabrics when using steam.

How do I clean the soleplate?

Unplug and let the iron cool completely. Wipe the soleplate with a damp cloth and mild detergent. Do not use abrasive cleaners or metal utensils as they can damage the non-stick coating.

USER MANUAL KSHI 2616 T Kernau

Line drawing of a steam iron with handle and spout (no text or symbols)

www.kernau.com

SZANOWNY KLIENCIE,

I C A G B H D E J F Fig.1Fig.2 MAY MAY

Opis

Line drawing of a steam iron with handle and spout (no text or symbols)

www.kernau.com

DEAR CUSTOMER,

Many thanks for choosing to purchase a KERNAU. brand product. Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

KERNAU

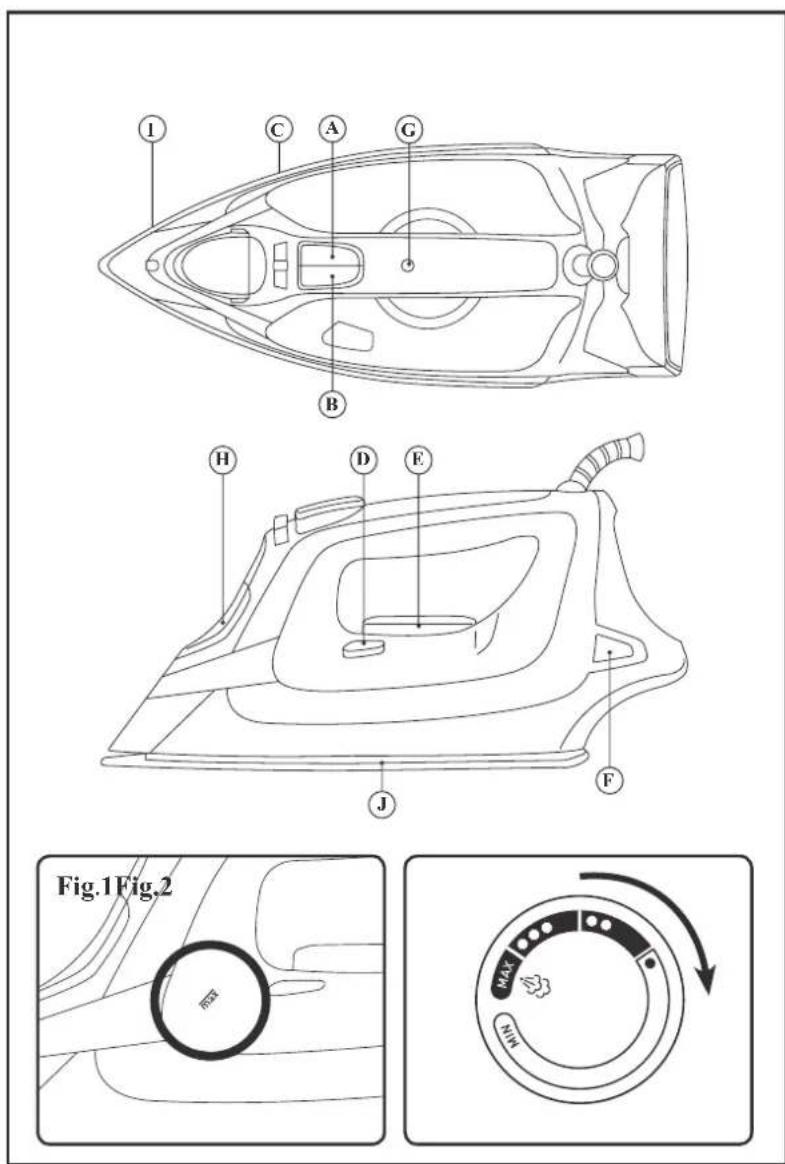

I C A G B H D E J F Fig.1Fig.2 Max Max MIN

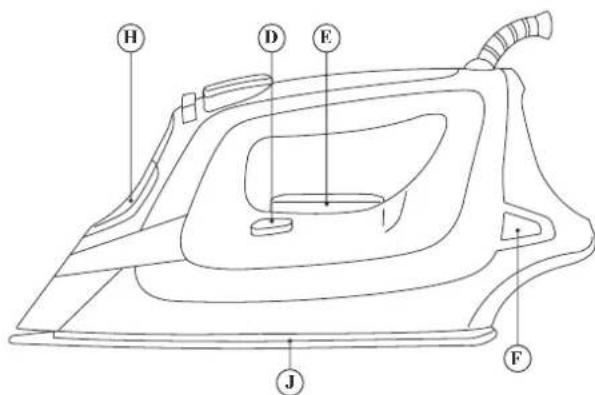

Description

A Spray button
B Steam blast button
C Steam regulator control
D Auto-cleaning button
E Temperature regulator
F Pilot light
G Auto-off indicator lamp
H Fill-up opening
I Spray nozzle
J Soleplate

SAFETY ADVICE AND WARNINGS

- Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions may result in an accident.

Use or working environment:

- Keep children and bystanders away when using this appliance.

- The appliance should be used and kept over a flat and stable surface.

Electric safety:

• Do not use the appliance if the cable or plug is damaged.
• Ensure that the voltage indica ted on the nameplate matches the mains voltage before plugging in the appliance.
• Connect the appliance to a base with an earth socket withstanding a minimum of 16 amperes.
• The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors.
• If any of the appliance casings breaks, immediately disconnect the appliance from the mains to prevent the possibility of an electric shock.
• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• Never use the electric wire to lift up, carry or unplug the appliance.
• Do not wrap the cable around the appliance.
• Do not allow the connection cable to come into contact with the appliance's hot surfaces.
• If using the appliance outdoors, use a suitable cord extension.
• Connect the appliance to a base with an earth socket withstanding a minimum of 16 amperes.
• Do not touch the plug with wet hands.

Personal safety:

- Do not use the appliance, in the case persons insensitive to heat (the appliance has heated surfaces).

• Do not touch metal parts or the body when it is operating, as it may cause serious burns.
• The temperature of the accessible surfaces may be high when the appliance is in use.

Use and care:

• Fully unroll the appliance's power cable before each use.
• Use the appliance handle/s, to catch it or move it.
• Do not turn the appliance over while it is in use or connected to the mains.
• To keep the non-stick treatment in good condition, do not use metal or pointed utensils on it.

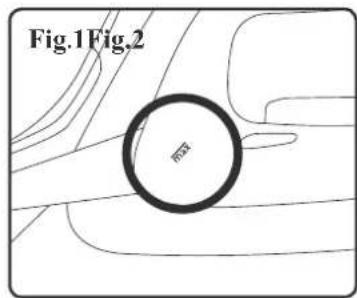

  • Respect the MAX level indicator (Fig. 1)
• Disconnect the appliance from the mains when not in use and before undertaking any cleaning task.
  • Unplug the appliance from the mains before refilling the water tank.
  • This appliance is for household use only, not professional or industrial use.
• This appliance can be used by people unused to its handling, disabled people or children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Cleaning and user maintenance shall not be made by children unless they are supervised
• Keep the appliance and its cable out of reach of children under the age of eight.
• This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.
• This appliance should be stored out of reach of children and/or the disabled.
• Do not put the appliance away if it is still hot.
• Do not store or transport the appliance if it is still hot.
• To ensure that the iron functions correctly, keep the iron face smooth and do not hit it against metallic objects (for example, the ironing board, buttons, zips...)
• The use of distilled water is recommended, especially if the water in your area contains any type of grit or is “hard” (contains calcium or magnesium).
  • The water fill-up opening must not be left open while the iron is being used.
• Never leave the appliance unattended while in use.
  • Never leave the appliance connected and unattended if is not in use. This

saves energy and prolongs the life of the appliance.

• Never rest the appliance into a surface while in use.
• Do not use the appliance on any part of the body of a person or animal.
• Do not use the appliance to dry textiles of any kind.
• CAUTION: Do not sleep while using this appliance, as there is risk you could be harmed.
• Turn the thermostat control to the minimum (MIN) setting. This does not mean that the iron is switched off permanently.

Service:

• Make sure that the appliance is serviced only by specialist personnel, and that only original spare parts or accessories are used to replace existing parts/accessories.
• Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

Instructions for use

Before use:

• Remove the appliance’s protective film.
• Make sure that all the product’s packaging has been removed.
• Some parts of the appliance have been lightly greased. Consequently, the first time the appliance is used a light smoke may be detected.
  • Prepare the appliance according to the function you wish to use.

Filling with water:

• It is essential to have filled the deposit with water to be able to work with steam.
• Open the lid of the filling mouth.
  • Fill the deposit taking care to observe the MAX level (Fig. 1)
• Close the lid of the filling mouth.

Use:

• Unroll the cable completely before plugging it in.
- Connect the appliance to the mains.

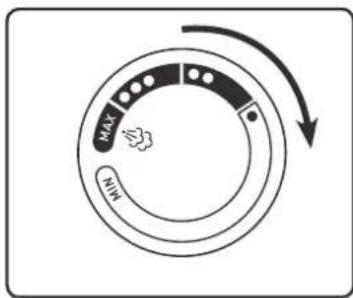

- Turn the thermostat control to the desired temperature position.
- Do not use temperatures higher than those indicated on the garments to be treated.

• ● Temperature for synthetic fibres (Polyester, Nylon...).

• ● ● Temperature for silk, wool.

• ● ● ● Temperature for cotton. (Minimum temperature for steam ironing)

• Max Temperature for linen.
• If garment has various kinds of fibres, select the temperature for the fibre that requires the lowest temperature.(For example, select the temperature for polyester for an article made out of 60% polyester and 40% cotton).
• Wait until the pilot light (F) has gone out which will indicate that the appliance has reached an adequate temperature.
• During use the pilot light (F) will automatically flash on and off, thus indicating that the heating elements are operating in order to maintain the desired temperature.

Dry ironing:

- The appliance has a steam flow regulator that permits dry ironing (without steam) when placed in the 0 position.

Steam Ironing:

- It is possible to iron with steam whenever the deposit is filled with water and the adequate temperature is selected.

Steam flow control:

- The appliance has a (C) control knob that allows to get the control of the steam flow

Spray:

• The spray can be used in both steam and dry ironing.
- Press the spray button ( A ) to use this operation.
• The spray button has to be pressed repeatedly to release the first spray.

Steam blast:

• This function proportions extra steam for eliminating wrinkles.
- Press the steam blast button (B). Wait a few seconds until vapour penetrates the fibres of the garment before pushing the button again. For optimum steam quality, do not apply more than three successive blasts.
• The spray button has to be pressed repeatedly to release the first spray.

Vertical steaming

• Vertical steaming It is possible to iron hanging curtains, items of clothing on his hanger, etc. To do so, follow the instructions:
• Select the maximum temperature of the iron, while turning the temperature regulator of the iron in a clockwise direction.(Fig 2)
• Move the iron in a top to bottom direction while pressing the steam control (B). Important: for cotton and linen, its recommended to put the iron base in contact with the material. For other more delicated fibres, it's recommended to keep the iron base at some centimetres of distance.

Auto-off function: \*

• For energy-saving purposes, the appliance goes to auto-off status if it is not moved for a pre-determined time period. When this happens, an audible warning is heard and the auto-off indicator lamp (G) flashes, indicating that the function is active.
• Auto-off in horizontal position: after approximately 30 seconds without moving the appliance.
• Auto-off in vertical position: after approximately 8 minutes without moving the appliance.
  • To return to normal functioning, simply move the appliance again.

Once you have finished using the appliance:

• Select the minimum position (MIN) using the thermostat control.
  • Unplug the appliance to the mains.
• Remove the water from the water tank.
• Clean the appliance

Cleaning

• Disconnect the appliance from the mains and let it cool before undertaking any cleaning task.
• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• Do not submerge the appliance in water or any other liquid, or place it under a running tap.

Self-cleaning function:

• It is important to self-clean the appliance at least once a month to remove calcium and any other built-up minerals inside the iron.
• Fill the depository to its maximum level, as indicated on “water fill” section.
• Place the iron in a vertical position, plug in to the mains m and select the maximum temperature.
• Leave the appliance to heat up until the pilot light indicates that it has reached its consigned temperature.
  • Unplug the appliance and place in the sink.
• Press the self-clean button, and keep it pressed down.
• Let the water flow out through the steam vents in the base, while lightly shaking the appliance.
• Release the button after a minute or when the tank becomes empty.
• Leave the iron in the vertical position until it has cooled.

Anomalies and repair

• Take the appliance to an authorised technical support service if problems arise. Do not try to dismantle or repair without assistance, as this may be dangerous.
• If the connection to the mains has been damaged, it must be replaced and you should proceed as you would in the case of damage.

For EU product versions and/or in case that it is requested in your country:

Ecology and recyclability of the product

• The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public recycling bins for each type of material.
• The product does not contain concentrations of substances that could be considered harmful to the environment
• This appliance complies with Directive 2006/95/EC on Low Voltage and Directive 2004/108/EC on Electromagnetic Compatibility.

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised waste agent for the selective collection of waste electrical and electronic equipment (WEEE)

This symbol indicates that the surface may heat up during use.

UPOZORNĚNÍ PŘED PRVNÍM POUŽITÍM NAPAŘOVACÍ ŽEHLIČKA KSHI 2616 T

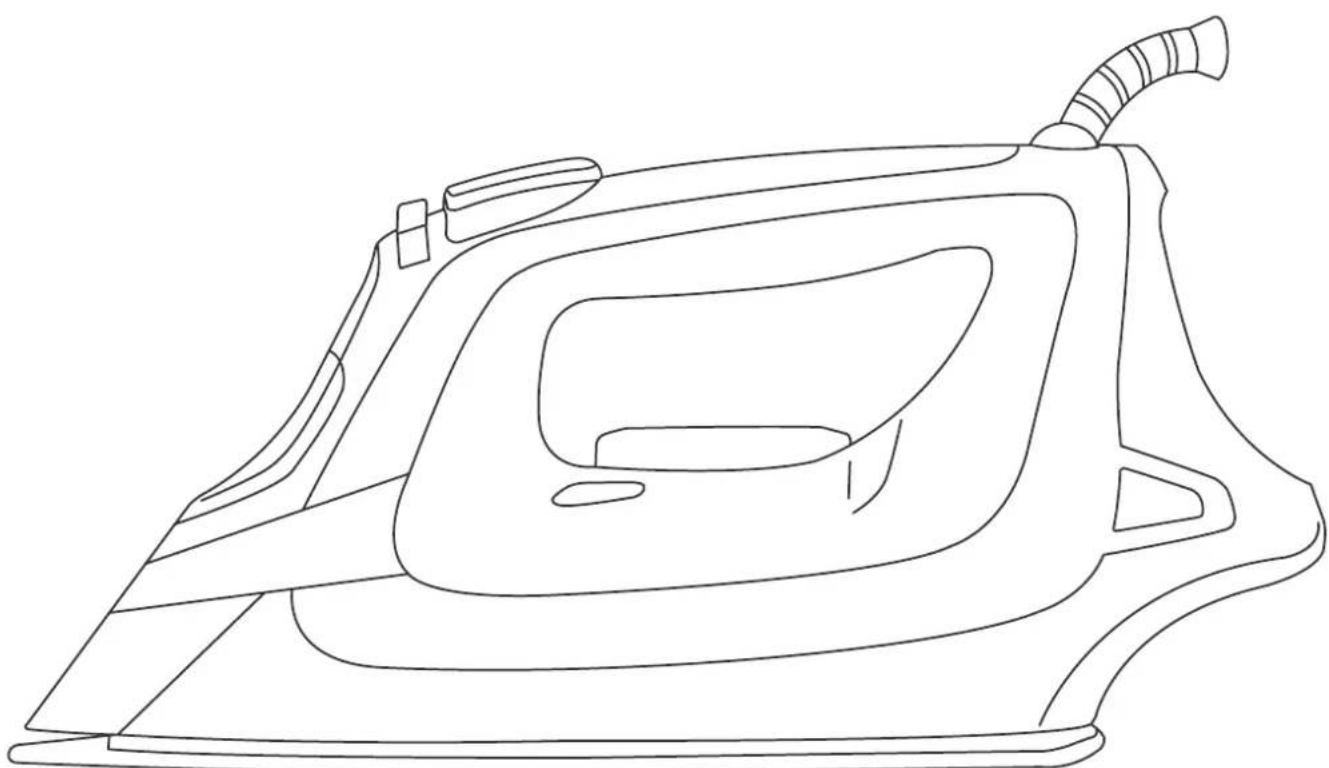

Line drawing of a steam iron with handle and spout (no text or symbols)
