Product Type	Travel Iron
Brand	Clas Ohlson
Model	ES-2393
Dimensions (L × W × H)	91.5 × 93 × 199 mm
Weight	740 g
Rated Voltage	100-120 V / 220-240 V (selectable)
Frequency	50 Hz
Power Consumption	1000 W
Water Tank Capacity	40 ml
Heating Indicator	Yes (light turns off when ready)
Temperature Settings	3 levels (dots): low for synthetics, medium for wool/silk, high for cotton/linen
Steam Function	Adjustable steam level (only at high temperatures)
Steam Shot	Yes, for stubborn creases (press button max 2 seconds)
Dry Ironing	Yes
Voltage Selector	On the back of the iron (110V / 230V)
Handle Lock	Yes (push button to lock/unlock)
Cord Length	Not specified, but wraps around handle for storage
Soleplate Material	Not specified (assumed metal)
Safety Features	Auto shut-off not mentioned; requires unplugging when not in use
Recommended Water	Ordinary tap water; distilled water in hard water areas
Cleaning Instructions	Unplug, wipe with damp cloth; no abrasives
Spare Parts Availability	Contact Clas Ohlson customer service
Warranty	Not specified, refer to retailer
Country of Origin	Not specified

Frequently Asked Questions - ES-2393 Clas Ohlson

How do I fill the water tank?

Unplug the iron, set temperature to MIN, open the lid, and use the included cup to fill with tap water to MAX level. Close lid securely. Never fill while plugged in or hot.

How do I select the voltage setting?

Use a pointed object to slide the voltage selector on the back of the iron to match your mains voltage (110V or 230V). Always check before plugging in.

What do the dots on the temperature control mean?

One dot is for synthetic fabrics (e.g., acrylic, nylon). Two dots for wool, silk, polyester, rayon. Three dots for high-temperature fabrics like cotton and linen.

When can I start steam ironing?

Steam ironing is only possible at high temperatures (three dots). Set the desired temperature and steam level, wait until the indicator light turns off, then begin.

How do I use the steam shot function?

Set temperature to high, hold iron over the garment, press the steam shot button for a maximum of 2 seconds. Release. Can be used with dry or steam ironing for stubborn creases.

Why does the iron leak water?

If the iron produces drops of water, the temperature may be too low. Set the temperature to a higher setting appropriate for the fabric.

How do I clean the iron?

Unplug and let it cool completely. Wipe the exterior with a moist, soft cloth. Do not use abrasive cleaners or solvents.

How do I store the iron after use?

Let it cool completely, empty the water tank, wind the power cord around the handle neck, and fasten it to the cable fastener on the front.

What type of water should I use?

Ordinary tap water is fine. In very hard water areas, use distilled water to prevent scale buildup. Never use perfume or chemical additives.

Is the iron safe for children to use?

Children aged 8 and above can use it under adult supervision. They must be instructed on safe use. Never leave the iron unattended when plugged in.

USER MANUAL ES-2393 Clas Ohlson

Close-up of a silver iron iron with visible steam iron and power cord (no text or symbols)

Travel Iron

Art.no 18-4715

Model

ES2393

ES2393

Please read the entire instruction manual before using the product and then save it for future reference. We reserve the right for any errors in text or images and any necessary changes made to technical data. In the event of technical problems or other queries, please contact our Customer Services (see address details on the back).

Safety

• The product may be used by children of 8 years and above and by persons with reduced physical, sensory or mental capability or lack of experience and knowledge provided they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.
• Never let children play with the product.
• Cleaning and user maintenance shall not be made by children unless they are older than 8 and under adult supervision.
• The product must never be left unattended when it is plugged in.
• Unplug the iron before filling the water tank.
• Do not open the lid of the water tank when the product is switched on.
• The product is not intended to be used continuously.
• The product must only be used and placed on a stable surface.
• When the product is placed on its base, make sure that the base is placed on a stable surface.
• The product must not be used if it has been dropped on the floor, if it is visibly damaged or if it is leaking.
• Keep the product and its mains lead out of reach of children under the age of 8.

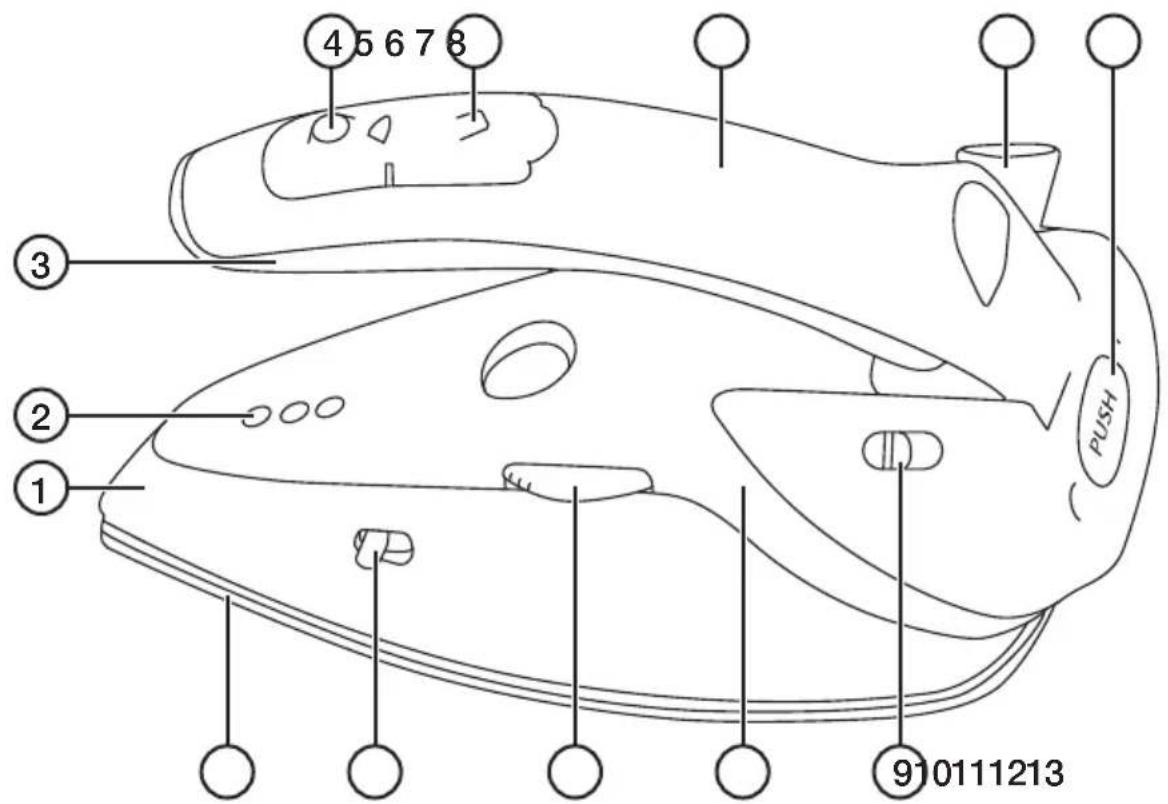

Product description

1. Housing
2. Indicator lights
3. Handle
4. Steam button
5. Water tank lid
6. Water tank
7. Mains lead
8. [ PUSH ] Handle lock button
9. Voltage selector
10. Housing
11. Temperature control
12. Steam level control
13. Soleplate

Operating instructions

Before initial use

Harmless smoke and odour may be emitted from the iron the first few times is used. This is a temporary condition and is completely normal. Test the iron for the first time on an old piece of cotton cloth to check that both the soleplate and the water tank are clean.

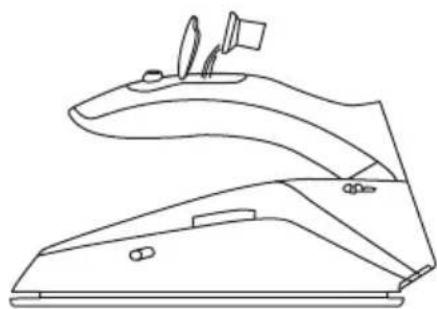

Refilling

Warning: Be careful when refilling the iron. It can be very hot after use. Make sure that the handle is fully raised.

1. Unplug the product from the wall socket.
2. Set the temperature control to MIN.
3. Open the lid of the water tank.
4. Use the included refill cup to fill the water tank with ordinary tap water. Note: In regions where extremely hard water is common, it is recommended that you use distilled water.
5. Fill the tank to the MAX level and close the lid of the water tank securely.

Line drawing of a steam iron with handle, blade, and mounting base (no text or symbols)

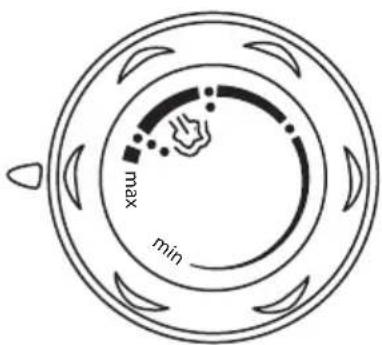

Setting the temperature

Check the fabric care instructions on the garment and select a suitable temperature. The dots on the temperature control signify the following:

• Synthetic material such as acrylic and nylon.
- Wool, silk and synthetic fabrics such as polyester and rayon.
• • • Material that withstands high temperatures, such as cotton or linen.

Ironing

Dry ironing

Warning: Make sure that the mains voltage corresponds with the voltage set on the iron. Otherwise use a pointed object and change the voltage setting using the voltage selector on the back of the iron.

1. The soleplate becomes extremely hot during use. Never leave the iron unattended when it is plugged in or while the soleplate is still hot.
2. Plug the mains lead into an earthed wall socket. The first indicator light will come on.
3. Set the desired temperature. The indicator light next to the temperature control will come on to show that the iron is heating up. When the light turns off, the iron has reached the desired operating temperature. If the temperature drops below the set temperature the iron will begin reheating and the indicator light will come on again.

Steam ironing

Steam ironing is only possible at high temperatures.

1. Set the desired temperature.
2. Set the steam level (12).
3. Wait until the iron reaches operating temperature and the indicator light has turned off.

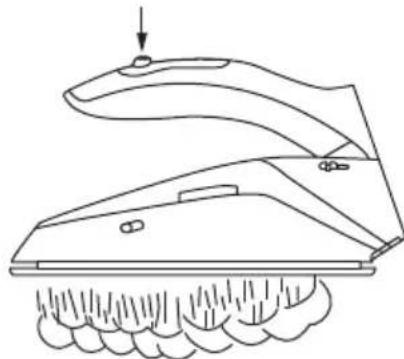

Ironing using the steam shot

The steam shot function can be used for both dry ironing and steam ironing if the temperature control is set to a high temperature. The steam shot feature can help you eliminate stubborn creases.

1. Hold the iron over the piece of clothing.
2. Press the steam shot button (max 2 seconds) until the steam begins flowing through the holes of the soleplate.
3. Release the steam shot button.
4. As soon as you hold the iron horizontally it will produce steam and you may begin ironing.

Note: If the iron produces drops of water, it may be that the iron is set at too low a temperature. Adjust to the appropriate temperature.

Line drawing of a steam iron with a downward arrow indicating force or motion (no text or symbols)

After use

1. Let the iron cool completely.
2. Empty the water tank.
3. Wind the power cable around the neck of the handle and fasten it to the cable fastener on the front of the iron.

Line drawing of a shower faucet with a drain outlet (no text or symbols)

Care and maintenance

Cleaning the housing

• Note: Unplug the iron from the wall socket before cleaning.
• Wipe the exterior with a moist, soft cloth. Do not use abrasive cleaning agents or solvents.

Responsible disposal

This symbol indicates that this product should not be disposed of with general household waste. This applies throughout the entire EU. In order to prevent any harm to the environment or health hazards caused by incorrect waste disposal, the product must be handed in for recycling so that the material can be disposed of in a responsible manner. When recycling your product, take it to your local collection facility or contact the place of purchase. They will ensure that the product is disposed of in an environmentally sound manner.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Specifications

Rated voltage 100–120 V/220–240 V

Frequency 50 Hz

Power 1000 W

Water tank 40 ml

Weight 740 g

Size (L × W × H) 91.5 × 93 × 199 mm
