USER MANUAL PB7220 BENQ

Copyright © 2003 by BENQ Corporation. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of BENQ Corporation.

Disclaimer

BENQ Corporation makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Furthermore, BENQ Corporation reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation of BENQ Corporation to notify any person of such revision or changes.

Fill this in!!
In case service is needed in the future, record the information described below. The serial number is on the back of the product.
Projector Information
Product Name: PB7200/ PB7220/ PB7100
Serial Number:
Date of Purchase:
Dealer Information
Dealer:
Telephone Number:
Address:

Table of Contents

Introduction ....I

Safety Instructions ....I

Shipping Contents 2

Alternative Accessories 2

Optional Accessories 2

Projector Description ....3

Projector 3

External Control Panel 4

Adjuster.... 5

Projector Features 5

Remote Control Description ....6

Remote Control Effective Range 7

Installing or Replacing Batteries 7

Installation....8

Screen Size 8

Connecting to Various Equipment 9

Operation 12

Start Up 12

Digital Keystone Correction....13

Auto Adjustment....13

Source Selection ....14

Blank 14

Menu System ....15

I. Display Menu 16

1. Image Menu 17

2. Source Menu 18

3. Control Menu 19

4. PIP Menu 20

Shutdown 21

Maintenance 22

Lamp Information 22

Use and Replacement of the Lamp 22

Lamp Replacement 22

Resetting Lamp Hours. 24

Temp Information 24

LED Indicator Status & Illustration .....24

Illustration 24

Service Information 26

Accessories (included in the standard package) 26

Alternative Accessories 26

Optional Accessories (not included in the standard package) 26

Ordering Parts or Getting Information 26

Troubleshooting....27

Common Problems & Solutions 27

Status Messages 28

Specifications 29

Projector Specifications 29

Timing Chart 30

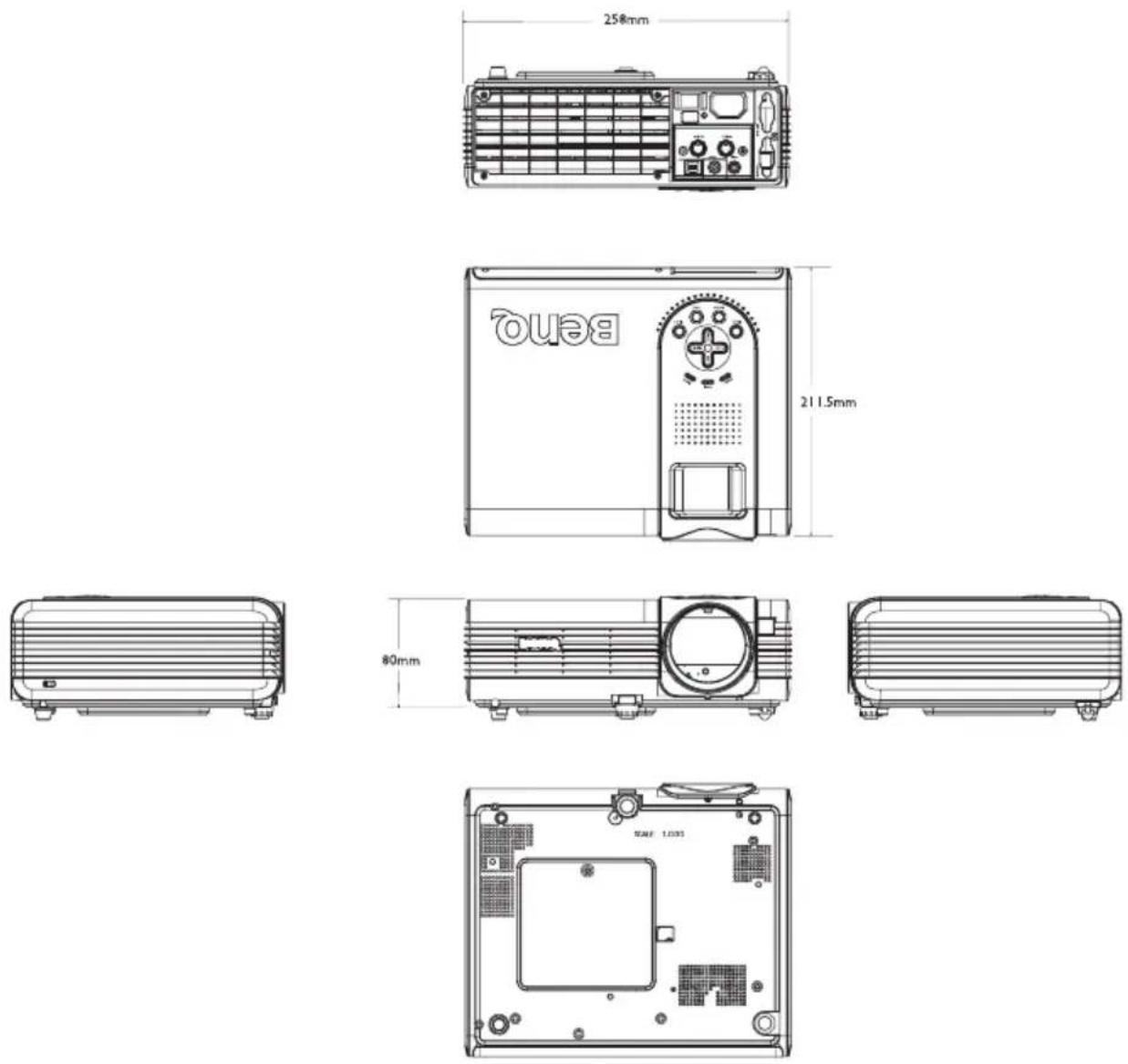

Dimensions 31

Warranty.... 32

Limited Warranty.... 32

Safety Regulations 33

FCC Statement.... 33

EEC Statement 33

INTRODUCTION

Caution

TO PREVENT SHOCK, DO NOT OPEN THE CABINET. NO USER -SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. PLEASE READ THIS USER'S MANUAL BEFORE YOU OPERATE YOUR PROJECTOR. SAVE THIS USER'S MANUAL FOR FUTURE REFERENCE.

Safety Instructions

I. Read this user's manual before you operate your projector and save it for future reference.
2. The lamp becomes extremely hot during operation. Allow the projector to cool for approximately 45 minutes prior to removing the lamp assembly for replacement. Do not operate lamps beyond the rated lamp life. Excessive operation of lamps beyond the rated life could cause them to explode on rare occasions.
3. Never replace the lamp assembly or any electronic components unless the projector is unplugged.
4. To reduce the risk of electric shock, do not disassemble this appliance. Take it to a qualified technician when service or repair is required. Incorrect reassembly can cause electric shock when the appliance is subsequently used.
5. Do not place this product on an unstable cart, stand, or table. The product may fall, sustaining serious damage.
6. This product is capable of displaying inverted images for ceiling mount installation. Please use suitable equipment for mounting the unit and ensure it is securely installed.

Caution

• Always open the lens shutter or remove the lens cap when the projector lamp is on.
• Do not look straight at the projector lens during operation. The intense light beam may damage your eyes.
• In some countries, the line voltage is NOT stable. This projector is designed to operate safely within a bandwidth of 110 to 230 volts, but could fail if power cuts or surges of more than 10 volts occur. In these high-risk areas, it is recommended that a power stabilizer unit be used in conjunction with this projector.

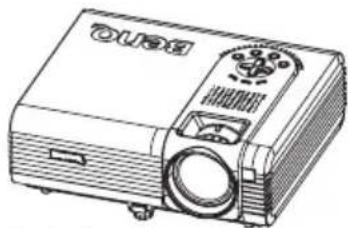

Shipping Contents

The projector is shipped with the cables required for connection to standard PC or laptop computers. Carefully unpack and verify that you have all the items shown below. If any of these items are missing, please contact personnel at the place of purchase.

Line drawing of a projector with front panel and screen (no text or symbols)

Projector

User's Manual

Quick Start Card

Warranty Booklet

Line drawing of a cable with connectors and wires, no text or symbols present

HDTV Cable Remote Control

User's Manual CD

Batteries

Illustration of a gray briefcase with handle and strap (no text or symbols)

Soft Carry Case

Two types of electrical connectors shown in line drawing: a cable with two terminal leads and a coiled cable with three terminal leads (no text or symbols)

Audio Cables S-Video

Cable

VGA Cable USB Cable Video Cable

Alternative Accessories

For the US:

Power Cord and 3-2 Converter

Line drawing of a cord with two plug connectors and a separate terminal block (no text or symbols)

3-2 Converter

For UK and EU countries:

220V and

240V Power Cords

220V

240V

Optional Accessories

I. Macintosh adapter
2. 250W lamp module
3. Ceiling mount kit

2 Introduction

Projector Description

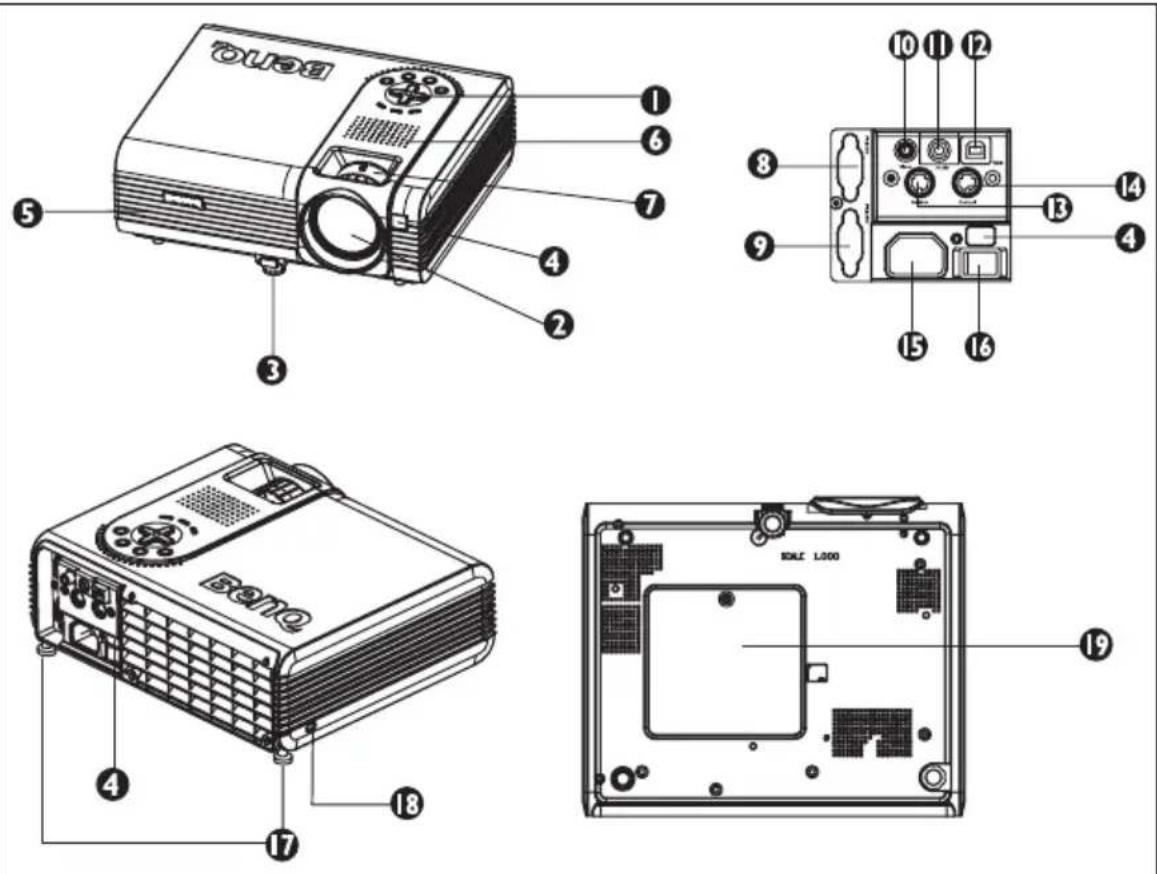

Projector

1 External control panel (see next page) 11 Audio jack
2 Projection lens USB mouse connector 12
3 Front adjuster S-Video jack 13
4 IR remote sensor RS 232 control port 14
⑤ Ventilation grill AC power cord inlet ⑮
⑥ Speaker Main power switch 16
7 Projection lens adjuster Rear adjuster fe17
⑧ RGB (PC/ Mac) signal input - I ⑱
⑨ RGB (PC/ YPbPr/ YCbCr) signal input - 2
10 Video connector

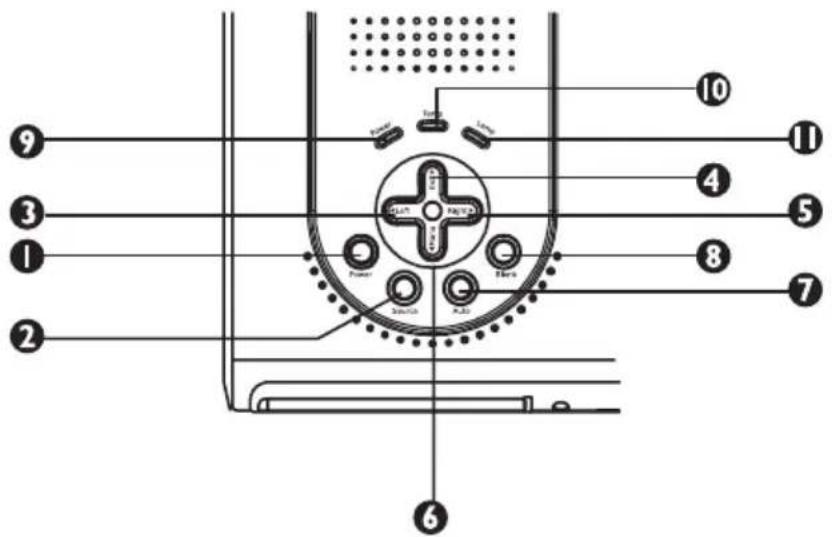

External Control Panel

10 11 4 5 8 7 6 3 1 2 Power Line Electrolyte Power Line Electrolyte

① Power

Presses the Power key to turn the projector on or off.

② Source

Selects signal sources from among RGB-I, RGB-2, YPbPr, S-Video and Video.

③ Left ④ kit Rig5t Menu6

Menu will display the menu system on screen. Press Menu again to access the sub-menus. Left and Right help you navigate among choices and settings in the menus and sub-menus. However, when the on-screen menu is not activated, the Left and Right buttons will function as Keystone -/+ hot keys. Press the Exit button to go back to the main menu. Press Exit again to leave the menu system.

7 Auto

Automatically determines the best picture settings for current received signals.

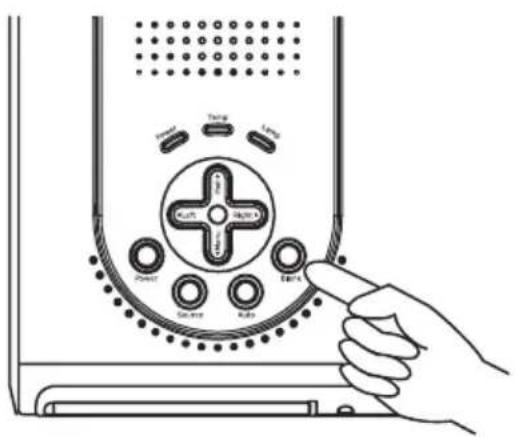

⑧ Blank

Uses Blank to hide the screen image. You can unseal the image gradually by using the mouse of the remote control, or simply press Blank to turn on the image immediately.

⑨ Power indicator

It will light up or flash when the projector is under operation.

10 Temp indicator

The Temp indicator will flash when the system temperature is too high, which may occur if the projector is operated improperly. See "Temp Information" on page 24 for more detailed information.

11 Lamp indicator

The Lamp Indicator will light up when the lamp needs service or replacement. See “Lamp Information” on page 22 for more detailed information.

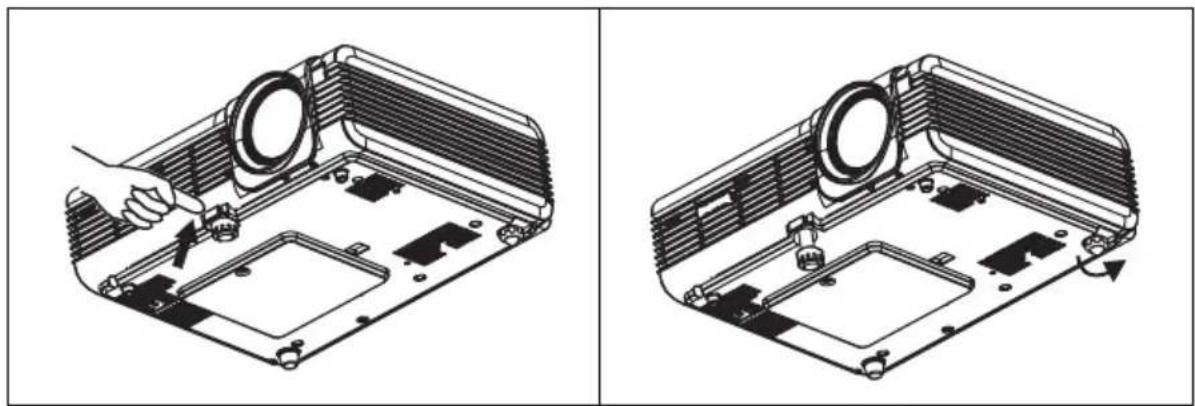

Adjuster

The projector is equipped with I quick-release adjuster foot. Push the button to adjust its tilt angle.

I. Lift the projector up and press the adjuster button to release the adjuster.
2. The adjuster will drop into position and be locked.

Two technical diagrams showing a hand inserting a fan into a device casing, with no visible text or symbols.

Projector Features

The projector integrates high-performance optical engine projection and a user-friendly design to deliver high reliability and ease of use.

The projector offers the following features:

• Small and light for portability
  • Full-function remote control with laser pointer/ remote mouse function
  • High quality manual zoom lens
  • One-key auto-adjustment to display the best picture quality
  • Digital keystone correction to correct distorted images
• Adjustable color balance control for data/video display
  • Ultra-high brightness projection lamp
• Ability to display 16.7 million colors
• On-screen menus in 8 languages: English, French, German, Italian, Spanish, Korean, Traditional Chinese and Simplified Chinese.
• Switchable Normal/ Economic mode to adjust the power consumption
• Powerful AV function to provide high quality AV picture
  • HDTV compatibility (YP bPr)

Note: The brightness of the projected image will vary depending on the ambient lighting conditions and contrast/brightness settings.

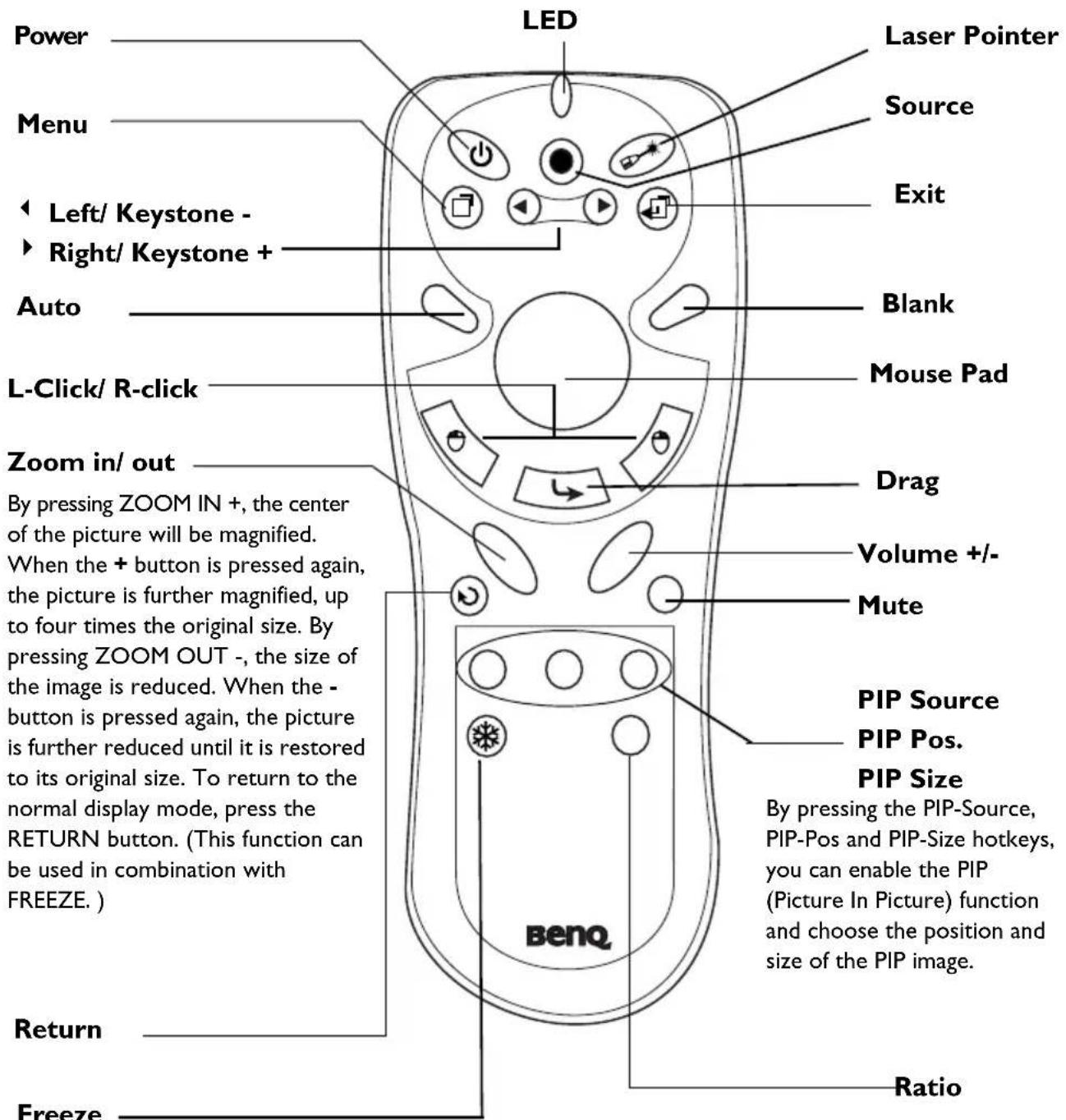

Remote Control Description

Power Menu Left/ Keystone - Right/ Keystone + Auto L-Click/ R-click Zoom in/ out By pressing ZOOM IN +, the center of the picture will be magnified. When the + button is pressed again, the picture is further magnified, up to four times the original size. By pressing ZOOM OUT -, the size of the image is reduced. When the - button is pressed again, the picture is further reduced until it is restored to its original size. To return to the normal display mode, press the RETURN button. (This function can be used in combination with FREEZE.) Return Freeze LED Laser Pointer Source Exit Blank Mouse Pad Drag Volume +/- Mute PIP Source PIP Pos. PIP Size By pressing the PIP-Source, PIP-Pos and PIP-Size hotkeys, you can enable the PIP (Picture In Picture) function and choose the position and size of the PIP image. Ratio

The image is frozen when FREEZE is pressed. A "Pause" icon will appear in the lower right corner of the screen. To stop the freeze function, press the FREEZE button, RETURN button or SOURCE button (when the input source is switched over during display) again.
By pressing the Ratio hotkey, you can select the screen aspect ratio you prefer: 4:3,16:9 or 1:1.

Remote Control Effective Range

The remote sensors are located on the front and the back of the projector. It can function in a range of 30 degrees horizontally and 30 degrees vertically relative to a line that is a right angle to the remote sensors. The distance between the remote control and the remote sensors must be shorter than 6 meters (19.5 feet).

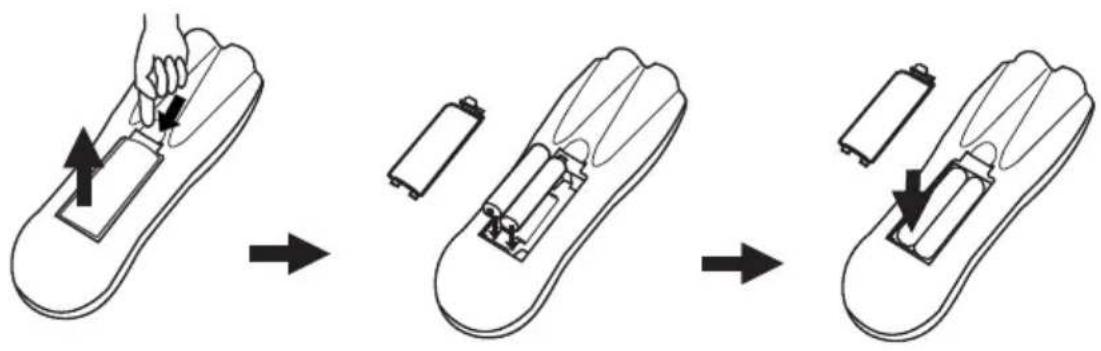

Installing or Replacing Batteries

1 Push and open the battery compartment lid in the direction shown.

② Install batteries as indicated by the diagram inside the compartment.

③ Position the lid over the compartment and snap it back into place.

Diagram illustrating battery charging process with hand placement, battery holder, and battery pack components

Caution

Avoid excessive heat and humidity. There may be danger of an explosion if batteries are incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.

INSTALLATION

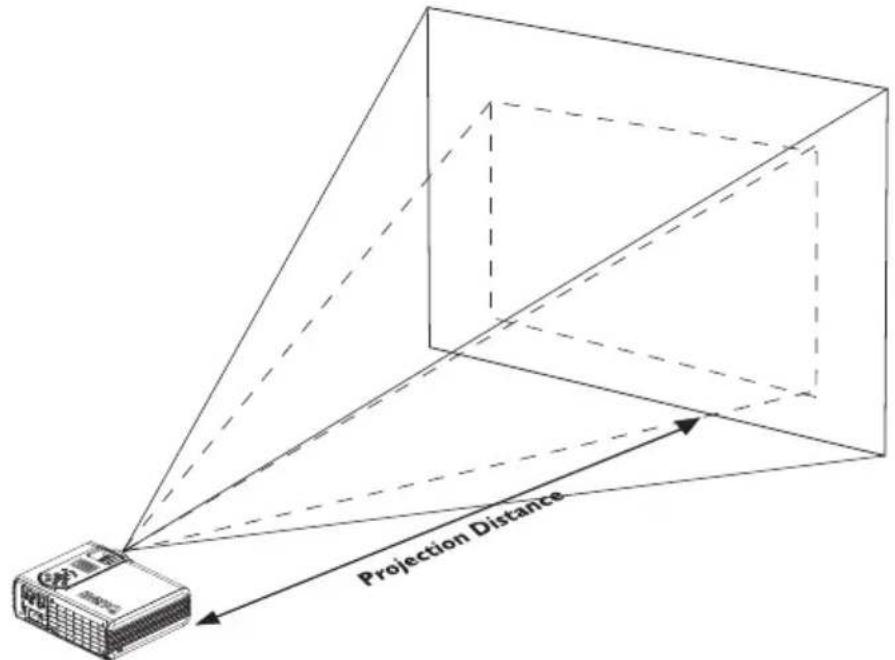

Screen Size

Place the projector at the required distance from the screen according to the desired picture size (see the table below).

Projection Distance

• PB7200/ PB7220 (XGA) screen size chart

Distance from screen		Diagonal measurement				Distance from screen		Diagonal measurement
		Minimum zoom		Maximum zoom				Minimum zoom		Maximum zoom
feet	inches	feet	inches	feet	inches	meters	cm	meters	cm	meters	cm
4 48	2.49 29	9.9 3.05	36.6 1	100 0.62	62.2 0.76	76 76.2
6 72	3.73 44	4.8 4.57	54.9 1.5	150 0.93	93 93.3	1.14 114.3
8 96	4.98 59	7.6 10	73.2 2	200	1.24 124.5	1.52 152.4
10	120	6.22	74.7	7.62	91.4	2.5	250	1.56	155.6	1.91	190.5
12 144	7.47	89.6	9.14 10	9.7	3 300	1.87 186.7	2.29 228.6
14	168	8.71	104.5	10.67	128.0	3.5	350	2.18	217.8	2.67	266.7
16	192	9.96	119.5	12.19	146.3	4	400	2.49	248.9	3.05	304.8
18	216	11.20	134.4	13.72	164.6	4.5	450	2.80	280.0	3.43	342.9
20	240	12.45	149.4	15.24	182.9	5	500	3.11	311.2	3.81	381.0
22	264	13.69	164.3	16.76	201.2	5.5	550	3.42	342.3	4.19	419.1
24	288	14.94	179.2	18.29	219.5	6	600	3.73	373.4	4.57	457.2
26	312	16.18	194.2	19.81	237.7	6.5	650	4.04	404.5	4.95	495.3
28	336	17.42	209.1	21.34	256.0	7	700	4.36	435.6	5.33	533.4
30	360	18.67	224.0	22.86	274.3	7.5	750	4.67	466.7	5.72	571.5
32	384	19.91	239.0	24.38	292.6	8	800	4.98	497.8	6.10	609.6

• PB7100 (SVGA) screen size chart

Distance from screen		Diagonal measurement
		Minimum zoom		Maximum zoom
feet	inches	feet	inches	feet	inches
4 48	1.96 23	.5 2.40	28.7 | 1	00	0.49 4
6	72	2.93	35.2	3.59	43.1
8 96	3.91 47	.0 4.79	57.5 2 2	00	0.98 97.8
10	120	4.89	58.7	5.99	71.9
12	144	5.87	70.4	7.19	86.2
14	168	6.85	82.2	8.39	100.6
16	192	7.83	93.9	9.58	115.0
18	216	8.80	105.7	10.78	129.4
20	240	9.78	117.4	11.98	143.7
22	264	10.76	129.1	13.18	158.1
24	288	11.74	140.9	14.37	172.5
26	312	12.72	152.6	15.57	186.9
28	336	13.70	164.3	16.77	201.2
30	360	14.67	176.1	17.97	215.6
32	384	15.65	187.8	19.17	230.0

Distance from screen		Diagonal measurement
		Minimum zoom		Maximum zoom
meters	cm	meters	cm	meters	cm
9 0.60 5	9.9
1.5	150	0.73	73.4	0.90	89.8
1.20 119.8
2.5	250	1.22	122.3	1.50	149.7
3	300	1.47	146.7	1.80	179.7
3.5	350	1.71	171.2	2.10	209.6
4	400	1.96	195.7	2.40	239.6
4.5	450	2.20	220.1	2.70	269.5
5	500	2.45	244.6	2.99	299.5
5.5	550	2.69	269.0	3.29	329.4
6	600	2.93	293.5	3.59	359.4
6.5	650	3.18	317.9	3.89	389.3
7	700	3.42	342.4	4.19	419.3
7.5	750	3.67	366.8	4.49	449.2
8	800	3.91	391.3	4.79	479.1

Connecting to Various Equipment

HDTV Equipment

The projector is capable of displaying various High Definition TV display modes. Some of these sources are:

• Digital-VHS (D-VHS) player
- DVD player
- Satellite Dish HDTV receiver
- DTV tuners

Most of these sources will provide an analog component video output, a standard VGA output, or a YPbPr (default) format.

The projector is capable of accepting HDTV data through a YPbPr connector. Use a HDTV cable that came with your projector to display HDTV images.

The following standards are supported in the HDTV function:

• 480i
• 480p
• 720p
• 1080i

Please refer to "Menu System" on page 15 for information on the HDTV OSD selections.

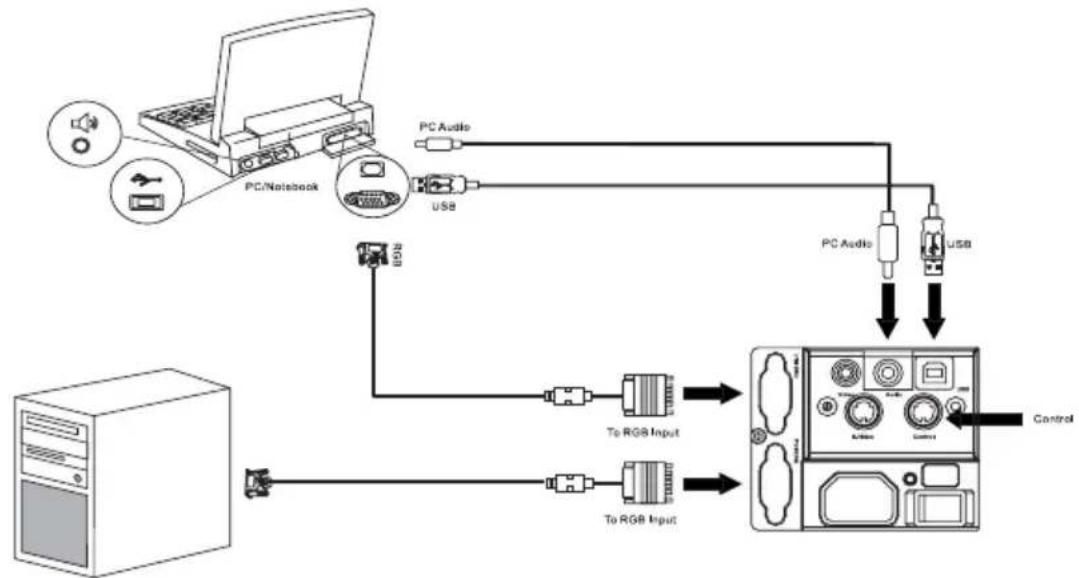

Connecting to Various Equipment

It only takes a few seconds to connect your projector to your desktop or notebook computer, VCR, or other systems. However, a Mac adapter (an optional accessory) is needed for connection to Macintosh computers.

I. Notebook/ Computer (Macintosh computer or SOG signal is only supported with RGB IN-I.)

The USB cable is not needed unless you have a remote control with mouse functions.

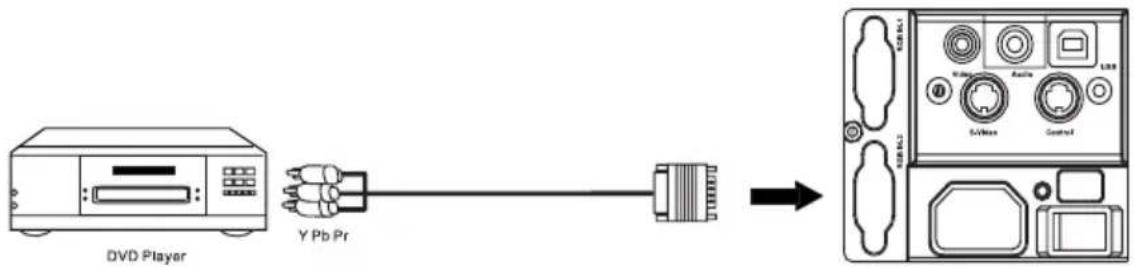

1. DVD player or HDTV can only support with RGB IN-2.

DVD Player Y Pb Pr USB RAM USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB USB

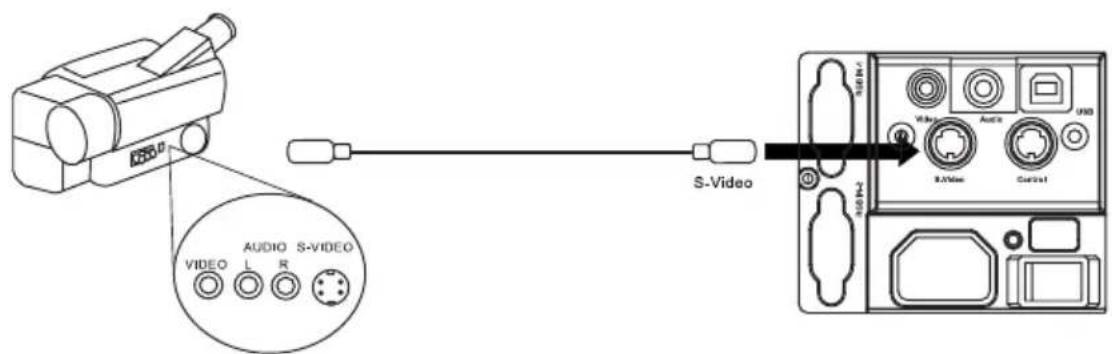

1. S-video device

S-Video AUDIO S-VIDEO VIDEO L R USB Audio S-Video Control

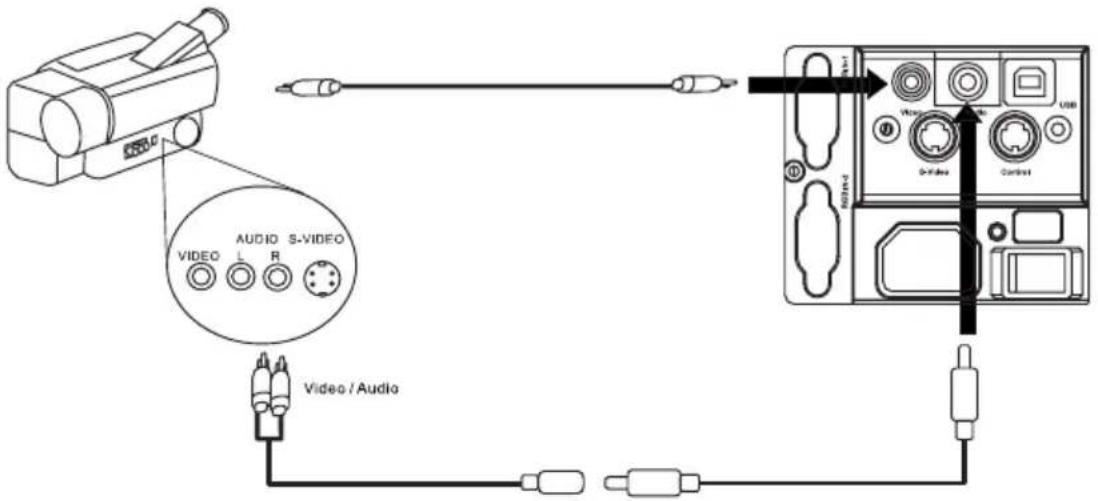

1. Video device or VCR


VIDEO AUDIO S-VIDEO L R Video / Audio USB S-Video Control

OPERATION

Start Up

I. Plug the power cord into the projector and into a wall socket.

Simple line drawing showing a plug connected to a power outlet (no text or symbols)

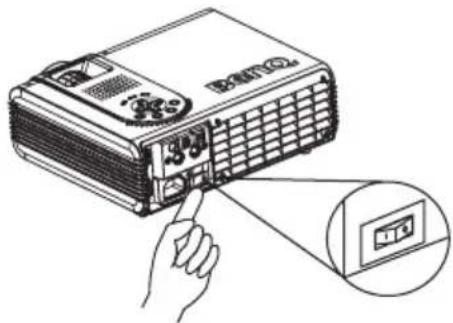

1. Turn on the main power switch.

Illustration of a projector with a hand inserting a pin, showing internal components and an inset view of the next pin (no text or symbols present)

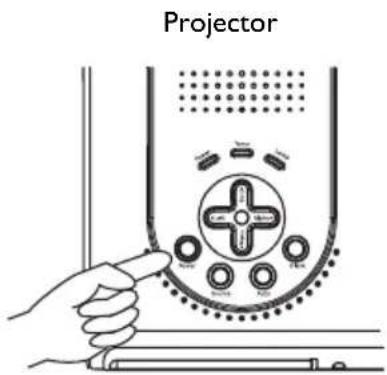

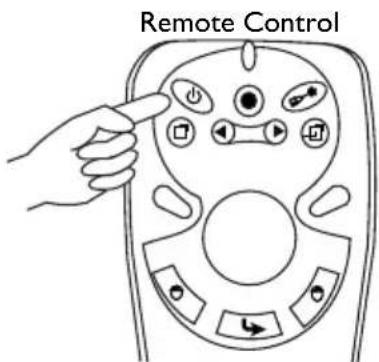

1. Press and hold POWER to start the unit. The back-lit POWER key flashes green and stays green when the power is turned on.

Projector

Remote Control

(When the power is turned off, there is a 90-second cooling period before the projector can be re-started.)

1. Switch on all connected equipment.

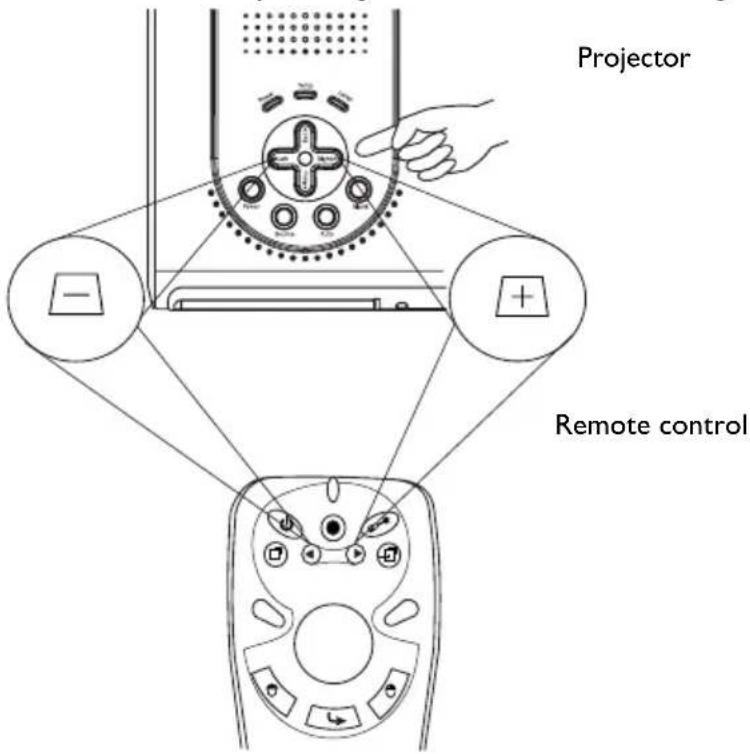

Digital Keystone Correction

Keystoning refers to the situation where the projected image is noticeably wider at either the top or bottom. To correct this, press Left/Right (hot key) on the control panel of the projector or KEYSTONE / / on the remote control, and then adjust the sliding bar labeled Keystone, as needed. Press + to correct keystoning at the top of the image. Press - to correct keystoning at the bottom of the image.

Projector + - + Remote control

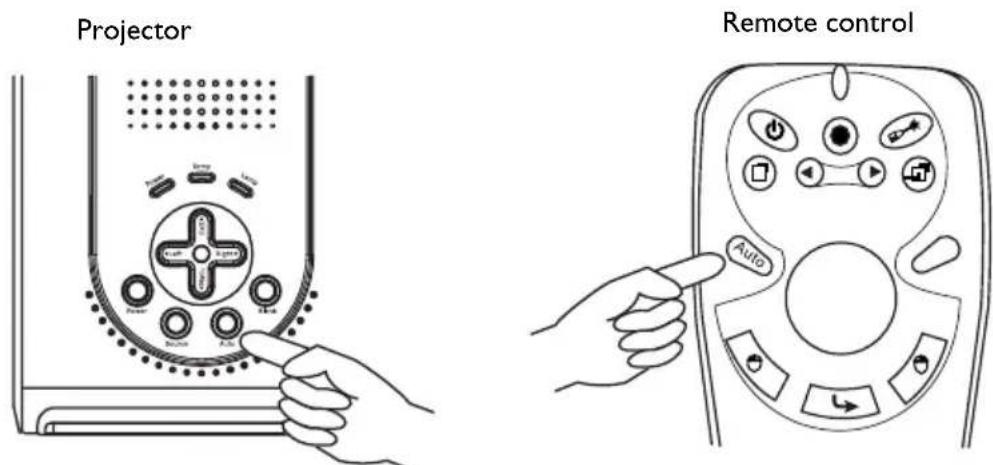

Auto Adjustment

In some cases, you may need to optimize the picture quality. To do this, press the AUTO key on the control panel of the projector or on the remote control. Within 3 seconds, the built-in Intelligent Auto Adjustment function will re-adjust settings to provide the best picture quality.

Projector Remote control Auto

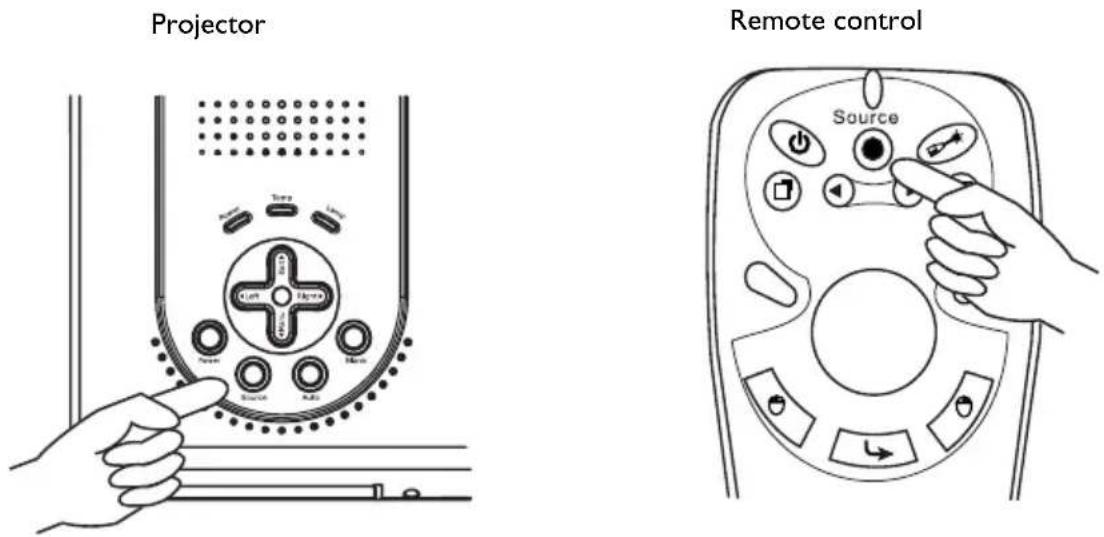

Source Selection

When several input sources are available, press the SOURCE key to make a selection from the control panel of the projector or the remote control.

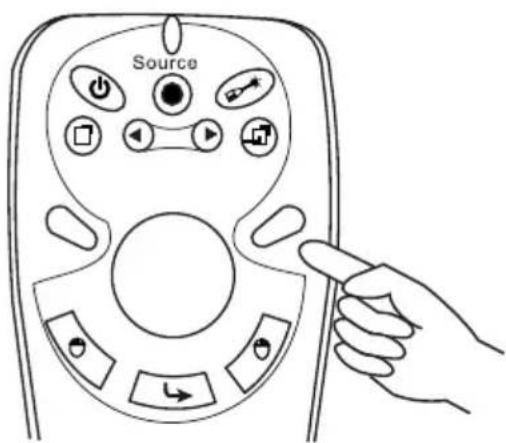

Blank

Uses Blank to hide the screen image. You can unseal the image gradually by using the mouse of the remote control, or simply press Blank to turn on the image immediately.

Projector

Diagram of a handheld device with labeled buttons and a hand pointing to the control panel

Remote control

Source

Menu System

Press Menu for the main menu, and then press ◀ or ▶ to select a sub-menu. Press Menu again to select items in the sub-menu.

Menu Bar
Sub-menu	Display Image Source Control PIP
PC	Keystone Brightness Contrast Phase H Size	Auto Resize H Position V Position Color Temp Information	Mirror Source Scan Volume Mute	Language OSD Setup Economic Mode Reset Lamp Hour	Main page:PIP SourcePIP SizePIP Pos.H PositionV PositionMore Options Sub Page:Brightness ContrastColorTintSharpness System
Y/Pb/Pr		Ratio Color Tint Color Temp
Video	Keystone Brightness Contrast Color Tint	Ratio System Sharpness Color Temp Information
S-Video

I. Display Menu

FUNCTION DESCRIPTION

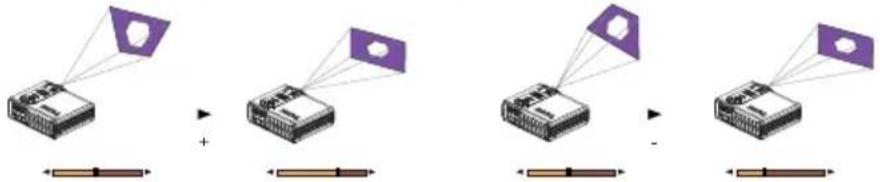

Keystone	Corrects any keystoning of the image.

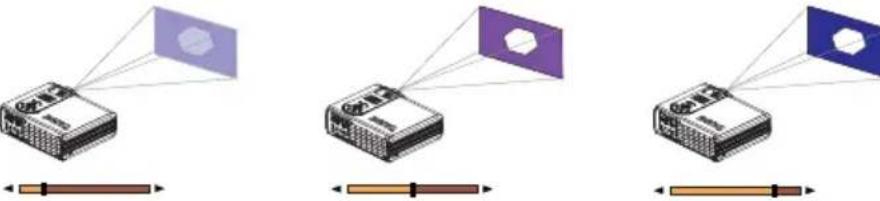

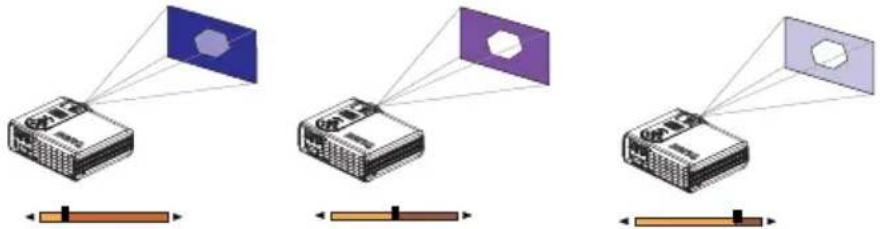

Brightness	Adjusts the brightness of the image.
Contrast	Adjusts the degree of difference between dark and light in the image.
Phase	Adjusts to avoid the occurrence of flicker.*This function is not available when the input mode is Video or S-Video.
H Size	Adjusts to fit in the desired image size.*This function is not available when the input mode is Video or S-Video.
Color	Increases or decreases the color range (R, G, B) of the image.*This function is not available when the input mode is PC.
Tint	Adjusts the image to make it appear more red or blue.*This function is not available when the input mode is PC.

2. Image Menu

FUNCTION DESCRIPTION
Auto Resize	Makes the best fit of the image to the screen,1. On 2. Off 3. 16:9*This function is available only when the input mode is PC .
Ratio	Users have 2 options for the image ratio.1. 4 : 3 2. 16 : 9*This function is available when the input mode is YPbPr, Video or S-Video.

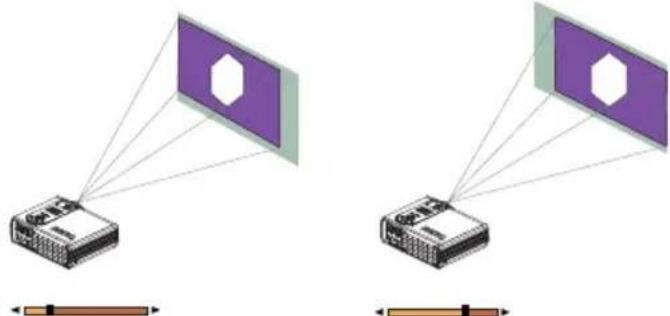

H Position	Adjusts the horizontal position of the projected image.*This function is available only when the input mode is PC.

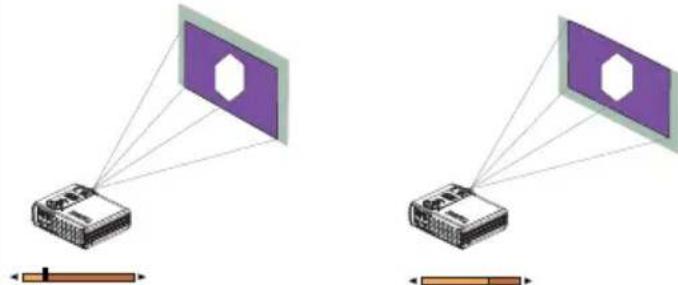

V Position	Adjusts the vertical positon of the projected image.*This function is available only when the input mode is PC.
Color Temp	Adjusts the color temperature to fit your preference.
Information	Shows the current resolution.
System	System information will be shown:1.NTSC 2. PAL 3.SECAM 4. YUV
Sharpness	Adjusts the image to make it look sharper or softer.*This function is not available when the input mode is PC or YPbPr.
Color	Increases or decreases the color range (R, G, B) of the image.*This function is not available when the input mode is PC.
Tint	Adjusts the image to make it appear more red or blue.*This function is available only when the selected System is NTSC.

3. Source Menu

FUNCTION DESCRIPTION
Mirror	1. Default3. Rear screen projection	2. Ceiling mounted projection4. Ceiling mounted and rear-screen projection
Source Scan	Shows the input source from among RGB-I, RGB-2, YPbPr, S-Video and Video when several sources are available.
Volume	Adjusts the volume level.
Mute	Off	On

1. Control Menu

FUNCTION DESCRIPTION
Language	Language sets the language for the OSD control menus.Use the ◀ / ▶ key to select the desired language from among English, French, German, Italian, Spanish, Korean, Traditional Chinese and Simplified Chinese.
OSD	OSD Pos.Selects a desired OSD position.
	OSD TimeSets the length of time the OSD will remain active after the last time you pressed the button. The range is from 5 to 60 seconds in 5-second increments.
Setup	Source ScanWhen selected, activates the Source scan function.
	Keystone HoldWhen selected, preserves the last keystone correction value even when the projector is restarted.
	Mirror HoldWhen selected, preserves the last mirror correction value even when the projector is restarted.
	Blank TimeDetermines the length of time before the projector is shut off when Blank is activated.
	Auto OffSets the length of time before the system is shut off when no input is detected.
	User LogoEnables the user to define his/her own logo screen that will display during strat-up. Three modes are available: Default (BENQ logo), black screen and blue screen.
Economic Mode	Selects Economic mode to lower brightness and extend the lamp life.
Reset	Returns all settings to their factory preset values.
Lamp Hour	Shows lamp usage time.

5. PIP Menu

These functions are available only when the input mode is PC and the PIP source is Video or S-Video.

FUNCTION DESCRIPTION
PIP Source	Selects the source for the PIP.
PIP Size	Enables use of the ◀ / ▶ key to scroll through the four alternatives: Off, Small, Medium, Large.
PIP Position	Selects a desired position for the PIP.
H Position	Adjusts the horizontal position of the PIP image.
V Position	Adjusts the vertical position of the PIP image.
More Options	Enables use of the ◀ / ▶ key to select more PIP functions including Brightness, Contrast, Color, Tint, Sharpness and System.
Brightness	Adjusts the brightness of the PIP image.
Contrast	Adjusts the degree of difference between dark and light for the PIP image.
Color	Increases or decreases the color range (R, G, B) of the image.
Tint	Adjusts the image to make it appear more red or blue.
Sharpness	Adjusts the image to make it appear sharper or softer
System	Shows PIP image systems: NTSC, PAL, SECAM

Shutdown

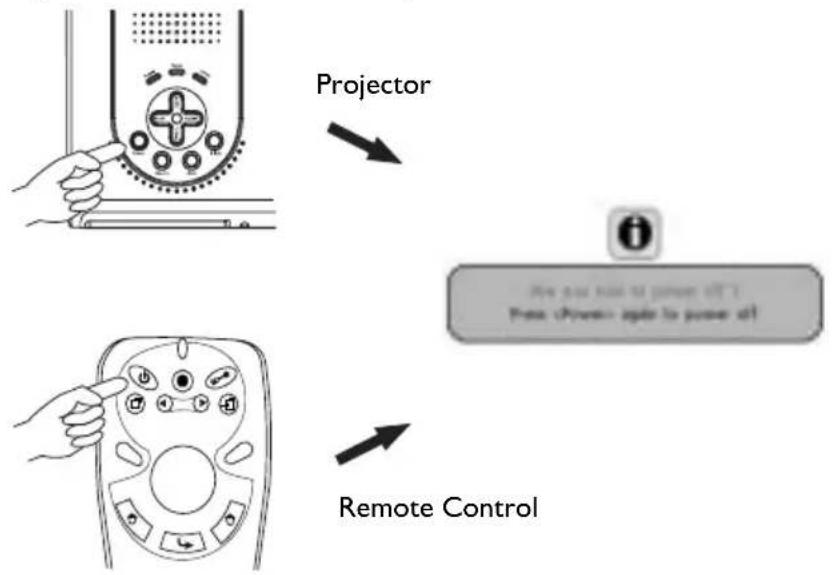

I. Press and hold POWER and a warning message will appear. To turn off the projector, press and hold POWER again.

1. The fan will continue to run for approximately 90 seconds.

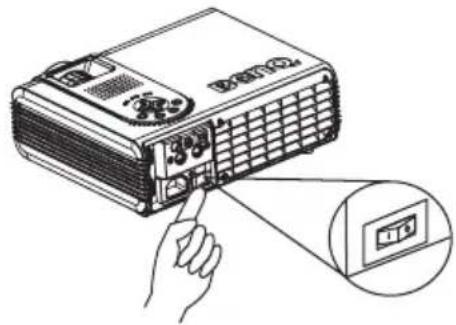

2. Turn off the main power switch.

Illustration of a projector with a hand inserting a pin, showing internal components and an inset view of the next button (no text or symbols present)

1. Disconnect the power cord from the wall socket.

Simple line diagram showing a plug being inserted into a terminal block (no text or symbols)

Caution

Please do not unplug the power cord before POWER is shut down or during the 90-second cooling process.

If the projector is not properly shut down, to protect the lamp, the system will detect this and cool the lamp for 90 seconds automatically before turning on again.

MAINTENANCE

Lamp Information

Use and Replacement of the Lamp

When the Lamp Indicator lights up red or a message appears suggesting the time of lamp replacement, please install a new lamp or consult your dealer. An old lamp could cause a malfunction in the projector and in rare instances may even break.

For more detailed information, please refer to "LED Indicator Status & Illustration" on page 24.

Caution

The Lamp and Temp indicators will light up if the lamp becomes too hot. Turn off the power and let the projector cool for 45 minutes. If the Lamp or Temp indicator still lights up when turning the power on, please contact your dealer.

Lamp Replacement

Caution

To reduce the risk of electrical shock, always turn off the projector and disconnect the power cord before changing the lamp.

To reduce the risk of severe burns, allow the projector to cool for at least 45 minutes before replacing the lamp.

To reduce the risk of injuries to fingers and damage to internal components, use caution when removing lamp glass that has shattered into sharp pieces.

To reduce the risk of injuries to fingers and/or compromising image quality by touching the lens, do not touch the empty lamp compartment when the lamp is removed.

This lamp contains mercury. Consult your local hazardous waste regulations to dispose of this lamp in a proper manner.

Step I. Turn off the projector. Disconnect the power cord from the outlet and the projector.

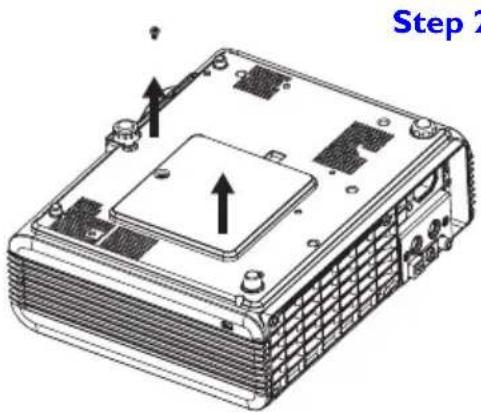

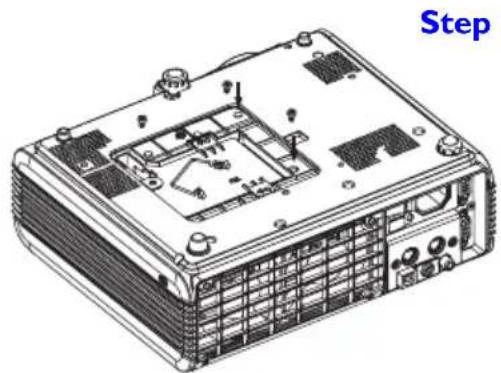

Step 2. Loosen the screw and remove the lamp cover. If the lamp is hot, avoid burns by waiting 45 minutes until the lamp has cooled.

3D technical diagram of a computer chassis with heat exchangers and mounting points (no text or symbols)

Step 3. Loosen the 3 screws. (It is strongly recommended that you use a magnetic-head screwdriver.) Pull the handle to remove the lamp housing. If the screws are not loosened completely, they could injure your fingers. Do not insert your hand into the box after the lamp is removed. If you touch the optical components inside, this could cause color unevenness in projected images.

Step 4. Replace the lamp with a new one. Insert it into the projector, and tighten the screws firmly. Loose screws may cause a bad connection, which may result in malfunction.

Step 5. Re-install the lamp cover and tighten the screw. Do not turn on the power with the lamp cover removed. Whenever the lamp is replaced, reset the total lamp operation time. Do not reset if the lamp is not replaced as this could cause damage.

Isometric line drawing of a server rack with internal components and mounting holes (no text or symbols)

Isometric technical diagram of an electronic device with labeled components and mounting points (no readable text or symbols)

Technical line drawing of an electronic device chassis with labeled 'Step' (no other text or symbols)

Resetting Lamp Hours

If you replace the lamp after 2000 hours of operation, please follow the instructions below within 10 minutes of powering on.

OSD FUNCTION
	Press and hold the Exit button on the projector for 3 seconds to display the total used lamp time.
	• Press the MENU button on the projector during the lamp hour message. An adjustment message will appear.• Press ◀ or ▶ to reset lamp hours or press EXIT to leave.

Temp Information

When the LED lights up, it is warning you of the following possible problems:

I. The internal temperature is too high.

1. The fans are not working.

Turn off the projector and contact qualified service personnel for further help.

For more detailed information, please refer to "LED Indicator Status & Illustration" on page 24.

LED Indicator Status & Illustration

Illustration

I. -: LED OFF
2. : LED blinking
3. : LED solid ON

LED Status &			Description
Power	Temp Lamp
Power events
			Power switch on
		-	Power-up cooling. Projector cooling system will auto-cool for 90 seconds when power was abnormal shutdown without cooling and power on again within hours.
		-	Stand-by
		-	Lamp LED is blinking during powering up.
		-	Power-down cooling for 90 seconds after power has been turned off.
		-	Normal operation
Lamp events
			Lamp spoil, it is warning you that lamp usage has exceeded 2000 hours. Replace the projection lamp with a new one immediately.
-	-		Lamp error, the lamp is not properly attached or lamp damaged. Please contact your dealer.
Thermal events
		-	Fan 1 error, projector will auto shutdown. If you return on the power, and projector shutdown again. Please contact your dealer.
			Fan 2 error, projector will auto shutdown. If you return on the power, and projector shutdown again. Please contact your dealer.
			Fan 3 error, projector will auto shutdown. If you return on the power, and projector shutdown again. Please contact your dealer.
		-	Thermal sensor 1 over-temperature, projector will auto shutdown. If you return on the power, and projector shutdown again. Please contact your dealer.
			Thermal sensor 2 over-temperature, projector will auto shutdown. If you return on the power, and projector shutdown again. Please contact your dealer.
			Thermal sensor 3 over-temperature, projector will auto shutdown. If you return on the power, and projector shutdown again. Please contact your dealer.
-		-	Thermal sensor 1 doesn’t work, projector will auto shutdown. If you return on the power, and projector shutdown again. Please contact your dealer.
-			Thermal sensor 2 doesn’t work, projector will auto shutdown. If you return on the power, and projector shutdown again. Please contact your dealer.
-			Thermal sensor 3 doesn’t work, projector will auto shutdown. If you return on the power, and projector shutdown again. Please contact your dealer.

Service Information

Accessories (included in the standard package)

Description .... Part Number

Signal cable.... 50.J0508.502

Video cable. 50.J1303.501

S-Video cable 50.72920.011

RCA R/W audio cable 50.J1311.001

PC - PC audio cable 50.74405.501

Soft carry case....98.J7201.001

HDTV cable....50.J2401.001

USB mouse cable 50.73213.501

Remote control 98.J3401.011

Alternative Accessories

Power cord (for the US) .....27.01818.000

3-2 converter(for the US).... 22.91007.001

Power cord (for EU countries) .....27.82718.281

Power cord (for UK).... 27.01018.000

Optional Accessories (not included in the standard package)

Description of parts .... Part number

Mac adapter (switchable) .....20.20118.A15

250W lamp module 65.J4002.001

Ceiling mount kit 60.J76|15.001

Ordering Parts or Getting Information

For product information, product assistance, service information, or to order accessories, please visit the BENQ Corporation website at http://www.BenQ.com.

TROUBLESHOOTING

Common Problems & Solutions

NO POWER

Try these solutions:

• Make sure the power cord is inserted snuged into the AC adapter socket.
• Make sure the power cord is inserted snuged into the power outlet.
• Toggle the power switch to the position "I".
• Wait two minutes after the projector is turned off before turning the projector back on.

NO PICTURE

Try these solutions:

• Check for the proper input source.
• Ensure all cables are connected properly.
• Adjust the brightness and contrast.
• Remove the lens cap.

TRAPEZOID IMAGE ON THE SCREEN

Try these solutions:

• Reposition the unit to improve its angle on the screen.
• Use the Keystone correction key on the control panel of the projector or the remote control unit.

POOR COLOR

Try these solutions:

• Select the correct video system.
• Adjust brightness, contrast, or saturation.

BLURRED IMAGE

Try these solutions:

• Press Auto on the control panel of the projector or the remote control unit to get better picture quality.
• Adjust the focus.
• Reposition the unit to improve its projection angle.
• Ensure the distance between the unit and screen is within the adjustment range of the lens.

REMOTE CONTROL DOES NOT WORK

Try these solutions:

• Replace the batteries with new ones.
• Make sure there is no obstacle between the remote control and the projector.
• Stand within 6 meters (19.5 feet) of the projector.
• Make sure nothing is blocking the front and rear receivers.

Status Messages

On-Screen Messages Description

SEARCHING

Projector is searching for input.

ACQUIRING SIGNAL

Projector has identified the input signal and is running the auto image adjustment function.

OUT OF RANGE

Input signal frequency exceeds the projector's range.

LAMP WARNING - CHANGE LAMP AND RESET LAMP TIMER!

The lamp has been in operation for 1900 hours. Install a new lamp for optimal performance.

OUT OF LAMP USAGE TIME. YOU HAVE TO CHANGE THE LAMP!

The lamp has been in operation for 1980 hours, and the power will turn off after 20 hours.

OUT OF LAMP USAGE TIME. CHANGE THE LAMP!

The lamp has been in operation for over 2000 hours. The warning message will display for 30 seconds every 5 minutes after you turn on the projector and the power will turn off automatically after 10 minutes.

SPECIFICATIONS

Projector Specifications

Technical Specifications

Note: All specifications are subject to change without notice.

General

Product name Personal Projector

Model name PB7200

1024X768 XGA

PB7220

1024X768 XGA

PB7100

800X600 SVGA

Optical

Display system I-CHIP DMD

Lens F/Number F/2.6

Lamp 250W UHP lamp

Electrical

Power supply AC100 \~ 240V, 4.0A, 50/60 Hz (Automatic)

Power consumption 330W (Max)

Mechanical

Dimensions 258 mm (W) × 80 mm (H) × 211.5 mm (D)

Operating temperature

10^ C 40^ C

range

Weight 5.6 lbs (2.5 Kg)

Input terminal

Computer input

RGB input - I D-sub 15-pin (female)

RGB input - 2 D-sub 15-pin (female)

Video signal input

S-VIDEO Mini DIN 4-pin port x1

VIDEO RCA jack x1

HDTV signal input

D-sub <--> YPbPr RCA jack x3

Audio signal input

Audio I

Mini jack stero port

Output

USB mouse connector

A/B series x1

Speaker

2 watt x l

Control

RS-232C

9-pin x1

Timing Chart

Resolution H Sync (kHz) V Sync (Hz) Remark
640x350 31.5 70.1
640x400 37.9 85.1	VESA
720x400 31.5 70.0
720x400 37.9 85.1	VESA
640x480 31.5 60.0	VESA
640x480 37.9 72.8	VESA
640x480 35 66.7 Macintosh
640x480 43.3 85.0	VESA
800x600 35.2 56.3	VESA
800x600 37.9 60.3	VESA
800x600 46.9 75.0	VESA
800x600 48.1 72.2	VESA
800x600 53.7 85.1	VESA
832x624 49.7 74.5	Macintosh
1024x768 48.4 60.0	VESA
1024x768 56.5 70.1	VESA
1024x768 60.0 75.0	VESA
1024x768 68.7 85.0	VESA
1280x1024 64.0 60.0	VESA

DIMENSIONS

Unit: mm

WARRANTY

Limited Warranty

BENQ warrants this product against any defects in material and workmanship, under normal usage and storage.

Exclusion to Warranty: The lamps are considered a consumable item and are warranted for 90 days or 500 hours, whichever occurs first. Proof of purchase date will be required with any warranty claim. In the event this product is found to be defective within the warranty period, BENQ's only obligation and your exclusive remedy shall be replacement of any defective parts (labor included). To obtain warranty service, immediately notify the dealer from which you purchased the product of any defects.

Important: The above warranty shall be void if the customer fails to operate the product in accordance with BENQ's written instructions. This warranty gives you specific legal rights, and you may have other rights which vary from country to country.

For other information, please refer to BenQ Warranty Information Book.

SAFETY REGULATIONS

FCC Statement

CLASS A: This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instruction manual, may cause interference to radio communications. It has been tested and found to comply with the limits for a Class “A” computing device pursuant to Subpart B of Part 15 of the FCC Rules, which are designed to provide reasonable protection against such interference when operated in a commercial environment. Operation of this equipment in a residential area is likely to cause interference, in which case the user at his/her own expense will be required to take whatever measures may be required to correct the interference.

CLASS B: This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

— Reorient or relocate the receiving antenna.
— Increase the distance between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.

EEC Statement

This machine was tested against the 89/336/EEC (European Economic Community) for EMC (Electro Magnetic Compatibility) and fulfills these requirements.
