LU9245 - Projector BENQ - Free user manual and instructions

Product Type	Video projector
Brand	BenQ
Model	LU9245
Display System	Single-chip DLP
Native Resolution	1920 x 1200 (WUXGA)
Light Source	Laser diodes
Power Supply	AC 100-240V, 50/60 Hz, 7.0A
Power Consumption	700W (max), <0.5W (standby)
Weight (without lens)	52.8 lbs (24 kg)
Lens Shift (Vertical)	-15% to +55%
Lens Shift (Horizontal)	-5% to +5%
Keystone Correction	2D (horizontal and vertical)
3D Support	DLP Link, VESA 3D, frame sequential, top-bottom, side-by-side
Input Connections	HDMI (2), DVI-D, VGA (2), BNC (5), HDBaseT, Video (RCA), 3D Sync In, LAN, RS-232 (In/Out), USB
Output Connections	Monitor Out (VGA), Audio Out (RCA), 3D Sync Out, 12V Trigger, Wired Remote Out
Network Control	RJ45 LAN, HDBaseT, AMX Device Discovery
Built-in Speaker	10W x 2 (stereo)
Operating Temperature	0°C to 40°C at sea level
Filter Maintenance	Clean/replace side and front filters
Safety	Laser Class 3R (USA) / Class 1 (WW), interlock switches

Frequently Asked Questions - LU9245 BENQ

How do I turn on the BenQ LU9245 projector?

Press the POWER button on the projector or the ON button on the remote control. The POWER indicator light flashes green and then stays green when the projector is on. Wait about 30 seconds for startup.

How do I adjust keystone distortion?

Go to the OSD menu under Display > 2D Keystone. Use the arrow keys to correct horizontal and vertical distortion. You can also press KEYSTONE+/- on the remote control.

How do I clean or replace the air filter?

Turn off the projector and unplug the power. Clean the filter with a vacuum cleaner. If heavily clogged, replace the filter. For side filter, loosen screws, flip cover, remove module, replace with new one. For front filter, similar process. After replacement, reset the filter timer in System Setup: Basic > Operation Settings > Filter Settings.

How do I install or remove an optional lens?

Turn off the projector, wait for cooling fans to stop, and disconnect power. To install, remove end caps, orient the lens with arrow upward, push into lens mount, rotate clockwise until it clicks. To remove, press LENS RELEASE button, rotate counterclockwise, then pull out slowly.

How do I connect the projector to a network?

Connect an Ethernet cable from your network to the LAN port on the projector. Go to System Setup: Advanced > Network Settings to configure IP address (DHCP or static). You can also use HDBaseT for combined video and network control.

How do I enable 3D mode?

Press 3D MODE on the remote control or go to Display > 3D in the OSD menu. Set 3D Sync Mode to DLP Link or VESA 3D, then choose the appropriate 3D Mode (Auto, Top-Bottom, Frame Sequential, etc.). Ensure your content and glasses are compatible.

What should I do if there is no picture?

Check that the video source is on and connected correctly. Verify the input source is selected properly using the SOURCE key. Ensure the lens cap is removed and the projector is not in blank mode. If using a PC, try pressing AUTO to adjust the image timing.

How do I reset all settings to factory defaults?

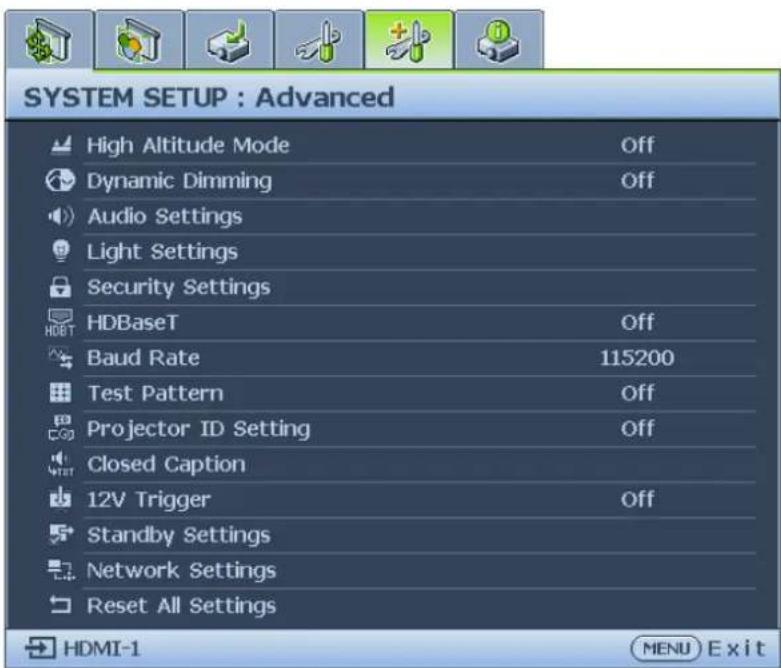

Go to System Setup: Advanced > Reset All Settings and press ENTER. A confirmation message will appear; select Reset to restore all settings to default values. This will not affect user-specific picture modes.

How do I use the remote control with multiple projectors?

Set a unique Projector ID for each projector in System Setup: Advanced > Projector ID Setting. On the remote, press ID SET for 3 seconds, then enter the desired ID (01-99). The remote will only control the projector with matching ID. To control all, press CLEAR and ID SET for 5 seconds.

How do I check the light source usage time?

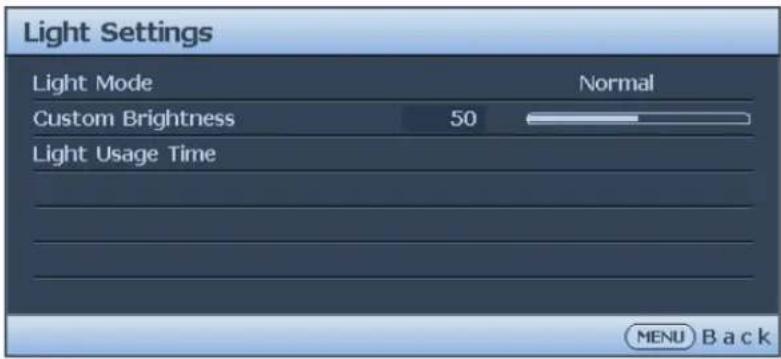

Go to Information menu or System Setup: Advanced > Light Settings > Light Usage Time. The display shows total hours used, and breakdown by mode (Normal, Economic, Dimming, Custom).

USER MANUAL LU9245 BENQ

Copyright and disclaimer

Copyright

Copyright 2019 BenQ Corporation. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of BenQ Corporation. All other logos, products, or company names mentioned in this manual may be the registered trademarks or copyrights of their respective companies, and are used for informational purposes only.

Disclaimer

BenQ Corporation makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Further, BenQ Corporation reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation of BenQ Corporation to notify any person of such revision or changes.

This user manual aims to provide the most updated and accurate information to customers, and thus all contents may be modified from time to time without prior notice. Please visit http://www.benq.com for the latest version of this manual.

Statement regarding hyperlinks and third-party websites

BenQ is not responsible for the content of the websites or of similar resources, which are maintained and controlled by third parties, that may be linked from this product. Providing links to those websites or to similar resources does not mean that BenQ makes any warranty or representation to their content by expression or by implication.

Any third party content or service preinstalled in this product is provided "as is". BenQ does not, by expression or by implication, make any warrant to the content or to the services provided by third parties. BenQ does not warrant or guarantee that the content or services provided by third parties are accurate, effective, most up-to-date, legal, or complete. Under no circumstances shall BenQ be liable for the content or services provided by third parties including their negligence. Services provided by third parties may be terminated temporarily or permanently. BenQ does not warrant or guarantee that the any content or services provided by third parties are in good condition at any time, and is not liable for the termination of the said content and services. In addition, BenQ is not involved in any transactions you conduct in the websites or similar resources maintained by third parties.

You should contact the content or service providers for any questions, concerns, or disputes.

Table of Contents

Copyright and disclaimer 2

Copyright....2

Disclaimer 2

Statement regarding hyperlinks and third-party websites 2

Important safety instructions....6

General safety instruction....6

Notice on laser....7

Laser class....7

Laser parameters 7

Label instruction 8

Laser light instruction....9

Prepare for installation....10

Caution for installation....10

Cooling notice 11

Package contents 13

Standard packing items 13

Lens information.... 13

Introduction...... 14

Projector exterior view....14

Front and upper side view 14

Rear and upper side view.... 14

Controls and functions.... 15

Control panel....15

Control terminal....16

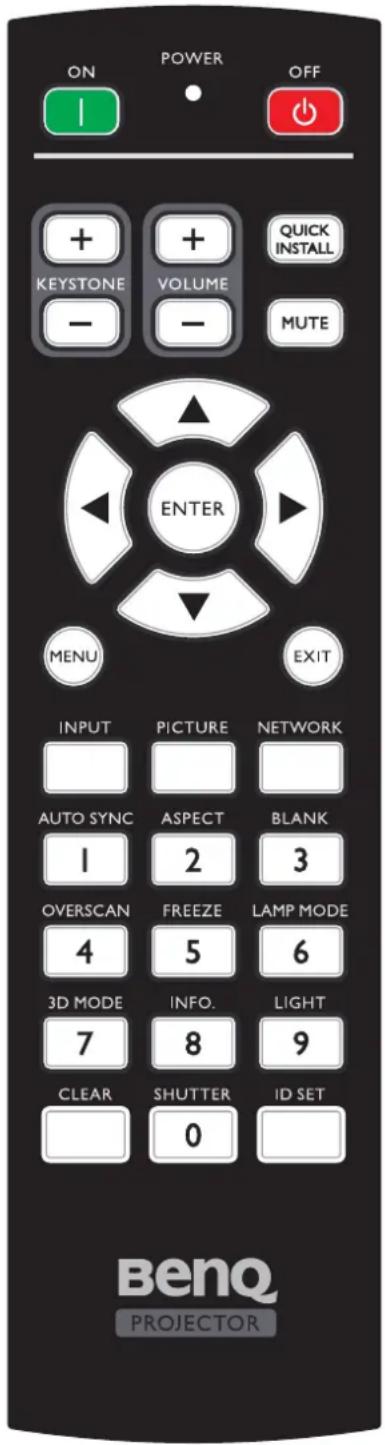

Remote control....17

Installation 21

Installing removing the optional lens 21

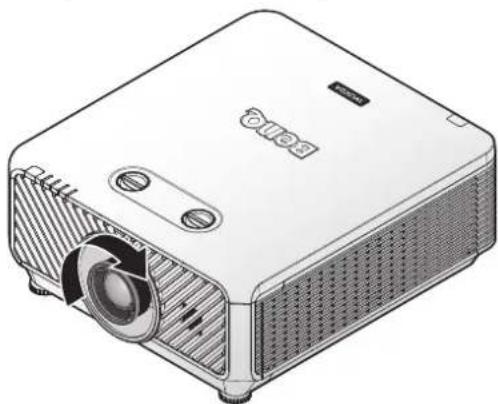

Installing the new lens....21

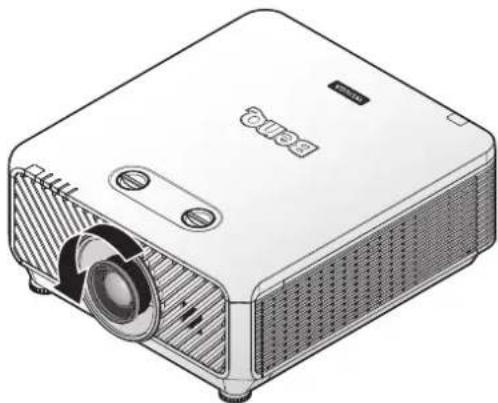

Removing the existing lens from the projector 22

Evaluate for distance by image size....23

Obtaining a preferred projected image size 23

Projection dimensions.... 23

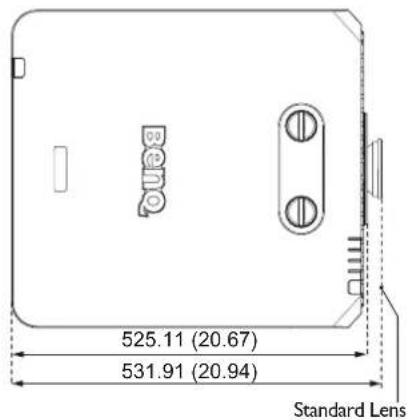

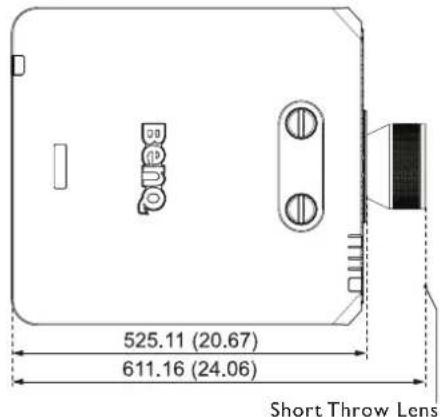

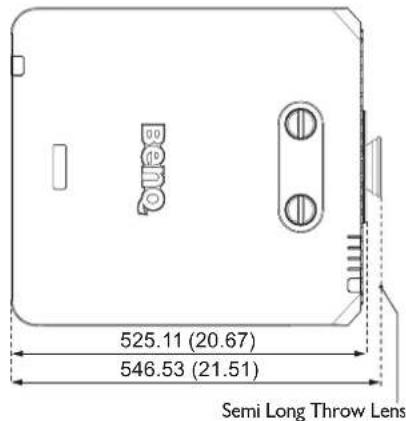

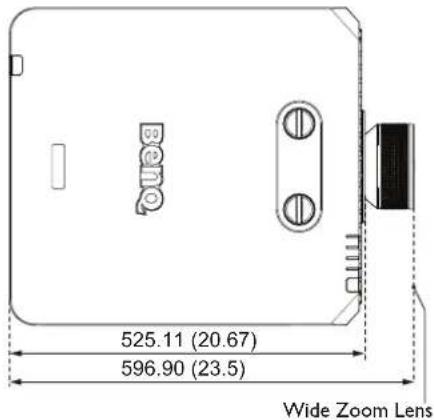

Lens dimension....25

Adjusting by Lens shift 26

Adjusting the vertical image position 26

Adjusting the horizontal image position.... 26

Lens shift range diagram....27

Adjusting the Zoom/Focus 27

Connection 28

Before connecting....28

Connecting with AV equipment 30

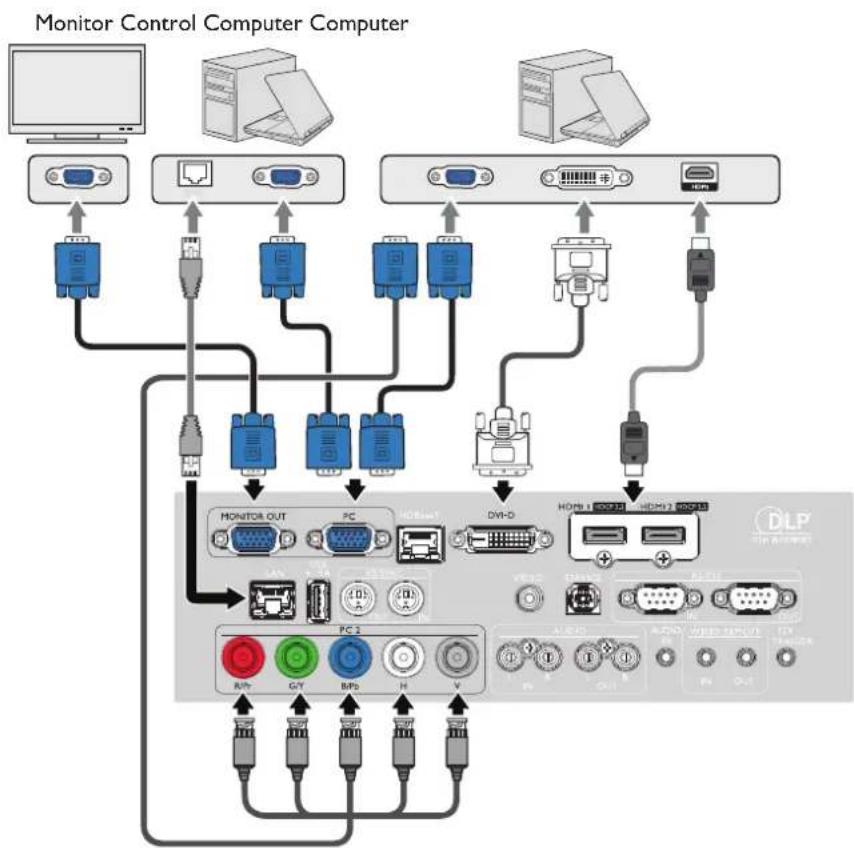

Connecting with computer 30

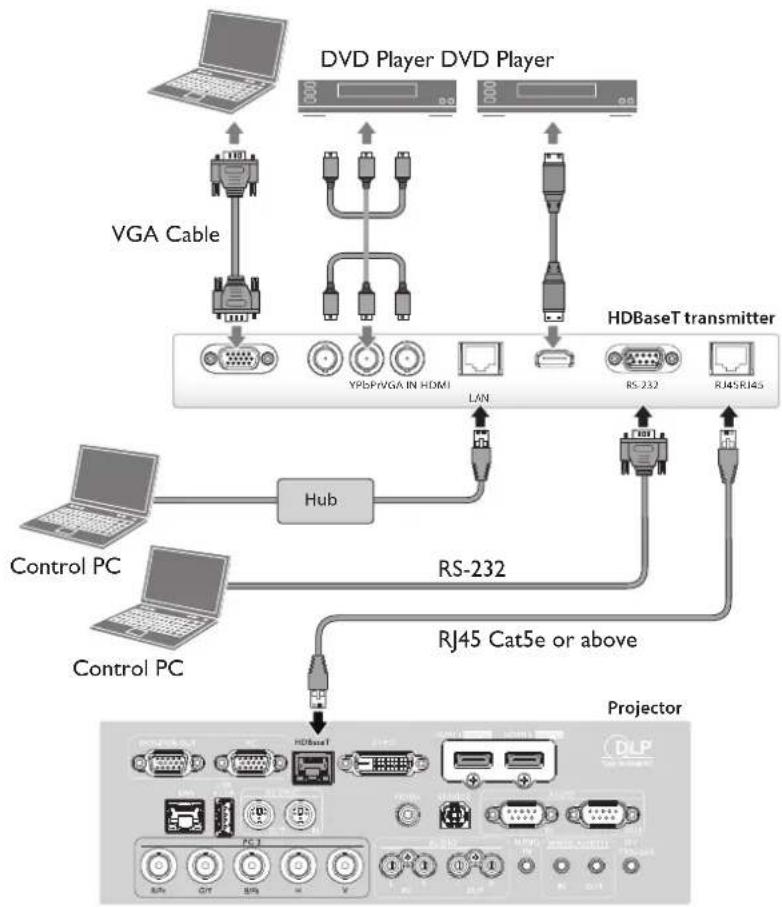

Connecting with HDBaseT transmitter 31

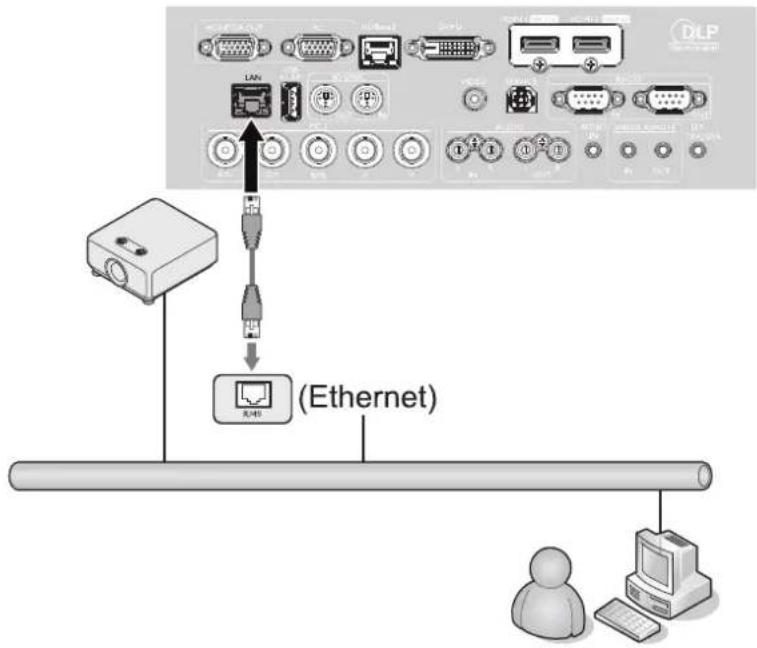

Connecting with LAN....31

Operations 32

Switch on/off the projector.... 32

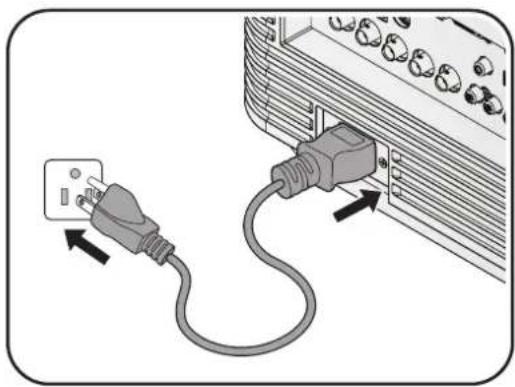

Connecting the power cord....32

Power indicator 32

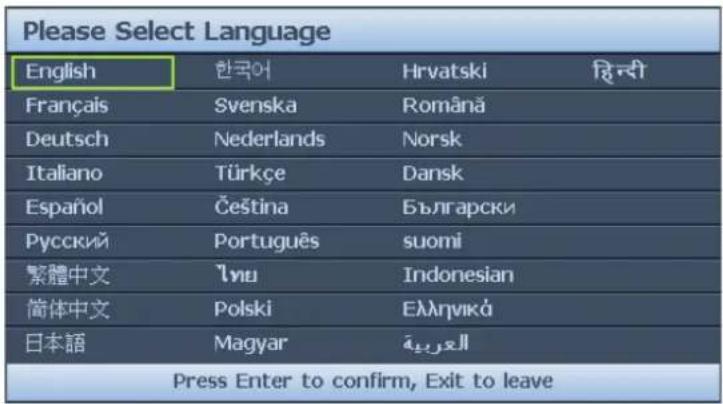

Switch on the projector 33

Switch off the projector 39

Using the menu 40

Main menu....40

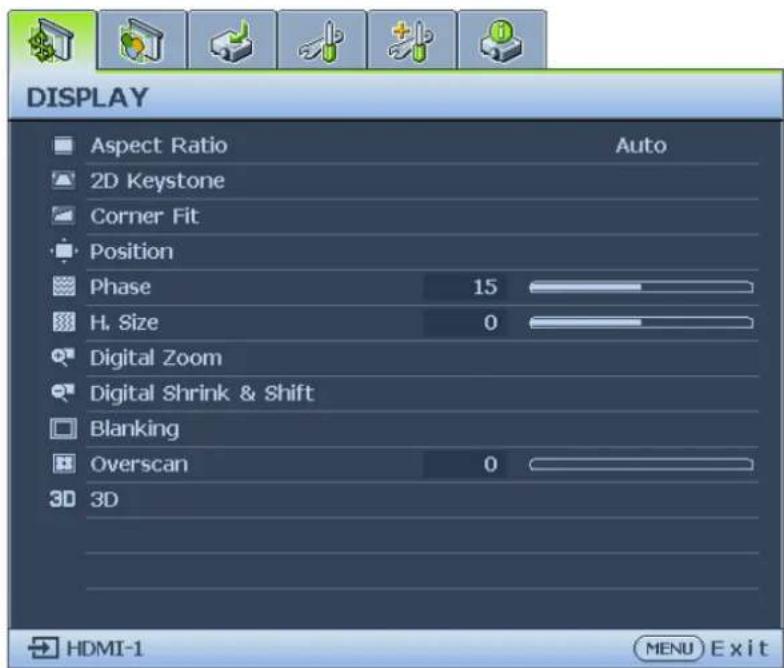

Display menu....41

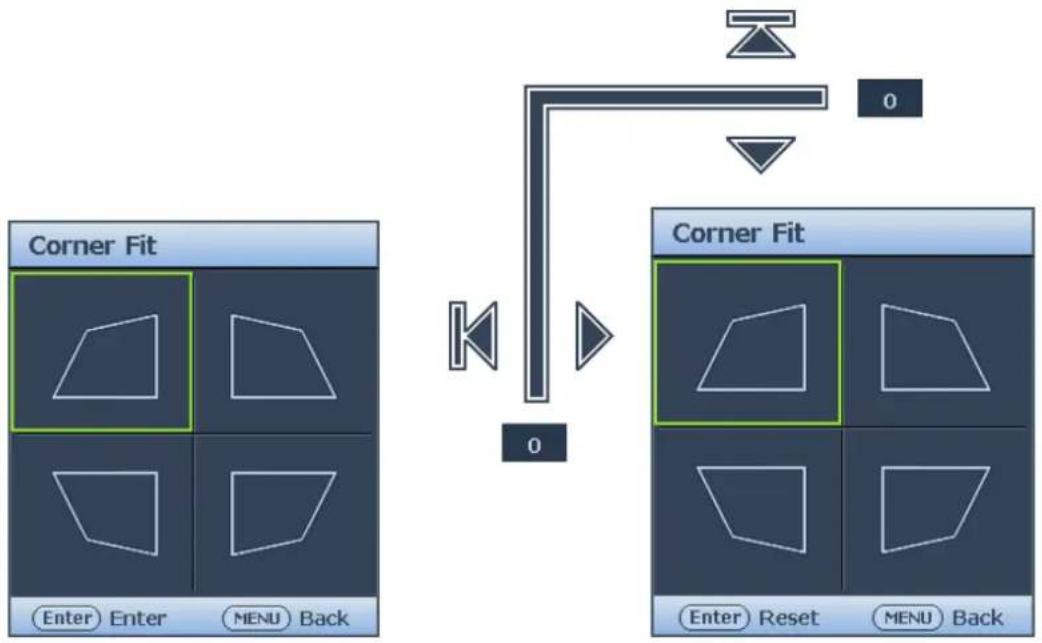

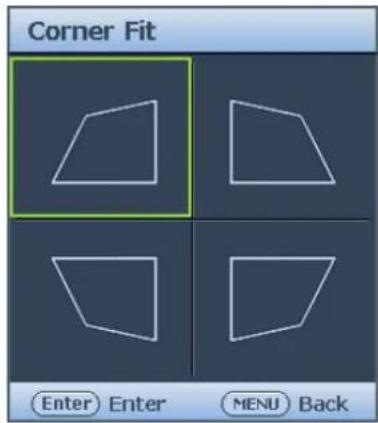

Corner Fit menu 43

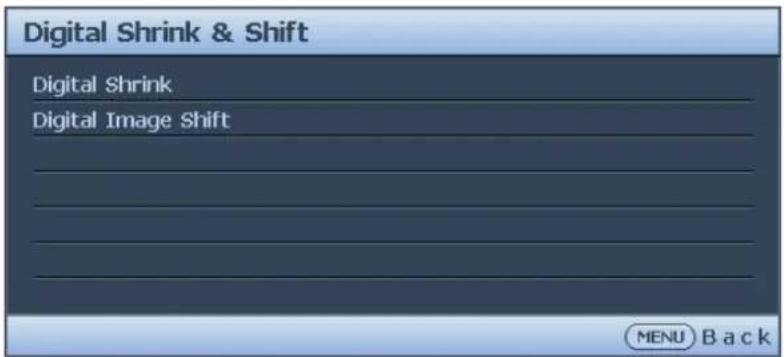

Digital Shrink & Shift menu....43

Blanking menu....44

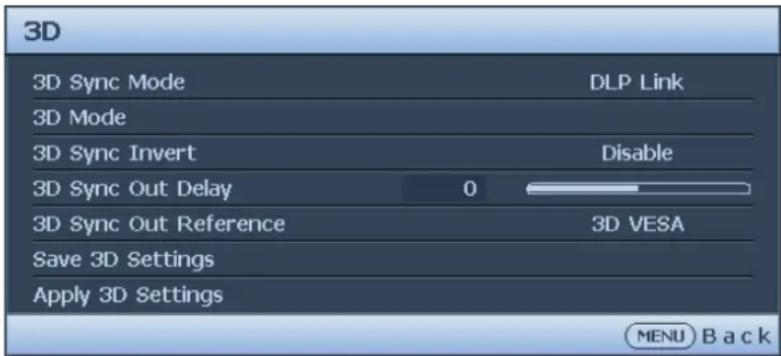

3D menu 44

Picture menu....45

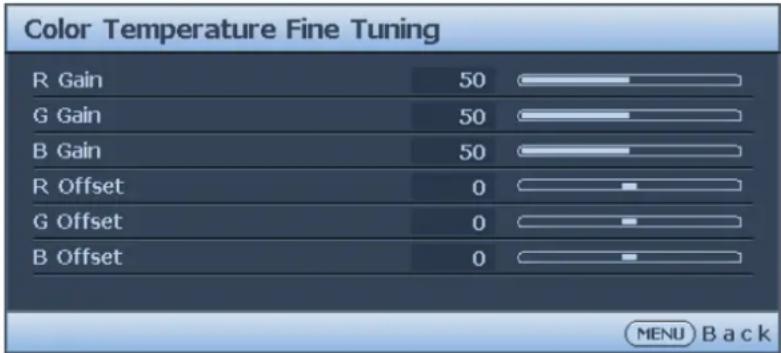

Color Temperature Fine Tuning menu 47

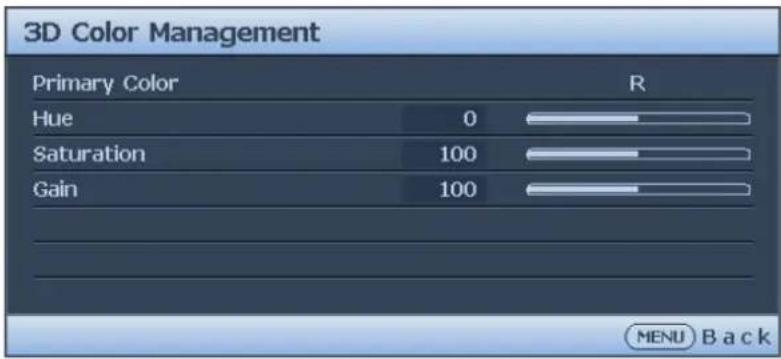

3D Color Management menu 48

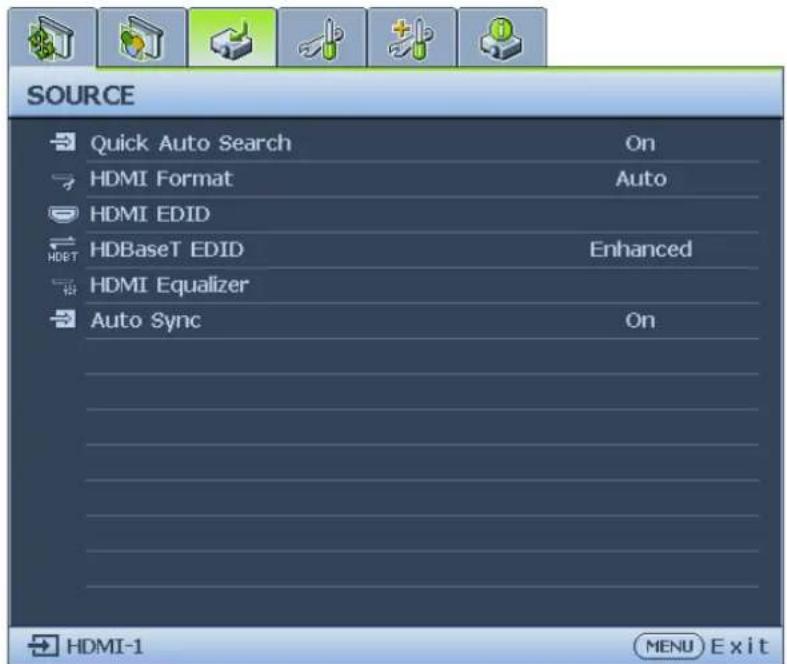

Source menu 49

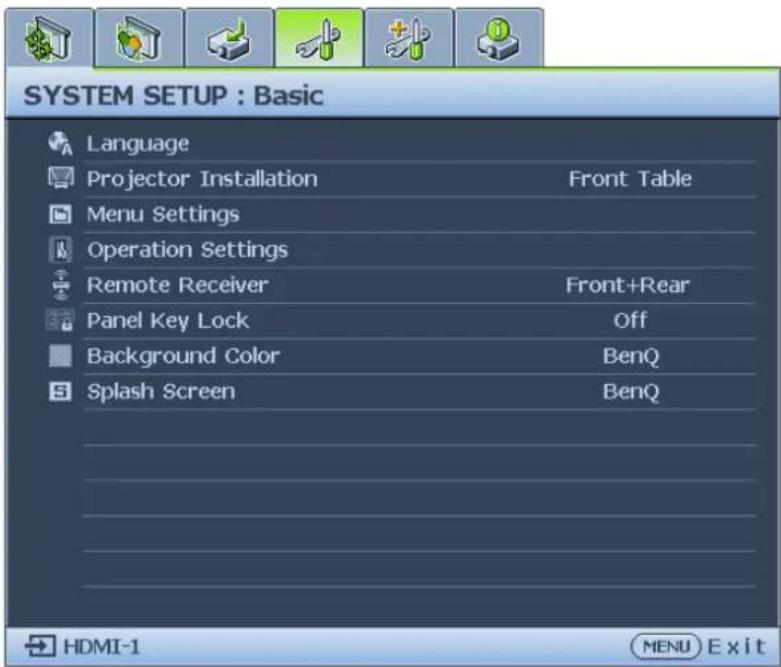

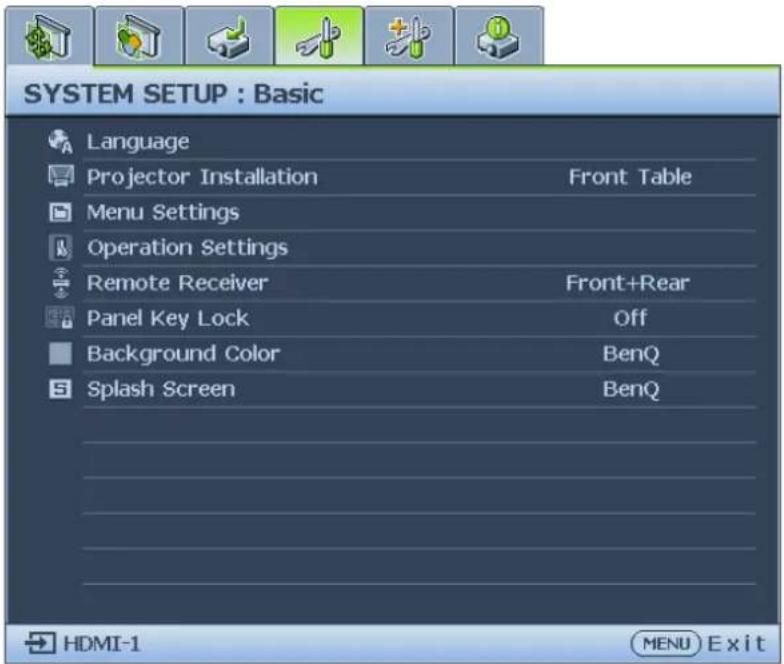

System Setup : Basic menu 50

Menu Settings menu....51

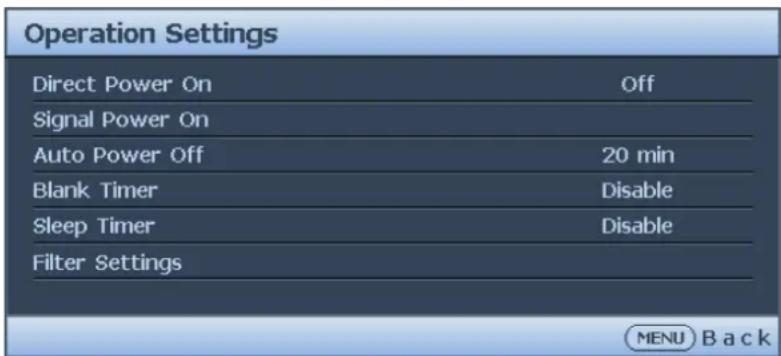

Operation Settings menu....51

System Setup: Advanced menu 53

Audio Settings menu 55

Light Settings menu 56

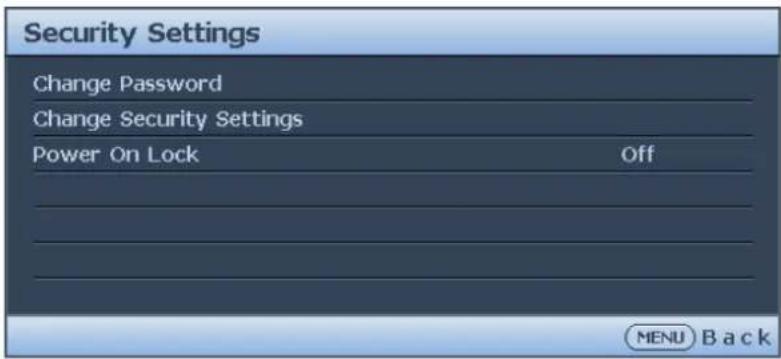

Security Settings menu 56

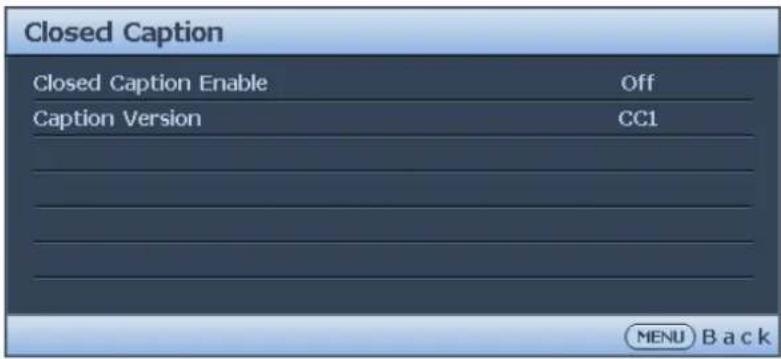

Closed Caption menu 57

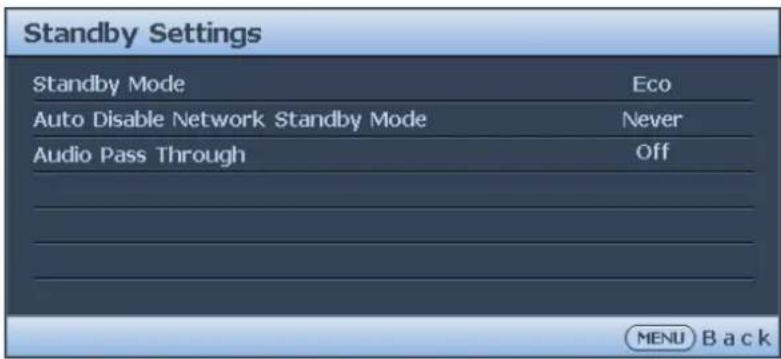

Standby Settings menu....57

Network Settings menu 58

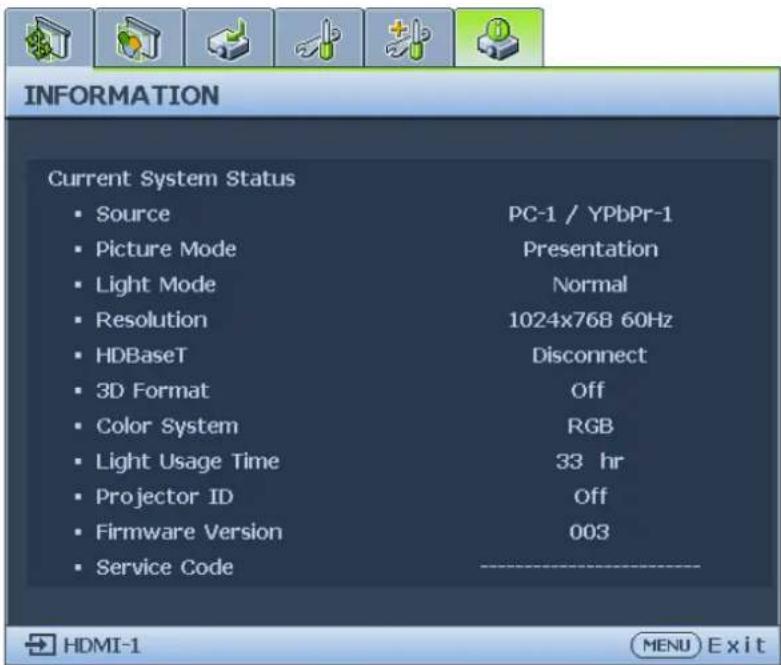

Information menu....58

Menu structure 60

Maintenance 64

Before maintaining the projector 64

Care of the projector 64

Clean the lens front surface 64

Clean the projector case....64

Filter maintenance 65

Cleaning the filter 65

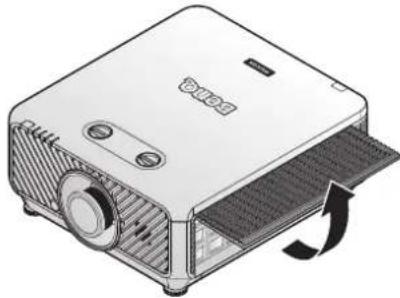

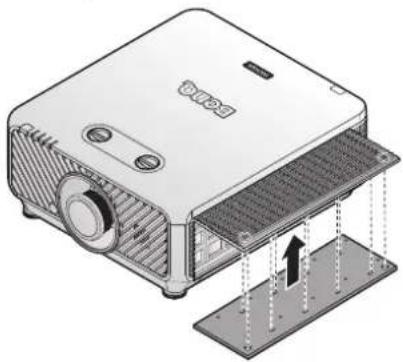

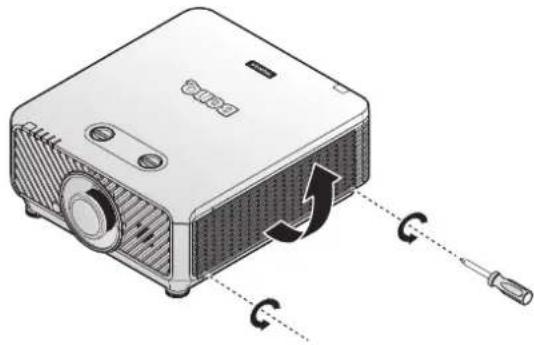

Replacing the side filter 66

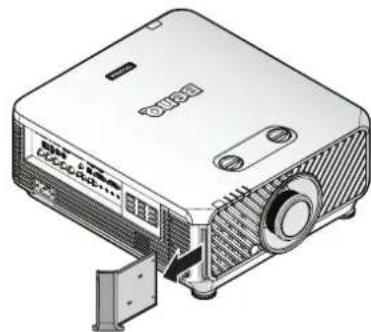

Replacing the front filter 67

LED indicator 68

System message....68

Light source error message....68

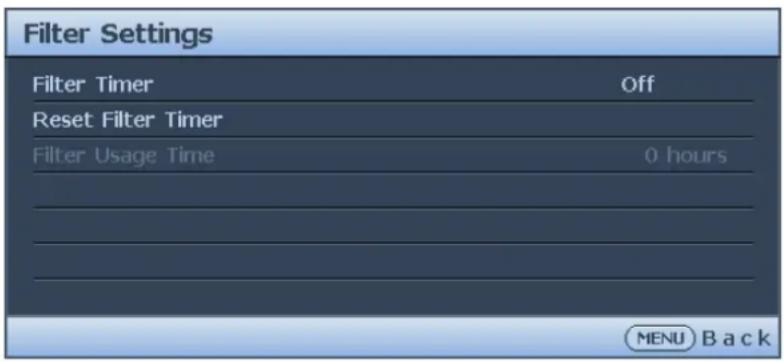

Filter message 68

Thermal error message....69

Troubleshooting 70

Troubleshooting....70

The projector does not turn on....70

No picture....70

Blurred image....70

Remote control does not work....70

The password is incorrect....70

Specifications....71

Specifications 71

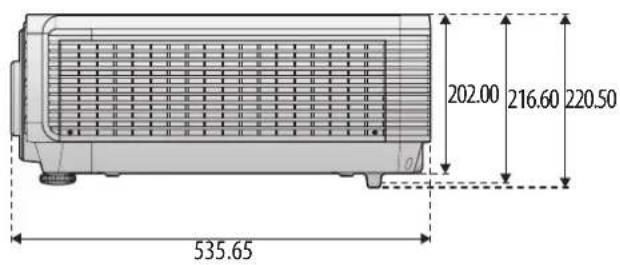

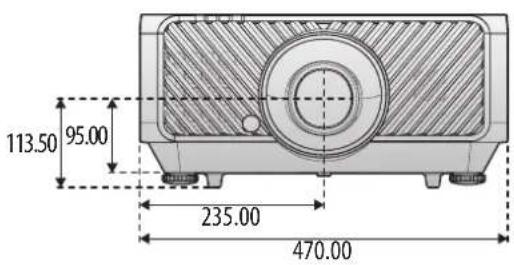

Dimensions 72

Attaching for ceiling mount....72

Appendix....73

Timing table 73

Supported timing for PC & PC 2 input....73

Support timing for Component - YPbPr input 74

Support timing for Video input....75

Support timing for HDMI-I / HDMI-2 / DVI-D / HDBaseT (HDCP) input....75

Supporting timing for HDMI-1 / HDMI-2 Video input....77

RS232 command control 78

Important safety instructions

Your projector is designed and tested to meet the latest standards for safety of information technology equipment. However, to ensure safe use of this product, it is important that you follow the instructions mentioned in this manual and marked on the product.

General safety instruction

1. Do not look straight at the projector lens during operation. The intense light beam may damage your eyes.
2. Always open the lens shutter or remove the lens cap when the projector light source is on.
3. In some countries, the line voltage is NOT stable. This projector is designed to operate safely within a mains voltage between 100 to 240 volts AC, but could fail if power cuts or surges of ±10 volts occur. In areas where the mains voltage may fluctuate or cut out, it is recommended that you connect your projector through a power stabilizer, surge protector or uninterruptible power supply (UPS).
4. Do not block the projection lens with any objects when the projector is under operation as this could cause the objects to become heated and deformed or even cause a fire. To temporarily turn off the light source, press BLANK on the remote control.
5. Do not place this product on an unstable cart, stand, or table. The product may fall, sustaining serious damage.

6. Do not attempt to disassemble this projector. There are dangerous high voltages inside which may cause death if you should come into contact with live parts.
   Under no circumstances should you ever undo or remove any other covers. Refer servicing only to suitably qualified professional service personnel.

7. Do not place this projector in any of the following environments.

8. Space that is poorly ventilated or confined. Allow at least 50 cm clearance from walls and free flow of air around the projector.

9. Locations where temperatures may become excessively high, such as the inside of a car with all windows rolled up.
10. Locations where excessive humidity, dust, or cigarette smoke may contaminate optical components, shortening the projector's life span and darkening the image.
11. Locations near fire alarms
12. Locations with an ambient temperature above 40^ / 104^

13. Locations where the altitudes are higher than 3000 m (10000 feet).

14. Do not block the ventilation holes.

15. Do not place this projector on a blanket, bedding or any other soft surface.

16. Do not cover this projector with a cloth or any other item.

17. Do not place inflammables near the projector.
    If the ventilation holes are seriously obstructed, overheating inside the projector may result in a fire.

18. Do not step on the projector or place any objects upon it. Besides probable physical damage to the projector, doing so may result in accidents and possible injury.

19. Do not place liquids near or on the projector. Liquids spilled into the projector may cause it to fail. If the projector does become wet, disconnect it from the power supply's wall socket and call BenQ to have the projector serviced.

This equipment has a three-pin grounding-type power plug. Do not remove the grounding pin. As a safety feature, this plug will only fit a grounding-type power outlet. If you are unable to fit the plug into the outlet, contact an electrician.

Notice on laser

This symbol indicates that there is a potential hazard of eye exposure to laser radiation unless the instructions are closely followed.

Laser class

(for USA) This Laser Product is designated as Class 3R during all procedures of operation and complies with IEC/EN 60825-1:2007.

(for WW) This Laser Product is designated as Class I during all procedures of operation and complies with IEC/EN 60825-1:2014.

LASER LIGHT - AVOID DIRECT EYE EXPOSURE.

Do not point laser or allow laser light to be directed or reflected toward other people or reflective objects.

Direct or scattered light can be hazardous to eyes and skin.

There is a potential hazard of eye exposure to laser radiation if the included instructions are not followed.

Caution – use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

Laser parameters

Wavelength 449nm - 461nm (Blue)

Mode of operation Pulsed, due to frame rate

Pulse width 1.34ms

Pulse repetition rate 120Hz

Maximum laser energy 0.698mJ

Total internal power >100w

Apparent source size >10mm, at lens stop

Divergence

100 mili Radian

Label instruction

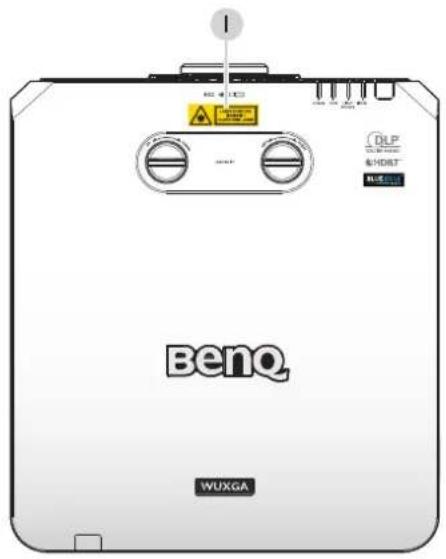

Below drawing show the label's location.

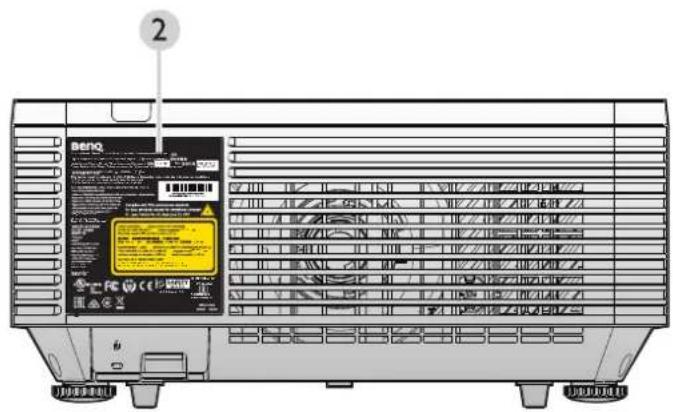

I. Laser warning label

1. Spec label

Laser light instruction

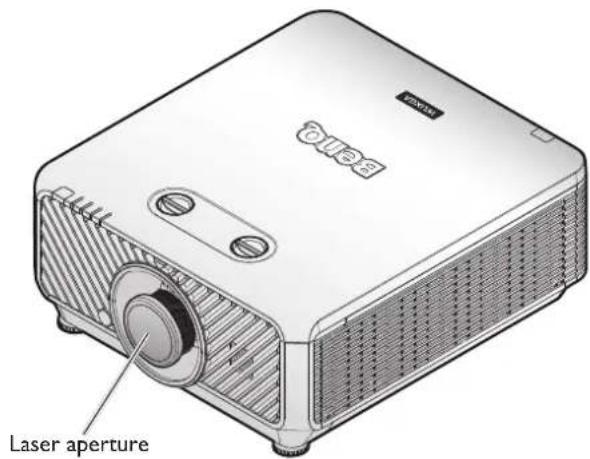

Below drawing is the laser aperture location. Be careful not to let the eye see the light directly.

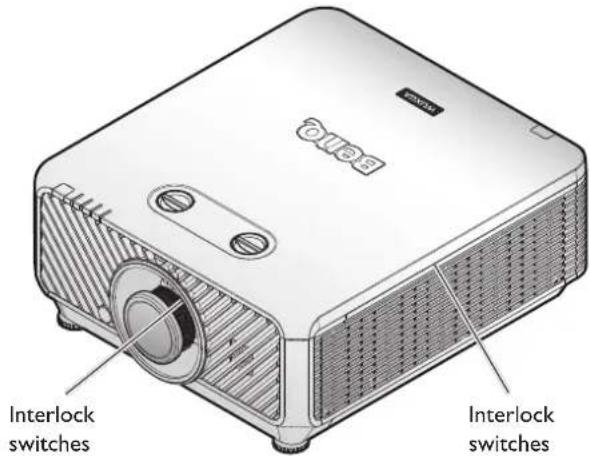

Interlock switches

This machine has 2 (Top cover x l, Lens x l) Interlock switches to protect the laser light Leakage.

I. Will power-off the system individually when the top cover is removed.

1. Will power-off the system individually when the lens is removed or not install correctly.

Prepare for installation

Caution for installation

1. If the projector and lens were purchased separately, remove the anti-dust cap before use and store it for future use. When transporting the projector, move the lens to the home position, remove the lens, and attach the anti-dust cap.

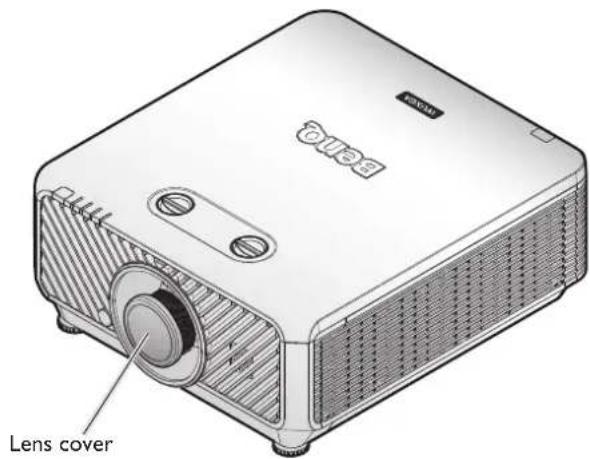

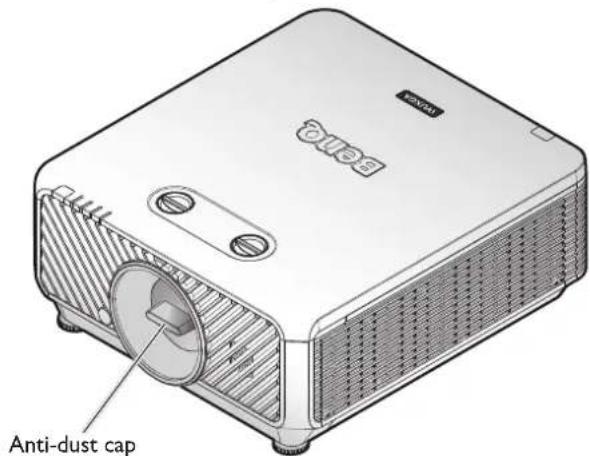

1. When the projector is not in use, attach the lens cover supplied with the projector or the projection lens.

Focus adjustment

The high clarity projection lens is thermally affected by the light from the bulb; thus, the focus is unstable for a short period immediately after the power is turned on. Please wait at least 15 minutes of continuous projection before adjusting the focus.

Cooling notice

Allow at least 50 cm (19.7 inch) for clearance around the exhaust vent. Make sure no objects block air input within 30 cm (11.8 inch).

Keep the outlet at least 1 m away from the inlets of other projectors.

• The projector can be installed at any angle.

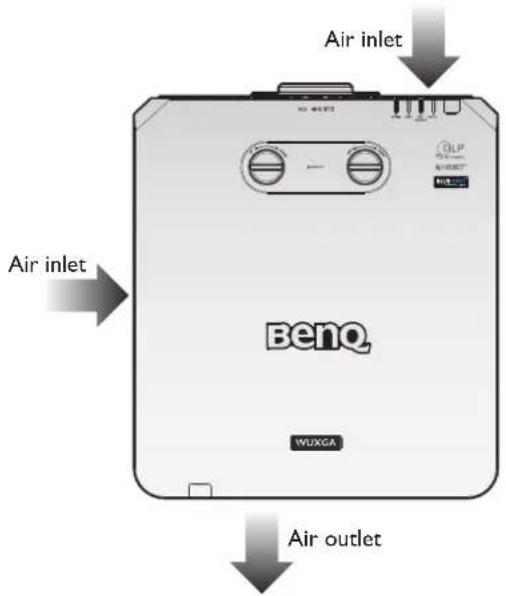

Diagram of a mechanical or electrical component with radial arrows indicating rotation or movement (no text or symbols)

Top-down diagram of a circular object with red arrows indicating rotational motion, surrounded by surrounding geometric shapes (no text or symbols)

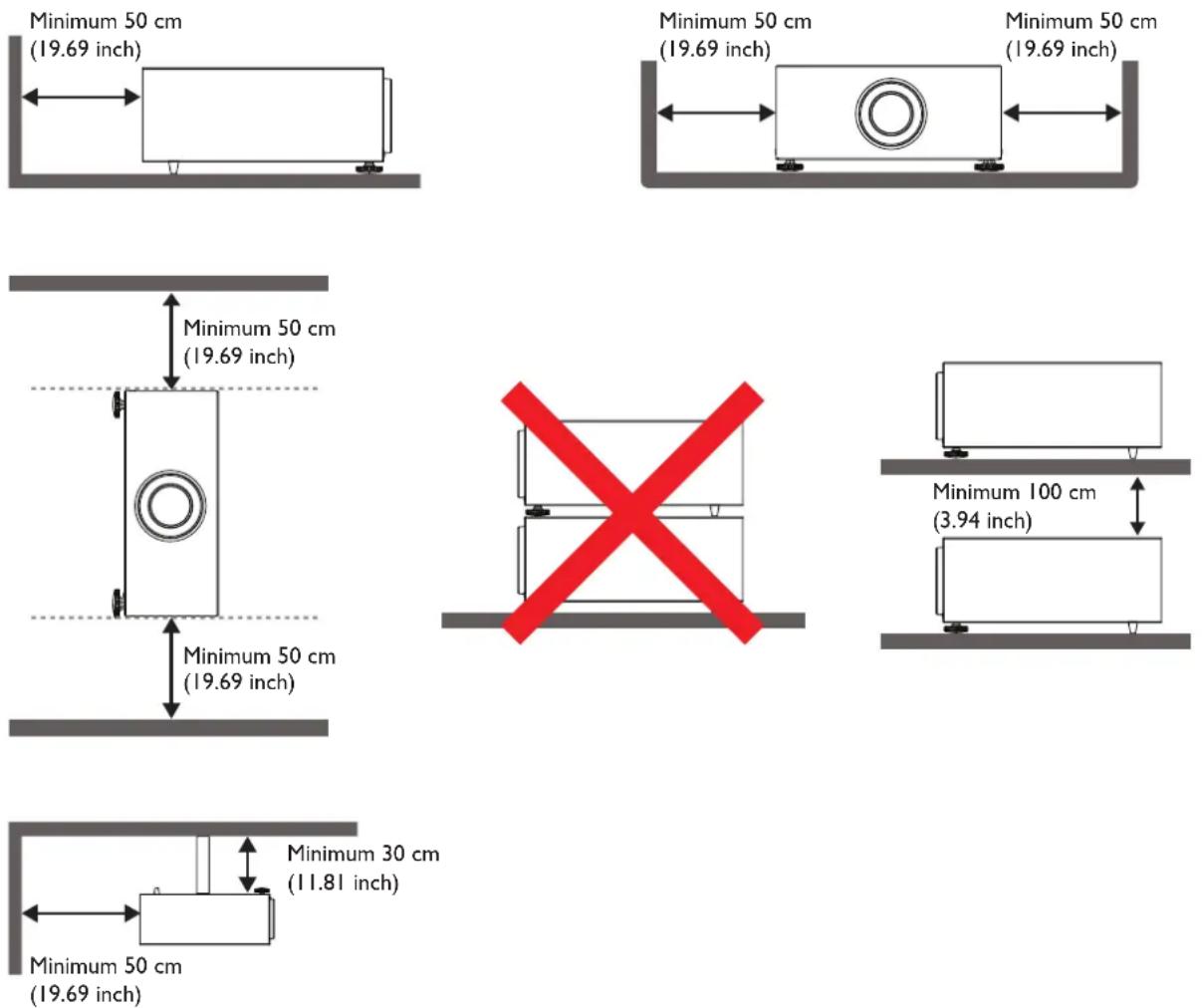

- Allow at least 50 cm of clearance around the exhaust vent.

• Ensure that the air intake vents do not recycle hot air from the exhaust vent.
• When operating in an enclosed space, make sure that the surrounding air temperature does not exceed the projector's operating temperature and that the air intake and exhaust vents are unobstructed.
• All enclosures should pass a certified thermal evaluation to ensure that the projector does not recycle exhaust air. Recycling exhaust air may cause the projector to shutdown even if the ambient temperature is within the acceptable operating temperature range.

Package contents

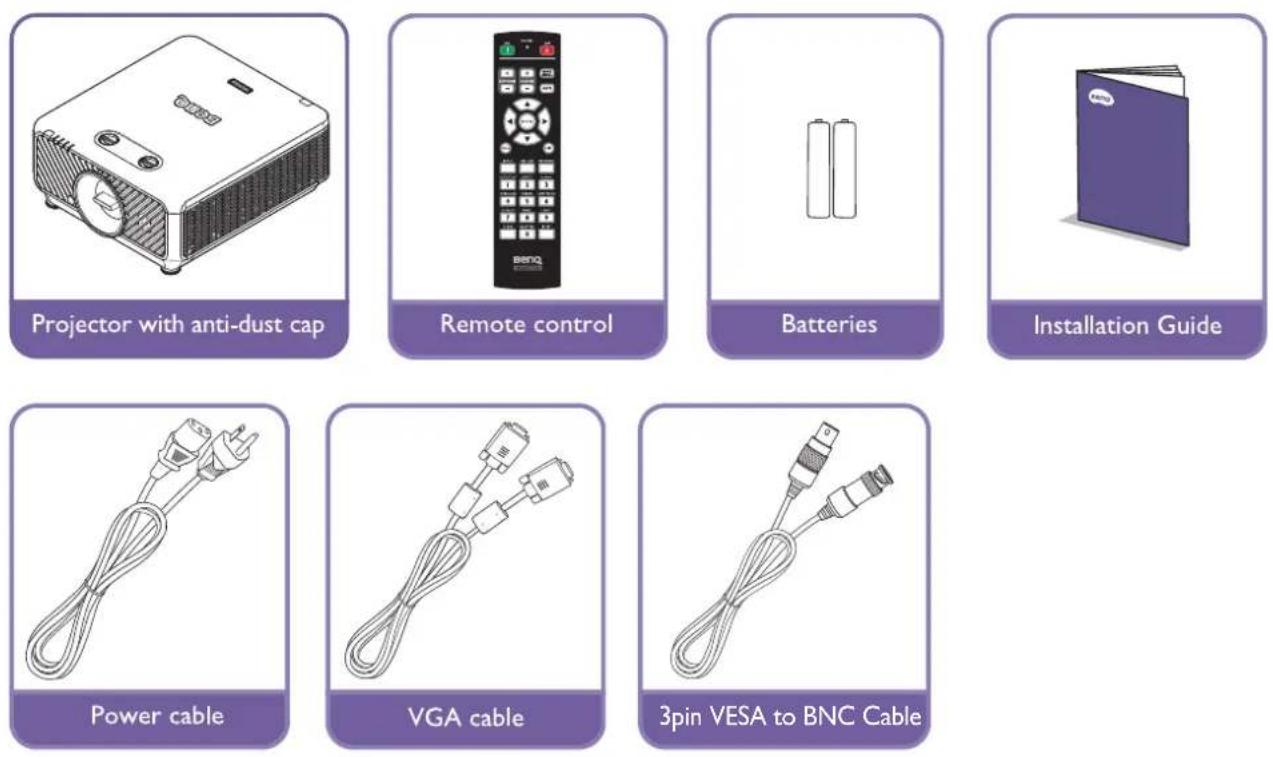

Standard packing items

Lens information

Model Lens Type		Part Number	Throw Ratio Lens Shift
LS2ST3	Wide fix	5J.JDH37.002	WUXGA: 0.778	Vertical: -15%-55%Horizontal: -5%-5%
LS2ST1	Wide zoom	5J.JDH37.011	WUXGA: 1.1-1.3	Vertical: -15%-55%Horizontal: -5%-5%
LS2SD2	Standard	5J.JEN37.001	WUXGA: 1.54-1.93	Vertical: -15%-55%Horizontal: -5%-5%
LS2LTI	Semi long	5J.JDH37.032	WUXGA: 1.93-2.9	Vertical: -15%-55%Horizontal: -5%-5%
LS2LT2	Long zoom	5J.JDH37.041	WUXGA: 3-5	Vertical: -15%-55%Horizontal: -5%-5%
LS2ST2	Short throw	5A.JK337.001	WUXGA: 0.77-1.1	Vertical: -15%-55%Horizontal: -5%-5%
LS2ST4	Semi throw	5A.JK337.011	WUXGA: 1.25-1.6	Vertical: -15%-55%Horizontal: -5%-5%

Introduction

Projector exterior view

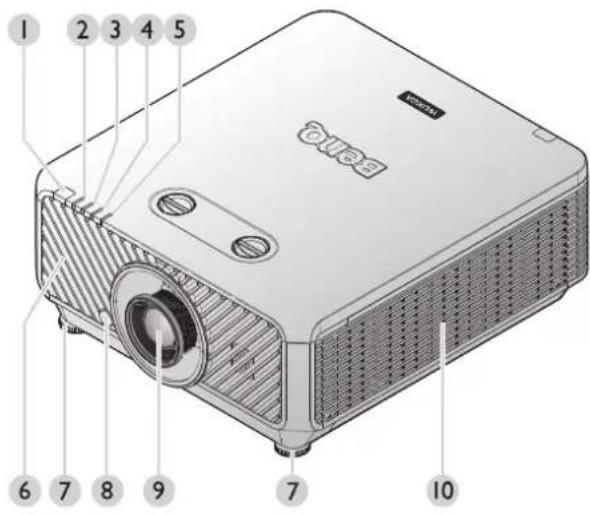

Front and upper side view

I. Front IR remote sensor
2. FILTER indicator light
3. LIGHT SOURCE indicator light
4. TEMPerature indicator light
5. POWER indicator light
6. Front vent (cool air intake)
7. Front adjuster foots
8. LENS RELEASE button
9. Projection lens
10. Side vent (cool air intake)

Rear and upper side view

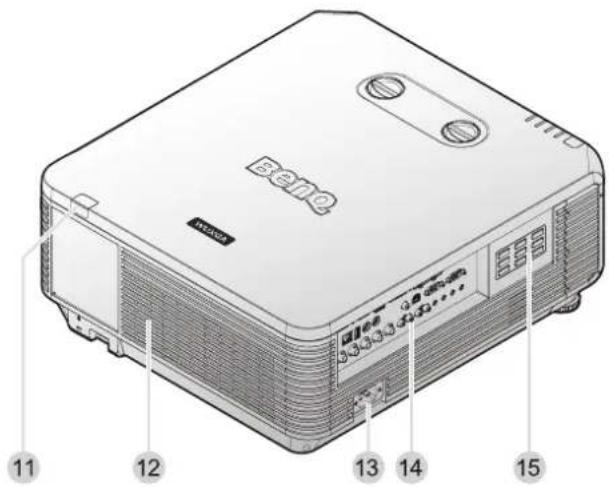

II. Rear IR remote sensor
12. Vent (cool air outtake)
13. AC power cord inlet
14. Control terminals
15. Control panel

Controls and functions

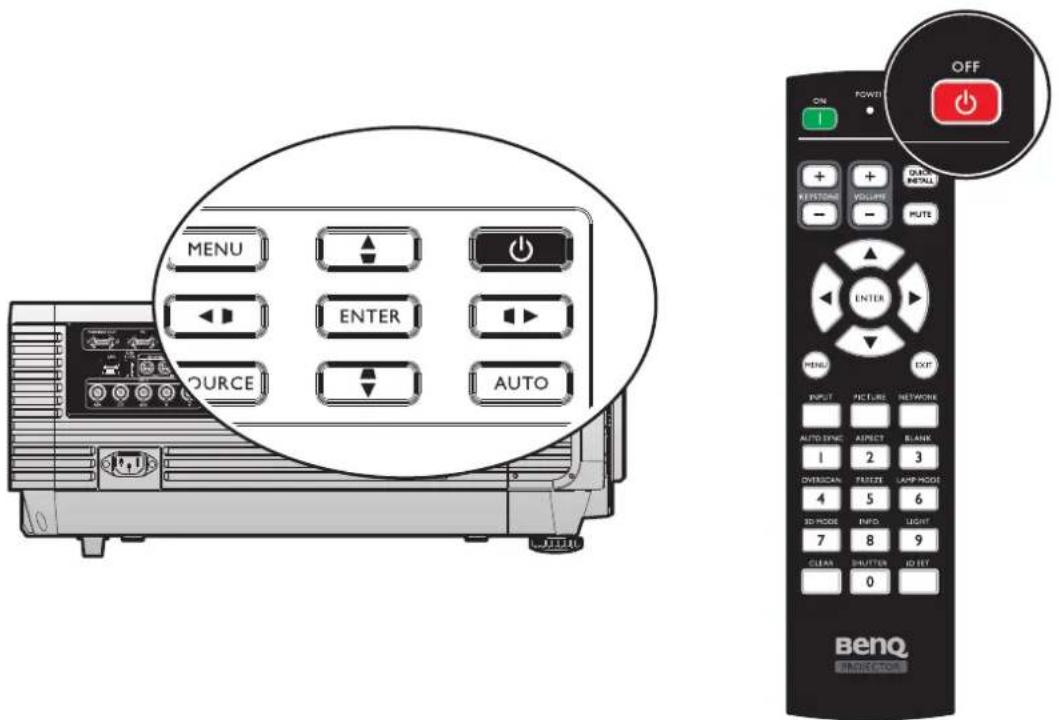

Control panel

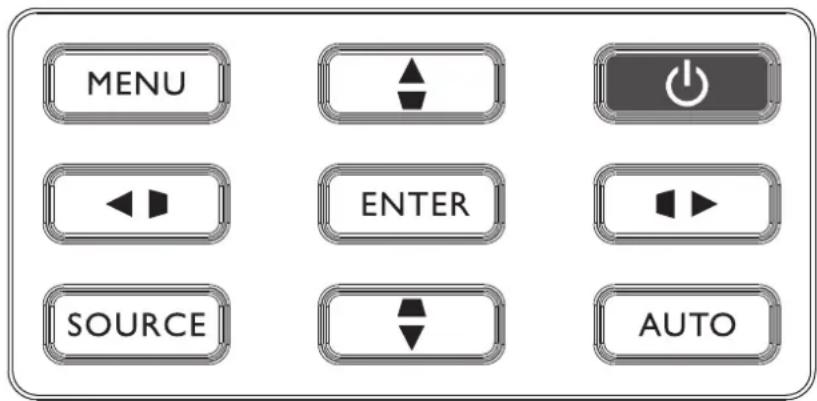

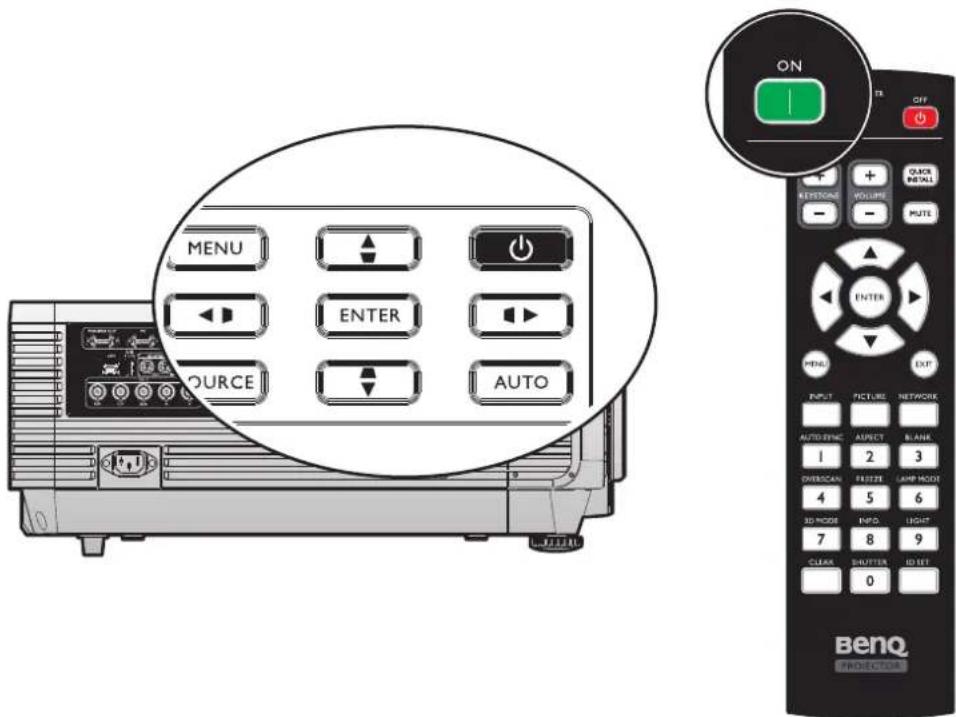

- MENU

Turns on the On-Screen Display (OSD) menu. Goes back to previous OSD menu, exits and saves menu settings. See "Using the menu" on page 40 for details.

- Keystone/Arrow keys ( ▶ Left)

Manually corrects distorted images resulting from an angled projection.

- SOURCE

Displays the source selection bar.

- ENTER

Selects an available picture setup mode.

Enacts the selected On-Screen Display (OSD) menu item. See "Using the menu" on page 40 for details.

- Keystone/Arrow keys ( ▲ ▼ Down)

Manually corrects distorted images resulting from an angled projection.

• AUTO

Automatically determines the best picture timings for the displayed image. See "Auto adjusting the image" on page 38 for details.

- Keystone/Arrow keys ( ◀ ▶ Right)

Manually corrects distorted images resulting from an angled projection.

• Power

Toggles the projector between standby mode and on. See "Switch on the projector" on page 33 and "Switch off the projector" on page 39 for details.

- Keystone/Arrow keys ( ▼ ▲ Up)

When the On-Screen Display (OSD) menu is activated, the ▲, ▼, ◀, and ▶ keys are used as directional arrows to select the desired menu items and to make adjustments. See "Using the menu" on page 40 for details.

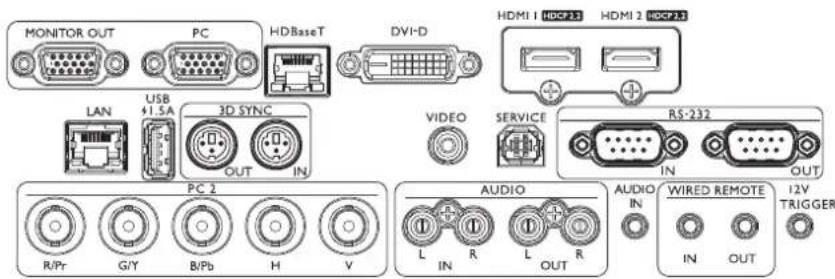

Control terminal

• MONITOR OUT

Connection to other display equipment for concurrent playback display.

• PC

15-pin VGA port for connection to RGB, component HD source, or PC.

- HDBaseT

Connect an Ethernet cable (Cat5/Cat6) from HDBaseT transmitter with high-definition video (HD), RS232 control and LAN control.

• DVI-D

Connection to DVI source.

• HDMI I

Connection to HDMI source.

- HDMI 2

Connection to HDMI source.

• LAN

For connection to RJ45 Cat5/Cat6 Ethernet cable to control the projector through a network.

- USB 1.5A

Support 5V/1.5A output.

• 3D SYNC OUT

Connection to 3D IR sync signal transmitter.

- 3D SYNC IN

Connect 3D-sync in cable from a computer or an enabled device.

• VIDEO

Connection to a video source.

- SERVICE

Maintenance exclusive port for authorized maintenance personnel only.

- RS-232 IN

Standard 9-pin D-sub interface for connection to PC control system and projector maintenance.

- RS-232 OUT

Connects to another projector (same model) for RS-232 control.

• PC 2 (R/Pr, G/Y, B/Pb, H, V)

Connection to RGB or YPbPr/YCbCr output signal with BNC type input terminal.

• AUDIO IN (L/R)

Connection to an audio input source via an audio or audio L/R cable.

• AUDIO OUT (L/R)

Connection to a speaker or headset.

• AUDIO IN

Connection to an audio input source via an audio cable.

• WIRED REMOTE IN

Connection to remote control for wire remote control.

• WIRED REMOTE OUT

Connection to another projector.

- 12V TRIGGER

3.5mm mini earphone jack, employs 200mA display relay to provide 12(+/-1.5)V output and short circuit protection.

Caution:

Make sure the port is valid before inserting a wired remote controller. The remote controller may be damaged in case of an invalid port, e.g. a wired remote controller is connected to trigger output. For more information about upgrading firmware via Lan, please contact BenQ service.

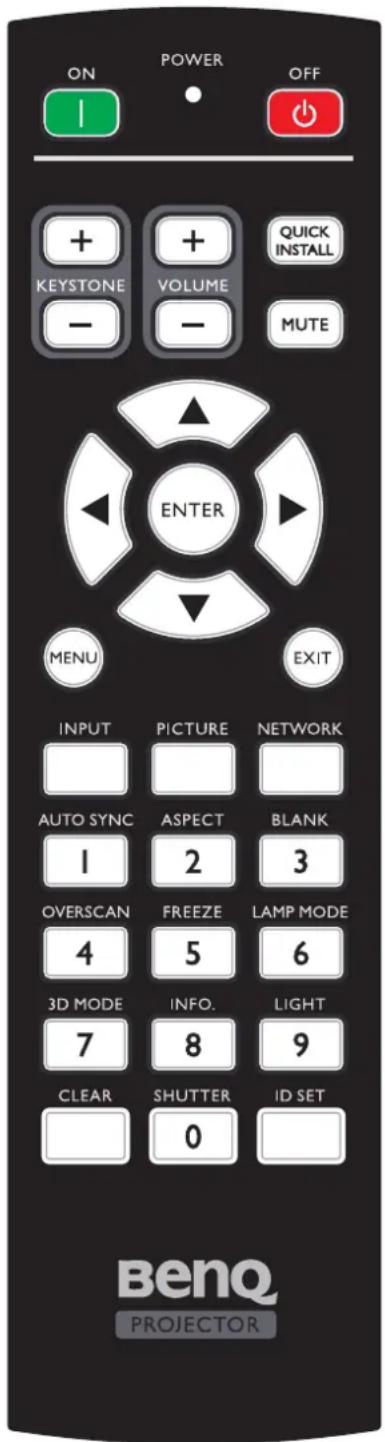

Remote control

• ON / OFF
Toggles the projector between standby mode and on.
- KEYSTONE+/KEYSTONE-
Manually corrects distorted images resulting from an angled projection.
• VOLUME +/VOLUME -
Increases/decreases the projector volume.
- QUICK INSTALL
Displays the Quick Install OSD menu.
• MUTE
Toggles projector audio between on and off.
- Arrow keys ( ▲ Up, ▼ Down, ◀ Left, ▶ Right)
When the On-Screen Display (OSD) menu is activated, the arrow keys are used as directional arrows to select the desired menu items and to make adjustments. See "Using the menu" on page 40 for details.
- ENTER
Selects an available picture setup mode. Activates the selected On-Screen Display (OSD) menu item.
- MENU
Turns on the On-Screen Display (OSD) menu. Goes back to previous OSD menu, exits and saves menu settings.
- EXIT
Goes back to previous OSD menu, exits and saves menu settings.
- INPUT
Selects an input source for display.
• PCITURE
Press to display Picture menu.
• NETWORK
Selects Network Display as the input signal source.
- AUTO SYNC
Automatically determines the best picture timings for the displayed image.
- ASPECT
Selects the display aspect ratio.
- BLANK
Used to hide the screen picture.

• OVERSCAN

Press to select overscan mode.

- FREEZE

Freezes the projected image.

- LAMP MODE

Press to display OSD menu to select desired light mode.

- 3D MODE

Press to display 3D setup menu.

- INFO.

Press to display INFORMATION menu.

• LIGHT

Press to open backlight of remote controller.

- CLEAR

Clear remote ID SET assigned to all projectors.

Press CLEAR and ID SET for five seconds. The LED blinks three times then the ID setting is cleared.

- SHUTTER

The function is not available on this projector.

• ID SET

- Remote control ID SET (set the particular remote code)

Press to set remote ID.

Press ID SET for three seconds. The POWER indicator on the remote control blinks, then press 01\~99 to designate an ID.

Note:

The remote control number (Remote control ID) must match the Projector ID Setting number for accurate control.

- Clear Remote ID SET (set remote code to all) Press CLEAR and ID SET for five seconds. The POWER indicator on the remote control blinks a single instance to reset remote code to all, can control projector no matter projector id setting.

- Numeric buttons

Enters numbers in network settings.

Numeric buttons 1, 2, 3, 4 cannot be pressed when asked to enter password.

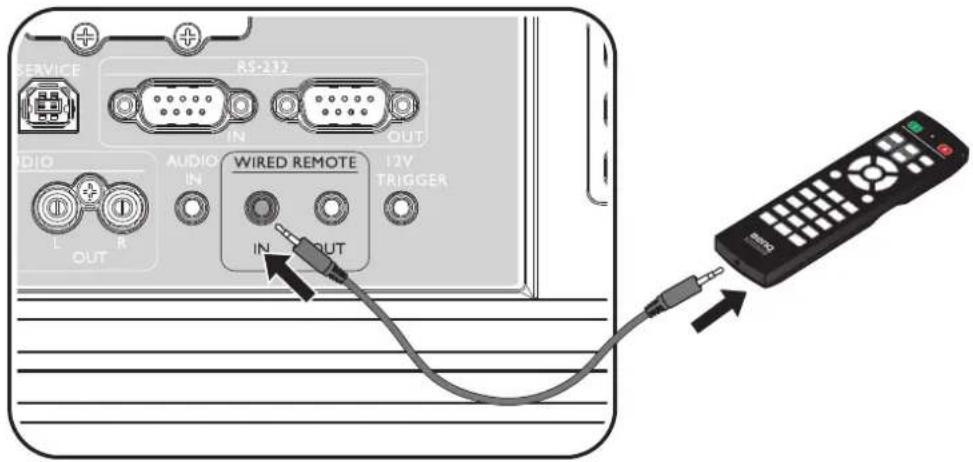

- WIRE REMOTE jack

Connect to projector for wire remote control.

Connect with projector

When you use a system with multiple projectors, use commercially available M3 stereo mini jack cables to connect the other projectors via the WIRED REMOTE IN/WIRED REMOTE OUT terminals.

The remote control is effective even in places where obstacles stand in the light path or where devices are susceptible to outside light.

Note:

Use two core shielded cables no longer than 15m (49.2 ft). The remote control may not operate when the length of the cable exceeds 15m (49.2 ft) or when it is not properly shielded.

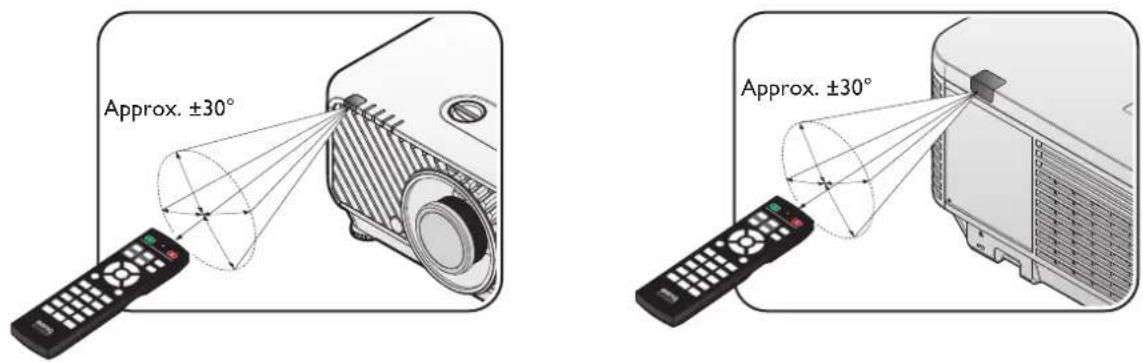

Remote control effective range

Infra-Red (IR) remote control sensor is located on the front and rear of the projector. The remote control must be held at an angle within 30 degrees perpendicular to the projector's IR remote control sensor to function correctly. The distance between the remote control and the sensor should not exceed 8 meters (\~ 26 feet).

Make sure that there are no obstacles between the remote control and the IR sensor on the projector that might obstruct the infra-red beam.

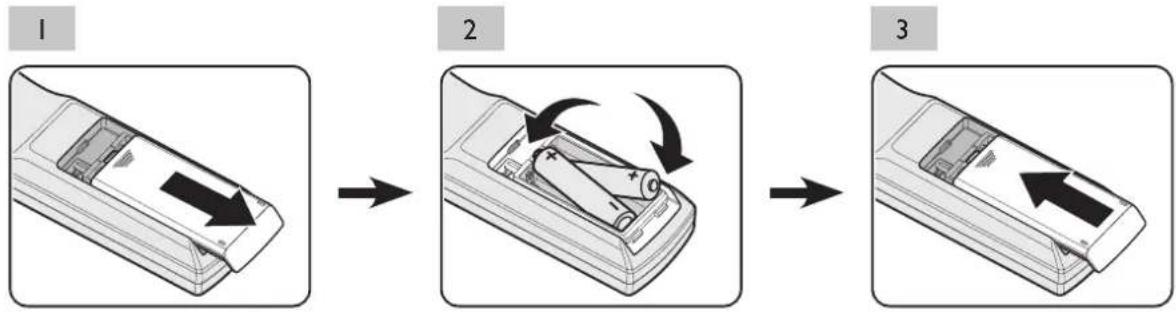

Replacing the remote control battery

1. To open the battery cover, turn the remote control over to view its back, push on the finger grip on the cover and slide it up in the direction of the arrow as illustrated. The cover will slide off.

2. Remove any existing batteries (if necessary) and install two AA batteries observing the battery polarities as indicated in the base of the battery compartment. Positive (+) goes to positive and negative (-) goes to negative.

3. Refit the cover by aligning it with the base and sliding it back down into position. Stop when it clicks into place.

Caution:

- Avoid excessive heat and humidity.

• There may be battery damage if the battery is incorrectly replaced.

- Replace only with the same or equivalent type recommended by the battery manufacturer.

- Dispose of the used battery according to the battery manufacturer's instructions.

- Never throw a battery into a fire. There may be danger of an explosion.

- If the battery is dead or if you will not be using the remote control for a long time, remove the battery to prevent damage to the remote control from possible battery leakage.

Installation

Caution:

To avoid damaging the DLP chips, never aim a high-power laser beam into the projection lens.

Installing removing the optional lens

Caution:

• Do not shake or place excessive pressure on the projector or the lens components as the projector and lens components contain precision parts.
• Before removing or installing the lens, be sure to turn off the projector, wait until the cooling fans stop, and turn off the main power switch.
• Do not touch the lens surface when removing or installing the lens.
• Keep fingerprints, dust or oil off the lens surface. Do not scratch the lens surface.
  • Work on a level surface with a soft cloth under it to avoid scratching.
  • If you remove and store the lens, attach the lens cap to the projector to keep off dust and dirt.

Installing the new lens

Remove both end caps from the lens.

Note:

Removal of the plastic body cap before inserting a lens for the first time.

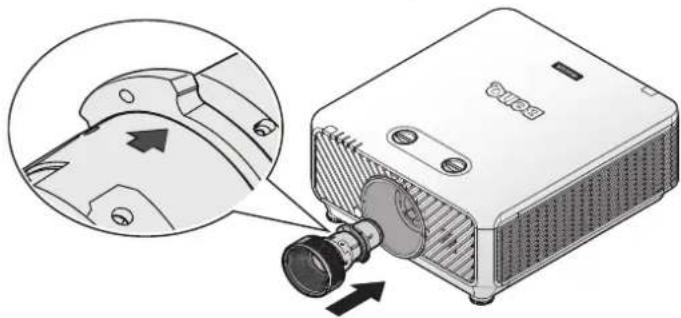

1. Orient the lens so that the arrow on the label pasted on its side is facing upward and push the lens into the lens mount of the unit as far as it will go.

Diagram of a projector with an inset showing a mechanical component (no text or symbols present)

1. Rotate the lens clockwise until you feel it click into place.

Illustration of a projector with visible lens and ventilation slots (no text or symbols)

Removing the existing lens from the projector

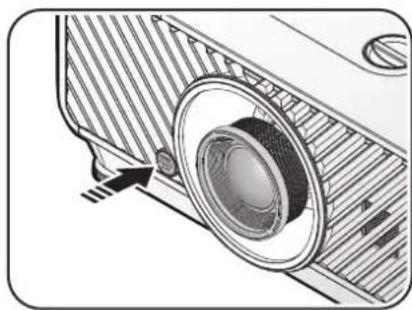

I. Push the LENSE RELEASE button to the unlock position.

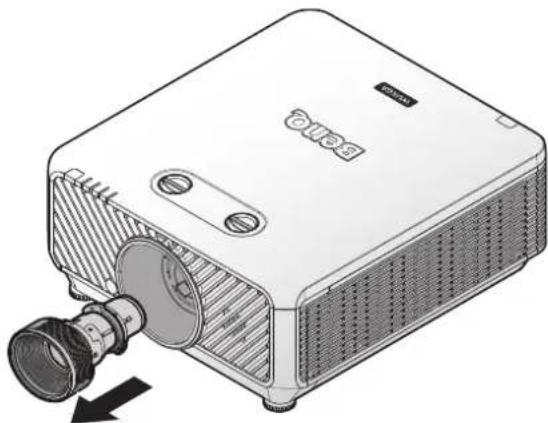

Technical illustration of a projector with a circular lens and directional arrows indicating motion (no text or symbols)

1. Grasp the lens.

2. Rotate the lens counterclockwise. The existing lens will be disengaged.

Illustration of a projector with visible lens and ventilation slots (no text or symbols)

1. Pull out the existing lens slowly.

Illustration of a projector with a lens and ventilation slots, shown in 3D style (no text or symbols)

Evaluate for distance by image size

Obtaining a preferred projected image size

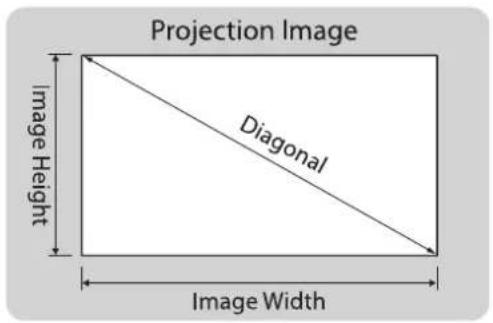

The distance from the projector lens to the screen, the zoom setting (if available), and the video format each factors in the projected image size.

Projection dimensions

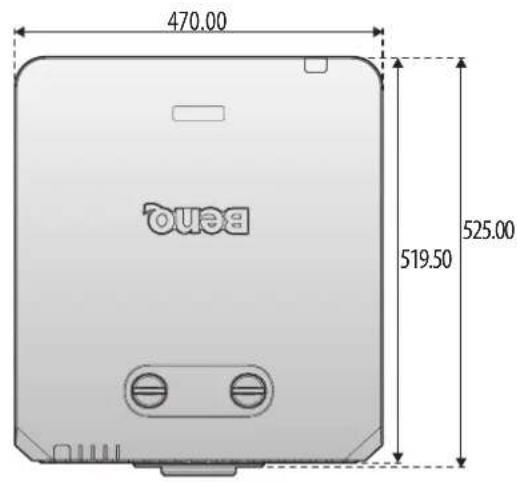

Refer to "Dimensions" on page 72 for the center of lens dimensions of this projector before calculating the appropriate position.

LU9245

The screen aspect ratio is 16:10 and the projected picture is 16:10.

Note:

To optimize the projection quality, we suggest to project images in an area without grayscale.

Lens										Wide Zoom (LS2ST1)				Standard (LS2SD2)
Throw ratio 1.1~1.3 1.54~1.93

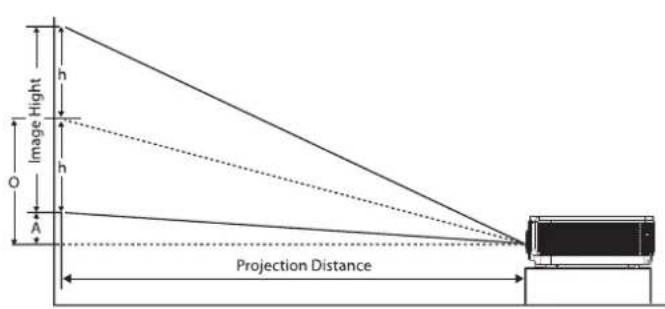

Diagonal Image Width Image Height						Offset (A) O		Distance Distance
						Wide/Tele		Wide/Tele		Wide		Tele		Wide		Tele
(Inch)	(m)	(Inch)	(m)	(Inch)	(m)	(Inch)	(m)	(Inch)	(m)	(Inch)	(m)	(Inch)	(m)	(Inch)	(m)	(Inch)	(m)
50	1.27	42	1.08	26	0.67	1.3	0.034	14.6	0.370	47	1.18	55	1.40	65	1.66	82	2.08
60	1.52	51	1.29	32	0.81	1.6	0.040	17.5	0.444	56	1.42	66	1.68	78	1.99	98	2.49
80	2.03	68	1.72	42	1.08	2.1	0.054	23.3	0.592	75	1.90	88	2.24	104	2.65	131	3.33
100	2.54	85	2.15	53	1.35	2.6	0.067	29.1	0.740	93	2.37	110	2.80	131	3.32	164	4.16
120	3.05	102	2.58	64	1.62	3.2	0.081	35.0	0.888	112	2.84	132	3.36	157	3.98	196	4.99
150	3.81	127	3.23	79	2.02	4.0	0.101	43.7	1.111	140	3.55	165	4.20	196	4.98	245	6.24
180	4.57	153	3.88	95	2.42	4.8	0.121	52.5	1.333	168	4.26	198	5.04	235	5.97	295	7.48
200	5.08	170	4.31	106	2.69	5.3	0.135	58.3	1.481	187	4.74	220	5.60	261	6.63	327	8.31
250	6.35	212	5.38	132	3.37	6.6	0.168	72.9	1.851	233	5.92	276	7.00	326	8.29	409	10.39
300	7.62	254	6.46	159	4.04	7.9	0.202	87.4	2.221	280	7.11	331	8.40	392	9.95	491	12.47
350	8.89	297	7.54	185	4.71	9.3	0.236	102.0	2.591	326	8.29	386	9.80	457	11.61	573	14.55
400	10.16	339	8.62	212	5.38	10.6	0.269	116.6	2.962	373	9.48	441	11.20	522	13.27	655	16.63
500	12.70	424	10.77	265	6.73	13.2	0.337	145.7	3.702	466	11.85	551	14.00	653	16.59	818	20.79

Lens										Semi Long (LS2LT1)				Long Zoom (LS2LT2)				Wide Fix (LS2ST3)
Throw ratio 1.93~2.9 3~5 0.778
Diagonal Image Width Image Height						Offset (A) O		Distance Distance
						Wide/Tele		Wide/Tele		Wide		Tele		Wide		Tele		NA
(Inch)	(m)	(Inch)	(m)	(Inch)	(m)	(Inch)	(m)	(Inch)	(m)	(Inch)	(m)	(Inch)	(m)	(Inch)	(m)	(Inch)	(m)	(Inch)	(m)
50	1.27	42	1.08	26	0.67	1.3	0.034	14.6	0.370	82	2.08	123	3.12	127	3.23	212	5.38	33	0.84
60	1.52	51	1.29	32	0.81	1.6	0.040	17.5	0.444	98	2.49	148	3.75	153	3.88	254	6.46	40	1.01
80	2.03	68	1.72	42	1.08	2.1	0.054	23.3	0.592	131	3.33	197	5.00	204	5.17	339	8.62	53	1.34
100	2.54	85	2.15	53	1.35	2.6	0.067	29.1	0.740	164	4.16	246	6.25	254	6.46	424	10.77	66	1.68
120	3.05	102	2.58	64	1.62	3.2	0.081	35.0	0.888	196	4.99	295	7.50	305	7.75	509	12.92	79	2.01
150	3.81	127	3.23	79	2.02	4.0	0.101	43.7	1.111	245	6.24	369	9.37	382	9.69	636	16.15	99	2.51
180	4.57	153	3.88	95	2.42	4.8	0.121	52.5	1.333	295	7.48	443	11.24	458	11.63	763	19.39	119	3.02
200	5.08	170	4.31	106	2.69	5.3	0.135	58.3	1.481	327	8.31	492	12.49	509	12.92	848	21.54	132	3.35
250	6.35	212	5.38	132	3.37	6.6	0.168	72.9	1.851	409	10.39	615	15.62	636	16.15	1060	26.92	165	4.19
300	7.62	254	6.46	159	4.04	7.9	0.202	87.4	2.221	491	12.47	738	18.74	763	19.39	1272	32.31	198	5.03
350	8.89	297	7.54	185	4.71	9.3	0.236	102.0	2.591	573	14.55	861	21.86	890	22.62	1484	37.69	231	5.87
400	10.16	339	8.62	212	5.38	10.6	0.269	116.6	2.962	655	16.63	984	24.99	1018	25.85	1696	43.08	264	6.70
500	12.70	424	10.77	265	6.73	13.2	0.337	145.7	3.702	818	20.79	1230	31.23	1272	32.31	2120	53.85	330	8.38

Lens										Short Throw (LS2ST2)				Semi Throw (LS2ST4)
Throw ratio 0.77~1.1 1.25~1.60
Diagonal Image Width Image Height						Offset (A) O		Distance Distance
						Wide/Tele		Wide/Tele		Wide		Tele		Wide		Tele
(Inch)	(m)	(Inch)	(m)	(Inch)	(m)	(Inch)	(m)	(Inch)	(m)	(Inch)	(m)	(Inch)	(m)	(Inch)	(m)	(Inch)	(m)
50	1.27	42	1.08	26	0.67	1.3	0.034	14.6	0.370	33	0.83	47	1.18	53	1.35	68	1.72
60	1.52	51	1.29	32	0.81	1.6	0.040	17.5	0.444	39	1.00	56	1.42	64	1.62	81	2.07
80	2.03	68	1.72	42	1.08	2.1	0.054	23.3	0.592	52	1.33	75	1.90	85	2.15	109	2.76
100	2.54	85	2.15	53	1.35	2.6	0.067	29.1	0.740	65	1.66	93	2.37	106	2.69	136	3.45
120	3.05	102	2.58	64	1.62	3.2	0.081	35.0	0.888	78	1.99	112	2.84	127	3.23	163	4.14
150	3.81	127	3.23	79	2.02	4.0	0.101	43.7	1.111	98	2.49	140	3.55	159	4.04	204	5.17
180	4.57	153	3.88	95	2.42	4.8	0.121	52.5	1.333	118	2.99	168	4.26	191	4.85	244	6.20
200	5.08	170	4.31	106	2.69	5.3	0.135	58.3	1.481	131	3.32	187	4.74	212	5.38	271	6.89
250	6.35	212	5.38	132	3.37	6.6	0.168	72.9	1.851	163	4.15	233	5.92	265	6.73	339	8.62
300	7.62	254	6.46	159	4.04	7.9	0.202	87.4	2.221	196	4.98	280	7.11	318	8.08	407	10.34
350	8.89	297	7.54	185	4.71	9.3	0.236	102.0	2.591	229	5.80	326	8.29	371	9.42	475	12.06
400	10.16	339	8.62	212	5.38	10.6	0.269	116.6	2.962	261	6.63	373	9.48	424	10.77	543	13.79
500	12.70	424	10.77	265	6.73	13.2	0.337	145.7	3.702	326	8.29	466	11.85	530	13.46	678	17.23

Note:

There is 5% tolerance among these numbers due to optical component variations. BenQ recommends that if you intend to permanently install the projector, you should physically test the projection size and distance using the actual projector before you permanently install it, so as to make allowance for this projector's optical characteristics. This will help you determine the exact mounting position so that it best suits your installation location.

Lens dimension

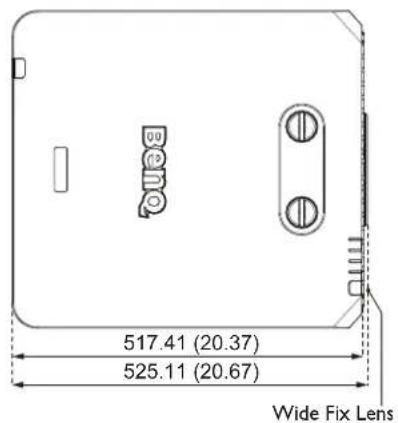

Optional Lens (Wide Fix: LS2ST3) Optional Lens (Wide Zoom: LS2ST1)

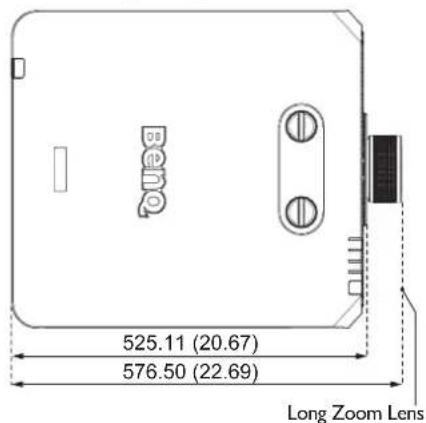

Optional Lens (Standard: LS2SD2) Optional Lens (Semi Long Throw: LS2LTI)

Optional Lens (Long Zoom: LS2LT2) Optional Lens (Short Throw: LS2ST2)

Optional Lens (Semi Throw: LS2ST4)

Adjusting by Lens shift

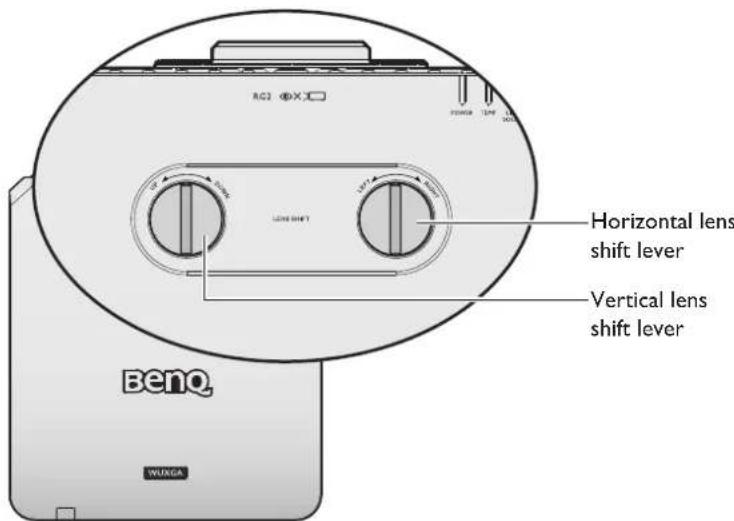

The Lens Shift function can be used to adjust the position of the projected image either horizontally or vertically within the range detailed below.

Adjusting the vertical image position

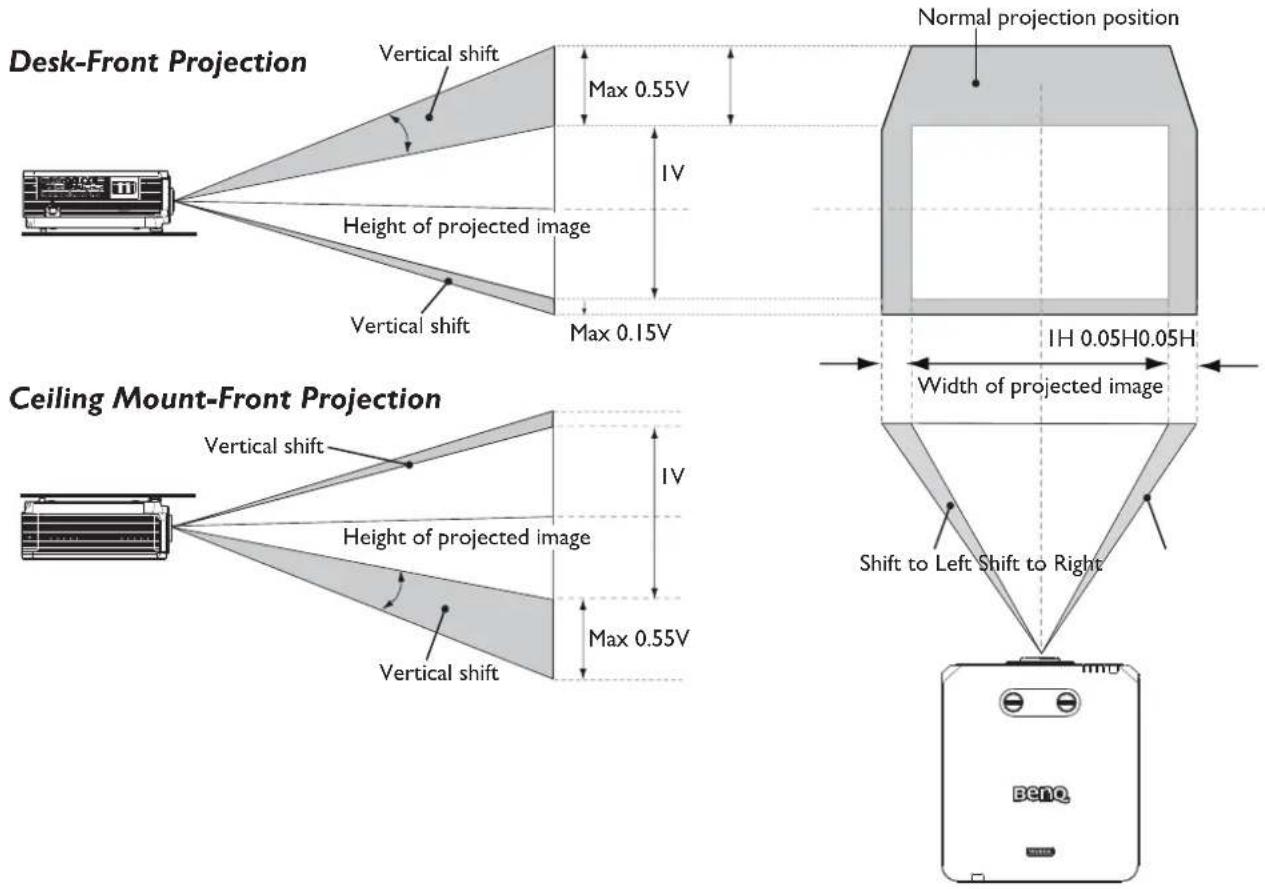

The vertical image height can be adjusted between 55% and -15% for WUXGA of offset position. Please consult the Lens Shift Range diagram below for further clarification.

Adjusting the horizontal image position

With the lens in the center position the horizontal image position can be adjusted to the left or right by up to a maximum of 5% of the image width. Please consult the Lens Shift Range diagram below for further clarification.

Lens shift range diagram

Notice (when edge blending)

- To avoid the image shaking or some pixels in the display may be misaligned, do not use the projector in the following location:

• In a building close to a construction site.
• In a room where an air conditioner unit is working and it vibrates.
• In a place where the temperature changes dramatically that may cause thermal contraction.

- Before making any adjustment, leave the projector lit for at least 45 minutes after its light source is turned on. This allows he internal temperature of the projector to stabilize.

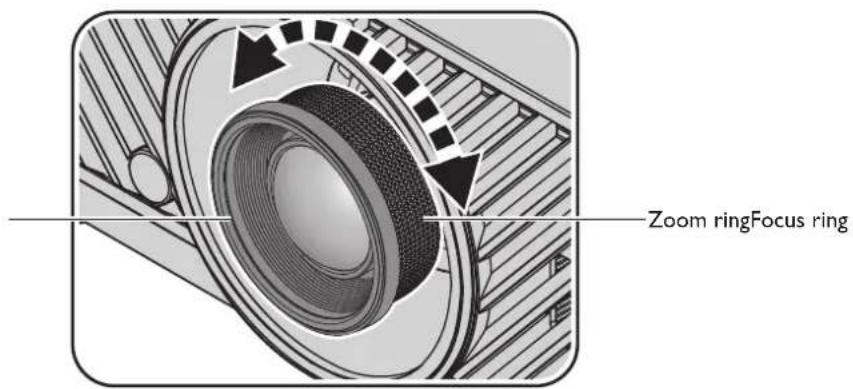

Adjusting the Zoom/Focus

You may turn the zoom ring to zoom in or out. To focus the image, rotate the focus ring until the image is clear. The projector will focus at distances. See page 23.

Connection

Before connecting

• Before connecting, carefully read the operating instructions for connecting the external device
• Turn off the power to all devices before connecting cables.

• Take note of the following before connecting cables. Failure to do so may result in malfunctions.

• Before connecting a cable to the projector or to a device that is connected to the projector, touch any nearby metallic objects to remove any static electricity from your body.

• Do not use unnecessarily long cables to connect the projector or a device to the projector. Using a longer cable that is wound makes it act like an antenna, making it more susceptible to noise.

• When connecting cables, connect GND first and then insert the connecting terminal of the connecting device.

• Acquire any connection cables necessary to connect external devices to the system that are not supplied.

• The images on the screen may wobble if the video signal contains too much jitter. In this case, a time base corrector (TBC) must be connected.
• If synchronization signal outputs from computers or video equipment are disrupted due to changes in the video output settings or any other reasons, the colors of projected images may be temporarily disrupted.
• The projector accepts video signals, Y/C signals, YCBCR/YPBPR signals, analog RGB signals (synchronization signals are TTL level), and digital signals.
• Some computer models are not compatible with the projector.
• Use a cable compensator when you connect devices to the projector with long cables. If a cable compensator is not used, the image may not display properly.

PC

No.	Serial No. Serial
1 R/PR 9 -
2 G/Y 10 GND
3 B/PB 11 GND
4 - 12 DDC data
5	GND
6	GND
7	GND
8 GND

13	SYNC/HD
14	VD
15	DDC clock

HDMI I

No.	Serial No. Serial
1	TMDS Data2+ 11 TMDS Clock Shield
2	TMDS Data2 Shield 12 TMDS Clock-
3	TMDS Data2- 13 CEC
4	TMDS Data1+	14	Reserved (N.C. on device)
5	TMDS Data1 Shield 15 SCL
6	TMDS Data1- 16 SDA
7	TMDS Data0+	17	DDC/CEC Ground
8	TMDS Data0 Shield 18 +5 V Power (max 50 mA)
9	TMDS Data0- 19 Hot Plug Detect
10	TMDS Clock+

Even-numbered pins of 2 to 18

Odd-numbered pins of 1 to 19

DVI-D

No. Serial No. Serial
1 T.M.D.S data 2-		13 -
2	T.M.D.S data 2+	14	-+5 V
3	T.M.D.S data 2/4 shield	15	GND
4 -		16 Hot plug detection
5	-	17	T.M.D.S data 0-
6	DDC clock	18	T.M.D.S data 0+
7	DDC data	19	T.M.D.S data 0/5 shield
8 -		20 -
9 T.M.D.S data 1-		21 -
10	T.M.D.S clock1+	22	T.M.D.S clock shield
11	T.M.D.S data 1/3 shield	23	T.M.D.S clock+
12	-	24	T.M.D.S clock-

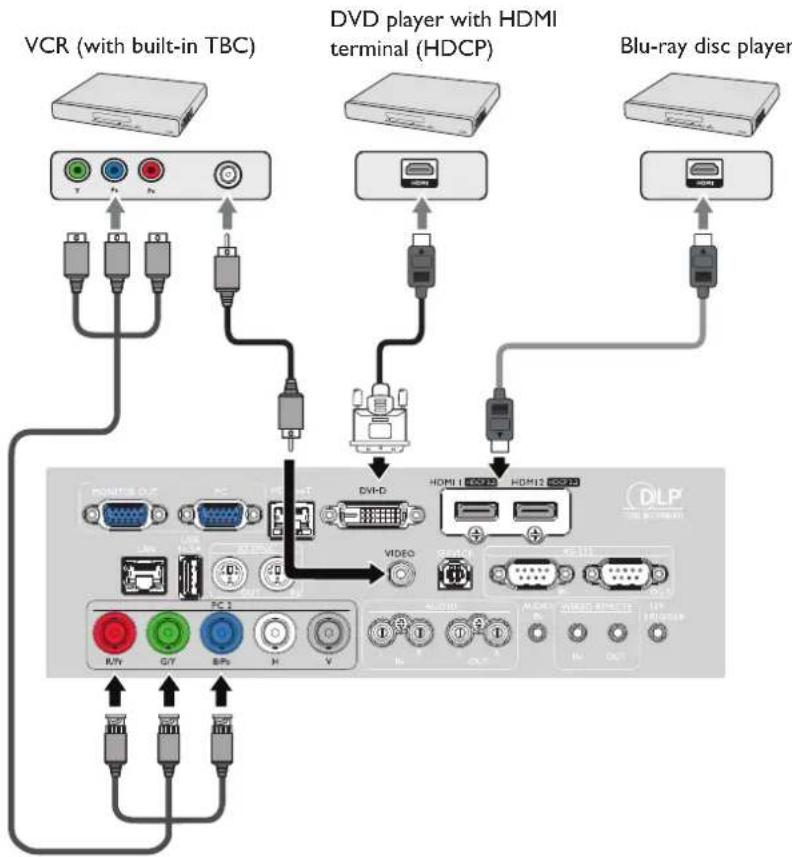

Connecting with AV equipment

Connecting with computer

Connecting with HDBaseT transmitter

Connecting with LAN

Operations

Switch on/off the projector

Connecting the power cord

Plug the power cord into the projector and into a wall socket. Turn on the wall socket switch (where fitted). Check that the POWER indicator light on the projector lights orange after power has been applied.

Diagram showing a plug inserted into an electronic device with arrows indicating connection (no text or symbols present)

Caution:

Please use the original accessories (e.g. power cable) only with the device to avoid possible dangers such as electric shock and fire.

Power indicator

Power	Temp	Light	Filter	Status & Description
Orange - - Stand-by
Green Flashing	--- Powering up
Green -- Normal operation
Orange Flashing	--- Normal power down cooling

Switch on the projector

Press ⏻ POWER on the projector or ON on the remote control to start the projector and a start up tone sounds. The POWER indicator light flashes green and stays green when the projector is on.

The start up procedure takes about 30 seconds. In the later stage of start up, a startup logo is projected.

(If necessary) Rotate the focus ring to adjust the image clearness.

Select language

To use the OSD menus, please set them to your familiar language first.

*After this process is done, this menu will not show up again after 1st time adjustment unless user presses Reset All Settings.

I. Press ENTER on the projector or remote control to turn the OSD menu on.

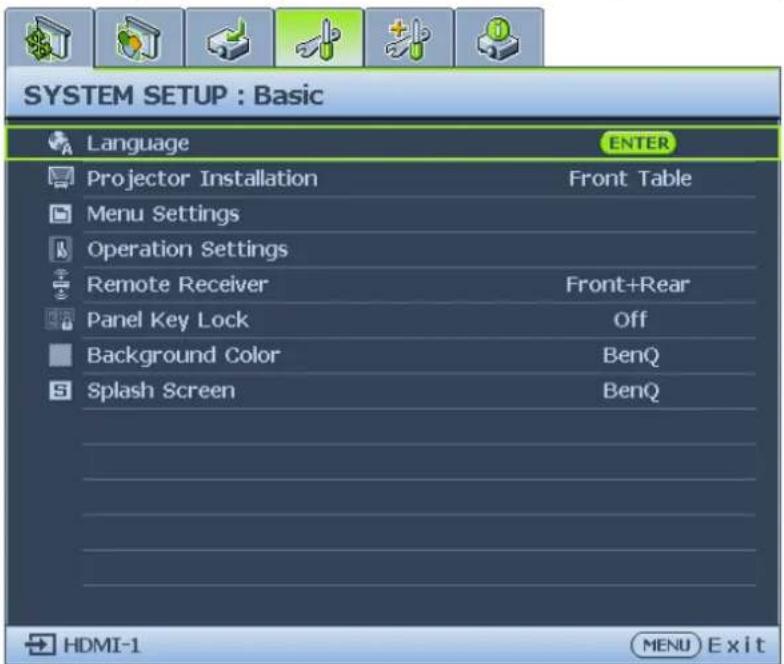

1. Use ◀/▶ to highlight the System Setup: Basic menu.

1. Press ▼ to highlight Language and press ENTER to select a preferred language.

1. Press ENTER twice* on the projector or remote control to leave and save the settings. *The first press leads you back to the main menu and the second press closes the OSD menu.

I. Front Table

Select this location with the projector placed on a table in front of the screen. This is the most common way to position the projector for quick setup and portability.

Simple line drawing of a person standing beside a desk with a computer, connected by wires to a pole (no text or symbols)

2. Rear Table

Select this location with the projector placed on a table behind the screen.

Note that a special rear projection screen is required.

*Set Rear Table in the SYSTEM

SETUP: Basic > Projector Installation menu after you turn the projector on.

Simple line drawing of a person observing a screen with a pointer, showing geometric setup (no text or symbols)

3. Front Ceiling

Select this location with the projector suspended upside-down from the ceiling in front of the screen.

Purchase the BenQ Projector Ceiling Mounting Kit from your dealer to mount your projector on the ceiling.

*Set Front Ceiling in the SYSTEM

SETUP: Basic > Projector Installation menu after you turn the projector on.

Simple line drawing of a mechanical setup with a hanging device and a human silhouette (no text or symbols)

4. Rear Ceiling

Select this location with the projector suspended upside-down from the ceiling behind the screen.

Note that a special rear projection screen and the BenQ Projector Ceiling Mounting Kit are required for this installation location.

*Set Rear Ceiling in the SYSTEM

SETUP: Basic > Projector Installation menu after you turn the projector on.

Simple line drawing of a human silhouette and a mechanical device with connecting lines, no text or symbols present.

Your room layout or personal preference will dictate which installation location you select. Take into consideration the size and position of your screen, the location of a suitable power outlet, as well as the location and distance between the projector and the rest of your equipment.

Using test pattern

The projector is capable of displaying the grid test pattern. It can be used to assist you with the adjustment of image size and focus, ensuring that the projected image is free from distortion. To display the test pattern, open the OSD menu and go to the System Setup: Advanced > Test Pattern and press ◀/▶ to select On.

Blank grid paper with uniform square cells (no text or symbols)

Adjusting by corner fit

Manually adjust four corners of the image by setting the horizontal and vertical values. Using the OSD menu

I. Press MENU and then press ◀/▶ until the Display menu is highlighted.
2. Press ▼ to highlight Corner Fit and press ENTER. The Corner Fit page displays.

1. Press ▲/▼/◄/► to select one of the four corners and press ENTER.

1. Press ▲/▼ to adjust vertical values from 0 to 60.

2. Press ◀/▶ to adjust horizontal values from 0 to 60.

Auto adjusting the image

In some cases, you may need to optimize the picture quality. To do this, press AUTO on the projector or remote control. Within 3 seconds, the built-in Intelligent Auto Adjustment function will re-adjust the values of Frequency and Clock to provide the best picture quality.

The current source information will be displayed in the upper left corner of the screen for 3 seconds.

Note:

• The screen will be blank while AUTO is functioning.
• This function is only available when PC signal (analog RGB) is selected.

Fine turning the image size and clarity

I. Adjust the projected image to the size that you need using the ZOOM ring.
2. Sharpen the image by rotating the FOCUS ring.

Switch off the projector

I. Press ⏻ POWER or OFF and a confirmation message will appear prompting you. If you don't respond in a few seconds, the message will disappear.
2. Press ⏻ POWER or OFF a second time. The POWER indicator light flashes orange, the projection light source shuts down.

1. Once the cooling process finishes, a "Power Off Ring Tone" will be heard. The POWER indicator light is a steady orange and fans stop. Disconnect the power cord from the power outlet.

Caution:

• To protect the light source, the projector will not respond to any commands during the cooling process.
- Press ⏻ POWER or ON again to start the projector after the POWER indicator light turns orange.

Using the menu

Main menu

The projector is equipped with On-Screen Display (OSD) menus for making various adjustments and settings.

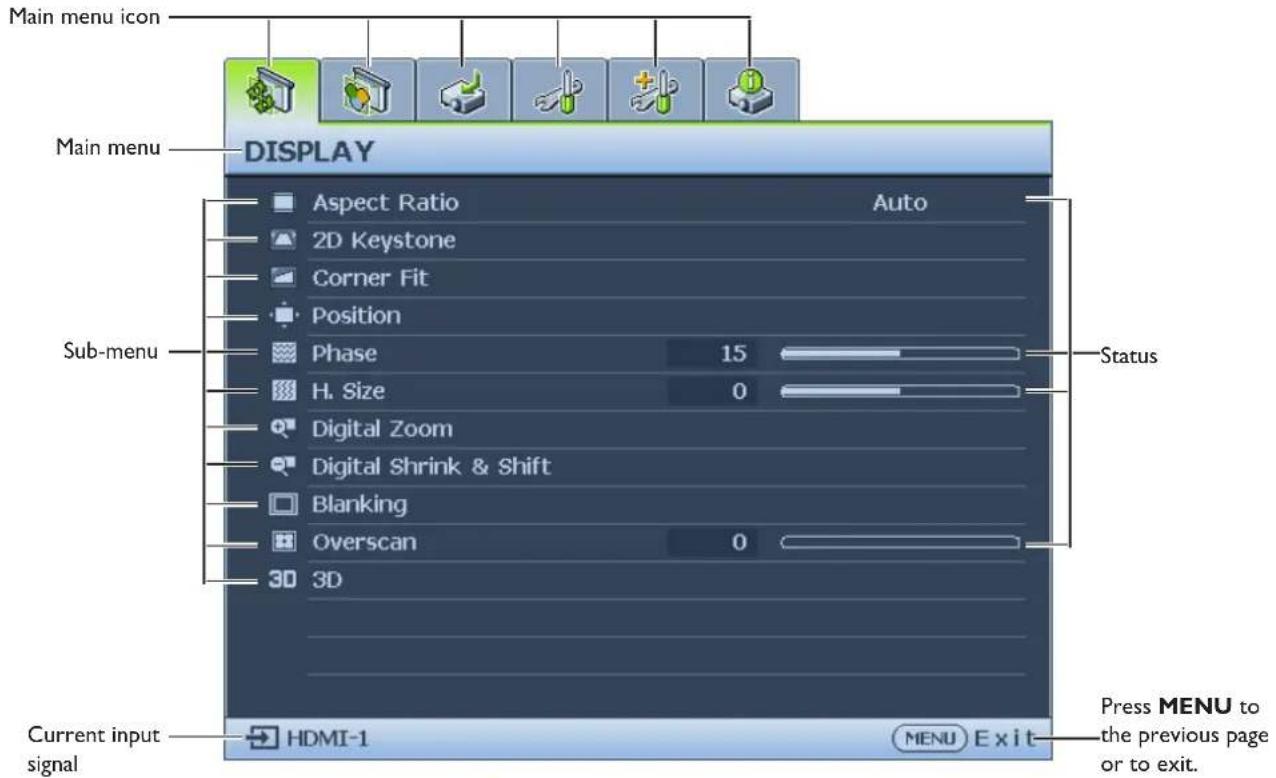

Below is the overview of the OSD menu.

I. Display menu (see "Display menu" on page 41)

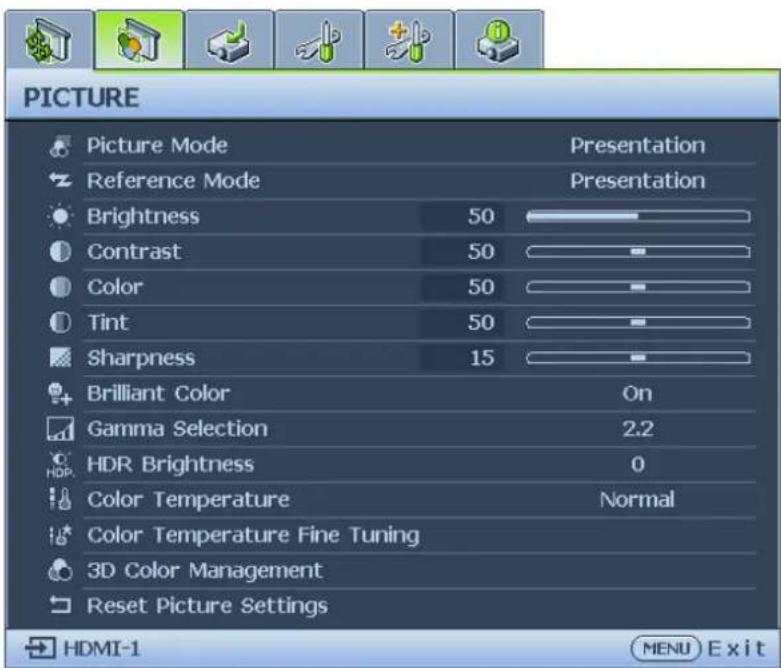

2. Picture menu (see "Picture menu" on page 45)
3. Source menu (see "Source menu" on page 49)
4. System Setup : Basic menu (see "System Setup : Basic menu" on page 50)
5. System Setup : Advanced menu (see "System Setup : Advanced menu" on page 53)
6. Information menu (see "Information menu" on page 58)

Available menu items may vary depending on the connected video sources or specified settings. Menu items that are not available will become grayed out.

• Use the arrow keys ( ▲/▼/◄/►) on the projector or remote control to move through the menu items.
  • Use ENTER to confirm the selected menu item.

Display menu

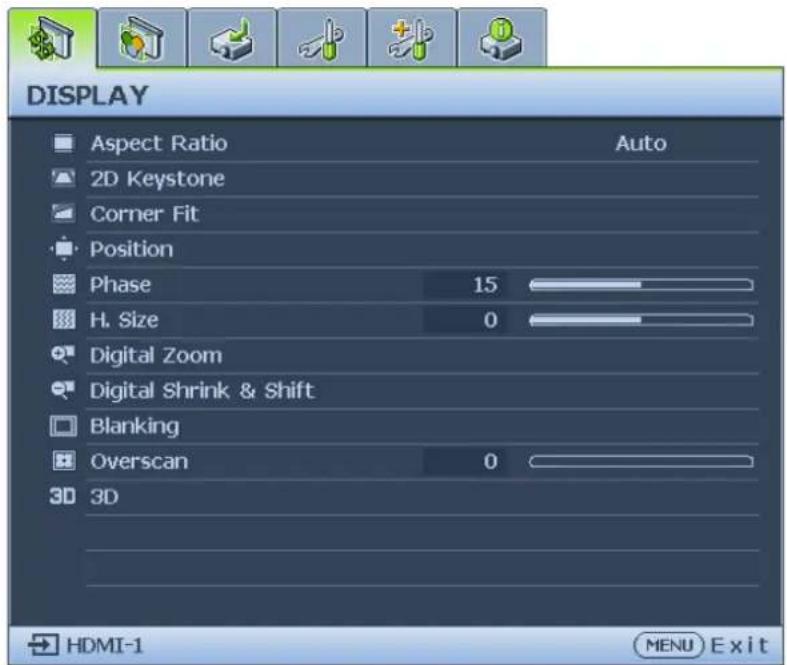

- Aspect Ratio

Press ◀/▶ to adjust the aspect of the projected image. The options are Auto, Real, 4:3, 16:9 and 16:10.

• Using the remote control

I. Press ASPECT to show the current setting.
2. Press ASPECT repeatedly to select an aspect ratio to suit the format of the video signal and your display requirements.

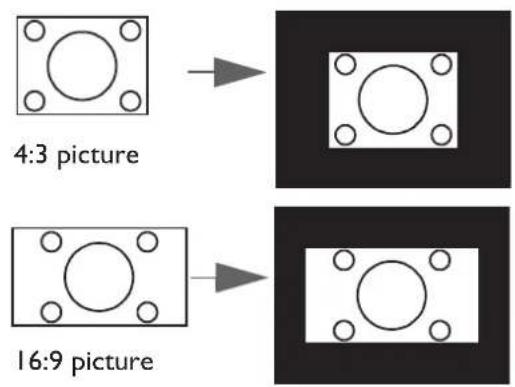

1. Auto: Scales an image proportionally to fit the projector's native resolution in its horizontal width. This is suitable for the incoming image which is neither in 4:3 nor 16:9 and you want to make most use of the screen without altering the image's aspect ratio.

1. 4:3: Scales an image so that it is displayed in the center of the screen with a 4:3 aspect ratio. This is most suitable for 4:3 images like computer monitors, standard definition TV and 4:3 images aspect DVD movies, as it displays them without aspect alteration.

1. Real: The image is projected as its original resolution, and resized to fit within the display area. For input signals with lower resolutions, the projected image will display smaller than if resized to full screen. You could adjust the zoom setting or move the projector away from the screen to increase the image size if necessary. You may also need to refocus the projector after making these adjustments.

1. 16:9: Scales an image so that it is displayed in the center of the screen with a 16:9 aspect ratio. This is most suitable for images which are already in a 16:9 aspect, like high definition TV, as it displays them without aspect alteration.

1. 16:10: Scales an image so that it is displayed in the center of the screen with a 16:10 aspect ratio. This is most suitable for images which are already in a 16:10 aspect, as it displays them without aspect alteration.

1. 2.35:1: Scales an image so that it is displayed in the center of the screen with a 2.35:1 aspect ratio. This is most suitable for widescreen cinemascope formats for movie theaters or images which already vary from a 2.35 to 2.40 aspect, as it displays them without aspect alteration.

- 2D Keystone

Press ENTER and press ▲/▼/◄/► to adjust horizontal or vertical distortion brought by the projection angle.

- Corner Fit

Press ENTER to enter the Corner Fit menu. See "Corner Fit menu" on page 43 for more details.

- Position

Press ENTER and press ▲/▼/◄/► to adjust the position of the projected picture.

- Phase

Press ◀/▶ to adjust Phase for the projected picture.

• H. Size

Press ◀/▶ to adjust H. Size for the projected picture.

- Digital Zoom

Press ◀/▶ to enlarge the projected image.

• Digital Shrink & Shift

Press ENTER to enter the Digital Shrink & Shift menu. See "Digital Shrink & Shift menu" on page 43 for more details.

- Blanking

Press ENTER to enter the Blanking menu. See "Blanking menu" on page 44 for more details.

- Overscan

Press ◀/▶ to hide edge of the projected image to damage the noise appear.

• 3D

Press ENTER to enter the 3D menu. See "3D menu" on page 44 for more details.

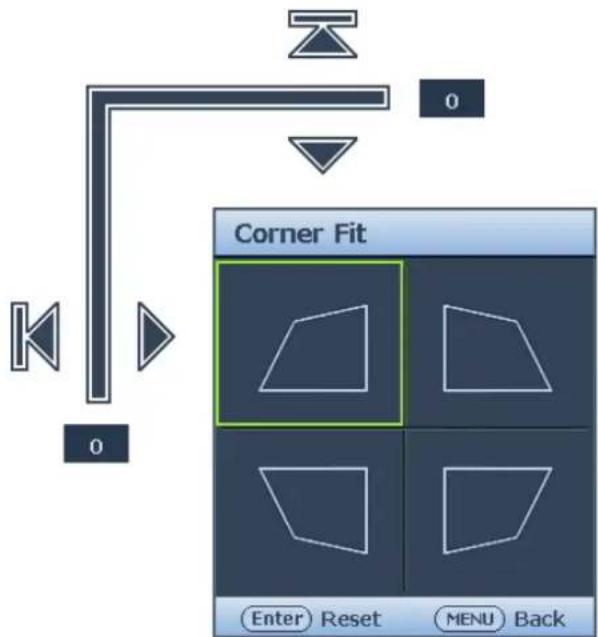

Corner Fit menu

• Top Left Press ENTER and press ▲/▼/◄/► to correct the top left corner.
• Top Right Press ENTER and press ▲/▼/◄/► to correct the top right corner.
• Bottom Left Press ENTER and press ▲/▼/◄/► to correct the bottom left corner.
• Bottom Right Press ENTER and press ▲/▼/◄/► to correct the bottom right corner.

Digital Shrink & Shift menu

• Digital Shrink Press ENTER and press ◀/▶ to reduce the image to a desired size. Press AUTO SYNC to restore the picture to its original size.
• Digital Image Shift Press ENTER and press ▲/▼/◄/► to shift the image. Press AUTO SYNC to restore the picture to its original position.

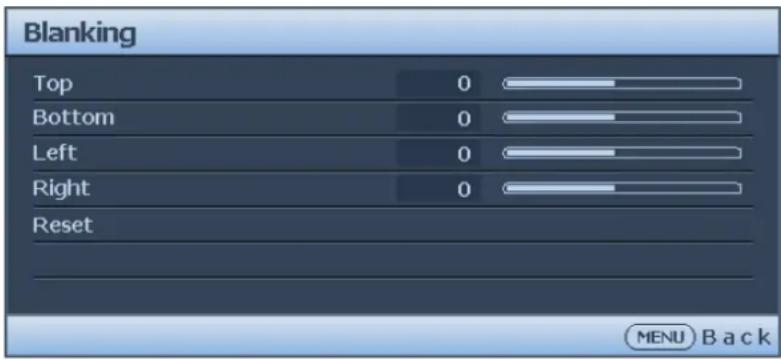

Blanking menu

• Top Press ◀/▶ to adjust the top blanking area on the projected picture.
• Bottom Press ◀/▶ to adjust the bottom blanking area on the projected picture.
• Left Press ◀/▶ to adjust the left blanking area on the projected picture.
• Right Press ◀/▶ to adjust the right blanking area on the projected picture.
• Reset Press ENTER to set up all Blanking settings to default.

3D menu

• 3D Sync Mode Press ◀/▶ to select the 3D sync mode. The options are DLP Link and VESA 3D.
• 3D Mode Press ENTER to enter the 3D Mode menu. Press ▲/▼ to select the 3D format. The options are Auto, Top-Bottom, Frame Sequential, Frame Packing, Side-By-Side and Off.
• 3D Sync Invert Press ◀/▶ to enable or disable 3D Sync Invert.
• 3D Sync Out Delay Press ◀/▶ to adjust 3D sync out signal delay.
• 3D Sync Out Reference Press ◀/▶ to select the 3D sync out behavior. The options are 3D VESA and Bypass to another projector.
• Save 3D Settings Press ENTER to enter the Save 3D Settings menu. Press ▲/▼ and ENTER to save the current 3D settings.
• Apply 3D Settings Press ENTER to enter the Apply 3D Settings menu. Press ▲/▼ and ENTER to apply the saved 3D settings.

Picture menu

- Picture Mode

Press ◀/▶ to select a picture mode. The options are Bright, Presentation, sRGB, Cinema, DICOM SIM, 3D, User 1 and User 2.

• Bright mode: Maximizes the brightness of the projected image. This mode is suitable for environments where extra-high brightness is required, such as using the projector in well lit rooms.
• Presentation mode: Is designed for presentation. The brightness is emphasized in this mode to match PC and notebook coloring.
• sRGB mode: Maximizes the purity of RGB colors to provide true-to-life images regardless of brightness setting. It is most suitable for viewing photos taken with an sRGB compatible and properly calibrated camera, and for viewing PC graphic and drawing applications such as AutoCAD.
• Vivid mode: Is appropriate for playing colorful movies, video clips from digital cameras or DVs through the PC input for best viewing in a blackened (dimly lit) environment.
• Cinema mode: Is appropriate for playing colorful movies, video clips from digital cameras or DVs through the PC input for best viewing in a blackened (dimly lit) environment.
• DICOM SIM: This display mode simulates the grayscale/gamma performance of equipment used for “Digital Imaging and Communications in Medicine” (DICOM).

Important: This mode should NEVER be used for medical diagnosis, it is for education/training purposes only.

• 3D mode: Is appropriate for playing 3D images and 3D video clips.
- HDR10 mode: Only available when detecting HDR10 content, other picture mode can't be selected
- HLG mode: Only available when detecting HLG content, other picture mode can't be selected
- User I/User 2 mode: Recalls the settings customized based on the current available picture modes.

• Reference Mode

Press ◀/▶ to select a reference mode. The options are Bright, Presentation, sRGB, Cinema, Vivid and DICOM SIM.

- Brightness

Press ◀/▶ to adjust the brightness of the projected image.

The higher the value, the brighter the image. And lower the setting, darker the image. Adjust this control so the black areas of the image appear just as black and that detail in the dark areas is visible.

- Contrast

Press ◀/▶ to adjust the contrast of the projected image.

The higher the value, the greater the contrast. Use this to set the peak white level after you have previously adjusted the Brightness setting to suit your selected input and viewing environment.

• Color

Press ◀/▶ to adjust the color saturation.

Lower setting produces less saturated colors. If the setting is too high, colors on the image will be overpowering, which makes the image unrealistic.

- Tint

Press ◀/▶ to adjust the tint of the projected image.

The higher the value, the more reddish the picture becomes. The lower the value, the more greenish the picture becomes.

- Sharpness

Press ◀/▶ to adjust the display sharpness of the projected image.

The higher the value, the sharper the picture becomes. The lower the value, the softer the picture becomes.

- Brilliant Color

Press ◀/▶ to adjust the brilliant color of the projected image.

This feature utilizes a new color-processing algorithm and system level enhancements to enable higher brightness while providing truer, more vibrant colors in picture. It enables a greater than 50% brightness increase in mid-tone images, which are common in video and natural scenes, so the projector reproduces images in realistic and true colors. If you prefer images with that quality, select On. If you don't need it, select Off.

When Off is selected, the Color Temperature function is not available.

• Gamma Selection

Press ◀/▶ to select the relationship between input source and picture brightness.

• HDR Brightness

Press ◀/▶ to adjust the HDR brightness.

• Color Temperature

Press ◀/▶ to adjust the color temperature. The options are Cool, Normal and Warm.

• Cool: makes the image appear bluish white.
• Normal: Maintains normal colorings for white.
• Warm: Makes images appear reddish white.

• Color Temperature Fine Tuning

Press ENTER to enter the Color Temperature Fine Tuning menu. See "Color Temperature Fine Tuning menu" on page 47 for more details.

• 3D Color Management

Press ENTER to enter the 3D Color Management menu. See "3D Color Management menu" on page 48 for more details.

- Reset Picture Settings

Press ENTER to enter the Reset Picture Settings menu. Press ▲/▼ and press ENTER to set to the default value.

- Current: Returns current picture mode to the factory preset settings.

- All: Returns all settings, except User I/User 2 in the Picture menu to the factory preset settings.

Color Temperature Fine Tuning menu

• R Gain

Press ◀/▶ to adjust the Red Gain.

• G Gain

Press ◀/▶ to adjust the Green Gain.

• B Gain

Press ◀/▶ to adjust the Blue Gain.

- R Offset

Press ◀/▶ to adjust the Red Offset.

- G Offset

Press ◀/▶ to adjust the Green Offset.

- B Offset

Press ◀/▶ to adjust the Blue Offset.

To set a preferred color temperature:

I. Highlight Color Temperature and select Warm, Normal or Cool by pressing ◀/▶ on the projector or remote control.

1. Press ▼ to highlight Color Temperature Fine Tuning and press ENTER. The Color Temperature Fine Tuning page appears.

2. Press ▲/▼ to highlight the item you want to change and adjust the values by pressing ◀/▶.

• R Gain/G Gain/B Gain: Adjusts the contrast levels of Red, Green, and Blue.

• R Offset/G Offset/B Offset: Adjusts the brightness levels of Red, Green, and Blue.

1. Press MENU to exit and save the settings.

3D Color Management menu

- Primary Color

Press ENTER to enter the Primary Color menu. Press ▲/▼ to select the primary color. The options are R, G, B, C, M and Y.

- Hue

Press ENTER to enter the Hue menu. Press ▲/▼/◄/► to adjust settings.

- Saturation

Press ENTER to enter the Saturation menu. Press ▲/▼/◄/► to adjust settings.

- Gain

Press ENTER to enter the Gain menu. Press ▲/▼/◄/► to adjust settings.

3D Color Management

In most installation situations, color management will not be necessary, such as in classroom, meeting room, or lounge room situations where lights remain on, or where building external windows allow daylight into the room.

Only in permanent installations with controlled lighting levels such as boardrooms, lecture theaters, or home theaters, should color management be considered. Color management provides fine color control adjustment to allow for more accurate color reproduction, should you require it.

Proper color management can only be achieved under controlled and reproducible viewing conditions. You will need to use a colorimeter (color light meter), and provide a set of suitable source images to measure color reproduction. These tools are not provided with the projector, however, your projector supplier should be able to provide you with suitable guidance, or even an experienced professional installer.

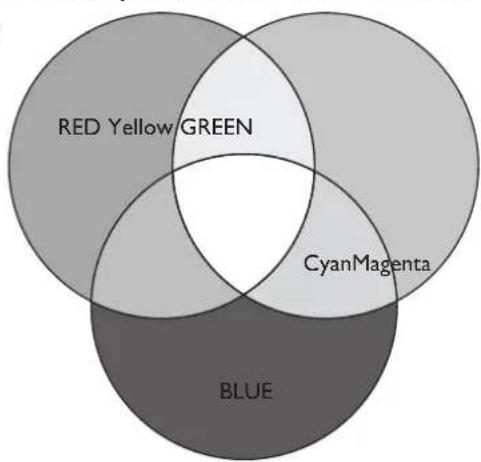

The Color Management provides six sets (RGBCMY) of colors to be adjusted. When you select each color, you can independently adjust its range and saturation according to your preference.

If you have purchased a test disc which contains various color test patterns and can be used to test the color presentation on monitors, TVs, projectors,

etc. You can project any image from the disc on the screen and enter the 3D Color Management menu to make adjustments.

To adjust the settings:

1. Go to the Picture menu and highlight 3D Color Management.

2. Press ENTER and the 3D Color Management page displays.

3. Highlight Primary color and press ◀/▶ to select a color from among Red, Green, Blue, Cyan, Magenta and Yellow.

1. Press ▼ to highlight Hue and press ◀/▶ to select its range. Increase in the range will include colors consisted of more proportions of its two adjacent colors. Please refer to the illustration to the right for how the colors relate to each other. For example, if you select Red and set its range at 0, only pure red in the projected picture will be selected. Increasing its range will include red close to yellow and red close to magenta.

2. Press ▼ to highlight Saturation and adjust its values to your preference by press ◀/▶. Every adjustment made will reflect to the image immediately. For example, if you select Red and set its value at 0, only the saturation of pure red will be affected.

Source menu

- Quick Auto Search

Press ◀/▶ to enable or disable search the input source automatically.

- HDMI Format

Press ◀/▶ to selects a suitable color format to to optimize display quality. The options are Auto, RGB Limited, RGB Full, YUV Limited and YUV Full.

• Auto: Automatically selects a suitable color space and gray level for the incoming HDMI signal.
  • RGB Limited: Utilizes the Limited range RGB 16-235.
• RGB Full: Utilizes the Full range RGB 0-255.
  • YUV Limited: Utilizes the Limited range YUV 16-235.
  • YUV Full: Utilizes the Full range YUV 0-255.

- HDMI EDID

Press ENTER to enter the HDMI EDID menu. Press ▲/▼ and press ENTER to select the HDMI. Press ◀/▶ to set to the default value.

• Enhance: Enhanced mode can switch to HDMI 2.0 EDID.
- Standard: Standard mode can switch to HDMI 1.4 EDID.

- HDBaseT EDID

Press ◀/▶ to switch HDBaseT EDID between HDMI 1.4 or HDMI 2.0 in order to solve compatibility issue with uncertain old players.

• Enhance: Enhanced mode can switch to HDMI 2.0 EDID.
• Standard: Standard mode can switch to HDMI 1.4 EDID.

- HDMI Equalizer

Press ENTER to enter the HDMI Equalizer menu. Press ▲/▼ and press ENTER to select the HDMI. Press ◀/▶ to set to the default value.

- Auto Sync

Press ◀/▶ to enable or disable auto sync function.

System Setup : Basic menu

- Language

Press ENTER to enter the Language menu. Press ▲/▼/◄/► to select the language of OSD menu.

- Projector Installation

Press ◀/▶ to select the projector installation. The options are Front Table, Rear Table, Rear Ceiling and Front Ceiling.

- Menu Settings

Press ENTER to enter the Menu Settings menu. See "Menu Settings menu" on page 51 for more details.

• Operation Settings

Press ENTER to enter the Operation Settings menu. See "Operation Settings menu" on page 51 for more details.

- Remote Receiver

Press ◀/▶ to select the remote receiver. The options are Front, Rear and Front+Rear.

- Panel Key Lock

Press ◀/▶ to enable or disable all panel key functions except POWER on the projector.

- Background Color

Press ◀/▶ to select the background color when no input signal. The options are BenQ, Black, Blue and Purple.

- Splash Screen

Press ◀/▶ to select the start up patern when the projector turns on. The options are BenQ, Black and Blue.

Menu Settings menu

Menu Settings
Menu Display Time	20 sec
Menu Position	Center
Reminder Message	On
	MENU Back

- Menu Display Time

Press ◀/▶ to select the menu display time period. The options are 5 sec, 10 sec, 20 sec, 30 sec and Always.

- Menu Position

Press ◀/▶ to select the menu display position. The options are Center, Top-Left, Top-Right, Bottom-Right and Bottom-Left.

- Reminder Message

Press ◀/▶ to enable or disable reminder message displays.

Operation Settings menu

- Direct Power On

Press ◀/▶ to enable or disable automatically turning on the projector when the AC power is connected.

- Signal Power On

Press ◀/▶ to enable or disable automatically turning on the projector when an input signal is detected.

- Auto Power Off

Press ◀/▶ to enable or disable automatically turning off the projector when there is no input signal.

- Blank Timer

Press ◀/▶ to set the length of time the image is blanked. The options are Disable, 5 mins, 10 mins, 15 mins, 20 mins, 25 mins and 30 mins.

- Sleep Timer

Press ◀/▶ to set the length of time before the projector is turned off. The options are Disable, 30 mins, 1 hr, 2 hrs, 3 hrs, 4 hrs, 8 hrs and 12 hrs.

- Filter Settings

Press ENTER to enter the Filter Settings menu. See "Filter Settings menu" on page 52 for more details.

Filter Settings menu

- Filter Timer

Press ◀/▶ to enable or disable filter timer.

- Reset Filter Timer

Press ENTER to reset the filter timer when the filter is replaced.

- Filter Usage Time

Displays the cureent number of hours the filter has been used.

System Setup : Advanced menu

• High Altitude Mode

Press ◀/▶ to enable or disable High Altitude Mode. Enable this function when the operating altitude is higher than 1500m or the ambient temperature is over 40°C.

• Dynamic Dimming

Press ◀/▶ to enable or disable dynamic dimming function. Enable the function to automatically reduces the screen's brightness level when the displayed image contains a high proportion of bright areas.

When 3D Sync Mode is DLP Link, the Dynamic Dimming function is not available.

- Audio Settings

Press ENTER to enter the Audio Settings menu. See "Audio Settings menu" on page 55 for more details.

- Light Settings

Press ENTER to enter the Light Settings menu. See "Light Settings menu" on page 56 for more details.

• Security Settings

Press ENTER to enter the Security Settings menu. See "Security Settings menu" on page 56 for more details.

- HDBaseT

Press ◀/▶ to enable or disable the HDBaseT.

Note:

Turn on HDBaseT mode will disable internal LAN and RS232 control and switch to Normal power standby mode automatically.

HDbaseT control function table

Control Side	Function	Standby Mode			Remark
		Eco (< 0.5W)	Network (<2W)	Normal (>2W)
Projector	Front-IR (Wireless)	○	○	○ (Can disable by OSD)
	Rear-IR (Wireless)	○	○	○ (Can disable by OSD)
	RS-232 ○ ○ X
	RJ45/LAN X ○ X
	Wired Remote ○ ○ ○
HDBaseT TX Box	HDBT-IR (Wireless)	× × ○
	RS-232 × × ○
	RJ45/LAN × × ○
	Wired Remote	× × ○			User can connect wired remote at HDBaseT TX side to get the wired function.

O: Enable X: Disable

- Baud Rate

Press ◀/▶ to select RS-232 baud rate. The options are 2400, 4800, 9600, 14400, 19200, 38400, 57600 and 1152000.

- Test Pattern

Press ◀/▶ to select the test pattern. The options are Off, Grid, White, Red, Green, Blue, Black, RGB Ramps, Color Bar, Step Bars, CheckBoard, Horizontal Lines, Vertical Lines, Diagonal Lines, Horizontal Ramp and Vertical Ramps.

- Projector ID Setting

Press ◀/▶ to enable or disable the projector ID.

- Closed Caption

Press ENTER to enter the Closed Caption menu. See "Closed Caption menu" on page 57 for more details.

- 12 Trigger

Press ◀/▶ to enable or disable 12V trigger function.

- Standby Settings

Press ENTER to enter the Standby Settings menu. See "Standby Settings menu" on page 57 for more details.

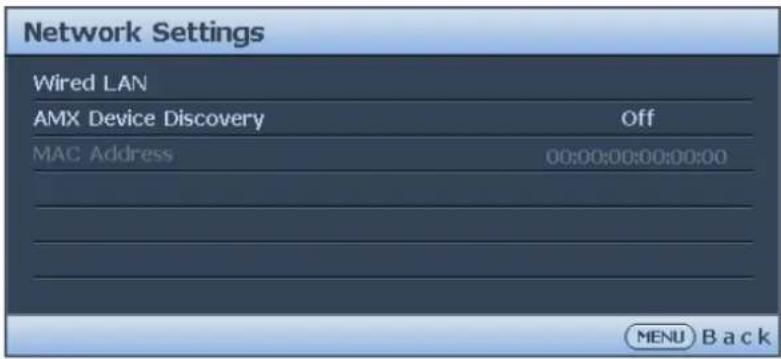

• Network Settings

Press ENTER to enter the Network Settings menu. See "Network Settings menu" on page 58 for more details.

- Reset All Settings

Press ENTER to reset all settings to default value.

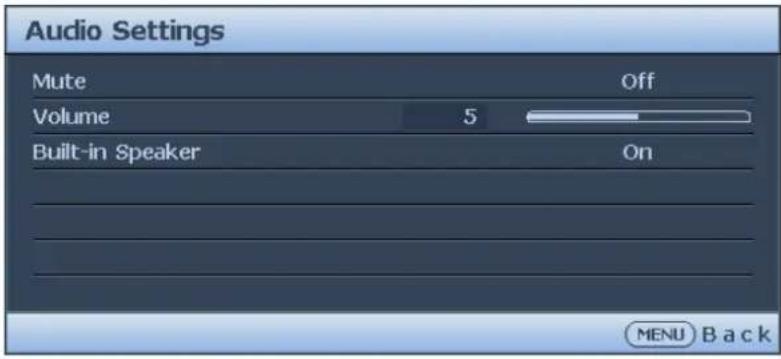

Audio Settings menu

- Mute

Press ◀/▶ to enable or disable the mute function.

• Using the remote control

Press MUTE to temporarily turn off the sound. While the sound is off, the screen will display in the upper right corner of the screen. To restore the sound, press MUTE again.

• Using the OSD menu

I. Press MENU and then press ◀/▶ until the System Setup: Advanced menu is highlighted.
2. Press ▼ to highlight Audio Settings and press ENTER. The Audio Settings page displays.
3. Highlight Mute and press ◀/▶ to select On.
4. To restore the sound, repeat steps 1-3 and press ◀/▶ to select Off.

• Volume

Press ◀/▶ to adjust the volume of the projector.

• Using the remote control Press VOLUME+/VOLUME- to select a desired sound level.
  • Using the OSD menu

I. Press MENU and then press ◀/▶ until the System Setup: Advanced menu is highlighted.
2. Press ▼ to highlight Audio Settings and press ENTER. The Audio Settings page displays.
3. Press ▼ to highlight Volume and press ◀/▶ to select a desired sound level.

• Built-in speaker

Press ◀/▶ to enable or disable the built-in speaker.

Light Settings menu

- Light Mode

Press ◀/▶ to select the light mode. The options are Normal, Economic, Dimming and Custom.

- Custom Brightness

Press ◀/▶ to adjust the brightness of the projector.

• Light Usage Time

Press ENTER to enter the Light Source Information menu.

Security Settings menu

- Change Password

Press ENTER to change the password.

- Change Security Settings

Press ENTER to change the security settings.

- Power On Lock

Press ◀/▶ to enable or disable the power on lock function. If the function is enabled, you must enter the password every time the projector is turned on.

Closed Caption menu

- Closed Caption Enable

Press ◀/▶ to enable or disable the closed caption function.

- Caption Version

Press ◀/▶ to select the closed captioning mode. The options are CC1, CC2, CC3 and CC4.

Standby Settings menu

- Standby Mode

Press ◀/▶ to select the standby mode. The options are Eco, Network and Normal.

• Auto Disable Network Standby Mode

Press ◀/▶ to enable or disable the auto switch from network standby mode to non-network standby mode after a period of time.

• Audio Pass Through

Press ◀/▶ to enable the audio line-out function when the projector is in standby mode. The options are Audio In, Audio L/R, HDMI 1, HDMI 2 and Off.

Network Settings menu

- Wired LAN

Press ENTER to enter the Wired LAN menu to setup the IP address, subnet mask, default gateway, DNS server and DHCP.

• AMX Device Discovery

Press ◀/▶ to enable or disable the AMX device discovery function. When the function is enabled, the projector can be detected by an AMX controller.

- Mac Address

Displays the cureent MAC address of the projector.

Information menu

- Source

Displays the current signal source.

- Picture Mode

Displays the current picture mode.

- Light Mode

Displays the current light mode.

- Resolution

Displays the native resolution of the input source.

- HDBaseT

Displays the current HDBaseT status.

- 3D Format

Displays the current 3D mode. Only available when 3D Mode is enabled.

- Color System

Displays the input system format.

- Light Usage Time

Displays the number of hours the light has been used.

- Projector ID

Displays the current projector ID.

- Firmware Version

Displays the firmware version of your projector.

- Service Code

Displays the serial number of your projector.

Menu structure

Main menu Sub-menu Options
Display Aspect Ratio Auto/ Real/ 4:3/ 16:9/ 16:10/
		2.35:1
	2D Keystone
	Corner Fit Top Left/ Top Right/ Bottom	Left/ Bottom Right
	Position
	Phase
	H.size
	Digital zoom PC: 1.0X~2.0X	Video: 1.0X~1.8X
	Digital Shrink & Shift Digital Shrink	Digital Image Shift
	Blanking Top/ Bottom/ Left/ Right/ Reset
	Overscan Composite/S-Video: 0-3	others: 0-3
	3D 3D Sync Mode DLP Link/VESA 3D
	3D Mode	Auto/ Frame Sequential/Frame Packing/ Top-Bottom/Side-By-Side/ Off
	3D Sync Invert	Disable/ Invert
	3D Sync Out Delay
	3D Sync Out Reference	3D VESA/ Bypass
	Save 3D Settings	3D Settings 1/ 3D Settings 2/3D Settings 3
	Apply 3D Settings	3D Settings 1/ 3D Settings 2/3D Settings 3/ Off
Picture	Picture Mode	Bright/ Presentation/ sRGB/Vivid/ Cinema/ DICOM SIM/(3D)/(HDR10)/(HLG)/ User 1/User 2
	Reference Mode	Bright/ Presentation/ sRGB/Vivid/ Cinema/ DICOM SIM
	Brightness
	Contrast
	Color
	Tint
	Sharpness
	Brilliant Color	On/ Off
	Gamma Selection	1.8/ 2.0/ 2.1/ 2.2/ 2.3/ 2.4/ 2.6/DICOM/ BenQ
	HDR Brightness	-2/ -1/ 0/ 1/ 2
	Color Temperature	Cool/ Normal/ Warm
	Color Temperature	R Gain/ G Gain/ B Gain/
	Fine Tuning	R Offset/ G Offset/ B Offset

Main menu Sub-menu Options
Picture 3D Color	Management	Primary Color R/ G/ B/ C/ M/ Y
		Hue
		Saturation
		Gain
	Reset Picture Settings	Current/ All/ Cancel
Source Quick Auto Search On/ Off
	HDMI Format Auto/ RGB Limited/ RGB Full/		YUV Limited/ YUV Full
	HDMI EDID HDMI Enhanced/ Standard
		HDMI-1 Enhanced/ Standard
		HDMI-2 Enhanced/ Standard
	HDBaseT EDID		Enhanced/ Standard
	HDMI Equalizer	HDMI	Auto/ Lower/ Low/ Middle/ High/ Higher
		HDMI-1 Auto/ Lower/ Low/	Middle/ High/ Higher
		HDMI-2 Auto/ Lower/ Low/	Middle/ High/ Higher
	Auto Sync		On/ Off
System Setup: Basic	Language		English/Français/Deutsch/ Italiano/Espanol/Pyckii/繁體中文/简体中文/日本語/한국어/Svenska/Nederlands/Türkçe/Čeština/Português/###/ Polski/Magyar/Hrvatski/Română/Norsk/Dansk/Български/Suomi/Indonesian/Елгмкá/العربية/हिन्दी
	Projector Installation		Front Table/ Rear Table/ Rear Ceiling/ Front Ceiling
	Menu Settings	Menu Display Time	5 sec/ 10 sec/ 20 sec/ 30 sec/ Always
		Menu Position	Center/ Top-Left/ Top-Right/ Bottom-Right/ Bottom-Left
		Reminder Message	On/ Off
	Operation Settings	Direct Power On	On/ Off
		Signal Power On	Computer: On/ Off HDMI-1: On/ Off
		Auto Power Off	Disable/ 3 mins/ 10 mins/ 15 mins/ 20 mins/ 25 mins/ 30 mins
		Blank Timer	Disable/ 5 mins/ 10 mins/ 15 mins/ 20 mins/ 25 mins/ 30 mins
		Sleep Timer	Disable/ 30 mins/ 1 hr/ 2 hrs/ 3 hrs/ 4 hrs/ 8 hrs/ 12 hrs
		Filter Settings	Filter Timer: On/ Off Reset Filter Timer: Reset/ Cancel Filter Usage Time
System Setup: Basic Remote Receiver Front+Rear/ Front/ Rear
	Panel Key Lock On/ Off
	Background Color BenQ/ Black/ Blue/ Purple
	Splash Screen BenQ/ Black/ Blue
System Setup: Advanced	High Altitude Mode On/ Off
	Dynamic Dimming On/ Off
	Audio Settings Mute On/ Off
		Volume
		Built-in speaker On/ Off
	Light Settings	Light Mode	Normal / Economic/ Dimming/ Custom
		Custom Brightness	25%-100%
		Light Usage Time	Light Source Usage Time/ Normal Mode/ Economic Mode/ Dimming Mode/ Custom Mode
	Security Settings	Change Password
		Change Security Settings
		Power On Lock	On/ Off
	HDBaseT		On/ Off
	Baud Rate		2400/ 4800/ 9600/ 14400/ 19200/ 38400/ 57600/ 115200
	Test Pattern		Off/ Grid/ White/ Red/ Green/ Blue/ Black/ RGB Ramps/ Color Bar/ Step Bars/ CheckBoard/ Horizontal Lines/ Vertical Lines/ Diagonal Lines/ Horizontal Ramp/ Vertical Ramps
	Projector ID Setting		Off/ 01~99
	Closed Caption	Closed Caption Enable	On/ Off
		Caption Version	CCI/ CC2/ CC3/ CC4
	12V Trigger		On/ Off
	Standby Settings	Standby Mode	Eco/ Network/ Normal
		Auto Disable Network	Never/ 20 min/ 1 hr/ 3 hr/ 6 hr
		Standby Mode
		Audio Pass Through	Audio In/ Audio L/R/ HDMI I/ HDMI 2/ Off

Main menu Sub-menu Options
System Setup: Advanced	Network Settings Wired LAN Status
	DHCP
	IP Address
	Subnet Mask
	Default Gateway
	DNS Server
	Apply
	AMX Device Discovery On/ Off
	Mac Address
	Reset All Settings Reset/ Cancel
Information Current System Status Source
	Picture Mode
	Light Mode
	Resolution
	HDBaseT
	3D Format
	Color System
	Light Usage Time
	Projector ID
	Firmware Version
	Service Code

Maintenance

Before maintaining the projector

• Make sure to turn off the power before maintaining the projector.
• When switching off the projector, make sure to follow the procedures in "Switch off the projector" on page 39.

Care of the projector

Your projector needs little maintenance. The only thing you need to do on a regular basis is to keep the lens clean.

Never remove any parts of the projector. Contact your dealer if other parts need replacing.

Clean the lens front surface

Clean the lens whenever you notice dirt or dust on the surface.

• Use a canister of compressed air to remove dust.
• If there is dirt or smears, use lens-cleaning paper or moisten a soft cloth with lens cleaner and gently wipe the lens surface.

Caution:

Never use any type of abrasive pad, alkaline/acid cleaner, scouring powder, or volatile solvent, such as alcohol, benzene, thinner or insecticide. Using such materials or maintaining prolonged contact with rubber or vinyl materials may result in damage to the projector surface and cabinet material.

Clean the projector case

Before you clean the case, turn the projector off using the proper shutdown procedure as described in "Switch off the projector" on page 39 and unplug the power cord.

• To remove dirt or dust, wipe the case with a soft, lint-free cloth.
• To remove stubborn dirt or stains, moisten a soft cloth with water and a neutral pH detergent. Then wipe the case.

Caution:

Never use wax, alcohol, benzene, thinner or other chemical detergents. These can damage the case.

Filter maintenance

Cleaning the filter

The air filter prevents dust from accumulating on the surface of the optical elements inside the projector. If the filter is dirty or clogged, your projector may overheat or degrading the projected image quality.

I. Turn off the projector, and unplug the AC power cord from the AC outlet.

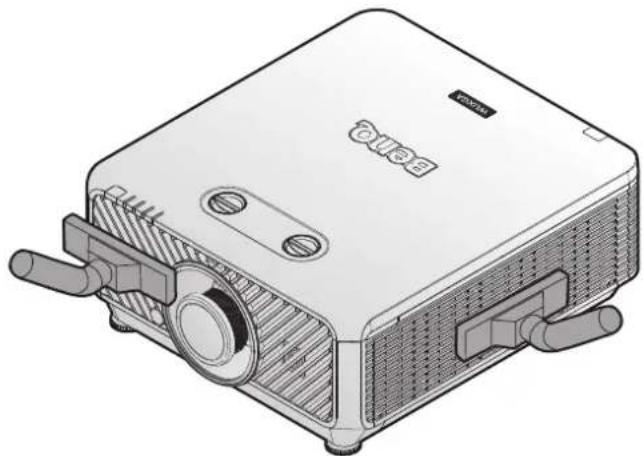

1. Cleaning the filter with a vacuum cleaner.

3D rendering of a beige projector with ventilation slots and ports (no text or symbols visible)

Caution:

Recommend avoiding dusty or smoky environments when you operate the projector, it may cause poor image quality. If the filter is heavily clogged and unable to clean, replace a new filter.

Note:

Using a ladder is recommended to access the filter. Do not remove the projector from the wall mount.

Replacing the side filter

1. Turn off the projector and unplug the power cord from the outlet. Remove any dust on the projector and around the air vents. Loosen the two captive screws that secure the filter cover.

Illustration of a projector with a screwdriver and directional arrows indicating motion (no text or symbols)

1. Flip up the filter cover.

Illustration of a projector with ventilation slots and a slide, showing internal components and a curved arrow indicating rotation (no text or symbols present)

1. Remove the filter module from the projector.

Illustration of a projector with a slide and ventilation array, showing internal components and a downward arrow indicating motion (no text or symbols)

1. Align the holes on the new filter module with the captive screws on the filter cover.

Illustration of a projector with ventilation grilles and a slide base, showing internal components (no text or symbols)

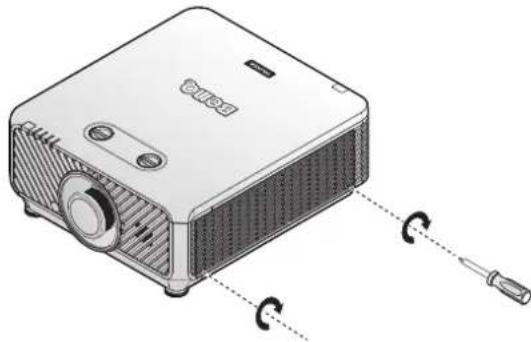

1. Replace the filter cover onto the projector by pushing gently in the direction shown and tighten the screws.

Illustration of a projector with a screwdriver and circular button, showing internal components and motion arrows (no text or symbols)

Replacing the front filter

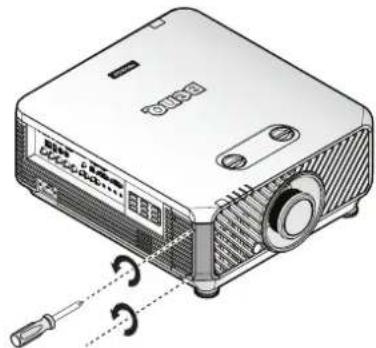

1. Turn off the projector and unplug the power cord from the outlet. Remove any dust on the projector and around the air vents. Loosen the two captive screws that secure the filter cover.

Illustration of a projector with a screwdriver and circular button, no text or symbols present

1. Remove the filter module from the projector.

Illustration of a projector with front panel and internal components (no text or symbols visible)

1. Replace the new filter module with the filter cover.

Diagram showing a panel with grid layout and an arrow pointing to a blank panel (no text or symbols)

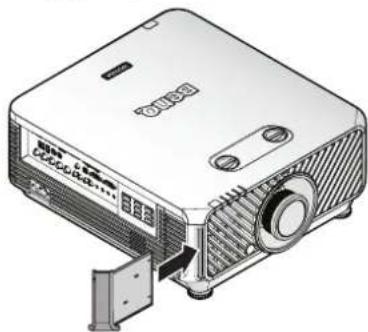

1. Replace the filter cover into the projector by pushing gently in the direction shown.

Illustration of a projector with front panel and internal components (no text or symbols visible)

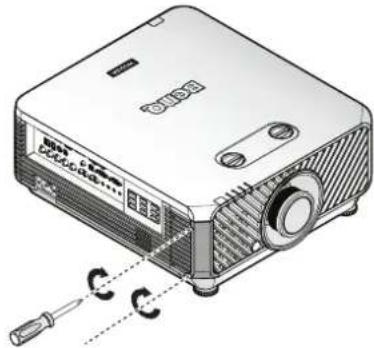

1. Tighten the screws.

Illustration of a projector with a screwdriver and mechanical components (no text or symbols)

Note:

Do not wash the filter with the water or other liquid matter.

Resetting the filter timer

1. After the startup logo, open the On-Screen Display (OSD) menu. Go to the SYSTEM SETUP: Basic > Operation Settings > Filter Settings menu. Press ENTER. The Filter Settings page displays. Highlight Reset Filter Timer. A warning message displays asking if you want to reset the filter timer. Highlight Reset and press ENTER. The filter time will be reset to '0'.

LED indicator

System message

Power	Temp	Light	Filter	Status & Description
Orange - - Stand-by
Green Flashing	--- Powering up
Green - - Normal operation
Orange Flashing	--- Normal power down cooling
Red Red	Red - Downloading
Green - Red - Color wheel start fail
Green -		Red Flashing	- Phosphor wheel start fail
Red Flashing	-	-	-	Scaler shutdown fail
- Green		Red Flashing	- Lens release
- Green Red - Case open

Light source error message

Power	Temp	Light	Filter	Status & Description
- - Red	- Light source error in normal operation
--	-	Orange Flashing	- Light source is not lit up

Filter message

Power	Temp	Light	Filter	Status & Description
Green	-	-	Orange	Filter replace warning

Thermal error message

Power	Temp	Light	Filter	Status & Description
Red Red	-- Fan 1 error
Red	Red Flashing	-- Fan	2 error
Red Green	-- Fan 3 error
Red	Green Flashing	-- Fan	4 error
Red Flashing	Red -- Fan 5 error
Red Flashing	Red Flashing	-- Fan	6 error
Red Flashing	Green -- Fan 7 error
Red Flashing	Green Flashing	-- Fan	8 error
Red Red	- Green Fan	9 error
Green Red	-- Temperature 1 error
Green	Red Flashing	-- Thermal sensor	1 open error
Green Green	-- Thermal sensor 1	short error
Green	Green Flashing	-- Thermal IC #1	12C connection error
Green Flashing	Red -- Temperature	2 error
Green Flashing	Red Flashing	-- Thermal sensor	2 open error
Green Flashing	Green -- Thermal sensor 2	short error
Green Flashing	Green Flashing	-- Thermal IC #2	12C connection error
Green Flashing	Green Green - Temperature 3 error
Orange	Red Flashing	-- Thermal sensor	3 open error
Orange Green	-- Thermal sensor 3	short error
Orange	Green Flashing	-- Thermal IC #3	12C connection error
Green Flashing	Green	Green Flashing	- Temperature 4 error
Green Flashing	Green Flashing	Green - Temperature	5 error
Green	Red	Red	-	Thermal break warning

Troubleshooting

Troubleshooting

The projector does not turn on.

Cause Remedy
There is no power from the power cable.	Plug the power cord into the AC inlet on the projector, and plug the power cord into the power outlet. If the power outlet has a switch, make sure that it is switched on.
Attempting to turn the projector on again during the cooling process.	Wait until the cooling down process has completed.

No picture.

Cause Remedy
The video source is not turned on or connected correctly.	Turn the video source on and check that the signal cable is connected correctly.
The projector is not correctly connected to the input signal device.	Check the connection.
The input signal has not been correctly selected.	Select the correct input signal with the SOURCE key on the projector or remote control.

Blurred image.

Cause Remedy
The projection lens is not correctly focused.	Adjust the focus of the lens using the focus ring.
The projector and the screen are not aligned properly.	Adjust the projection angle and direction as well as the height of the unit if necessary.
The lens cover is still closed. Open the lens cover.

Remote control does not work.

Cause Remedy
The battery is out of power. Replace the	battery with new one.
There is an obstacle between the remote control and the projector.	Remove the obstacle.
You are too far away from the projector.	Stand within 7 meters (23 feet) of the projector.

The password is incorrect.

Cause Remedy
You do not remember the password.	1. Press and hold AUTO on the projector or remote control for 3 seconds. The projector will display a coded number on the screen.2. Write down the number and turn off your projector.3. Seek help from the local BenQ service center to decode the number. You may be required to provide proof of purchase documentation to verify that you are an authorized user of the projector.

Specifications

Specifications

Optical

Resolution

LU9245

1920 x 1200

Display system

Single-chip DLP ^TM system

Lens F/Number

STANDARD LS2SD2

F=2.0 to 2.09, f=22.84 to 28.61mm

WIDE FIX LS2ST3

F=2.54, f=11.46mm

WIDE ZOOM LS2ST1

F=2.5 to 3.1, f=28.5 to 42.75mm

SHORT THROW LS2ST2

F=2.1 to 2.6, f=11.45 to 16.32mm

SEMI THROW LS2ST4

F=2.00 to 2.44, f=18.65 to 23.85mm

SEMI LONG LS2LT1

F=2.05 to 2.27, f=16.64 to 19.5mm

LONG ZOOM1 LS2LT2

F=2.2 to 2.5, f=44.5 to 74.19mm

Light source

Laser diodes

Electrical

Power supply

AC100-240V

50/60 Hz (Automatic)

7.0A

Power consumption

700W (Max); < 0.5W (Standby)

Mechanical

Weight

52.8 lbs (24 Kg) (without lens)

Output terminals

Speaker

10 watt x 2 (peak to peak)

Audio signal output

RCA R/L jack x 1

Monitor Out

D-Sub 15-pin (female) x1

USB

TYPE-A (5V/1.5A)

3D SYNC OUT x 1

Control

USB

Type-B x 1

RS-232 serial control

9 pin x 2 (In / Out)

IR receiver x 2

12V TRIGGER

12VDC (Max. 0.2 A) x 1

LAN control

RJ45 x 1

Wired Remote

PC audio jack x 2 (In / Out)

Input terminals

Computer input

RGB input

3D Sync in x 1

D-Sub 15-pin (female) x 1

BNC x 5

Digital input

DVI-D x 1

Video signal input

COMPONENT

D-Sub 15-pin (female) x 1

BNC x 3

VIDEO

RCA jack x 1

SD/HDTV signal input

Digital - HDMI x 1

HDMI 2 x 1

RJ45 x1 (HDBaseT)

Audio signal input

Audio in

PC audio jack x 1

RCA audio jack (L/R) x 1

Environmental Requirements

Operating temperature

0^-40^ at sea level

Operating relative humidity

10%–90% (without condensation)

Operating altitude

0–1499 m at 0°C–35°C

1500–3000 m at 0°C–30°C (with High

Altitude Mode on)

Storage temperature

-20°C-60°C

Storage humidity

10%–90% RH (without condensation)

Note:

Dimensions

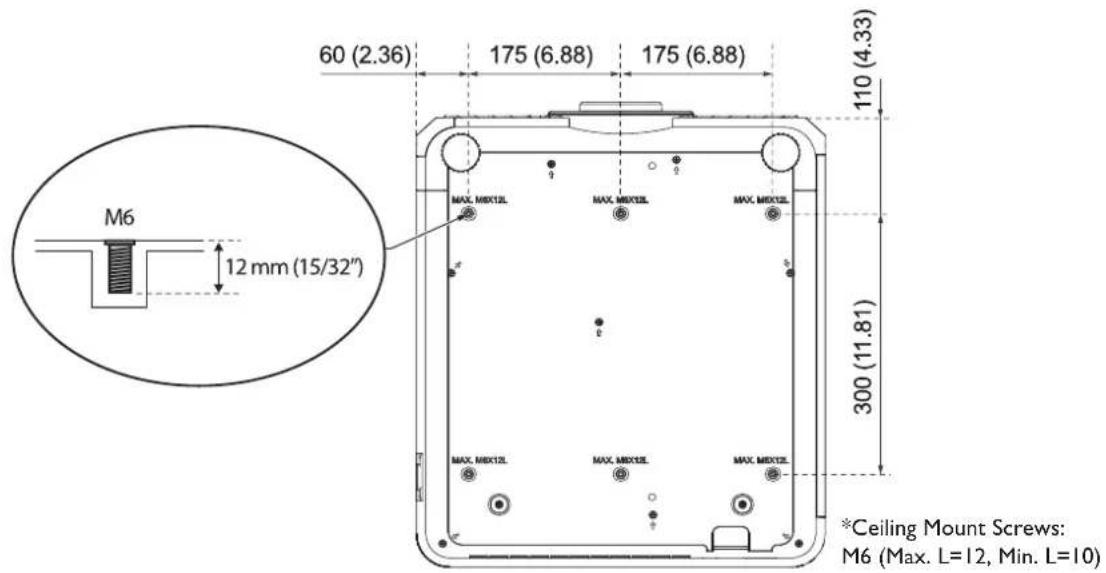

Attaching for ceiling mount

Appendix

Timing table

Supported timing for PC & PC 2 input

Resolution	Mode	Refresh Rate (Hz)	H Frequency (kHz)	Clock (MHz)	3D Frame Sequential	3D Top Bottom	3D side-by-side
720 x 400	720 x 400_70	70.087	31.469	28.3221
640 x 480	VGA_60 59.940	31.469 25.175			◎◎	◎
	VGA_72 72.809	37.861 31.500
	VGA_75	75.000	37.500	31.500
	VGA_85	85.008	43.269	36.000
800 x 600	SVGA_60	60.317	37.879	40.000	◎◎	◎
	SVGA_72	72.188	48.077	50.000
	SVGA_75	75.000	46.875	49.500
	SVGA_85	85.061	53.674	56.250
	SVGA_120 (Reduce Blanking)	119.854	77.425	83.000	◎
1024 x 768	XGA_60	60.004	48.363	65.000	◎◎	◎
	XGA_70	70.069	56.476	75.000
	XGA_75	75.029	60.023	78.750
	XGA_85	84.997	68.667	94.500
	XGA_120 (Reduce Blanking)	119.989	97.551	115.500	◎
1152 x 864	1152 x 864_75	75.000	67.500	108.000
1024 x 576	BenQ NB Timing	60.000	35.820	46.996
1024 x 600	BenQ NB Timing	64.995	41.467	51.419
1280 x 720	1280 x 720_60	60.000	45.000	74.250	◎◎	◎
1280 x 768	1280 x 768_60	59.870	47.776	79.500	◎◎	◎
1280 x 800	WXGA_60	59.810	49.702	83.500	◎◎	◎
	WXGA_75	74.934	62.795	106.500
	WXGA_85	84.880	71.554	122.500
	WXGA_120 (Reduce Blanking)	119.909	101.563	146.250	◎
1280 x 1024	SXGA_60	60.020	63.981	108.000		◎	◎
	SXGA_75	75.025	79.976	135.000
	SXGA_85	85.024	91.146	157.500
1280 x 960	1280 x 960_60	60.000	60.000	108		◎	◎
	1280 x 960_85	85.002	85.938	148.500
1360 x 768	1360 x 768_60	60.015	47.712	85.500		◎	◎
1440 x 900	WXGA+_60	59.887	55.935	106.500		◎	◎
1400 x 1050	SXGA+_60	59.978	65.317	121.750		◎	◎
1600 x 1200	UXGA	60.000	75.000	162.000		◎	◎
1680 x 1050	1680 x 1050_60	59.954	65.290	146.250		◎	◎
*1920 x 1080 @60Hz	1920 x 1080_60 (Reduce Blanking)	60.000	67.500	148.500
*1920 x 1200 @60Hz	1920 x 1200_60 (Reduce Blanking)	59.950 74.038	154.000
640 x 480 @67Hz	MACI3	66.667	35.000	30.240
832 x 624 @75Hz	MACI6	74.546	49.722	57.280
1024 x 768 @75Hz	MACI9	74.930	60.241	80.000
1152 x 870 @75Hz	MAC21	75.060	68.68	100.000

Note:

There 3D timing showing depend the EDID file and VGA display card. It is possible that user cannot choose the above 3D timings on VGA display card.

*: No available in PC 2.

Support timing for Component - YPbPr input

Timing	Resolution	Horizontal Frequency (KHz)	Vertical Frequency (Hz)	Dot Clock Frequency (MHz)	3D Frame Sequential
480i	720 × 480	15.73	59.94	13.50	◎
480p	720 × 480	31.47	59.94	27.00	◎
576i	720 × 576	15.63	50.00	13.50
576p	720 × 576	31.25	50.00	27.00
720/50p	1280 × 720	37.50	50.00	74.25
720/60p	1280 × 720	45.00	60.00	74.25	◎
1080/50i	1920 × 1080	28.13	50.00	74.25
1080/60i	1920 × 1080	33.75	60.00	74.25
1080/24p	1920 × 1080	27.00	24.00	74.25
1080/25p	1920 × 1080	28.13	25.00	74.25
1080/30p	1920 × 1080	33.75	30.00	74.25
1080/50p	1920 × 1080	56.25	50.00	148.50
1080/60p	1920 × 1080	67.50	60.00	148.50

Support timing for Video input

Video Mode	Horizontal Frequency (KHz)	Vertical Frequency (Hz)	Sub-carrier Frequency (MHz)	3D Frame Sequential
NTSC 15.73 60	3.58			◎
PAL 15.63 50	4.43
SECAM 15.63	50 4.25 or 4.41
PAL-M 15.73 60	3.58
PAL-N 15.63 50	3.58
PAL-60 15.73 60	4.43
NTSC4.43 15.73	60 4.43

Support timing for HDMI-1 / HDMI-2 / DVI-D / HDBaseT (HDCP) input

Resolution	Mode	Refresh Rate (Hz)	0H Frequency (kHz)	Clock (MHz)	3D Frame Sequential	3D Top Bottom	3D side-by-side
640 x 480	VGA_60	59.940	31.469	25.175	◎	◎	◎
	VGA_72	72.809	37.861	31.500
	VGA_75	75.000	37.500	31.500
	VGA_85	85.008	43.269	36.000
720 x 400	720 x 400_70	70.087	31.469	28.3221
800 x 600	SVGA_60	60.317	37.879	40.000	◎	◎	◎
	SVGA_72	72.188	48.077	50.000
	SVGA_75	75.000	46.875	49.500
	SVGA_85	85.061	53.674	56.250
	SVGA_120 (Reduce Blanking)	119.854	77.425	83.000	◎
1024 x 768	XGA_60	60.004	48.363	65.000	◎	◎	◎
	XGA_70	70.069	56.476	75.000
	XGA_75	75.029	60.023	78.750
	XGA_85	84.997	68.667	94.500
	XGA_120 (Reduce Blanking)	119.989	97.551	115.500	◎
1152 x 864	1152 x 864_75	75.000	67.500	108.000
1024 x 576	BenQ Notebook Timing	60.000	35.820	46.996
1024 x 600	BenQ Notebook Timing	64.995	41.467	51.419
1280 x 720	1280 x 720_60	60.000	45.000	74.250	◎	◎	◎
1280 x 768	1280 x 768_60	59.870	47.776	79.5	◎	◎	◎
Resolution Mode		Refresh Rate (Hz)	0H Frequency (kHz)	Clock (MHz)	3D Frame Sequential	3D Top Bottom	3D side-by-side
1280 x 800	WXGA_60 59.8	0 49.702 83.5	00		◎◎	◎
	WXGA_75 74.93	4 62.795 106.5	00
	WXGA_85	84.880	71.554	122.500
	WXGA_120(Reduce Blanking)	119.909 101.5	63 146.250		◎
1280 x 1024	SXGA_60	60.020	63.981	108.000		◎	◎
	SXGA_75	75.025	79.976	135.000
	SXGA_85	85.024	91.146	157.500
1280 x 960	1280 x 960_60	60.000	60.000	108.000		◎	◎
	1280 x 960_85	85.002	85.938	148.500
1360 x 768	1360 x 768_60	60.015	47.712	85.500		◎	◎
1440 x 900	WXGA+_60	59.887	55.935	106.500		◎	◎
1400 x 1050	SXGA+_60	59.978	65.317	121.750		◎	◎
1600 x 1200	UXGA	60.000	75.000	162.000		◎
1680 x 1050	1680 x 1050_60	59.954	65.290	146.250		◎	◎
1920 x 1080@60Hz	1920 x 1080_60(Reduce Blanking)	60.000	67.500 148.5	00	◎◎	◎
1920 x 1200@60Hz	1920 x 1200_60(Reduce Blanking)	59.950 74.0	38 154.0	00	◎◎	◎
640 x 480@67Hz	MAC13	66.667	35.000	30.240
832 x 624@75Hz	MAC16	74.546	49.722	57.280
1024 x 768@75Hz	MAC19	75.020	60.241	80.000
1152 x 870@75Hz	MAC21	75.060	68.680	100.000
1920 x 1080@120Hz	1920 x 1080_120	120.000	135.000	297.000
1920 x 1200@120Hz	1920 x 1080_120(Reduce Blanking)	119.909	152.404	317.000
3840 x 2160	3840 x 2160_30(Reduce Blanking)For 4K2K model	29.970	65.660 257.4	4
3840 x 2160	3840 x 2160_60(Reduce Blanking)For 4K2K model	59.940 133.1	87 522.092
3840 x 2160	3840 x 2160_30	30.000	67.500	297.000

Note:

• There timing showing depend the EDID file and VGA graphic card limitation. It is possible that user cannot choose the above timings on VGA display card.
  • DVI-D not support 3840 x 2160 timing.

Supporting timing for HDMI-1 / HDMI-2 Video input

Timing Resolution		Horizontal Frequency (KHz)	Vertical Frequency (Hz)	Dot Clock Frequency (MHz)	3D Frame Sequential	3D Frame Packing	3D Top Bottom	3D side-by-side
480i	720 (1440) x 480	15.73	59.94	27.00	◎
480p	720 x 480	31.47	59.94	27.00	◎
576i	720 (1440) x 576	15.63	50.00	27.00
576p	720 x 576	31.25	50.00	27.00
720/50p	1280 x 720	37.50	50.00	74.25		◎◎	◎
720/60p	1280 x 720	45.00	60.00	74.25	◎	◎◎	◎
1080/24p	1920 x 1080	27.00	24.00	74.25		◎◎	◎
1080/25p	1920 x 1080	28.13	25.00	74.25
1080/30p	1920 x 1080	33.75	30.00	74.25
1080/50i	1920 x 1080	28.13	50.00	74.25				◎
1080/60i	1920 x 1080	33.75	60.00	74.25				◎
1080/50p	1920 x 1080	56.25	50.00	148.50			◎	◎
1080/60p	1920 x 1080	67.50	60.00	148.50			◎	◎
2160/24P	3840 x 2160	54.00	24.00	297.00
2160/25P	3840 x 2160	56.25	25.00	297.00
2160/30P	3840 x 2160	67.50	30.00	297.00
2160/50P	3840 x 2160	112.50	50.00	594.00
2160/60P	3840 x 2160	135.00	60.00	594.00

RS232 command control

Function Type Operation ASCII
Power	Write	Power On	*pow=on#
	Write Power off*pow=off#
	Read Power Status*pow=?#
Source Selection	Write COMPUTER/YPbPr*sour=RGB#
	Write COMPUTER 2/YPbPr2*sour=RGB2#
	Write DVI-D*sour=dvid#
	Write	HDMI (MHL)	*sour=hdmi#
	Write	HDMI 2 (MHL2)	*sour=hdmi2#
	Write	Composite	*sour=vid#
	Write	HDBaseT	*sour=hdbaset#
	Read	Current source	*sour=?#
Audio Control	Write	Mute On	*mute=on#
	Write	Mute Off	*mute=off#
	Read	Mute Status	*mute=?#
	Write Volume +*vol=+#
	Write	Volume -	*vol=-#
	Write	Volume level for customer	*vol=value#
	Read	Volume Status	*vol=?#
Audio Source Select	Write	Audio pass Through off	*audiosour=off#
	Write	Audio-Computer1	*audiosour=RGB#
	Write Audio-Video/S-Video	*audiosour=vid#
	Write Audio-HDMI*audiosour=hdmi#
	Write	Audio-HDMI2	*audiosour=hdmi2#
	Read	Audio pass Status	*audiosour=?#
Picture Mode	Write	Presentation	*appmod=preset#
	Write	sRGB	*appmod=srgb#
	Write	Bright	*appmod=bright#
	Write	Cinema (Rec. 709)	*appmod=cine#
	Write	DICOM	*appmod=dicom#
	Write Vivid	*appmod=vivid#
	Write	User1	*appmod=user1#
	Write	User2	*appmod=user2#
	Write	3D	*appmod=thread#
	Write	HDR10	*appmod=hdr10
	Write	HLG	*appmod=hlg
	Read	Picture Mode	*appmod=?#
Picture Setting	Write Contrast +*con=+#
	Write Contrast -*con=-#
	Write Set Contrast value*con=5#
	Read Contrast value*con=?#
	Write Brightness +*bri=+#
	Write Brightness -*bri=-#
	Write Set Brightness value*bri=5#
	Read Brightness value	*bri=?#
	Write Color +	*color=+#
	Write Color -	*color=-#
	Write Set Color value	*color=5#
	Read Color value	*color=?#
	Write Sharpness +	*sharp=+#
	Write Sharpness -	*sharp=-#
	Write Set Sharpness value	*sharp=5#
	Read Sharpness value	*sharp=?#
	Write Color Temperature - Warm	*ct=warm#
	Write Color Temperature - Normal	*ct=normal#
	Write Color Temperature - Cool	*ct=cool#
	Read Color Temperature Status	*ct=?#
	Write Aspect 4:3	*asp=4:3#
	Write Aspect 16:9	*asp=16:9#
	Write Aspect 2.35:1	*asp=2.35#
	Write Aspect 16:10	*asp=16:10#
	Write Aspect Auto	*asp=AUTO#
	Write Aspect Real	*asp=REAL#
	Read Aspect Status	*asp=?#
	Write Vertical Keystone +	*vkeystone=+#
	Write Vertical Keystone -	*vkeystone=-#
	Read Vertical Keystone value	*vkeystone=?#
	Write Horizontal Keystone +	*hkeystone=+#
	Write Horizontal Keystone -	*hkeystone=-#
	Read Horizontal Keystone value	*hkeystone=?#
	Write Overscan Adjustment +	*overscan=+#
	Write Overscan Adjustment -	*overscan=-#
	Read Overscan Adjustment value	*overscan=?#
Picture Setting	Write	4 Corners Top-Left - X Decrease
	Write	4 Corners Top-Left - X Increase
	Read	4 Corners Top-Left - X Status
	Write	4 Corners Top-Left - Y Decrease
	Write	4 Corners Top-Left - Y Increase
	Read	4 Corners Top-Left - Y Status
	Write	4 Corners Top-Right - X Decrease
	Write	4 Corners Top-Right - X Increase
	Read	4 Corners Top-Right - X Status
	Write	4 Corners Top-Right - Y Decrease
	Write	4 Corners Top-Right - Y Increase
	Read	4 Corners Top-Right - Y Status
	Write	4 Corners Bottom-Left - X Decrease
	Write	4 Corners Bottom-Left - X Increase
	Read	4 Corners Bottom-Left - X Status
	Write	4 Corners Bottom-Left - Y Decrease
	Write	4 Corners Bottom-Left - Y Increase
	Read	4 Corners Bottom-Left - Y Status
	Write	4 Corners Bottom-Right - X Decrease
	Write	4 Corners Bottom-Right - X Increase
	Read	4 Corners Bottom-Right - X Status
	Write	4 Corners Bottom-Right - Y Decrease
	Write	4 Corners Bottom-Right - Y Increase
	Read	4 Corners Bottom-Right - Y Status
	Write	Digital Zoom In
	Write Digital Zoom out	*zoomO#
	Write	Auto
	Write	Brilliant color on
	Write	Brilliant color off
	Read	Brilliant color status
	Write	Reset current picture settings
	Write	Reset picture settings

Function Type Operation ASCII
Operation Settings	Write	Projector Position-Front Table	*pp=FT#
	Write	Projector Position-Rear Table	*pp=RE#
	Write	Projector Position-Rear Ceiling	*pp=RC#
	Write	Projector Position-Front Ceiling	*pp=FC#
	Read Projector Position Status*pp=?#
	Write Quick auto search*QAS=on#
	Write Quick auto search*QAS=off#
	Read	Quick auto search status	*QAS=?#
	Write	Menu Position - Center	*menuposition=center#
	Write	Menu Position - Top - Left	*menuposition=tl#
	Write	Menu Position - Top - Right	*menuposition=tr#
	Write	Menu Position - Bottom - Right	*menuposition=br#
	Write	Menu Position - Bottom - Left	*menuposition=bl#
	Read	Menu Position Status	*menuposition=?#
	Write	Direct Power On - on	*directpower=on#
	Write	Direct Power On - off	*directpower=off#
	Read	Direct Power On - Status	*directpower=?#
	Write	Signal Power On - on	*autopower=on#
	Write	Signal Power On - off	*autopower=off#
	Read	Signal Power On - Status	*autopower=?#
Baud Rate	Write	2400	*baud=2400#
	Write	4800	*baud=4800#
	Write	9600	*baud=9600#
	Write	14400	*baud=14400#
	Write	19200	*baud=19200#
	Write	38400	*baud=38400#
	Write	57600	*baud=57600#
	Write	115200	*baud=115200#
	Read	Current Baud Rate	*baud=?#
Lamp Control	Read	Lamp Hour	*ltim=?#
	Write	Normal mode	*lampm=lnor#
	Write	Eco mode	*lampm=eco#
	Write	Dimming mode	*lampm=dimming#
	Write	Custom mode	*lampm=custom#
	Write	Light level for custom mode	*lampcustom=value#
	Read	Light level status for custom mode	*lampcustom=?#
	Read	Lamp Mode Status	*lampm=?#
Miscellaneous	Read	Model Name	*modelname=?#
	Read System F/W Version	*sysfwversion=?#	CR>
	Read	Scaler F/W Version	*scalerfwversion=?#
	Read Lan F/W Version	*lanfwversion=?#	CR>
	Read MCU	F/W Version	*mcufwversion=?#
	Write	Blank On	*blank=on#
	Write	Blank Off	*blank=off#
	Read	Blank Status	*blank=?#
	Write	Freeze On	*freeze=on#
	Write	Freeze Off	*freeze=off#
	Read	Freeze Status	*freeze=?#
	Write	Menu On	*menu=on#
	Write	Menu Off	*menu=off#
	Read	Menu Status	*menu=?#
	Write Up	*up#	*up#
	Write	Down	*down#
	Write	Right	*right#
	Write	Left	*left#
	Write Enter	*enter#	*enter#
	Write	Back	*back#
	Write	Source Menu On	*sourmenu=on#
	Write	Source Menu Off	*sourmenu=off#
	Read	Source Menu Status	*sourmenu=?#
	Write	3D Sync Off	*3d=off#
	Write	3D Auto	*3d=auto#
	Write	3D Sync Top Bottom	*3d=tb#
	Write	3D Sync Frame Sequential	*3d=fs#
	Write	3D Frame packing	*3d=fp#
	Write	3D Side by side	*3d=sbs#
	Write	3D inverter disable	*3d=da#
	Write	3D inverter	*3d=iv#
	Write	3D nVIDIA	*3d=nvidia#
	Read	3D Sync Status	*3d=?#
	Write	Remote Receiver - front+rear	*rr=fr#
	Write	Remote Receiver - front	*rr=f#
	Write	Remote Receiver - rear	*rr=r#
	Read Remote Receiver Status	*rr=?#	*rr=?#
Miscellaneous	Write	AMX Device Discovery - on	*amxdd=on#
	Write	AMX Device Discovery - off	*amxdd=off#
	Read AMX	Device Discovery Status*amxdd=?#
	Read Mac Address*macaddr=?#
	Write	High Altitude mode on	*Highaltitude=on#
	Write	High Altitude mode off	*Highaltitude=off#
	Read	High Altitude mode status	*Highaltitude=?#
Color Calibration	Write	Tint +	*tint=+#
	Write	Tint -	*tint=-#
	Write	Set Tint value	*tint=value#
	Read	Get Tint value	*tint=?#
	Write	Set gamma value	*gamma=value#
	Read	Gamma value status	*gamma=?#
	Write	Set HDR Brightness value	*hdrbri=value#
	Read	Get HDR Brightness value	*hdibri=?#
	Write	Red Gain +	*RGain=+#
	Write	Red Gain -	*RGain=-#
	Write	Set Red Gain value	*RGain=value#
	Read	Get Red Gain value	*RGain=?#
	Write	Green Gain +	*GGain=+#
	Write	Green Gain -	*GGain=-#
	Write	Set Green Gain value	*GGain=value#
	Read	Get Green Gain value	*GGain=?#
	Write	Blue Gain +	*BGain=+#
	Write	Blue Gain -	*BGain=-#
	Write	Set Blue Gain value	*BGain=value#
	Read	Get Blue Gain value	*BGain=?#
	Write	Red Offset +	*ROffset=+#
	Write	Red Offset -	*ROffset=-#
	Write	Set Red Offset value	*ROffset=value#
	Read	Get Red Offset value	*ROffset=?#
	Write	Green Offset +	*GOffset=+#
	Write	Green Offset -	*GOffset=-#
	Write	Set Green Offset value	*GOffset=value#
	Read	Get Green Offset value	*GOffset=?#
Color Calibration	Write Blue	Offset +*BOffset=+#
	Write Blue	Offset -*BOffset=-#
	Write	Set Blue Offset value	*BOffset=value#
	Read Get Blue Offset value*BOffset=?#
	Write Primary Color*primcr=value#
	Read Primary Color Status*primcr=?#
	Write Hue +*hue=+#
	Write	Hue -	*hue=-#
	Write	Set Hue value	*hue=value#
	Read Get Hue value*hue=?#
	Write	Saturation +	*saturation=+#
	Write	Saturation -	*saturation=-#
	Write	Set Saturation value	*saturation=value#
	Read	Get Saturation value	*saturation=?#
	Write	Gain +	*gain=+#
	Write	Gain -	*gain=-#
	Write	Set Gain value	*gain=value#
	Read	Get Gain value	*gain=?#
Service	Read	Error Code report	*error=report#
	Read	FAN 1 speed	*fan1=?#
	Read	FAN 2 speed	*fan2=?#
	Read	FAN 3 speed	*fan3=?#
	Read	FAN 4 speed	*fan4=?#
	Read	FAN 5 speed	*fan5=?#
	Read	Temperature 1	*tmp1=?#
	Read	Temperature 2	*tmp2=?#
	Read	Temperature 3	*tmp3=?#
	Read	LED indicator	*led=?#
