Product Type	Video Projector (DLP)
Brand	BenQ
Model	W7500
Native Resolution	1920 x 1080 (Full HD)
Brightness	2000 ANSI Lumens
Contrast Ratio	50000:1 (Dynamic Black)
Lamp Power	300 W
Lens	F = 2.48 to 2.81, f = 24.1 to 36.15 mm
Projection Screen Size	28" to 300"
Aspect Ratio	16:9 (default)
Keystone Correction	Vertical ± 30 degrees
Lens Shift	Vertical and horizontal (manual)
Inputs	2x HDMI 1.4, 1x VGA, 1x Component Video, 1x S-Video, 1x Composite Video, RS-232, USB
Outputs	12V DC trigger (0.5 A max)
3D Capability	Yes (HDMI), 2D to 3D conversion, Frame Sequential, Frame Packing, Side-by-Side, Top-Bottom
Special Features	ISF Night/ISF Day, Frame Interpolation, PIP, Panamorph lens compatible, 6-segment color wheel
Power Supply	100-240 VAC, 5.0 A, 50-60 Hz
Power Consumption	Max 466 W, Standby < 0.5 W
Dimensions (W x D x H)	428 x 317 x 145 mm
Weight	6.7 kg (14.8 lbs)
Operating Temperature	0°C to 35°C (32°F to 95°F)
Noise Level	32 dB (normal mode) / 28 dB (economy mode)
Lamp Life	2000 hours (normal) / 3000 hours (economy)
Warranty	Check with dealer; standard 1 year parts and labor

Frequently Asked Questions - W7500 BENQ

How do I turn on the BenQ W7500 projector?

Make sure the power cable is connected and the Power light is orange. Press and hold POWER ON on the projector or remote control. The fans will start and a start-up image appears. If prompted for a password, enter the six-digit code.

What input sources are available for the W7500?

The projector supports HDMI (2 ports), Component Video, S-Video, Composite Video, and VGA (PC). You can also connect via RS-232 and USB for control.

How do I adjust the keystone correction?

Press the arrow/keystone keys (Up/Down) on the remote control or projector. Alternatively, go to the Display menu, select Keystone, and use the arrow keys to correct trapezoidal distortion until the image is square.

Can I watch 3D content on the BenQ W7500?

Yes, the projector supports 3D via HDMI. Connect a 3D Blu-ray player, PS3, or 3D TV source. Set 3D Mode to Auto or On in the Display > 3D menu. Wear BenQ 3D glasses for the effect.

How do I replace the lamp?

Turn off the projector and unplug it. Let cool for 45 minutes. Remove the lamp cover on the left side, loosen the screws securing the lamp, pull the lamp out by the handle, insert a new lamp, tighten screws, replace cover, and reset the lamp timer in Advanced Setup > Lamp Settings.

What is the lens shift feature and how do I use it?

Lens shift allows you to move the projected image vertically and horizontally without moving the projector. Loosen the lens shift lever counterclockwise, move it to adjust the image position, then lock by turning clockwise.

How do I select the correct picture mode?

Press the PRESET MODE key or use the Picture – Basic menu. Choose from Cinema, Dynamic, Standard, 3D, or User modes. You can fine-tune brightness, contrast, color, and more in the menu.

Why is there no picture on the screen?

Check that the video source is on and the correct input is selected. Ensure cables are securely connected. If using a laptop, press the Fn + CRT/LCD key combination to enable external output. Also verify the projector lens cap is removed if any.

How do I update the firmware?

Firmware updates are not user-upgradable via regular menus. Contact BenQ support for instructions if an update is needed. Typically, updates require a computer connection via RS-232 or USB.

What is the recommended maintenance for the projector?

Clean the lens with a soft cloth when needed. Ensure ventilation vents are not blocked. Keep the projector in a dust-free environment. Replace the lamp when indicator lights red or after 2000 hours. Do not use volatile liquids for cleaning.

USER MANUAL W7500 BENQ

Abstract pattern of overlapping dots forming a wave-like design (no text or symbols)

Table of contents

Important safety instructions......3

Overview......6

Shipping contents...... 6

Remote control batteries....7

Remote control operation......7

Projector features 8

Projector exterior view...... 9

Controls and functions......10

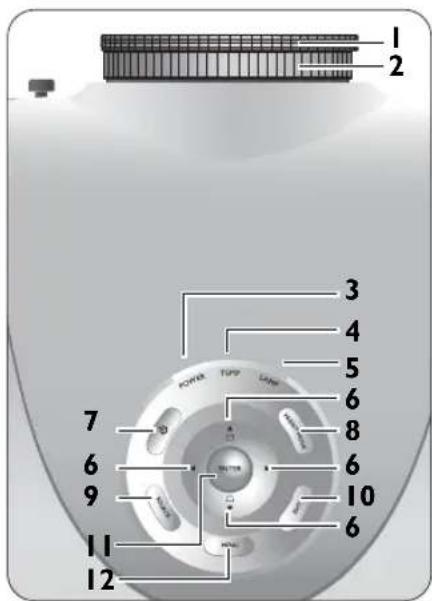

Control panel 10

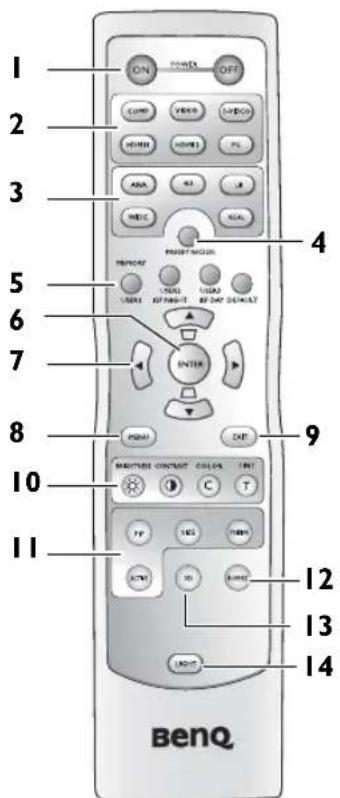

Remote control...... 11

Positioning your projector...... 12

Choosing a location .....12

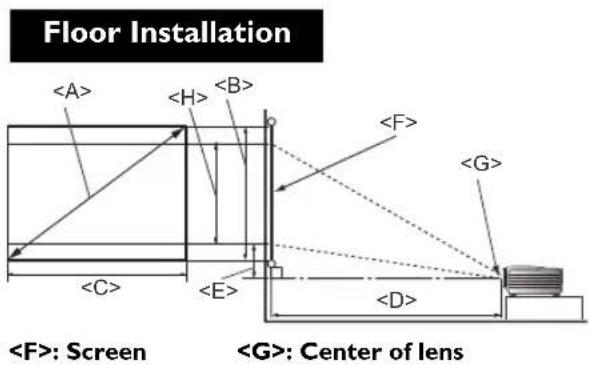

Obtaining a preferred projected image size ....13

How to determine the position of the projector for a given screen size .... 13

How to determine the recommended screen size for a given distance ..... 13

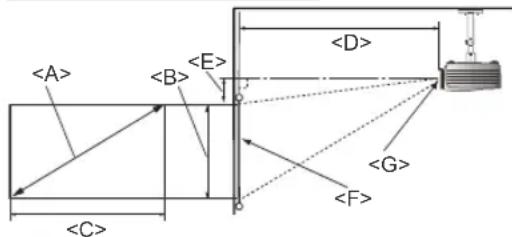

Projection dimensions 14

Shifting the projection lens.... 16

Connecting with video

equipment 17

Preparations.... 17

Connecting HDMI devices.... 17

Connecting component-video devices ... 18

Connecting S-Video or video devices..... 18

Connecting a computer 19

Using the projector.... 20

Turning the projector on ....20

Selecting an input source....21

Fine-tuning the image size and clarity....21

Using the menus ......22

Securing the projector ....22

Using a security cable lock 22

Utilizing the password function.... 23

Adjusting the projected image......25

Adjusting the projection angle 25

Correcting picture distortion....25

Using the preset and user modes ..... 26

Fine-tuning the picture quality 28

Advanced picture quality controls ..... 29

Selecting the aspect ratio 33

Magnifying and searching for details .. 34

Operating in a high altitude environment.... 35

Displaying more than one image source simultaneously.... 36

Watching 3D content 37

Personalizing the projector menu display 38

Locking control keys.... 38

Turning the projector off.... 38

On-Screen Display (OSD) menus..... 39

Additional information......46

Care of the projector 46

Lamp information...... 47

Getting to know the lamp hour......47

Extending lamp life 47

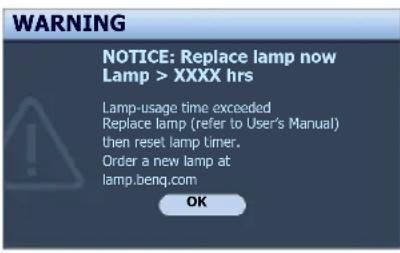

Timing of replacing the lamp 47

Replacing the lamp 48

Indicators 51

Troubleshooting.... 52

Specifications.... 53

Warranty and Copyright information....60

Thank you for your purchase of this quality BenQ video projector! It has been designed to provide you with an enjoyable home theater viewing experience. For the best results, please read this manual through carefully as it is your guide through the control menus and operation.

Important safety instructions

Your projector is designed and tested to meet the latest standards for safety of information technology equipment. However, to ensure safe use of this product, it is important that you follow the instructions mentioned in this manual and marked on the product.

I. Please read this user manual before you operate your projector. Keep this manual in a safe place for future reference.

Cartoon illustration of a projector with a paper cup and smiling eyes (no text or symbols)

1. Always place the projector on a level, horizontal surface during operation.

2. Do not place the projector on an unstable cart, stand, or table as it may fall and be damaged;

3. Do not place inflammables near the projector;
4. Do not use if tilted at an angle of more than 10 degrees left to right, nor at angle of more than 15 degrees front to back.

Illustration of a projector with three lenses and stacked books (no text or symbols)

1. Do not store the projector on end vertically. Doing so may cause the projector to fall over, causing injury or resulting in damage.

Illustration of a mechanical device with cylindrical components and mounting base (no text or symbols)

1. Do not place the projector in any of the following environments:

2. space that is poorly ventilated or confined. Allow at least 50 cm clearance from walls and free flow of air around the projector;

3. locations where temperatures may become excessively high, such as the inside of a car with all windows closed;
4. locations where excessive humidity, dust, or cigarette smoke may contaminate optical components, shorten the projector's lifespan and darken the screen;

Cartoon illustration of a projector with a broom and cloud-like background (no text or symbols)

• locations near fire alarms;
• locations with an ambient temperature above 35°C/95°F;
• locations where altitude is higher than 1500 meters/4920 feet above sea level.

1. Do not block the vents holes while the projector is on (even in standby mode):

2. Do not cover the projector with any item;

3. Do not place the projector on a blanket, bedding or any other soft surface.

Illustration of a steaming paper roll with steam rising (no text or symbols)

1. In areas where the mains power supply voltage may fluctuate by ±10 volts, it is recommended that you connect your projector through a power stabilizer, surge protector or uninterruptible power supply (UPS) as appropriate to your situation.

Illustration of a projector with visible lens and power cord (no text or symbols)

1. Do not step on the projector or place any objects upon it.

Cartoon illustration of a projector emitting steam from stacked books (no text or symbols)

1. Do not place liquids near or on the projector. Liquids spilled into the projector will void your warranty. If the projector does become wet, disconnect it from the power point and call BenQ to have the projector repaired.

Cartoon illustration of a projector with a flag, emitting exhaust smoke (no text or symbols)

1. Do not look straight into the projector lens during operation. It may harm your sight.

Illustration of a person reacting to a projector screen, showing sound pressure (no text or symbols present)

1. Do not operate the projector lamp beyond the rated lamp life. Excessive operation of lamps beyond the rated life could cause a lamp to break on rare occasions.

Cartoon illustration of a projector with eyes and a clock showing 12 o'clock (no text or symbols)

1. The lamp becomes extremely hot during operation. Allow the projector to cool for approximately 45 minutes prior to removing the lamp assembly for replacement.

Cartoon illustration of a projector with steam and hand gestures (no text or symbols)

1. This projector is capable of displaying inverted images for ceiling mount installation. Use only BenQ's Ceiling Mount Kit for mounting.

Cartoon illustration of a smiling industrial device with eyes and motion lines, no text or symbols present

1. Never attempt to replace the lamp assembly until the projector has cooled down and is unplugged from the power supply.

Cartoon illustration of a projector with a power outlet and cartoon eyes, no text or symbols present

1. When you think service or repair is required, take the projector only to a suitably qualified technician.

Cartoon illustration of a projector with smiling eyes and a cap, giving thumbs up (no text or symbols)

1. Do not attempt to disassemble this projector. There are dangerous high voltages inside which may cause death if you should come into contact with live parts. The only user serviceable part is the lamp which has its own removable cover. See page 48.

Under no circumstances should you ever undo or remove any other covers. Refer servicing only to suitably qualified professional service personnel.

Cartoon illustration of a projector with arms and legs, showing a camera and screwdriver (no text or symbols)

Notice

Please keep the original packing for possible future shipment. If you need to pack your projector after use, adjust the projection lens to an appropriate position, put the lens cushion around the lens, and fit the lens cushion and projector cushion together to prevent damage during transportation.

Moisture condensation

Never operate the projector immediately after moving it from a cold location to a hot location. When the projector is exposed to such a change in temperature, moisture may condense on the crucial internal parts. To prevent the projector from possible damage, do not use the projector for at least 2 hours when there is a sudden change in temperature.

Avoid volatile liquids

Do not use volatile liquids, such as insecticide or certain types of cleaner, near the projector. Do not have rubber or plastic products touching the projector for a long time. They will leave marks on the finish. If cleaning with a chemically treated cloth, be sure to follow the cleaning product's safety instructions.

Disposal

This product contains the following materials which are harmful to human bodies and environment.

• Lead, which is contained in solder.
  • Mercury, which is used in the lamp.

To dispose of the product or used lamps, consult your local environment authorities for regulations.

Overview

Shipping contents

Carefully unpack and verify that you have the items below. Some of the items may not be available depending on your region of purchase. Please check with your place of purchase.

Some of the accessories may vary from region to region.

The warranty card is only supplied in some specific regions. Please consult your dealer for detailed information.

Projected projector with no visible text or symbols on the device itself

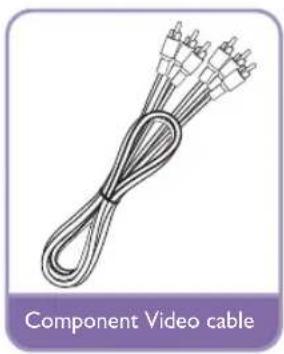

Illustration of a component video cable with multiple connectors (no text or symbols on the cable itself)

Illustration of a power cable with two terminal plugs (no text or symbols on the cable itself)

Line drawing of a VGA cable with two connectors and a coiled cable (no text or symbols on the cable itself)

Remote control batteries

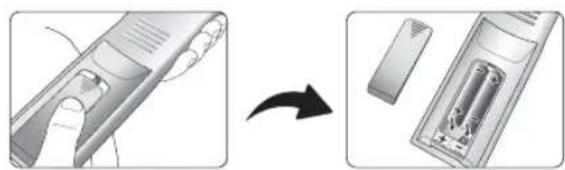

1. To open the battery cover, turn the remote control over to view its back, push on the finger grip on the cover and slide it down in the direction of the arrow as illustrated. The cover will slide off.

Illustration showing a device being processed from a left-side tool to an open battery (no text or symbols visible)

1. Remove any existing batteries (if necessary) and install two new AAA batteries observing the battery polarities as indicated in the base of the battery compartment. Positive (+) goes to positive and negative (-) goes to negative.

2. Refit the cover by aligning it with the case and sliding it back up into position. Stop when it clicks into place.

Notes on handling batteries

• Do not mix old batteries with new ones, or mix different types of batteries.
• Avoid leaving the remote control and batteries in an excessive hot or humid environment like the kitchen, bathroom, sauna, sunroom, or in a closed car.
• Dispose of used batteries according to the battery manufacturer's instructions and local environment regulations for your region.
• If the remote control will not be used for an extended period of time, remove the batteries to avoid damage to the control from possible battery leakage.

Remote control operation

• Make sure that there is nothing positioned between the remote control and the infrared (IR) sensors on the projector that might obstruct the IR beam from the remote control reaching the projector.
• The effective range of the remote control is up to 8 meters, and at an angle within 45 degrees of the IR beam. Always aim straight at the projector, however most screens will also reflect the IR beam to the projector.

Ceiling mounting the projector

We want you to have a pleasant experience using your BenQ projector, so we need to bring this safety matter to your attention to prevent damage to person and property.

If you intend to mount your projector on the ceiling, we strongly recommend that you use a proper fitting BenQ projector ceiling mount kit and that you ensure it is securely and safely installed.

If you use a non-BenQ brand projector ceiling mount kit, there is a safety risk that the projector may fall from the ceiling due to an improper attachment through the use of the wrong gauge or length screws.

You can purchase a BenQ projector ceiling mount kit from the place you purchased your BenQ projector. BenQ recommends that you also purchase a separate Kensington lock compatible security cable and attach it securely to both the Kensington lock slot on the projector and the base of the ceiling mount bracket. This will perform the secondary role of restraining the projector should its attachment to the mounting bracket become loose.

Projector features

• Full HD compatible

The projector is compatible with Standard Definition TV (SDTV) 480i, 480p, 576i, 576p, and High Definition TV (HDTV) 720p, 1080i and 1080p formats, with the 1080p format providing a true I:I image reproduction.

• High picture quality

The projector provides excellent picture quality due to its high resolution, excellent home theater brightness, super high contrast ratio, vivid color and rich gray-scale reproduction.

• High brightness

The projector features super high brightness to achieve excellent picture quality in ambient light conditions, outperforming ordinary projectors.

• High contrast ratio

The projector features a dynamic black control to achieve a high contrast ratio.

• Vivid color reproduction

The projector features a 6-segment color wheel to produce realistic color depth and range unattainable with lesser segment color wheels.

- Rich gray-scale

When viewed in a darkened environment, the automatic gamma control provides excellent gray-scale display which reveals details in shadows and in night or darkened scenes.

- Intuitive lens shift

The intuitive control over lens shift lever provides flexibility in setting-up your projector.

- Wide variety of inputs and video formats

The projector supports a wide variety of inputs for connection to your video and PC equipment, including component video, S-Video, and composite video, as well as dual HDMI, PC, and an output trigger for connection to automated screen and environment lighting systems.

• ISF certified calibration control

To reach a higher standard of performance, the projector incorporates ISF NIGHT and ISF DAY mode settings in its OSD menus, which requires professional calibration service from authorized ISF installers.

• Panamorph lenses compatible

The projector is compatible with Panamorph lenses that allow you to convert 16:9 projectors to 2.35:1 aspect ratio.

- 3D function

To enjoy the 3D movies, videos, and sporting events in a more realistic way by presenting the depth of the images through HDMI.

- 2D 3D conversion

With the 2D 3D Conversion function, you can convert 2D content into 3D images for 3D effect.

• Frame Interpolation

The projector enhances picture smoothness and clarity using motion estimation/motion compensation technology.

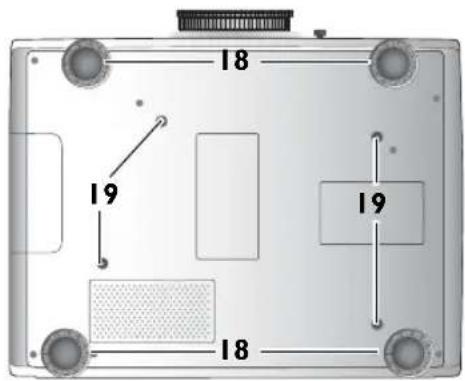

Projector exterior view

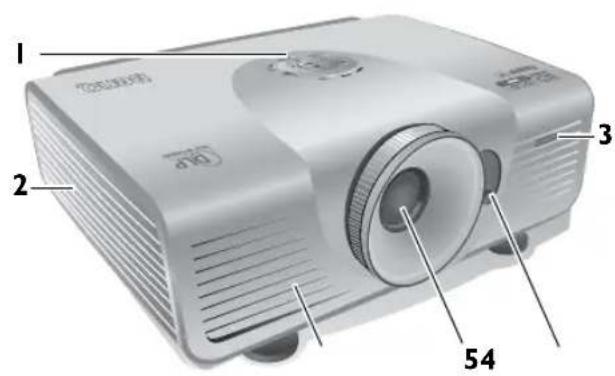

Front and upper side view

1. Control panel (See "Control panel" on page 10 for details.)
2. Lamp cover
3. Front IR sensor
4. Vent (heated air exhaust)
5. Projection lens
6. Lens shift lever

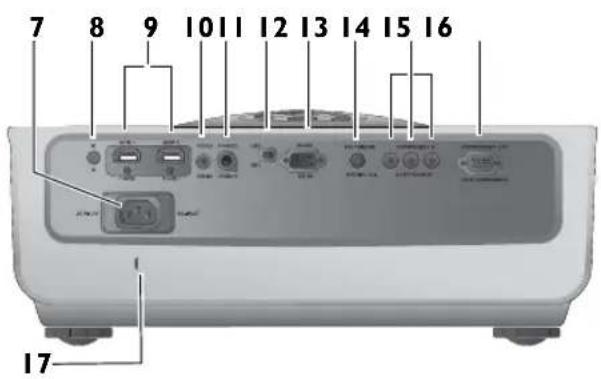

Rear view

See "Connecting with video equipment" on page 17 for connection details.

1. AC Power cable inlet
2. Rear IR sensor
3. HDMI ports
4. Composite Video input (RCA)
5. S-Video input (mini 4-pin DIN)
   12.USB port
6. RS-232 control port Used to interface with a PC or home theater control/automation system.
7. 12VDC output terminal Used to trigger external devices such as an electric screen or light control, etc. Consult your dealer for how to connect these devices.
8. Component Video inputs (RCA) support Y/PB/PR or Y/CB/CR video signal
9. RGB (PC)/Component video (YPbPr/YCbCr) signal input jack
   17.Kensington lock slot

Under view

18.Adjustable feet
19. Ceiling mount holes

Controls and functions

Control panel

I. Focus ring

Adjusts the focus of the projected image.

"Fine-tuning the image size and clarity" on page 21

2. Zoom ring

Adjusts the size of the projected image.

"Fine-tuning the image size and clarity" on page 21

3. POWER indicator light

Lights up or flashes when the projector is operating.

"Indicators" on page 51

4. TEMPerature warning light

Lights up or flashes if the projector's temperature becomes too high.

"Indicators" on page 51

5. LAMP indicator light

Lights up or flashes when the projector lamp has developed a problem.

"Indicators" on page 51

For details, see the info provided behind the hand sign

6. Arrow/Keystone keys (Left ,Up /, ▲ Right ▶, Down □/)

Moves the current On-Screen Display (OSD) menu selection in the direction of the arrow being pressed when the OSD menu is activated.

Manually corrects distorted pictures resulting from an angled projection.

"Using the menus" on page 22, "Correcting picture distortion" on page 25

7. POWER

Performs the same action as POWER ON/OFF on the remote control.

Toggles the projector between standby and on.

"Turning the projector on" on page 20, "Turning the projector off" on page 38

8. PRESET MODE

Sequentially selects a predefined picture setting available for each input.

"Selecting a preset mode" on page 26

9. SOURCE

Performs the same action as the source selection keys (COMP, VIDEO, S-VIDEO, HDMI1, HDMI2, PC) on the remote control.

Switches sequentially through input sources.

"Selecting an input source" on page 21

10.EXIT

Goes back to previous OSD menus, exits and saves any changes made using the On-Screen Display (OSD) menu.

"Using the menus" on page 22

11. ENTER

Enacts the selected On-Screen Display (OSD) menu item.

12. MENU

Toggles the On-Screen Display (OSD) menu on and off.

"Using the menus" on page 22

Remote control

I. POWER ON/OFF

Toggles the projector between standby and on.

"Turning the projector on" on page 20, "Turning the projector off" on page 38

2. Source selection keys (COMP, VIDEO, S-VIDEO, HDMI1, HDMI2, PC)

Selects an input source for display.

"Selecting an input source" on page 21

3. Aspect keys (ANA, 4:3, LB, WIDE, REAL)

Selects the display aspect ratio.

"Selecting the aspect ratio" on page 33

4. PRESET MODE

Sequentially selects a predefined picture setting available for each input.

"Selecting a preset mode" on page 26

5. MEMORY keys (USER 1, USER 2/ISF NIGHT, USER 3/ISF DAY, and DEFAULT)

Restores picture settings for the current input source.

"Setting the User 1/User 2/User 3 mode" on page 27

6. ENTER

Enacts the selected On-Screen Display (OSD) menu item.

For details, see the info provided behind the hand sign

7. Arrow/Keystone keys (Left, Up /, ▲ Right ▶, Down □/)

Moves the current On-Screen Display (OSD) menu selection in the direction of the arrow being pressed when the OSD menu is activated.

Manually corrects distorted pictures resulting from an angled projection.

"Using the menus" on page 22, "Correcting picture distortion" on page 25

8. MENU

Toggles the On-Screen Display (OSD) menu on and off.

"Using the menus" on page 22

9. EXIT

Goes back to previous OSD menus, exits and saves any changes made using the On-Screen Display (OSD) menu.

"Using the menus" on page 22

10. Picture quality adjustment keys (BRIGHTNESS, CONTRAST, COLOR, TINT)

Displays the setting bars for adjustment of the appropriate picture quality values.

"Fine-tuning the picture quality" on page 28

II. Picture window control keys (PIP, SIZE, POSITION, ACTIVE)

Displays the Picture In Picture (PIP) windows, toggles between the main window and sub-window with ACTIVE, and adjusts the size and position of the currently active window with SIZE and POSITION.

"Displaying more than one image source simultaneously" on page 36

12.INVERT

Toggles the invert function between on and off.

"3D" on page 43

13.3D

Displays the 3D menu.

"3D" on page 43

14.LIGHT

Turns on the remote control backlight for about 10 seconds. Pressing any other key while the backlight is on keeps the backlight on for a further 10 seconds. Press the key again to turn the backlight off.

Positioning your projector

Choosing a location

Your projector is designed to be installed in one of four possible installation locations.

Your room layout or personal preference will dictate which installation location you select. Take into consideration the size and position of your screen, the location of a suitable power outlet, as well as the location and distance between the projector and the rest of your equipment.

I. Front:

Select this location with the projector placed near the floor in front of the screen. This is the most common way to position the projector for quick setup and portability.

Simple line drawing of a person observing a small object on a table, with no text or symbols present.

2. Front Ceiling:

Select this location with the projector suspended from the ceiling in front of the screen.

Purchase the BenQ Projector Ceiling Mount Kit from your dealer to mount your projector on the ceiling.

*Set Front Ceiling after you turn the projector on.

Diagram showing a person silhouette facing a wall-mounted device with a triangular pointer and connecting lines (no text or symbols)

3. Rear:

Select this location with the projector placed near the floor behind the screen.

Note that a special rear projection screen is required.

*Set Rear after you turn the projector on.

Diagram showing a person observing a projector mounted on a table with a pointer, no text or symbols present

4. Rear Ceiling:

Select this location with the projector suspended from the ceiling behind the screen.

Note that a special rear projection screen and the BenQ Projector Ceiling Mount Kit are required for this installation location.

*Set Rear Ceiling after you turn the projector on.

Diagram showing a mechanical device projecting a vertical beam to a human silhouette (no text or symbols)

*To set the projector position:

I. Press MENU on the projector or remote control and then press ◀/▶ until the System Setup menu is highlighted.
2. Press ▲/▼ to highlight Projector Position and press ◀/▶ until the correct position is selected.

Obtaining a preferred projected image size

The distance from the projector lens to the screen, the zoom setting, and the video format each factors in the projected image size.

The projector should always be placed horizontally level (like flat on a table), and positioned directly perpendicular 90^ right-angle square) to the screen. This prevents image distortion caused by angled projections (or projecting onto angled surfaces). If the projector is mounted on a ceiling, it must be mounted upside-down.

If the projector is positioned further away from the screen, the projected image size increases, and the vertical offset also increases proportionately.

When determining the positions of the screen and projector, you will need to account for both the projected image size and the vertical offset dimension, which are directly proportional to the projection distance.

This projector is equipped with a movable lens. See "Shifting the projection lens" on page 16 for details. You can see the diagrams on pages 14 and 15 for the vertical offset values in the dimension tables that are measured when the lens is shifted fully up or down.

How to determine the position of the projector for a given screen size

I. Determine the aspect ratio of your screen, 16:9 or 4:3?
2. Refer to the table and find the closest match to your screen size in the left columns labelled "Screen dimensions". Using this value, look across this row to the right to find the corresponding average distance from screen value in the column labelled "Average". This is the projection distance.
3. Decide the exact position of your projector according to the position of your screen and the adjustable lens shift range.

For example, if you are using a 120-inch, 4:3-aspect-ratio screen, please refer to "The screen aspect ratio is 4:3 and the projected picture is 16:9". The average projection distance is 4944 mm.

How to determine the recommended screen size for a given distance

This method can be used for situations where you have purchased this projector and would like to know what screen size will fit in your room.

The maximum screen size is limited by the physical space available in your room.

I. Determine the aspect ratio of your screen, 16:9 or 4:3?
2. Measure the distance between the projector and where you want to position the screen. This is the projection distance.
3. Refer to the table and find the closest match to your measurement in the average distance from screen column labelled "Average". Check that your measured distance is between the min and max distances listed on either side of the average distance value.
4. Using this value, look across that row to the left to find the corresponding screen diagonal listed in that row. That is the projected image size of the projector at that projection distance.

For example, if you have a 16:9-aspect-ratio screen and your measured projection distance was 4500 mm, please refer to "The screen aspect ratio is 16:9 and the projected picture is 16:9". The closest match in the "Average" column is 4488 mm. Looking across this row shows that a 100-inch screen is required.

Checking the min and max projection distance values in the columns of "Projection distance [mm]" on page 14 indicates that the 4500 mm measured projection distance will also fit the 90 and 110-inch size screens. The projector can be adjusted (using the zoom control) to display on these different screen sizes at the projection distance. Be aware that these different screens have different vertical offset values.

If you place the projector in a different position (to that recommended), you will have to tilt it down or up to center the image on the screen. In these situations, some image distortion will occur. Use the Keystone function to correct the distortion. See "Correcting picture distortion" on page 25 for details.

Projection dimensions

Installation for a 16:9 ratio screen

Floor Installation

: Screen
: Center of lens

Ceiling Installation

: Screen
: Center of lens

■ The screen aspect ratio is 16:9 and the projected picture is 16:9

Screen dimensions Projection distance [mm]						Lowest/Highest lens position [mm]
Diagonal[inch (mm)]	Height[mm]	Width[mm]	Min distance (with max zoom)	Average	Max distance (with min zoom)
30 (762) 374 6	64 1077 1346	1616 47
40 (1016) 498	885 1436 1795	2154 62
50 (1270) 623	1107 1795 2244	2693 78
60 (1524) 747	1328 2154 2693	3232 93
70 (1778) 872	1549 2513 3142	3770 109
80 (2032) 996	1771 2873 3591	4309 125
90 (2286) 112	1992 3232	4039 4847 140
100 (2540)	245 2214 3591	4488 5386	156
110 (2794)	370 2435 3950	4937 5925	171
120 (3048)	494 2656 4309	5386 6463	187
130 (3302)	619 2878 4668	5835 7002	202
140 (3556)	743 3099 5027	6284 7540	218
150 (3810)	868 3320 5386	6732 8079	233
160 (4064)	992 3542 5745	7181 8618	249
170 (4318)	2117 3763 6104	7630 9156	265
180 (4572)	2241 3984 6463	8079 9695	280
190 (4826)	2366	4206	6822	8528	10233	296
200 (5080)	2490	4427	7181	8977	10772	311
250 (6350)	3113	5534	8977	11221	13465	389
300 (7620)	3735	6641	10772	13465	16158	467

The above numbers are approximate and may be slightly different from the actual measurements. Only the recommended screen sizes are listed. If your screen size is not in the table above, please contact your dealer for assistance.

Installation for a 4:3 ratio screen

The illustrations and table below are provided for those users who already have 4:3 aspect ratio screens or intend to purchase 4:3 aspect ratio screens to view 16:9 ratio projected images.

■ The screen aspect ratio is 4:3 and the projected picture is 16:9

Screen dimensions			Projection distance[mm]			Lowest/ Highest lens position[mm]	Image height[mm]
Diagonal[inch (mm)]	Height[mm]	Width[mm]	Min distance(with max zoom)	Average	Max distance(with min zoom)
30 (762) 457 6	10 989 1236 1	483 43 343
40 (1016) 610	813 1318 1648	1977 57 457
50 (1270) 762	1016 1648 2060	2472 71 572
60 (1524) 914	1219 1977 2472	2966 86 686
70 (1778) 1067	1422 2307 2884	3461	100	800
80 (2032) 1219	1626 2637 3296	3955	114	914
90 (2286) 1372	1829 2966 3708	4449	129	1029
100 (2540)	1524	2032	3296	4120	4944	143	1143
110 (2794)	1676	2235	3625	4532	5438	157	1257
120 (3048)	1829	2438	3955	4944	5932	171	1372
130 (3302)	1981	2642	4285	5356	6427	186	1486
140 (3556)	2134	2845	4614	5768	6921	200	1600
150 (3810)	2286	3048	4944	6180	7416	214	1715
160 (4064)	2438	3251	5273	6592	7910	229	1829
170 (4318)	2591	3454	5603	7004	8404	243	1943
180 (4572)	2743	3658	5932	7416	8899	257	2057
190 (4826)	2896	3861	6262	7828	9393	271	2172
200 (5080)	3048	4064	6592	8239	9887	286	2286
250 (6350)	3810	5080	8239	10299	12359	357	2858
300 (7620)	4572	6096	9887	12359	14831	429	3429

 The above numbers are approximate and may be slightly different from the actual measurements. Only the recommended screen sizes are listed. If your screen size is not in the table above, please contact your dealer for assistance.

Shifting the projection lens

The lens shift control provides flexibility for installing your projector. It allows the projector to be positioned off the center of the screen. The lens shift is expressed as a percentage of the projected image height or width. It is measured as an offset from the projected image's vertical or horizontal center. You can use the lever to shift the projection lens in any direction within the allowable range depending on your desired image position.

To use the lens shift lever:

I. Release the lever by turning it counterclockwise. 2. Move the lever to adjust the projected image position. 3. Lock the lever by turning it clockwise. - When the screen position is fixed  - When the projector position is fixed   - Please do not over-tighten the lever. - Lens shift adjustment will not result in a degraded picture quality. In the unlikely event that the image distortion is produced, see "Adjusting the projected image" on page 25 for details.

Connecting with video equipment

You can connect the projector to any type of video equipment, such as a VCR, DVD player, Blu-ray player, digital tuner, cable or satellite decoder, video game console or digital camera. You can also connect it to a desktop or laptop PC or Apple Macintosh system. You need only connect the projector to a source device using just one of the connecting methods, however each provides a different level of video quality. The method you choose will most likely depend upon the availability of matching terminals on both the projector and the Video source device as described below:

Terminal name	Terminal appearance	Reference Picture quality
HDMI		"Connecting HDMI devices" on page 17	Best
Component Video		"Connecting component-video devices" on page 18	Better
S-Video	[4HZ]	"Connecting S-Video or video devices" on page 18	Good
Video	[54ZT]	"Connecting S-Video or video devices" on page 18	Normal
PC (D-SUB)		"Connecting a computer" on page 19	Better

Preparations

When connecting a signal source to the projector, be sure to: I. Turn off all equipment before making any connections. 2. Use only the correct type cables for each source with proper type plugs. 3. Ensure that all cable plugs are firmly fitted to the equipment jacks.  Note that all cables shown in the following connection diagrams may not be supplied with the projector (See "Shipping contents" on page 6 for details). Most cables are commercially available from electronics stores.

Connecting HDMI devices

HDMI (High-Definition Multimedia Interface) supports uncompressed video data transmission between compatible devices like DTV tuners, DVD players, Blu-ray players and displays over a single cable. It provides pure digital viewing and listening experience. You should use an HDMI cable when making connection between the projector and HDMI devices. HDMI device: DVD player, digital tuner, etc.

Connecting component-video devices

Be sure to match the corresponding colors between the cables and the terminals. The RCA type component video jacks are provided for connection to video output devices. You should also connect the separate audio cable to a suitable audio amplifier.

Connecting S-Video or video devices

You need only connect S-Video or composite Video cable from the same device, never both at the same time. You should also connect the separate audio cable to a suitable audio amplifier.

 If you have already made a Component Video connection between the projector and the video source device, you need not connect to this device again using an S-Video or composite Video connection as this makes an unnecessary second connection of poorer picture quality. You need only connect using a composite Video connection if both Component Video and S-Video are not supplied on the video source device (for example, with some analog video cameras). \- If the selected video image is not displayed after the projector is turned on and the correct video source has been selected, please check that the video source device is turned on and operating correctly. Also check that the signal cables have been connected correctly.

Connecting a computer

Connect the projector to a computer with a VGA cable.

 Many laptops do not turn on their external video ports when connected to a projector. Usually a key combination like Fn + F3 or CRT/LCD key turns the external display on/off. Locate a function key labeled CRT/LCD or a function key with a monitor symbol on the laptop. Press Fn and the labeled function key simultaneously. Refer to your laptop's documentation to discover your laptop's key combination.

Using the projector

Preparations

I. Plug in and turn all of the connected equipment on. 2. If not already in, plug the supplied power cable into the AC inlet on the rear of the projector. 3. Plug the power cable into a wall power outlet and turn the wall switch on. ⚠️ Please use the original accessories (e.g. power cable) only with the device to avoid possible dangers such as electric shock and fire.

Close-up of a hand inserting a plug into a device (no visible text or symbols)

Turning the projector on

Follow the steps below. I. Make sure the Power light is orange after power has been applied. 2. Press and hold POWER ON (⏻) on the projector or remote control to turn the projector on. 3. The fans will start operating, and a start-up image displays on the screen for a few seconds while it warms up. The projector will not respond to further commands while it is warming up. 4. If you are prompted for a password, press the arrow keys to enter a six-digit password. See "Utilizing the password function" on page 23 for details. 5. "Source Searching..." will be displayed on the screen before the projector identifies the input source. This message will remain on the screen until a valid signal is detected. See "Selecting an input source" on page 21 for details. 6. If the horizontal frequency of the input source exceeds the range of the projector, the message "No Signal" will be displayed on the screen. This message will remain on-screen until you change the input source to an appropriate one.

Selecting an input source

The projector can be connected to multiple equipment at the same time. When the projector is first turned on, it will attempt to reconnect with the input source which was in use when the projector was last shut down. To select the video source: • Using the remote control or projector Press one of the Source keys on the remote control, or press SOURCE on the projector repeatedly until your desired signal is selected.  NOTE: When automatically searching for a valid input source, the projector cycles through the available signals following the sequence from top to bottom as the source selection bar shows. • Using the OSD menu I. Press MENU and then press ◀/▶ until the System Setup menu is highlighted. 2. Press ▼ to highlight Input Source and press ENTER. The source selection bar displays. 3. Press ▲/▼ repeatedly until your desired signal is selected and press ENTER. Once detected, the selected source information will display on the screen for seconds. If there are multiple pieces of equipment connected to the projector, you can go back to the source selection bar again to search for other signals. - If you want the projector to automatically search for the signals, select On in the System Setup > Auto Source Search menu. - If you want to use the PIP function, see "Displaying more than one image source simultaneously" on page 36 for details.

Fine-tuning the image size and clarity

I. Adjust the projected picture to the size that you need using the zoom ring.  2. Sharpen the picture by rotating the focus ring.

Using the menus

The projector is equipped with multilingual On-Screen Display (OSD) menus for making various adjustments and settings. Below is the overview of the OSD menu.  To use the OSD menus, please set the OSD menu to your familiar language. I. Press MENU on the projector or remote control to turn the OSD menu on.  2. Use / ◀ to highlight the System Setup menu.  3. Press▼ to highlight Language and press ◀/▶to select a preferred language.  4. Press MENU once or EXIT twice\* on the projector or remote control to leave and save the settings. \*The first press leads you back to the main menu and the second press closes the OSD menu.

Securing the projector

Using a security cable lock

The projector has to be installed in a safe place to prevent theft. Otherwise, purchase a lock, such as the Kensington lock, to secure the projector. You can locate a Kensington lock slot on the projector. See item 17 on page 9 for details. A Kensington security cable lock is usually a combination of key(s) and the lock. Refer to the lock's documentation for finding out how to use it.

Utilizing the password function

For security purposes and to help prevent unauthorized use, the projector includes an option for setting up password security. The password can be set through the On-Screen Display (OSD) menu. Once the password is set and this function is selected, the projector is password-protected. Users who do not know the correct password can not use the projector.  You will be inconvenienced if you activate the password functionality and subsequently forget the password. Print out this manual (if necessary) and write the password you used in this manual, and keep the manual in a safe place for later recall.

Setting a password

 Once a password has been set and activated, the projector cannot be used unless the correct password is entered every time the projector is started. I. Press MENU on the projector or remote control and then press ◀/▶ until the Advanced Setup menu is highlighted. 2. Press ▼ to highlight Password and press ENTER. The Password page displays. 3. Highlight Change Password and press ENTER. The Input New Password page displays. 4. As the picture indicates, the four arrow keys (▲, ▶, ▼, ◀) respectively represent 4 digits (1, 2, 3, 4). According to the password you desire to set, press the arrow keys on the remote control or projector to enter six digits for the password. Confirm the new password by re-entering the new password. Once the password is set, the OSD menu returns to the Password page.  IMPORTANT: The digits being input will display as asterisks on-screen. Write your selected password down here in this manual in advance or right after the password is entered so that it is available to you should you ever forget it. Password: 5. Highlight Power On Lock and then press ◀/▶ to select On. 6. Confirm the current password. 7. To leave the OSD menu, press MENU.

If you forget the password

If the password function is activated, you will be asked to enter the six-digit password every time you turn on the projector. If you enter the wrong password, the password error message as pictured to the right displays lasting for three seconds, and the Input New Password page follows. You can retry by entering another six-digit password, or if you did not record the password in this manual, and you absolutely do not remember it, you can use the password recall procedure. See "Entering the password recall procedure" on page 24 for details. If you enter an incorrect password 5 times in succession, the projector will automatically shut down in a short time.

Entering the password recall procedure

1. Make sure the Input New Password page displays on screen. Press and hold EXIT on the projector or remote control for 3 seconds. The projector will display a coded number on the screen. 2. Write down the number and turn off your projector. 3. Seek help from the local BenQ service center to decode the number. You may be required to provide proof of purchase documentation to verify that you are an authorized user of the projector.

Changing the password

I. Press MENU on the projector or remote control and then press ◀/▶ until the Advanced Setup menu is highlighted. 2. Press ▲/▼ to highlight Password and press ENTER. The Password page displays. 3. Highlight Change Password and press ENTER. The Input Current Password page displays. 4. Enter the old password. \- If the password is correct, the message "Input New Password" displays. \- If the password is incorrect, the password error message displays lasting for three seconds, and the message "Input Current Password" displays for your retry. You can either press MENU to cancel the change or try another password. 5. Enter a new password. IMPORTANT: The digits being input will display as asterisks on-screen. Write your selected password down here in this manual in advance or right after the password is entered so that it is available to you should you ever forget it. Password: \_\_\_\_ Keep this manual in a safe place. 6. Confirm the new password by re-entering the new password. 7. You have successfully assigned a new password to the projector. Remember to enter the new password next time the projector is started. 8. To leave the OSD menu, press MENU.

Disabling the password function

To disable password protection, go back to the Advanced Setup > Password menu. Highlight Power On Lock and then press ◀/▶ to select Off. The message "Input Current Password" displays. Enter the current password. - If the password is correct, the OSD menu returns to the Password page with "Off" shown in the row of Power On Lock. You will not have to enter the password next time when turning on the projector. - If the password is incorrect, the password error message displays lasting for three seconds, and the message "Input Current Password" displays for your retry. You can either press MENU to cancel the change or try another password. Note that though the password function is disabled, you need to keep the old password in hand should you ever need to re-activate the password function by entering the old password.

Adjusting the projected image

Adjusting the projection angle

There are four adjuster feet on the bottom of the projector. These can be used if necessary to change the projection angle. Screw the feet in or out as appropriate to aim and level the projection angle.

Illustration of a projector with directional arrows indicating motion (no text or symbols)

 If the screen and the projector are not perpendicular to each other, the projected image becomes vertical trapezoidal. To correct this problem, see "Correcting picture distortion" on page 25 for details.

Correcting picture distortion

Keystoning occurs when the projector is not perpendicular to the screen and is where the projected picture displays visible as a trapezoid shape like either of the following: - Two parallel sides (left and right, or top and bottom) but is noticeably wider on either side. - No parallel sides.

To correct the picture's shape, you can perform the following steps.

I. Adjust the projection angle. Move the projector to be in front of the center of the screen with the center of the lens level with the screen. 2. If the picture is stilled distorted, or the projector is unable to be positioned as described above, you will need to manually correct the picture. • Using the remote control or projector i. Press one of the Arrow/Keystone keys on the remote control or projector (Up /▲ Down / ▼) to display the Keystone page. ii. See step iii below for further operation. • Using the OSD menu i. Press MENU and then press ◀/▶ until the Display menu is highlighted. ii. Press ▼ to highlight Keystone and press ENTER. The keystone correction page displays. iii. Press the key whose keystone icon is opposite to the shape of the projected picture. Continue pressing the same key or press the other keys until you are satisfied with the shape. The values on the lower portion of the page change while pressing. When the values reach their maximum or minimum with repeated key presses, the picture's shape will stop changing. You will not be able to change the picture further in that direction.

Using the preset and user modes

Selecting a preset mode The projector is preset with several pre-defined picture modes so that you can choose one to suit your operating environment and input source picture type.

To select a picture mode that suits your need:

• Using the remote control

I. Press PRESET MODE repeatedly or USER 1, USER 2/ISF NIGHT, USER 3/ISF DAY, DEFAULT on the remote control, or PRESET MODE on the projector repeatedly until your desired mode is selected.

• Using the OSD menu

I. Press MENU and then press ◀/▶ until the Picture -- Basic menu is highlighted. 2. Press to highlight Preset Mode. 3. Press /until your desired mode is selected. These modes consist of preset values suitable for various projection situations as described below: - Cinema: With well-balanced color saturation and contrast with a low brightness level, this is most suitable for enjoying movies in a totally dark environment (as you would find in a commercial cinema). - Dynamic: Maximizes the brightness of the projected image. This mode is suitable for environments where extra-high brightness is required, such as using the projector in well lit rooms. - Standard: It is slightly brighter than Cinema mode, and suitable for use in rooms where there is a small amount of ambient light. • 3D: It is optimized to bring up 3D effects when watching 3D contents. This mode is only available when 3D function is enabled. \- User 1/User 2/User 3: Recalls the customized settings. See "Setting the User 1/User 2/User 3 mode" on page 27 for details.

Fine-tuning the selected picture mode

The pre-defined picture mode settings can be altered via the available items shown in the Picture -- Basic and Picture -- Advanced menus.

To fine-tune the picture mode:

I. Press MENU and then press ◀/▶ until the Picture -- Basic or Picture -- Advanced menu is highlighted. 2. Press ▼ to highlight the item you want to adjust and press ◀/▶ to set your desired value. Your selection is automatically stored in the projector and associated with that input source. See "Fine-tuning the picture quality" on page 28 and "Advanced picture quality controls" on page 29 for details. Each time you change the picture mode, the projector also changes the setting to the one which was last set for that particular picture mode on that particular input. If you change the input source, the most recently used picture mode and settings for that input and resolution will be restored.

Setting the User 1/User 2/User 3 mode

There are three user-definable modes if the current available picture modes are not suitable for your need. You can use one of the picture modes (except the selected User mode) as a starting point and customize the settings. I. In the Picture -- Basic menu, highlight Preset Mode and press ◀/▶ to select User 1, User 2, or User 3 mode. 2. Press ▼ to highlight User Mode Management. This function is only available when User 1, User 2, or User 3 mode is selected up in the Preset Mode sub-menu item. 3. Press ENTER to display the User Mode Management page. 4. Press ▼ to highlight Reference Mode and press ENTER. 5. Press ▼ to highlight a picture mode that is closest to your need and press ENTER and EXIT to go back to the User Mode Management page. 6. Here you can rename the User 1, User 2, or User 3 mode by pressing ▼ to highlight Rename User Mode and press ENTER. The Rename User Mode page displays. 7. Press ▲/▼/◄/► until your desired character is selected and press ENTER. 8. Press EXIT to go back to the main menu once you are done. 9. Press ▼ to select a sub-menu item to be changed and adjust the value with ◀/▶. See "Fine-tuning the picture quality" on page 28 and "Advanced picture quality controls" on page 29 for details. 10. When all settings have been done, press MENU to save and leave the settings.

Resetting the picture mode

All of the adjustments you've done in the Picture -- Basic and Picture -- Advanced menus can be returned to the factory preset values with a key press on the highlight of Reset.

To reset the picture mode to the preset factory values:

1. In the Picture -- Basic menu, highlight Preset Mode and press ◀/▶ to select the picture mode (including User 1, User 2, or User 3) you want to reset. 2. Press ▼ to highlight Reset Picture Settings and press ENTER. The confirmation message displays. 3. Press ◀/▶ to highlight Reset and press ENTER. The picture mode will return to the factory preset settings. 4. Repeat steps 1-3 if you want to reset other picture modes. Do not to be confused with the Reset Picture Settings function here with the Reset All Settings in the Advanced Setup menu. The Reset All Settings function returns most of the settings to the factory preset values system wide. See "Reset All Settings" on page 45 for details.

Fine-tuning the picture quality

No matter what picture mode you have selected, you are able to fine-tune those settings to fit every presentation purpose. Those adjustments will be saved to the preset mode you are at when you exit the OSD menu.

Adjusting Brightness

Highlight Brightness in the Picture -- Basic menu and adjust the values by pressing 🔍 on the projector or remote control.    The higher the value, the brighter the picture. And the lower the setting, the darker the picture. Adjust this    control so the black areas of the picture appear just as black and that detail in the dark areas is visible.

Adjusting Contrast

Highlight Contrast in the Picture -- Basic menu and adjust the values by pressing ⚠ on the projector or remote control.       The higher the value, the greater the contrast. Use this to set the peak white level after you have previously adjusted the Brightness setting to suit your selected input and viewing environment.

Adjusting Color

Highlight Color in the Picture -- Basic menu and adjust the values by pressing ◀ / ▶ on the projector or remote control. Lower setting produces less saturated colors; setting to the minimum value makes the image black and white. If the setting is too high, colors on the image will be overpowering, which makes the image unrealistic.

Adjusting Tint

Highlight Tint in the Picture -- Basic menu and adjust the values by pressing ◀/▶ on the projector or remote control. The higher the value, the more reddish the picture becomes. The lower the value, the more greenish the picture becomes. This function is not available when the Preset Mode is ISF Night or ISF Day or when some certain input sources are in use, such as Video, S-Video, PC timing, or VGA. The Brightness, Color, Contrast, Tint functions can also be accessible by pressing BRIGHTNESS, COLOR, CONTRAST, TINT on the remote control to display the adjustment bar and then you can press ⚠️ adjust the values.

Adjusting Sharpness

Highlight Sharpness in the Picture -- Basic menu and adjust the values by pressing 🔊 on the projector. The higher the value, the sharper the picture becomes. The lower the value, the softer the picture becomes.

Adjusting Flesh Tone

This function adjusts accurate color primaries resulting in natural looking flesh tones with excellent color saturation. Highlight Flesh Tone in the Picture -- Basic menu and adjust the values by pressing ◀/▶ on the projector or remote control. The higher the value, the more reddish the flesh tones in the picture become. The lower the value, the more greenish the flesh tones in the picture become.

Selecting a color temperature\*

Highlight Color Temperature in the Picture -- Basic menu and select a preferred setting by pressing ◀/ ▶ on the projector or remote control. There are several color temperature settings available. 1. Lamp Native: With the lamp's original color temperature and higher brightness. This setting is suitable for environments where high brightness is required, such as projecting pictures in well lit rooms. 2. Warm: Makes pictures appear reddish white. 3. Normal: Maintains normal colorings for white. 4. Cool: Makes pictures appear bluish white. \*About color temperatures: There are many different shades that are considered to be "white" for various purposes. One of the common methods of representing white color is known as the "color temperature". A white color with a low color temperature appears to be reddish white. A white color with a high color temperature appears to have more blue in it.

Advanced picture quality controls

There are more advanced functions in the Picture -- Advanced menu to be adjusted to your preference. To save the settings, just press MENU to leave the OSD menu.

Setting Black Level

Highlight Black Level in the Picture -- Advanced menu and press ◀/▶ on the projector or remote control to select 0 IRE or 7.5 IRE. The grayscale video signal is measured in IRE units. In some areas which use NTSC TV standard, the grayscale is measured from 7.5 IRE (black) to 100 IRE (white); however, in other areas where PAL equipment or Japanese NTSC standards are used, the grayscale is measured from 0 IRE (black) to 100 IRE (white). We suggest that you check the input source to see if it is with 0 IRE or 7.5 IRE, then select accordingly.

Controlling image clarity

You may have static or noisy projected pictures.

To achieve better picture clarity:

I. Highlight Clarity Control in the Picture -- Advanced menu and press ENTER on the projector or remote control to display the Clarity Control page. 2. Press /▲to▼select the item you want to adjust and press / to sel►the desired value. - Noise Reduction: Reduces electrical image noise caused by different media players. The higher the setting, the less the noise. - Detail Enhancement: Sharpens the image. The higher the setting, the more details the image reveals.

Setting a preferred color temperature

To set a preferred color temperature:

I. Highlight Color Temperature in the Picture -- Basic menu and select Lamp Native, Warm, Normal or Cool by pressing ◀/▶ on the projector or remote control. 2. Highlight Color Temperature Fine Tuning in the Picture -- Advanced menu and press ENTER. The Color Temperature Fine Tuning page displays. 3. Press ▲/▼ to highlight the item you want to change and adjust the values by pressing ◀/▶. • Red Gain/Green Gain/Blue Gain: Adjusts the contrast levels of Red, Green, and Blue. - Red Offset/Green Offset/Blue Offset: Adjusts the brightness levels of Red, Green, and Blue. 4. To save and leave the settings, press MENU once or EXIT twice.

Selecting a Gamma setting

Highlight Gamma Selection in the Picture -- Advanced menu and select a preferred setting by pressing ↕ on the projector or remote control. Gamma refers to the relationship between input source and picture brightness. • Gamma 1.6/1.8/2.0/BenQ Select these values according to your preference. \- Gamma 2.2 Increases the average brightness of the picture. Best for a lit environment, meeting room or family room. \- Gamma 2.4/2.5 Best for viewing movies in a darkened environment. \- Gamma 2.6/2.8 Best for viewing movies which are mostly composed of dark scenes.

Adjusting Brilliant Color

Highlight Brilliant Color in the Picture -- Advanced menu and select On by pressing ◀/▶ on the projector or remote control. This feature utilizes a new color-processing algorithm and system level enhancements to enable higher brightness while providing truer, more vibrant colors in picture. When set to "Off", Brilliant Color is disabled.

Color Management

In most installation situations, color management will not be necessary, such as in classroom, meeting room, or lounge room situations where lights remain on, or where building external windows allow daylight into the room. Only in permanent installations with controlled lighting levels such as boardrooms, lecture theaters, or home theaters, should color management be considered. Color management provides fine color control adjustment to allow for more accurate color reproduction, should you require it. Proper color management can only be achieved under controlled and reproducible viewing conditions. You will need to use a colorimeter (color light meter), and provide a set of suitable source images to measure color reproduction. These tools are not provided with the projector, however, your projector supplier should be able to provide you with suitable guidance, or even an experienced professional installer. The Color Management provides six sets (RGBCMY) of colors to be adjusted to favorite colors. When you select each color, you can independently adjust its color range and saturation according to your preference.

To adjust and store the settings:

1. In the Picture -- Advanced menu, highlight Color Management and press ENTER. The Color Management page displays. 2. Highlight Primary Color and press ◀/▶ to select a color from among Red, Green, Blue, Cyan, Magenta and Yellow. 3. Press ▶ highlight Hue and press / ◀ ▶ to select its range. Increase in the range will include colors consisted of more proportions of its two adjacent colors. Please refer to the illustration to the right for how the colors relate to each other. For example, if you select Red and set its range at 0, only pure red is selected. Increasing its range will include both the red color close to yellow and red color close to magenta.  4. Press ▼ to highlight Gain and adjust its values to your preference by pressing ◀/▶. The contrast level of the primary color you select will be affected. Every adjustment made will reflect to the image immediately. 5. Press ▼ to highlight Saturation and adjust its values to your preference by pressing ◀/▶. Every adjustment made will reflect to the image immediately. For example, if you select Red and set its value at 0, only the saturation of pure red will be affected. Saturation is the amount of that color in a video picture. Lower settings produce less saturated colors; a setting of "0" removes that color from the image entirely. If the saturation is too high, that color will be overpowering and unrealistic. 6. To leave and save the settings, press MENU once or EXIT twice.

Setting Film Mode

Highlight Film Mode in the Display menu and select On by pressing ◀/▶ on the projector or remote control. This feature helps improve picture quality when projecting video image from a film-sourced DVD or Blu-ray Disc.

Setting 3D Comb Filter

Highlight 3D Comb Filter in the Display menu and select On by pressing ◀/▶ on the projector or remote control. This feature separates composite signal to Y (brightness) signal and C (color) signal, and can help produce clearer and sharper images with correct colors in place. This function is only available when a Video signal is selected.

Selecting the aspect ratio

The "aspect ratio" is the ratio of the image width to the image height. Digital TV is usually in 16:9 ratio, which is the default for this projector, and most analog TV signals and DVDs are in 4:3 ratio. With the advent of digital signal processing, digital display devices like this projector can dynamically stretch and scale the image output to a different aspect than that of the image input source. Images can be stretched in a linear manner so the whole of the image is stretched equally, or non-linearly, which distorts the image. To change the projected picture ratio (no matter what aspect the source is): • Using the remote control Press one of the aspect ratio keys to suit the format of the video signal and your display requirements. • Using the OSD menu I. Press MENU and then press ◀▶ until the Display menu is highlighted. 2. Press▼ to highlight Aspect Ratio. 3. Press /to select an aspect ratio to suit the format of the video signal and your display requirements.  The function is not available when the 3D Mode is set to 2D 3D Conversion.

About the aspect ratio

1. Anamorphic (ANA): Scales an image so that it is displayed in the center of the screen with a 16:9 aspect ratio. This setting stretches and resizes linearly, except that it treats the vertical and horizontal dimensions independently. It stretches the height of the source image until it reaches the full projected height, and stretches the width of the source image until it reaches the full projected width. This may alter the projected aspect, depending upon the original aspect of the source image. Anamorphic is most suitable for images which are already in a 16:9 aspect, like high definition TV, as it displays them without aspect alteration. 2. 4:3: Scales a picture so that it is displayed in the center of the screen with a 4:3 aspect ratio. This is most suitable for 4:3 pictures like computer monitors, standard definition TV and 4:3 aspect DVD movies, as it displays them without aspect alteration. 3. Letter Box (LB): Scales a picture to fit the projector's native resolution in its horizontal width and resize the picture's height to the 3/4 of the projection width. This may produce a picture greater in height than can be displayed, so part of the picture is lost (not displayed) along the top and bottom edges of the projection. This is suitable for the display of movies which are presented in letter box format (with black bars on the top and bottom). 4. Wide: Stretches the picture horizontally in a non-linear manner, that is, the edges of the picture are stretched more than the center of the picture to prevent distortion of the central part of the picture. This is suitable for occasions where you want to stretch the width of a 4:3 aspect picture to the width of a 16:9 aspect screen. It does not alter the height. Some widescreen movies have been produced with their width squashed down to the width of a 4:3 aspect, and are best viewed when restretched back to their original width using this setting.  16:9 picture  4:3 picture  16:9 picture  Letter Box format picture  4:3 picture 5. Real: This setting displays the image in a one-to-one pixel mapping without alteration or resize in the center of the projection. This is most suitable for use with PC source inputs.   - The black portions are inactive areas and the white portions are active areas. - OSD menus can be displayed on those unused black areas.

Using Panamorph lenses (optional)

Panamorph lenses allow you to convert 16:9 projectors to the full 2.35:1 aspect ratio of most motion pictures, showing the best movies without letterbox bars at top and bottom of images while increasing resolution by 33% and brightness by 20%.

Simple diagram with a central circle surrounded by four smaller circles, enclosed in a rectangular frame (no text or symbols)

2.35:1 aspect ratio image Pressing LB on the remote control

Simple geometric diagram with a circle centered at the top and four surrounding smaller circles (no text or symbols)

2.35:1 aspect ratio image using the entire resolution of the 16:9 display Using Panamorph lens

Simple geometric diagram with a central circle surrounded by four smaller circles (no text or symbols)

2.35:1 aspect ratio image in a 2.35:1 display area You may need a 2.35:1 screen to display the 2.35:1 images. For more information, please go to www.panamorph.com or contact the place you purchased the projector.

Magnifying and searching for details

If you need to find the details on the projected picture, magnify the picture. Use the direction arrow keys for navigating the picture. • Using the OSD menu I. Press MENU and then press ◀/▶ until the Display menu is highlighted. 2. Press ▼ to highlight Digital Zoom and press ENTER. The Zoom bar displays. 3. Press repeatedly to magnify the picture to a desired size. 4. To navigate the picture, press ENTER to switch to the panning mode and press the directional arrows (▲, ▼) in the projector or remote control to navigate the picture. 5. To reduce size of the picture, press ENTER to switch back to the zoom in/out function. You can also press ▼repeatedly until it is restored to the original size.  The picture can only be navigated after it is magnified. You can further magnify the picture while searching for details.

Operating in a high altitude environment

We recommend that you activate High Altitude Mode when your environment is higher than 1500 meters (around 4920 feet) above sea level, or whenever the projector will be used for extended periods of time (>10 hours) without shutdown.

To activate High Altitude Mode:

I. Press MENU and then press ◀/▶ until the Advanced Setup menu is highlighted. 2. Press ▼ highlight High Altitude Mode. 3. Press ◀/▶ to select On. A confirmation message displays. 4. Highlight Yes and press ENTER. Operation under High Altitude Mode may cause a higher decibel operating noise level because of increased fan speed necessary to improve overall system cooling and performance. If you use this projector under other extreme conditions excluding the above, it may display auto shutdown symptoms, which is designed to protect your projector from over-heating. In cases like this, you should switch to High Altitude Mode to solve these symptoms. However, this is not to state that this projector can operate under any and all harsh or extreme conditions.

Displaying more than one image source simultaneously

Your projector is capable of displaying pictures simultaneously from two input sources, which can be used to enhance your presentation in an interesting way. Ensure the signals you want to display are correctly connected to the projector.

To display the PIP window:

• Using the remote control

Press PIP to display the PIP page and make adjustments by following the steps starting from step 3 in the section "Using the OSD menu" below. When the PIP window is on, to change the PIP window size, press SIZE repeatedly until a desired size is selected. When the PIP window is on, to change the PIP window position, press POSITION repeatedly until a desired position is selected. When the PIP window is on, to highlight one of the sources to make adjustments, press ACTIVE repeatedly until the source is selected.

• Using the OSD menu

I. Press MENU and then press ◀/▶ until the Display menu is highlighted. 2. Press ▼ to highlight PIP and press ENTER. The PIP page displays. 3. Highlight PIP and press ◀/▶ to select On.

Black-and-white photo sequence showing a flower with two groups of people, connected by arrows indicating transformation or alignment (no text or symbols)

The projector will select two currently active signals to display and the last viewed picture will be displayed on the big screen as a main source. The PIP function is effective at below source combinations.

Source 1/2 HDMI	1/2
PC	V
Video V
S-Video	V
Component 1/2	V

4. To change the Main Source or PIP Source, press ▼ to highlight Main Source or PIP Source and press ENTER. The source selection bar displays. 5. Use ▲/▼ to highlight the source you want to display for the main (bigger) or second (smaller) window, and press ENTER to save the setting and go back to the PIP page. 6. To make OSD settings to one of the two sources (main or second), highlight Active Window and press ▶ t▶ select the source you want to make adjustments. The settings made on the OSD menus will only take effect on the active window. The following OSD menu function cannot work on the active windows for the PIP: Auto Source Search. 7. To change the position of the smaller picture, highlight Position and press ◀/▶ repeatedly until a suitable position is selected. 8. To resize the small picture, highlight Size and press ◀/▶ to set the PIP size among Small or Large. 9. To save the settings and leave the OSD menu, press MENU once or EXIT repeatedly until the menu disappears.

Watching 3D content

Your BenQ projector supports playing three-dimensional (3D) content transferred through HDMI.

Connecting 3D video devices

\- PlayStation games i. Make sure you have updated your console to the latest software version in PlayStation 3. ii. Insert the 3D game disc. Or you can download games via the PlayStation network. iii. Launch the game and select Play in 3D in the in-game menu. \- Blu-ray 3D player i. Make sure your player supports 3D Blu-ray Disc and that 3D output is activated. ii. Play the 3D Blu-ray Disc. • 3D TV (e.g. SKY 3D, DirecTV) i. Contact your TV service provider to enable 3D channels on your channel package. ii. Switch to the 3D channel. • 3D Devices (e.g. 3D DV/DC) Turn on the 3D device and project the 3D content. To view the 3D video correctly, make sure Auto is selected in the Display > 3D > 3D Mode menu. If 3D content still cannot be shown correctly, select On in the Display > 3D > 3D Mode menu, and then go to the Display > 3D > 3D Format menu and select the supported format. After you have connected the 3D video devices to the projector using the HDMI cable, make sure the power of BenQ 3D glasses is on. Wear the BenQ 3D glasses, and then enjoy your 3D experience!

Using the 3D menus

I. Press the MENU and go to the Display > 3D menu and press ENTER. Or you can press the 3D button on the remote control. 2. Press ▲/▼ to highlight 3D Sync Invert and press ◀/▶ to select Invert to switch between the image for the left eye and the right eye for the more natural viewing. You can also toggle this function between Invert and Disable by pressing INVERT on the remote control. 3. Highlight 3D Mode and press ◀/▶ to select Auto or On. The projector automatically detects the format of the video when selecting Auto. When selecting On, you need to base on the 3D format of the video to make an appropriate setting in the 3D Mode menu.  \- Use corrective glasses or other such methods to correct your eyesight if you suffer from myopia, hyperopia, astigmatism, or have eyesight differences between the left and right eyes before putting on the 3D Glasses to watch the 3D content. \- When the projector starts to project the 3D images, the image may seem misplaced, however, this is not a product malfunction. • Take appropriate breaks when watching 3D content. \- Stop watching 3D content if you feel fatigue or discomfort. \- Keep a distance from the screen of about three times the effective height of the screen when watching 3D content. \- Children and people with a history of oversensitivity to light, heart problems, or have any other existing medical condition should be refrained from watching 3D content.

Personalizing the projector menu display

The On-Screen Display (OSD) menus can be set according to your preferences. The following settings do not affect the projection settings, operation, or performance. - Menu Display Time in the System Setup > Menu Settings menu sets the length of time the OSD will remain active after your last key press. Use ◀ to select a suitable time length. - Menu Position in the System Setup > Menu Settings menu sets the OSD position in five locations. Use ◀ t▶ select a preferred position. - Language in the System Setup menu sets your familiar language for the On-Screen (OSD) Menus. See "Using the menus" on page 22 for details. - Splash Screen in the System Setup menu sets a preferred logo screen to be displayed during projector start-up.

Locking control keys

With the control keys on the remote control and projector locked, you can prevent your projector settings from being changed accidentally (by children, for example). When Key Lock is on, no control keys on the remote control and projector will operate except POWER ON/OFF and ▶.

To lock the keys:

I. Press MENU and then press ◀/▶ until the Advanced Setup menu is highlighted. 2. Press ▼ to highlight Key Lock, and press ◀/▶ to select On. A warning message appears. Select Yes and press ENTER. The control keys lock. To unlock the keys, press and hold ▶ on the projector or remote control for 3 seconds.

Turning the projector off

To turn the projector off, press POWER OFF on the remote control to turn the projector off directly. Or you can press on the projector and a warning message appears. Press again.

Close-up of hands connecting a USB cable to a device with an attached port (no visible text or symbols)

- The Power indicator light flashes orange and the fans run for about two minutes to cool the lamp. The projector will not respond to any commands until the cooling process is complete. - Then, the Power indicator light is a steady orange once the cooling process has finished and fans stop. - If the projector will not be used for an extended period, unplug the power cable from the power outlet. • To protect the lamp, the projector will not respond to any commands during the cooling process. Actual lamp life may vary due to different environmental conditions and usage.

On-Screen Display (OSD) menus

On-Screen Display (OSD) structure Please note that the on-screen display (OSD) menus vary according to the signal type selected. Main menu Sub-menu Options

Picture -- Basic	Preset Mode Cinema/Dynamic/Standard/User 1/User 2/User 3/3D/ISF Day/ISF Night
	User Mode Management
	Brightness 0-100
	Contrast 0-100
	Color 0-100
	Tint 0-100
	Sharpness 0-2
	Flesh Tone 0-5
	Color Temperature Normal/Cool/Lamp Native/Warm
	Frame Interpolation	Off/Low/Middle/High
	Lamp Power Normal/Economic
	Reset Picture Settings
Picture -- Advanced	Black Level 0 IRE/7.5 IRE
	Clarity Control	Noise Reduction	0-31
		Detail Enhancement	0-4
	Color Temperature Fine Tuning	Red Gain	0-100
		Green Gain	0-100
		Blue Gain	0-100
		Red Offset	0-511
		Green Offset	0-511
		Blue Offset	0-511
	Gamma Selection		1.6/1.8/2.0/2.2/2.4/2.5/2.6/2.8/BenQ
	Brilliant Color		On/Off
	Color Management	Primary Color	Red/Green/Blue/Cyan/Magenta/Yellow
		Hue	0-100
		Gain	0-100
		Saturation	0-100
	Dynamic Black		On/Off
Display	Aspect Ratio Anamorphic/4:3/Letter Box/Wide/Real
	Keystone
	Position
	Overscan Adjustment 0/1/2/3
	PIP	PIP On/Off
		Main Source	HDMI I/HDMI 2/Video/S-Video/Component I/Component 2/PC
		PIP Source
		Active Window Main/PIP
		Position	Top-Right/Bottom-Left/Bottom-Right/Top-Left
		Size Large/Small
	PC & Component YPbPr Tuning	H.Size
		Phase
		Auto
	Digital Zoom
	Film Mode On/Off
	3D Comb Filter On/Off
	3D	3D Sync Invert Disable/Invert
		3D Mode	Auto/Off/Frame Sequential/Frame Packing/ Top-Bottom/Side-by-Side/2D 3D Conversion
System Setup	Language		English/Français/Deutsch Italiano/Espanol/Pyckii 繁體中文/简体中文/日本語/한국어/Svenska/Nederlands/Türkçe/Čeština/Português/1no / Polski Magyar/Hrvatski/Română/Norsk/Dansk/Български/Suomi/Indonesian/Еллгмкá/العربية/हिन्दी
	Splash Screen BenQ/Black/Blue
	Projector Position Front/Front Ceiling/Rear/Rear Ceiling
	Auto Off		Disable/5 min/10 min/15 min/20 min/25 min/30 min
	Sleep Timer		Disable/30 min/60 min/90 min/120 min/150 min/180 min
	Menu Settings	Menu Display Time	5 sec/10 sec/15 sec/20 sec/25 sec/30 sec/Always On
		Menu Position	Center/Top-Left/Top-Right/Bottom-Right/Bottom-Left
	Input Source		HDMI I/HDMI 2/Video/S-Video/Component I/Component 2/PC
	Source Rename
	Auto Source Search On/Off
Advanced Setup	Lamp Settings	Reset Lamp Timer
		Equivalent Lamp Hour
	HDMI Settings	HDMI Format	Auto
			PC Signal
			Video Signal
		CEC On/Off
	Baud Rate 2400/4800/9600/19200/38400/57600/115200
	Test Pattern
	Closed Caption	Closed Caption Enable On/Off
		Caption Version CC1/CC2/CC3/CC4
	High Altitude Mode On/Off
	Password	Change Password
		Power On Lock On/Off (inputs current password)
	Key Lock On/Off
	Reset All Settings
	ISF (inputs password)
Information	Source
	Preset Mode
	Resolution
	Color System
	Equivalent Lamp Hour
	3D Format
	Firmware Version

Note that the menu items are available when the projector detects at least one valid signal. If there is no equipment connected to the projector or no signal detected, limited menu items are accessible. Picture -- Basic menu

Function Description
Preset Mode	Pre-defined picture modes are provided so you can optimize your projector picture set-up to suit your program type. See "Selecting a preset mode" on page 26 for details.
User Mode Management	Selects a preset mode that most suits your need for the picture quality and further fine-tune the picture based on the selections listed below. See "Setting the User 1/User 2/User 3 mode" on page 27 for details.
Brightness	Adjusts the brightness of the picture. See "Adjusting Brightness" on page 28 for details.
Contrast	Adjusts the degree of difference between dark and light in the picture. See "Adjusting Contrast" on page 28 for details.
Color	Adjusts the color saturation level -- the amount of each color in a video picture. See "Adjusting Color" on page 28 for details.
Tint	Adjusts the red and green color tones of the picture. See "Adjusting Tint" on page 28 for details.
Sharpness	Adjusts the picture to make it look sharper or softer. See "Adjusting Sharpness" on page 28 for details.
Flesh Tone	See "Adjusting Flesh Tone" on page 29 for details.
Color Temperature	There are several color temperature settings available. See "Selecting a color temperature*" on page 29 for details.
Frame Interpolation	Enhances picture smoothness and clarity using motion estimation/motion compensation technology. You can also manually press ◀/► to decide its degree.
Lamp Power	Selects the projector lamp power between Normal and Economic modes.
Reset Picture Settings	Returns all settings in the Picture -- Basic and Picture -- Advanced menus to the factory preset values. See "Resetting the picture mode" on page 27 for details.

Picture -- Advanced menu

Function Description
Black Level	Sets the picture grayscale as 0 IRE or 7.5 IRE. See "Setting Black Level" on page 29 for details.
Clarity Control	Adjusts the picture clarity. See "Controlling image clarity" on page 29 for details.
Color Temperature Fine Tuning	See "Setting a preferred color temperature" on page 30 for details.
Gamma Selection	See "Selecting a Gamma setting" on page 30 for details.
Brilliant Color	See "Adjusting Brilliant Color" on page 30 for details.
Color Management	See "Color Management" on page 31 for details.
Dynamic Black	Automatically changes the black level of the projected pictures to enhance the effect of contrast ratio.

Display menu

Function Description
Aspect Ratio	There are several options to set the picture's aspect ratio depending on your input source. See "Selecting the aspect ratio" on page 33 for details.
Keystone	Corrects any keystoning of the picture. See "Correcting picture distortion" on page 25 for details.
Position	Displays the position adjustment page. To move the projected picture, use the directional arrow keys. The values shown on the lower position of the page change with every key press you made until they reach their maximum or minimum.This function is only available when the PC signal is selected.
Overscan Adjustment	Conceals the poor picture quality in the four edges. You can also manually press ▲/▶to decide how much to be concealed. Setting 0 means the picture is 100% displayed. The greater the value, the more portion of the picture is concealed while the screen remains filled and geometrically accurate.
PIP	Turns the PIP window on or off and makes related adjustments. See "Displaying more than one image source simultaneously" on page 36 for details.
PC & Component YPbPr Tuning	H.SizeAdjusts the horizontal width of the picture.PhaseAdjusts the clock phase to reduce picture distortion.Auto Adjusts the phase, and frequency automaticallyThese functions are only available when the Component 1, Component 2, or PC signal is selected.
Digital Zoom	See "Magnifying and searching for details" on page 34 for details.
Film Mode	See "Using Panamorph lenses (optional)" on page 34 for details.
3D Comb Filter	See "Setting 3D Comb Filter" on page 32 for details.
3D	3D Sync InvertWhen you 3D image is distorted, you can enable this function to switch between the image for the left eye and the right eye for the more comfortable 3D viewing experience.See "Watching 3D content" on page 37 for details.3D ModeThis projector features a 3D function which enables you to enjoy the 3D movies, videos, and sporting events in a more realistic way by presenting the depth of the images. You need to wear a pair of 3D glasses to view the 3D images.When the 3D Mode function is enabled:The brightness level of the projected image will decrease.The Preset Mode cannot be adjusted.The Keystone can only be adjusted within limited degrees.When the 2D 3D Conversion function is enabled, the Aspect Ratio function cannot be adjusted.

System Setup menu

Function Description
Language	Sets the language for the On-Screen Display (OSD) menus. See "Using the menus" on page 22 for details.
Splash Screen	Allows you to select which logo screen will display during projector start-up. You can choose BenQ logo screen, Blue screen or Black screen.
Projector Position	The projector can be installed on a ceiling or behind a screen, or with one or more mirrors. See "Choosing a location" on page 12 for details.
Auto Off	Prevents unnecessary projection when no signal is detected for a long time. See "Setting Auto Off" on page 47 for details.
Sleep Timer	Sets the auto-shutdown timer. The timer can be set to a value between 30 minutes and 3 hours.
Menu Settings	Menu Display TimeSets the length of time the OSD will remain active after your last key press.Menu PositionSets the On-Screen Display (OSD) menu position.
Input Source	Selects an input source to be projected. See "Selecting an input source" on page 21 for details.
Source Rename	Renames the source to your desired name. See "Selecting an input source" on page 21 for details.
Auto Source Search	Sets whether the projector searches automatically for input sources. If the source scan is On, the projector will scan for input sources until it acquires a signal. If the function is not activated, the projector selects the last used input source.

Advanced Setup menu

Function Description
Lamp Settings	Reset Lamp TimerOnce the lamp is renewed, select Reset to return the lamp timer to "0". See "Resetting the lamp timer" on page 50 for details.Equivalent Lamp HourShows the lamp hour information. See "Getting to know the lamp hour" on page 47 for details.
HDMI Settings	HDMI FormatSelects an input source type for the HDMI signal. You can also manually select the source type. The different source types carry different standards for the brightness level.HDMI Format is only available when the HDMI signal is selected.CECEnables or disables the CEC function. When you connect an HDMI CEC-compatible device to your projector with an HDMI cable, turning on the HDMI CEC compatible device automatically turns on the projector, while turning off the projector automatically turns off the HDMI CEC compatible device.
Baud Rate	Selects a baud rate that is identical with your computer's so that you can connect the projector using a suitable RS-232 cable and update or download the projector's firmware. This function is intended for qualified service personnel.
Test Pattern	Press ENTER to display the grid test pattern. It helps you adjust the image size and focus and check that the projected image is free of distortion.The function is only available when the projector detects no input signal.
Closed Caption	Closed Caption EnableActivates the function by selecting On when the selected input signal carries closed captions.• Captions: An on-screen display of the dialogue, narration, and sound effects of TV programs and videos that are closed captioned (usually marked as "CC" in TV listings).Caption VersionSelects a preferred closed captioning mode. To view captions, select CCI, CC2, CC3, or CC4 (CCI displays captions in the primary language in your area).
High Altitude Mode	A mode for operation in areas like high altitude or high temperature. See "Operating in a high altitude environment" on page 35 for details.
Password	Change PasswordYou will be asked to enter the current password before changing to a new one.See "Utilizing the password function" on page 23 for details.Power On LockLimits use of the projector to only those who know the correct password. See "Utilizing the password function" on page 23 for details.
Key Lock	See "Locking control keys" on page 38 for details.
Reset All Settings	Returns all settings to the factory preset values.The following settings will still remain: Keystone, Language, Projector Position, High Altitude Mode, Password, Key Lock, and ISF.
ISF	The ISF calibration menu is password protected and only accessible by authorized ISF calibrators. The ISF (Imaging Science Foundation) has developed carefully crafted, industry-recognized standards for optimal video performance and has implemented a training program for technicians and installers to use these standards to obtain optimal picture quality from BenQ video display devices. Accordingly, we recommend that setup and calibration be performed by an ISF certified installation technician.For more information, please go to www.imagingscience.com or contact the place you purchased the projector.

Information menu This menu shows you the current operating status of the projector.  Some picture adjustments are available only when certain input sources are in use. Unavailable adjustments are not shown on the screen.

Function Description
Source	Shows the current signal source.
Preset Mode	Shows the selected mode in the Picture -- Basic > Preset Mode menu.
Resolution	Shows the native resolution of the input source.
Color System	Shows input system format: NTSC, PAL, SECAM, YUV, or RGB.
Equivalent Lamp Hour	Shows the total lamp time used.
3D Format	Shows the current 3D mode.3D Format is only available when 3D Mode is enabled.
Firmware Version	Shows the firmware version of your projector.

Additional information

Care of the projector

Your projector needs little maintenance. The only thing you have to do on a regular basis is keep the lens clean. Never remove any parts of the projector except the lamp. Contact your dealer or local customer service center if the projector fails to operate as expected.

Cleaning the lens

Clean the lens whenever you notice dirt or dust on the surface. Before you attempt to clean the lens, turn the projector off, unplug the power cable, and leave it several minutes to cool completely. I. Use a canister of compressed air to remove dust. (Available from building hardware or photographic suppliers.) 2. If there is stubborn dirt or smudge marks, use a proper photographic lens brush or moisten a clean soft lens cloth with lens cleaner to gently wipe the lens surface. 3. Never use any type of abrasive pad, alkaline/acid cleaner, scouring powder, or volatile solvent, such as alcohol, benzene, thinner or insecticide. Using such materials or maintaining prolonged contact with rubber or vinyl materials may result in damage to the projector surface and cabinet material.  Never touch the lens with your finger or rub the lens with abrasive materials. Even paper towels can damage the lens coating. Only ever use a proper photographic lens brush, cloth, and cleaning solution. Do not attempt to clean the lens while the projector is switched on or is still hot from previous use.

Cleaning the projector case

Before you attempt to clean the case, turn the projector off, unplug the power cable, and leave it several minutes to cool completely. I. To remove dirt or dust, wipe the case with a soft, dry, lint-free cloth. 2. To remove stubborn dirt or stains, moisten a soft cloth with water and a neutral detergent. Then wipe the case.  Never use wax, alcohol, benzene, thinner or other chemical detergents. These can damage the case.

Storing the projector

If you need to store the projector for an extended time, please: I. Make sure the temperature and humidity of the storage area are within the recommended range for the projector. Please refer to the Spec. page in this manual or consult your dealer about the range. 2. Retract the adjuster feet. 3. Remove the batteries from the remote control. 4. Pack the projector in its original packing or equivalent.

Transporting the projector

It is recommended that you ship the projector with its original packing or equivalent.

Lamp information

Getting to know the lamp hour

When the projector is in operation, the duration (in hours) of lamp usage is automatically calculated by the built-in timer.  See "Setting Lamp Power as Economic" below for more information on Economic mode. To obtain the lamp hour information: I. Press MENU and then press ◀/▶ until the Advanced Setup menu is highlighted. 2. Press ▼ to highlight Lamp Settings and press ENTER. The Lamp Settings page displays. 3. The lamp hour information is shown in the row of Equivalent Lamp Hour. 4. To leave the menu, press MENU.

Extending lamp life

The projection lamp is a consumable item. To keep the lamp life as long as possible, you can do the following settings via the OSD menu.

- Setting Lamp Power as Economic

Using Economic mode reduces system noise and power consumption. If the Economic mode is selected, the light output will be reduced and result in darker projected pictures. Setting the projector in Economic mode also extends the lamp life. To set Economic mode, go to the Picture -- Basic > Lamp Power menu and press ◀/▶.

- Setting Auto Off

This function allows the projector to turn off automatically if no input source is detected after a set period of time. To set Auto Off, go to the System Setup > Auto Off menu and press ◀/▶ to select a time period. The time period can be set from 5 to 30 minutes in 5-minute increments. If the preset time lengths are not suitable for your presentation, select Disable. The projector will not automatically shut down in a certain time period.

Timing of replacing the lamp

When the Lamp indicator lights up red or a message appears suggesting it is time to replace the lamp, please install a new lamp or consult your dealer. An old lamp may cause a malfunction in the projector and in some instances the lamp may explode. Go to http://lamp.BenQ.com for a replacement lamp. The Lamp indicator light and Temperature warning light will light up if the lamp becomes too hot. Turn the power off and let the projector cool for 45 minutes. If the Lamp or Temp indicator still lights up after turning the power back on, please contact your dealer. See "Indicators" on page 51 for details. The following Lamp warning displays will remind you to change the lamp.

Status Message
Install a new lamp for optimal performance. If the projector is normally run withEconomicselected (see "Getting to know the lamp hour" on page 47), you may continue to operate the projector until the next hour lamp warning appears.PressENTERto dismiss the message.	WARNINGNOTICE: Order replacement lampLamp > XXXX hrsOrder a new lamp atlamp.benq.comOK
It is strongly recommended that you replace the lamp at this stage. The lamp is a consumable item. The lamp brightness diminishes with use. This is normal lamp behavior. You can replace the lamp whenever you notice that the brightness level has significantly diminished.Press ENTER to dismiss the message.	WARNING
The lamp MUST be replaced before the projector will operate normally.Press ENTER to dismiss the message.

 "XXXX" shown in the above messages are numbers that vary depending on different models.

Replacing the lamp

 - To reduce the risk of electrical shock, always turn the projector off and disconnect the power cord before changing the lamp. - To reduce the risk of severe burns, allow the projector to cool for at least 45 minutes before replacing the lamp. - To reduce the risk of injuries to fingers and damage to internal components, use caution when removing lamp glass that has shattered into sharp pieces. - To reduce the risk of injuries to fingers and/or compromising image quality by touching the lens, do not touch the empty lamp compartment when the lamp is removed. - This lamp contains mercury. Consult your local hazardous waste regulations to dispose of this lamp in a proper manner. - To assure optimal performance from the projector, it is recommended that you purchase a qualified projector lamp for lamp replacement. - If lamp replacement is performed while the projector is suspended upside-down from the ceiling, make sure that no one is underneath the lamp socket to avoid any possible injury or damage to the human eyes caused by fractured lamp. - Ensure good ventilation when handling broken lamps. We recommend that you use respirators, safety glasses, goggles or face shield and wear protective clothing such as gloves. I. Turn the power off and disconnect the projector from the power outlet. Turn off all connected equipment and disconnect all other cables. See "Turning the projector off" on page 38 for details. 2. Slightly lift the projector up. Loosen the screws on the lamp cover (located on the left side).

Illustration of a screwdriver inserted into a ventilation grille (no text or symbols)

3. Remove the lamp cover.

3D rendering of a computer case with ventilation ducts and a close-up view of the internal panel (no text or symbols visible)

4. Loosen the screws that hold the lamp to the projector. If the screws are not loosened completely, they could injure your fingers. 5. Lift the handle so that it is perpendicular to the lamp. Use the handle to slowly pull the lamp out of the projector.

Illustration of a mechanical device with arrows indicating motion or movement, no visible text or symbols

Notes

- Pulling it too quickly may cause the lamp to break and scatter broken glass in the projector. To reduce the risk of injuries to fingers and damage to internal components, use caution when removing lamp glass that has shattered. - Do not place the lamp in locations where water might splash on it, children can reach it, near or above heat sources, or near flammable materials. - Do not insert your hand into the projector when the lamp is removed. If you touch the optical components inside, it could cause blurred images. 6. Insert the replacement lamp. Make sure it is pushed fully and firmly in place. 7. Tighten the screws securing the lamp box. 8. Ensure the handle is fully locked in place.

Diagram of an electronic device with internal components and directional arrows indicating movement (no text or symbols)

Notes

- Please be careful to not over-tighten the screws. - Loose screws may cause a bad connection, which could result in malfunction. 9. Re-install the lamp cover.

Diagram showing a computer case with ventilation ducts and a separate panel with heat exchanger (no text or symbols)

10. Tighten the screws on the lamp cover. II. Reapply power and turn the projector back on.

Resetting the lamp timer

 Do not reset the lamp timer if the lamp has not been replaced as this could cause damage. I. After the start-up logo, press MENU and then press ◀/▶ until the Advanced Setup menu is highlighted. 2. Press ▼ to highlight Lamp Settings and press ENTER. The Lamp Settings page displays. 3. Highlight Reset Lamp Timer and press ENTER. A warning message displays asking if you want to reset the lamp timer. Highlight Reset and press ENTER. The lamp time will be reset to "0".

Indicators

There are three indicators which show the status of the projector. Check the following for information about the indicator lights. If there is anything wrong, turn the projector off and contact your dealer. ■ When the projector is in a normal state

Power	Temp	Lamp	Status & Description
Orange Off	Off		Stand-by mode
Green Flashing	Off Off		Powering up
Green Off	Off		Normal operation
Orange Flashing	Off Off		The projector needs 90 seconds to cool down as it was abnormally shut down without the normal cooling down process.The projector needs to cool for 90 seconds after the power is turned off.
Red Off	Off		The projector is downloading the firmware.
Red Flashing	Off Off		Scaler shutdown failed.
Red Off	Red		Scaler reset failed.

■ When the projector is in an abnormal state

Power	Temp	Lamp	Status & Description
Off	Off Red		The lamp has been damaged. Please contact your local BenQ customer center for purchasing a new lamp.
Off	Off	Red Flashing	The lamp is not properly attached.The lamp has been damaged. Please contact your local BenQ customer center for purchasing a new lamp.
Red Red	Off		The fans are not working.	The projector has shut down automatically. If you try to re-start the projector, it will shut down again. Please contact your dealer for assistance.
Red	Red Flashing	Off
Red	Green	Off
Red	Green Flashing	Off
Green	Red Off		The internal temperature is too high.The intake ventilation or the exhaust ventilation is blocked.The projector may be in a poorly ventilated location.The ambient temperature may be too high.
Green Flashing	Red Off

Troubleshooting

Problem Cause Remedy
The projector does not turn on.	There is no power from the power cable.	Plug the power cable into the AC inlet on the rear of the projector, and plug the power cable into to the power outlet. If the power outlet has a switch, make sure that it is switched on. (See page 20.)
	Attempting to turn the projector on again during the cooling process.	Wait until the cooling down process has completed.
	The lamp cover is not securely attached.	Correctly attach the lamp cover. (See page 48.)
No picture.	The video source is not turned on or connected correctly.	Turn the video source on and check that the signal cable is connected correctly. (See page 17.)
	The projector is not correctly connected to the input source device.	Check the connection. (See page 17.)
	The input source has not been correctly selected.	Select the correct input source with the Source keys on the remote control or SOURCE on the projector. (See page 21.)
Image is unstable.	The connection cables are not securely connected to the projector or the signal source.	Correctly connect the cables to the appropriate terminals. (See page 17.)
Picture is blurred.	The projection lens is not correctly focused.	Adjust the focus of the lens using the focus ring. (See page 21.)
	The projector and the screen are not aligned properly.	Adjust the projection angle and direction as well as the height of this projector if necessary. (See page 25.)
Remote control does not work correctly.	The batteries are out of power.	Replace both of the batteries with new ones. (See page 7.)
	There is an obstacle between the remote control and the projector.	Remove the obstacle. (See page 7.)
	You are too far away from the projector.	Stand within 8 meters (26.2 feet) of the projector. (See page 7.)
3D content does not not display correctly	The 3D glasses are out of battery. Re	charge the 3D glasses.
	The settings in the 3D menu are not set correctly.	Correctly set the settings in the 3D menu. (See page 37.)
	Your Blu-ray Disc is not in 3D format.	Use a 3D Blu-ray Disc and try again.
	The input source has not been correctly selected.	Select HDMI 1/ HDMI 2 with the Source keys on the remote control or SOURCE on the projector. (See page 21.)

Specifications

 All specifications are subject to change without notice.

■ Optical

Projection system Single-chip DLP ^TM system DMD chip 0.65" DLP (1920 x 1080) Lens F = 2.48 to 2.81, f = 24.1 to 36.15 mm Projection screen size 28" to 300" Lamp 300W

■ Electrical

Compatibility PC: 640 x 480 to 1920 x 1200 Video: NTSC, PAL, SECAM, YPbPr (480i/480p/576i/576p), HDTV (720p/1080i/1080p) Color Space Typ. = 70% NTSC (Target Color Gamut = HDTV Rec. 709)

■ Terminals

Input Analog RGB: D-Sub 15-pin (female) x 1 HDMI (V. 1.4) x 2 Component Video (Y/CB/CR, Y/PB/PR) x 1 Component Video (Y/CB/CR, Y/PB/PR) x 1 (shared with RGB input) Composite Video x 1 S-Video x 1 Output 12VDC (Max. 0.5 A) Control Serial Connector: RS232 9 pin (male) Mini B type USB x 1 IR receiver x 2

■ General characteristics

Projector weight 6.7 kg (14.8 lbs) Power VAC 100-240V, 5.0A, 50-60Hz (Automatic) Power consumption Max. 466W; Standby < 0.5 W Operating temperature 0 °C to 35 °C at sea level Operating humidity 10% - 90% (without condensation) Operating altitude 0-1499 m at 0°C-35°C 1500-3000 m at 23°C-30°C (with High Altitude Mode on) Storage temperature -20°C-60°C/-4°F to 140°F Storage humidity 10% - 90% ■ Dimensions 428 mm x 317 mm x 145 mm (W x D x H)   ■ Ceiling mount installation ◎ Ceiling mount screws: M6 x 8 (Max. L = 8 mm)

■ Timing chart

Supported timing for PC input

Resolution Mode		Refresh rate (Hz)	H. Frequency (KHz)	Clock (MHz)
640 x 480*	VGA_60	59.940	31.469
	VGA_72	72.809	37.861
	VGA_75	75.000	37.500
	VGA_85	85.008	43.269
720 x 400* 720x400_70 70.087 31.469 28 3221
800 x 600*	SVGA_60	60.317	37.879
	SVGA_72	72.188	48.077
	SVGA_75	75.000	46.875
	SVGA_85	85.061	53.674
1024 x 768*	XGA_60	60.004	48.363
	XGA_70	70.069	56.476
	XGA_75	75.029	60.023
	XGA_85	84.997	68.667
1152 x 864* 1152 x 864_75 75.00 67.500		08.000
1024 x 576*	BenQ Notebook Timing	60.00 35.820 46.996
1024 x 600*	BenQ Notebook Timing	64.995 41.467 51.419
1280 x 768*	1280 x 768_60(Reduce Blanking)	60	47.396	68.25
	1280 x 768_60	59.870 47.776	79.5
1280 x 800*	WXGA_60	59.810 49.702 83.500
	WXGA_75	74.934 62.795 106.500
	WXGA_85	84.880 71.554 122.500
1280 x 1024*	SXGA_60	60.020	63.981	108.000
	SXGA_75	75.025 79.976 135.000
	SXGA_85	85.024 91.146 157.500
1280 x 960*	1280 x 960_60	60.000 60.000	108
	1280 x 960_85	85.002 85.938 148.500
1360 x 768* 1360 x 768_60 60.015 47.712 85.500
1440 x 900*	WXGA+_60	59.887 55.935 106.500
1400 x 1050* SXGA+_60 59.978 65.317 121.750
1600 x 1200* UXGA 60.000 75.000 162.000
1680 x 1050*	1680 x 1050_60(Reduce Blanking)	59.883	64.674	119.000
640 x 480@67Hz*	MAC13 66.667	35.000 30.240
832 x 624@75Hz*	MAC16 74.546	49.722 57.280
1024 x 768@75Hz	MAC19 74.93 60.241 80.000
1152 x 870@75Hz*	MAC21 75.06 68.68 100.00
1920 x 1080*	1920x1080_60(CEA-861)	59.939/60 67.432	67.5 148.35/148.5

 \*Supported timing for non-3D and 3D signal with 2D 3D Conversion format. Supported timing for HDMI (HDCP) input

Resolution Mode		Refresh rate (Hz)	H. Frequency (KHz)	Clock (MHz)
640 x 480	VGA_60*	59.940	31.469
	VGA_72*	72.809	37.861
	VGA_75*	75.000	37.500
	VGA_85*	85.008	43.269
720 x 400 720x400_70* 70.087 31.469 28.3221
800 x 600	SVGA_60*	60.317	37.879
	SVGA_72*	72.188	48.077
	SVGA_75*	75.000	46.875
	SVGA_85*	85.061	53.674
1024 x 768	XGA_60*	60.004	48.363	65.000
	XGA_70*	70.069	56.476	75.000
	XGA_75*	75.029	60.023	78.750
	XGA_85*	84.997	68.667	94.500
	XGA_120**(Reduce Blanking)	119.989 97.551	115.500
1152 x 864 1152 x 864_75* 75.00 67.500		108.000
1024 x 576	BenQ Notebook Timing*	60.00 35.820 46.996
1024 x 600	BenQ Notebook Timing*	64.995	41.467 51.419
1280 x 720	1280 x 720_60*	60	45.000 74.250
	1280x720_120**	120	90.000 148.500
1280 x 768 1280 x 768_60*		59.870 47.776	79.5
1280 x 800	WXGA_60*	59.810	49.702 83.500
	WXGA_75*	74.934	62.795	106.500
	WXGA_85*	84.880	71.554	122.500
	WXGA_120**(Reduce Blanking)	119.909	101.563 146.25
1280 x 1024	SXGA_60*	60.020	63.981	108.000
	SXGA_75*	75.025	79.976	135.000
	SXGA_85*	85.024	91.146	157.500
1280 x 960	1280 x 960_60* 60.000 60.000 108
	1280 x 960_85* 85.002 85.938 148.500
1360 x 768 1360	x 768_60* 60.015 47.712 85.500
1440 x 900 WXGA+_60* 59.887 55.935	106.500
1400 x1050 SXGA+_60*	59.978 65.317 121.750
1600 x1200	UXGA*	60.000 75.000	162.000
640 x 480 @67Hz	MAC13*	66.667	35.000 30.240
832 x 624 @75Hz	MAC16*	74.546	49.722 57.280
1024 x 768 @75Hz	MAC19*	74.93	60.241 80.000
1152 x 870 @75Hz	MAC21*	75.06	68.68
1920 x 1080	1920x1080_60 (CEA-861)*	59.939/60	67.432/67.5

 - \*Supported timing for non-3D and 3D signal with 2D 3D Conversion format. - \*\*Supported timing for non-3D and 3D signal with Frame Sequential format. - The timings showing above may not be supported due to EDID file and VGA graphic card limitations. It is possible that some timings cannot be chosen.

Timing	Resolution	H. Freq. (KHz)	V Freq. (Hz)	Dot Clock Freq. (MHz)	Remark
480i*	720(1440) x 480	15.73	59.94	27	HDMI only
480p*	720 x 480	31.47	59.94	27	HDMI only
576i*	720(1440) x 576	15.63	50	27	HDMI/DVI
576p* 720 x 576	31.25		50	27 HDMI/DVI
720/50p***	1280 x 720	37.5	50	74.25	HDMI/DVI
720/60p***	1280 x 720	45.00	60	74.25	HDMI/DVI
1080/24P***	1920 x 1080	27	24	74.25	HDMI/DVI
1080/25P*	1920 x 1080	28.13	25	74.25	HDMI/DVI
1080/30P*	1920 x 1080	33.75	30	74.25	HDMI/DVI
1080/50i**	1920 x 1080	28.13	50	74.25	HDMI/DVI
1080/60i**	1920 x 1080	33.75	60	74.25	HDMI/DVI
1080/50P*	1920 x 1080	56.25	50	148.5	HDMI/DVI
1080/60P*	1920 x 1080	67.5	60	148.5 HDMI/DVI

 - \*Supported timing for non-3D and 3D signal with 2D 3D Conversion format. - \*\*Supported timing for non-3D and 3D signal with 2D 3D Conversion and Side-by-Side half format. - \*\*\*Supported timing for non-3D and 3D signal with Frame Packing, Top-Bottom, and 2D 3D Conversion format. Supported timing for EDTV and HDTV (via Component I/ Component 2 inputs)

Timing	Resolution	H. Freq. (KHz)	V. Freq. (Hz)	Dot Clock Freq. (MHz)
480i 720	x 480* 15.73 59.94	13.5
480p 720	x 480* 31.47 59.94	27
576i 720	x 576* 15.63 50 13.5
576p 720	x 576* 31.25 50	27
720/50p	1280 x 720* 37.5	50	74.25
720/60p	1280 x 720*	45.00 60 74.25
1080/50i	1920 x 1080*	28.13 50 74.25
1080/60i	1920 x 1080*	33.75 60 74.25
1080/24P	1920 x 1080*	27	24 74.25
1080/25P	1920 x 1080*	28.13 25 74.25
1080/30P	1920 x 1080*	33.75 30 74.25
1080/50P	1920 x 1080*	56.25 50 148.5
1080/60P	1920 x 1080*	67.5	60	148.5

 \*Supported timing for non-3D and 3D signal with 2D 3D Conversion format. Supported timing for Video and S-Video inputs

Video mode	H. Freq. (KHz)	V. Freq. (Hz)	Sub-carrier Freq. (MHz)
NTSC*	15.73	60 3.58
PAL*	15.63	50 4.43
SECAM*	15.63	50	4.25 or 4.41
PAL-M*	15.73	60 3.58
PAL-N*	15.63	50 3.58
PAL-60*	15.73	60 4.43
NTSC4.43*	15.73	60 4.43

 \*Supported timing for non-3D and 3D signal with 2D 3D Conversion format.

Warranty and Copyright information

Warranty BenQ warrants this product against any defects in material and workmanship, under normal usage and storage. Proof of purchase date will be required with any warranty claim. In the event this product is found to be defective within the warranty period, BenQ's only obligation and your exclusive remedy shall be replacement of any defective parts (labor included). To obtain warranty service, immediately notify the dealer from which you purchased the product of any defects. Important: The above warranty shall be void if the customer fails to operate the product in accordance with BenQ's written instructions, especially the ambient humidity must be in-between 10% and 90%, temperature in-between 0°C and 35°C, altitude lower than 3000 meters, and avoiding to operate the projector in a dusty environment. This warranty gives you specific legal rights, and you may have other rights which vary from country to country. For other information, please visit www.BenQ.com.

Copyright

Copyright © 2013 by BenQ Corporation. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of BenQ Corporation. All trademarks and registered trademarks are the property of their respective owners.

Disclaimer

BenQ Corporation makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties, merchantability or fitness for any particular purpose. Further, BenQ Corporation reserves the right to revise this publication and to make changes from time to time in the contents hereof without obligation of BenQ Corporation to notify any person of such revision or changes.
