50TLK512ES - Television TELEFUNKEN - Free user manual and instructions

Product Type	LED TV
Screen Size	50 inches (diagonal)
Display Resolution	3840 x 2160 (4K UHD)
Refresh Rate	60 Hz
Smart TV Platform	Android TV
Built-in Wi-Fi	Yes (802.11a/b/g/n/ac)
Bluetooth	Yes
HDMI Ports	3
USB Ports	2
Energy Efficiency Class	F
Power Consumption (typical)	85 W
Standby Power Consumption	<0.5 W
Dimensions with Stand (W x H x D)	112.5 x 70.5 x 23.5 cm
Dimensions without Stand (W x H x D)	112.5 x 66.0 x 8.5 cm
Weight with Stand	11.2 kg
Weight without Stand	10.8 kg
VESA Mount Pattern	200 x 200 mm
Audio Output Power	20 W (2 x 10 W)
Digital TV Tuner	DVB-T/T2/C/S/S2
Operating Temperature	5°C to 35°C
Cleaning Instructions	Wipe with soft, dry cloth; do not use liquid cleaners
Spare Parts Availability	Remote control, stand, power cord available from authorized service centers

Frequently Asked Questions - 50TLK512ES TELEFUNKEN

How do I connect my Telefunken 50TLK512ES to Wi-Fi?

Press the Home button on your remote, navigate to Settings > Network > Wireless, select your Wi-Fi network, and enter the password.

How can I factory reset the TV?

Go to Settings > Device Preferences > Reset > Factory data reset. Confirm by selecting Erase everything. This will delete all personal data.

How do I update the TV's firmware?

Ensure the TV is connected to the internet. Navigate to Settings > About > System update > Check for update. If an update is available, follow on-screen instructions.

What VESA size does the 50TLK512ES use for wall mounting?

The TV uses a VESA 200 x 200 mm pattern. Use appropriate screws and ensure the wall mount supports the TV's weight (about 11 kg).

How do I pair the remote control if it stops working?

If the remote uses Bluetooth, press and hold the Home and Back buttons simultaneously for 5 seconds until the LED blinks. The TV will automatically detect and pair. For IR remotes, ensure line-of-sight and fresh batteries.

What is the best way to clean the screen?

Use a soft, dry microfiber cloth to gently wipe the screen. Do not spray any liquid directly; if needed, slightly dampen the cloth with water. Avoid alcohol or ammonia-based cleaners.

How can I adjust sound settings for better audio?

Press the Settings button, go to Sound. You can select presets like Movie or Music, or manually adjust equalizer (bass, treble). Enable Surround Sound for an immersive experience.

How do I use HDMI ARC to connect a soundbar?

Connect your soundbar to the HDMI 1 (ARC) port. On the TV, go to Settings > Sound > Advanced settings > HDMI ARC and enable it. Set the TV speakers to External speakers.

Why is there no signal on my TV?

Check that the correct input source is selected (press Source button). Ensure cables are securely connected. For antenna, try a signal scan in Settings > Channels > Auto tuning. Restart the TV if needed.

How can I reduce power consumption?

Go to Settings > Picture and select Energy Saving mode. Lower the Backlight level. Also disable Quick Start in System > Power to reduce standby power.

USER MANUAL 50TLK512ES TELEFUNKEN

Close-up of a mechanical component with two cylindrical parts and positive charges, no visible text or symbols

Teletexto

NOTA

Abstract graphic with a red diagonal stripe crossing two gray shapes (no text or symbols)

Green curved arrow pointing downward (no text or symbols)

Green curved arrow pointing left, no text or symbols present

Safety Information....29

IMPORTANT - Please read these instructions before installing or operating....29

Getting Started 30

Notifications & Features & Accessories....30

Environmental Information 30

Standby Notifications.... 30

Features 30

Accessories Included.... 30

TV Control Switch & Operation.... 30

Inserting the Batteries into the Remote 31

Connect Power 31

Antenna/Cable Connection.... 31

Notification.... 31

Specification 31

Remote Control - TV....32

Connections.... 33

First Time Installation - USB Connections......34

Switching On/Off....34

First Time Installation.... 34

Media Playback via USB Input 34

Recording a Programme 34

Timeshift Recording 35

Instant Recording 35

Watching Recorded Programmes 35

Recording Configuration....35

Quick Menu 35

Media Browser Menu.... 35

TV Menu Features and Functions 36

General TV Operation 39

Using the Channel List 39

Configuring Parental Settings....39

Electronic Programme Guide (EPG) 39

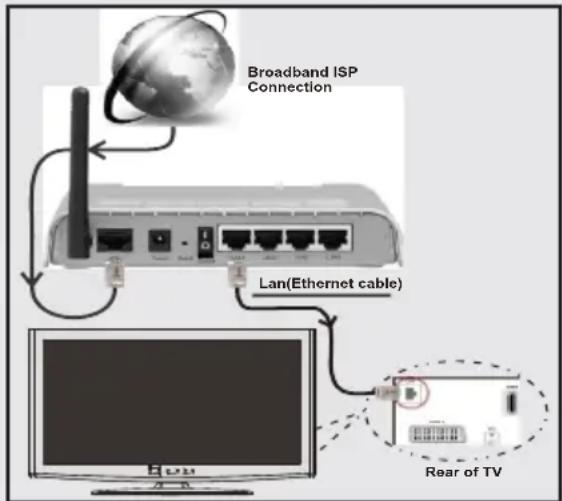

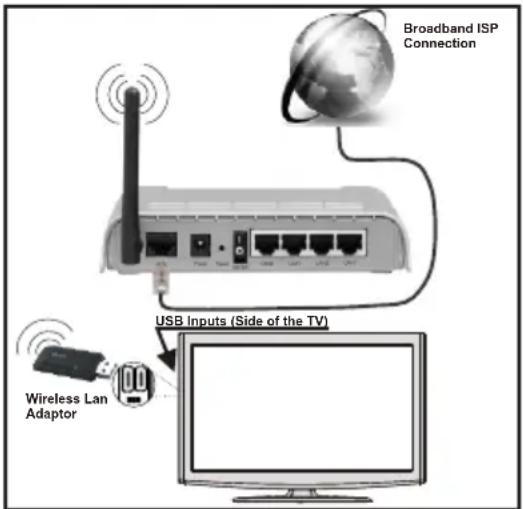

Connectivity Functions 39

Connectivity Troubleshooting 41

PC Input Typical Display Modes ....43

Supported File Formats for USB Mode 43

AV and HDMI Signal Compatibility 43

Software Upgrade.... 44

Troubleshooting & Tips 44

Appendix A: Nero MediaHome Installation....44

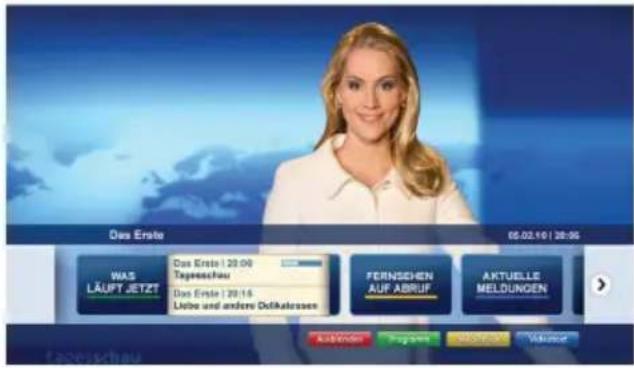

Appendix B: HBBTV System 45

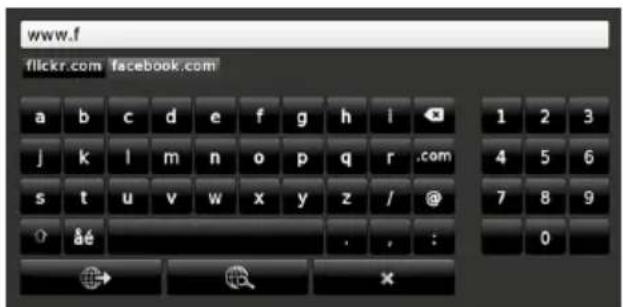

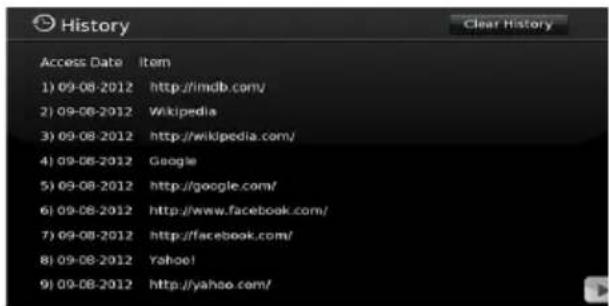

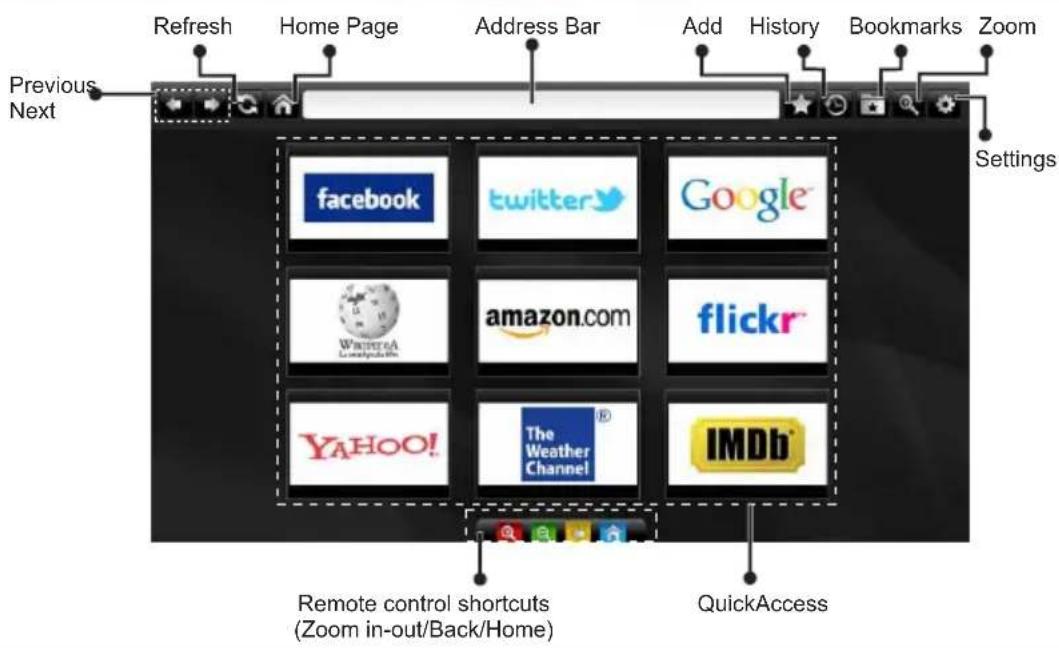

Internet Browser 47

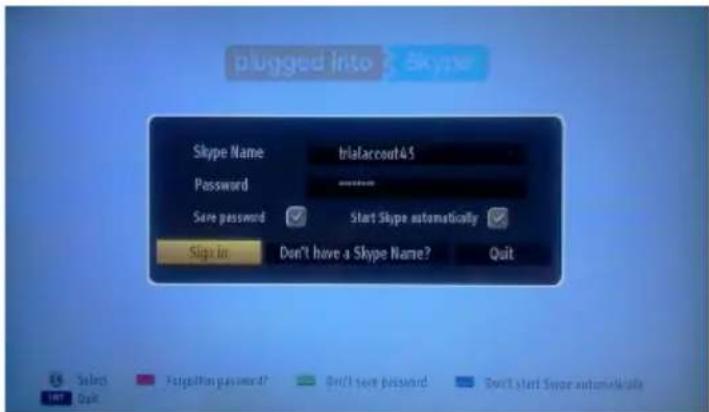

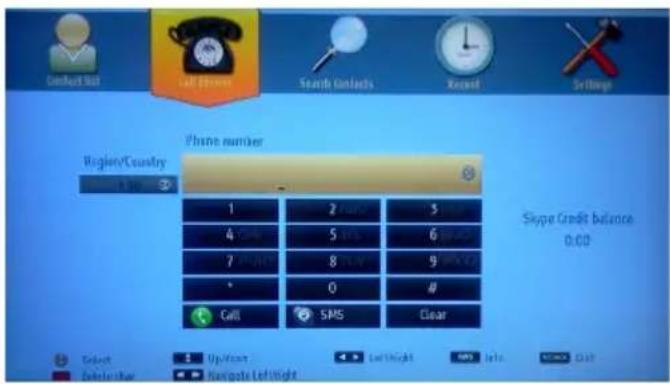

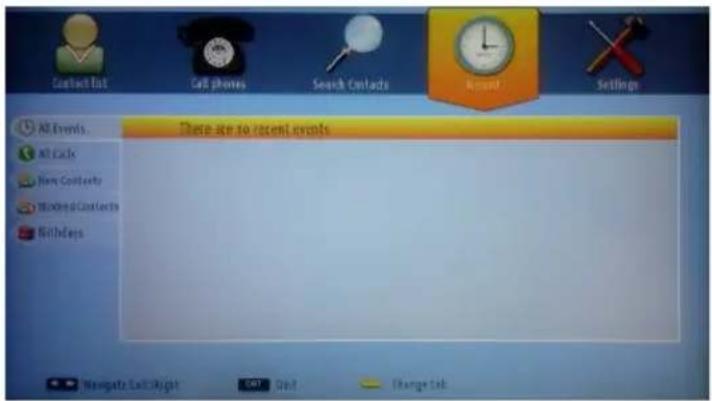

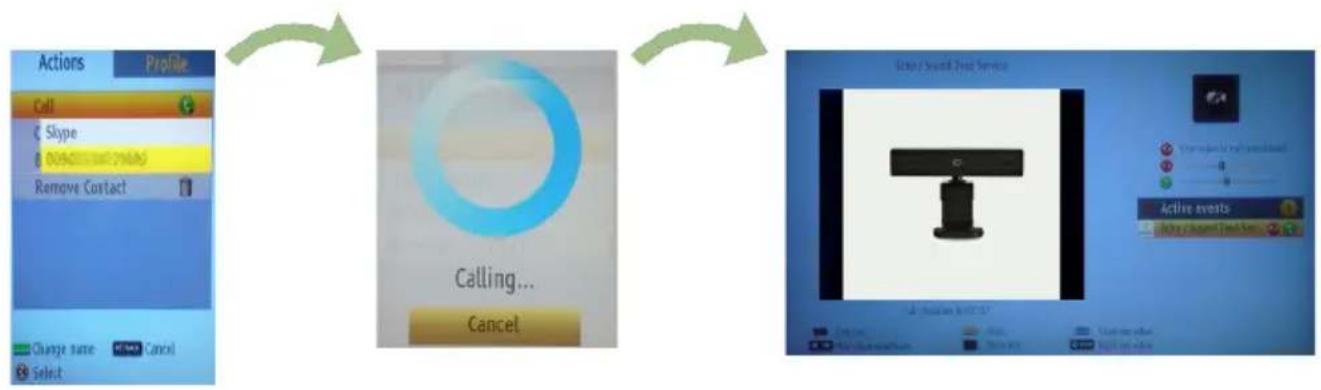

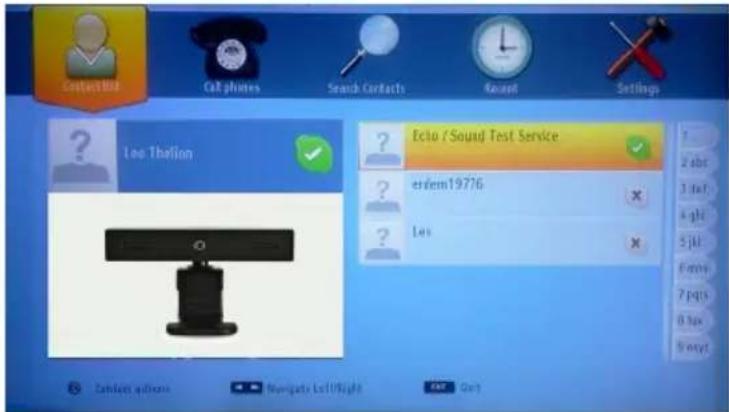

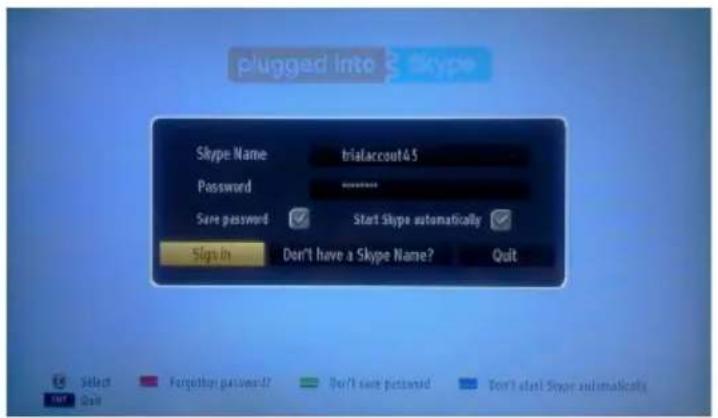

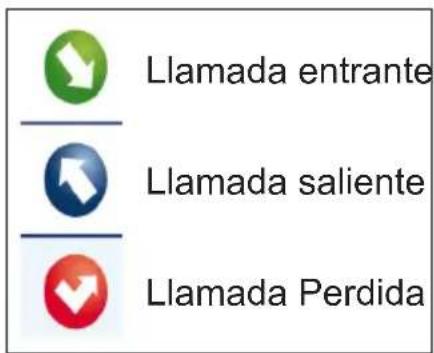

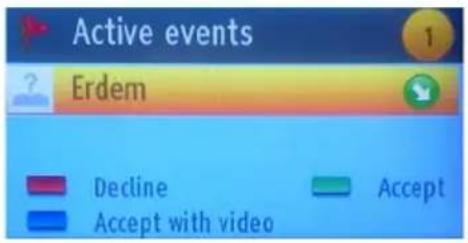

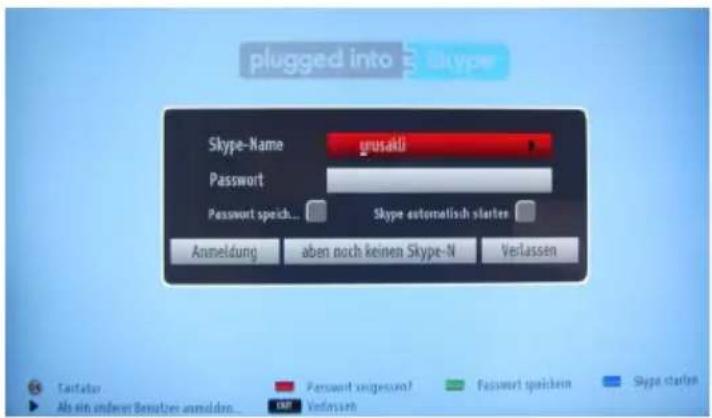

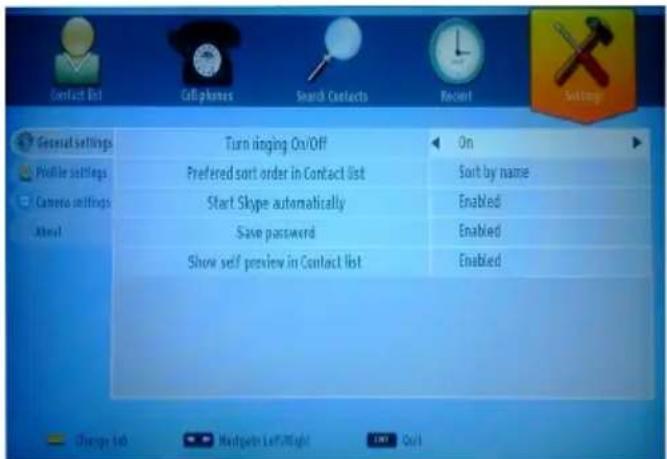

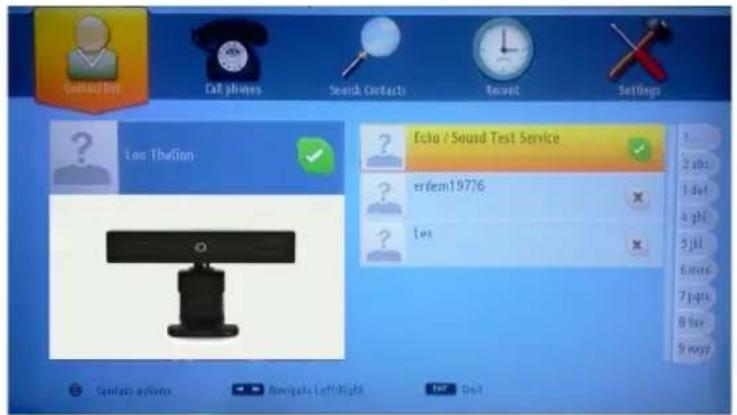

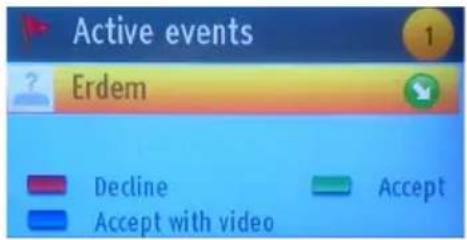

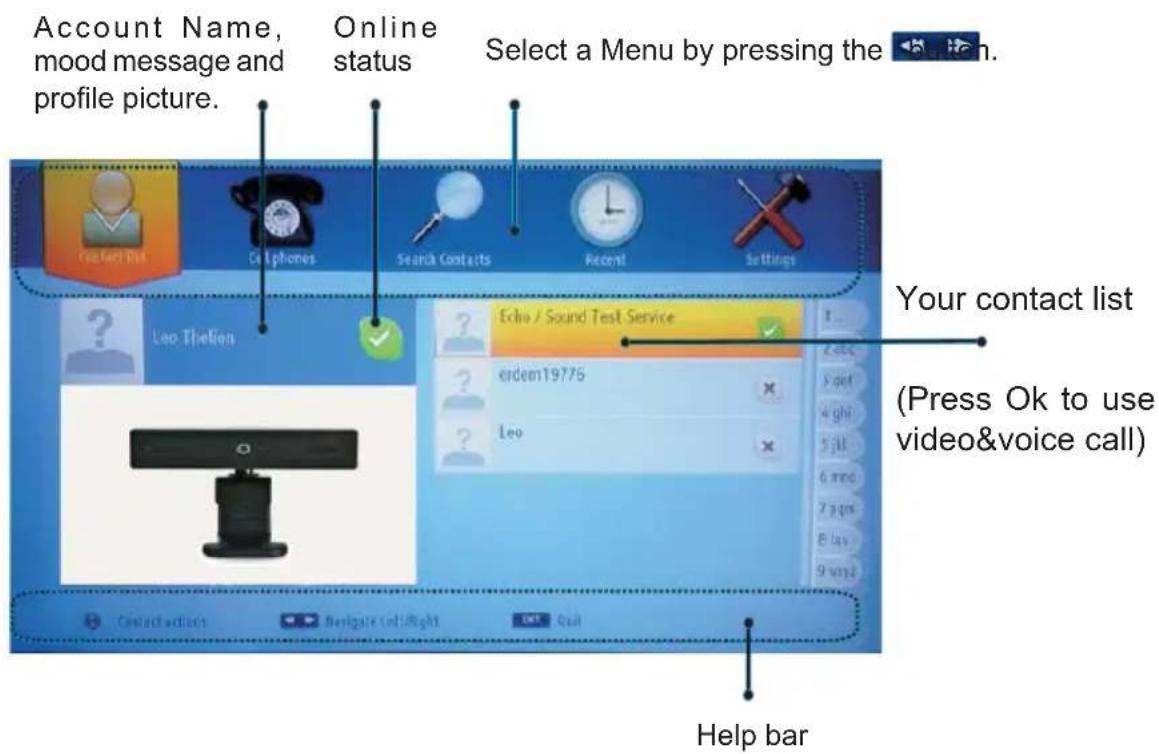

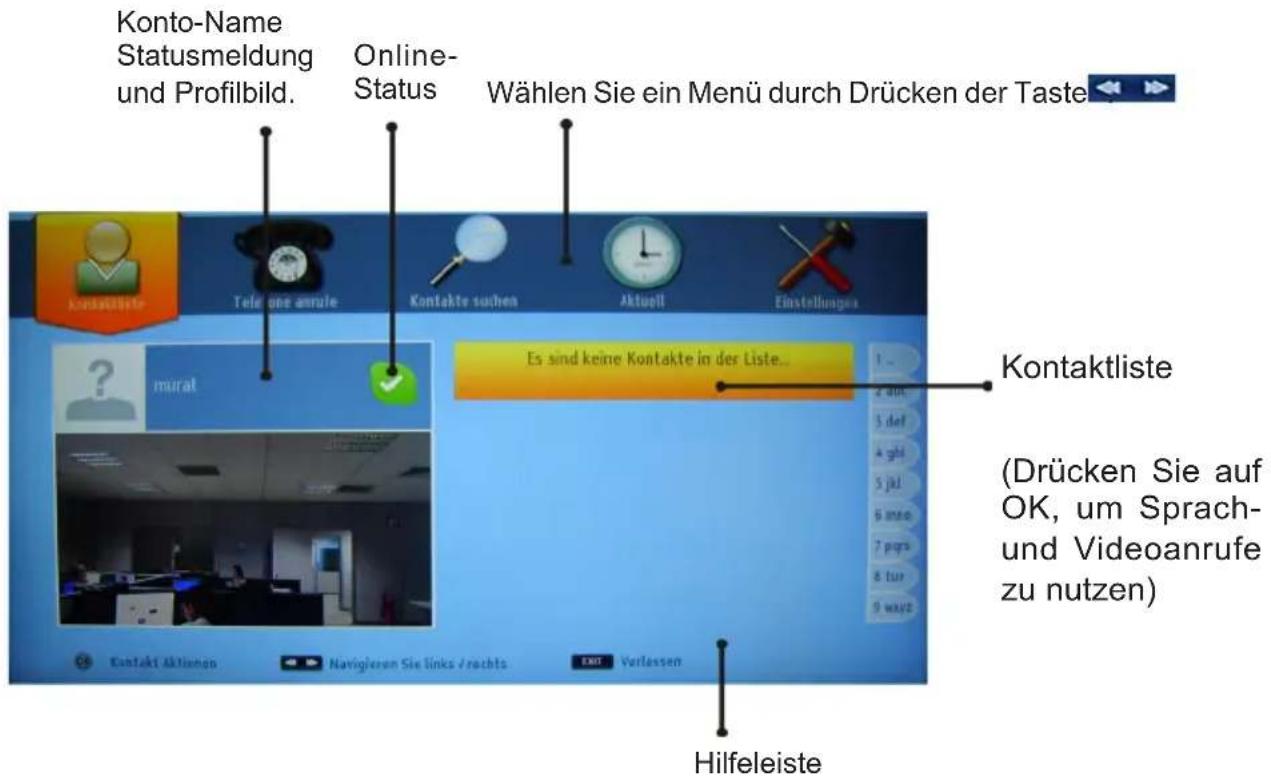

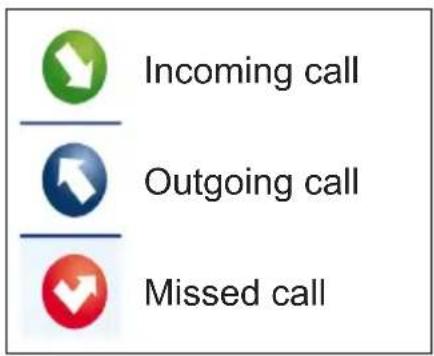

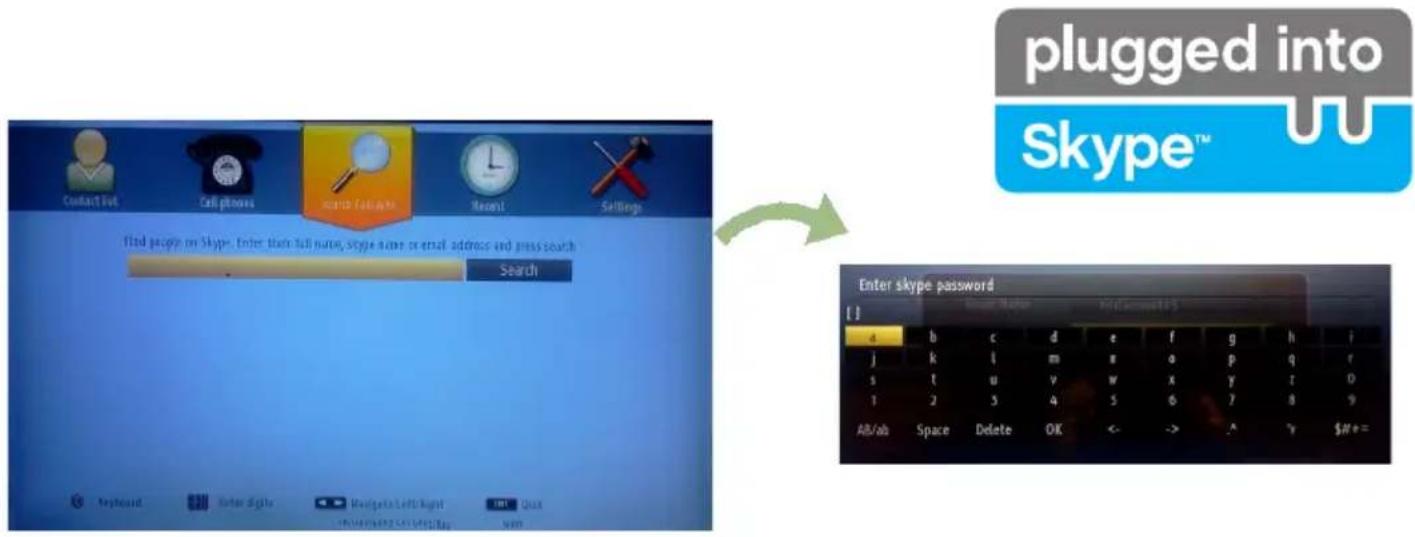

Getting Started with Skype 48

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

To operate your TV in extreme ambient conditions may cause the damage of the device.

If there is lightning or storms, or if the TV is not going to be used for a while (e.g. if going away on holiday), disconnect the TV set from the mains. The mains plug is used to disconnect TV set from the mains and therefore it must remain readily operable.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Note : Follow the on screen instructions for operating the related features.

IMPORTANT - Please read these instructions fully before installing or operating

WARNING: Never let people (including dren) with reduced physical, sensory or mental capabilities or lack of experience and / or wledge use electrical devices unsupervised.

• For ventilation purposes, leave a free space of at least 10 cm all around the set.
• Do not block ventilation holes.
• Do not place the TV on sloping or unstable surfaces, the TV may tip over.
• Use this device in moderate climates.

- The power cord plug should be easily accessible. Do not place the TV, furniture, etc. on the power cord. A damaged power cord/plug can cause fire or give you an electric shock. Handle the power cord by the plug, do not unplug the TV by pulling the power cord. Never touch the power cord/plug with wet hands as this could cause a short circuit or electric shock. Never make a knot in the power cord or tie it with other cords. When damaged it must be replaced, this should only be done by qualified personnel.

- Do not use this TV in a humid or damp place. Do not expose the TV to liquids. If any liquid falls into the cabinet unplug the TV and have it checked by qualified personnel before operating it any further. - Do not expose the TV to direct sunlight or other heat sources.

- The TV should not be placed near to open flames or sources of intense heat such as an electric heater.

- Excessive sound pressure from earphones and headphones can cause hearing loss.

that no open flame sources, such as lit candles, are placed on top of the TV.

• To prevent injury, this TV must be securely attached to the wall in accordance with the installation instructions (if the option is available).

• Occasionally, a few non-active pixels may appear on the screen as a fixed blue, green or red point. Please note that this does not affect the performance of your product. Take care not to scratch the screen with fingernails or other hard objects.
• Before cleaning, unplug the TV from the wall socket. Only use a soft, dry cloth while cleaning.

Warning	Serious injury or death risk
Risk of electric shock	Dangerous voltage risk
Caution	Injury or property damage risk
Important	Operating the system correctly
Notice	Additional notes marked

Notifications & Features & Accessories

Environmental Information

This television is designed to consume less energy to help save the environment. To reduce energy consumption, you should take the following steps:

If you set the Power Save Mode as Eco, the TV will switch to energy-saving mode. The Power Save Mode settings can be found in the 'Picture' section of the Main Menu. Note that some picture settings will be unavailable to be changed.

If Picture Off is selected, "Screen will be off in 3 seconds." message will be displayed. Select PROCEED and press OK to continue. The screen will be off immediately.

When the TV is not in use, please switch off or disconnect the TV from the mains plug. This will also reduce energy consumption.

Standby Notifications

1) If the TV does not receive any input signal (e.g. from an aerial or HDMI source) for 5 minutes, the TV will go into standby. When you next switch-on, the following message will be displayed: "Standby Cause No Signal". Press OK to continue.
2) If the TV has been left on and not been operated for a while, the TV will go into standby. When you next switch-on, the following message will be displayed.

"Standby Cause No Operation" Press OK to continue.

Features

• Remote controlled colour LED TV.
• Fully integrated digital/cable TV (DVB-T/C)
• HDMI inputs are for connecting a device that has a HDMI socket.
• USB input.
• Programme recording.
• Programme timeshifting.
• OSD menu system.
• Scart socket for external devices (such as DVD Players, PVR, video games, etc.)
• Stereo sound system.
• Teletext.
  • Headphone connection.
  • Automatic programming system.
• Manual tuning.
  • Automatic power down after up to six hours.
• Sleep timer.
• Child lock.

• Automatic sound mute when no transmission.
- NTSC playback.
• AVL (Automatic Volume Limiting).
- PLL (Frequency Search).
- PC input.
- Plug&Play for Windows 98, ME, 2000, XP, Vista, Windows 7.
- Game Mode (Optional).
- Ethernet (LAN) for Internet connectivity and service
• 802.11n WIFI Support (Optional)
• DLNA

Accessories Included

• Remote Control
• Batteries: 2 x AAA
• Instruction Book
• Side AV connection Cable
• Nero Media Home CD
• WIFI USB Dongle

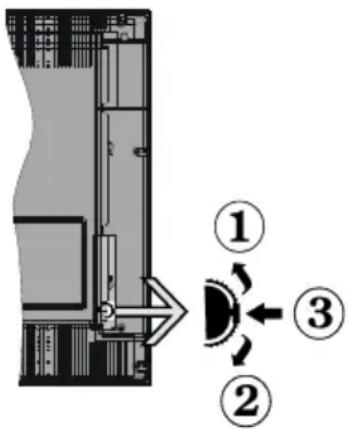

TV Control Switch & Operation

1. Up direction
2. Down direction
3. Programme/Volume / AV / Standby-On selection switch
   The Control button allows you to control the Volume/Programme/ Source and Standby-On functions of the TV.

To change volume: Increase the volume by pushing the button up. Decrease the volume by pushing the button down.

To change channel: Press the middle of the button, the channel information banner will appear on screen. Scroll through the stored channels by pushing the button up or down

To change source: Press the middle of the button twice, the source list will appear on screen. Scroll through the available sources by pushing the button up or down.

To turn the TV off: Press the middle of the button down and hold it down for a few seconds, the TV will turn into standby mode.

Inserting the Batteries into the Remote

Lift the cover on the back of the remote upward gently. Install two AAA batteries. Make sure to match the + and - ends of the batteries in the battery compartment (observe the correct polarity) Replace the cover.

Close-up of a cylindrical battery with two connectors and a paper feed, no visible text or symbols

Connect Power

IMPORTANT: The TV set is designed to operate on 220-240V AC, 50 Hz socket. After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the mains. Plug the power cable to the mains socket outlet.

Antenna/Cable Connection

Connect the "aerial" or "cable TV" plug to AERIAL INPUT (ANT) socket located on the back of the TV.

Notification

Manufactured under license from Dolby Laboratories.

TRADEMARK ACKNOWLEDGMENT

"Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

DOLBY. DIGITAL PLUS

"HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC."

HIGH-DEFINITION MULTIMEDIA INTERFACE

“DLNA, the DLNA Logo and DLNA CERTIFIED are trademarks, service marks, or certification marks of the Digital Living Network Alliance.”

dlna

CERTIFIED

Information for Users on Disposal of Old Equipment and Batteries

[European Union only]

These symbols indicate that equipment with these symbols should not be disposed of as general household waste. If you want to dispose of the product or battery, please consider the collection systems or facilities for appropriate recycling.

Notice: The sign Pb below the symbol for batteries indicates that this battery contains lead.

Battery
Products

Specification

TV Broadcasting PAL B/G D/K K
Receiving Channels	VHF (BAND I/III) - UHF (BAND U) - HYPERBAND
Number of Preset Channels	1000
Channel Indicator On Screen Display
RF Aerial Input 75 Ohm (unbalanced)
Operating Voltage 220-240V AC, 50Hz.
Audio German+Nicam
Audio Output Power (WRMS.) (10% THD)	2 x 8
Power Consumption	100 W
Weight 19,50
TV Dimensions DxLxH (with foot)	232 x 1139 x 721
TV Dimensions DxLxH (without foot)	41 x 1139 x 679
Display 16/9 50"
Operation temperature and operation humidity:	5°C up to 45°C, 85% humidity max

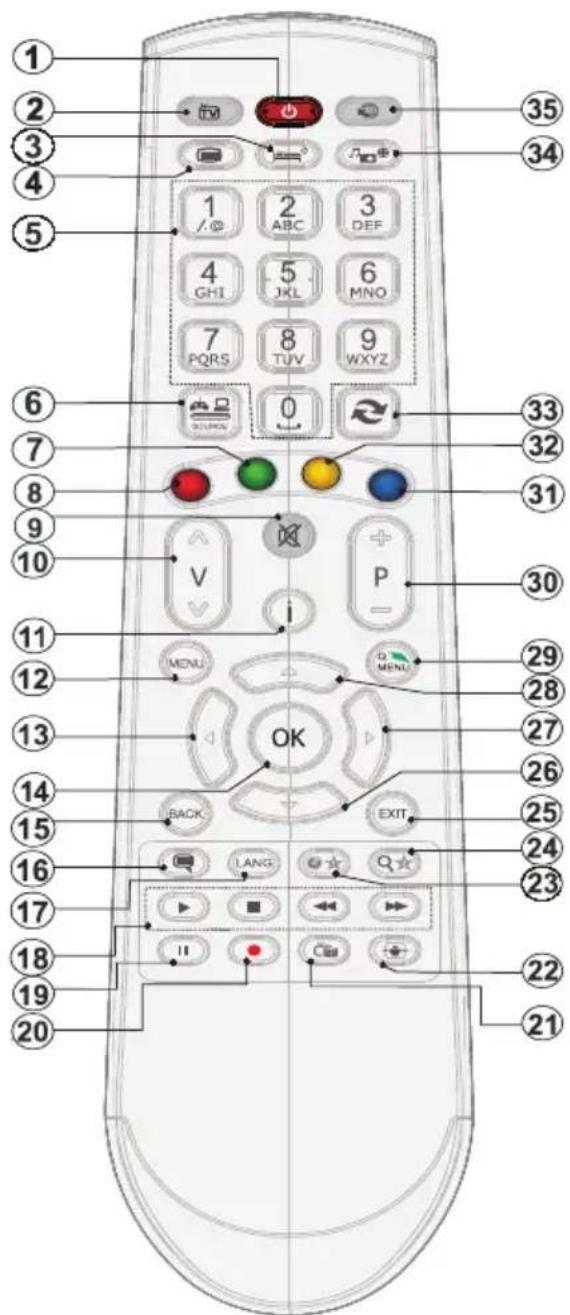

Remote Control - TV

Using My button 1

This button's main function is to run Youtube link. However, if you want to change this function, you can press MY BUTTON 1 for five seconds when on a desired source, channel or link, until the "MY BUTTON IS SET" message is displayed on the screen. This confirms that the selected MY BUTTON is now associated with the selected function. Note that if you perform first time installation, MY BUTTON 1 will return to its default function

Using My button 2

Press MY BUTTON 2 for five seconds when on a desired source, channel or link, until the "MY BUTTON IS SET" message is displayed on the screen. This confirms that the selected MY BUTTON is now associated with the selected function.

1. Standby
2. Channel list/ back to TV source
3. Sleep timer
4. Teletext
5. Numeric buttons
6. AV Source selection
7. Green button
8. Red button
9. Mute
10. Volume up/down
11. Info/ reveal (in TXT mode)
12. Menu on/off
13. Navigation button
14. Confirm/ Hold( in TXT mode)
15. Return/Back/Index(in TXT mode)
16. Subtitle on/off
17. Language
18. Play, stop, rapid reverse, rapid advance
19. Pause(in media browser mode)/ Timeshift recording
20. Programme recordings
21. Electronic program guide
22. Image size
23. My button1 (*)
24. My button 2 (**)
25. Exit
26. Navigation buttons
27. Navigation buttons
28. Navigation buttons
29. Quick menu
30. Programme up/down
31. Blue button
32. Yellow button
33. Swap
34. Media Browser

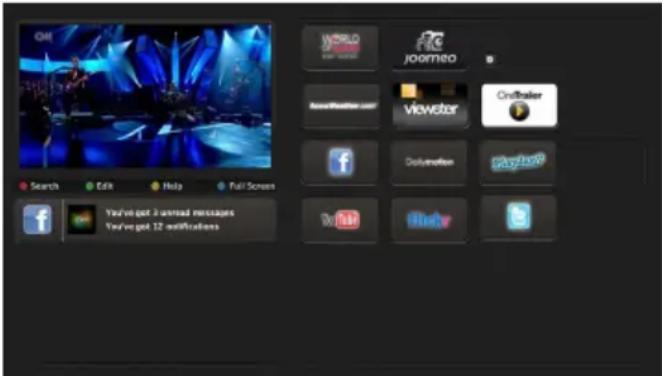

35. Internet Portal

Connections

Connector Type Cables Device
	Scart Connection (back)
	VGA Connection (back)
SIDE AV	PC/YPbPr Audio Connection (side)	Side Audio/Video Connection Cable (Supplied) PC Audio Cable (Not supplied)
	HDMI Connection (back)
SPDIF	SPDIFF Connection (back)
SIDE AV	Side AV Connection (side)	AV Connection Cable (supplied)
HEADPHONE	Headphone Connection (side)
YPBPR	YPbPr Video Connection (side)	YPbPr Connection Cable
	USB Connection (side)
	CI Connection (side)

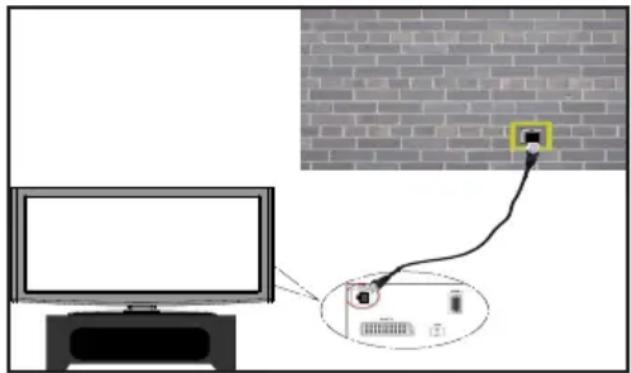

	Ethernet Connection (back)	Lan/Ethernet Cable

NOTE: When connecting a device via the YPbPr or Side AV input, you must use a connection cables to enable connection. See the illustrations above. | To enable PC audio, you will need to use the SIDE AV CONNECTION cable's WHITE & RED inputs. | If an external device is connected via the SCART socket, the TV will automatically switch to AV mode. | When receiving DTV channels (Mpeg4 H.264) or while in Media Browser mode, output will not be available via the scart socket. | When using the wall mounting kit (optional), we recommend that you plug all your cables into the back of the TV before mounting on the wall. | Insert or remove the CI module only when the TV is SWITCHED OFF. You should refer to the module instruction manual for details of the settings.

First Time Installation - USB Connections

Switching On/Off

To Switch the TV On

Connect the power cord to the 220-240V AC, 50 Hz.

To switch on the TV from standby mode either:

Press the “☐” button, P+ / P- or a numeric button on the remote control.

Press the side function switch until the TV comes on from standby.

To Switch the TV Off

Press the "button on the remote control or press the side function switch until the TV switches into standby mode.

To power down the TV completely, unplug the power cord from the mains socket.

Note: When the TV is switched to standby mode, the standby LED can blink to indicate that features such as Standby Search, Over Air Download or Timer is active. The LED can also blink when you switch on the TV from standby mode.

First Time Installation

When turned on for the first time, the language selection screen is displayed. Select the desired language and press OK.

The First Time Installation (FTI) screen will be displayed next. Set your preferences using the navigation buttons and when finished, press OK to continue.

You can activate Store mode option to be available in "Other settings" menu and your TV's features will be illustrated on the top of the screen. a confirmation screen will be displayed. Select YES to proceed.

If Home Mode is selected, Store mode will not be available after the First Time Installation. Press OK button to continue.

Aerial Installation

If you select AERIAL option from the Search Type screen, the television will search for digital terrestrial TV broadcasts.

NOTE: You can press MENU button to cancel.

After all the available stations are stored, the Channel List will be displayed on the screen. If you like how the channels are sorted according to the LCN (*), please select "Yes" and then press OK.

Press MENU button to quit channel list and watch TV. (*) LCN is the Logical Channel Number system that organizes available broadcasts in accordance with a recognizable channel sequence (if available).

Cable Installation

If you select CABLE option and press OK button on the remote control. To continue, please select YES and press OK. To cancel operation, select NO and press OK. You can select frequency ranges from this screen. Enter the frequency range manually by using the numeric button.

Note: Searching duration will change depending on the selected search step.

Media Playback via USB Input

You can connect a 2.5" and 3.5" inch (hdd with external power supply) external hard disk drives or USB memory stick to your TV by using the USB inputs of the TV.

IMPORTANT! Back up your files before making any connections to the TV. Manufacturer will not be responsible for any file damage or data loss. Certain types of USB devices (e.g. MP3 Players) or USB hard disk drives/memory sticks may not be compatible with this TV. The TV supports FAT32 and NTFS disk formatting but recording will not be available with NTFS formatted disks.

While formatting a USB hard disk that has 1TB (Tera Byte) or more file capacity, you can experience problems with the formatting process. Do not repeatedly quickly plug and unplug the drive. This may cause physical damage to the USB player and USB device itself. Do not pull out USB module while playing a file.

Recording a Programme

IMPORTANT: When using a new USB hard disk drive, it is recommended that you first format the disk using your TV's "Format Disk" option.

Note : To record a programme, you should first connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable the recording feature.

To use the recording function, you need to connect a USB disk or an external hard disk drive to the TV and the connected USB disk should have at least 1 GB capacity and should have 2.0 speed compatibility. If the connected USB device does not support 2.0 speed, an error message will be displayed.

Note: Recorded programmes are saved into the connected USB disk. If desired, you can store/copy recordings onto a computer; however, these files will not be available to be played on a computer. You can play the recordings only via your TV.

Note: Lip Sync delay may occur during the timeshifting. Radio record is supported. The TV can record programmes up to ten hours.

Recorded programmes are split into 4GB partitions. If the writing speed of the connected USB disk is not sufficient, the recording may fail and the timeshifting feature may not be available.

It is recommended to use USB hard disk drives for recording HD programmes.

Do not plug out the USB/HDD during a recording. This may harm the connected USB/HDD.

Multipartition support is available. The maximum of two different partitions are supported. The first partition of the USB disk is used for PVR ready features. It also must be formatted as the primary partition to be used for the PVR ready features.

Some stream packets may not be recorded because of signal problems, so sometimes video may freezes during playback.

Record, Play, Pause, Display (for PlayListDialog) keys can not be used when teletext is ON. If a recording starts from timer when teletext is ON, teletext is automatically turned off. Also teletext usage is disabled when there is an ongoing recording or playback.

Timeshift Recording

Press (PAUSE) button while watching a broadcast to activate timeshifting mode. In timeshifting mode, the programme is paused and simultaneously recorded to the connected USB disk. Press (PLAY) button again to resume the paused programme from where you stopped. Press the STOP button to stop timeshift recording and return to the live broadcast.

Note: Timeshift cannot be used while in radio mode.

Note : You cannot use the timeshift fast reverse feature before advancing the playback with the fast forward option.

Instant Recording

Press (RECORD) button to start recording an event instantly while watching a programme. You can press (RECORD) button on the remote control again to record the next event on the EPG. In this case, an OSD will be displayed, indicating the programmed events for recording. Press (STOP) button to cancel instant recording.

Note: You can not switch broadcasts or view the Media Browser during the recording mode. While recording a programme or during the timeshifting, a warning message appears on the screen if your USB device speed is not sufficient.

Watching Recorded Programmes

Select the Recordings Library from the Media Browser menu. Select a recorded item from the list (if previously recorded). Press the OK button to view the Play Options. Select an option then press OK button.

Note: Viewing main menu and menu items will not be available during the playback.

Press the STOP) button to stop a playback and return to the Recordings Library.

Slow Forward

If you press 🖼 (PAUSE) button while watching recorded programmes, the slow forward feature will be available. You can use ▶ button to slow forward. Pressing ▶ button consecutively will change slow forwarding speed.

Recording Configuration

Select the Recording Configuration item in the Settings menu to configure the recording settings.

Format Disk: You can use Format Disk feature for formatting the connected USB disk. Your pin is required to use the Format Disk feature (default pin is 0000).

IMPORTANT: Note that ALL the data stored on the USB disk will be lost and the disk format will be converted to FAT32 if you activate this feature. If your USB disk malfunctions, you can try formatting the USB disk. In most cases formatting the USB disk will restore normal operation; however, ALL the data stored on the USB disk will be lost in such a case.

Note: If "USB is too slow" message is displayed on the screen while starting a recording, try restarting the recording. If you still get the same error, it is possible that your USB disk does not meet the speed requirements. Try connecting another USB disk.

Media Browser Menu

You can play photo, music, and movie files stored on a USB disk by connecting it to your TV. Connect a USB disk to one of the USB inputs located on the side of the TV. Pressing the MENU button while in the Media Browser mode will access the Picture, Sound and Settings menu options. Pressing the MENU button again will exit from this screen. You can set your Media Browser preferences by using the Settings Menu.

Loop/Shuffle Mode Operation
Start playback with ▶ and activate	TV plays next file and loop the list.
Start playback with OK and activate	the same file will be played in a loop (repeat).
Start playback with OK/▶ and activate	the file will be played in a shuffle.

TV Menu Features and Functions

Picture Menu Contents
Mode	You can change the picture mode to suit your preference or requirements. Picture mode can be set to one of these options: Cinema, Game, Sport, Dynamic and Natural.
Contrast Sets the	lightness and darkness values of the screen.
Brightness Sets the brightness value for the screen.
Sharpness Sets the sharpness value for the objects displayed on the screen.
Colour Sets the colour value, adjusting the colors.
Power Save Mode	To set the Power Save Mode as Eco, Picture Off and Disabled.(When the Mode is Dynamic, Power Save mode is automatically set as disabled.)
Backlight (Optional)	This setting controls the backlight level. The backlight function will be inactive if the Power Save Mode is set to Eco. The backlight cannot be activated in VGA, Media Browser mode or while the picture mode is set to Game.
Noise Reduction	If the broadcast signal is weak and the picture is noisy, use the Noise Reduction setting to reduce the amount of noise.
Advanced Settings
Dynamic Contrast	You can change the Dynamic Contrast ratio to desired value.
Colour Temp Sets the desired colour tone.
Picture Zoom	Sets the desired picture size from picture zoom menu.Note: Auto (Only available in Scart mode with SCART PIN8 high voltage/low voltage switching)
HDMI True Black	While watching from HDMI source, this feature will be visible in the Picture Settings menuYou can use this feature to enhance blackness in the picture.
Film Mode	Films are recorded at a different number of frames per second to normal television programmes. Turn this feature on when you are watching films to see the fast motion scenes clearly.
Skin Tone	Skin tone can be changed between -5 and 5.
Colour Shift Adjust the desired colour tone.
RGB Gain	You can configure the colour temperature values using the RGB Gain feature.
Reset Resets the picture settings to factory default settings.(Except Game Mode)
Autoposition (in PC mode)	Automatically optimizes the display. Press OK to optimize.
H Position (in PC mode)	This item shifts the image horizontally to the right hand side or left hand side of the screen.
V Position (in PC mode)	This item shifts the image vertically towards the top or bottom of the screen.
Dot Clock (in PC mode)	Dot Clock adjustments correct the interference that appear as vertical banding in dot intensive presentations like spreadsheets or paragraphs or text in smaller fonts.
Phase (in PC mode)	Depending on the resolution and scan frequency that you input to the TV set, you may see a hazy or noisy picture on the screen. In such a case you can use this item to get a clear picture by trial and error method.
While in VGA (PC) mode, some items in Picture menu will be unavailable. Instead, VGA mode settings will be added to the Picture Settings while in PC mode.
Sound Menu Contents
Volume Adjusts the volume level.
Equalizer	Selects the equalizer mode. Custom settings can be made only whe in user mode.
Balance This setting is used for emphasizing left or right speaker balance.
Headphone Sets headphone volume.
Sound Mode You can select a sound mode. (If the selected channel supports).
AVL (Automatic Volume Limiting)	Function sets the sound to obtain fixed output level between programmes.
Headphone/Lineout	When you connect an external amplifier to your TV using the headphone jack, you can select this option as Lineout. If you have connected headphones to the TV, set this option as Headphone.
Dynamic Bass Enables or disables the Dynamic Bass.
Surround Sound (optional)	Surround sound mode can be changed as On or Off.
Digital Out Sets digital out audio type.
Settings Menu Contents
Conditional Access Controls conditional access modules when available.
Language	Configures language settings (may change depending on the country selected) Preferred and current settings will be available. Current settings can be changed only if the broadcaster supports.
Parental	Enter correct password to change parental settings. You can easily adjust menu lock, maturity lock(may change depending on the country selected) and child lock in this menu. You can also set new pin number.
Timers	Sets sleep timer to turn off the TV after a certain time. Sets timers for selected programmes. (USB Record)
Recording Configuration	Displays the recording configuration menu (Usb connection required)
Date/Time Sets date and time.
Sources Enables or disables selected source options.
Network Settings	Displays network settings.
Other Settings: Displays other setting options of the TV set:
Menu Timeout Changes	timeout duration for menu screens.
Scan Encrypted Channels	When this setting is on, the search process will locate the encrypted channels as we
HBB TV This feature is activated/deactivated by selecting ON/OFF.
Blue Background	Activates or deactivates the blue background system when the signal is weak or absent.
Software Upgrade To ensure that your TV always has the most up to date firmware.
Application Version Displays application version.
Hard of Hearing Enables	any special feature sent from the broadcaster.
Audio Description	Audio description refers to an additional narration track for blind and visually impaired viewers of visual media, including television and movies. You can use this feature, only if the broadcaster supports that additional narration track.Note: Audio description sound feature cannot be available in recording or time shifting mode..
Auto TV Off	You can set the timeout value of auto off feature. When the timeout value is reached and the TV has not been operated for a selected time, the TV will go into standby mode
Standby Search (Optional)	If the Standby Search is set to On, when the TV is in standby mode, available broadcasts will be searched. If the TV locates any new or missing broadcasts, a menu screen will be displayed, asking you whether or not to execute these changes The Channel list will be updated and changed after this process.
Store Mode	If you are displaying the TV in a store, you can activate this mode. Whilst Store Mode is enabled, some items in the TV menu may not be available.
DLNA Renderer	DLNA renderer feature allows you to share files stored on your smartphone. If you have a DLNA renderer compatible smartphone and software installed, you can share/play photos with your TV. See instructions of your sharing software for more information. DLNA renderer mode will not be available with internet portal feature
Power Up Mode This setting configures the power up mode preference.
Virtual Remote (optional)	Enables or disables the virtual remote feature.
Install and Retune Menu Contents
Automatic Channel Scan (Retune)(If available)	Displays automatic tuning options. Digital Aerial: Searches and stores aerial DVB stations. Digital Cable: Searches and stores cable DVB stations. Analogue: Searches and stores analogue stations. Digital Aerial & Analogue: Searches and stores aerial DVB and analogue stations. Digital Cable & Analogue: Searches and stores cable DVB and analogue stations.
Manual Channel Scan This feature can be used for direct broadcast entry.
Network Channel Scan Searches for the linked channels in the broadcast system.
Analogue Fine Tune	You can use this setting for fine tuning analogue channels. This feature is not available if no analogue channels are stored.
First Time Installation	Deletes all stored channels and settings, resets TV to factory settings.

Using the Channel List

The TV sorts all stored stations in the Channel List. You can edit this channel list, set favourites or set active stations to be listed by using the Channel List options.

Configuring Parental Settings

To prohibit viewing of certain programmes, channels and menus can be locked by using the parental control system.

To display parental lock menu options, the PIN number should be entered. The factory default PIN number is 0000. After coding the correct PIN number, parental settings menu will be displayed.

Menu Lock: Menu lock setting enables or disables the menu access.

Maturity Lock: When set, this option gets the maturity information from the broadcast and if this maturity level is disabled, disables access to the broadcast.

Child Lock: When Child Lock is set, the TV can only be controlled by the remote control. In this case the control panel buttons will not work.

Set PIN: Defines a new PIN number.

Note: If the Country option is set to France, you can use 4725 as the default code.

Electronic Programme Guide (EPG)

Some, but not all channels send information about the current and next programmes. Press the 📣 button to view the EPG menu.

Up/Down/Left/Right: Navigate EPG.

OK: Displays programme options.

INFO: Displays, in detailed, information on the programme selected.

GREEN: Switches to List Schedule EPG.

YELLOW: Switches to Timeline Schedule EPG.

BLUE: Displays filtering options.

(RECORD): The TV will start to record the selected programme. You can press again to stop the recording

IMPORTANT: Connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable the recording feature.

Note: Switching to a different broadcast or source is not available during a recording.

Programme Options

In EPG menu, press the OK button to enter the Event Options menu.

Select Channel

In EPG menu, using this option, you can switch to the selected channel.

Record / Delete Record Timer

After you have selected a programme in the EPG menu, press the OK button. Select the Record option and press the OK button. After this operation, a recording will be scheduled for the selected programme.

To cancel an already set recording, highlight that programme and press the OK button and select the option Delete Rec. Timer. The recording will be cancelled.

Set Timer / Delete Timer

After you have selected a programme in the EPG menu, press the OK button. Select the Set Timer on Event option and press the OK button. You can set a timer for future programmes. To cancel an already set timer, highlight that programme and press the OK button. Then select "Delete Timer" option. The timer will be cancelled.

Note: It is not possible to record two channels at the same time.

Connectivity Functions

Connecting to a Wired Network

• Connect broadband ISP connection ethernet cable to the ETHERNET INPUT of your modem.
• Ensure that Nero Media Home software is installed to your PC.(for DLNA function). See Appendix A.
• Connect your PC to the one of your modem's LAN connectors (e.g. LAN 1) by using a proper LAN cable.
• Use another LAN output of your modem (e.g. LAN 2) to enable the connection to your TV.

- To access and play shared files, you must Select Media Browser. Press Menu button and select Media Browser. Press OK to continue. Select the desired file type and press OK. You must always use the Media Browser screen to access and play shared network files.

- PC/HDD/Media Player or any other devices that are DLNA 1.5 compatible should be used with wired connection for higher playback quality.

To configure wired settings please refer Network Settings section in Settings menu.

- You might be able to connect your TV to your LAN network depending on your network's configuration. In such a case, use an ethernet cable to connect your TV directly to the network wall outlet.

Connecting to a Wireless Network

IMPORTANT: "Veezy 200" USB dongle is required to use wireless network feature.

- To make your modem's SSID visible, you should change your SSID settings via modem's software. The TV cannot connect to the networks with hidden SSID.

For connecting to a wireless LAN network, you should perform the following steps:

1. Connect broadband ISP connection ethernet cable to the ETHERNET INPUT of your modem.
2. Ensure that Nero Media Home software is installed to your PC (for DLNA function).
3. Afterwards, you should connect wireless adaptor to one of the USB inputs of the TV.
4. To configure wireless settings please refer Network Settings section in the following sections.

• A Wireless-N router (IEEE 802.11a/b/g/n) with simultaneous 2.4 and 5 GHz bands designed to increase bandwidth. Optimized for smoother and faster HD video streaming, file transfers, and wireless gaming.
• Use LAN connection for quicker file sharing between other devices like computers.
• The frequency and channel differ depending on the area.
• The transmission speed differs depending on the distance and number of obstructions between the transmission products, the configuration of these products, the radio wave conditions, the line traffic, and the products that you use. The transmission may also be cut off or get disconnected depending on the radio wave conditions DECT phones, or any other WiFi 11b appliances. The standard values of the transmission speed are the theoretical maximum values for the wireless standards. They are not the actual speeds of data transmission.
• The location where the transmission is most effective differs depending on the usage environment.
• Wireless LAN adaptor should be connected directly to the TV's USB port. USB hubs are not supported.
• You can plug your wifi dongle into the supplied USB extension cable In cases where network quality is poor and the wifi dongle needs to be placed to a location with better signal quality.
• Wireless LAN adaptor supports 802.11 a,b,g & n type modems. It is highly recommended that you should use IEEE 802.11n communication protocol in order to avoid any possible problems while watching videos.
• Use the other usb input, if you experience problems with audio/video performance.
• You must change your modem's SSID when there are any other modems around with the same SSID.

Configuring Network Settings

Your TV's Network Settings include Wired and Wireless Connection options. However, if your TV does not have USB Wi-Fi dongle, you should use Wired Connection type. If you try to connect via Wireless Connection when your TV does not have a USB Wi-Fi dongle, a warning screen will appear and the TV will not get an IP address. Try connecting the LAN cable after this and then the TV will be able to get an IP address.

Configuring Wired Device Settings

If you are connecting the TV via ETHERNET INPUT, select Network Type as Wired Device to configure.

Network Type

Network type can be selected as Wired or Wireless device, in accordance with the active connection to the TV set. Select this as Wired if you have connected to the TV a LAN cable. Select as Wireless if you connect via the wireless USB dongle.

Configuration Status

This section displays the status of the connection.

IP Address

If an active connection is available, the IP address will be displayed on this section. If you want to configure IP address preferences, press GREEN button and switch to the advanced mode.

Configuring Wired Network Settings in Advanced Mode

While in Advanced Mode, press RED button to edit settings. When finished, press OK to save, Press RETURN/BACK to cancel.

IMPORTANT: "Veezy 200" USB dongle is required to use wireless network feature.

Wi-Fi feature can be used for a wireless network connection. If you have the Veezy 200 Wifi Dongle, select Network Type as Wireless Device to start connection process.

To enable Wi-Fi feature, profiles should be configured properly. Please plug in the Wi-Fi dongle to one of the USB ports.

Press YELLOW button to scan wireless network. Afterwards, available network list will be displayed. Please select your desired network from the list.

If the selected network is protected with a password, please enter the correct key by using the virtual keyboard. You can use this keyboard via navigation buttons and OK button on the remote control.

Wait until the IP the address is shown on the screen.

This means that the connection is now established. To disconnect from a wireless network, you should highlight Configuration Status and press OK.

You can navigate between menu tabs by pressing left/right buttons. The help bar on the bottom of the dialog shows features that you may use. Press BLUE button to check your internet connection speed.

You can check the signal strength by using the network settings menu for the wireless device mode.

Information

Configuration Status: Displays wi-fi status as connected or not connected.

IP Address: Displays the current IP address.

Network Name: Connected networks' name will be displayed.

Press GREEN button to switch to advanced mode and then press OK button to edit settings.

Delete Saved Wifi Profiles

Saved profiles will be deleted if you press red button while wireless device selection osd is on the screen.

Connecting to your Cell Phone via WiFi (Optional)

• If your cell phone has WiFi feature, you can connect your cell phone to your TV by using WiFi connection via a router, in order to play content from your phone. For this, your cell phone must have an appropriate sharing software.
• Connect to your router following the steps stated above in the Wireless Connection section.
• Afterwards, engage your cell phone with the router and then activate sharing software on your cell phone. Then, select files that you would like to share with your TV.
• If the connection is established correctly, you should now access the shared files of your cell phone via the Media Browser of your TV.
• Enter Media Browser menu and playback device selection OSD will be displayed. Select your cell phone's ident and press OK to continue.

Note: This feature may not be supported by some cell phones.

Connectivity Troubleshooting

Wireless Network Not Available

Ensure that the firewalls of your network allows the TV wireless connection. "Veezy 200" usb wifi dongle should be plugged properly (if available). If the wireless network does not function properly, try using the wired network in your home. Refer to the Wired Connection section for more information on the process.

Check the modem (router) first. If the router does not have a problem, check the internet connection of your modem. Try searching for wireless networks again, using the Network Settings menu screen.

Connection is Slow

See the instruction book of your wireless modem to get information on the internal service area, connection speed, signal quality and other settings. You need to have a high speed connection for your modem.

Distruption during playback or slow reactions

You could try the following in such a case:

Keep at least three meters distance from microwave ovens, mobile telephones, bluetooth devices or any other Wi-Fi compatible devices. Try changing the active channel on the WLAN router.

Using DLNA Network Service

DLNA (Digital Living Network Alliance) is a standard that eases viewing process of digital electronics and makes them more convenient to use on a home network. For further information, visit www.dlna.org.

DLNA standard allows you to view and play photos, music and videos stored in the DLNA media server connected to your home network.

Step 1: Nero Media Home

DLNA function cannot be used if the server program is not install to your PC. Please prepare your PC with the provided Nero Media Home programme.

For more information about the installation, please refer to Nero Media Home Installation section

Step 2: Connect to a Wired or Wireless Network

See the chapter Network Settings for detailed configuration information.

Step 3: Play Shared Files via Media Browser

Select Media Browser by using Left or Right button from the main menu and press OK button. Media browser will be then displayed.

DLNA support is available only with Media Browser folder mode. To enable folder mode, go to Settings tab in the main media browser screen and press OK. In the settings options, highlight View Style and change to Folder using Left or Right button.

Please select desired media type and press OK.

If sharing configurations are set properly, an OSD message will be displayed after selecting the desired media type. Select OK to display the selected network or USB memory content. If you want to refresh the device list, press GREEN button. You can press MENU to exit.

If available networks are found, they will be listed on this screen. Select media server or network that you want to connect by using "√" or " "buttons and press OK button.

If you select media type as Video and choose a device from the selection menu, a new menu screen will appear on the screen.

Select Videos from this screen to list all the available video files from the selected network.

To play other media types from this screen, you must go back to main Media Browser screen and select media type as desired and then perform the network selection again. Refer to Media Browser USB Playback section for further information on file playback.

Subtitle files do not work if you watch video from network through DLNA.

You can connect only one television with DLNA to same network. If a problem occurs with DLNA network, please switch on/off your television. Trick mode and jump are not supported with DLNA function.

CAUTION:

There may be some PC's which may not be able to utilize the DLNA function due to administrator and security settings. (such as business PC's).

For best home network streaming with this set, the supplied Nero software should be installed.

Internet Portal

You can access PORTAL mode using your TV. To do this, an active internet connection is required. Follow the steps on Connecting to a Wired/Wireless(optional) Network section to connect your TV to internet. After the connection is established, you can select or view portal options.

Note: Broadband internet connection is required for high quality viewing. Ensure that the internet connection is made properly. You must set the Country and Language data correctly in the First Time Installation for the proper operation of internet portal.

Press "button" on your remote control and portal application options will be displayed. Application options will be displayed as the template below. Available applications' contents may change depending on the application content provider.

Note on PIP Window

If you switch to portal mode while watching TV channels, current programme will be displayed on the PIP window. You can change channels using P+/P- buttons.

Current HDMI content will be displayed on the PIP window, if you switch to portal mode while watching HDMI source.

Use the “◀or “ ”” or “ ” to navigate between the items on Portal screen. Press the OK button to confirm your selection. Press the BACK button to go to the previous screen.

Press the EXIT button to quit the Internet portal mode.

PC Input Typical Display Modes

The following table is an illustration of some of the typical video display modes. Your TV may not support all resolutions. Your TV supports up to 1920x1080.

Index	Resolution Frequency
1	640x350p	60 Hz
2	640x400p	60 Hz
3	1024x768	60 Hz
4	1280x768	60 Hz
5	1360x768	60 Hz
6	720x400	60 Hz
7	800x600	56 Hz
8	800x600	60 Hz
9	1024x768	60 Hz
10	1024x768	66 Hz
11	1280x768	60 Hz
12	1360x768	60 Hz
13	1280x1024	60 Hz
14	1280x960	60 Hz
15	1280x1024	60 Hz
16	1400x1050	60 Hz
17	1600x1200	60 Hz
18	1920x1080	60 Hz

AV and HDMI Signal Compatibility

Source	Supported Signals		Available
EXT(SCART)	PAL 50/60 O
	NTSC 60 O
	RGB 50 O
	RGB 60 O
Side AV	PAL 50/60 O
	NTSC 60 O
PC/YPbPr	480I, 480P	60Hz O
	576I, 576P	50Hz O
	720P	50Hz,60Hz O
	1080I	50Hz,60Hz O
	1080P	50Hz,60Hz O
HDMI1HDMI2	480I	60Hz O
	480P	60Hz O
	576I, 576P	50Hz O
	720P	50Hz,60Hz O
	1080I	50Hz,60Hz O
	1080P	24Hz, 25Hz30Hz, 50Hz,60Hz	O

(X: Not Available, O: Available)
In some cases a signal on the LED TV may not be displayed properly. The problem may be an inconsistency with standards from the source equipment (DVD, Set-top box, etc.). If you do experience such a problem please contact your dealer and also the manufacturer of the source equipment.

Supported File Formats for USB Mode

Media	File Extension	Format		Remarks
		Video	Audio	(Maximum resolution/Bit rate etc.)
Movie	.mpg .mpeg	MPEG1,2	MPEG Layer 1/2/3	MAX 1920x1080 @ 30P 20Mbit/sec
	.dat	MPEG1,2	MPEG2
	.vob	MPEG2
	.mkv H.264	MPEG1,2,4 EAC3/ AC3
	.mp4	MPEG4, Xvid 1.00, Xvid 1.01, Xvid 1.02, Xvid 1.03, Xvid 1.10-beta1/2, H.264	PCM/MP3
	.avi	MPEG2, MPEG4
		Xvid 1.00, Xvid 1.01, Xvid 1.02, Xvid 1.03, Xvid 1.10-beta1/2, H.264	PCM
Music .mp3 -			MPEG 1 Layer 1 / 2 (MP3)	32Kbps ~ 320Kbps(Bit rate)32KHz ~ 48KHz(Sampling rate)
Photo	.jpg .jpeg Baseline JPEG -			max WxH = 15360x86404147200bytes
	.	Progressive JPEG	-	max WxH = 9600x6400 3840000bytes
	.bmp	-	-	max WxH = 5760x4096 3840000bytes
Subtitle	.sub .srt	-	-	-

Software Upgrade

Your TV is capable of finding and updating automatically via the Aerial/Cable/Satellite signal or over the Internet.

Software upgrade search via user interface

Simply navigate on your main menu. Choose Settings and select Other Settings menu. In Other Settings menu navigate on to the Software for Upgrade item and press OK button to check for a new software upgrade.

Note : Internet connection is needed. If an internet connection is not available, try to upgrade via broadcast. If a new upgrade is found, it starts to download the upgrade. Press OK to continue with the reboot operation.

3 AM search and upgrade mode

While the TV is connected to an aerial signal. If Automatic scanning in the Upgrade Options menu is enabled, the TV wakes up at 03:00 and searches broadcast channels for new software upgrades. If new software is found and downloaded successfully, the next time the TV powers up, it will have the new software version.

Note: If the TV fails to come on after the upgrade unplug the TV for 2 minutes and plug in again.

Troubleshooting & Tips

Tv will not turn on

Make sure the power cord is plugged in securely to wall outlet. The batteries in the remote control may be exhausted. Press the Power button on the TV.

Poor picture

• Have you selected the correct TV system?
• Low signal level can cause picture distortion. Please check antenna access.
• Check if you have entered the correct channel frequency if you have done manual tuning.
• The picture quality may degrade when two devices are connected to the TV at the same time. In such a case, disconnect one of the devices.

No picture

• No Picture means that your TV is not receiving a transmission. Have you selected the correct button on the remote control? Try once more. Also make sure the correct input source has been selected.
  • Is the antenna connected properly?
  • Is the antenna cable damaged?
• Are suitable plugs used to connect the antenna?
• If you are in doubt, consult your dealer.

No sound

• Has the TV been set to mute? To cancel mute, press the "button", or increase the volume level.
• Sound is coming from only one speaker. Is the balance set to one extreme? See Sound Menu section.

Remote control - does not operate

• The batteries may be exhausted. Replace the batteries.
• If you cannot select an input source, it is possible that no device is connected. if not
• Check the AV cables and connections if you have tried to connect a device.

Input sources - can not be selected

Recording unavailable

To record a programme, you should first connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature. If you cannot record, try switching off the TV and then re-inserting the USB device.

USB is too slow

If a “USB is too slow” message is displayed on the screen while starting a recording, try restarting the recording. If you still get the same error, it is possible that your USB disk does not meet the speed requirements. Try connecting another USB disk.

Appendix A: Nero MediaHome Installation

To install Nero MediaHome, please proceed as follows:

Note: To use DLNA function, this software should be installed to your PC.

1. Insert the Nero Media Home installation disc in your optical disc drive.
2. The Nero Multi Installer screen with a button to start the installation process will open automatically.

3. If below window is not displayed automatically, double-click on the file SetupX located on the Nero MediaHome installation disc.

4. Click on the button labeled Nero MediaHome Essentials to start the installation process.

5. The Nero MediaHome installation wizard is displayed.

6. If necessary change installation language from the language selection menu before continuing.

7. Click the Next button.

- The integrated serial is displayed.

- Please do not change displayed serial.

1. Click the Next button.

- The License Conditions (EULA) screen is displayed.

1. Please read the license agreement carefully and select the appropriate check box if you agree to the terms of the agreement. Installation is not possible without this agreement.

2. Click the Next button.

- The Select Installation Type screen is displayed.

It is possible to choose between Typical, meaning standard installation, or Custom installation. User defined installation allows you to determine languages to be installed and to choose the installation path.

1. Use Typical installation and click the Next button.

- The Prerequisites screen is displayed.

The Nero MediaHome installation wizard checks the availability of required third-party software on your PC. If applications are missing they are listed and must be installed before continuing installation.

1. Click the Install button.

2. As soon as all prerequisites are installed, the Install button will change to a Next button.

3. Click the Next button.
4. The Ready to Start Installation Process screen is displayed, installation begins and finishes automatically. A progress bar informs you of the progress of the installation process.
5. Installation finishes.

The Help us to Enhance Nero Software screen is displayed. In order to offer a better service, Nero is collecting anonymous data to determine which features are used and what problems, if any, occur.

1. If you would like to help by participating in the anonymous collection of usage data, select the check box and click the Next button.
2. The final screen of the installation wizard is displayed.
3. Click the Exit button.
4. A shortcut called Nero MediaHome 4 is now placed on your desktop

Congratulations! You successfully installed Nero MediaHome 4 on your PC.

1. Run Nero MediaHome by pressing shortcut icon.

2. Click ADD icon from LOCAL FOLDERS to add the folder you want to share with the network. Select the folder that you want to share and click START SERVER.

3. You can display all media types from the library. Click Refresh icon to refresh. Click STOP SERVER icon to stop server.

Appendix B: HBBTV System

HbbTV (Hybrid Broadcast Broadband TV) is a new industry standard that seamlessly combines TV services delivered via broadcast with services delivered via broadband and also enables access to Internet only services for consumers using connected TVs and set-top boxes. Services delivered through HbbTV include traditional broadcast TV channels, catch-up services, video-on-demand, EPG, interactive advertising, personalisation, voting, games, social networking and other multimedia applications.

HbbTV applications are available on channels where they are signalled by the broadcaster (currently various channels on Astra broadcast HbbTV applications). The broadcaster marks one application as “autostart” and this one is started by the platform automatically. The autostart applications are generally launched with a small red button icon to notify the user that there is an HbbTV application on that channel Press the red button to open the application page. After the page is displayed you can go back to the initial red button icon state by pressing the red button again. You can toggle between the red button icon mode and full UI mode of the application via pressing red button. It should be noted that the red button switching capability is provided by the application and some application may behave differently.

If you switch to another channel while an HbbTV application is active (either in red button icon mode or full UI mode), the following scenarios can occur.

• The application can continue running.
• The application can be terminated.
• The application can be terminated and another autostart red button application can be launched.

HbbTV allows the applications to be retrieved both from broadband or broadcast. The broadcaster may enable both ways or one of them. If the platform does not have an operational broadband connection, the platform can still launch applications transmitted on broadcast.

The autostart red button applications generally provide links to other applications. An example of this is shown below. The user then can switch to other applications by using the links provided. The applications should provide a way to terminate themselves, usually button 0 is used for this.

Figure b: ARD EPG application, broadcast video is shown on the left bottom, can be terminated by pressing 0.

HbbTV applications use keys on the remote control to interact with the user. When an HbbTV applications is launched, the control of some keys are owned by the application. For example, numeric channel selection may not work on a teletect application where the numbers indicate teletext pages.

HbbTV requires AV streaming capability for the platform. There are numerous applications providing VOD (video on demand) and catch-up TV services. The user can use play, pause, stop, forward, and rewind keys on the remote control to interact with the AV content.

Teletext

Press button to enter. Press again to activate mix mode. Press once more to exit. Follow the instructions displayed on digital teletext screen.

Digital Teletext (for UK only)

Press 📣 button to view digital teletext information. Operate it with the coloured buttons, cursor buttons and the OK button. The operation method may differ depending on the contents of the digital teletext. Follow the instructions displayed on the digital teletext screen. When the 📣 button is pressed again, the TV returns to television broadcast.

Quick Menu

Quick Settings menu allows you to access some options quickly. This menu includes Power Save Mode, Picture Mode, Equalizer Settings, Favourites, Sleep Timer options, FollowMe TV and Information booklet. Press Q.MENU button on the remote control to view quick menu. See the following chapters for the details of the listed features.

E-Manual: You can find instructions for your TV's features in the E-manual.

To use E-manual, press to info button while main menu is displayed on the screen.

By using navigation buttons select a desired category. Every category includes a different topics. Select a topic and press OK to read instructions.

To close the E-Manual screen press the Exit button. Note : The contents of the E-Manual may vary according to model.

Internet Browser

To use the internet browser, please select the internet browser logo from the portal section.

• To navigate the web browser, use the arrow buttons on the remote control. Press OK to continue.
• After First time installation, predefined web sites and logos will be displayed on the browser's access page (see image above). To add a desired web page to the quick access page, whilst on the website you wish to add, select the "Add" menu and select "Quick Access" button.
• If you want to add bookmarks, select this item while the desired web page is on the screen.

- You can navigate the web browser in three ways. First, enter any URL in the address bar.

- You can search keywords by clicking the search button in the address dialog box or another way to navigate to pages is by clicking on links on web

pages and these will take you to the appropriate pages.

• When you scroll the pointer down to the middle of the screen, the remote control's shortcuts will be shown.
• Use the zoom shortcut buttons or the zoom menu to zoom in or zoom out.
• You can clear cookies or clear all browser data from the settings menu.
• Your TV is compatible with USB mice. Plug your mouse or wireless mouse adaptor to the USB input of your TV.
  • To view your browsing history, click the history button. You can also clear your browsing history from here.

• The browser does not support multiple tabs.
• Some internet pages include flash content. These are not supported by the browser.
• Your TV does not support any download processes from the web browser.

Getting Started with Skype

Make voice calls and video calls with Skype on your TV. Select the Skype app from the portal section to start a conversation.

Follow the on screen instructions to see how to operate related features.

NOTE

• Connect your supported webcam directly to the USB port on your TV.
• If the camera is not working properly, switch off and unplug the TV. Connect your camera again and turn the TV on.

- As soon as the TV is turned off, Skype disconnects.

• Voice level and sound quality are affected by environmental noise.

- Call quality can change with accordance to your internet connection.

- Please visit www.skype.com to learn more information and to see the Terms of Use about Skype.

- The TV must be connected to a network for Skype connection.

- The Skype app will alert you when someone calls whilst you are watching your TV or operating the Skype application.

- A Skype camera (can be sold separately) is required to get the full benefit of Skype's features. If you do not already have one, you will need to purchase a camera (compatible with Vesca100) to get the full benefits of Skype.

Note : When you turn on the TV and no users have been set up for Skype, the image shown to the side will appear on screen.

Licence Notification

Skype is a trade mark of Skype or its related companies. This product/application has not been approved or endorsed by Skype, Skype Communications S.a.r.l. or any of their related companies.

Abstract graphic with a red diagonal stripe crossing two gray shapes (no text or symbols)

No emergency calls with Skype

Skype is not a replacement for your ordinary telephone and can't be used for emergency calling. Select the Skype app from the portal section to start a conversation.

Sign In & Sign Up Now

Green curved arrow pointing downward (no text or symbols)

To use the Skype application, you need a Skype account.

You can create a Skype account, using this app, in the 'Sign In & Sign Up Now' menu if you don't already have one. If you already have a Skype account, enter your name and password correctly. Select Sign In and press OK.

If you have a Skype account and you forgot your password, press the Red button to view the "reset password" screen.

After successfully logging in to your account, the contact list will be displayed on screen.

Green curved arrow pointing left, no text or symbols present

You can review your contact list on the right side of the screen. Your Skype name and mood message and your camera preview(if connected) will be displayed on the left hand side of screen.

Adding a contact

By pressing the button select Search Contacts option. Enter full name, skype name or email address to find and add.

Use remote control or virtual keyboard to enter keyword.

Recent history

Icon meaning

Skype history can be seen in this section. To view recent history option, use p+ and p- buttons. To delete conversation press the Red button. When you pressed OK button, contact review will be displayed. Also Profile information can be displayed in this section.

Select a person from contact list screen and press OK. Choose an action from the list and then press OK to start selected process. Voice and video call is ready for your use.

If available you will see the thumbnail view of yours and other person's.

While conversation is activated, you can mute microphone or hold the person on the line. To end of the call press the Red button.

Incoming call dialog is shown when you are logged into Skype and other user initiates Skype call.

A small dialog box will appear in lower right corner of TV screen whether user watches TV or is browsing through Skype. Use the remote control button and choose your action.

Dialing Phones

Call phones option is available if you have Skype Credit. Please buy the credit firstly. Afterward please select a country then enter a phone number which is you want to call.

Entered telephone number can be saved by pressing Yellow button. Press Green button to start conversation.

Settings

All your Skype settings can be changed by using Settings menu. Please use P+ and P- buttons on the remote control to move up or down. Please select an option firstly. Change the selected option by pressing the navigation buttons.

In about section, please find the Skype terms and conditions.

Please read this notice carefully.

Inhalt

Inhalt....53

Anhang B: HBBTV....79

Close-up of two cylindrical batteries with positive and negative charge indicators (no text or symbols visible)

Teletext

Illustration of a monitor connected to a device with a cable, against a brick wall background (no text or symbols)

Abstract graphic with a red diagonal line crossing over two gray curved shapes (no text or symbols)

Green curved arrow pointing downward (no text or symbols)

Green curved arrow pointing left, no text or symbols present

Anhang A: Nero MediaHome Installation

A	Product Fiche
B	Commercial Brand: TELEFUNKEN
C	Product No. 10086636
D	Model No. 50TLK513ES
E	Energy efficiency class A
F	Visible screen size (diagonal, approx.) (inch/cm)	50 inches 127 cm
G	On mode average power consumption (Watt)	93
H	Annual energy consumption (kWh/annum)	135
I	Standby power consumption (Watt)	0,5
J	Off mode power consumption (Watt)	0
K	Display resolution (px) 1920 x 1080

	A B C D E F
English	Product Fiche Commercial Brand Product No.	Model No. Energy efficiency class				Visible screen size (diagonal, approx.) (inch/cm)
Deutsch	Produkt-Datenblatt	Markenzeichen	Produkt-Nr.	Modell-Nr.	Energieeffizienzklasse	Sichtbare Bildschirmgröße (diagonal,ca.) (Zoll /cm)
عربية	دابس انتج	للاامة التجارية تهويّنکن	رقم انتج	قيم الموديل	تنه قعالية الطاقة	Tajم روزص“سم”
Български	Справочен лист с техническите данни	Търговска марка	Продукт No	Модел No	Клас на енергийна ефективност	Видим размер на екрана (диагонал,прибл.) (инча /см)
čeština	Informační list	Značka výrobce	Číslo produktu	Model č.	Energetická třída	Viditelná velikost obrazovky (ühlopříčka,přibl.) (palců /cm)
Dansk	Produktoplysningsskema	Varemærke	Produktnr.	Model nr.	Energieffektivitetsklasse	Synlig skærmstørrelse (diagonalt,ca.) (HK/cm)
Suomi	Tuote fiche	Kaupallinen merkki	Tuote nro.	Malli nro.	Virran tehokkuusluokka	Nakyvăn kuvaruudun koko (diagonaalinen,n.) (tuumaa/cm)
Français	Fiche du produit	Marque commerciale	Produit N°	Modèle N°	Classe d'efficacité énergétique	Taille d'écran visible (diagonale,approx) (pouces/cm)
Hrvatski	SAŽETAK PROIZVODA	Trgovačka marka	Br. proizvoda	Br. modela	Klasa energetske učinkovitosti	Vidljiva veličina ekrana (dijagonalna,pribilžno) (inča/cm)
Nederlands	Productliche	Commercieel merk.	Productnr.	Modelnr.	Energie efficiëntie klasse	Zichtbare schermgrootte (diagonaal,ca.) (inches/cm)
Español	Ficha del Producto	Marca Comercial	N° de Producto	N° de Modelo	Clasificación Energética	Tamaño de pantalla visible (diagonal,aprox.) (pulgadas/cm)
Svenska	Produktspecifikation	Varumárke	Produktnr.	Modellnr.	Energiklass	Synlig skärmstorlek (diagonal,ungefárlig) (tum/cm)
Italiano	Scheda prodotto	Marchio commerciale	Numero prodotto	Numero modello	Classe di efficienza energetica	Dimensioni visibili dello schermo (diagonale,circa)(pollici/cm)
Polski	KARTA PRODUKTU	Marka produktu	Nr produktu	Nr modelu	Klasa efektywności energetycznej	Widoczny obraz ekranu (przekątna,około)(cali/cm)
Magyar	Termékismertető adatlap	Kereskedelmi márka	Termékszám	Modellszám	Energiahatékonysági osztály	Latható képtartomány (diagonális,kb.) (inches/cm)
Norsk	Produktinformasjon	Kommersiell merkevare	Produkt nr.	Modell nr.	Energieffektivitet klasse	Synlig skjermstørrelse (diagonal, ca.) (tommer/cm)
Português	Ficha do produto	Marca Comercial	Produto N°	Modelo N°	Classificação eficiência energética	Tamanho ecră visivel (diagonal, aprox. (polegadas/cm)
Română	Fişă produs	Marcă comercială	Nr. Produs	Nr. Model	Clasa de eficientă energetică	Dimensiunea ecranului vizibil (diagonală, aprox.) (inch/cm)
Русский	Справочный листок технических данных изделия	Торговая марка	Номер изделия	Номер модели	Класс энергопотребления	Видимый размер экрана (по диагонали, Около) (дюймов/см)
беларуская	Справочный листок технических данных изделия	Торговая марка	Номер изделия	Номер модели	Класс энергопотребления	Видимый размер экрана (по диагонали,Около)(дюймов/см)
македонски	Технички податоци	Комерцијална марка	Производ бр.	Модел бр.	Класа на енергетска ефикасност	Големина на видлив екран (дијагонала,околу) (инчи'/cm)
український	Технічні дані	Кормеційна марка	Артикул	Модель	Клас енергоспоживання	Видимий розмір екрана (диагональ, Приблизно) (дюймів/cm)
Srpski	Tehničke odlike	Komercijalna marka	Proizvod br.	Model br.	Klasa energetske efikasnosti	Veličina vdljivog ekrana (dijagonala, tokom) (inča/cm)
Slovenčina	Informačný list	Značka výrobcu	Číslo produktu	Model č.	Energetická trieda	Viditelná velikost'obrazovky (uhlopriečka,zhruba) (palcov/cm)
Slovenščina	Opis izdelka	Komercialna znamka	Št. Izdelka	Št. Modela	Razred energetske učinkovitosti	Vidna velikost zaslona (diagonala, pribl.) (palcev/cm)
Еллянік	Делтію проϊόντος	Емторикó σήμα	Ap. Проϊόντος	Ap. Movtélou	Katηγορία ενεργειακής απόδοσης	Орато’ μέγεθος οθόνης (διαγώνιος, περ.) (ιντσες/cm)
Bosanski	Tehnički podaci	Komercijalna marka	Produkt br.	Model br.	Klasa energetske efikasnosti	Vidljiva veličina ekrana (diagonala, pribilžno.) (inča/cm)
النام	النام عُمَّد	النام عُمَّد	النام عُمَّد	النام عُمَّد	النام عُمَّد	(النام عُمَّد مостُمَّد) (النام مостُمَّد)
Türkçe	Ürün fişi	Ticari Marka	Ürün No.	Model No.	Enerji verimliliği sınıfı	Görülen ekran boyutu (çapraz, yakışk.) (inç/cm)
Shqip	Tê dhēnat e produktit	Marka tregtare	Nr. i produktit.	Nr. i modelit.	Klasa e eficiencês sê energjisê	Maanesia e ekranı te duksnem (diagonal, afërsisht) (inç/cm)
Lietuvių	Gaminio etiketė	Gamintojas	Gaminio Nr.	Modelio Nr.	Energetinio efektyvumo klasė	Matomas ekran o dydis (jstrižainė, approx.) (colių/cm)
Latviešu	Produkta apraksts	Marka	Produkta nr.	Modelja nr.	Energoefektivitätes klase	Ekrána izměrs (pa diognali, apmçram) (collas/cm)
Eesti	TOOTEKIRJELDUS	Tootja firma	Toote nr.	Mudeli nr.	Energiaklass	Vaadatava ekrana suurus (diagonaal, umbes) (tolli/cm)
فرازسي	منächstات محصول	مارک تجاري	شماره محصول	شماره مدل	گروه کاربی النزی	تناز وص Pinkق قابل مشاهده (هتنسی قربایا) لیTech (سانتی متر)

	GHIJ	K
English	On mode average power consumption (Watt)	Annual energy consumption (kWh/annum)	Standby power consumption (Watt)	Off mode power consumption (Watt)	Display resolution (px)
Deutsch	Durchschnittlicher Stromverbrauch im eingeschaltelem Zustand (Watt)	Jährlicher Energieverbrauch (kWh/Jahr) Standby-Stromverbrauch (Watt)		Stromverbrauch im ausgeschaltetem Zustand (Watt) Display-Auflösung (px)
عربي	متوسط استهلاك الطاقة عن التشعت (إويط)	الاستهلاك الطاقة (اكيل واصّل الطاقة)	استهلاك الطاقة في وضع الاستعاد (اقوّل)	استهلاك الطاقة في وضع الابنّف (اقوّل)	وصّح الشاتّة (يُكْسِل)
Български	Средна консумация на електроенергия във включено състояние(Watt)	Годишка консумация на електроенергия (kWh/годишка)	Консумация на електроенергия в режим на готовност (Watt)	Консумация на електроенергия в изключено състояние (Watt)	Разделителна способност на дисплея(пиксела)
čeština	Prüměrná spotřeba elektrické energie v zapnulé režimu (Wattü)	Roční spotřeba energie (kWh/Roční)	Spotřeba elektrické energie v pohotovosním režimu (Wattü)	Spotřeba elektrické energie ve vypnutém režimu (Wattü) Rozilšení disp	je (px)
Dansk	Gennemsnitligt stromforbrug i taëndt tilstand (Watt)	Ärligt energiforbrug (kWh/Ärligt)	Stromforbrug (standby)(Watt)	Stromforbrug i slukket tilstand (Watt)	Skærmoplösning (px)
Suomi	Păällă-tilan keskimăäräinen virrankulutus (Wattia)	Vuositainen sähkönkulutu (kWh/Vuosittainen)	Vakiovirran kulutus (Wattia)	Pois-tilan virrankulutus (Wattia)	Nâyön erottelukyky (pikselia)
Français	Consommation énergétique moyenne en mode "marche" (Watt)	Consommation énergétique annuelle (kWh/annuel)	Consommation d'énergie en veille (Watt)	Consommation d'énergie en mode "arrêt" (Watt)	Résolution de l'écran (px)
Hrvatski	Prosječna potrošnja el. energije kada je proizvod uključen (Watta)	Godišnja potrošnja el. Energije (kWh/Godišnja)	Potrošnja el. energije u modu pripravnosti (Watta)	Potrošnja el. energije kada je proizvod isključen (Watta)	Rezolucija zaslona (piksela)
Nederlands	Aan-modus gemiddeld stroomverbruik (Watt)	Jaarlijks energieverbruik(kWh/Jaarlijks )	Stand-by stroomverbruik (Watt)	Uit-modus stroomverbruik (Watt)	Schemiresolutie (px)
Español	Consumo eléctrico medio, en funcionamiento (Vatio)	Consumo eléctrico anual (kWh/anual)	Consumo en modo en espera (Vatio)	Consumo eléctrico modo apagado (Vatio)	Resolución de pantalla (px)
Svenska	Strömkonsumtion i PÁ-läge (Watt)	Energikonsumtion per år (kWh/Ärlig)	Strömkonsumtion i viloläge (Watt)	Strömkonsumtion i AV-läge (Watt)	Skärmupplösning (pixlar)
Italiano	Consumo di corrente medio da accesa (Watt)	Consumo annuale di energia (kWh/annuo)	Consumo di corrente in modalità standby (Watt)	Consumo di corrente da spenta (Watt)	Risoluzione del display (px)
Polski	Średnie zużycie energii w trybie włączonym (Watów)	Roczne zużycie energii (kWh/Roczne)	Średnie zużycie energii w trybie oczekiwania (Watów)	Zużycie energii w trybie włączonym (Watów)	Rozdzielczość obrazu (pikseli)
Magyar	Energiafogyasztás bekapcsolva hagyott üzemmódban (Watt) Éves energiafogyasztás	(kWh/Éves)	Energiafogyasztás standby üzemmódban (Watt)	Energiafogyasztás kikapcsolt üzemmódban (Watt)	Képernyőfelbontás (px)
Norsk	Pámodus gjennomsnítlig stromförbruk (Watt)	Ärlig stromförbruk (kWh/Ärlig)	Hvilemodus stromförbruk (Watt)	Av-modus stromförbruk (Watt)	Skjermopplösning (piksel)
Português	Consumo energia em modo médio (Watt)	Consumo annual energia (kWh/anual)	Consumo energia em stand-by (Watt)	Consumo energia em modo alimentação (Watt)	Resolução do visor (pixel)
Română	Consum electric mediu in modul pornit (Watji)	Consum anual de energie (kWh/anual)	Consum electric in stare de repaus (Watji)	Consum electric in modul oprit (Watji)	Rezolutja ecranului (pixel)
Русский	Средний расход энергии в режиме включения (ватт)	Ежегодный расход энергии (kВтч/Годовое)	Расход энергии в режиме ожидания (ватт)	Расход энергии в режиме выключения (ватт)	Разрешение экрана (пикселей)
беларуская	Средний расход энергии в режиме включения (ватт)	Ежегодный расход энергии (kWh/гадовое)	Расход энергии в режиме ожидания (ватт)	Расход энергии в режиме выключения (ватт)	Разрешение экрана (пикселей)
македонски	Просечна потрошувачка кога е включен	Годишка потрошувачка на енергија (kWh/Годишка)	Потрошувачка во мирување (вати)	Потрошувачка кога е ислучyen (вати)	Резопущија на екран (пиксели)
український	Середня споживана потужність у робочому режимі (Вт)	Середньорична споживана потужність (kWh/Ркіне)	Споживана потужність у режимі очікування (Вт)	Споживана потужність у вимкненому стані (Вт)	Роздільна здатність екрана (пикселів)
Srpski	Prosečna potrošnja kada je uključeni (Vati)	Godišnja potrošnja energije (kWh/Godišnja)	Potrošnja tokom mirovanja (Vati)	Potrošnja kada je isključeni (Vati)	Rezolucija displeja (piks.)
Slovenčina	Priemerna spotreba elektrickej energie v zapnutom režime (Wattov)	Ročnă spotreba energie (kWh/Ročnă)	Spotreba elektrickej energie v pohotovostnom režime (Wattov)	Spotreba elektrickej energie vo vypnutom režime (Wattov)	Rozlišenie displeja (pixl.)
Slovenščina	Poraba električne energije v povprečnem načinu (Wattov)	Letna poraba energije (kWh/Letna)	Poraba energije v stanju pripravijenosti (Wattov)	Poraba energije načinu izklopa (Wattov)	Resolucija zaslona (piks.)
Еллэvnік	Мё Spot katovałwoj peújumatos leitoupyrías (Watt)	Erjóia kotaválwoj evépyeias (kWh/Erjóia)	Kataválwoj peújumatos στην αναμονή (Watt)	Kataválwoj peújumatos στε απενεργοττοίηση (Watt)	Aváluon οθόνης (Піξελ)
Bosanski	Prosječna potrošnja kada je uključen (Watt)	Godišnja potrošnja energije (kWh/Godišnja)	Potrošnja tokom mirovanja (Watt)	Potrošnja kada je isključen (Watt)	Rezolucija ekranа (piks.)
תָּלָן	( उिं) विद्य स्थल प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत্তि प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्ल	(नेशन अन्दिक नेशन नेशन नेशन नेशन नेशन नेशन नेशन नेशन नेशन नेशन नेशन नेशन नेशन नेशन नेशन नेशन नेशन नेशन नेशन नेशन नेशति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रत्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति П्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्वि प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रम्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति п्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्षि प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रशि प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रर्षि प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति П्रशि प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति П्रागि प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रवृपी (प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ठि प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्र�सि प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रपसि प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति पрस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्तি प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस्ति प्रस*प्रस*प्रस*प्रस*प्रस*प्रस*प्रस*प्रस*प्रस*प्रस*प्रस*प्रस*प्रस*प्रस*प्रस*प्रस*प्रस*प्रस*प्रस*प्रस*प्रस*प्रस*प्रस*प्रस*प्रस*प्रस*Прस*प्रस*प्रस*प्रस*प्रस*प्रस*प्रस*प्रस*प्रस*प्रस*प्रस*प्रस*प्रस*प्रस*प्रस*प्रस*प्रस*प्रस*प्रस*प्रस*प्रस*प्रस*प्रस*प्रस*प्रस*पрस*प्रस*प्रस*प्रस*प्रस*प्रस*प्रस*प्रस*प्रस*प्रस*प्रस*प्रस*प्रस*प्रस*प्रस*प्रस*प्रस*प्रस*प्रस*प्रस*प्रस*प्रस*प्रस*प्रस*प्रस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПФР*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРS*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРRS*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРFS*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРLS*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРPS*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРVS*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРSS*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРSR*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРर*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРTS*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПРस*ПР-SPTI*ПР-SPTI*ПР-SPTI*ПР-SPTI*ПР-SPTI*ПР-SPTI*ПР-SPTI*ПР-SPTI*ПР-SPTI*ПР-SPTI*ПР-SPTI*ПР-SPTI*ПР-SPTI
