Product Type	Freestanding Refrigerator
Brand	Nordmende
Model	RET345R
Dimensions (W x D x H)	540 x 545 x 850 mm
Net Weight	28 kg
Energy Efficiency Class	E
Annual Energy Consumption	120 kWh/year
Climate Class	N-ST
Noise Level	40 dB(A) Re 1 pW
Refrigerator Net Capacity	95 Litres
Freezer Net Capacity	None (Fridge only)
Cooling System	Static (Manual Defrost)
Adjustable Thermostat	Yes, 7 positions
Interior Light	LED
Number of Shelves	3 Glass Shelves
Door Shelves	2 Adjustable
Vegetable Crisper	1 Drawer
Reversible Door	Yes
Defrost Method	Manual (Defrost water tray)
Refrigerant Type	R600a
Electrical Connection	230 V ~ 50 Hz
Power Cord Length	1.5 m
Spare Parts Availability	For 10 years after production
Manufacturer	Nordmende S.r.l.

Frequently Asked Questions - RET345R NORDMENDE

How do I set the temperature on my Nordmende RET345R fridge?

Turn the thermostat knob inside the fridge. Position 1 is warmest, position 7 is coldest. Usually, set to 3 or 4 for normal use. For optimal food preservation, keep the temperature between 2°C and 8°C.

Do I need to defrost the RET345R refrigerator?

Yes, this model requires manual defrosting. When frost buildup exceeds 3 mm (approx. 0.1 inches), turn off the appliance, remove food, and leave the door open. Collect defrost water from the tray. Clean and dry before restarting.

How do I clean my Nordmende fridge?

Unplug the appliance. Remove all shelves and drawers. Wash them with warm water and mild detergent. Wipe the interior with a soft cloth soaked in a baking soda solution (1 tablespoon per liter of water). Rinse and dry thoroughly before reassembling.

Can I reverse the door opening direction on the RET345R?

Yes, the door is reversible. You'll need a screwdriver and possibly an Allen key. Refer to the user manual for step-by-step instructions. Typically, you will swap hinges and close the unused handle holes with covers.

Why is my Nordmende fridge making unusual noises?

Normal operating sounds include a faint humming from the compressor, gurgling from refrigerant flow, and occasional clicks from the thermostat. If you hear loud rattling or knocking, ensure the fridge is level and that shelves and items are secure.

How can I save energy with my RET345R fridge?

Place the fridge away from heat sources and direct sunlight. Allow hot food to cool before storing. Keep the door closed as much as possible. Set the thermostat to moderate settings (3-4). Clean the condenser coils periodically (accessible on the back).

What should I do if the fridge doesn't cool enough?

Check that the thermostat is set correctly. Ensure the door seals are clean and close tightly. Verify that the condenser coils are not dusty. Avoid overloading the fridge. If the problem persists, contact customer service.

Is the Nordmende RET345R suitable for outdoor use?

No, this fridge is designed for indoor household use only. Do not install it outdoors, in damp areas, or where temperatures can drop below 10°C (50°F) as it may affect performance.

What spare parts are available for the RET345R?

Spare parts such as door hinges, thermostat knobs, shelves, door gaskets, and drain trays are available. Nordmende guarantees spare parts availability for at least 10 years after the model's production end.

How do I replace the interior light bulb?

The RET345R uses an LED interior light, which is not user-replaceable. If the light fails, contact a qualified technician or Nordmende customer service for assistance.

USER MANUAL RET345R NORDMENDE

Safety Instructions ....2

Safety warnings....3

Installing and operating your fridge 4

Before using your fridge 4

THE VARIOUS FUNCTION AND POSSIBILITIES....5

Thermostat setting 5

Super switch 5

Accessoires ....6

Ice tray 6

Magic shelf 6

If turbo fan is available on your product ; 6

Bottle holder 6

ARRANGING FOOD IN THE APPLIANCE 7

Refrigerator compartment ....7

Freezer compartment 7

CLEANING AND MAINTENANCE 8

Defrosting 9

Replacing the light bulb 10

SHIPMENT AND REPOSITIONING....10

Repositioning the door 10

BEFORE CALLING YOUR AFTER SALES SERVICE....11

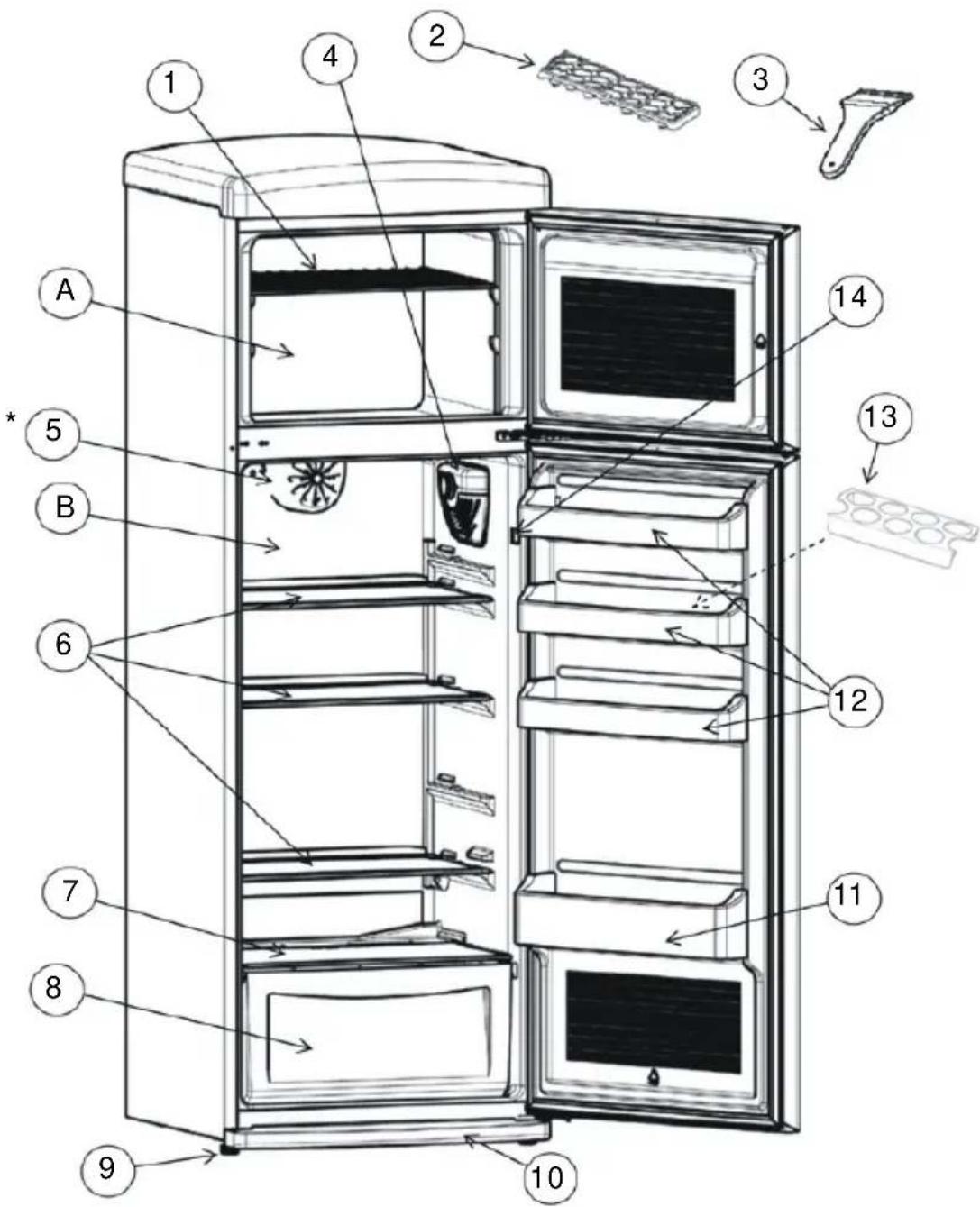

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS ..... 13

PART - 1. BEFORE USING THE APPLIANCE

Safety Instructions

- If the model contains R600a-see name plate under refrigerant (the coolant isobutane), naturals gas that, is very environmentally friendly but also combustible. When transporting and installing the unit care must be taken to ensure that none of the refrigeration circuit components become damaged. In the event of damage avoid naked flames or ignition sources and ventilate the room in which the unit is placed for a few minutes.

Warning: Keep ventilation openings in appliance enclosure or in structure for building in, clear of obstruction.

• Do not use mechanical devices or other artificial means to accelerate the defrosting process.
• Do not use electrical appliances in the refrigerator or freezer compartment of the appliance.
• If this appliance is to replace an old refrigerator with a lock; break or remove the lock as a safety measure before storing it, to protect children while playing might lock themselves inside.
• Old refrigerators and freezers contain insulation gases and refrigerant, which must be disposed of properly. Entrust the disposal of a scrap unit categorically to competence of your local waste disposal service and contact your local authority or your dealer if you have any questions. Please ensure that the pipe of work of your refrigerating unit does not get damaged prior to being picked-up by the relevant waste disposal service.

Important note:

Please read this booklet before installing and switching on this appliance. The manufacturer assumes no responsibility for incorrect installation and usage as described in this booklet.

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Please ask your municipal authority about the disposal of the WEEE for the reuse, recycle and recovery purposes.

Safety warnings

Warning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. Do not damage the refrigerant circuit.

• Do not use multiple receptacles or extension cord.
• Do not plug in damaged, torn or old plugs.

Illustration of three hands performing a knotting or wire manipulation technique (no text or symbols present)

• Do not pull, bend or damage the cord.
• This appliance is designed for use by adults, do not allow children to play with the appliance or let them to hang over the door.
• Do not plug-in or out the plug from the receptacle with wet hands to prevent electrocution!
• Do not place glass bottles or beverage cans in the freezer department. Bottles or cans may explode.
• Do not place explosive or flammable material in your fridge for your safety. Place drinks with higher alcohol amount vertically and by closing their necks tightly in the fridge department.
• When taking ice made in the freezer department, do not touch it, ice may cause iceburns and/or cuts.
• Do not touch frozen goods with wet hands! Do not eat ice-cream and ice cubes immediately after you take them out of the freezer department!
• Do not re-freeze the frozen goods after being melted. This may cause health issues like food poisoning.
• Do not cover the body or top of fridge with lace. This effects the performance of your fridge.
• Fix the accessories in the fridge during transportation to prevent damage to accessories.
• The appliance is not intended for use by people (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they don't play with the appliance.
• If the supply cord is damaged it must be replaced by the manufacturer or service agent or similar qualified people in order to avoid a hazard.

Cartoon illustration of a person peeking out of a door, with arms and legs raised (no text or symbols)

Installing and operating your fridge

- Before making the connection to the power supply, ensure that the voltage on the nameplate corresponds to the voltage of electrical system at your home.

- Operating voltage for your fridge is 220-240 V at 50Hz.

- You can offer help from the service to install and switching on the appliance.

- Mains cord of your fridge has a grounded plug. This plug should be used with a grounded receptacle that has a 16 amper fuse minimum. If you don't have a receptacle confirming with this, please have it done by a qualified electrician.

- We do not take the responsibility of the damages that occur due to ungrounded usage.

- Place your fridge in a place that it would not be exposed to direct sunlight.

- Your appliance should be at least 50 cm away from stoves, ovens and heater cores, and should be at least 5 cm away from electrical ovens.

- It should never be used outdoors or left under the rain.

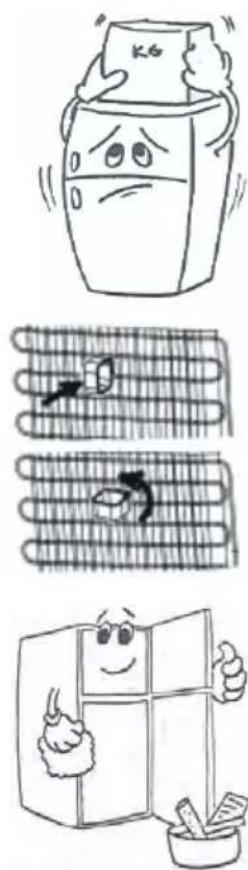

- Fit the plastic wall spacers to the condenser at the back of the refrigerator in order to prevent cleaning to the wall for good performance.

- When your fridge is placed next to a deep freezer, there should be at least 2 cm between them to prevent humidity on the outer surface. Do not place anything on your fridge, and install your fridge in a suitable place so that at least 15 cm is available on the upper side.

- If you will place your fridge next to your kitchen cabinets, leave a space of 2 cm between them.

• Install the distance adjustment plastic (the part with black vanes at the rear) by turning it 90° to prevent the condenser from touching the wall.

Cartoon illustration of a refrigerator, a rolled-up refrigerator, and a smiling refrigerator with hands (no text or symbols)

- The adjustable front legs should stabilize in an appropriate height to allow your fridge operate in a stable and proper way. You can adjust the legs by turning them clockwise (or in the opposite direction). This should be done before placing food in the fridge.

- Before using your fridge, wipe all parts with warm water added with a tea spoonful of sodium bicarbonate, and then rinse with clean water and dry. Place all parts after cleaning.

Before using your fridge

- When it is operated for the first time or after transportation, keep your fridge in the upright position for 3 hours and plug it on to allow efficient operation. Otherwise, you may damage the compressor.

Simple line drawing of a hand holding a smiling emoji icon next to a square (no text or symbols)

- Your fridge may have a smell when it is operated for the first time; the smell will fade away when your fridge starts to cool.

PART - 2. THE VARIOUS FUNCTION AND POSSIBILITIES

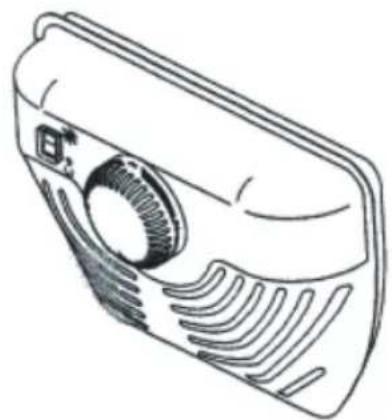

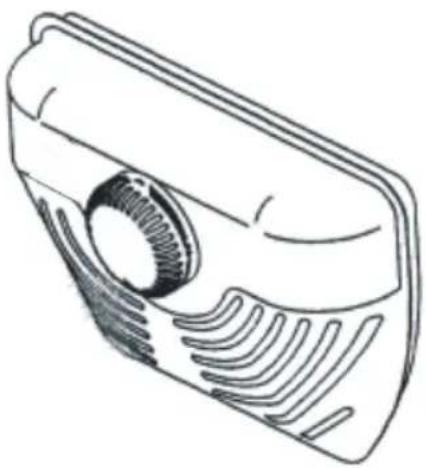

Thermostat setting

Line drawing of a projector case with visible lens and ventilation slots (no text or symbols)

• Thermostat automatically regulates the inside temperature of the refrigerator compartment and freezer compartment. By rotating the knob from position 1 to 5, colder temperatures can be obtained. «0» position shows thermostat is closed and no cooling will be available.
• For short-term storage of food in the freezer compartment, you can set the knob between 1 and 3 position.
• For long-term storage of food in the freezer compartment, you can set knop 3-4 position.

Note that ; the ambient temperature, temperature of the freshly stored food and how often the door is opened, affects the temperature in the refrigerator compartment. If required, change the temperature setting.

Super switch (If super switch is available)

Simple line drawing of a door with a window and sun symbol, no text or labels present

• Normally set this switch to ‘*’ position. Except when the ambient temperature is low like in winter.(ie.below 16°C) or when the freezer temperature needs to be maintained lower. In that case, turn the switch to ‘☐’ position ON.
• To set super switch ON that is on the thermostat box, press the switch down to 🔊'position. The switch will lit.
• When the freezer compartment is cooled down to sufficient temperature, or the weather gets hot, turn the super switch off to save electrical consumption.
• When you first switch on the appliance, for starting a suitable cooling, the appliance should work 24 hours continuously until it cools down to sufficient temperature.
• In this time do not open the door so often and place a lot of food inside the appliance.

If the unit is switched off or unplugged, you must allow at least 5 minutes before restarting or re-plugged the unit in order not to damage the compressor.

Accessoires

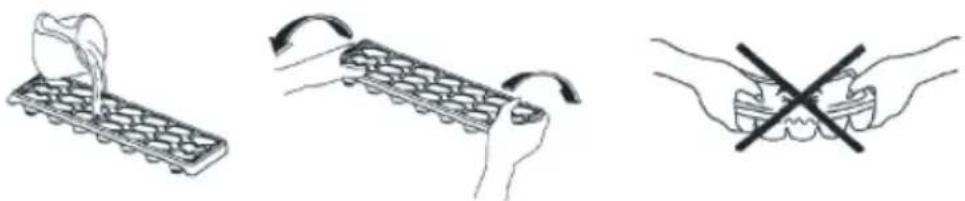

Ice tray (In some models)

• Fill the ice tray with water and place in freezer compartment.
  • After the water completely turned into ice, you can twist the tray as shown below to get the ice cube.

Illustration showing three steps of a robotic arm: moving a tray, rotating the button, and removing a tool (no text or symbols present)

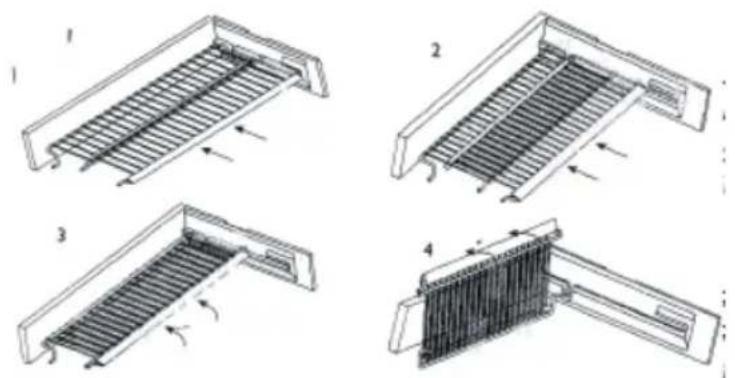

Magic shelf (In some models)

Technical diagram showing four views of a heat exchanger or cooling device with labeled components and directional arrows indicating flow or movement.

Magic shelf which is on the Crisper Cover(safety glass) (see part 7-page 13) was designed to give you more place and comfort placing the things in the appliance. This shelf is mobile so you can arrange long or big containers on the crisper cover.

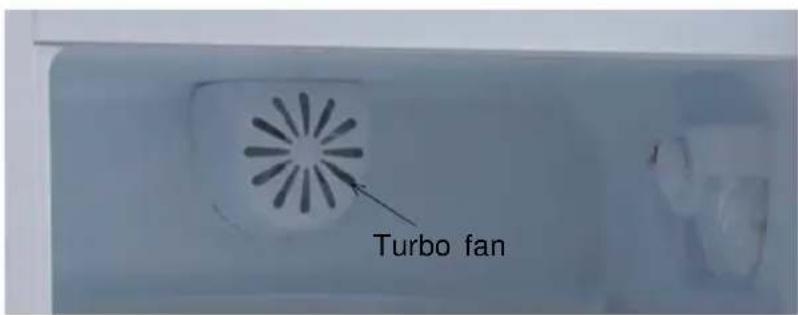

If turbo fan is available on your product ; (In some models)

- Do not block air inlet and outlet openings when storing food, otherwise air circulation that provided by turbo fan will be impaired.

Bottle holder (In some models)

In order to prevent the bottles to slip or fall over you can use the bottle holder. You can also prevent making noise that will be done when you open or close the door.

PART - 3. ARRANGING FOOD IN THE APPLIANCE

Refrigerator compartment

• To reduce humidity and consequent increase of frost never place liquids in unsealed containers in the refrigerator. Frost tends to concentrate in the coldest parts of the evaporator and in time will require more frequent defrosting.
• Never place warm food in the refrigerator. Warm food should be allowed to cool at room temperature and should be arranged to ensure adequate air circulation in the refrigerator compartment.
• Nothing should touch on the back wall as it will cause frost and the packages can stick on the back wall. Do not open the refrigerator door too frequently.
• Arrange the meat and cleaned fish(wrapped in packages or sheets of plastic) which you will use in 1-2 days, in the bottom section of the refrigerator compartment(that is above the crisper) as this is the coldest section and will ensure the best storing conditions.
• You can put the fruits and vegetables into crisper without packing.

Freezer compartment

• The use of freezer is, storing of deep-frozen or frozen foods for long periods of time and making ice cubes.
• To freeze fresh food, ensure that as much of the surface as possible of food to be frozen is in contact with the cooling surface.
• Do not put fresh food with frozen on side by side as it can thaw the frozen food.
• While freezing fresh foods(i.e meat,fish and mincemeat), divide them in parts you will use in one time.
• Once the unit has been defrosted replace the foods into freezer and remember to consume them in as short period of time.
• Never place warm food in the freezer compartment. As it will disturb the frozen foods.
• For storing the frozen foods; the instructions shown on frozen food packages should always be followed carefully and if no information is provided food should not be stored for more than 3 months from the purchased date.
• When buying frozen foods ensure that these have been frozen at suitable temperatures and that the packing is intact.
• Frozen foods should be transported in appropriate containers to maintain the quality of the food and should be returned to the freezing surfaces of the unit in the shortest possible time.
• If a package of frozen food shows the sign of humidity and abnormal swelling it is probable that it has been previously stored at an unsuitable temperature and that the contents have deteriorated.
• The storage life of frozen foods depends on the room temperature, thermostat setting, how often the door is opened, the type of food and the length of time required to transport the product from the shop to your home. Always follow the instructions printed on the package and never exceed the maximum storage life indicated.

Not that; if you want to open again immediately after closing the freezer door, it will not be opened easily. It's quite normal! After reaching equilibrium condition, the door will be opened easily.

PART - 4. CLEANING AND MAINTENANCE

• Make sure to unplug the fridge before starting to clean it.
• Do not wash your fridge by pouring water.
• You can wipe the inner and outer sides with a soft cloth or a sponge using warm and soapy water.
• Remove the parts individually and clean with soapy water. Do not wash in washing machine.
• Never use flammable, explosive or corrosive material like thinner, gas, acid for cleaning.

to clean it.

Cartoon illustration of a smiling refrigerator with arms and legs, accompanied by a pencil and bowl (no text or symbols)

Cartoon illustration of a smiling refrigerator with a hand brushing it, accompanied by a small bottle and a cup (no text or symbols)

Cartoon illustration of a smiling refrigerator and two smaller bottles (no text or symbols)

Illustration of a hand holding a tool inside a rack (no text or symbols visible)

- You should clean the condenser with broom at least once a year in order to provide energy saving and increase the productivity.

Make sure that your fridge is unplugged while cleaning.

Defrosting

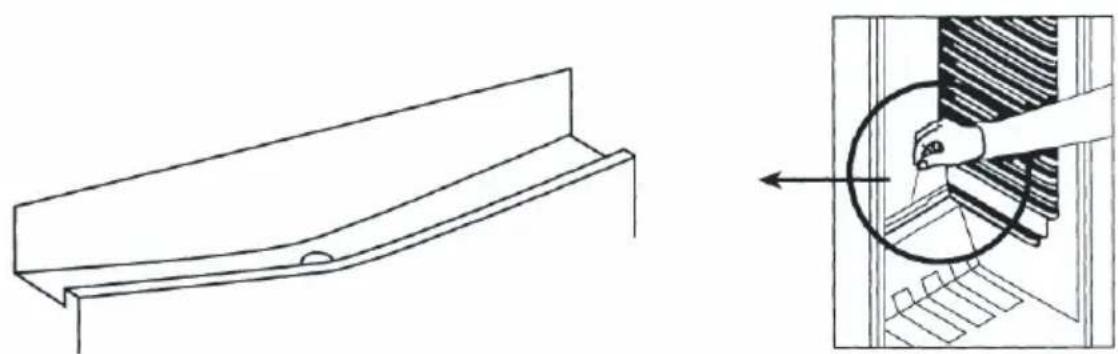

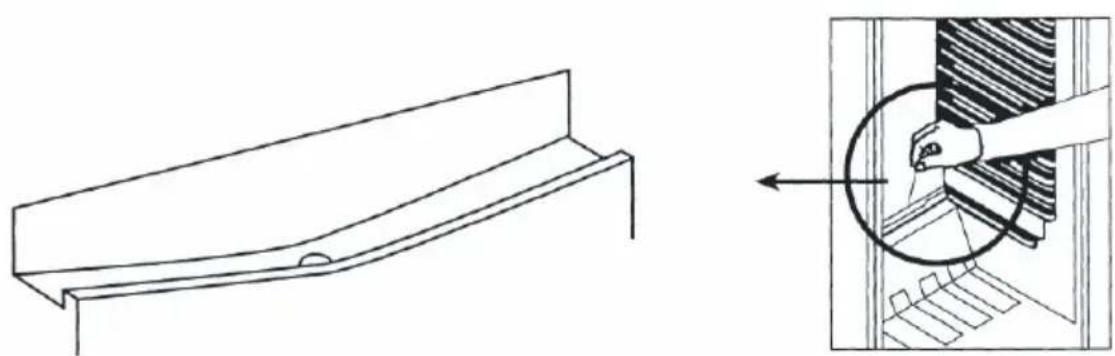

Refrigerator compartment;

Technical line drawing of a mechanical component with an inset showing a hand holding a circular component (no text or symbols present)

- Defrosting occurs automatically in refrigerator compartment during operation; the defrost water is collected by the evaporating tray and evaporates automatically.

- The evaporating tray and the defrost water drain hole should be cleaned periodically with defrost drain plug to prevent the water from collecting on the bottom of the refrigerator instead of flowing out.

- You can also pour 1/2 glass of the water to drain hole to clean inside.

Freezer compartment;

The frost, accumulated in the freezer compartment, should be removed periodically. (Use the plastic scraper provided) The freezer compartment should be cleaned in the way as the refrigerator compartment, with the defrost operations of the compartment at least twice a year.

For this;

- The day before you defrost, set the thermostat dial to "5" position to freeze the foods completely.

- During defrosting, frozen foods should be wrapped in several layers of paper and kept in a cool place. The inevitable rise in temperature will shorten their storage life. Remember to use these foods within a relatively short period of time.

- Set thermostat knob to position « 0 » or unplug the unit; leave the door open until completely defrosted.

- To accelerate the defrosting process one or more basins of warm water can be placed in the freezer compartment.

- Dry the inside of the unit carefully and set the thermostat knob to MAX position.

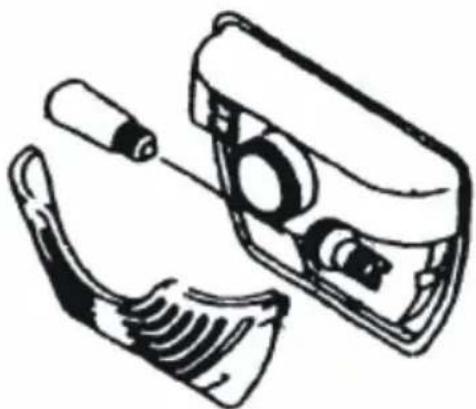

Replacing the light bulb

Line drawing of a pair of electronic devices with no visible text or symbols

To replace the bulb in freezer and fridge departments;

1- Unplug your fridge.
2- Remove the cover of the box from the claws using a screwdriver.
3- Replace with a bulb of maximum 15 Watts.
4- Install the cover.
5- Wait for 5 minutes before re-plugging and bring the thermostat to its original position.

PART - 5. SHIPMENT AND REPOSITIONING

• Original package and foam may be kept for re-transportation (optionally).
• You should fasten your fridge with thick package, bands or strong cords and follow the instructions for transportation on the package for re-transportation.
• Remove movable parts (shelves, accessories, vegetable bins etc.) or fix them into the fridge against shocks using bands during re-positioning and transportation.
• Carry your fridge in the upright positio.

Simple line drawing of two children playing a board game (no text or symbols)

Repositioning the door (In some models)

You can reposition the doors of your fridge. Contact nearest Authorized service for this.

PART - 6. BEFORE CALLING YOUR AFTER SALES SERVICE

If your refrigerator is not working properly, it may be a minor problem, therefore check the following, before calling an electrician to save time and money.

What to do if your refrigerator does not operate ;

Check that ;

• There is no power,
• The general switch in your home is disconnected,
• The thermostat setting is on« 0 »position,
• The socket is not sufficient. To check this, plug in another appliance that you know which is working into the same socket.

What to do if your refrigerator performs poorly ;

Check that ;

• You have not overloaded the appliance,
  • The doors are closed perfectly,
• There is no dust on the condenser,
• There is enough place at the rear and side walls.

If there is noise ;

The cooling gas which circulates in the refrigerator circuit may make a slight noise(bubbling sound) even when the compressor is not running. Do not worry this is quite normal. If these sounds are different check that ;

• The appliance is well leveled
- Nothing is touching the rear.
- The stuffs on the appliance are vibrating.

If there is water in the lower part of the refrigerator ;

Check that ;

The drain hole for defrost water is not clogged(Use defrost drain plug to clean the drain hole)

If your fridge is not cooling enough;

Your fridge is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. We do not recommend operating your fridge out of stated temperatures value limits in terms of cooling effectiveness.

Climate Class	Ambient Temperature (°C)
T	Between 16 and 43 (°C)
ST	Between 16 and 38 (°C)
N	Between 16 and 32 (°C)
SN	Between 10 and 32 (°C)

Recommendations

• In order to increase space and improve the appearance, the « cooling section » of this appliance is positioned inside the back wall of the refrigerator compartment. When the appliance is running, this wall is covered with frost or water drops, according to weather the compressor is running or not. Do not worry. This is quite normal. The appliance should be defrosted only if an excessively thick layer forms on the wall.
• If the appliance is not used for long time (for example during the summer holidays)Defrost and clean the refrigerator leaving the door open to prevent the formation of midew and smell.
• To stop the appliance completely, unplug from main socket (for cleaning and when the doors are left open)

Conformity Information

• Tropical Class is defined for the environment temperatures between 16^ and 43^ in accordance with the TS EN ISO 15502 Standards.
• The appliance is designed in compliance with the EN15502, IEC60335-1 / IEC60335-2-24, 2004/108/EC standards.

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS

Labeled diagram of a refrigerator interior with numbered parts for identification

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.

A) Freezer compartment
B) Cooler compartment

1) Freezer shelf
2) Ice tray
3) Plastic Ice scraper
4) Thermostat box
5) Turbo fan (if available on your product*)
6) Refrigerator shelf

For your safety please read the following information

Warning: This appliance must be earthed.

This appliance operates from 220-240 volts and should be protected by a 13 amp fuse in the plug.

The appliance is supplied with a standard 13 amp 3-pin mains plug fitted with a 13-amp fuse. Should the fuse require replacement, it must be replaced with a fuse rated at 13 amp and approved to BS1362.

If the mains plug which is fitted is unsuitable for the socket outlet in your home or is removed for any other reason, please follow the instructions below on how to wire a 13 amp 3 pin plug..

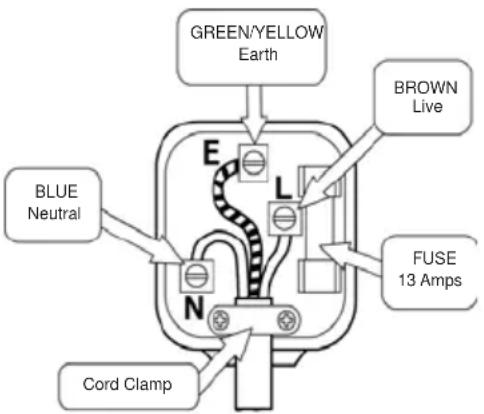

How to wire a 13 amp plug.

Important

The wires in the mains lead on this appliance are coloured in accordance with the following code:

Green and Yellow - Earth

Blue – Neutral

Brown – Live

GREEN/YELLOW Earth BROWN Live BLUE Neutral FUSE 13 Amps Cord Clamp

As the colours may not correspond with the markings identifying the terminals in your plug proceed as follows.

The green and yellow wire must be connected to the terminal in the plug which is marked with the letter E or with the earth symbol 1= or coloured green and yellow.

The blue wire must be connected to the terminal marked N.

The brown wire must be connected to the terminal marked L.

You must make sure the lead is firmly secured under the cord clamp.

Inhalt

AUFSTELLUNG 16

Sicherheits Information....16

Hinweise 17

Symbol of a trash bin crossed with diagonal lines, no text or labels present

Illustration showing three hand positions demonstrating a cable or wire manipulation technique (no text or symbols present)

Illustration showing four different types of hazardous items: a door with a face, a close-up photo, a bottle with waste, and a hand holding a stop.

Cartoon illustration of a refrigerator, a rolled-up refrigerator, and a smiling refrigerator with a door (no text or symbols)

Vor Inbetriebnahme

Simple line drawing of a hand holding a smiling face next to a square with arms (no text or symbols)

TEIL 2. FUNKTIONEN

Temperaturregelung

Line drawing of a mechanical component with internal gear and ventilation slots (no text or symbols)

Simple line drawing of a door with tassels and a sun symbol (no text or labels)

Illustration showing three steps of a dental abacus: pressing, moving, and removing a tooth (no text or symbols present)

Technical diagram showing four different types of heat exchanger or cooling unit designs with labeled components and directional arrows.

Illustration of various household appliances and fixtures including a refrigerator, washing machine, and showerheads (no text or symbols)

Illustration of a hand holding a circular object inside a container (no text or symbols visible)

Abtauen

Kühlteil;

Technical line drawing of a structural component with an inset showing a hand holding a circular component (no text or symbols present)

Line drawing of a pair of electronic devices, one with a lens and the other with a bulb (no text or symbols)

Simple line drawing of two children playing a board game (no text or symbols)

Labeled diagram of a refrigerator interior with numbered parts for identification
