RIFF50502NF - Refrigerator NORDMENDE - Free user manual and instructions

Product Type	Refrigerator
Brand	Nordmende
Model	RIFF50502NF
Energy Class	F
Total Net Capacity	255 L
Fridge Net Capacity	180 L
Freezer Net Capacity	75 L
Freezing Capacity	4 kg/24h
Annual Energy Consumption	248 kWh
Noise Level	40 dB
Climate Class	SN-ST
Dimensions (HxWxD)	1800 x 595 x 600 mm
Weight	65 kg
Power Supply	220-240 V, 50 Hz
Current	0.7 A
Refrigerant	R600a
Defrost System	Frost Free
Main Functions	Cooling, freezing, adjustable shelves, salad crisper, door storage
Cleaning and Maintenance	Defrost freezer manually when ice > 5 mm; clean interior with mild soap, rinse and dry
Safety Features	Automatic defrost, adjustable thermostat, short circuit protection
Spare Parts Availability	Contact Nordmende after-sales service
Repairability Index	7.0 / 10
Warranty	Standard 2 years

Frequently Asked Questions - RIFF50502NF NORDMENDE

What is the ideal temperature for the fridge and freezer compartment?

The recommended fridge temperature is between +1°C and +5°C, and the freezer should be set at -18°C for optimal preservation.

How do I defrost the freezer?

This model is frost-free, meaning it automatically defrosts. No manual defrosting is needed. If ice builds up, check the door seal or call service.

What should I do if the appliance is not cooling?

Check that the power cord is plugged in, the thermostat is set correctly, and the door is closed properly. Ensure the condenser coils are clean and not blocked.

How can I reduce energy consumption?

Keep the appliance away from heat sources, allow hot food to cool before placing inside, and avoid opening the door unnecessarily. Set the thermostat to the recommended temperatures.

Is the refrigerator reversible?

Yes, the door swing can be reversed to open from the left or right. Refer to the user manual for step-by-step instructions.

What is the noise level of this fridge?

The noise level is approximately 40 dB, which is normal for a compressor-based refrigerator. Some sounds like clicking or humming are part of normal operation.

Can I store bottles in the door?

Yes, the door has adjustable bins designed for bottles, cans, and jars. Do not overload them to prevent damage.

How do I clean the fridge?

Unplug the appliance, remove all items, and clean interior surfaces with a soft cloth and mild dish soap. Rinse with clean water and dry thoroughly. The exterior can be wiped with a damp cloth.

What should I do if the fridge makes a loud noise?

Check if the appliance is level on the floor. Adjust the feet if necessary. Also ensure that the back coils are not touching the wall or any object.

How long does food stay fresh in the fridge?

Fresh food can be stored for 1-3 days in the fridge. For longer storage, use the freezer compartment. Ensure food is properly sealed to maintain freshness.

USER MANUAL RIFF50502NF NORDMENDE

Two stacked rectangular shapes with horizontal lines and a minus symbol in the top row (no text or symbols inside)

Contents

BEFORE USING THE APPLIANCE 4

General warnings ....4

Old and out-of-order fridges 6

Safety warnings....6

Installing and operating your fridge freezer ....7

Before Using your fridge freezer....8

HOW TO OPERATE THE APPLIANCE......8

Information on the Frost Free technology....8

Thermostat setting....9

Warnings for Temperature Settings 9

Accessories 10

Ice tray 10

Bottle holder (In some models)....10

FOOD STORAGE IN THE APPLIANCE....11

Fridge compartment 11

Freezer compartment 11

CLEANING AND MAINTENANCE 15

Defrosting 15

Replacing the refrigerator light bulb....16

TRANSPORTATION AND CHANGING OF INSTALLATION POSITION 16

BEFORE CALLING YOUR AFTER SALES SERVICE....16

Tips for saving energy 17

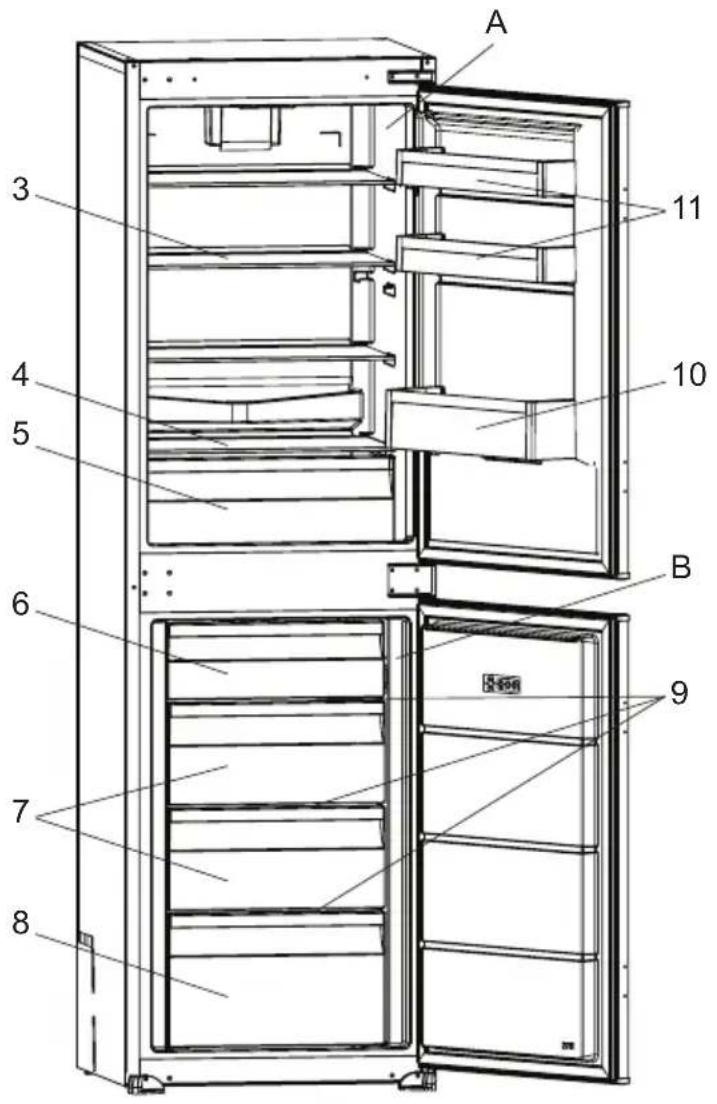

PARTS OF THE APPLIANCE AND THE COMPARTMENTS ...... 18

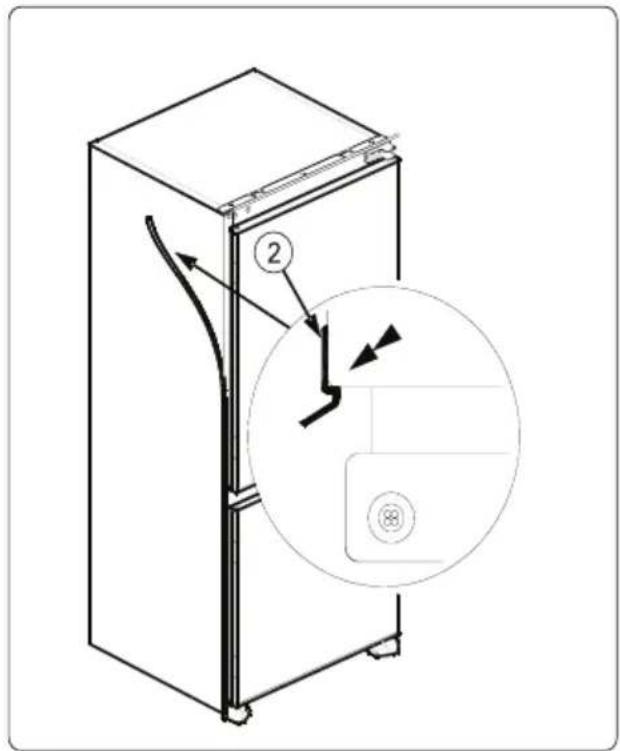

Installation 19

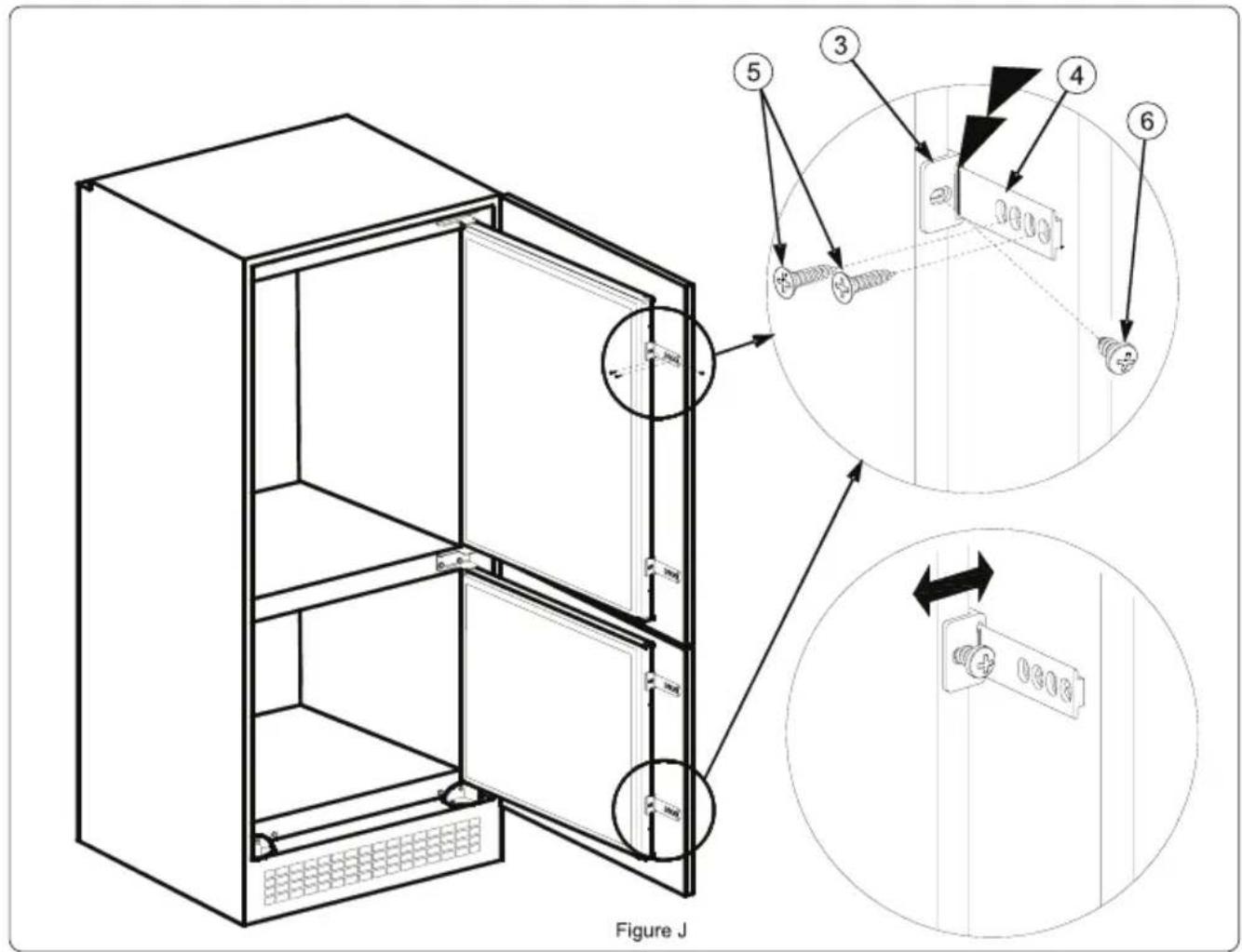

Door reversing 22

The operating instructions apply to several models. Differences may therefore occur.

PART - 1. BEFORE USING THE APPLIANCE

General warnings

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: To avoid a hazard due to the instability of the appliance, it must be fixed in accordance with the instructions.

- If your appliance uses R600a as a refrigerant (this information will be provided on the label of the cooler) you should take care during transportation and installation to prevent the cooler elements from being damaged. R600a is an environmentally friendly and natural gas, but it is explosive. In the event of a leak due to damage of the cooler elements, move your fridge away from open flames or heat sources and ventilate the room where the appliance is located for a few minutes.

- While carrying and positioning the fridge, do not damage the cooler gas circuit.

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

- This appliance is intended to be used in household and domestic applications such as:

• staff kitchen areas in shops, offices and other working environments.

• farm houses and by clients in hotels, motels and other residential type environments.

• bed and breakfast type environments;

• catering and similar non-retail applications.

• If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, a service agent or similarly qualified persons in order to avoid a hazard.

• A specially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a specially grounded socket of 13 amperes. If there is no such socket in your house, please have one installed by an authorised electrician.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• If the supply cord is damaged, it must be replaced by the manufacturer, an authorised service agent or similar qualified persons, in order to avoid a hazard.
• This appliance is not intended for use at altitudes exceeding 2000 m.

Old and out-of-order fridges

- If your old fridge has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.

Pure diagram of a trash bin with no text, numbers, or symbols

- Old fridges and freezers may contain isolation material and refrigerant with CFC or HFC. Therefore, take care not to harm environment when you are discarding your old fridges.

- Please ask your municipal authority about the disposal of the WEEE reuse, recycle and recovery purposes.

Notes:

- Please read the instruction manual carefully before installing and using your appliance. We are not responsible for the damage occurred due to misuse.

- Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.

- This appliance is produced to be used in homes and it can only be used in domestic environments and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for losses incurred.

- This appliance is produced to be used in houses and it is only suitable for cooling / storing food. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for losses to be incurred in the contrary case.

Safety warnings

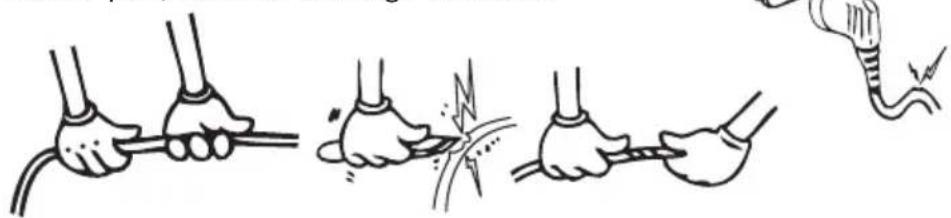

• Do not connect your fridge freezer to the mains electricity supply using an extension lead.
• Do not plug in damaged, torn or old plugs.
• Do not pull, bend or damage the cord.

Illustration showing four different techniques for connecting wires, including cable, wire, and plug (no text or symbols present)

• This appliance is designed for use by adults, do not allow children to play with the appliance or let them hang off the door.
• Never touch the power cord/plug with wet hands as this could cause a short circuit or electric shock.
• Do not place glass bottles or beverage cans in the ice-making compartment as they can burst as the contents freeze.
• Do not place explosive or flammable material in your fridge freezer. Place drinks with high alcohol content vertically in the fridge compartment and make sure that their tops are tightly closed.
• When removing ice from the ice-making compartment, do not touch it. Ice may cause frost burns and/or cuts.
• Do not touch frozen goods with wet hands! Do not eat ice-cream

Cartoon illustration of a character inside a computer door, showing arms and legs (no text or symbols)

Simple line drawing of two bottles and a glass with spikes, no text or symbols present

and ice cubes immediately after you have taken them out of the freezer compartment!

- Do not touch frozen goods with wet hands. Do not eat ice-cream or ice cubes immediately after you have taken them out of the ice-making compartment.

- Do not cover the body or top of fridge with lace. This affects the performance of your fridge freezer.

- Secure any accessories in the fridge freezer during transportation to prevent damage to the accessories.

Installing and operating your fridge freezer

Before starting to use your fridge freezer, you should pay attention to the following points:

- The operating voltage for your fridge freezer is 220-240 V at 50Hz.

- The plug must be accessible after installation.

- Your fridge may have a smell when it is operated for the first time. This is normal and the smell will fade away when your fridge freezer starts to cool.

- Before connecting your fridge freezer, ensure that the information on the data plate (voltage and connected load) matches that of the mains electricity supply. If in doubt, consult a qualified electrician.

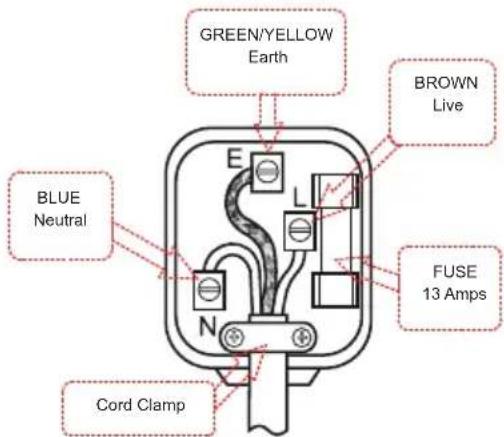

- Insert the plug into a socket with an efficient ground connection. If the socket has no ground contact or the plug does not match, we recommend that you consult a qualified electrician for assistance.

- The appliance must be connected with a properly installed fused socket. Power supply (AC) and voltage at the operating point must match with the details on the name plate of the appliance (name plate is located on the inside left of the appliance).

- We do not accept responsibility for any damages that occur due to ungrounded usage.

- Place your fridge freezer where it will not be exposed to direct sunlight.

- Your fridge freezer should never be used outdoors or exposed to rain.

- Your appliance should be at least 50 cm away from stoves, gas ovens and heater cores, and at least 5 cm away from electrical ovens.

- When your fridge freezer is placed next to a deep freezer, there should be at least 2 cm between them to prevent humidity forming on the outer surface.

- Do not place heavy items on the appliance.

- Clean the appliance thoroughly, especially the interior, before use (see Cleaning and Maintenance).

- The installation procedure into the kitchen unit is given in the installation manual. This product is intended to be used in proper kitchen units only.

- Before using your fridge freezer, wipe all parts with a solution of warm water and a teaspoon of sodium bicarbonate, then rinse with clean water and dry. Place all parts in the fridge freezer after cleaning.

Before Using your fridge freezer

- When using your fridge freezer for the first time, or after transportation, keep it in an upright position for at least 3 hours before plugging into the mains. This allows efficient operation and prevents damage to the compressor.

Simple line drawing of a smiling face on a phone and a hand reaching toward it (no text or symbols)

- Your fridge freezer may have a smell when it is operated for the first time. This is normal and the smell will fade away when your fridge freezer starts to cool.

HOW TO OPERATE THE APPLIANCE

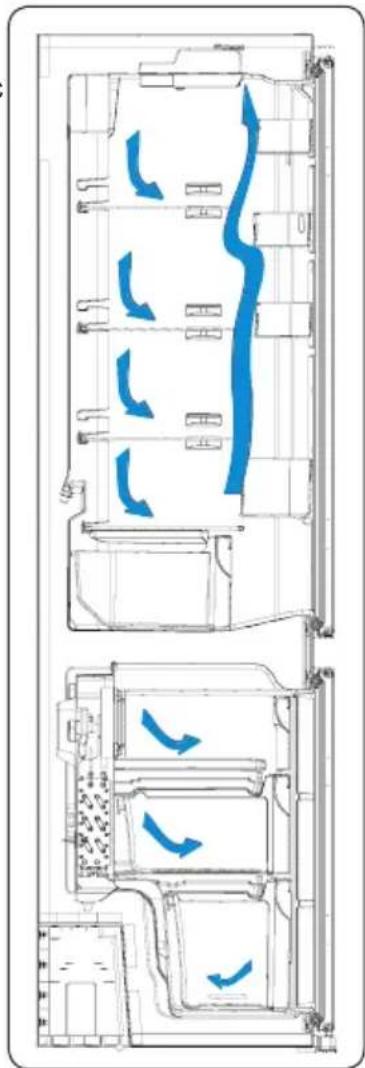

Information on the Frost Free technology

The Frost Free refrigerators are different from the other static refrigerators in terms of their operational system.

In normal fridge freezers, the humidity entering the fridge freezer due to opening the door and the humidity inherent in the food causes freezing in the freezer compartment. To defrost the frost and ice in the freezer compartment, you are periodically required to turn off the fridge, place the food that needs to be kept frozen in a separately cooled container and remove the ice gathered in the freezer compartment.

The situation is completely different in no-frost refrigerators. Dry and cold air is blown into the fridge and freezer compartments homogeneously and evenly from several points via a blower fan. Cold air dispersed homogeneously and evenly between the shelves cools all of your food equally and uniformly, thus preventing humidity and freezing.

Therefore your no-frost fridge freezer allows you ease of use, in addition to its huge capacity and stylish appearance.

Architectural floor plan showing room layouts and ventilation ducts with blue directional arrows (no text or labels)

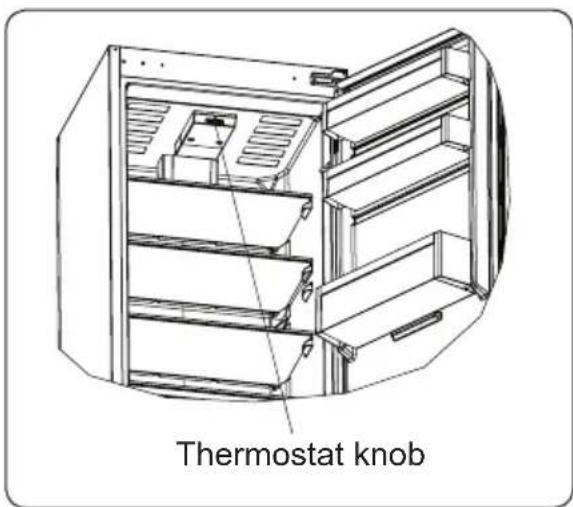

Thermostat setting

Cooling compartment

It ensures that the temperature settings in the cooling and freezing compartments of your refrigerator are performed automatically. It may be set to any value ranging from 1 to 5. As you turn the thermostat setting knob from 1 to 5, the temperature decreases. To save energy in winter months, operate your refrigerator in a lower position.

Fridge compartment thermostat knob;

4 - 5 : For further cooling.

2 - 3 : For normal use.

1: For less cooling.

Warnings for Temperature Settings

• The ambient temperature, temperature of the freshly stored food and how often the door is opened affects the temperature in the refrigerator compartment. If required, change the temperature setting.
• It is not recommended that you operate your fridge in environments colder than 10^ C in terms of its efficiency.
• The thermostat should be set by taking into consideration how often the fresh food and freezer doors are opened and closed, how much food is stored in the refrigerator, and the environment in which the refrigerator is located.
• When you first switch on the appliance, you should ideally try to run it without any food in for 24 hours and not open the door. If you need to use it straight away, try not to put a large quantity of food inside.
• A 5 minute delay function is included to prevent damage to the compressor of your fridge, when you unplug it and then plug it in again to operate it, or when an energy breakdown occurs. Your fridge will start to operate normally after 5 minutes.
• Your fridge is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. It is not recommended that your fridge is operated in the environments which are out of the

stated temperature intervals. This will reduce the cooling efficiency of the fridge.

- This appliance is designed for use at an ambient temperature within the 16°C - 38°C range.

Climate class	Ambient Temperature (°C)
T Between 16 and 43	°C
ST Between 16 and 38	°C
N Between 16 and 32	°C
SN Between 10 and 32	°C

Accessories

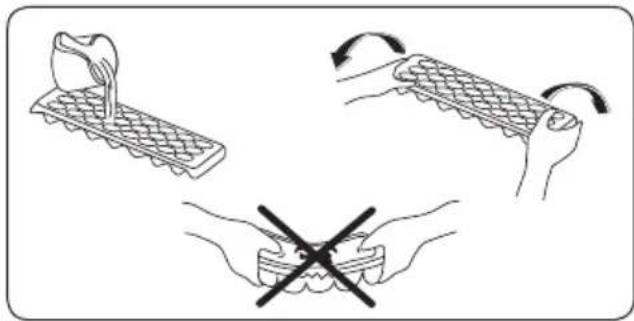

Ice tray (In some models)

• Fill the ice tray with water and place in the freezer compartment.
  • After the water has completely turned into ice, you can twist the tray as shown below to remove the ice cubes.

Illustration showing three hand positions: a keyboard, a hand holding a tray, and a hand with a cross mark (no text or symbols)

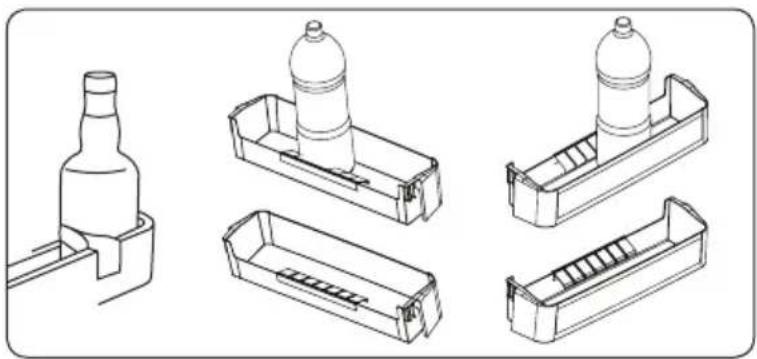

Bottle holder (In some models)

In order to prevent bottles from slipping or falling over, you can use the bottle holder. This will also help to prevent the noise made by bottles when opening or closing the door.

Technical line drawings of mechanical components including a bottle holder, plastic bottles in trays, and a rack with slots (no text or symbols)

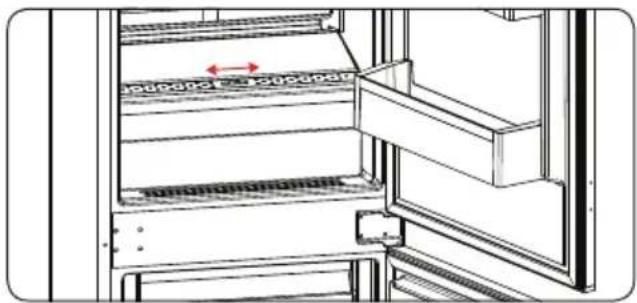

Fresh dial

When the humidity controller in the closed position, it allows fresh fruit and vegetables to be stored longer.

In case of the crisper is totally full, the fresh dial is located in front of crisper, should be opened. By means of this the air in the crisper and humidity rate will be controlled and endurance life will be increased.

Line drawing of a refrigerator interior showing the door, shelves, and storage compartments (no text or symbols)

If you see any condensation on glass shelf, humidity control should be taken into the open positions.

All written and visual descriptions in the accessories may vary according to the appliance model.

FOOD STORAGE IN THE APPLIANCE

Refrigerator Compartment

• Always make sure food is wrapped or stored in closed containers.
- Hot food and drinks should be cooled to room temperature before being placed in the refrigerator.
- Please do not store packaged food and cups against the lamp and cover of the cooling compartment.
- Store fruit and vegetable items loose in the crisper containers.
- Some recommendations have been specified below for the placement and storage of your food in the cooling compartment.ainers.

Some recommendations have been specified below for the placement and storage of your food in the cooling compartment.

Food Maximum	Storing time	Where to place in the fridge department
Vegetables and fruits 1	week Vegetable bin
Meat and fish 2 - 3 Days		Wrapped in plastic foil or bags or in a meat container(on the glass shelf)
Fresh cheese 3 - 4 Days	In special door shelf
Butter and margarine 1	week In special door shelf
Bottled products milk and yoghurt	Until the expiry date recommended by the producer	In special door shelf
Eggs 1 month In the egg	shelf
Cooked food All shelves

Freezer Compartment

• Please use the deep freeze compartment of your refrigerator for storing frozen food for a long time and producing ice.
• Please place the food you would like to freeze initially in the upper basket of the deep freeze in such a way that it does not exceed the declared freezing capacity of your refrigerator. Please do not place the food to be frozen near the already frozen food. You may place your food next to the other frozen food after it has frozen (for at least 24 hours).
• You should freeze food (meat, minced meat, fish, etc.) by dividing it into portions in such a way that they can be consumed in one sitting.
• Please do not refreeze frozen food once it has thawed. It may pose a danger for your health since it might cause food poisoning.
• Do not place hot meals in the deep freeze before they have cooled. You may cause the other food frozen food in the deep freeze to become putrefied.

• When you buy frozen food, make sure they were frozen under appropriate conditions and that the package is not torn.

• When storing frozen food, the storage conditions on the package should be observed. If there are no instructions, the food has to be consumed in the shortest possible period of time.

• Frozen food has to be transported before it perishes and should be placed in the fast freezing shelf as soon as possible. Please do not use the door shelves for freezing purposes.
• If a frozen food package has been humidified and has a foul smell, the food might have previously been stored under suitable conditions and gone rotten. Please do not buy such food!
• The storage duration of frozen food changes depending on the environmental temperature, the frequent opening and closing of the doors, thermostat settings, food type and the length of time that has elapsed from the time the food was bought to the time it entered the freezer. Always abide by the instructions on the packaging and never exceed the storage duration.

Some recommendations have been specified below for the placement and storage of your food in the cooling compartment.

Dairy Products Preparation		Maximum Storing time (months)	Storing Conditions
Packet (Homogenize) Milk	In its own packet 2 - 3		Pure Milk – In its own packet
Cheese-excluding white cheese	In slices 6 - 8		Original package may be used for short storing period. It should be wrapped in foil for longer periods.
Butter, margarine In	its package 6

	Maximum Storing time (months)	Thawing time in room temperature (hours)	Thawing time in oven (minutes)
Bread 4 - 6 2 - 3	4-5 (220-225 °C)
Biscuits 3 - 6 1	1,5 5-8 (190-200 °C)
Pastry 1 - 3 2 -	3 5-10 (200-225 °C)
Pie	1 - 1,5 3 - 4 5-8 (190-200 °C)
Phyllo dough	2 - 3 1 - 1,5 5-8 (190-200 °C)
Pizza	2 - 3 2 - 4 15-20 (200 °C)

Meat and fish Preparation	Maximum Storing time (month)
Steak Wrapping in a foil 6 - 8
Lamb meat Wrapping in a foil 6 - 8
Veal roast Wrapping in a foil 6 - 8
Veal cubes In small pieces 6 - 8
Lamb cubes In pieces 4 - 8
Minced meat In packages without using spices 1 - 3
Giblets (pieces) In pieces 1 - 3
Bologna sausage/salami	Should be packaged even if it has membrane
Chicken and turkey Wrapping in a foil 4 - 6
Goose and Duck Wrapping in a foil 4 - 6
Deer, Rabbit, Wild Boar	In 2.5 kg portions and as fillets
Fresshwater fishes (Salmon, Carp, Crane, Siluroidea)	After cleaning the bowels and scales of the fish, wash and dry it; and if necessary, cut off the tail and head.
Lean fish; bass, turbot, flounder
Fatty fishes (Tunny, Mackarel, bluefish, anchovy)
Shellfish	Cleaned and in bags
Caviar	In its package, aluminium or plastic container
Snails	In salty water, aluminum or plastic container

Note: Frozen meat should be cooked as fresh meat after being thawed. If the meat is not cooked after being thawed, it must not be re-frozen.

Vegetables and Fruits Preparation		Maximum Storing time (months)
String beans and beans	Wash and cut into small pieces and boil in water	10 - 13
Beans Hull and wash and	boil in water 12
Cabbage Cleaned and boil	in water 6 - 8
Carrot Clean and cut to slices and boil in water 12
Pepper	Cut the stem, cut into two pieces, remove the core and boil in water	8 - 10
Spinach Washed and boil	in water 6 - 9
Cauliflower	Take the leaves apart, cut the heart into pieces, and leave it in water with a little lemon juice for a while	10 - 12
Eggplant Cut to pieces of	2cm after washing 10 - 12
Corn	Clean and pack with its stem or as sweet corn	12
Apple and pear Peel and slice 8 - 10
Apricot and Peach Cut into two pieces and remove the stone	4 - 6
Strawberry and Blackberry	Wash and hull 8 - 12
Cooked fruits	Adding 10 % of sugar in the container	12
Plum, cherry, sourberry	Wash and hull the stems	8 - 12

PART 4. CLEANING AND MAINTENANCE

- Disconnect the unit from the power supply before cleaning.

- Do not clean the appliance by pouring water.

• Make sure that no water enters the lamp housing and other electrical components.

- The refrigerator should be cleaned periodically using a solution of bicarbonate of soda and lukewarm water.

Cartoon illustration of a smiling refrigerator with thumbs up and a bowl of food (no text or symbols)

- Clean the accessories separately with soap and water Do not clean them in the dishwasher.

Technical line drawing of a multi-tiered storage unit or rack system (no text or symbols)

- Do not use abrasive products, detergents or soaps. After washing, rinse with clean water and dry carefully. When you have finished cleaning, reconnect the plugto the mains supply with dry hands.

Cartoon illustration of a refrigerator with a sad face and two surprised food items nearby (no text or symbols)

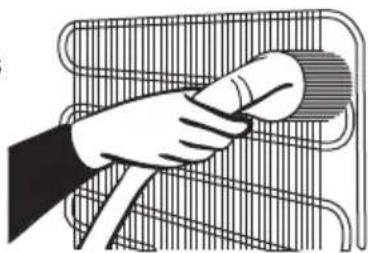

- Clean the condenser with a broom at least twice a year. This will help you to save on energy costs and increase productivity.

Illustration of a hand using a tool to clean or adjust a grid-patterned object (no text or symbols visible)

THE POWER SUPPLY MUST BE DISCONNECTED.

Defrosting

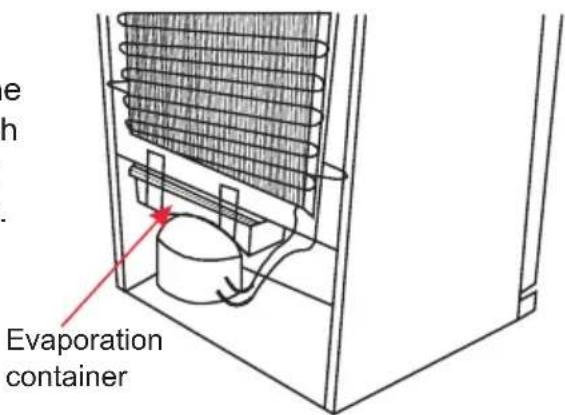

You refrigerator has fully automatic defrosting. The water formed as a result of defrosting passes through the water collection spout, flows into the vaporisation container below the condenser and evaporates there.

Replacing LED lighting

If your refrigerator has LED lighting contact the help desk as this should be changed by authorized personnel only.

PART - 5. TRANSPORTATION AND CHANGING OF INSTALLATION POSITION

Transportation and changing of installation position

• The original packages and foamed polystyrene (PS) can be retained if required.
• During transportation, the appliance should be secured with a wide string or a strong rope. The instructions written on the corrugated box must be followed while transporting.

- Before transporting or changing the installation position, all the moving objects (ie,shelves,crisper...) should be taken out or fixed with bands in order to prevent them from getting damaged.

- Carry your fridge freezer in the upright position.

Simple line drawing of two children holding a large rectangular object (no text or symbols)

BEFORE CALLING YOUR AFTER SALES SERVICE

If your refrigerator is not working properly, it may be a minor problem, in order to save time and money, check the following, before calling an electrician.

What to do if your appliance does not operate;

Check that:

• There is no power,
• The general switch in your home is disconnected,
• The socket is not faulty. To check this, plug in another appliance that you know is working into the same socket.

What to do if your appliance performs poorly,

Check that:

• You have overloaded the appliance,
• The thermostat setting is in position "1" (if so, set the thermostat dial to a suitable value)
  • The doors are closed properly,
  • There is no dust on the condenser,
• There is enough place at the rear and side walls.

If there is noise:

The cooling gas which circulates in the refrigerator circuit may make a slight noise (bubbling sound) even when the compressor is not running. Do not worry this is quite normal. If you hear any other noises, check that:

• The appliance is level
- Nothing is touching the rear of the appliance.
- The objects on the appliance are vibrating.

If there is water in the lower part of the refrigerator,

Check that:

The drain hole for the water is not clogged (use the defrost drain plug to clean the drain hole)

Recommendations

- The compressor protection thermal fuse will cutout after sudden power breakdowns or after unplugging the appliance, because the gas in the cooling system is not stabilised. This is quite normal and the fridge will restart after 4 or 5 minutes.

- The cooling unit of your refrigerator is hidden in the rear of the appliance. Therefore, water droplets or icing may occur on the rear surface of your fridge due to the operation of the compressor at specified intervals. This is normal. There is no need to perform a defrosting operation unless the icing is excessive.

- To stop the appliance completely, unplug it from main socket (for cleaning and when the doors are left open).

- If a problem persists after you have followed all the instructions above, please consult the nearest Authorised Service Centre.

- The appliance you have purchased is designed for domestic use and can only be used at home and for the stated purposes. It is not suitable for commercial or common use. If the consumer uses the appliance in a way that does not comply with this, we emphasise that the manufacturer and the dealer will not be responsible for any repair and failure within the guarantee period.

- The lifetime of your appliance is stated and declared by the Department of industry. The period for retaining parts required for the operation of the appliance is 10 years.

Tips for saving energy

1. Install the appliance in a cool, well ventilated room, but not in direct sunlight and not near a heat source (radiator, cooker.. etc). Otherwise use an insulating plate.
2. Allow warm food and drinks to cool down outside the appliance.
3. When thawing frozen food, place it in the refrigerator compartment. The low temperature of the frozen food will help to cool the refrigerator compartment when it is thawing. This will help to save energy. If the frozen food is put out, it results in a waste of energy.
4. Cover drinks or other liquids when placing them in the appliance Otherwise humidity increases in the appliance. Therefore, the working time gets longer. Also covering drinks and other liquids helps to preserve smell and taste.
5. Try to avoid keeping the doors open for long periods or opening the doors too frequently as warm air will enter the cabinet and cause the compressor to switch on unnecessarily often.
6. Keep the covers of the different temperature compartments (crisper, chiller ...etc ) closed
7. Door gasket must be clean and pliable. Replace gaskets if worn.

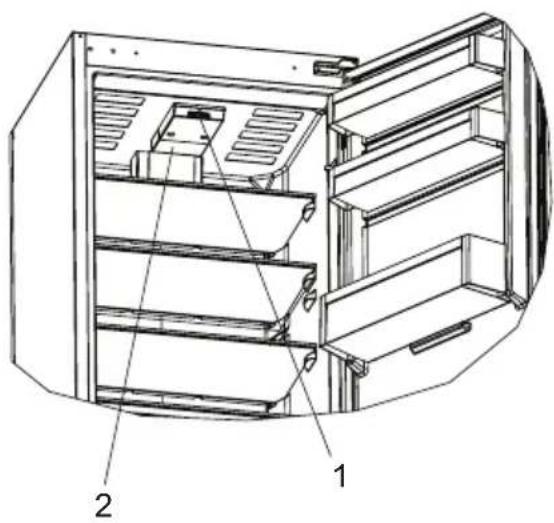

PART - 7. PARTS OF THE APPLIANCE AND THE COMPARTMENTS

12

13

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.

A) Refrigerator compartment
B) Freezer compartment

1) Thermostat knob
2) Refrigerator lamp & cover 8) Freezer bottom drawer
3) Refrigerator shelves 9) Freezer glass shelves *
4) Crisper cover 10) Bottle shelf
5) Crisper 11) Door shelves
6) Freezer room cover 12) Egg holder
7) Freezer upper drawer 13) Ice tray

* In some models

Installation

! Before installation, read the instructions carefully.

! Fit the refrigerator/freezer in stable kitchen units only.

! If necessary, reverse the door according to instructions.

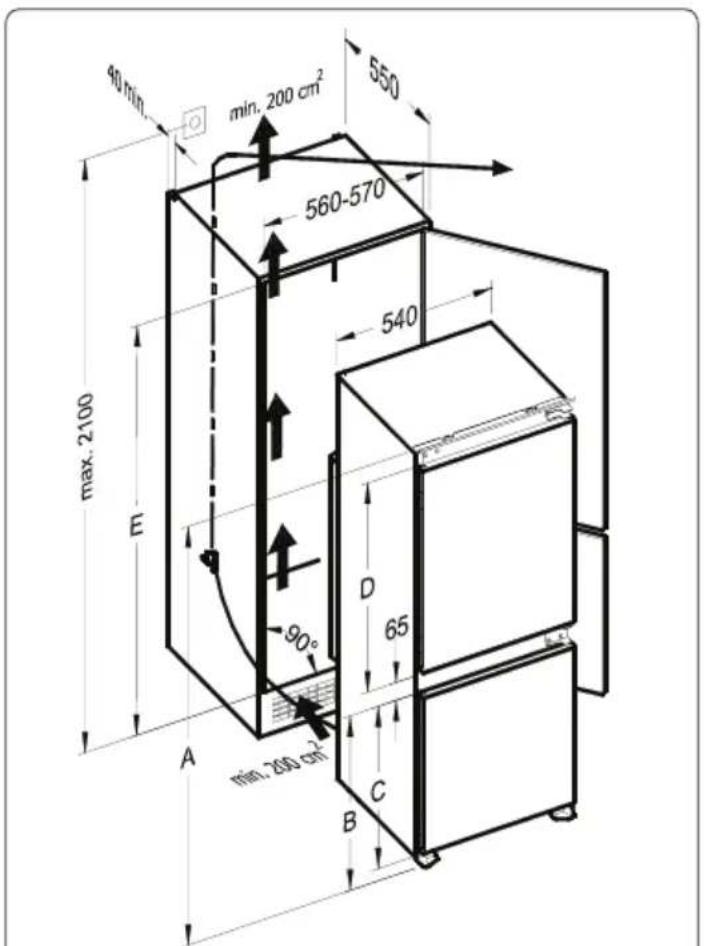

! Check the installation dimensions according to fig.C. The position of the joint between the unit doors must be level with the position of the joint between the appliance doors.

! Cabinet dimensions are changed by material of trim flap

1. If material of trim flap ^1 is plastic, look at (Table.1/E1) for cabinet dimensions.

2. If material of trim flap ^1 is metal, look at (Table.1/E2) for cabinet dimensions.

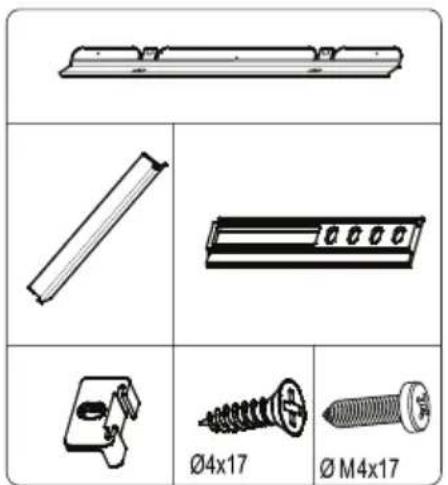

3. See fig.A for the necessary attachment components.

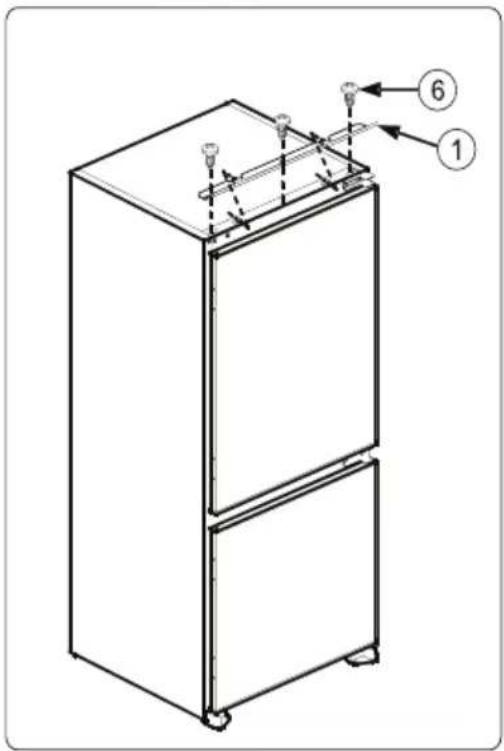

4. Insert trim flap ^1 into slot and screw by screws ^6 . (fig.D)

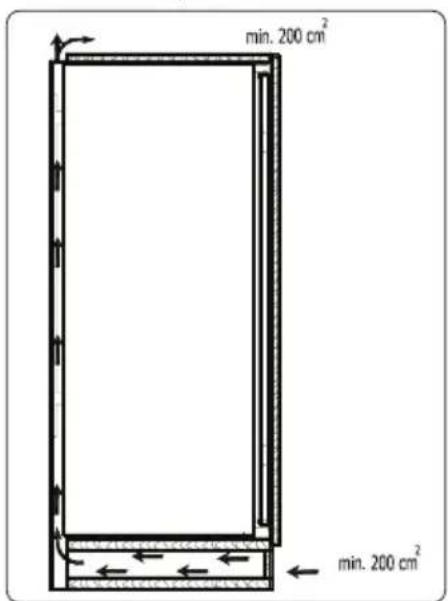

5. Pass the power cord through ventilation shaft and position it so that the appliance could be easily plugged in once it has been installed. (fig.B - fig.C)

6. Take out the trim gasket located on the side panel of the appliance and stick it on reverse side of the door hinges of the appliance. (fig.D - fig.E)

7. Raise appliance and slide into kitchen unit. Push appliance to the reverse side of door hinges providing that trim gasket ^2 covers space between appliance and the kitchen unit.

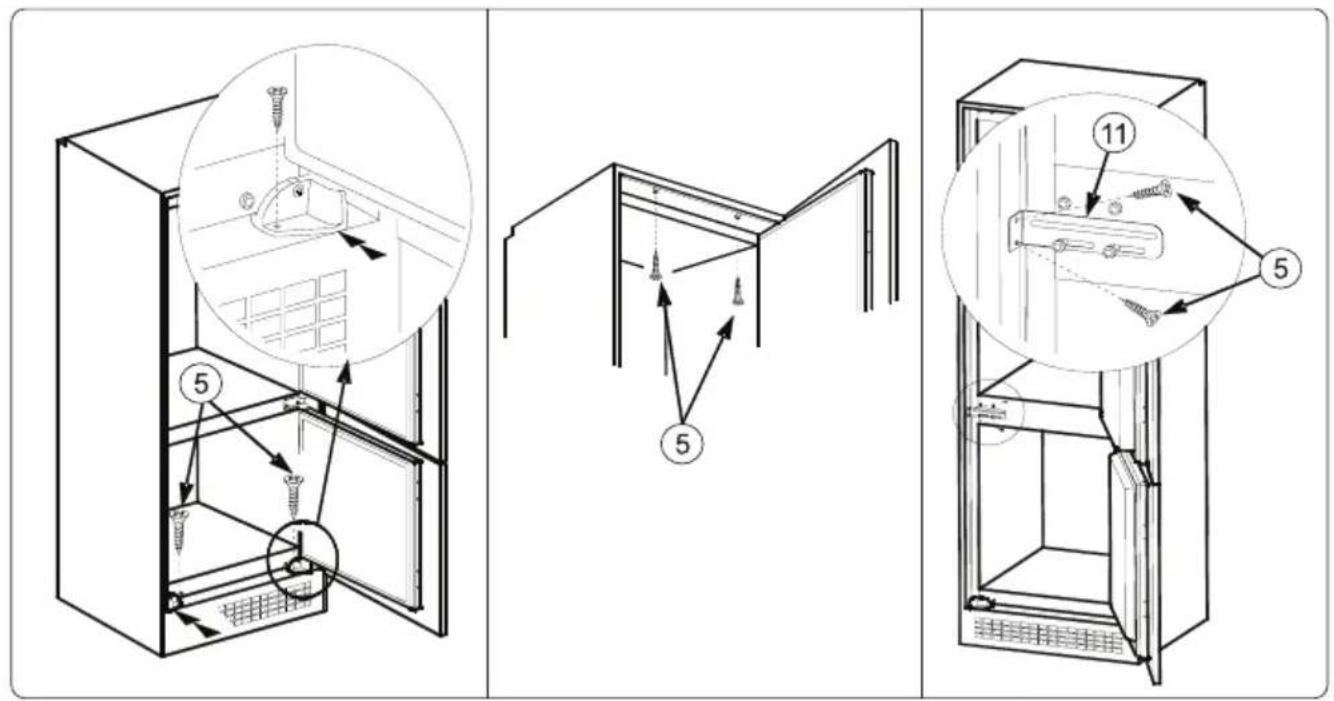

8. Align front feet with front surface of kitchen unit. (fig.F)

9. Screw the front feet by using screws ^5 . (fig.F)

10. Screw trim flap ^1 to kitchen unit using screws ^5 . (fig.G)

11. Screw fixing bracket ^11 , as leaned to kitchen unit by using screws ^5 . Repeat this for the opposite side. (fig.H)

12. Screw guides ^3 to appliance doors with screws ^6 . Lean appliance doors to unit door as it is opened at right angle. Slide rails ^4 into guides ^3 aligning the groove. Screw the rails ^4 to the unit doors with screws ^5 . (fig.J)

13. Set 1\~2 mm gap on handle side between unit itself and unit doors by adjusting guides ^3 . That is vital for appliance performance. (fig.J)

Figure A

mm
Table 1

A B C D E1(Plastic) E2(Metal)
1770 840,5 802 817 1770 - 1790 1770 - 1778

Figure B
Figure C

Figure D

Figure E

Figure F
Figure G
Figure H

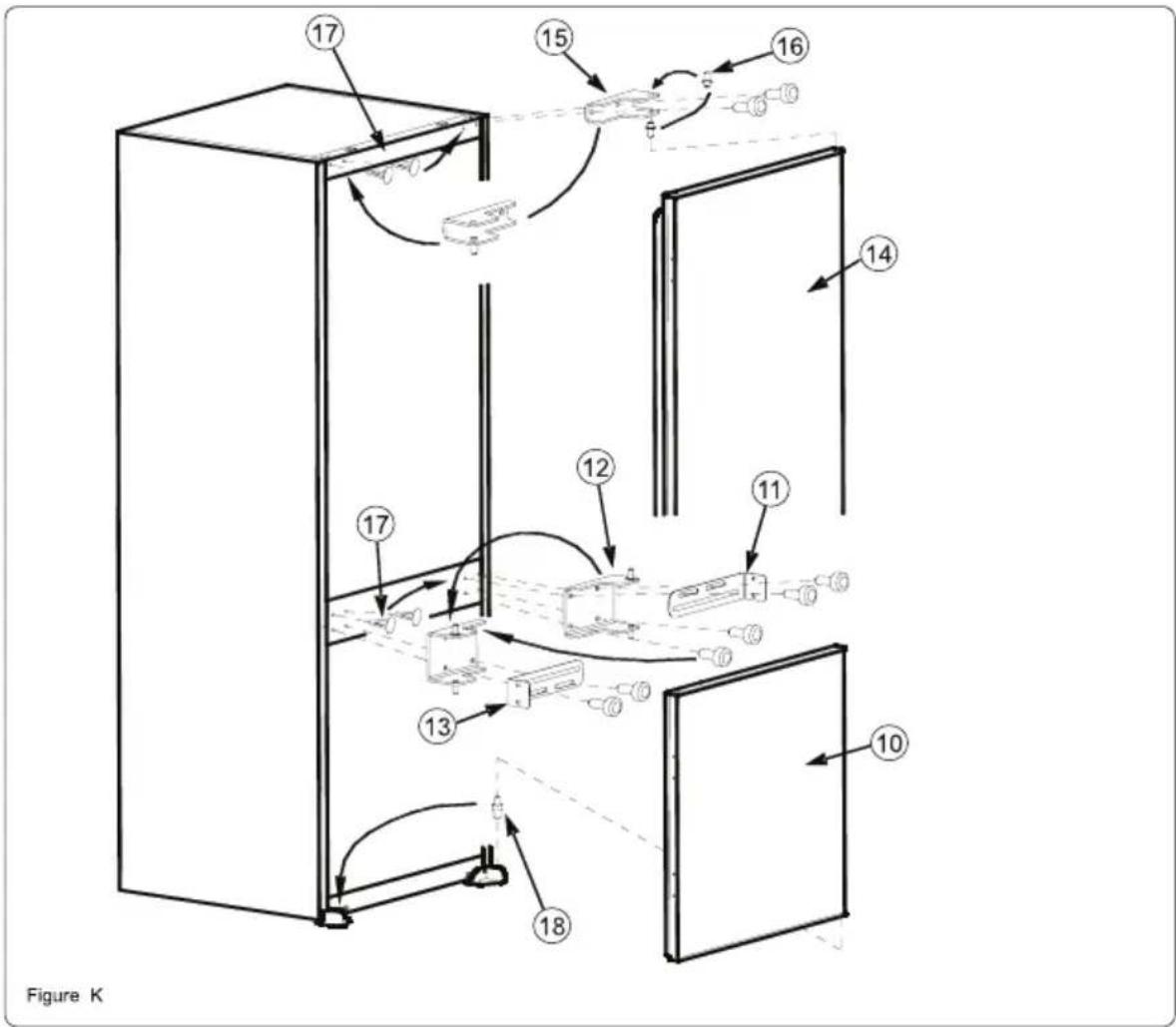

Door reversing

1. Unscrew upper door hinge ^15 and take upper door ^14 to safe place.
2. Unscrew door hinge pin ^16 and screw it to opposite side firmly and take to safe place.
3. Unscrew middle door hinge ^12 and take lower door ^10 to safe place. Screw back fixing bracket ^11 to original position without middle door hinge ^12 .
4. Take door lower pin ^8 to opposite side.
5. Take hole plugs ^4 to empty holes on opposite side.
6. Place lower door ^10 over door lower pin ^18 and close onto cabinet.
7. Unscrew fixing bracket ^3 . Position middle door hinge ^12 onto lower door ^10 . Place fixing bracket ^11 onto middle door hinge ^12 and screw together onto cabinet firmly.
8. Place upper door ^14 over middle door hinge ^12 and position upper door hinge ^15 over upper door ^14 and then screw upper door hinge ^15 firmly onto opposite side of original position.

ELECTRICAL CONNECTION (FOR UK TYPE PLUG)

For your safety please read the following information

Warning: This appliance must be earthed.

This appliance operates from 220-240 volts and should be protected by a 13 amp fuse in the plug.

The appliance is supplied with a standard 13 amp 3-pin mains plug fitted with a 13-amp fuse. Should the fuse require replacement, it must be replaced with a fuse rated at 13 amp and approved to BS1362.

If the mains plug which is fitted is unsuitable for the socket outlet in your home or is removed for any other reason, please follow the instructions below on how to wire a 13 amp 3 pin plug..

How to wire a 13 amp plug.

Important

The wires in the mains lead on this appliance are coloured in accordance with the following code:

Green and Yellow - Earth

Blue - Neutral

Brown – Live

As the colours may not correspond with the markings identifying the terminals in your plug proceed as follows.

The green and yellow wire must be connected to the terminal in the plug which is marked with the letter E or with the earth symbol 12 or coloured green and yellow.

The blue wire must be connected to the terminal marked N.

The brown wire must be connected to the terminal marked L.

You must make sure the lead is firmly secured under the cord clamp.

CE
