USER MANUAL RFF332SLAPLUS NORDMENDE

Old and out-of-order fridges 4

Safety warnings....4

Installing and operating your fridge 5

Before Using your Fridge 5

THE VARIOUS FUNCTION AND POSSIBILITIES ...... 6

Thermostat Setting 6

Super freeze and low ambient switch 7

Display panel 8

Turning On The Appliance 8

Accessories 9

Ice tray 9

Bottle holder 9

ARRANGING FOOD IN THE APPLIANCE 10

Refrigerator Compartment....10

Freezer Compartment 10

CLEANING AND MAINTENANCE 11

Defrosting refrigerator compartment 12

Defrosting Freezer compartment 12

Replacing the Refrigerator Light Bulb 13

TRANSPORTATION AND CHANGING OF INSTALLATION POSITION ....13

Repositioning the Door 13

BEFORE CALLING YOUR AFTER SALES SERVICE ....14

Tips for saving energy 15

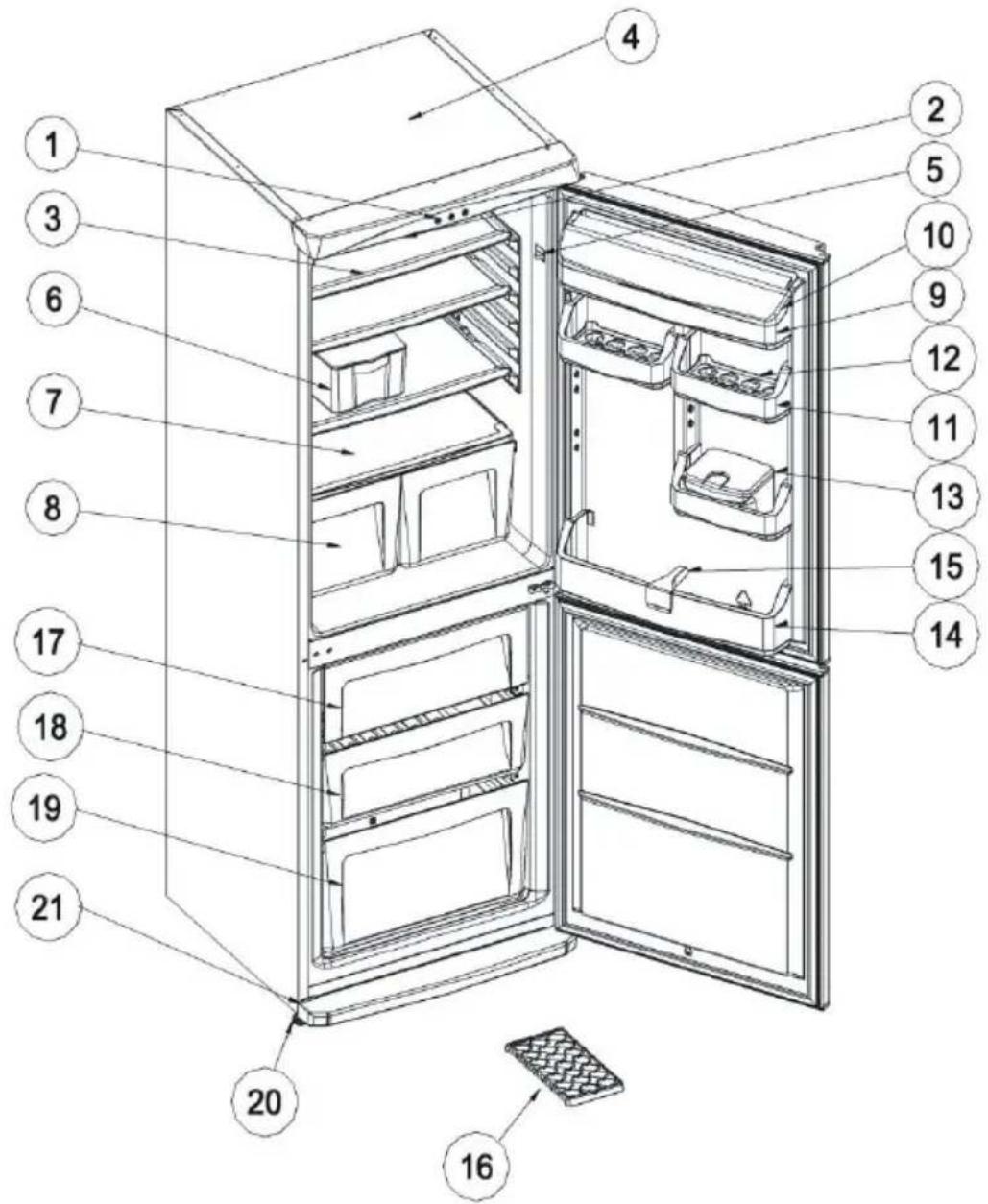

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS ....16

PART - 1. BEFORE USING THE APPLIANCE

General warnings

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not use electrical appliances inside the food storage compartments of the

appliance, unless they are of the type recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: To avoid a hazard due to the instability of the appliance, it must be fixed in accordance with the instructions.

- If your appliance uses R600a as a refrigerant – you can learn this information from the label on the cooler- you should be careful during shipment and montage to prevent your appliance’s cooler elements from being damaged. Although R600a is a environmental friendly and natural gas, as it is explosive, in case of a leakage to be occurred due to a damage in the cooler elements move your fridge from open flame or heat sources and ventilate the room where the appliance is located for a few minutes.

- While carrying and positioning the fridge, do not give damage to the cooler gas circuit.

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

- This appliance is intended to be used in household and similar applications such as;

• staff kitchen areas in shops, offices and other working environments
• farm houses and by clients in hotels, motels and other residenti type environments
• bed and breakfast type environments;
• catering and similar non-retail applications

- If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, its service agent or similar qualify persons in order to avoid a hazard.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

- A specially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a specially grounded socket of 16 amperes. If there is no such socket in your house, please have it installed by an authorized electrician.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazard involved. Children shall not play with the appliance. Cleaning and user maintenance, shall not be made by children without supervision.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified persons in order to avoid a hazard.

Old and out-of-order fridges

• If your old fridge has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.
• Old fridges and freezers contain isolation material and refrigerant with CFC. Therefore, take care not to harm environment when you are discarding your old fridges.

Symbol of a trash bin crossed with no text or labels

Please ask your municipal authority about the disposal of the WEEE for the reuse, recycle and recovery purposes.

Notes:

• Please read the instruction manual carefully before installing and using your appliance. We are not responsible of the damage occurred due to misuse.
• Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.
• This appliance is produced to be used at houses and it can only be used in house and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for the losses to be occurred.
• This appliance is produced to be used in houses and it is only suitable for cooling / storing foods. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for the losses to be occurred in the contrary case.

Safety warnings

• Do not use multiple receptacles or extension cord.
• Do not plug in damaged, torn or old plugs.
• Do not pull, bend or damage the cord.

Illustration of three hands performing a manual tool manipulation (no text or symbols present)

• This appliance is designed for use by adults, do not allow children to play with the appliance or let them to hang over the door.
• Do not plug-in or out the plug from the receptacle with wet hands to prevent electrocution!
• Do not place glass bottles or beverage cans in the freezer department. Bottles or cans may explode.
• Do not place explosive or flammable material in your fridge for your safety. Place drinks with higher alcohol amount vertically and by closing their necks tightly in the fridge department.
• When taking ice made in the freezer department, do not touch it, ice may cause ice burns and/or cuts.

Cartoon illustration of a character inside a refrigerator with arms and legs (no text or symbols)

Illustration of a hand holding a smiling face, a crossed-out prohibition symbol, and a small figure emerging from the right (no text or symbols present)

Simple line drawing of two bottles and a glass with bubbles, no text or symbols present

- Do not touch frozen goods with wet hands! Do not eat ice-cream and ice cubes immediately after you take them out of the freezer department!

- Do not re-freeze the frozen goods after being melted. This may cause health issues like food poisoning.

- Do not cover the body or top of fridge with lace. This affects the performance of your fridge.

- Fix the accessories in the fridge during transportation to prevent damage to accessories.

Installing and operating your fridge

Before starting to use your fridge, you should pay attention to the following points:

- Operating voltage for your fridge is 220-240 V at 50Hz.

• We do not take the responsibility of the damages that occur due to ungrounded usage.

- Place your fridge in a place that it would not be exposed to direct sunlight.

- Your appliance should be at least 50 cm away from stoves, Gas ovens and heater cores, and should be at least 5 cm away from electrical ovens.

- Your fridge should never be used outdoors or left under the rain.

- When your fridge is placed next to a deep freezer, there should be at least 2 cm between them to prevent humidity on the outer surface.

- Do not place anything on your fridge, and install your fridge in a suitable place so that at least 15 cm is available on the upper side.

Cartoon illustration of a distressed container with arms and legs, holding a box labeled 'KG' (no text or symbols beyond the label)

- The adjustable front legs should stabilized in an appropriate height to allow your fridge operate in a stable and proper way. You can adjust the legs by turning them clockwise (or in the opposite direction). This should be done before placing food in the fridge.

- Before using your fridge, wipe all parts with warm water added with a tea spoonful of sodium bicarbonate, and then rinse with clean water and dry. Place all parts after cleaning.

• Install the distance adjustment plastic (the part with black vanes at the rear) by turning it 90^ as shown in the figure to prevent the condenser from touching the wall.

Diagram showing two curved heat exchanger-like structures with internal components and directional arrows indicating flow or movement (no text or symbols)

Before Using your Fridge

- When it is operated for the first time or after transportation, keep your fridge in the upright position for 3 hours and plug it on to allow efficient operation. Otherwise, you may damage the compressor.

Simple line drawing of a hand holding a smiling emoji on a rounded square (no text or symbols)

- Your fridge may have a smell when it is operated for the first time; the smell will fade away when your fridge starts to cool.

PART 2. THE VARIOUS FUNCTION AND POSSIBILITIES

Thermostat Setting

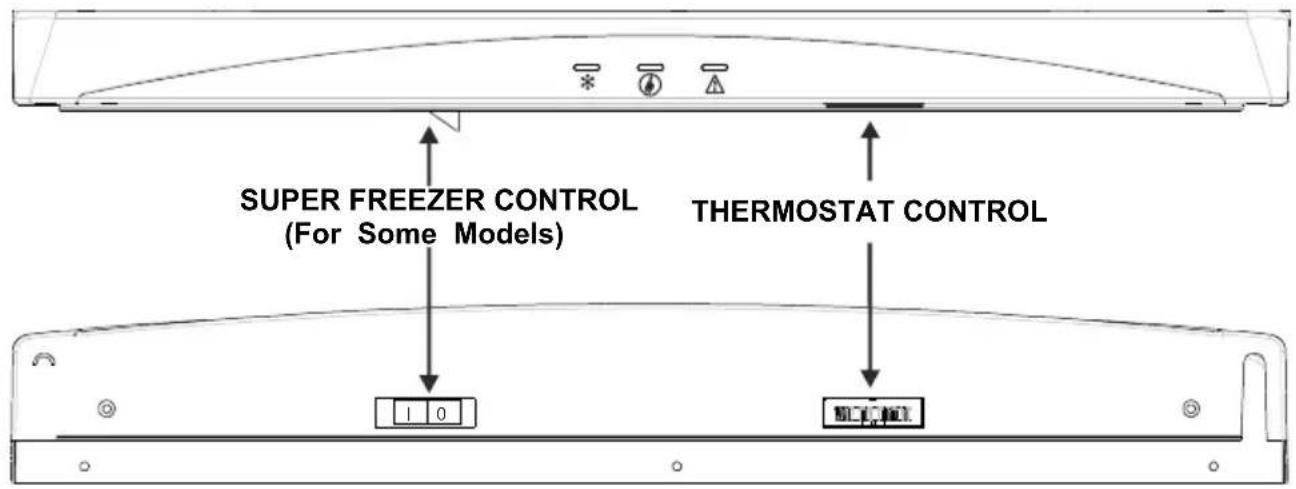

FREEZER & REFRIGERATOR THERMOSTAT

SUPER FREEZER CONTROL (For Some Models) THERMOSTAT CONTROL

Freezer thermostat automatically regulates the inside temperature of the compartments. By rotating the knob from position 1 to 5, colder temperatures can be obtained.

Important note: Do not try to rotate knob beyond 1 position it will stop your appliance.

Freezer & Refrigerator Thermostat Setting;

• : No cooling. Internal light will be OFF;

- Green lamp " will light;

- Red lamp " " will light a certain duration after you set "•" position.

1 - 2 : For short-term storage of food in the freezer compartment, you can set the knob between minimum and medium position.

3-4: For long-term storage of food in the freezer compartment, you can set knob medium position.

5 : For freezing the fresh food. The appliance will work longer. So after you get the cold condition you must position to previous position.

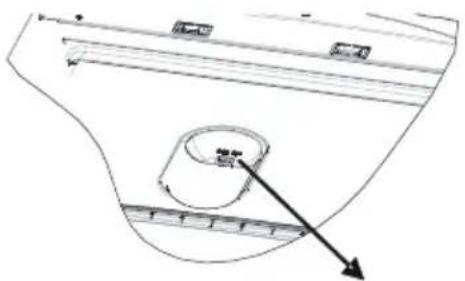

Super freeze and low ambient switch (In some models)

Technical line drawing of a mechanical component with a circular feature and directional arrow (no text or symbols)

low ambient switch

0 : OFF Position.

I: ON Position.

a) Super freezing: If ambient temperature is more than 18^ C , This switch can be used as superfreeze switch.

Super freeze switch should be used for freezing the fresh food or when the RED lamp on the head panel is ON. (RED lamp on the head panel becomes ON when there is insufficient cooling).

The appliance will work longer when you activate this switch. So after you get the cold condition (or the Red lamp on the head panel is off) you must return to previous position.

At the ambient temperature more than 18^ , if superfreezing function doesn't want to be used, it must always be set to OFF position.

b) Low ambient performance: If ambient temperature is less than 18^ C , this switch can also be used as a low ambient switch for good low ambient performance. In low ambient temperatures, this switch heats the fridge part to prevent extra cooling / freezing.

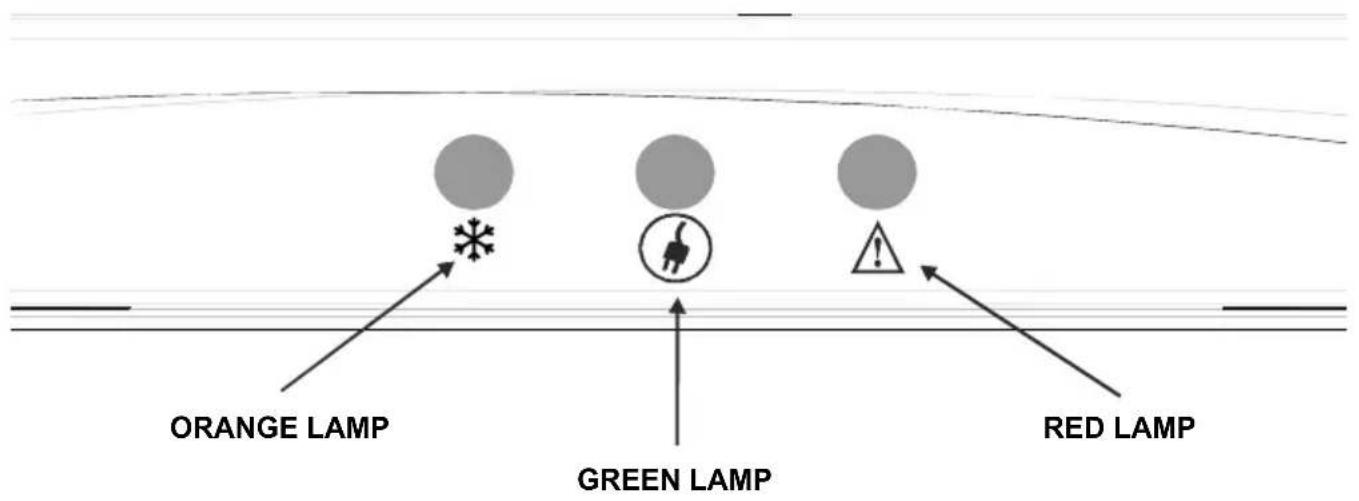

Display panel

ORANGE LAMP GREEN LAMP RED LAMP

ORANGE LAMP: When the "Super Switch" operation is on (Super Switch is on-1 position), the orange lamp will turn on.

GREEN LAMP: When the appliance is connected to the power supply, the green lamp on the display panel will turn on automatically.

RED LAMP: When the freezer compartment is not cold enough, the red lamp will turn on. Set the super switch "1" position until the red lamp is off. After you get the cold condition you must position to "0" position.

Turning On The Appliance

Once the appliance has been connected to the power supply make sure that the GREEN lamp is on. Then turn the thermostat dial to position "5" (max position) and switch the super switch ON until the RED lamp is off (Note that; for best internal temperature the indicator in the thermostat should be positioned between 2 and 4.)

• When you first switch on the appliance, for starting a suitable cooling, the appliance should work with in 24 hours continuously until it cools down to sufficient temperature.
• In this time do not open the door so often and place a lot of food inside the appliance.
• If the unit is switched off or unplugged, you must allow at least 5 minutes before restarting or re-plugged the unit in order not to damage the compressor.

Accessories

Ice tray

• Fill the ice tray with water and place in freezer compartment.
  • After the water completely turned into ice, you can twist the tray as shown below to get the ice cube.

Line drawing of a container being inserted into a tray with circular wells (no text or symbols)

Illustration of hands holding a grid-like object with curved arrows indicating rotation (no text or symbols)

Illustration of two hands holding teeth with a crossed-out black symbol (no text or labels)

Bottle holder (Only some models)

- In order to prevent the bottles to slip or fall over you can use the bottle holder. You can also prevent making noise that will be done when you open or close the door.

Line drawing of a 3D rectangular mechanical part with internal slots (no text or symbols)

Simple line drawing of a 3D rectangular object with a slot, no text or symbols present

Simple line drawing of a bottle mounted on a base (no text or symbols)

Line drawing of a plastic bottle mounted on a rectangular tray (no text or symbols)

Line drawing of a bottle placed on a tray with a side tab (no text or symbols)

All written and visual descriptions in the accessories may vary according to the appliance model.

PART 3. ARRANGING FOOD IN THE APPLIANCE

Refrigerator Compartment

• To reduce humidity and consequent increase of frost never place liquids in unsealed containers in the refrigerator. Frost tends to concentrate in the coldest parts of the evaporator and in time will require more frequent defrosting.
• Never place warm food in the refrigerator. Warm food should be allowed to cool at room temperature and should be arranged to ensure adequate air circulation in the refrigerator compartment.
• Nothing should touch to refrigerator back wall as it will cause frost and the packages can stick here. Do not open the refrigerator door too frequently.
• Arrange the meat and cleaned fish (wrapped in packages or sheets of plastic) which you will use in 1-2 days.
• You can put the fruits and vegetables into crisper without packing.

Freezer Compartment

• The use of freezer is, storing of deep-frozen or frozen food for long periods of time and making ice cubes.
• Do not put fresh and warm food to the freezer door shelves to be frozen. Only use for storage of frozen food.
• Do not put fresh and warm food with frozen food side by side as it can thaw the frozen food.
• While freezing fresh food (i.e. meat, fish and mincemeat) divide them in parts you will use in one time.

- For storing the frozen food; the instructions shown on frozen food packages should always be followed carefully and if no information is provided food should not be stored for more than 3 months from the purchased date.

- When buying frozen food ensure that these have been frozen at suitable temperatures and that the packing is intact.

- Frozen food should be transported in appropriate containers to maintain the quality of the food and should be returned to the freezing surfaces of the unit in the shortest possible time.

- If a package of frozen food shows the sign of humidity and abnormal swelling it is probable that it has been previously stored at an unsuitable temperature and that the contents have deteriorated.

- The storage life of frozen food depends on the room temperature, thermostat setting, how often the door is opened, the type of food and the length of time required to transport the product from the shop to your home. Always follow the instructions printed on the package and never exceed the maximum storage life indicated.

- Use the fast freezing shelf to freeze home cooking (and the food which is wanted to freeze) more quickly because of the freezing room's greater freezing power. Fast freezing shelves are the middle drawers of the freezer compartment (see in page 16 - 17).

PART 4. CLEANING AND MAINTENANCE

• Make sure to unplug the fridge before starting to clean it.
- Do not wash your fridge by pouring water.
- You can wipe the inner and outer sides with a soft cloth or a sponge using warm and soapy water.

Cartoon illustration of a smiling refrigerator with sunglasses and a mortar, giving thumbs up (no text or symbols)

- Remove the parts individually and clean with soapy water. Do not wash in washing machine.

• Never use flammable, explosive or corrosive material like thinner, gas, acid for cleaning.

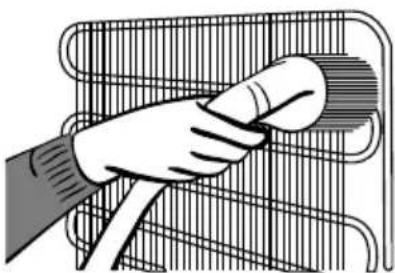

• You should clean the condenser with broom at least once a year in order to provide energy saving and increase the productivity.

Simple line drawing of a hand holding a smiling face emoji on a square (no text or symbols)

Cartoon illustration of a hand washing clothes next to a refrigerator (no text or symbols)

Cartoon illustration of a smiling refrigerator with hands cleaning it, accompanied by a bottle and cup (no text or symbols)

Line drawing of a multi-tiered refrigerator with red diagonal lines indicating internal structure (no text or symbols)

Cartoon illustration of a smiling rectangular character with arms raised, accompanied by two baby bottles nearby (no text or symbols)

Illustration of a hand cleaning a metal grate (no text or symbols)

Make sure that your fridge is unplugged while cleaning.

Defrosting refrigerator compartment

- Defrosting occurs fully automatically in refrigerator compartment during operation; the defrosted water collected by the evaporating tray and evaporates automatically.

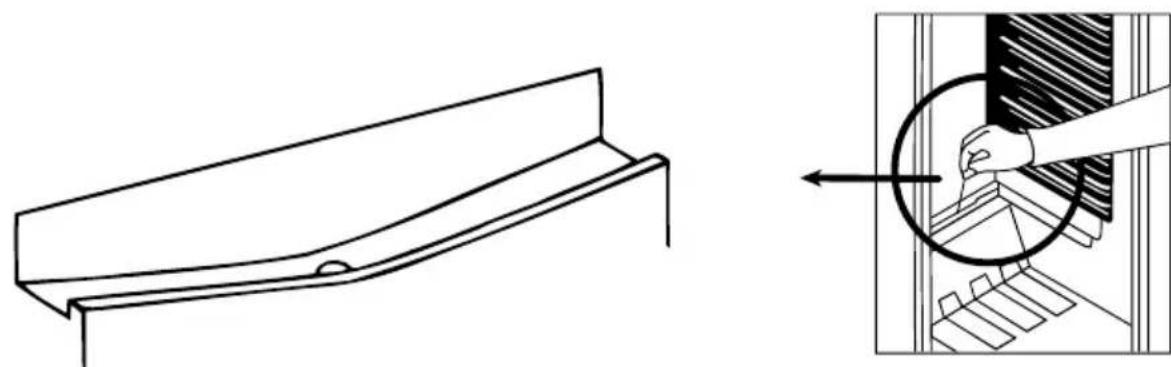

- The evaporating tray and water drain hole (back of the refrigerator crisper shelf) should be cleaned periodically to prevent the water from collecting on the bottom of the refrigerator instead of flowing out.

Technical line drawing of a mechanical component with an inset showing a magnified view of a circular feature (no text or symbols)

Defrosting Freezer compartment

- The frost, which covers the shelves of the freezer compartment, should be removed periodically.

- Do not use sharp metal objects for this operation. They could puncture the refrigerator circuit and cause irreparable damage to the unit. Use the plastic scraper provided.

- When there is more than 5 mm of frost on the shelves, defrosting must be done.

- Before defrosting operation, place the frozen food in a cool place after wrapping them in sheets of newspaper in order to obtain its temperature steady for long time.

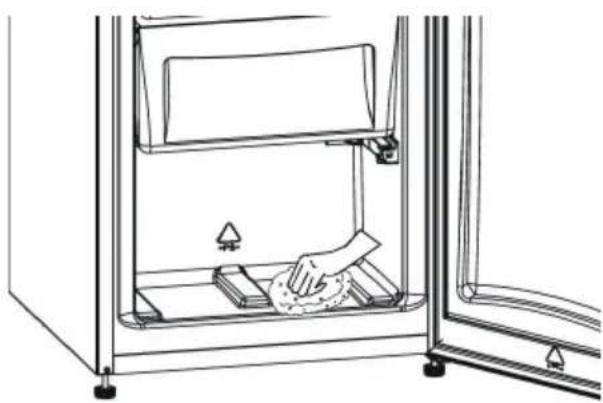

• To accelerate the defrosting process place one or more basins of warm water in the freezer compartment.

Line drawing of a kitchen appliance interior showing a hand cleaning a tray with a cloth (no text or symbols)

- Dry the inside of the compartment with a sponge or a clean cloth.

- Once the unit has been defrosted, place the food into freezer and remember to consume them in a short period of time.

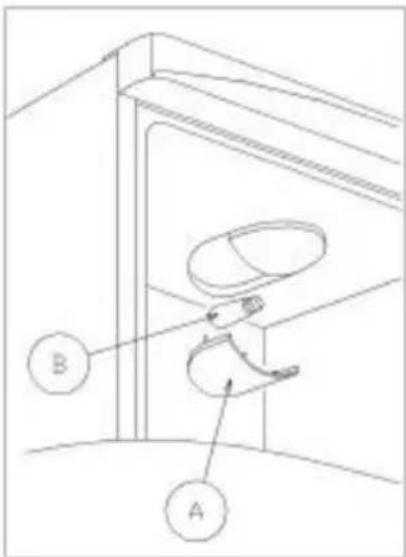

Replacing the Refrigerator Light Bulb

1. Unplug the unit from the power supply,
2. Remove the refrigerator light cover (A) by pressing the hooks placed both sides of the cover.
3. Change the present light bulb (B) with a new one (not more than 15 W).
4. Place the light cover in its place and plug the unit.

Technical diagram showing a mechanical assembly with labeled parts A and B, likely illustrating a gear or component assembly.

PART-5. TRANSPORTATION AND CHANGING OF INSTALLATION POSITION

Transportation and Changing of Installation Position

• Original package and foam may be kept for re-transportation (optionally).
• You should fasten your fridge with thick package, bands or strong cords and follow the instructions for transportation on the package for re-transportation.

- Remove movable parts (shelves, accessories, vegetable bins etc.) or fix them into the fridge against shocks using bands during re-positioning and transportation.

- Carry your fridge in the upright position.

Simple line drawing of two children playing a large board (no text or symbols)

Repositioning the Door

• It is not possible to change the opening direction of your fridge door, if the door handles on your fridge are installed from the front surface of the door.
• It is possible to change the opening direction of the door on models without any handles.
• If the door opening direction of your fridge may be changed, you should contact the nearest Authorized Service to have the opening direction changed.

PART-6. BEFORE CALLING YOUR AFTER SALES SERVICE

If your refrigerator is not working properly, it may be a minor problem, therefore check the following, before calling an electrician to save time and money.

What to do if your appliance does not operate;

Check that;

• There is no power, (Green lamp is off)
• The general switch in your home is disconnected,
• The thermostat setting is on «•» position,
• The socket is not sufficient. To check this, plug in another appliance that you know which is working into the same socket.

What to do if your appliance performs poorly; (Red lamp is on)

Check that;

• You have overloaded the appliance,
• The thermostat setting is "1" position (if so set the thermostat dial suitable value)
  • The doors are closed perfectly,
• There is no dust on the condenser,
• There is enough place at the rear and side walls.

If there is noise;

The cooling gas which circulates in the refrigerator circuit may make a slight noise (bubbling sound) even when the compressor is not running. Do not worry this is quite normal. If these sounds are different check that;

• The appliance is well levelled
- Nothing is touching the rear.
- The stuffs on the appliance are vibrating.

If there is water in the lower part of the refrigerator,

Check that;

- The drain hole for defrost water is not clogged(Use defrost drain plug to clean the drain hole)

If your fridge is not cooling enough;

Your fridge is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. We do not recommend operating your fridge out of stated temperatures value limits in terms of cooling effectiveness.

Climate Class Ambient Temperature (°C)
T	Between 16 and 43 (°C)
ST Between 16 and 38 (°C)
N	Between 16 and 32 (°C)
SN Between 10 and 32 (°C)

Recommendations

• If the appliance is not used for long time (for example during the summer holidays) unplug and clean the appliance and leave the door open to prevent the formation of mildew and smell.
• To stop the appliance completely, unplug from main socket (for cleaning and when the doors are left open)

Conformity Information

• Normal Class is defined for the environment temperatures between 16°C and 32°C in accordance with the TS EN ISO 15502 Standards.
• The appliance is designed in compliance with the EN15502, IEC60335-1 / IEC60335-2-24, 2004/108/EC standards.

Tips for saving energy

1- Install the appliance in a cool, well ventilated room, but not in direct sunlight and not near heat source (radiator, cooker.. etc). Otherwise use an insulating plate.
2- Allow ward food and drinks to cool down outside the appliance.
3- When thawing frozen food, place it in the refrigerator compartment. The low temperature of the frozen food will help to cool the refrigerator compartment when it is thawing. So it causes energy saving. If the frozen food is put out, it causes wastage of energy.
4- When placing, drinks and slops they must be covered. Otherwise humidity increases at the appliance. Therefore the working time gets longer. Also covering drinks and slops helps to save smell and taste.
5- When placing food and drinks, open the appliance door as briefly as possible.
6- Keep close the covers of any different temperature compartment in the appliance (crisper, chiller ...etc).
7- Door gasket must be clean and pliable. Replace gaskets if worn.

PART- 7.

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS

Diagram of a device with numbered parts labeled 2 and 4, showing internal components and structure.

Labeled diagram of a refrigerator interior with numbered parts for identification

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.

1) Display panel
2) Thermostat dial
3) Refrigerator shelf
4) Refrigerator lamp&cover
5) Lamp switch
6) Meat tray
7) Crisper shelf

Labeled diagram of a refrigerator interior with numbered parts for identification

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.

1) Display panel
2) Thermostat dial
3) Refrigerator shelf
4) Refrigerator lamp&cover
5) Lamp switch
6) Meat tray
7) Crisper shelf
8) Crisper
9) Top shelf
10) Top shelf cover
11) Egg holder
12) Bottom shelf
13) Bottle holder
14) Ice tray
15) Freezer room cover
16) Freezer comp. drawer
17) Freezer comp. bottom drawer
18) Levelling foot
19) Kick plate

ELECTRICAL CONNECTION (FOR UK TYPE PLUG)

For your safety please read the following information

Warning: This appliance must be earthed.

This appliance operates from 220-240 volts and should be protected by a 13 amp fuse in the plug.

The appliance is supplied with a standard 13 amp 3-pin mains plug fitted with a 13-amp fuse. Should the fuse require replacement, it must be replaced with a fuse rated at 13 amp and approved to BS1362.

If the mains plug which is fitted is unsuitable for the socket outlet in your home or is removed for any other reason, please follow the instructions below on how to wire a 13 amp 3 pin plug..

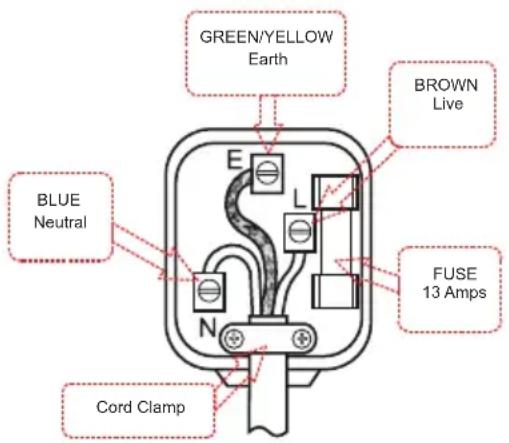

How to wire a 13 amp plug.

Important

The wires in the mains lead on this appliance are coloured in accordance with the following code:

Green and Yellow - Earth

Blue – Neutral

Brown – Live

GREEN/YELLOW Earth BROWN Live BLUE Neutral FUSE 13 Amps Cord Clamp

As the colours may not correspond with the markings identifying the terminals in your plug proceed as follows.

The green and yellow wire must be connected to the terminal in the plug which is marked with the letter E or with the earth symbol 12 or coloured green and yellow.

The blue wire must be connected to the terminal marked N.

The brown wire must be connected to the terminal marked L.

You must make sure the lead is firmly secured under the cord clamp.

Inhalt

BEVOR SIE DAS GERÄT BENUTZEN 20

Simple line drawing of a trash bin with no text or symbols

Illustration showing four different techniques for using a tool, no text or symbols present

Cartoon illustration of a person inside a refrigerator with arms and legs, showing a wide smile (no text or symbols)

Safety warning illustration showing a hand holding a prohibition symbol, a smiling face icon, and a crossed-out hand gesture.

Simple line drawing of two bottles and a glass with bubbles, no text or symbols present

Cartoon illustration of a distressed container character holding a box labeled 'KG', with no readable text or symbols.

Vor Inbetriebnahme

Simple line drawing of a hand holding a smiling square character (no text or symbols)

TEIL-2. DIE BEDIENUNGSELEMENTE

Technical line drawing of a mechanical component with a circular base and directional arrow (no text or symbols)

SUPER-FROST-SCHALTER

0 : AUS.

I: EIN.

Cartoon illustration of a smiling refrigerator with hands giving thumbs up and a bowl holding a brush (no text or symbols)

Cartoon illustration of a smiling refrigerator with a hand holding a cup, next to a bottle and a mug (no text or symbols)

Line drawing of a multi-tiered refrigerator with red crosshair lines indicating internal structure (no text or symbols)

Cartoon illustration of a smiling rectangular box with arms and legs, accompanied by two small puffer-like objects (no text or symbols)

Illustration of a hand cleaning a wire cage (no text or symbols)

Technical line drawing of a structural component and its magnified cross-section showing a hand holding a circular object (no text or symbols present)

Line drawing of a door with an open lid and a hand cleaning the interior (no text or symbols)

Technical diagram showing a mechanical assembly with labeled components A and B, likely illustrating a gear or cam mechanism.

TEIL-5. TRANSPORT UND STANDORTWECHSEL

Simple line drawing of two children playing a large block together (no text or symbols)

Labeled diagram of a refrigerator interior with numbered parts for identification

Labeled diagram of a refrigerator interior with numbered parts for identification
