USER MANUAL RIFF70301NMA NORDMENDE

Safety Instructions....2

Recommendations....3

Switching On the Appliance....4

HOW TO OPERATE THE APPLIANCE....5

Thermostat Setting 5

Combi Models with Single Compressor 5

Display Panel....5

Super Freeze and low ambient switch....6

Turning On The Appliance 6

Accessories 7

Ice tray 7

Bottle holder....7

FOOD STORAGE IN THE APPLIANCE....7

Refrigerator Compartment....7

Freezer Compartment 7

CLEANING AND MAINTENANCE 8

Defrosting the Refrigerator Compartment 9

Defrosting the Freezer Compartment 9

Replacing the Refrigerator Light Bulb....10

SHIPMENT AND REPOSITIONING....10

BEFORE CALLING YOUR AFTER SALES SERVICE.... 11

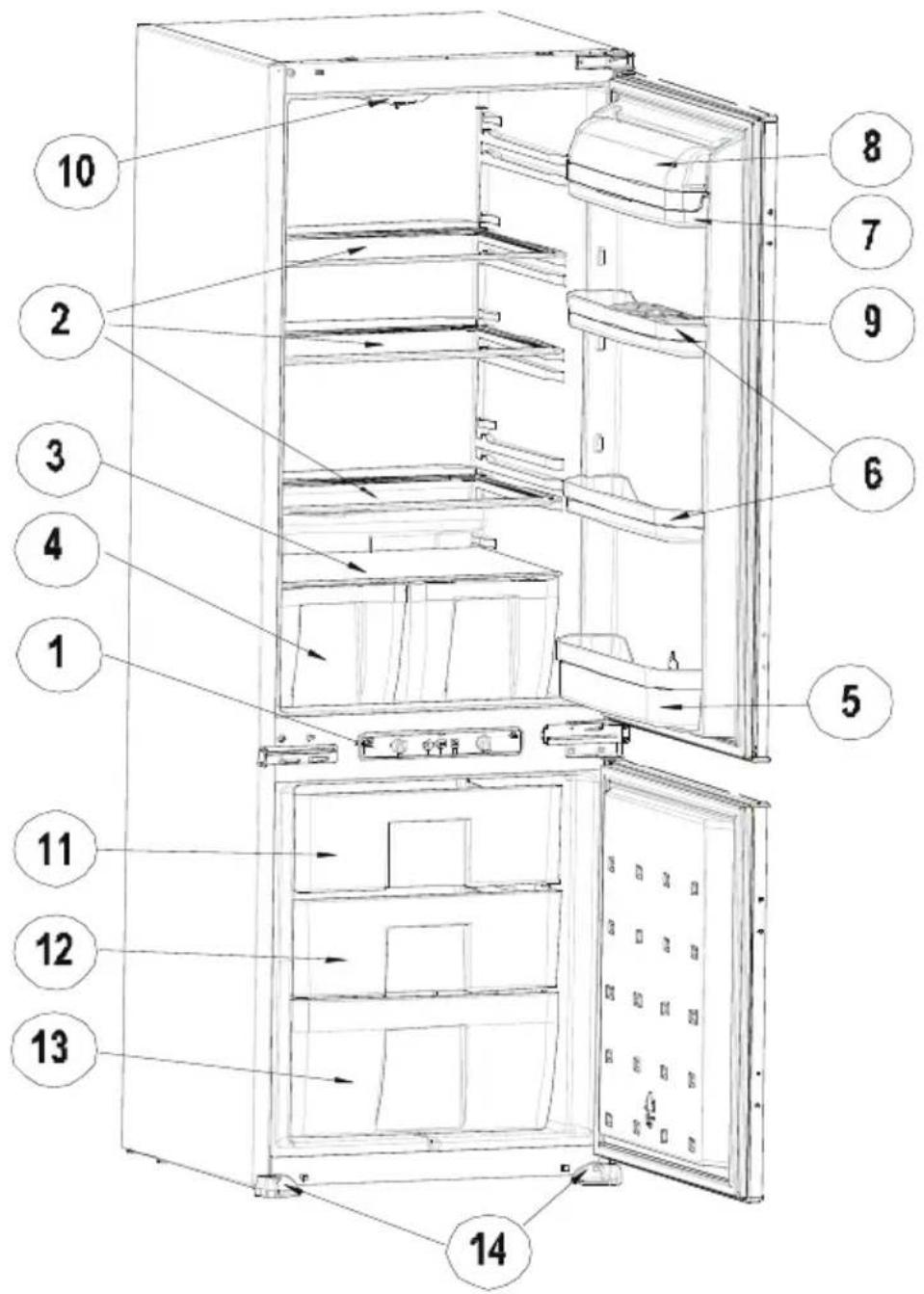

PARTS OF THE APPLIANCE AND THE COMPARTMENTS ...... 13

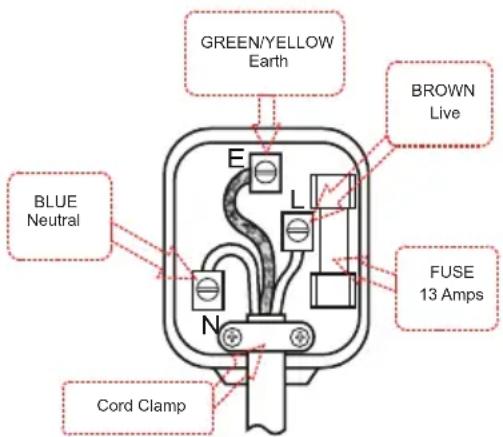

ELECTRICAL CONNECTION (FOR UK TYPE PLUG)....14

BEFORE USING THE APPLIANCE

Safety Instructions

- If the model contains R600a-see name plate under refrigerant (the coolant isobutene), naturals gas that, is very environmentally friendly but also combustible. When transporting and installing the unit care must be taken to ensure that none of the refrigeration circuit components become damaged. In the event of damage avoid naked flames or ignition sources and ventilate the room in which the unit is placed for a few minutes.

Warning: Keep ventilation openings in appliance enclosure or in structure for building in, clear of obstruction.

• Do not use mechanical devices or other artificial means to accelerate process.
• Do not use electrical appliances in the refrigerator or freezer compartment of the appliance.
• If this appliance is to replace an old refrigerator with a lock; break or remove the lock as a safety measure before storing it, to protect children while playing might lock themselves inside.
• Old refrigerators and freezers contain insulation gases and refrigerant, which must be disposed of properly. Entrust the disposal of a scrap unit categorically to competence of your local waste disposal service and contact your local authority or your dealer if you have any questions. Please ensure that the pipe of work of your refrigerating unit does not get damaged prior to being picked-up by the relevant waste disposal service.

Important note:

- Please read this booklet before installing and switching on this appliance. The manufacturer assumes no responsibility for incorrect installation and usage as described in this booklet.

Conformity Information

• Tropical Class is defined for the environment temperatures between 16°C and 43°C in accordance with the TS EN ISO 15502 Standards.
• The appliance is designed in compliance with the EN15502, IEC60335-1 / IEC60335-2-24, 2004/108/EC standards.

Symbolic illustration of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

Please ask your municipal authority about the disposal of the WEEE for the reuse, recycle and recovery purposes.

Recommendations

! Warning: Do not use mechanical devices or other artificial means to accelerate the defrosting. process. Do not use electrical appliances in the food storage of the appliance. Keep the appliance ventilation openings free. Do not damage the refrigerator's refrigerant circuit.

• Do not damage the refrigerant circuit.

- Do not allow children to play with the appliance. Children must never sit in the drawers or hang on the door.

- Do not use adapters or shunts, which could cause overheating or burning.

• Do not plug old, warped power supply cables.

Illustration of three hands performing a cable or wire manipulation technique (no text or symbols present)

- Do not twist and bend the cables, and keep them away from hot surfaces.

• Do not plug the power supply with wet hands.

- Your old appliances contain insulation gases and refrigerant that must be disposed of properly. Please ensure that the refrigerant circuit is not damaged before the appliance is taken away for disposal.

• After installation make sure that the power cable is not trapped underneath appliance.

- Do not defrost the appliance with other electrical devices (i.e. hair dryer) or other artificial means, and do not use sharp metal objects to remove the ice on the freezer, as this could cause damage to the refrigerant system.

- Do not operate any electrical appliances inside the refrigerator or freezer.

- Do not place bottles (glass or tin) containing liquids (especially sparkling liquids) into the freezer as they could cause the bottle to burst during freezing.

Cartoon illustration of an electric plug with a sad face and plug, showing a warning or shock (no text or symbols)

Cartoon illustration of a person inside a door, showing arms and legs (no text or symbols)

Illustration of a hand holding a prohibition sign, a smiling face icon, and a crossed-out hand (no text or symbols)

Simple line drawing of two bottles and a glass with bubbles, no text or symbols present

- Do not touch the cooling surfaces while the appliance operates, especially with wet hands, because the skin may stick to cold surfaces.

• Do not eat ice, which has just been removed from the freezer.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they don't play with the appliance.

- If the supply cord is damaged it must be replaced by the manufacturer or service agent or appointed qualified person.

• The appliance is not intended for use by people (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they don't play with the appliance.
• If the supply cord is damaged it must be replaced by the manufacturer or service agent or appointed person.

Switching On the Appliance

Simple line drawing of a hand reaching toward a smiling emoji-shaped object (no text or symbols)

KG with the

avoid a

• Before switching on, place the appliance on upright position and wait at least three hours without moving the appliance. This will give the refrigerant circuit time to settle and operate efficiently.
• Clean the appliance thoroughly, especially in the interior, before use (See Cleaning and Maintenance).
• Installation of the appliance and electrical connections must be carried out by a qualified technician, in accordance. Installation Manual and local regulations.
• Installation procedure into the kitchen unit is given in the Installation Manual. This product is intended to be used in proper kitchen units only.
• The appliance must be connected with a properly installed fused socket. Power supply (AC) and voltage at the operating point must with the details on the name plate of the appliance (name plate is located on the inside left of the appliance).
• Insert the plug into a socket with an efficient ground connection. If the socket has no ground contact or the plug does not match, we suggest you to call an authorized electrician for assistance.
• If the supply cord is damaged, It must be replaced by an appointed service agent or similarly qualified person in order hazard
• Manufacturer is not responsible for failure to complete the ground connection as described in this booklet.
• There can be an odour when you first switch on the appliance. It will disappear after the appliance starts to cool.

HOW TO OPERATE THE APPLIANCE

Thermostat Setting

Combi Models with Single Compressor

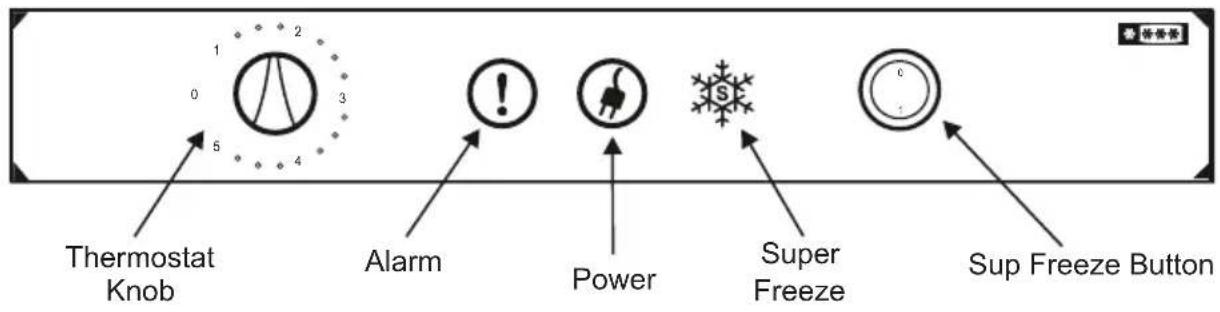

Thermostat Knob Alarm Power Super Freeze Sup Freeze Button

The freezer and refrigerator thermostats automatically regulates the inside temperature of the compartments. By rotating the knob from position 1 to 5, colder temperatures can be obtained. "0" position shows thermostat is closed and no cooling will be available.

Freezer Thermostat Setting;

0 : The appliance is switched off.

1 - 2 : For short-term storage of food in the freezer compartment, you can set the knob between minimum and medium position.
3 - 4 : For long-term storage of food in the freezer compartment, you can set knob to medium position.
5: For freezing the fresh food. The appliance will run for colder temperatures.

Freezing with Super Freeze (SF button): Press the SF button, the freezer will start to run continuously with maximum performance (observe that the SF lamp will light on orange when you turn on the SF button). The freezer temperature will decrease and the appliance will switch to to the lowest temperature.

Place the food to be frozen quickly inside the freezer, preferably in the top drawers. Once the food is frozen, you must turn off the SF button and set the thermostat knob to desired position.

For 3200 A+ models

The freezer compartment, marked with the * symbol, is used for storing frozen food and freezing fresh or cooked food. It also allows the making of ice cubes. The upper shelf of the freezer, marked with the * symbol, is especially suitable for storing ice cream or frozen food with a short storage time.

Display Panel

Super freeze light (SF light): Lights orange, when the SF button is turned on.

Power light: Lights green automatically, when the appliance is connected to the power supply.

Alarm light: Lights red, when the temperature rises to a critical point in side the freeze.

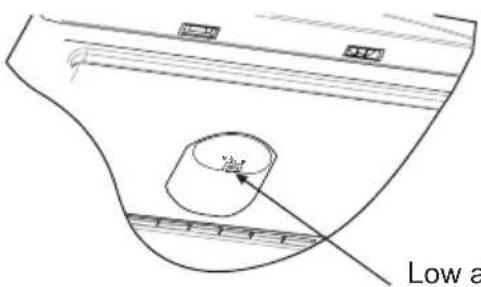

Super Freeze and low ambient switch (In some models)

Low a

Low ambient

temperature control switch

0 : OFF position.

I : ON position.

a) Super freezing : If ambient temperature is more than 18 °C, This switch can be used as superfreeze switch.

For freezing the fresh food or when the RED lamp is light. The appliance will work longer. So after you get the cold condition (or the Red lamp is off) you must position to previous position.

b) Low ambient performance: If ambient temperature is less than 18^ C, This switch can be used for good low ambient performance.

At the ambient temperature is more than 18^ , If superfreezing function doesn't want to be used, it must be set off position.

Please not that:

a) For energy saving do not switch on "I" position, If you do not need.

b) If red lamp continuously light for more than 48 hours, Please close switch and call service.

Turning On The Appliance

Once the appliance has been connected to the power supply make sure that the green lamp is on. Then turn the refrigerator thermostat dial and the freezer thermostat dial to positions between 2-4. (Note that; for best internal temperature the indicator in the refrigerator and freezer thermostat should be positioned between 2 and 4.)

- When you first switch on the appliance, for starting a suitable cooling should work 24 hours continuously until it cools down to sufficient temperature.

- During this time do not open the door frequently and do not place a lot of food inside the appliance.

- If the unit is switched off or unplugged, you must allow at least 5 minutes before restarting or re-plugging the unit in order not to damage the compressor.

Accessories

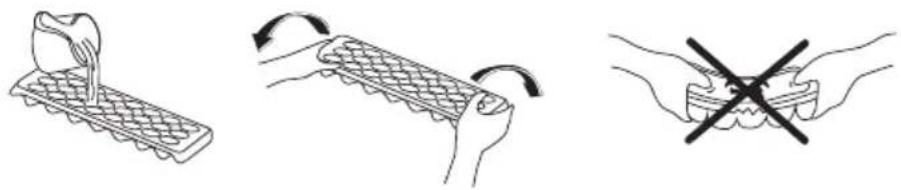

Ice tray

• Fill the ice tray with water and place in freezer compartment.

• After the water completely turned into ice, you can twist the tray as shown below to get the ice cube.

Illustration showing three different hand positions: a bowl being placed on a tray, a hand holding a grid with arrows indicating rotation, and a hand crossed out with a black 'X' symbol (no text or symbols present)

Bottle holder

In order to prevent the bottles to slip or fall over you can use the bottle holder. You can also prevent making noise that will be done when you open or close the door.

Line drawing of a bottle mounted on a base (no text or symbols)

FOOD STORAGE IN THE APPLIANCE

Refrigerator Compartment

Refrigerator compartment is used for storing fresh food for few days.

- Do not place food in direct contact with the rear wall of the refrigerator compartment. Leave some space around food to allow circulation of air.

• Do not place hot food or evaporating liquid in the refrigerator.

• Always store food in closed containers or wrapped.

- To reduce humidity and avoid formation of frost, never place liquids in unsealed containers in the refrigerator.

- Meat of all types, wrapped in packages, is recommended to be placed on the glass shelf just above the vegetable bin, where the air is colder.

• You can put the fruits and vegetables into crisper without packing.

- To avoid the cold air escaping, try not to open the door too often, and not leave the door open for a long time.

Freezer Compartment

Freezer compartment is used for freezing fresh foods and for storing frozen foods for the period of time indicated on packaging, and for making ice cubes.

- For freezing fresh food; wrap and seal fresh food properly, that is the packaging should be air tight and shouldn't leak. Special freezer bags, aluminium foil (heavy grade, in doubt double wrap), polythene bags and plastic containers are ideal.

- Do not allow the fresh food to be frozen to come into contact with the already frozen food.

• Always mark the date and the content on the pack and do not exceed the stated storage time.

- In case of a power failure or malfunction, the freezer compartment will maintain a sufficiently low temperature for food storage. However, avoid opening the freezer door to slow down the temperature rise within the freezer compartment.

- The maximum amount of fresh foods that can be loaded in the freezer within 24 hours is indicated on the name plate (see Freezing Capacity).

• Never place warm food in the freezer compartment.

- When purchasing and storing frozen food products; ensure that the packaging is not damaged.

- The storage time and the recommended temperature for storing frozen foods are indicated on the packaging. For storing and using, follow the manufacturer's instructions. If no information is provided, food should not be stored for more than 3 months.

- Place frozen food in the freezer compartment as soon as possible after buying it.

- Once the food is thawed, it must not be refrozen; you must cook it as quickly as possible in order to consume or to freeze once again.

- Storage: If you want to use the maximum net capacity, you can remove the drawers and store the items directly on the cooling tubes. This will enable you to make use of the entire volume of the compartment.

CLEANING AND MAINTENANCE

- Disconnect the appliance from the power supply before cleaning.

- The refrigerator compartment should be cleaned periodically using a solution of bicarbonate of soda and lukewarm water.

- Clean the accessories separately with soap and water. Do not put them in the dishwasher.

- Do not use abrasive products, detergents or soaps. After washing, rinse with clean water and dry carefully. When the cleaning operations have been completed, reconnect the plug with dry hands.

Illustration of four cartoon household items: a hand gesture, a smiling refrigerator with surprised expression, a bottle with a smile, and a refrigerator with a smiling face (no text or symbols)

Defrosting the Refrigerator Compartment

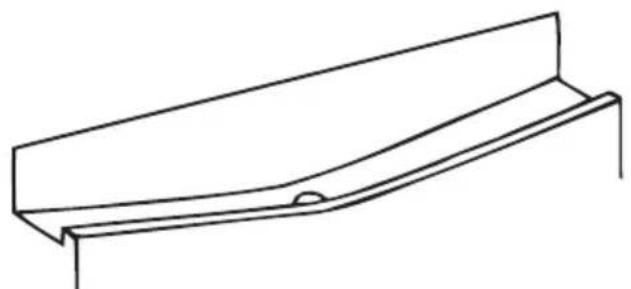

Technical line drawing of a structural component with an inset showing a magnified view of a hand holding a tool (no text or symbols present)

- Defrosting occurs automatically in refrigerator compartment during operation; the defrost water is collected by the evaporating tray and evaporates automatically.

- The evaporating tray and the defrost water drain hole should be cleaned periodically with defrost drain plug to prevent the water from collecting on the bottom of the refrigerator instead of flowing out.

• You can also pour 12 glass of the water to drain hole to clean inside.

Defrosting the Freezer Compartment

WARNING: Never use sharp metal tools, unless recommended by manufacturer, for this operation as they can damage the refrigeration circuit.

After a period of time, frost will build up in certain areas in the freezer compartment. The frost, accumulated in the freezer compartment, should be removed periodically (use the plastic scraper if available).

Complete defrosting will become necessary if the frost layer exceeds 3-5 mm to maintain the efficiency of the freezer.

- The day before you defrost, set the thermostat dial to position "5" to freeze the foods completely.

- During defrosting, frozen foods should be wrapped in several layers of paper and kept in a cool place. The inevitable rise in temperature will shorten their storage life. Remember to use these foods within a relatively short period of time.

- Set the thermostat knob to position "0" and switch off the appliance.

- Leave the door open to accelerate defrosting. Remove the defrost water from the compartment.

• This appliance is provided with a special drain system.

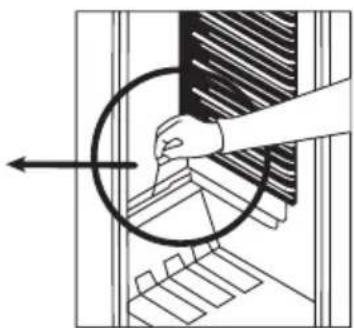

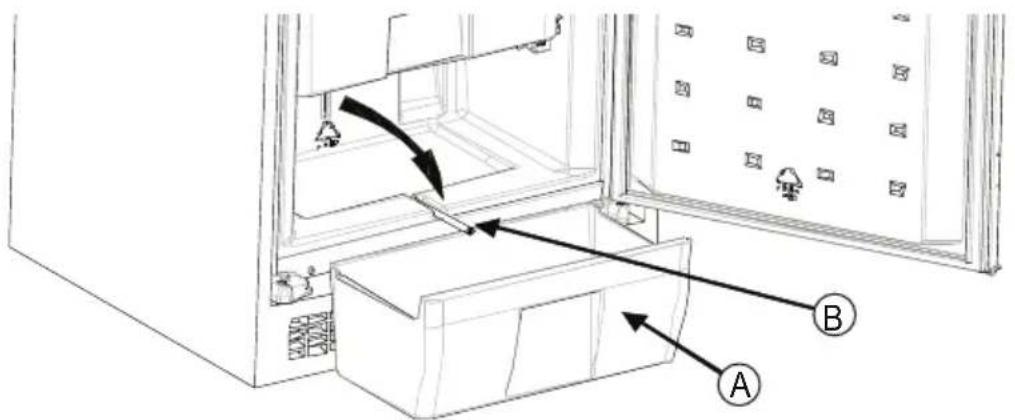

1. Pull out the bottom drawer ^(A) of the freezer compartment and put it on aligning it to the cabinet front.

2. Pull out the drain pipe ^(B) placed on the back wall of the freezer compartment. Then place it in the groove on the front side of the floor of the appliance.

Technical diagram of a refrigerator interior with labeled parts A and B, showing internal components and directional arrows.

1. If there is still water on the freezer floor, you can clear it away by using a sponge.

- Clean the interior by hand with lukewarm water and a little detergent. Never use abrasive products or aggressive cleaning agents.

- Dry the inside of the unit, plug on the mains, and set the thermostat knob to position "5". After 24 hours, reset the thermostat to the desired position.

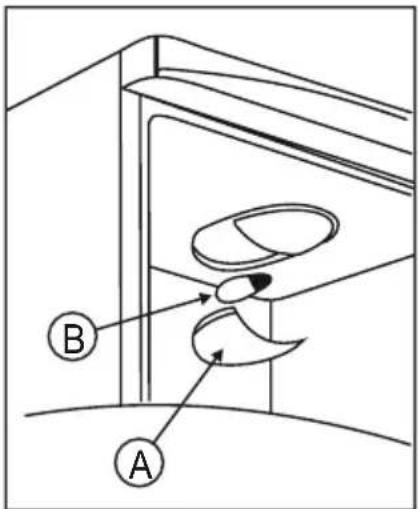

Replacing the Refrigerator Light Bulb

1. Unplug the unit from the power supply,
2. Remove the refrigerator light cover (A) by pressing the hooks placed on both sides of the cover.
3. Change the light bulb (B) with a new one (not more than 15 W).
4. Place the light cover in its place and plug the unit.

A B

PART - 5. SHIPMENT AND REPOSITIONING

- Original package and foam may be kept for re-transportation (optionally). - You should fasten your fridge with thick package, bands or strong cords and follow the instructions for transportation on the package for re-transportation.

- Remove movable parts (shelves, accessories, vegetable bins etc.) or fix them into against shocks using bands during re-positioning and transportation.

• Carry your fridge in the upright positio.

the fridge

BEFORE CALLING YOUR AFTER SALES SERVICE

If your refrigerator is not working properly, it may be a minor problem, therefore check the following.

The appliance does not operate,

Check if;

• There is a power failure,
• The mains plug is not properly plugged in, or is loose
• The thermostat setting is on position "0",
- The socket is defective. To check this, plug in another appliance that you know which is working into the same socket.

The appliance performs poorly;

Check if;

• You have overloaded the appliance,
• The doors are not closed perfectly,
- There are not enough ventilation ducts on the kitchen unit as mentioned in the Installation Manual.

If there is noise;

The cooling gas which circulates in the refrigerator circuit may make a slight noise (bubbling sound) even when the compressor is not running. Do not worry, this is quite normal. If these sounds are different check if;

• The appliance is installed firmly as described in the Installation Manual.
• The objects on the appliance are vibrating.

If there is water in the lower part of the refrigerator;

Check if;

The drain hole for defrost water is not clogged (use defrost drain plug to clean the drain hole).

If your fridge is not cooling enough;

Your fridge is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. We do not recommend operating your fridge out of stated temperatures value limits in terms of cooling effectiveness.

Climate class	Ambient Temperature (°C)
T Between 16 and 43	°C
ST Between 16 and 38	°C
N Between 16 and 32	°C
SN Between 10 and 32	°C

IMPORTANT NOTES:

- In case of a sudden power loss or disconnecting and reconnecting of the plug to the electrical socket, the compressor protective thermal element will be opened as the pressure of the gas in the cooling system of your refrigerator has not yet been balanced. 4 or 5 minutes later, your refrigerator will start to operate; this is normal.

- If you won't be using your refrigerator for a long time (such as on summer holidays), please disconnect the plug from the socket. Clean your refrigerator as per Part 4 of this document and leave the door open to prevent any humidification or odour formation.

- If there is still a problem with your refrigerator although you have followed the instructions in this book, please consult your nearest authorized service center.

- The life cycle of this product as determined and proclaimed by the Ministry of Industry (the period for making spare parts available for the product to be at functions) is 10 years.

PART - 7. PARTS OF THE APPLIANCE AND THE COMPARTMENTS

Labeled diagram of a refrigerator interior with numbered parts for identification

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.

1) Display panel
2) Refrigerator shelf
3) Crisper shelf
4) Crisper
5) Bottle shelf
6) Middle shelf
7) Butter shelf
8) Butter shelf cover
9) Egg shelf
10) Refrigerator lamp & cover
11) Freezer room cover
12) Freezer comp. drawer
13) Freezer comp. bottom drawer
14) Foot hinge

ELECTRICAL CONNECTION (FOR UK TYPE PLUG)

For your safety please read the following information

Warning: This appliance must be earthed.

This appliance operates from 220-240 volts and should be protected by a 13 amp fuse in the plug.

The appliance is supplied with a standard 13 amp 3-pin mains plug fitted with a 13-amp fuse. Should the fuse require replacement, it must be replaced with a fuse rated at 13 amp and approved to BS1362.

If the mains plug which is fitted is unsuitable for the socket outlet in your home or is removed for any other reason, please follow the instructions below on how to wire a 13 amp 3 pin plug..

How to wire a 13 amp plug.

Important

The wires in the mains lead on this appliance are coloured in accordance with the following code:

Green and Yellow - Earth

Blue – Neutral

Brown – Live

GREEN/YELLOW Earth BROWN Live BLUE Neutral FUSE 13 Amps Cord Clamp

As the colours may not correspond with the markings identifying the terminals in your plug proceed as follows.

The green and yellow wire must be connected to the terminal in the plug which is marked with the letter E or with the earth symbol 1= or coloured green and yellow.

The blue wire must be connected to the terminal marked N.

The brown wire must be connected to the terminal marked L.

You must make sure the lead is firmly secured under the cord clamp.

Inhalt

Cartoon illustration of a person with an angry face inside a plug, holding a tool, with no text or symbols present.

Illustration of three hands performing a manual cable or wire manipulation technique (no text or symbols present)

Cartoon illustration of a person inside a refrigerator with arms and legs open (no text or symbols)

Illustration of a hand holding a phone with a smiling face, another hand holding a crossed-out prohibition symbol (no text or labels)

Simple line drawing of a bottle and glass with explosion effects (no text or symbols)

Simple line drawing of a hand reaching toward a smiling emoji-shaped object (no text or symbols)

Cartoon illustration of a smiling refrigerator with sunglasses and a mortar, giving thumbs up (no text or symbols)

BEDIENUNGSANLEITUNG

Three-step illustration showing hand positioning: moving a tray with a bowl, moving a grid with arrows indicating rotation, and holding a container with a crossed-out black symbol (no text or labels)

Simple line drawing of a bottle mounted on a stand (no text or symbols)

Simple line drawing of a hand holding a smiling face next to a smiling square (no text or symbols)

Illustration of three cartoon household cleaning behaviors: refrigerator, refrigerator with cleaning tools, and door with cleaning tools (no text or symbols)

Kühlschrank abtauen

Simple line drawing of a structural beam or support with a small circular hole at one end (no text or symbols)

Diagram showing a hand pressing down on a mechanical component with a circular arrow indicating direction (no text or symbols present)

Technical diagram of a refrigerator interior with labeled parts A and B, showing internal compartments and directional arrows indicating movement.

Diagram showing a mechanical or fluid system with labeled components A and B, likely illustrating a fluid flow or mechanical process.

Simple line drawing of two children playing a large rectangular sign (no text or symbols present)

TEIL 6. BEVOR SIE DEN KUNDENDIENST RUFEN

Labeled diagram of a refrigerator interior with numbered parts for identification
